Antenna information for ESVUA92 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.66 E: 0.34 U: 133.80
L2: N: -0.70 E: 0.09 U: 139.60
L5: N: -0.67 E: 0.55 U: 139.79

GLONASS

L1: N: -0.72 E: 0.17 U: 133.62
L2: N: -0.76 E: -0.04 U: 139.68

GALILEO

E1: N: -0.66 E: 0.34 U: 133.80
E5a: N: -0.67 E: 0.55 U: 139.79
E5b: N: -0.66 E: 0.25 U: 139.61
E5: N: -0.65 E: 0.39 U: 139.68
E6: N: -0.93 E: -0.22 U: 139.99

BeiDou

E1: N: -0.66 E: 0.34 U: 133.80
E2: N: -0.63 E: 0.42 U: 133.86
E5b: N: -0.66 E: 0.25 U: 139.61
E6: N: -0.87 E: -0.17 U: 139.87

QZSS

L1: N: -0.66 E: 0.34 U: 133.80
L2: N: -0.70 E: 0.09 U: 139.60
L5: N: -0.67 E: 0.55 U: 139.79
LEX: N: -0.93 E: -0.22 U: 139.99

IRNSS

L5: N: -0.67 E: 0.55 U: 139.79

SBAS

L1: N: -0.66 E: 0.34 U: 133.80
L5: N: -0.67 E: 0.55 U: 139.79

L1

GPS: N: -0.66 E: 0.34 U: 133.80
GLONASS: N: -0.72 E: 0.17 U: 133.62
QZSS: N: -0.66 E: 0.34 U: 133.80
SBAS: N: -0.66 E: 0.34 U: 133.80

L2

GPS: N: -0.70 E: 0.09 U: 139.60
GLONASS: N: -0.76 E: -0.04 U: 139.68
QZSS: N: -0.70 E: 0.09 U: 139.60

L5

GPS: N: -0.67 E: 0.55 U: 139.79
QZSS: N: -0.67 E: 0.55 U: 139.79
SBAS: N: -0.67 E: 0.55 U: 139.79
IRNSS: N: -0.67 E: 0.55 U: 139.79

E1

GALILEO: N: -0.66 E: 0.34 U: 133.80
BeiDou: N: -0.66 E: 0.34 U: 133.80

E2

BeiDou: N: -0.63 E: 0.42 U: 133.86

E5

GALILEO: N: -0.65 E: 0.39 U: 139.68

E5a

GALILEO: N: -0.67 E: 0.55 U: 139.79

E5b

GALILEO: N: -0.66 E: 0.25 U: 139.61
BeiDou: N: -0.66 E: 0.25 U: 139.61

E6

GALILEO: N: -0.93 E: -0.22 U: 139.99
BeiDou: N: -0.87 E: -0.17 U: 139.87

LEX

QZSS: N: -0.93 E: -0.22 U: 139.99


Means

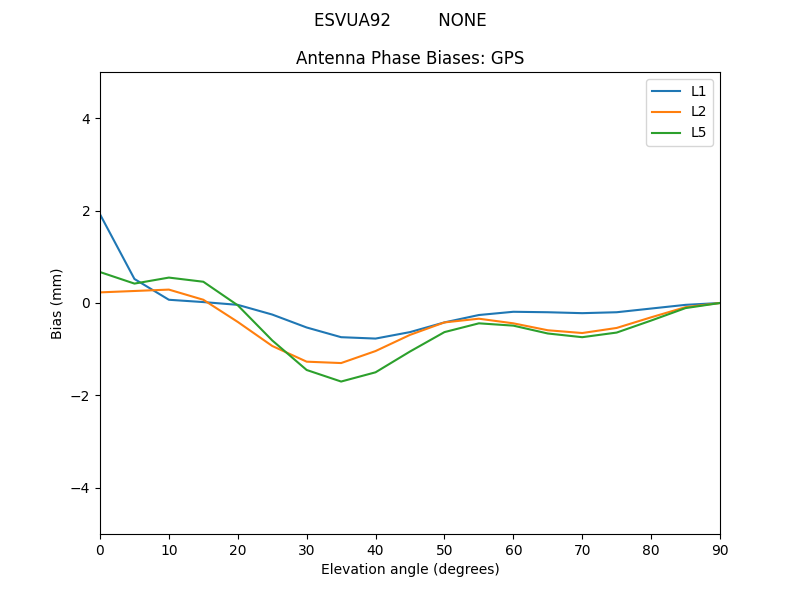

GPS

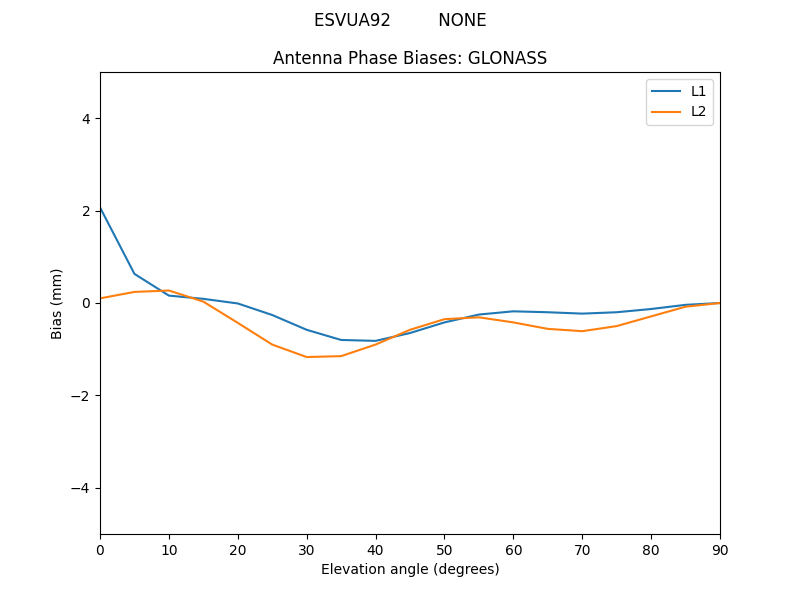

GLONASS

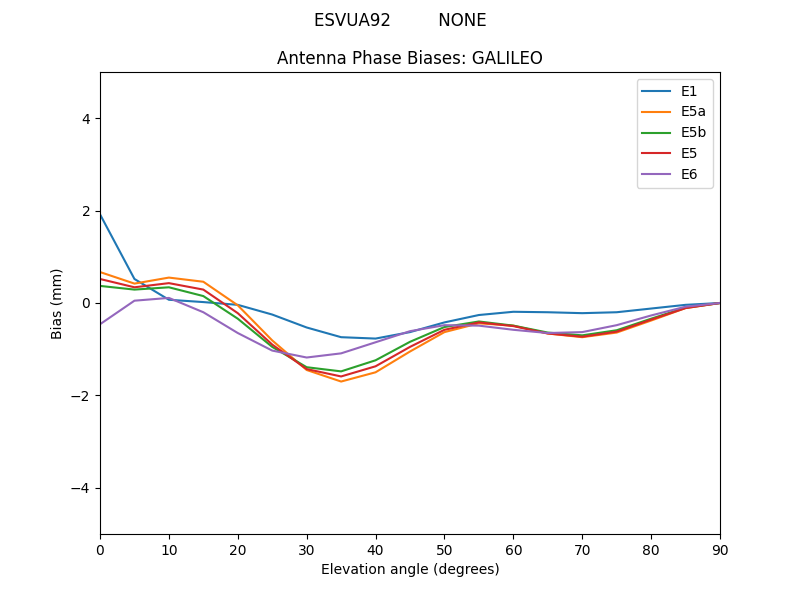

GALILEO

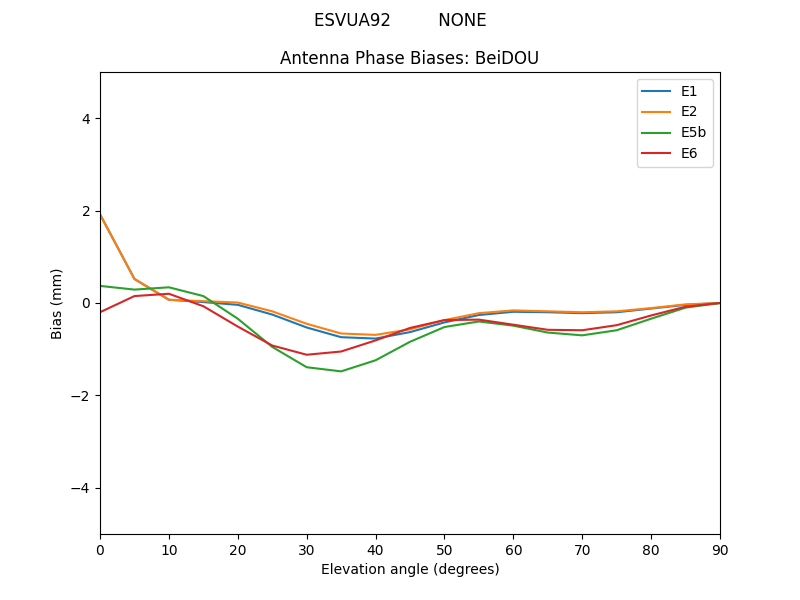

BeiDOU


QZSS

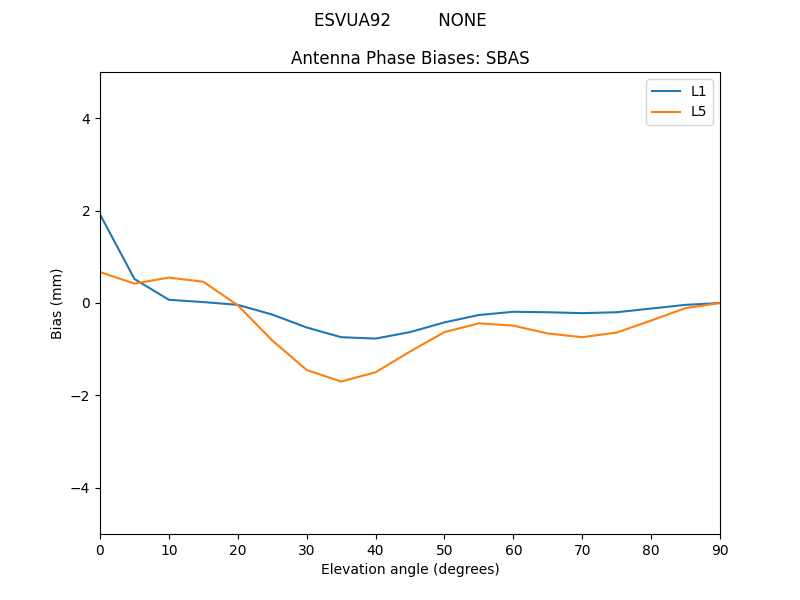

SBAS

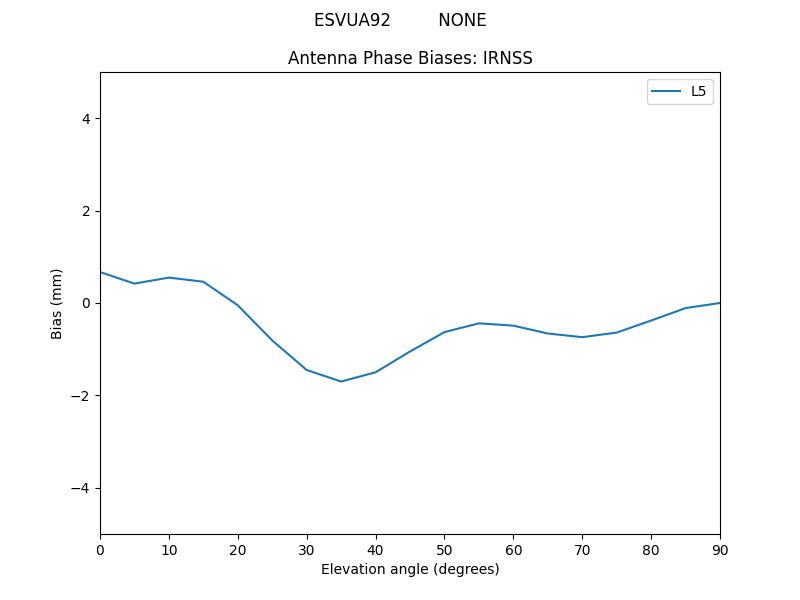

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

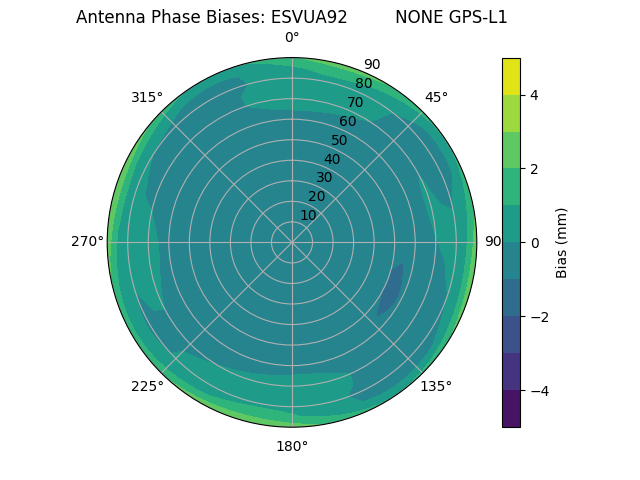

Radial GPS-L1Radial GPS-L1

GPS-L2

GPS-L2GPS-L2

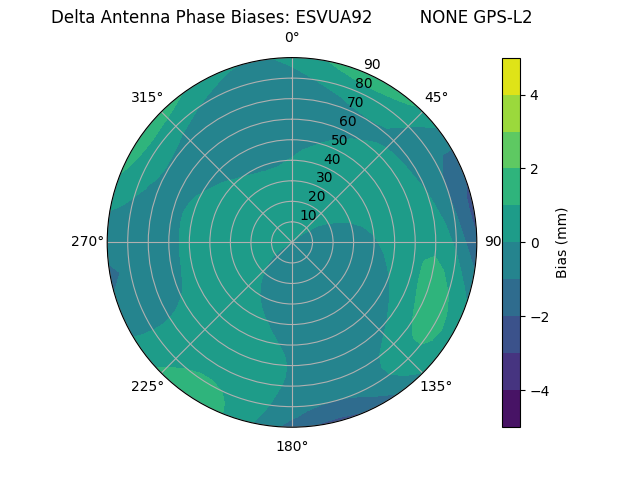

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

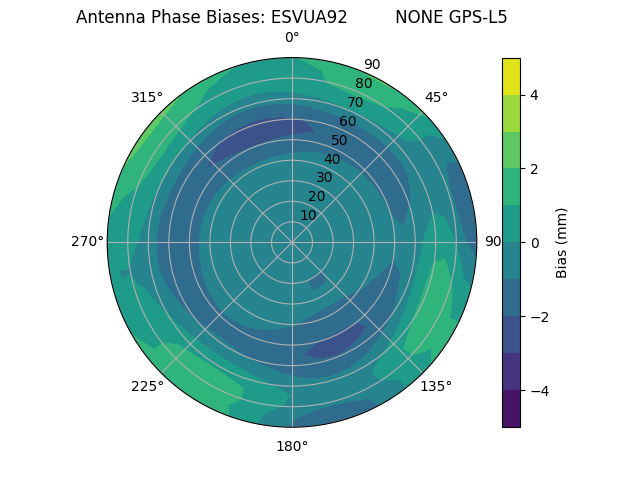

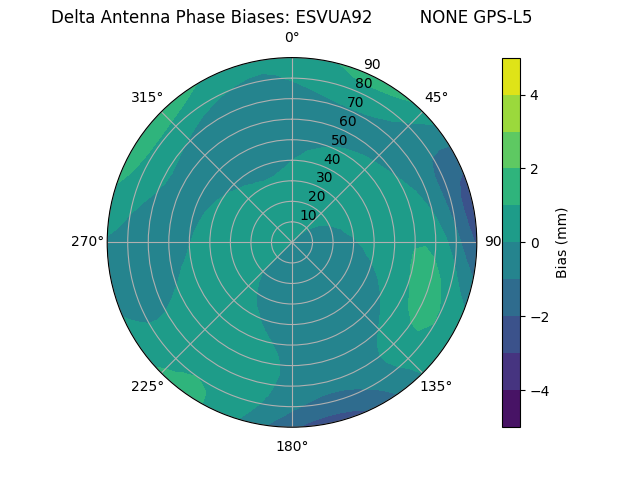

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

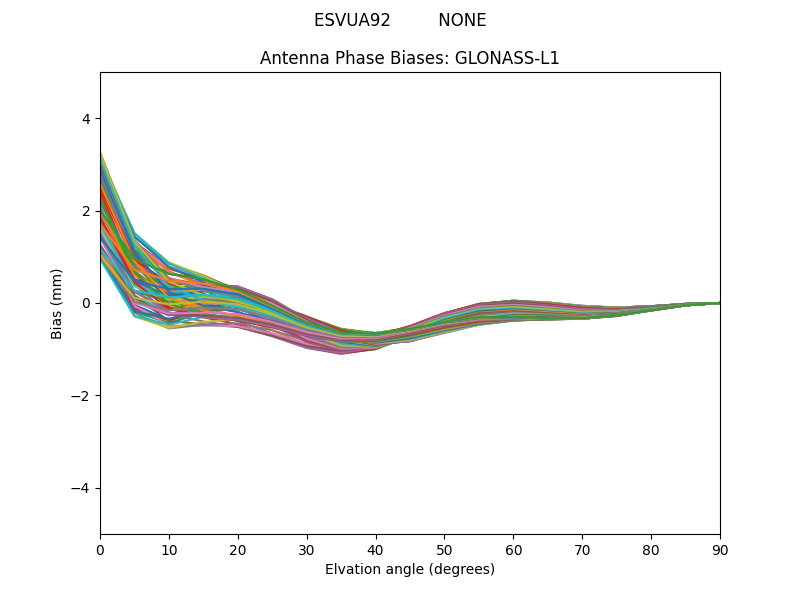

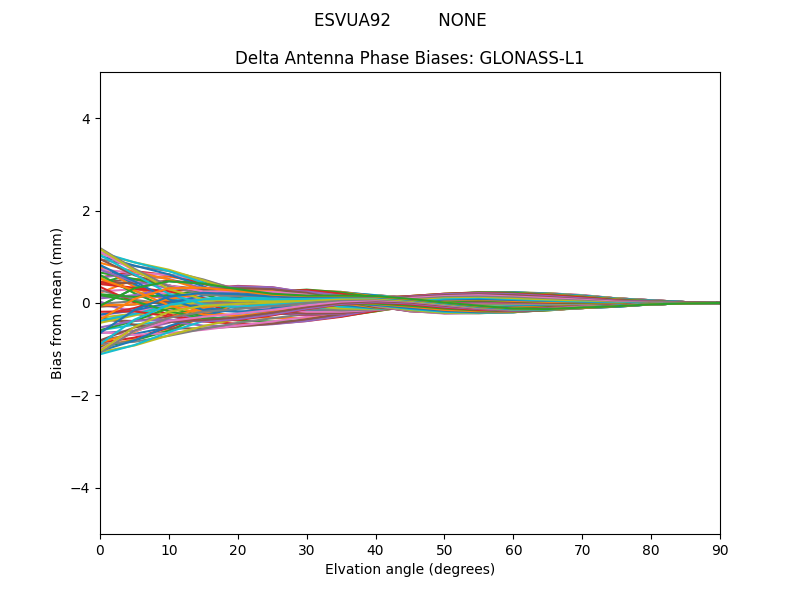

GLONASS-L1

GLONASS-L1GLONASS-L1
Radial GLONASS-L1Radial GLONASS-L1

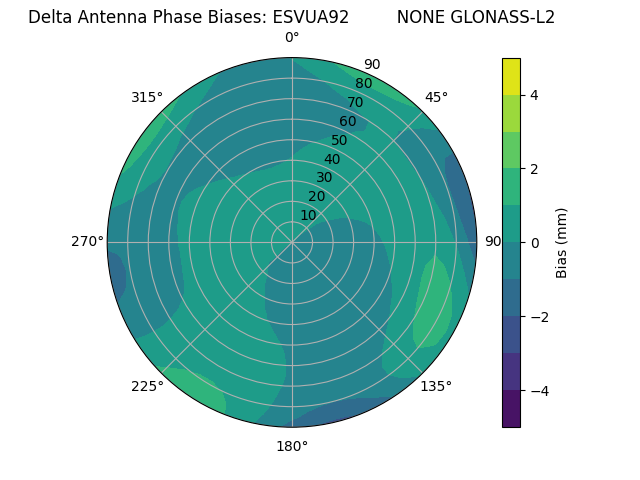

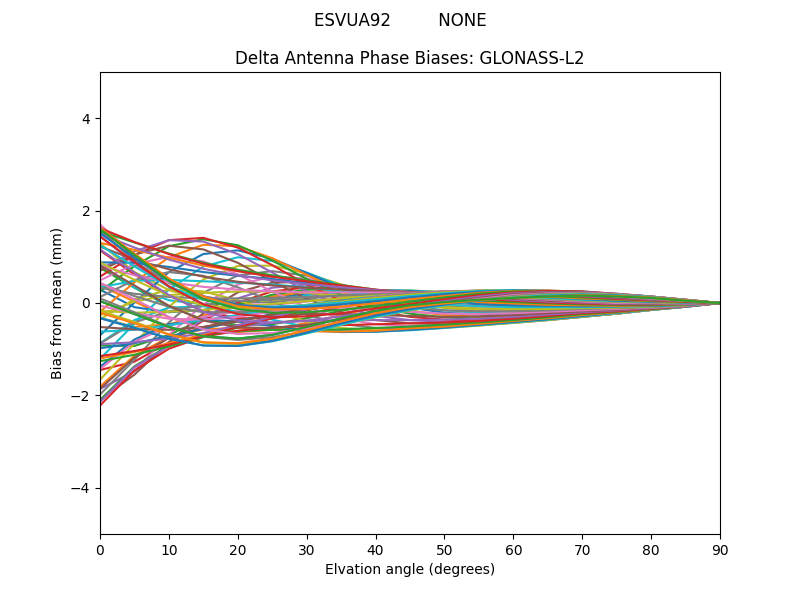

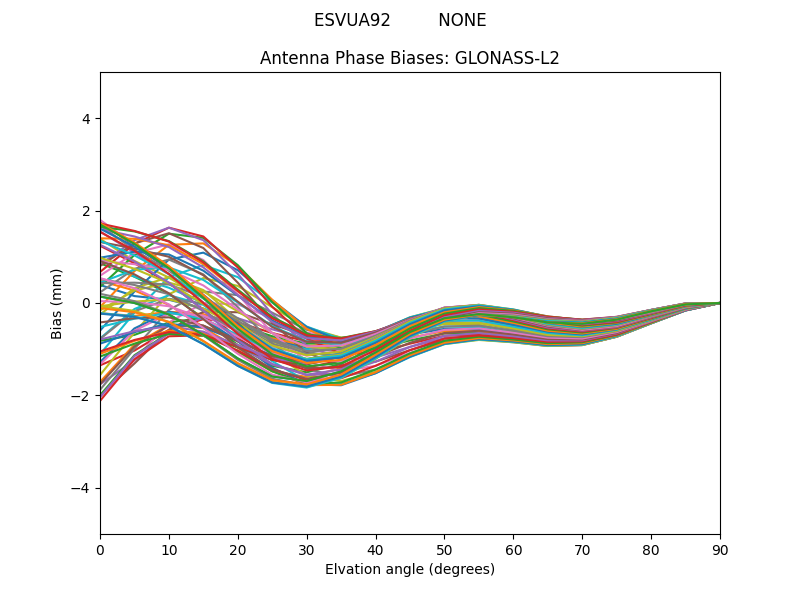

GLONASS-L2

GLONASS-L2GLONASS-L2

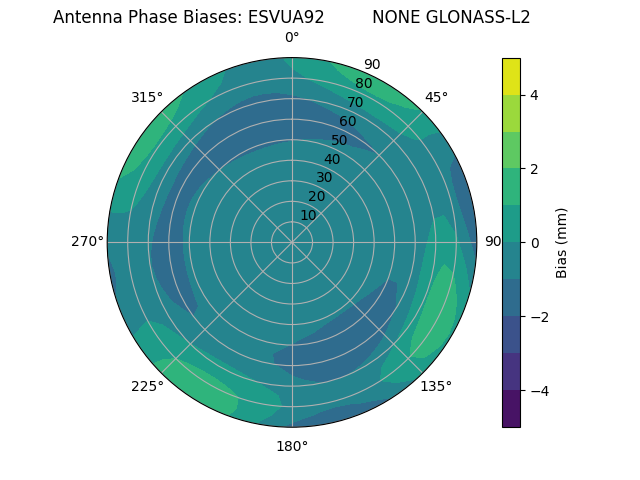

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

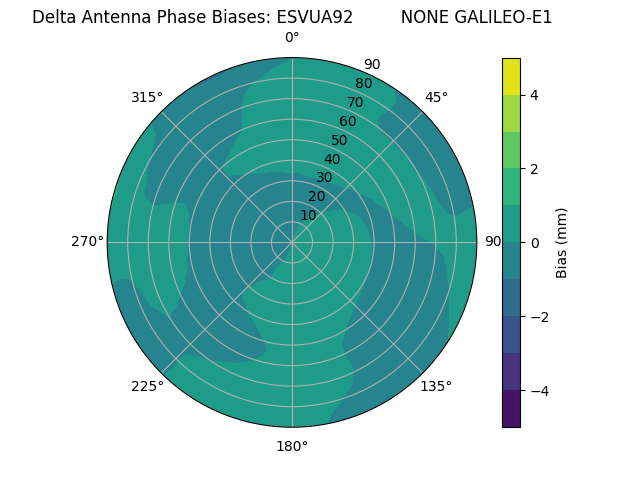

Radial GALILEO-E1Radial GALILEO-E1

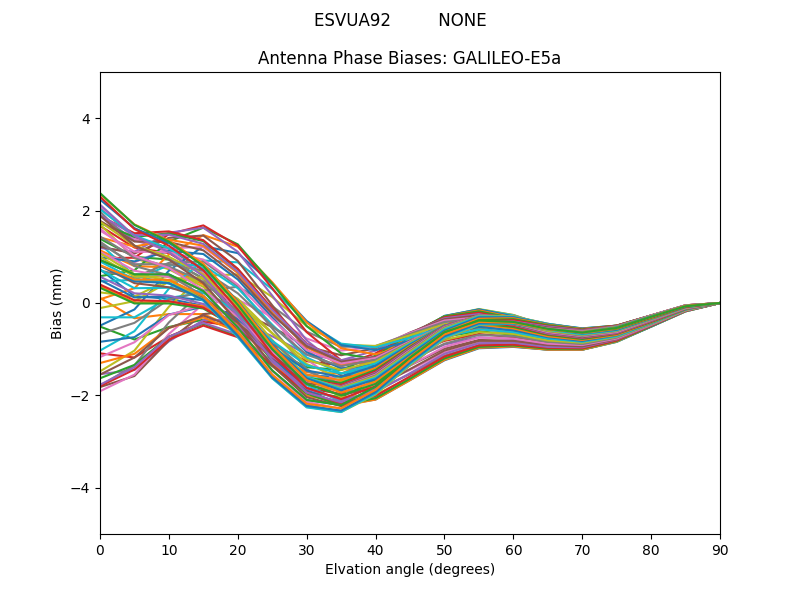

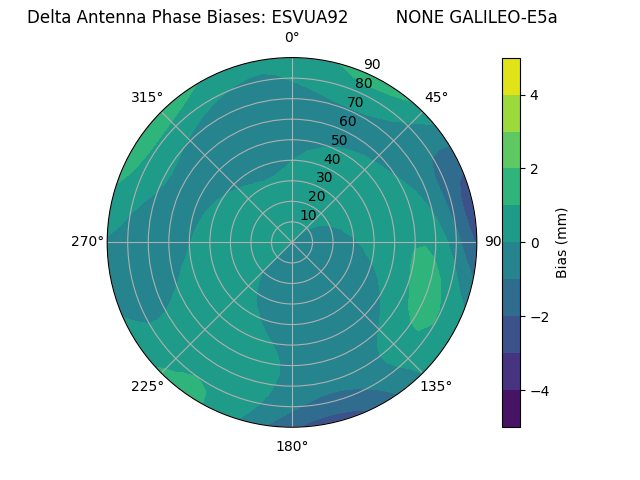

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

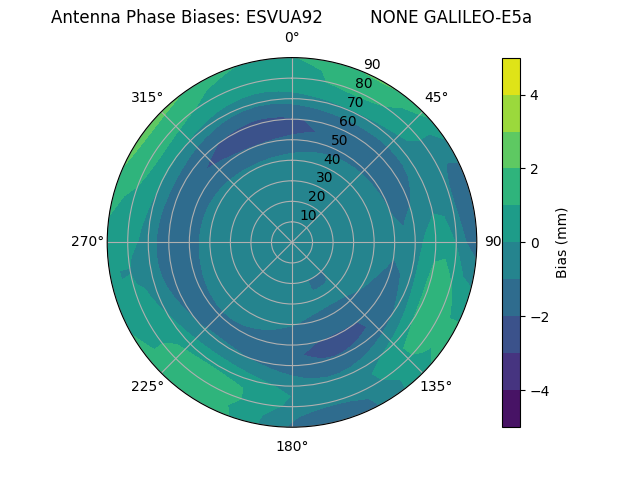

Radial GALILEO-E5aRadial GALILEO-E5a

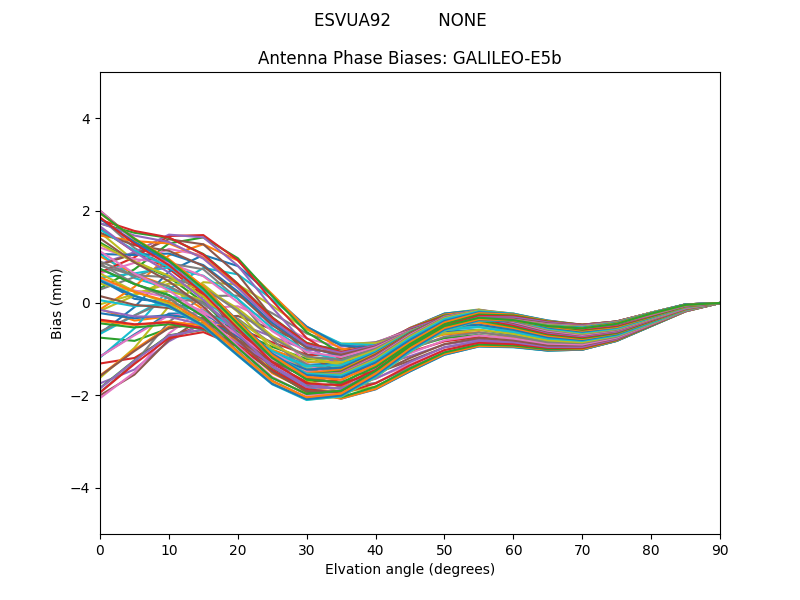

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

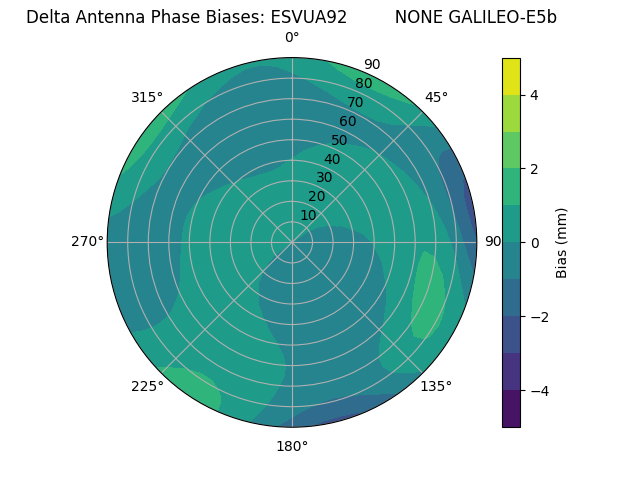

Radial GALILEO-E5bRadial GALILEO-E5b

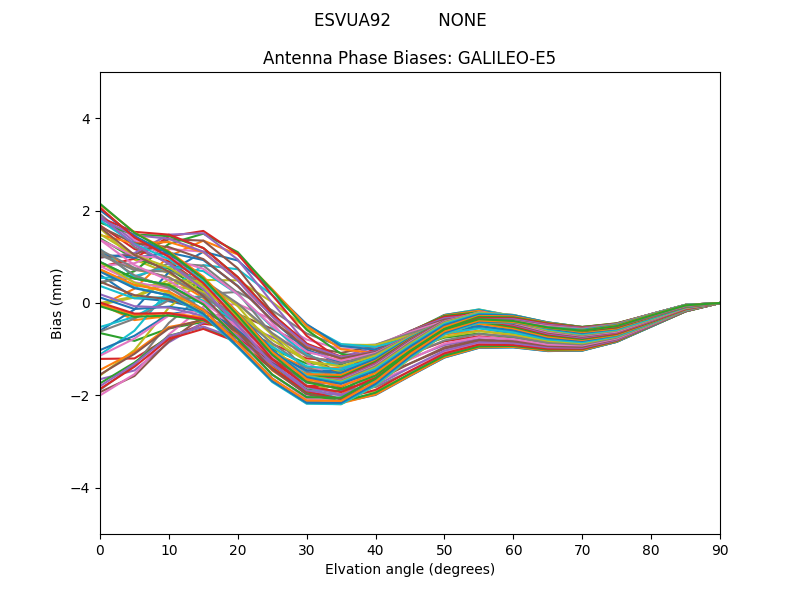

GALILEO-E5

GALILEO-E5GALILEO-E5

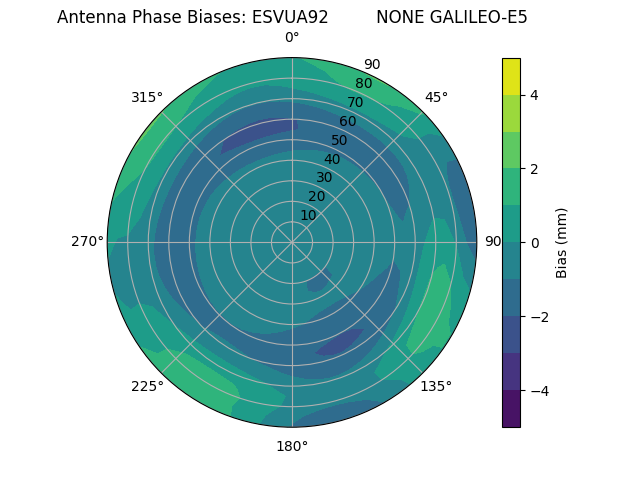

Radial GALILEO-E5Radial GALILEO-E5

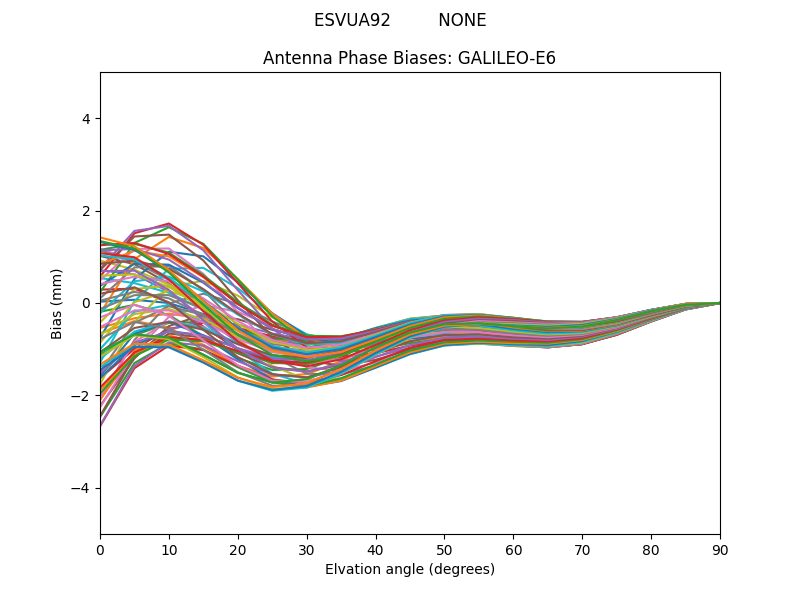

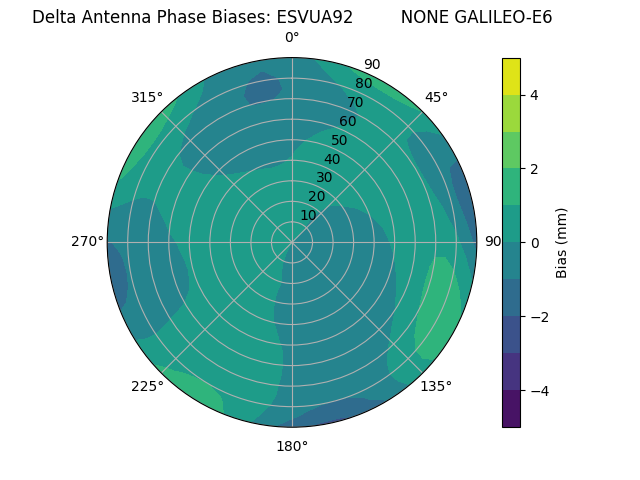

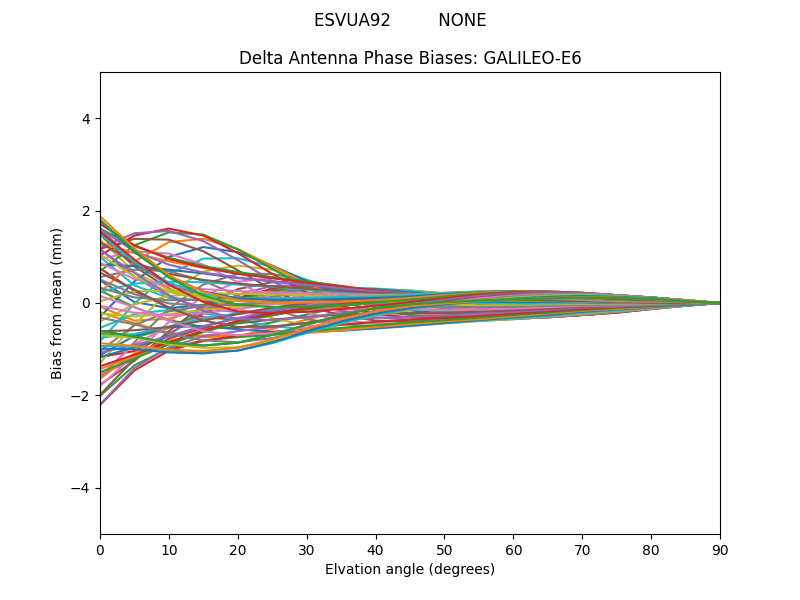

GALILEO-E6

GALILEO-E6GALILEO-E6
Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

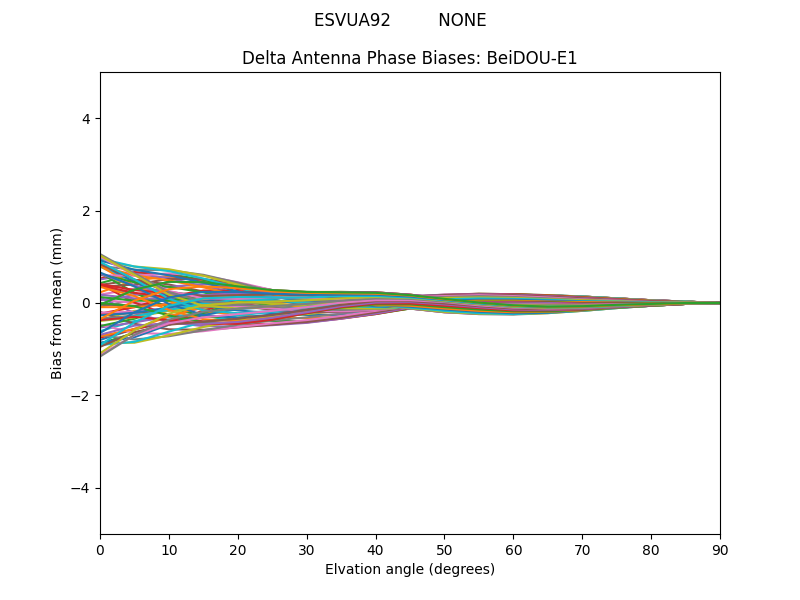

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

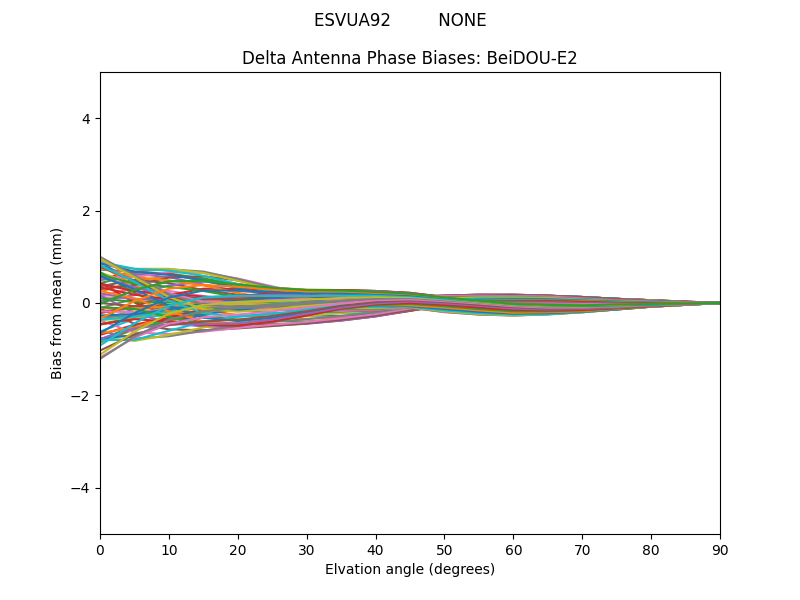

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

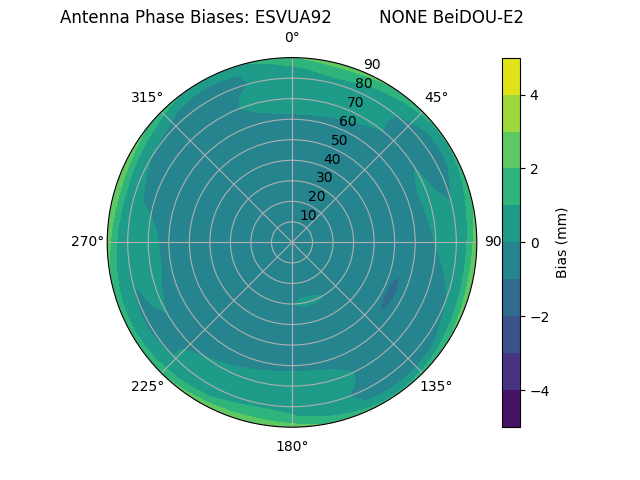

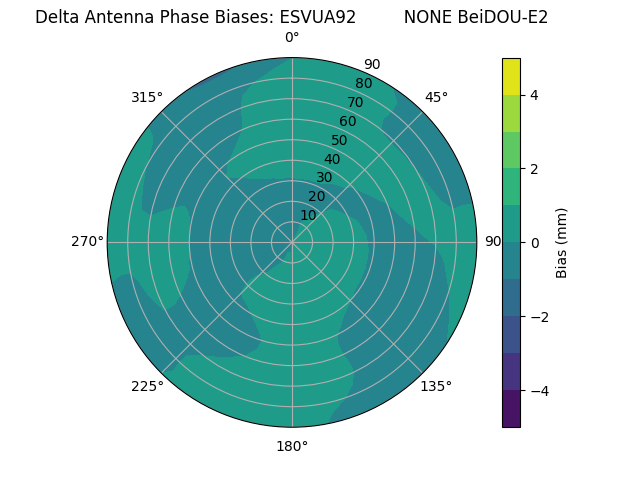

Radial BeiDOU-E2Radial BeiDOU-E2

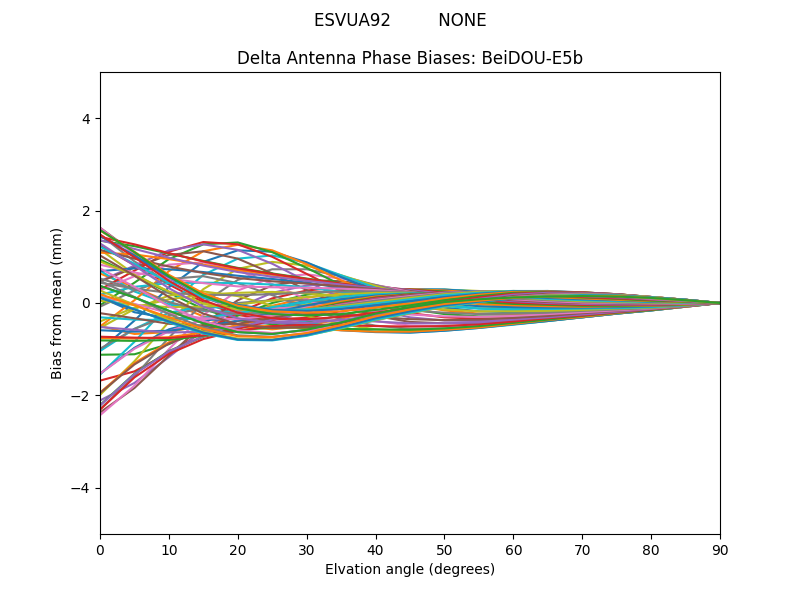

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

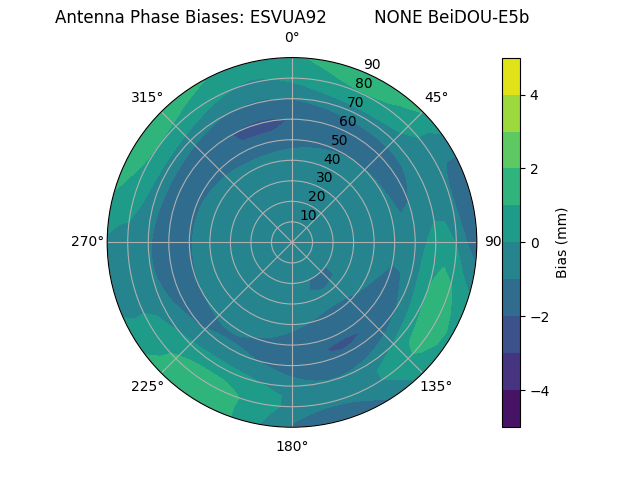

Radial BeiDOU-E5bRadial BeiDOU-E5b

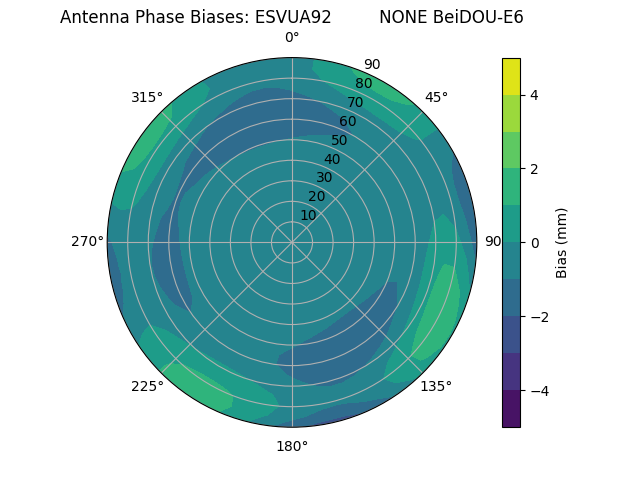

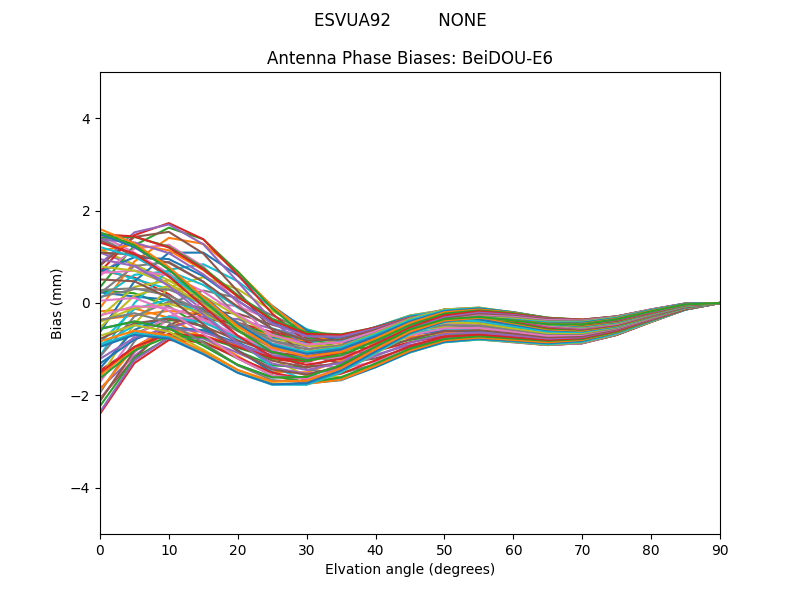

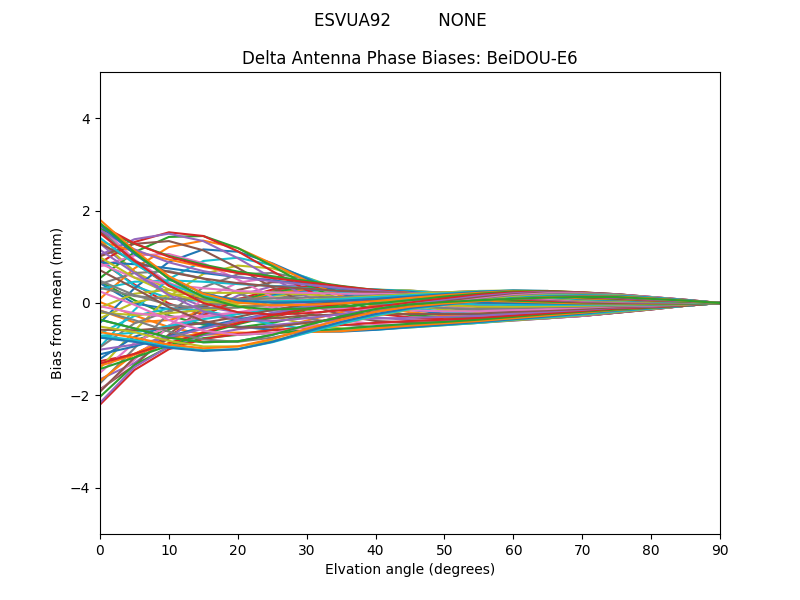

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

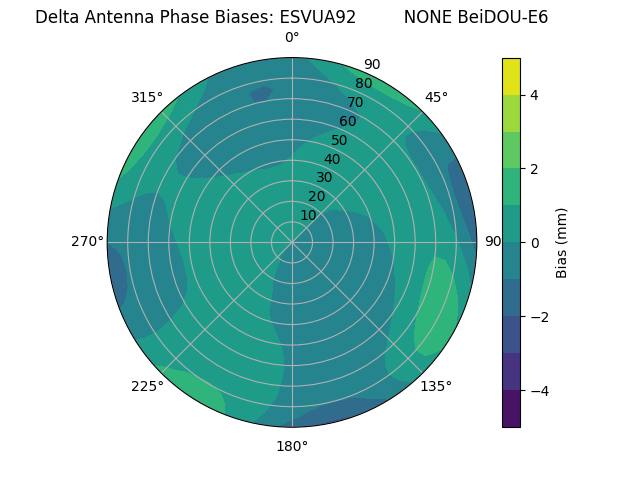

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

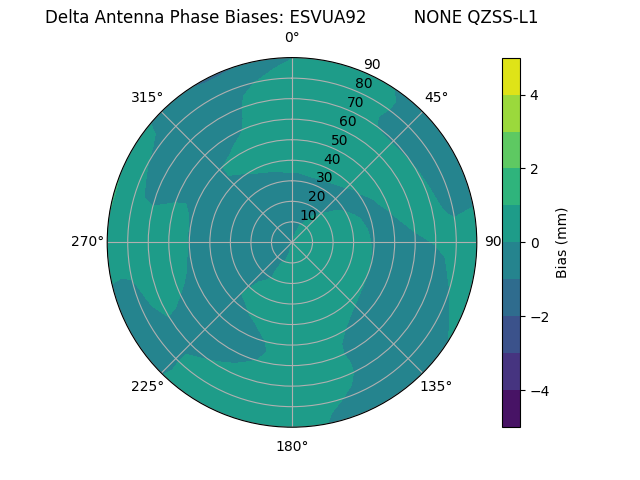

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

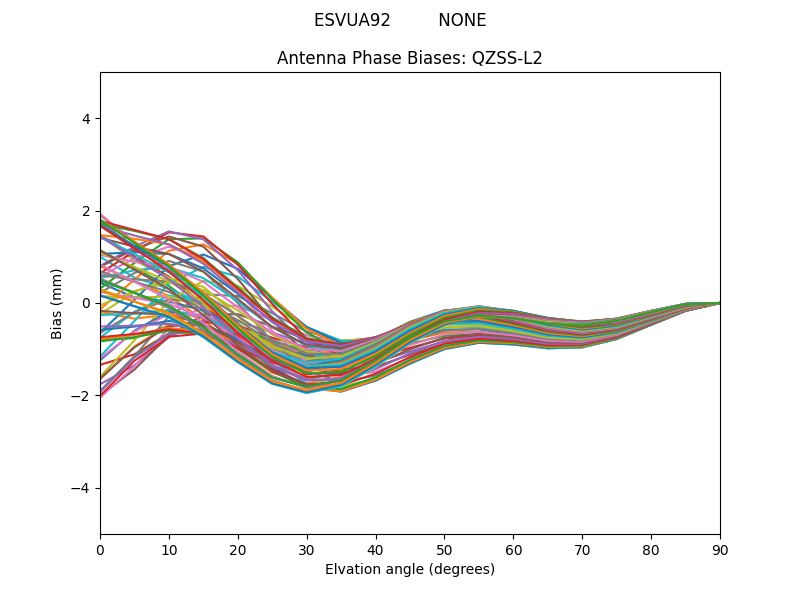

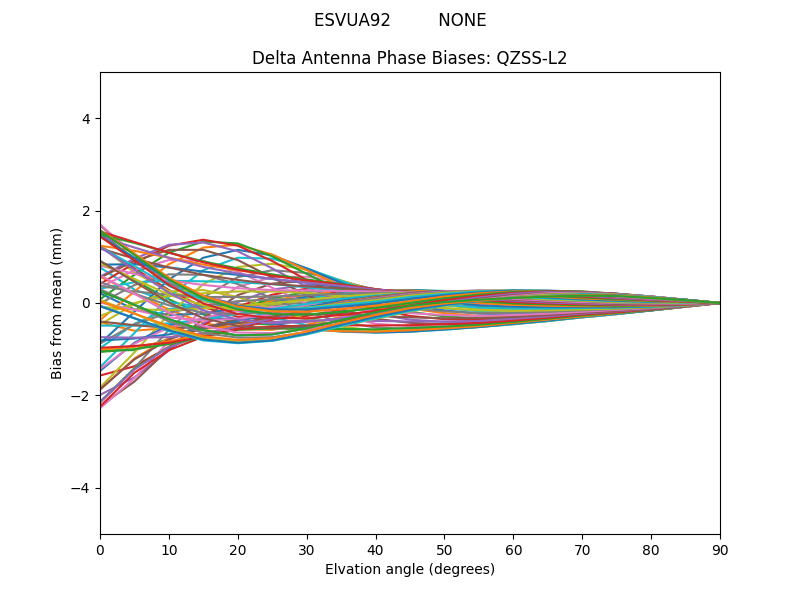

QZSS-L2

QZSS-L2QZSS-L2

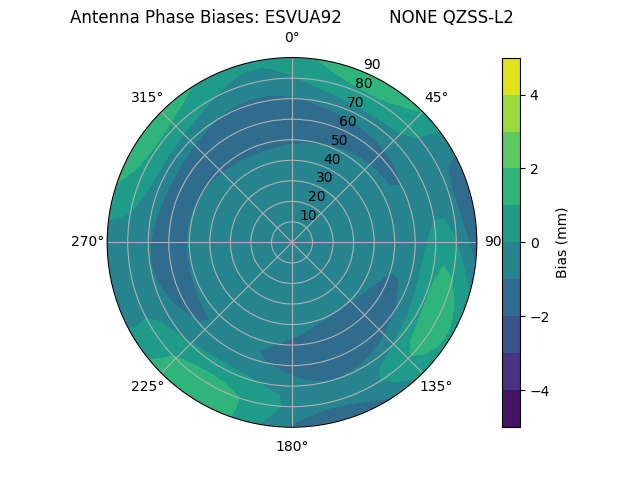

Radial QZSS-L2Radial QZSS-L2

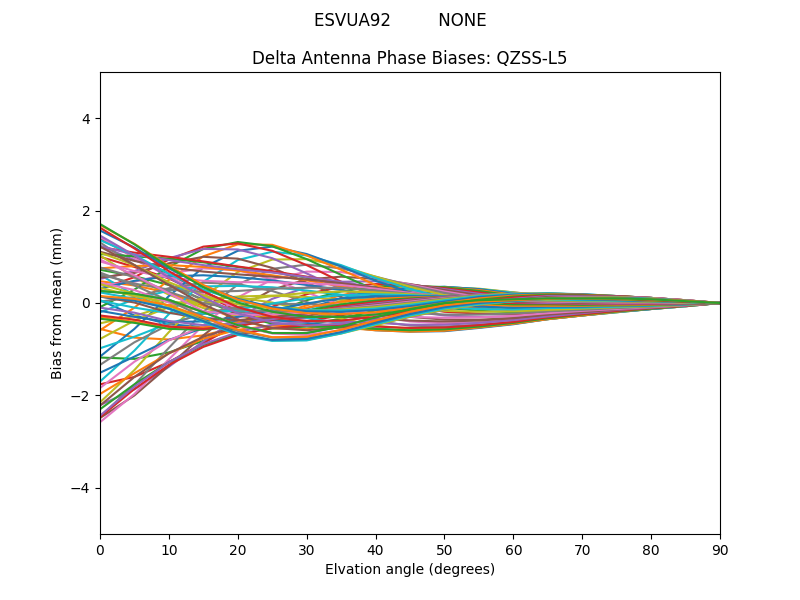

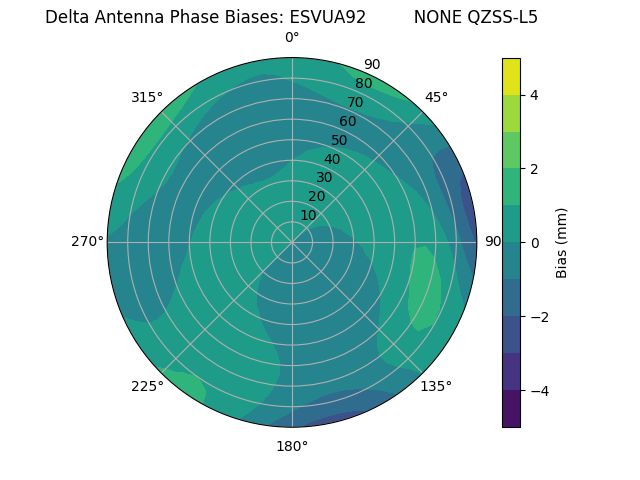

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5

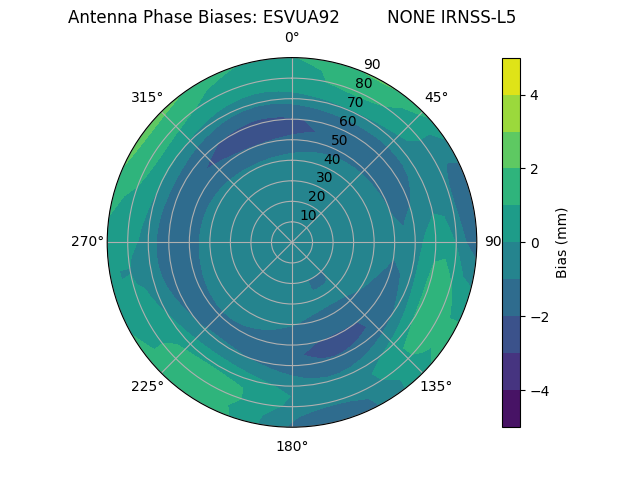

Radial IRNSS-L5Radial IRNSS-L5
