Antenna information for FOIA90 NONE
SV System | Bands |
---|---|
GPSL1: N: -1.15 E: 0.38 U: 70.86L2: N: -2.36 E: 1.11 U: 62.18 L5: N: -3.64 E: -0.30 U: 65.47 GLONASSL1: N: -0.66 E: 0.35 U: 70.79L2: N: -1.91 E: 1.39 U: 61.42 GALILEOE1: N: -1.15 E: 0.38 U: 70.86E5a: N: -3.64 E: -0.30 U: 65.47 E5b: N: -2.86 E: 0.67 U: 63.27 E5: N: -3.25 E: 0.26 U: 64.30 E6: N: -1.19 E: 1.62 U: 60.45 BeiDouE1: N: -1.15 E: 0.38 U: 70.86E2: N: -1.44 E: 0.39 U: 70.93 E5b: N: -2.86 E: 0.67 U: 63.27 E6: N: -1.40 E: 1.58 U: 60.71 QZSSL1: N: -1.15 E: 0.38 U: 70.86L2: N: -2.36 E: 1.11 U: 62.18 L5: N: -3.64 E: -0.30 U: 65.47 LEX: N: -1.19 E: 1.62 U: 60.45 IRNSSL5: N: -3.64 E: -0.30 U: 65.47SBASL1: N: -1.15 E: 0.38 U: 70.86L5: N: -3.64 E: -0.30 U: 65.47 | L1GPS: N: -1.15 E: 0.38 U: 70.86GLONASS: N: -0.66 E: 0.35 U: 70.79 QZSS: N: -1.15 E: 0.38 U: 70.86 SBAS: N: -1.15 E: 0.38 U: 70.86 L2GPS: N: -2.36 E: 1.11 U: 62.18GLONASS: N: -1.91 E: 1.39 U: 61.42 QZSS: N: -2.36 E: 1.11 U: 62.18 L5GPS: N: -3.64 E: -0.30 U: 65.47QZSS: N: -3.64 E: -0.30 U: 65.47 SBAS: N: -3.64 E: -0.30 U: 65.47 IRNSS: N: -3.64 E: -0.30 U: 65.47 E1GALILEO: N: -1.15 E: 0.38 U: 70.86BeiDou: N: -1.15 E: 0.38 U: 70.86 E2BeiDou: N: -1.44 E: 0.39 U: 70.93E5GALILEO: N: -3.25 E: 0.26 U: 64.30E5aGALILEO: N: -3.64 E: -0.30 U: 65.47E5bGALILEO: N: -2.86 E: 0.67 U: 63.27BeiDou: N: -2.86 E: 0.67 U: 63.27 E6GALILEO: N: -1.19 E: 1.62 U: 60.45BeiDou: N: -1.40 E: 1.58 U: 60.71 LEXQZSS: N: -1.19 E: 1.62 U: 60.45 |
Means
GPS

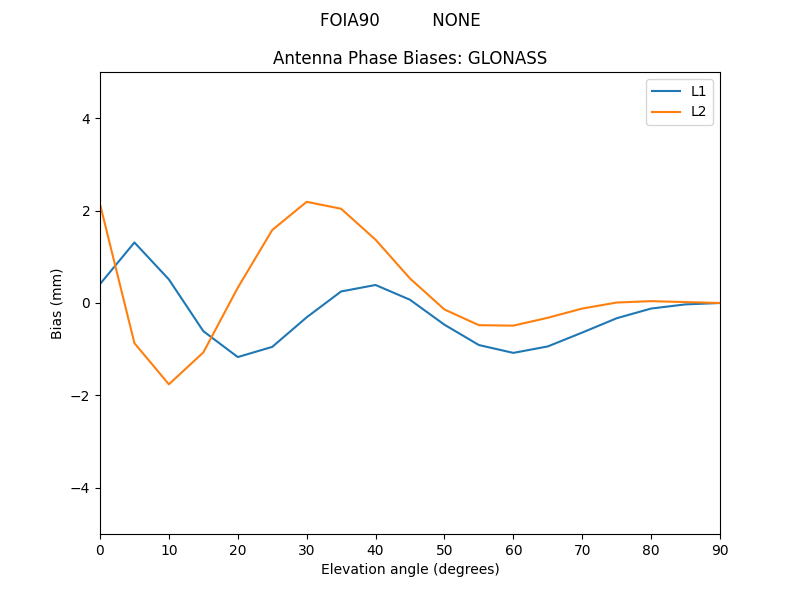

GLONASS

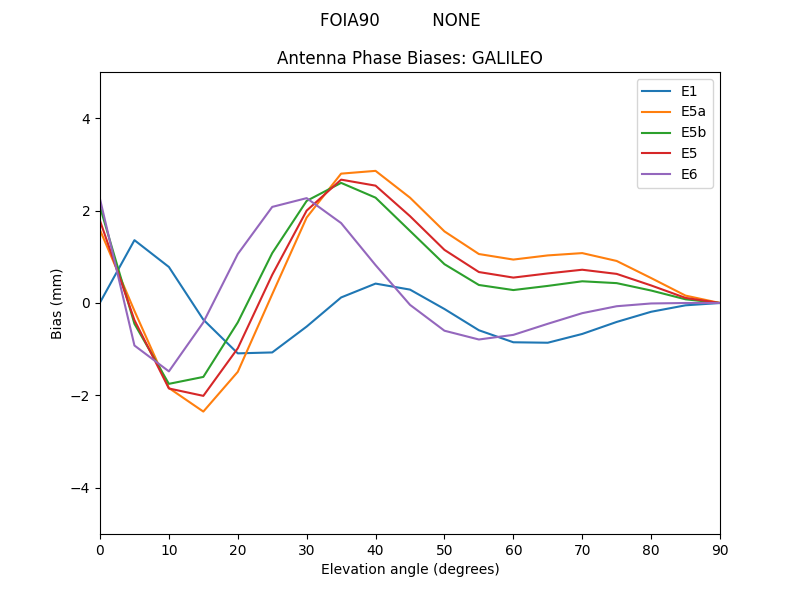

GALILEO

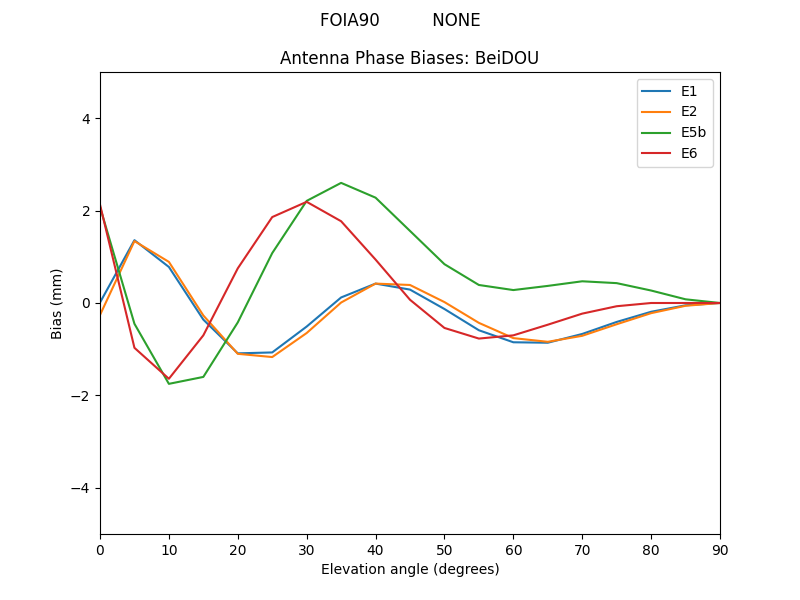

BeiDOU

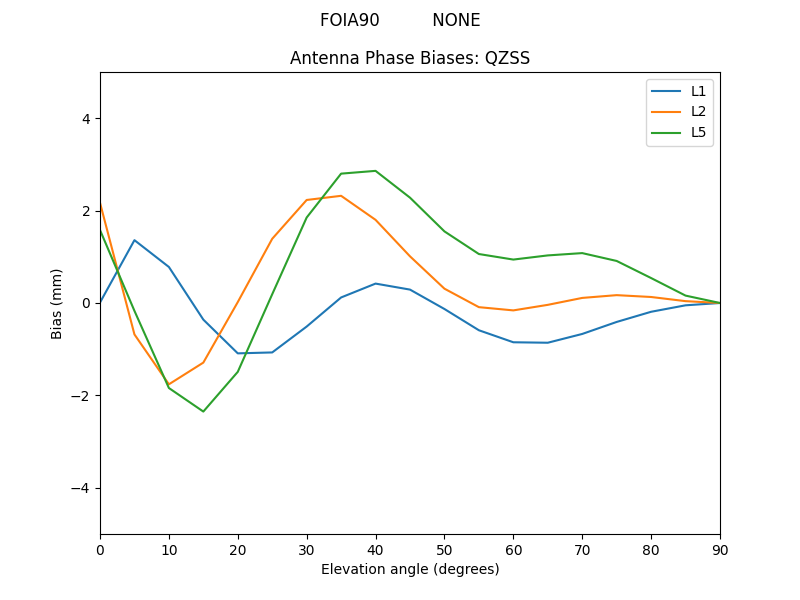

QZSS

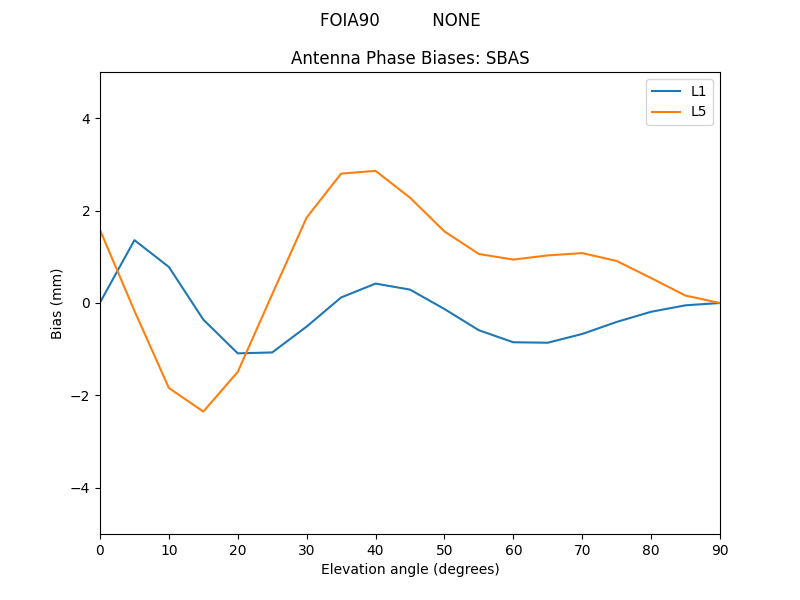

SBAS

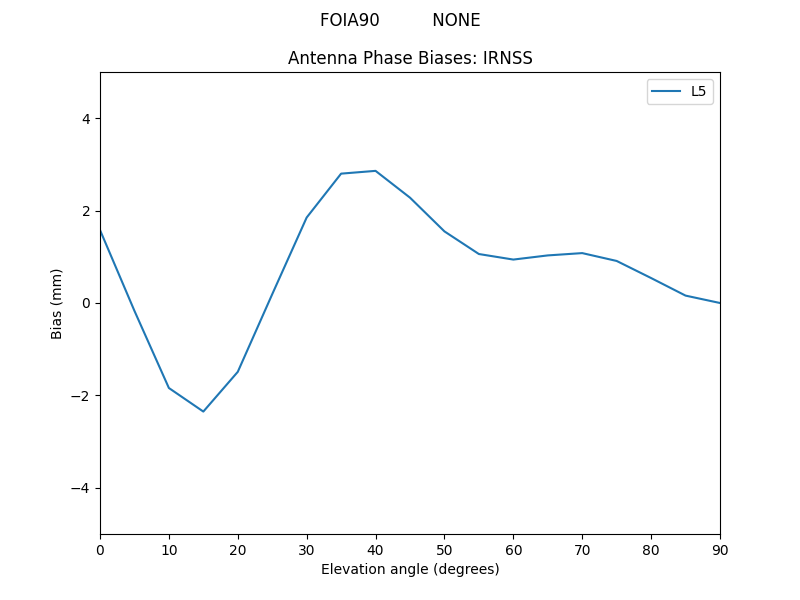

IRNSS
Azimuths
Bias | Delta |
---|---|

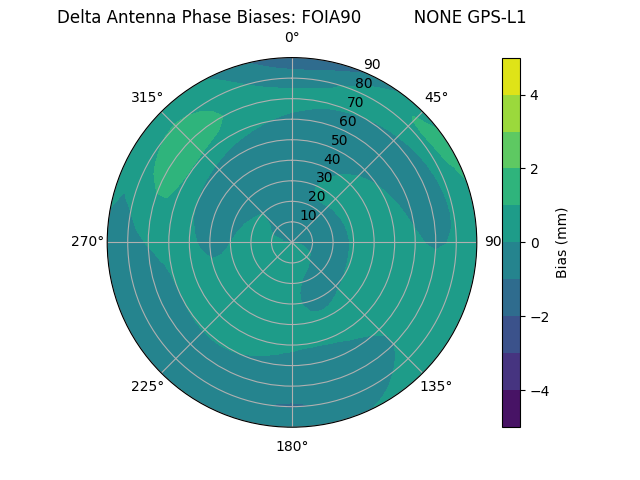

GPS-L1 | |

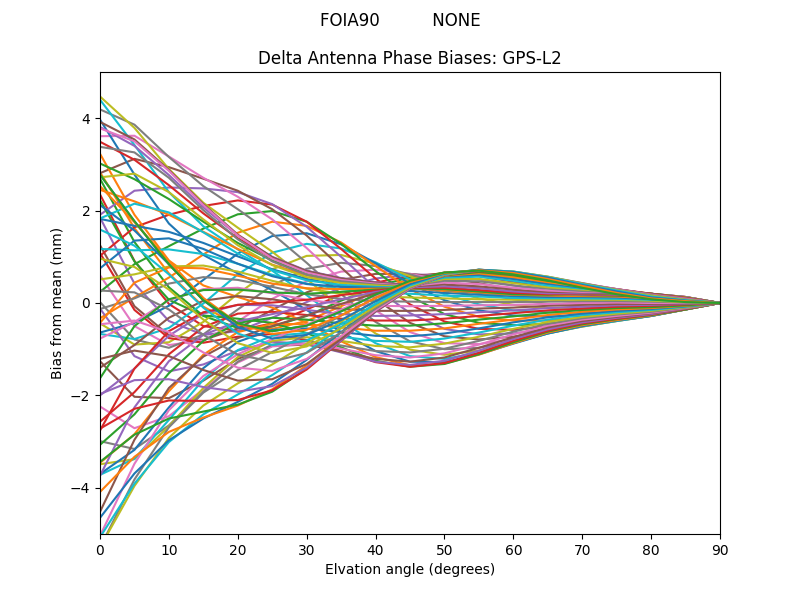

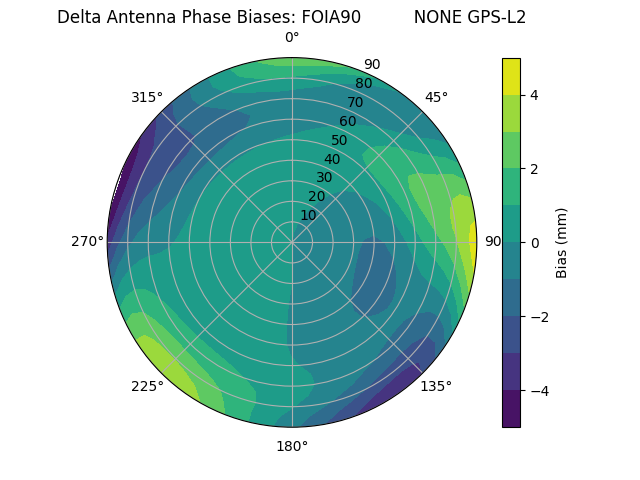

GPS-L2 | |

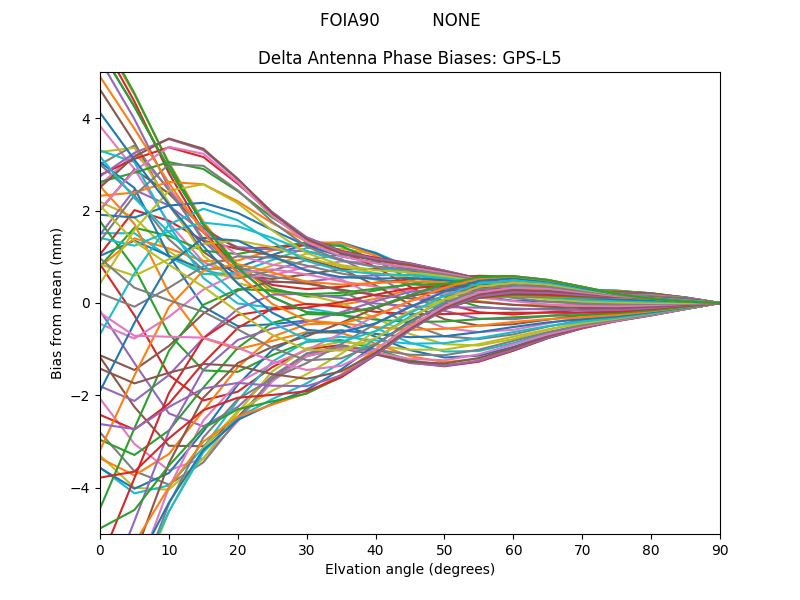

GPS-L5 | |
Bias | Delta |
---|---|

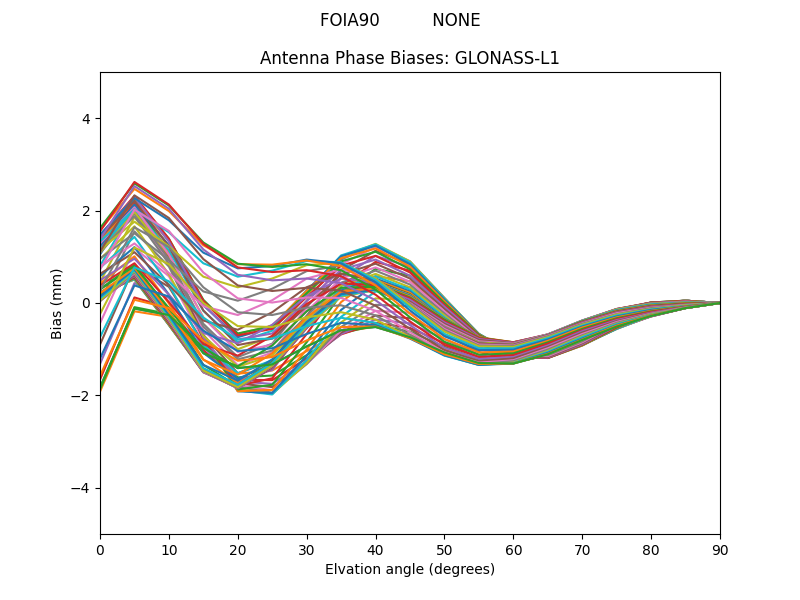

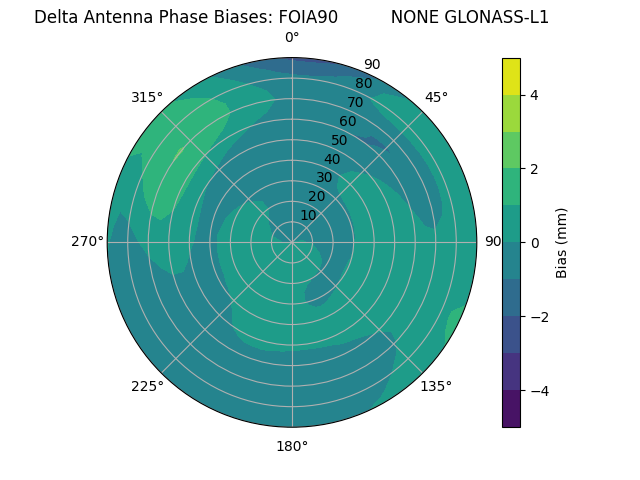

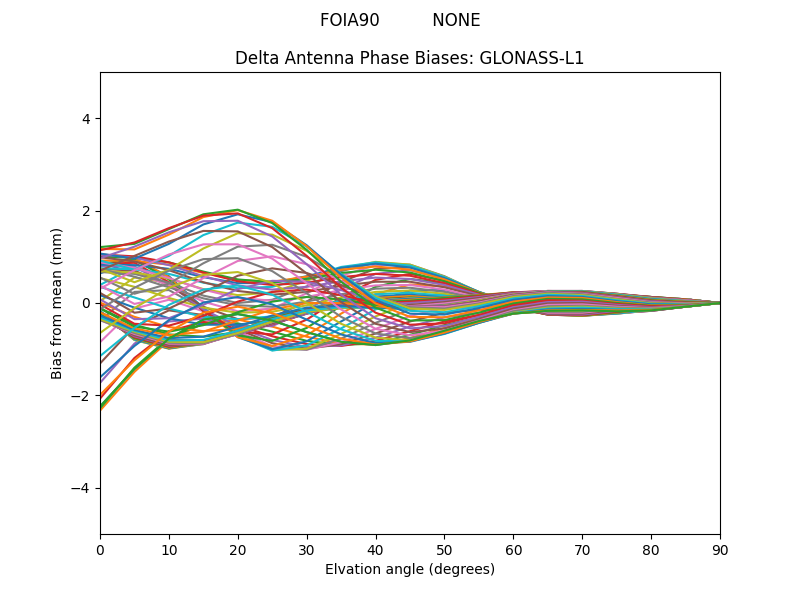

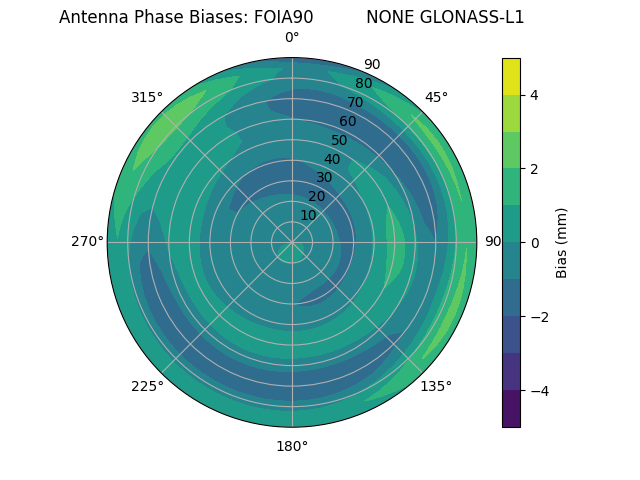

GLONASS-L1 | |

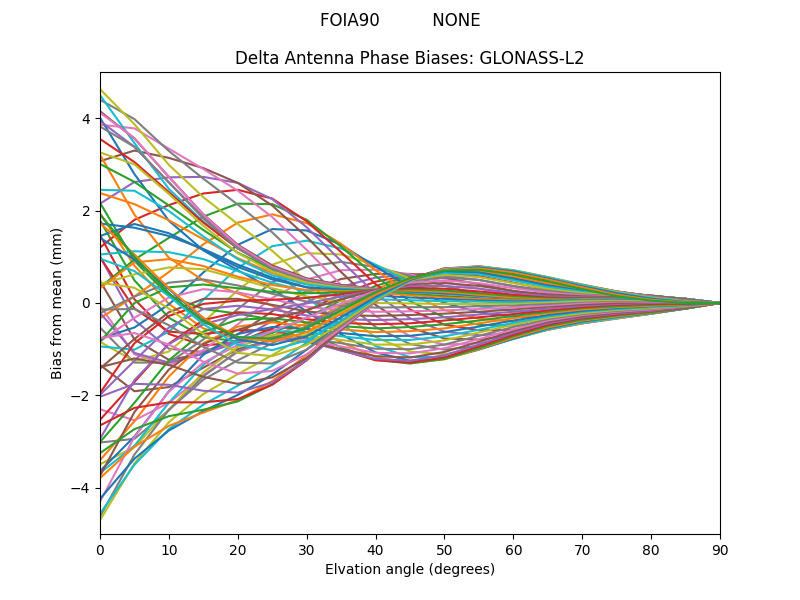

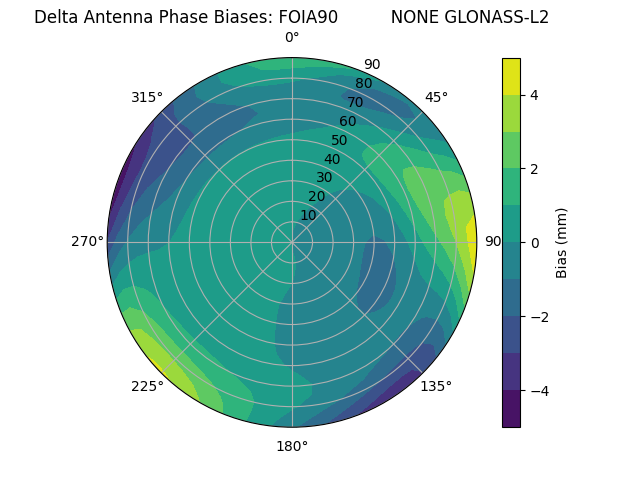

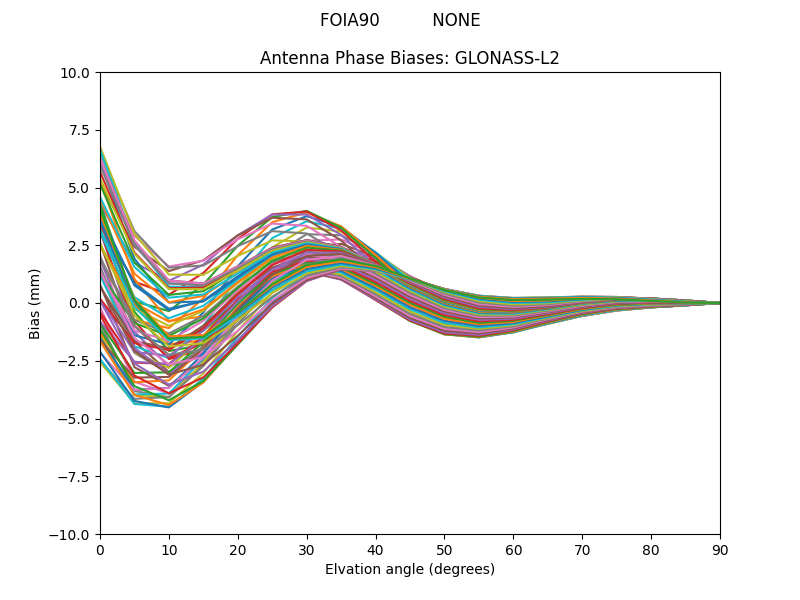

GLONASS-L2 | |
Bias | Delta |
---|---|
GALILEO-E1 | |

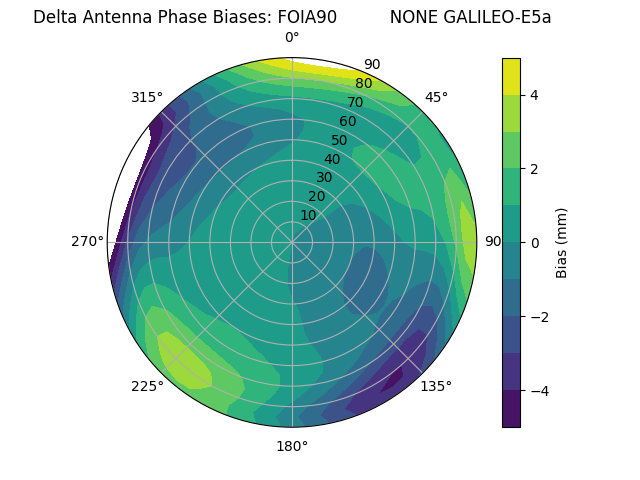

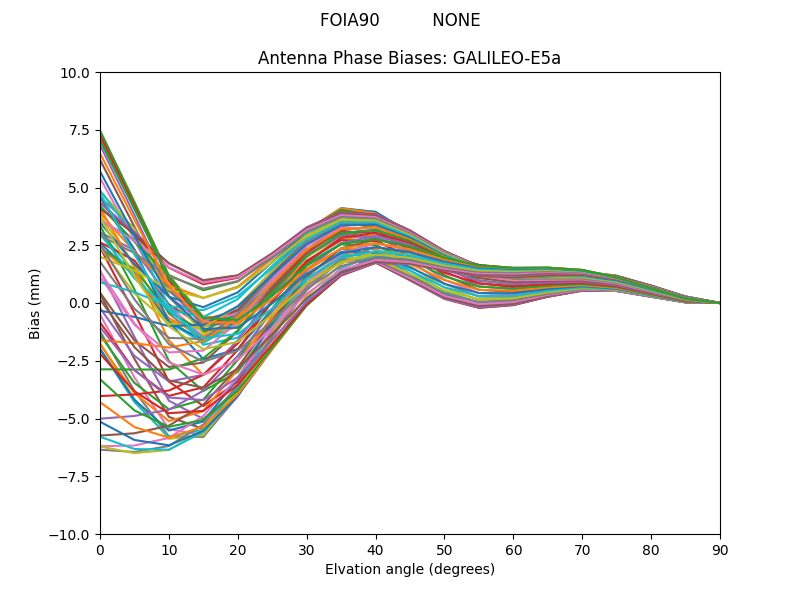

GALILEO-E5a | |

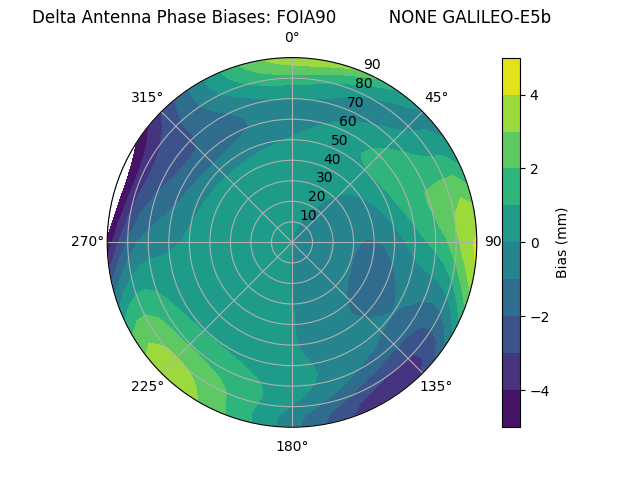

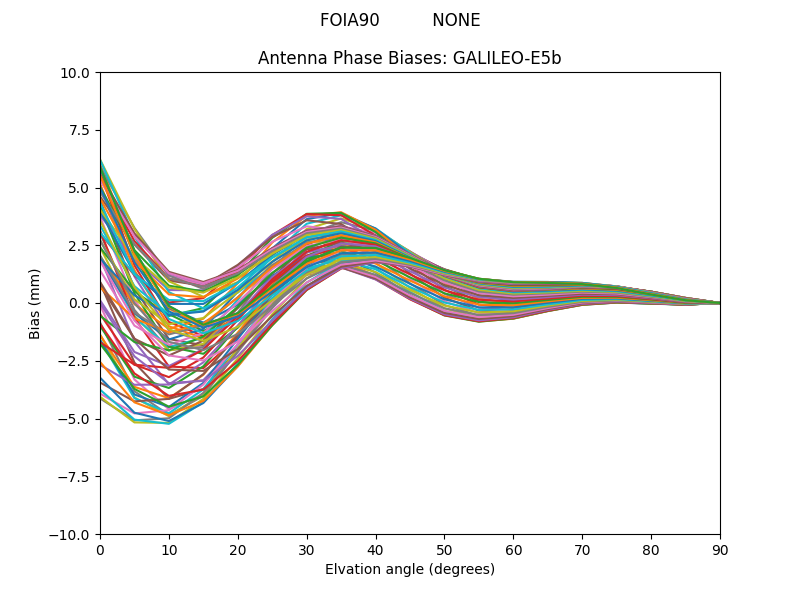

GALILEO-E5b | |

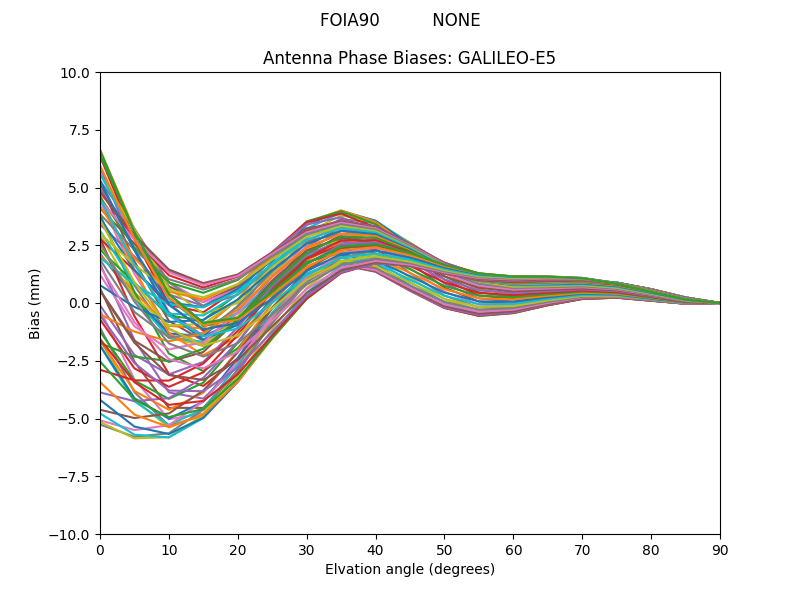

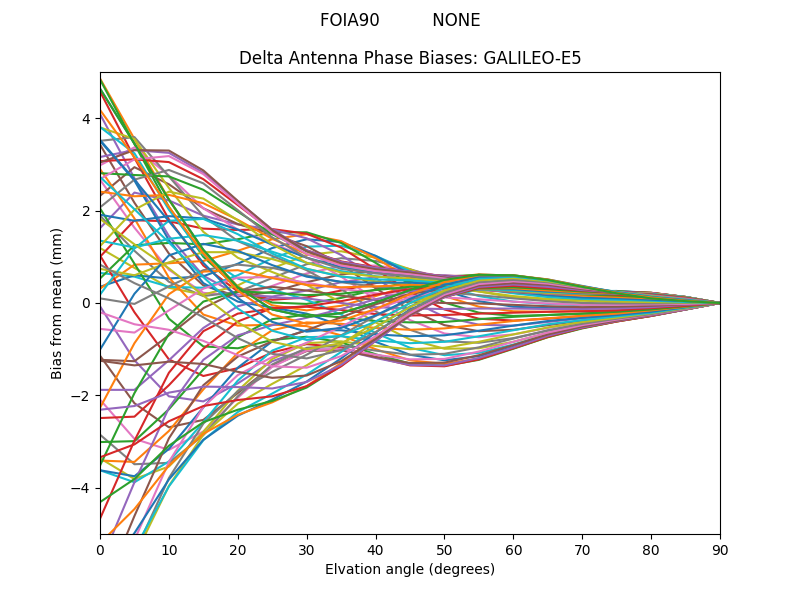

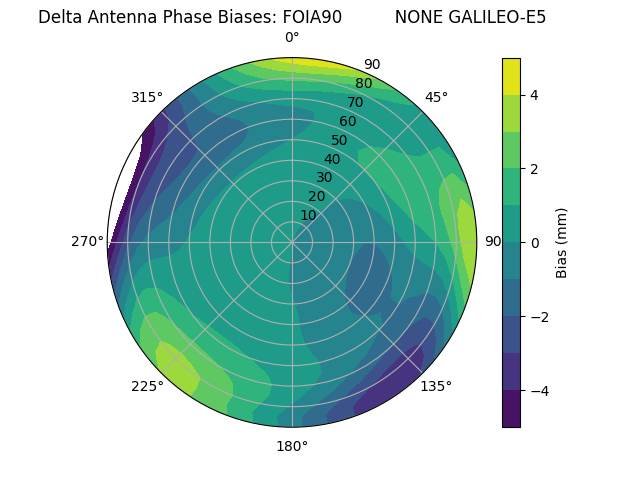

GALILEO-E5 | |

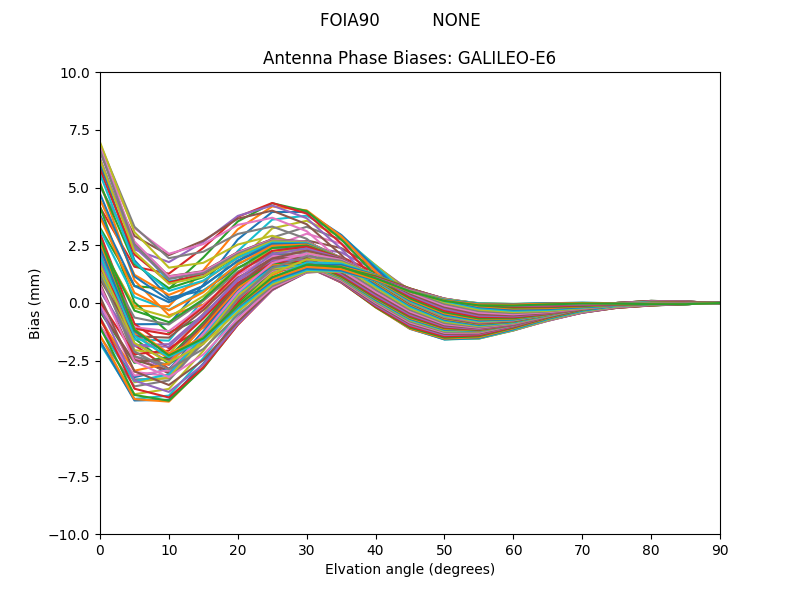

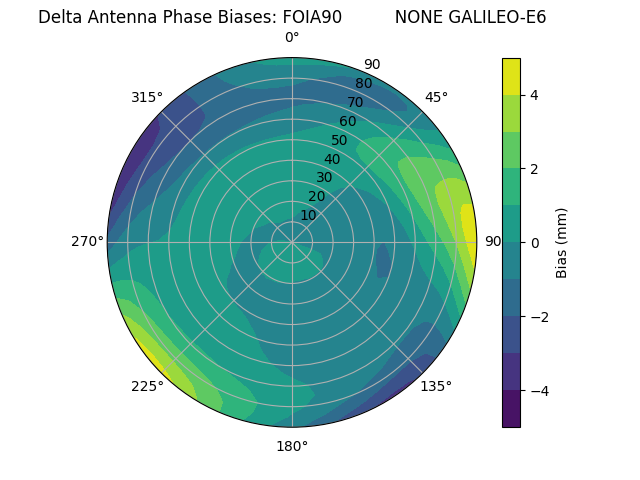

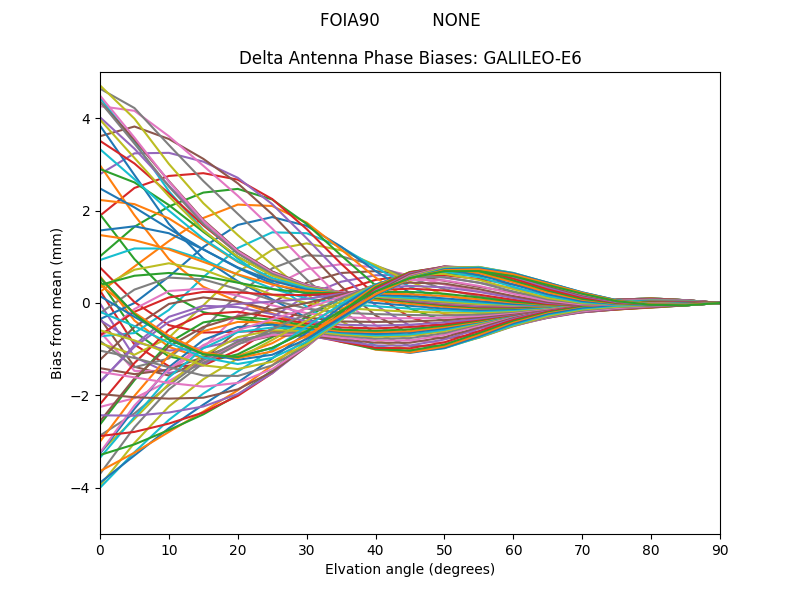

GALILEO-E6 | |
Bias | Delta |
---|---|

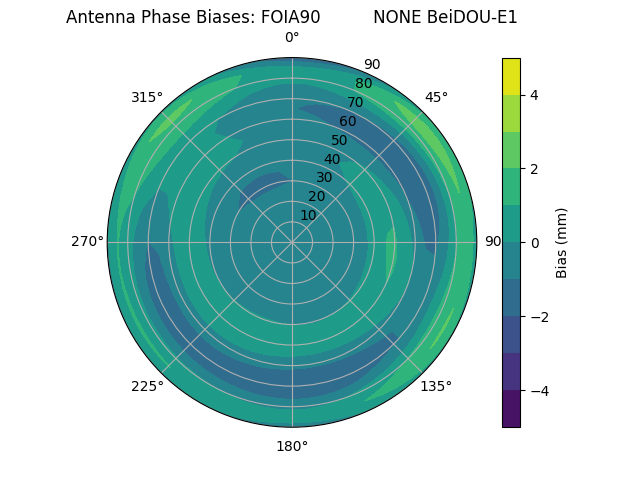

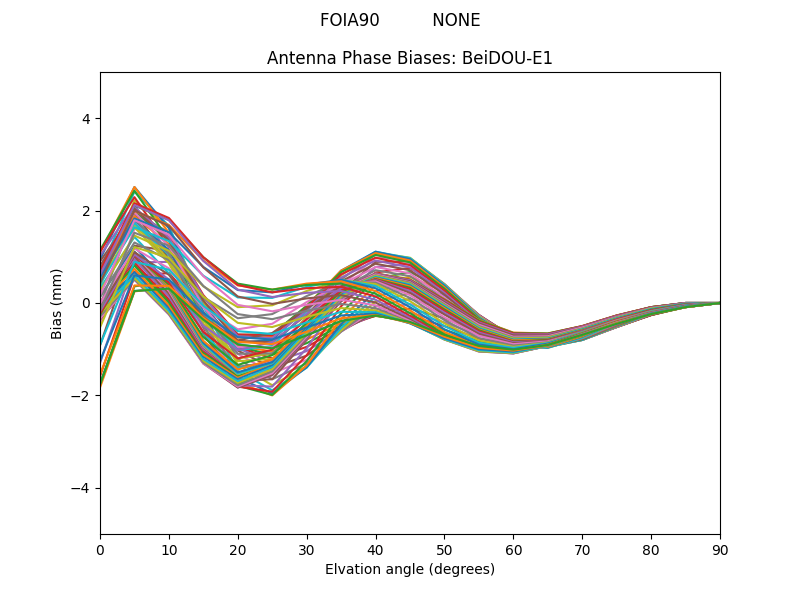

BeiDOU-E1 | |

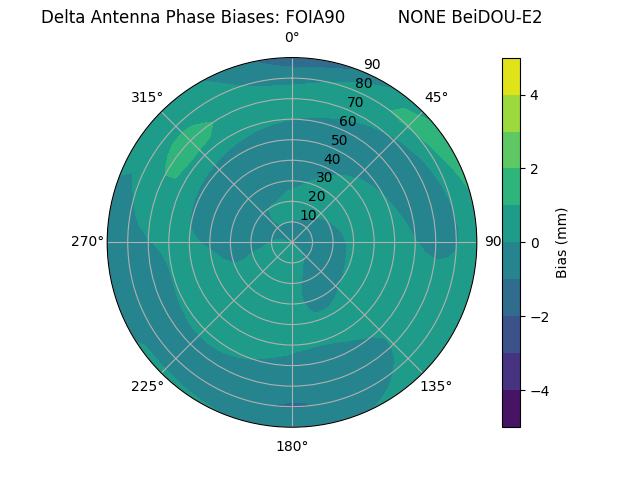

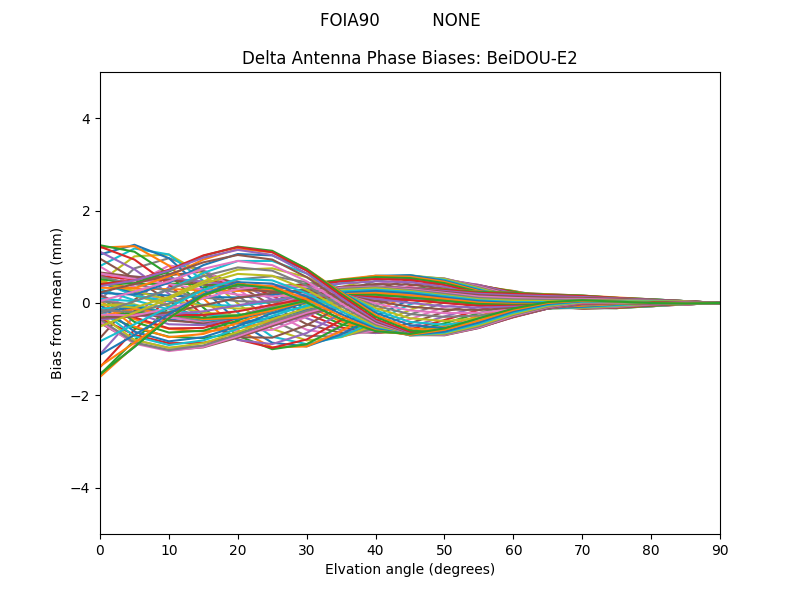

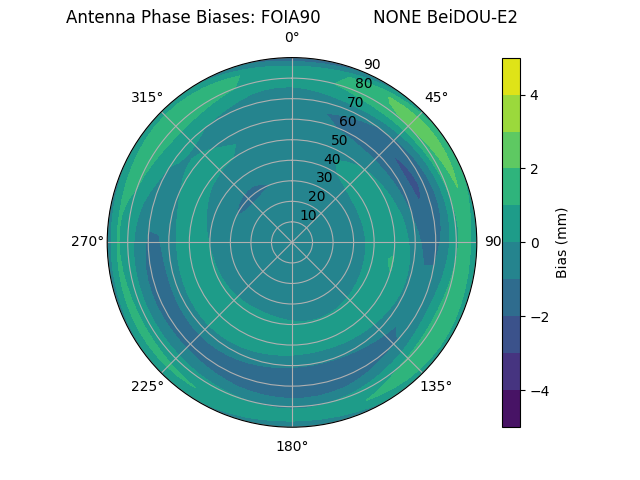

BeiDOU-E2 | |

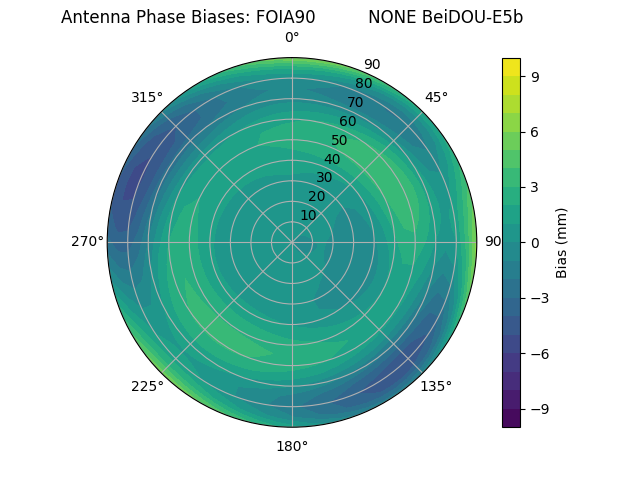

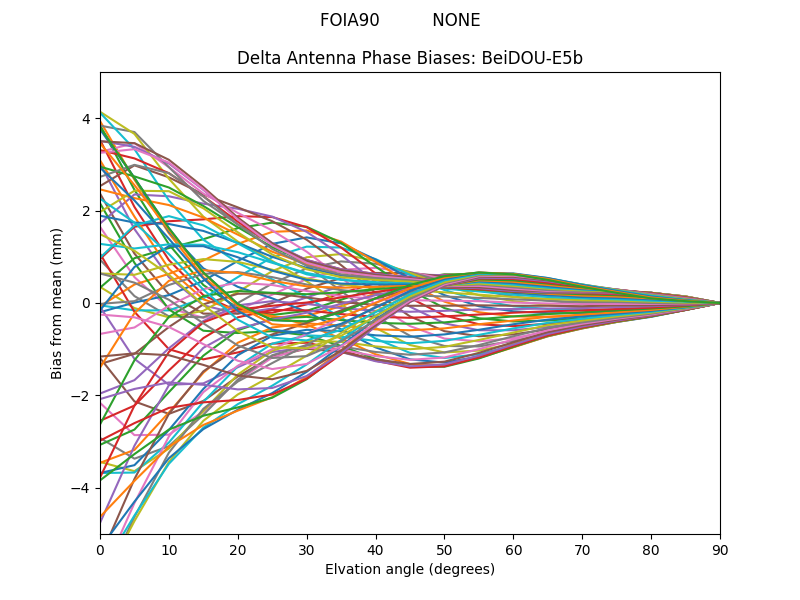

BeiDOU-E5b | |

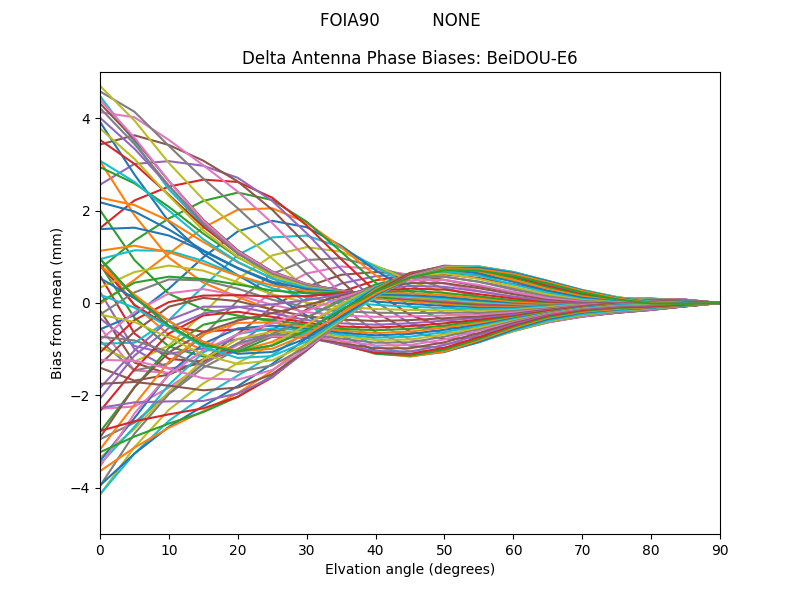

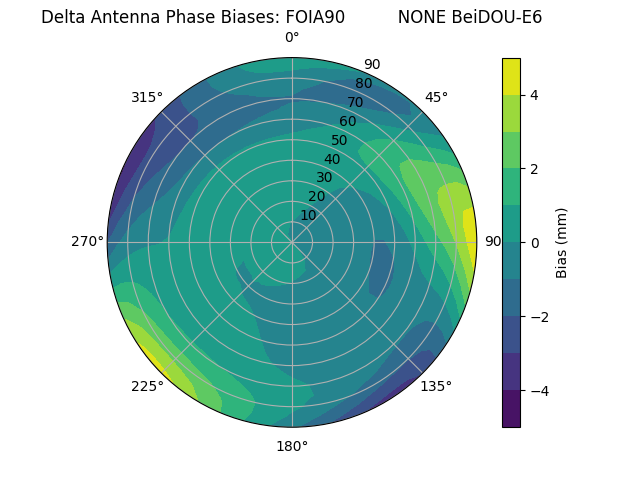

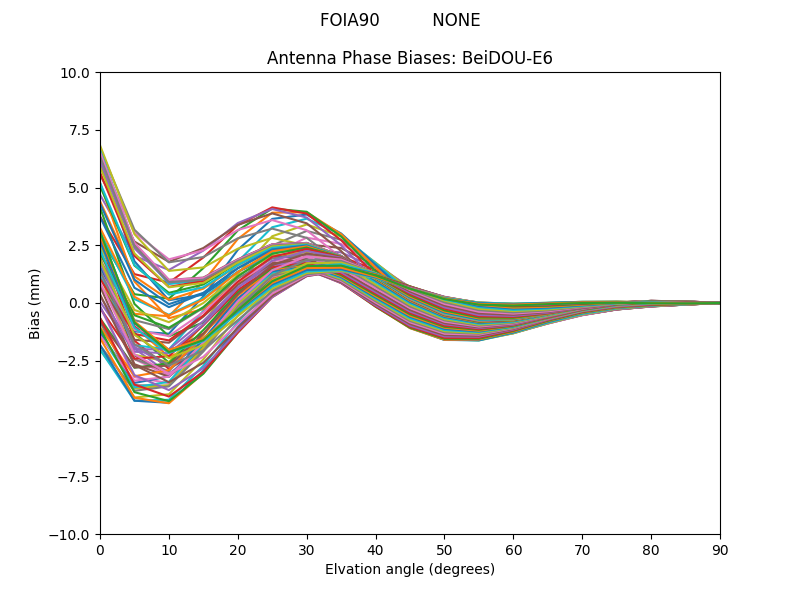

BeiDOU-E6 | |
Bias | Delta |
---|---|

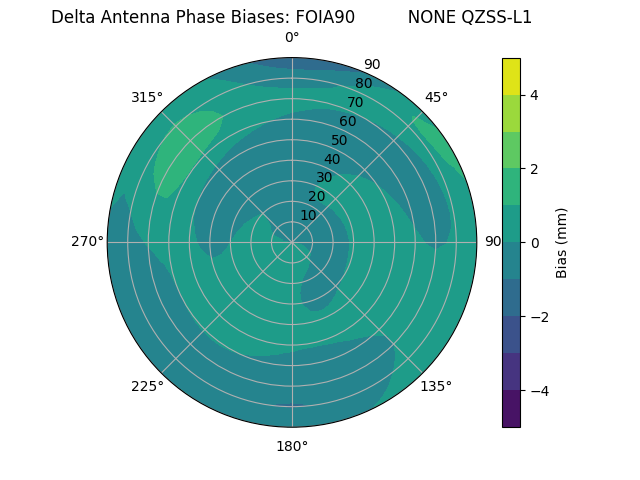

QZSS-L1 | |

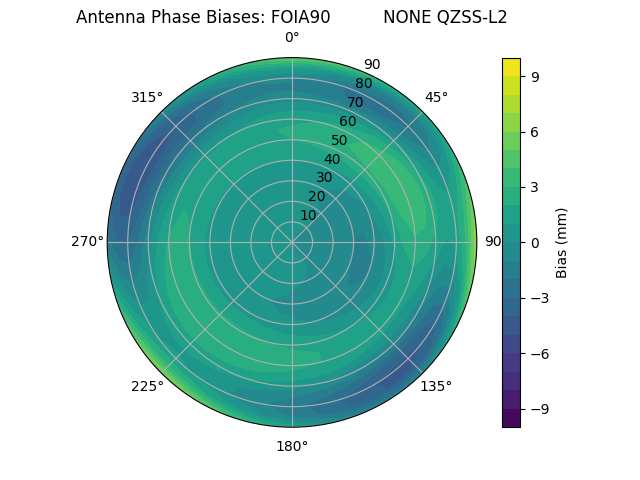

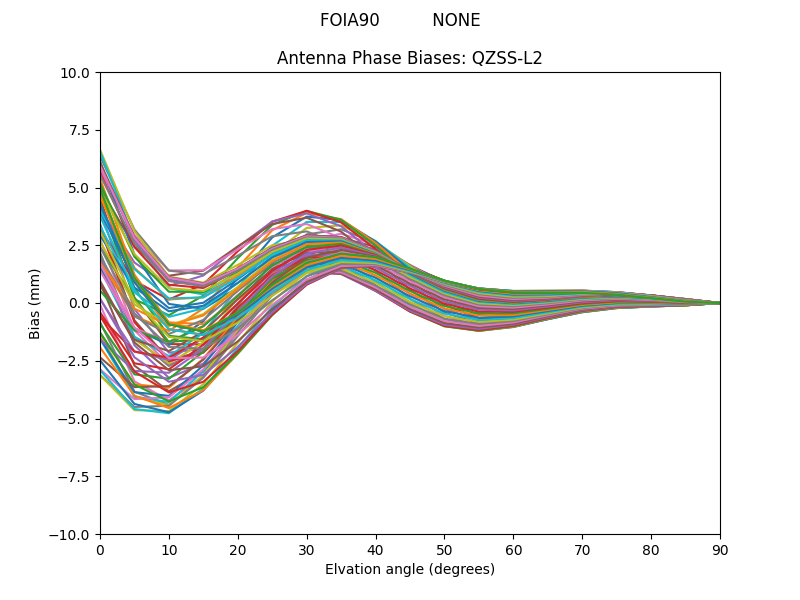

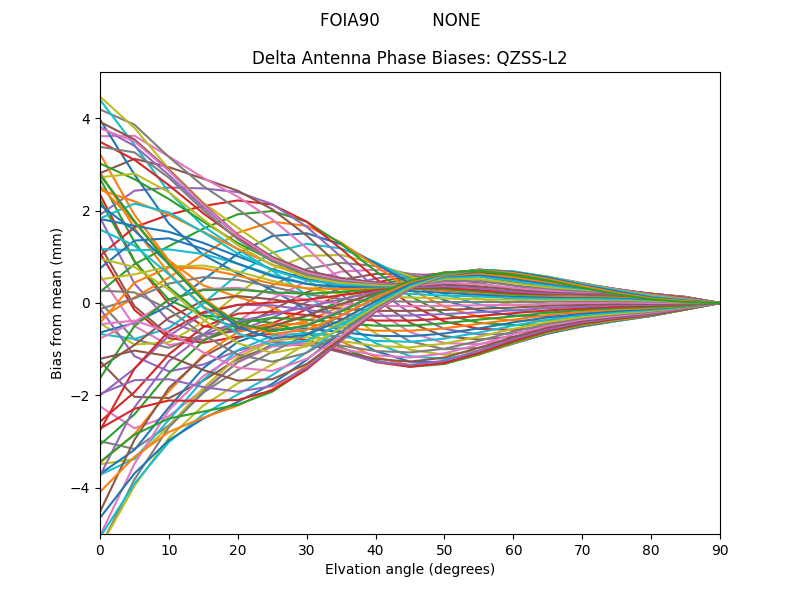

QZSS-L2 | |

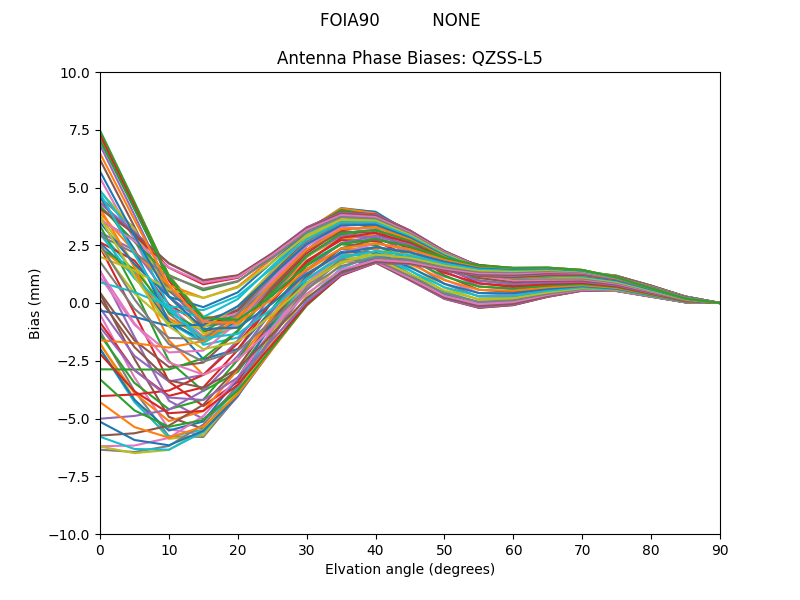

QZSS-L5 | |
Bias | Delta |
---|---|

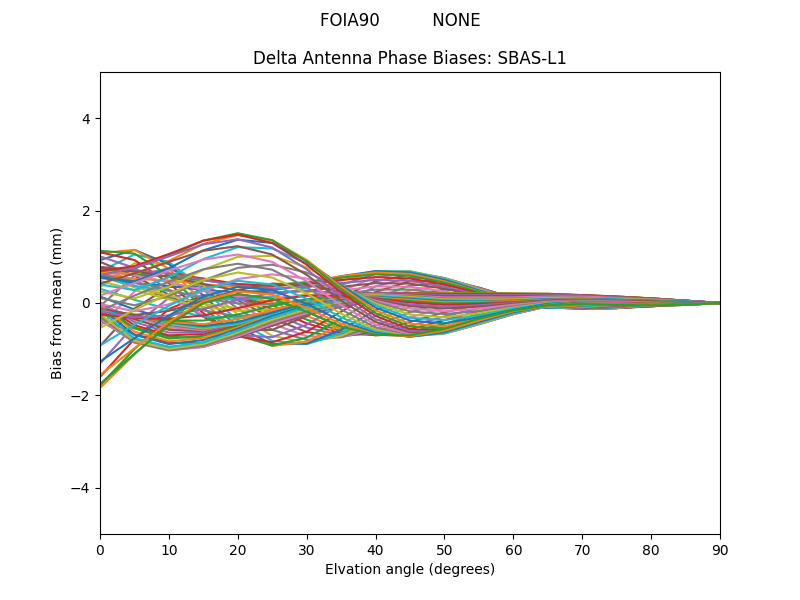

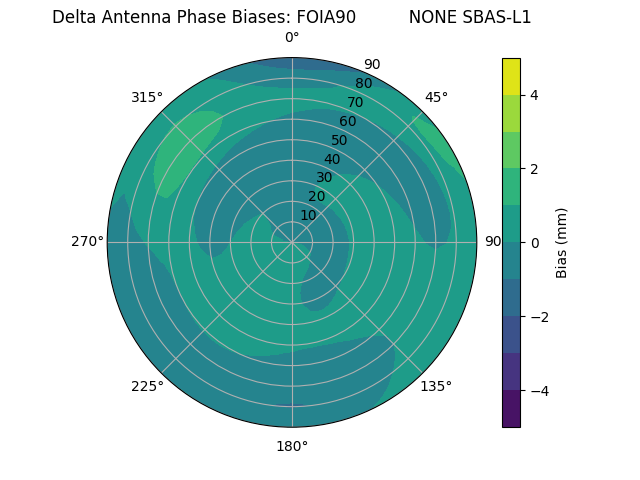

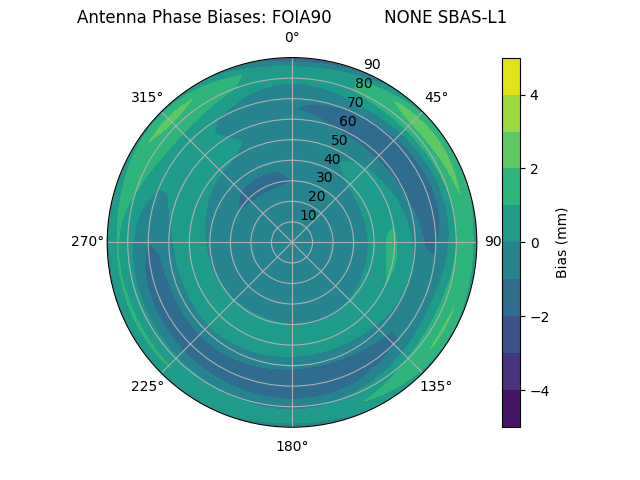

SBAS-L1 | |

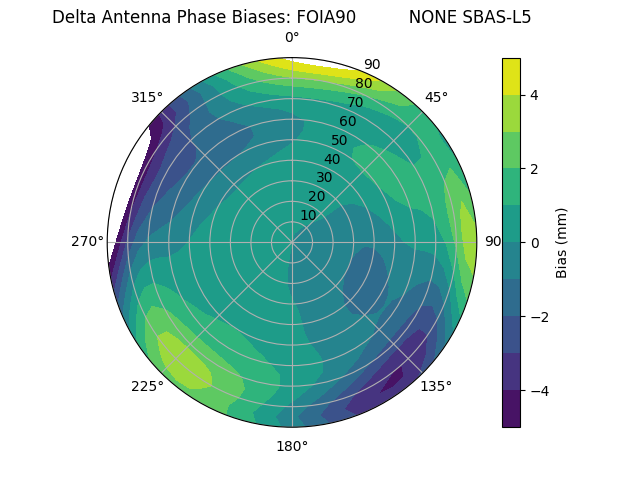

SBAS-L5 | |
Bias | Delta |
---|---|

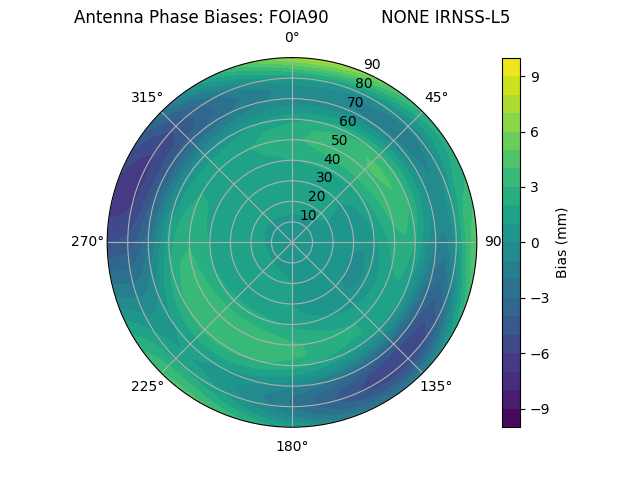

IRNSS-L5 | |
