Antenna information for GMXZENITH06 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 3.21 E: 0.79 U: 128.72
L2: N: 2.66 E: 3.54 U: 121.88

GLONASS

L1: N: 2.87 E: 0.88 U: 129.61
L2: N: 2.93 E: 2.26 U: 122.83

GALILEO

E1: N: 3.21 E: 0.79 U: 128.72
E5b: N: 3.09 E: 3.73 U: 112.59

BeiDou

E1: N: 3.21 E: 0.79 U: 128.72
E2: N: 3.30 E: 0.71 U: 128.37
E5b: N: 3.09 E: 3.73 U: 112.59

QZSS

L1: N: 3.21 E: 0.79 U: 128.72
L2: N: 2.66 E: 3.54 U: 121.88

SBAS

L1: N: 3.21 E: 0.79 U: 128.72

L1

GPS: N: 3.21 E: 0.79 U: 128.72
GLONASS: N: 2.87 E: 0.88 U: 129.61
QZSS: N: 3.21 E: 0.79 U: 128.72
SBAS: N: 3.21 E: 0.79 U: 128.72

L2

GPS: N: 2.66 E: 3.54 U: 121.88
GLONASS: N: 2.93 E: 2.26 U: 122.83
QZSS: N: 2.66 E: 3.54 U: 121.88

E1

GALILEO: N: 3.21 E: 0.79 U: 128.72
BeiDou: N: 3.21 E: 0.79 U: 128.72

E2

BeiDou: N: 3.30 E: 0.71 U: 128.37

E5b

GALILEO: N: 3.09 E: 3.73 U: 112.59
BeiDou: N: 3.09 E: 3.73 U: 112.59


Means

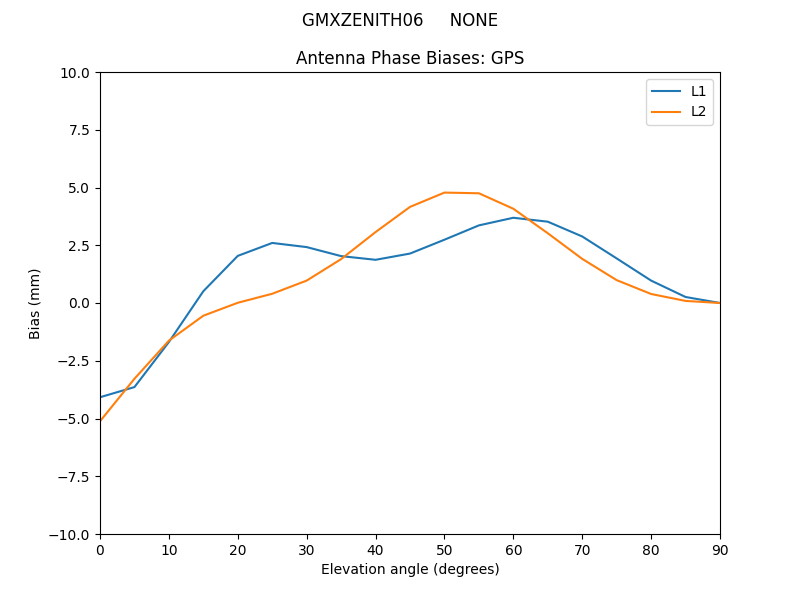

GPS

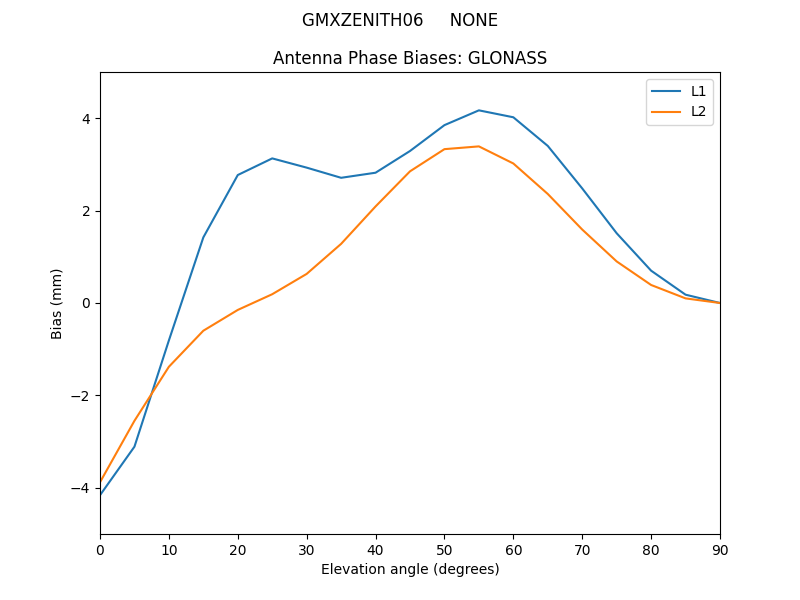

GLONASS

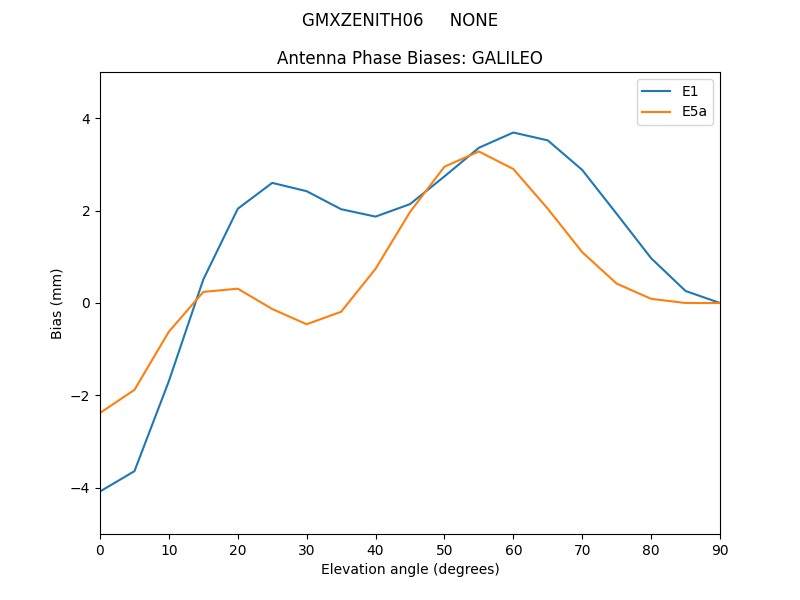

GALILEO

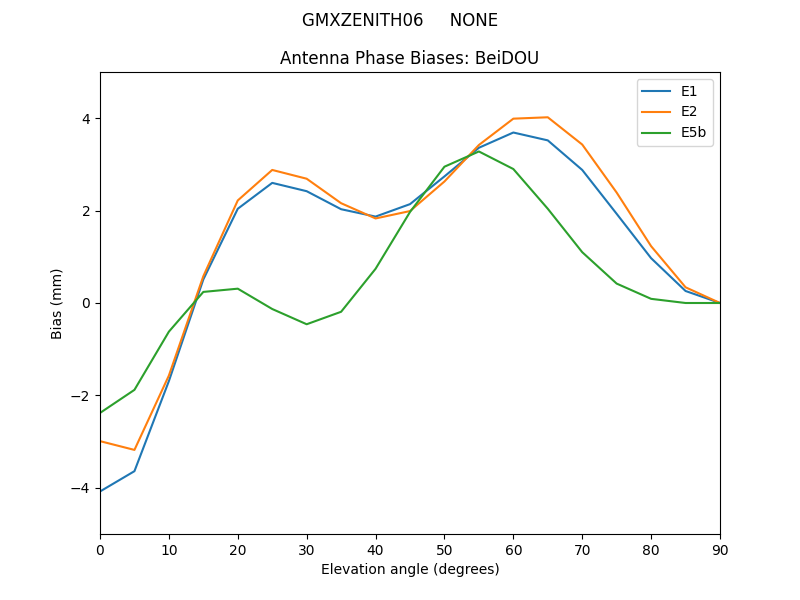

BeiDOU


QZSS

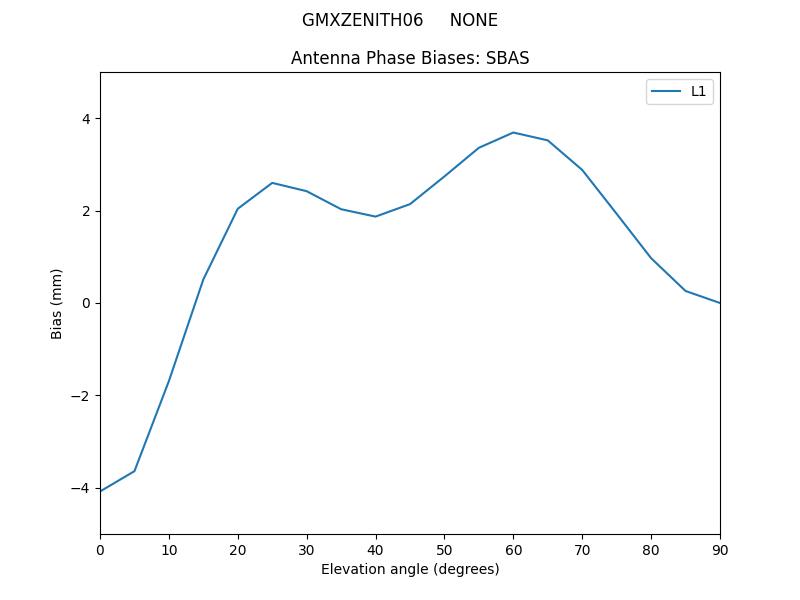

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

GPS-L2

GPS-L2GPS-L2

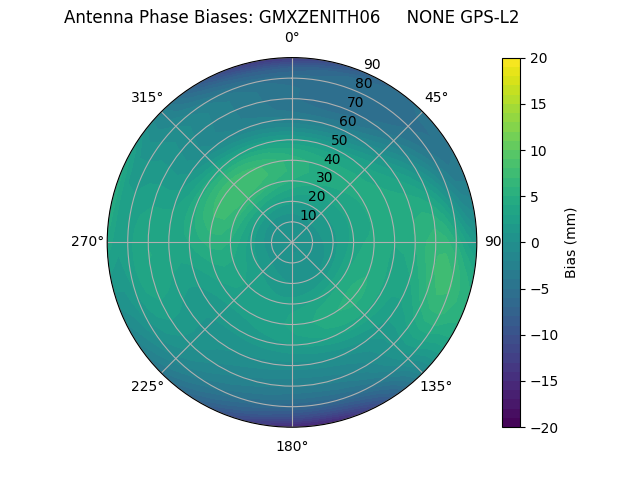

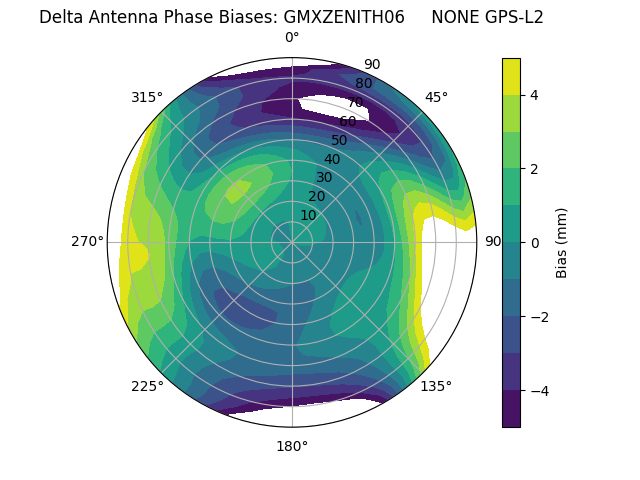

Radial GPS-L2Radial GPS-L2

GLONASS


Bias Delta

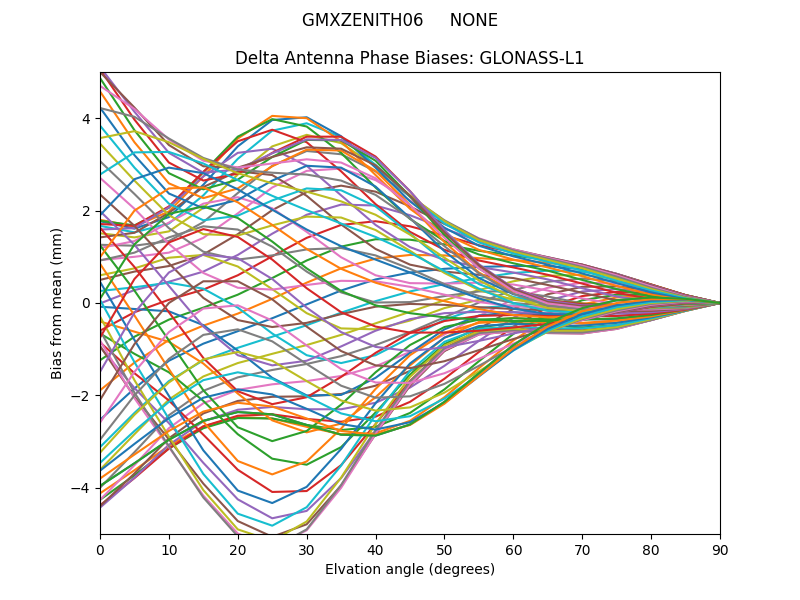

GLONASS-L1

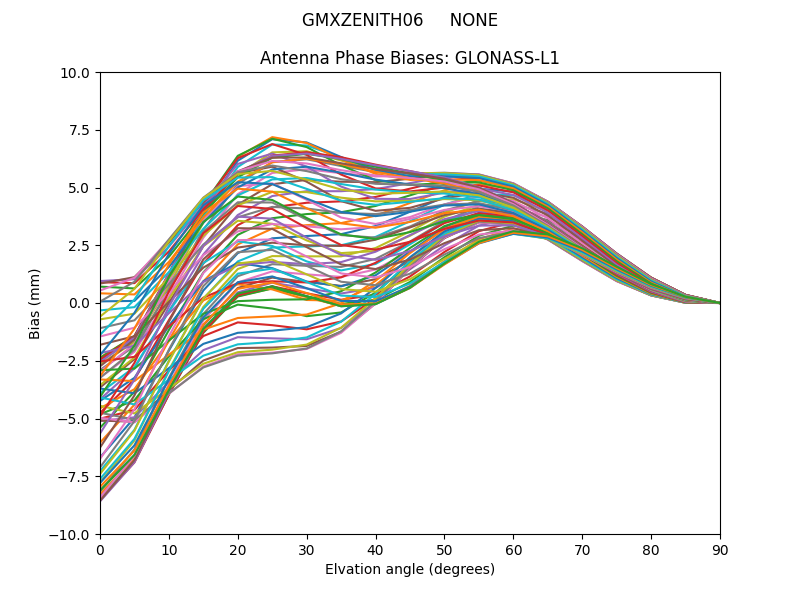

GLONASS-L1GLONASS-L1

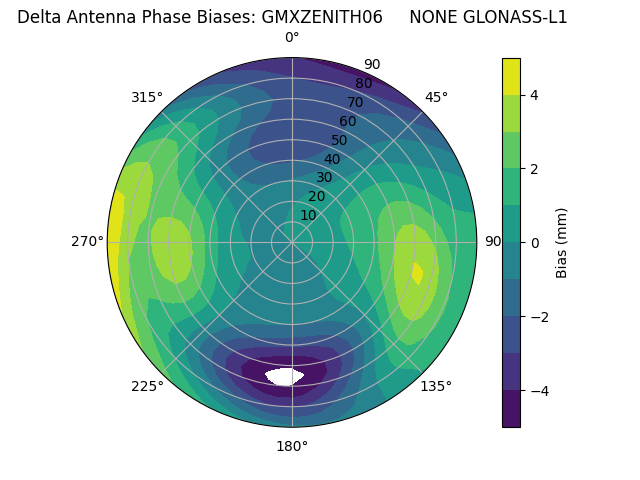

Radial GLONASS-L1Radial GLONASS-L1

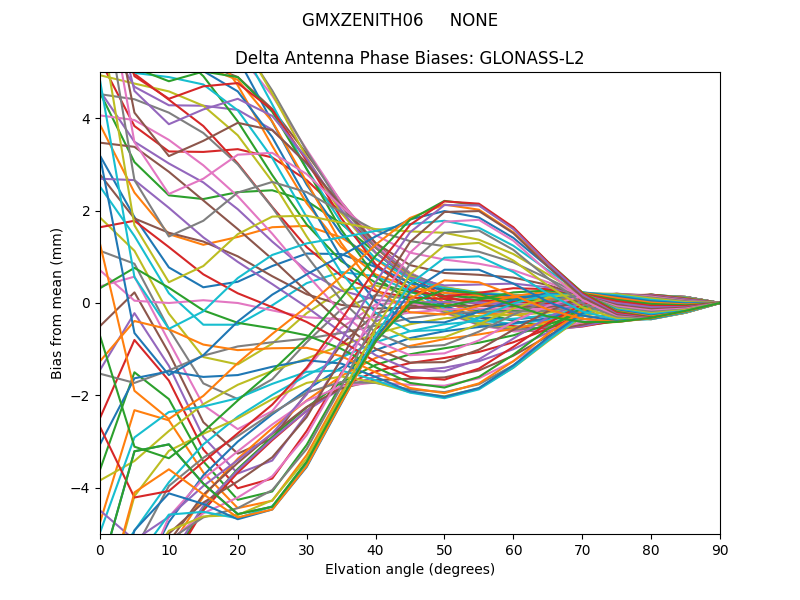

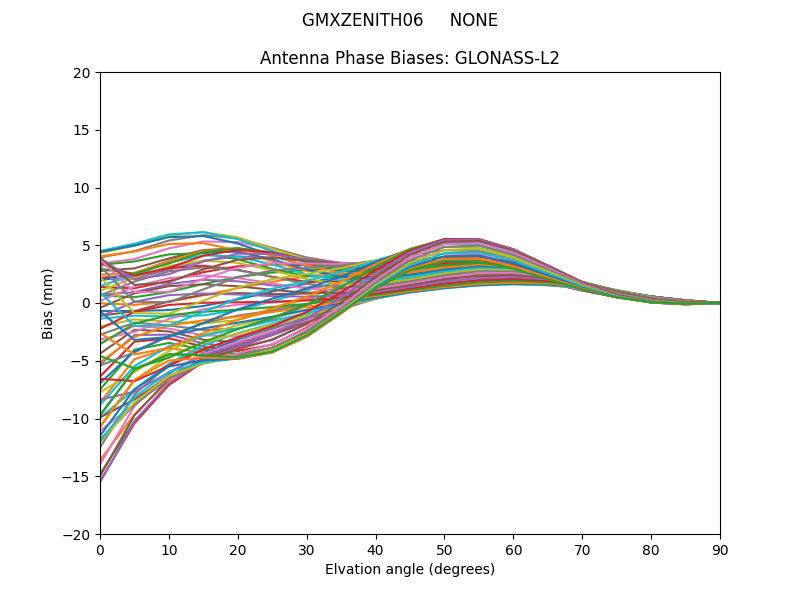

GLONASS-L2

GLONASS-L2GLONASS-L2

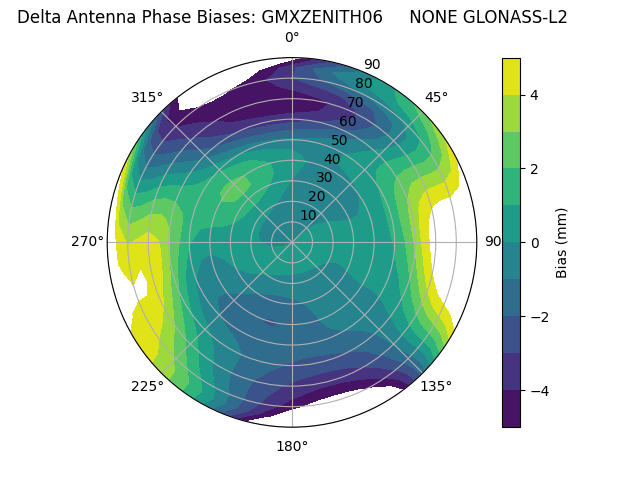

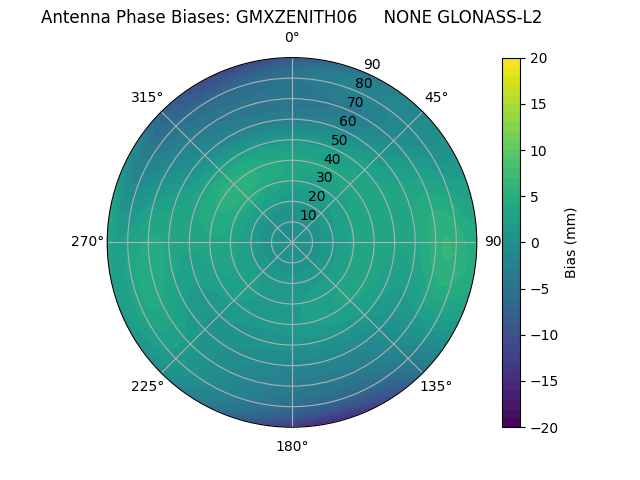

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

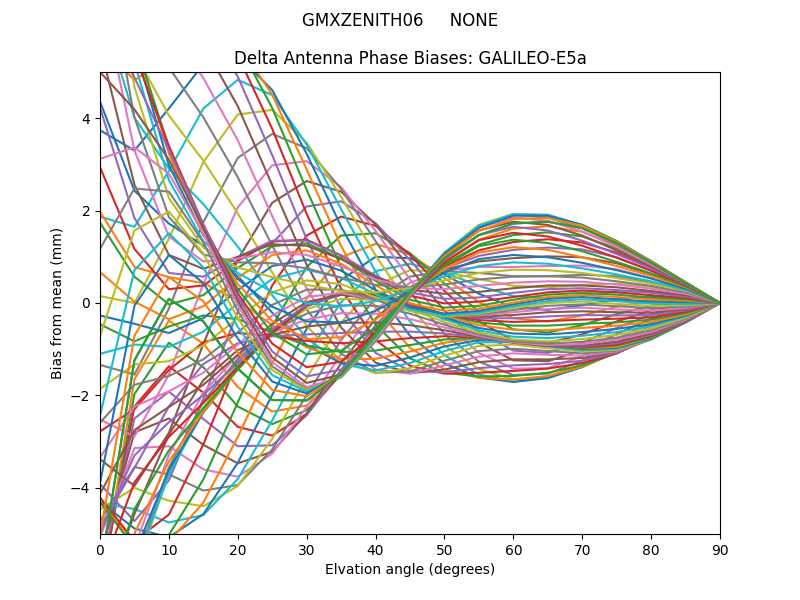

GALILEO-E5a

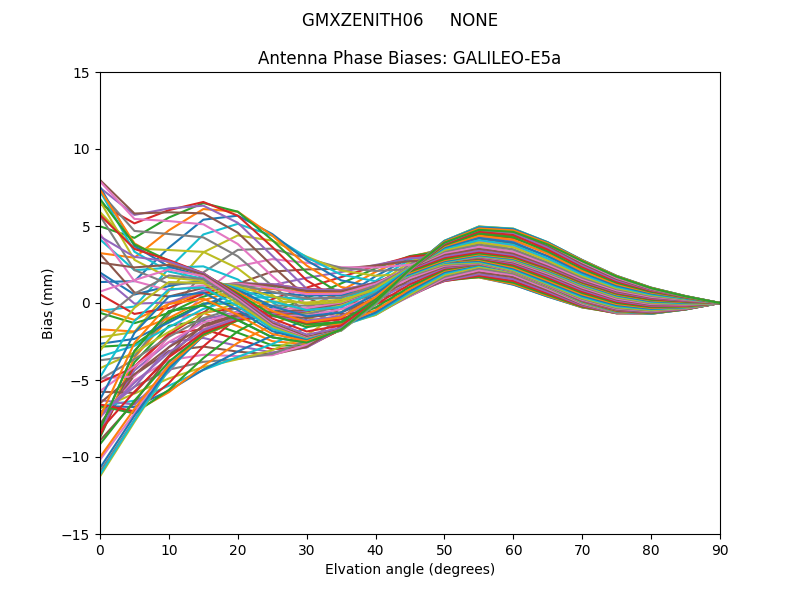

GALILEO-E5aGALILEO-E5a

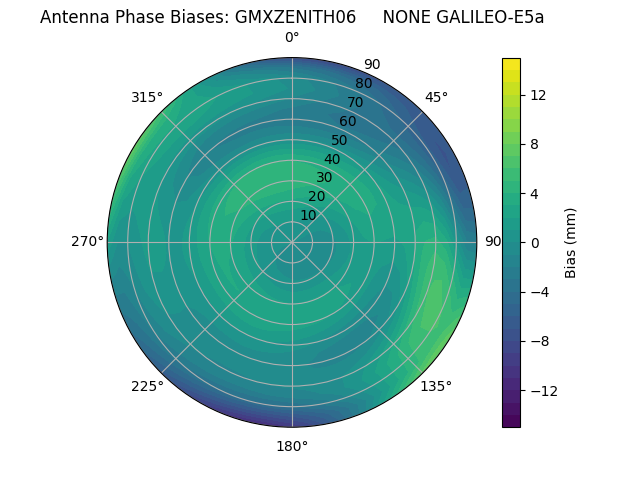

Radial GALILEO-E5aRadial GALILEO-E5a

BeiDOU


Bias Delta

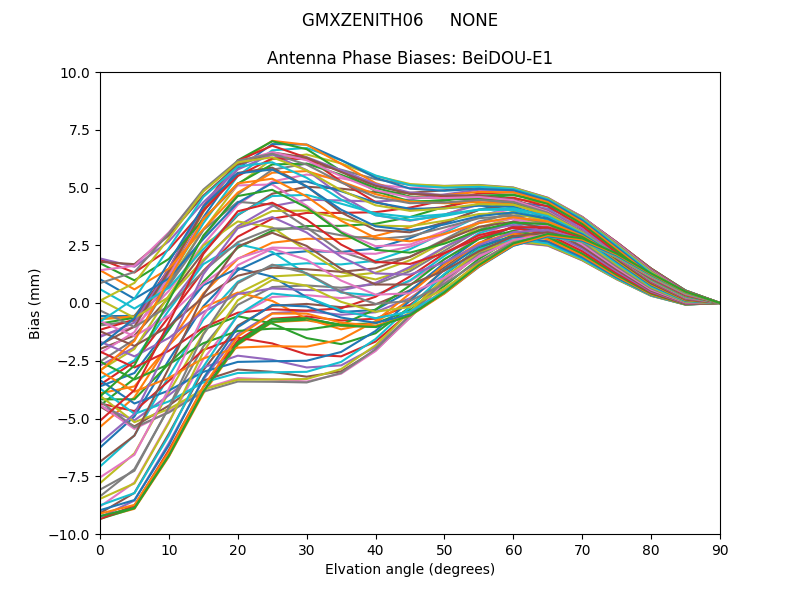

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

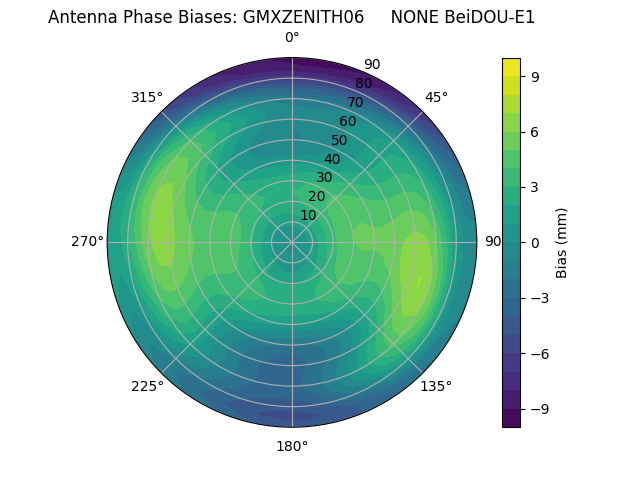

Radial BeiDOU-E1Radial BeiDOU-E1

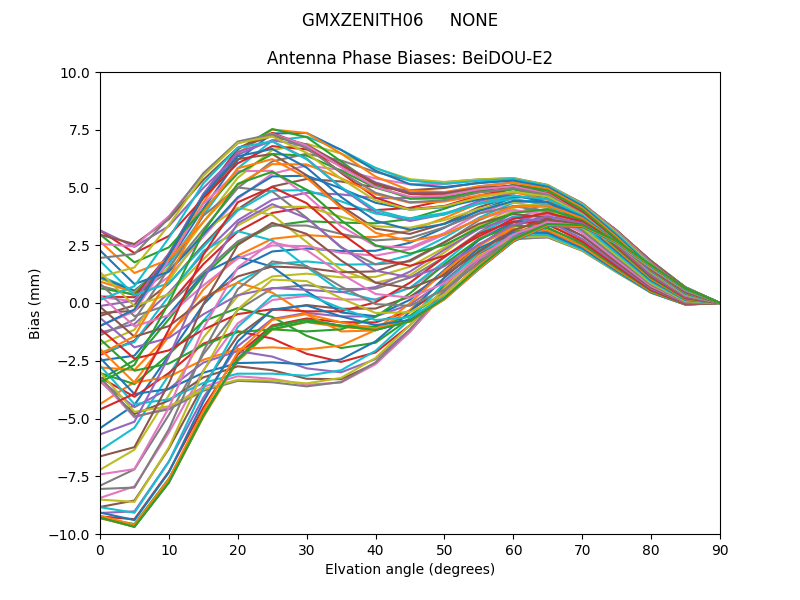

BeiDOU-E2

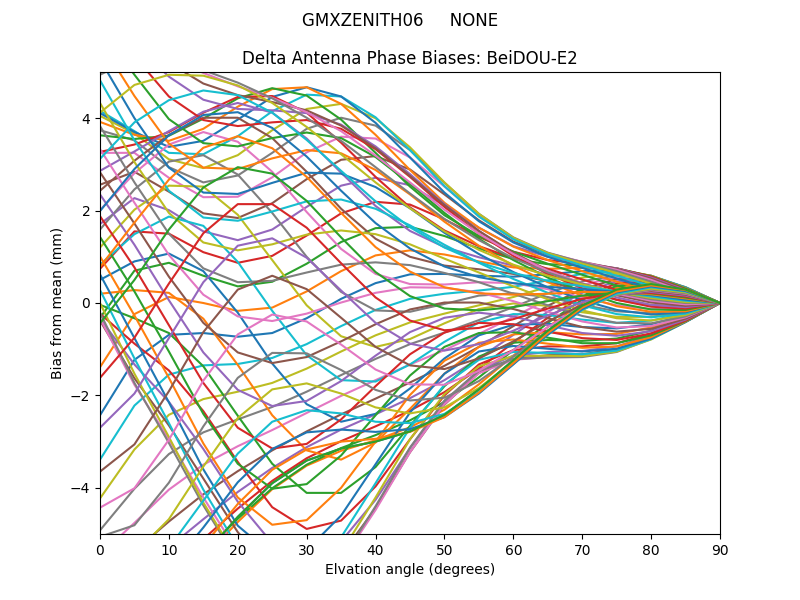

BeiDOU-E2BeiDOU-E2

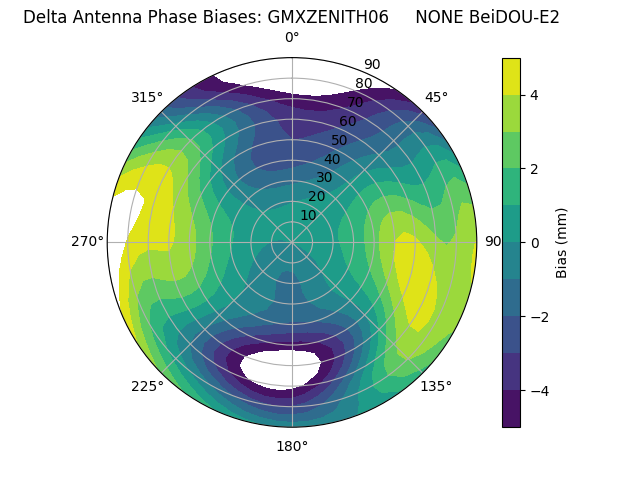

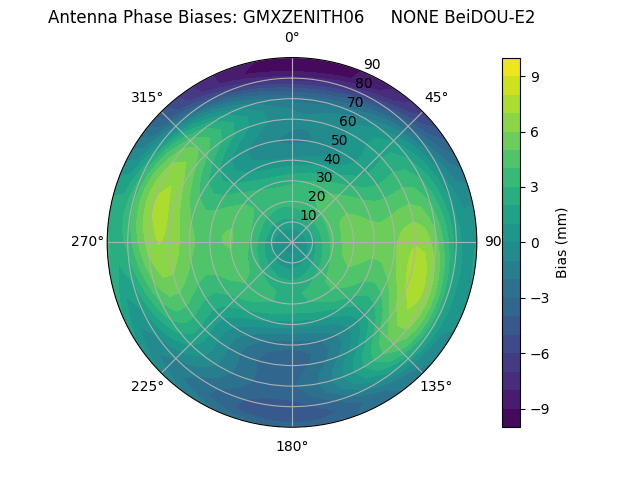

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

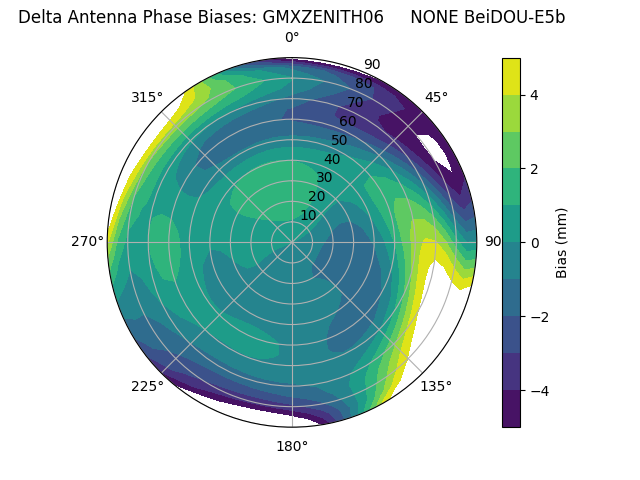

Radial BeiDOU-E5bRadial BeiDOU-E5b

QZSS


Bias Delta

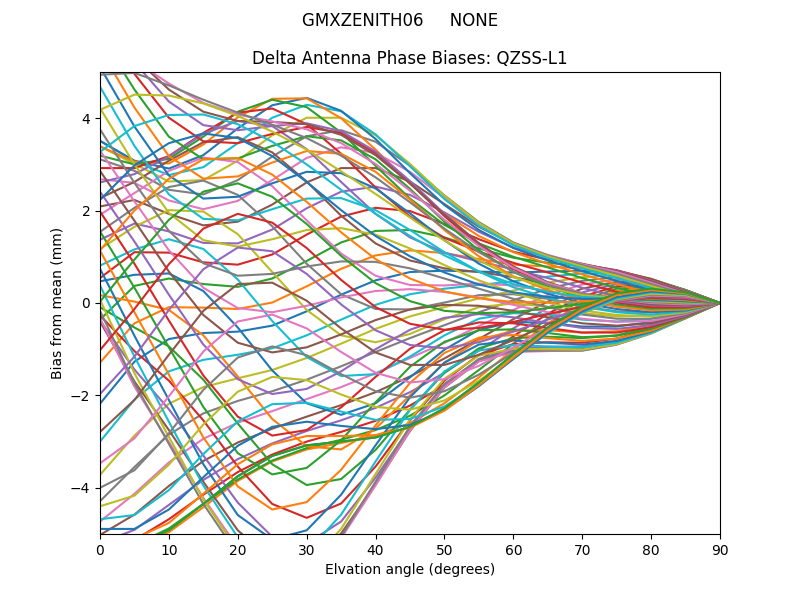

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

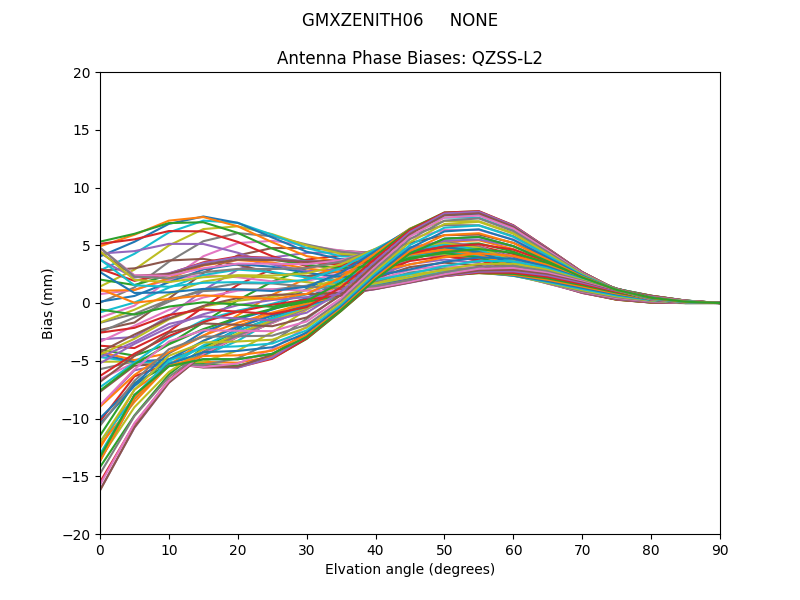

QZSS-L2

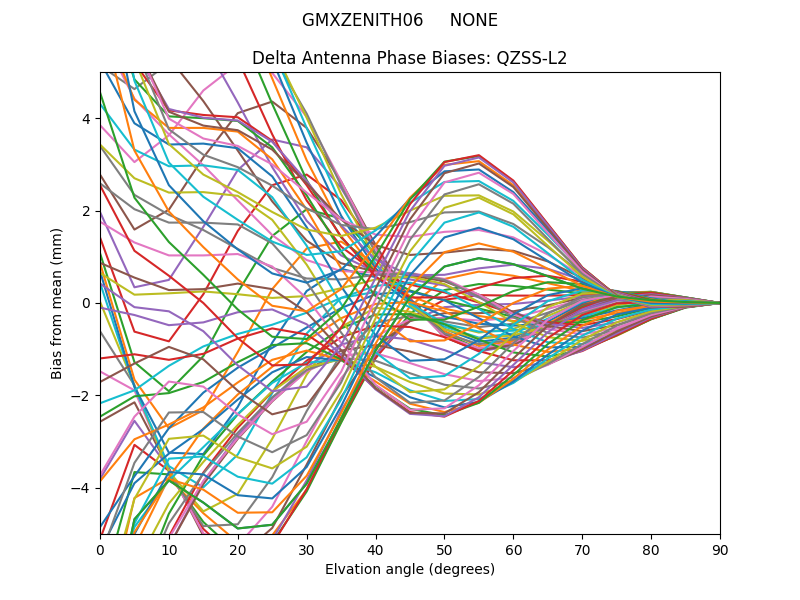

QZSS-L2QZSS-L2

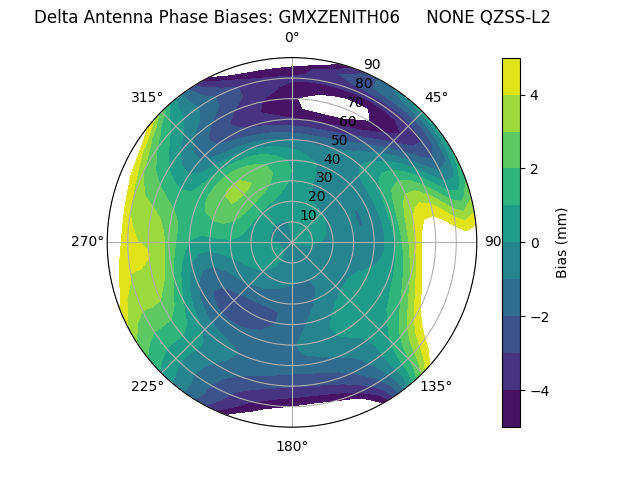

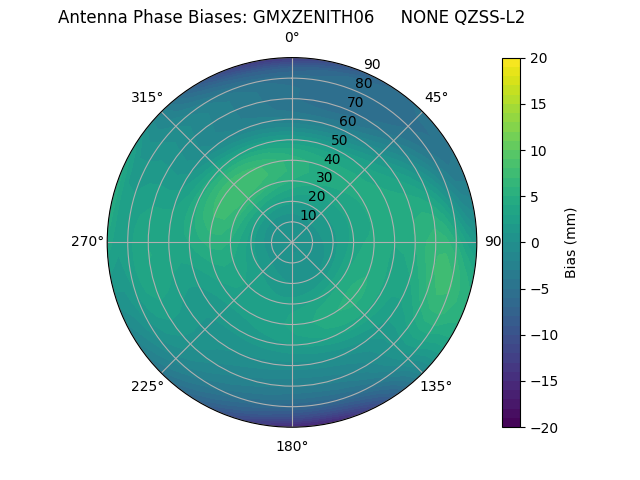

Radial QZSS-L2Radial QZSS-L2

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

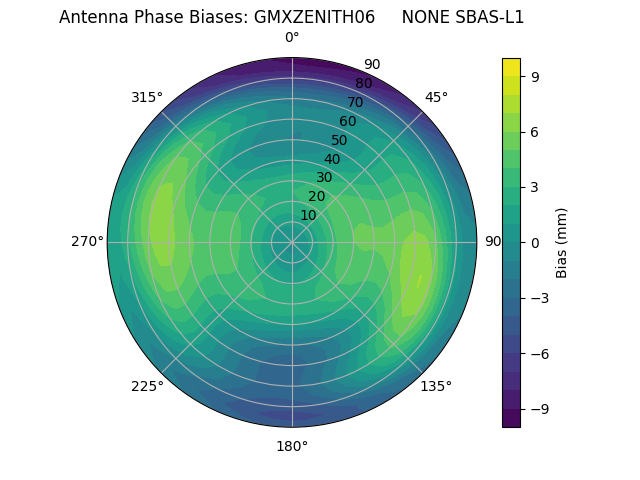

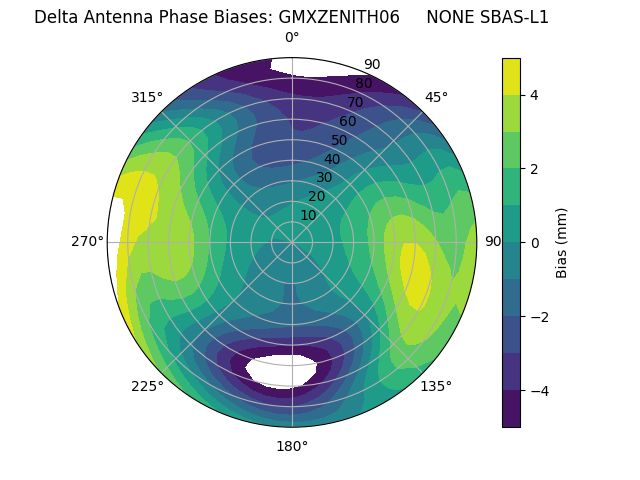

Radial SBAS-L1Radial SBAS-L1
