Antenna information for LEICGA100 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.28 E: 0.18 U: 50.56
L2: N: -3.04 E: 2.20 U: 53.95
L5: N: -3.87 E: 3.22 U: 57.19

GLONASS

L1: N: 0.39 E: 0.02 U: 51.55
L2: N: -2.81 E: 1.87 U: 53.07

GALILEO

E1: N: 0.28 E: 0.18 U: 50.56
E5a: N: -3.87 E: 3.22 U: 57.19
E5b: N: -3.35 E: 2.60 U: 55.10
E5: N: -3.60 E: 2.91 U: 56.10
E6: N: -2.43 E: 1.31 U: 51.80

BeiDou

E1: N: 0.28 E: 0.18 U: 50.56
E2: N: 0.22 E: 0.28 U: 50.03
E5b: N: -3.35 E: 2.60 U: 55.10
E6: N: -2.55 E: 1.49 U: 52.16

QZSS

L1: N: 0.28 E: 0.18 U: 50.56
L2: N: -3.04 E: 2.20 U: 53.95
L5: N: -3.87 E: 3.22 U: 57.19
LEX: N: -2.43 E: 1.31 U: 51.80

IRNSS

L5: N: -3.87 E: 3.22 U: 57.19

SBAS

L1: N: 0.28 E: 0.18 U: 50.56
L5: N: -3.87 E: 3.22 U: 57.19

L1

GPS: N: 0.28 E: 0.18 U: 50.56
GLONASS: N: 0.39 E: 0.02 U: 51.55
QZSS: N: 0.28 E: 0.18 U: 50.56
SBAS: N: 0.28 E: 0.18 U: 50.56

L2

GPS: N: -3.04 E: 2.20 U: 53.95
GLONASS: N: -2.81 E: 1.87 U: 53.07
QZSS: N: -3.04 E: 2.20 U: 53.95

L5

GPS: N: -3.87 E: 3.22 U: 57.19
QZSS: N: -3.87 E: 3.22 U: 57.19
SBAS: N: -3.87 E: 3.22 U: 57.19
IRNSS: N: -3.87 E: 3.22 U: 57.19

E1

GALILEO: N: 0.28 E: 0.18 U: 50.56
BeiDou: N: 0.28 E: 0.18 U: 50.56

E2

BeiDou: N: 0.22 E: 0.28 U: 50.03

E5

GALILEO: N: -3.60 E: 2.91 U: 56.10

E5a

GALILEO: N: -3.87 E: 3.22 U: 57.19

E5b

GALILEO: N: -3.35 E: 2.60 U: 55.10
BeiDou: N: -3.35 E: 2.60 U: 55.10

E6

GALILEO: N: -2.43 E: 1.31 U: 51.80
BeiDou: N: -2.55 E: 1.49 U: 52.16

LEX

QZSS: N: -2.43 E: 1.31 U: 51.80


Means

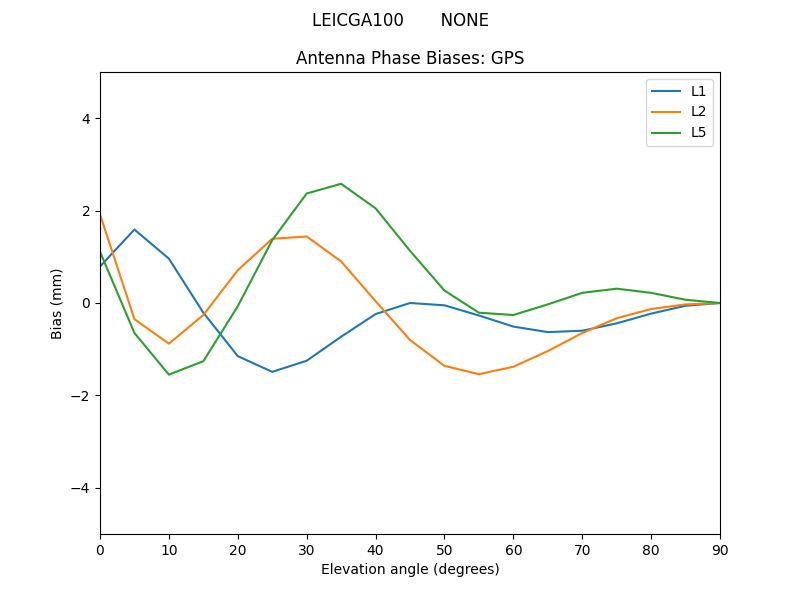

GPS

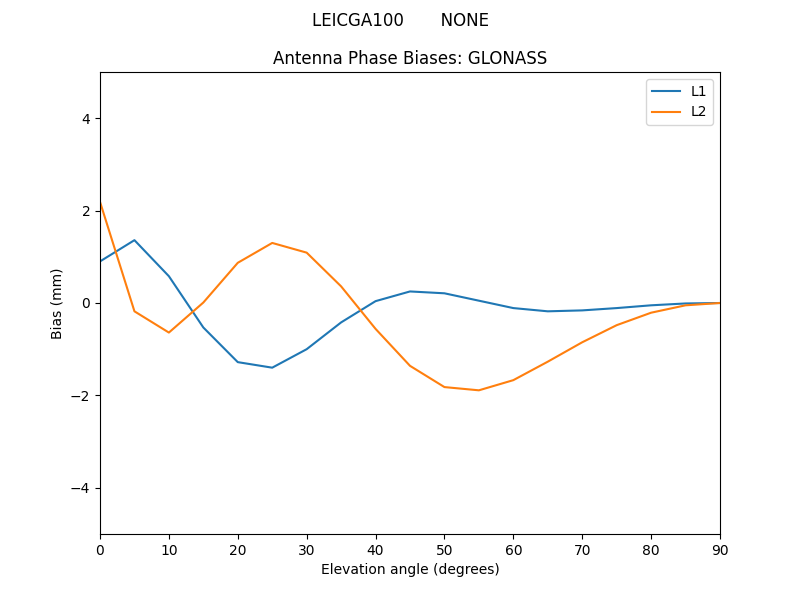

GLONASS

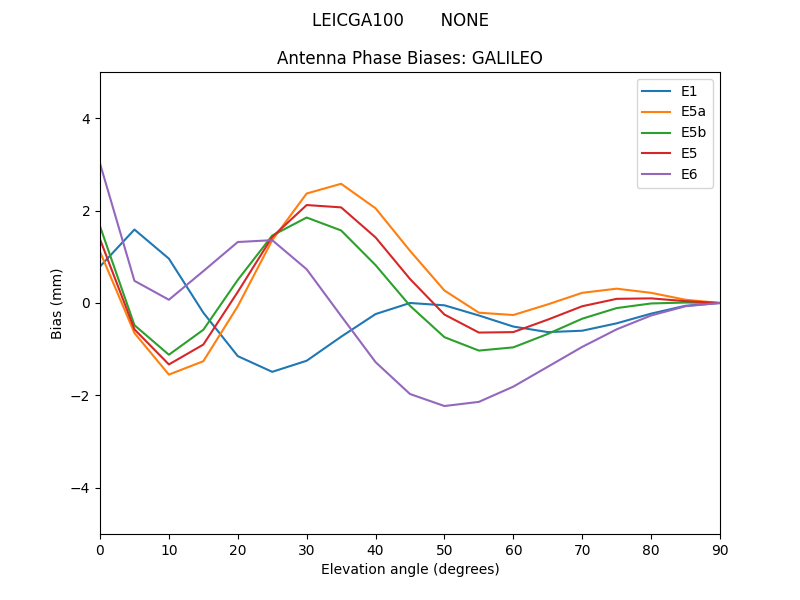

GALILEO

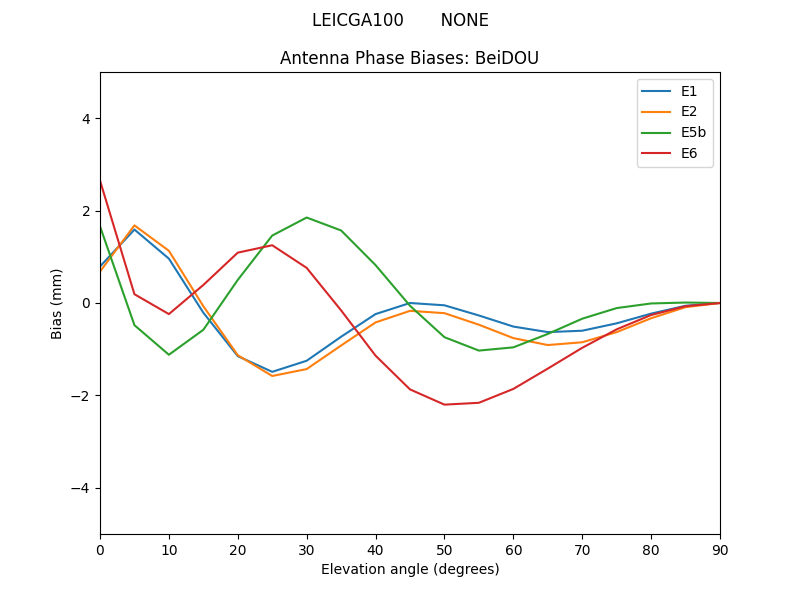

BeiDOU

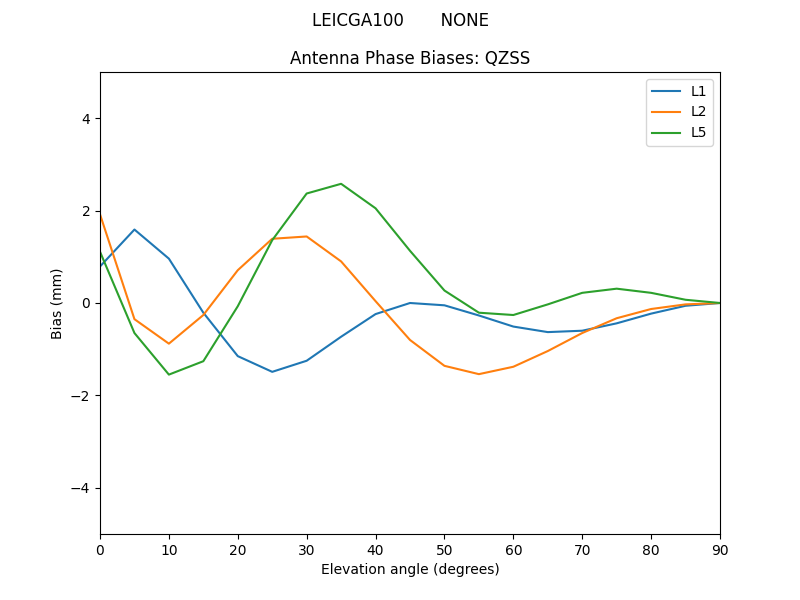

QZSS

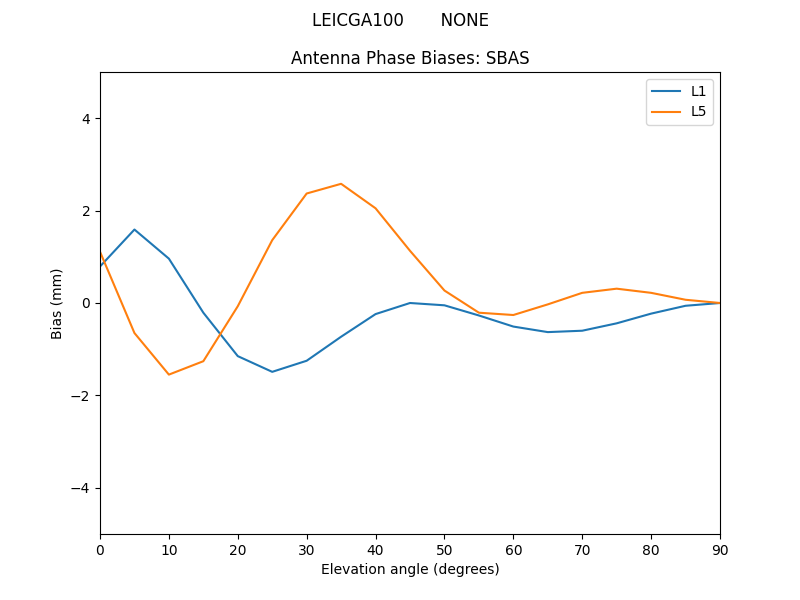

SBAS

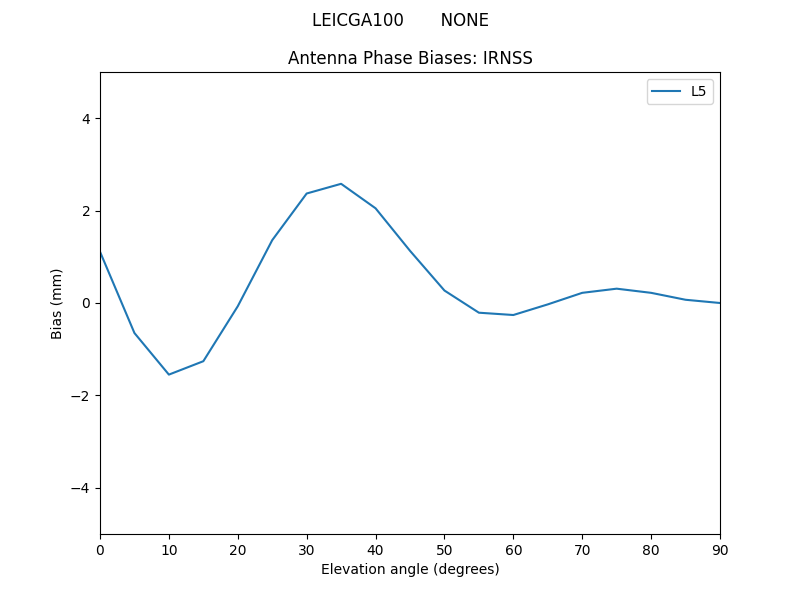

IRNSS


Azimuths

GPS


Bias Delta

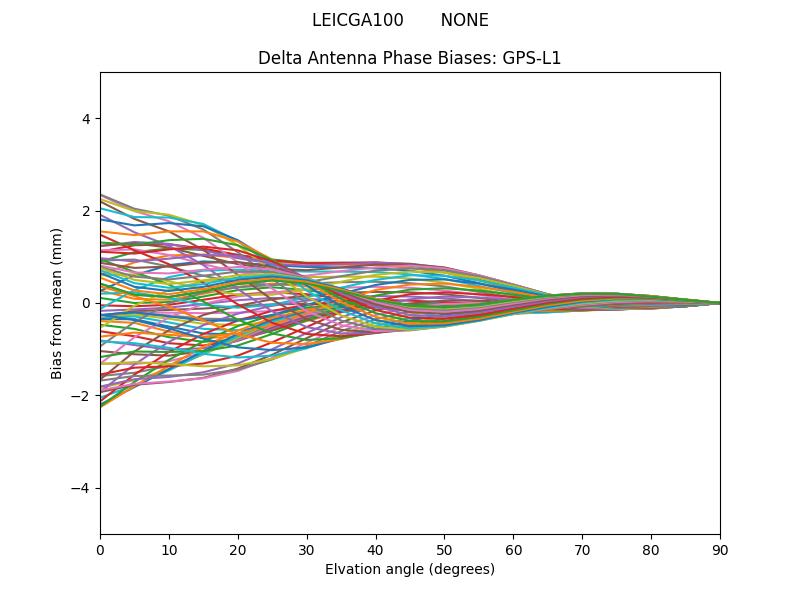

GPS-L1

GPS-L1GPS-L1

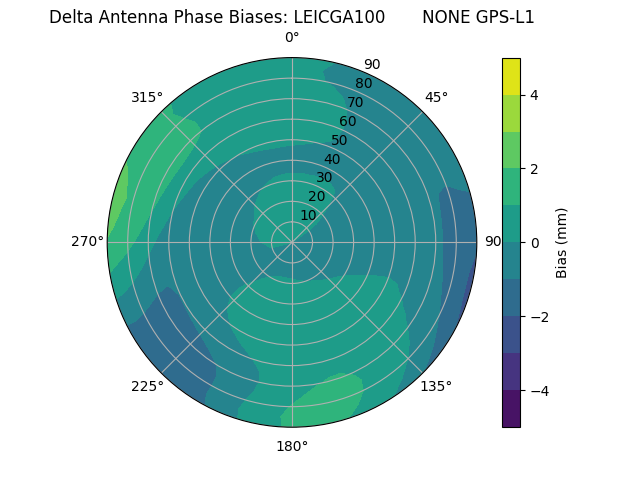

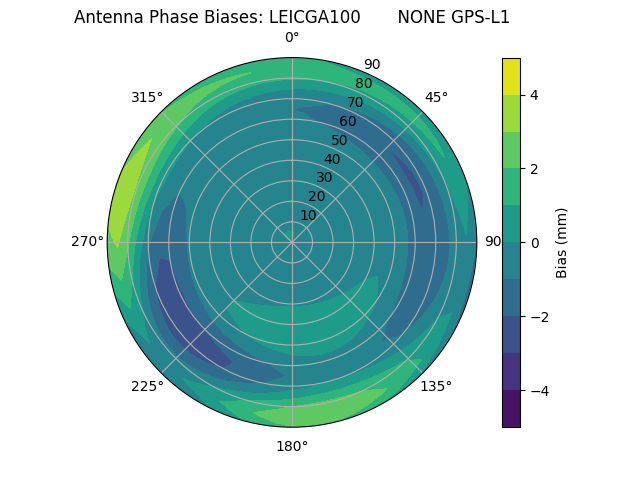

Radial GPS-L1Radial GPS-L1

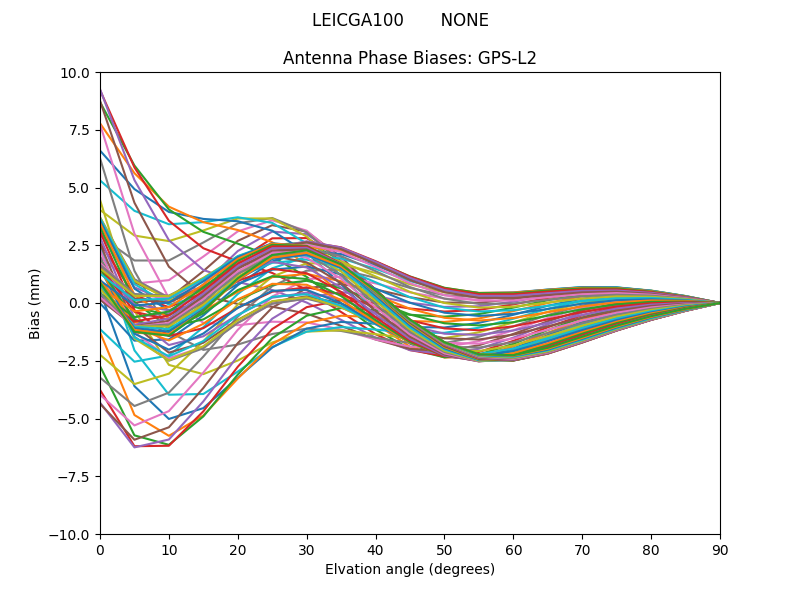

GPS-L2

GPS-L2GPS-L2

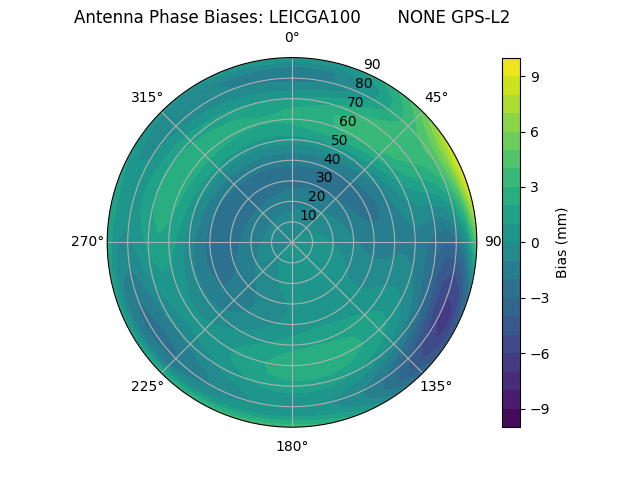

Radial GPS-L2Radial GPS-L2

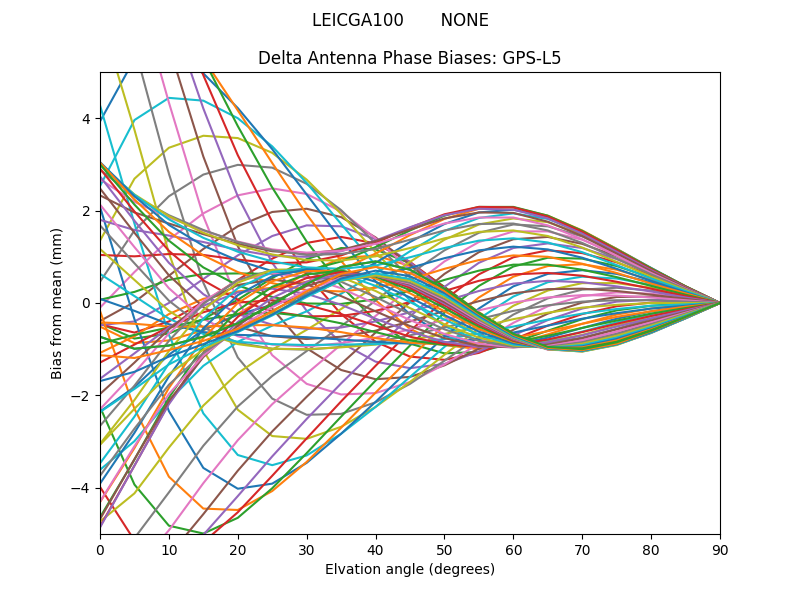

GPS-L5

GPS-L5GPS-L5

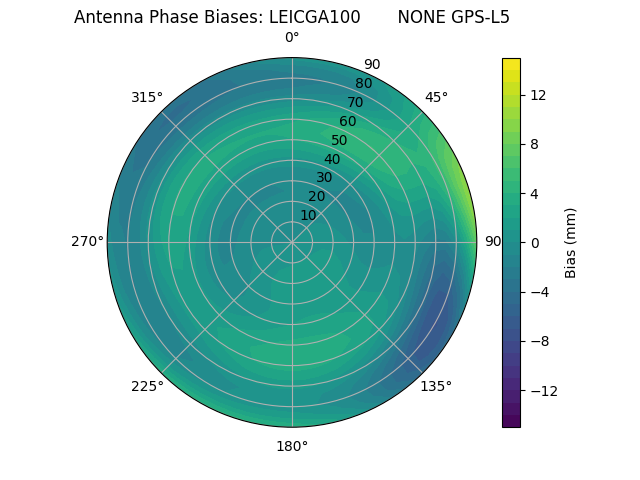

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

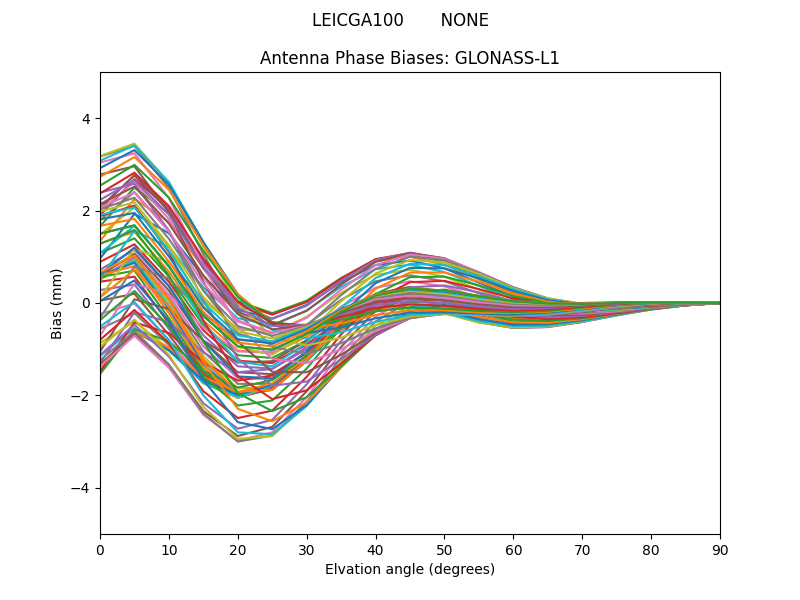

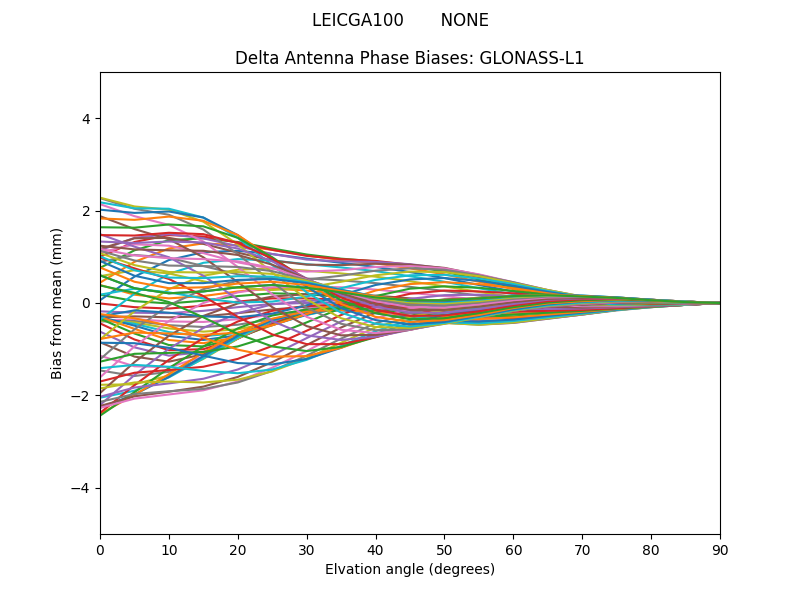

GLONASS-L1

GLONASS-L1GLONASS-L1
Radial GLONASS-L1Radial GLONASS-L1

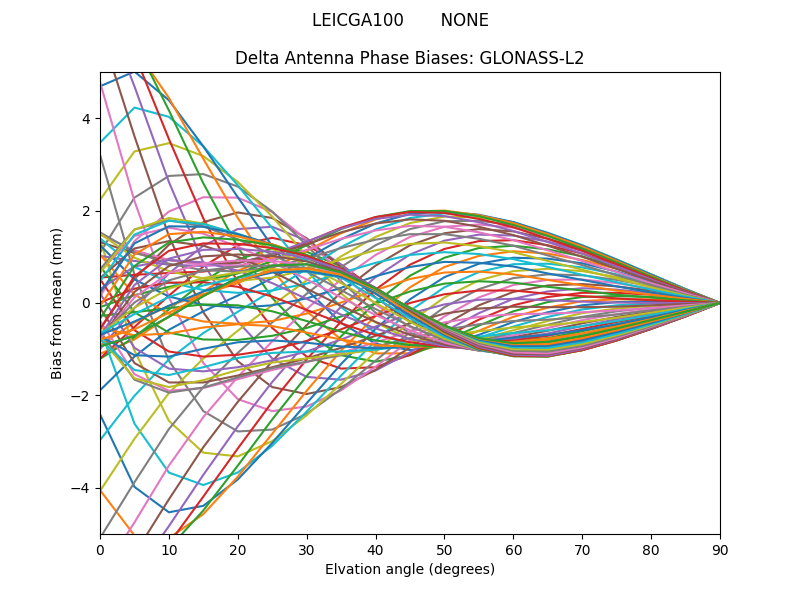

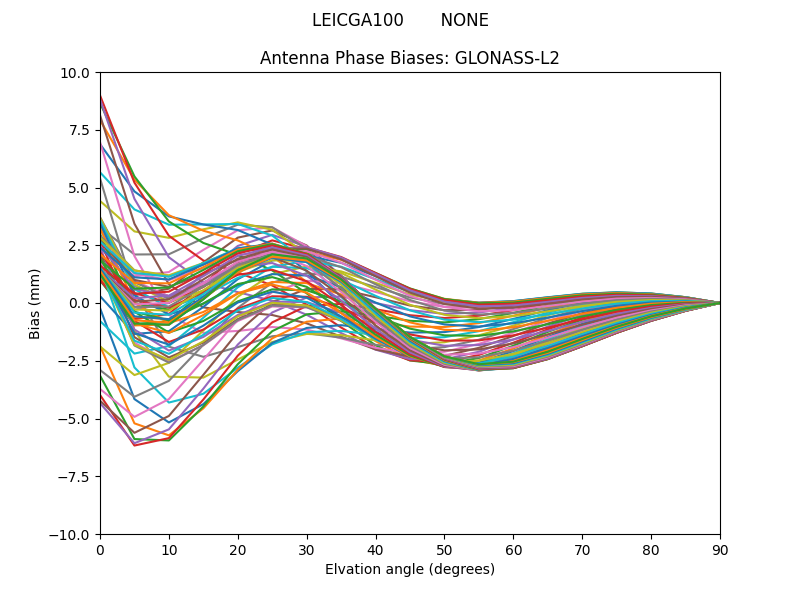

GLONASS-L2

GLONASS-L2GLONASS-L2

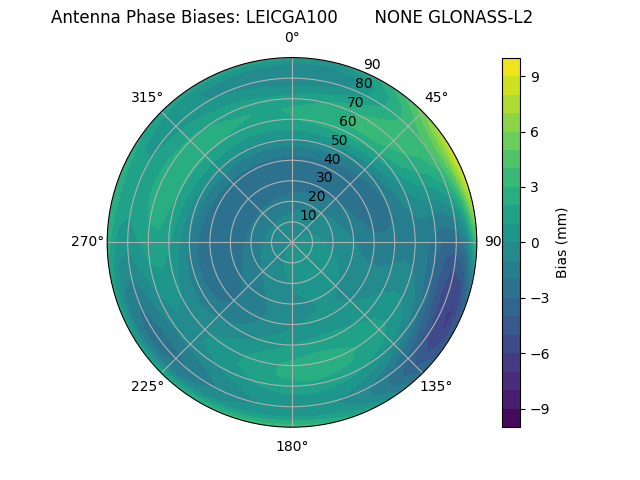

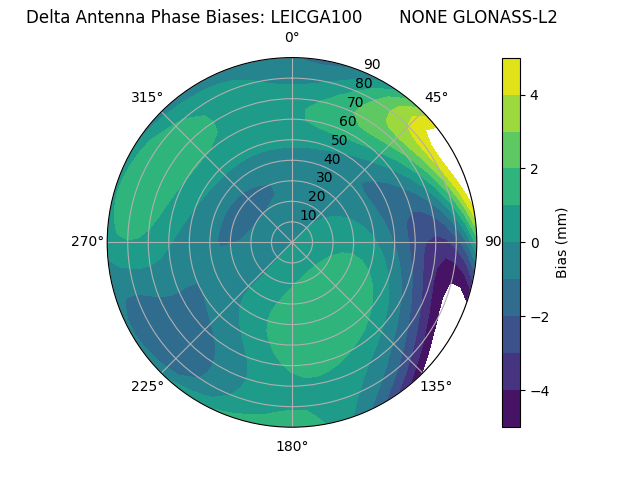

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

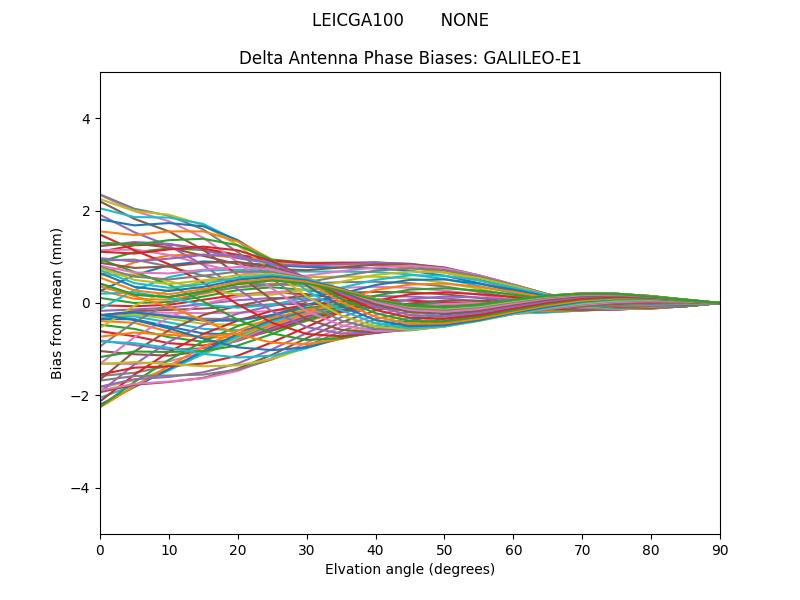

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

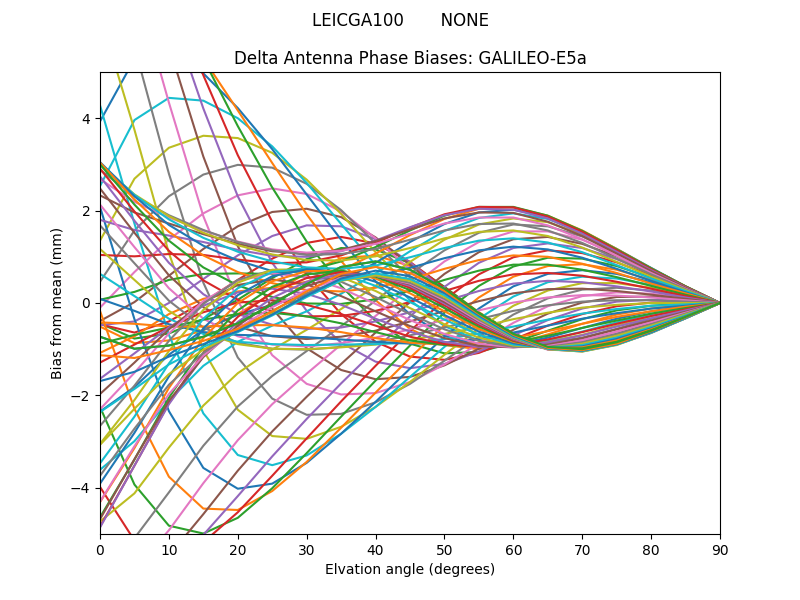

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

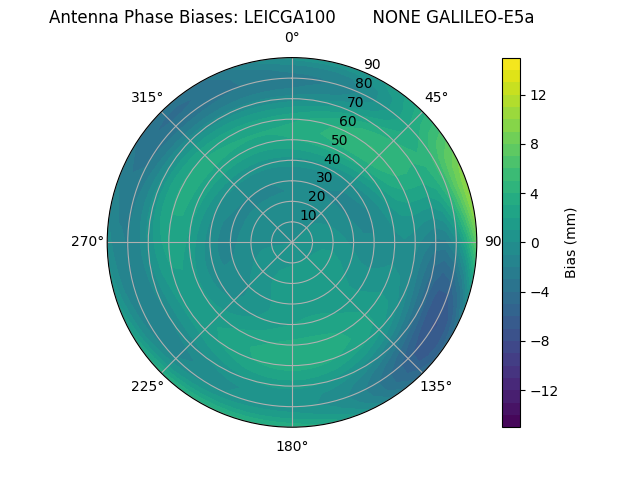

Radial GALILEO-E5aRadial GALILEO-E5a

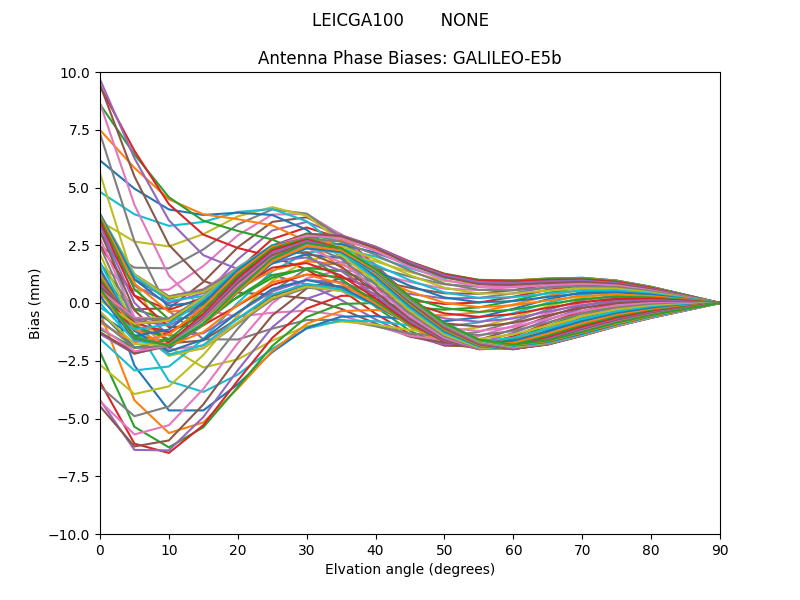

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

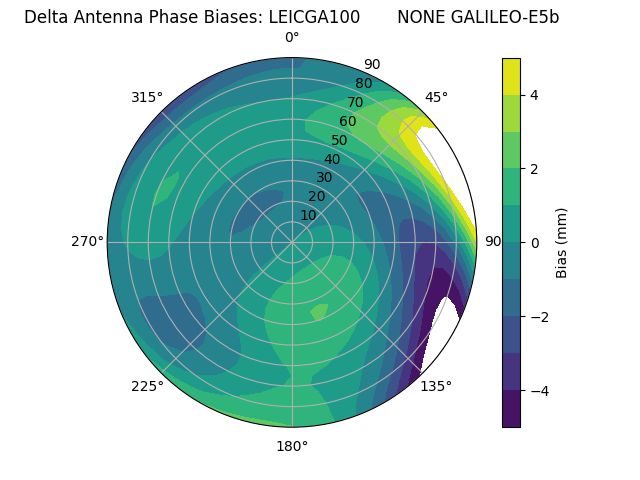

Radial GALILEO-E5bRadial GALILEO-E5b

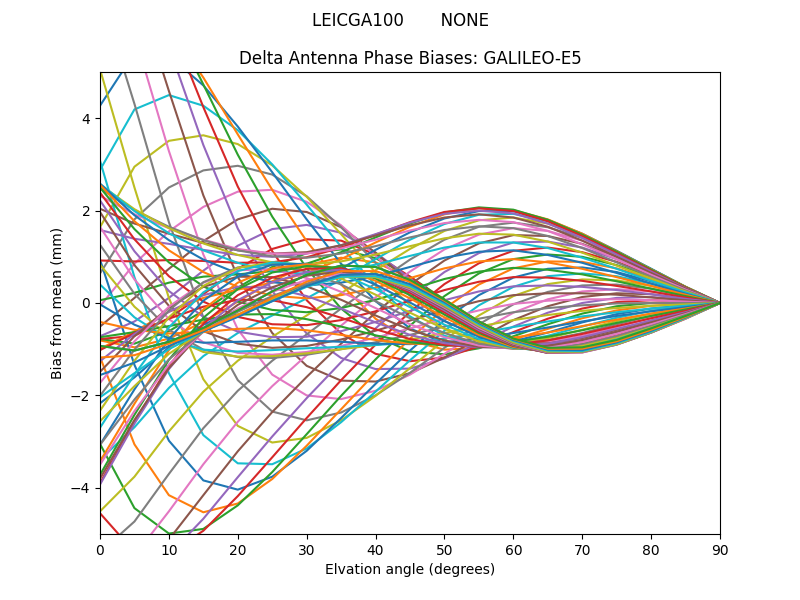

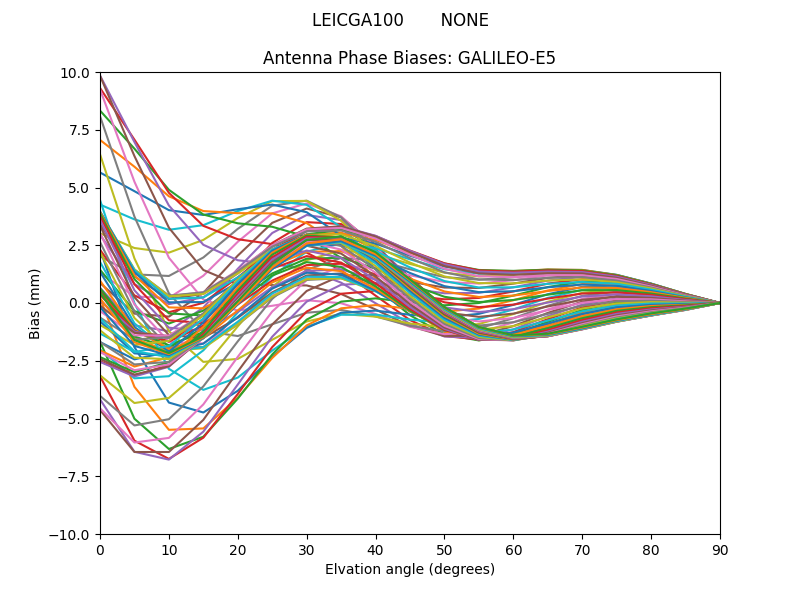

GALILEO-E5

GALILEO-E5GALILEO-E5

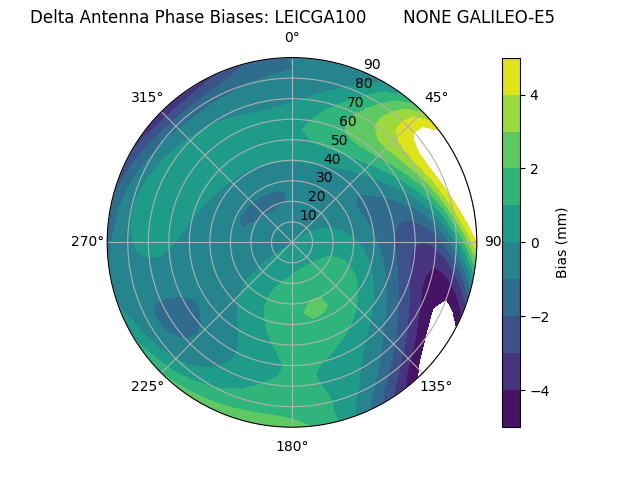

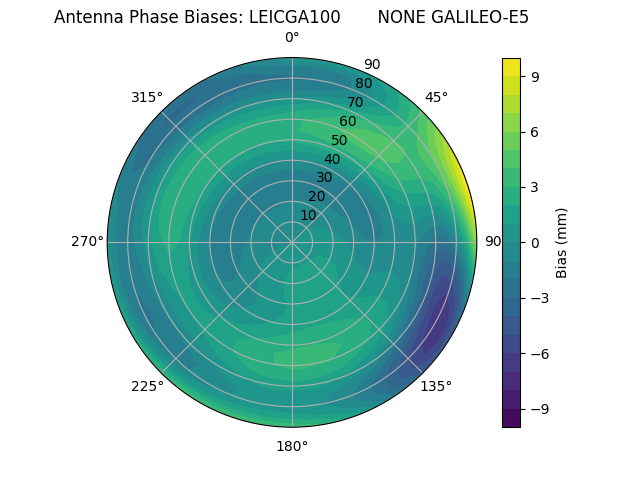

Radial GALILEO-E5Radial GALILEO-E5

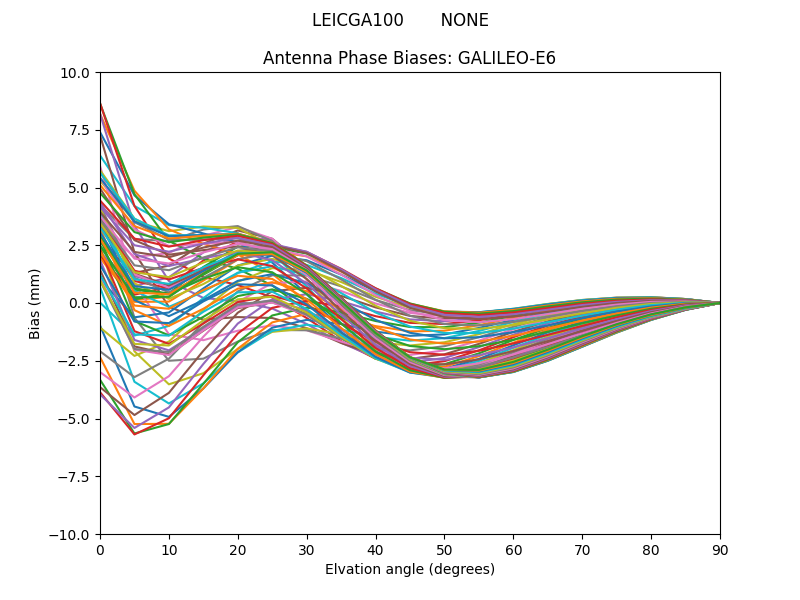

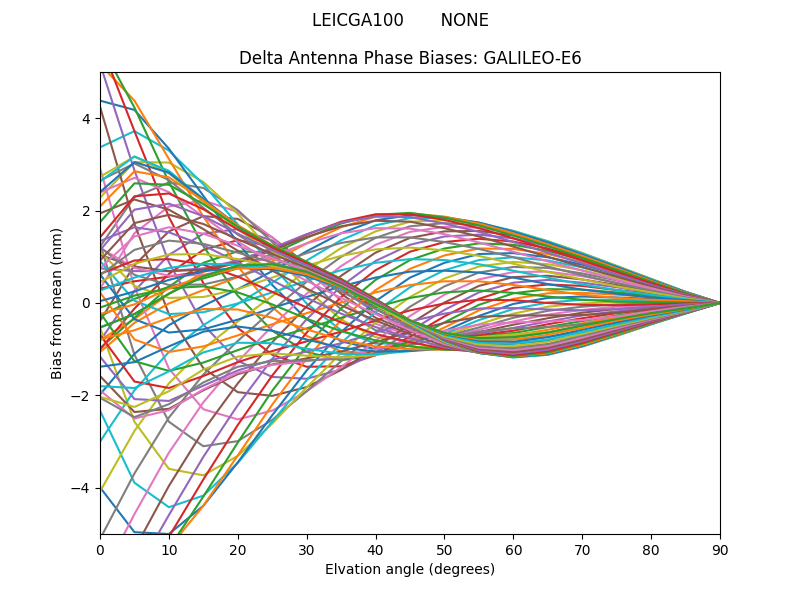

GALILEO-E6

GALILEO-E6GALILEO-E6

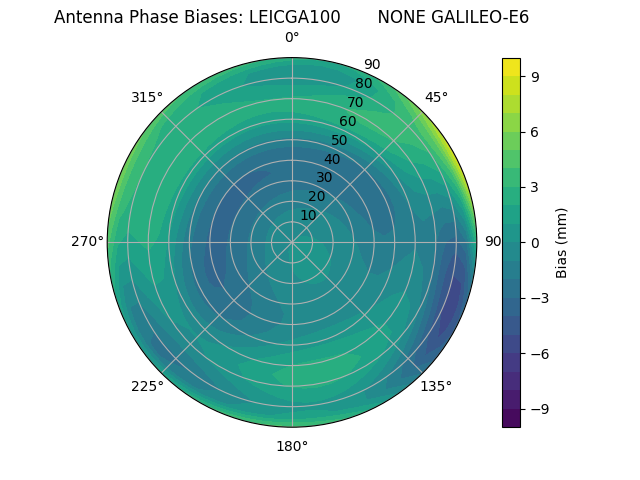

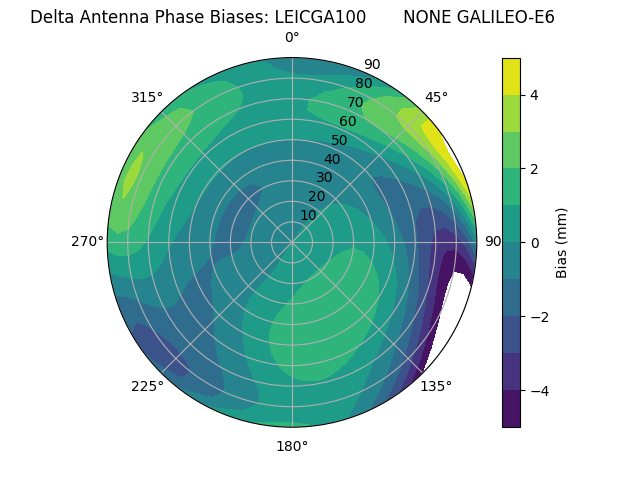

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

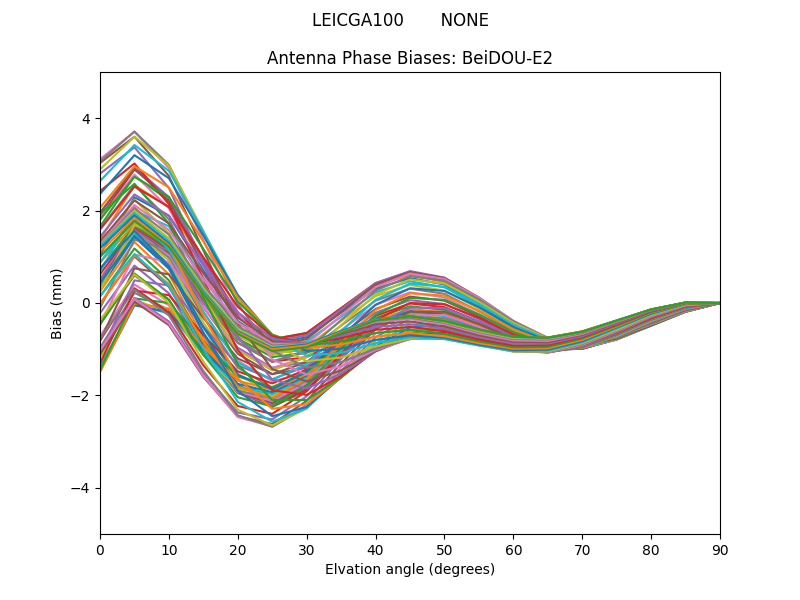

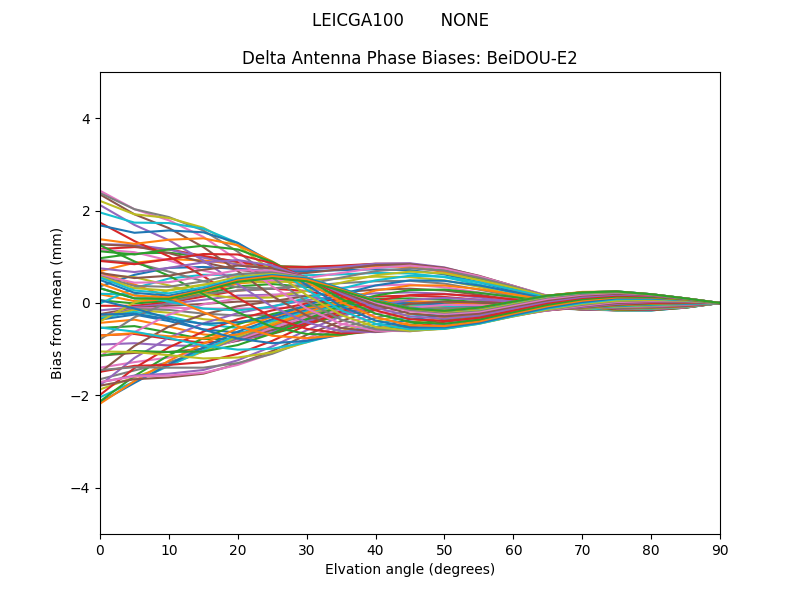

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

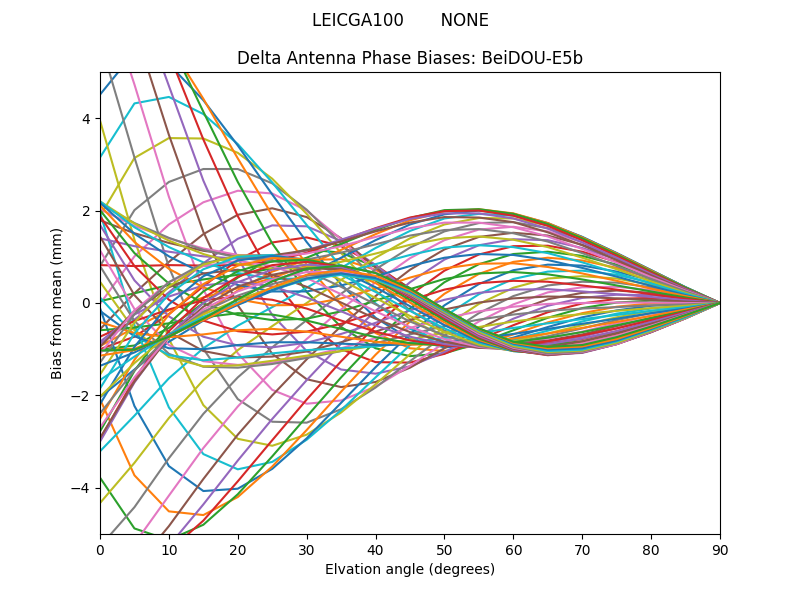

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

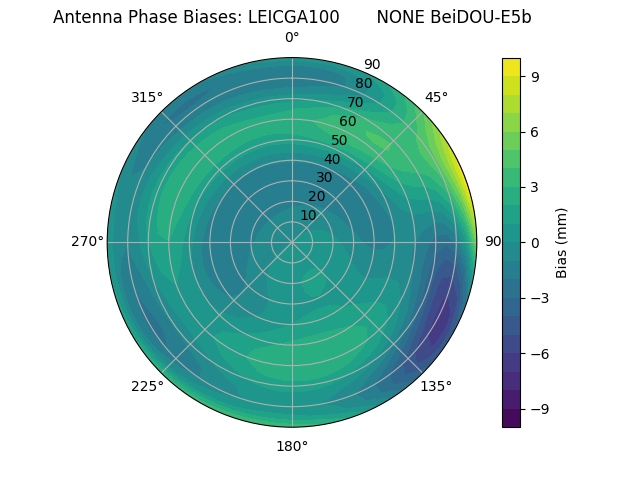

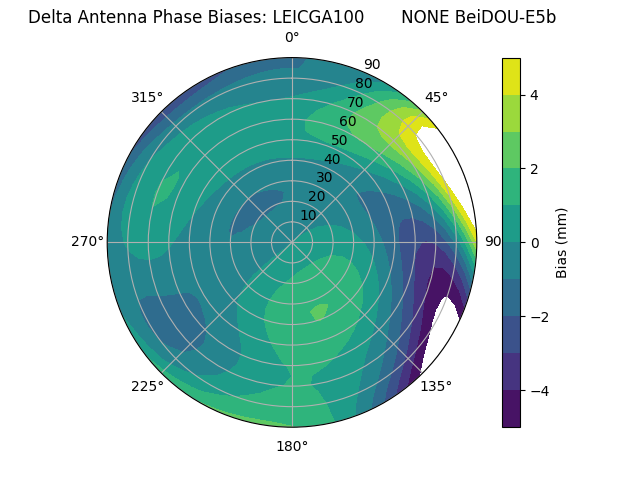

Radial BeiDOU-E5bRadial BeiDOU-E5b

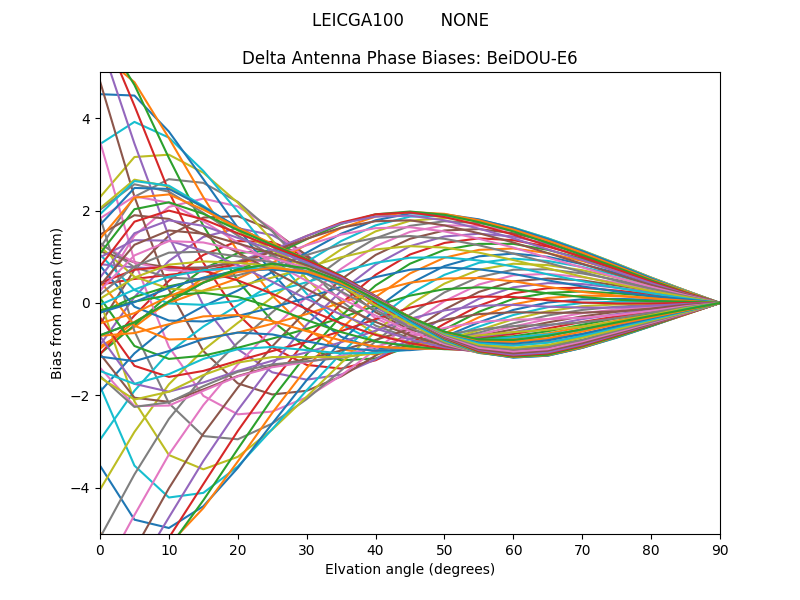

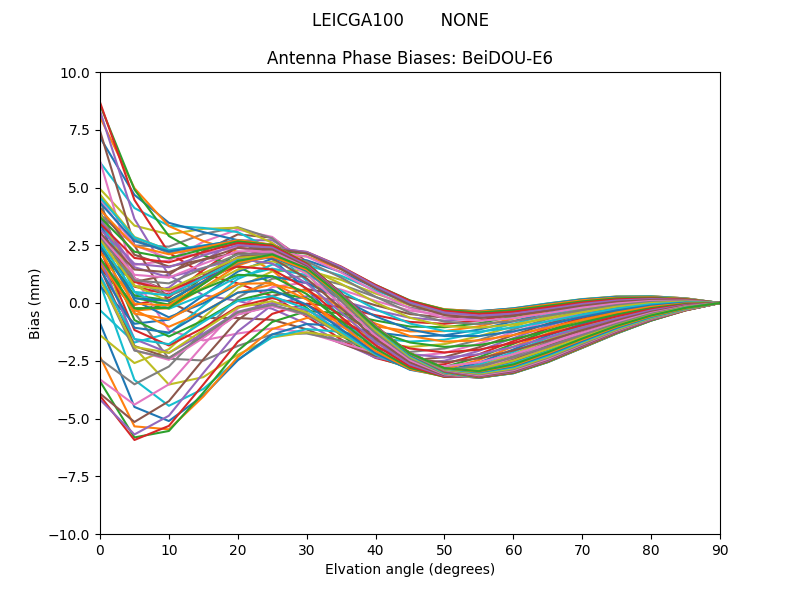

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

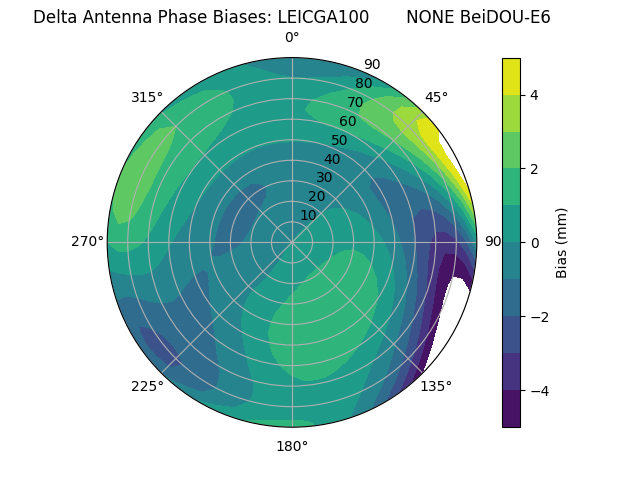

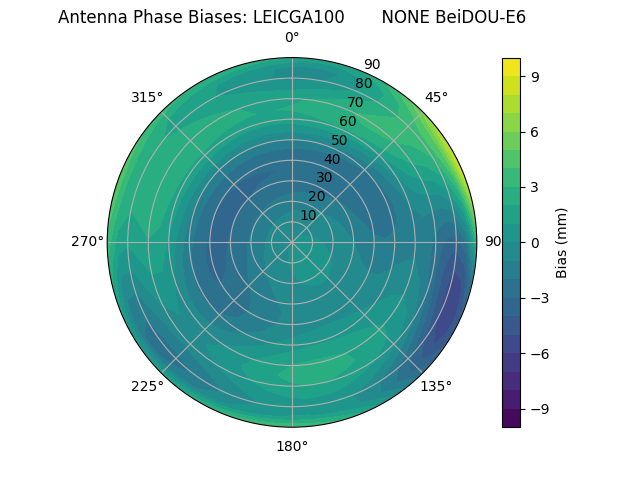

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

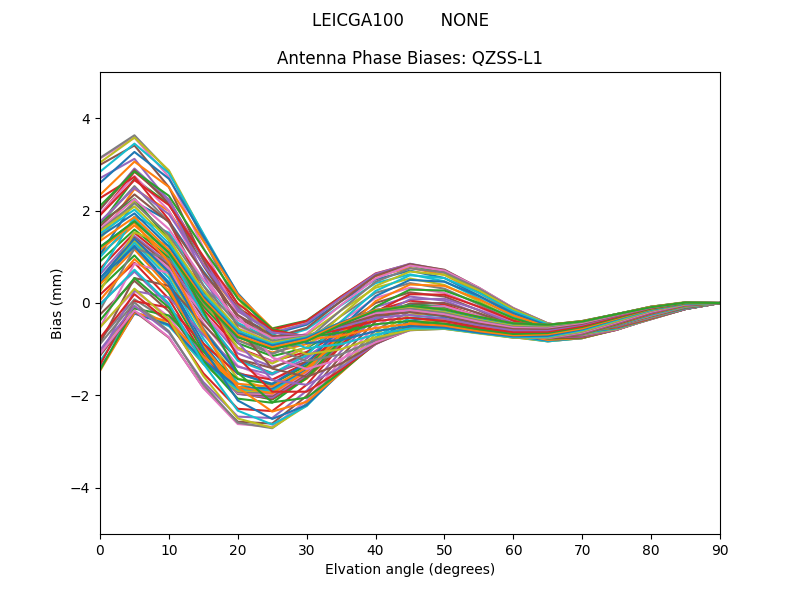

QZSS-L1

QZSS-L1QZSS-L1

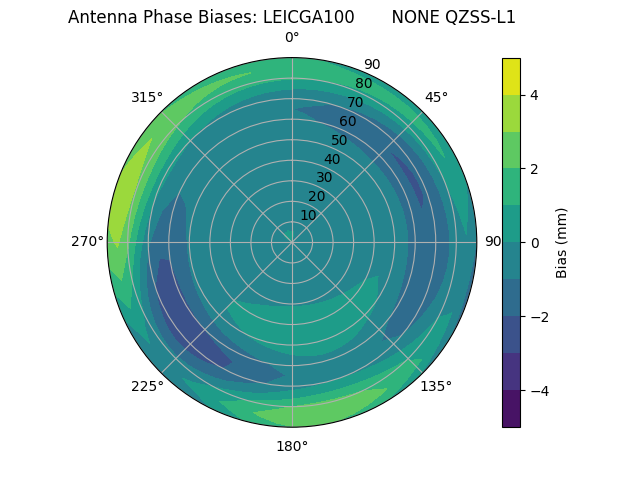

Radial QZSS-L1Radial QZSS-L1

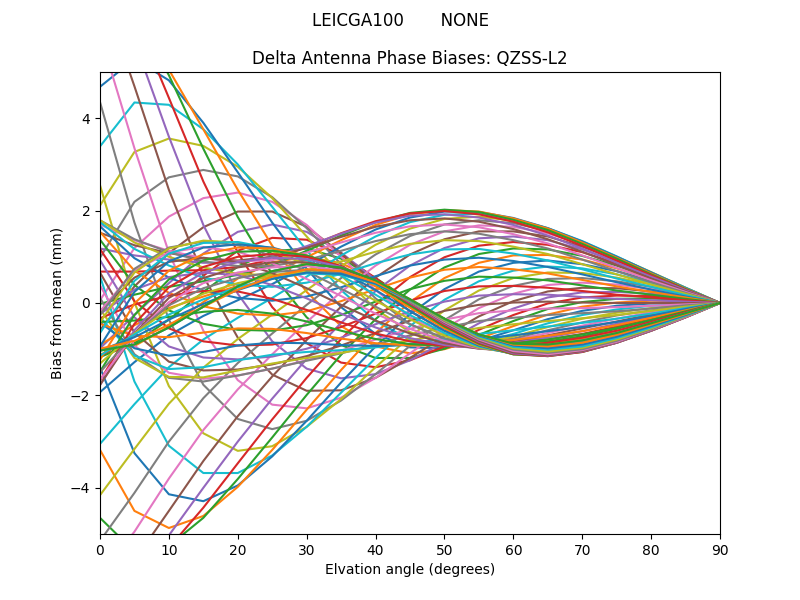

QZSS-L2

QZSS-L2QZSS-L2

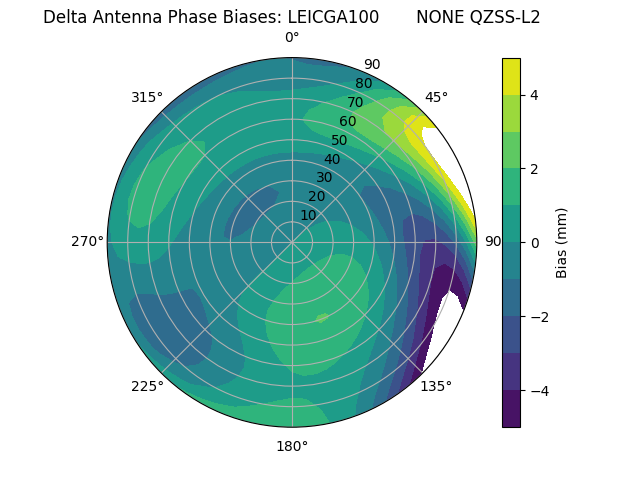

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

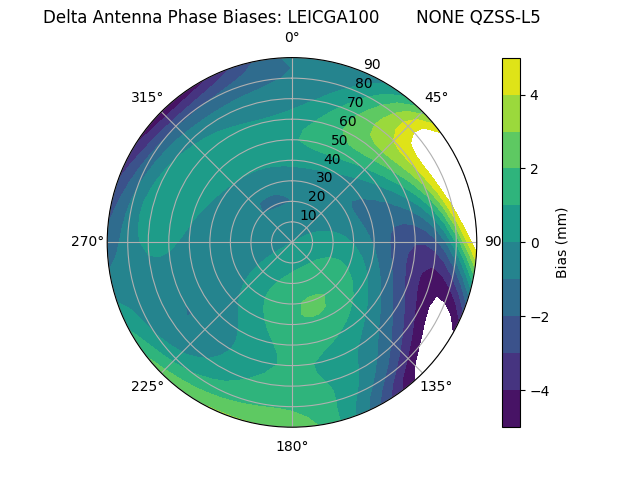

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

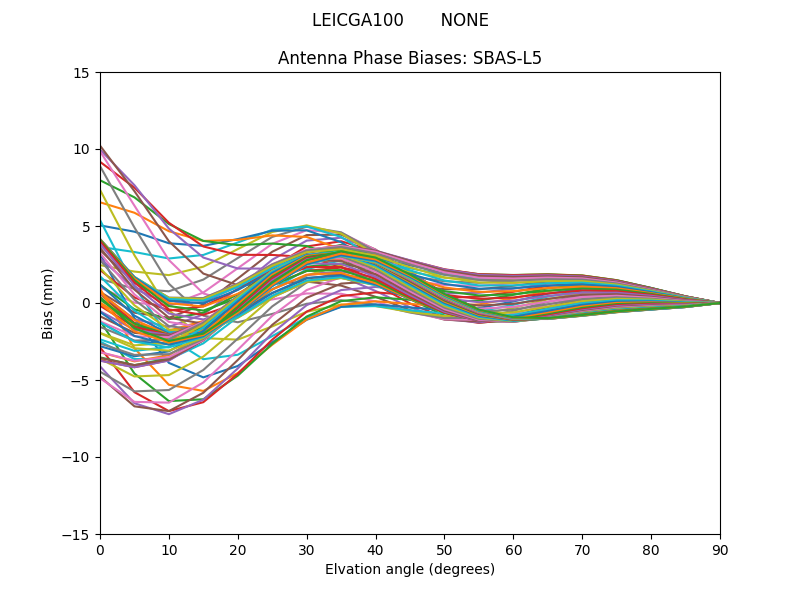

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
