Antenna information for LEIFLX100 NONE

Antenna Offsets

SV System	Bands
GPS L1: N: 3.21 E: 0.79 U: 128.72 L2: N: 2.66 E: 3.54 U: 121.88 GLONASS L1: N: 2.87 E: 0.88 U: 129.61 L2: N: 2.93 E: 2.26 U: 122.83 GALILEO E1: N: 3.21 E: 0.79 U: 128.72 E5b: N: 3.09 E: 3.73 U: 112.59 BeiDou E2: N: 3.30 E: 0.71 U: 128.37 E5b: N: 3.09 E: 3.73 U: 112.59 QZSS L1: N: 3.21 E: 0.79 U: 128.72 L2: N: 2.66 E: 3.54 U: 121.88	L1 GPS: N: 3.21 E: 0.79 U: 128.72 GLONASS: N: 2.87 E: 0.88 U: 129.61 QZSS: N: 3.21 E: 0.79 U: 128.72 L2 GPS: N: 2.66 E: 3.54 U: 121.88 GLONASS: N: 2.93 E: 2.26 U: 122.83 QZSS: N: 2.66 E: 3.54 U: 121.88 E1 GALILEO: N: 3.21 E: 0.79 U: 128.72 E2 BeiDou: N: 3.30 E: 0.71 U: 128.37 E5b GALILEO: N: 3.09 E: 3.73 U: 112.59 BeiDou: N: 3.09 E: 3.73 U: 112.59

---

Means

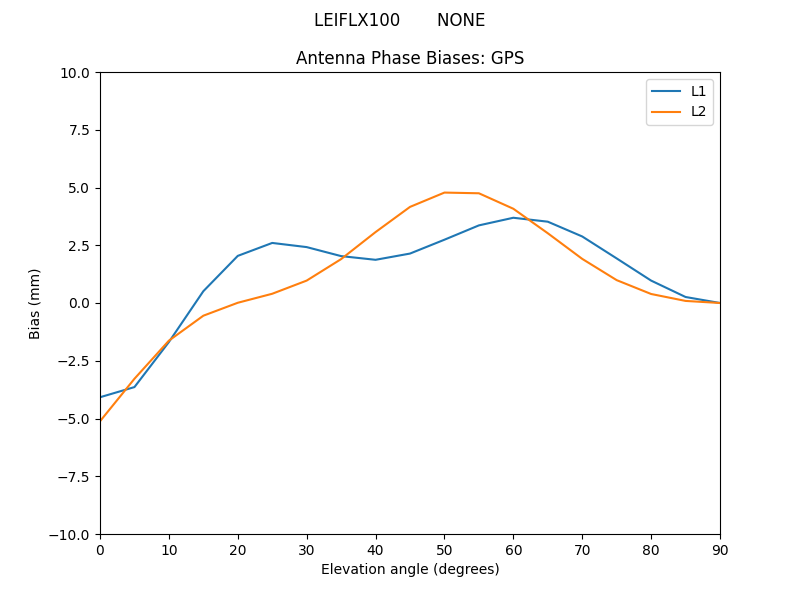

GPS

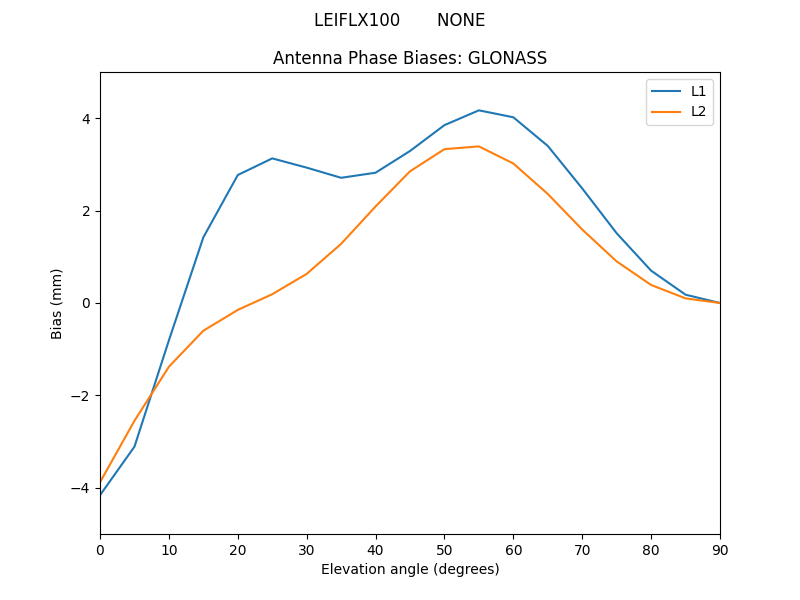

GLONASS

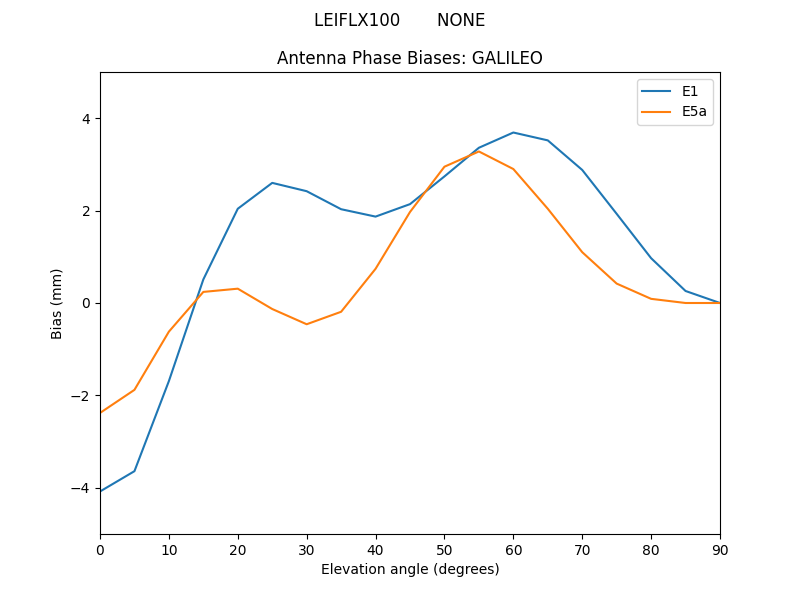

GALILEO

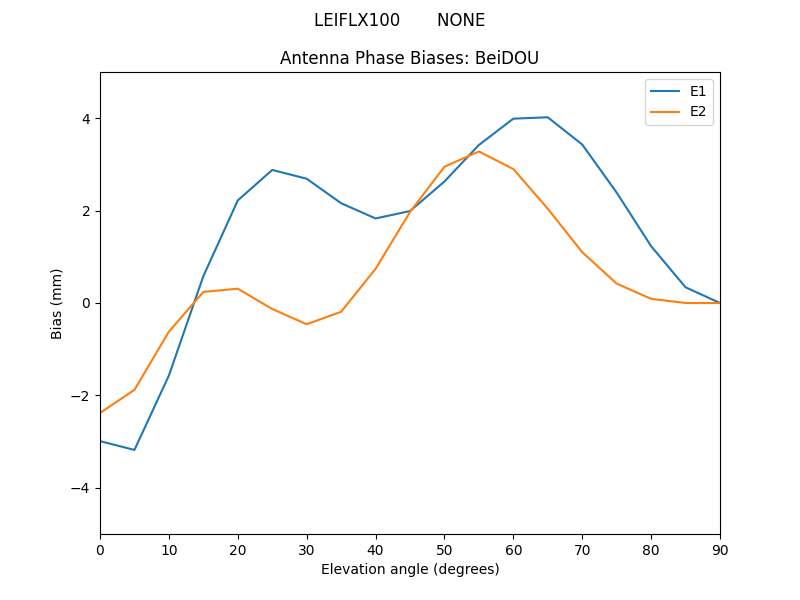

BeiDOU

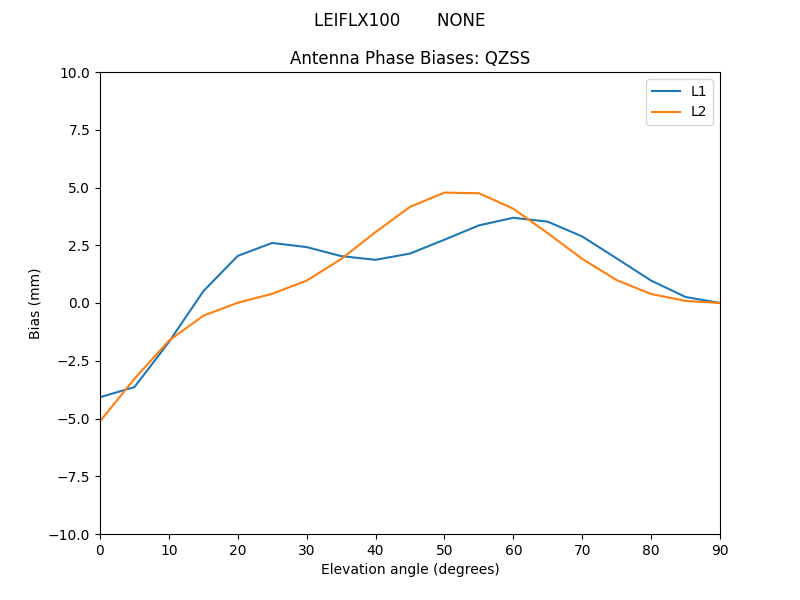

QZSS

Azimuths

GPS

Bias	Delta

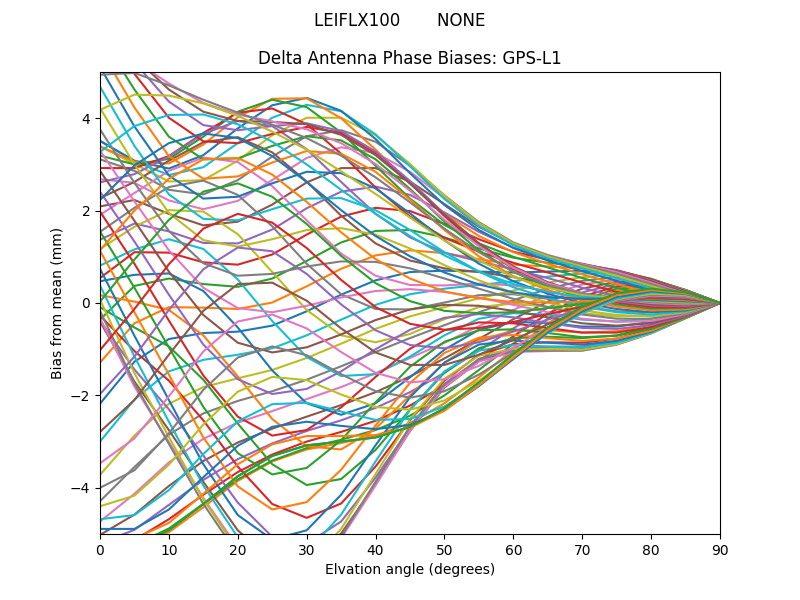

GPS-L1

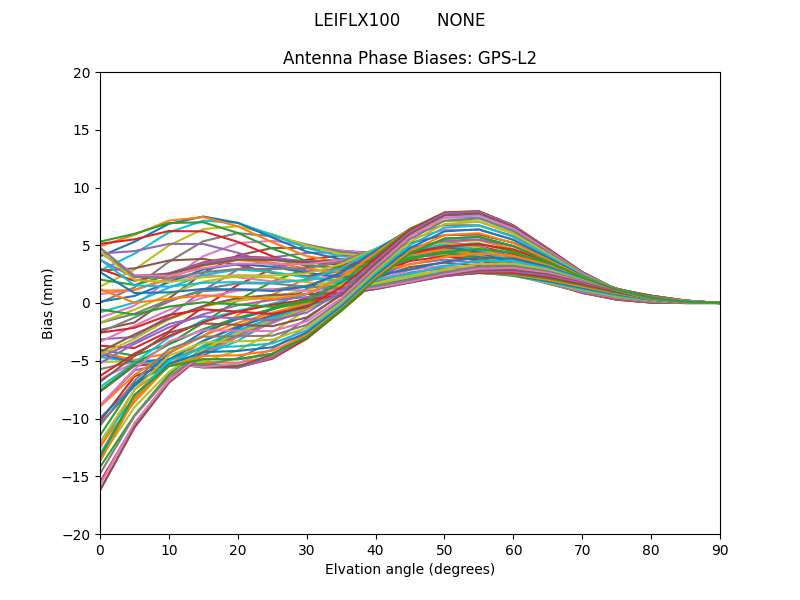

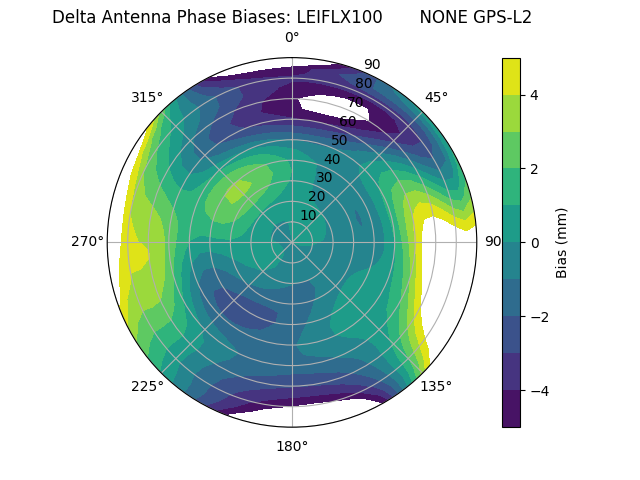

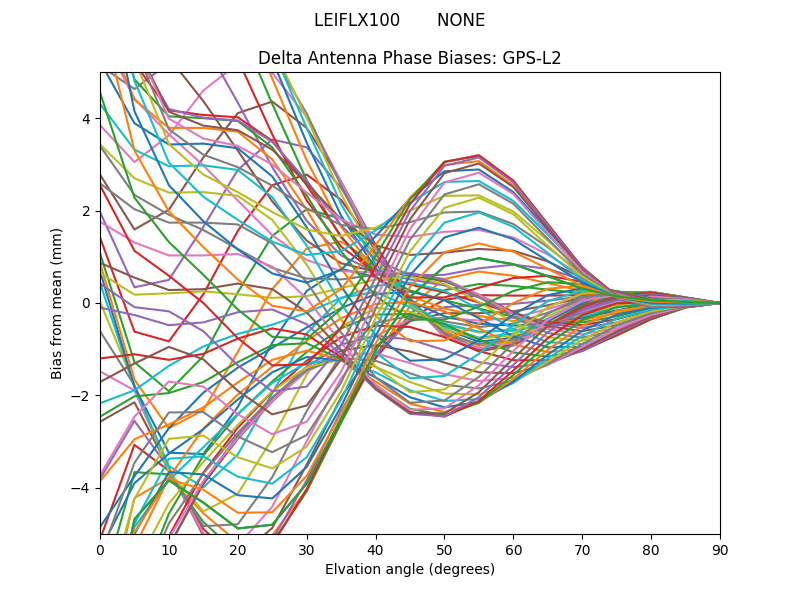

GPS-L2

GLONASS

Bias	Delta

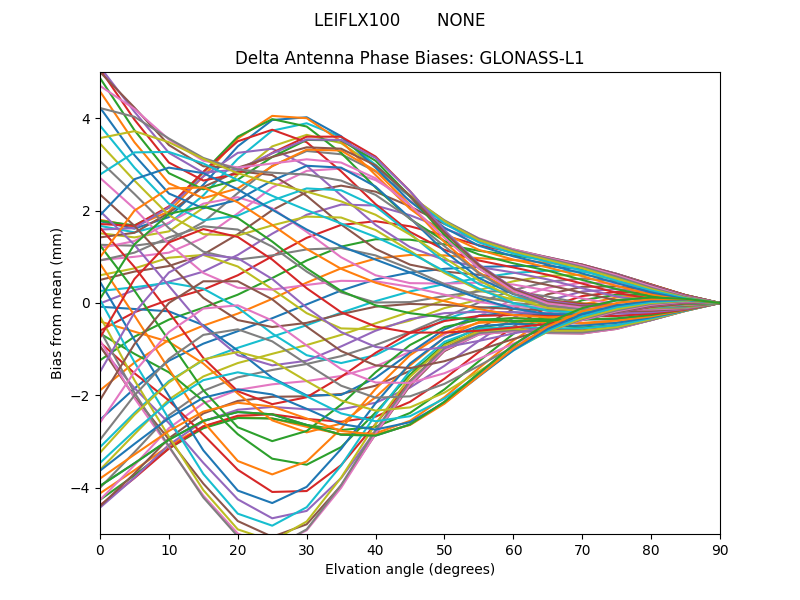

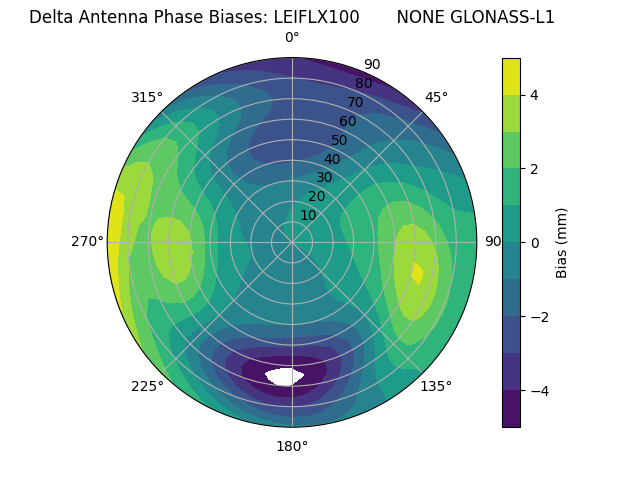

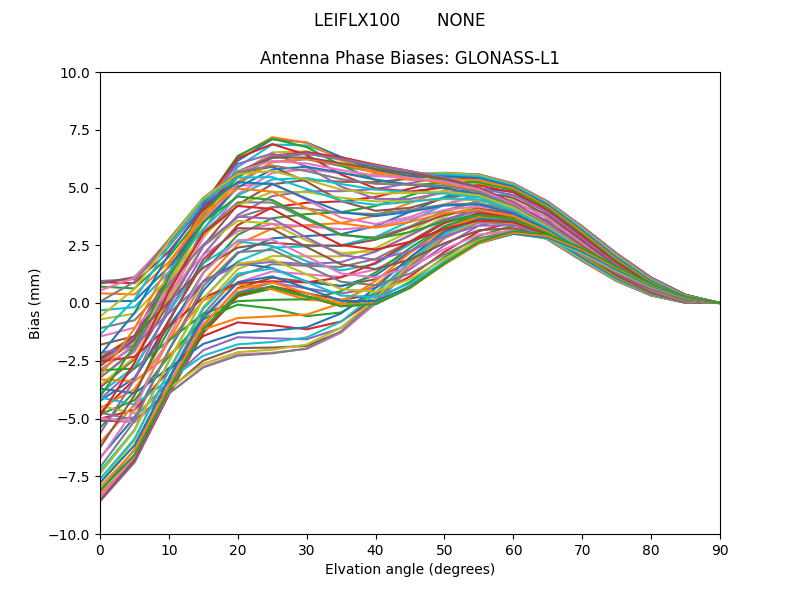

GLONASS-L1

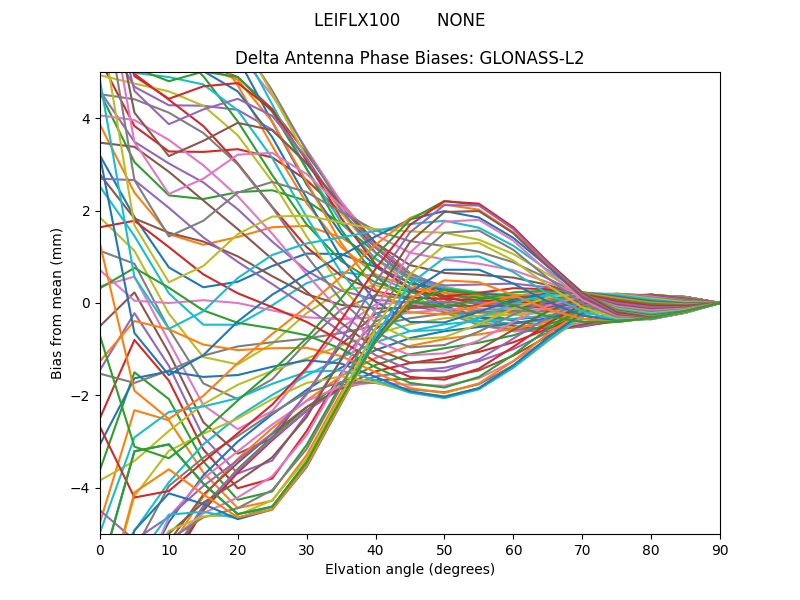

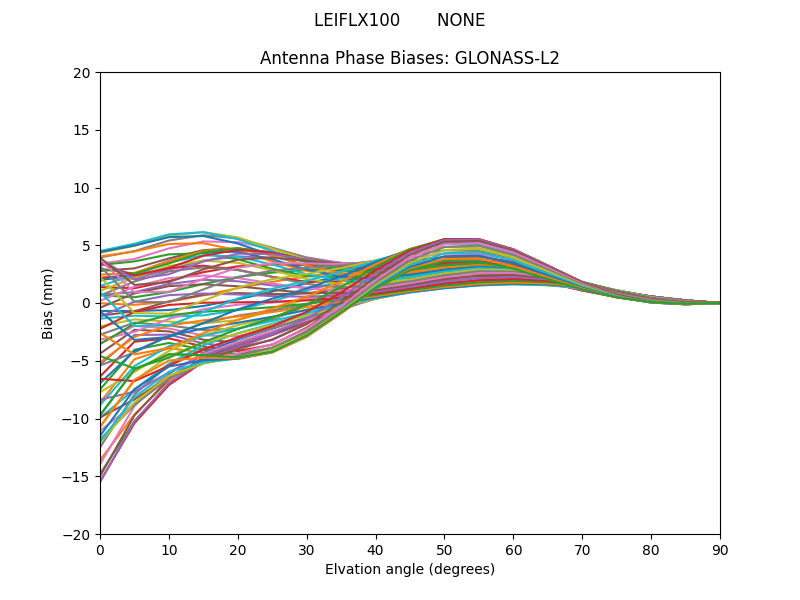

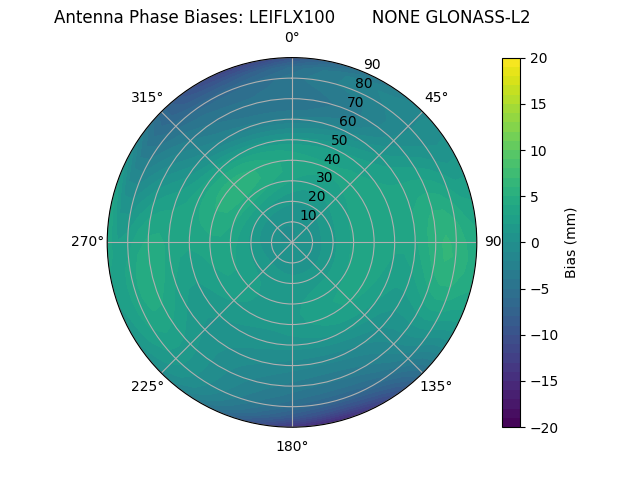

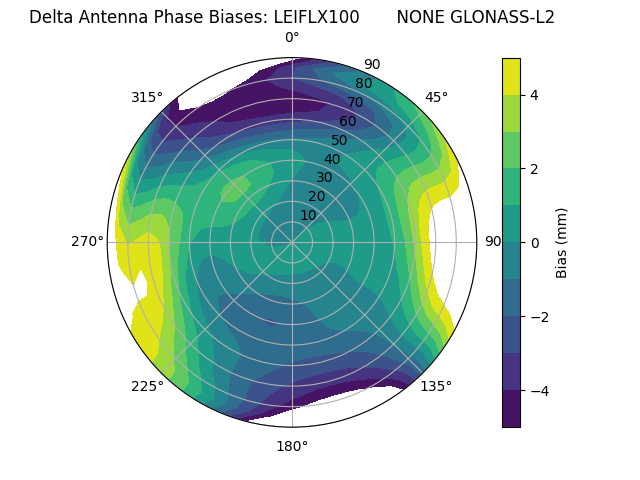

GLONASS-L2

GALILEO

Bias	Delta

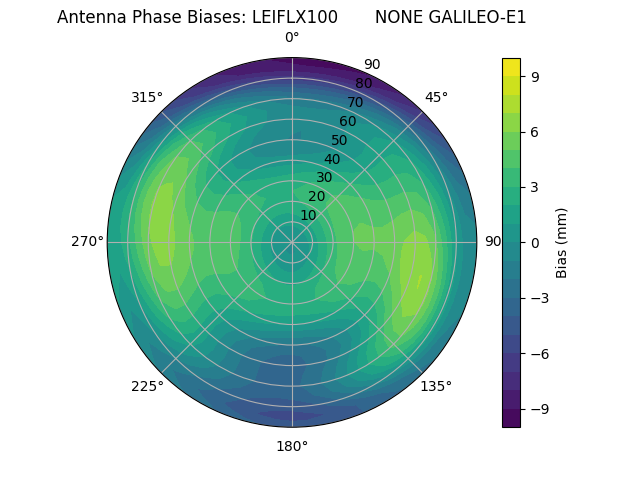

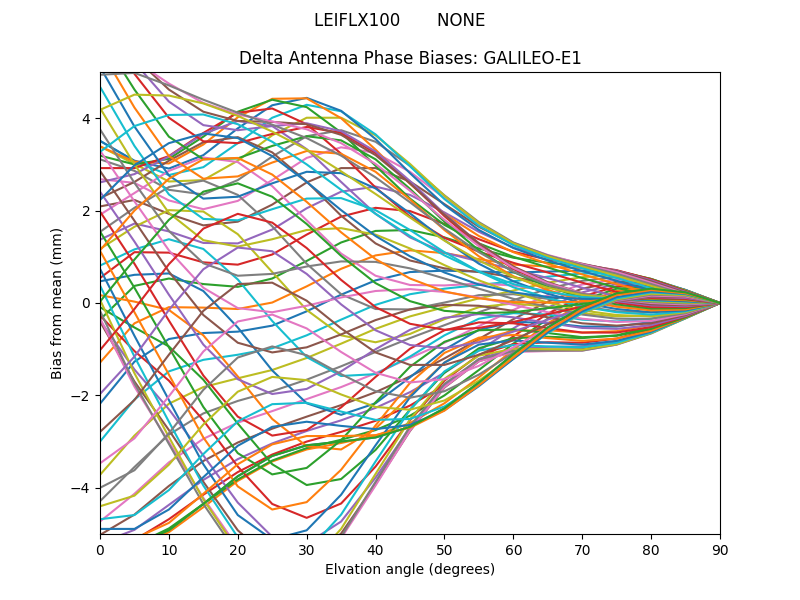

GALILEO-E1

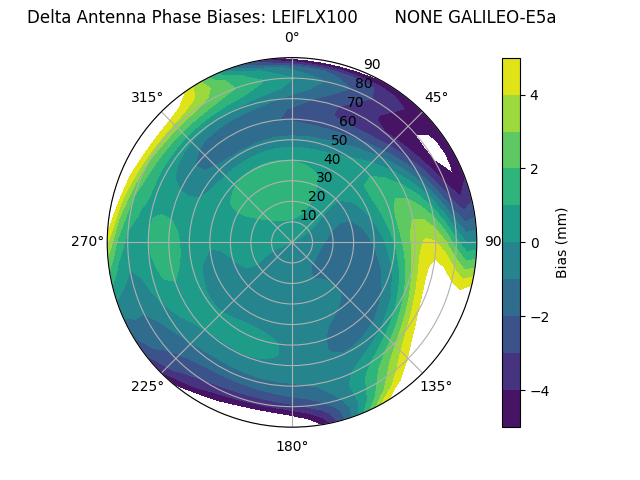

GALILEO-E5a

BeiDOU

Bias	Delta

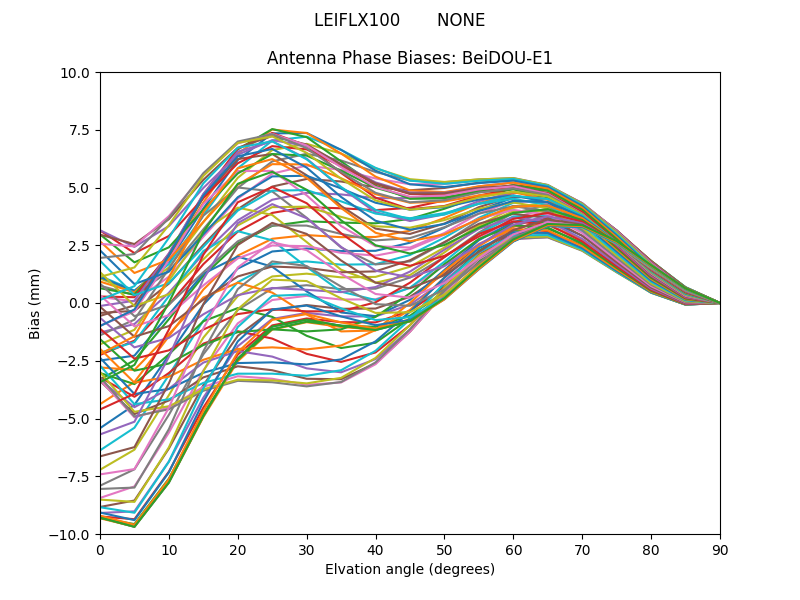

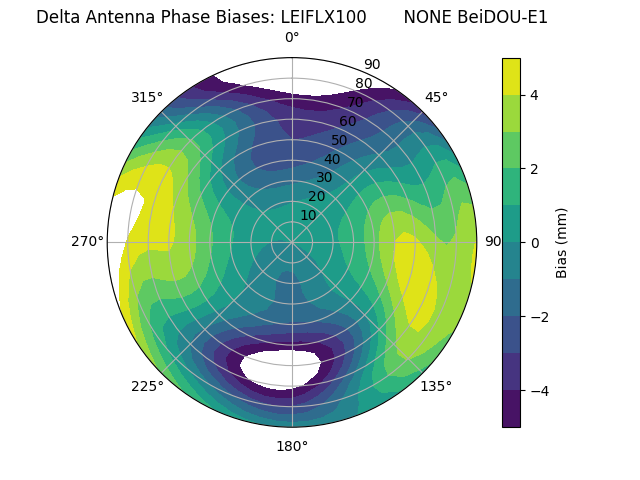

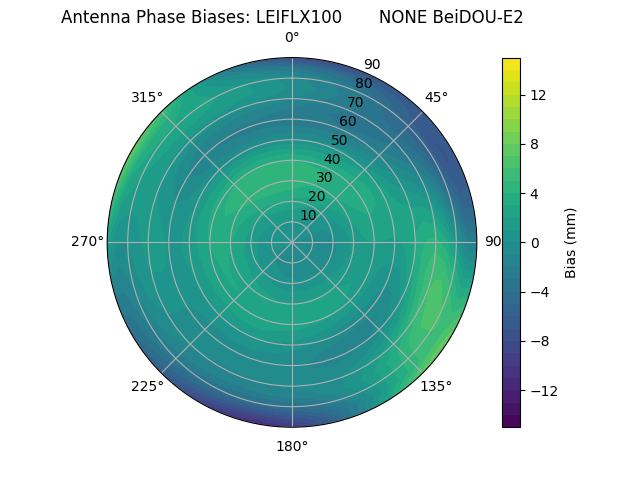

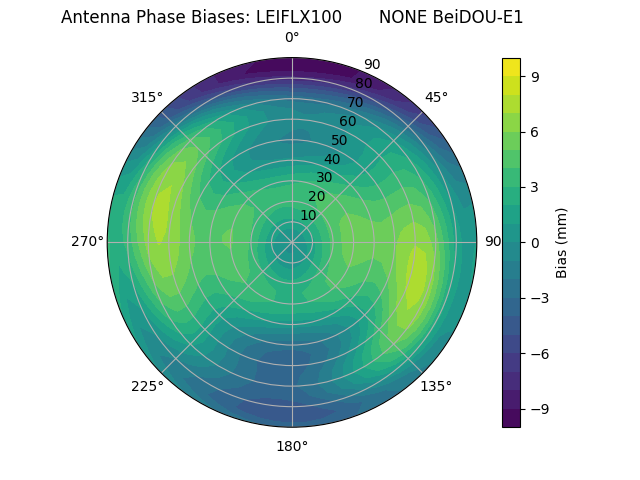

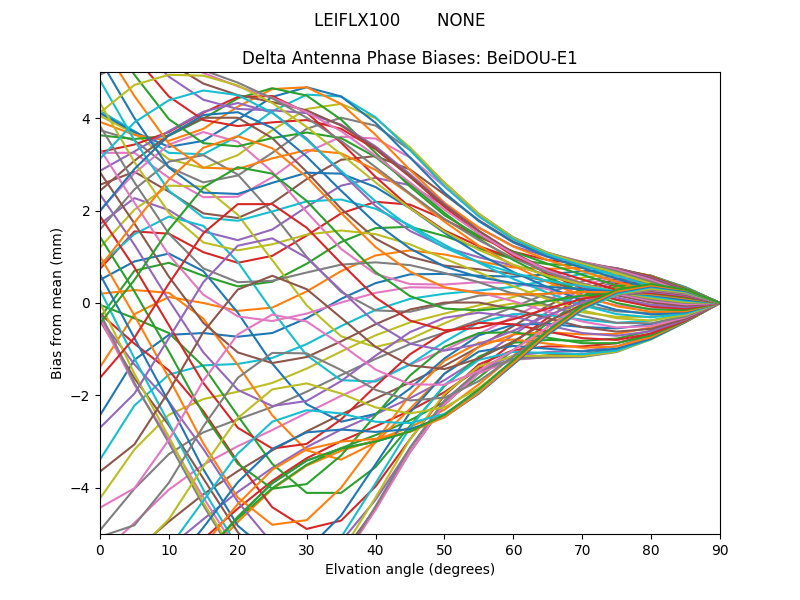

BeiDOU-E1

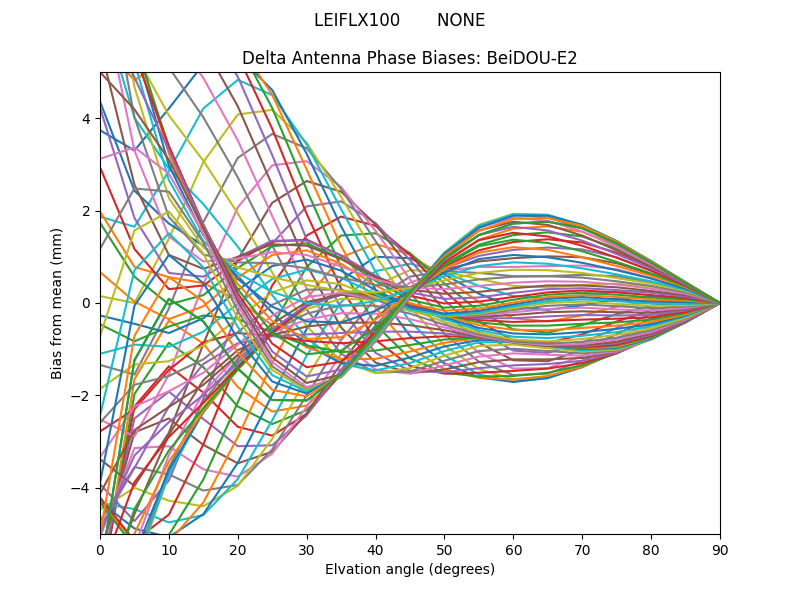

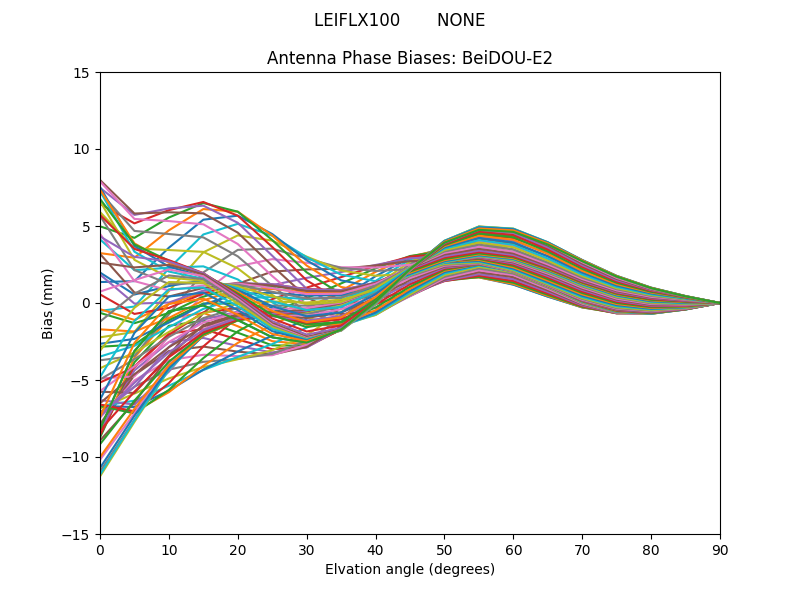

BeiDOU-E2

QZSS

Bias	Delta

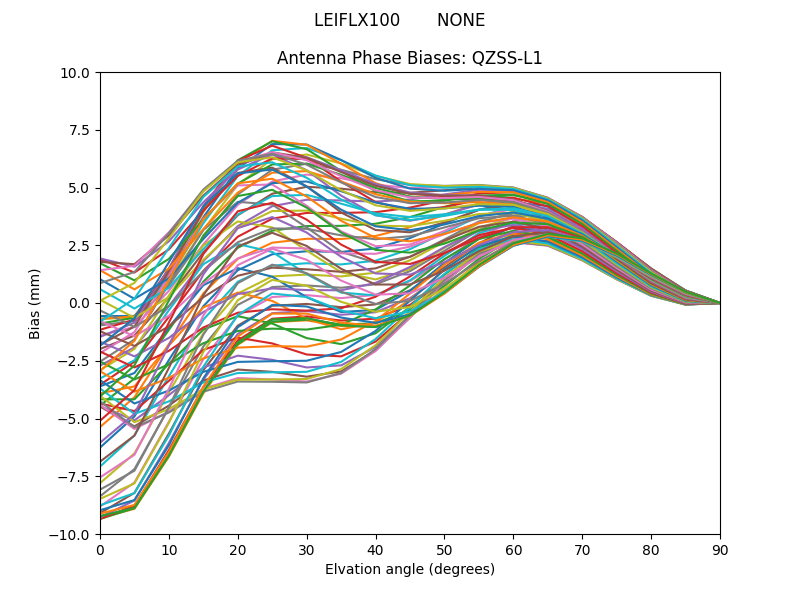

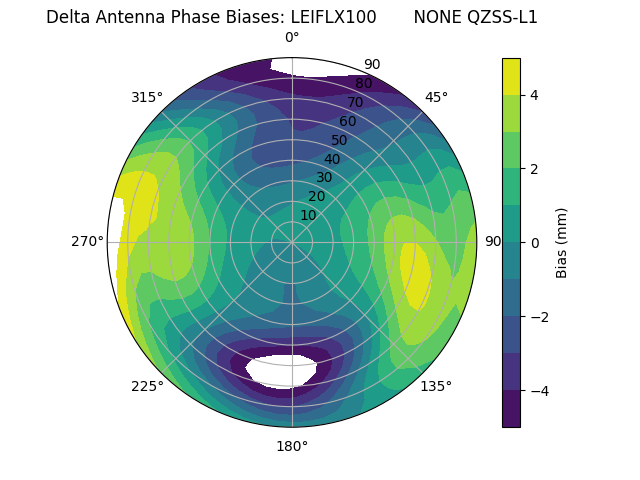

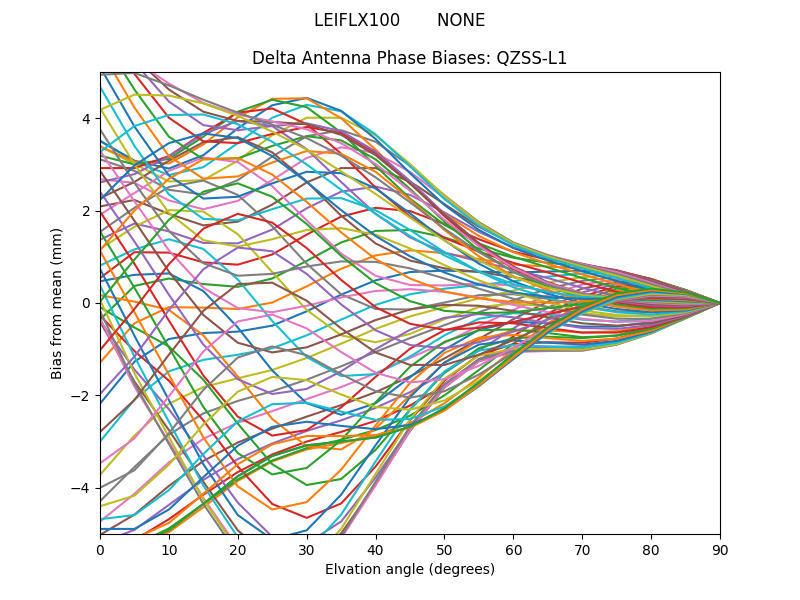

QZSS-L1

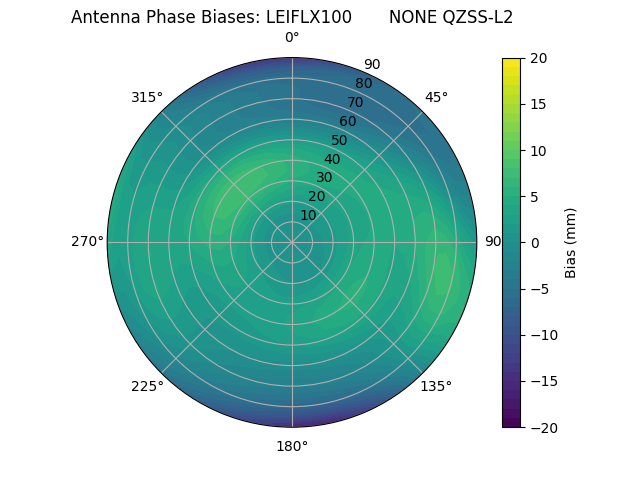

QZSS-L2
