Antenna information for SPPSP85 NONE
SV System | Bands |
---|---|
GPSL1: N: -0.98 E: -1.14 U: 61.76L2: N: 1.96 E: -0.13 U: 64.29 L5: N: 2.29 E: 0.25 U: 64.29 GLONASSL1: N: -3.63 E: -4.08 U: 61.48L2: N: 1.96 E: -0.28 U: 64.57 GALILEOE1: N: -0.98 E: -1.14 U: 61.76E5a: N: 2.29 E: 0.25 U: 64.29 E5b: N: 2.04 E: 0.01 U: 64.12 BeiDouE1: N: -0.98 E: -1.14 U: 61.76E2: N: 0.38 E: 0.51 U: 61.92 E5b: N: 2.04 E: 0.01 U: 64.12 QZSSL1: N: -0.98 E: -1.14 U: 61.76L2: N: 1.96 E: -0.13 U: 64.29 L5: N: 2.29 E: 0.25 U: 64.29 IRNSSL5: N: 2.29 E: 0.25 U: 64.29SBASL1: N: -0.98 E: -1.14 U: 61.76L5: N: 2.29 E: 0.25 U: 64.29 | L1GPS: N: -0.98 E: -1.14 U: 61.76GLONASS: N: -3.63 E: -4.08 U: 61.48 QZSS: N: -0.98 E: -1.14 U: 61.76 SBAS: N: -0.98 E: -1.14 U: 61.76 L2GPS: N: 1.96 E: -0.13 U: 64.29GLONASS: N: 1.96 E: -0.28 U: 64.57 QZSS: N: 1.96 E: -0.13 U: 64.29 L5GPS: N: 2.29 E: 0.25 U: 64.29QZSS: N: 2.29 E: 0.25 U: 64.29 SBAS: N: 2.29 E: 0.25 U: 64.29 IRNSS: N: 2.29 E: 0.25 U: 64.29 E1GALILEO: N: -0.98 E: -1.14 U: 61.76BeiDou: N: -0.98 E: -1.14 U: 61.76 E2BeiDou: N: 0.38 E: 0.51 U: 61.92E5aGALILEO: N: 2.29 E: 0.25 U: 64.29E5bGALILEO: N: 2.04 E: 0.01 U: 64.12BeiDou: N: 2.04 E: 0.01 U: 64.12 |
Means

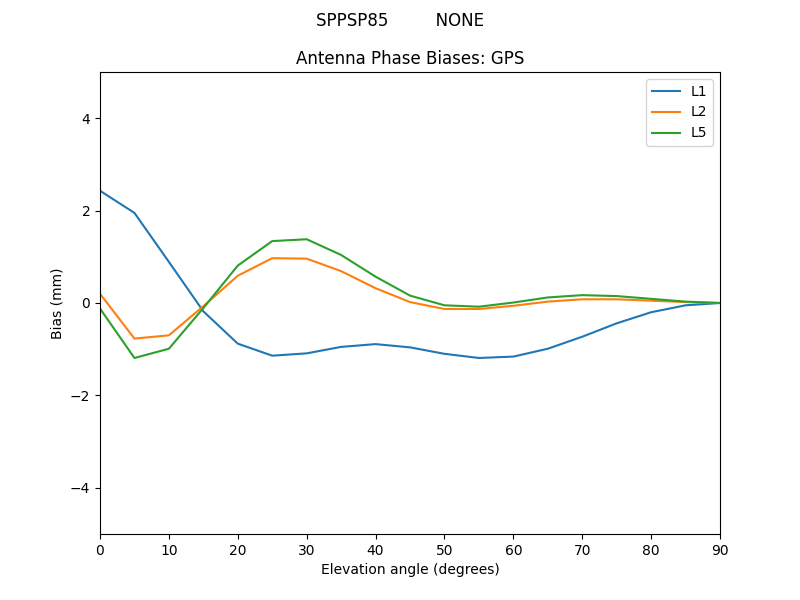

GPS

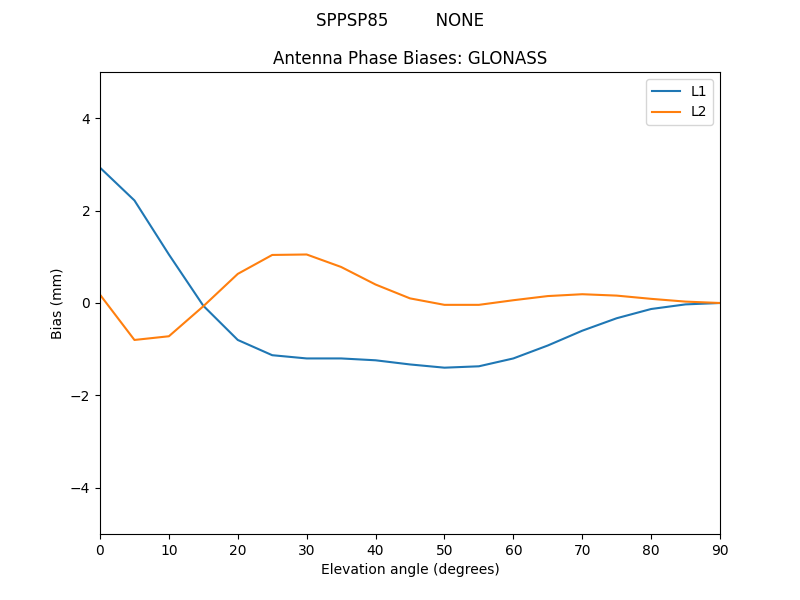

GLONASS

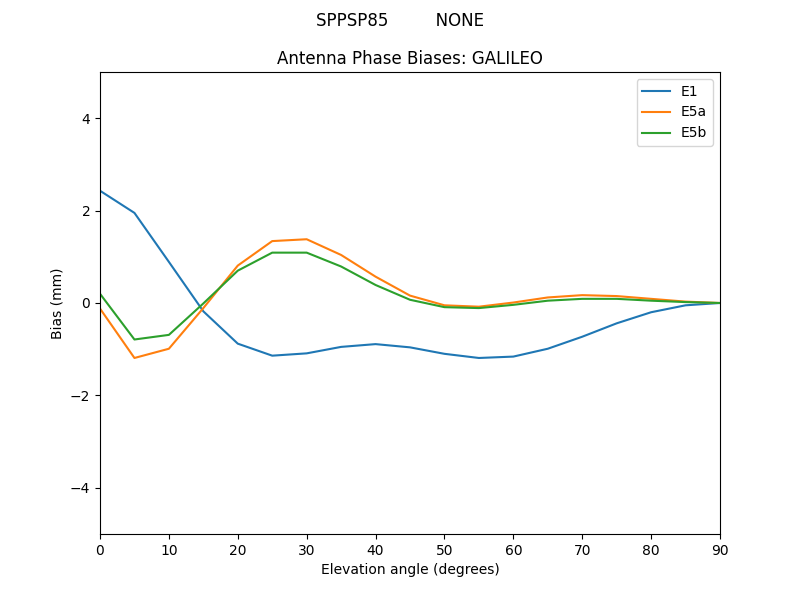

GALILEO

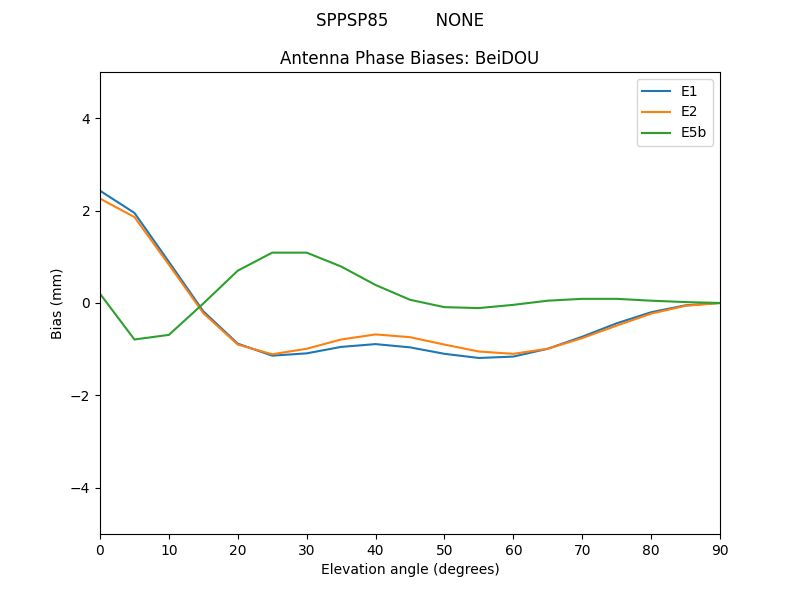

BeiDOU

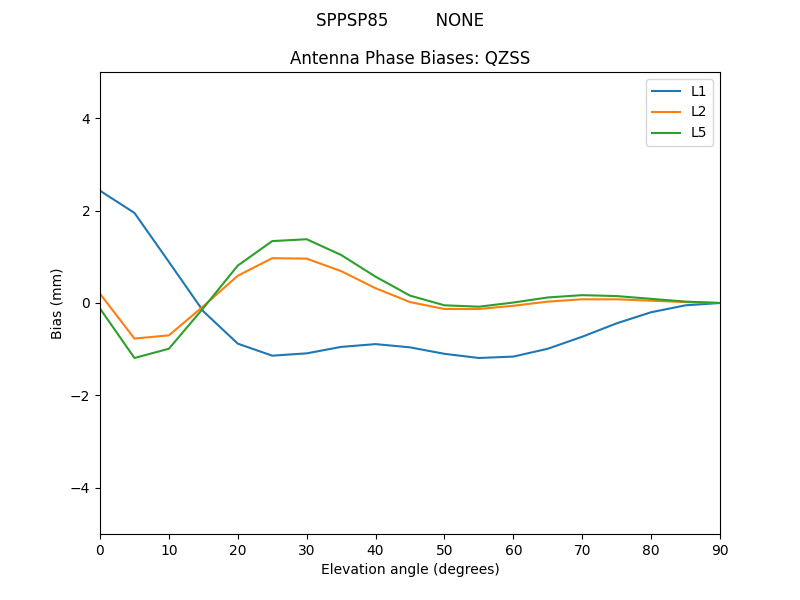

QZSS
SBAS

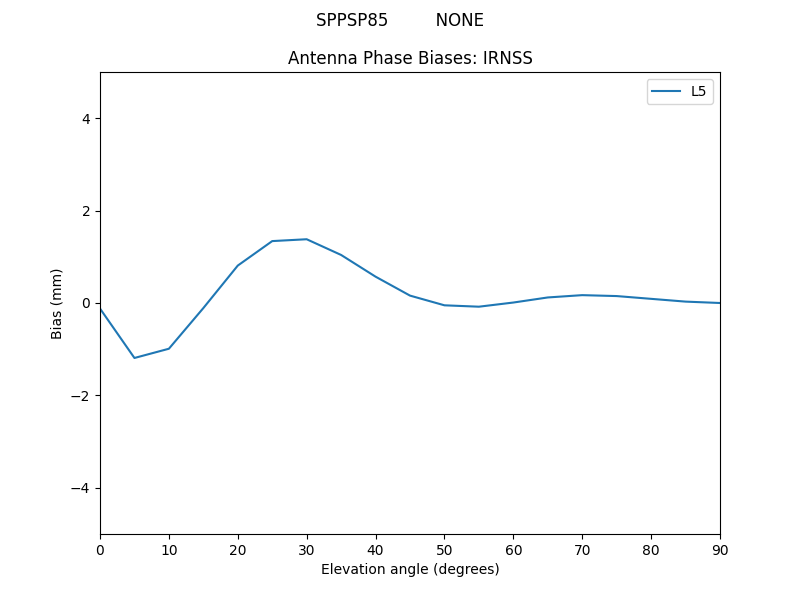

IRNSS
Azimuths
Bias | Delta |
---|---|

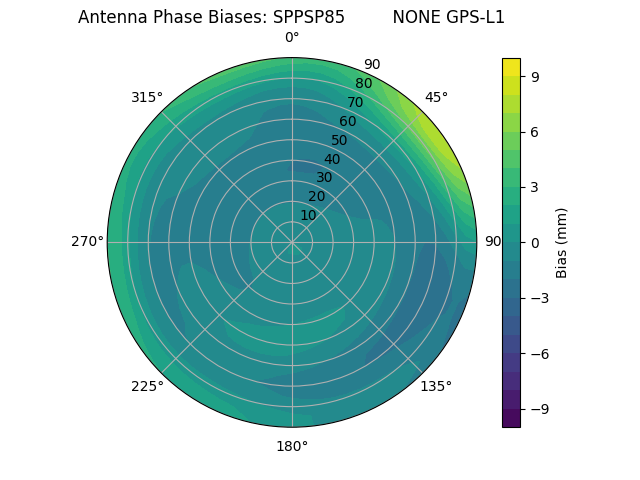

GPS-L1 | |

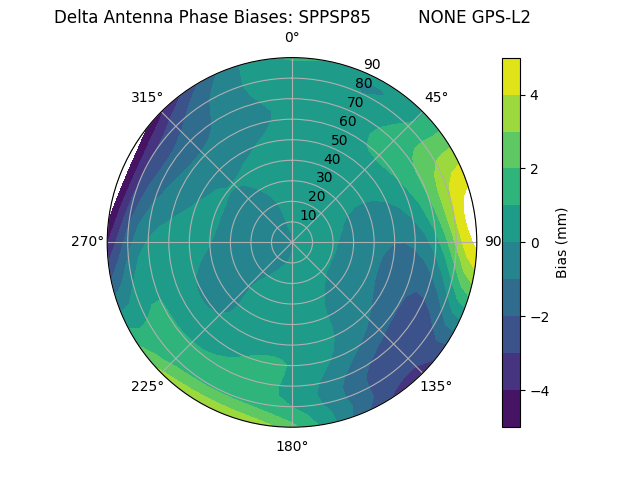

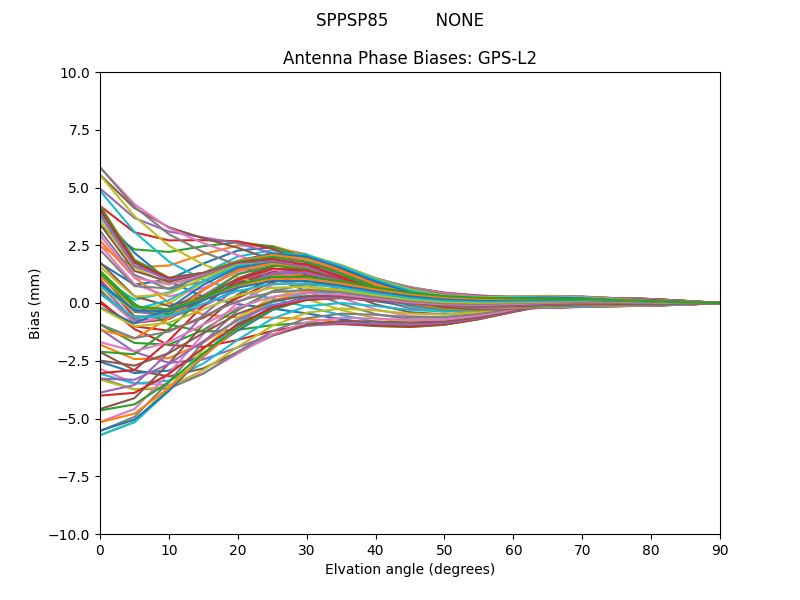

GPS-L2 | |

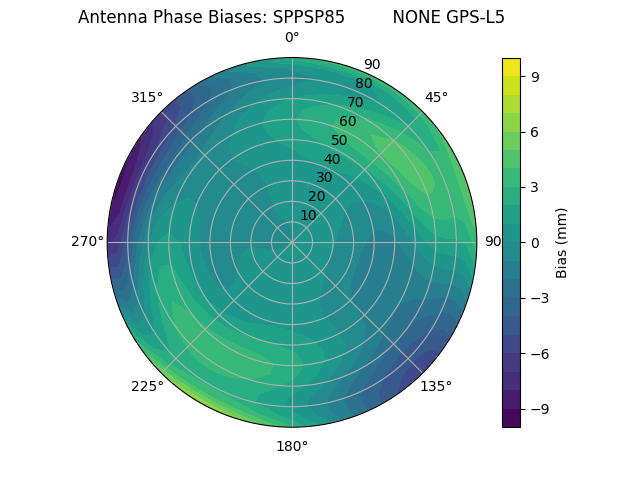

GPS-L5 | |
Bias | Delta |
---|---|

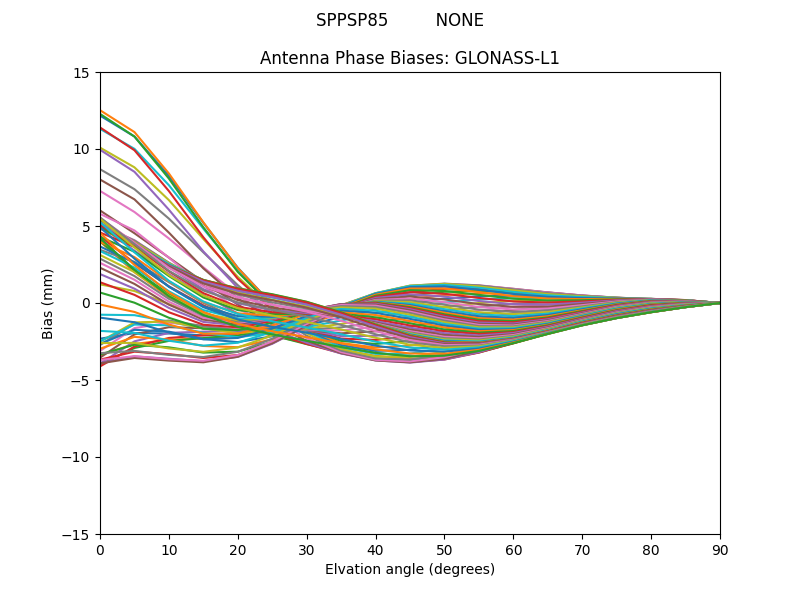

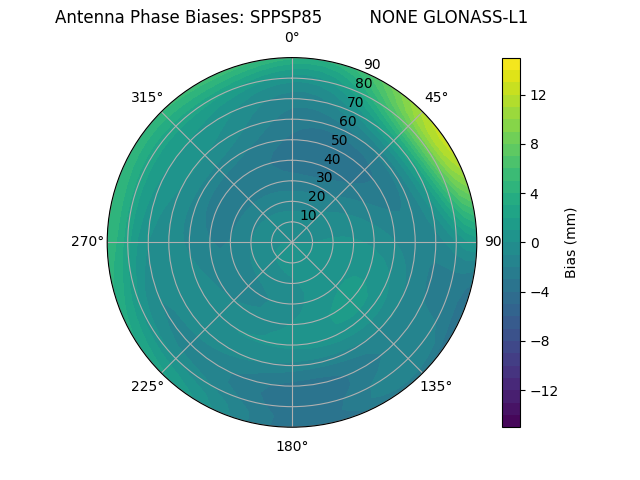

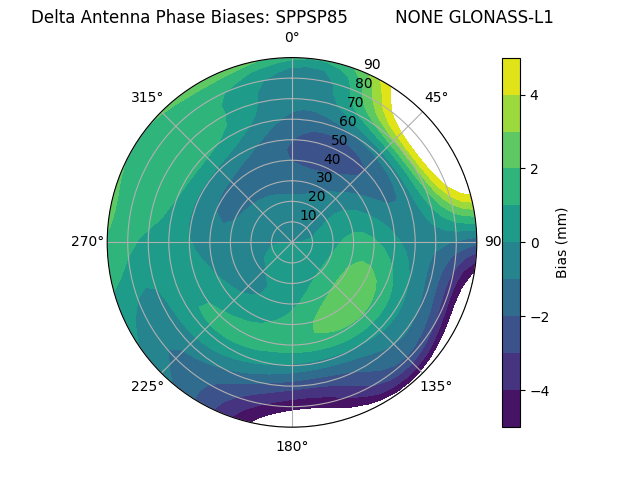

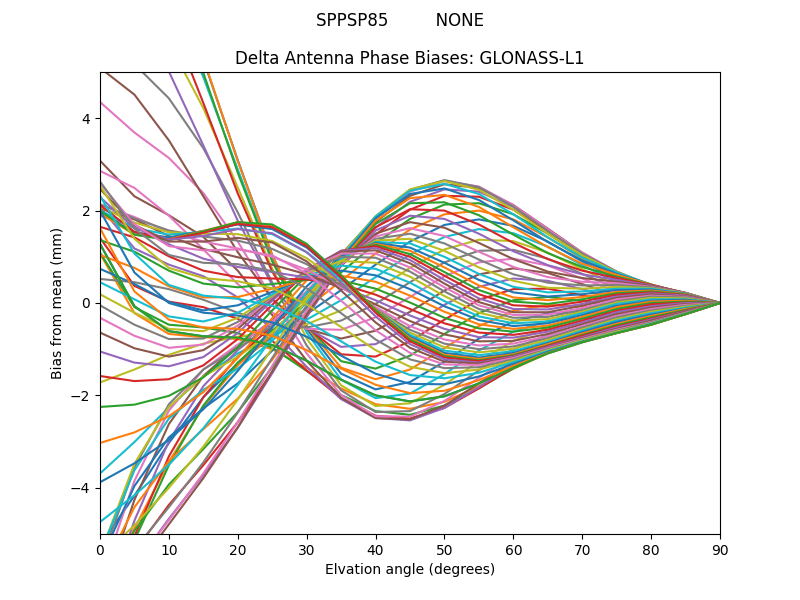

GLONASS-L1 | |

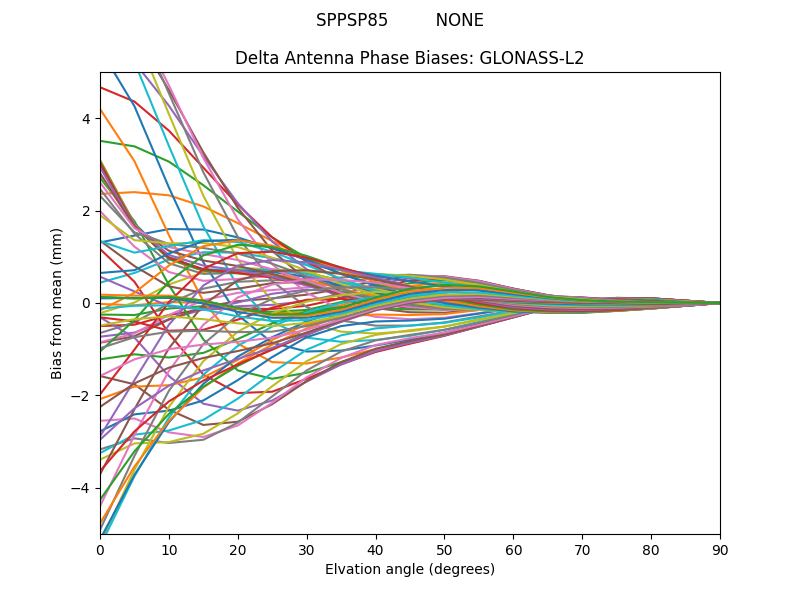

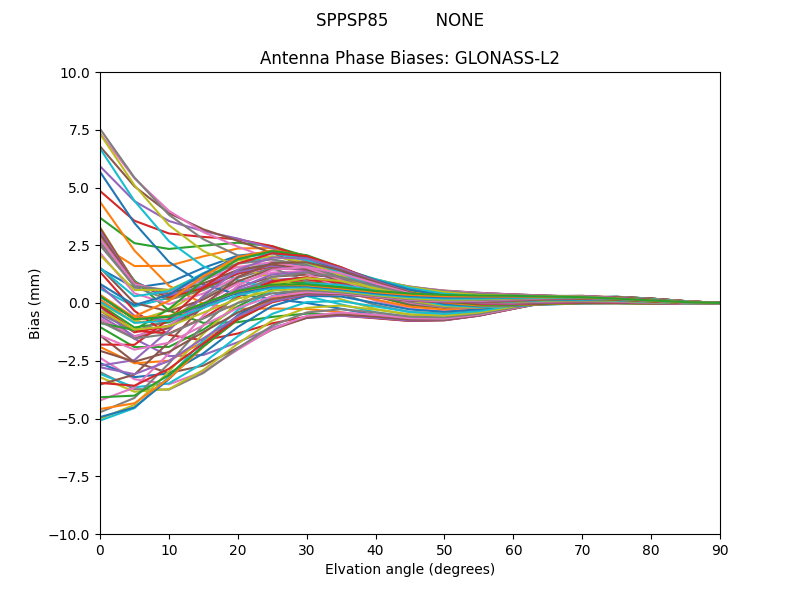

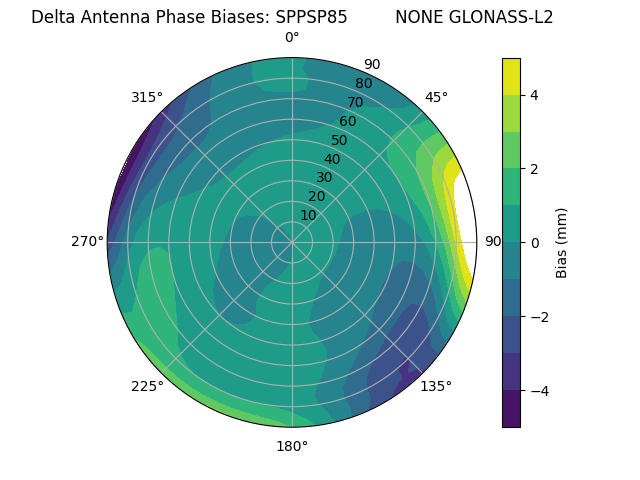

GLONASS-L2 | |
Bias | Delta |
---|---|

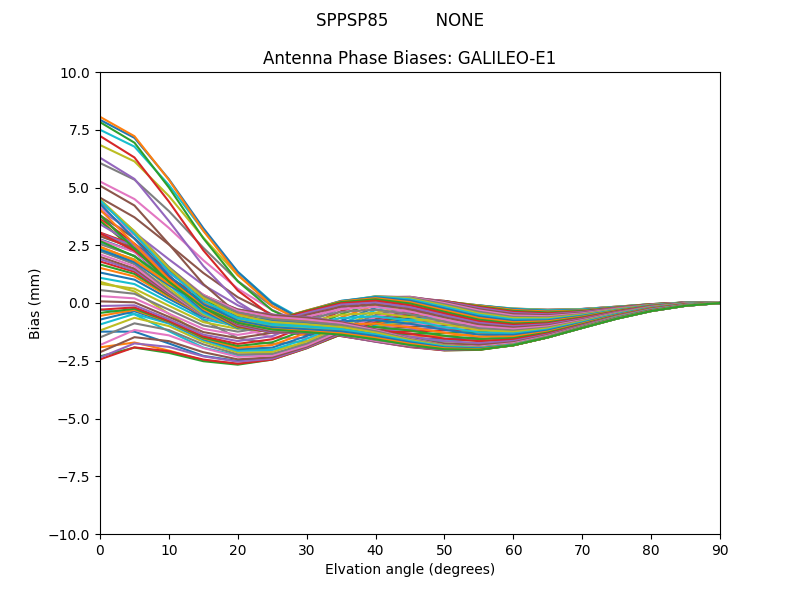

GALILEO-E1 | |

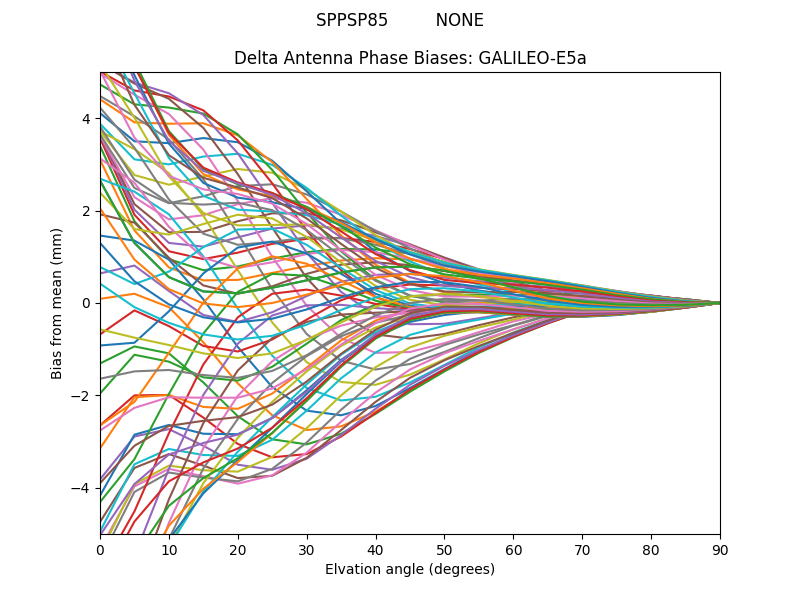

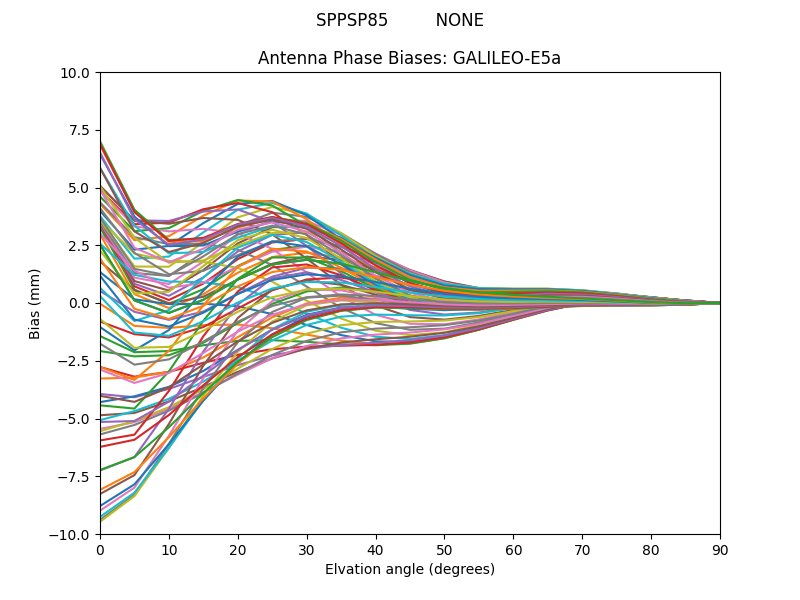

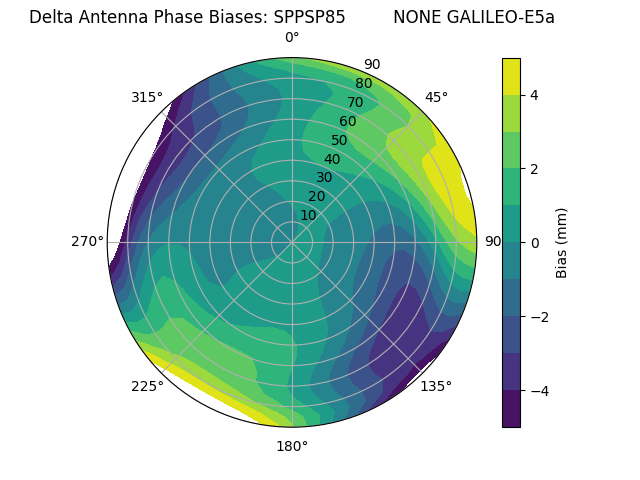

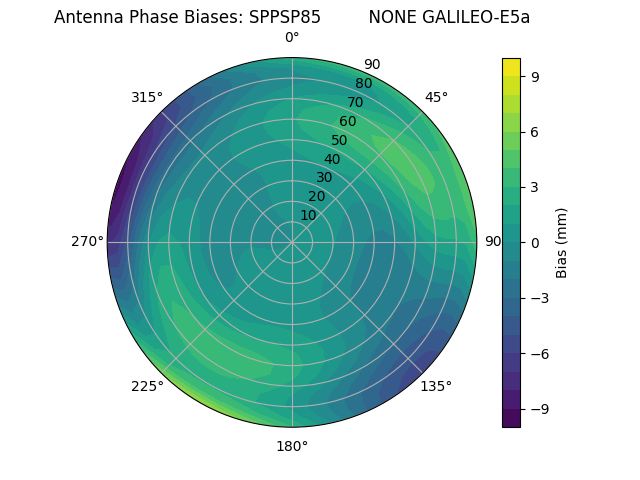

GALILEO-E5a | |

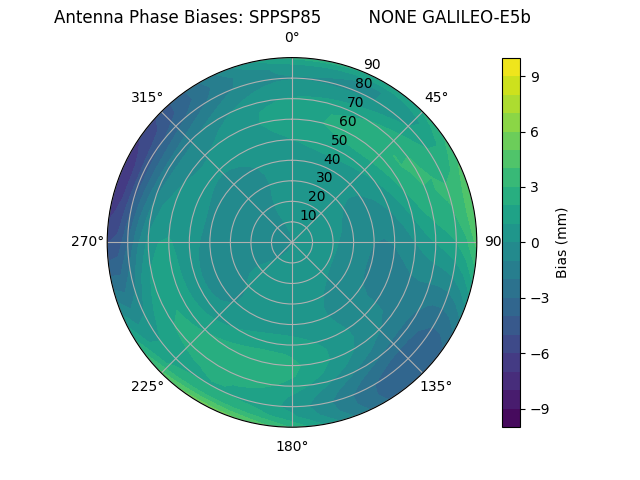

GALILEO-E5b | |
Bias | Delta |
---|---|

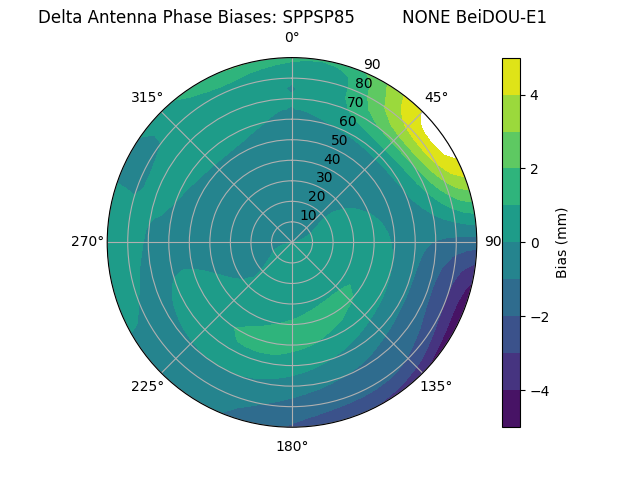

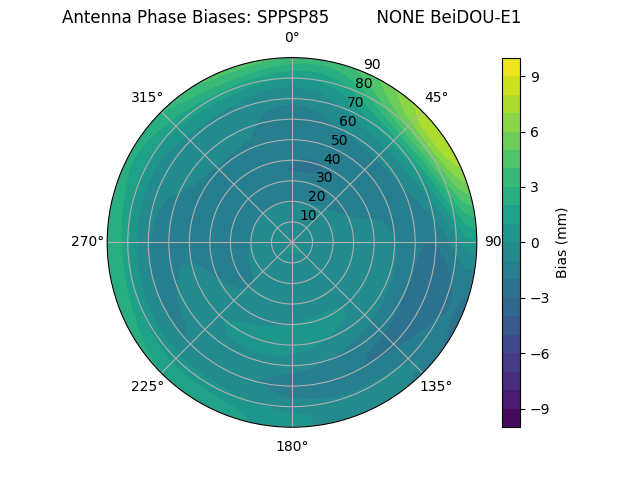

BeiDOU-E1 | |

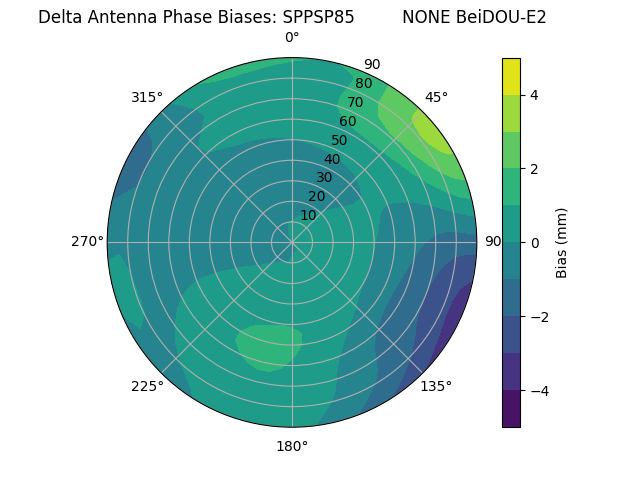

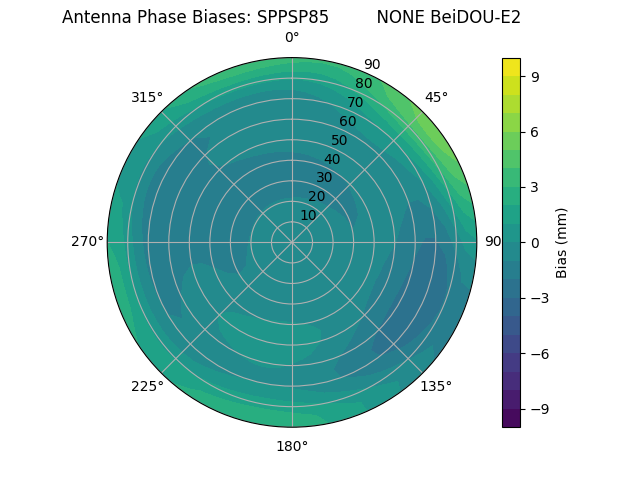

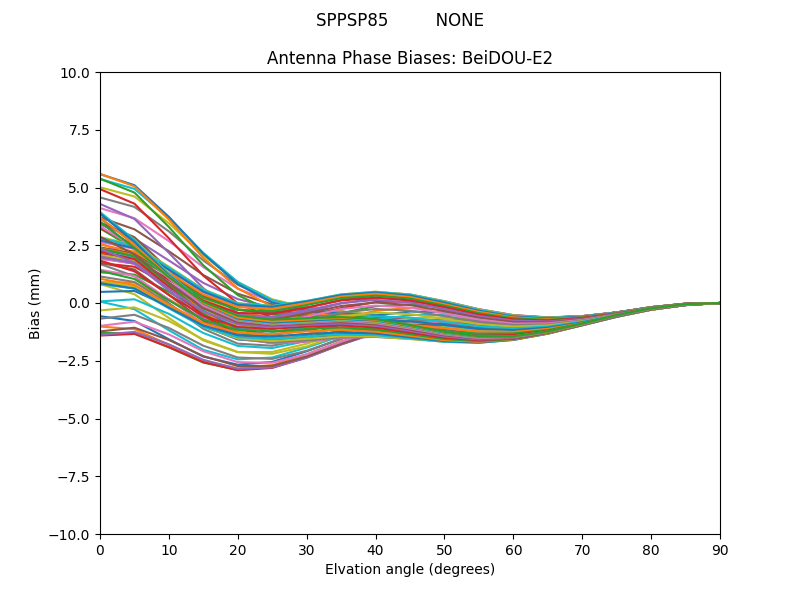

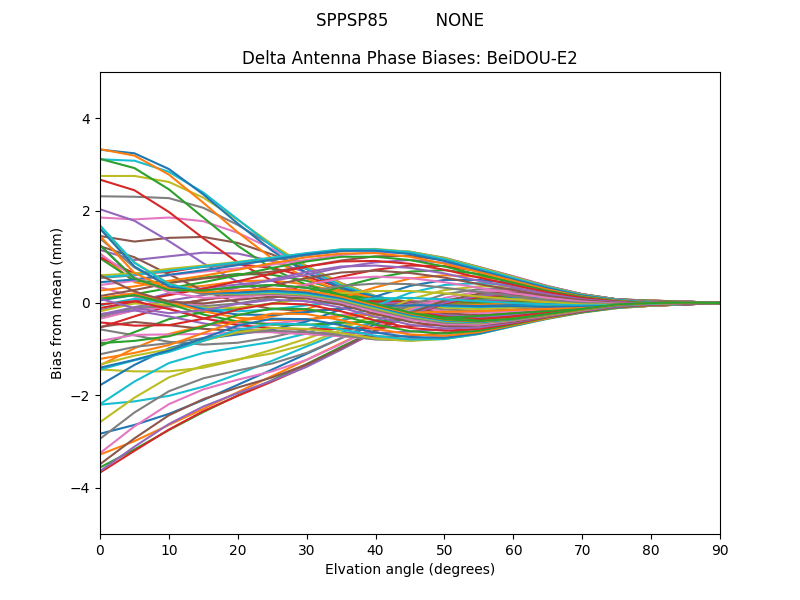

BeiDOU-E2 | |

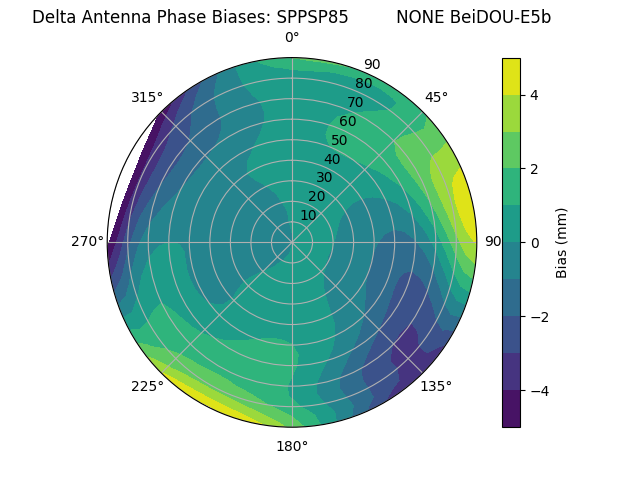

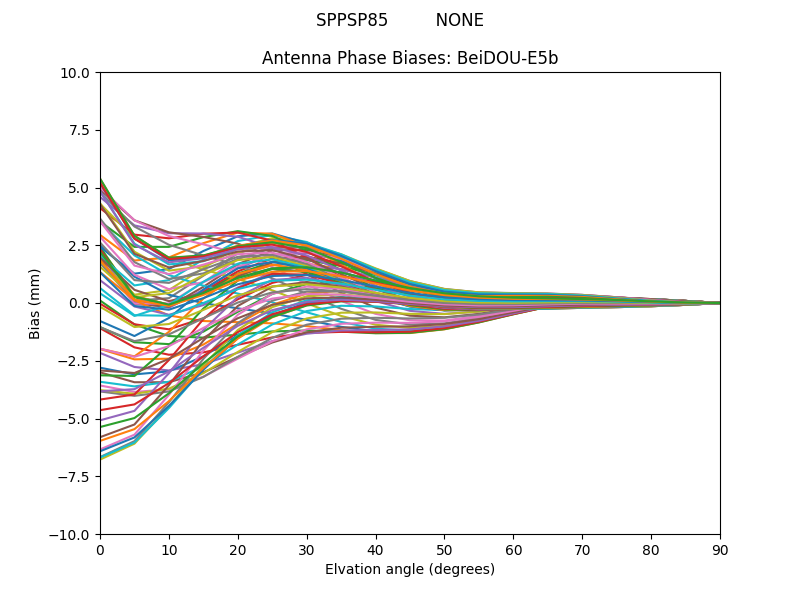

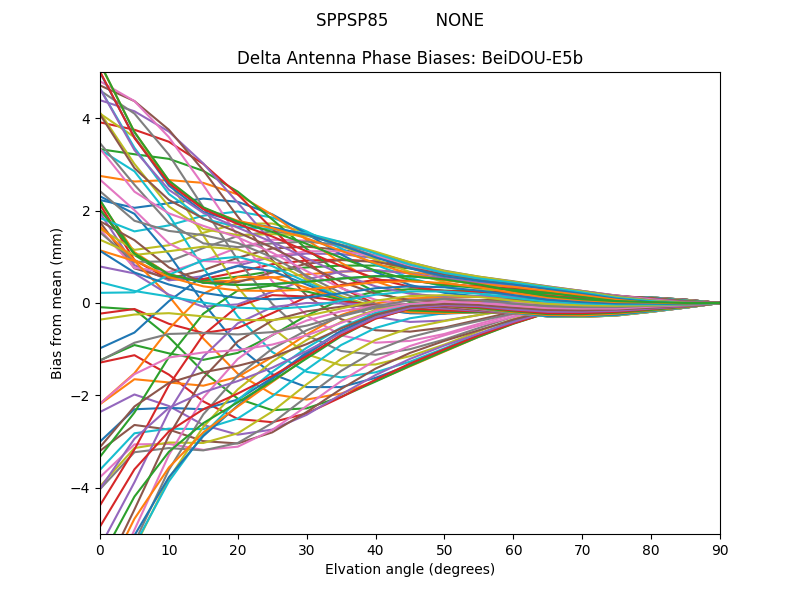

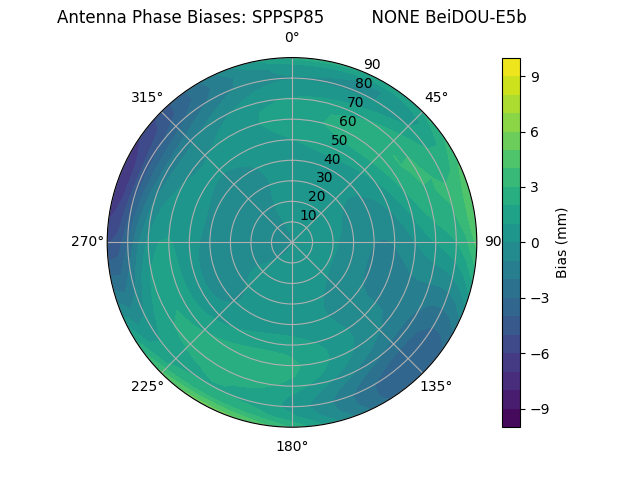

BeiDOU-E5b | |
Bias | Delta |
---|---|
QZSS-L1 | |

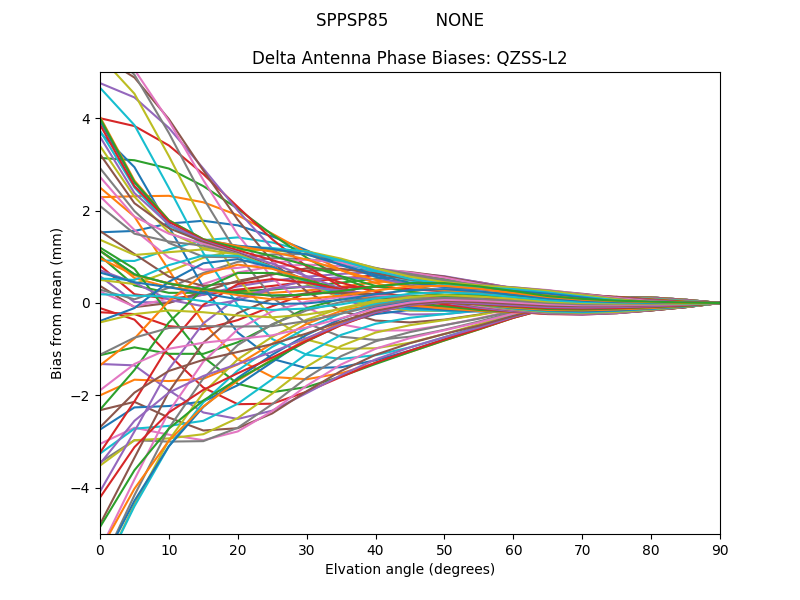

QZSS-L2 | |
QZSS-L5 | |
Bias | Delta |
---|---|

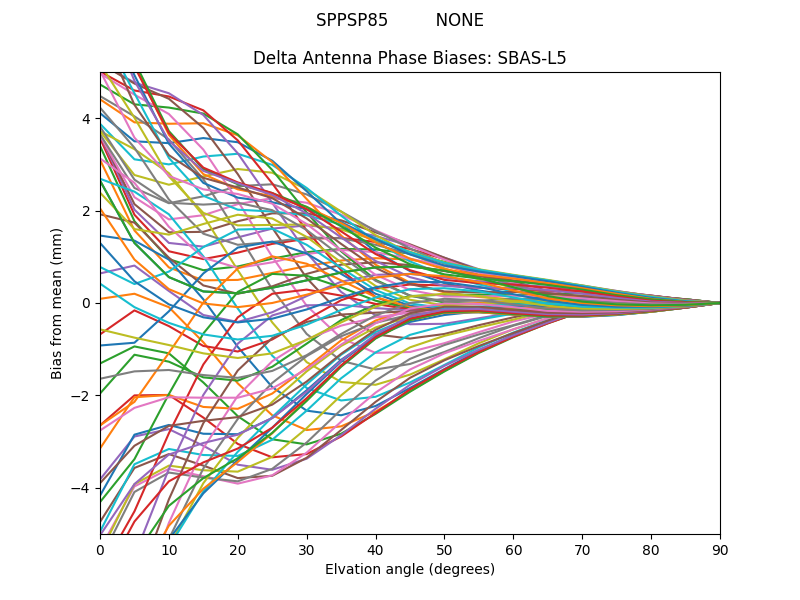

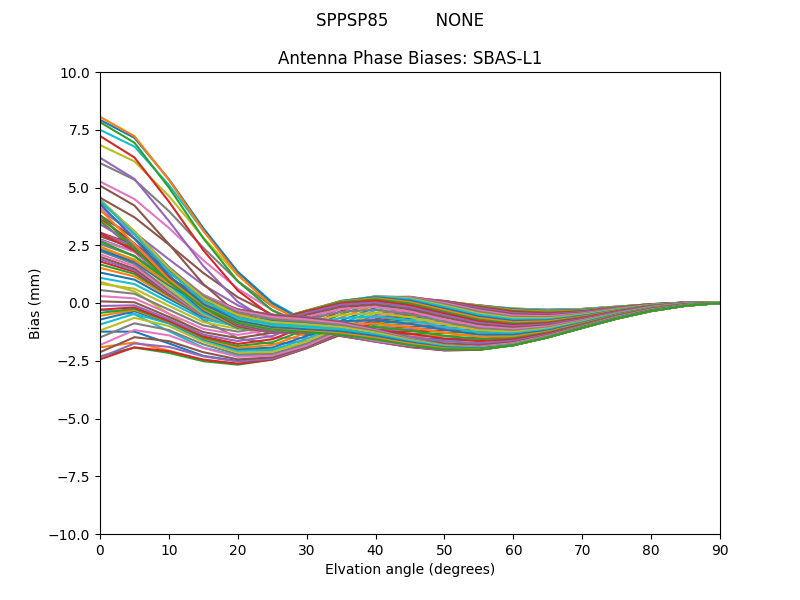

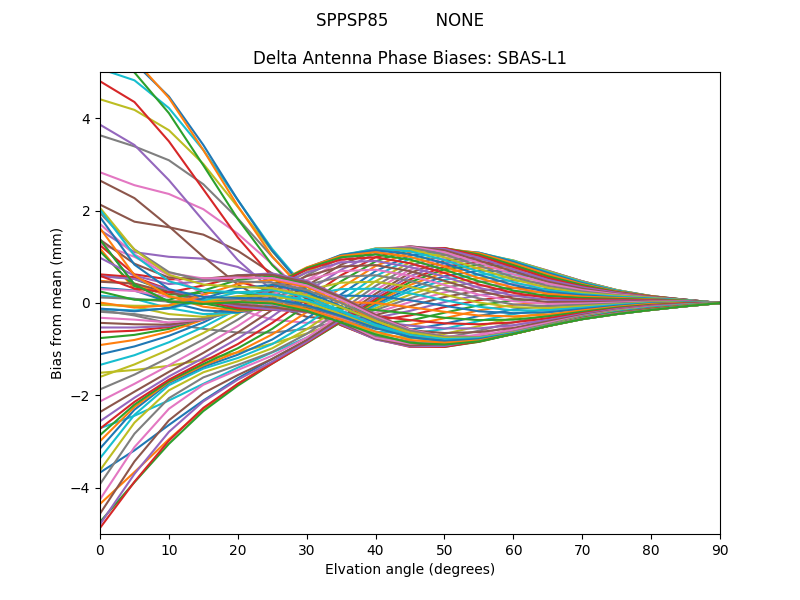

SBAS-L1 | |
SBAS-L5 | |
Bias | Delta |
---|---|
IRNSS-L5 | |
