Antenna information for STXS8PX003A NONE
SV System | Bands |
---|---|
GPSL1: N: 2.68 E: -0.67 U: 87.05L2: N: 0.05 E: -0.45 U: 92.84 GLONASSL1: N: 2.68 E: -0.67 U: 87.05L2: N: 0.05 E: -0.45 U: 92.84 | L1GPS: N: 2.68 E: -0.67 U: 87.05GLONASS: N: 2.68 E: -0.67 U: 87.05 L2GPS: N: 0.05 E: -0.45 U: 92.84GLONASS: N: 0.05 E: -0.45 U: 92.84 |
Means

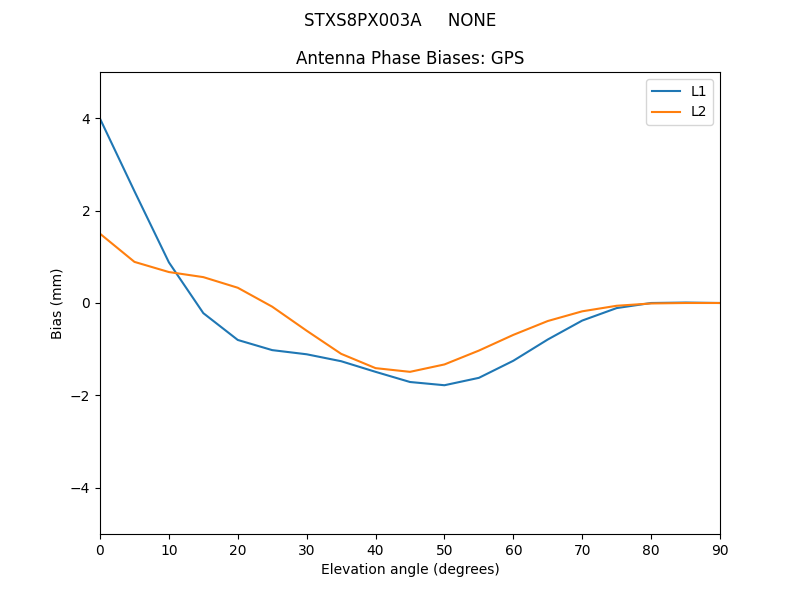

GPS

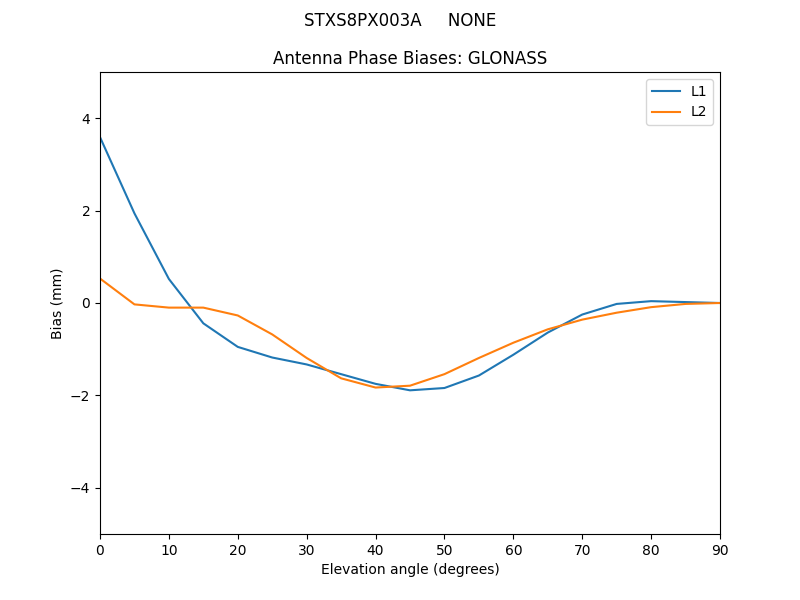

GLONASS

Azimuths
Bias | Delta |
---|---|

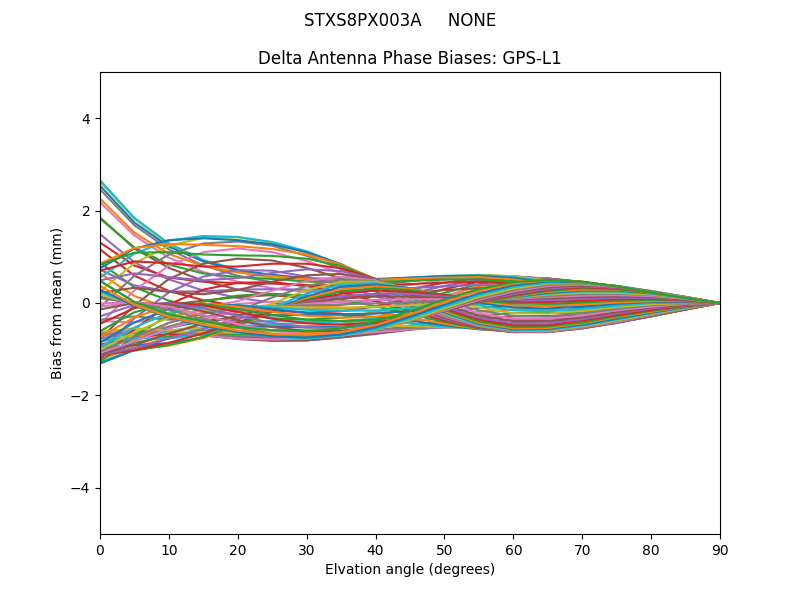

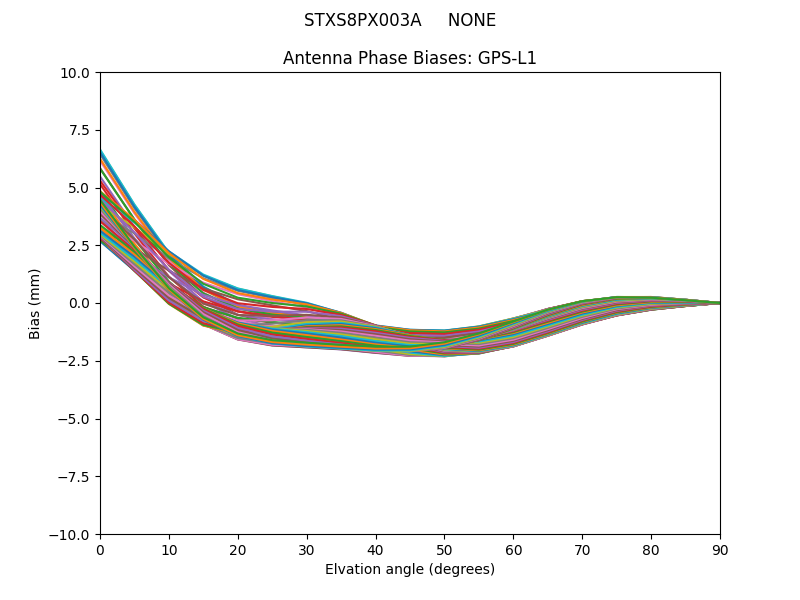

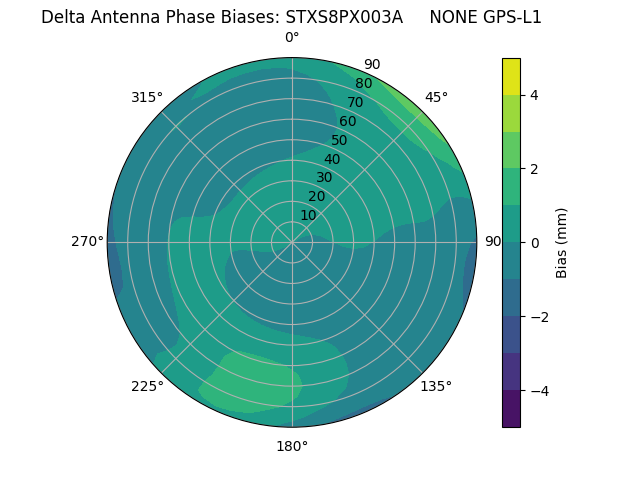

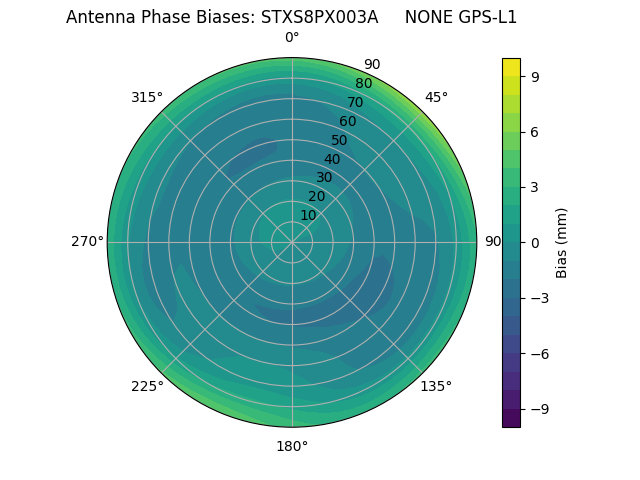

GPS-L1 | |
![]() | ![]() |
![]() | ![]() |

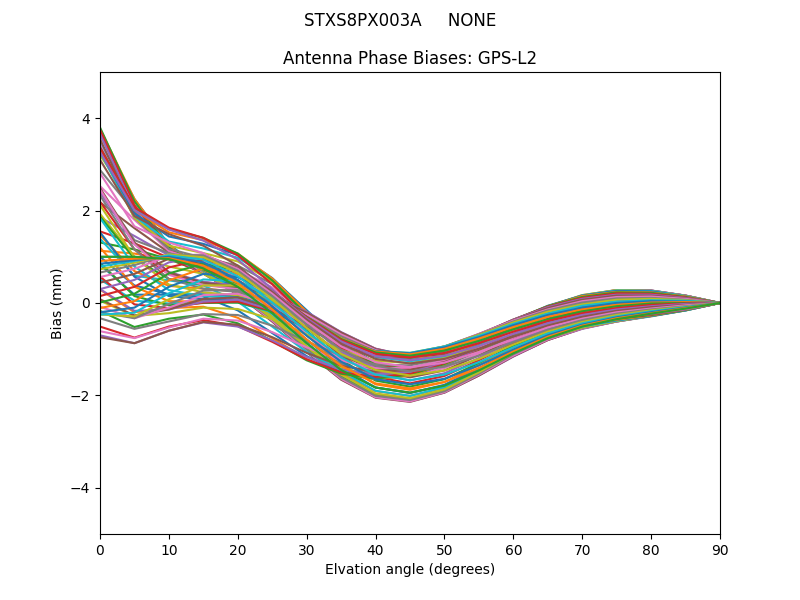

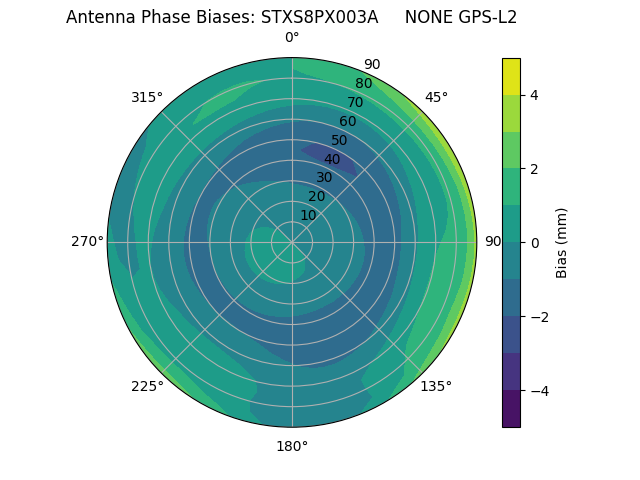

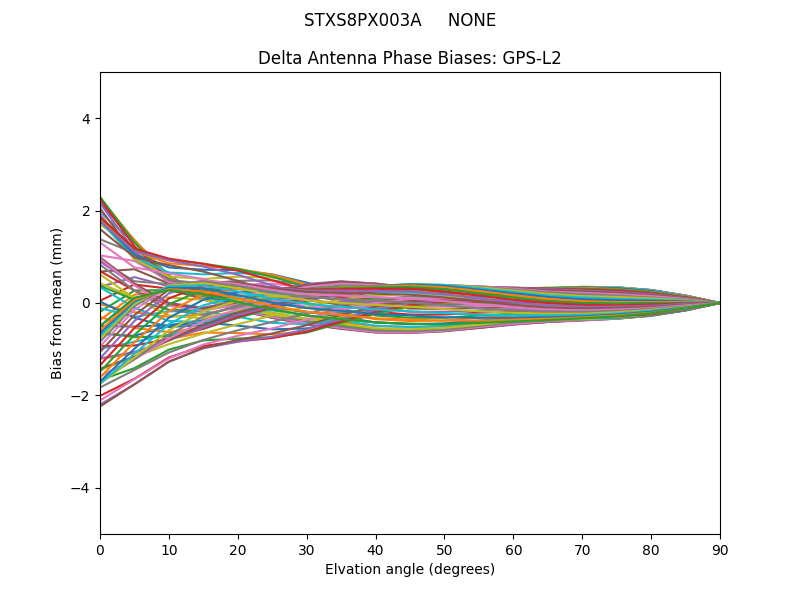

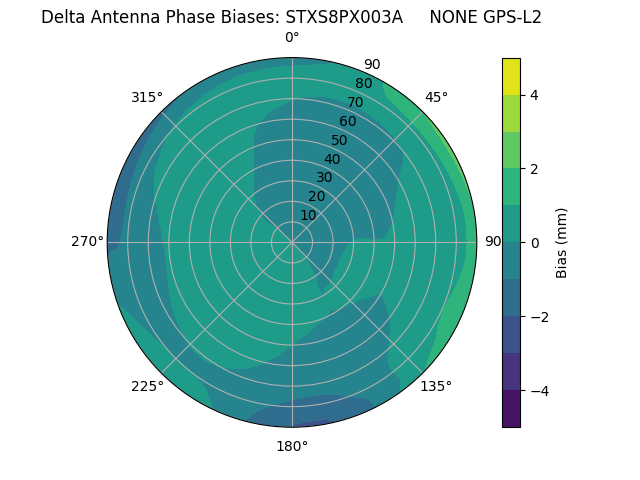

GPS-L2 | |
![]() | ![]() |
![]() | ![]() |
Bias | Delta |
---|---|

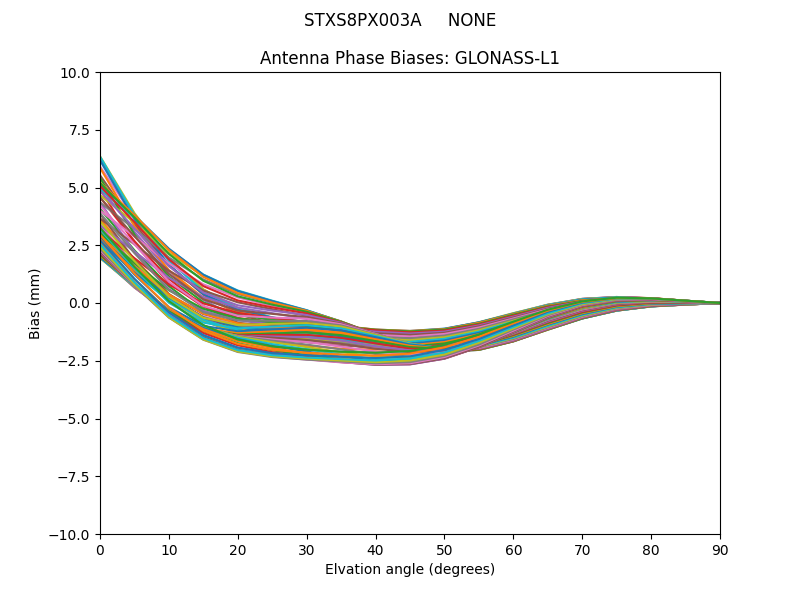

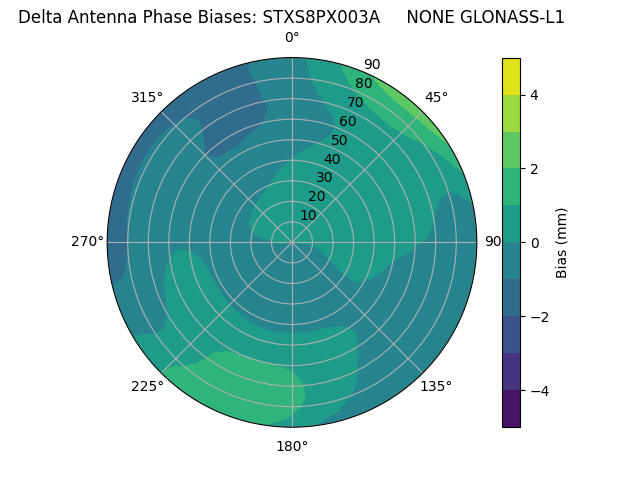

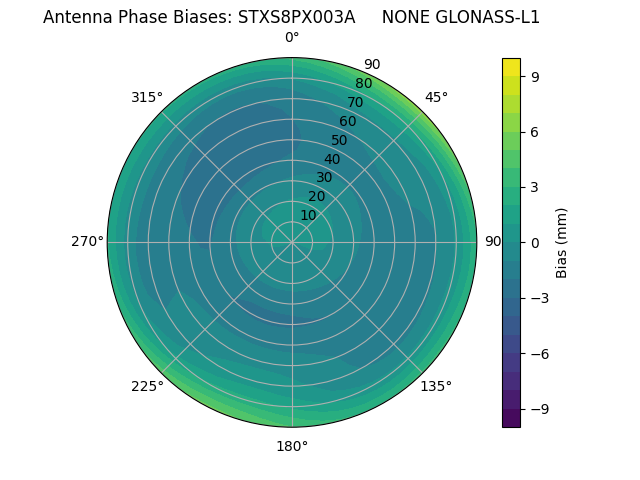

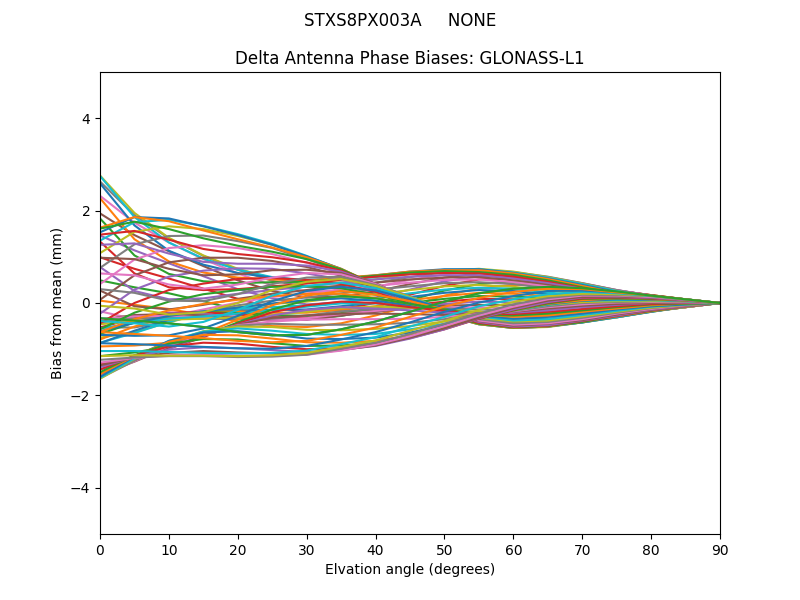

GLONASS-L1 | |
![]() | ![]() |
![]() | ![]() |

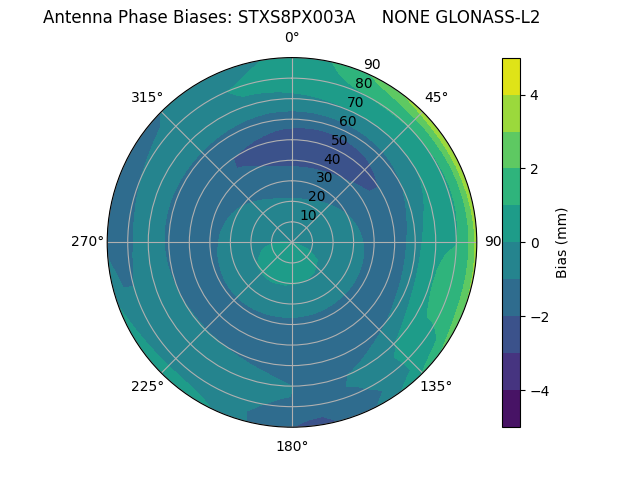

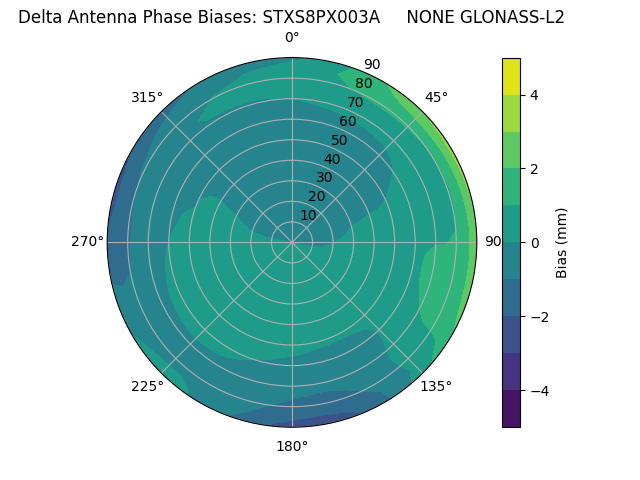

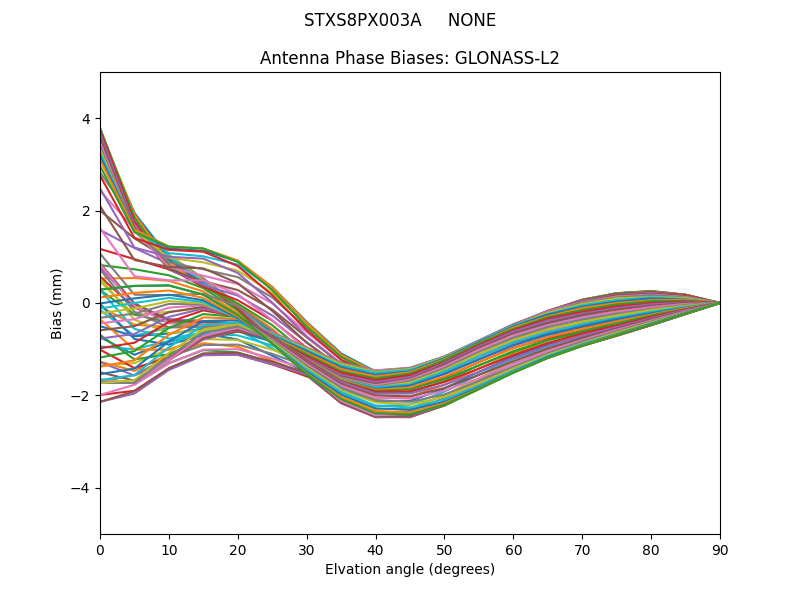

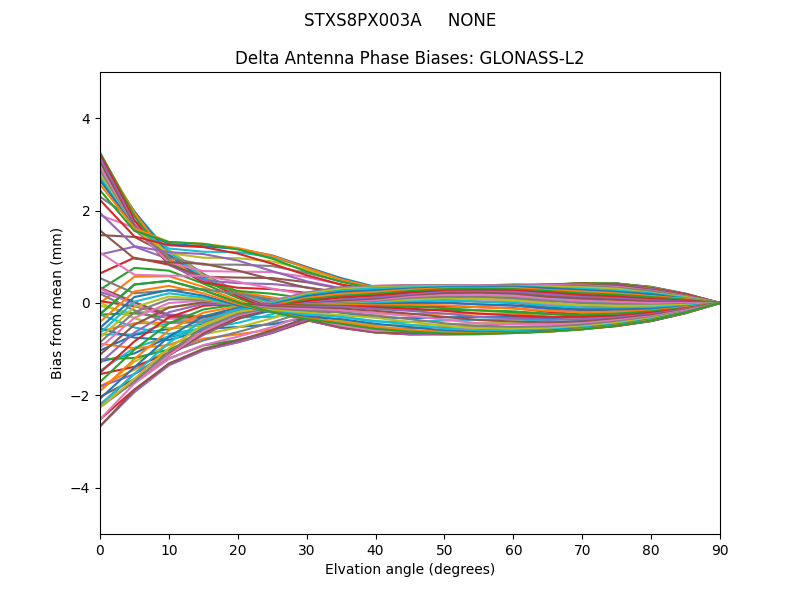

GLONASS-L2 | |
![]() | ![]() |
![]() | ![]() |
