Antenna information for TIAPENG7N NONE

Antenna Offsets

SV System	Bands
GPS L1: N: -0.09 E: -0.10 U: 100.27 L2: N: -1.65 E: -1.12 U: 81.92 GLONASS L1: N: -0.17 E: -0.11 U: 99.59 L2: N: -1.22 E: -1.07 U: 83.71 GALILEO E1: N: -0.09 E: -0.10 U: 100.27 BeiDou E1: N: -0.09 E: -0.10 U: 100.27 QZSS L1: N: -0.09 E: -0.10 U: 100.27 L2: N: -1.65 E: -1.12 U: 81.92 SBAS L1: N: -0.09 E: -0.10 U: 100.27	L1 GPS: N: -0.09 E: -0.10 U: 100.27 GLONASS: N: -0.17 E: -0.11 U: 99.59 QZSS: N: -0.09 E: -0.10 U: 100.27 SBAS: N: -0.09 E: -0.10 U: 100.27 L2 GPS: N: -1.65 E: -1.12 U: 81.92 GLONASS: N: -1.22 E: -1.07 U: 83.71 QZSS: N: -1.65 E: -1.12 U: 81.92 E1 GALILEO: N: -0.09 E: -0.10 U: 100.27 BeiDou: N: -0.09 E: -0.10 U: 100.27

---

Means

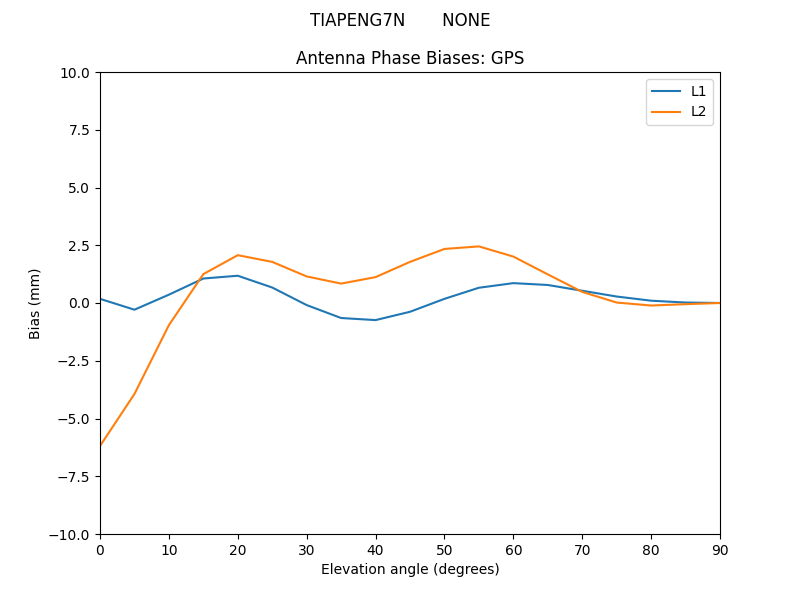

GPS

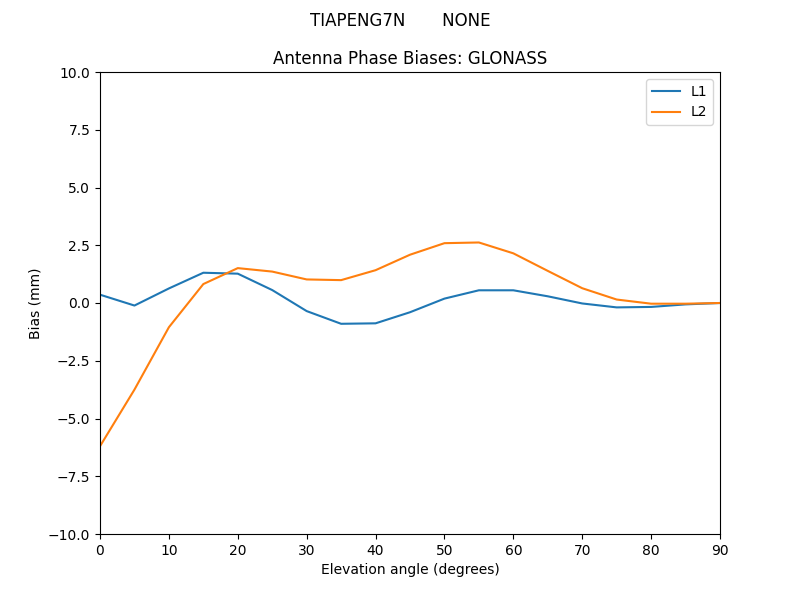

GLONASS

GALILEO

BeiDOU

QZSS

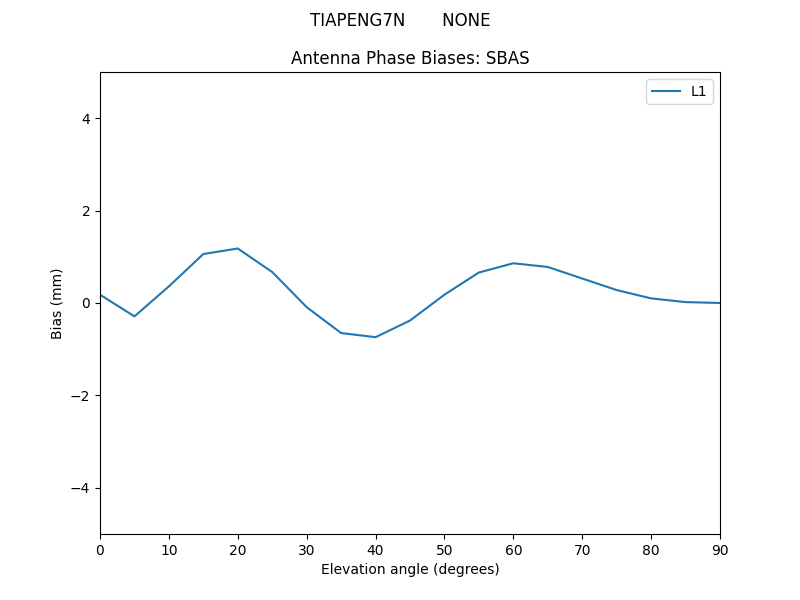

SBAS

Azimuths

GPS

Bias	Delta

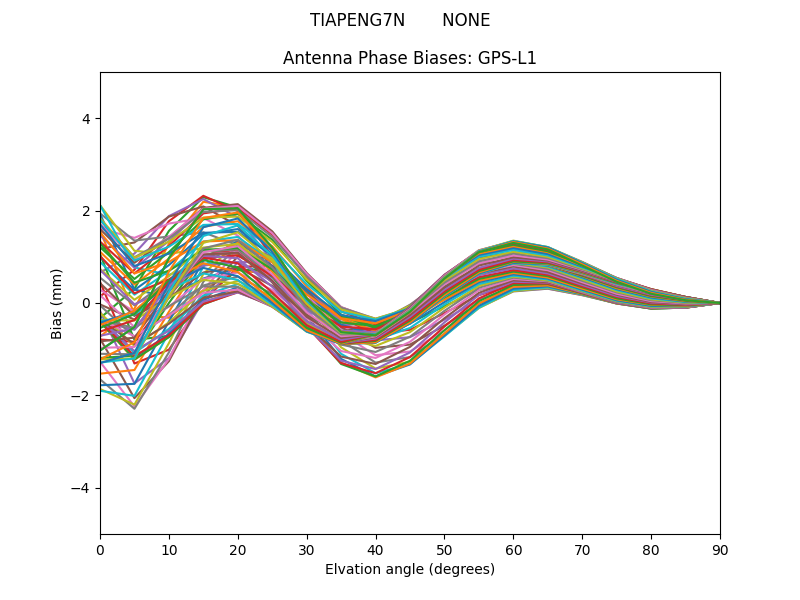

GPS-L1

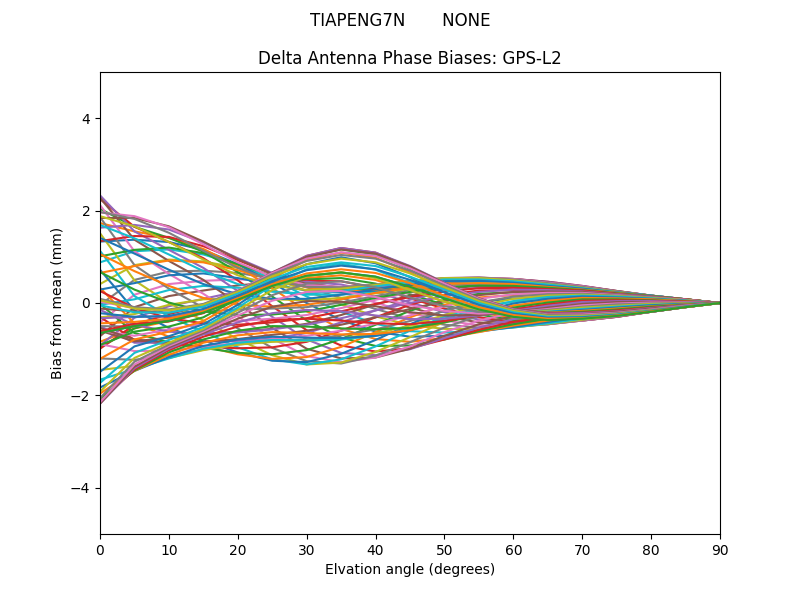

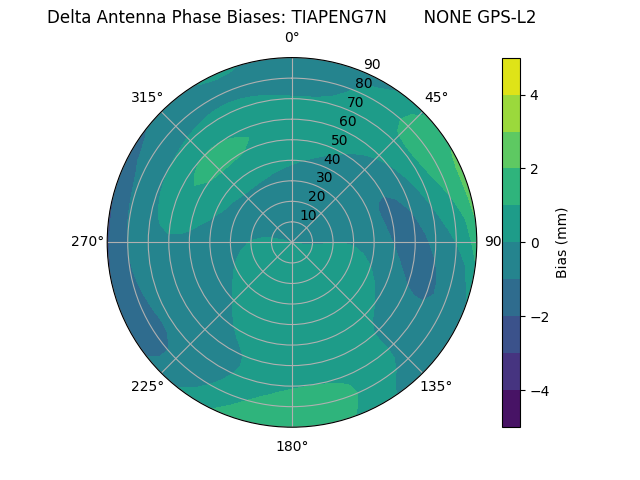

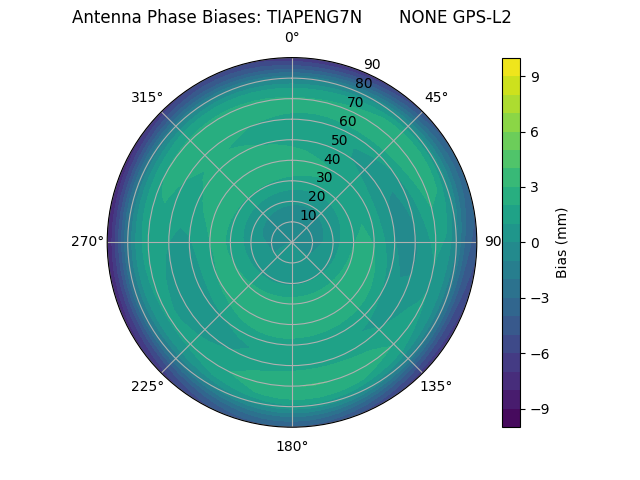

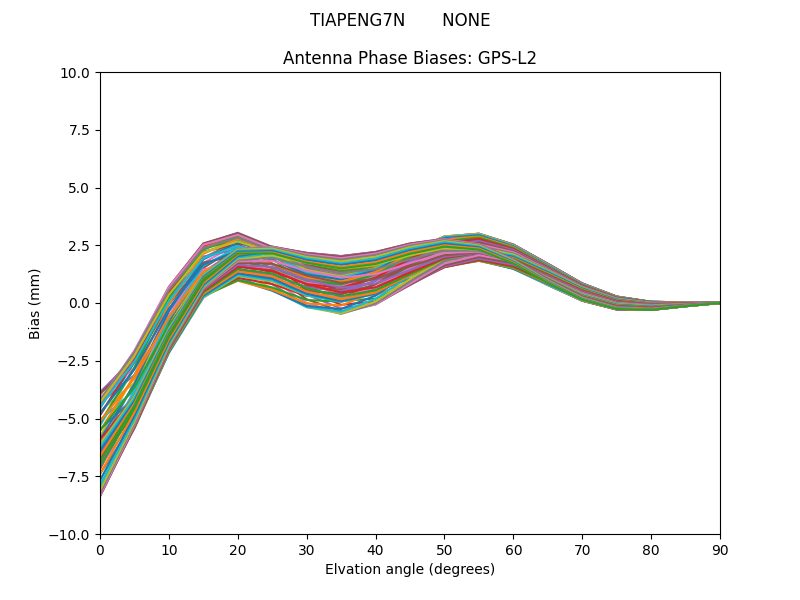

GPS-L2

GLONASS

Bias	Delta

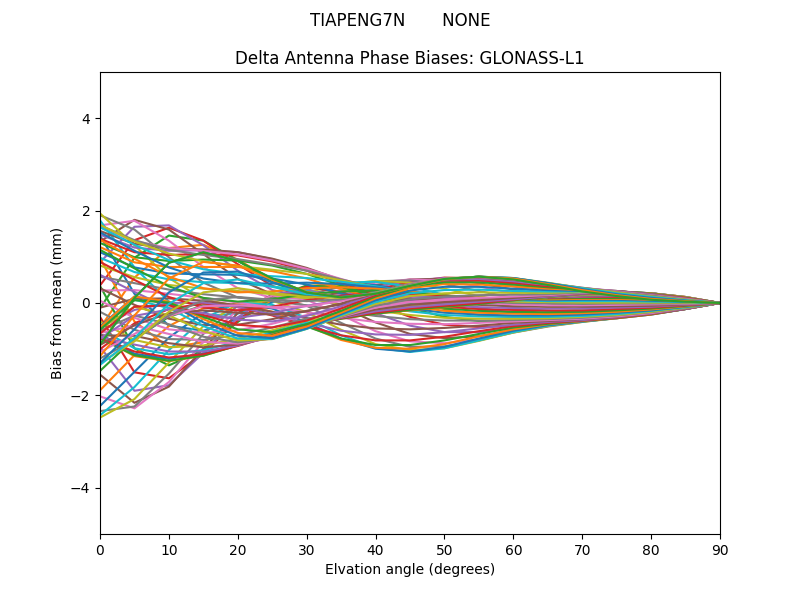

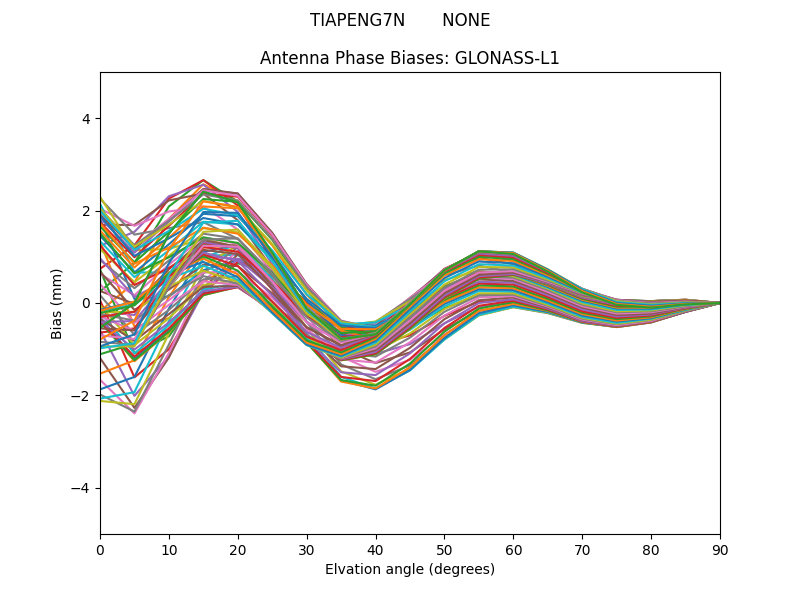

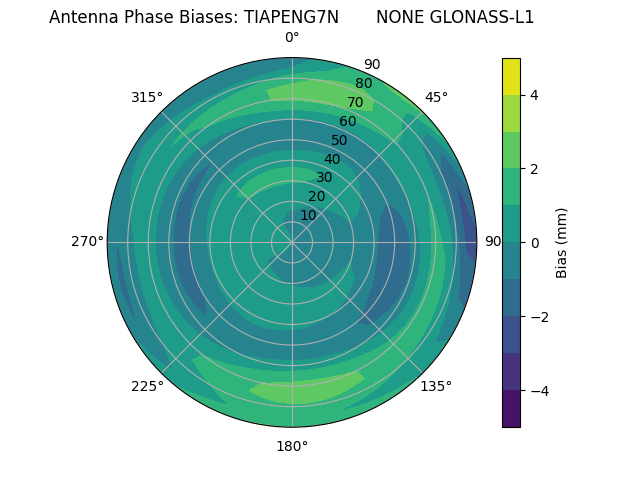

GLONASS-L1

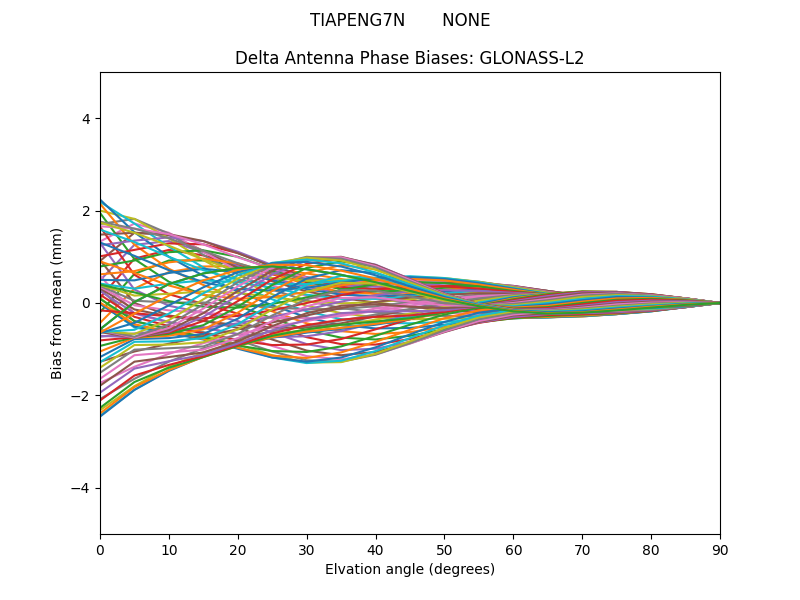

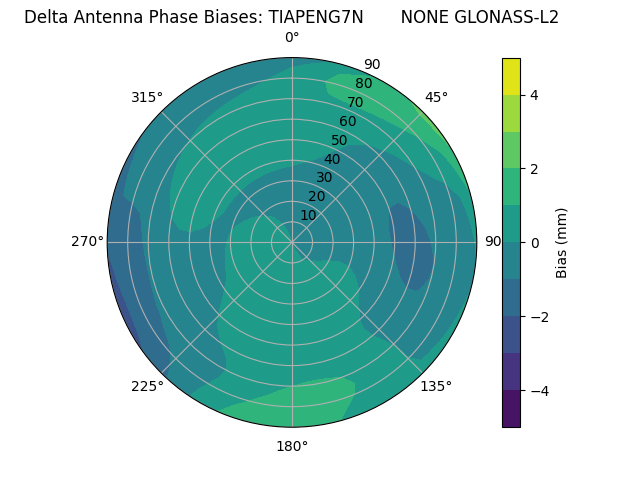

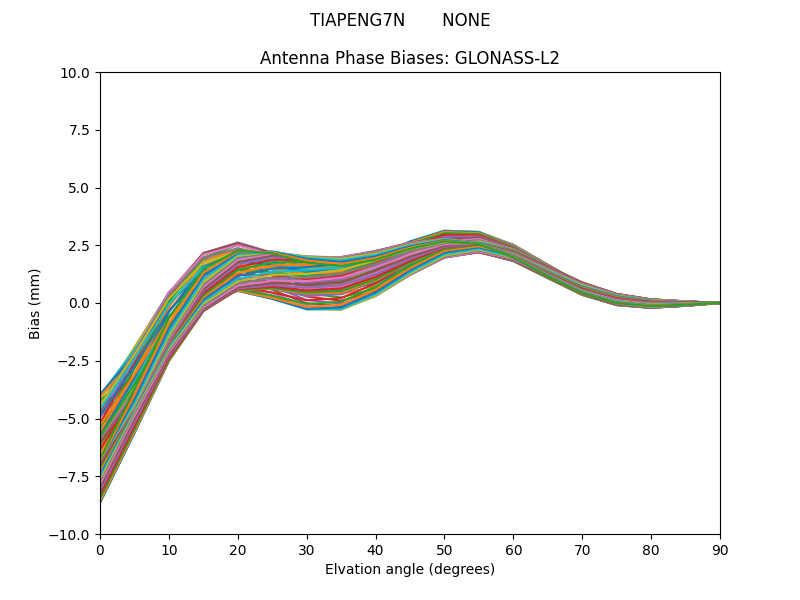

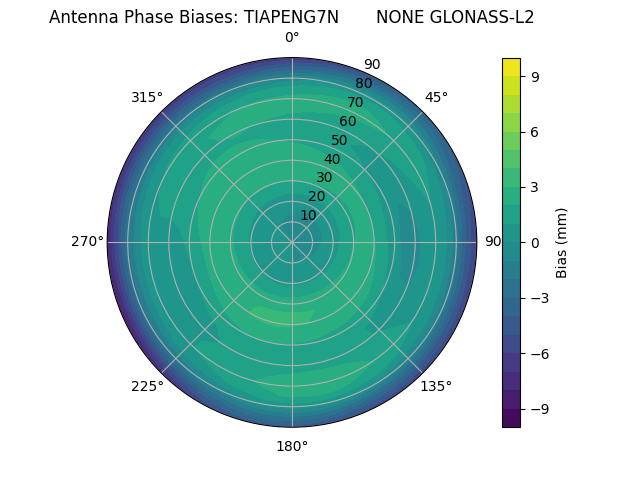

GLONASS-L2

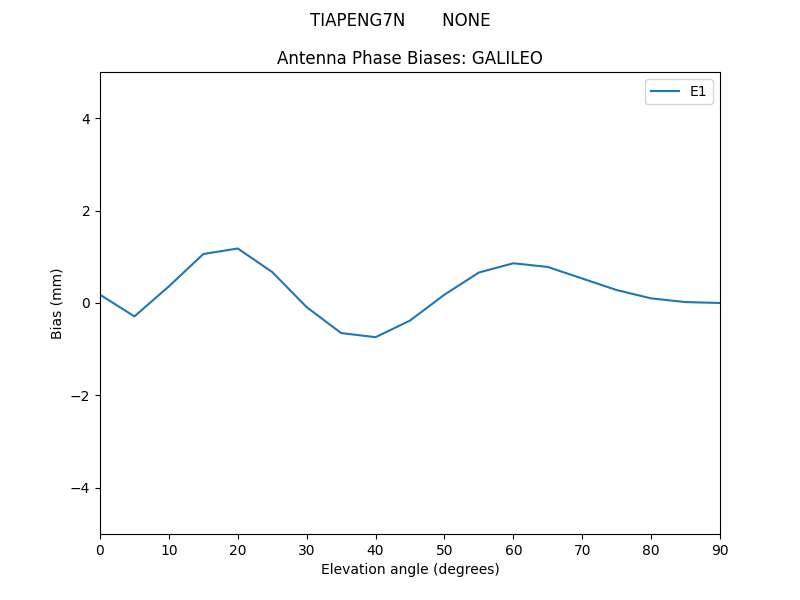

GALILEO

Bias	Delta
GALILEO-E1

BeiDOU

Bias	Delta
BeiDOU-E1

QZSS

Bias	Delta

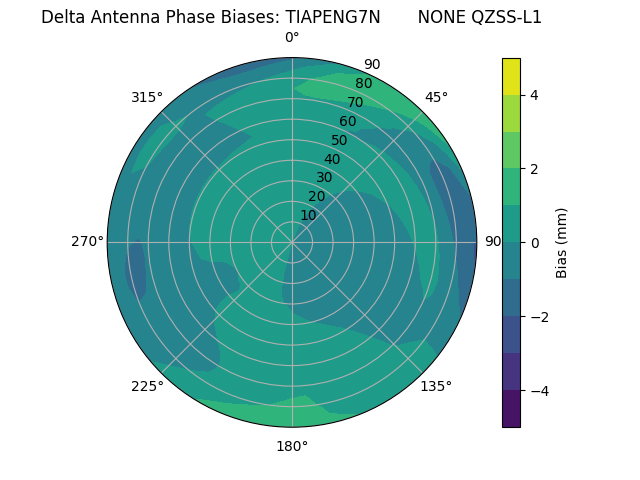

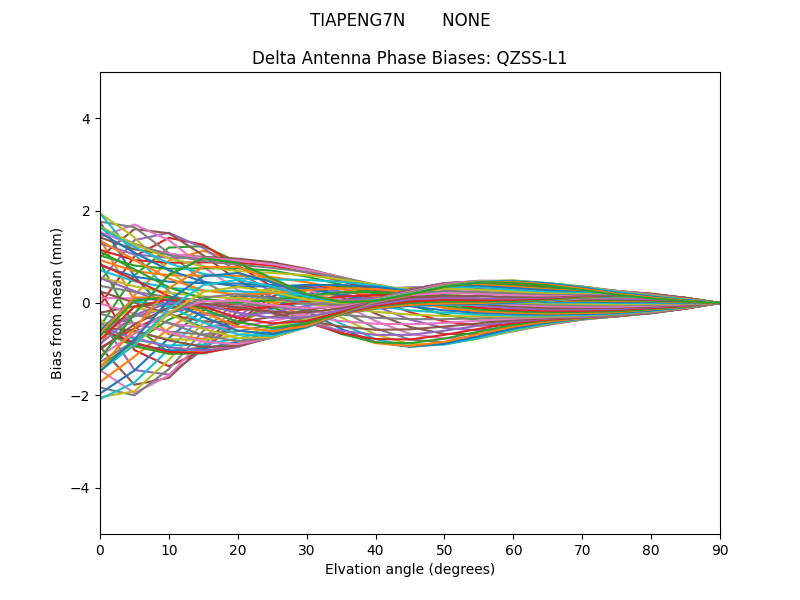

QZSS-L1

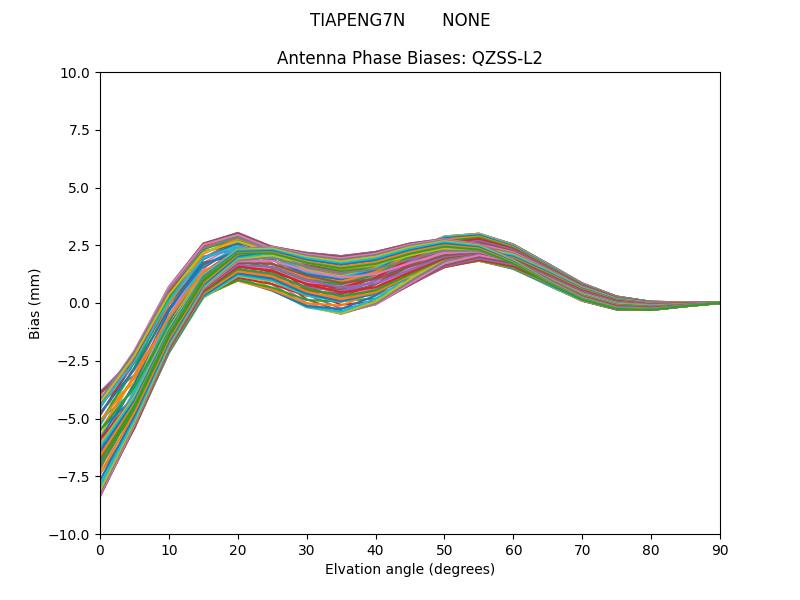

QZSS-L2

SBAS

Bias	Delta

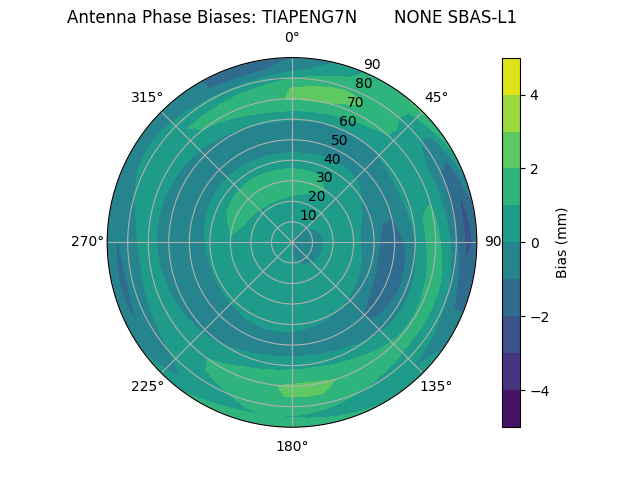

SBAS-L1
