Antenna information for TRMR8_GNSS NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.57 E: -0.16 U: 83.67
L2: N: -0.69 E: -0.25 U: 72.09

GLONASS

L1: N: 0.57 E: -0.16 U: 83.67
L2: N: -0.69 E: -0.25 U: 72.09

L1

GPS: N: 0.57 E: -0.16 U: 83.67
GLONASS: N: 0.57 E: -0.16 U: 83.67

L2

GPS: N: -0.69 E: -0.25 U: 72.09
GLONASS: N: -0.69 E: -0.25 U: 72.09

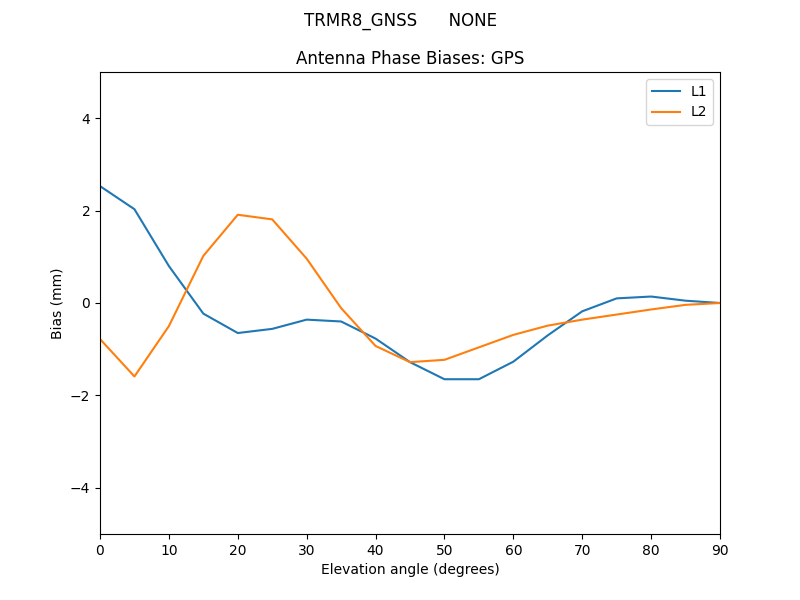

Means

GPS

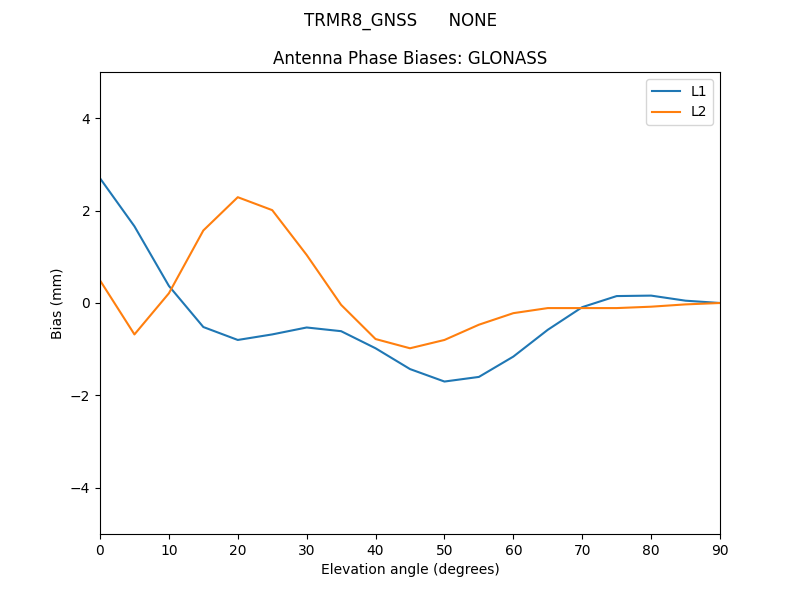

GLONASS


Azimuths

GPS


Bias Delta

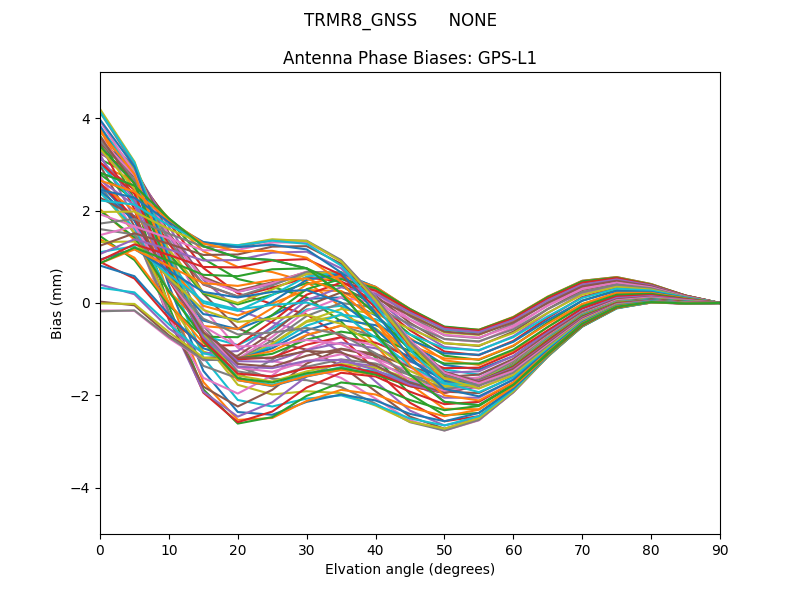

GPS-L1

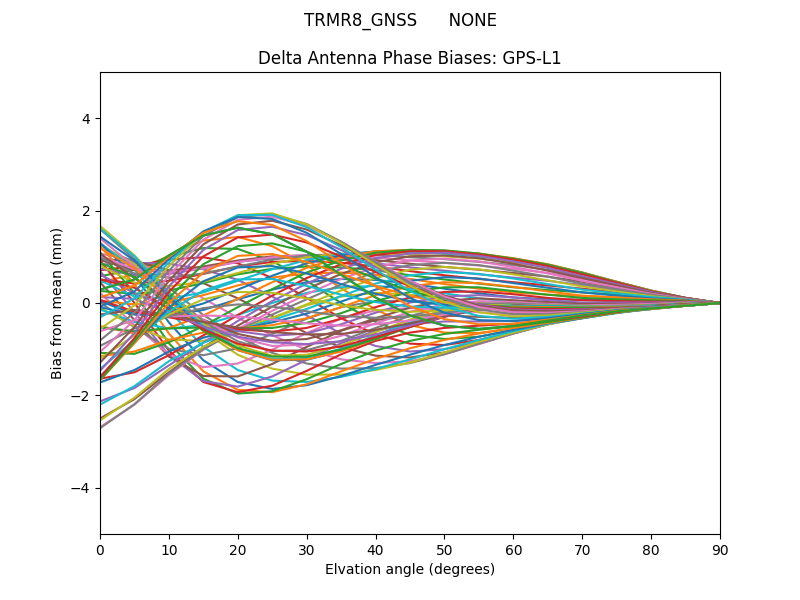

GPS-L1GPS-L1

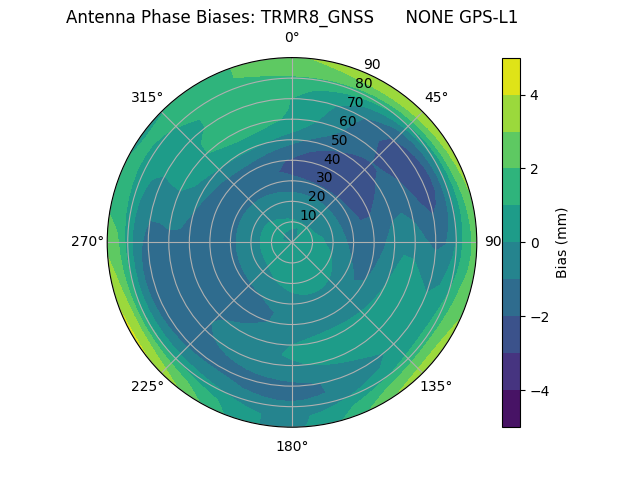

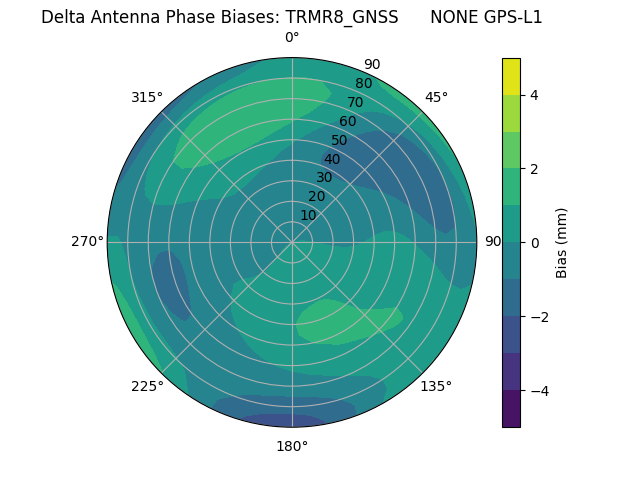

Radial GPS-L1Radial GPS-L1

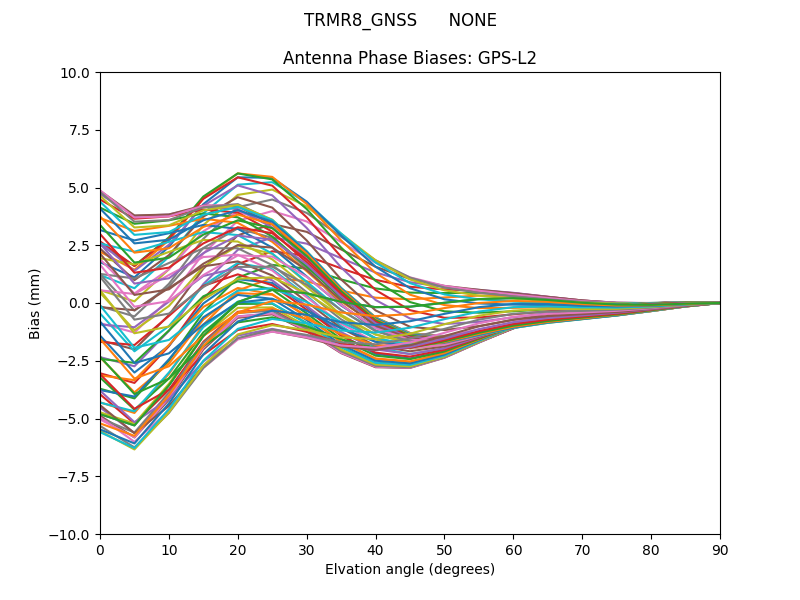

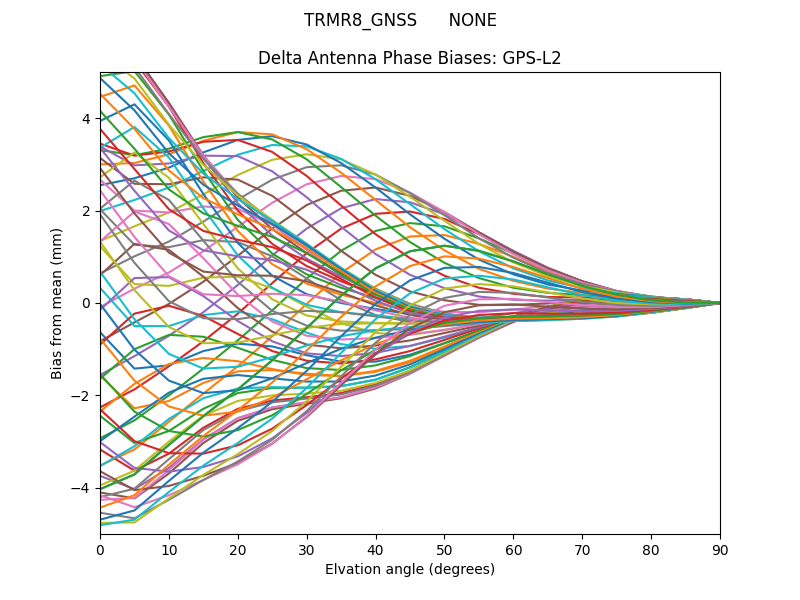

GPS-L2

GPS-L2GPS-L2

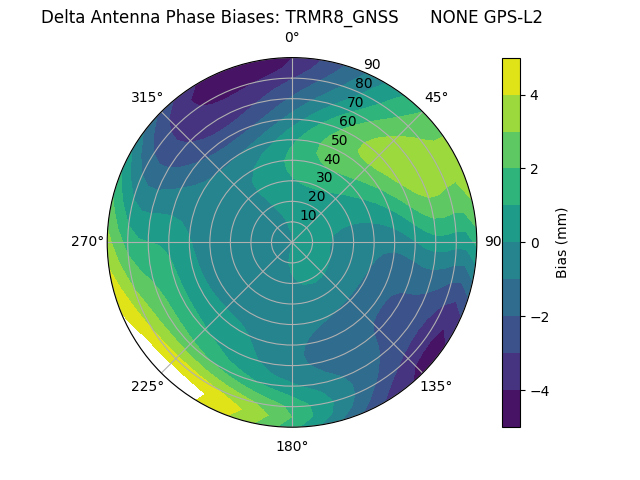

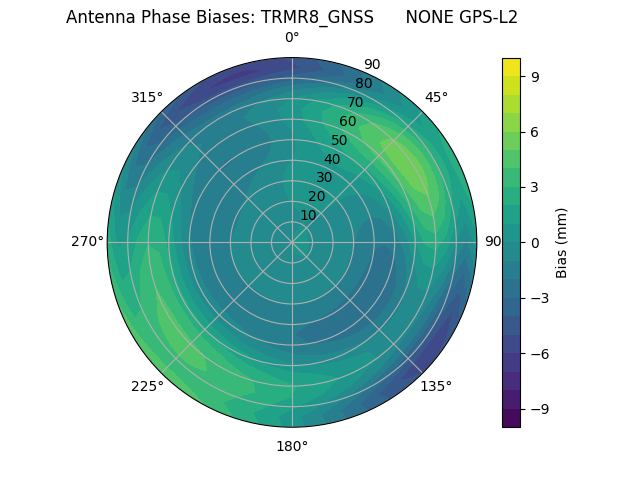

Radial GPS-L2Radial GPS-L2

GLONASS


Bias Delta

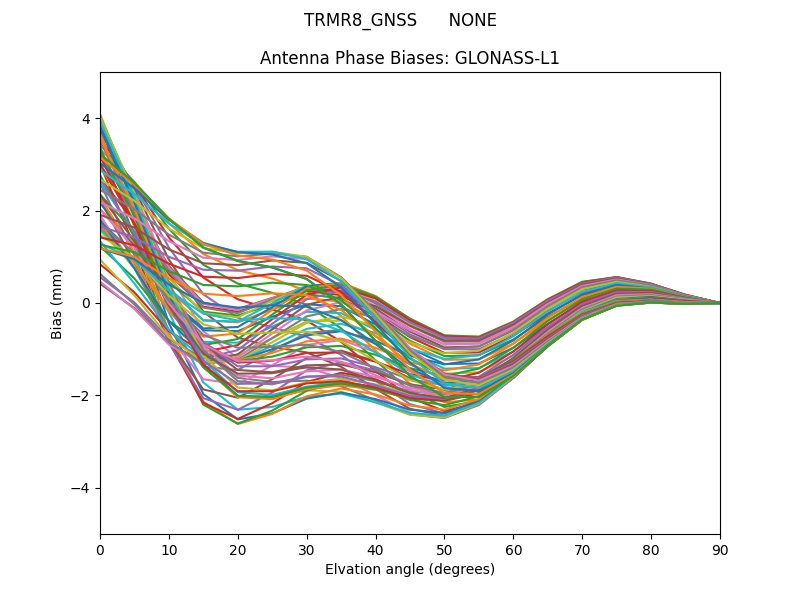

GLONASS-L1

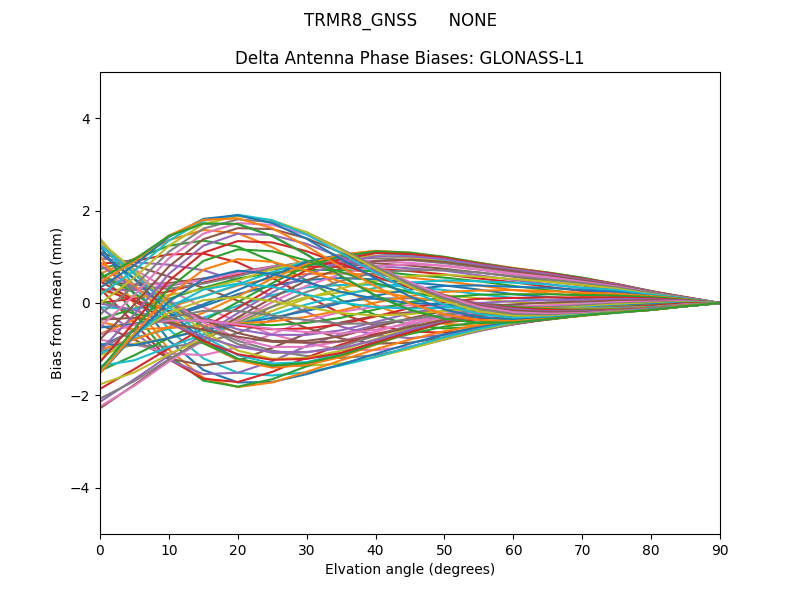

GLONASS-L1GLONASS-L1

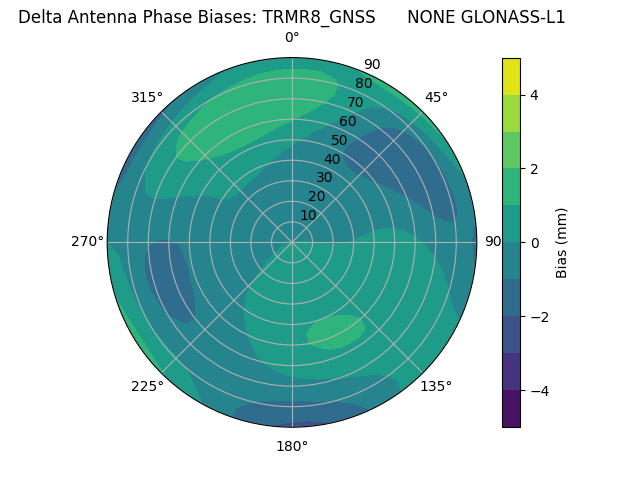

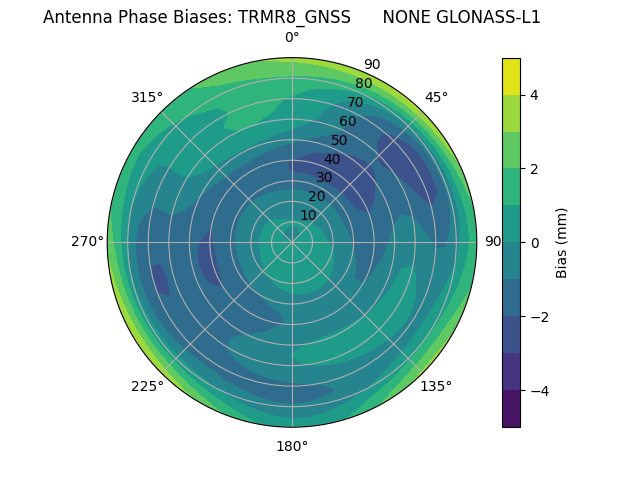

Radial GLONASS-L1Radial GLONASS-L1

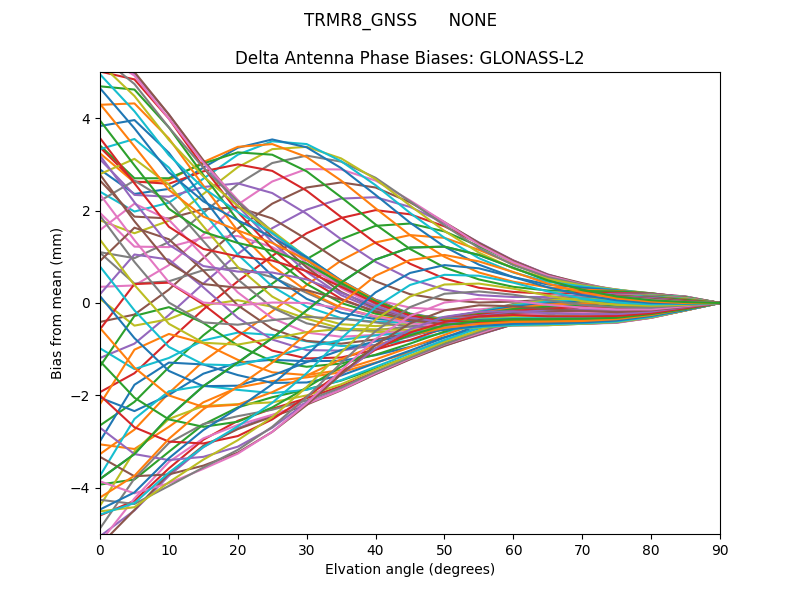

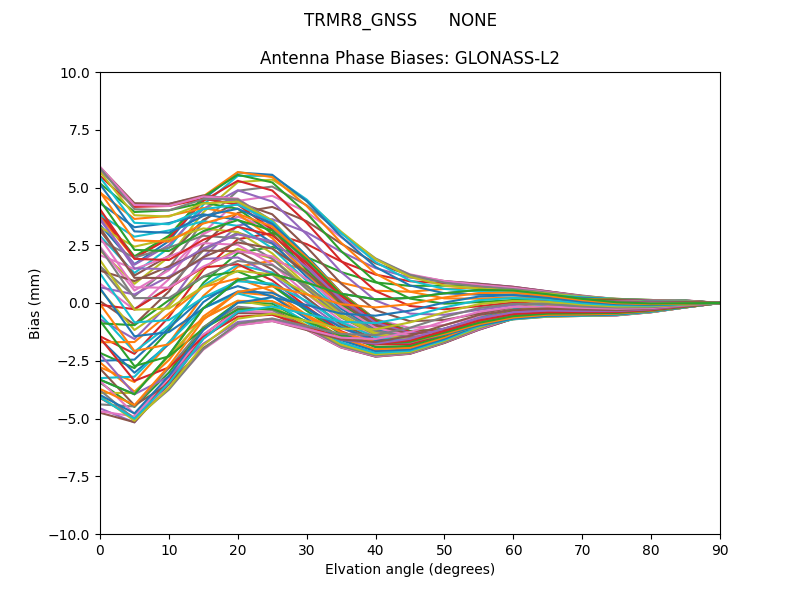

GLONASS-L2

GLONASS-L2GLONASS-L2

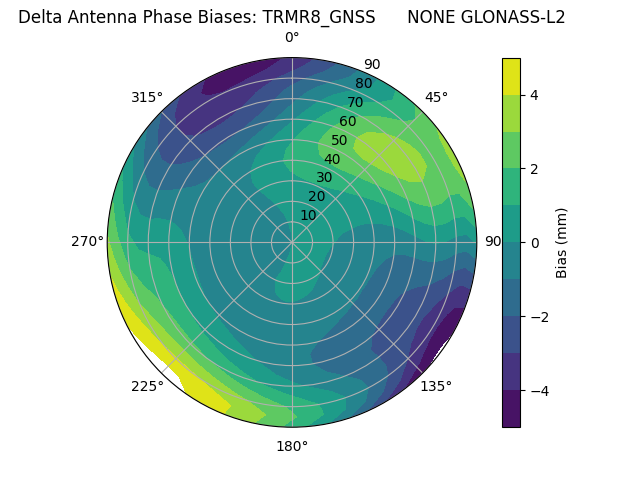

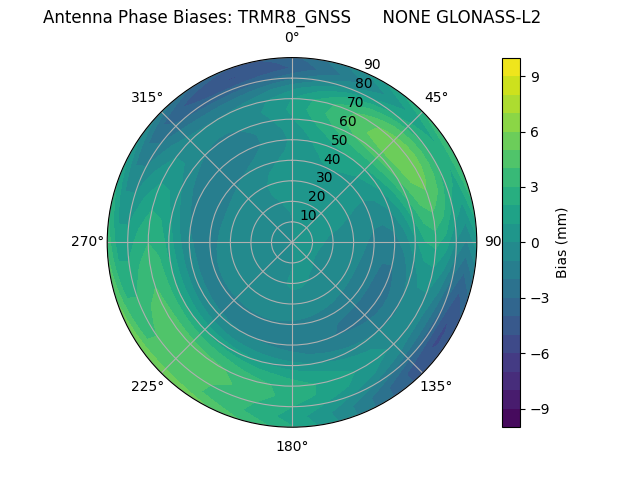

Radial GLONASS-L2Radial GLONASS-L2
