Antenna information for CNTAT340 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.57 E: -0.15 U: 53.03
L2: N: 0.35 E: -0.02 U: 52.36
L5: N: 0.59 E: 0.63 U: 48.99

GLONASS

L1: N: -0.09 E: -0.29 U: 53.37
L2: N: -0.09 E: -0.29 U: 55.06

GALILEO

E1: N: -0.57 E: -0.15 U: 53.03
E5a: N: 0.59 E: 0.63 U: 48.99
E5b: N: 0.81 E: 0.00 U: 48.36
E5: N: 0.68 E: 0.26 U: 47.73
E6: N: 0.16 E: -1.16 U: 55.23

BeiDou

E1: N: -0.57 E: -0.15 U: 53.03
E2: N: -0.89 E: -0.07 U: 53.53
E5b: N: 0.81 E: 0.00 U: 48.36
E6: N: -0.03 E: -0.86 U: 55.44

QZSS

L1: N: -0.57 E: -0.15 U: 53.03
L2: N: 0.35 E: -0.02 U: 52.36
L5: N: 0.59 E: 0.63 U: 48.99
LEX: N: 0.16 E: -1.16 U: 55.23

IRNSS

L5: N: 0.59 E: 0.63 U: 48.99

SBAS

L1: N: -0.57 E: -0.15 U: 53.03
L5: N: 0.59 E: 0.63 U: 48.99

L1

GPS: N: -0.57 E: -0.15 U: 53.03
GLONASS: N: -0.09 E: -0.29 U: 53.37
QZSS: N: -0.57 E: -0.15 U: 53.03
SBAS: N: -0.57 E: -0.15 U: 53.03

L2

GPS: N: 0.35 E: -0.02 U: 52.36
GLONASS: N: -0.09 E: -0.29 U: 55.06
QZSS: N: 0.35 E: -0.02 U: 52.36

L5

GPS: N: 0.59 E: 0.63 U: 48.99
QZSS: N: 0.59 E: 0.63 U: 48.99
SBAS: N: 0.59 E: 0.63 U: 48.99
IRNSS: N: 0.59 E: 0.63 U: 48.99

E1

GALILEO: N: -0.57 E: -0.15 U: 53.03
BeiDou: N: -0.57 E: -0.15 U: 53.03

E2

BeiDou: N: -0.89 E: -0.07 U: 53.53

E5

GALILEO: N: 0.68 E: 0.26 U: 47.73

E5a

GALILEO: N: 0.59 E: 0.63 U: 48.99

E5b

GALILEO: N: 0.81 E: 0.00 U: 48.36
BeiDou: N: 0.81 E: 0.00 U: 48.36

E6

GALILEO: N: 0.16 E: -1.16 U: 55.23
BeiDou: N: -0.03 E: -0.86 U: 55.44

LEX

QZSS: N: 0.16 E: -1.16 U: 55.23


Means

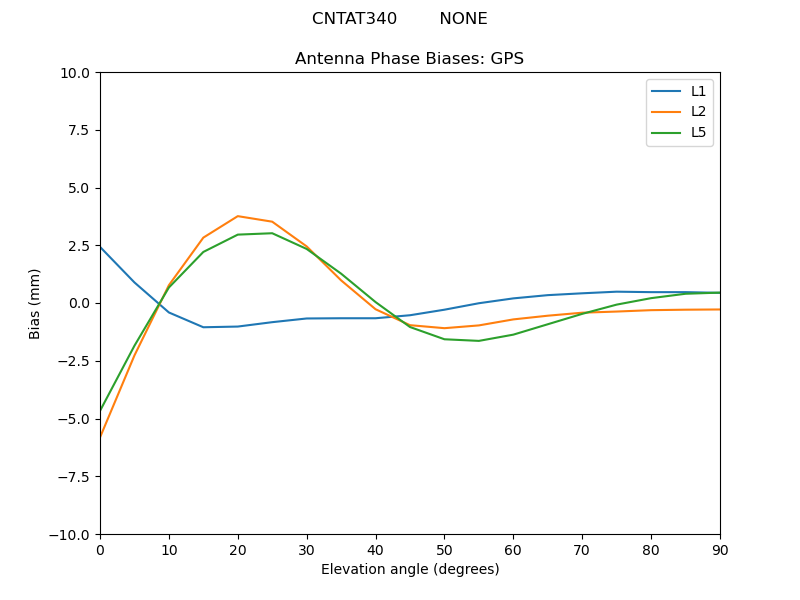

GPS

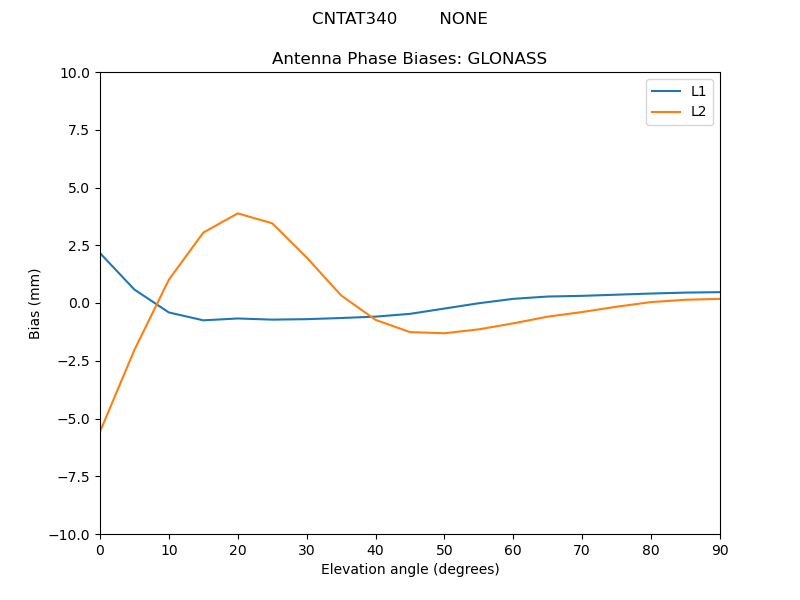

GLONASS


GALILEO

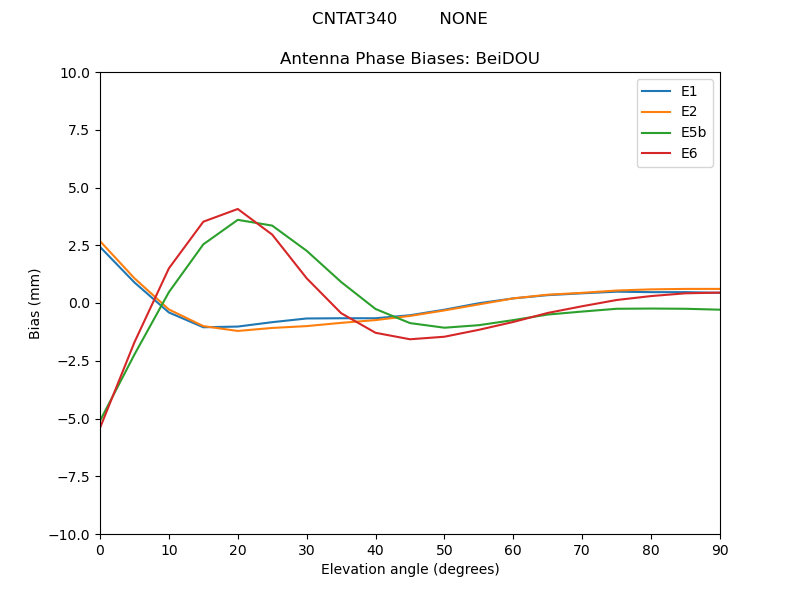

BeiDOU

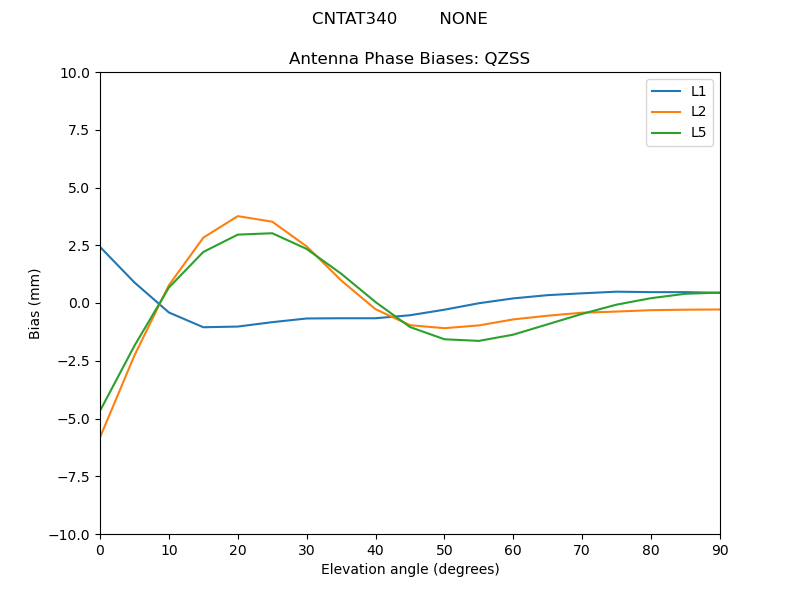

QZSS

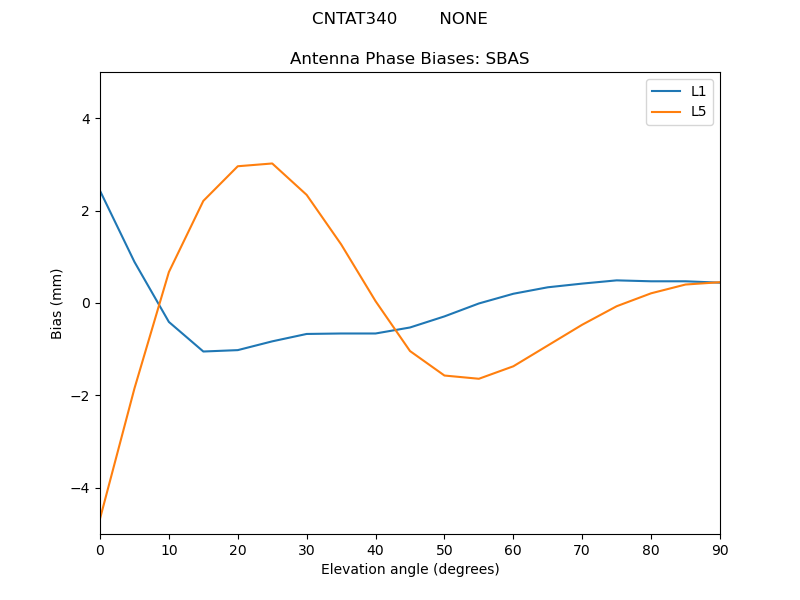

SBAS

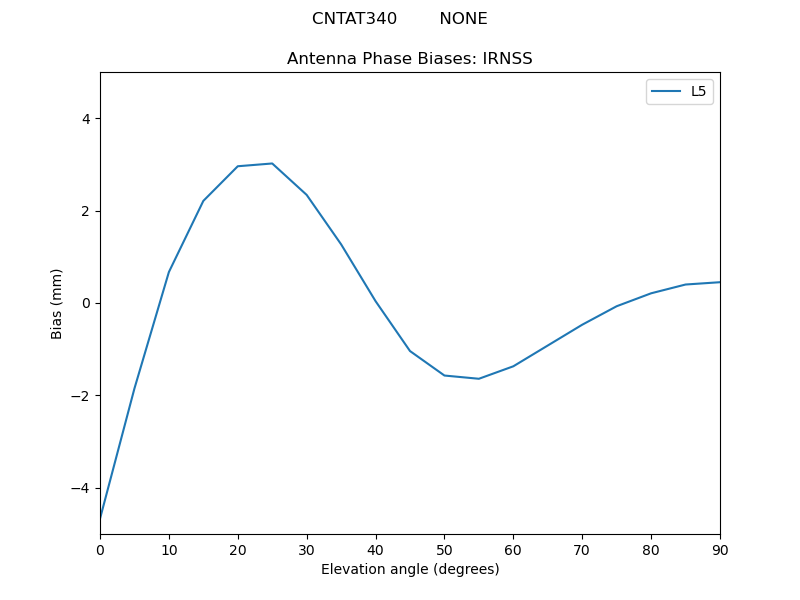

IRNSS


Azimuths

GPS


Bias Delta

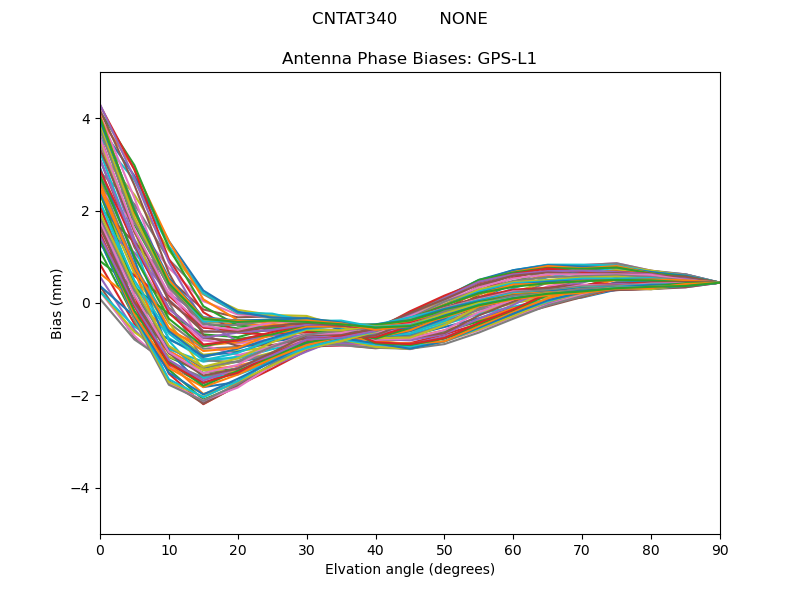

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

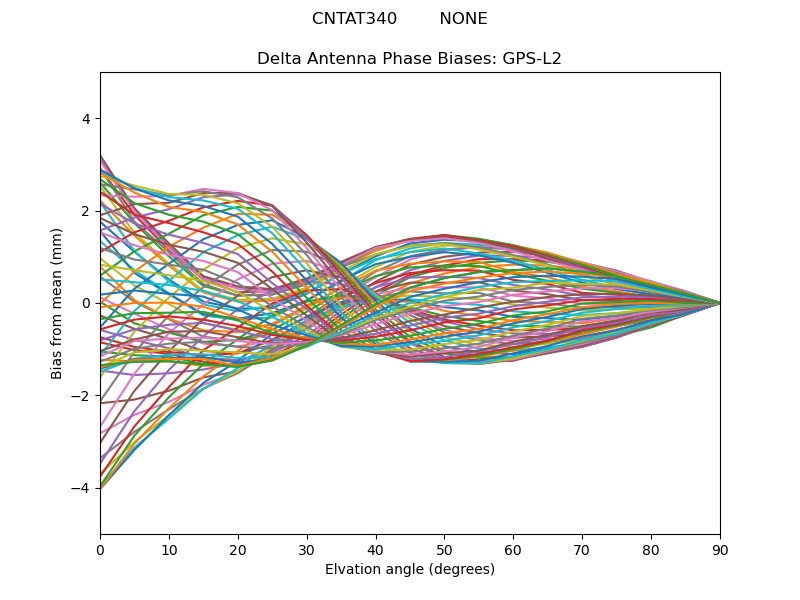

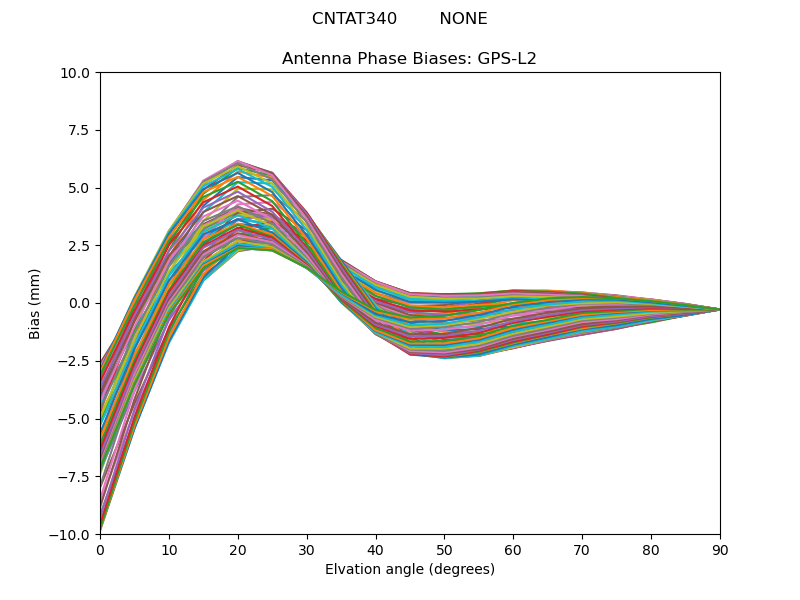

GPS-L2

GPS-L2GPS-L2

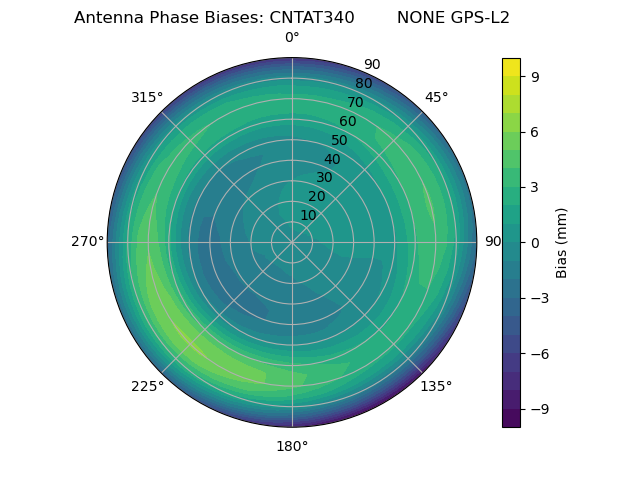

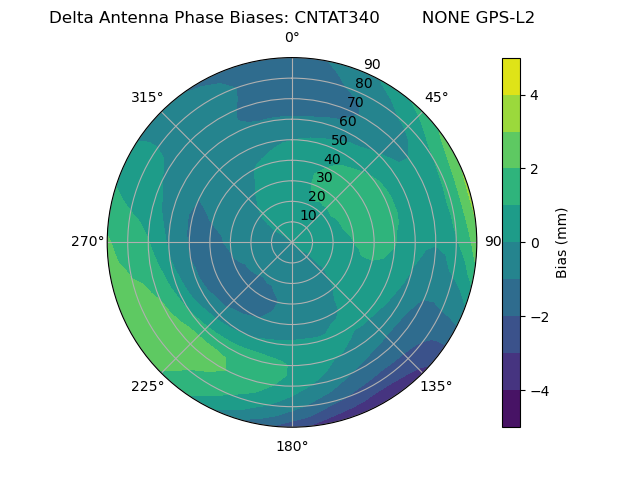

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

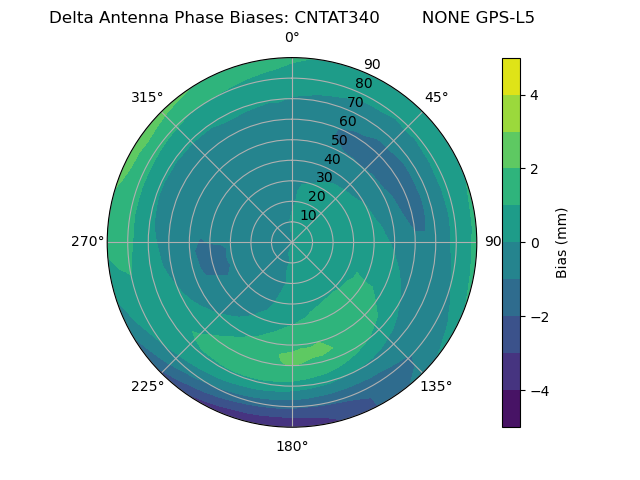

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

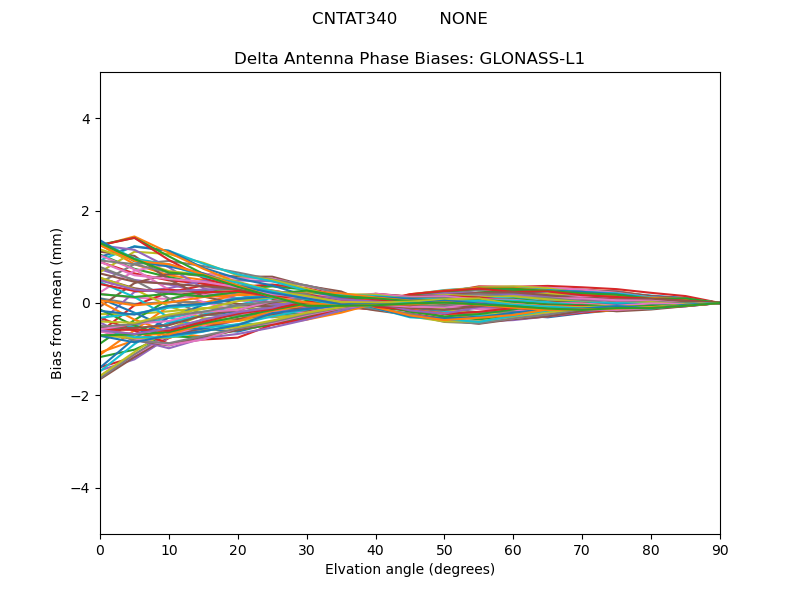

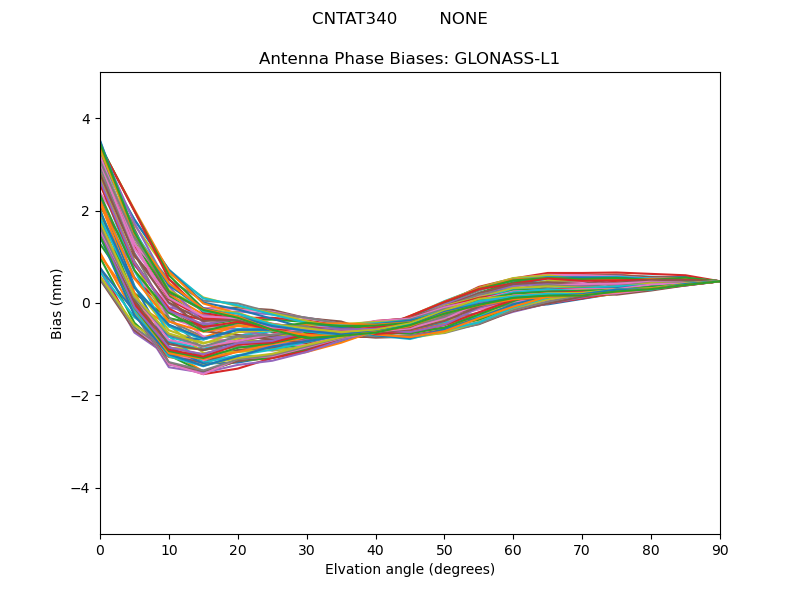

GLONASS-L1

GLONASS-L1GLONASS-L1

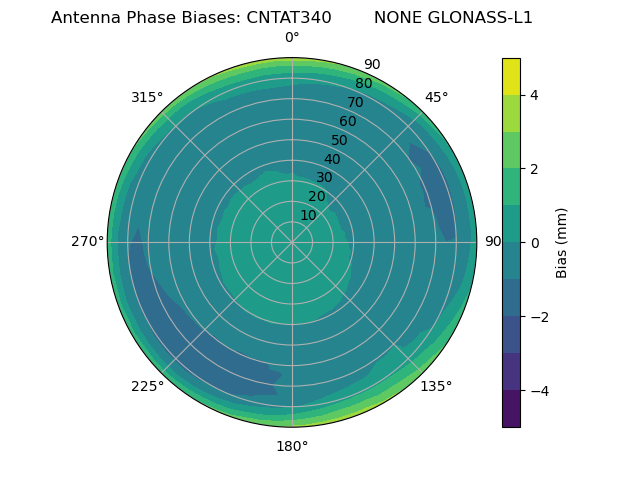

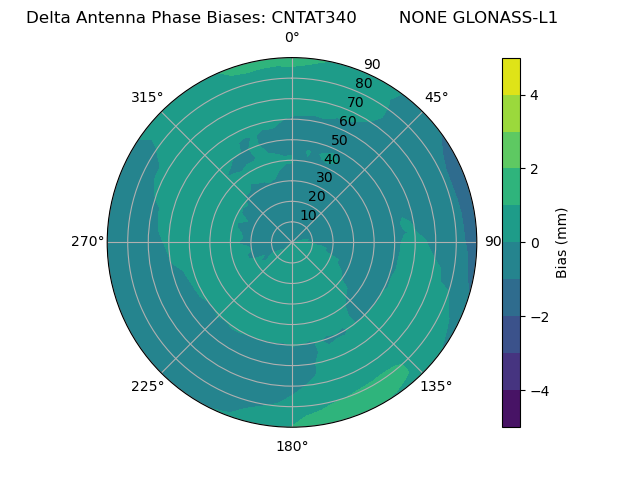

Radial GLONASS-L1Radial GLONASS-L1

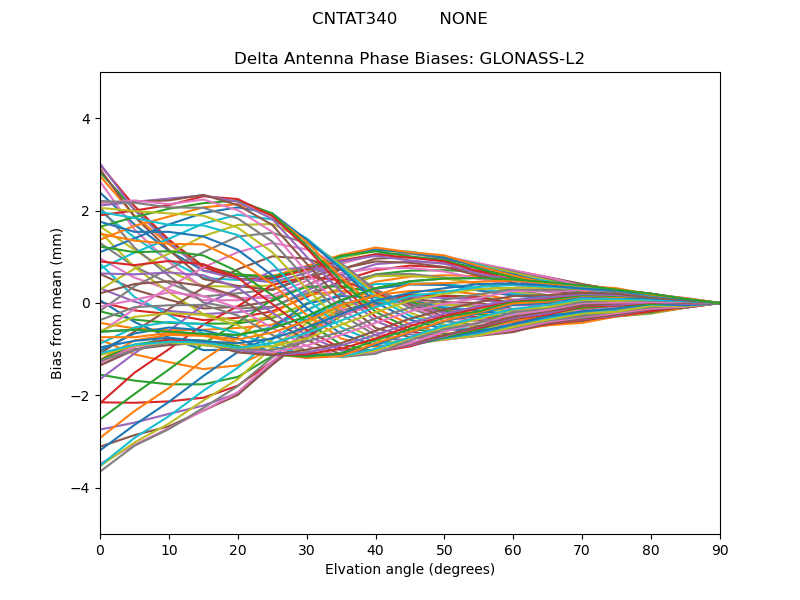

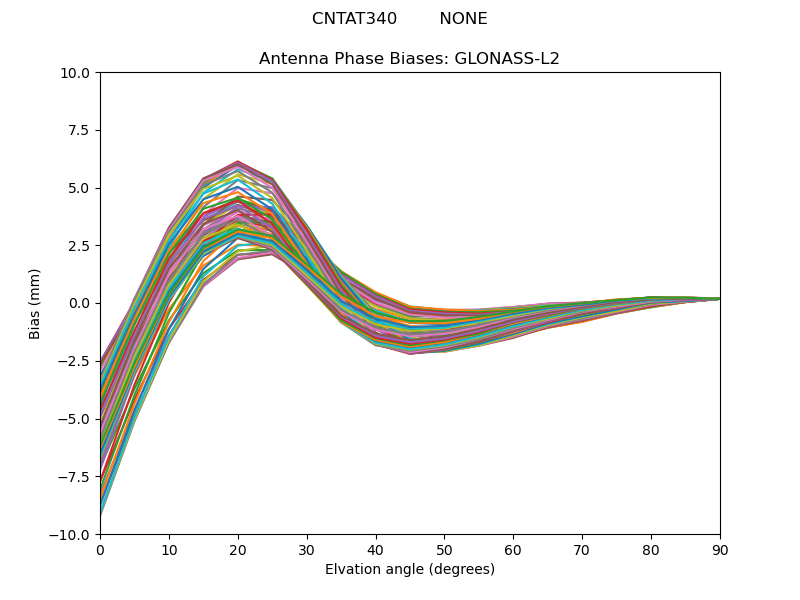

GLONASS-L2

GLONASS-L2GLONASS-L2

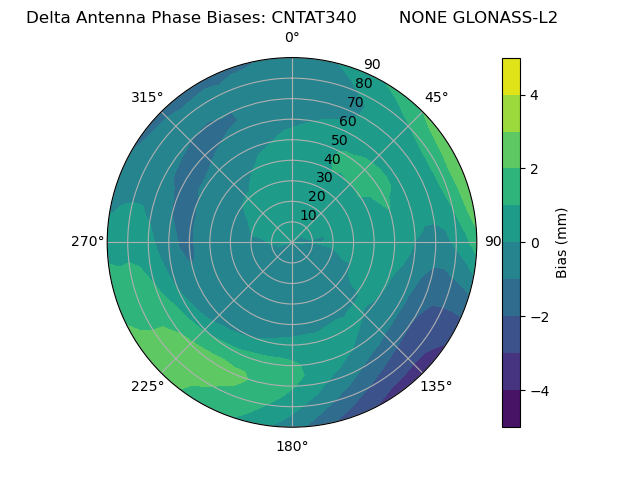

Radial GLONASS-L2Radial GLONASS-L2

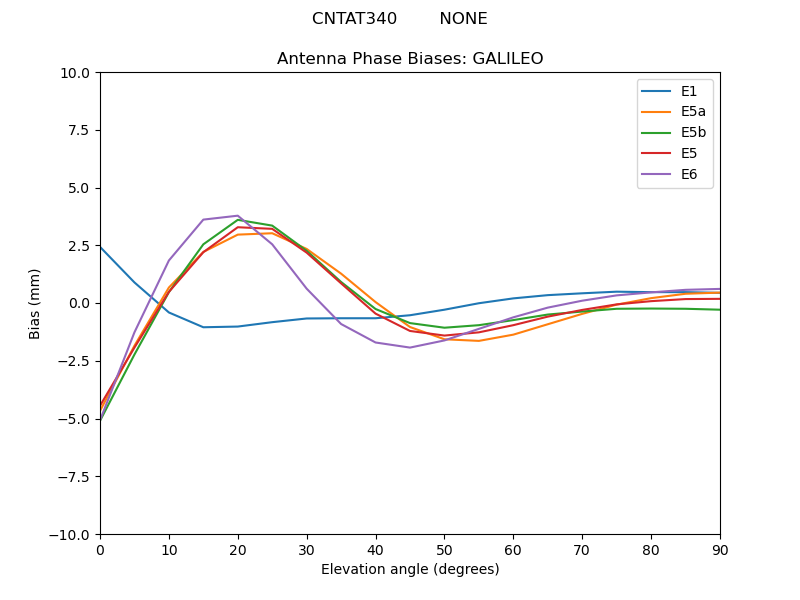

GALILEO


Bias Delta

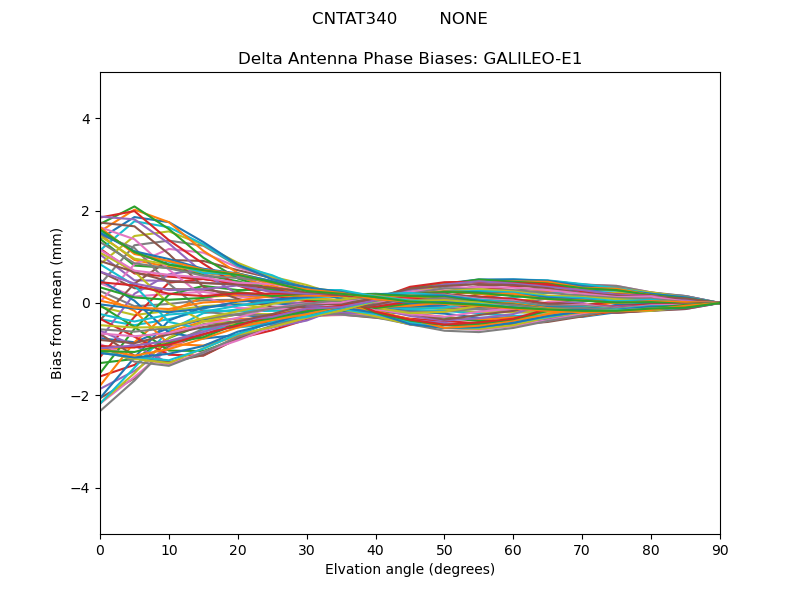

GALILEO-E1

GALILEO-E1GALILEO-E1

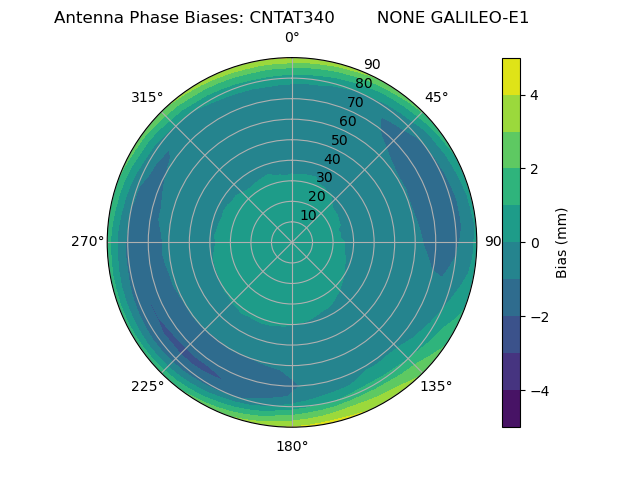

Radial GALILEO-E1Radial GALILEO-E1

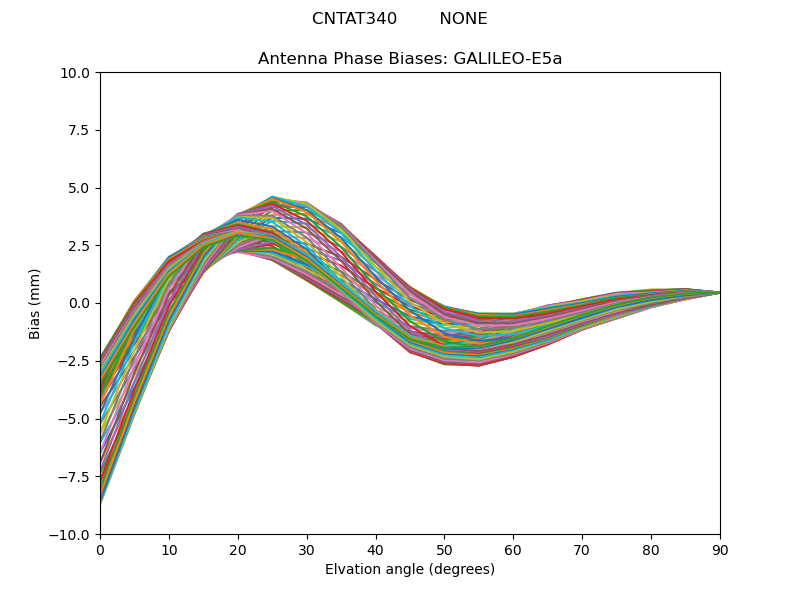

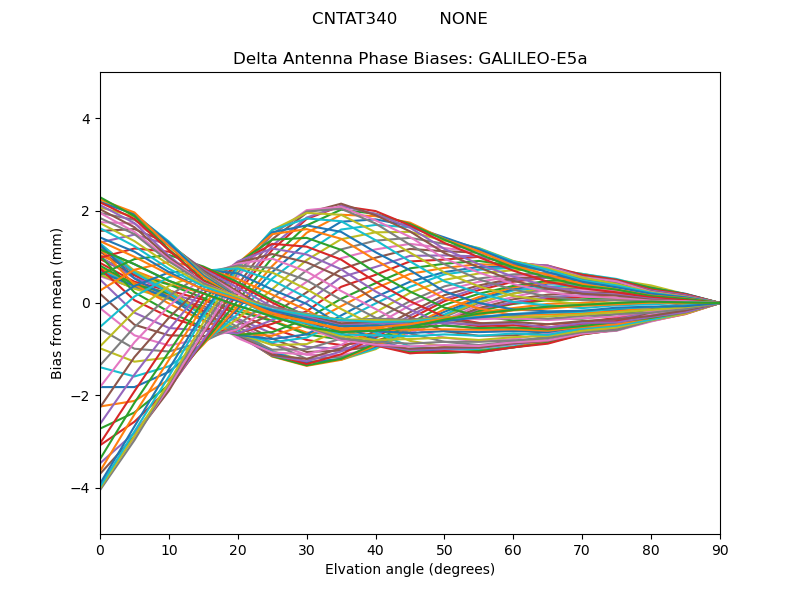

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

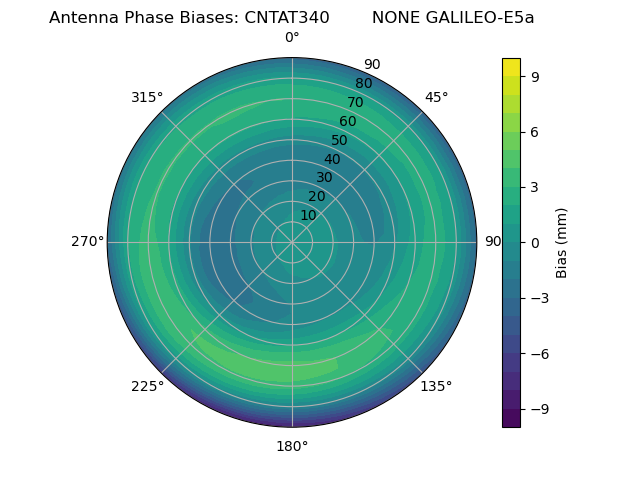

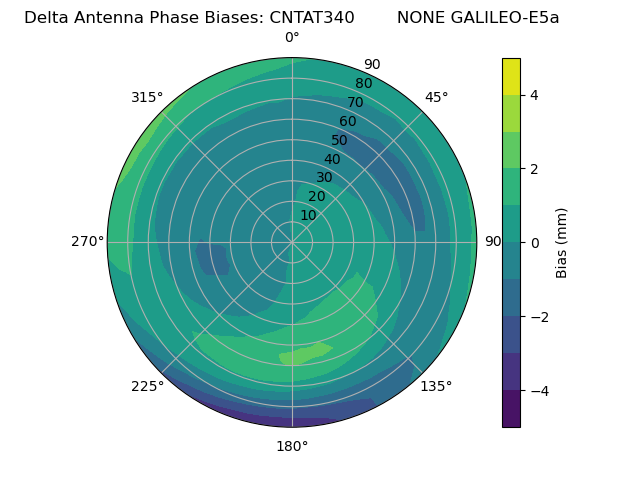

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

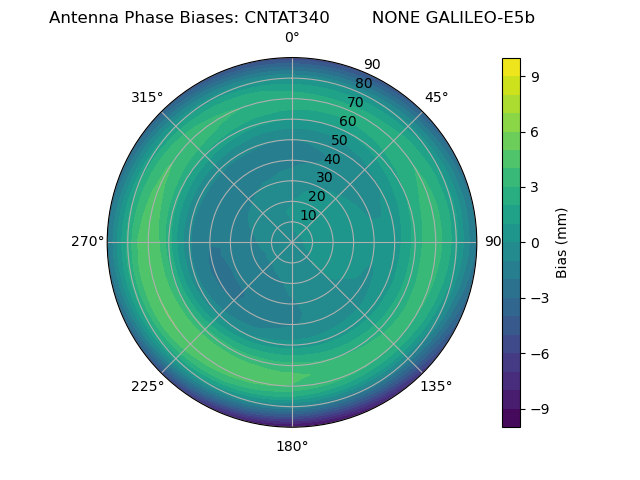

Radial GALILEO-E5bRadial GALILEO-E5b

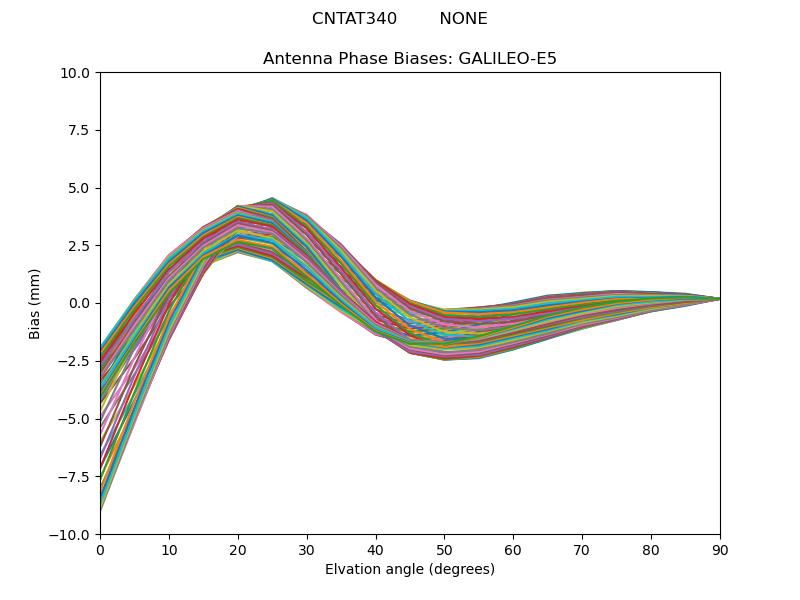

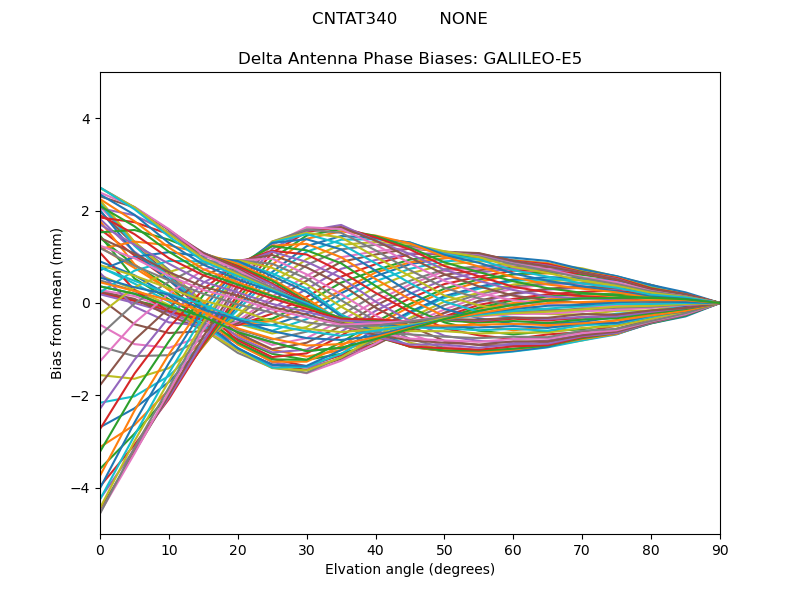

GALILEO-E5

GALILEO-E5GALILEO-E5

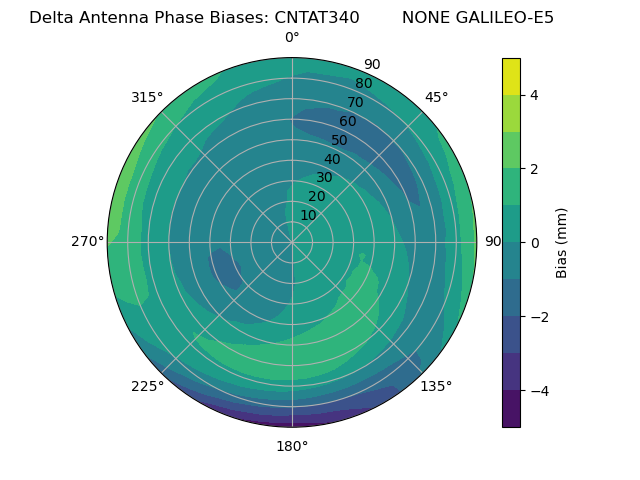

Radial GALILEO-E5Radial GALILEO-E5

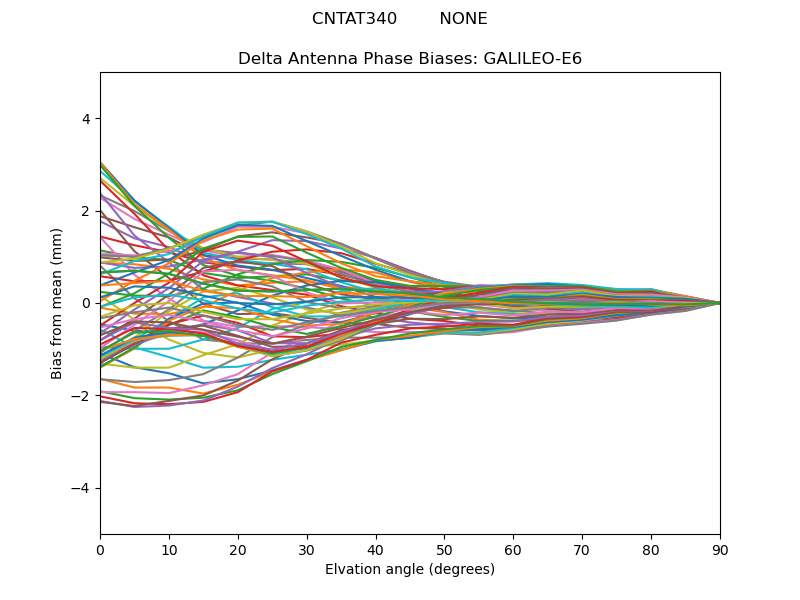

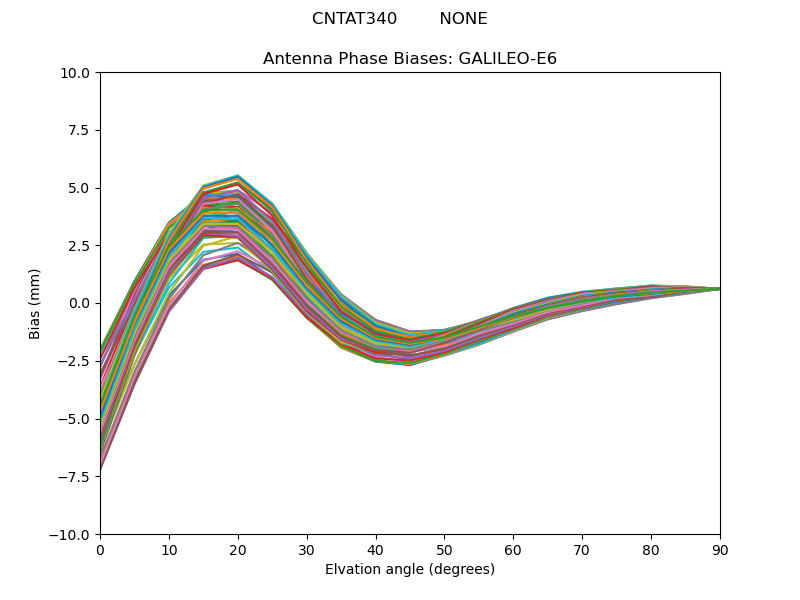

GALILEO-E6

GALILEO-E6GALILEO-E6

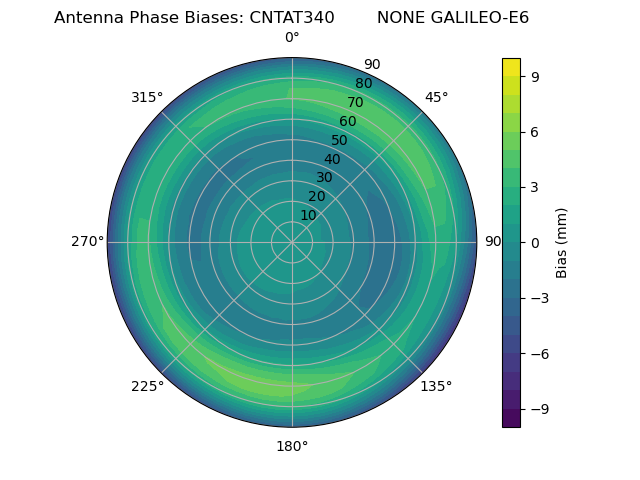

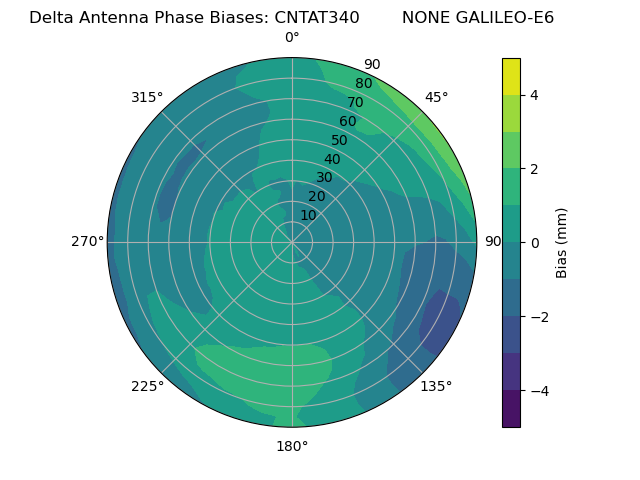

Radial GALILEO-E6Radial GALILEO-E6

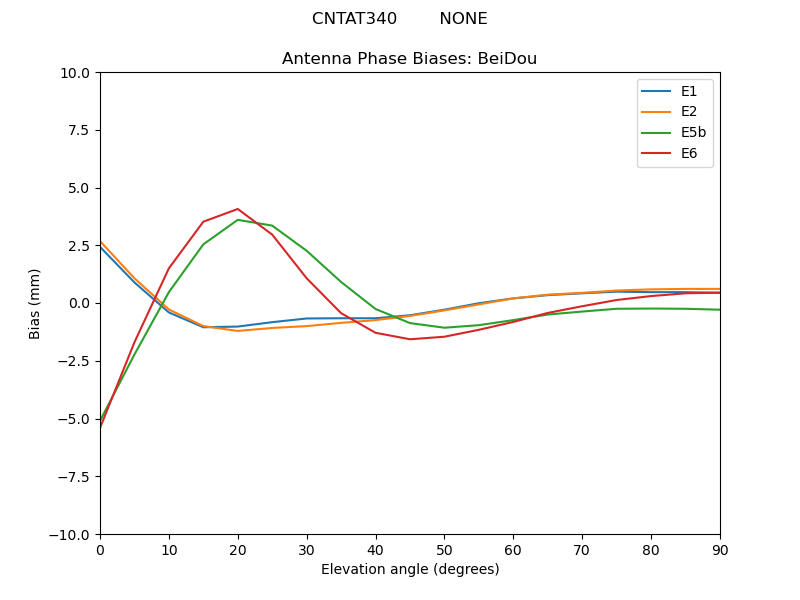

BeiDOU


Bias Delta

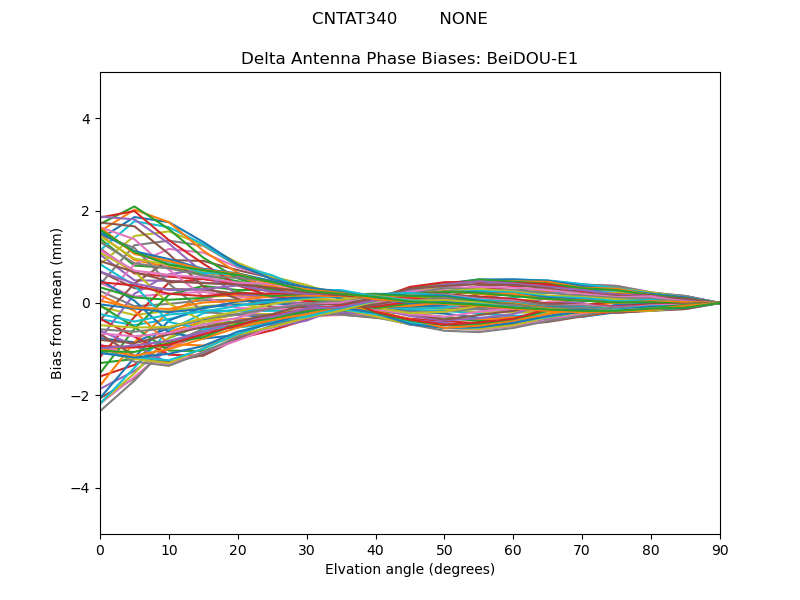

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

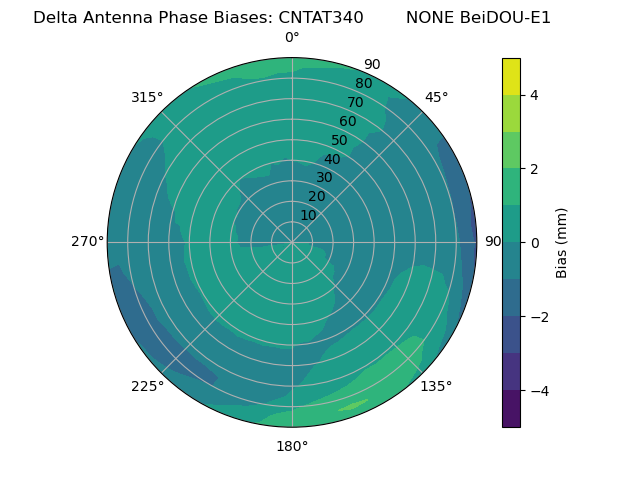

Radial BeiDOU-E1Radial BeiDOU-E1

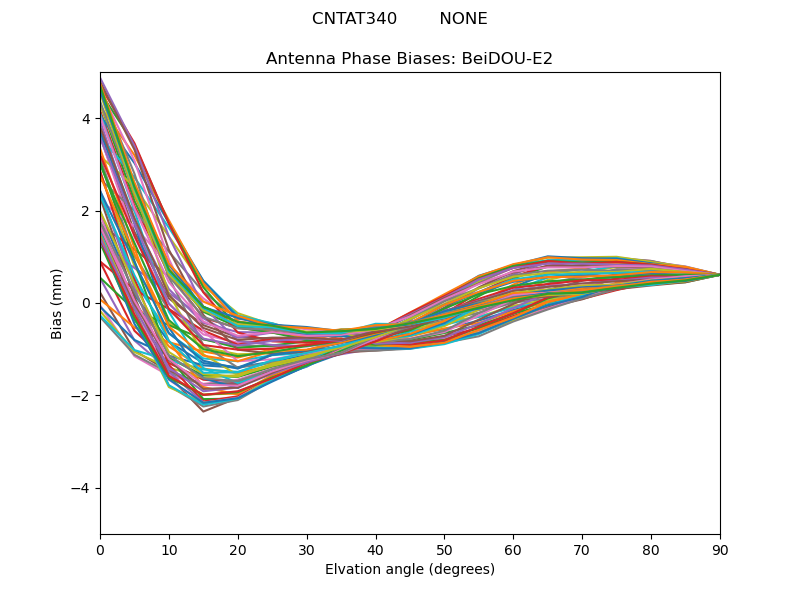

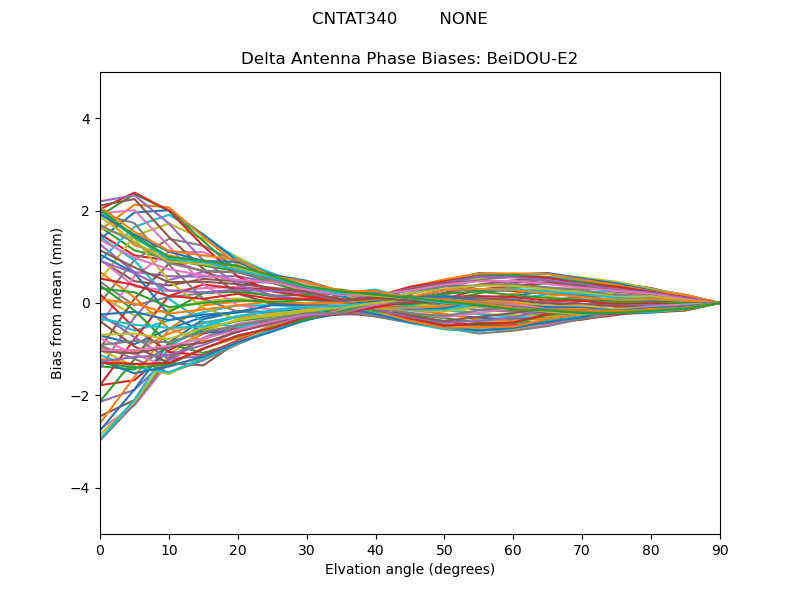

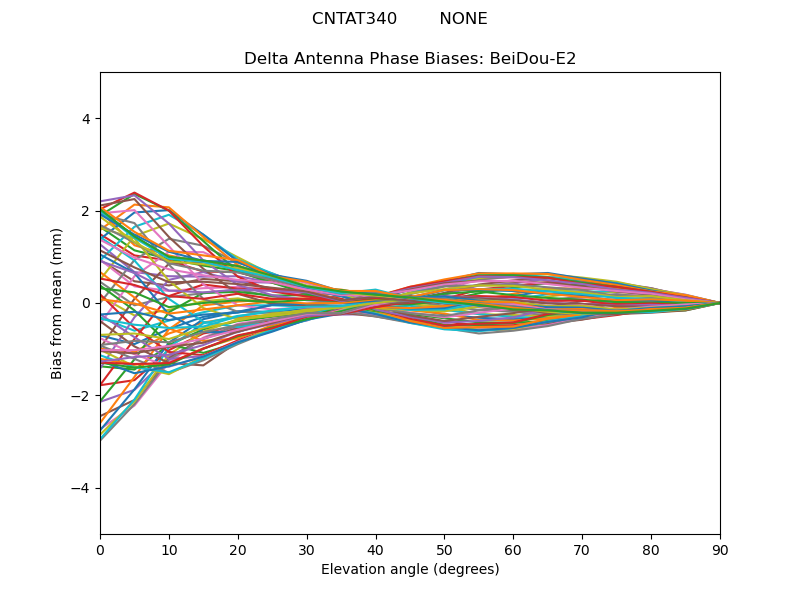

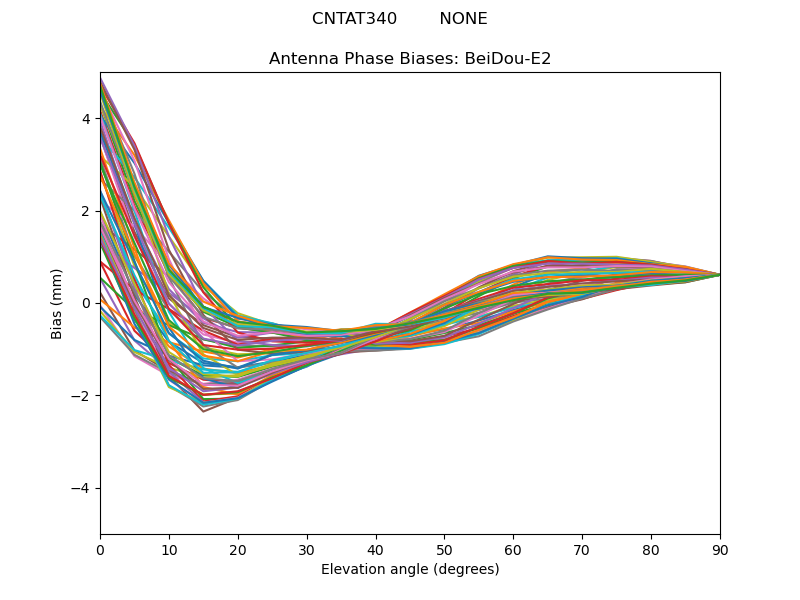

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

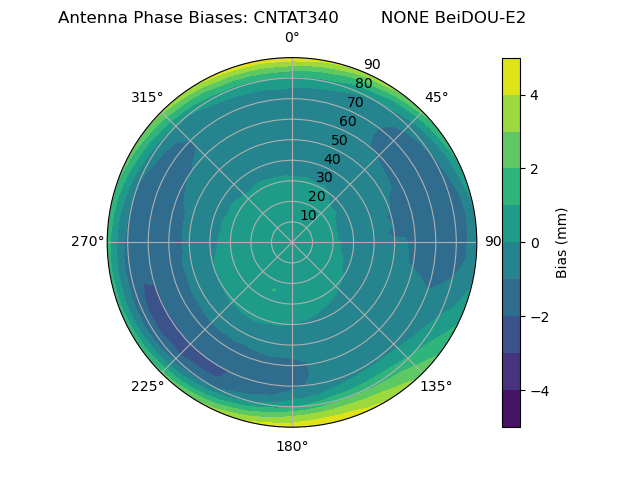

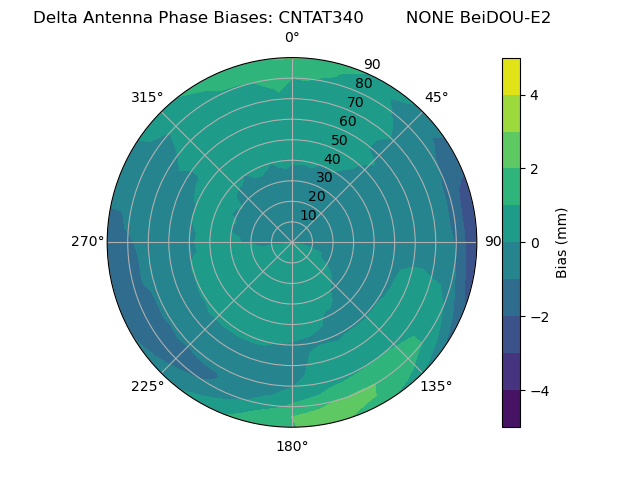

Radial BeiDOU-E2Radial BeiDOU-E2

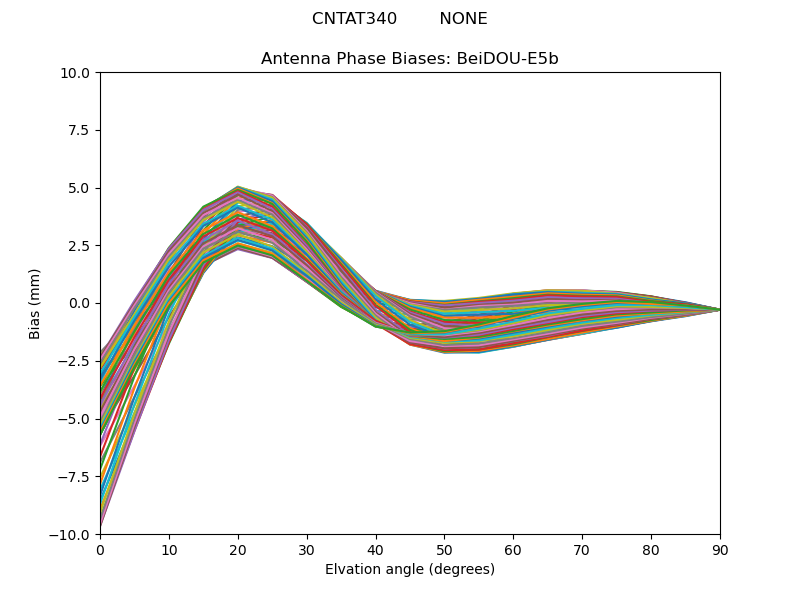

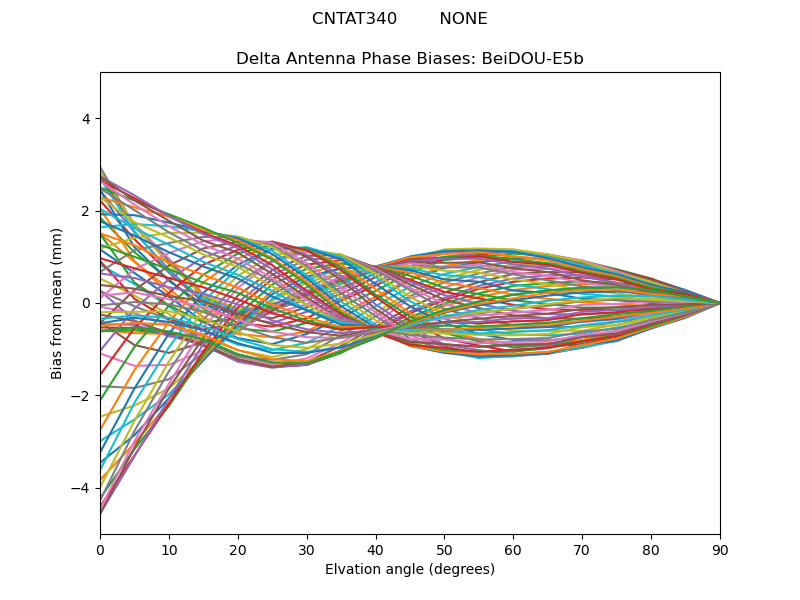

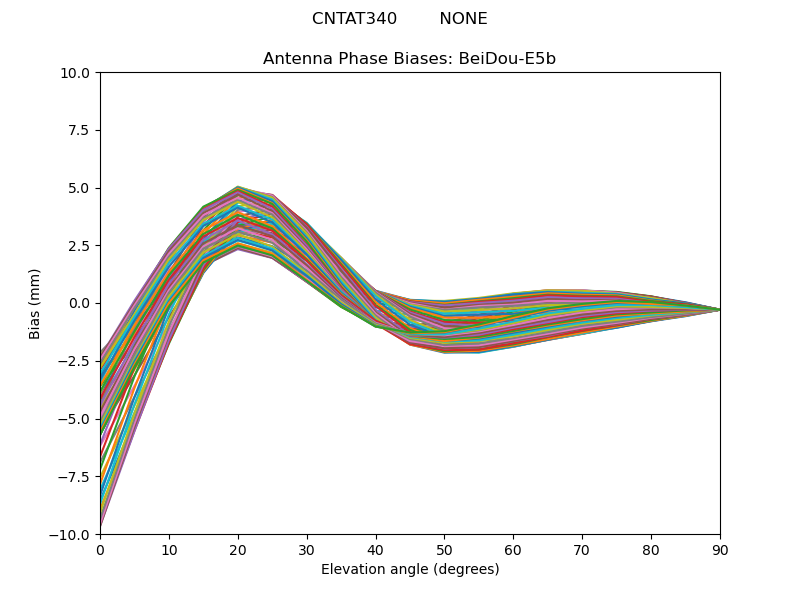

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

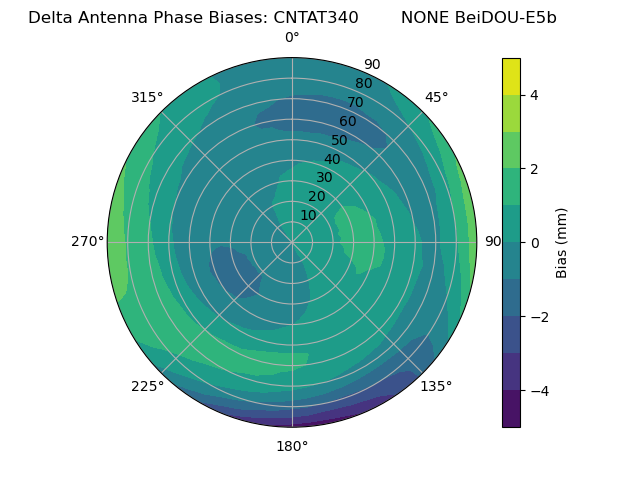

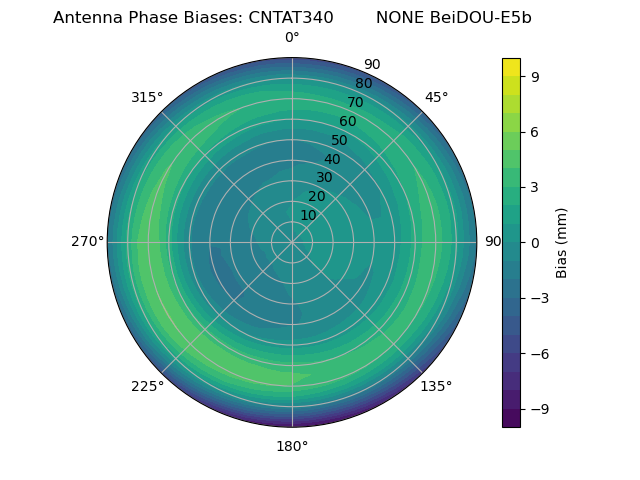

Radial BeiDOU-E5bRadial BeiDOU-E5b

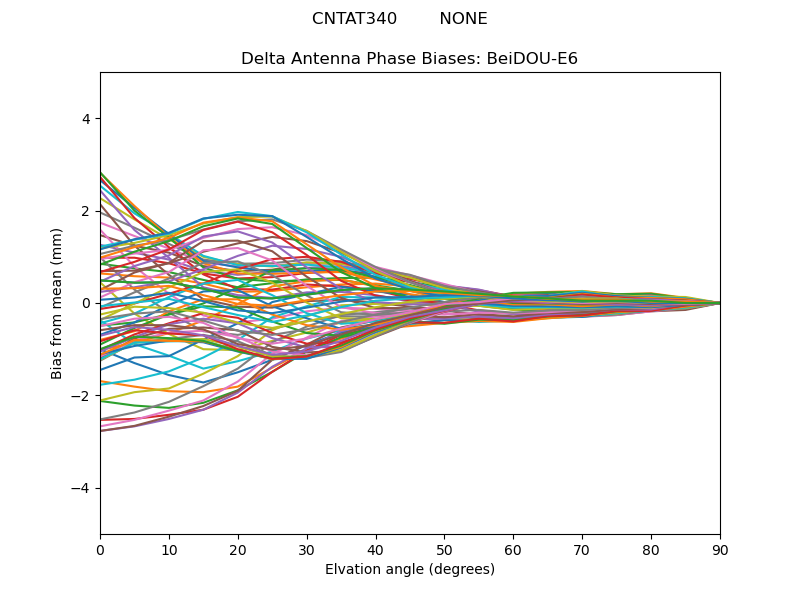

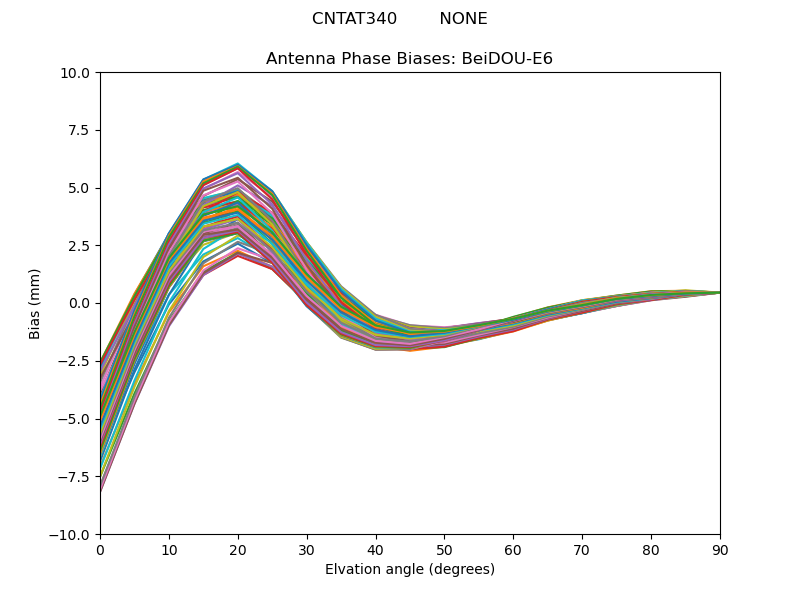

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

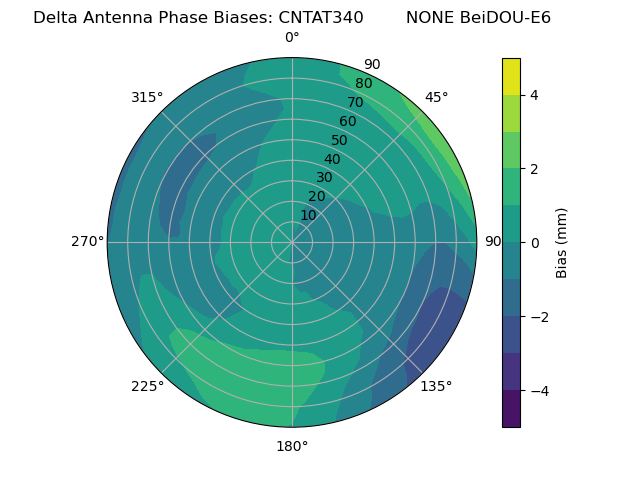

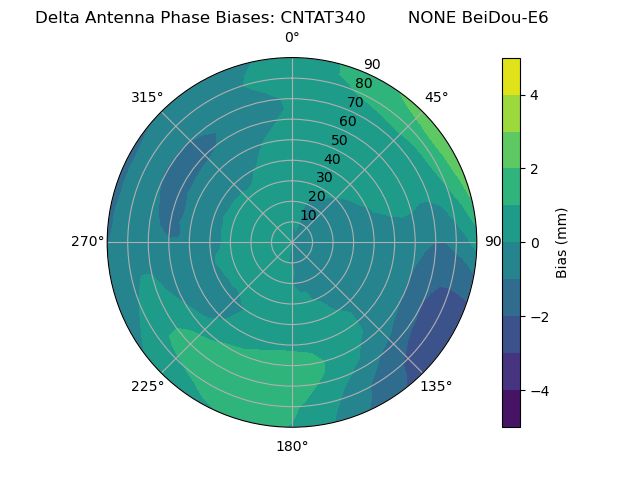

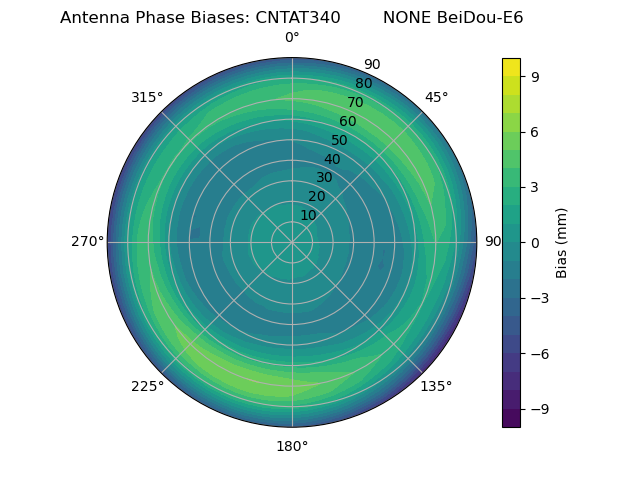

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

QZSS-L2

QZSS-L2QZSS-L2

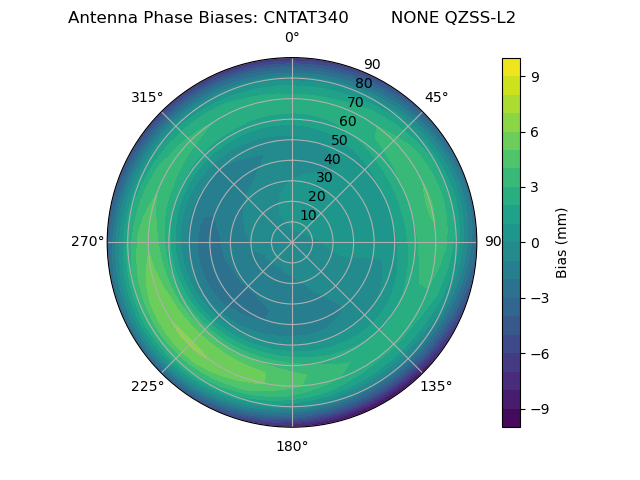

Radial QZSS-L2Radial QZSS-L2

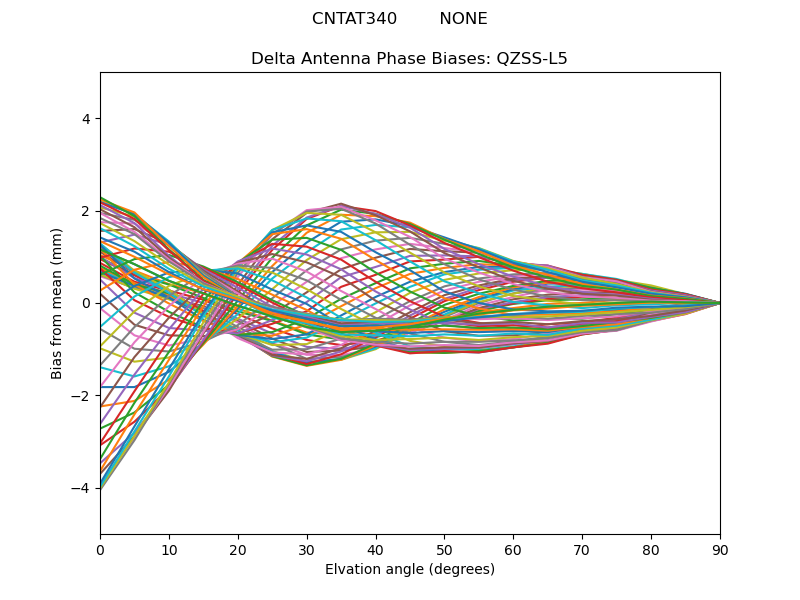

QZSS-L5

QZSS-L5QZSS-L5

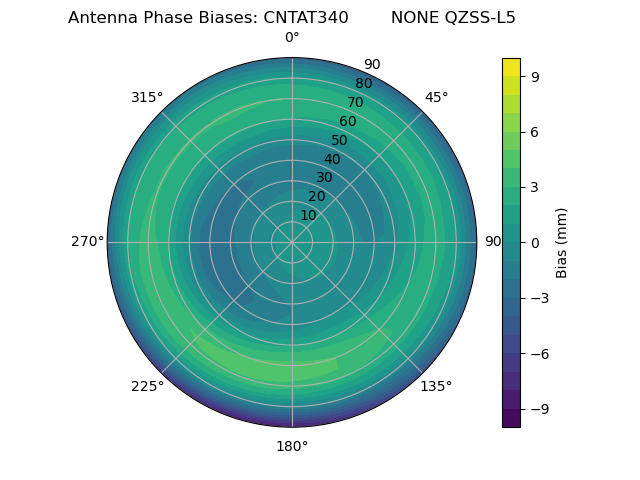

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
