Antenna information for CNTAT600 CNTS

Antenna Offsets
SV System Bands

GPS

L1: N: 0.60 E: 0.01 U: 197.54
L2: N: 0.44 E: -0.45 U: 203.85
L5: N: 0.12 E: -0.51 U: 205.97

GLONASS

L1: N: 0.68 E: 0.10 U: 197.41
L2: N: 0.61 E: -0.36 U: 203.51

GALILEO

E1: N: 0.60 E: 0.01 U: 197.54
E5a: N: 0.12 E: -0.51 U: 205.97
E5b: N: 0.29 E: -0.51 U: 204.50
E5: N: 0.20 E: -0.52 U: 205.17
E6: N: 0.97 E: -0.11 U: 203.36

BeiDou

E1: N: 0.60 E: 0.01 U: 197.54
E2: N: 0.56 E: -0.04 U: 197.60
E5b: N: 0.29 E: -0.51 U: 204.50
E6: N: 0.85 E: -0.20 U: 203.36

QZSS

L1: N: 0.60 E: 0.01 U: 197.54
L2: N: 0.44 E: -0.45 U: 203.85
L5: N: 0.12 E: -0.51 U: 205.97
LEX: N: 0.97 E: -0.11 U: 203.36

IRNSS

L5: N: 0.12 E: -0.51 U: 205.97

SBAS

L1: N: 0.60 E: 0.01 U: 197.54
L5: N: 0.12 E: -0.51 U: 205.97

L1

GPS: N: 0.60 E: 0.01 U: 197.54
GLONASS: N: 0.68 E: 0.10 U: 197.41
QZSS: N: 0.60 E: 0.01 U: 197.54
SBAS: N: 0.60 E: 0.01 U: 197.54

L2

GPS: N: 0.44 E: -0.45 U: 203.85
GLONASS: N: 0.61 E: -0.36 U: 203.51
QZSS: N: 0.44 E: -0.45 U: 203.85

L5

GPS: N: 0.12 E: -0.51 U: 205.97
QZSS: N: 0.12 E: -0.51 U: 205.97
SBAS: N: 0.12 E: -0.51 U: 205.97
IRNSS: N: 0.12 E: -0.51 U: 205.97

E1

GALILEO: N: 0.60 E: 0.01 U: 197.54
BeiDou: N: 0.60 E: 0.01 U: 197.54

E2

BeiDou: N: 0.56 E: -0.04 U: 197.60

E5

GALILEO: N: 0.20 E: -0.52 U: 205.17

E5a

GALILEO: N: 0.12 E: -0.51 U: 205.97

E5b

GALILEO: N: 0.29 E: -0.51 U: 204.50
BeiDou: N: 0.29 E: -0.51 U: 204.50

E6

GALILEO: N: 0.97 E: -0.11 U: 203.36
BeiDou: N: 0.85 E: -0.20 U: 203.36

LEX

QZSS: N: 0.97 E: -0.11 U: 203.36

Means

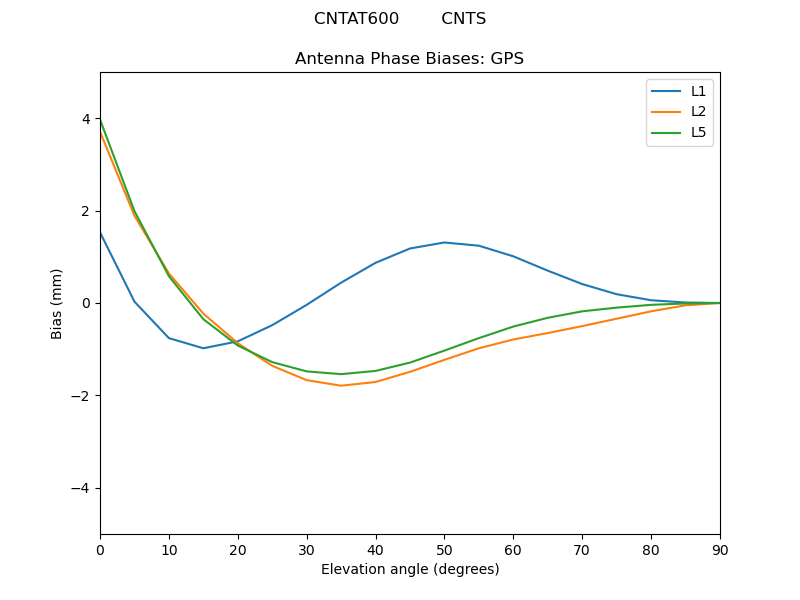

GPS

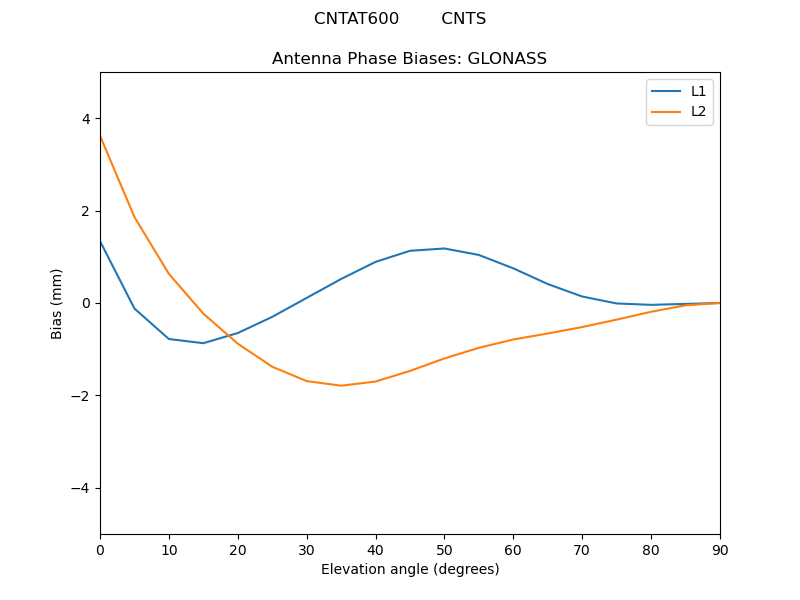

GLONASS

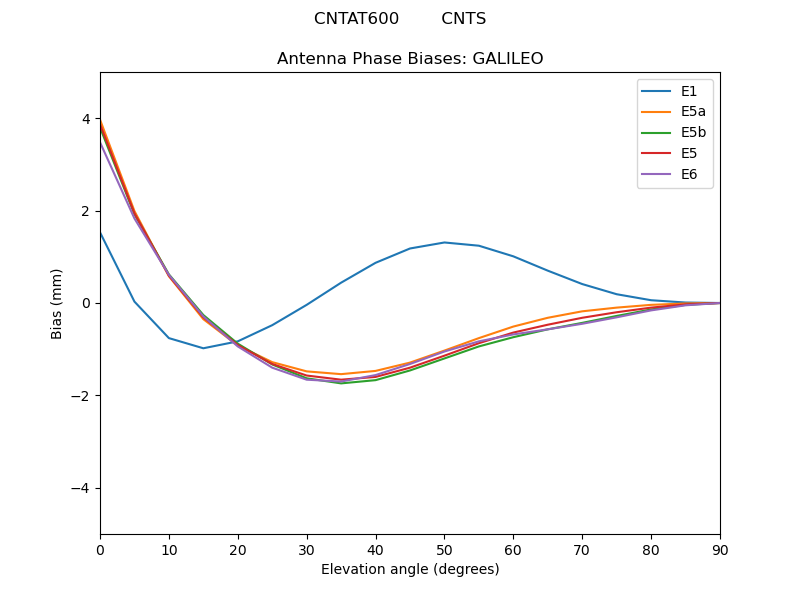

GALILEO

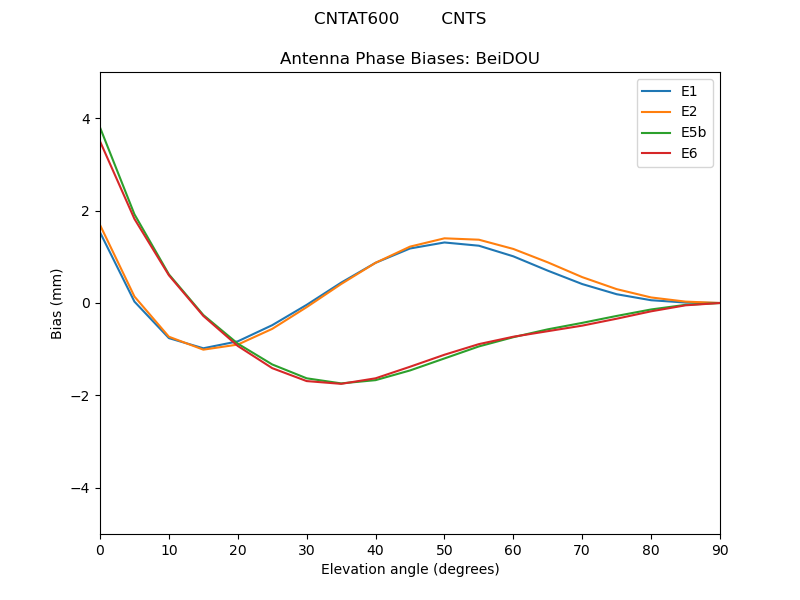

BeiDOU


QZSS

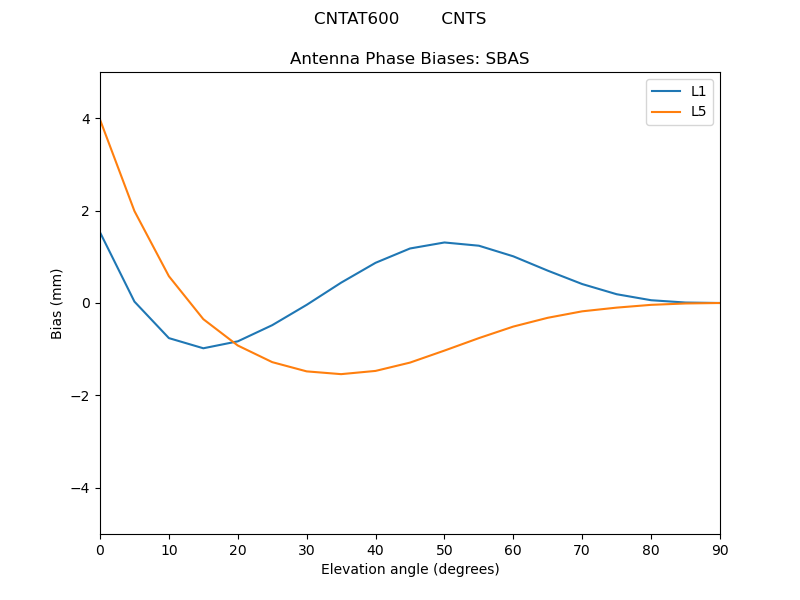

SBAS

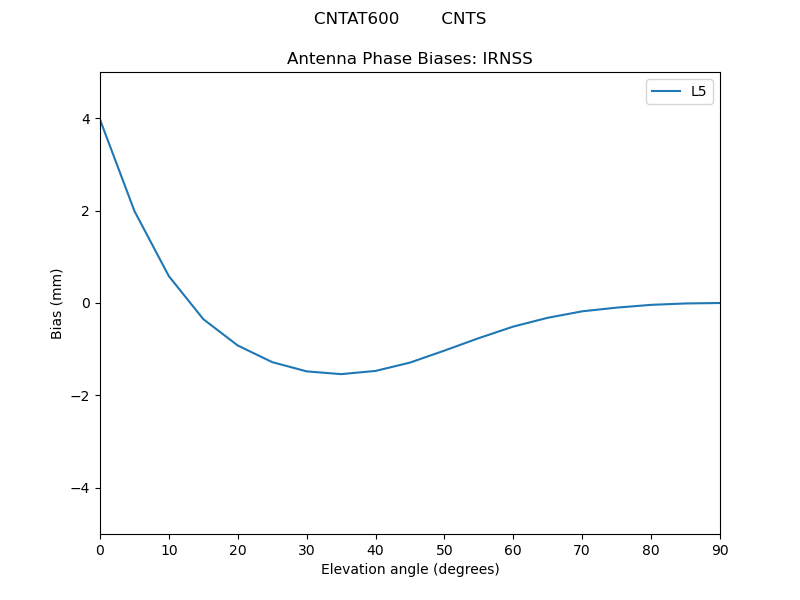

IRNSS


Azimuths

GPS
Bias Delta

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

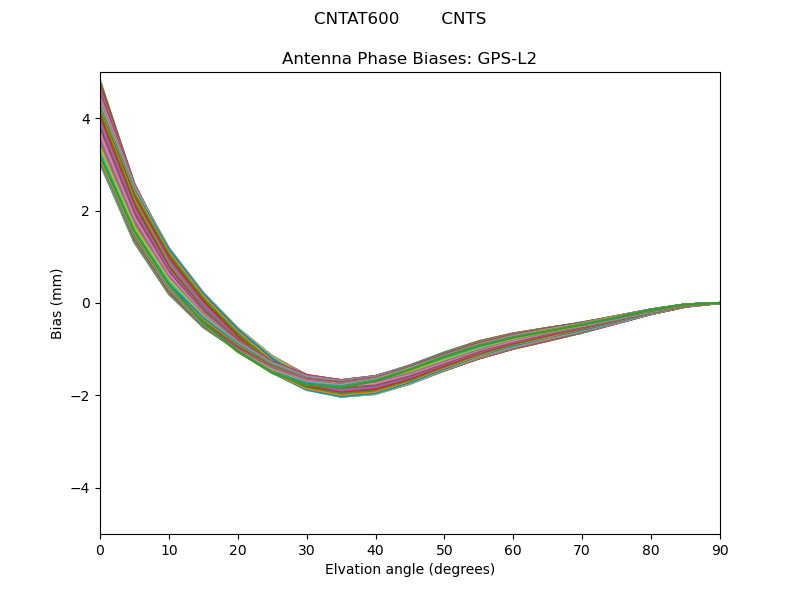

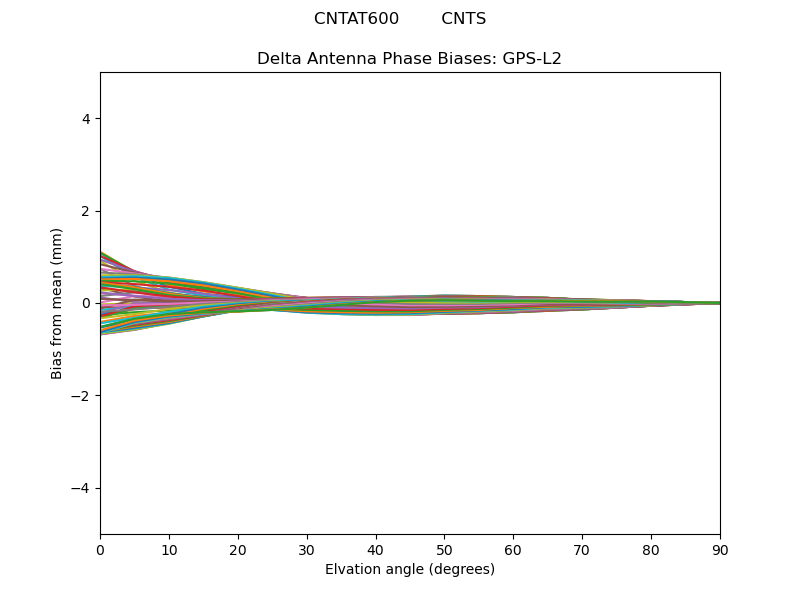

GPS-L2

GPS-L2GPS-L2

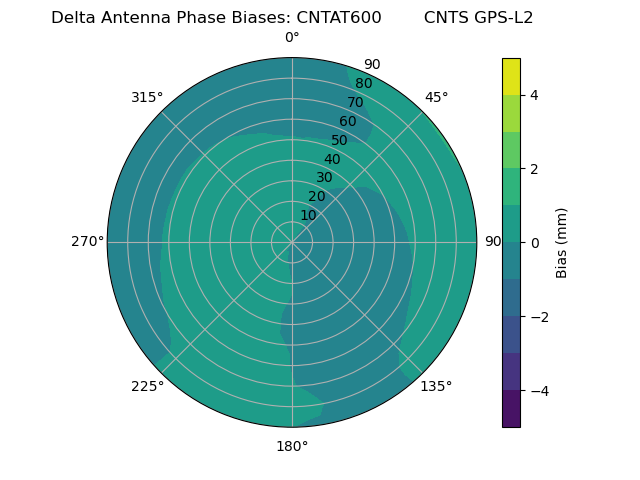

Radial GPS-L2Radial GPS-L2

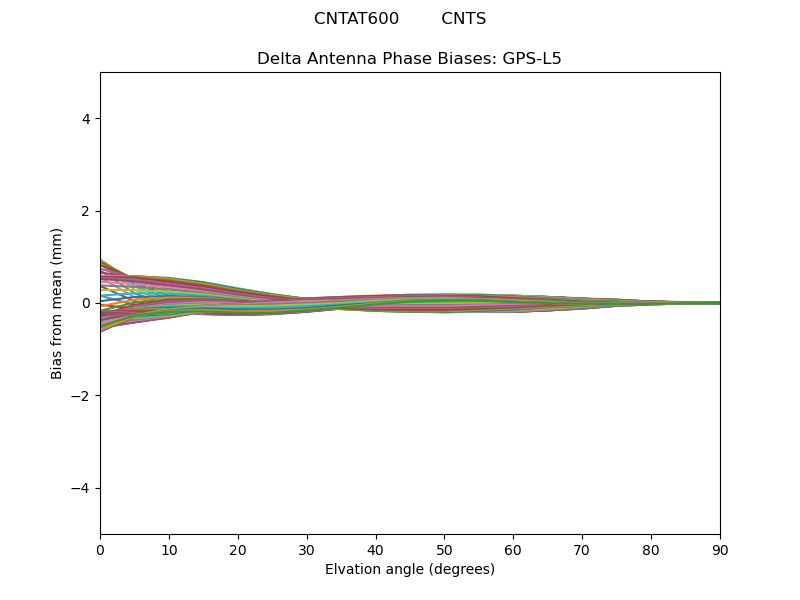

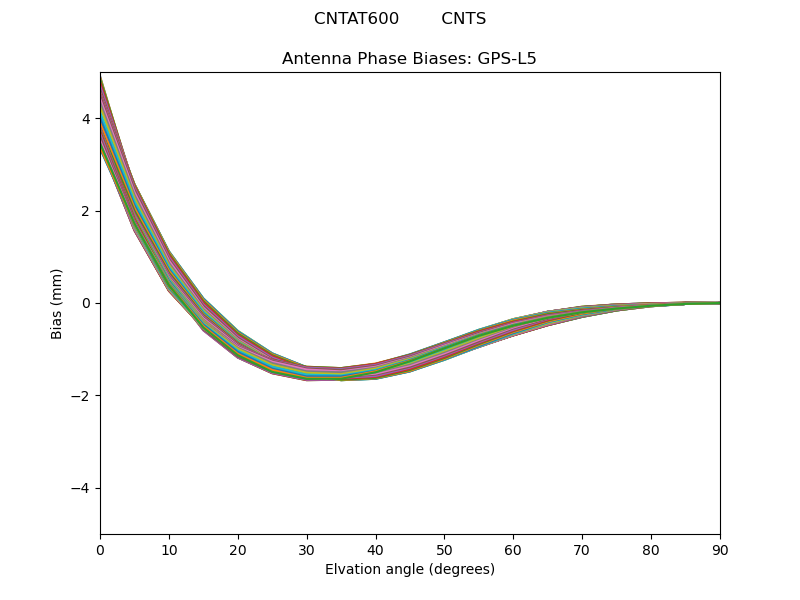

GPS-L5

GPS-L5GPS-L5

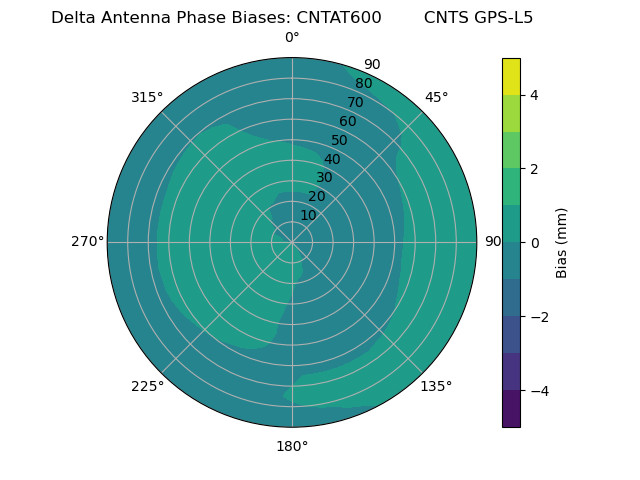

Radial GPS-L5Radial GPS-L5

GLONASS
Bias Delta

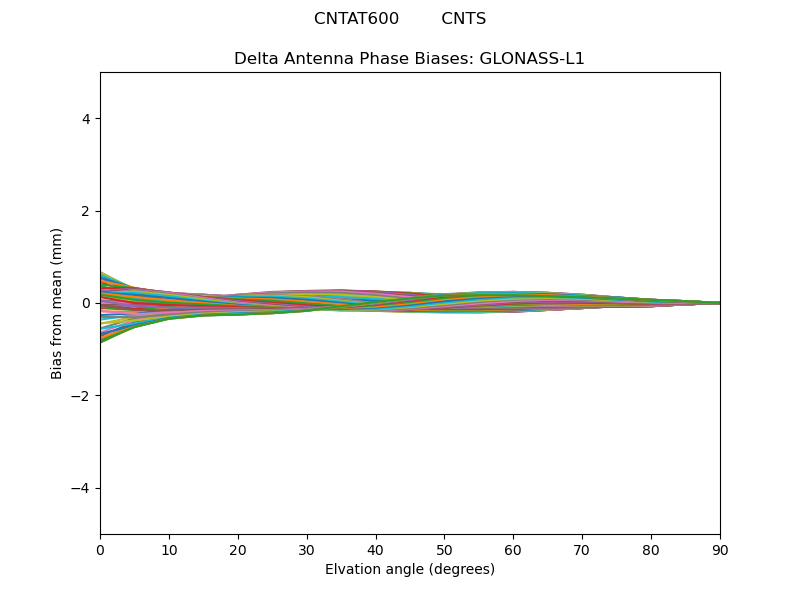

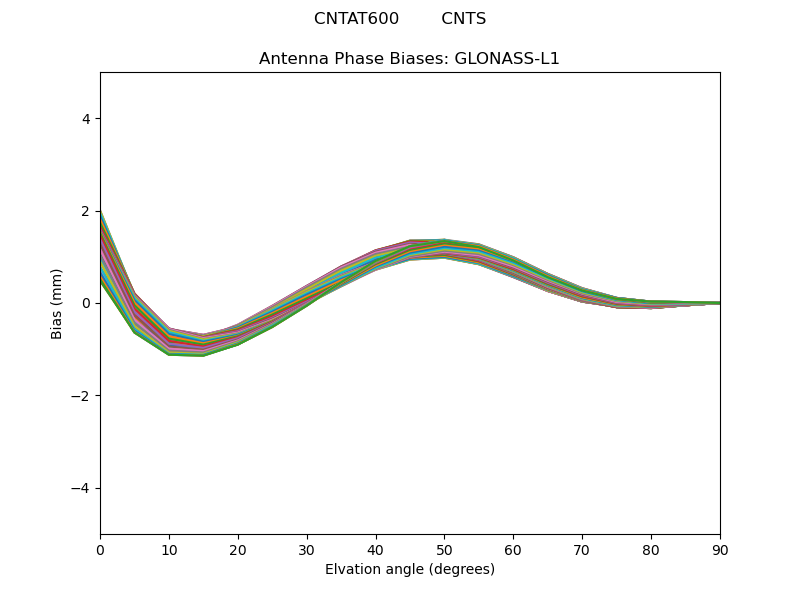

GLONASS-L1

GLONASS-L1GLONASS-L1

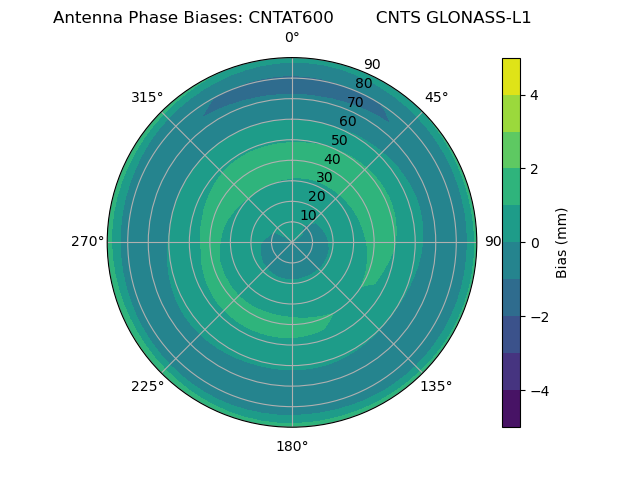

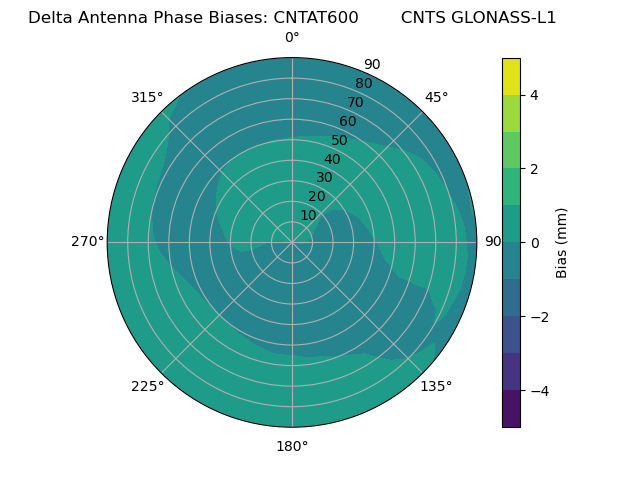

Radial GLONASS-L1Radial GLONASS-L1

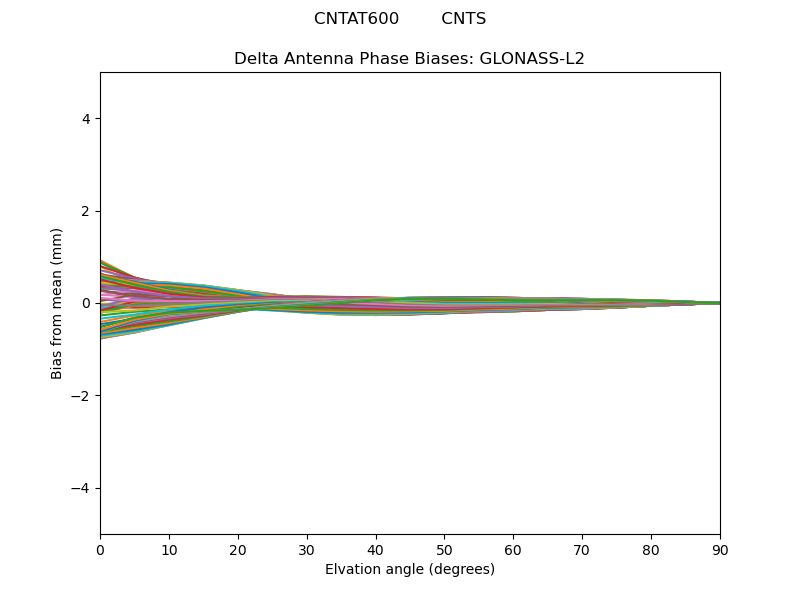

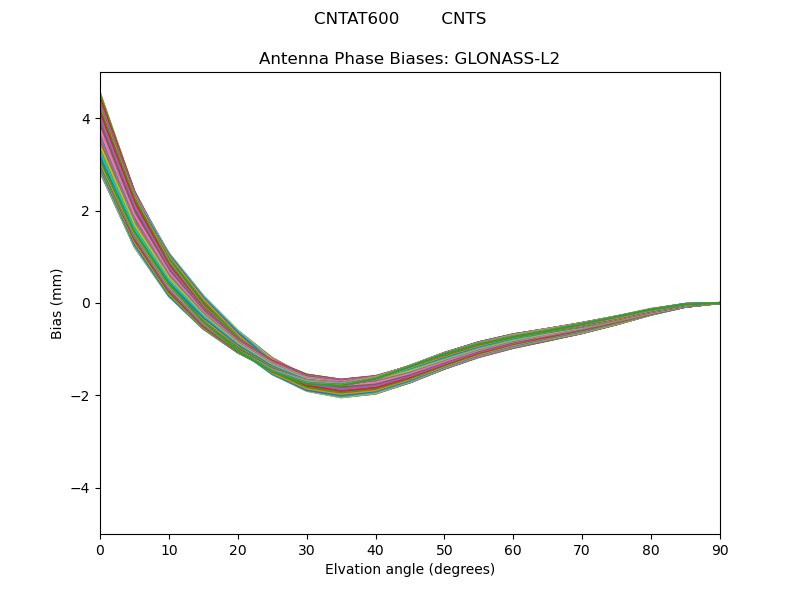

GLONASS-L2

GLONASS-L2GLONASS-L2

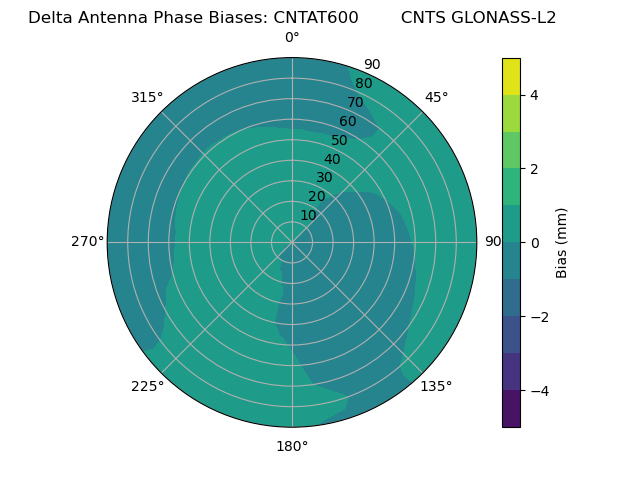

Radial GLONASS-L2Radial GLONASS-L2

GALILEO
Bias Delta

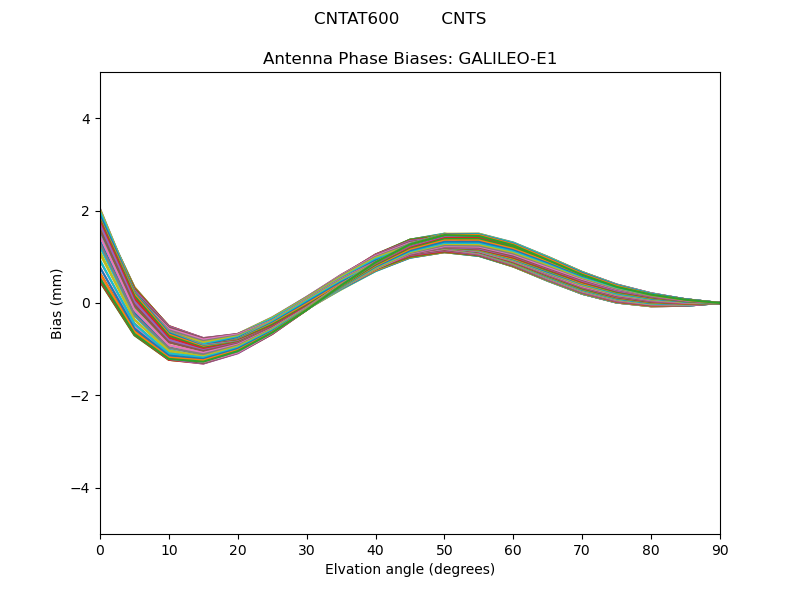

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

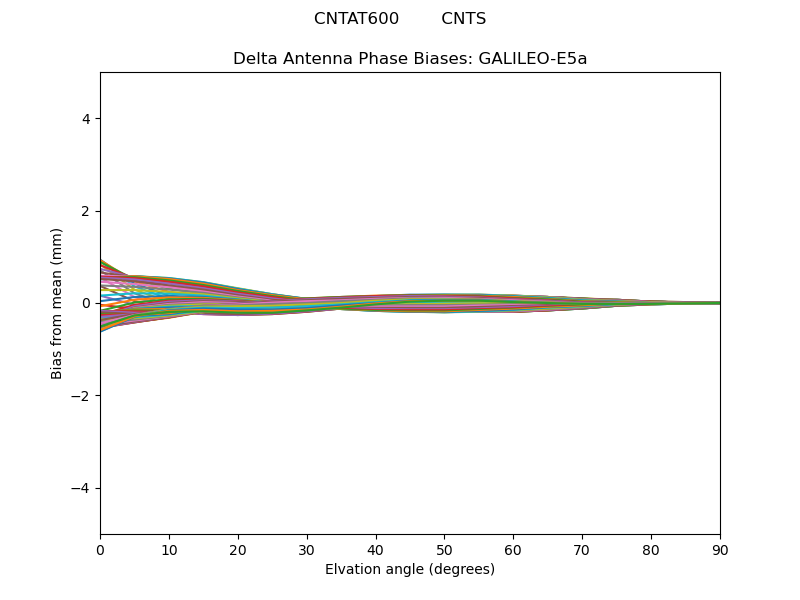

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

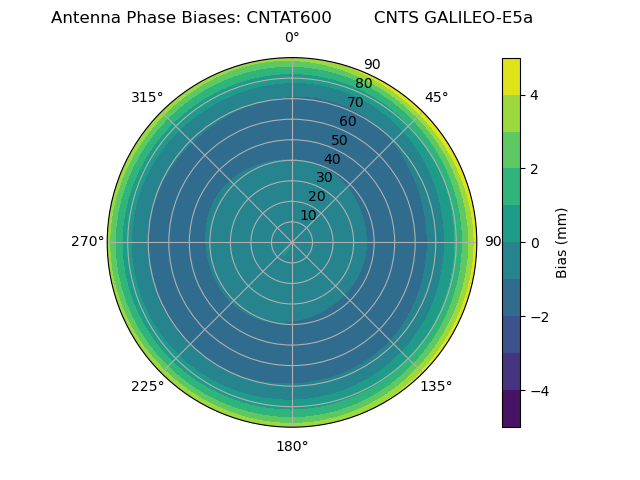

Radial GALILEO-E5aRadial GALILEO-E5a

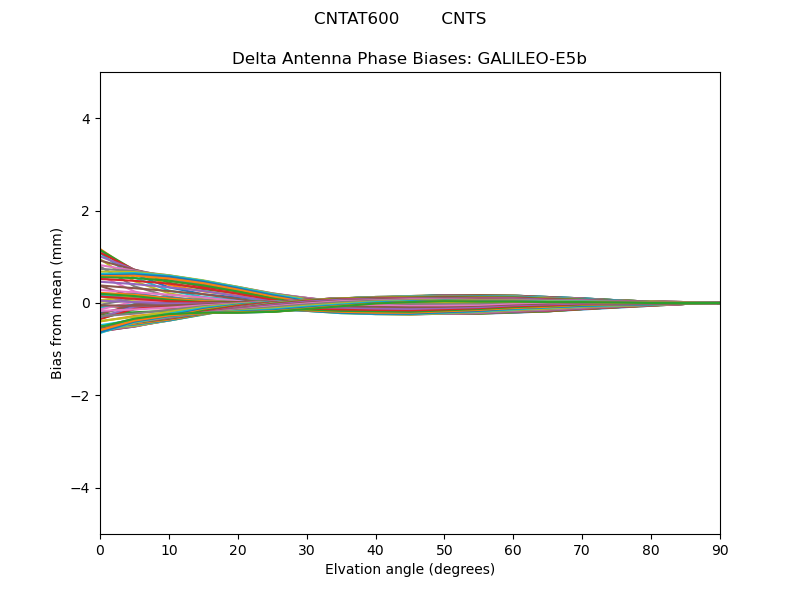

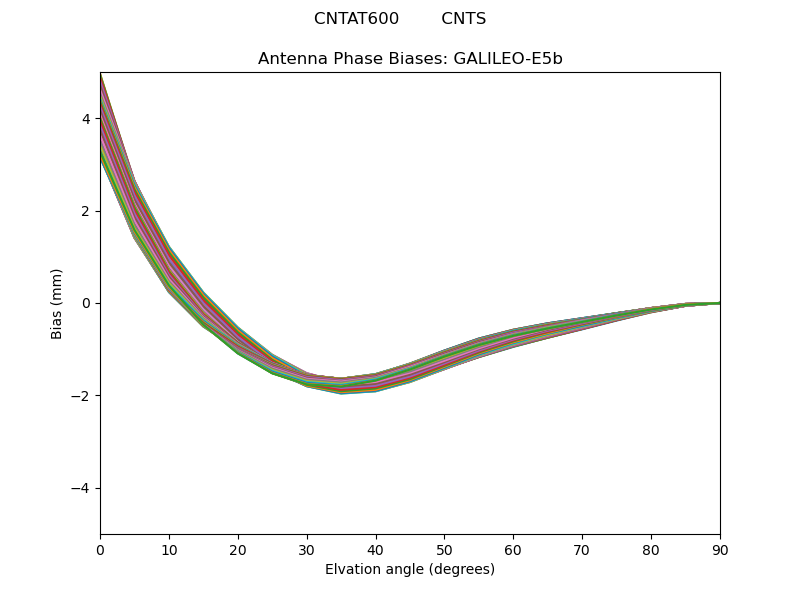

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

GALILEO-E5

GALILEO-E5GALILEO-E5

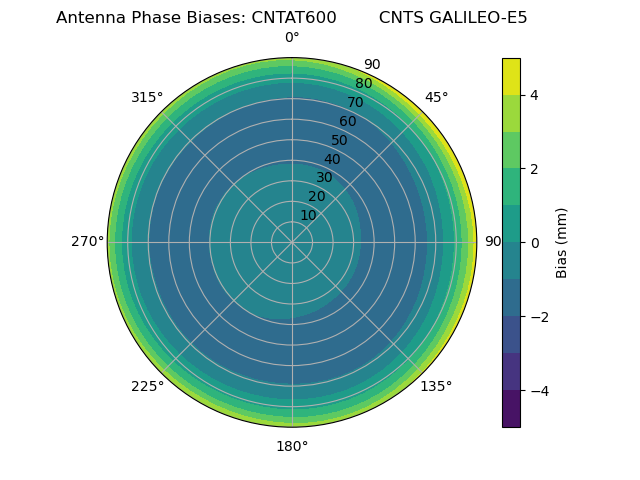

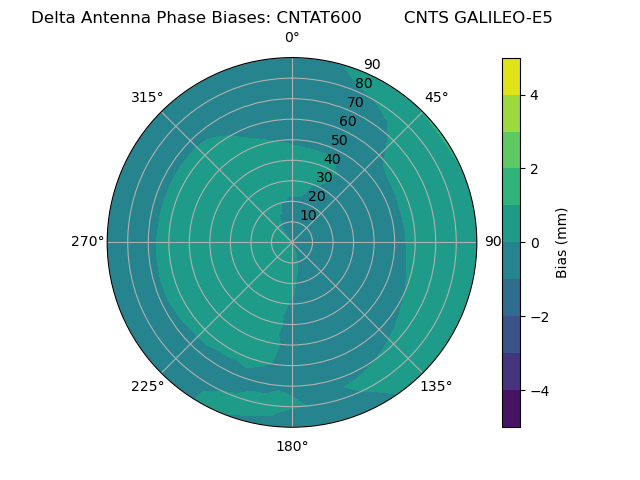

Radial GALILEO-E5Radial GALILEO-E5

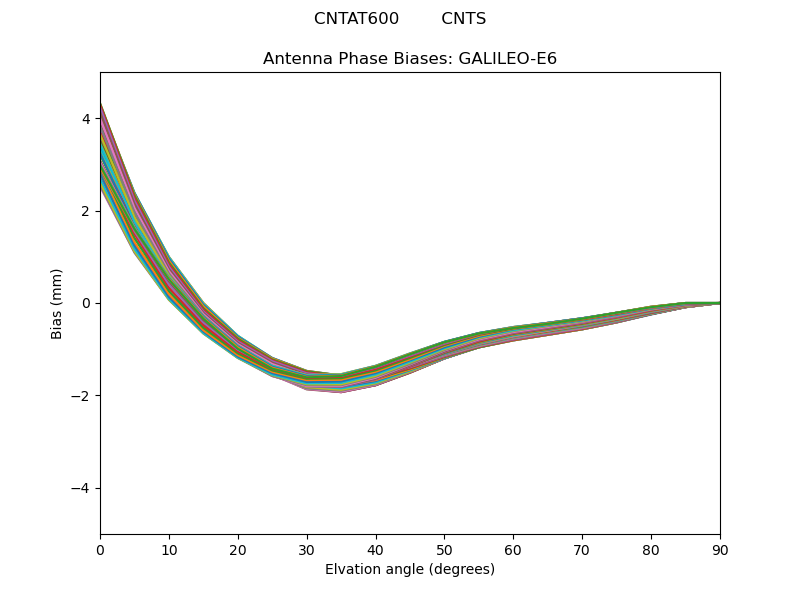

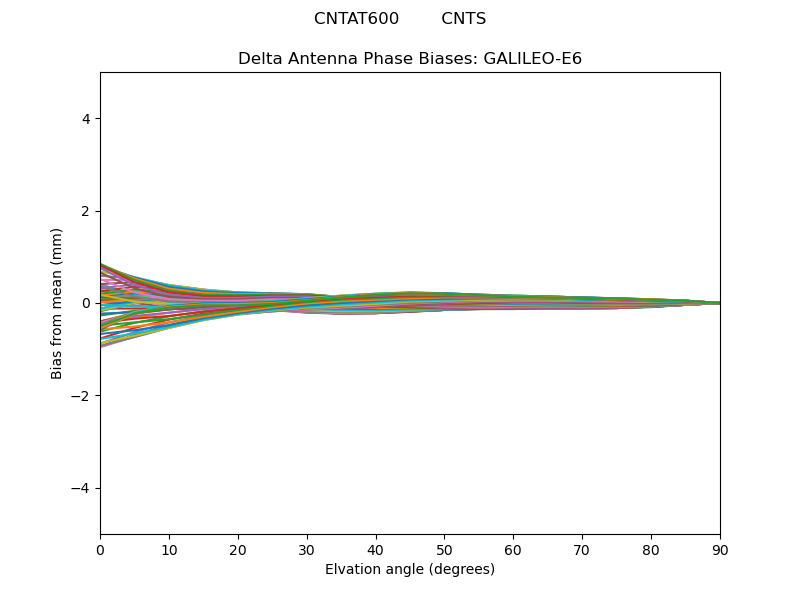

GALILEO-E6

GALILEO-E6GALILEO-E6

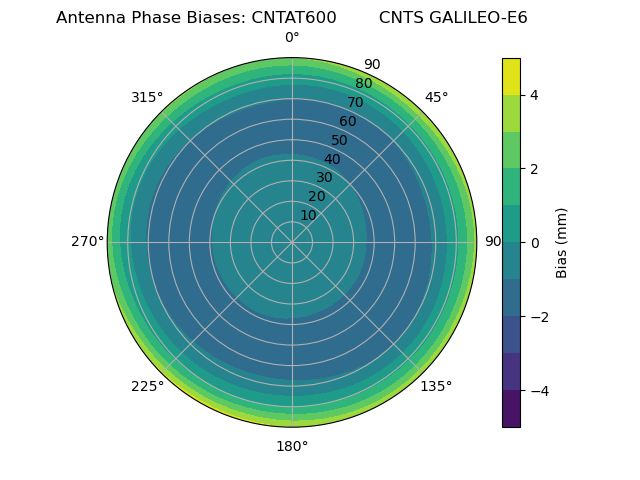

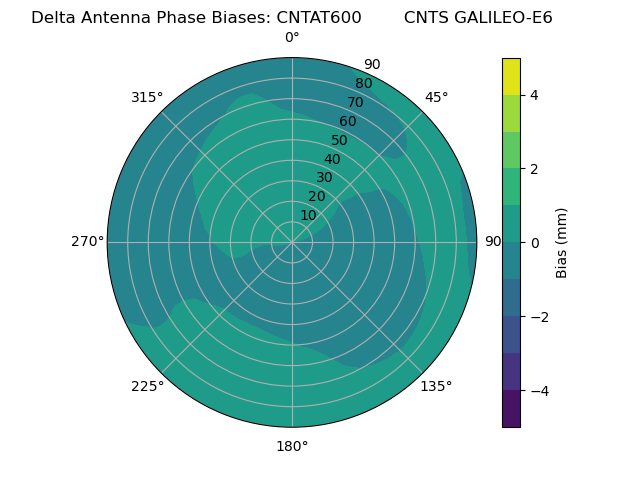

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU
Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

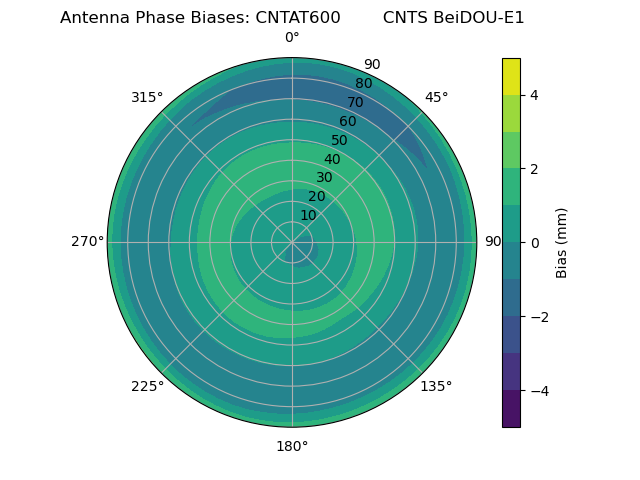

Radial BeiDOU-E1Radial BeiDOU-E1

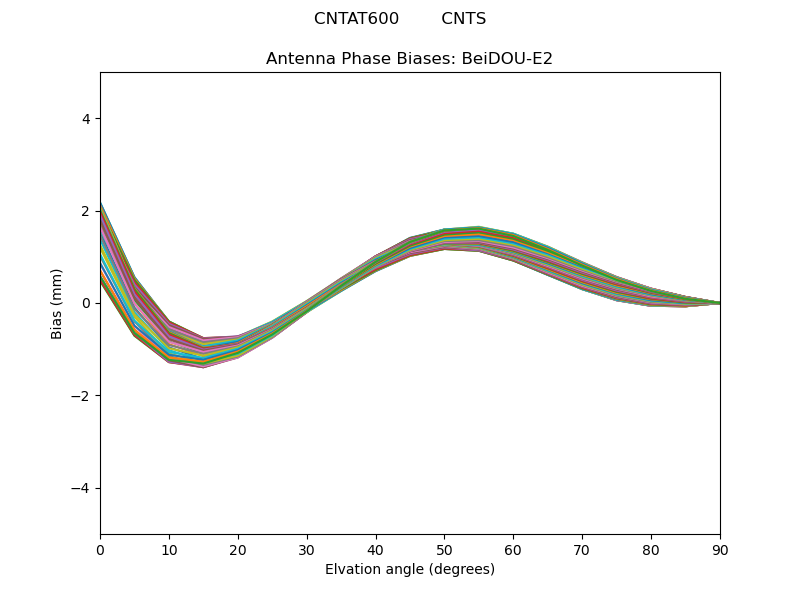

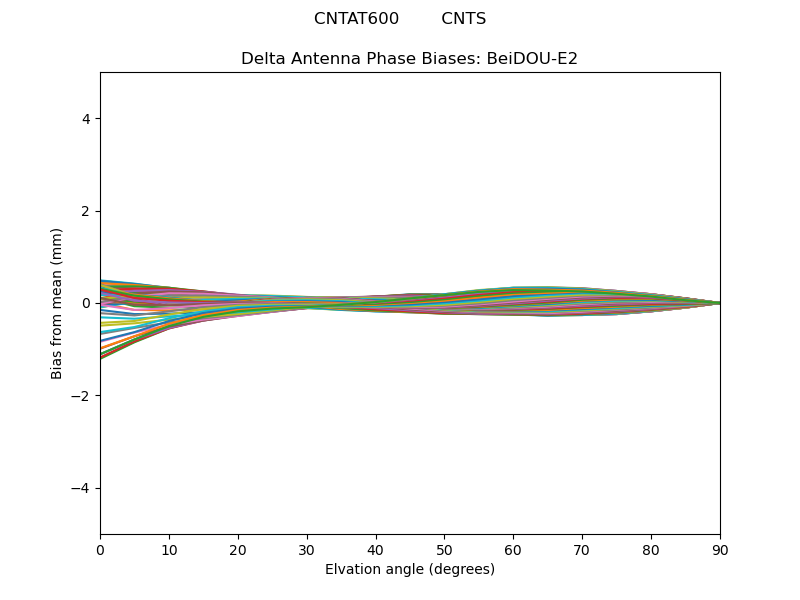

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

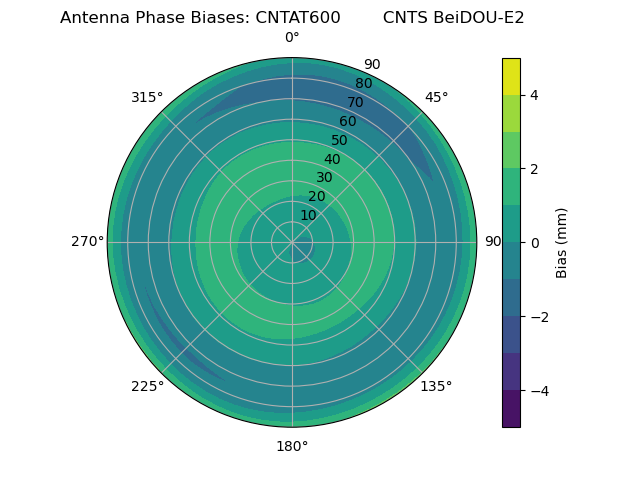

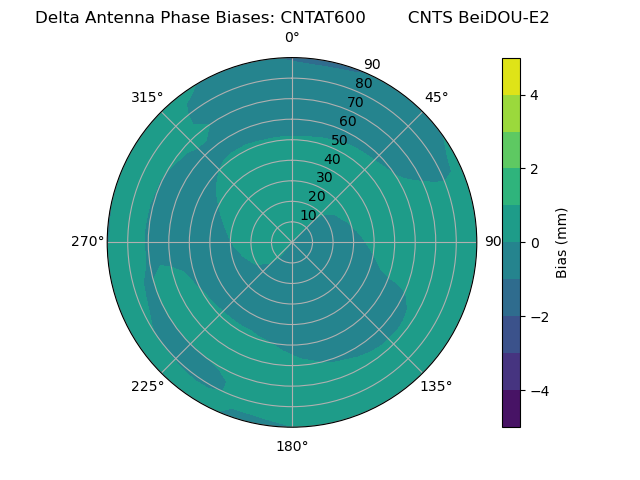

Radial BeiDOU-E2Radial BeiDOU-E2

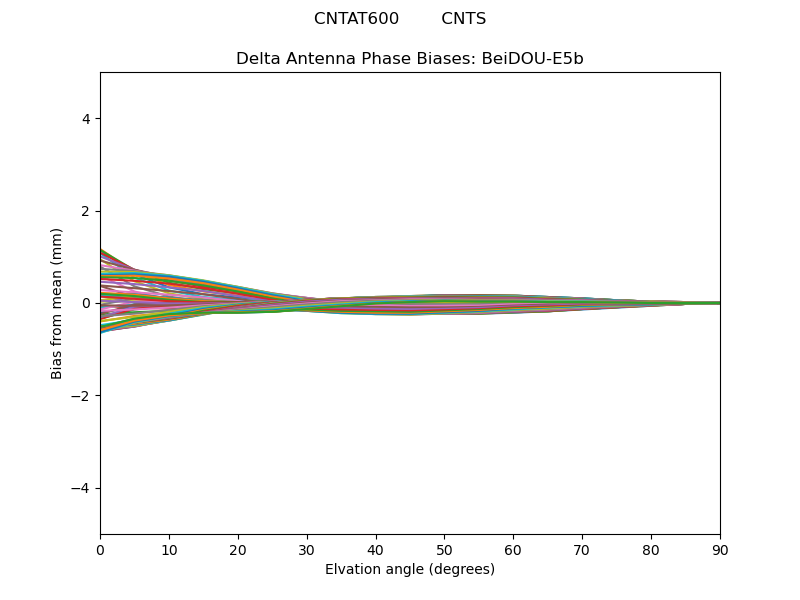

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

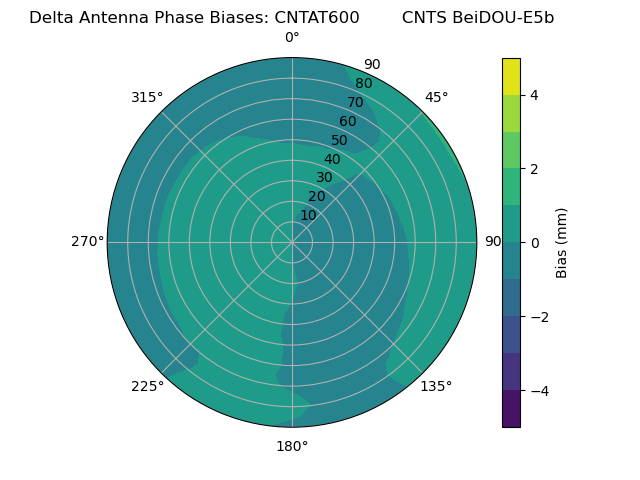

Radial BeiDOU-E5bRadial BeiDOU-E5b

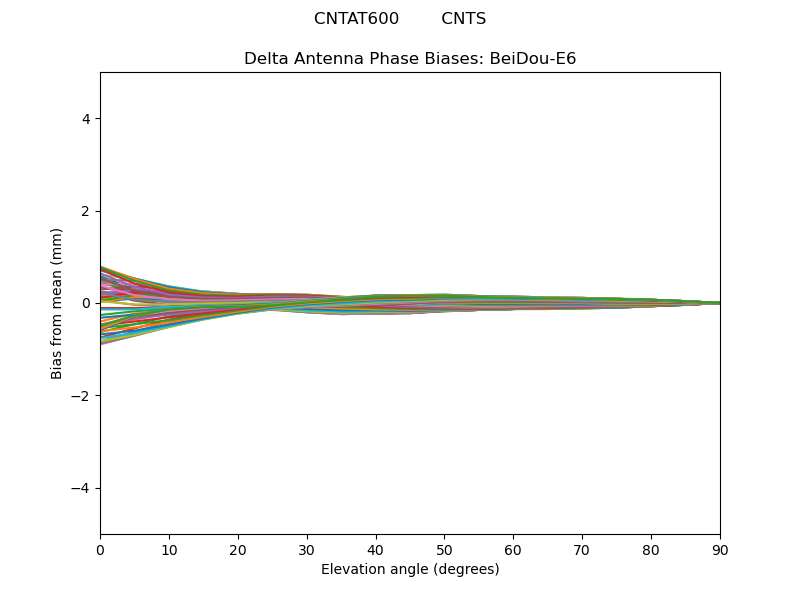

BeiDOU-E6

BeiDOU-E6BeiDOU-E6
Radial BeiDOU-E6Radial BeiDOU-E6

QZSS
Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

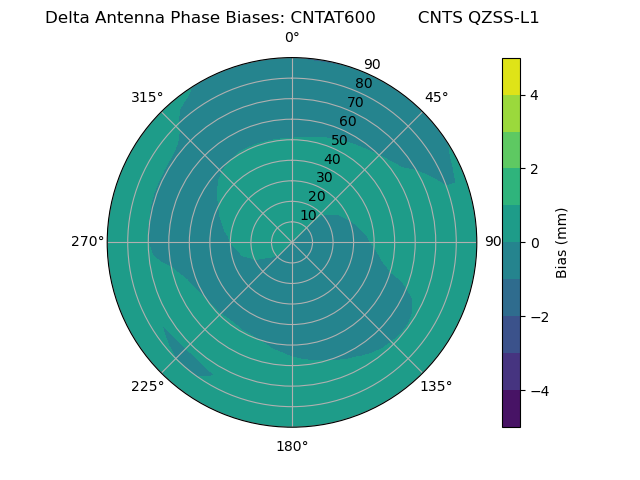

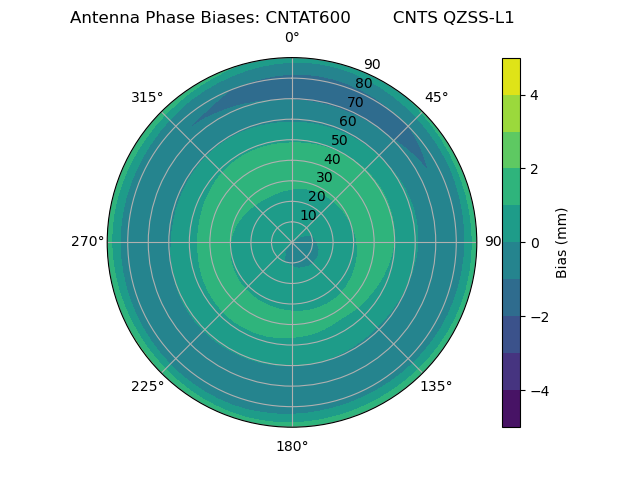

Radial QZSS-L1Radial QZSS-L1

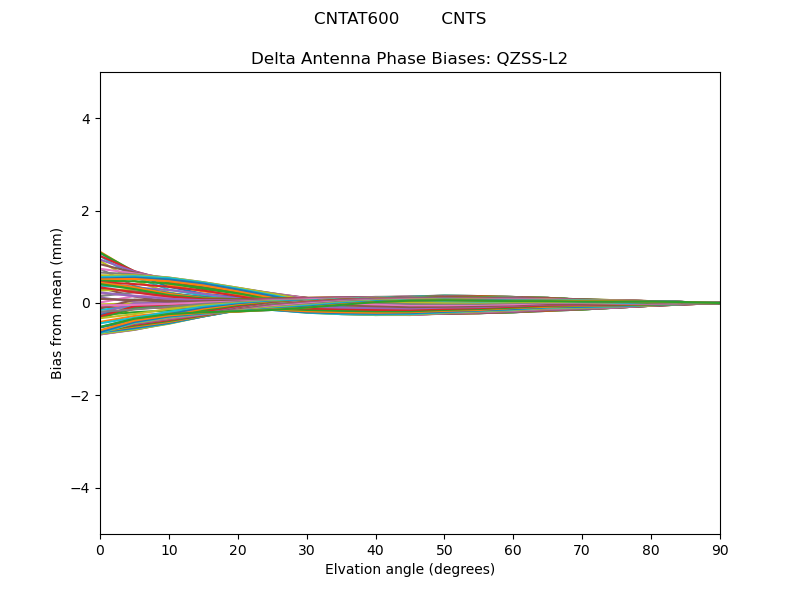

QZSS-L2

QZSS-L2QZSS-L2

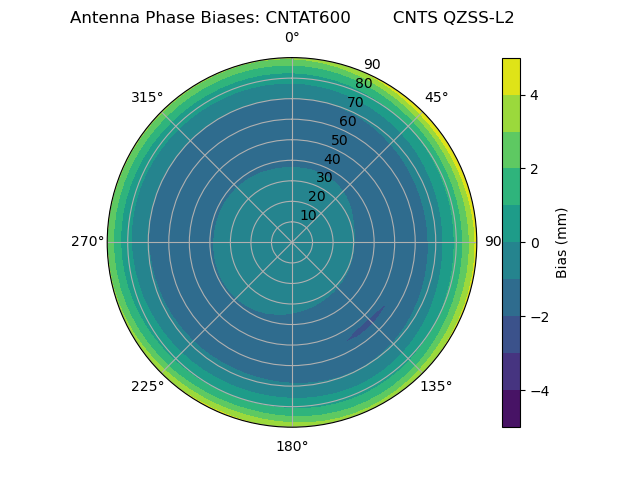

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

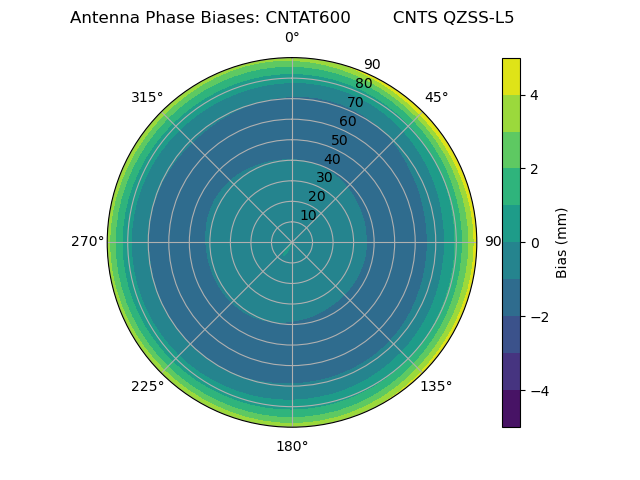

Radial QZSS-L5Radial QZSS-L5

SBAS
Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

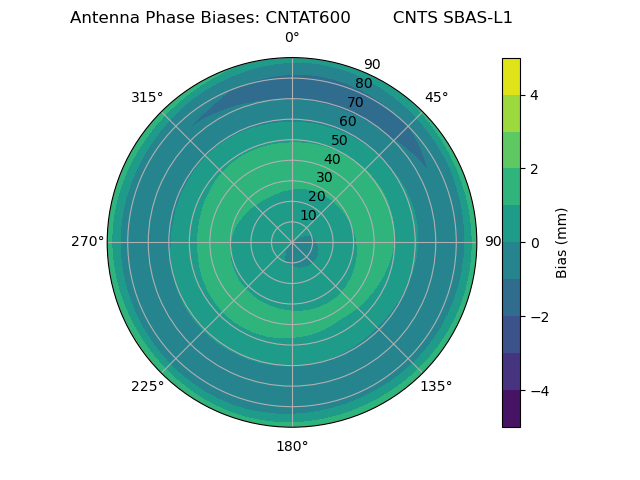

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

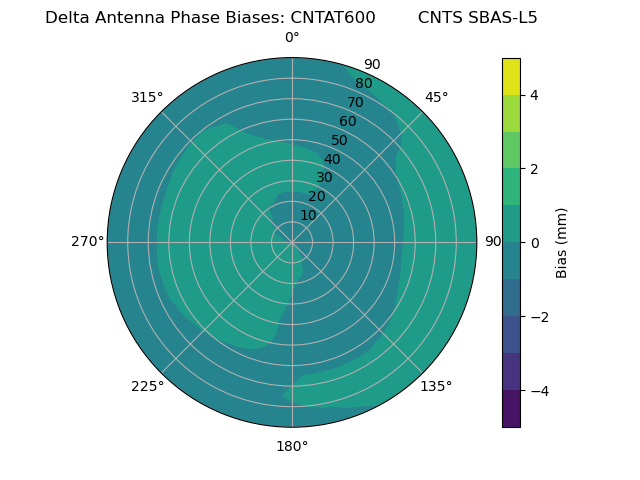

Radial SBAS-L5Radial SBAS-L5

IRNSS
Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
