Antenna information for CNTMARSPRO NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.59 E: -0.01 U: 71.53
L2: N: -0.41 E: 0.66 U: 62.71
L5: N: 0.21 E: 0.25 U: 63.17

GLONASS

L1: N: -0.60 E: 0.19 U: 71.76
L2: N: -0.54 E: 0.76 U: 61.18

GALILEO

E1: N: -0.59 E: -0.01 U: 71.53
E5a: N: 0.21 E: 0.25 U: 63.17
E5b: N: -0.21 E: 0.54 U: 63.59

BeiDou

E1: N: -0.59 E: -0.01 U: 71.53
E2: N: -0.61 E: -0.11 U: 71.42
E5b: N: -0.21 E: 0.54 U: 63.59
E6: N: -0.66 E: 0.84 U: 58.34

QZSS

L1: N: -0.59 E: -0.01 U: 71.53
L2: N: -0.41 E: 0.66 U: 62.71
L5: N: 0.21 E: 0.25 U: 63.17

SBAS

L1: N: -0.59 E: -0.01 U: 71.53
L5: N: 0.21 E: 0.25 U: 63.17

L1

GPS: N: -0.59 E: -0.01 U: 71.53
GLONASS: N: -0.60 E: 0.19 U: 71.76
QZSS: N: -0.59 E: -0.01 U: 71.53
SBAS: N: -0.59 E: -0.01 U: 71.53

L2

GPS: N: -0.41 E: 0.66 U: 62.71
GLONASS: N: -0.54 E: 0.76 U: 61.18
QZSS: N: -0.41 E: 0.66 U: 62.71

L5

GPS: N: 0.21 E: 0.25 U: 63.17
QZSS: N: 0.21 E: 0.25 U: 63.17
SBAS: N: 0.21 E: 0.25 U: 63.17

E1

GALILEO: N: -0.59 E: -0.01 U: 71.53
BeiDou: N: -0.59 E: -0.01 U: 71.53

E2

BeiDou: N: -0.61 E: -0.11 U: 71.42

E5a

GALILEO: N: 0.21 E: 0.25 U: 63.17

E5b

GALILEO: N: -0.21 E: 0.54 U: 63.59
BeiDou: N: -0.21 E: 0.54 U: 63.59

E6

BeiDou: N: -0.66 E: 0.84 U: 58.34


Means

GPS

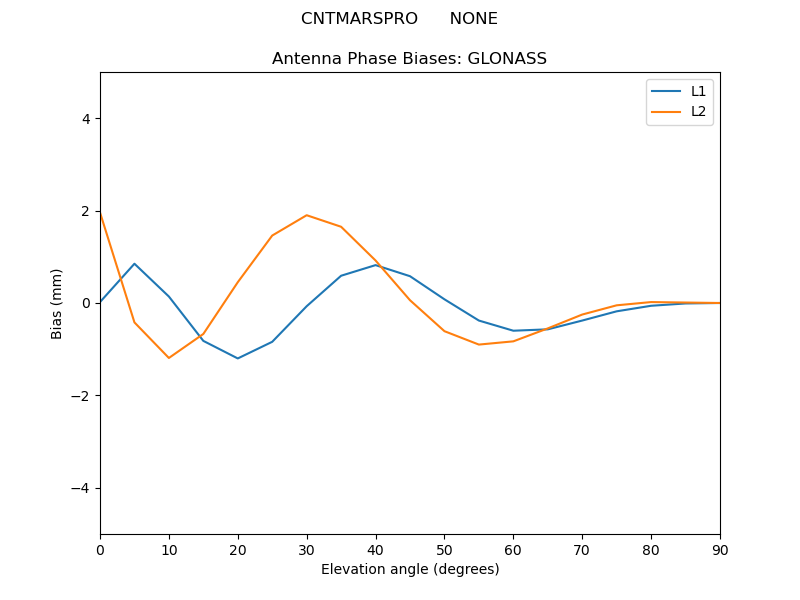

GLONASS

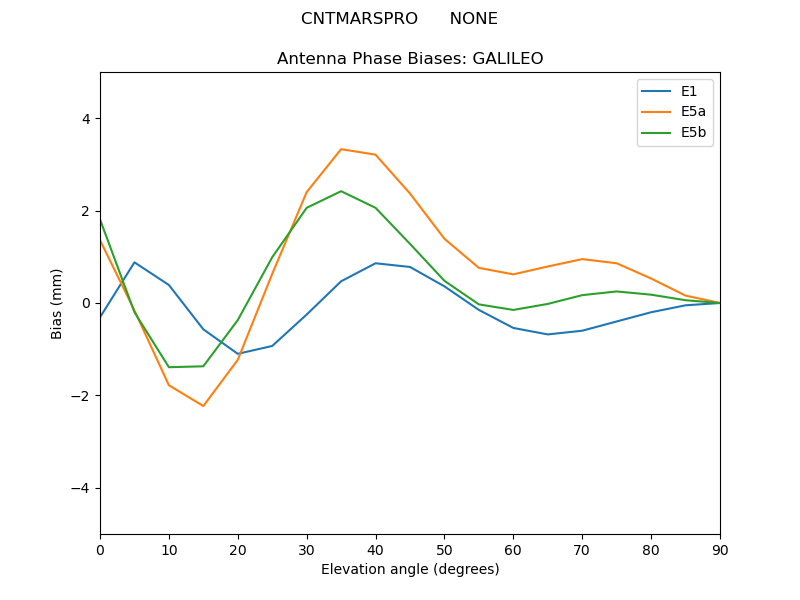

GALILEO

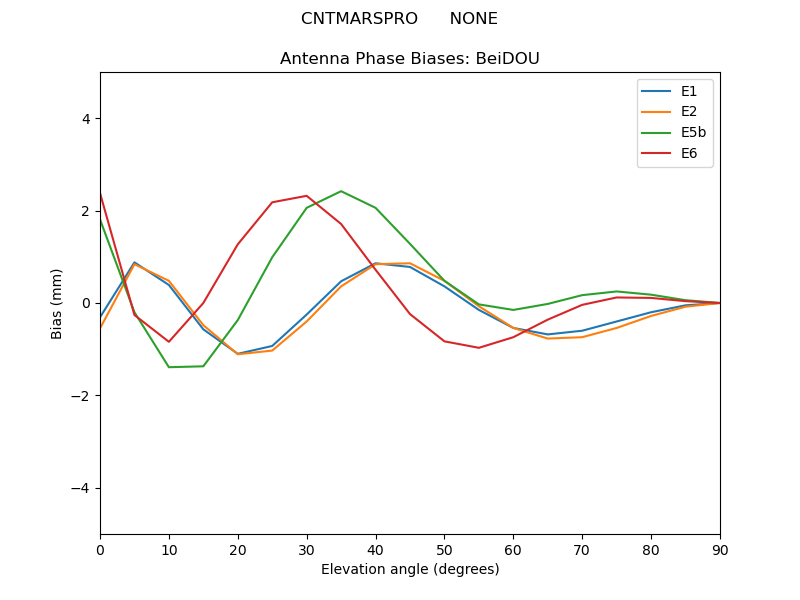

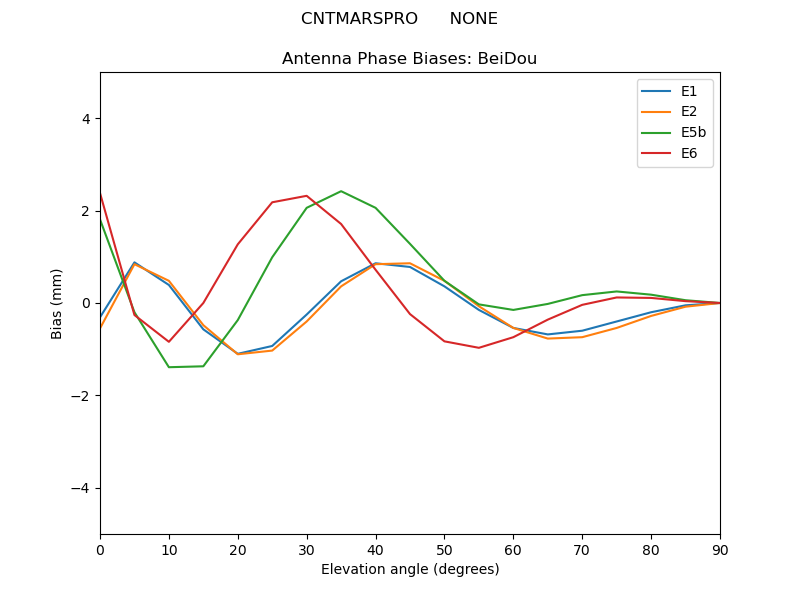

BeiDOU

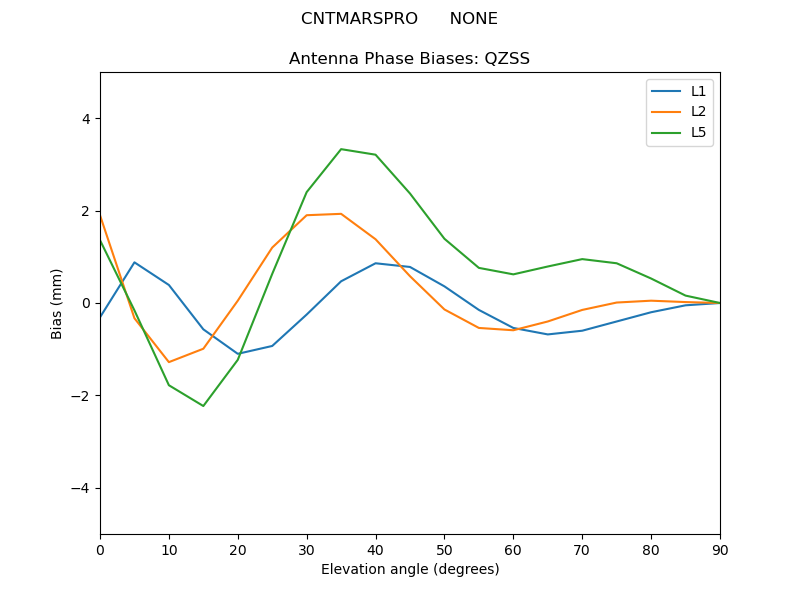

QZSS

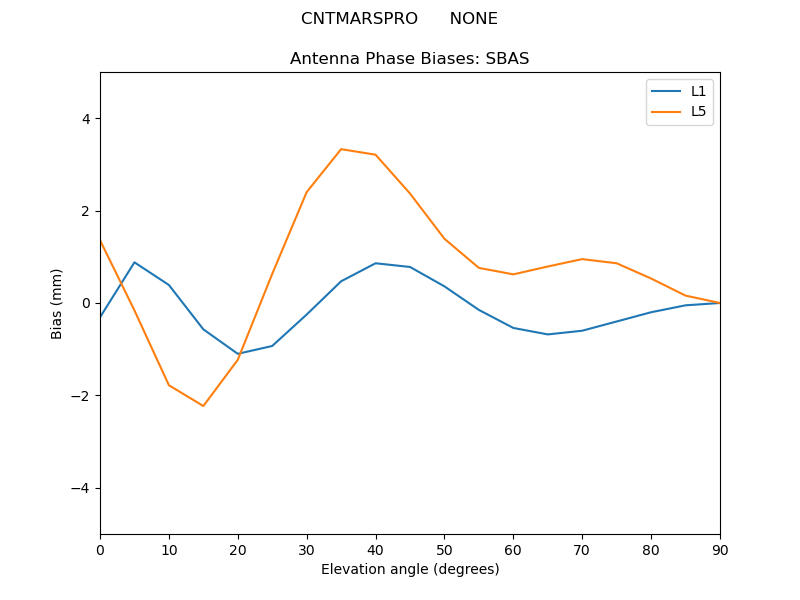

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

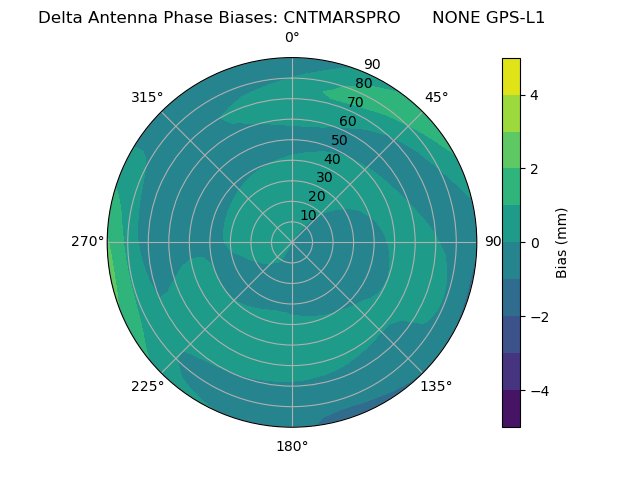

Radial GPS-L1Radial GPS-L1

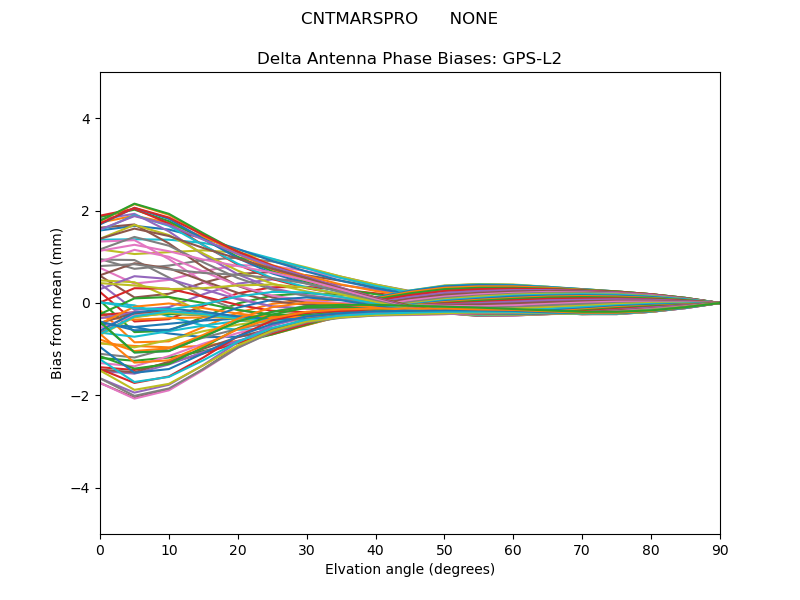

GPS-L2

GPS-L2GPS-L2
Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5
Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

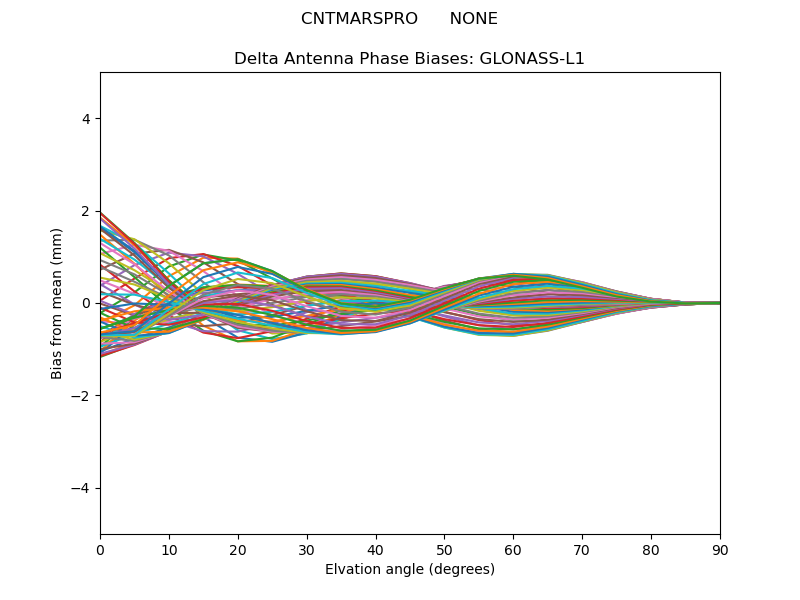

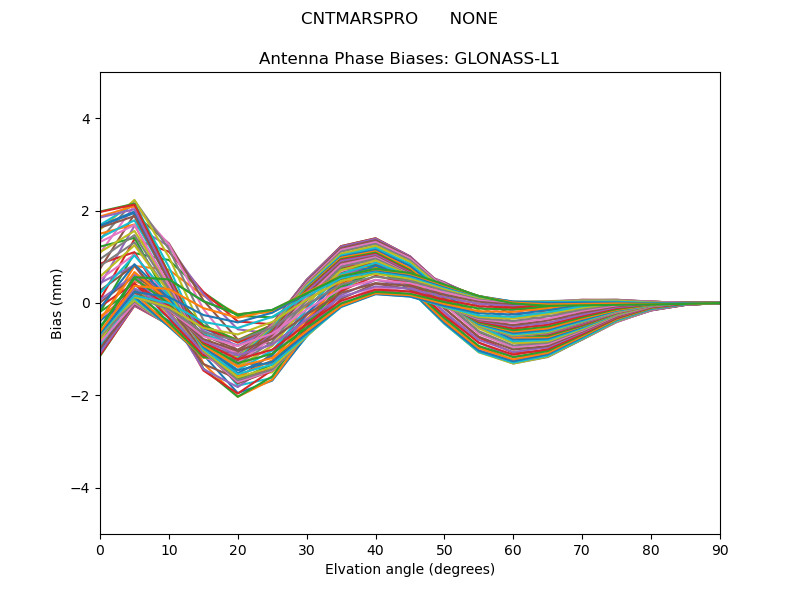

GLONASS-L1

GLONASS-L1GLONASS-L1

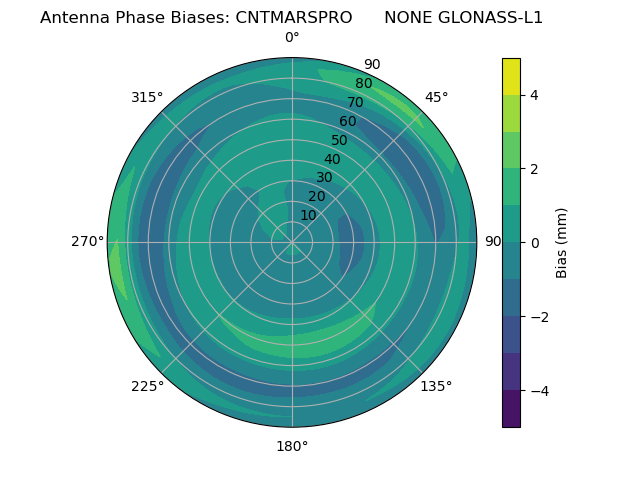

Radial GLONASS-L1Radial GLONASS-L1

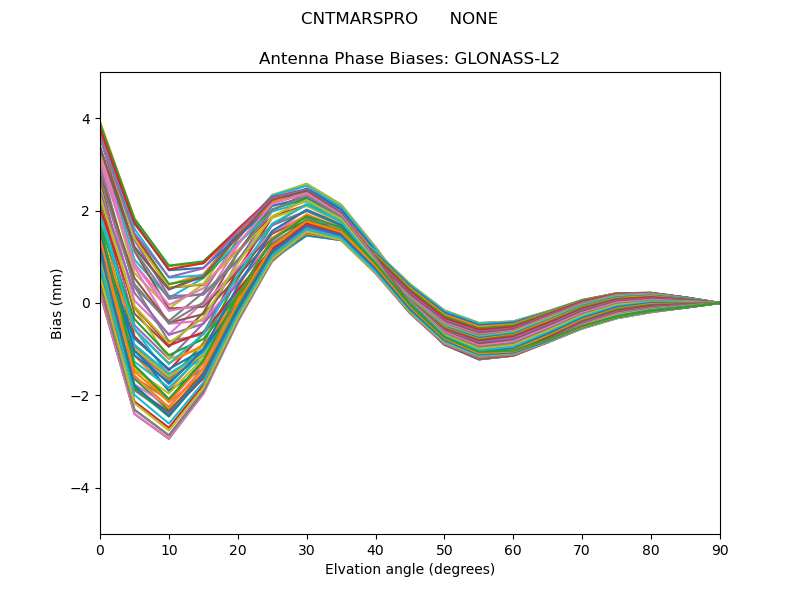

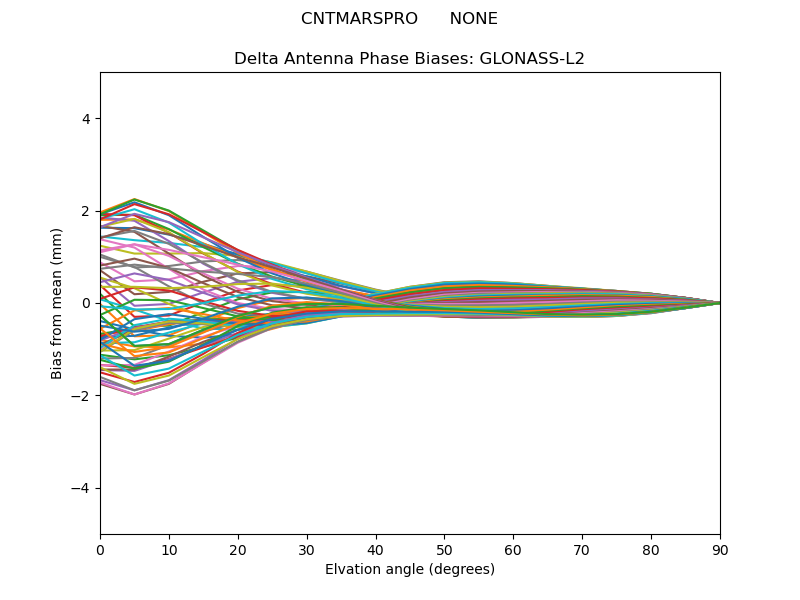

GLONASS-L2

GLONASS-L2GLONASS-L2

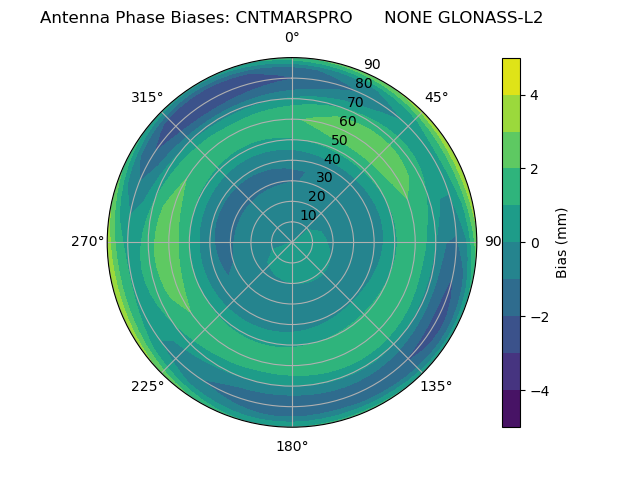

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

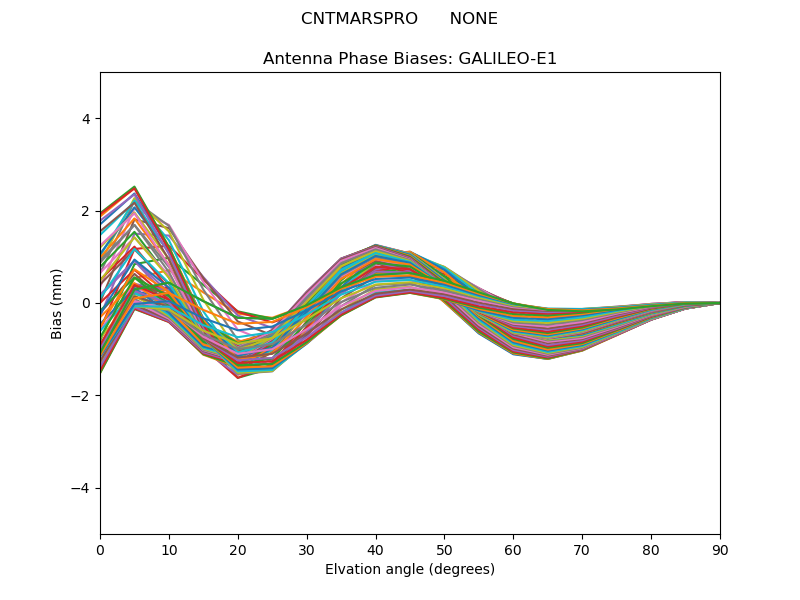

GALILEO-E1

GALILEO-E1GALILEO-E1

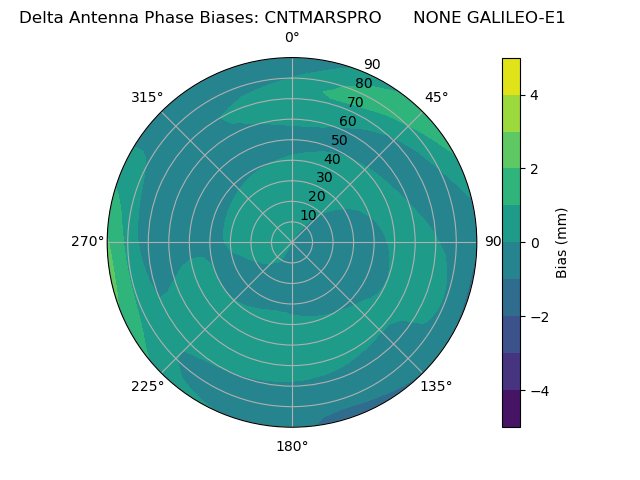

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

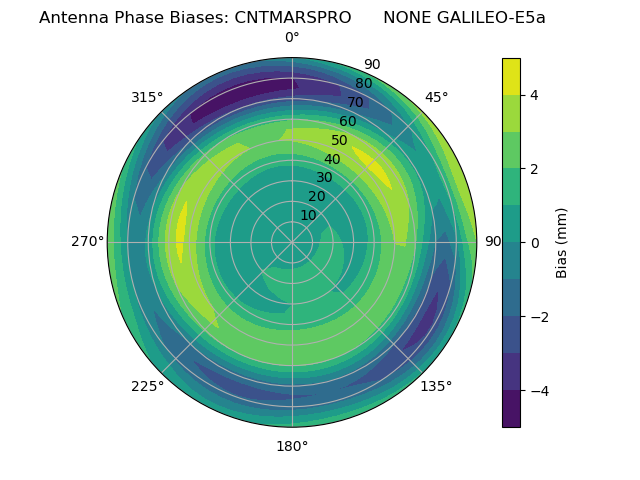

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

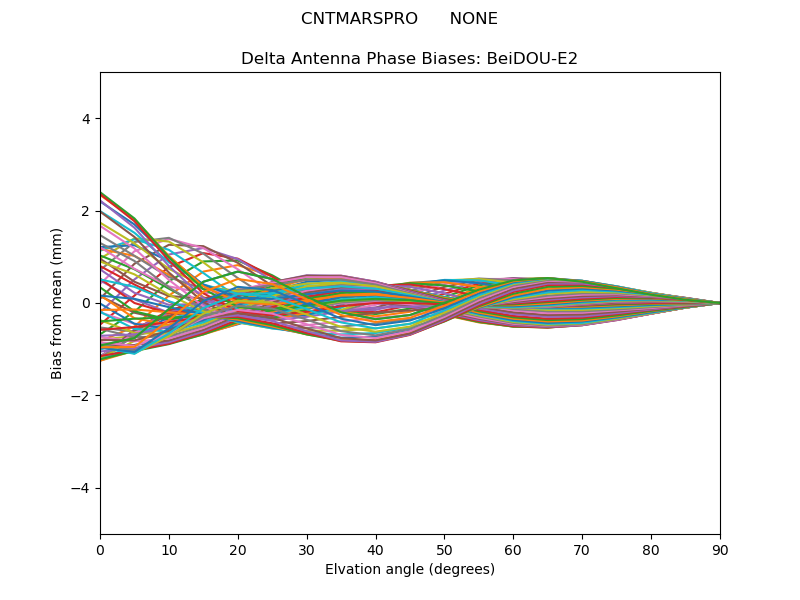

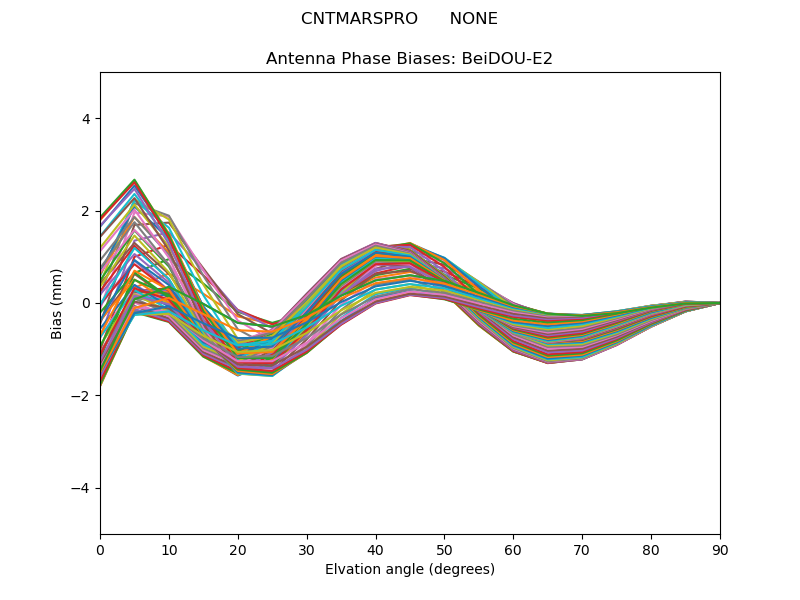

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

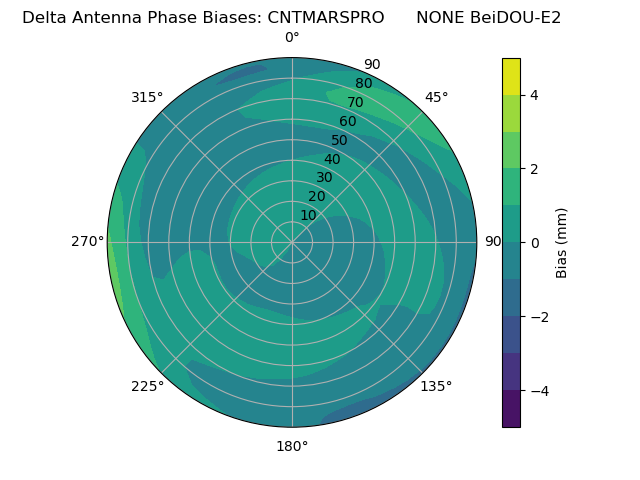

Radial BeiDOU-E2Radial BeiDOU-E2

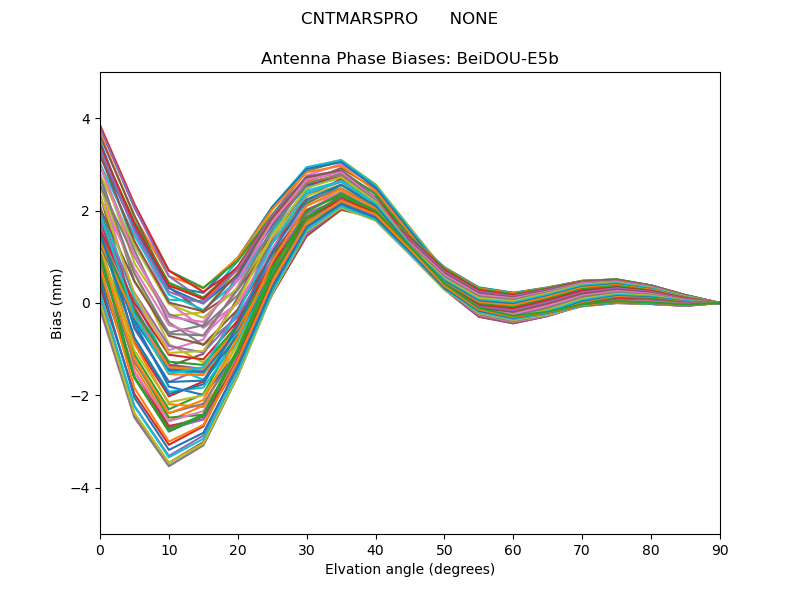

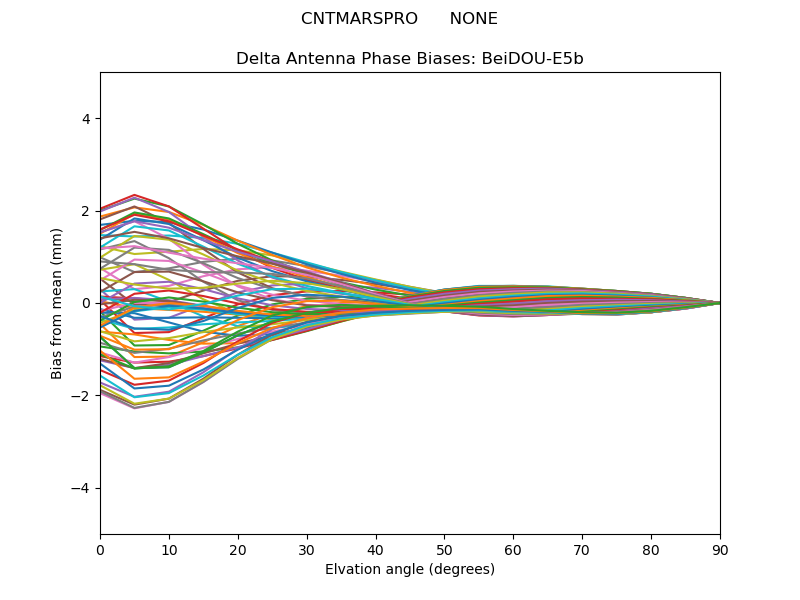

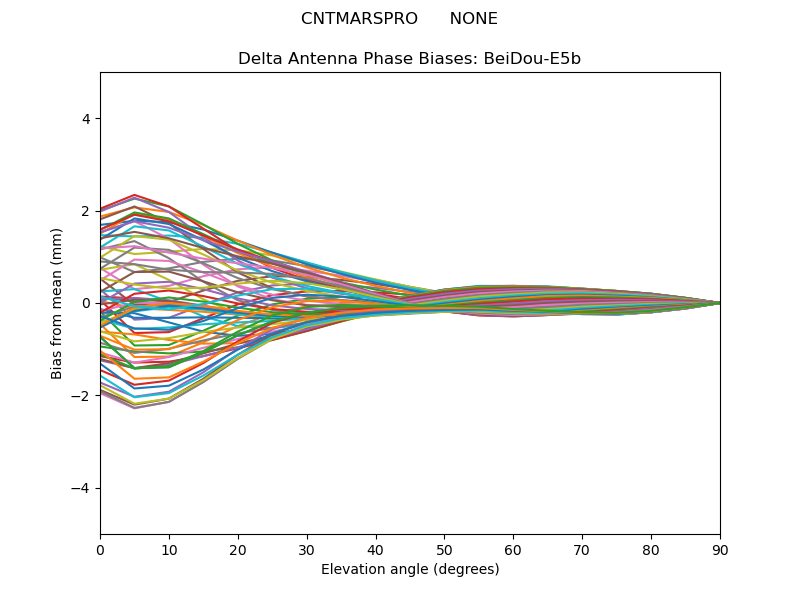

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b
Radial BeiDOU-E5bRadial BeiDOU-E5b

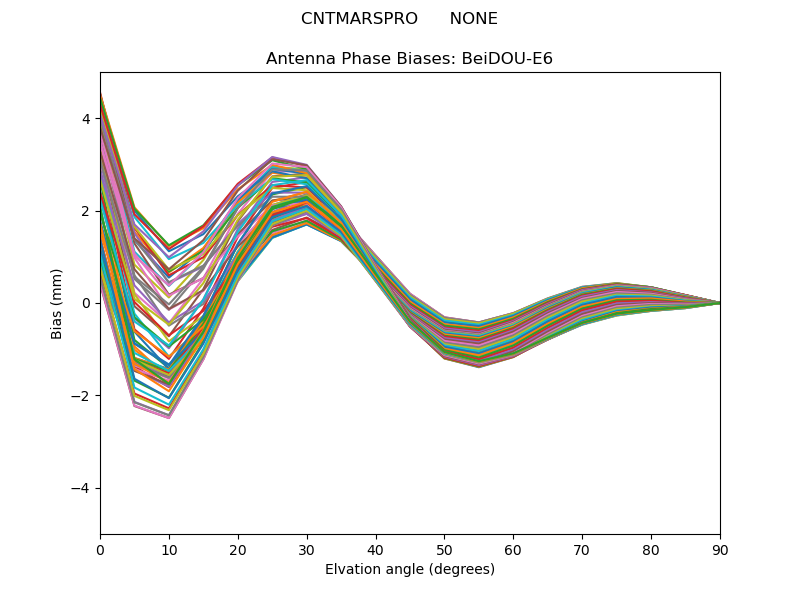

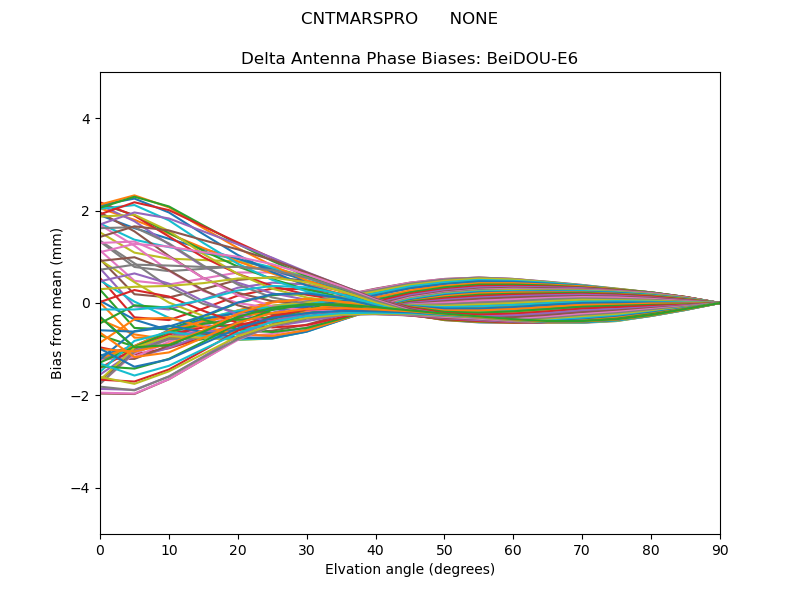

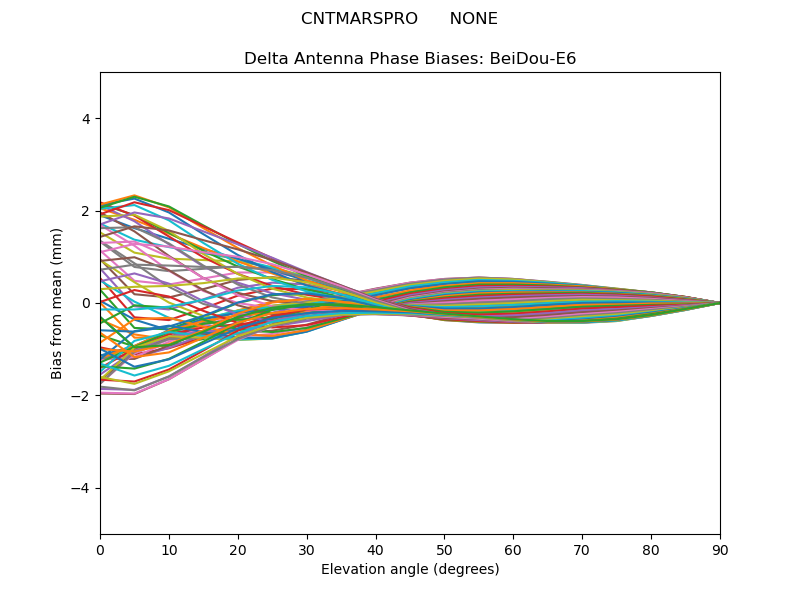

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

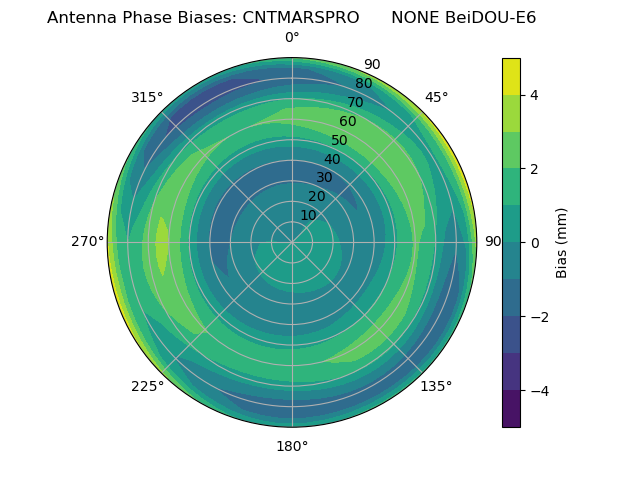

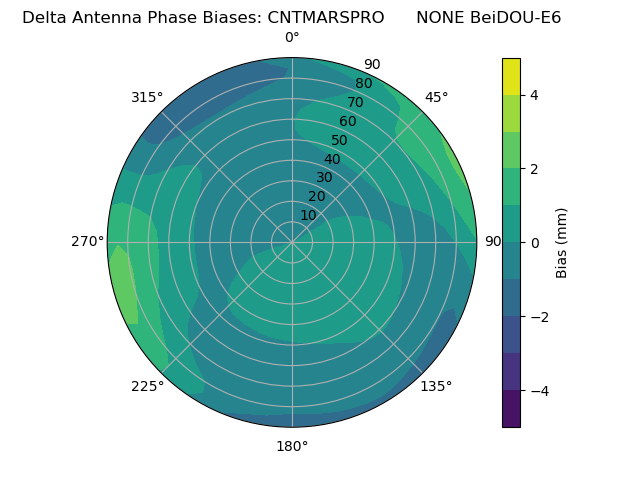

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

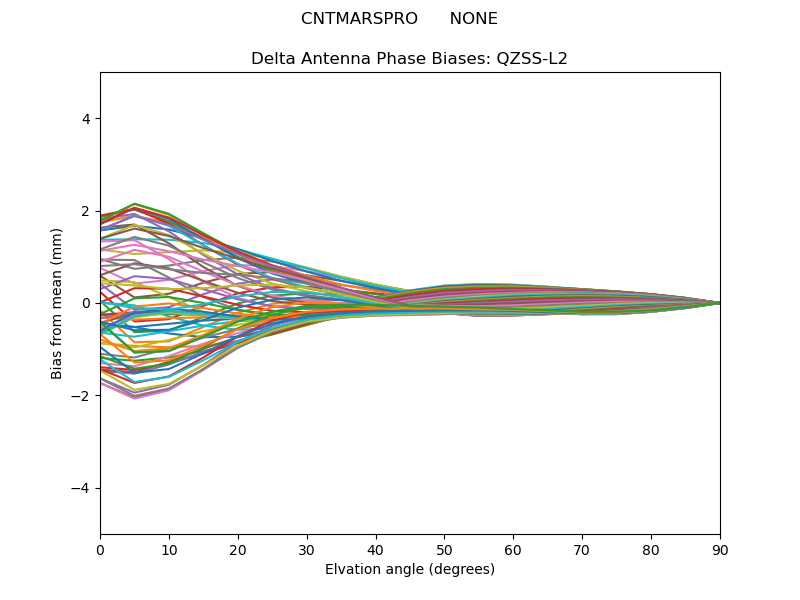

QZSS-L2

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

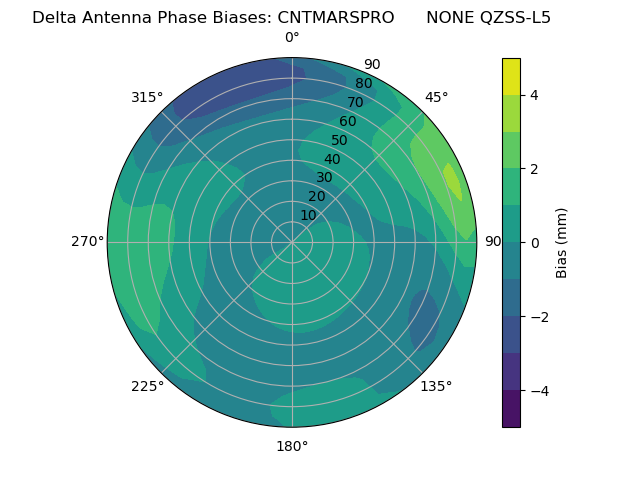

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

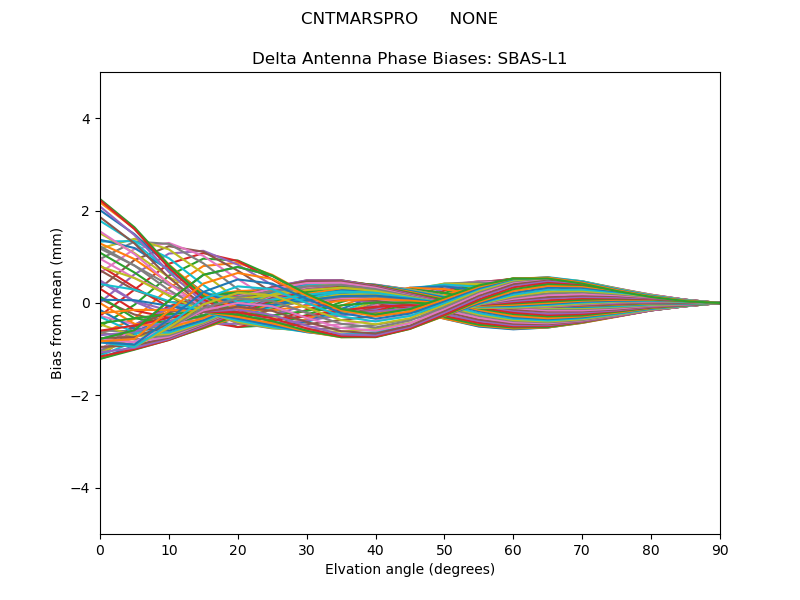

SBAS-L1

SBAS-L1SBAS-L1

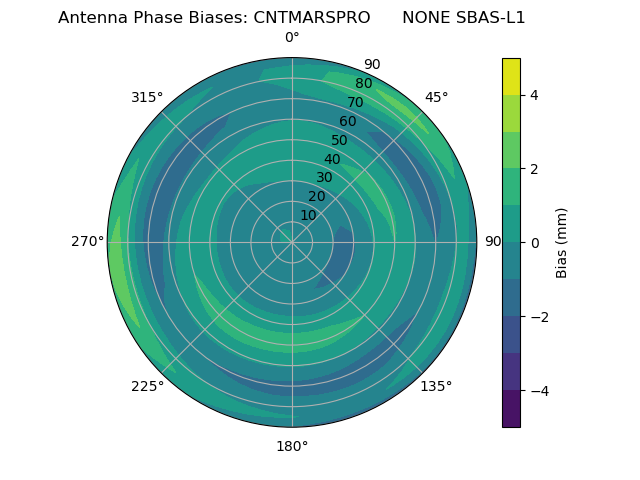

Radial SBAS-L1Radial SBAS-L1

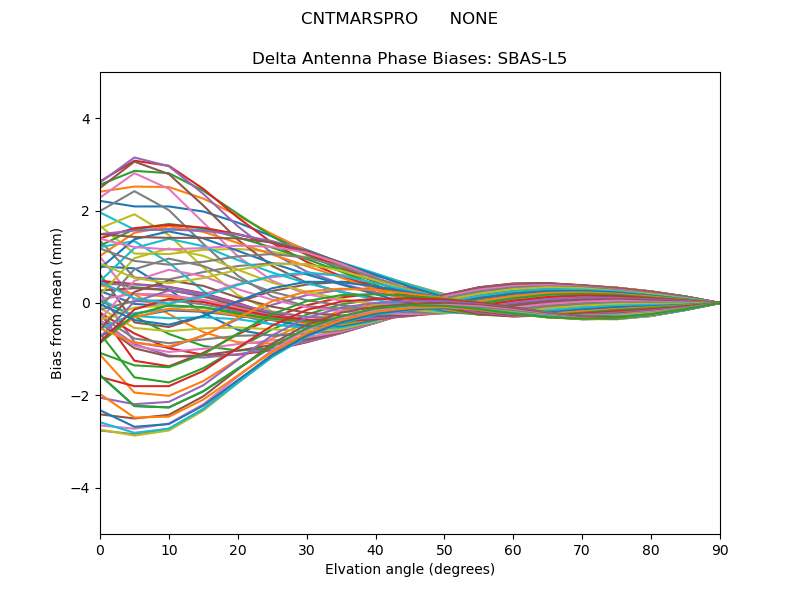

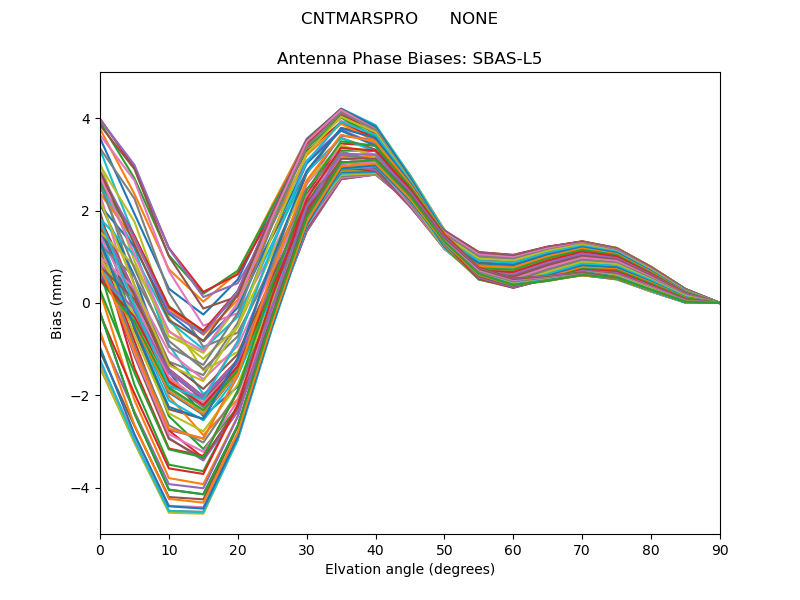

SBAS-L5

SBAS-L5SBAS-L5

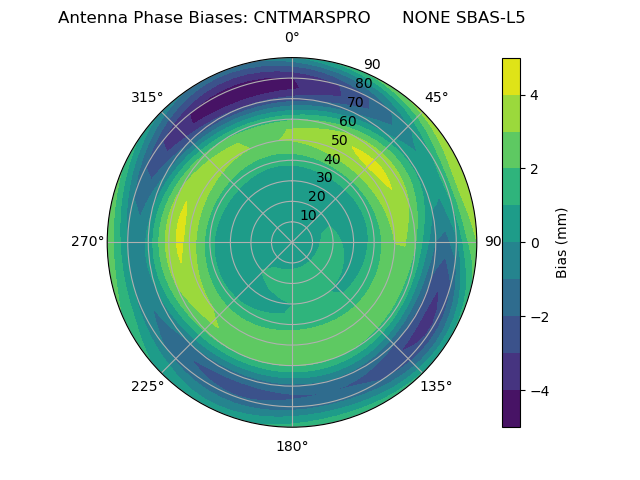

Radial SBAS-L5Radial SBAS-L5
