Antenna information for CNTT300 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 2.08 E: 1.36 U: 75.26
L2: N: -1.20 E: 1.51 U: 62.56
L5: N: -0.48 E: 0.69 U: 60.02

GLONASS

L1: N: 0.46 E: 1.76 U: 77.82
L2: N: -1.25 E: 1.90 U: 62.73

GALILEO

E1: N: 2.08 E: 1.36 U: 75.26
E5a: N: -0.48 E: 0.69 U: 60.02
E5b: N: -1.23 E: 1.07 U: 61.59
E5: N: -0.93 E: 0.89 U: 60.53
E6: N: -1.56 E: 2.57 U: 61.38

BeiDou

E1: N: 2.08 E: 1.36 U: 75.26
E2: N: 2.87 E: 1.43 U: 75.14
E5b: N: -1.23 E: 1.07 U: 61.59
E6: N: -1.42 E: 2.24 U: 62.07

QZSS

L1: N: 2.08 E: 1.36 U: 75.26
L2: N: -1.20 E: 1.51 U: 62.56
L5: N: -0.48 E: 0.69 U: 60.02
LEX: N: -1.56 E: 2.57 U: 61.38

IRNSS

L5: N: -0.48 E: 0.69 U: 60.02

SBAS

L1: N: 2.08 E: 1.36 U: 75.26
L5: N: -0.48 E: 0.69 U: 60.02

L1

GPS: N: 2.08 E: 1.36 U: 75.26
GLONASS: N: 0.46 E: 1.76 U: 77.82
QZSS: N: 2.08 E: 1.36 U: 75.26
SBAS: N: 2.08 E: 1.36 U: 75.26

L2

GPS: N: -1.20 E: 1.51 U: 62.56
GLONASS: N: -1.25 E: 1.90 U: 62.73
QZSS: N: -1.20 E: 1.51 U: 62.56

L5

GPS: N: -0.48 E: 0.69 U: 60.02
QZSS: N: -0.48 E: 0.69 U: 60.02
SBAS: N: -0.48 E: 0.69 U: 60.02
IRNSS: N: -0.48 E: 0.69 U: 60.02

E1

GALILEO: N: 2.08 E: 1.36 U: 75.26
BeiDou: N: 2.08 E: 1.36 U: 75.26

E2

BeiDou: N: 2.87 E: 1.43 U: 75.14

E5

GALILEO: N: -0.93 E: 0.89 U: 60.53

E5a

GALILEO: N: -0.48 E: 0.69 U: 60.02

E5b

GALILEO: N: -1.23 E: 1.07 U: 61.59
BeiDou: N: -1.23 E: 1.07 U: 61.59

E6

GALILEO: N: -1.56 E: 2.57 U: 61.38
BeiDou: N: -1.42 E: 2.24 U: 62.07

LEX

QZSS: N: -1.56 E: 2.57 U: 61.38


Means

GPS

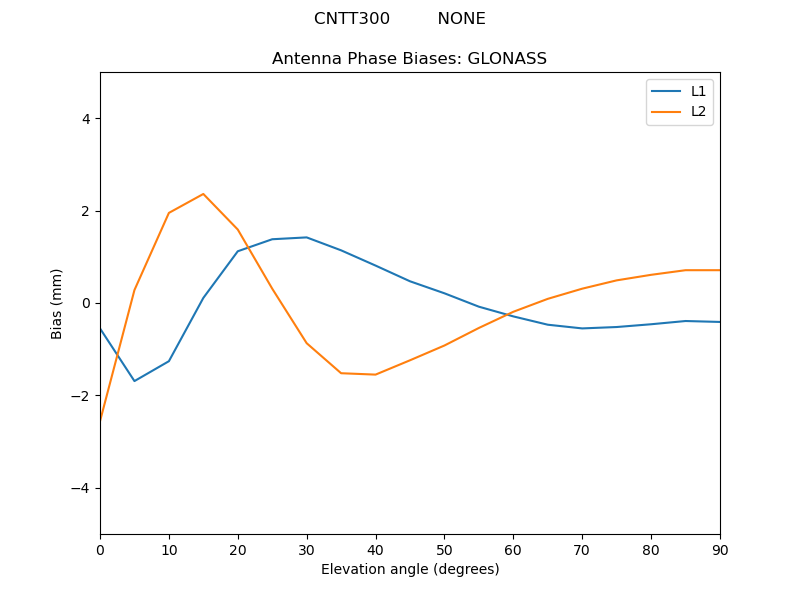

GLONASS

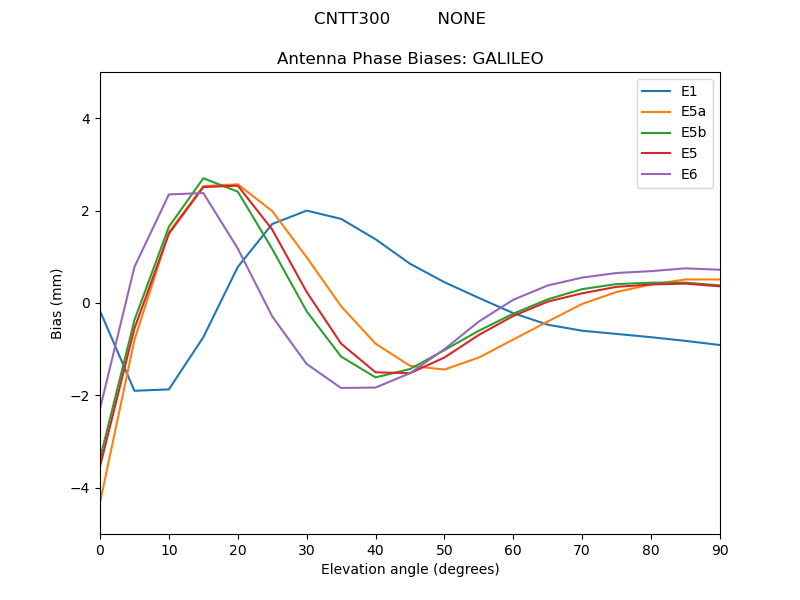

GALILEO

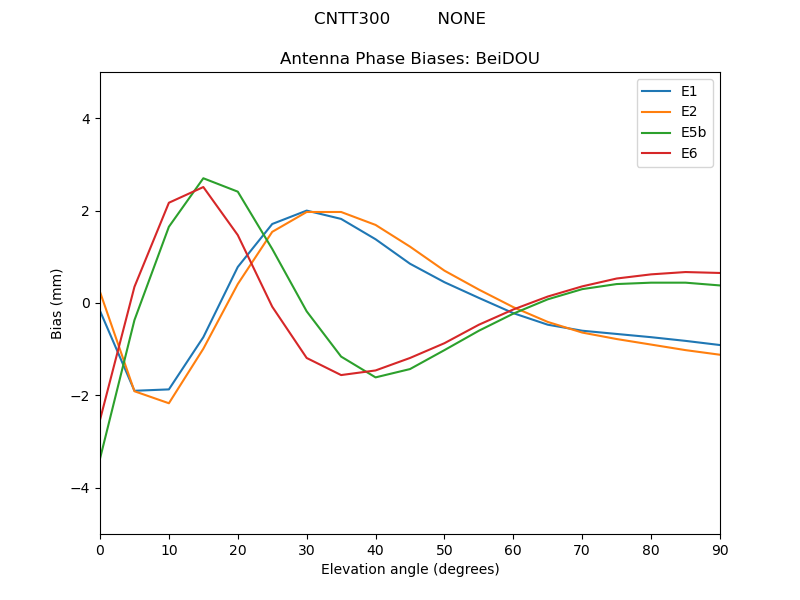

BeiDOU

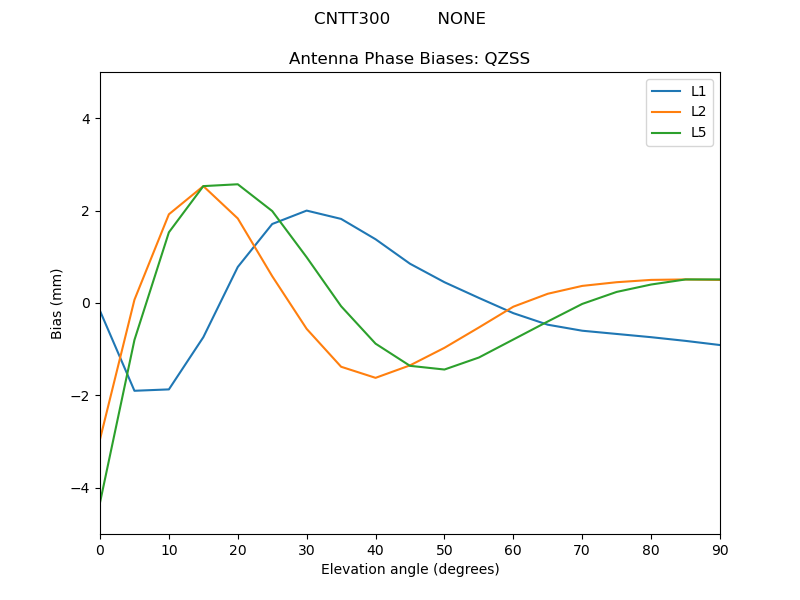

QZSS


SBAS

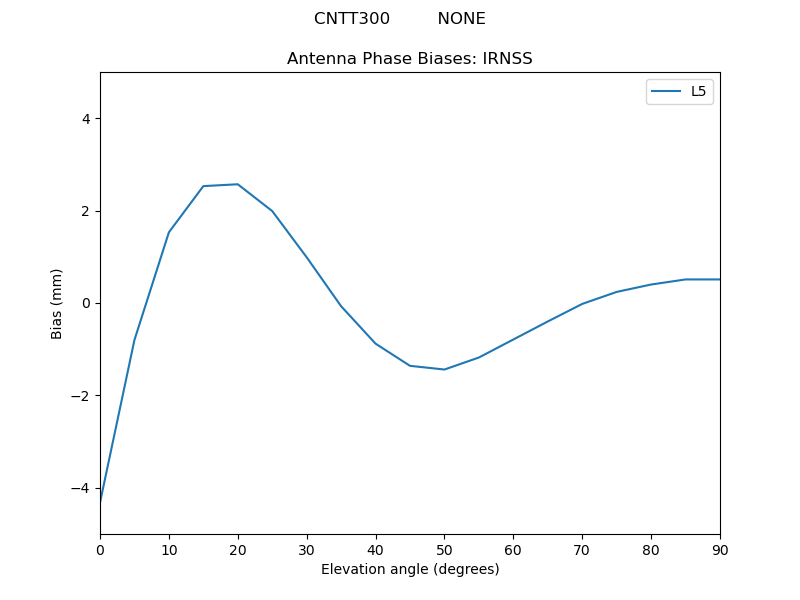

IRNSS


Azimuths

GPS


Bias Delta

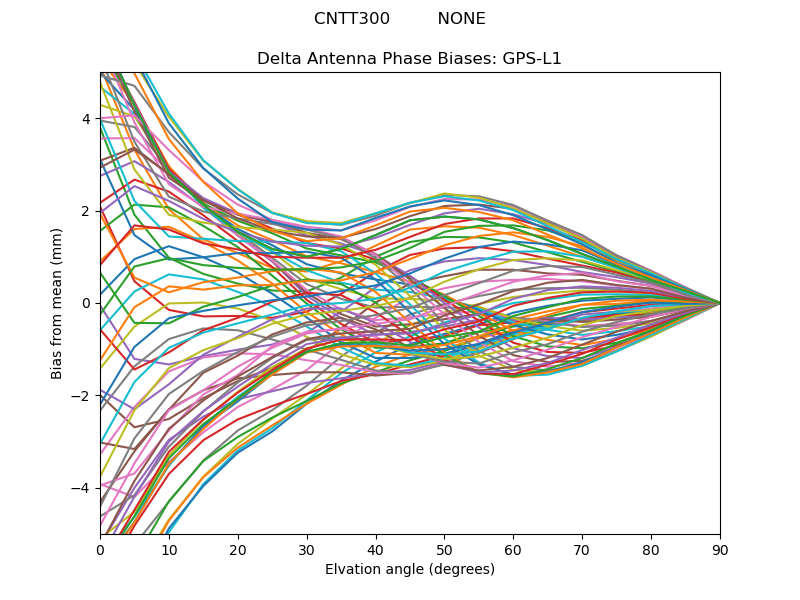

GPS-L1

GPS-L1GPS-L1

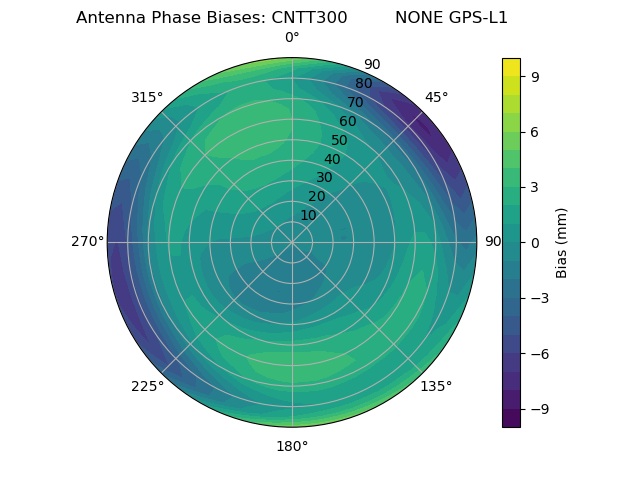

Radial GPS-L1Radial GPS-L1

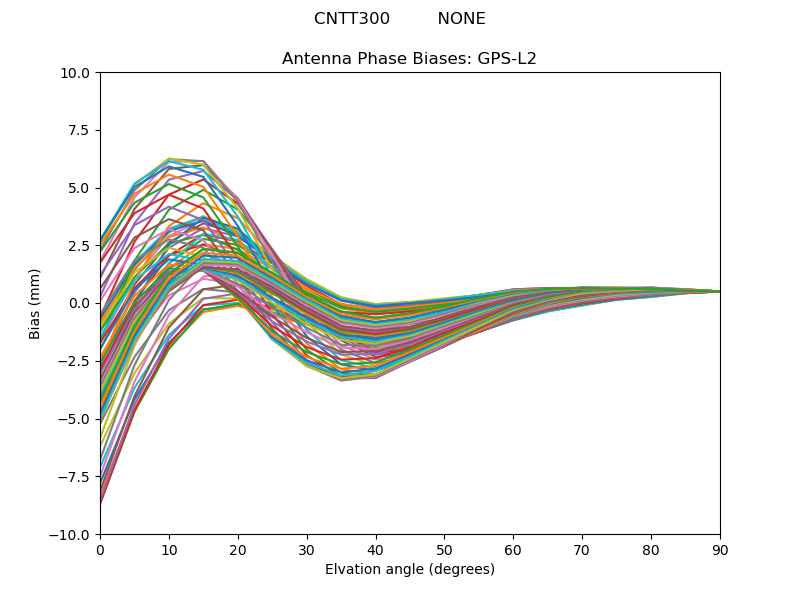

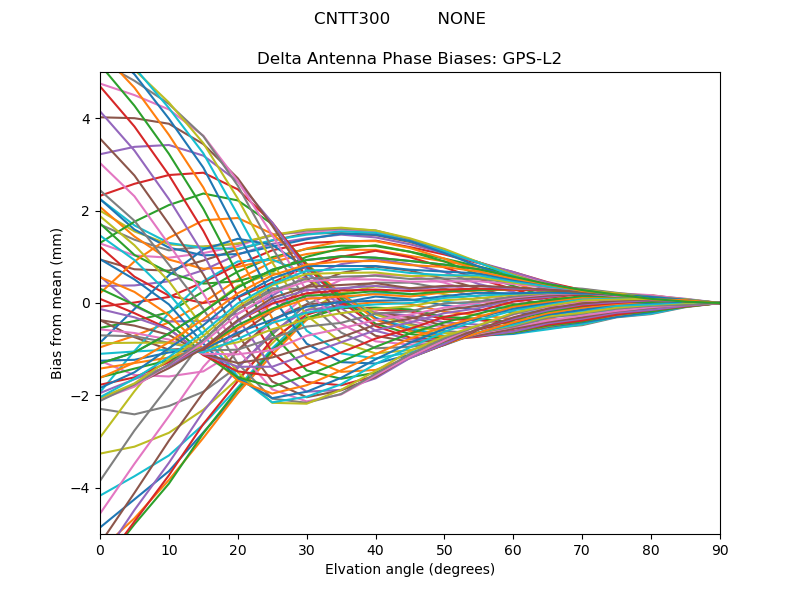

GPS-L2

GPS-L2GPS-L2
Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

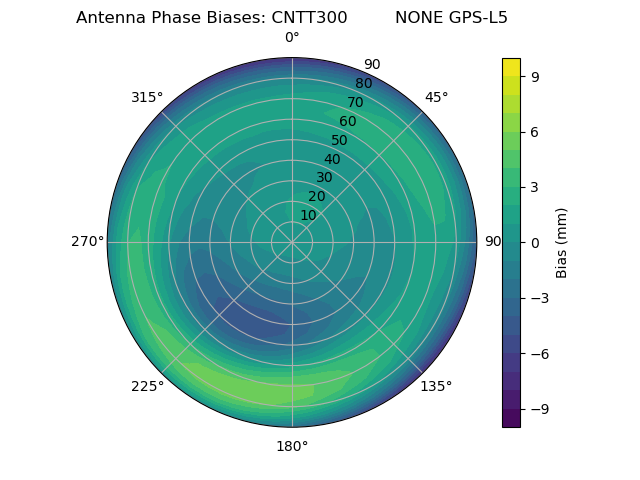

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

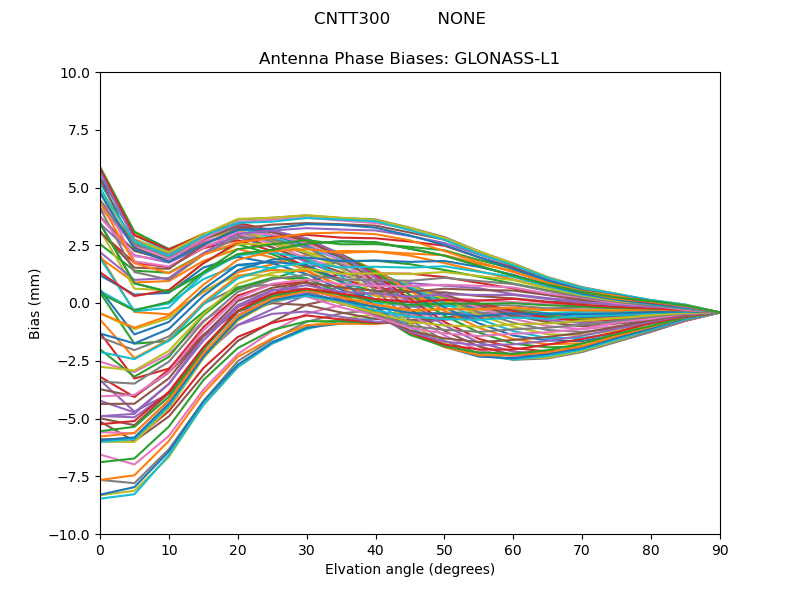

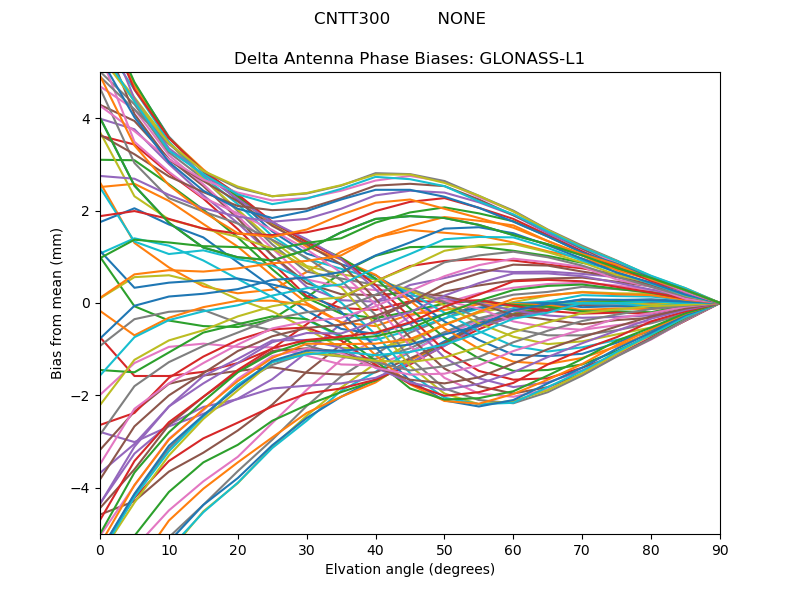

GLONASS-L1

GLONASS-L1GLONASS-L1

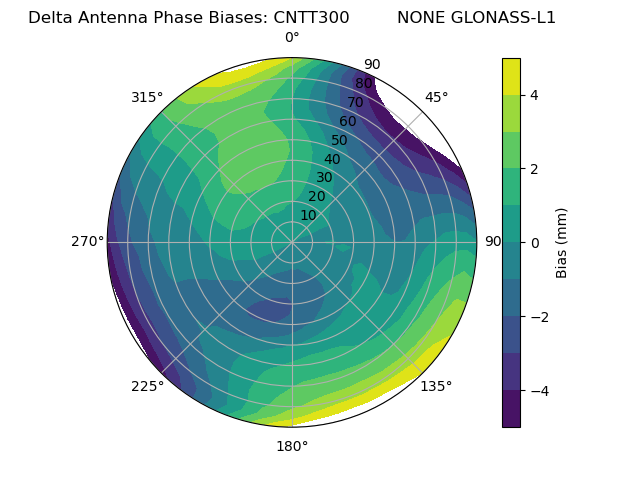

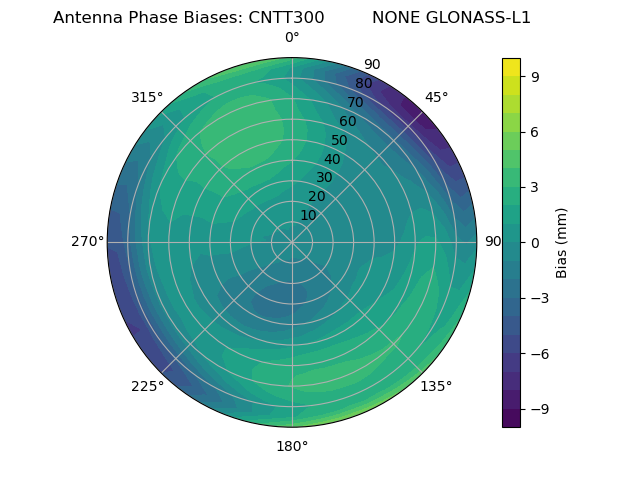

Radial GLONASS-L1Radial GLONASS-L1

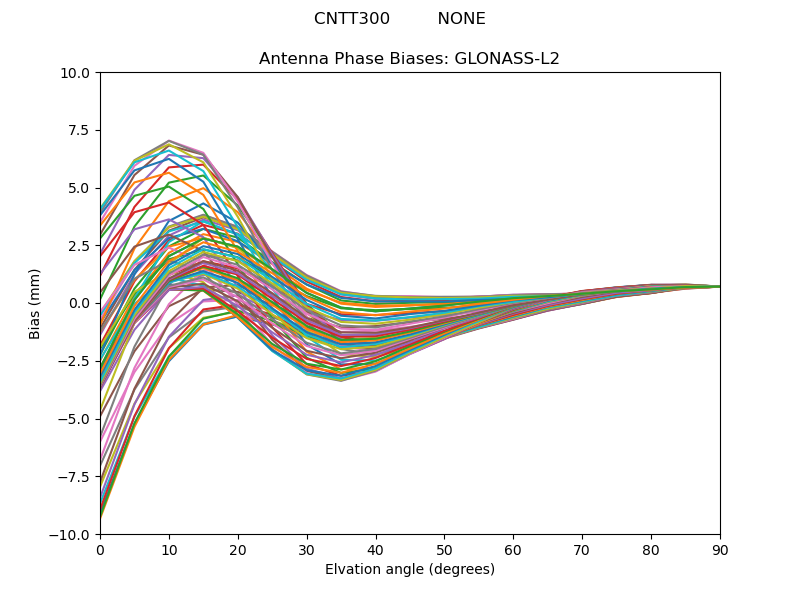

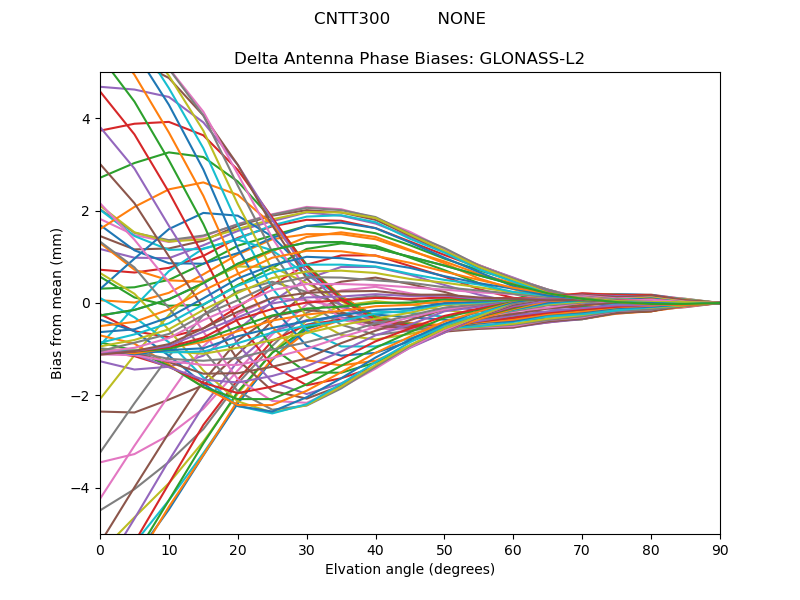

GLONASS-L2

GLONASS-L2GLONASS-L2

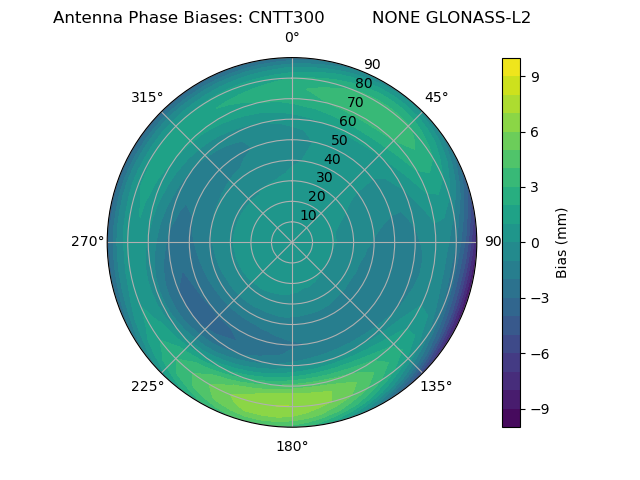

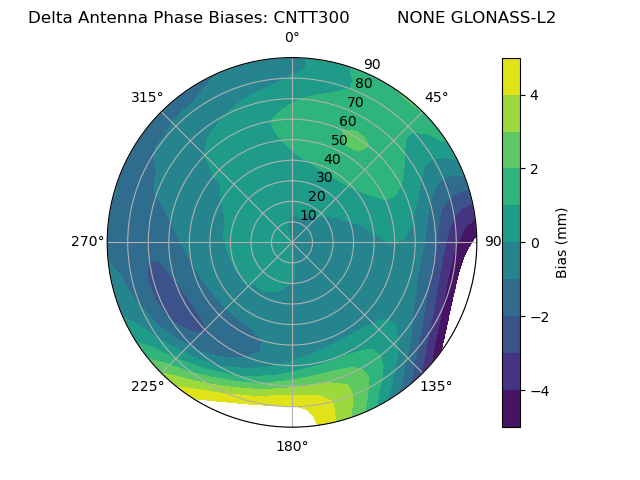

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

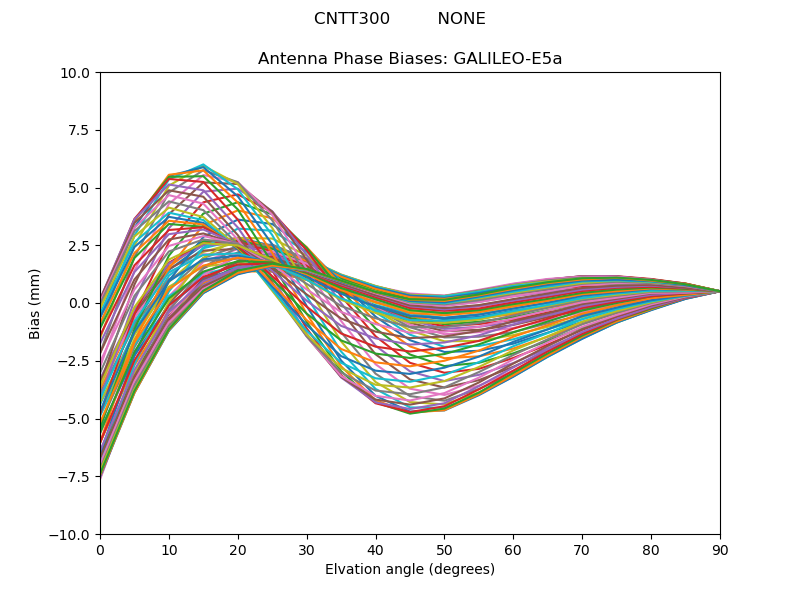

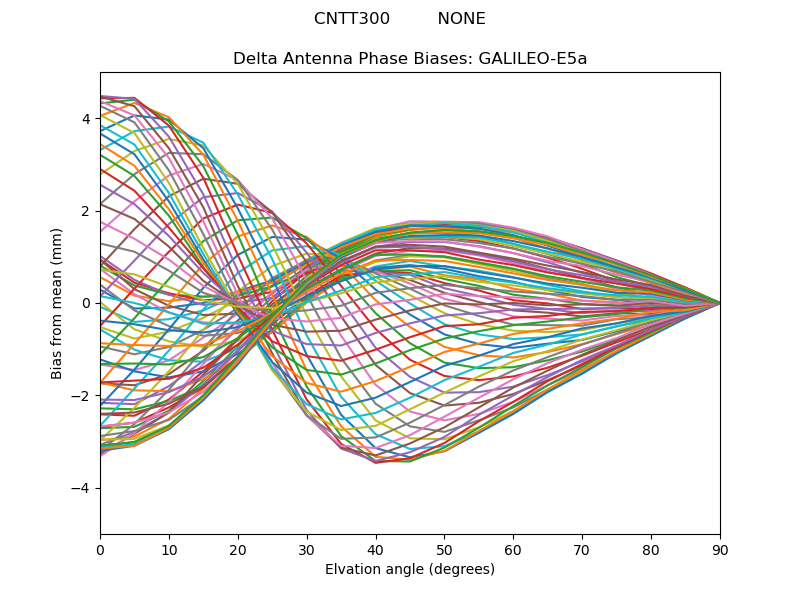

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

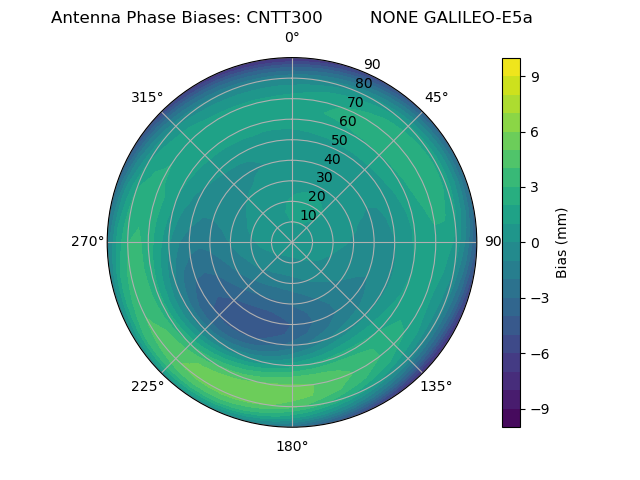

Radial GALILEO-E5aRadial GALILEO-E5a

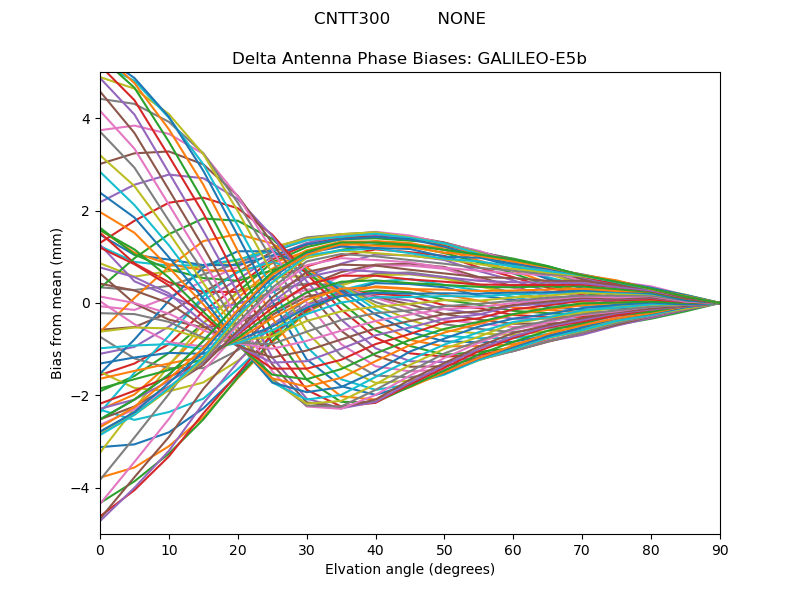

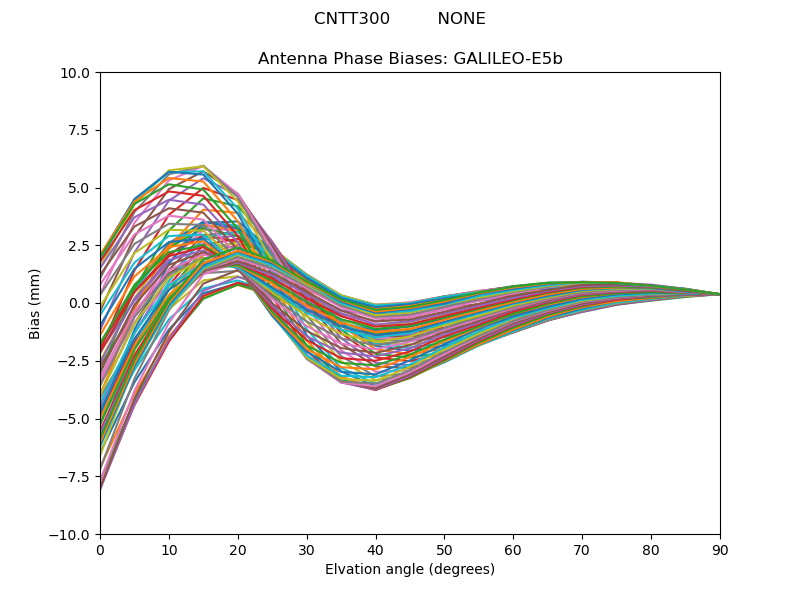

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

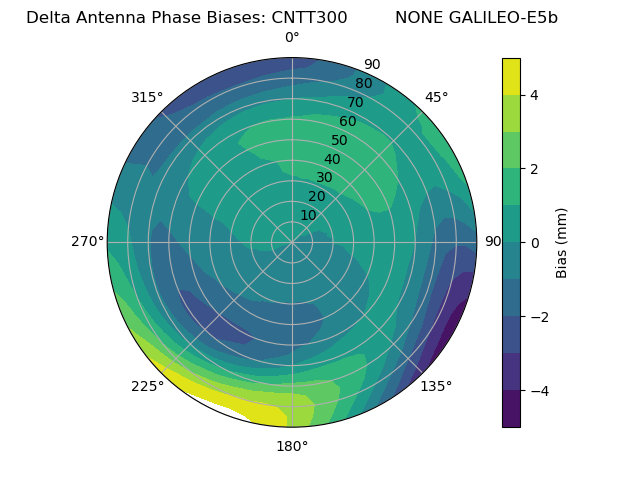

Radial GALILEO-E5bRadial GALILEO-E5b

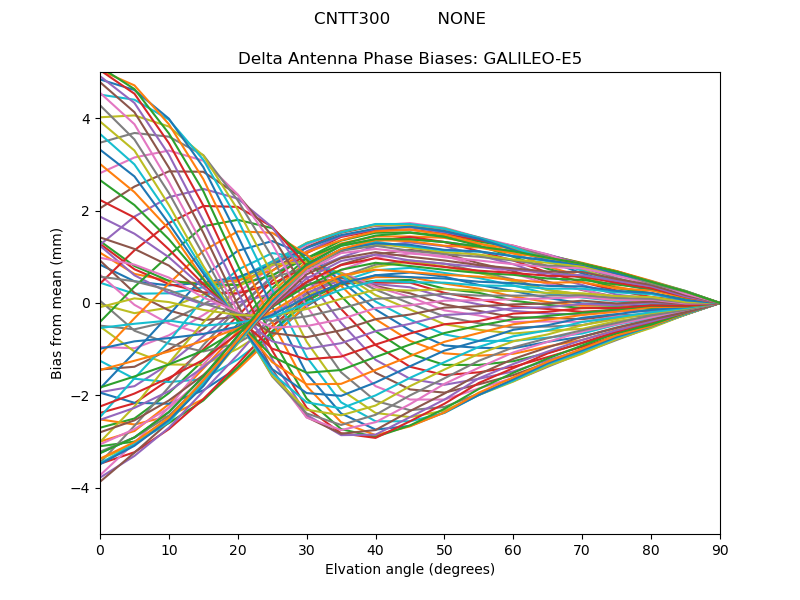

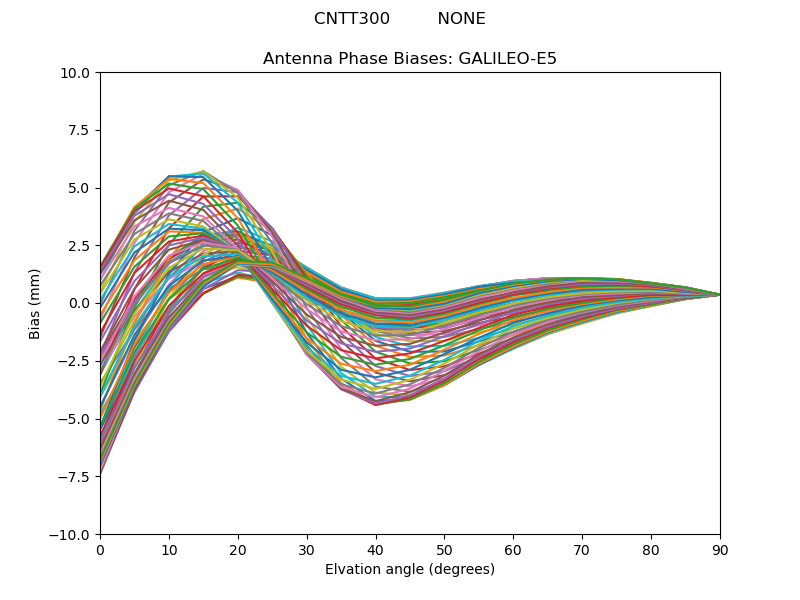

GALILEO-E5

GALILEO-E5GALILEO-E5
Radial GALILEO-E5Radial GALILEO-E5

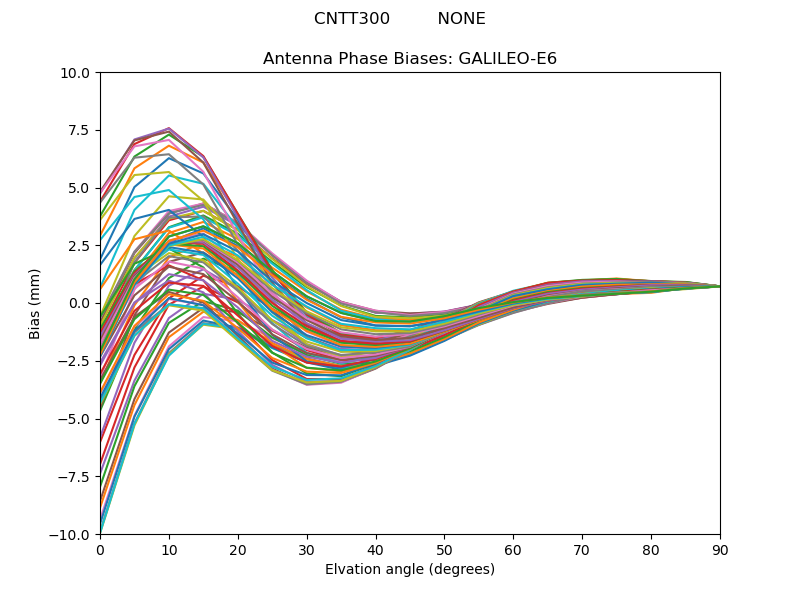

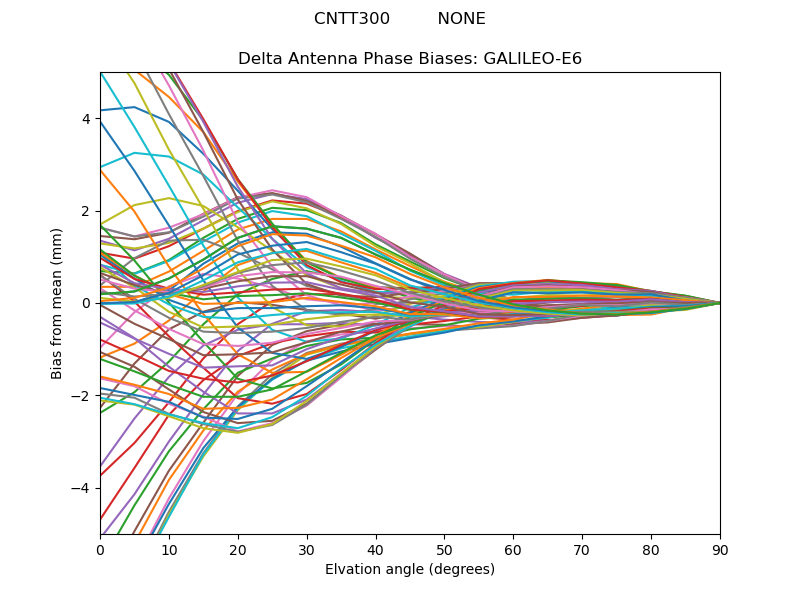

GALILEO-E6

GALILEO-E6GALILEO-E6

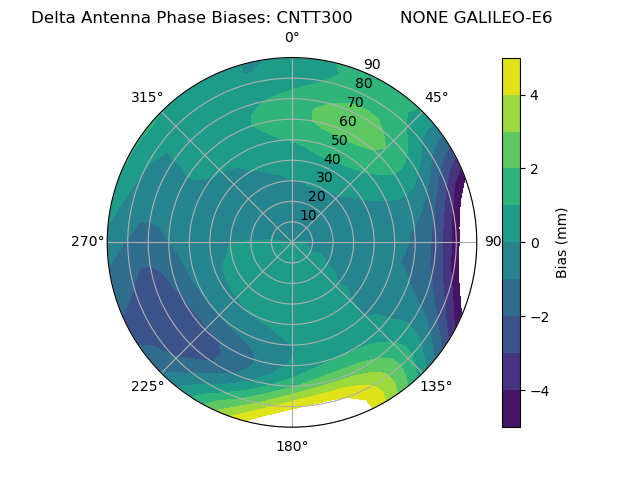

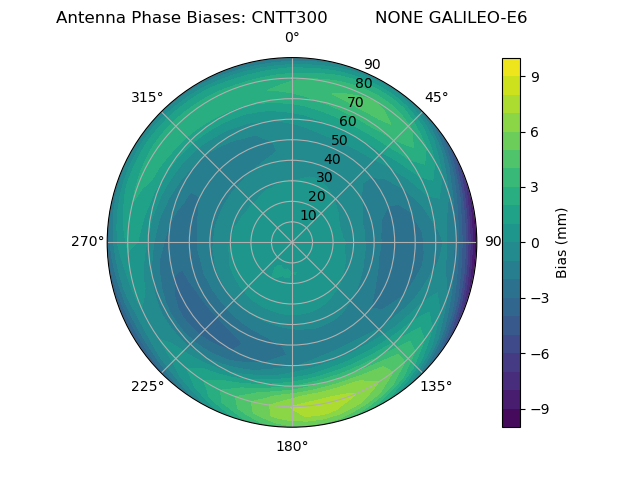

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

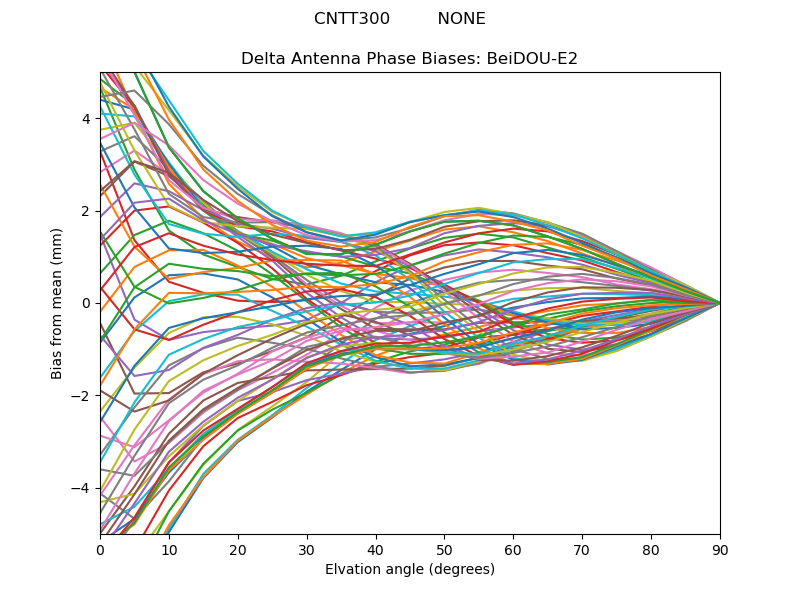

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

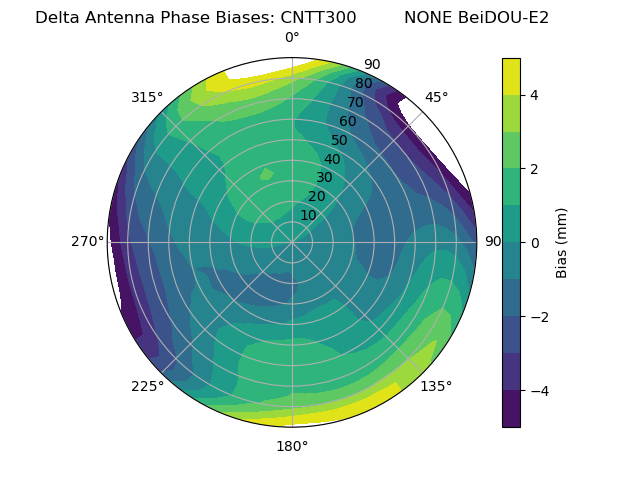

Radial BeiDOU-E2Radial BeiDOU-E2

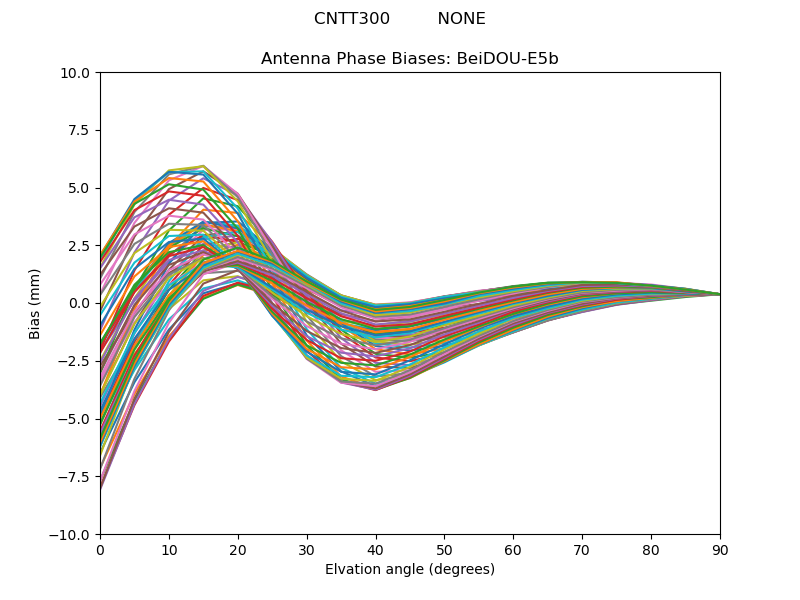

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

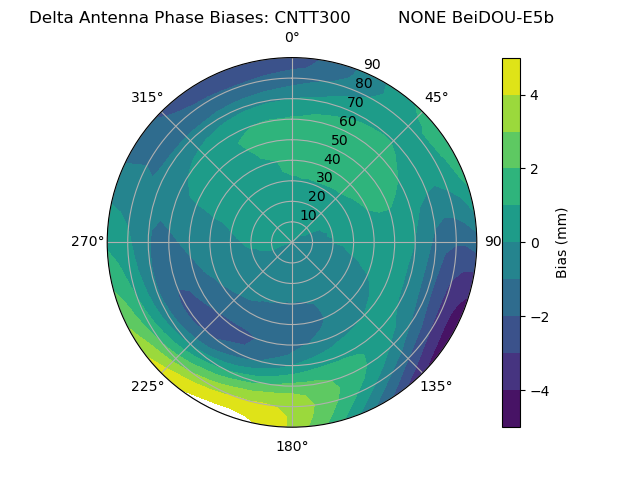

Radial BeiDOU-E5bRadial BeiDOU-E5b

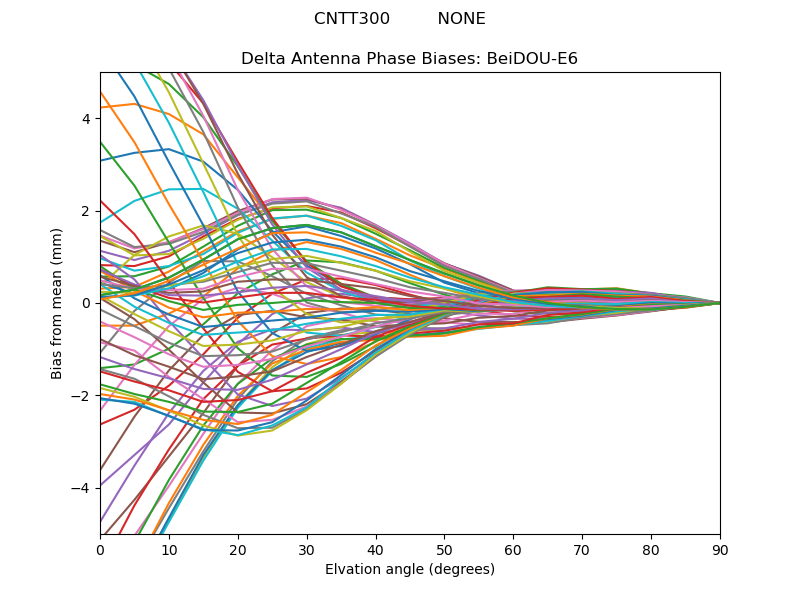

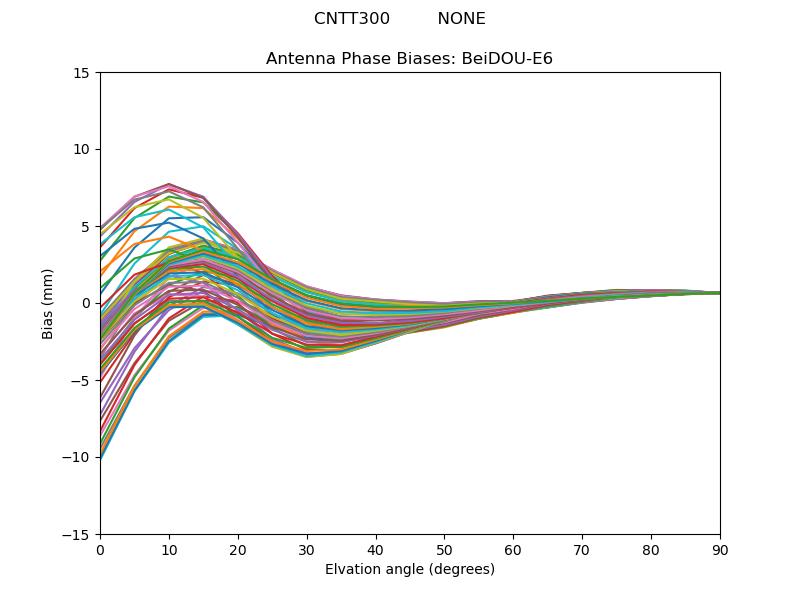

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

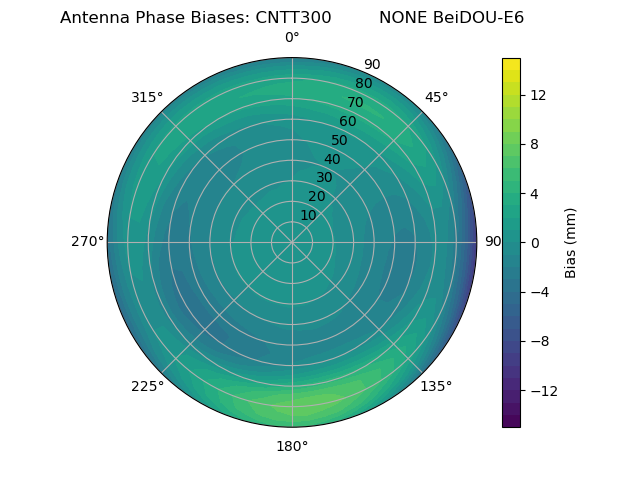

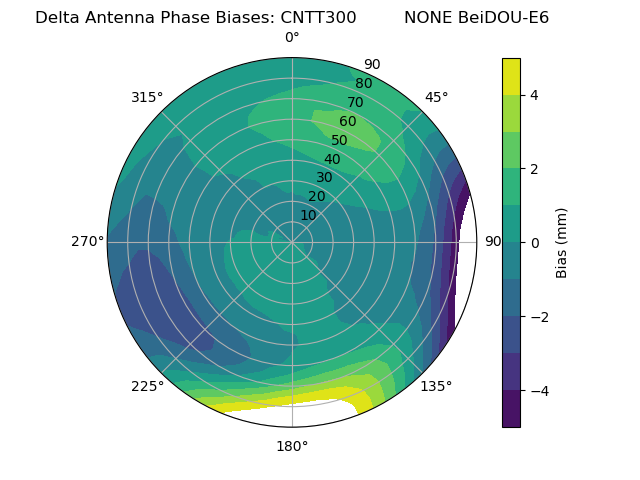

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

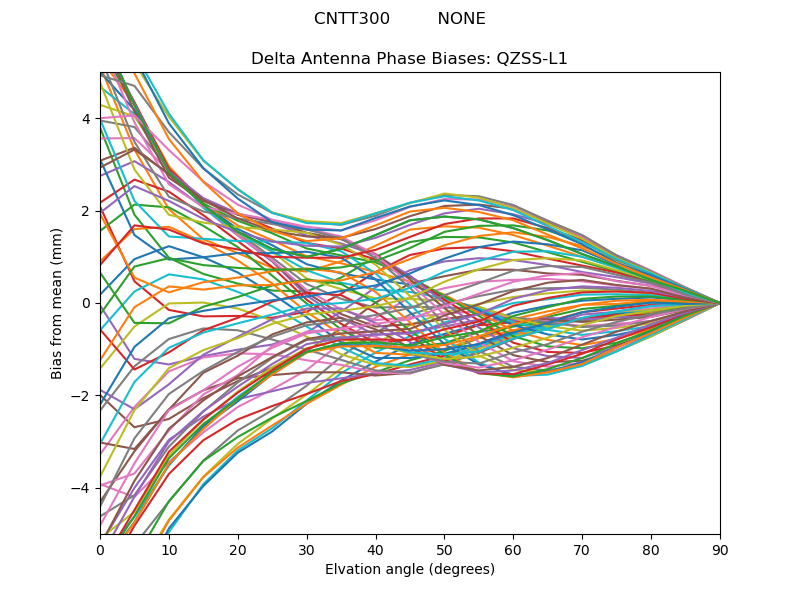

QZSS-L1

QZSS-L1QZSS-L1

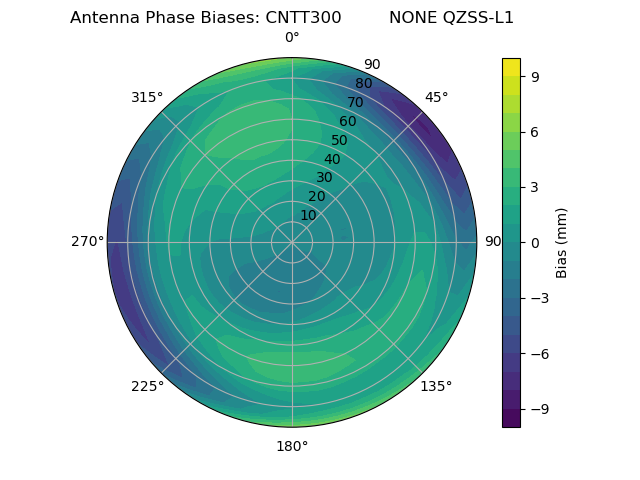

Radial QZSS-L1Radial QZSS-L1

QZSS-L2

QZSS-L2QZSS-L2

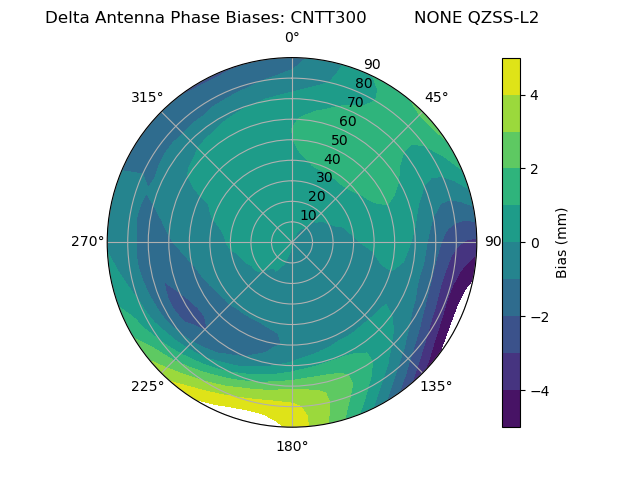

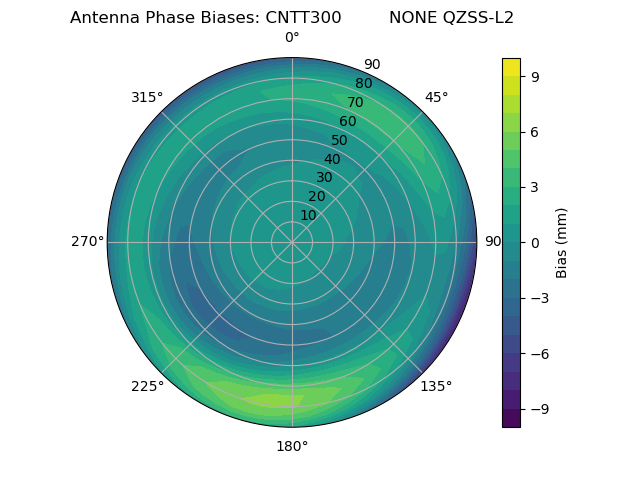

Radial QZSS-L2Radial QZSS-L2

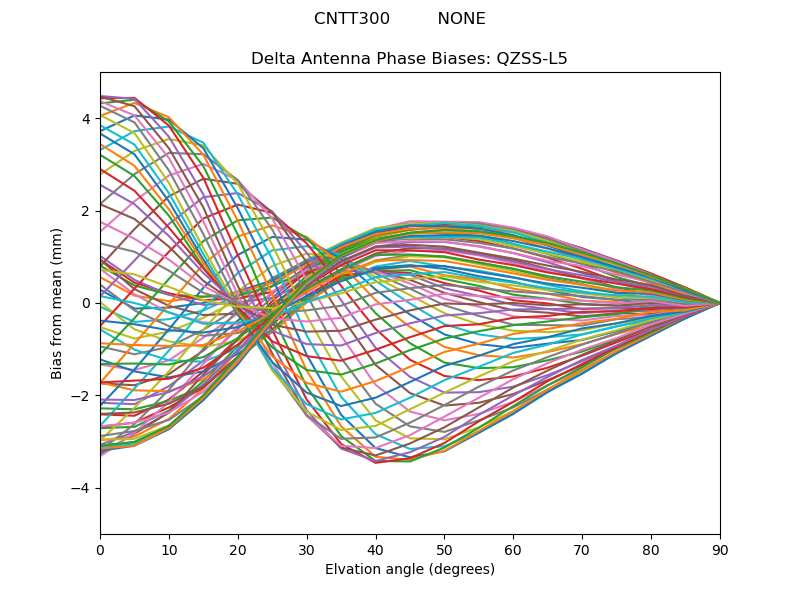

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

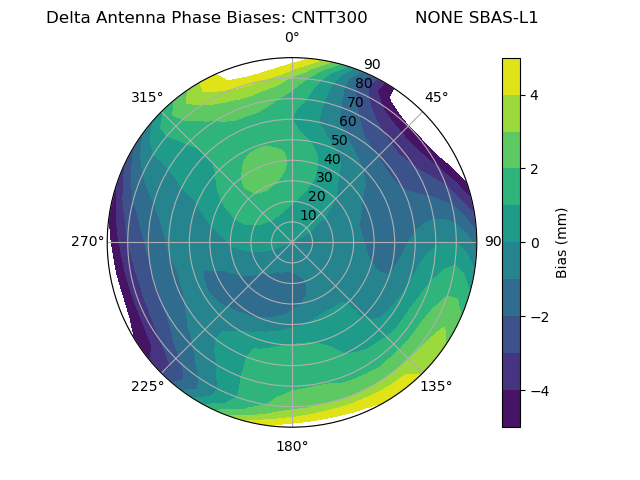

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

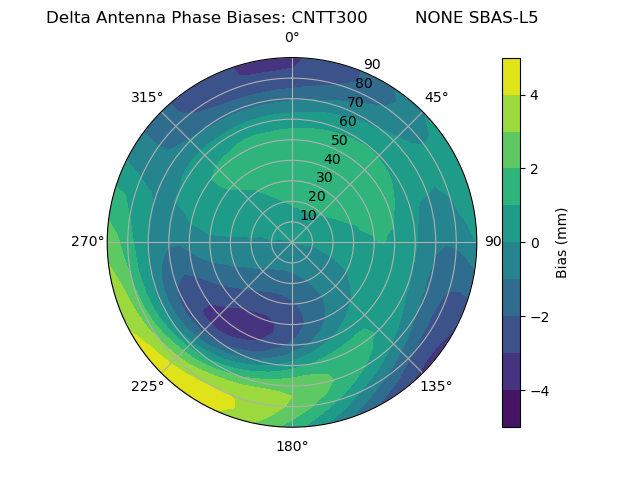

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

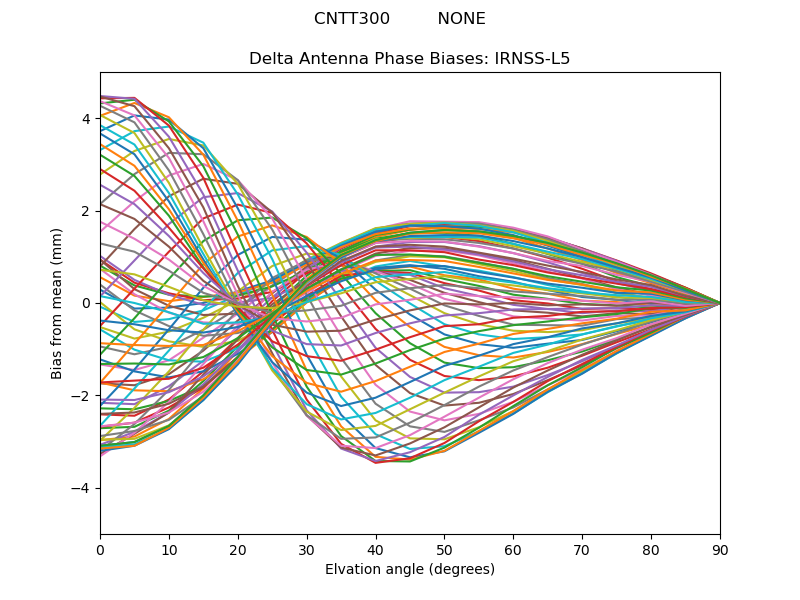

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
