Antenna information for CNTT30 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 1.17 E: -0.66 U: 66.65
L2: N: 4.06 E: 0.53 U: 62.34
L5: N: 1.38 E: -1.78 U: 62.81

GLONASS

L1: N: 0.61 E: -0.44 U: 67.92
L2: N: 2.59 E: 3.70 U: 66.16

GALILEO

E1: N: 1.17 E: -0.66 U: 66.65
E5a: N: 1.38 E: -1.78 U: 62.81
E5b: N: 2.24 E: -1.54 U: 61.94
E5: N: 1.73 E: -1.74 U: 61.79
E6: N: -4.26 E: -5.93 U: 65.38

BeiDou

E1: N: 1.17 E: -0.66 U: 66.65
E2: N: 1.49 E: -0.77 U: 67.66
E5b: N: 2.24 E: -1.54 U: 61.94
E6: N: -2.50 E: -4.49 U: 65.70

QZSS

L1: N: 1.17 E: -0.66 U: 66.65
L2: N: 4.06 E: 0.53 U: 62.34
L5: N: 1.38 E: -1.78 U: 62.81
LEX: N: -4.26 E: -5.93 U: 65.38

IRNSS

L5: N: 1.38 E: -1.78 U: 62.81

SBAS

L1: N: 1.17 E: -0.66 U: 66.65
L5: N: 1.38 E: -1.78 U: 62.81

L1

GPS: N: 1.17 E: -0.66 U: 66.65
GLONASS: N: 0.61 E: -0.44 U: 67.92
QZSS: N: 1.17 E: -0.66 U: 66.65
SBAS: N: 1.17 E: -0.66 U: 66.65

L2

GPS: N: 4.06 E: 0.53 U: 62.34
GLONASS: N: 2.59 E: 3.70 U: 66.16
QZSS: N: 4.06 E: 0.53 U: 62.34

L5

GPS: N: 1.38 E: -1.78 U: 62.81
QZSS: N: 1.38 E: -1.78 U: 62.81
SBAS: N: 1.38 E: -1.78 U: 62.81
IRNSS: N: 1.38 E: -1.78 U: 62.81

E1

GALILEO: N: 1.17 E: -0.66 U: 66.65
BeiDou: N: 1.17 E: -0.66 U: 66.65

E2

BeiDou: N: 1.49 E: -0.77 U: 67.66

E5

GALILEO: N: 1.73 E: -1.74 U: 61.79

E5a

GALILEO: N: 1.38 E: -1.78 U: 62.81

E5b

GALILEO: N: 2.24 E: -1.54 U: 61.94
BeiDou: N: 2.24 E: -1.54 U: 61.94

E6

GALILEO: N: -4.26 E: -5.93 U: 65.38
BeiDou: N: -2.50 E: -4.49 U: 65.70

LEX

QZSS: N: -4.26 E: -5.93 U: 65.38


Means

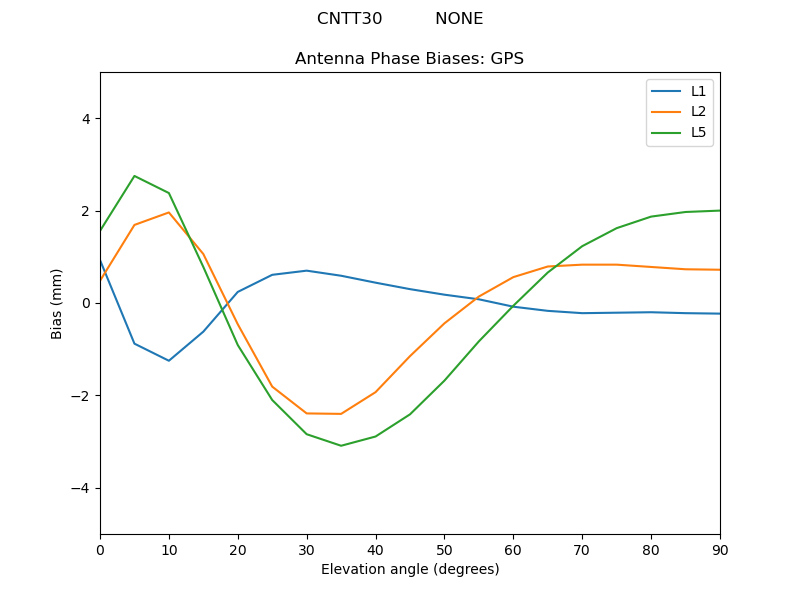

GPS

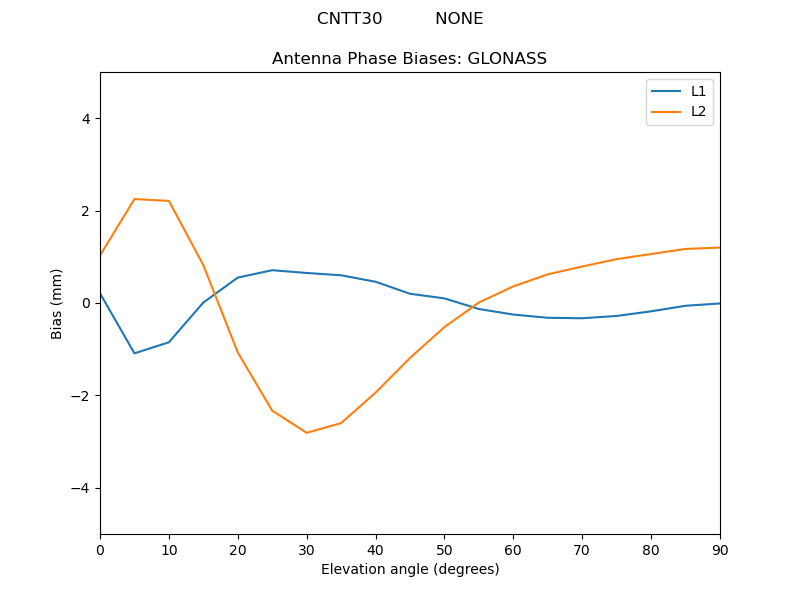

GLONASS

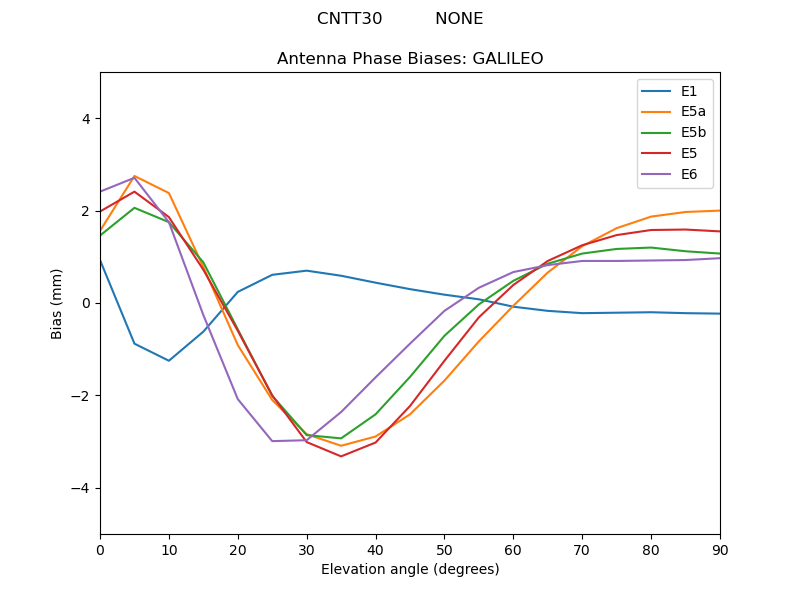

GALILEO


BeiDOU


QZSS

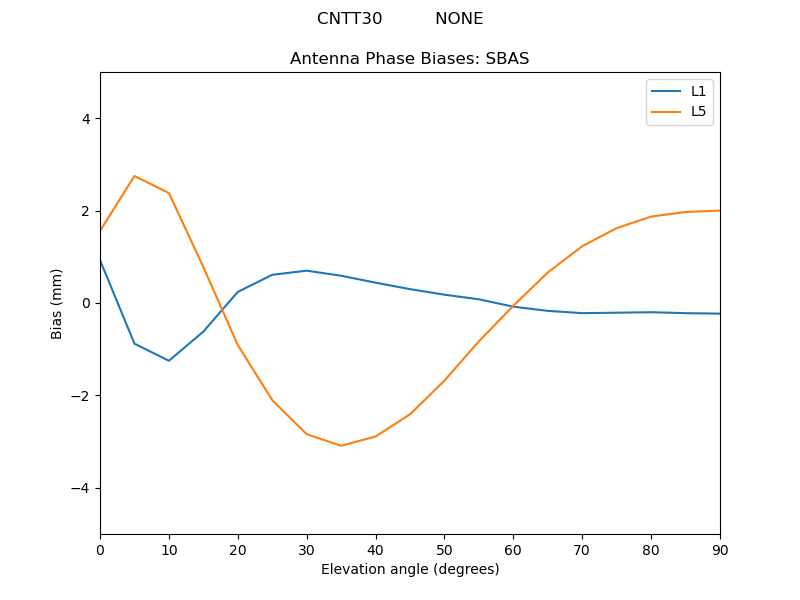

SBAS

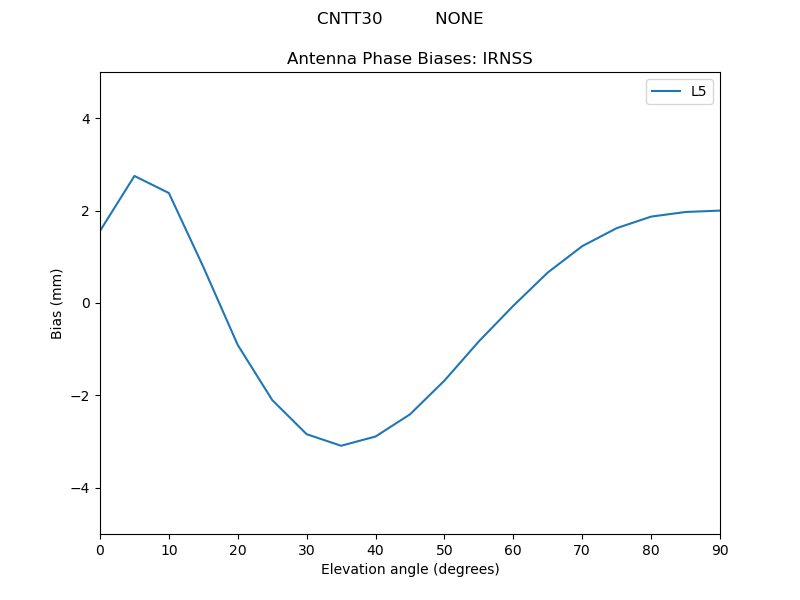

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

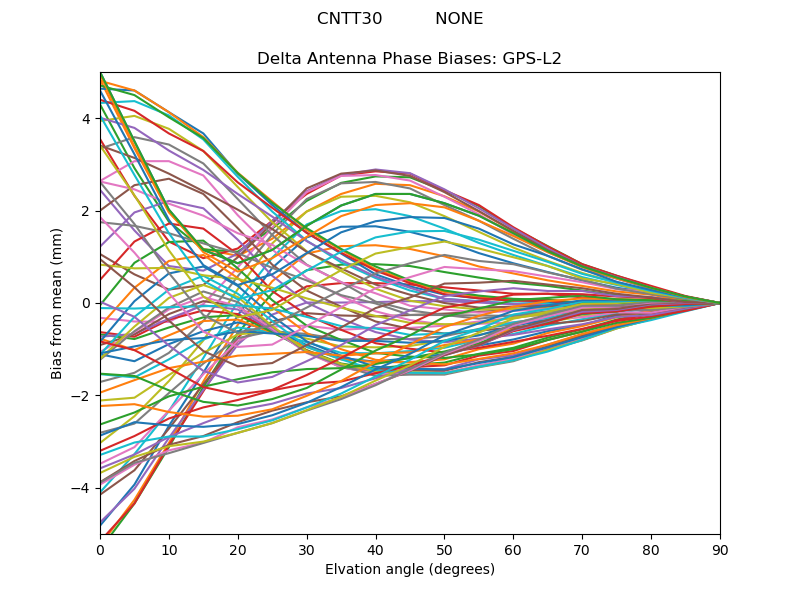

GPS-L2

GPS-L2GPS-L2

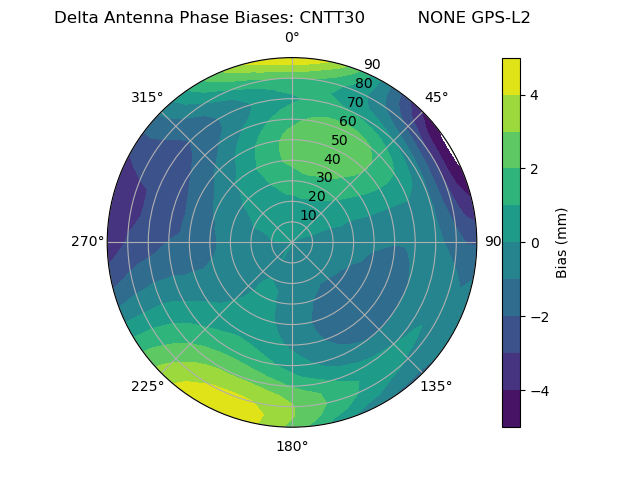

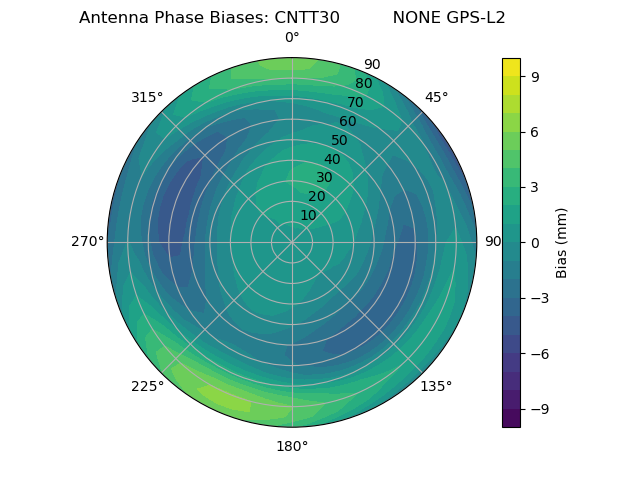

Radial GPS-L2Radial GPS-L2

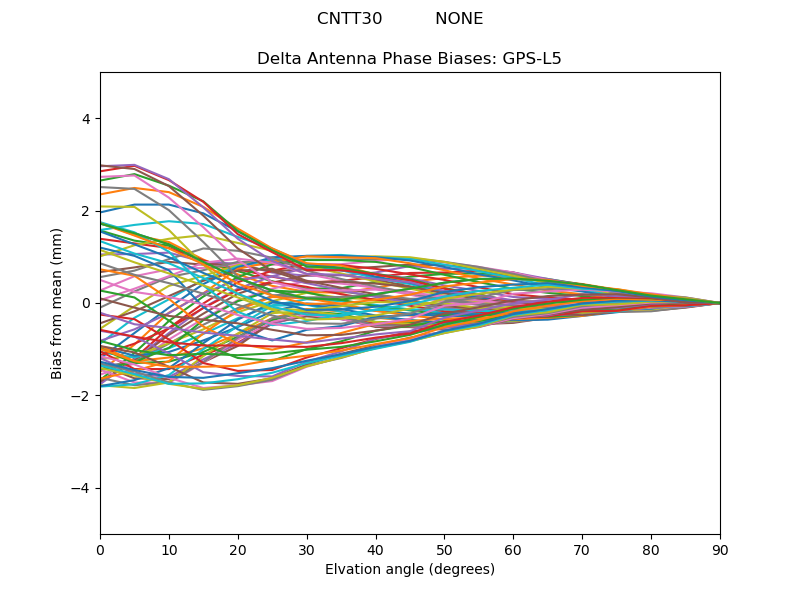

GPS-L5

GPS-L5GPS-L5

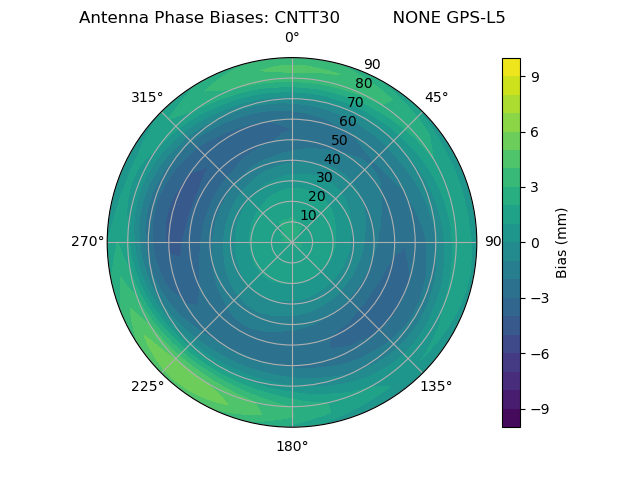

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

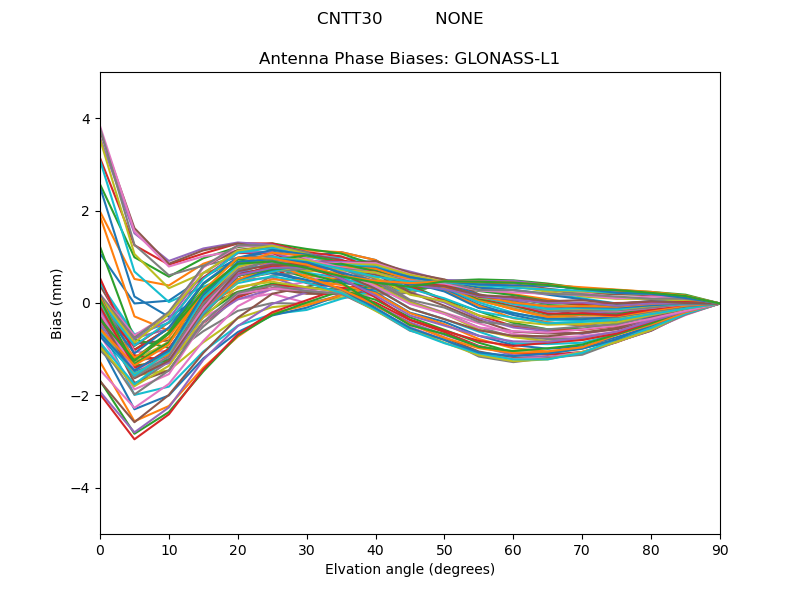

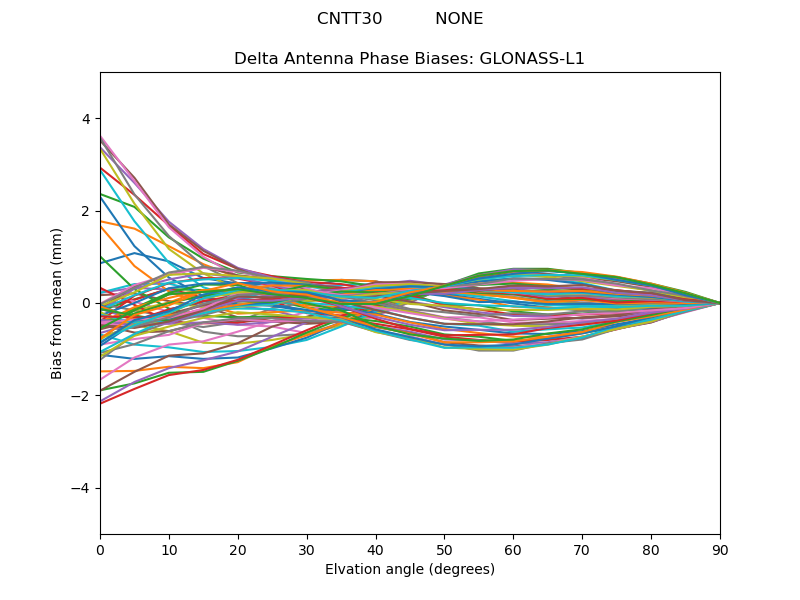

GLONASS-L1

GLONASS-L1GLONASS-L1

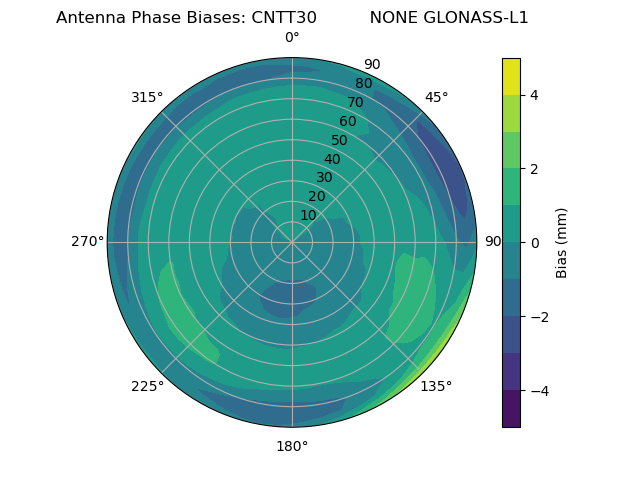

Radial GLONASS-L1Radial GLONASS-L1

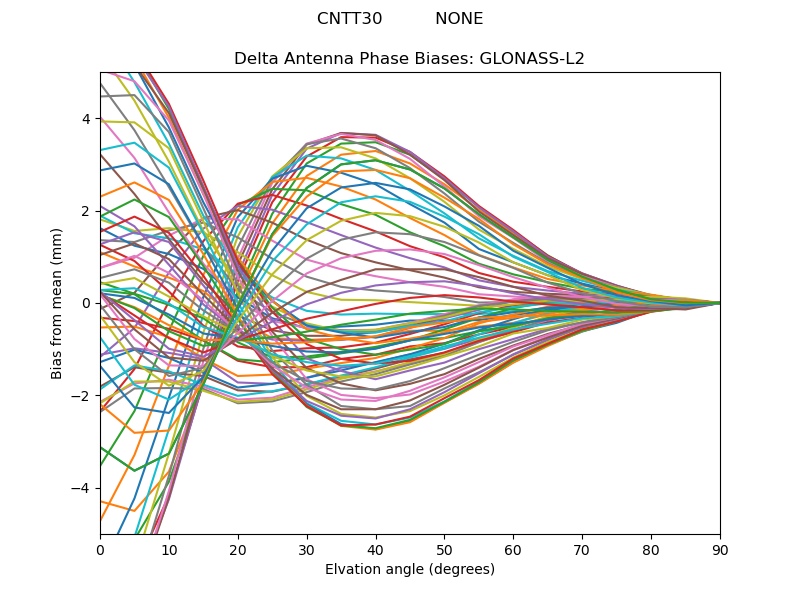

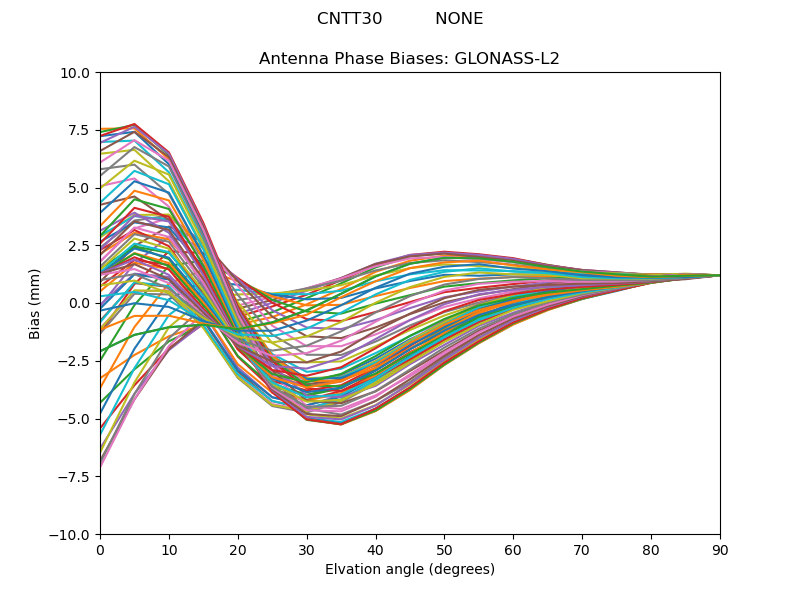

GLONASS-L2

GLONASS-L2GLONASS-L2

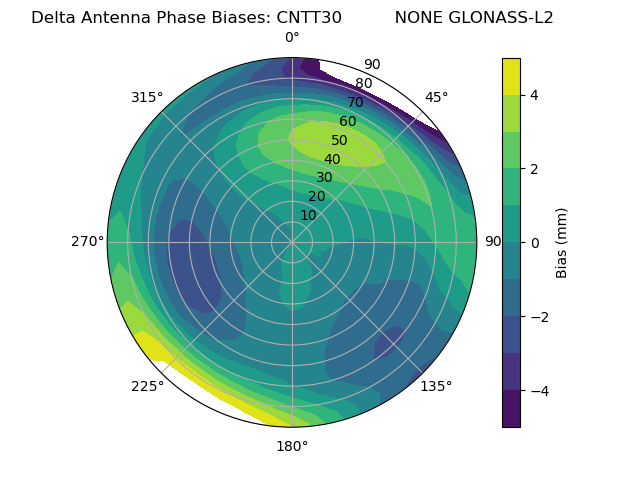

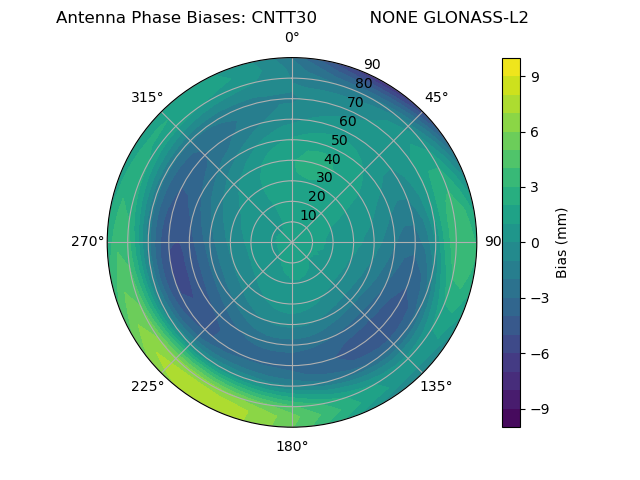

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

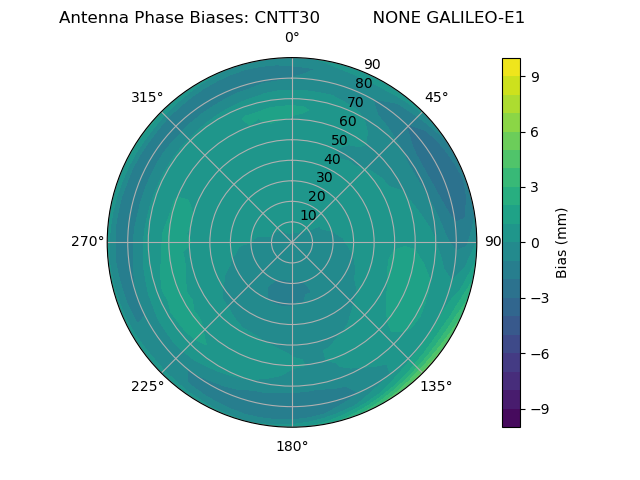

Radial GALILEO-E1Radial GALILEO-E1

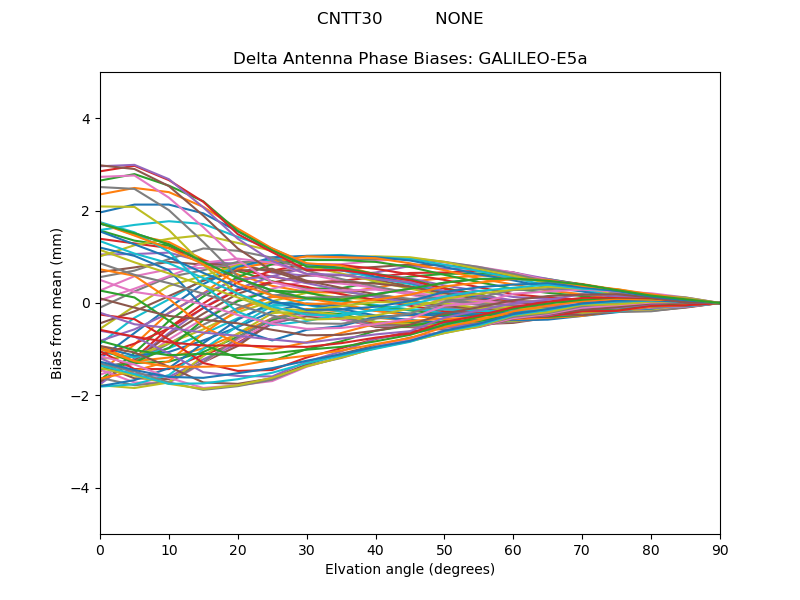

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

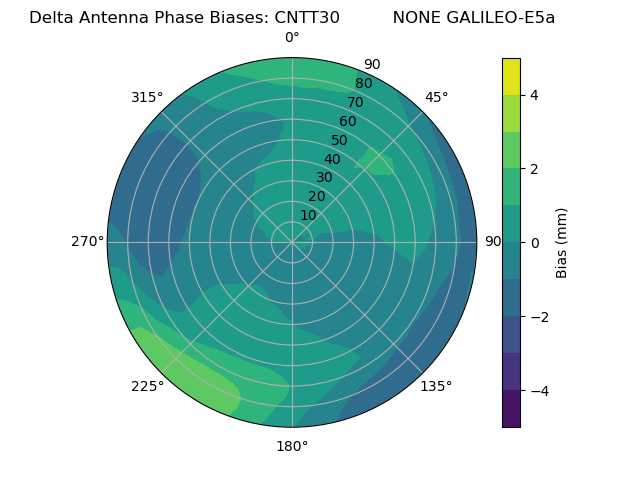

Radial GALILEO-E5aRadial GALILEO-E5a

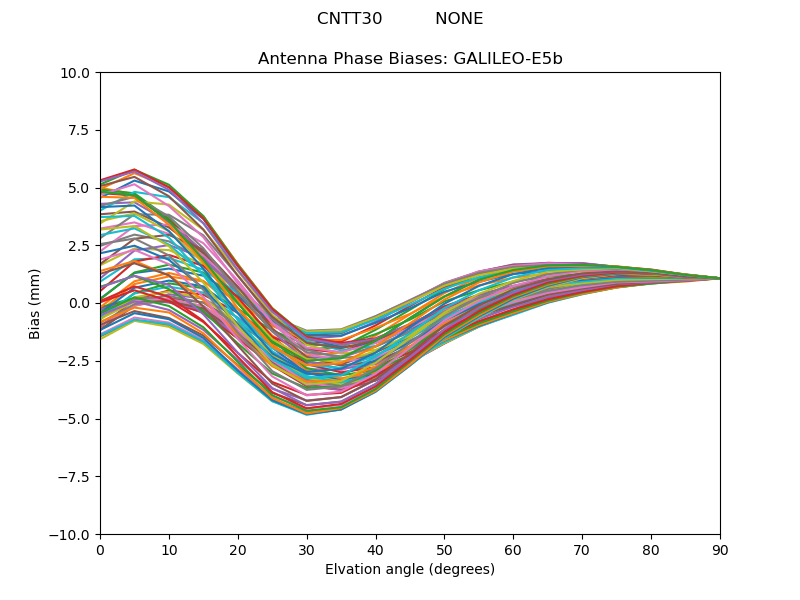

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

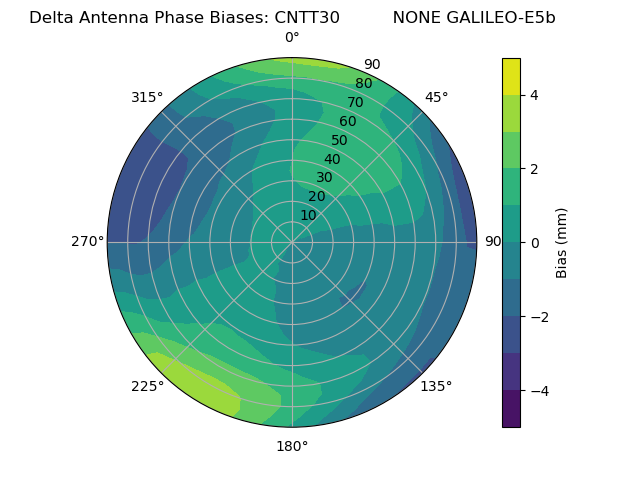

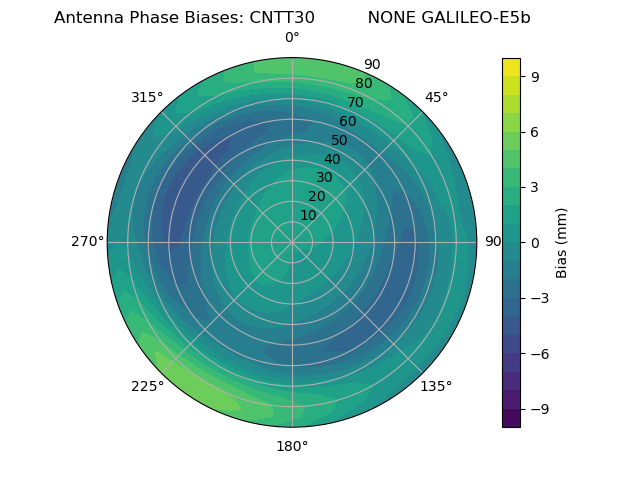

Radial GALILEO-E5bRadial GALILEO-E5b

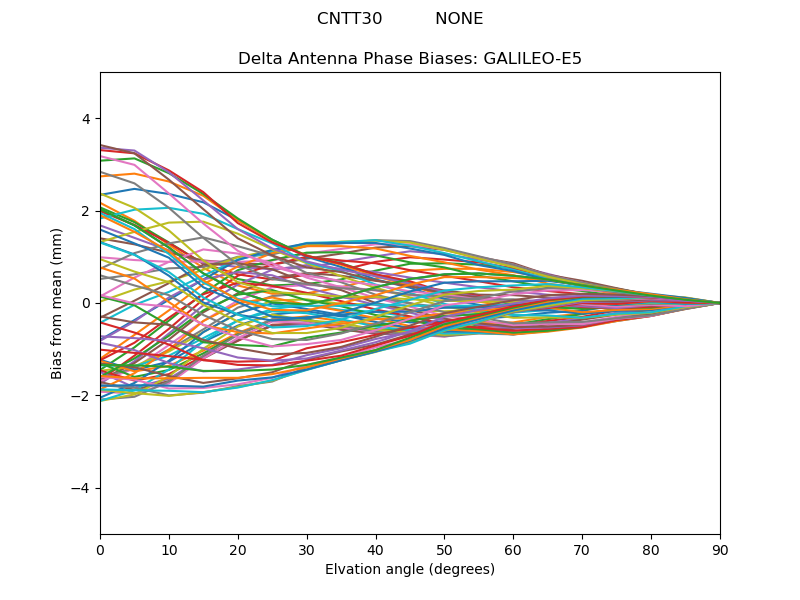

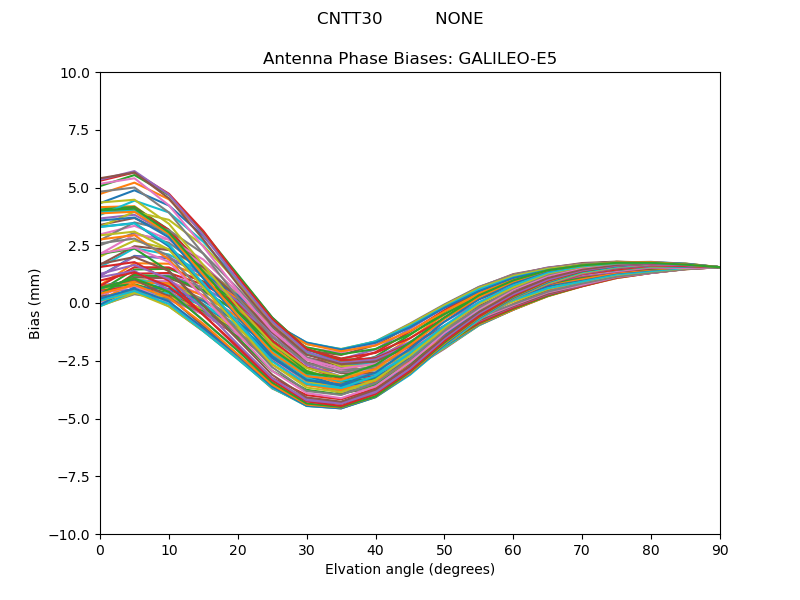

GALILEO-E5

GALILEO-E5GALILEO-E5

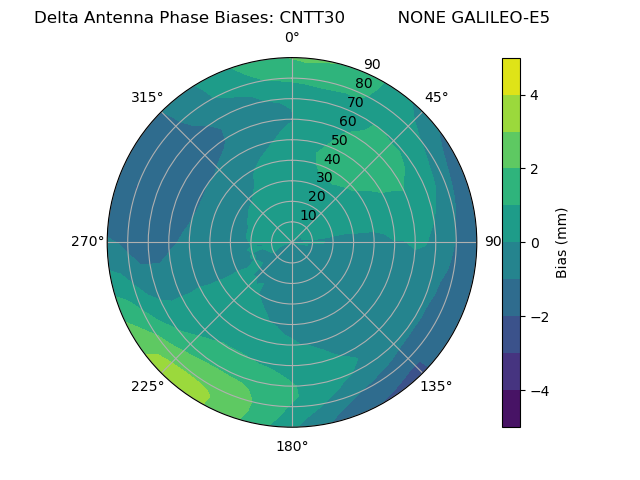

Radial GALILEO-E5Radial GALILEO-E5

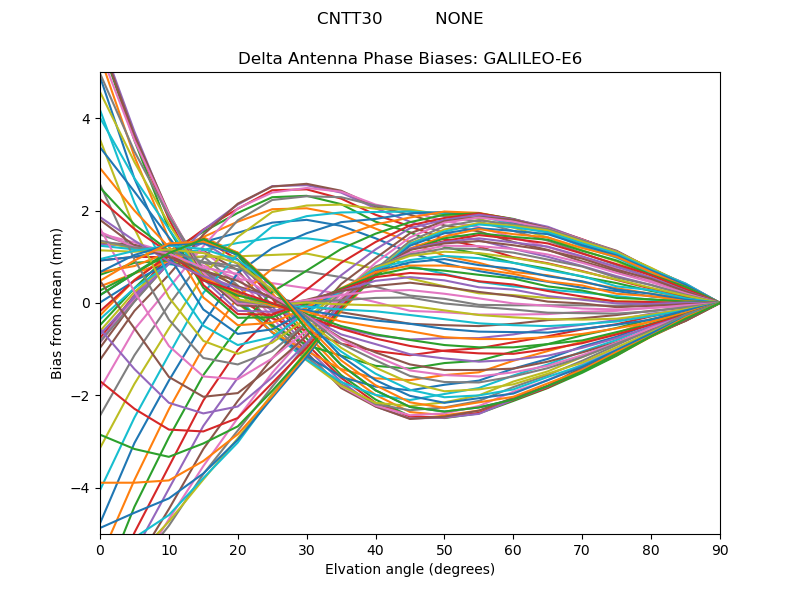

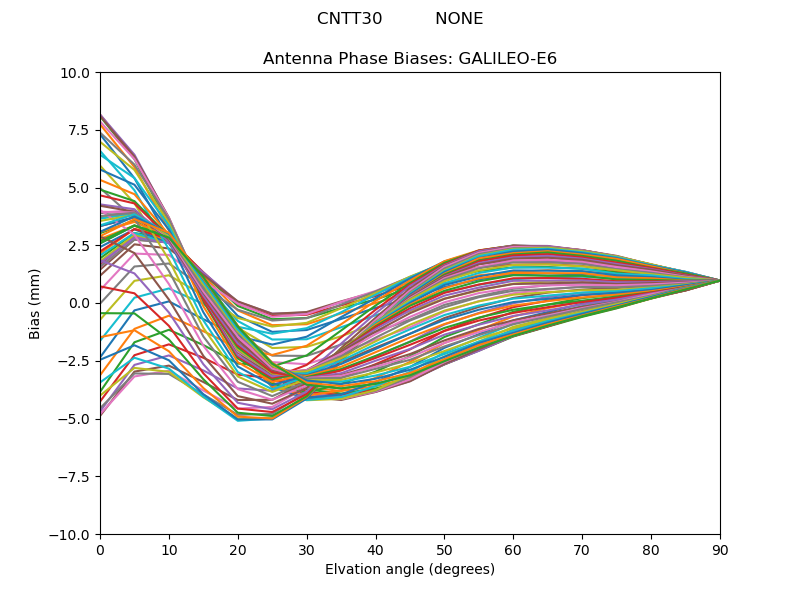

GALILEO-E6

GALILEO-E6GALILEO-E6

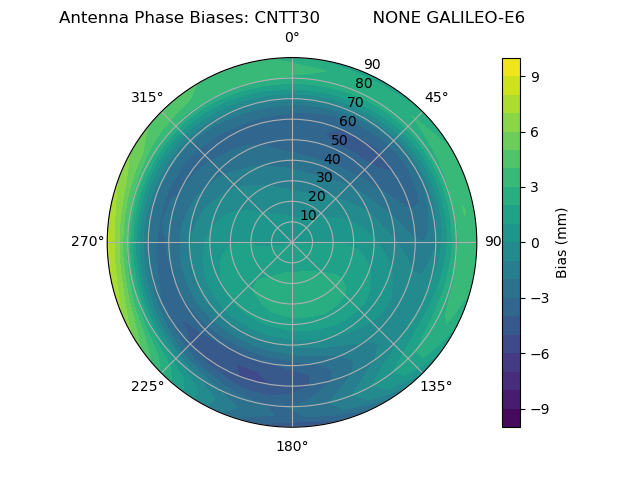

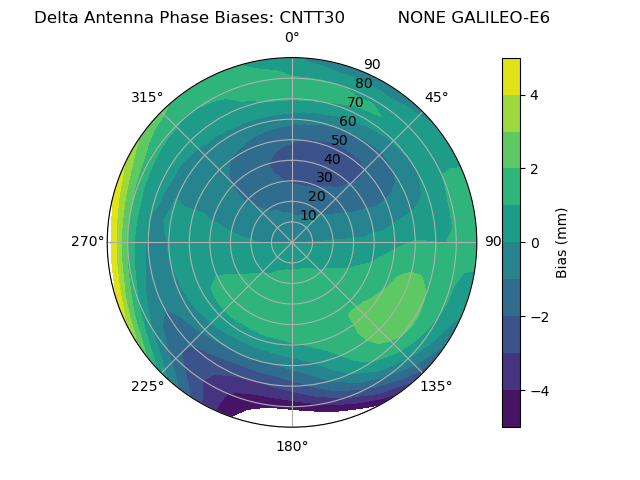

Radial GALILEO-E6Radial GALILEO-E6

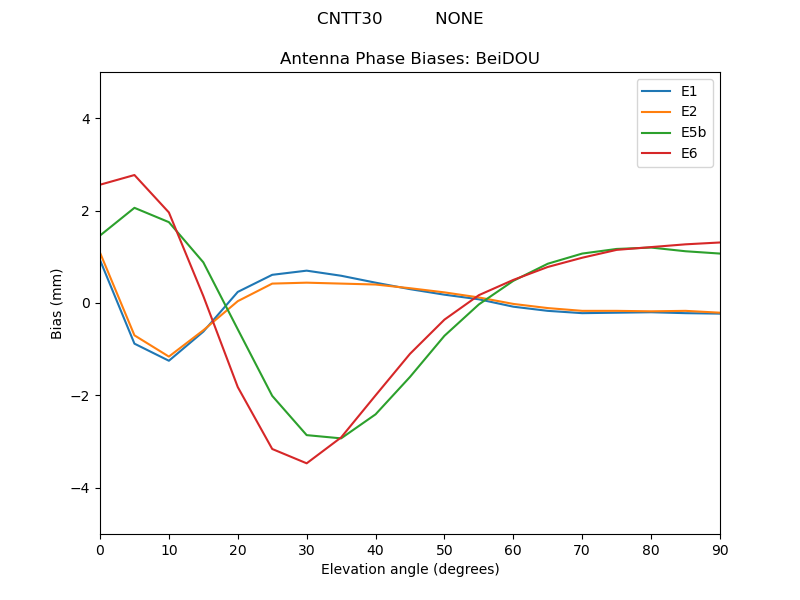

BeiDOU


Bias Delta

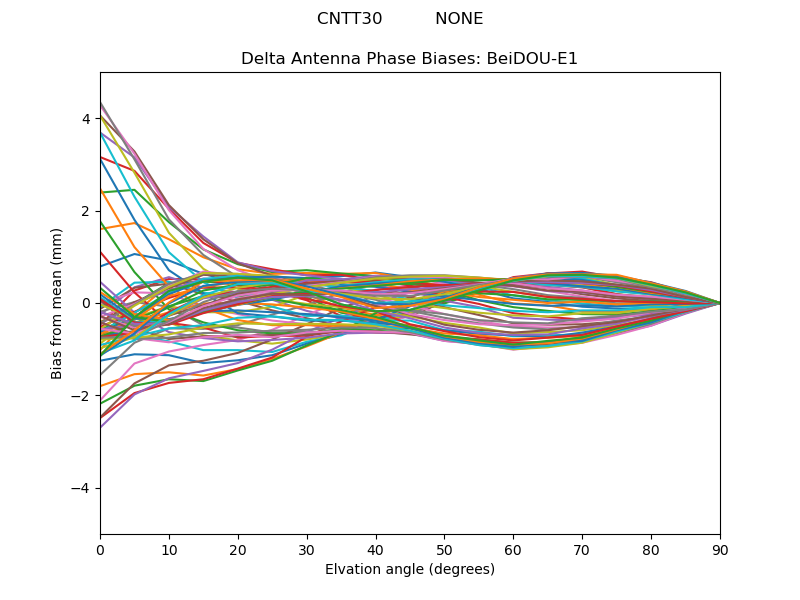

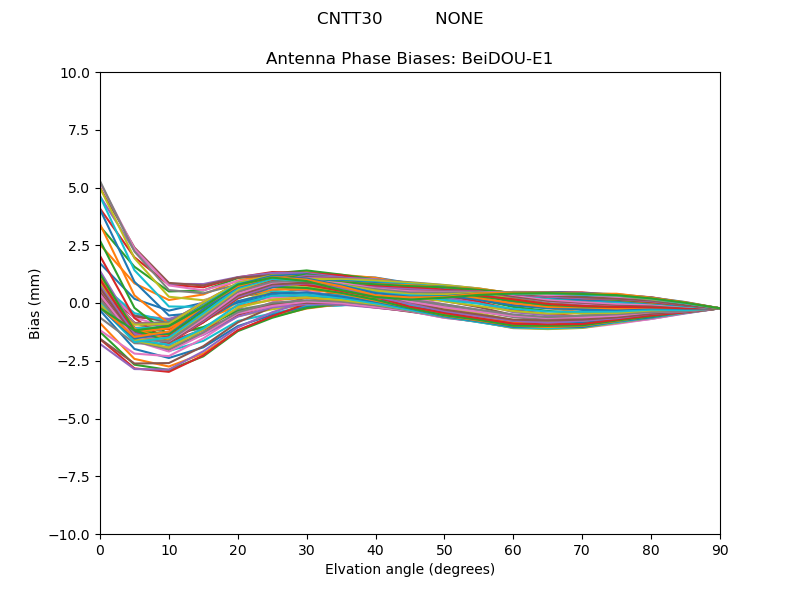

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

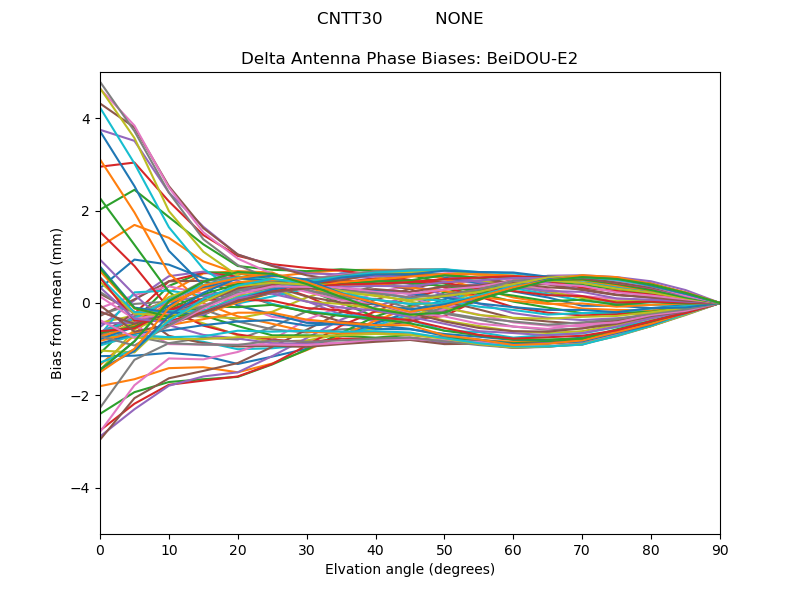

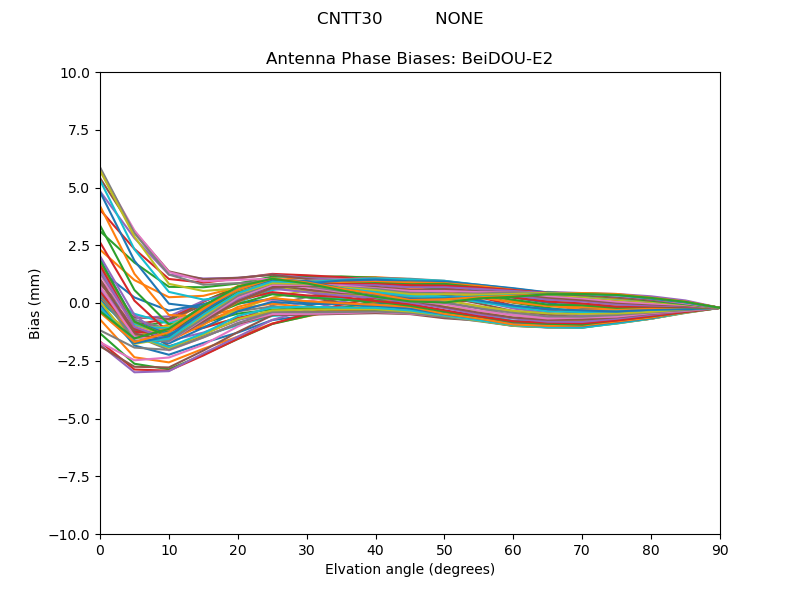

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

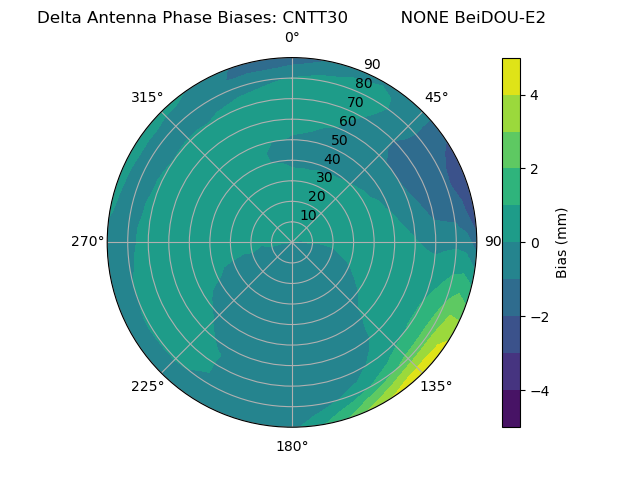

Radial BeiDOU-E2Radial BeiDOU-E2

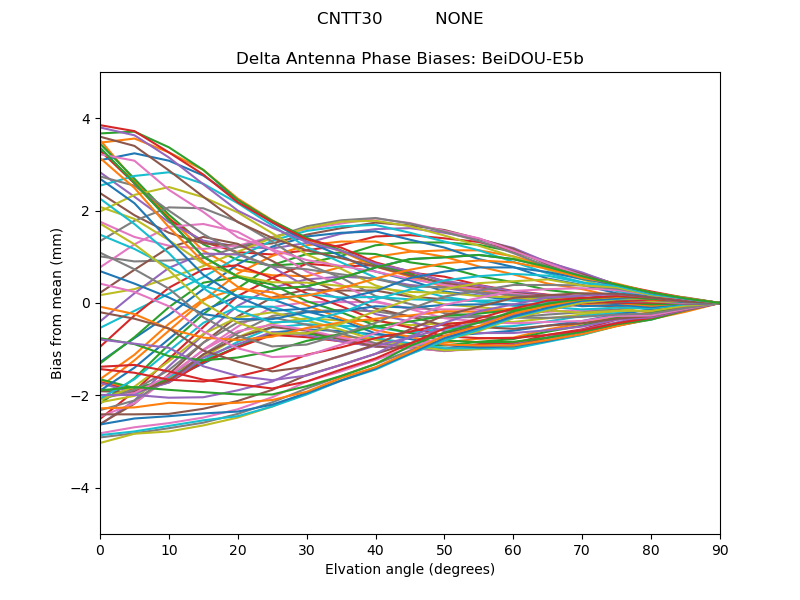

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b
Radial BeiDOU-E5bRadial BeiDOU-E5b

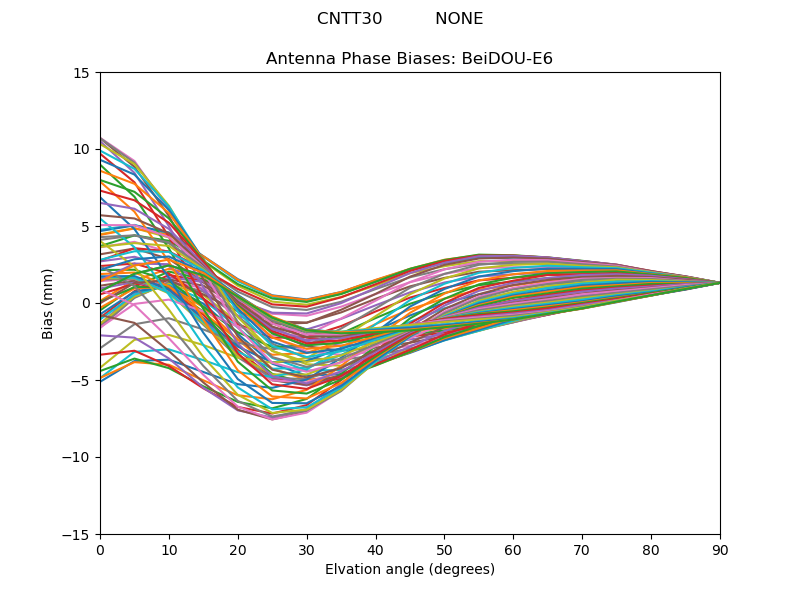

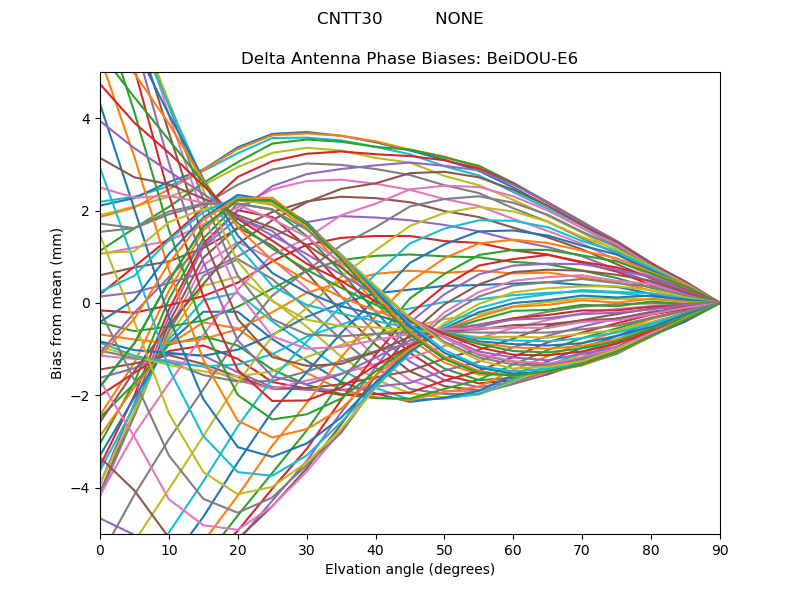

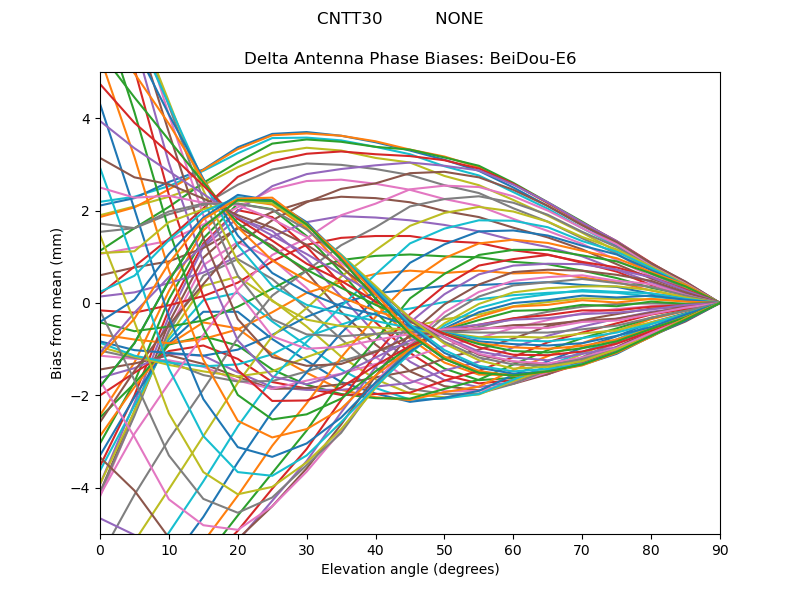

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

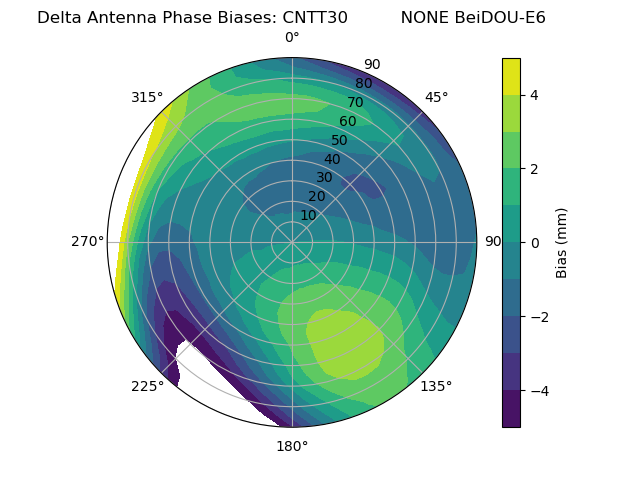

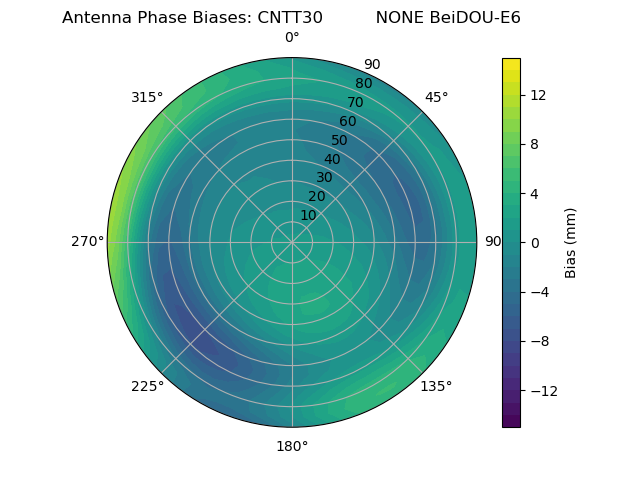

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

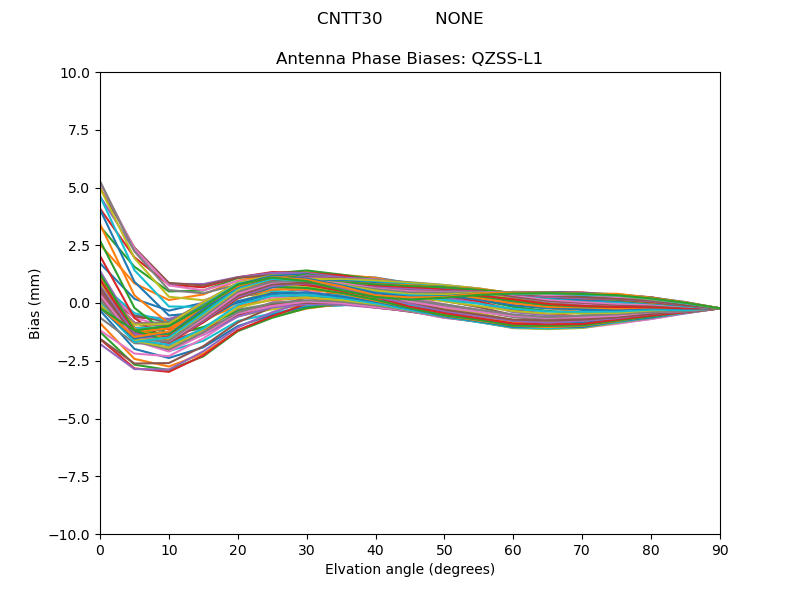

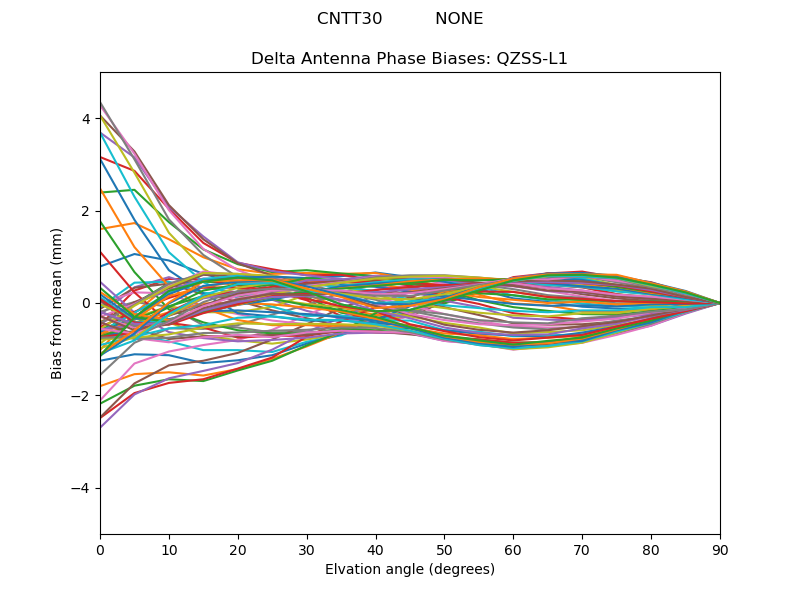

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

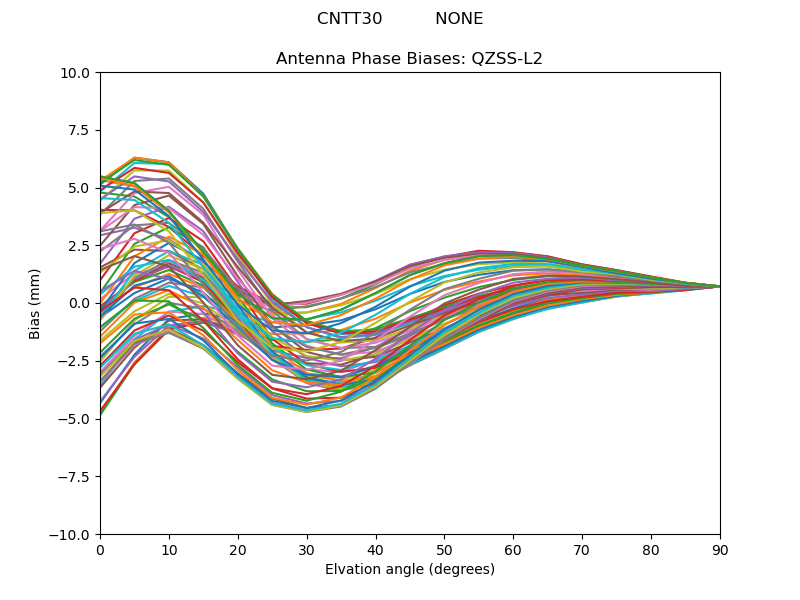

QZSS-L2

QZSS-L2QZSS-L2

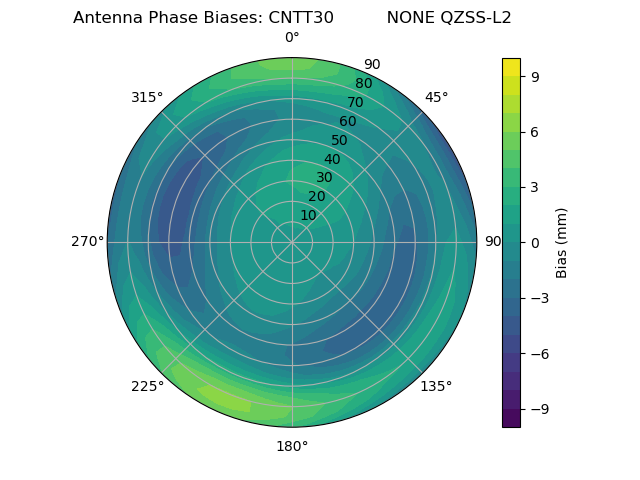

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

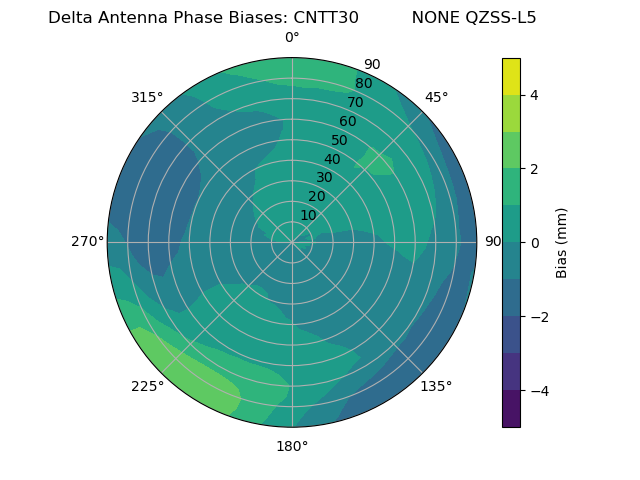

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

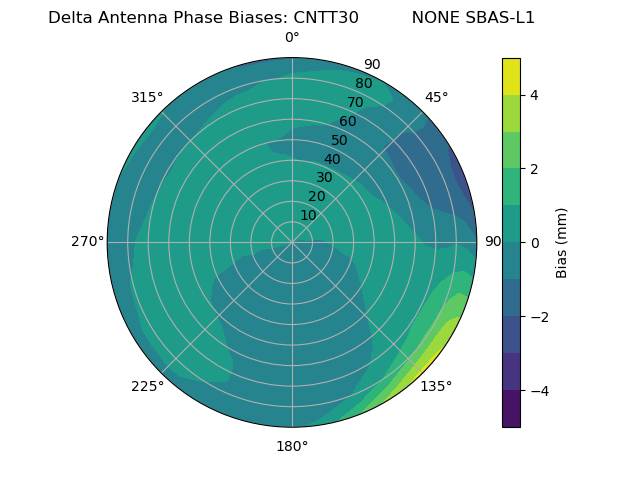

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

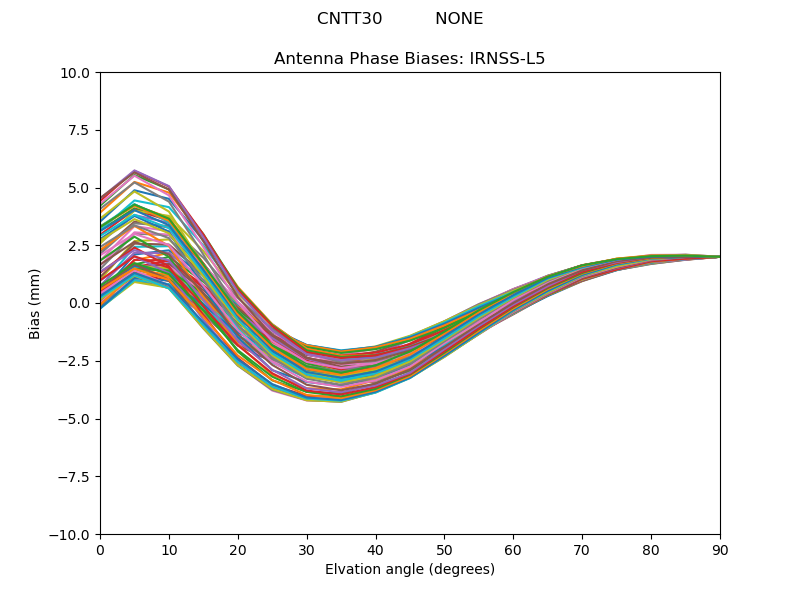

IRNSS-L5

IRNSS-L5IRNSS-L5

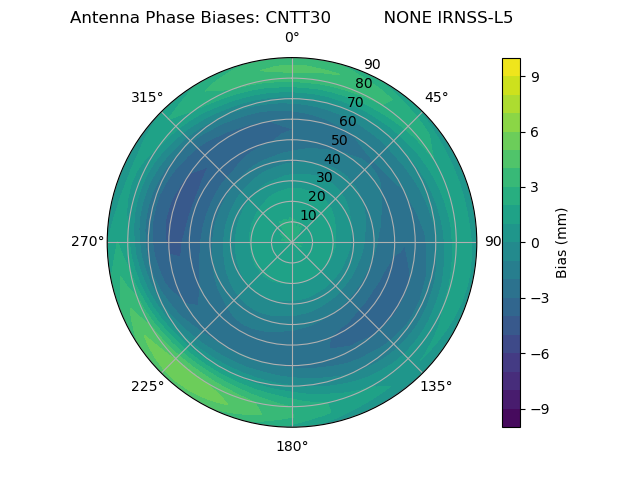

Radial IRNSS-L5Radial IRNSS-L5
