Antenna information for GING40 NONE

Antenna Offsets

SV System	Bands
GPS L1: N: -0.01 E: 1.36 U: 67.74 L2: N: -0.90 E: 0.51 U: 65.54 GLONASS L1: N: 0.59 E: 1.81 U: 67.75 L2: N: -0.94 E: 0.37 U: 64.71 GALILEO E1: N: -0.01 E: 1.36 U: 67.74 BeiDou E1: N: -0.01 E: 1.36 U: 67.74 QZSS L1: N: -0.01 E: 1.36 U: 67.74 L2: N: -0.90 E: 0.51 U: 65.54 SBAS L1: N: -0.01 E: 1.36 U: 67.74	L1 GPS: N: -0.01 E: 1.36 U: 67.74 GLONASS: N: 0.59 E: 1.81 U: 67.75 QZSS: N: -0.01 E: 1.36 U: 67.74 SBAS: N: -0.01 E: 1.36 U: 67.74 L2 GPS: N: -0.90 E: 0.51 U: 65.54 GLONASS: N: -0.94 E: 0.37 U: 64.71 QZSS: N: -0.90 E: 0.51 U: 65.54 E1 GALILEO: N: -0.01 E: 1.36 U: 67.74 BeiDou: N: -0.01 E: 1.36 U: 67.74

---

Means

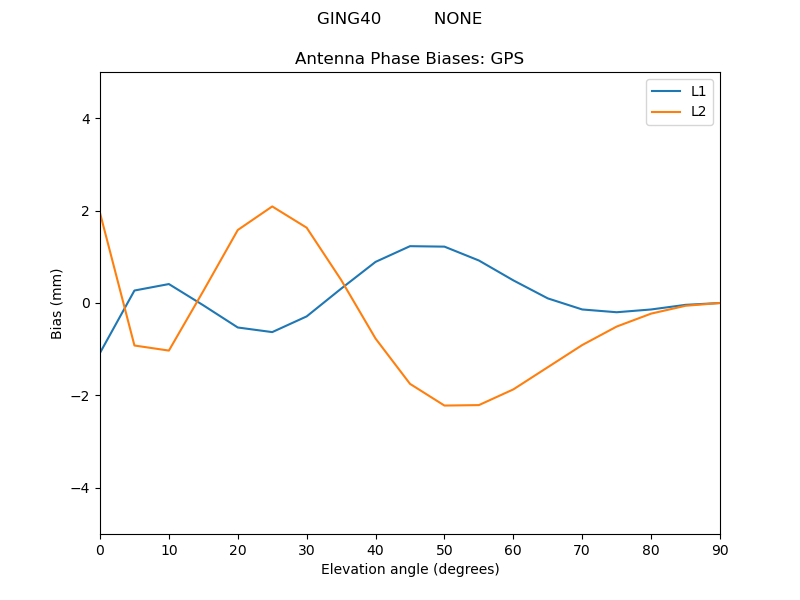

GPS

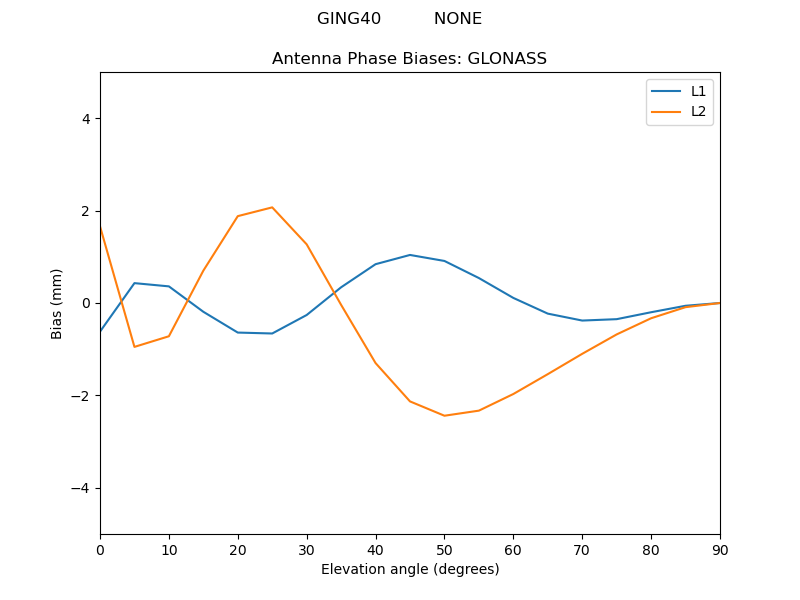

GLONASS

GALILEO

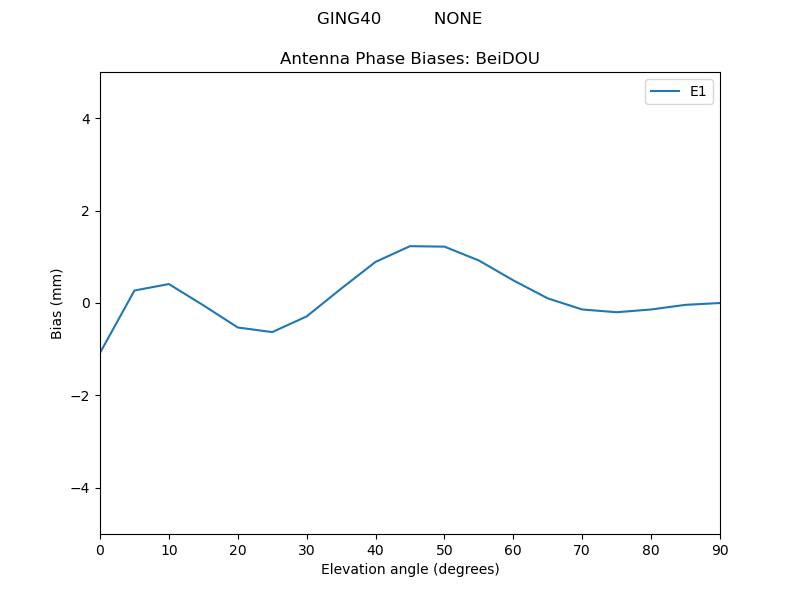

BeiDOU

QZSS

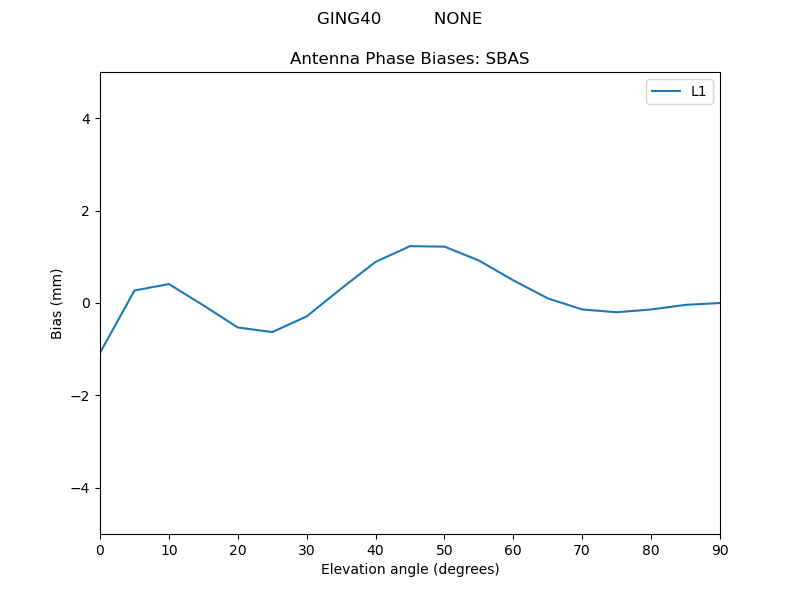

SBAS

Azimuths

GPS

Bias	Delta

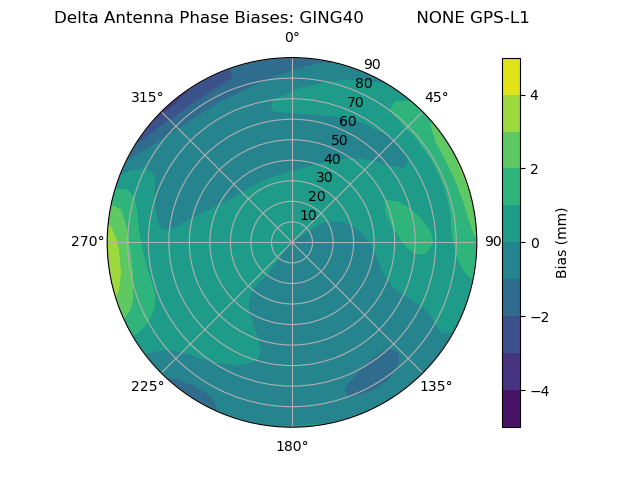

GPS-L1

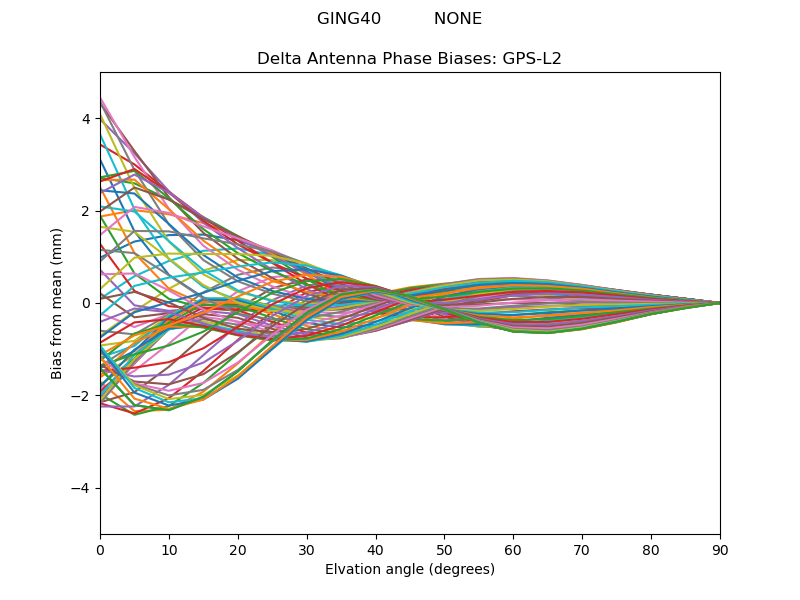

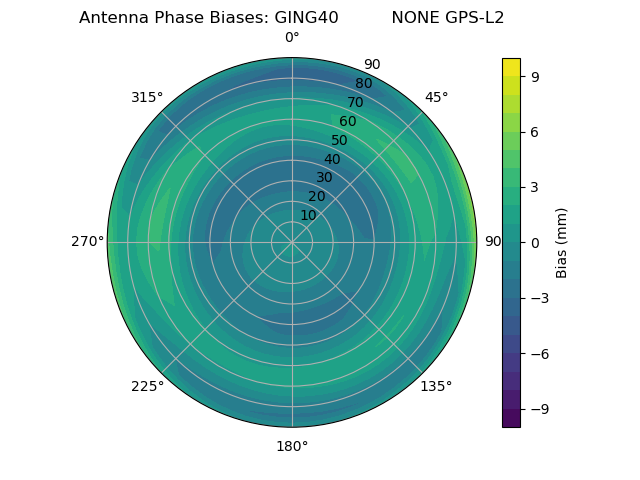

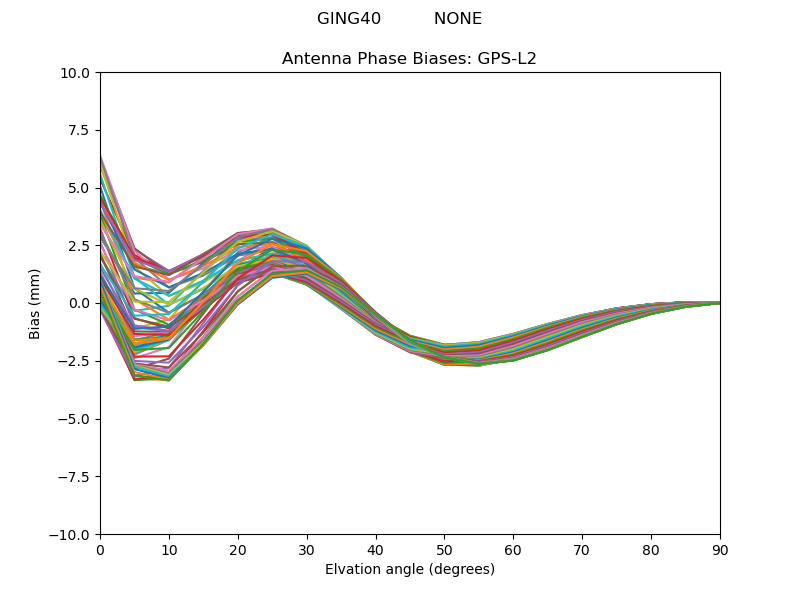

GPS-L2

GLONASS

Bias	Delta

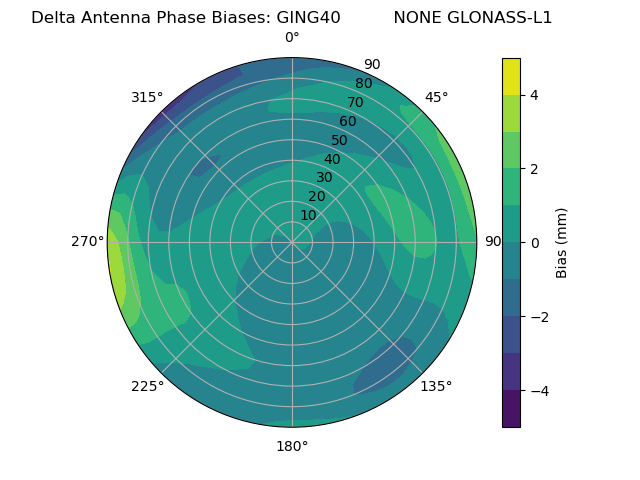

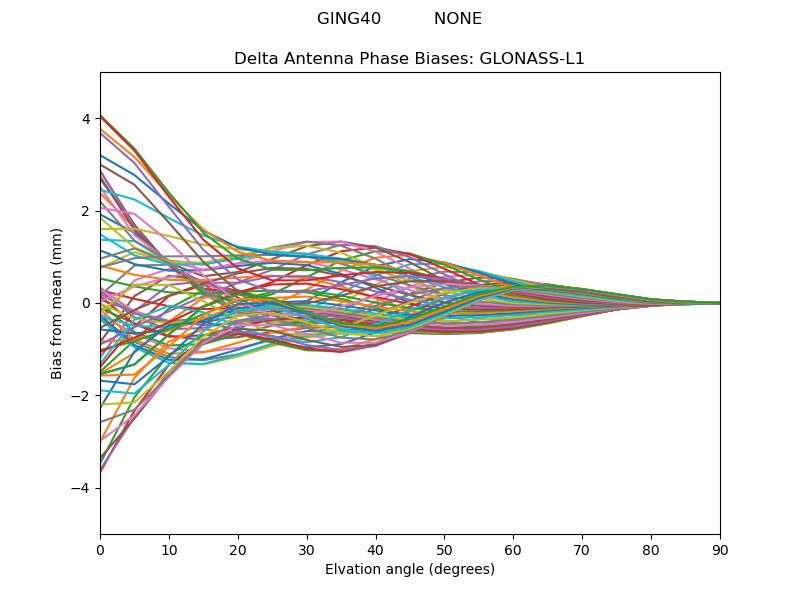

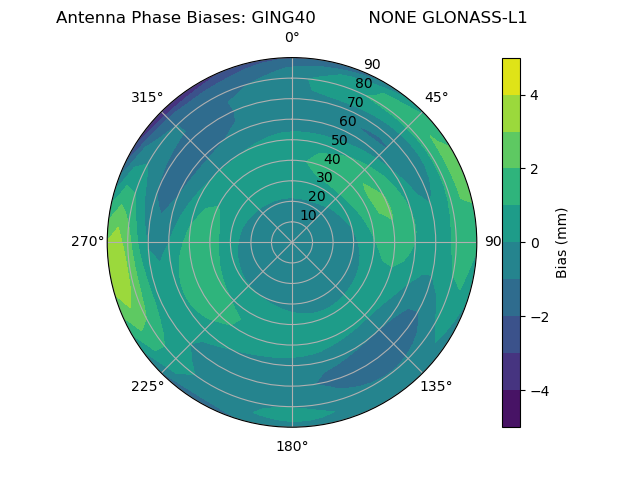

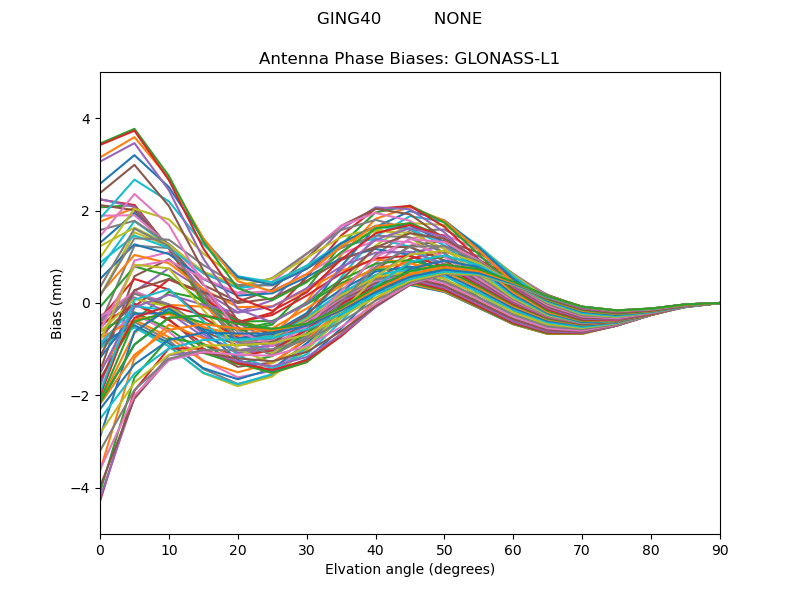

GLONASS-L1

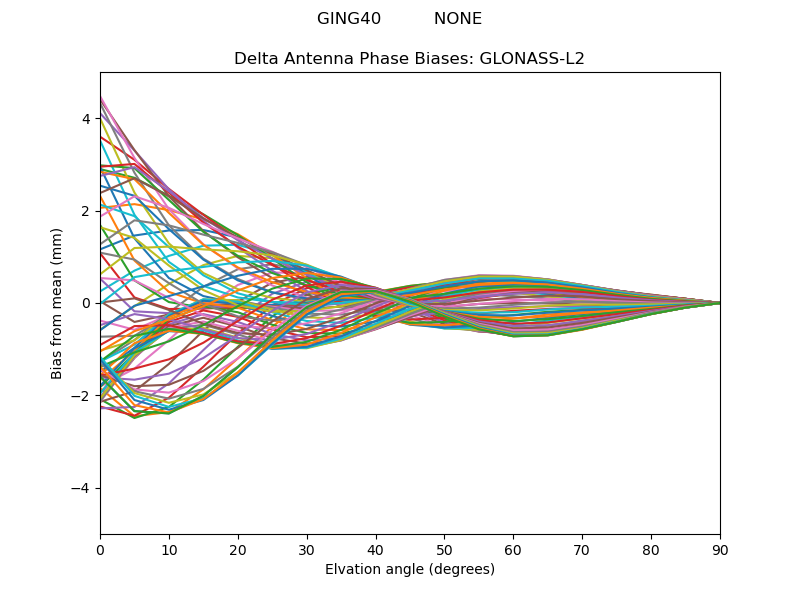

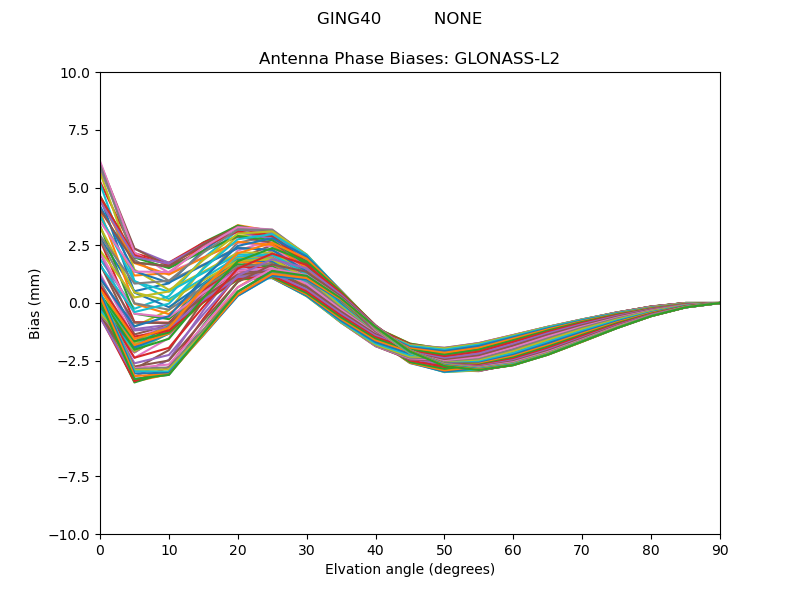

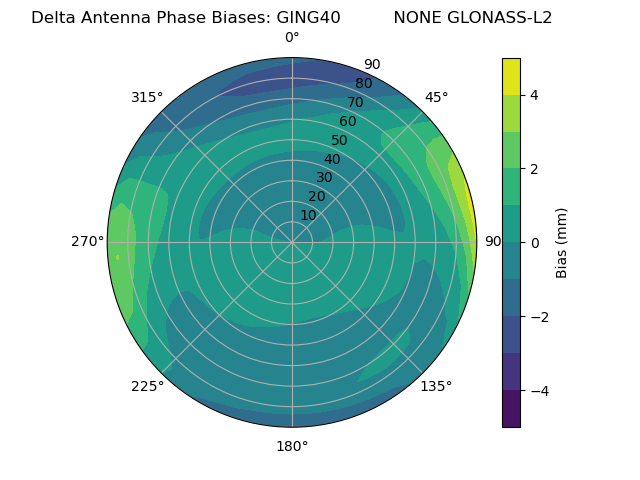

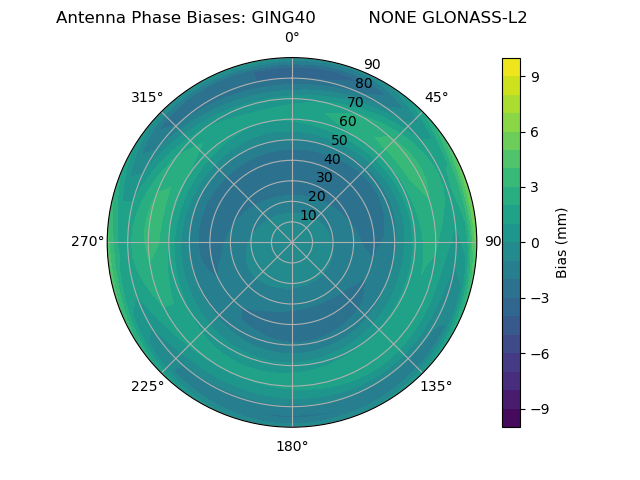

GLONASS-L2

GALILEO

Bias	Delta
GALILEO-E1

BeiDOU

Bias	Delta

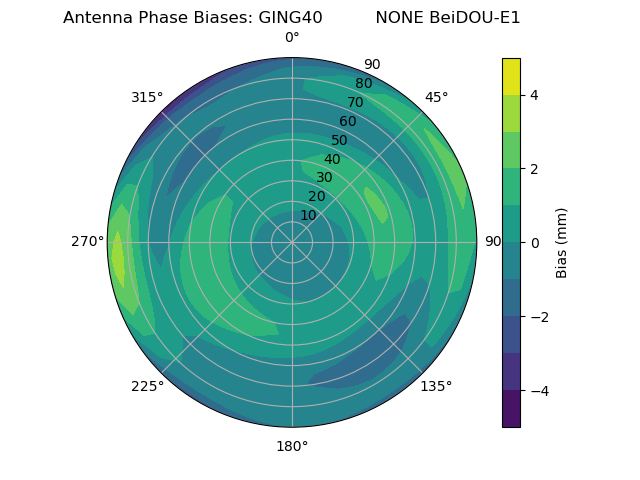

BeiDOU-E1

QZSS

Bias	Delta

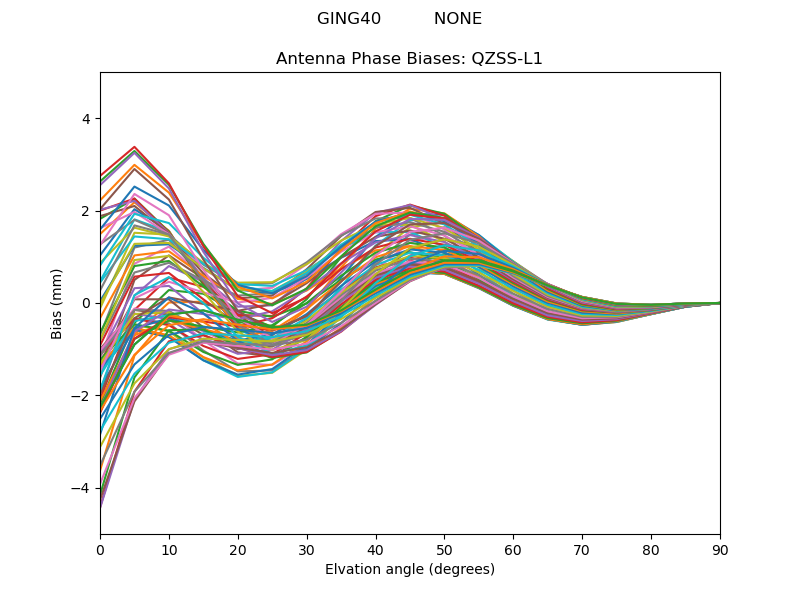

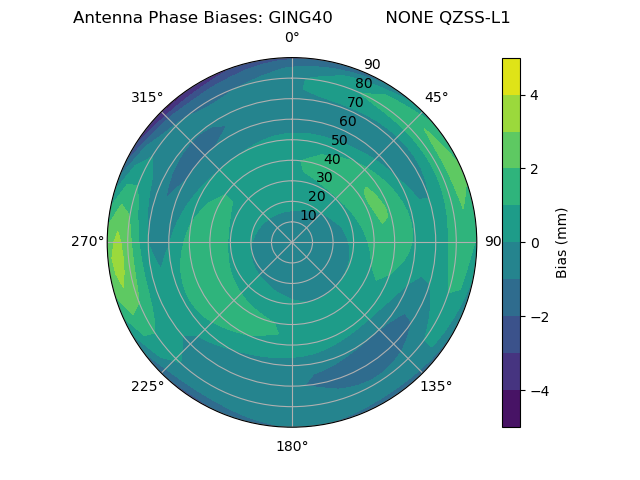

QZSS-L1

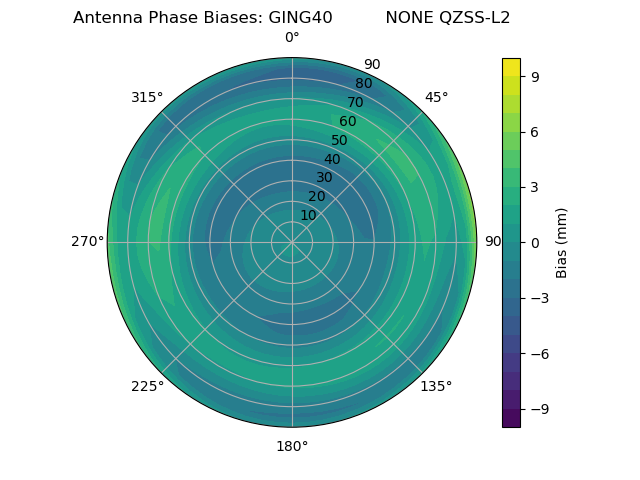

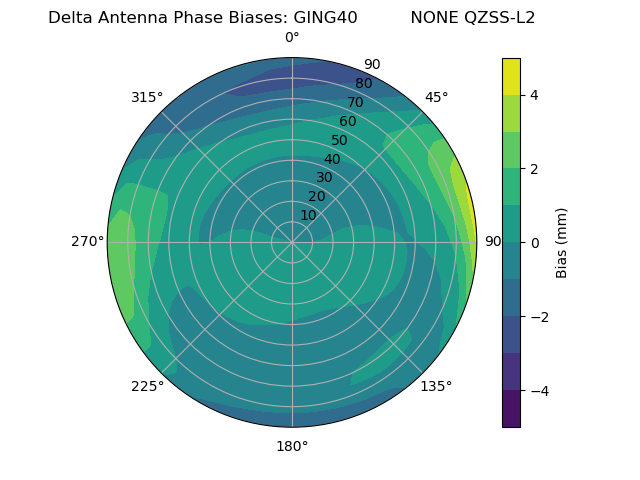

QZSS-L2

SBAS

Bias	Delta

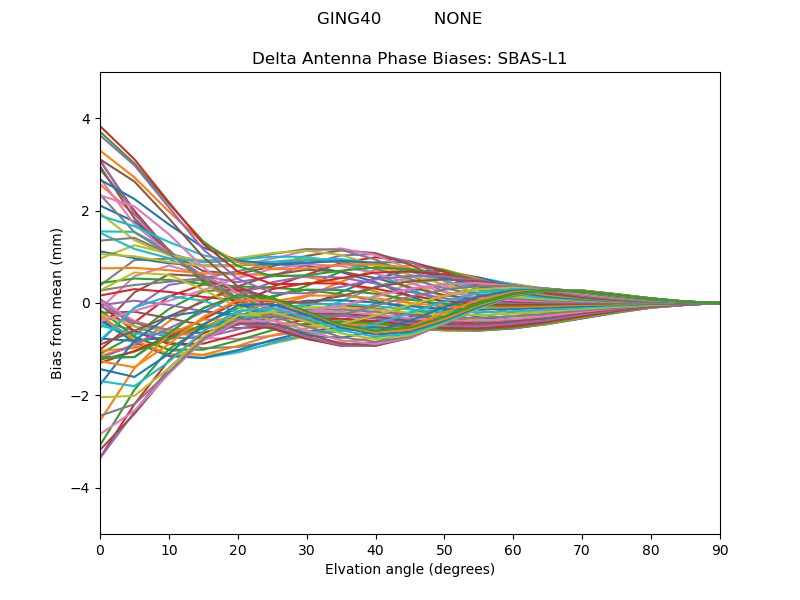

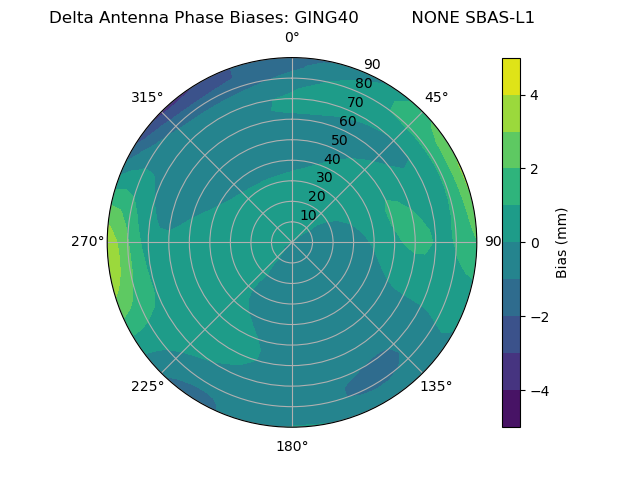

SBAS-L1
