Antenna information for GMXZENITH60 NONE
SV System | Bands |
---|---|
GPSL1: N: -0.26 E: 0.56 U: 71.91L2: N: -2.04 E: 0.41 U: 63.22 L5: N: -4.01 E: -1.94 U: 66.00 GLONASSL1: N: 1.59 E: 1.54 U: 71.62L2: N: -1.26 E: 0.70 U: 62.35 GALILEOE1: N: -0.26 E: 0.56 U: 71.91E5a: N: -4.01 E: -1.94 U: 66.00 E5b: N: -2.87 E: -0.24 U: 64.24 E5: N: -3.45 E: -0.97 U: 65.08 E6: N: 0.19 E: 0.39 U: 60.97 BeiDouE1: N: -0.26 E: 0.56 U: 71.91E2: N: -1.30 E: 0.04 U: 72.05 E5b: N: -2.87 E: -0.24 U: 64.24 E6: N: -0.28 E: 0.58 U: 61.38 QZSSL1: N: -0.26 E: 0.56 U: 71.91L2: N: -2.04 E: 0.41 U: 63.22 L5: N: -4.01 E: -1.94 U: 66.00 IRNSSL5: N: -4.01 E: -1.94 U: 66.00SBASL1: N: -0.26 E: 0.56 U: 71.91L5: N: -4.01 E: -1.94 U: 66.00 | L1GPS: N: -0.26 E: 0.56 U: 71.91GLONASS: N: 1.59 E: 1.54 U: 71.62 QZSS: N: -0.26 E: 0.56 U: 71.91 SBAS: N: -0.26 E: 0.56 U: 71.91 L2GPS: N: -2.04 E: 0.41 U: 63.22GLONASS: N: -1.26 E: 0.70 U: 62.35 QZSS: N: -2.04 E: 0.41 U: 63.22 L5GPS: N: -4.01 E: -1.94 U: 66.00QZSS: N: -4.01 E: -1.94 U: 66.00 SBAS: N: -4.01 E: -1.94 U: 66.00 IRNSS: N: -4.01 E: -1.94 U: 66.00 E1GALILEO: N: -0.26 E: 0.56 U: 71.91BeiDou: N: -0.26 E: 0.56 U: 71.91 E2BeiDou: N: -1.30 E: 0.04 U: 72.05E5GALILEO: N: -3.45 E: -0.97 U: 65.08E5aGALILEO: N: -4.01 E: -1.94 U: 66.00E5bGALILEO: N: -2.87 E: -0.24 U: 64.24BeiDou: N: -2.87 E: -0.24 U: 64.24 E6GALILEO: N: 0.19 E: 0.39 U: 60.97BeiDou: N: -0.28 E: 0.58 U: 61.38 |
Means

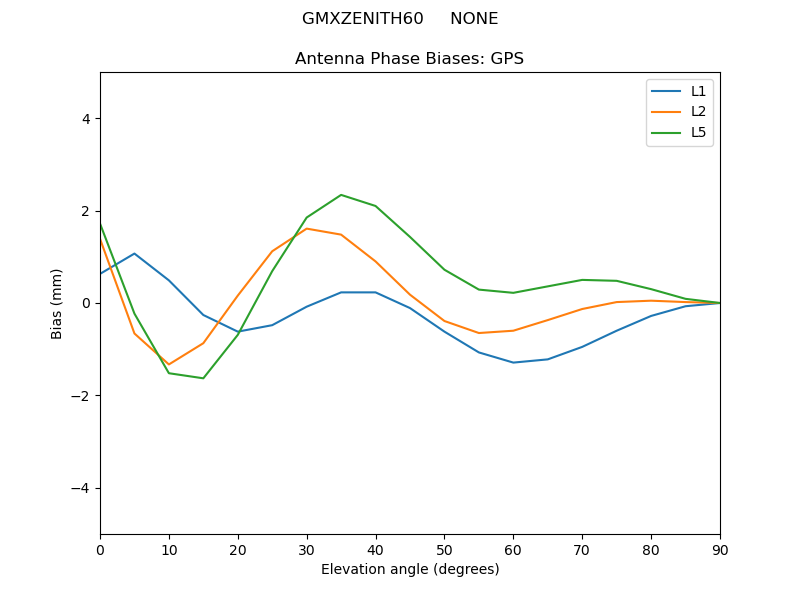

GPS

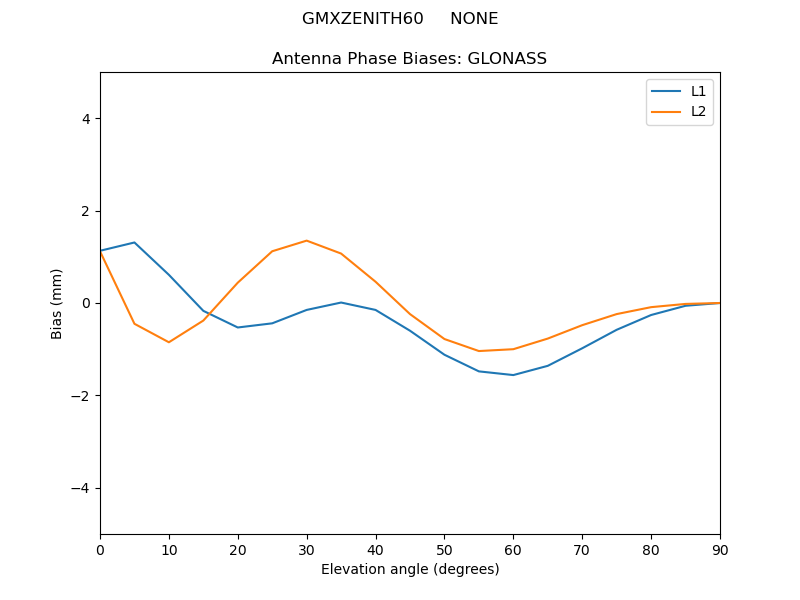

GLONASS

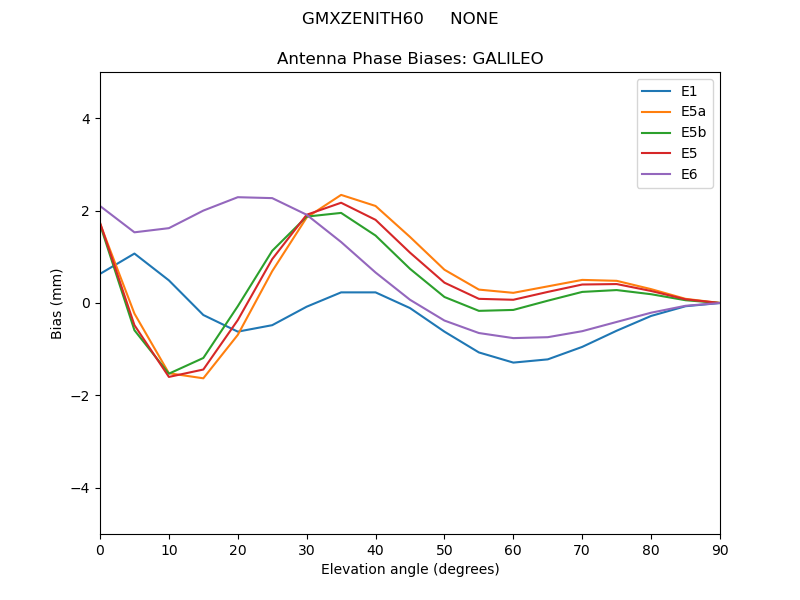

GALILEO

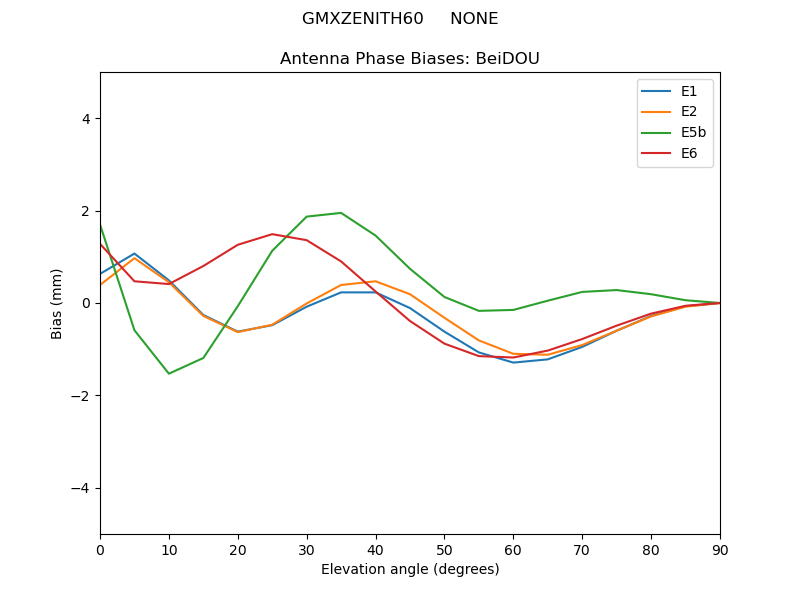

BeiDOU
QZSS

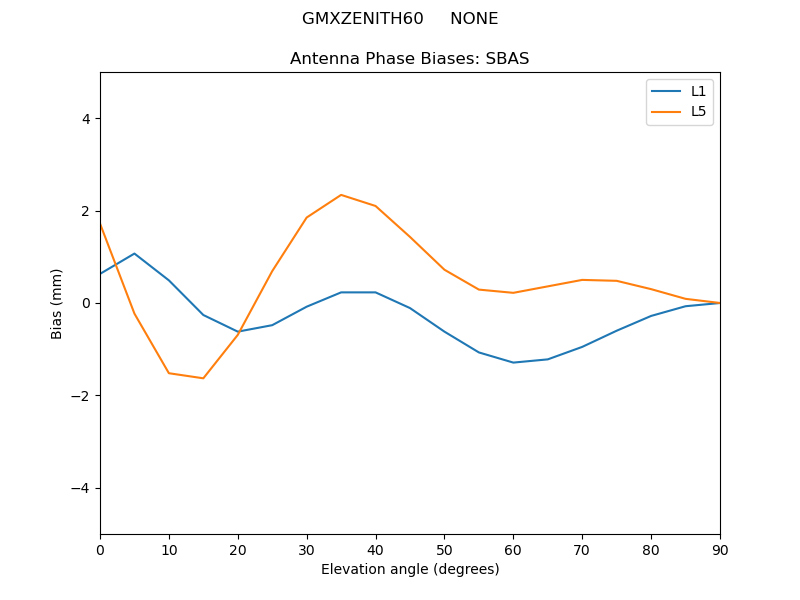

SBAS

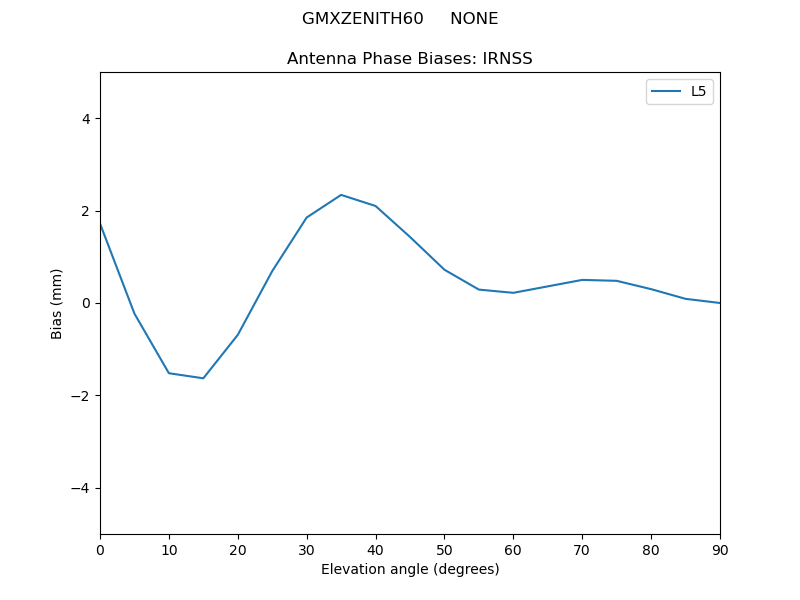

IRNSS
Azimuths
Bias | Delta |
---|---|
GPS-L1 | |

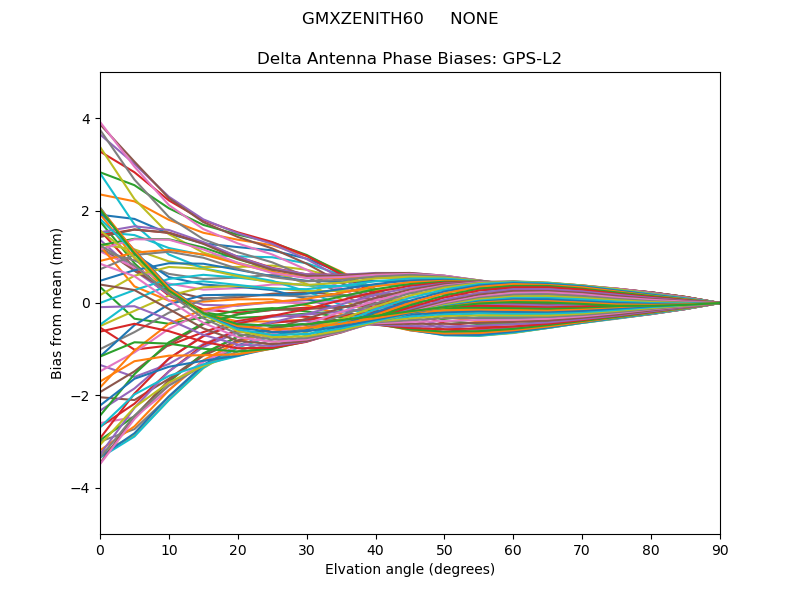

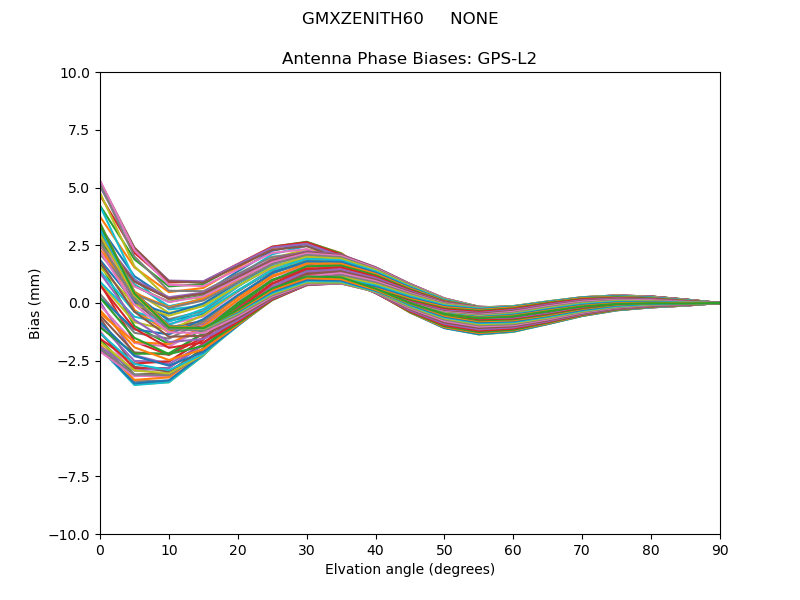

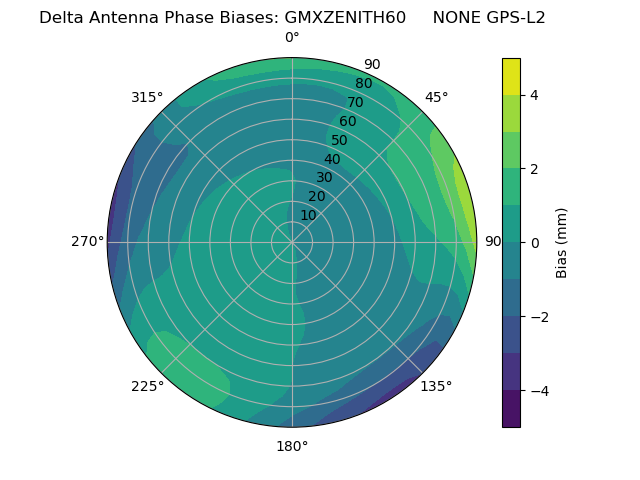

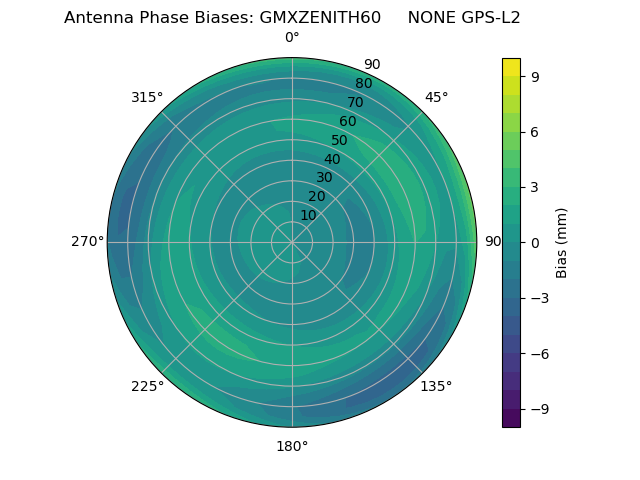

GPS-L2 | |

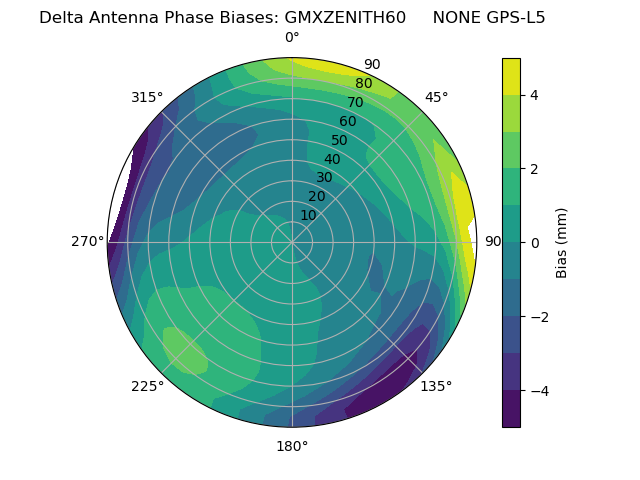

GPS-L5 | |
Bias | Delta |
---|---|

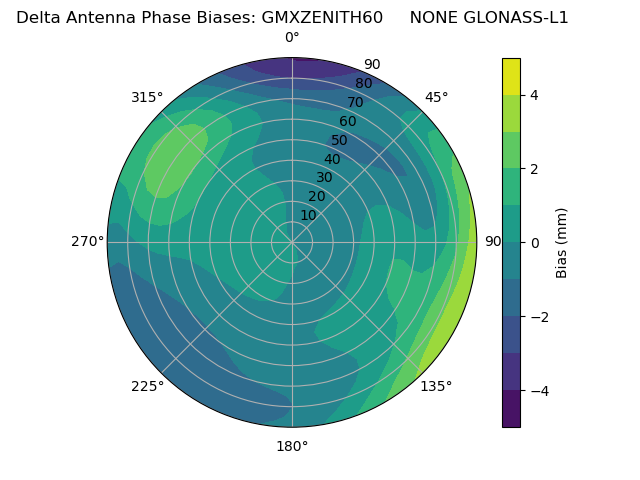

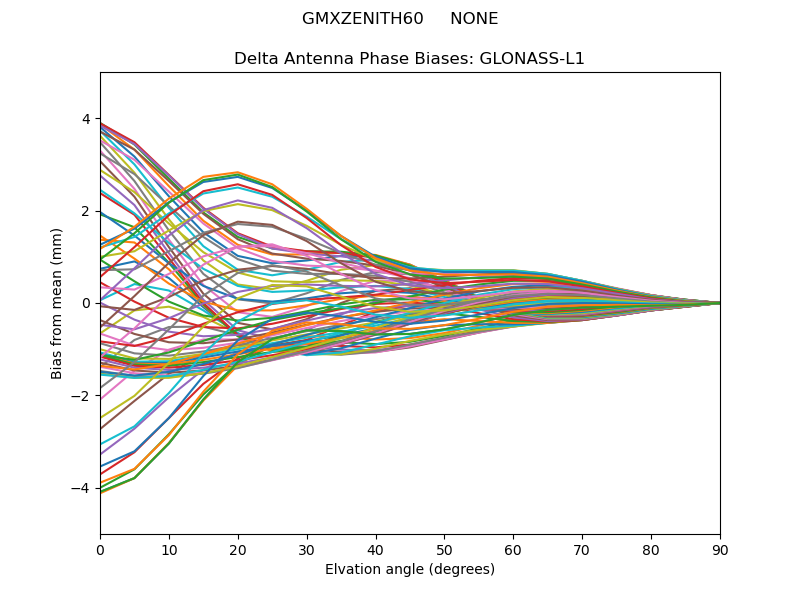

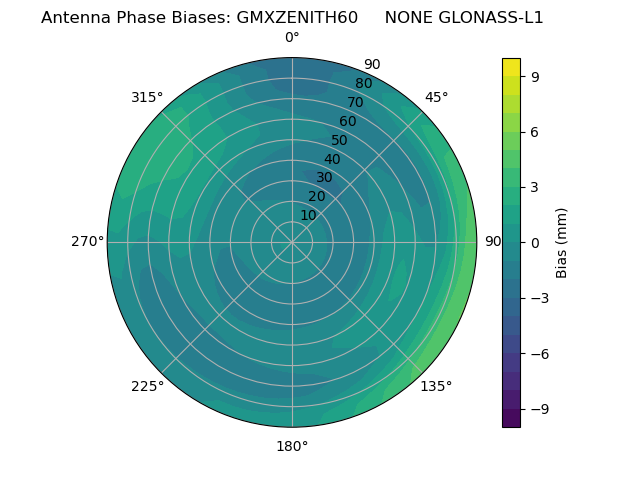

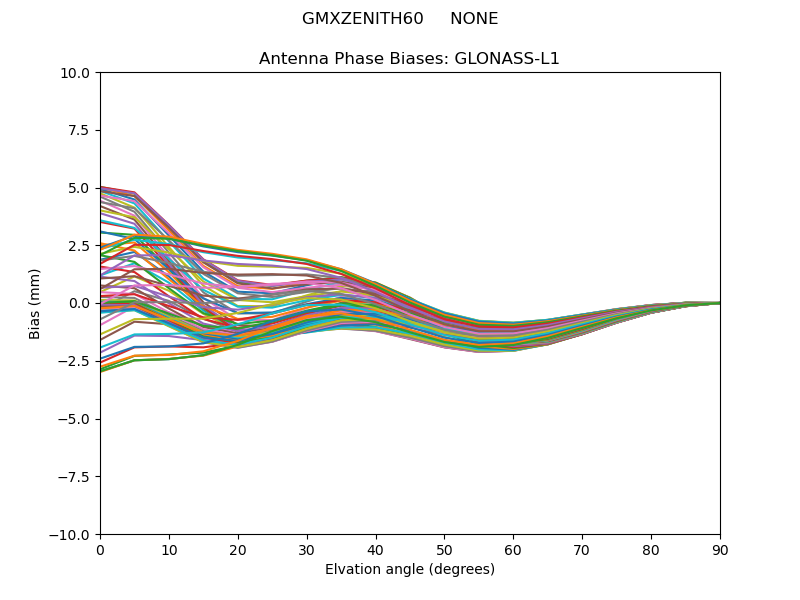

GLONASS-L1 | |

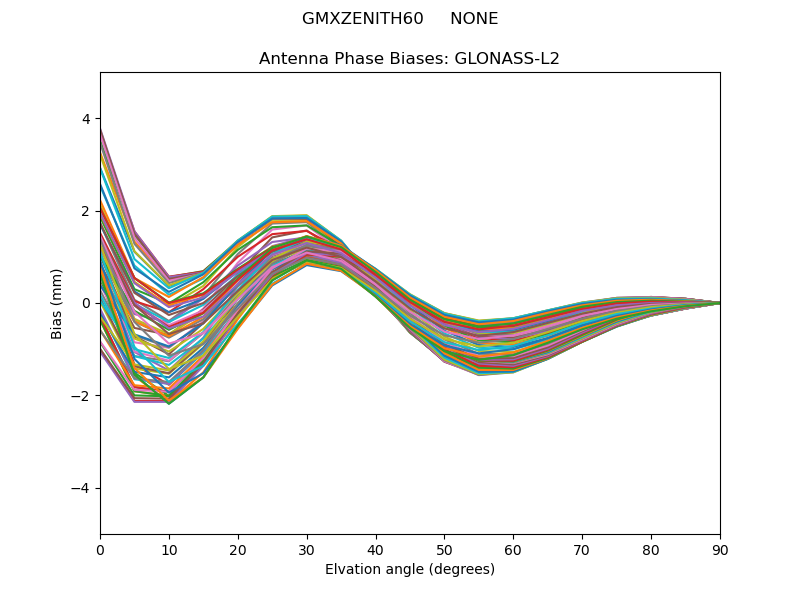

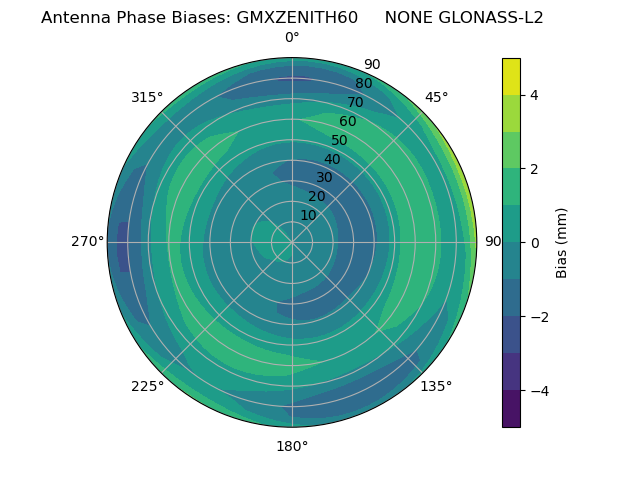

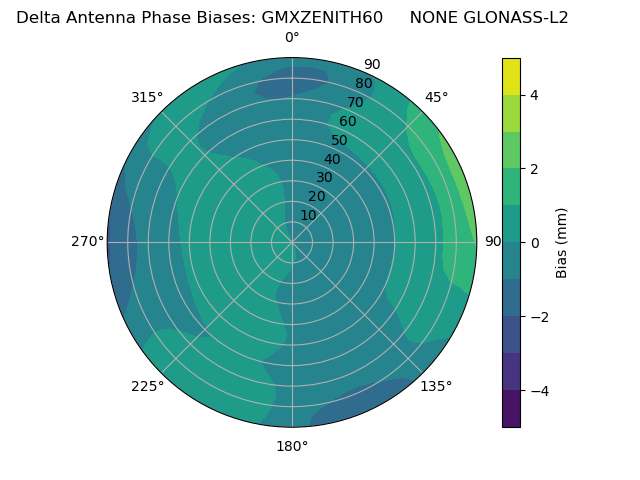

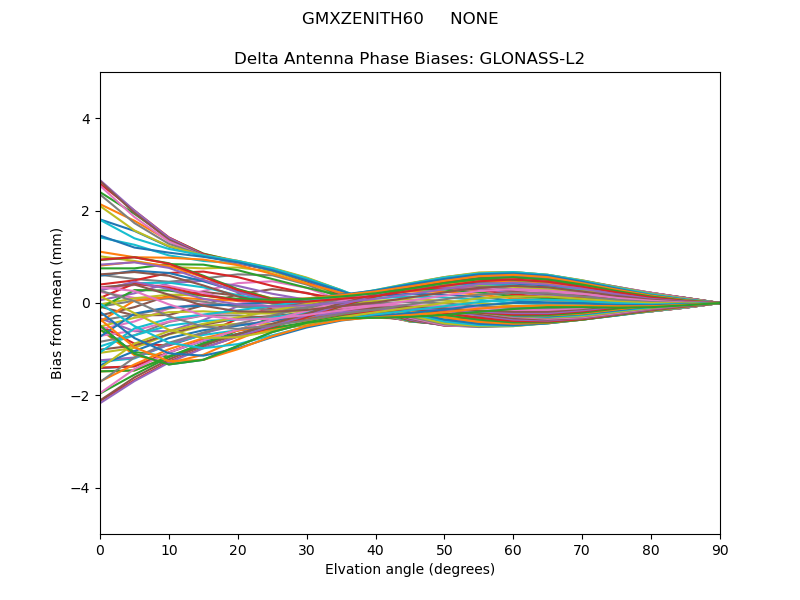

GLONASS-L2 | |
Bias | Delta |
---|---|

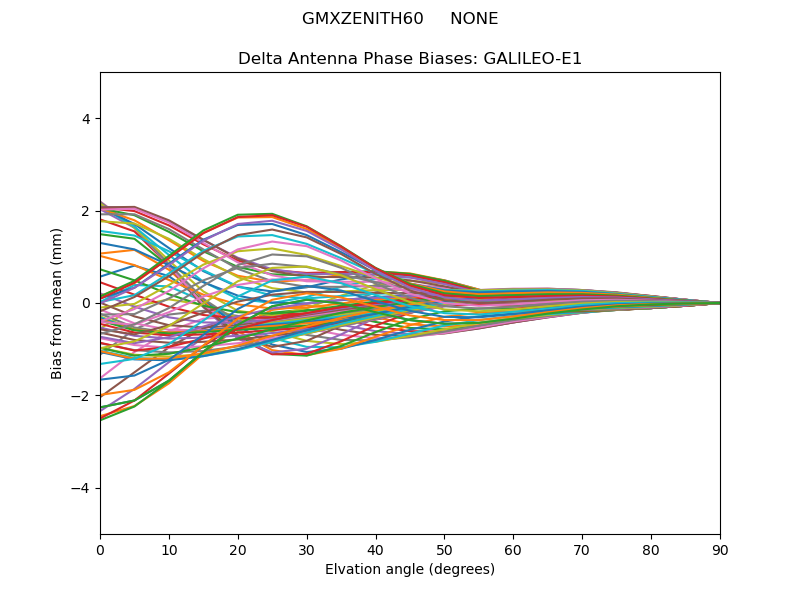

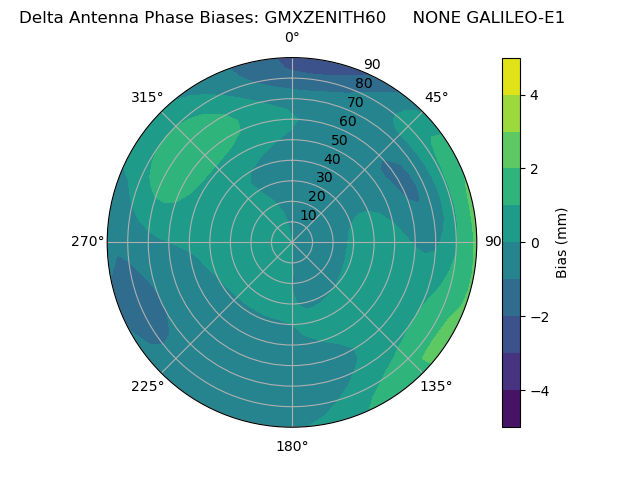

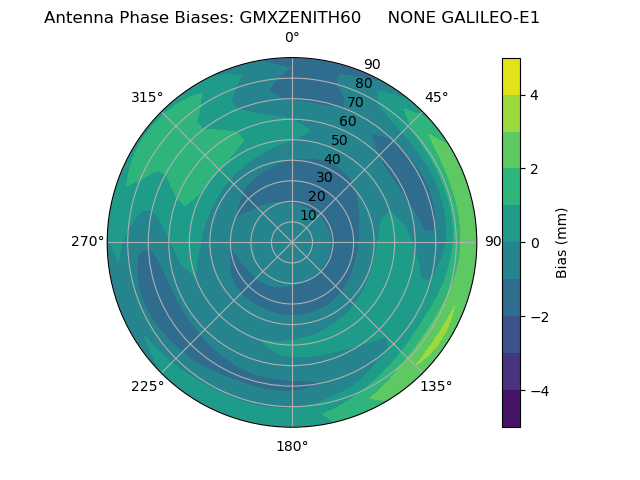

GALILEO-E1 | |

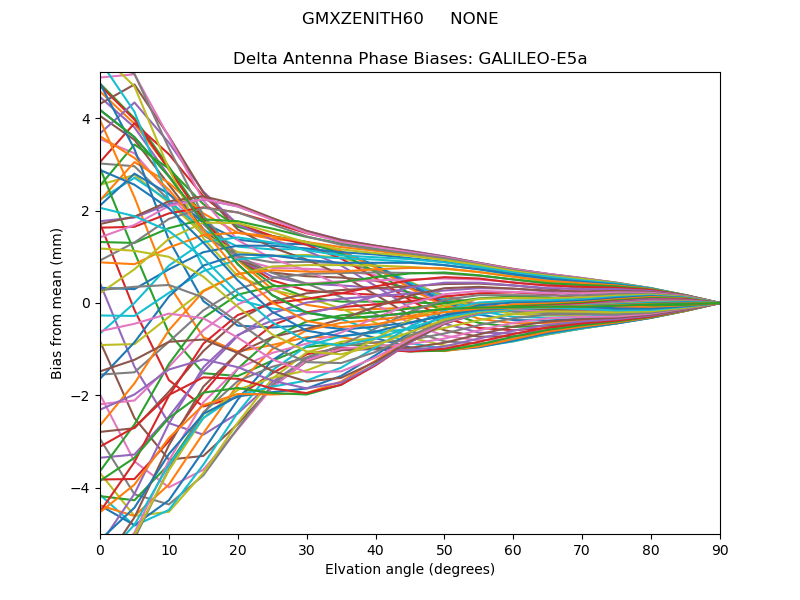

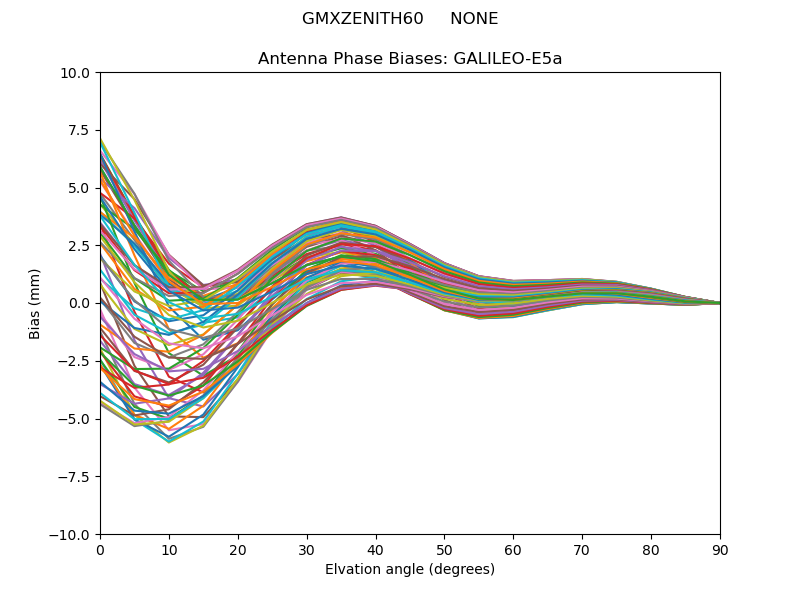

GALILEO-E5a | |

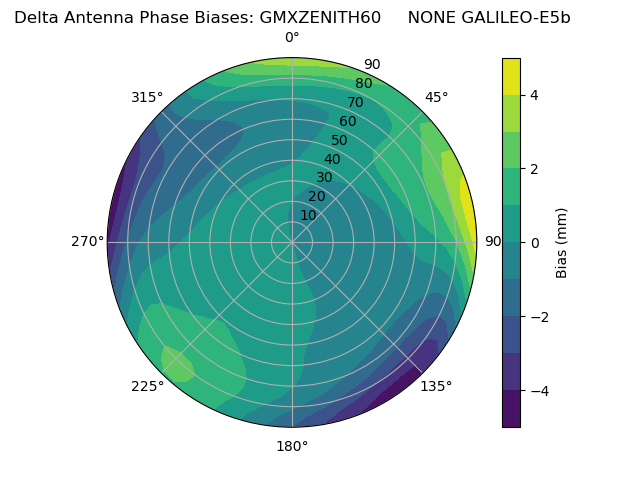

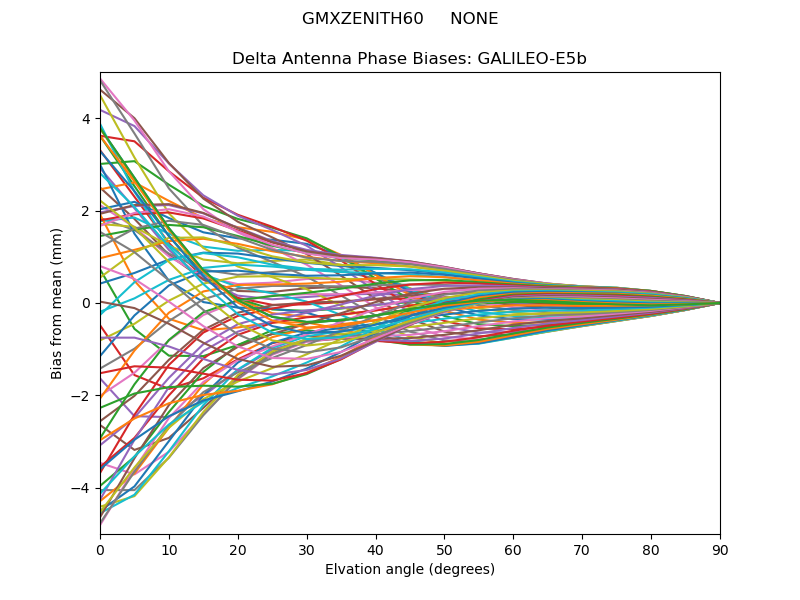

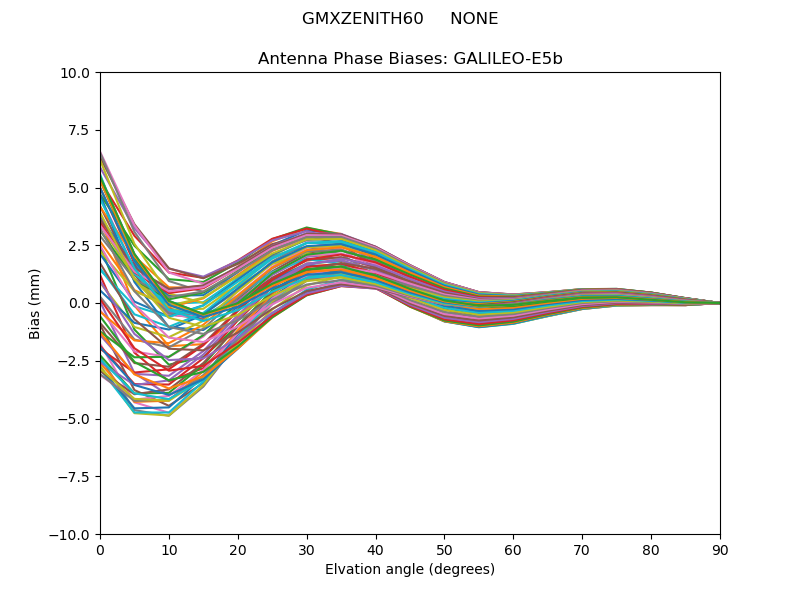

GALILEO-E5b | |

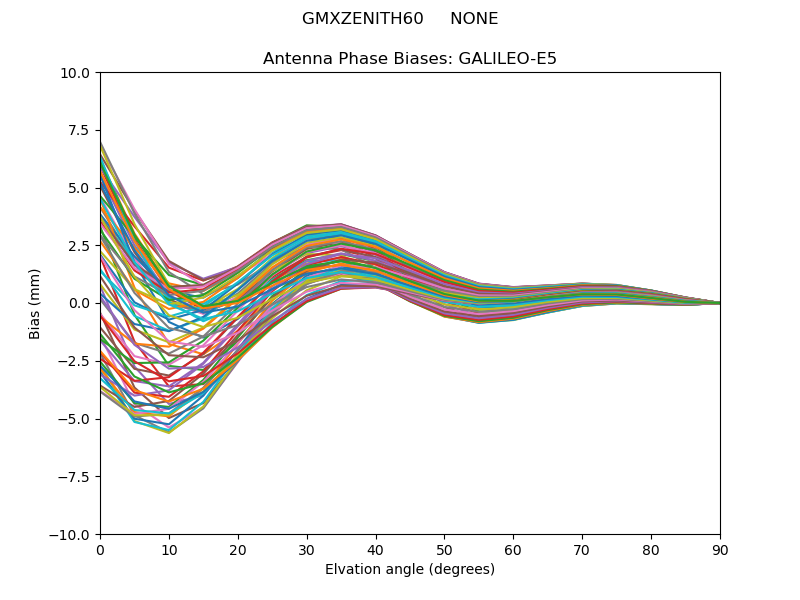

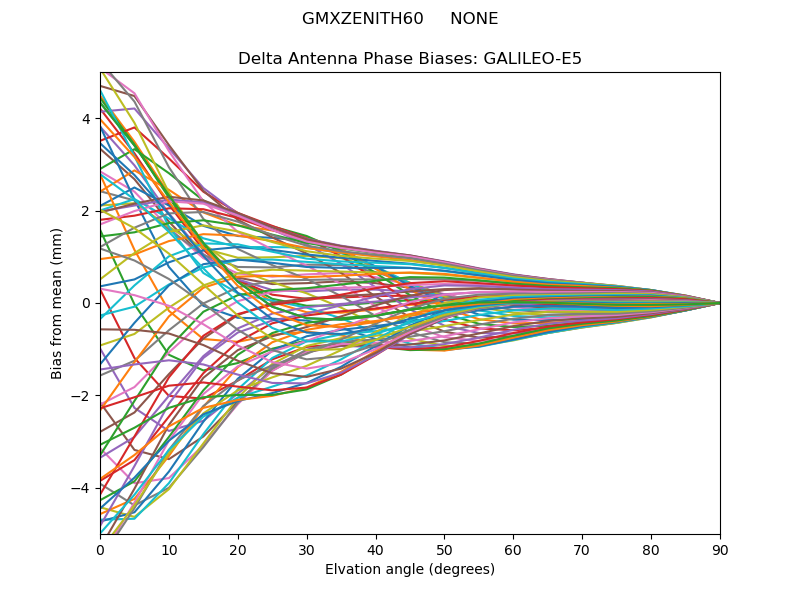

GALILEO-E5 | |

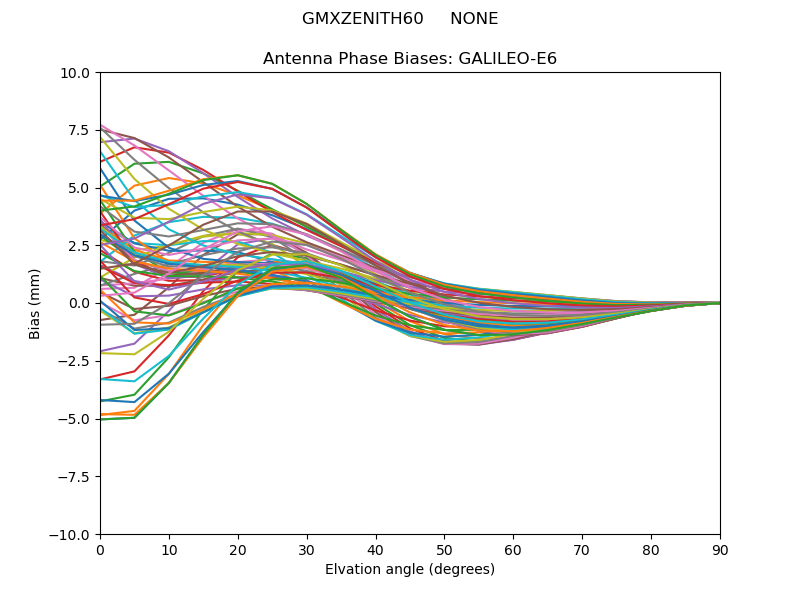

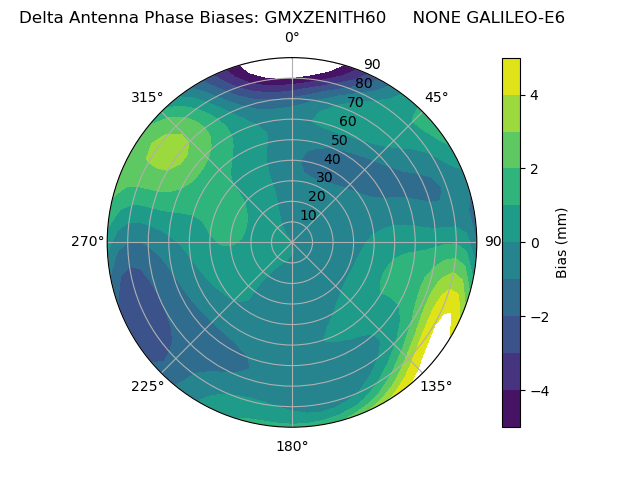

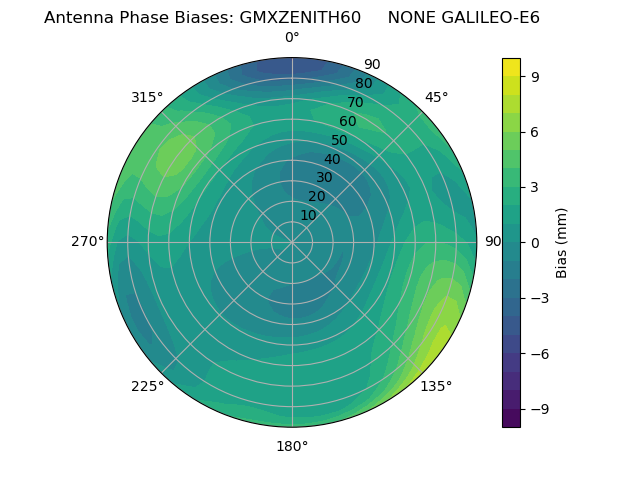

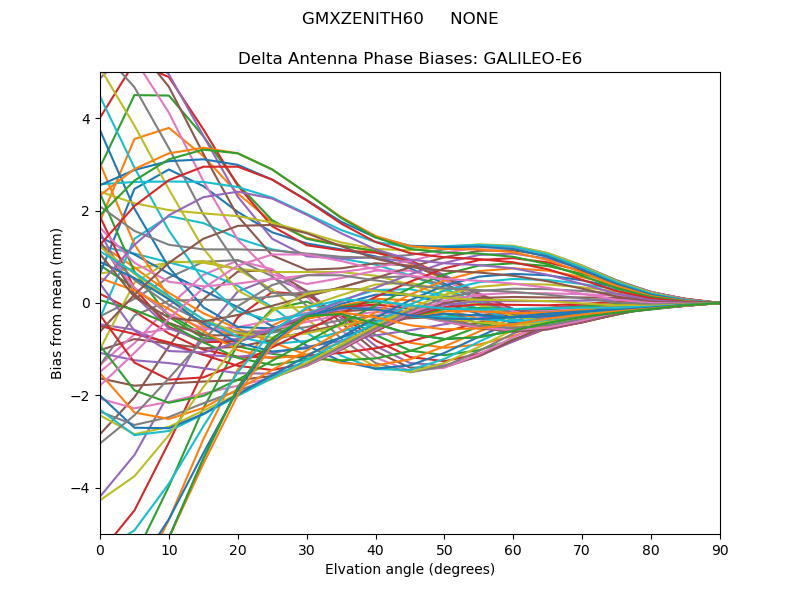

GALILEO-E6 | |
Bias | Delta |
---|---|

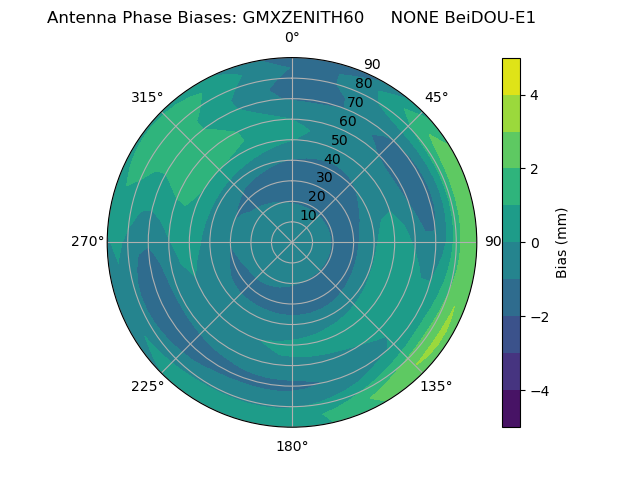

BeiDOU-E1 | |

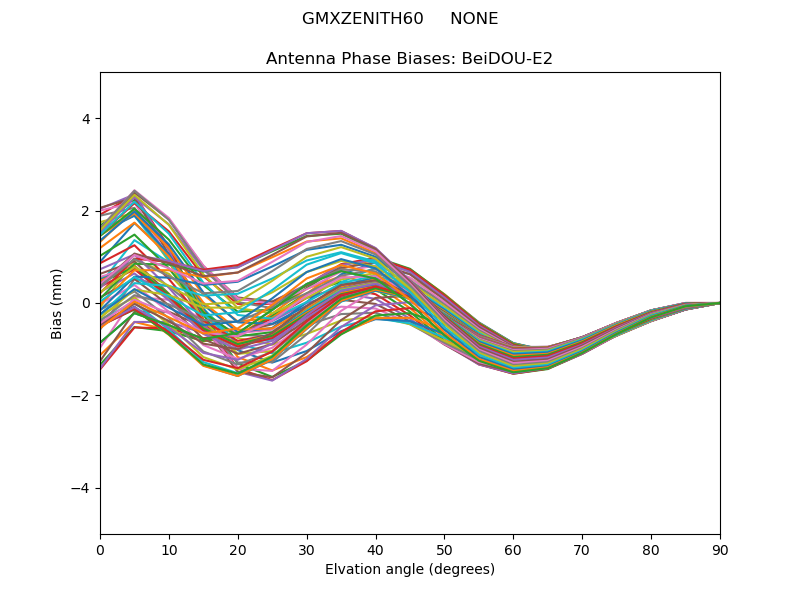

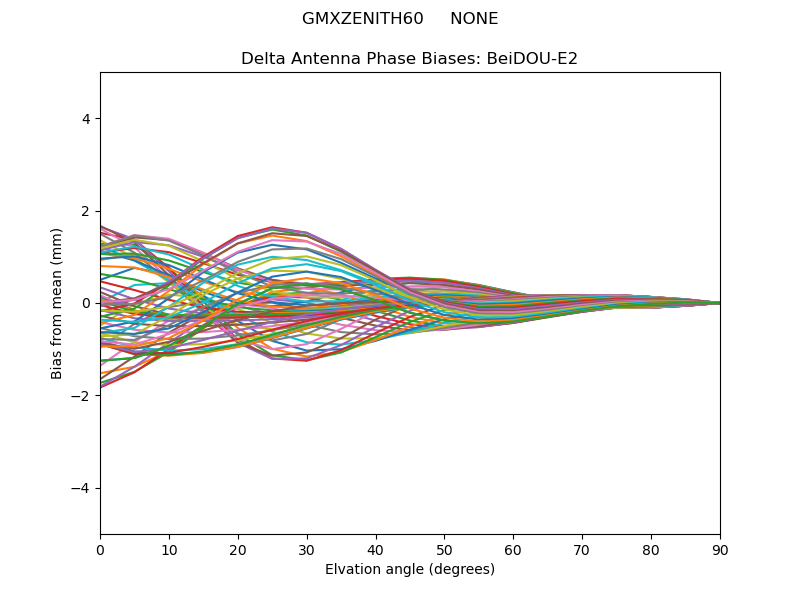

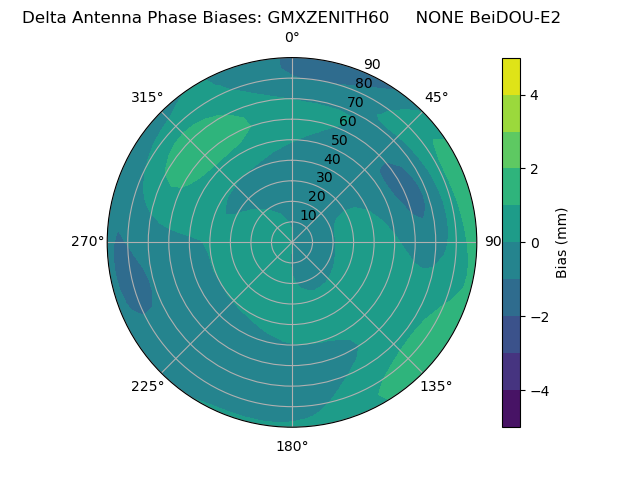

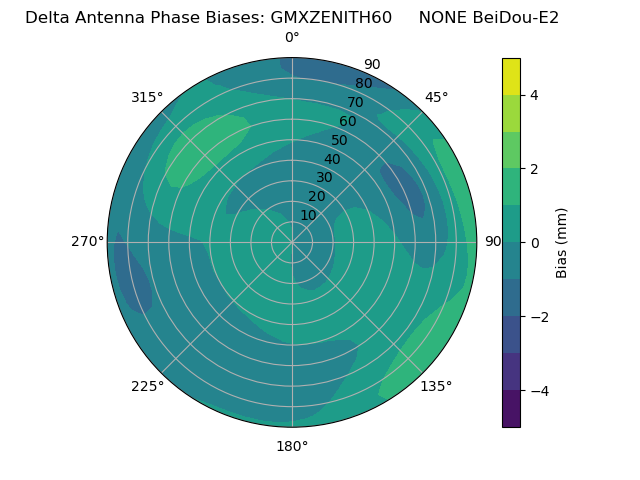

BeiDOU-E2 | |

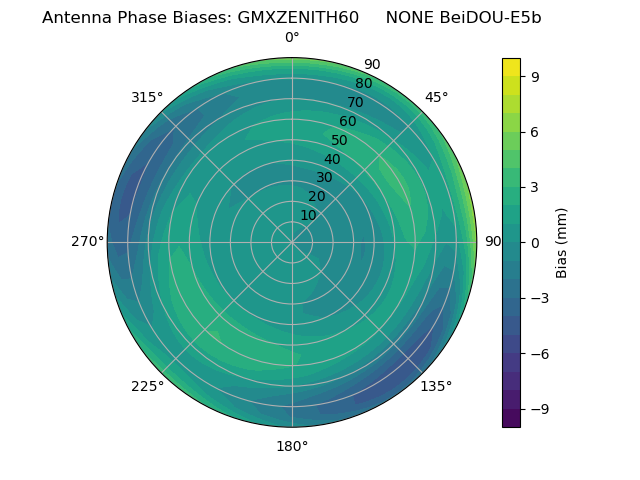

BeiDOU-E5b | |

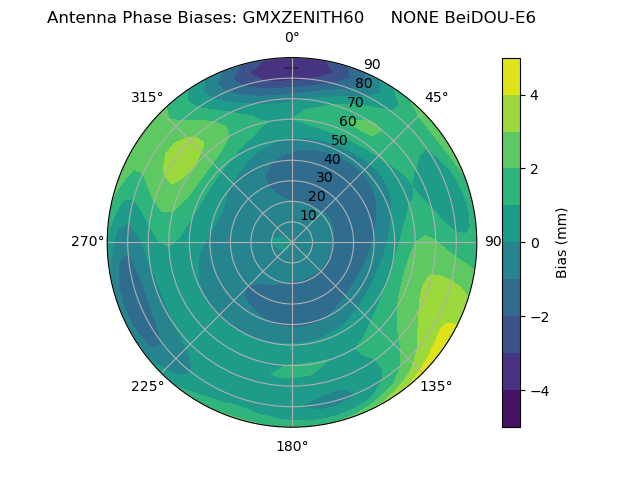

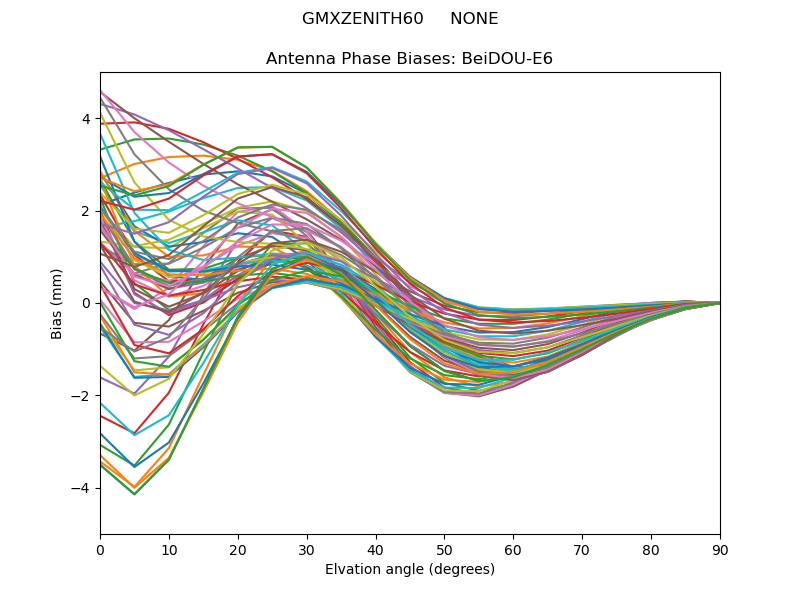

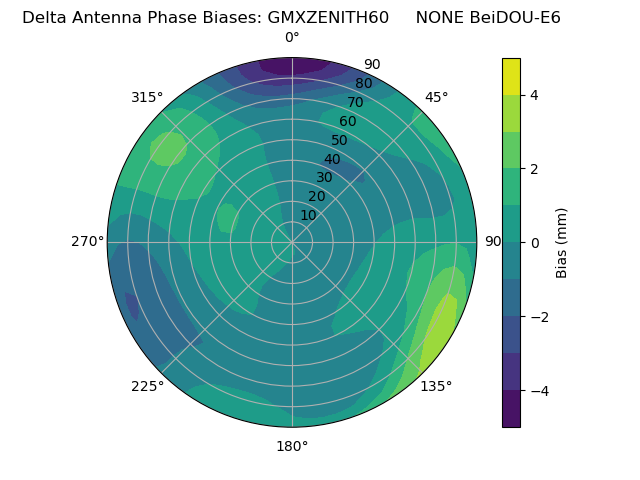

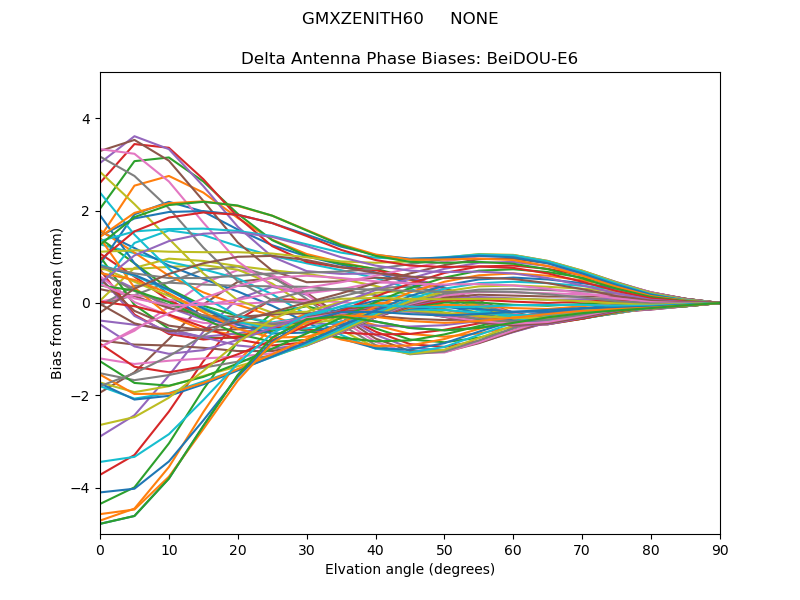

BeiDOU-E6 | |
Bias | Delta |
---|---|

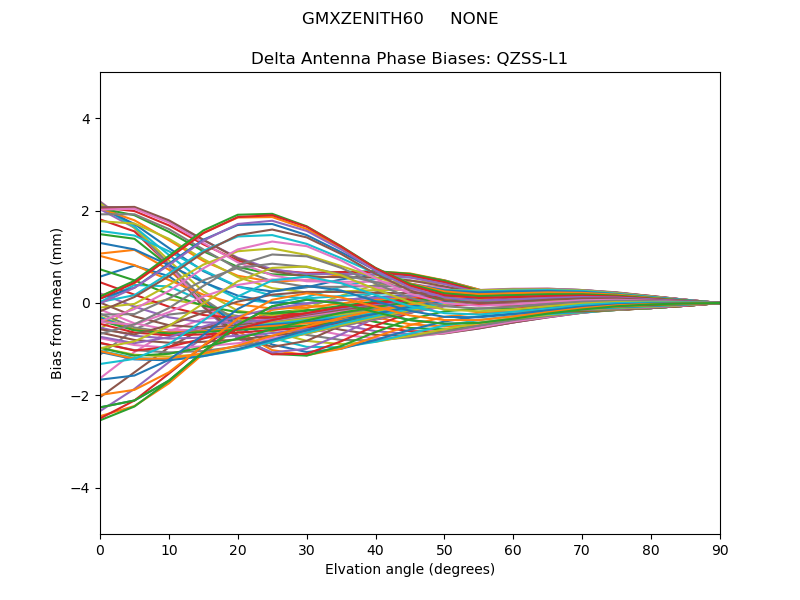

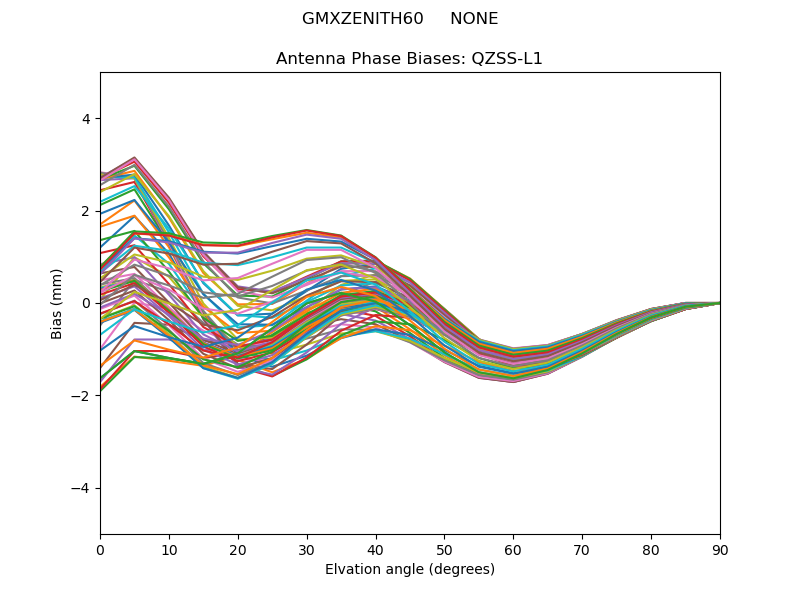

QZSS-L1 | |

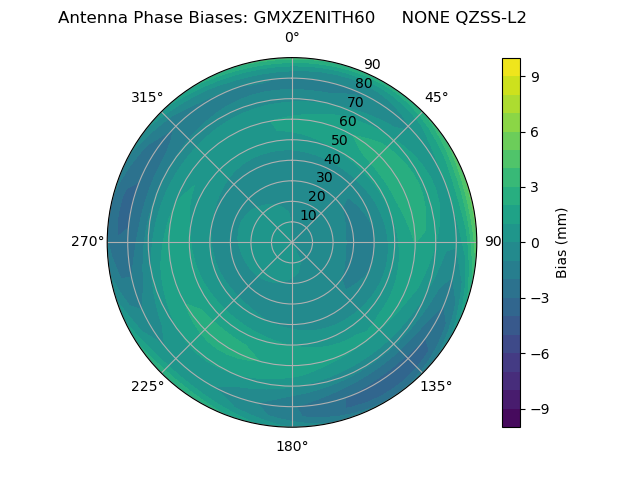

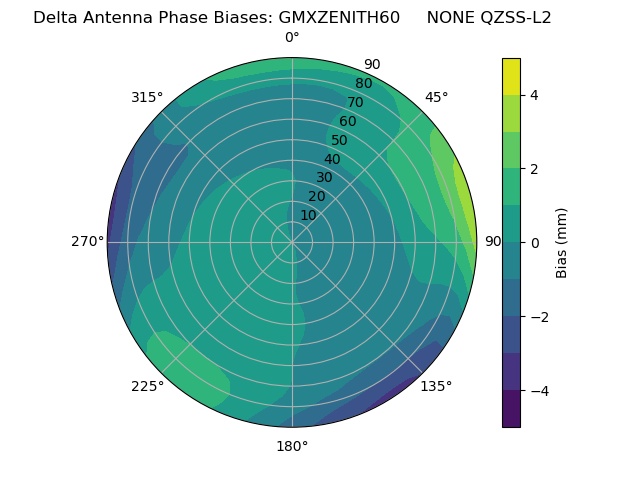

QZSS-L2 | |

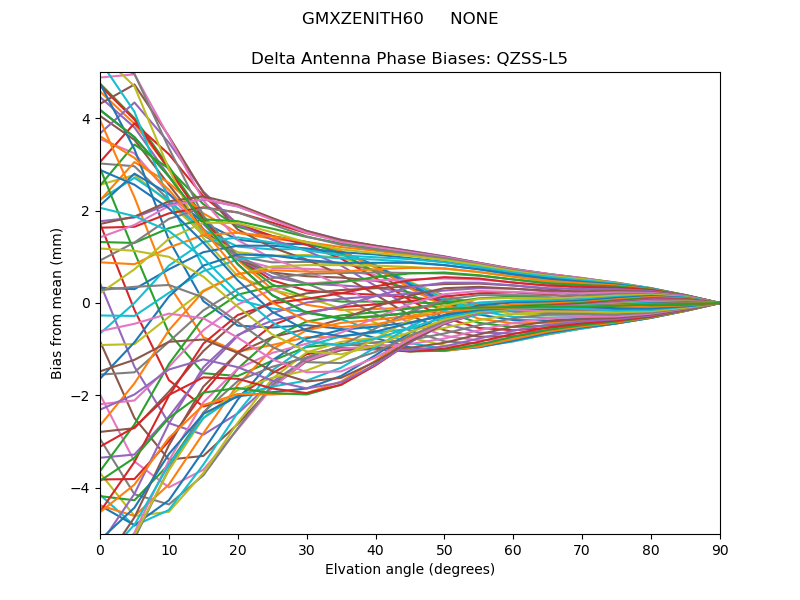

QZSS-L5 | |
Bias | Delta |
---|---|

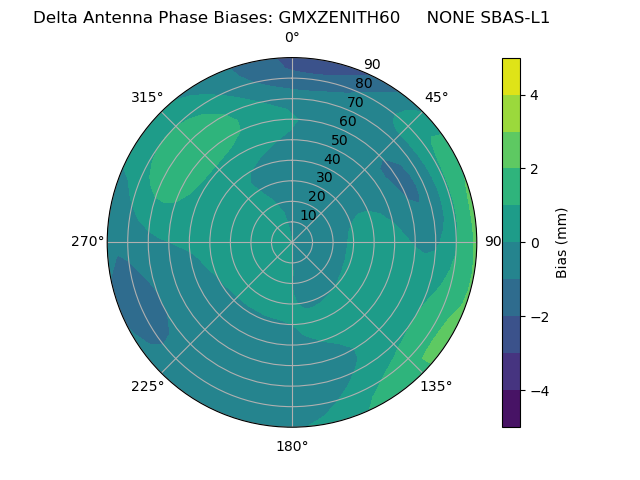

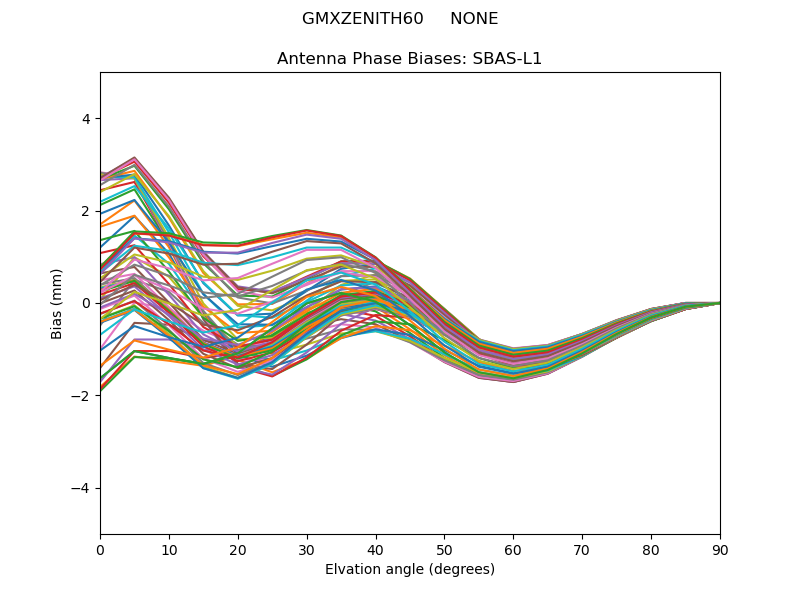

SBAS-L1 | |
SBAS-L5 | |
Bias | Delta |
---|---|

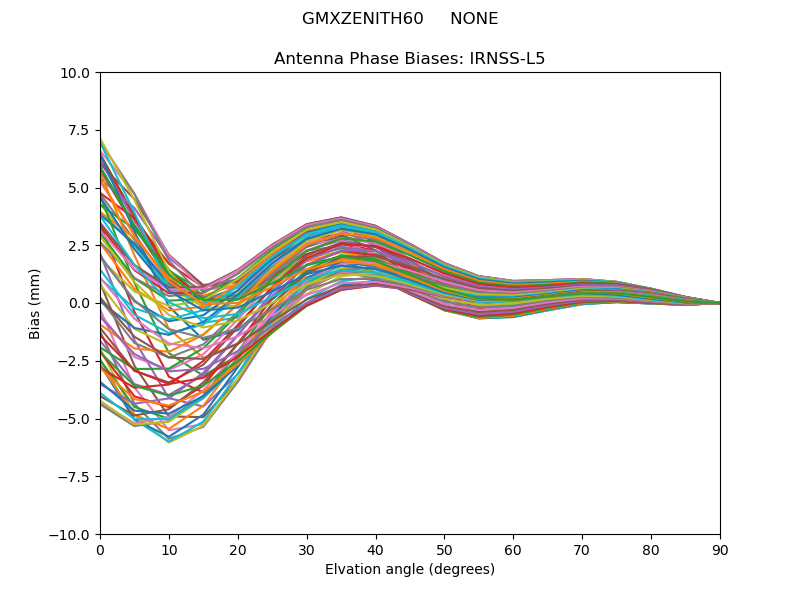

IRNSS-L5 | |
