Antenna information for GPPVC6050 GPP1

Antenna Offsets
SV System Bands

GPS

L1: N: 0.99 E: 0.67 U: 127.28
L2: N: -0.17 E: -0.05 U: 139.45
L5: N: -0.32 E: -0.19 U: 143.56

GLONASS

L1: N: 1.28 E: 0.74 U: 127.57
L2: N: -0.15 E: 0.03 U: 138.31

GALILEO

E5b: N: -0.21 E: -0.13 U: 140.94
E5: N: -0.26 E: -0.16 U: 142.19
E6: N: -0.15 E: 0.22 U: 136.64

BeiDou

E2: N: 0.83 E: 0.63 U: 127.05
E6: N: -0.15 E: 0.16 U: 137.13

L1

GPS: N: 0.99 E: 0.67 U: 127.28
GLONASS: N: 1.28 E: 0.74 U: 127.57

L2

GPS: N: -0.17 E: -0.05 U: 139.45
GLONASS: N: -0.15 E: 0.03 U: 138.31

L5

GPS: N: -0.32 E: -0.19 U: 143.56

E2

BeiDou: N: 0.83 E: 0.63 U: 127.05

E5

GALILEO: N: -0.26 E: -0.16 U: 142.19

E5b

GALILEO: N: -0.21 E: -0.13 U: 140.94

E6

GALILEO: N: -0.15 E: 0.22 U: 136.64
BeiDou: N: -0.15 E: 0.16 U: 137.13


Means

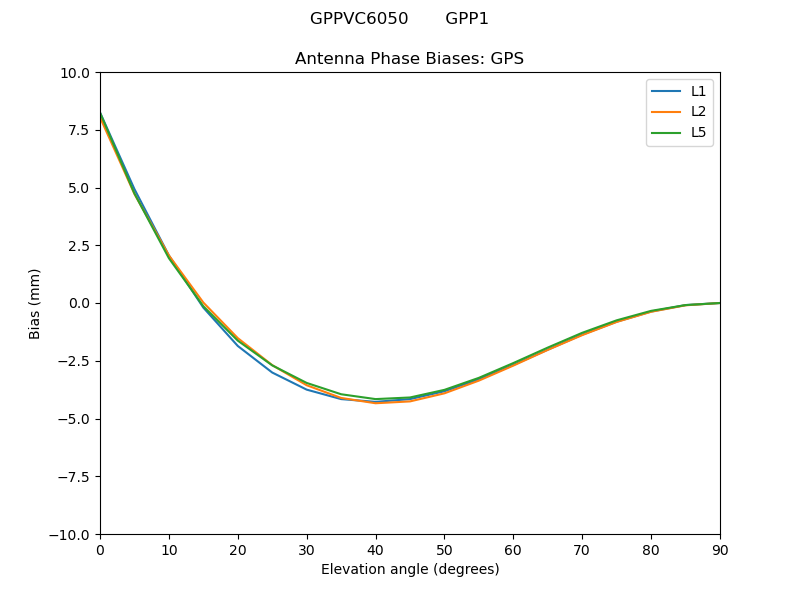

GPS


GLONASS

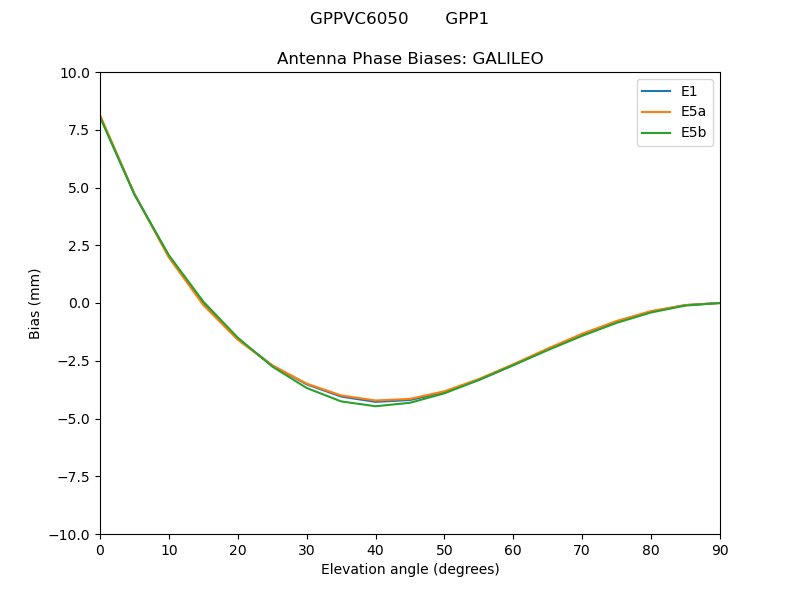

GALILEO

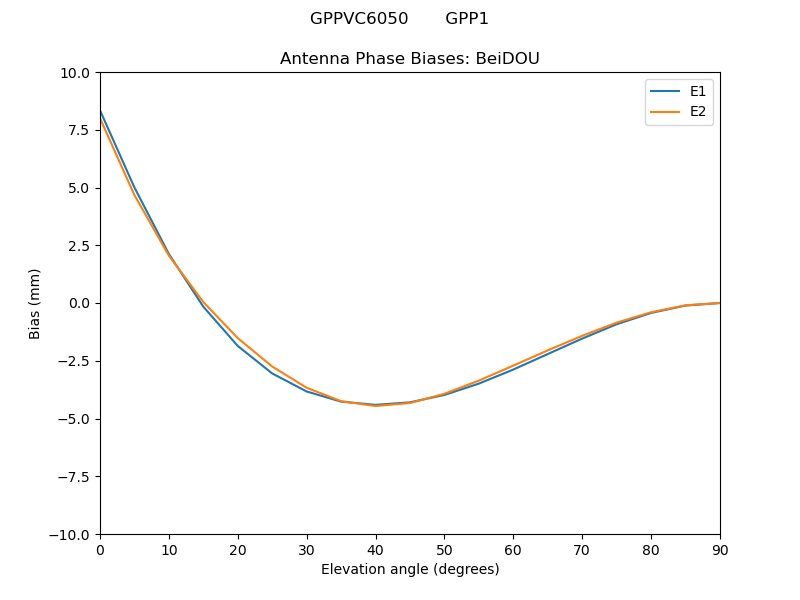

BeiDOU


Azimuths

GPS


Bias Delta

GPS-L1

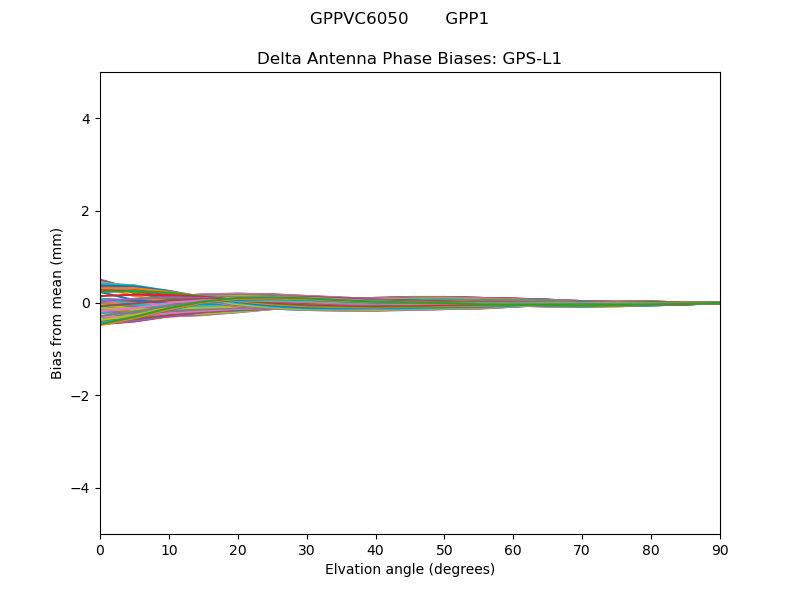

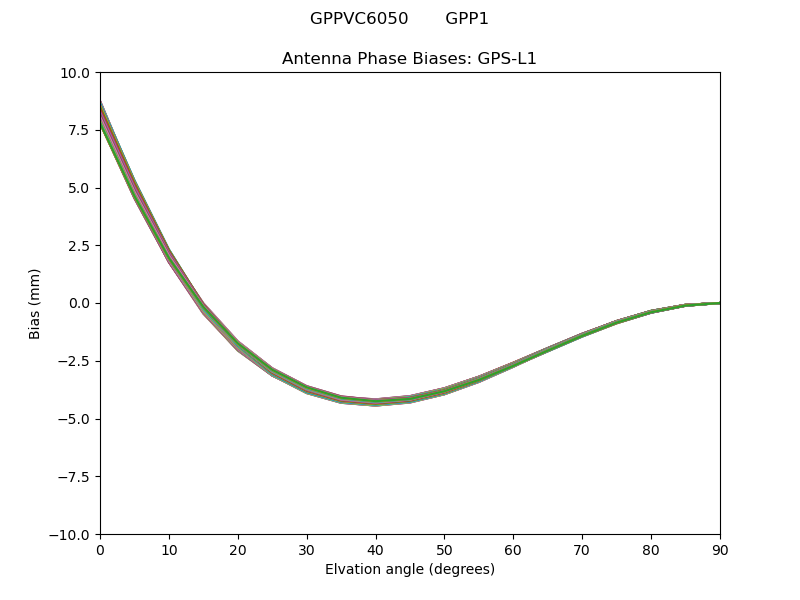

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

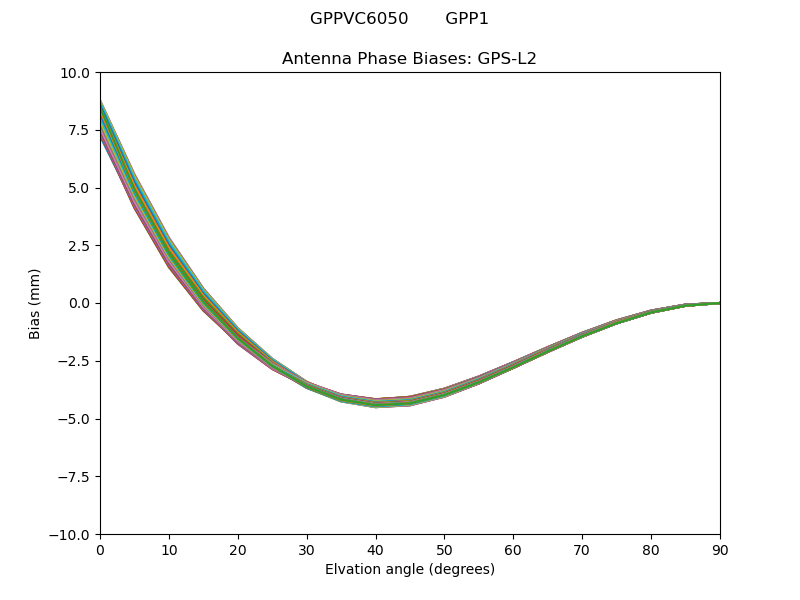

GPS-L2

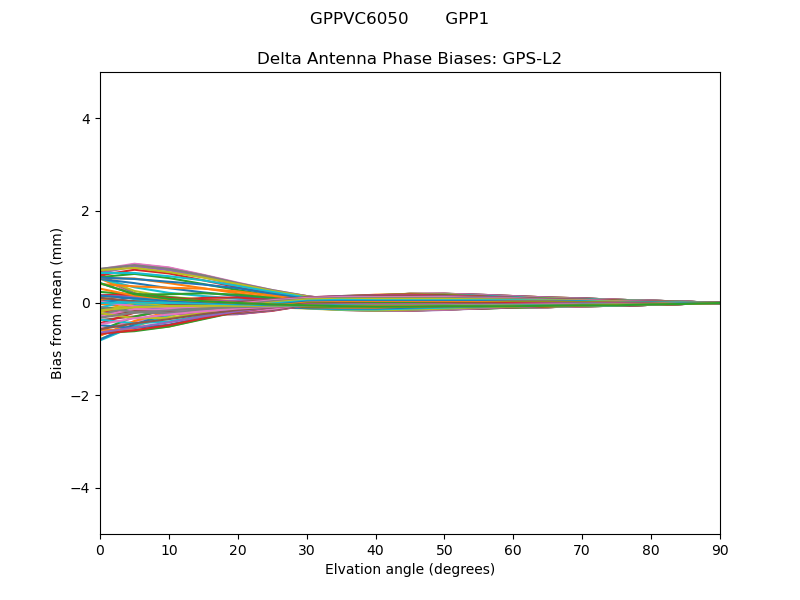

GPS-L2GPS-L2

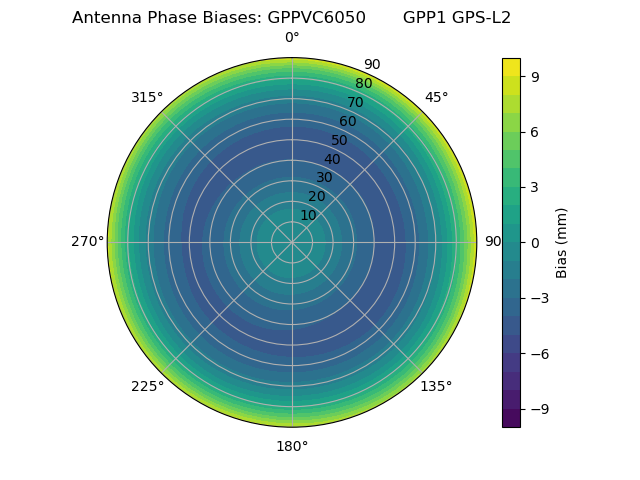

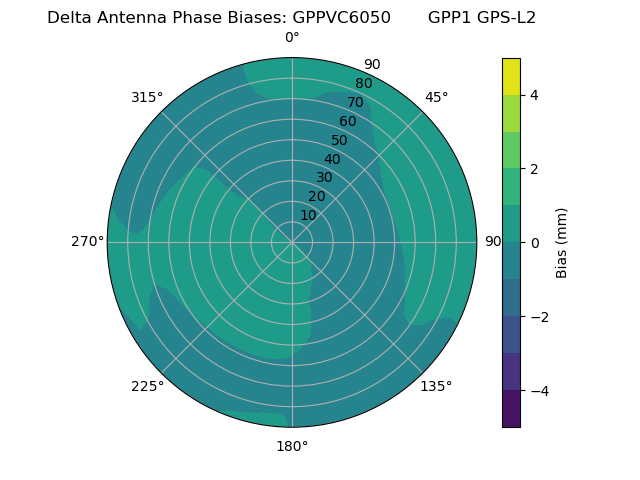

Radial GPS-L2Radial GPS-L2

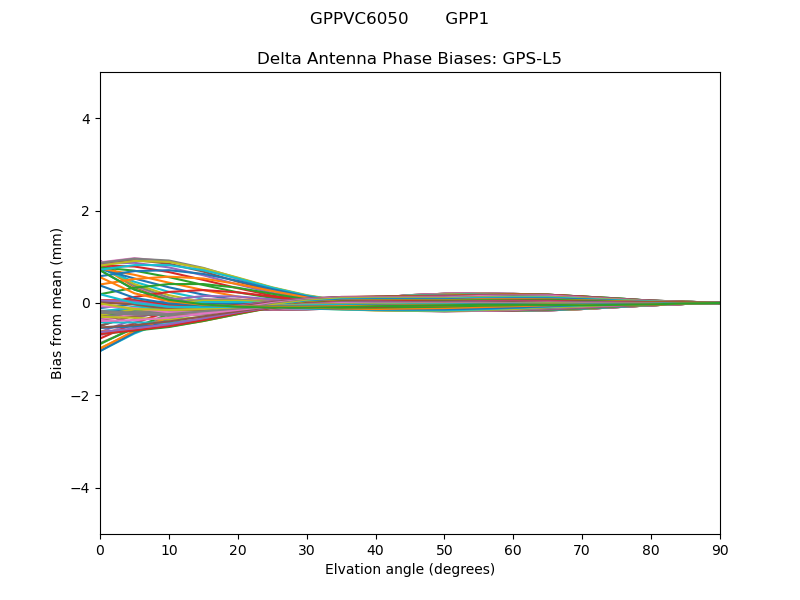

GPS-L5

GPS-L5GPS-L5

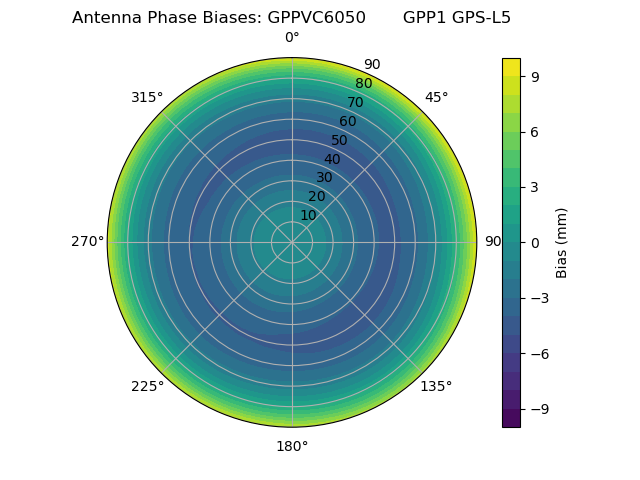

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

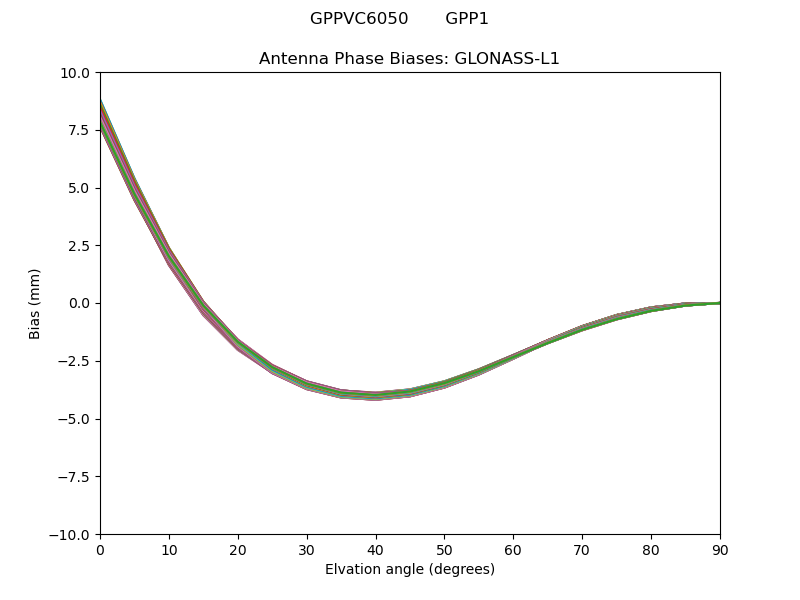

GLONASS-L1

GLONASS-L1GLONASS-L1

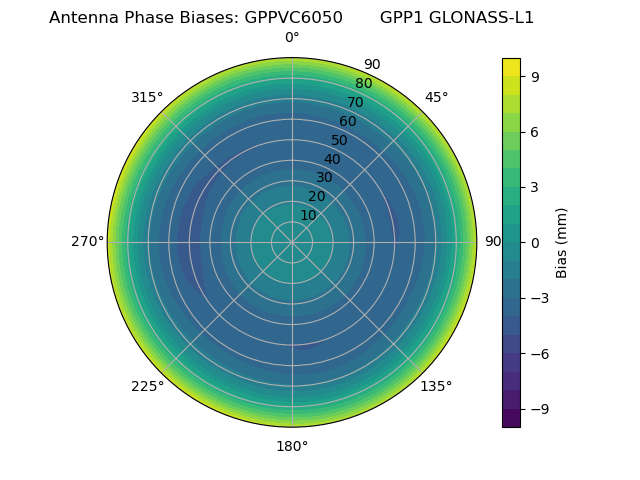

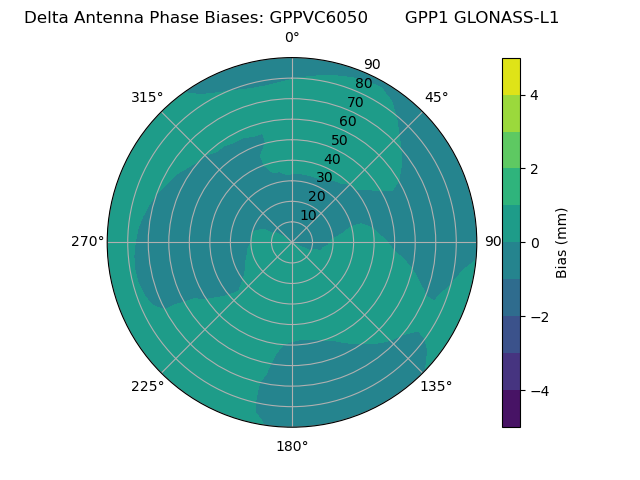

Radial GLONASS-L1Radial GLONASS-L1

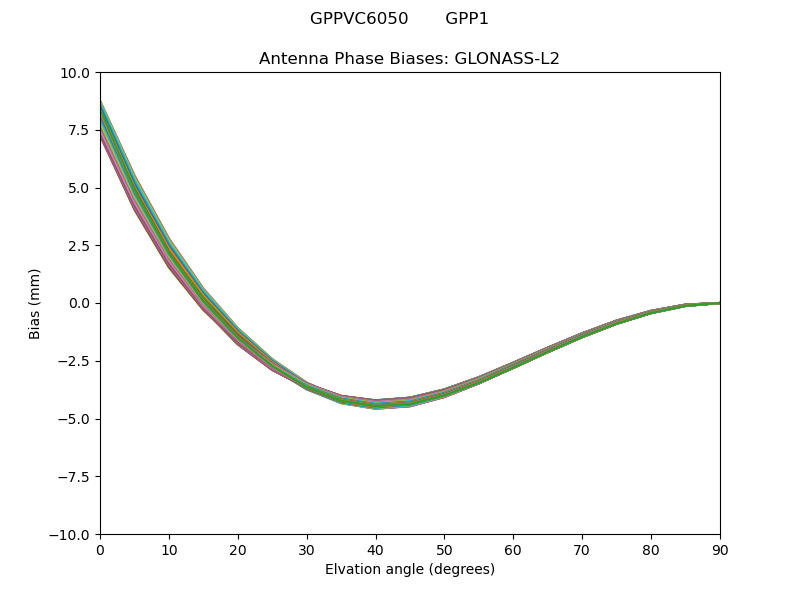

GLONASS-L2

GLONASS-L2GLONASS-L2

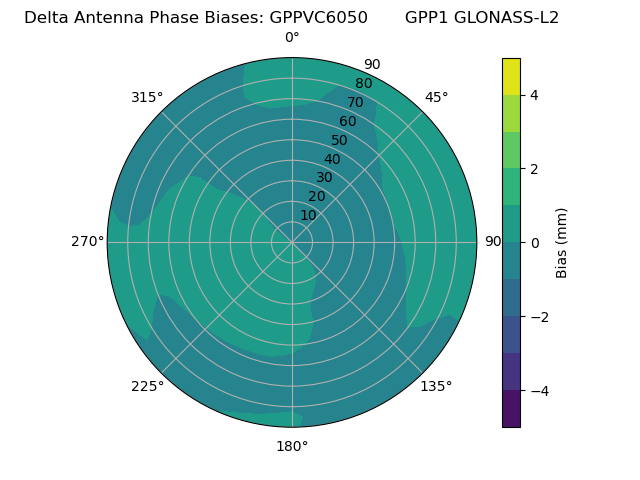

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

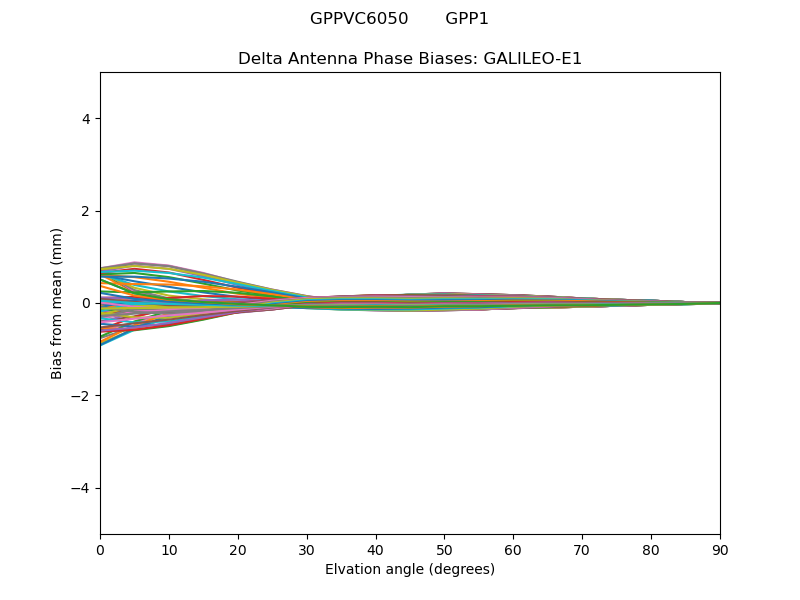

GALILEO-E1GALILEO-E1

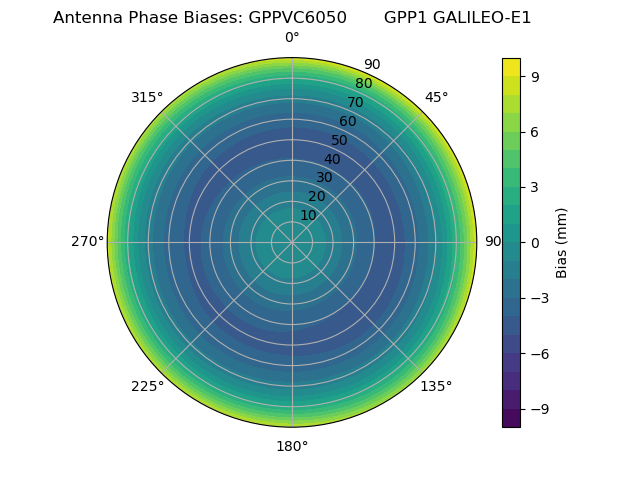

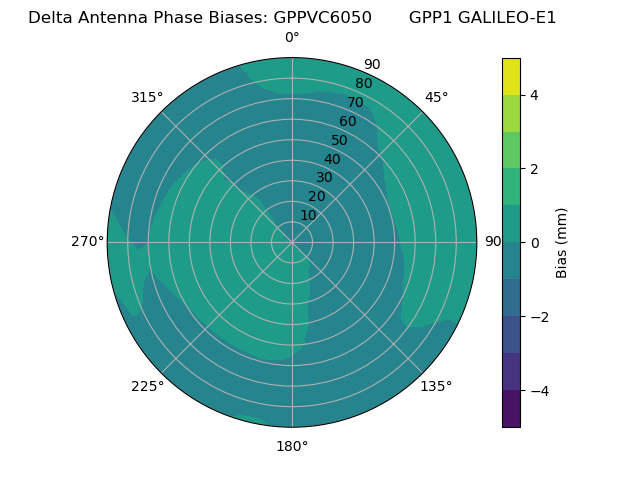

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a
Radial GALILEO-E5aRadial GALILEO-E5a

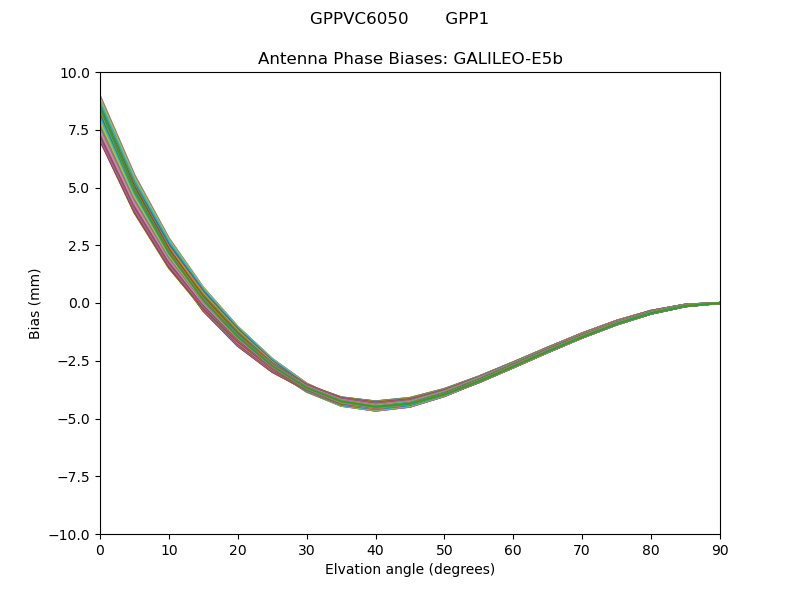

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

BeiDOU


Bias Delta

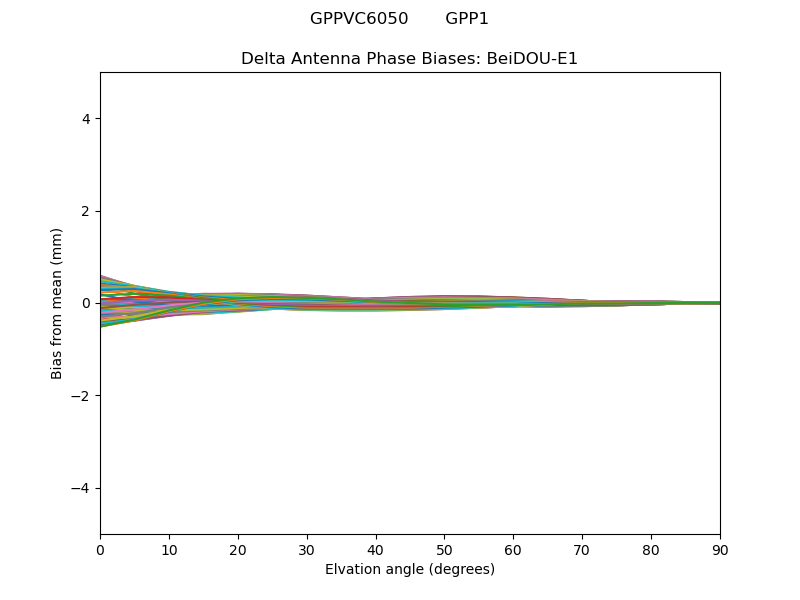

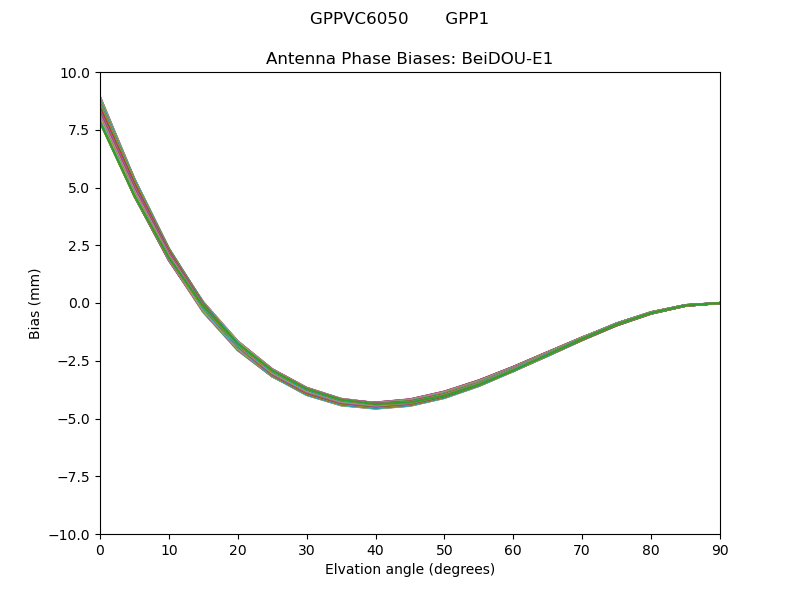

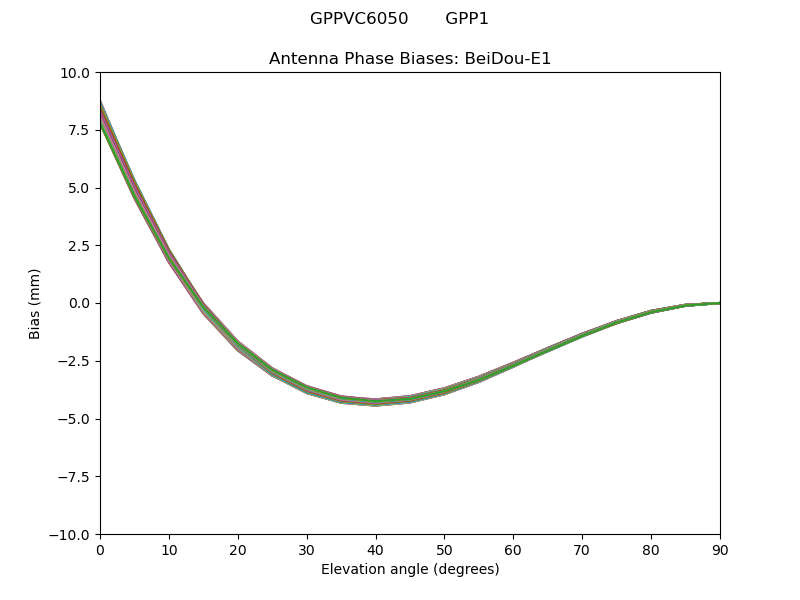

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

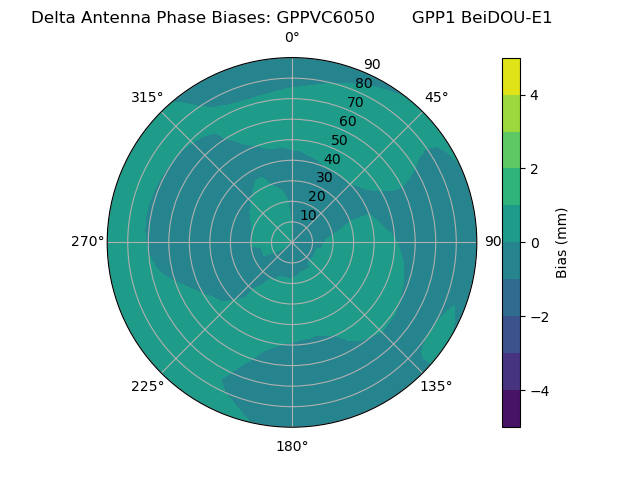

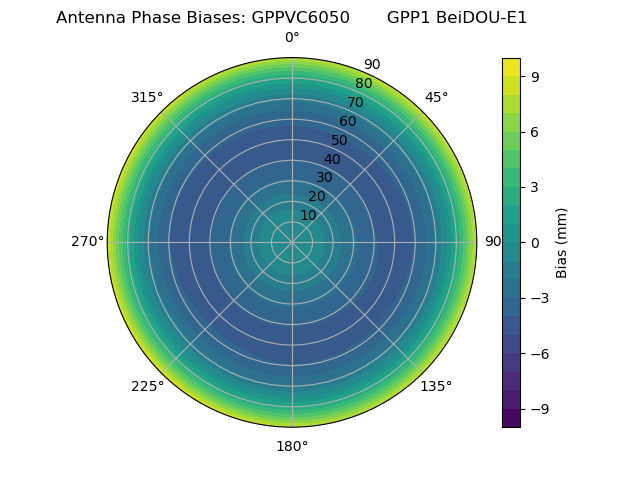

Radial BeiDOU-E1Radial BeiDOU-E1

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

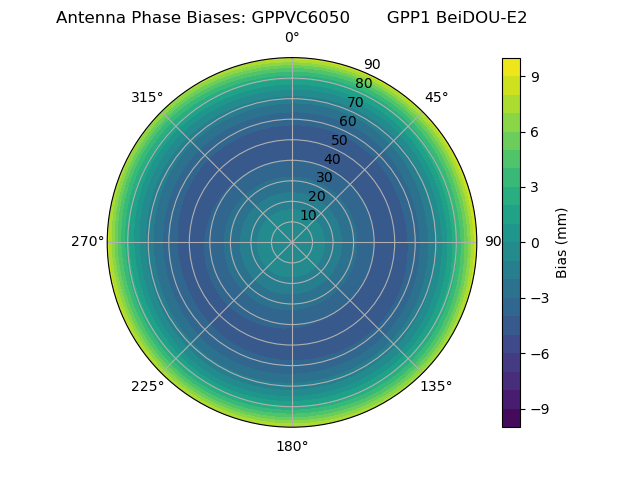

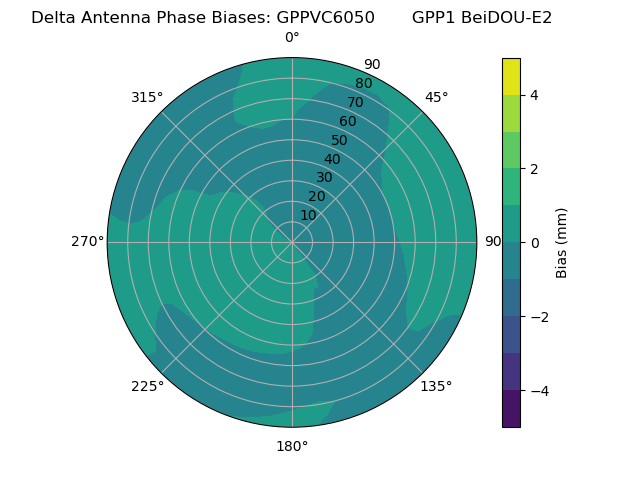

Radial BeiDOU-E2Radial BeiDOU-E2
