Antenna information for JAVGRANT_3L+GP JVSD

Antenna Offsets
SV System Bands

GPS

L1: N: 1.79 E: 0.45 U: 40.30
L2: N: 2.22 E: -2.91 U: 41.99
L5: N: -3.46 E: -1.93 U: 45.06

GLONASS

L1: N: 0.90 E: 1.57 U: 40.71
L2: N: 3.60 E: -3.09 U: 40.66

GALILEO

E1: N: 1.79 E: 0.45 U: 40.30
E5a: N: -3.46 E: -1.93 U: 45.06
E5b: N: 0.27 E: -2.60 U: 43.34
E5: N: -1.47 E: -2.30 U: 44.26
E6: N: 5.24 E: -3.21 U: 37.92

BeiDou

E1: N: 1.79 E: 0.45 U: 40.30
E2: N: 2.28 E: -0.17 U: 40.04
E5b: N: 0.27 E: -2.60 U: 43.34
E6: N: 4.83 E: -3.20 U: 38.83

QZSS

L1: N: 1.79 E: 0.45 U: 40.30
L2: N: 2.22 E: -2.91 U: 41.99
L5: N: -3.46 E: -1.93 U: 45.06
LEX: N: 5.24 E: -3.21 U: 37.92

SBAS

L1: N: 1.79 E: 0.45 U: 40.30
L5: N: -3.46 E: -1.93 U: 45.06

L1

GPS: N: 1.79 E: 0.45 U: 40.30
GLONASS: N: 0.90 E: 1.57 U: 40.71
QZSS: N: 1.79 E: 0.45 U: 40.30
SBAS: N: 1.79 E: 0.45 U: 40.30

L2

GPS: N: 2.22 E: -2.91 U: 41.99
GLONASS: N: 3.60 E: -3.09 U: 40.66
QZSS: N: 2.22 E: -2.91 U: 41.99

L5

GPS: N: -3.46 E: -1.93 U: 45.06
QZSS: N: -3.46 E: -1.93 U: 45.06
SBAS: N: -3.46 E: -1.93 U: 45.06

E1

GALILEO: N: 1.79 E: 0.45 U: 40.30
BeiDou: N: 1.79 E: 0.45 U: 40.30

E2

BeiDou: N: 2.28 E: -0.17 U: 40.04

E5

GALILEO: N: -1.47 E: -2.30 U: 44.26

E5a

GALILEO: N: -3.46 E: -1.93 U: 45.06

E5b

GALILEO: N: 0.27 E: -2.60 U: 43.34
BeiDou: N: 0.27 E: -2.60 U: 43.34

E6

GALILEO: N: 5.24 E: -3.21 U: 37.92
BeiDou: N: 4.83 E: -3.20 U: 38.83

LEX

QZSS: N: 5.24 E: -3.21 U: 37.92


Means

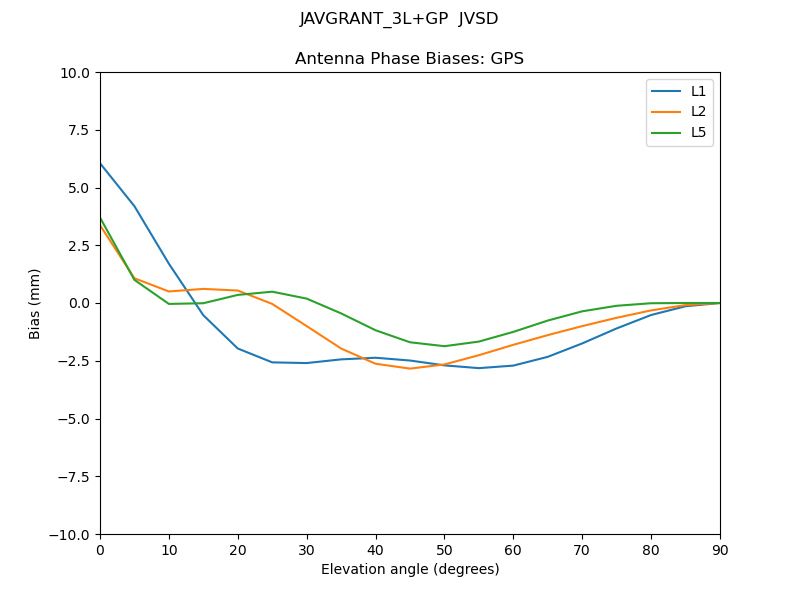

GPS

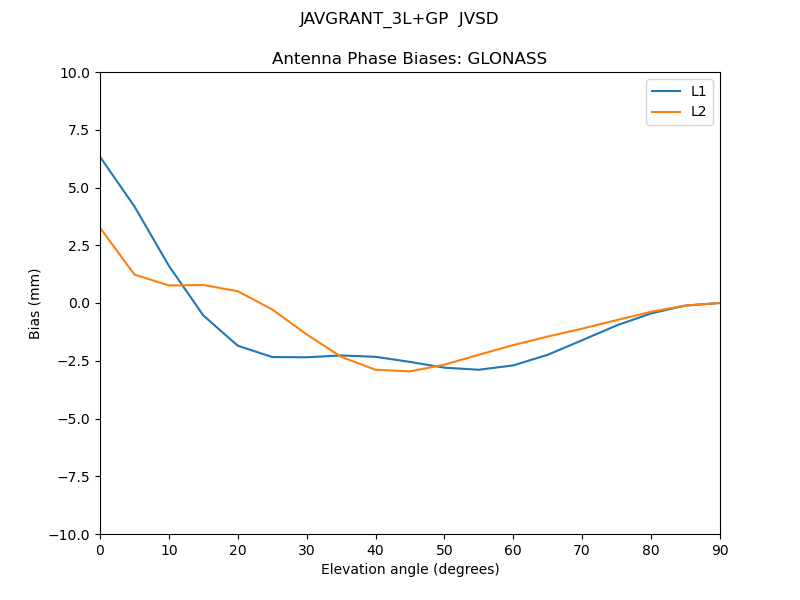

GLONASS

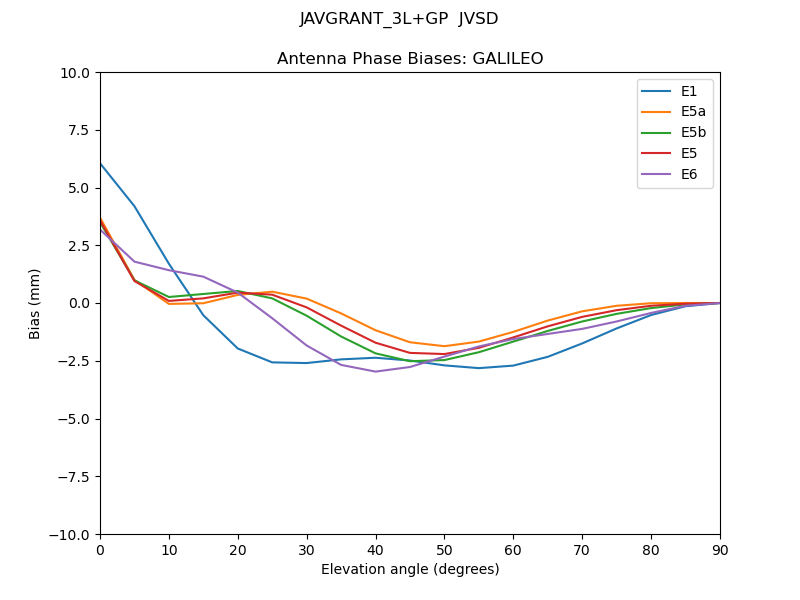

GALILEO

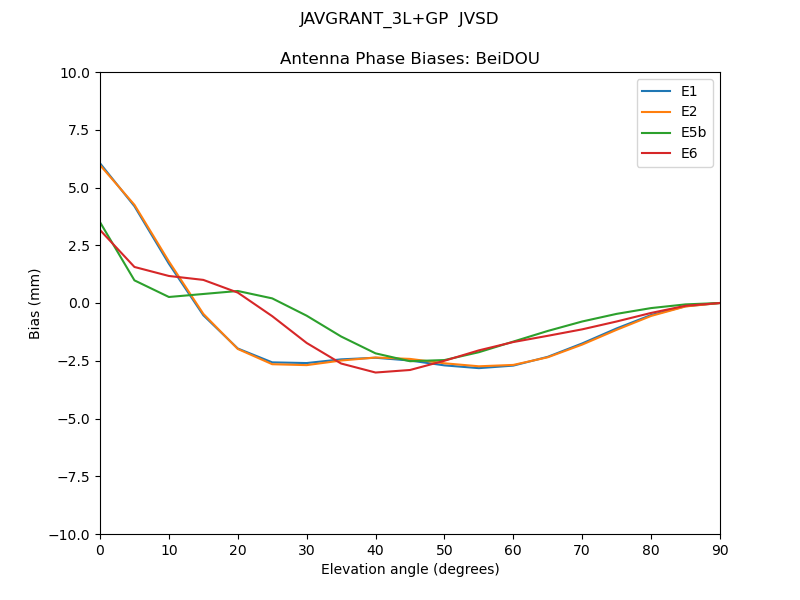

BeiDOU

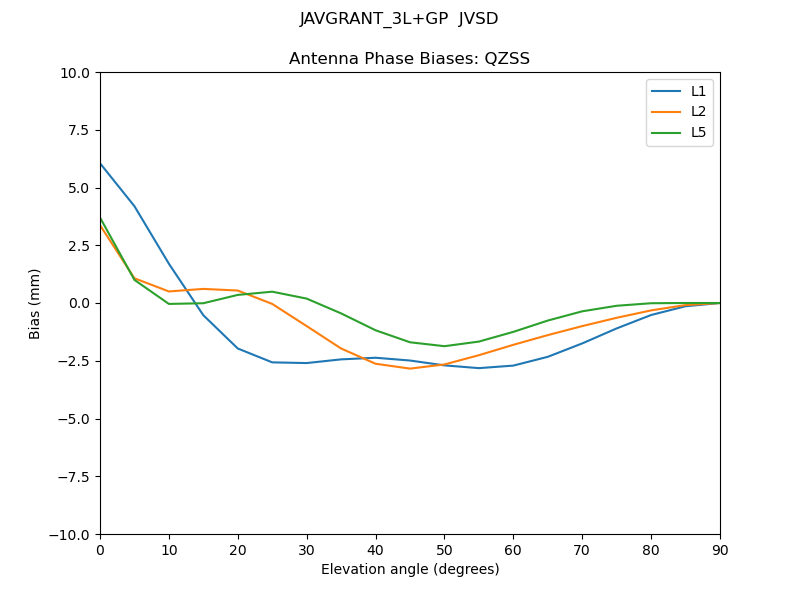

QZSS

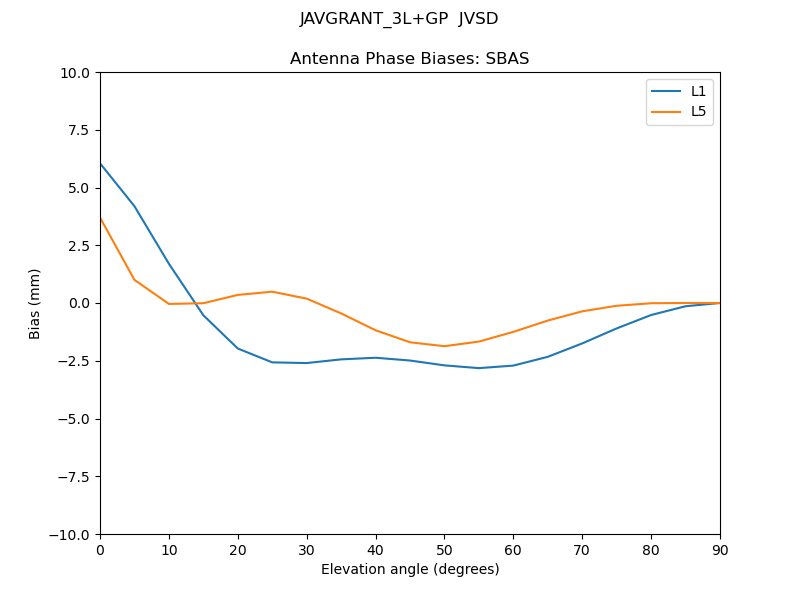

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

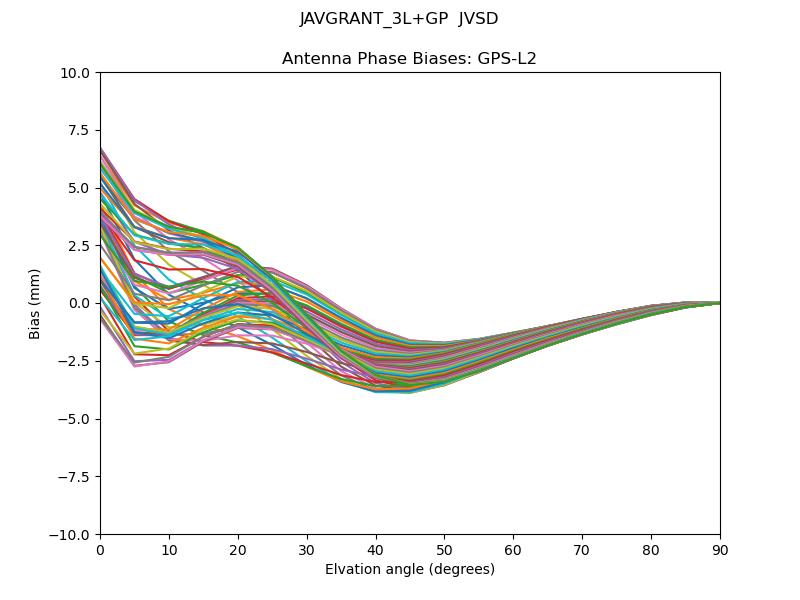

GPS-L2

GPS-L2GPS-L2
Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

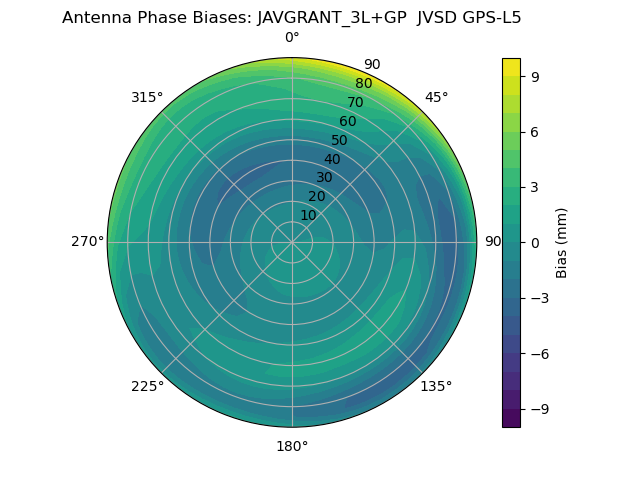

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

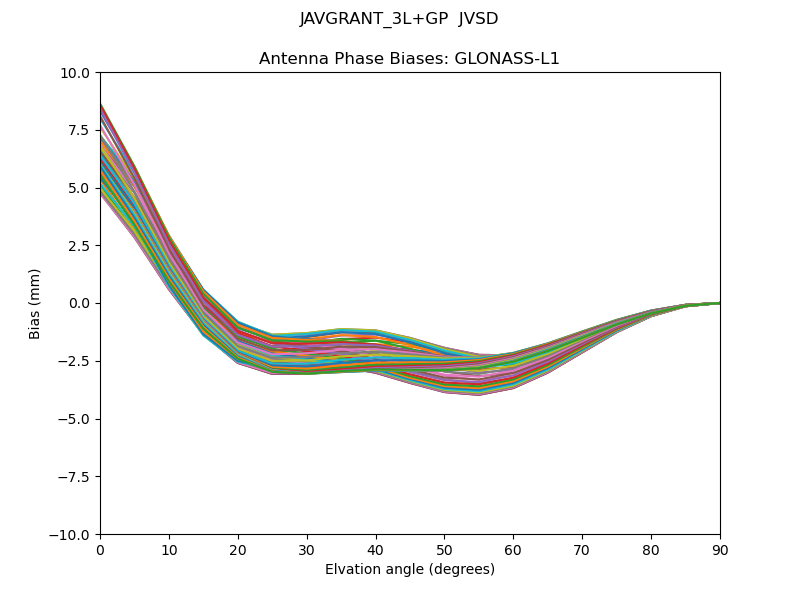

GLONASS-L1

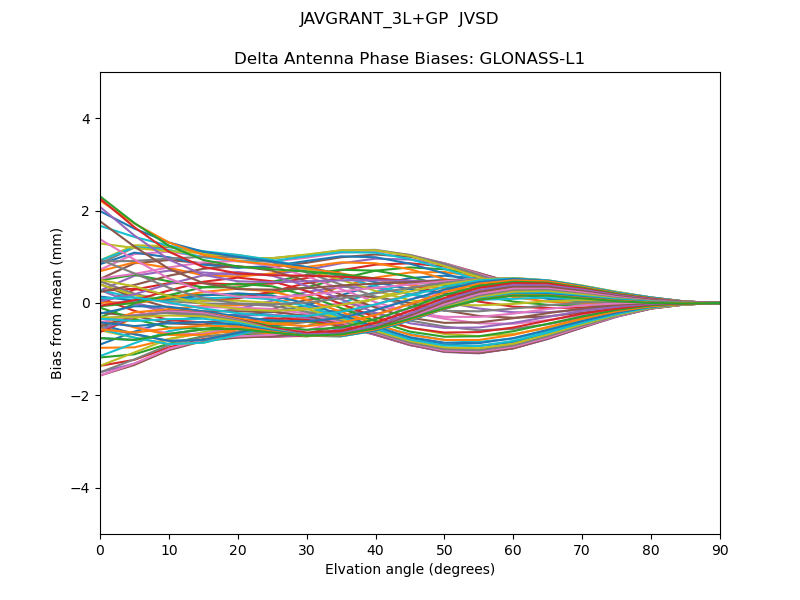

GLONASS-L1GLONASS-L1

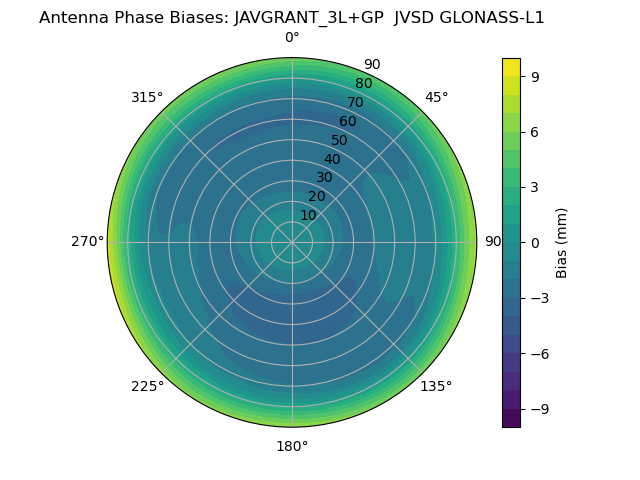

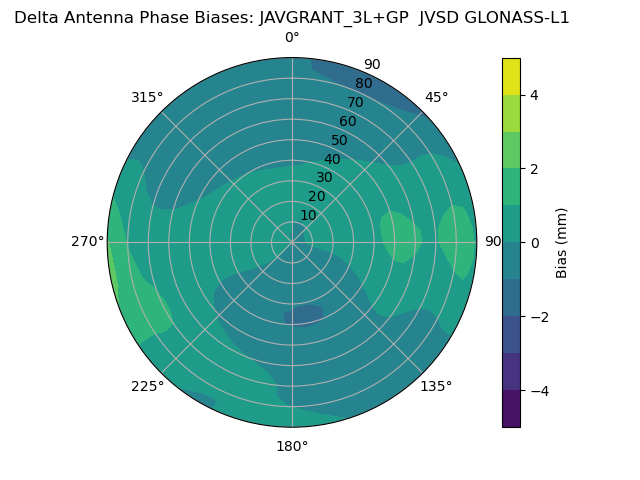

Radial GLONASS-L1Radial GLONASS-L1

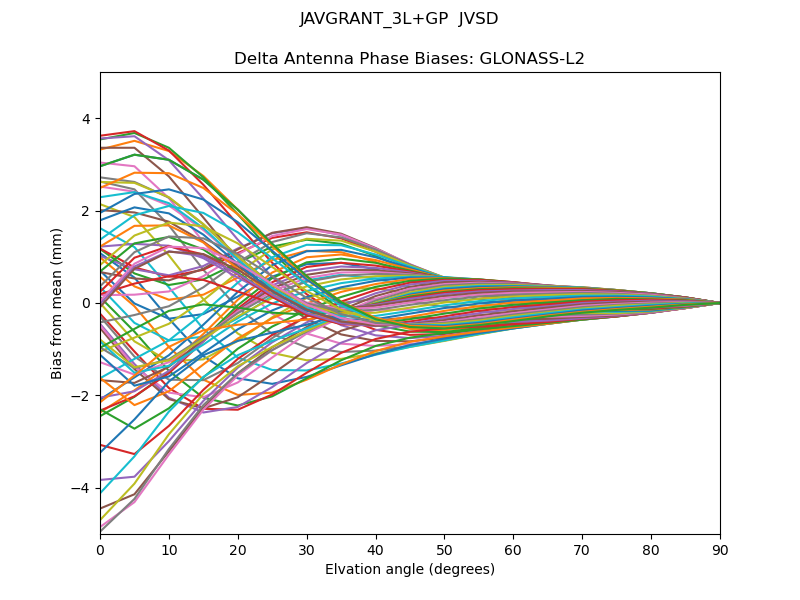

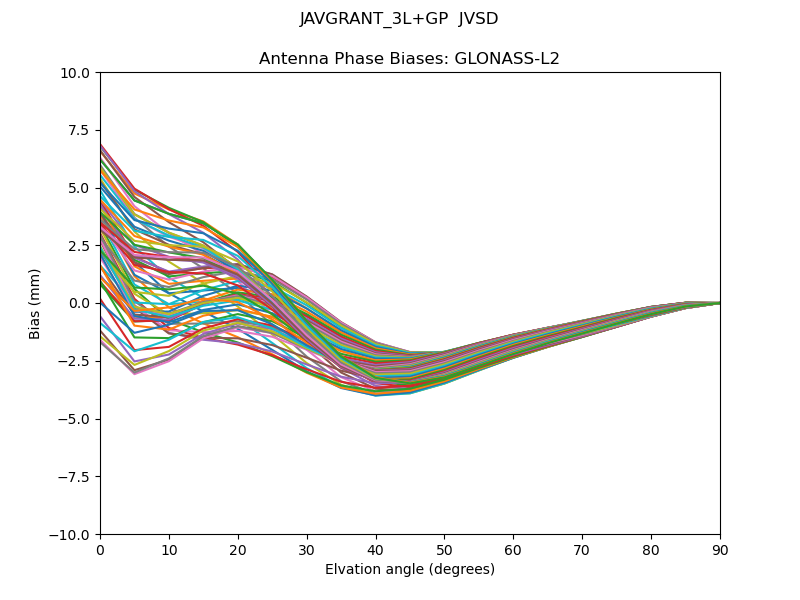

GLONASS-L2

GLONASS-L2GLONASS-L2

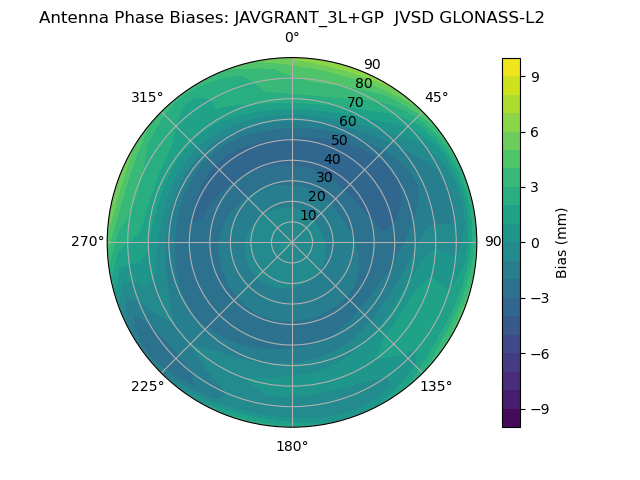

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

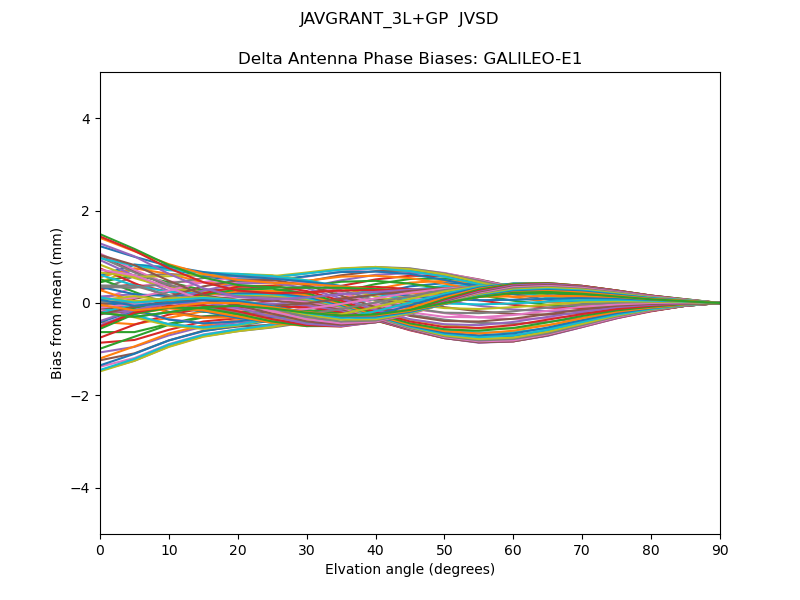

GALILEO-E1

GALILEO-E1GALILEO-E1

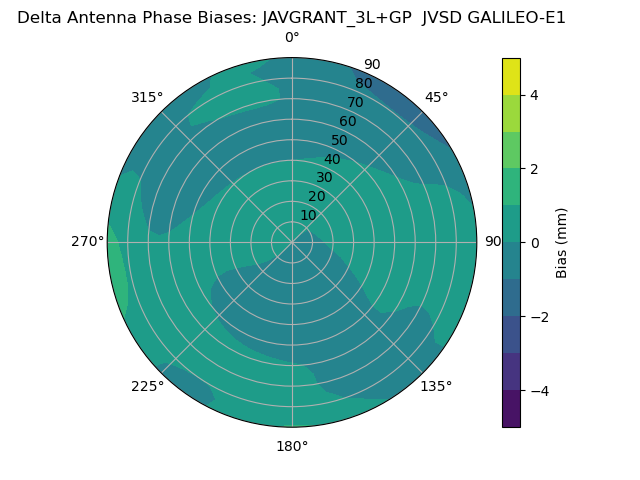

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a
Radial GALILEO-E5aRadial GALILEO-E5a

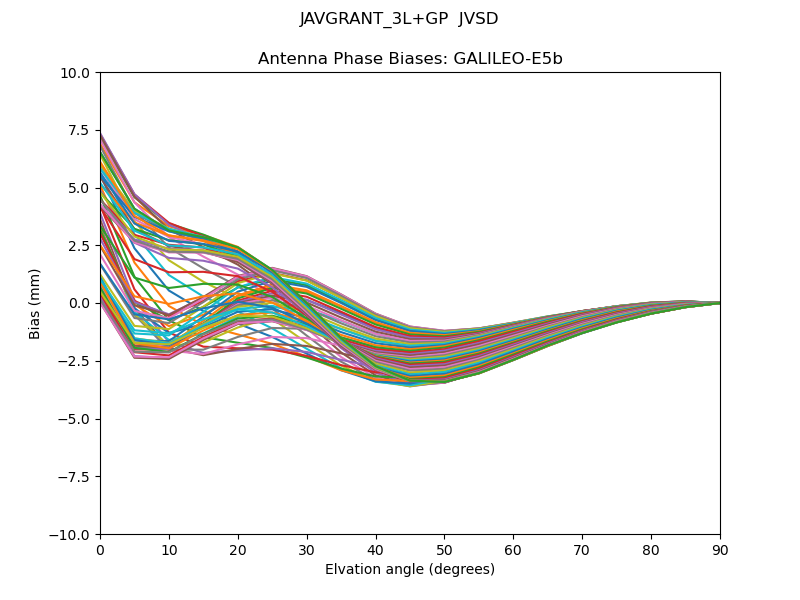

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

GALILEO-E5

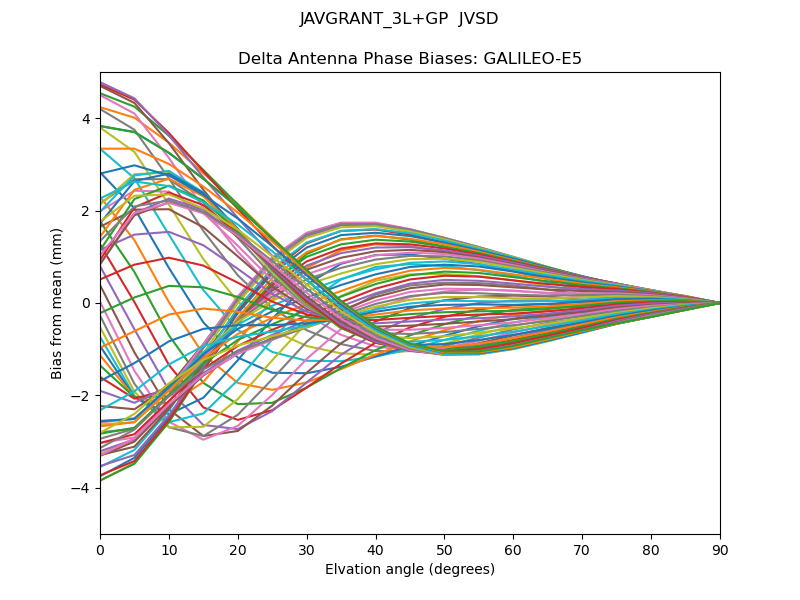

GALILEO-E5GALILEO-E5

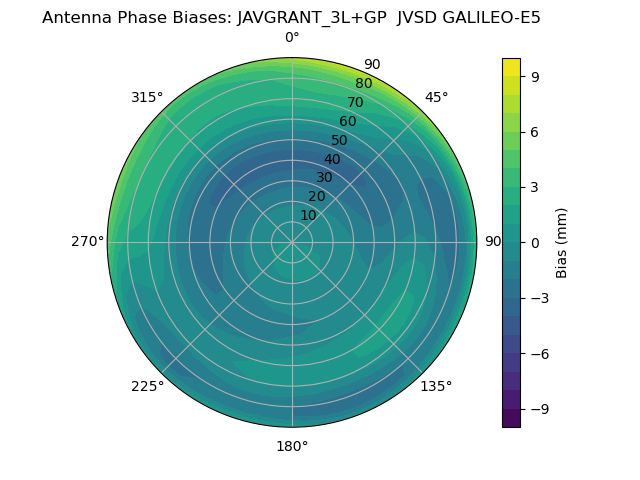

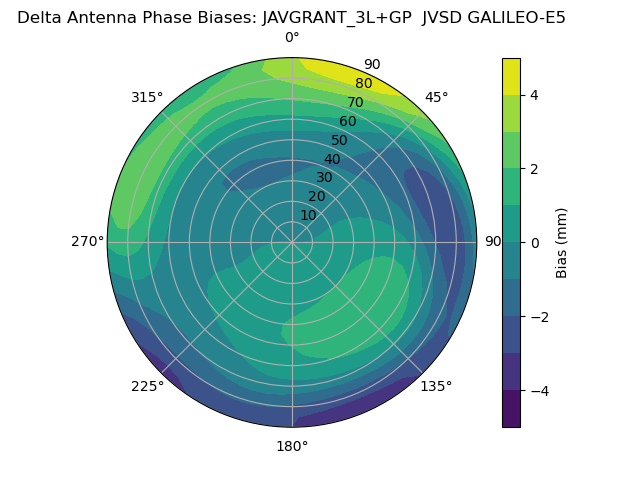

Radial GALILEO-E5Radial GALILEO-E5

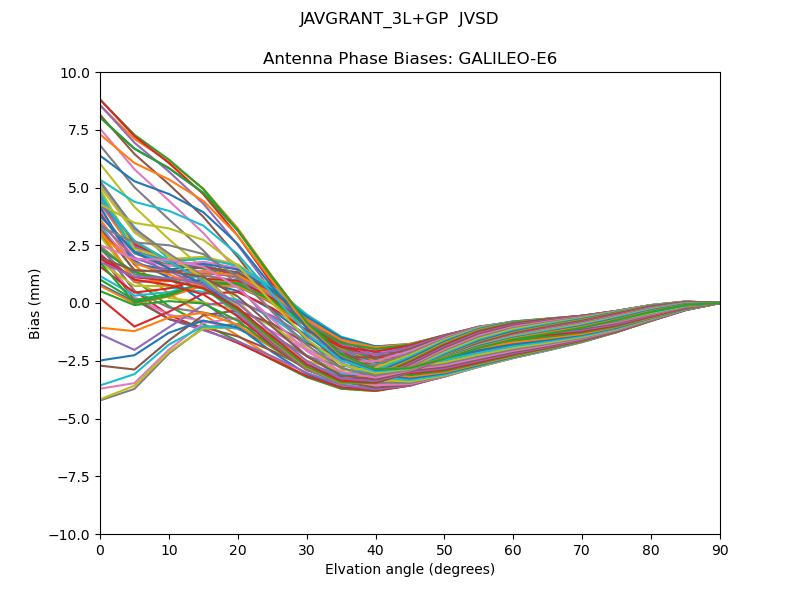

GALILEO-E6

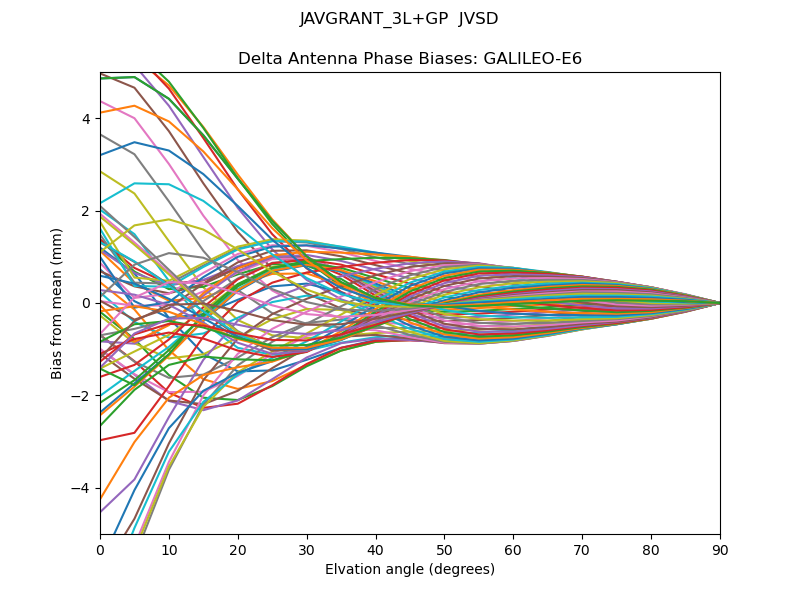

GALILEO-E6GALILEO-E6

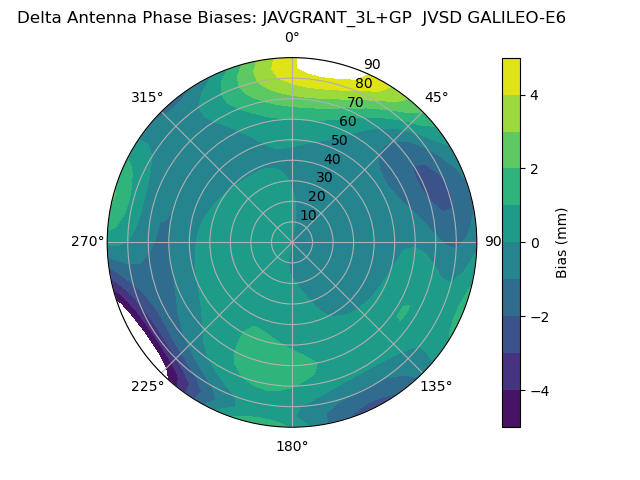

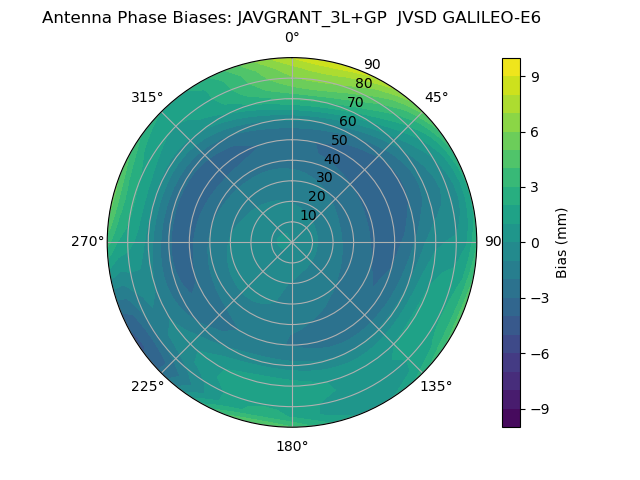

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

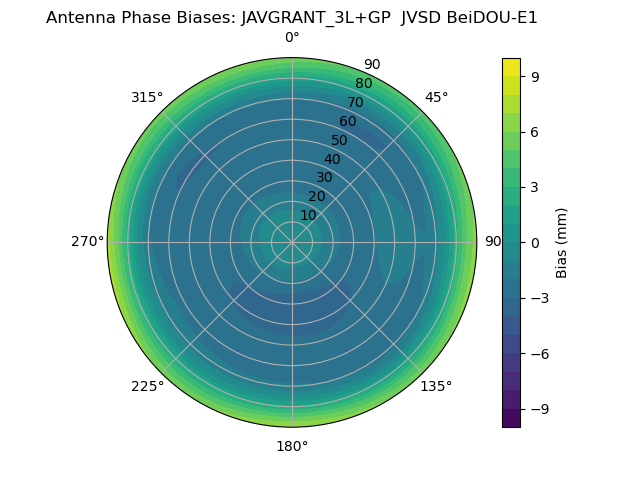

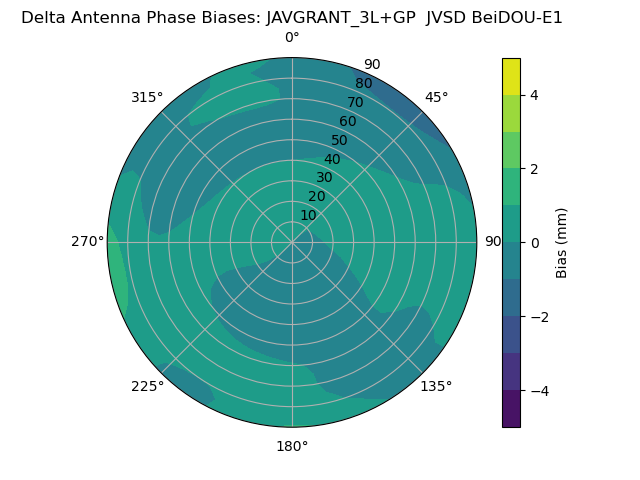

Radial BeiDOU-E1Radial BeiDOU-E1

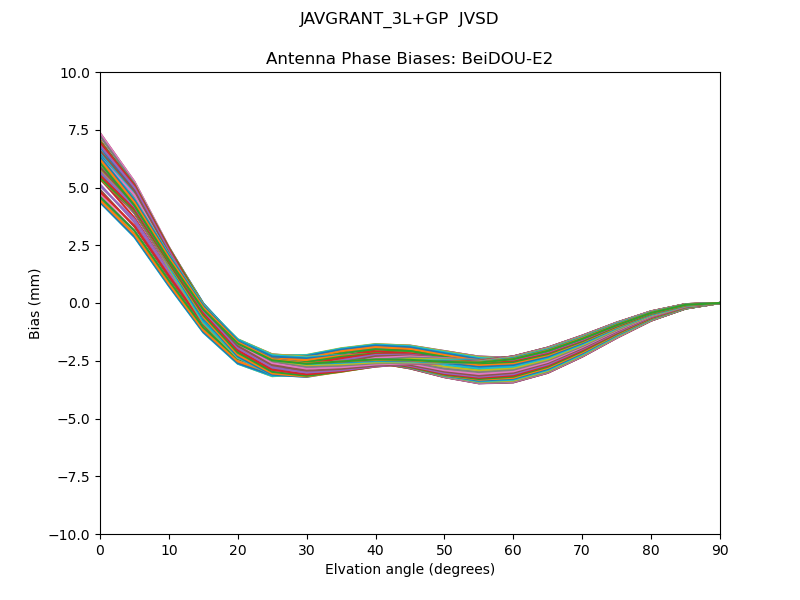

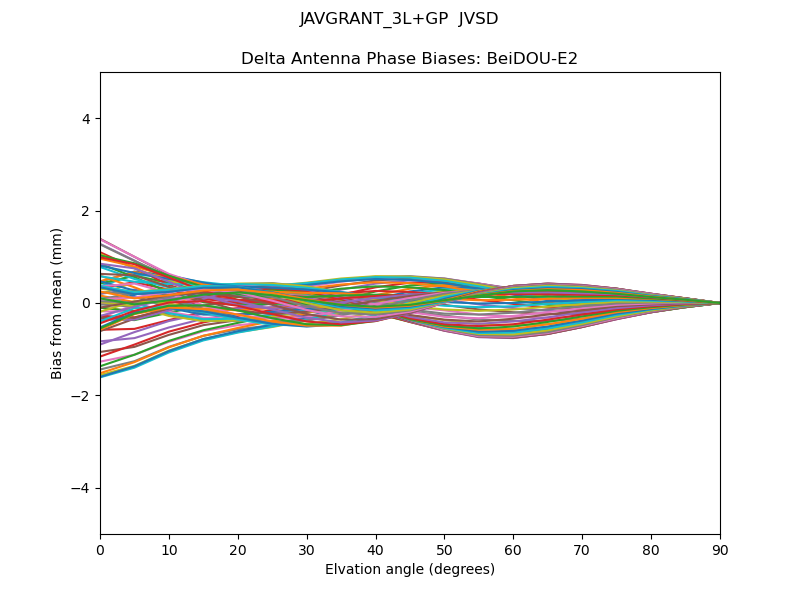

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

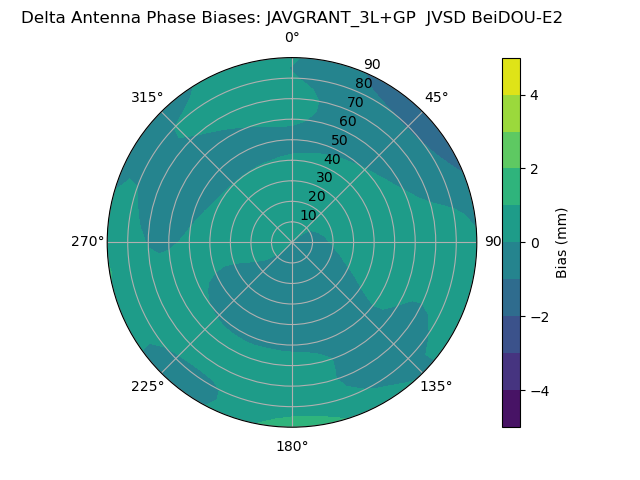

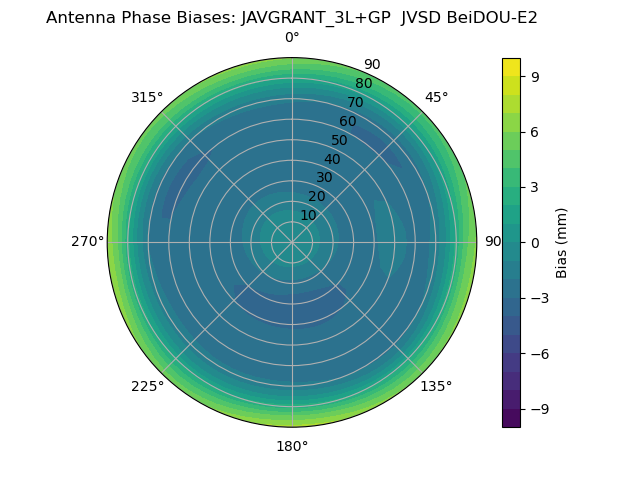

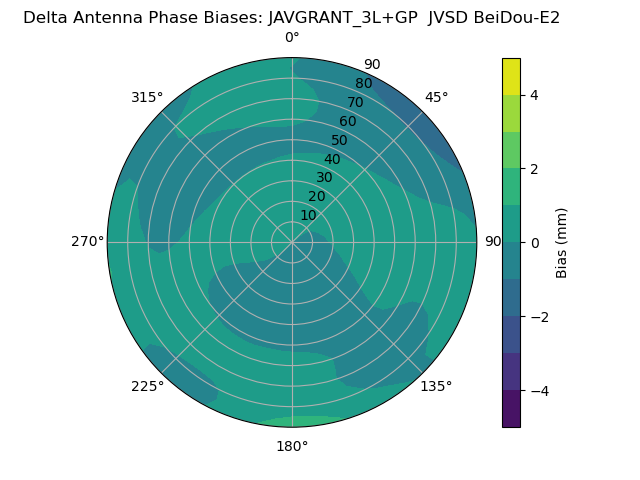

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

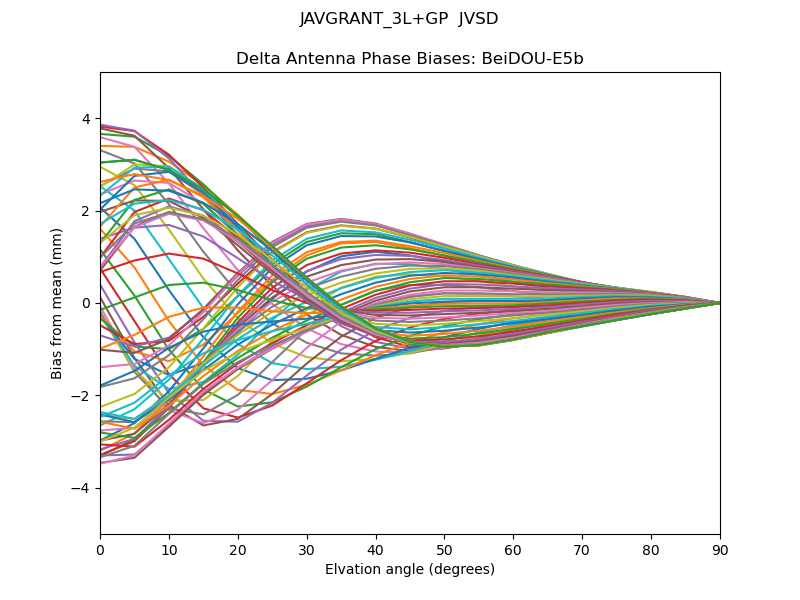

BeiDOU-E5bBeiDOU-E5b
Radial BeiDOU-E5bRadial BeiDOU-E5b

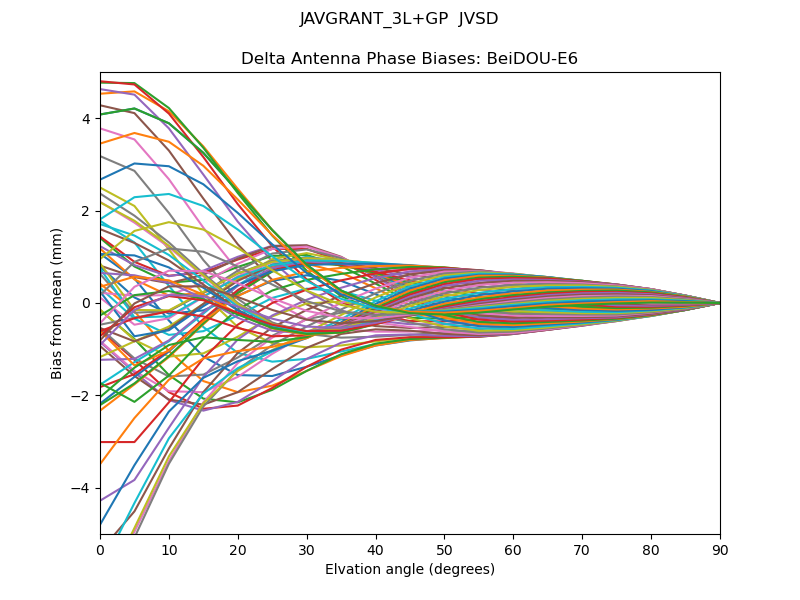

BeiDOU-E6

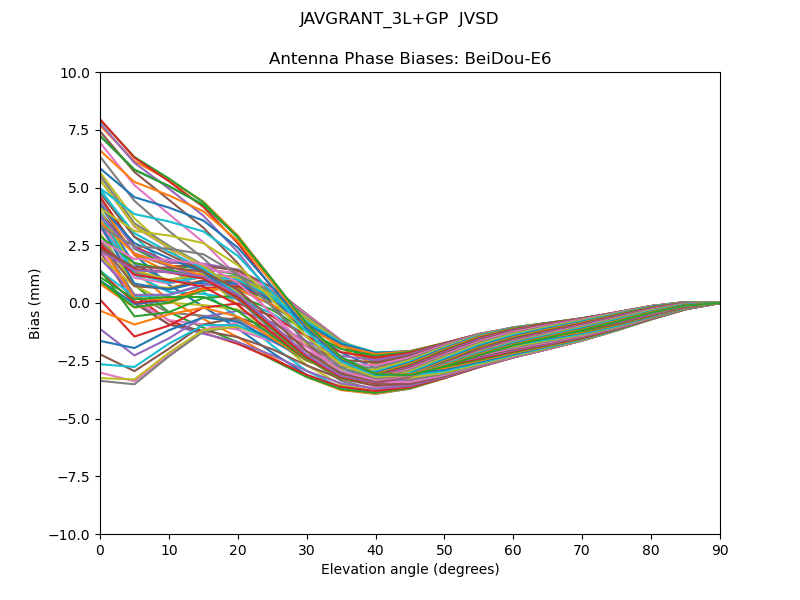

BeiDOU-E6BeiDOU-E6

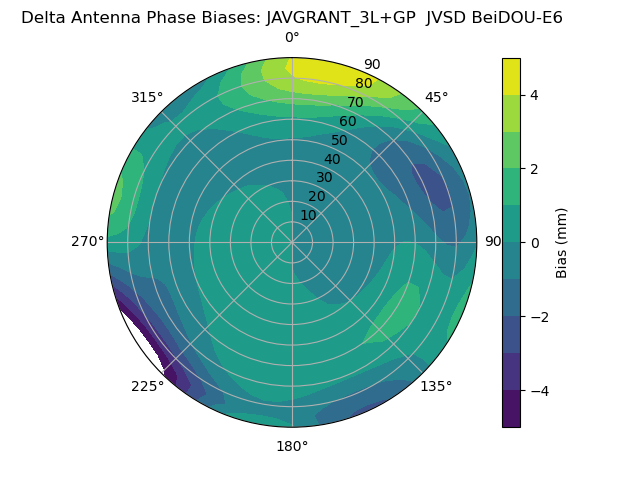

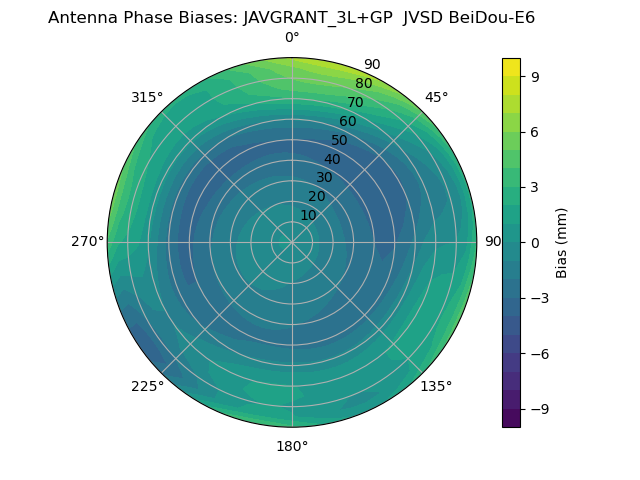

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

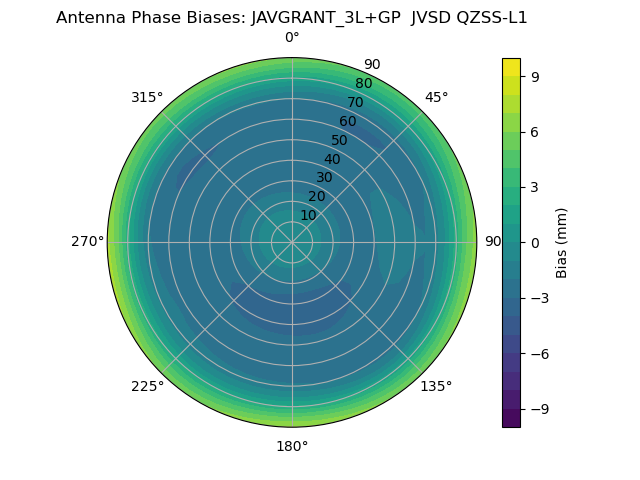

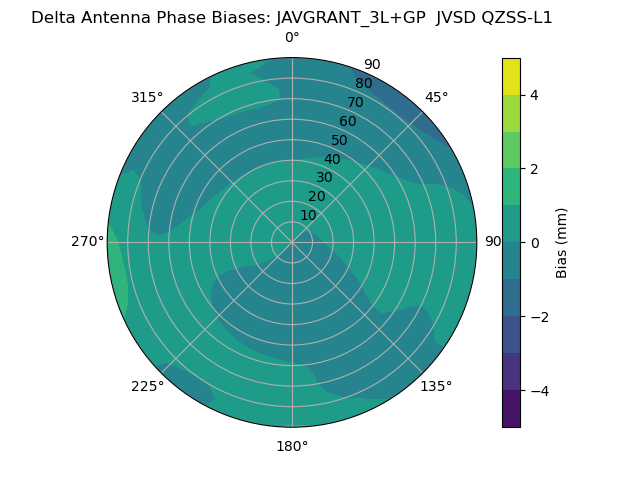

Radial QZSS-L1Radial QZSS-L1

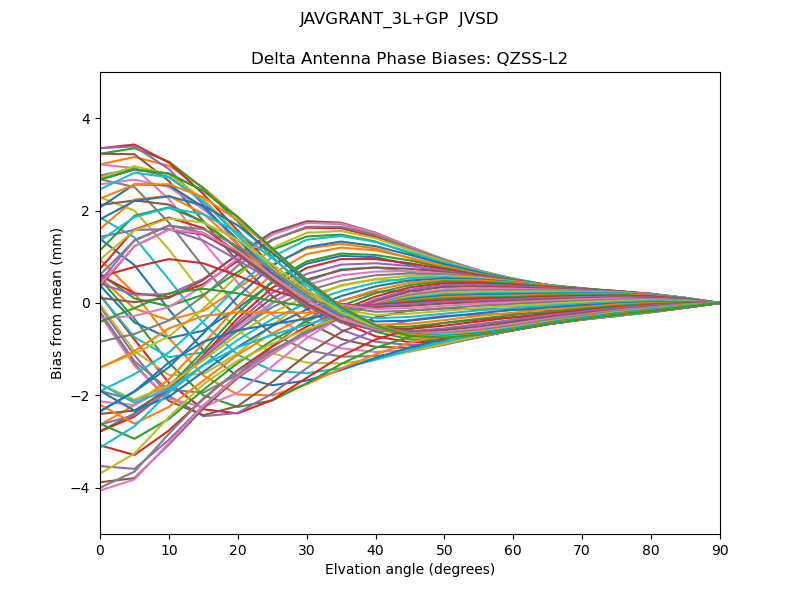

QZSS-L2

QZSS-L2QZSS-L2

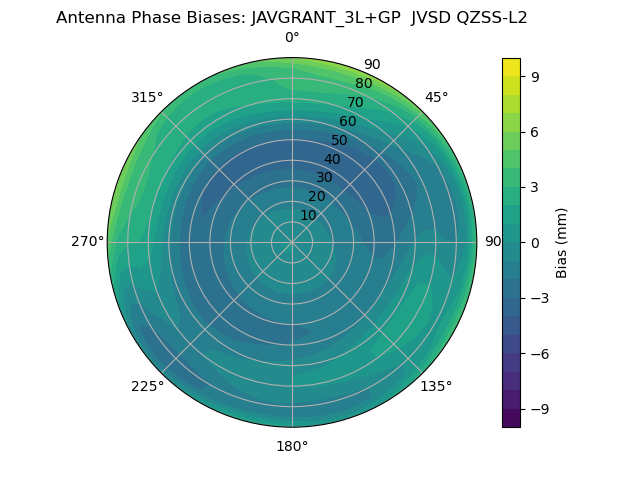

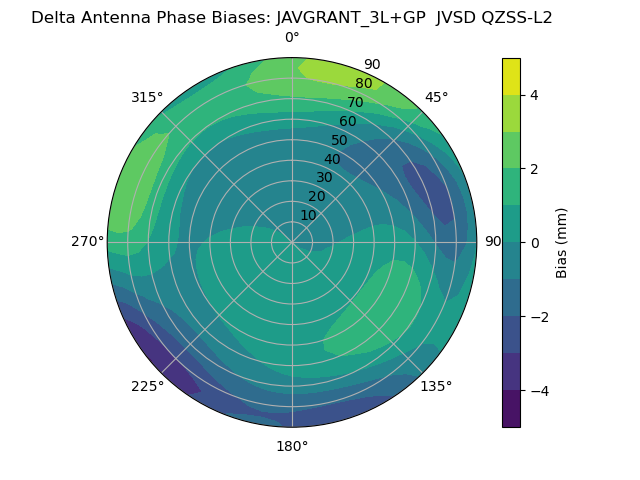

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

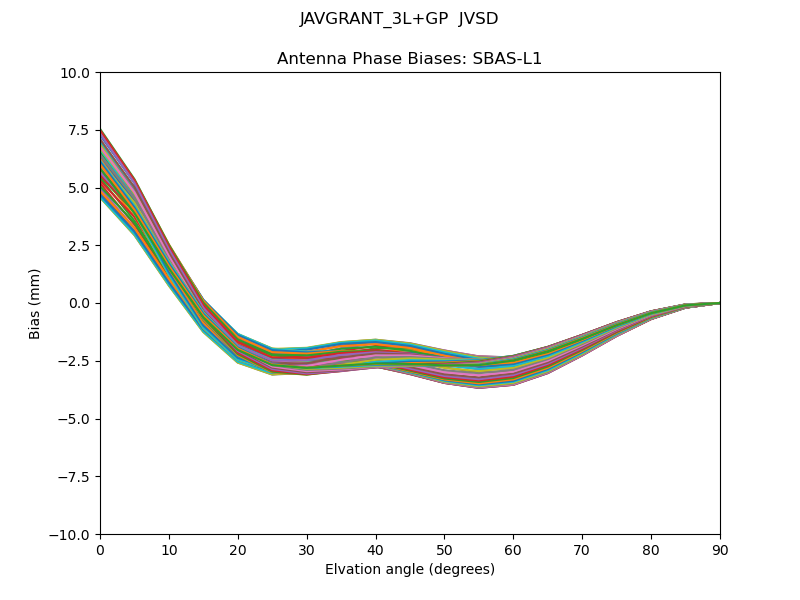

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

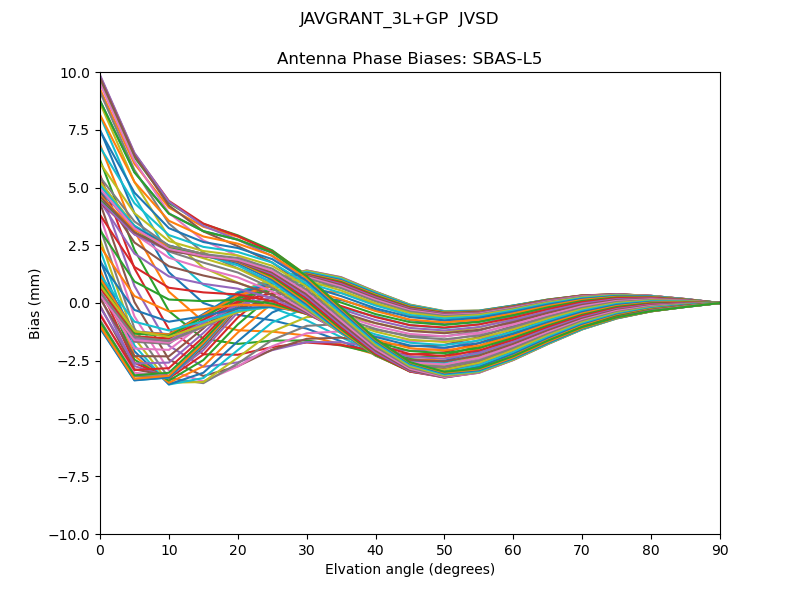

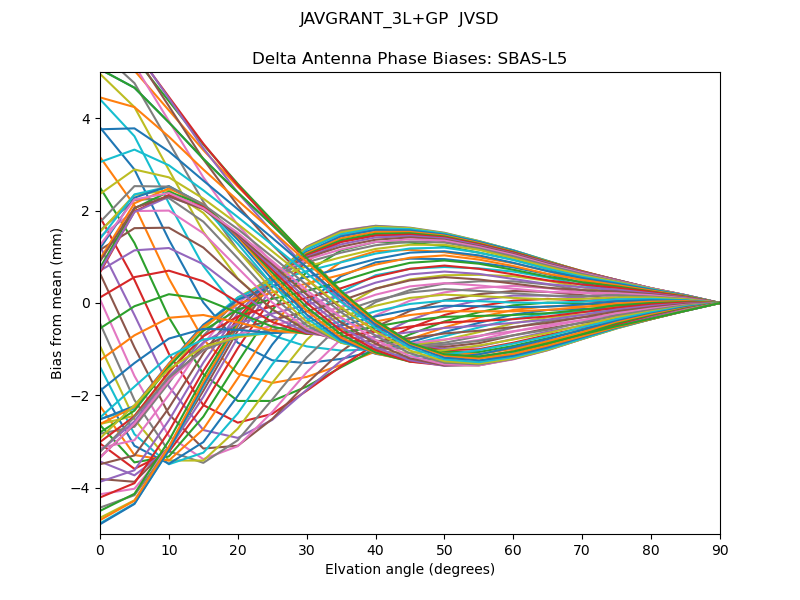

SBAS-L5

SBAS-L5SBAS-L5

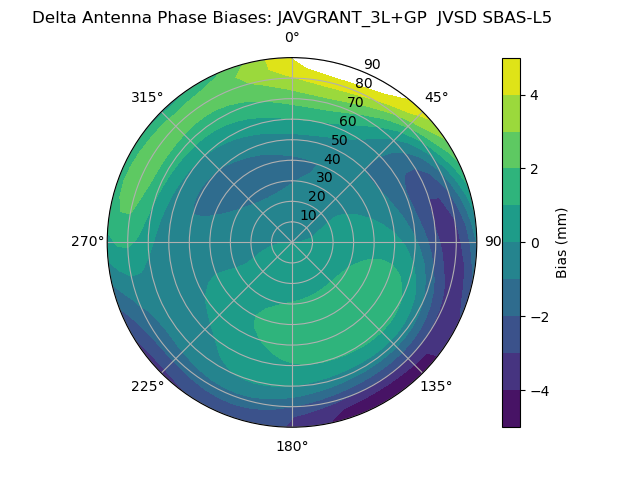

Radial SBAS-L5Radial SBAS-L5
