Antenna information for JAVGRANT_3L NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 1.43 E: 2.13 U: 51.72
L2: N: -1.73 E: -0.91 U: 50.95
L5: N: -4.05 E: -3.45 U: 55.31

GLONASS

L1: N: 0.22 E: 1.78 U: 50.81
L2: N: -1.18 E: -0.19 U: 48.95

GALILEO

E1: N: 1.43 E: 2.13 U: 51.72
E5a: N: -4.05 E: -3.45 U: 55.31
E5b: N: -2.52 E: -1.84 U: 52.91
E5: N: -3.23 E: -2.61 U: 54.20
E6: N: -0.54 E: 0.84 U: 44.79

BeiDou

E1: N: 1.43 E: 2.13 U: 51.72
E2: N: 2.12 E: 2.33 U: 52.21
E5b: N: -2.52 E: -1.84 U: 52.91
E6: N: -0.69 E: 0.55 U: 46.17

QZSS

L1: N: 1.43 E: 2.13 U: 51.72
L2: N: -1.73 E: -0.91 U: 50.95
L5: N: -4.05 E: -3.45 U: 55.31
LEX: N: -0.54 E: 0.84 U: 44.79

SBAS

L1: N: 1.43 E: 2.13 U: 51.72
L5: N: -4.05 E: -3.45 U: 55.31

L1

GPS: N: 1.43 E: 2.13 U: 51.72
GLONASS: N: 0.22 E: 1.78 U: 50.81
QZSS: N: 1.43 E: 2.13 U: 51.72
SBAS: N: 1.43 E: 2.13 U: 51.72

L2

GPS: N: -1.73 E: -0.91 U: 50.95
GLONASS: N: -1.18 E: -0.19 U: 48.95
QZSS: N: -1.73 E: -0.91 U: 50.95

L5

GPS: N: -4.05 E: -3.45 U: 55.31
QZSS: N: -4.05 E: -3.45 U: 55.31
SBAS: N: -4.05 E: -3.45 U: 55.31

E1

GALILEO: N: 1.43 E: 2.13 U: 51.72
BeiDou: N: 1.43 E: 2.13 U: 51.72

E2

BeiDou: N: 2.12 E: 2.33 U: 52.21

E5

GALILEO: N: -3.23 E: -2.61 U: 54.20

E5a

GALILEO: N: -4.05 E: -3.45 U: 55.31

E5b

GALILEO: N: -2.52 E: -1.84 U: 52.91
BeiDou: N: -2.52 E: -1.84 U: 52.91

E6

GALILEO: N: -0.54 E: 0.84 U: 44.79
BeiDou: N: -0.69 E: 0.55 U: 46.17

LEX

QZSS: N: -0.54 E: 0.84 U: 44.79


Means

GPS

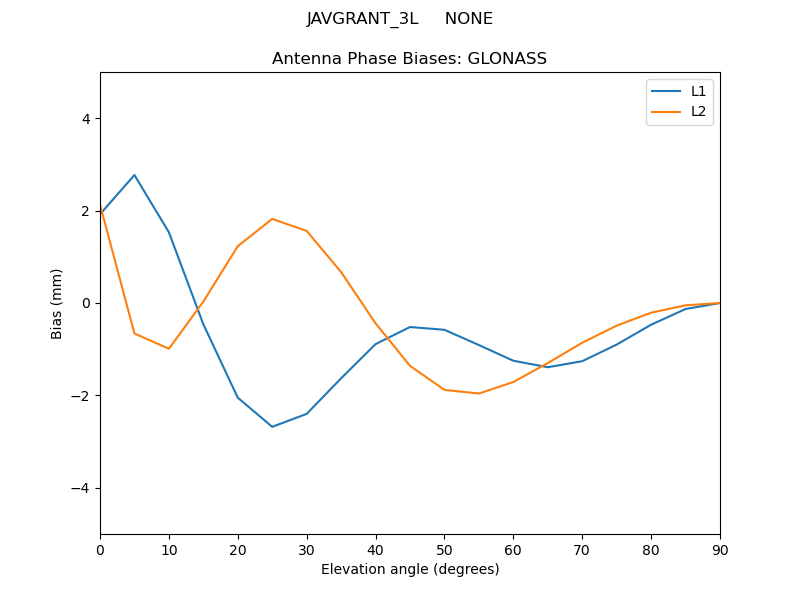

GLONASS

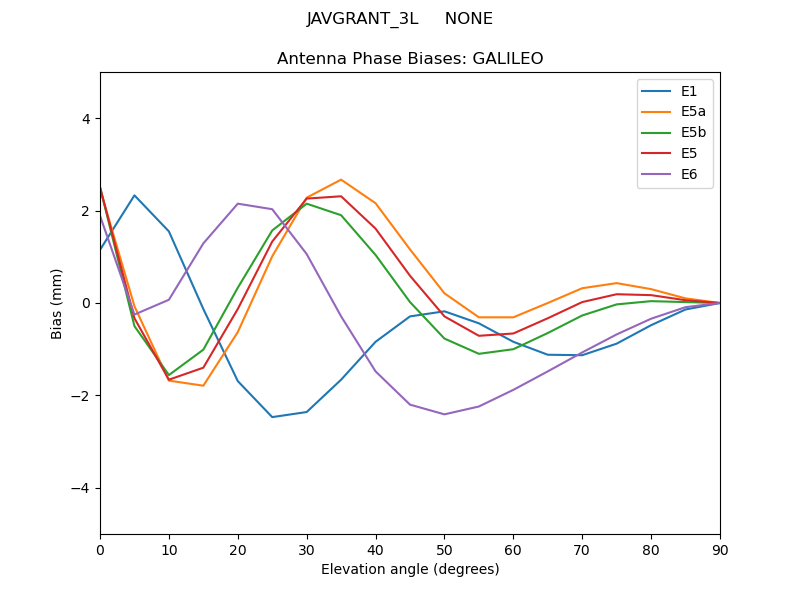

GALILEO

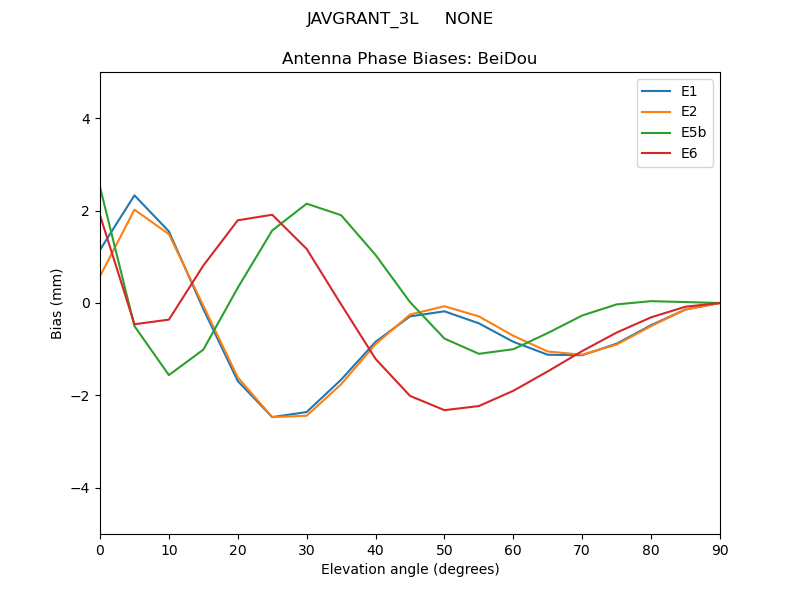

BeiDOU

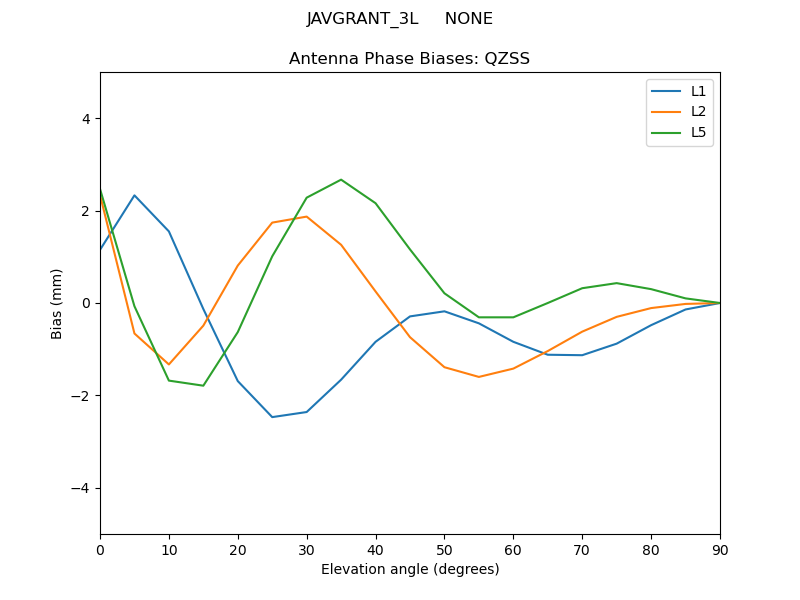

QZSS

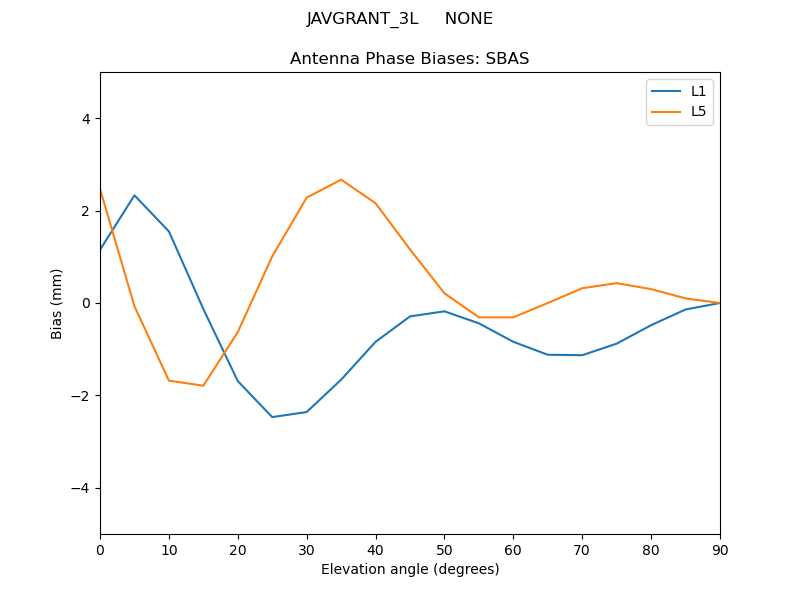

SBAS


Azimuths

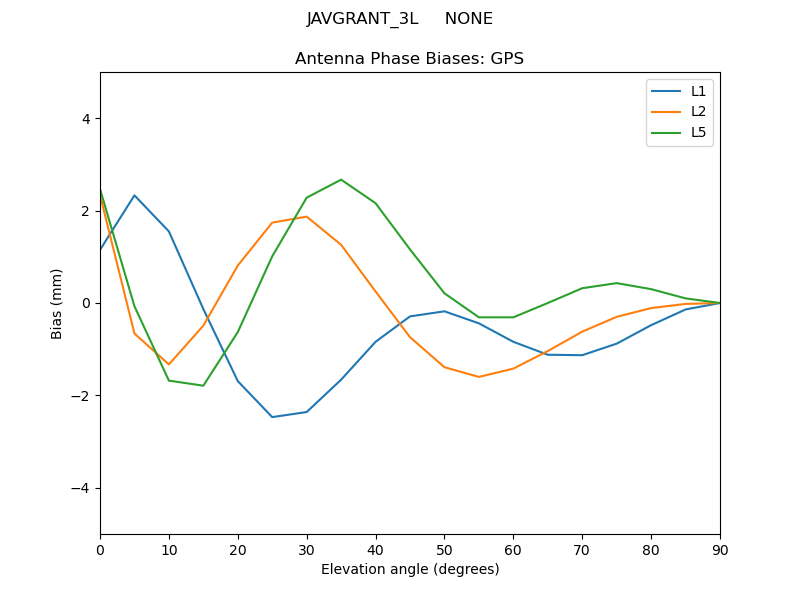

GPS


Bias Delta

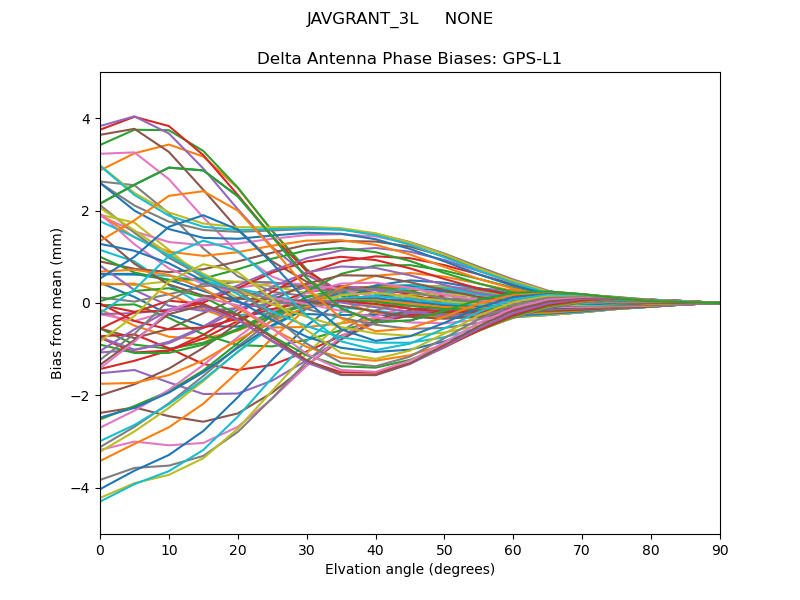

GPS-L1

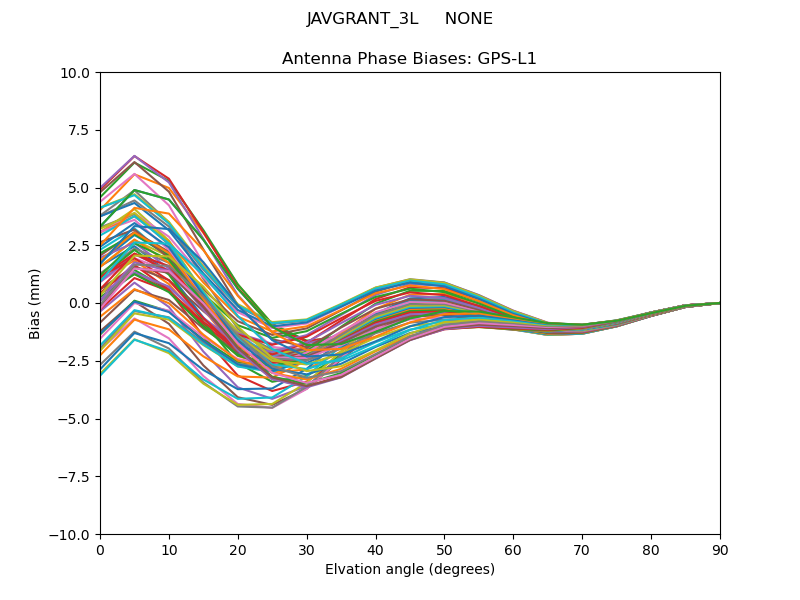

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

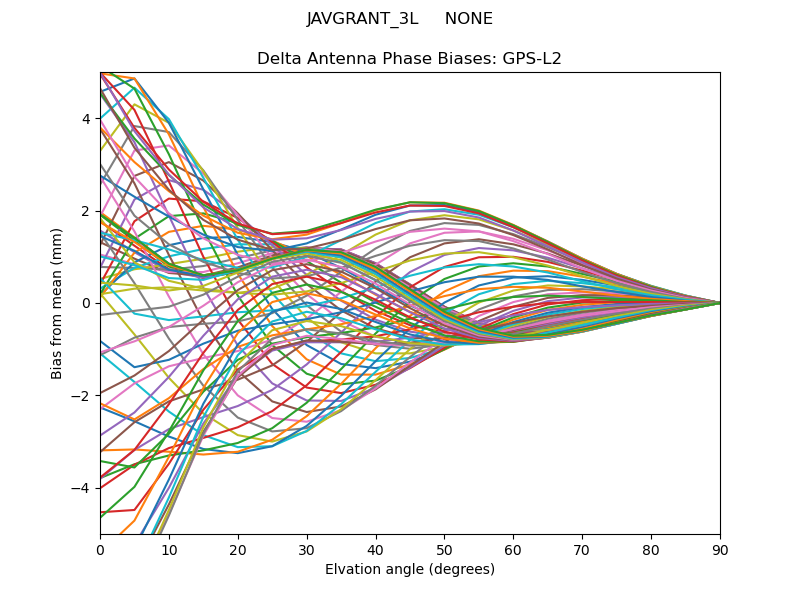

GPS-L2

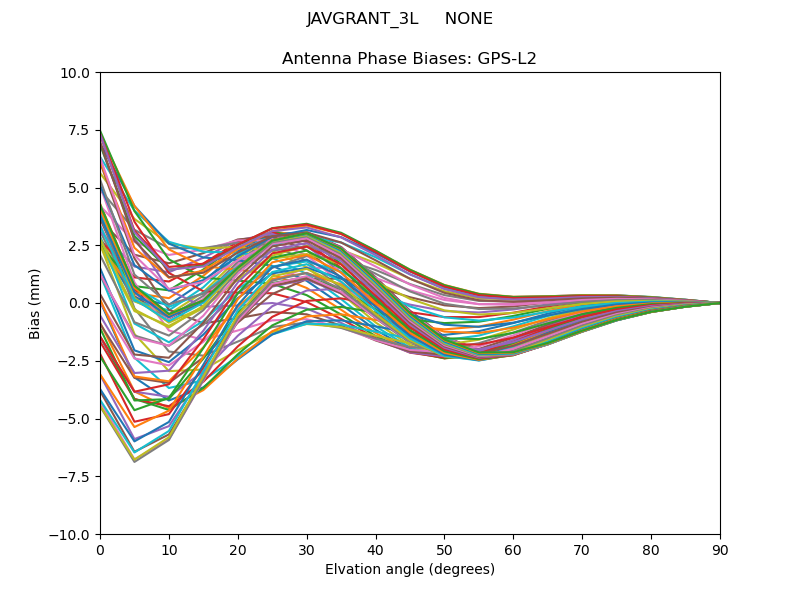

GPS-L2GPS-L2

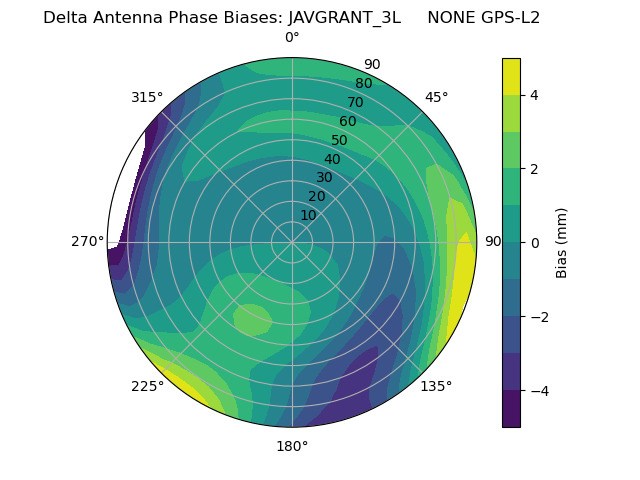

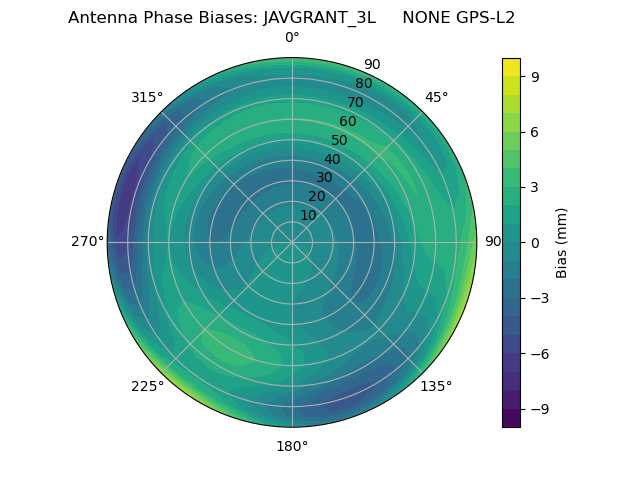

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

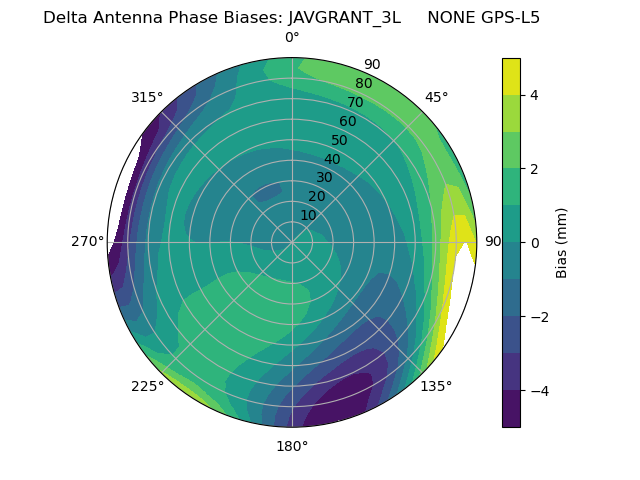

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

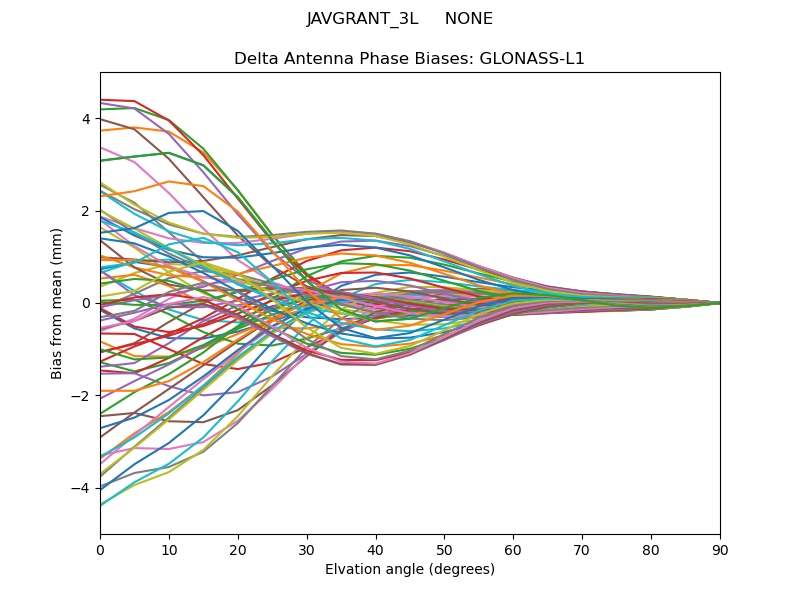

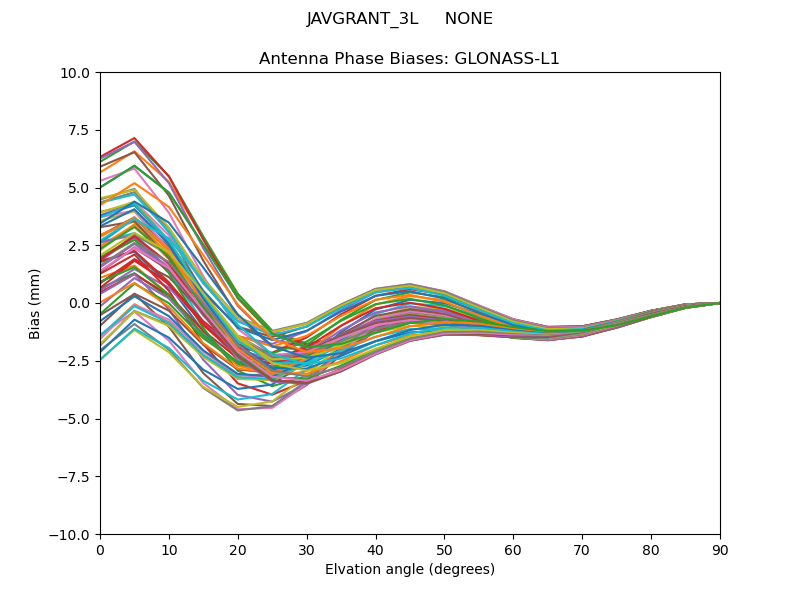

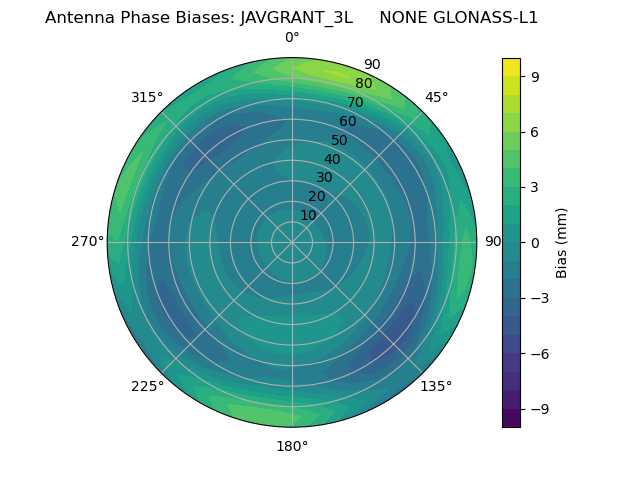

GLONASS-L1

GLONASS-L1GLONASS-L1

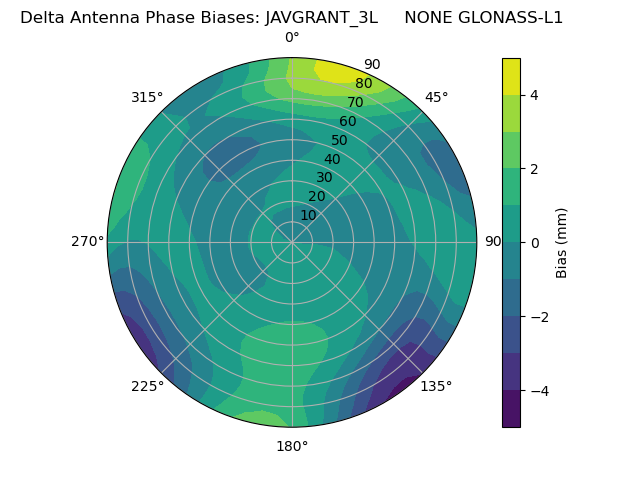

Radial GLONASS-L1Radial GLONASS-L1

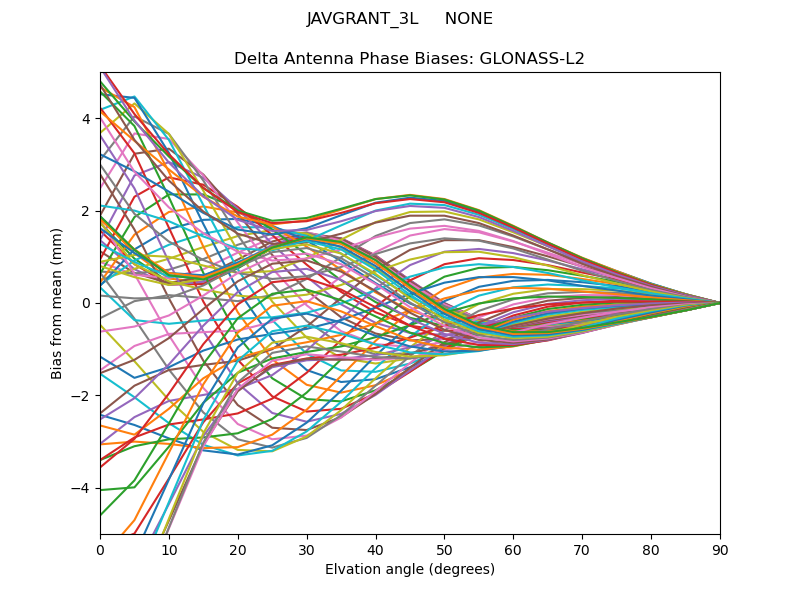

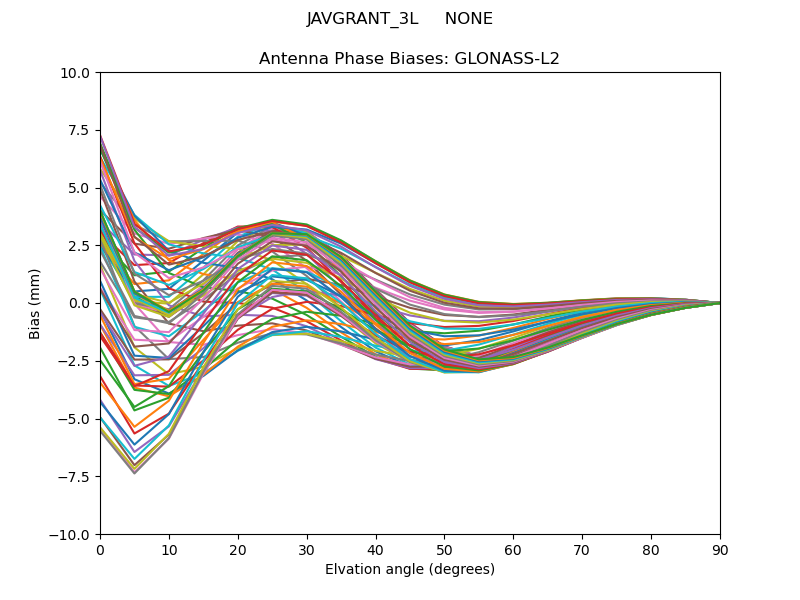

GLONASS-L2

GLONASS-L2GLONASS-L2

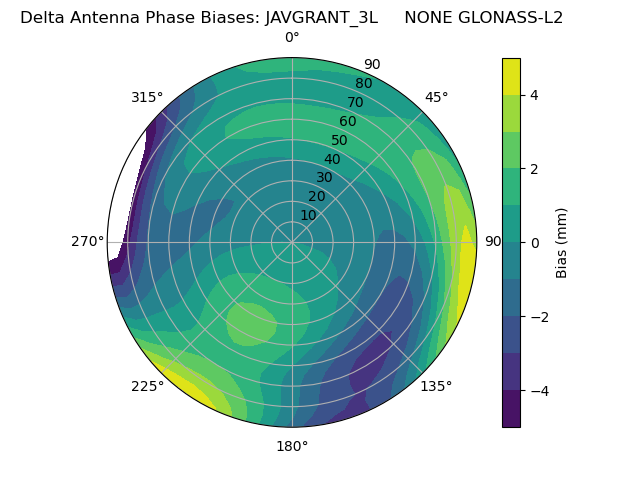

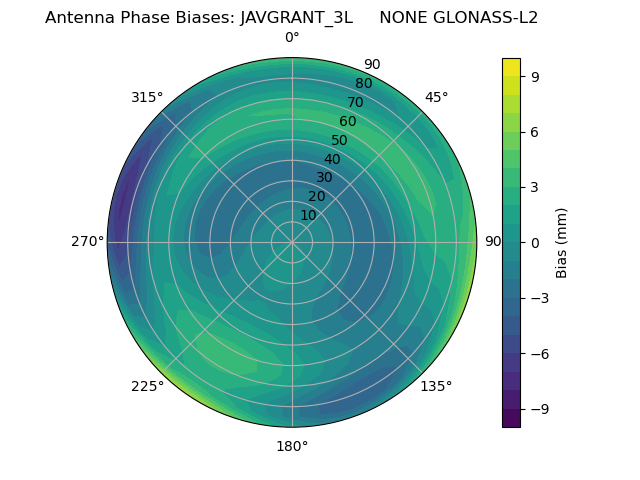

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

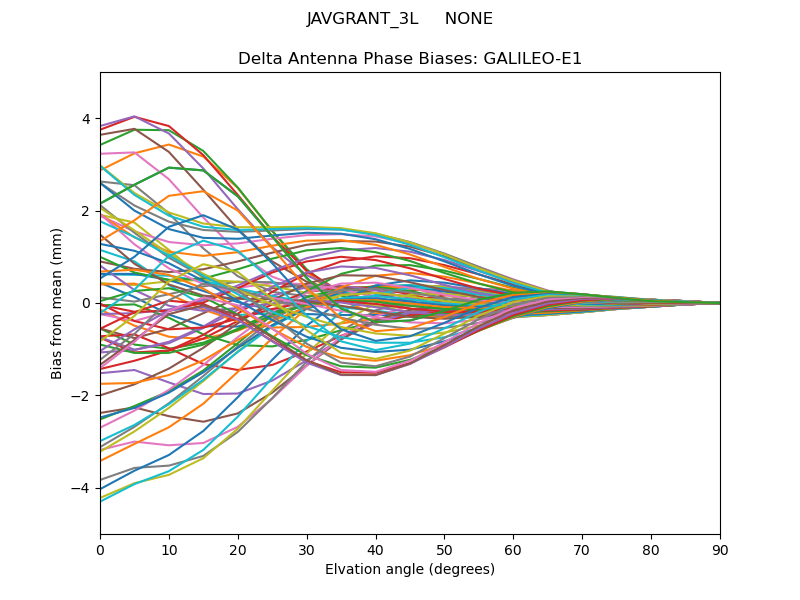

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

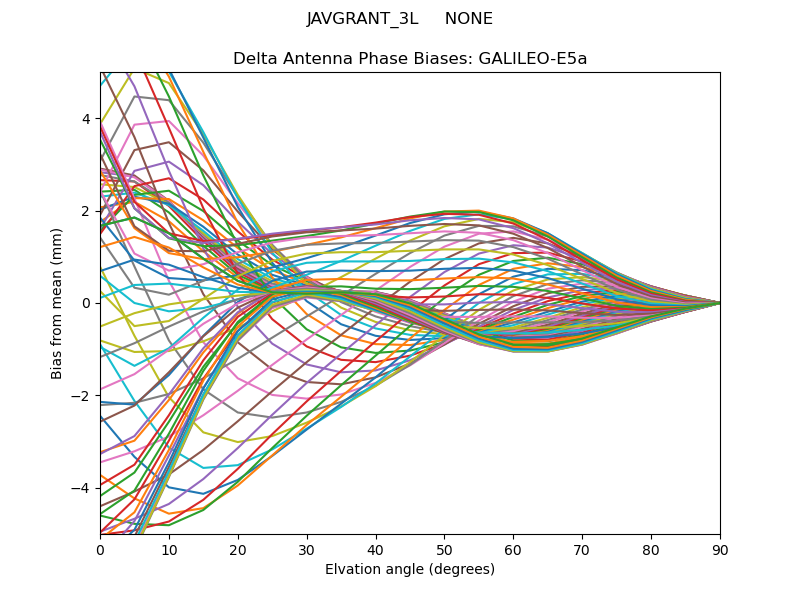

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

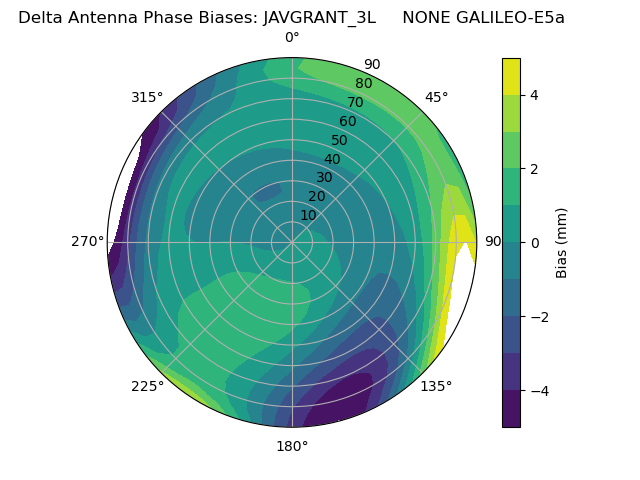

Radial GALILEO-E5aRadial GALILEO-E5a

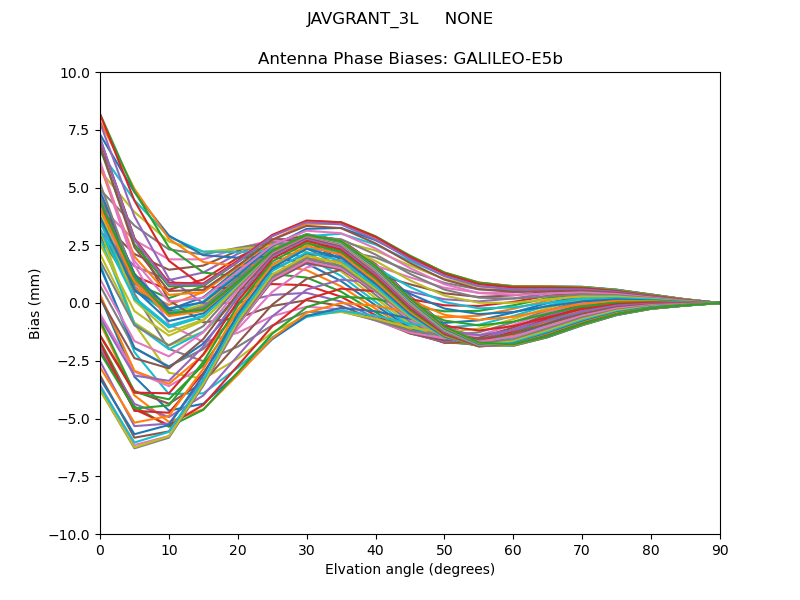

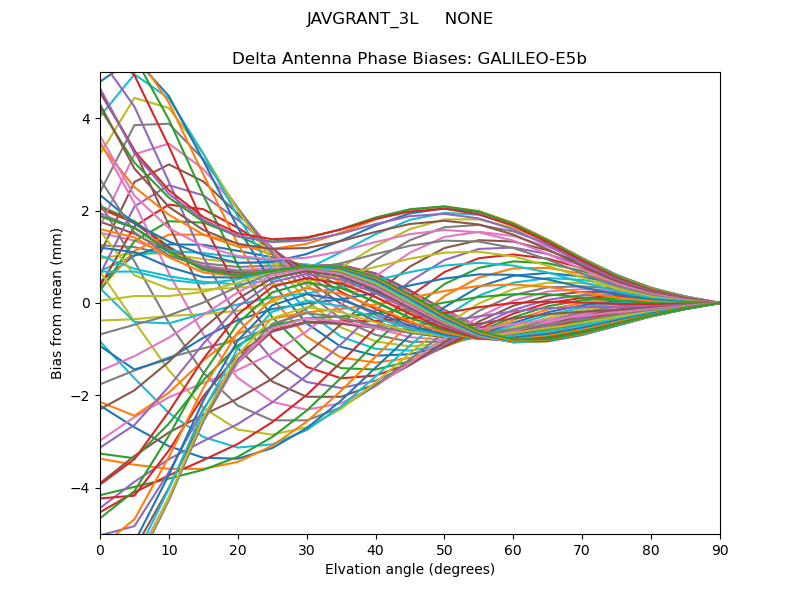

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

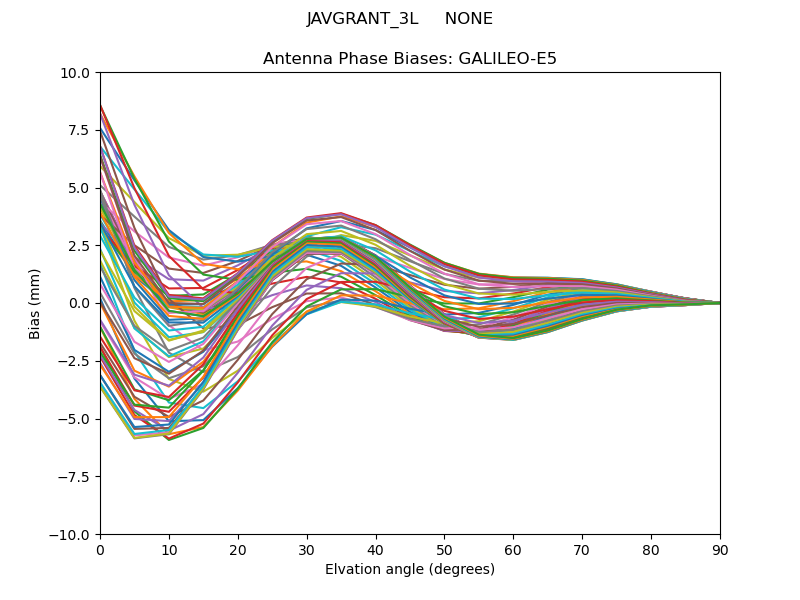

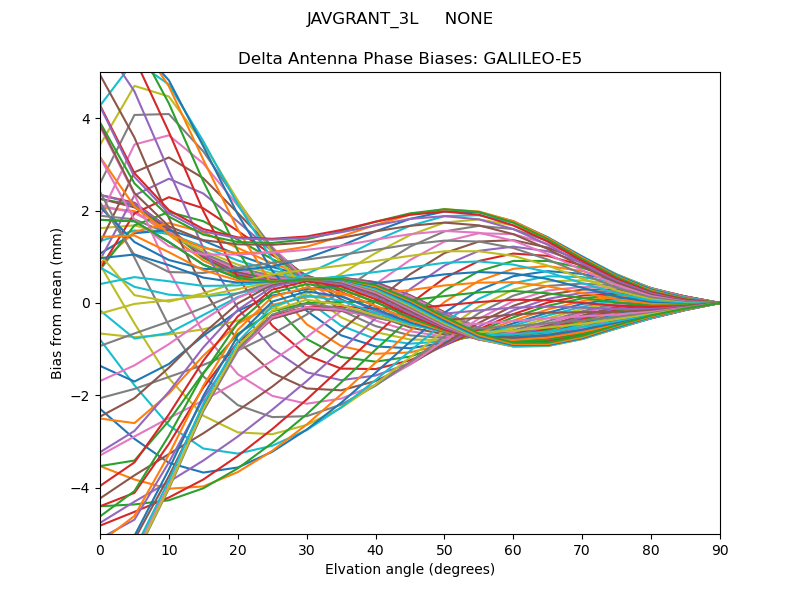

GALILEO-E5

GALILEO-E5GALILEO-E5

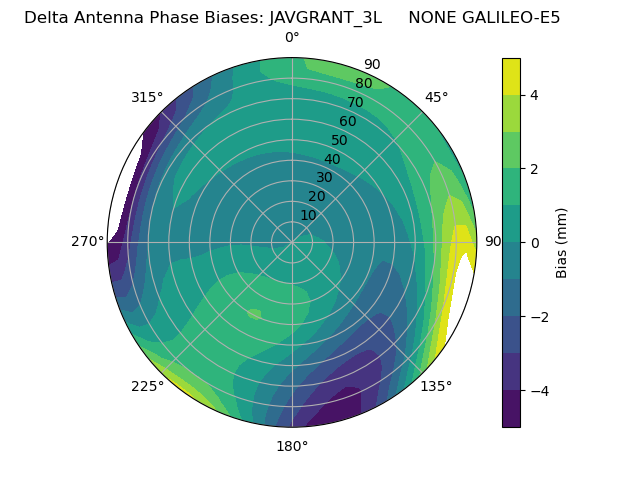

Radial GALILEO-E5Radial GALILEO-E5

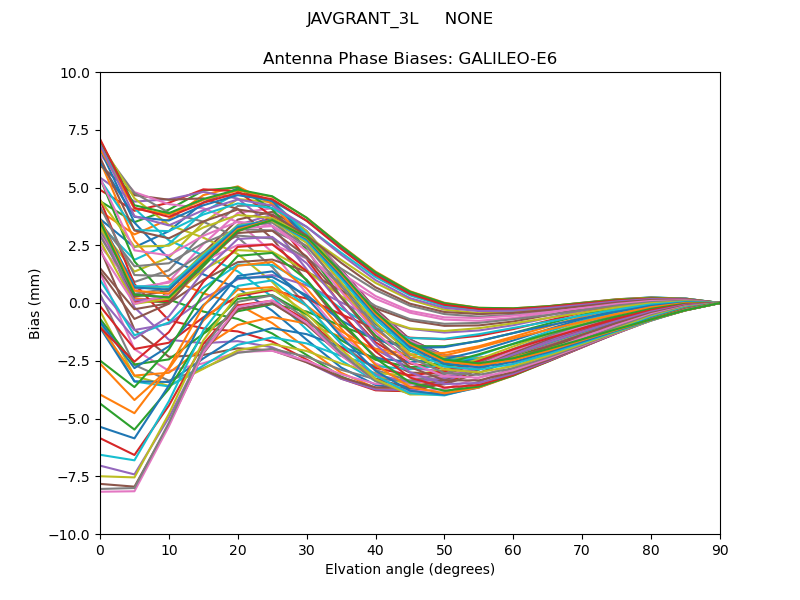

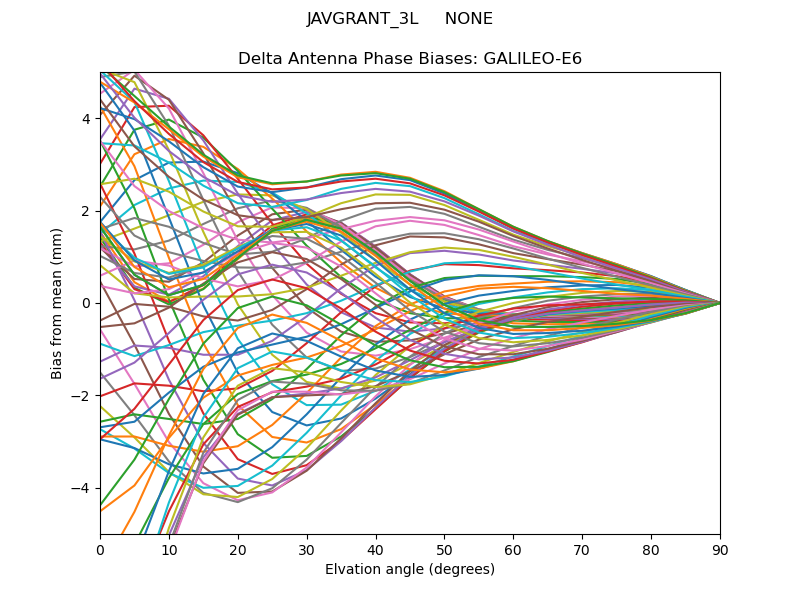

GALILEO-E6

GALILEO-E6GALILEO-E6

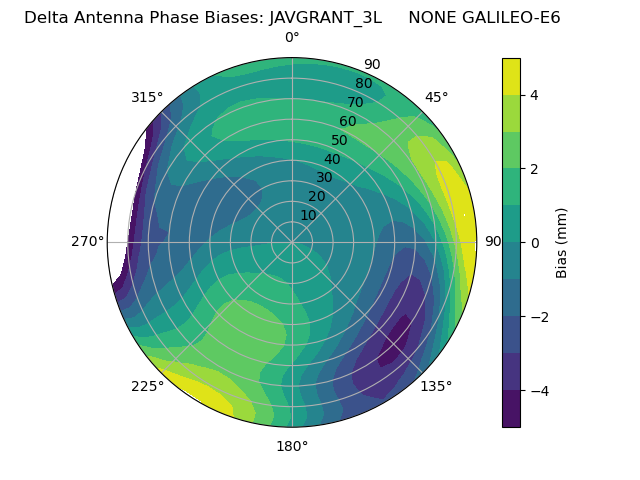

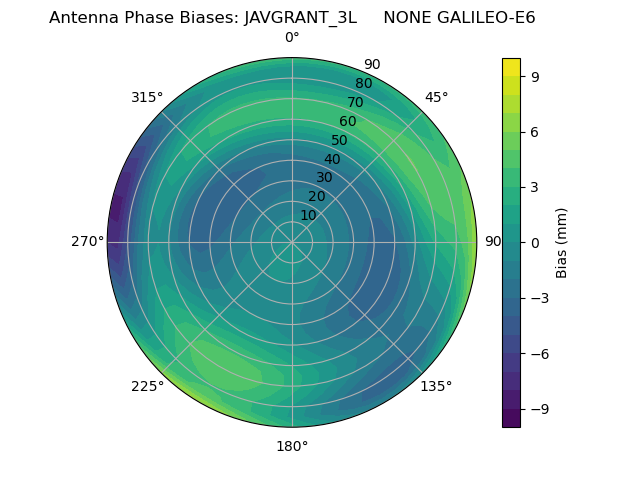

Radial GALILEO-E6Radial GALILEO-E6

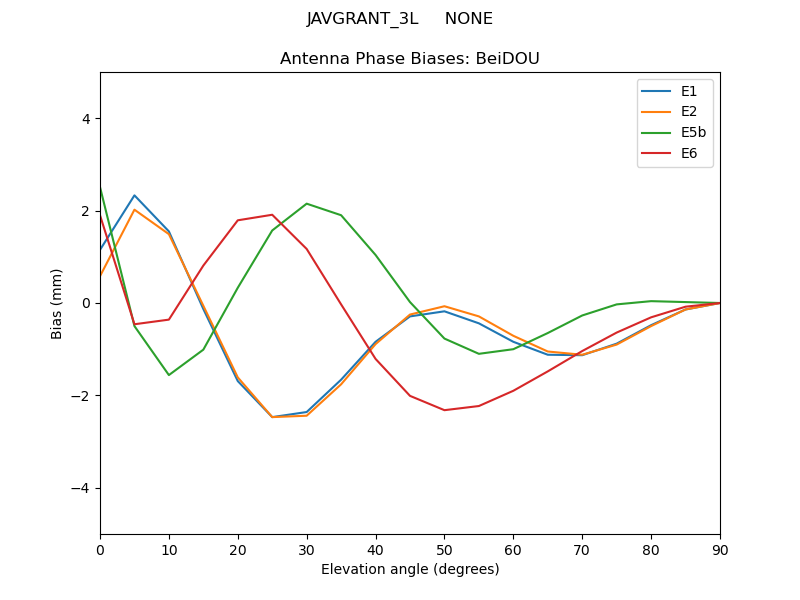

BeiDOU


Bias Delta

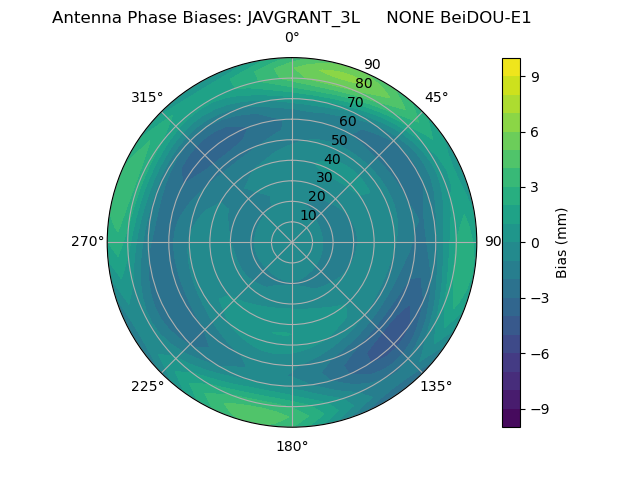

BeiDOU-E1

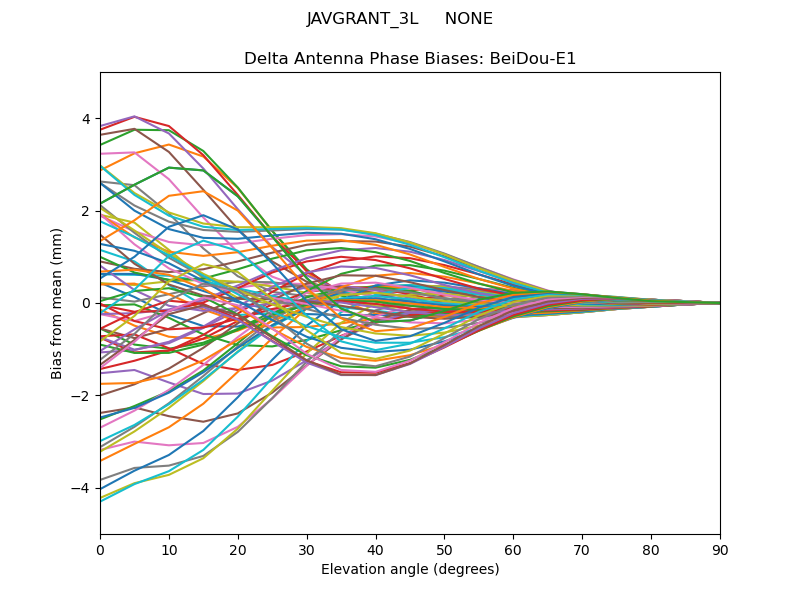

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

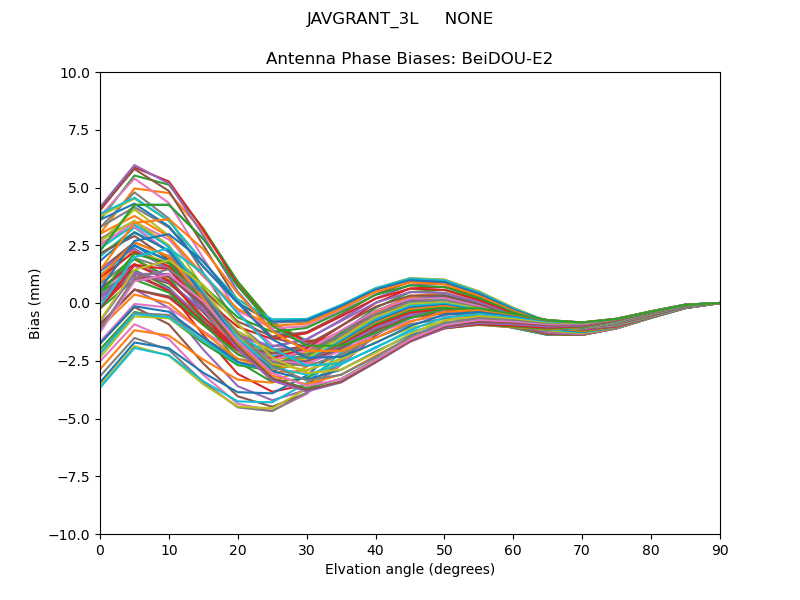

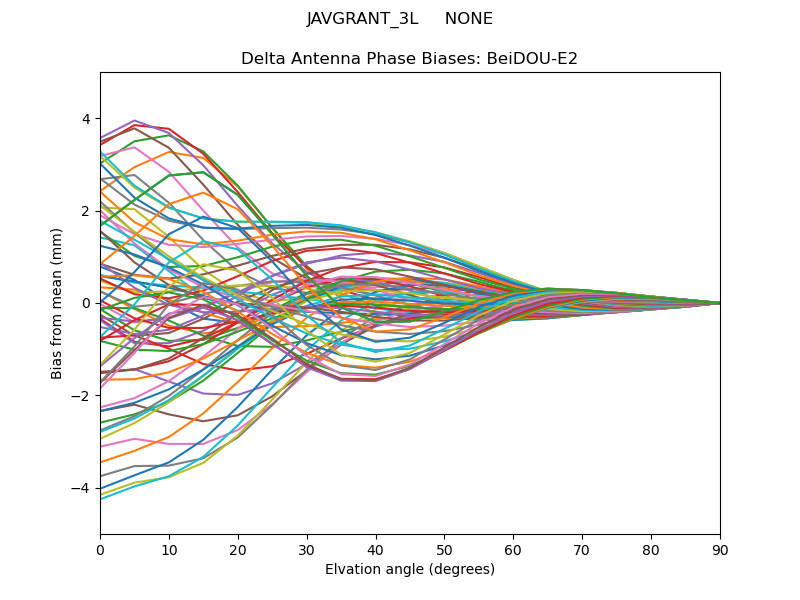

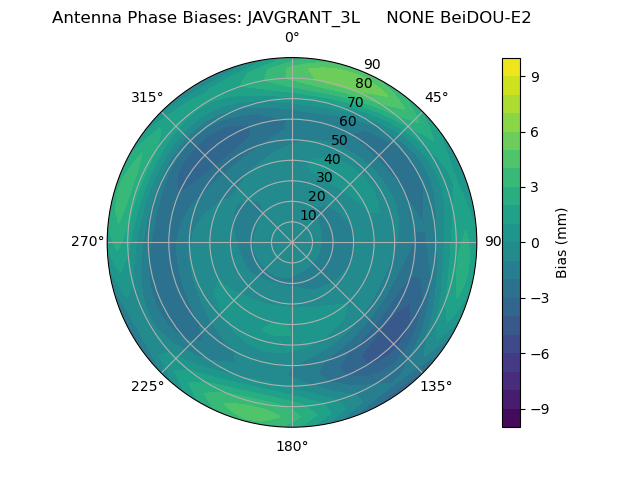

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

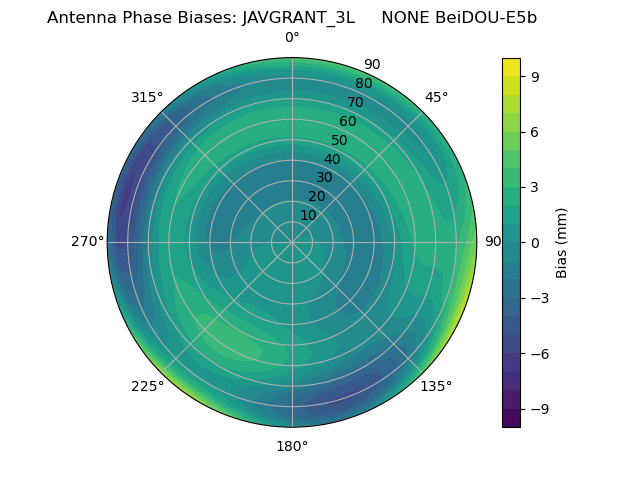

Radial BeiDOU-E5bRadial BeiDOU-E5b

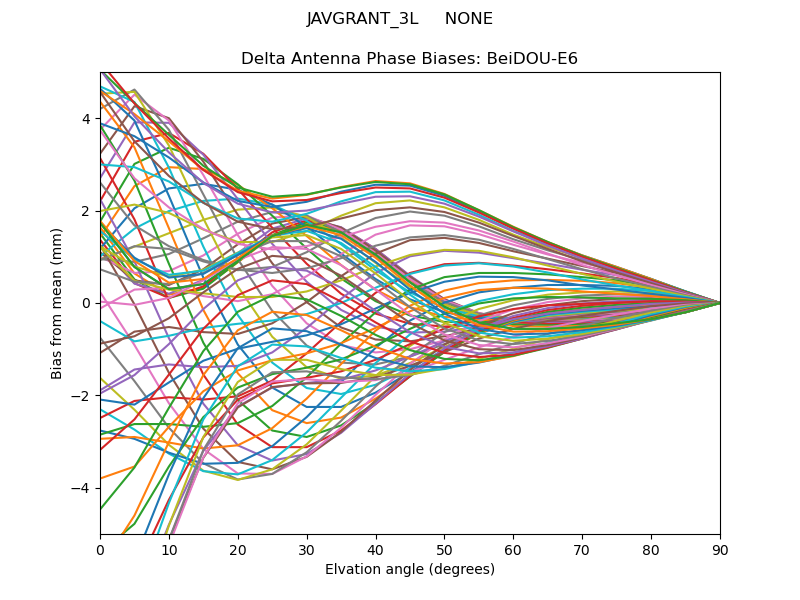

BeiDOU-E6

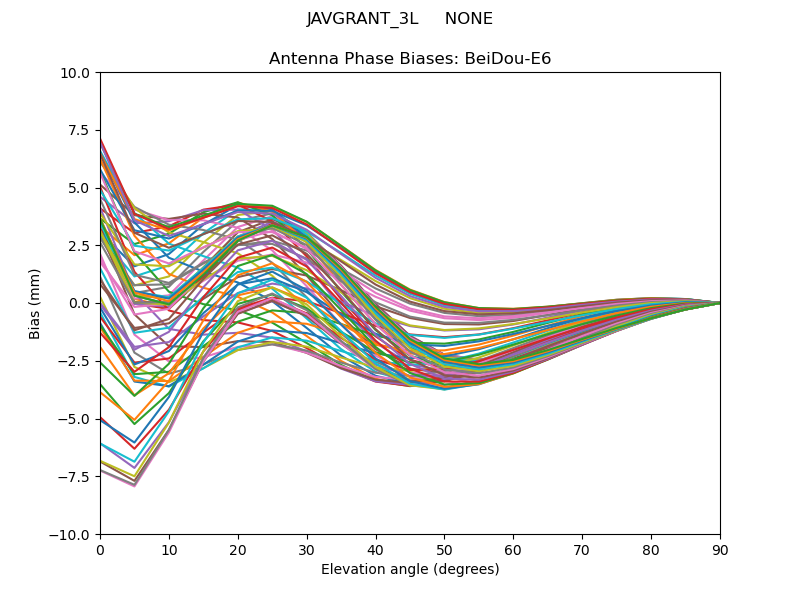

BeiDOU-E6BeiDOU-E6

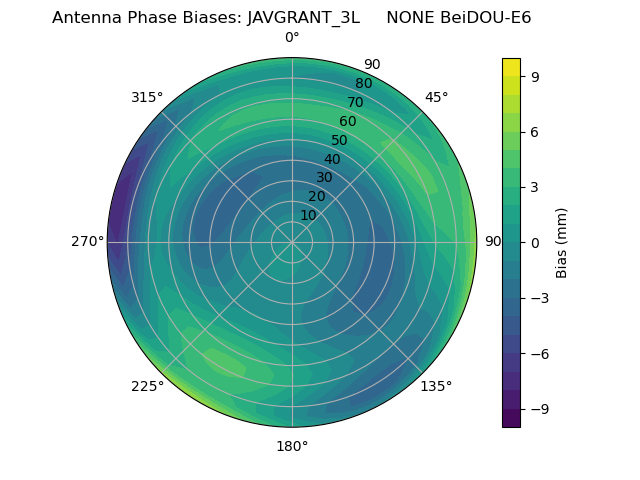

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

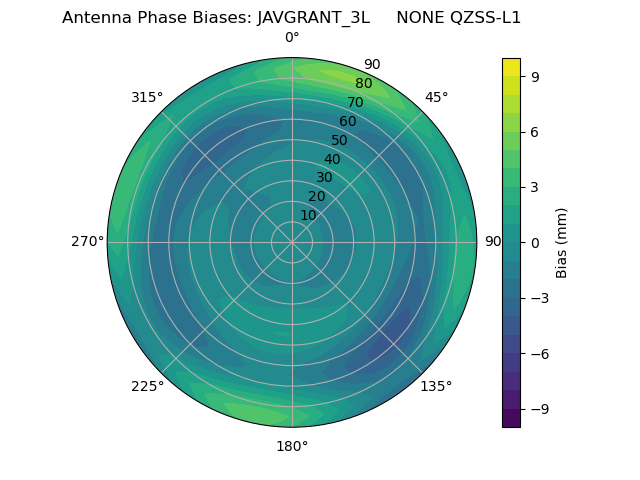

Radial QZSS-L1Radial QZSS-L1

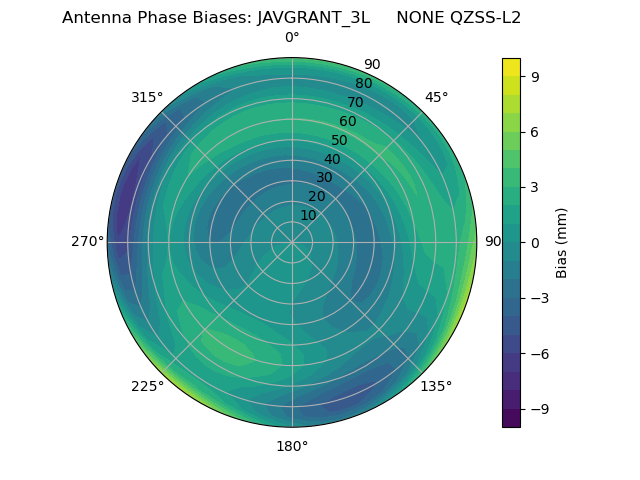

QZSS-L2

QZSS-L2QZSS-L2

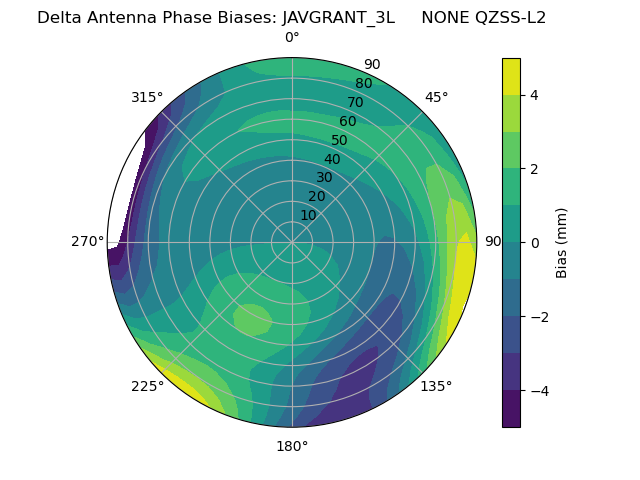

Radial QZSS-L2Radial QZSS-L2

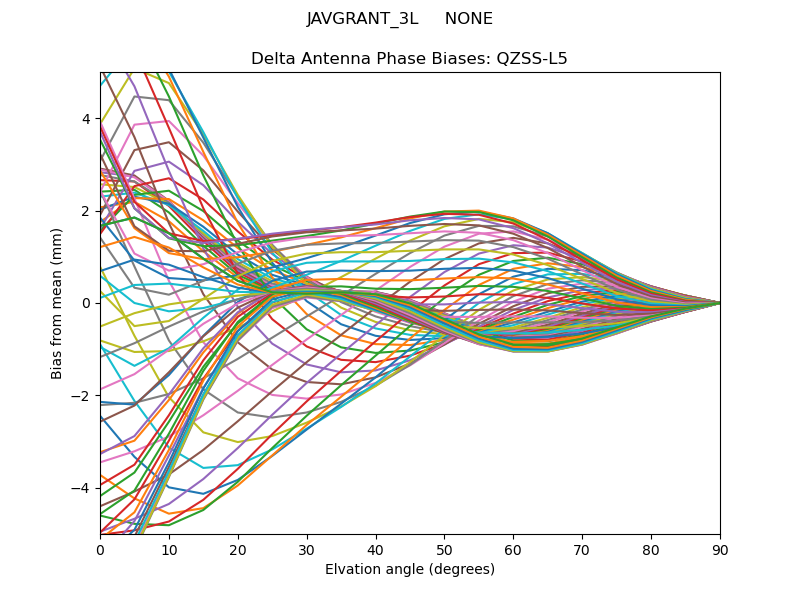

QZSS-L5

QZSS-L5QZSS-L5

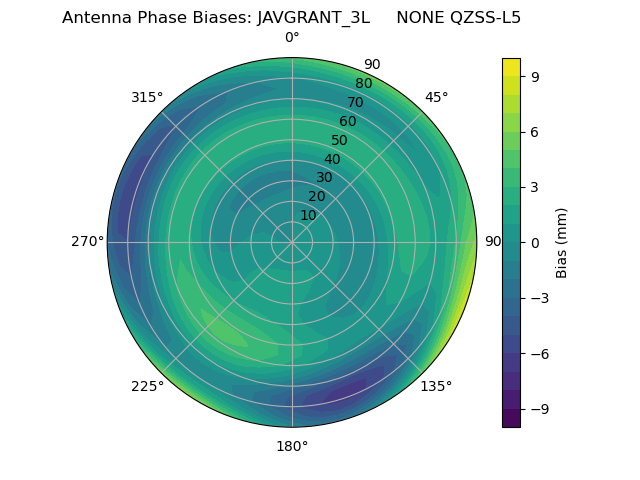

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

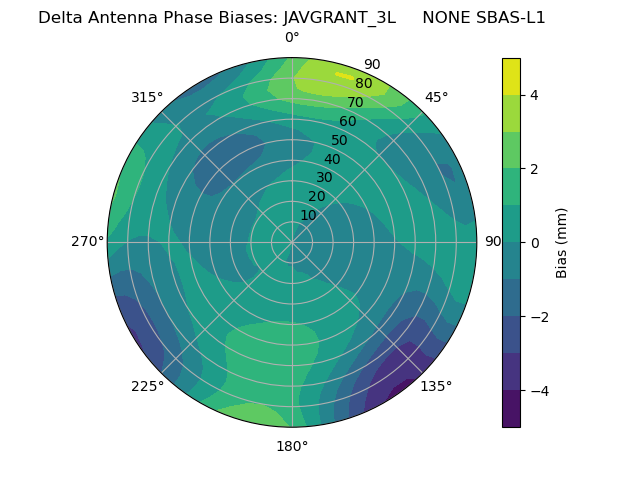

Radial SBAS-L1Radial SBAS-L1

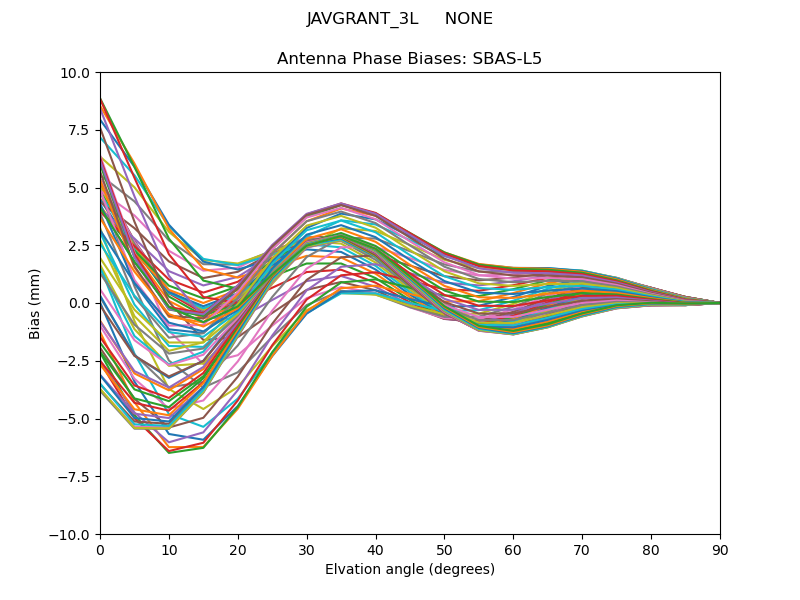

SBAS-L5

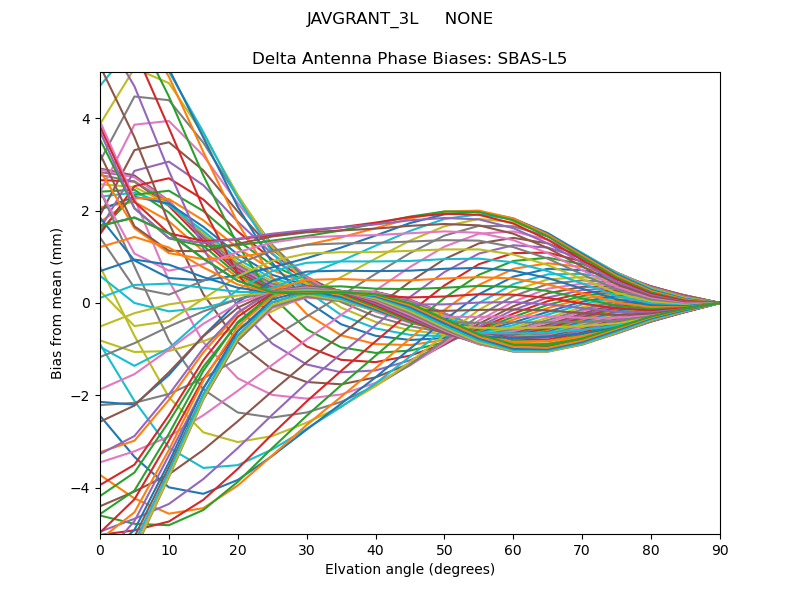

SBAS-L5SBAS-L5

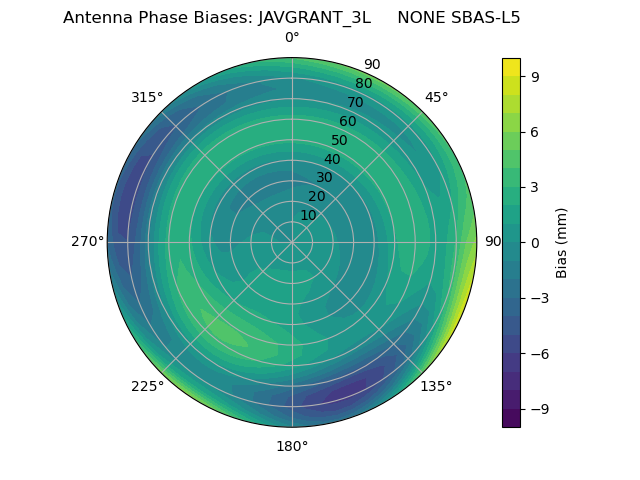

Radial SBAS-L5Radial SBAS-L5
