Antenna information for JAVGRANT_G5TLBI NONE
SV System | Bands |
---|---|
GPSL1: N: 0.40 E: 1.33 U: 51.70L2: N: -3.63 E: -1.00 U: 48.76 L5: N: -4.96 E: -2.39 U: 54.46 GLONASSL1: N: -0.03 E: 1.19 U: 50.40L2: N: -2.85 E: -0.44 U: 46.46 GALILEOE1: N: 0.40 E: 1.33 U: 51.70E5a: N: -4.96 E: -2.39 U: 54.46 E5b: N: -4.33 E: -1.59 U: 51.16 E5: N: -4.71 E: -2.00 U: 52.86 E6: N: -1.12 E: 0.63 U: 42.03 BeiDouE1: N: 0.40 E: 1.33 U: 51.70E2: N: 0.65 E: 1.41 U: 52.40 E5b: N: -4.33 E: -1.59 U: 51.16 E6: N: -1.72 E: 0.28 U: 43.46 QZSSL1: N: 0.40 E: 1.33 U: 51.70L2: N: -3.63 E: -1.00 U: 48.76 L5: N: -4.96 E: -2.39 U: 54.46 LEX: N: -1.12 E: 0.63 U: 42.03 SBASL1: N: 0.40 E: 1.33 U: 51.70L5: N: -4.96 E: -2.39 U: 54.46 | L1GPS: N: 0.40 E: 1.33 U: 51.70GLONASS: N: -0.03 E: 1.19 U: 50.40 QZSS: N: 0.40 E: 1.33 U: 51.70 SBAS: N: 0.40 E: 1.33 U: 51.70 L2GPS: N: -3.63 E: -1.00 U: 48.76GLONASS: N: -2.85 E: -0.44 U: 46.46 QZSS: N: -3.63 E: -1.00 U: 48.76 L5GPS: N: -4.96 E: -2.39 U: 54.46QZSS: N: -4.96 E: -2.39 U: 54.46 SBAS: N: -4.96 E: -2.39 U: 54.46 E1GALILEO: N: 0.40 E: 1.33 U: 51.70BeiDou: N: 0.40 E: 1.33 U: 51.70 E2BeiDou: N: 0.65 E: 1.41 U: 52.40E5GALILEO: N: -4.71 E: -2.00 U: 52.86E5aGALILEO: N: -4.96 E: -2.39 U: 54.46E5bGALILEO: N: -4.33 E: -1.59 U: 51.16BeiDou: N: -4.33 E: -1.59 U: 51.16 E6GALILEO: N: -1.12 E: 0.63 U: 42.03BeiDou: N: -1.72 E: 0.28 U: 43.46 LEXQZSS: N: -1.12 E: 0.63 U: 42.03 |
Means
GPS

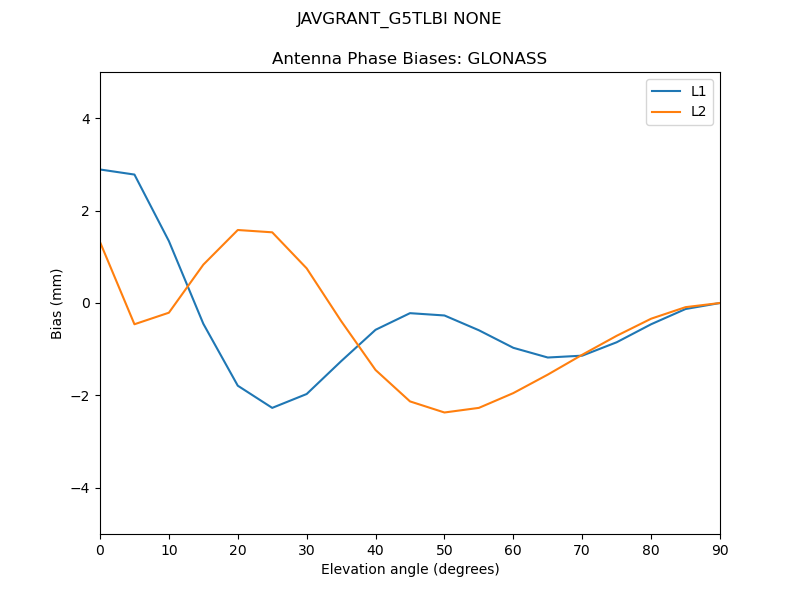

GLONASS

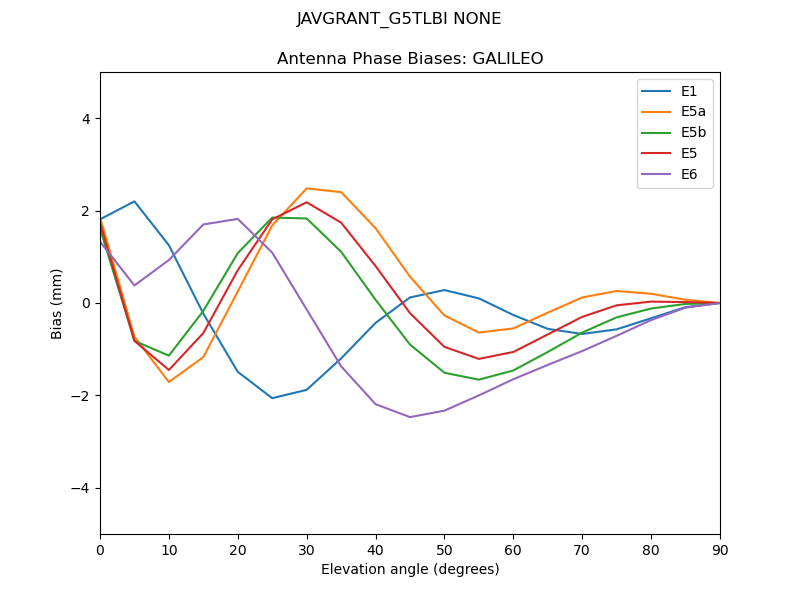

GALILEO

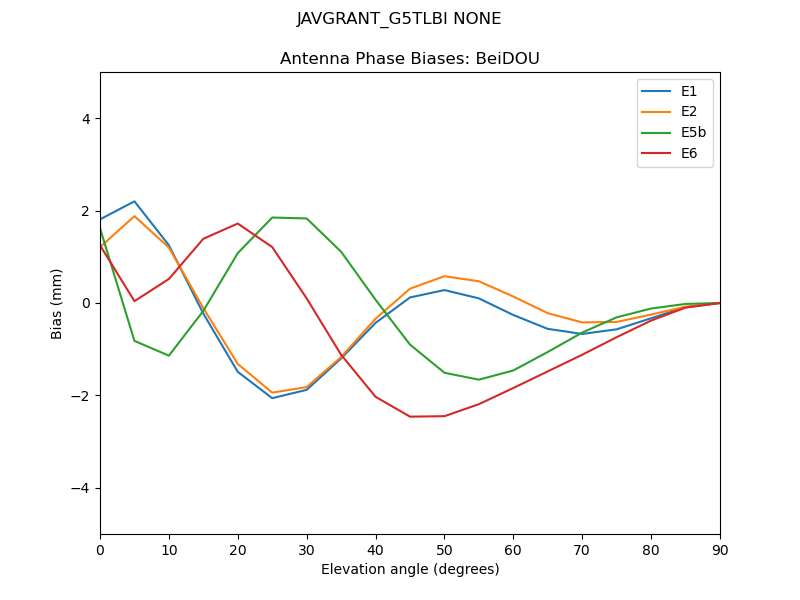

BeiDOU

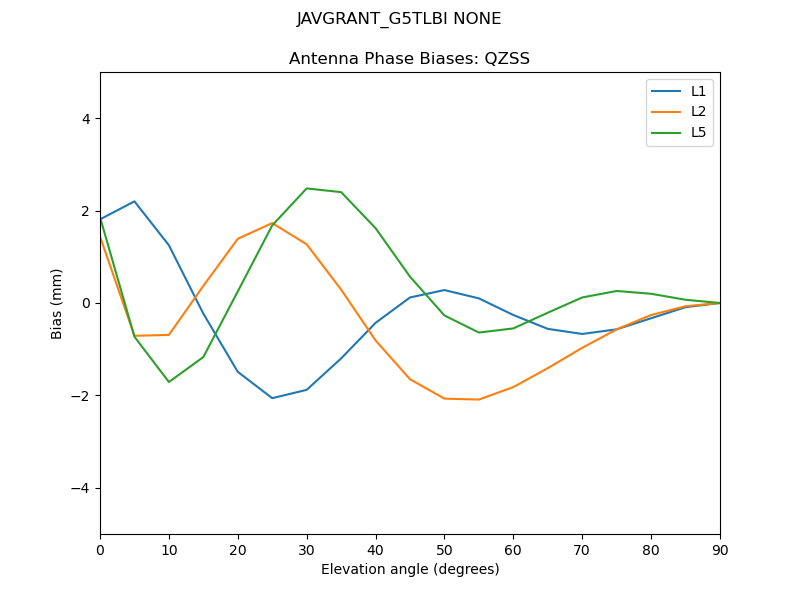

QZSS

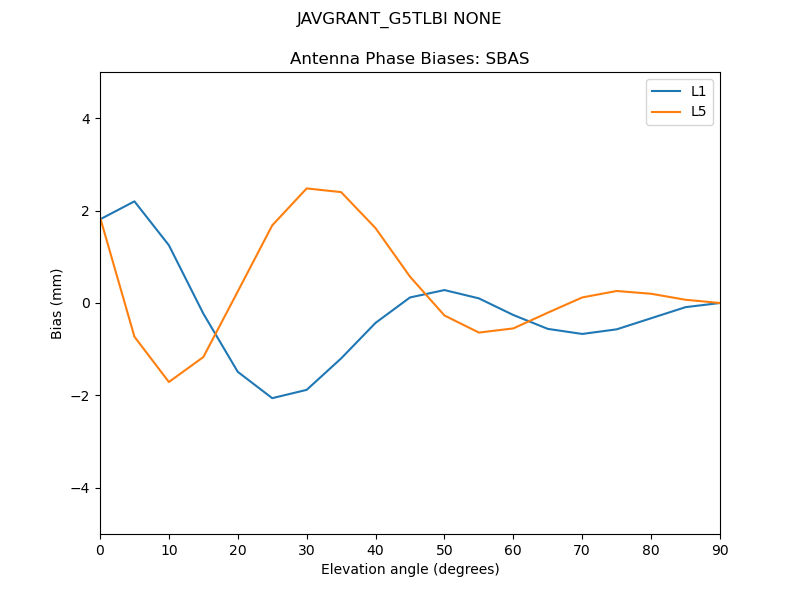

SBAS
Azimuths
Bias | Delta |
---|---|

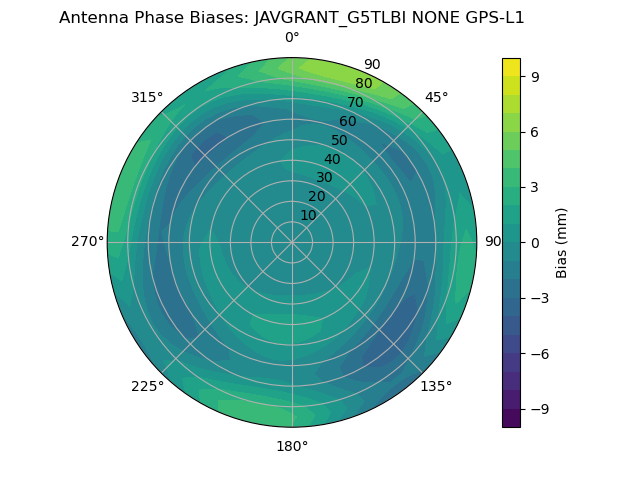

GPS-L1 | |

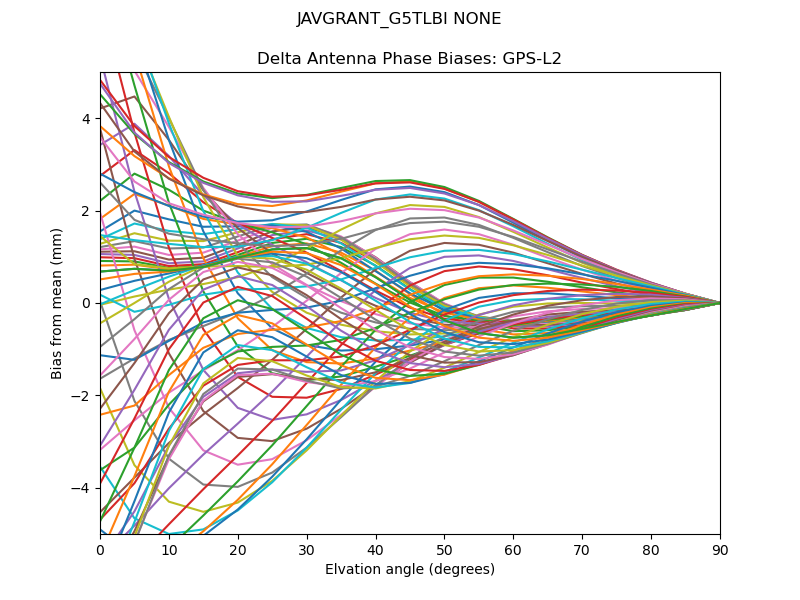

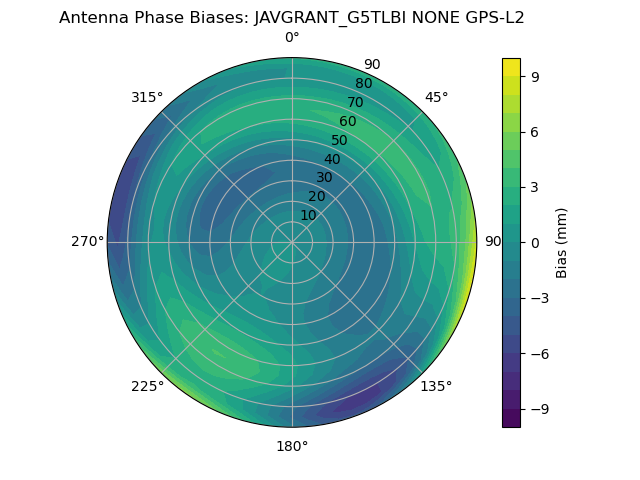

GPS-L2 | |

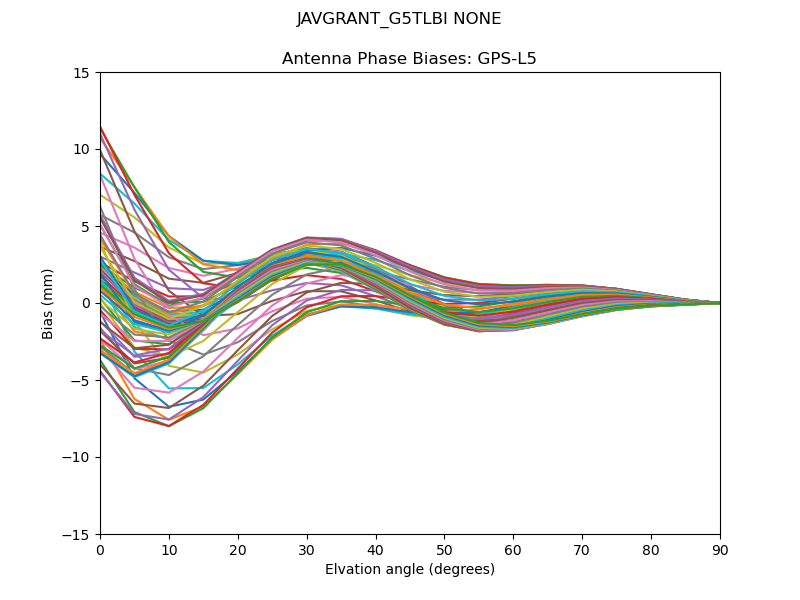

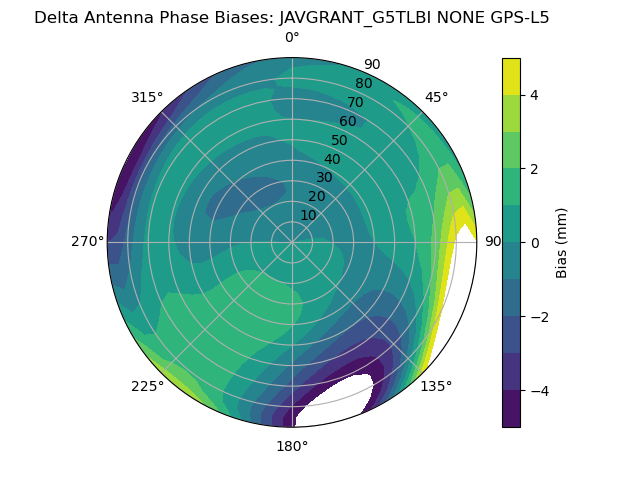

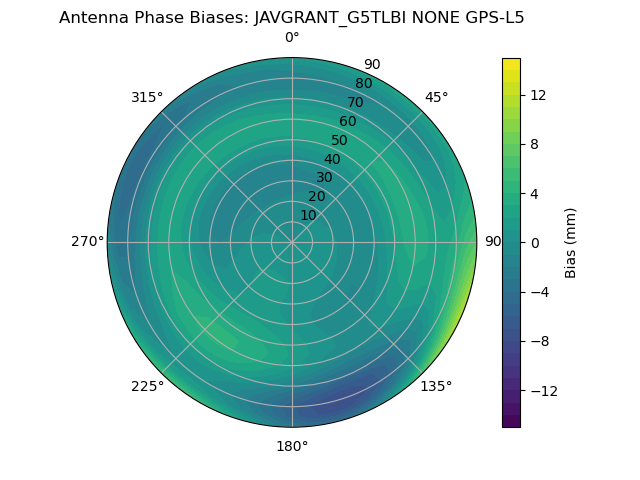

GPS-L5 | |
Bias | Delta |
---|---|

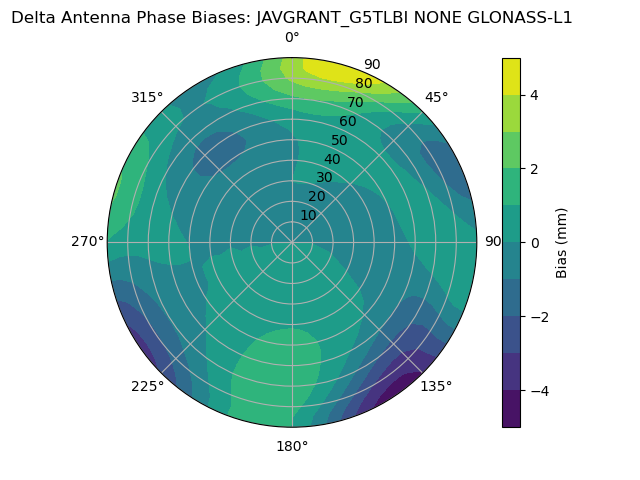

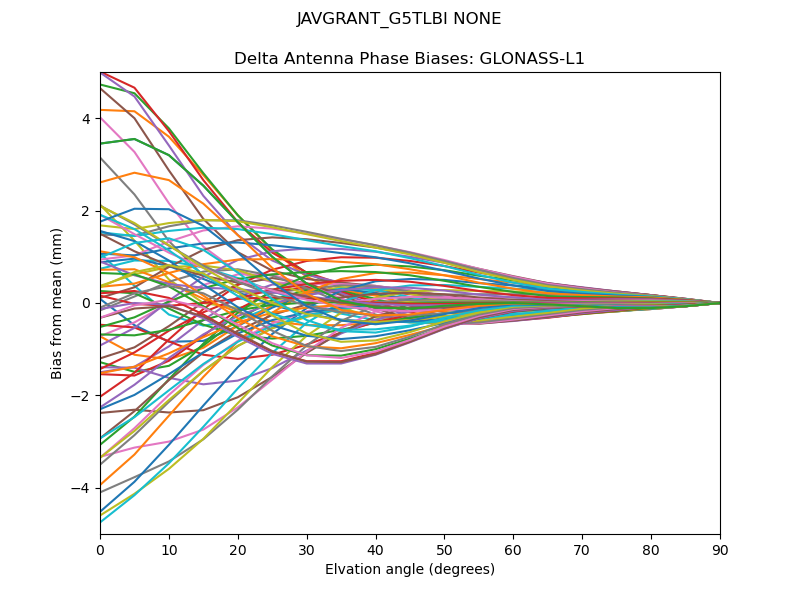

GLONASS-L1 | |

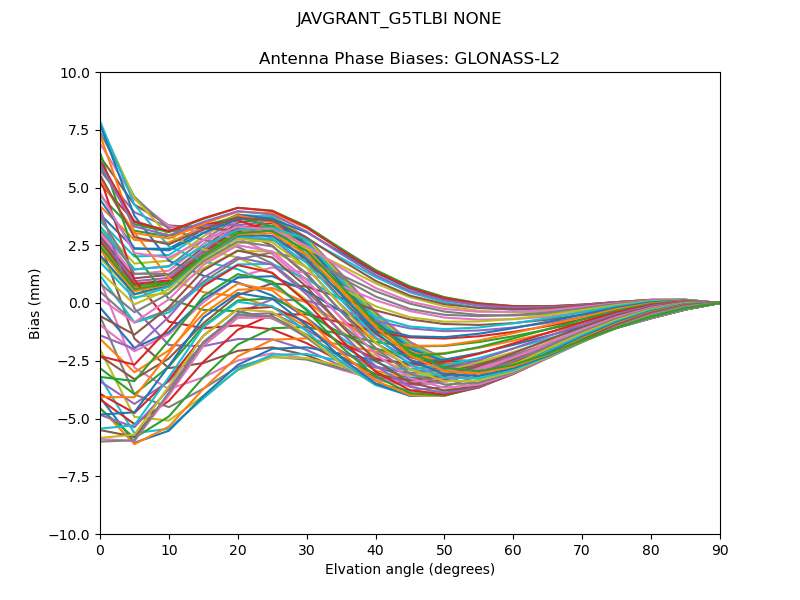

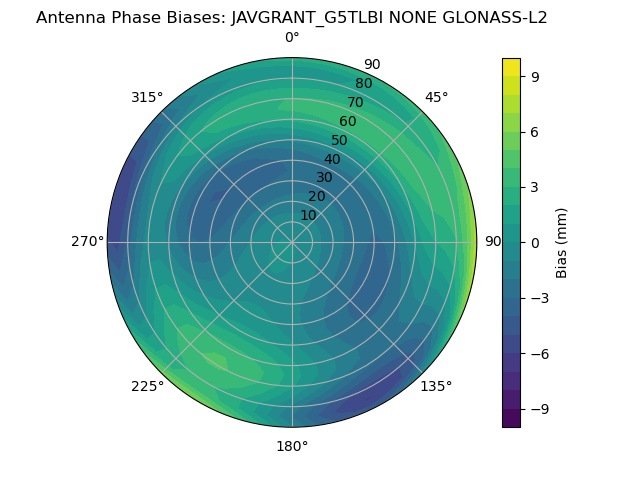

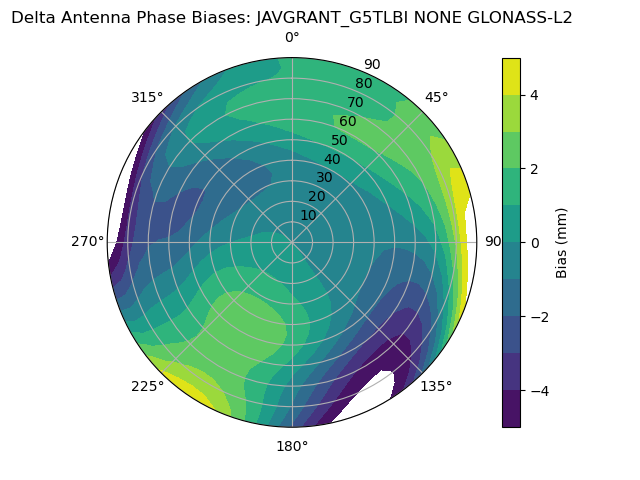

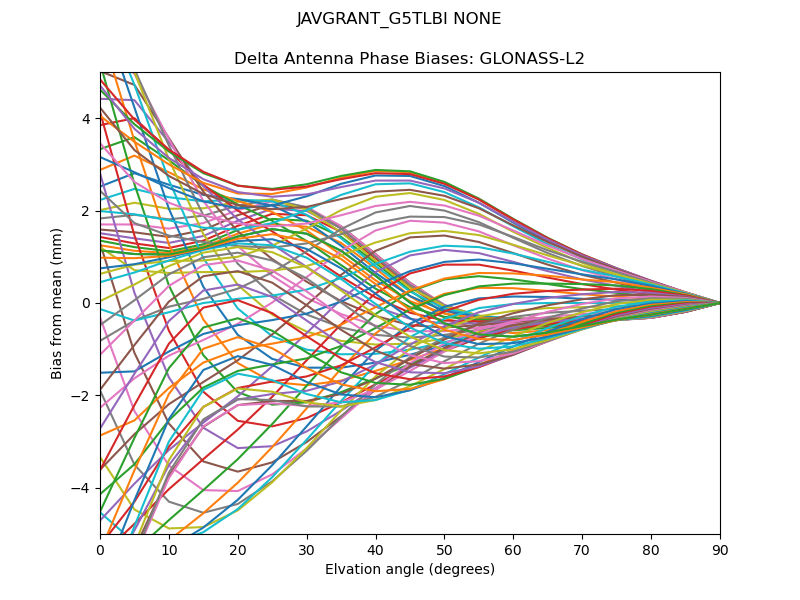

GLONASS-L2 | |
Bias | Delta |
---|---|

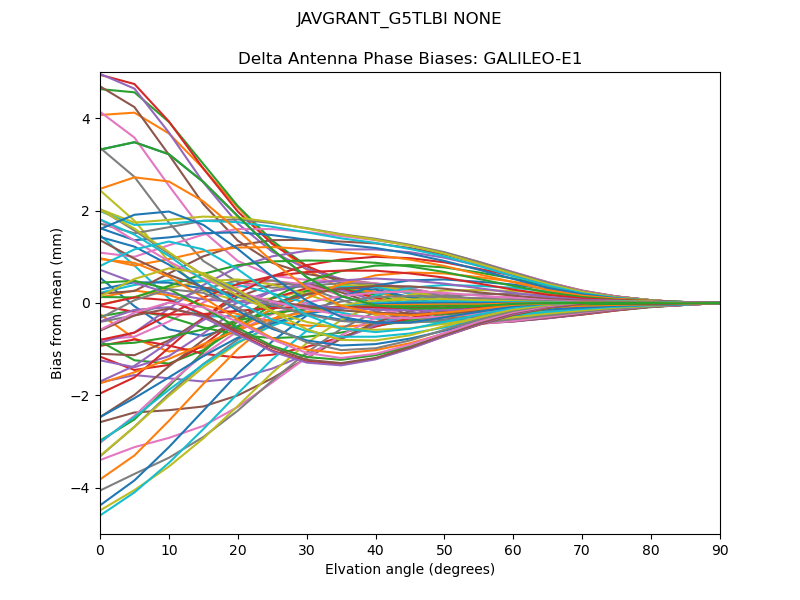

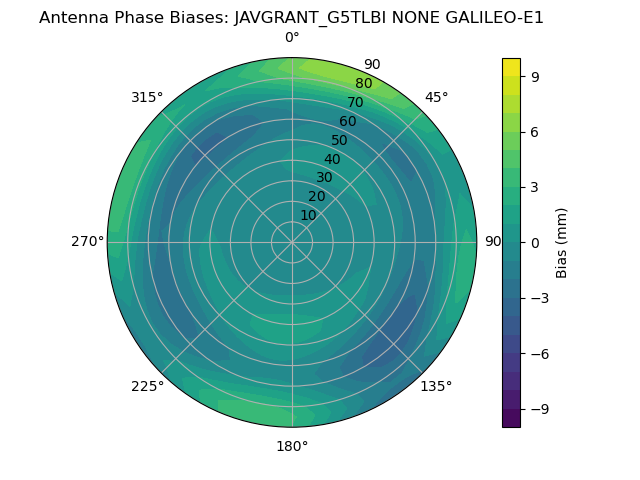

GALILEO-E1 | |

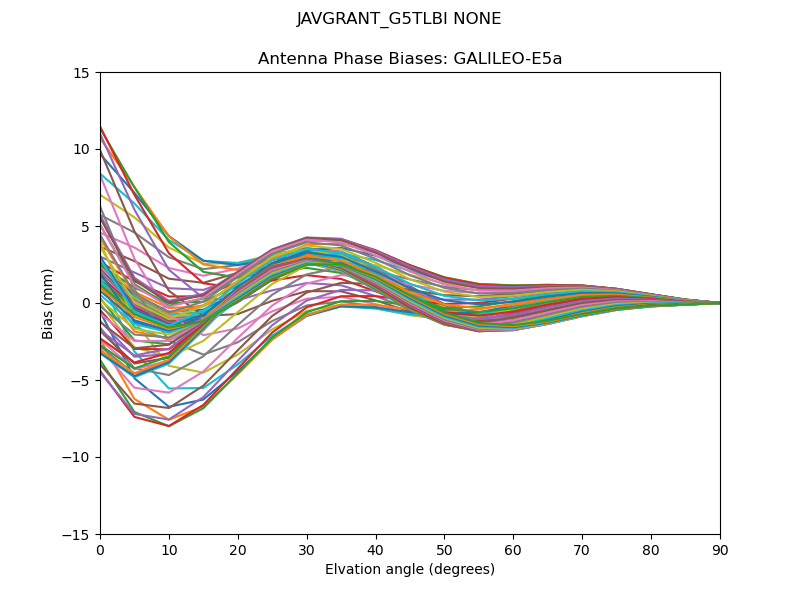

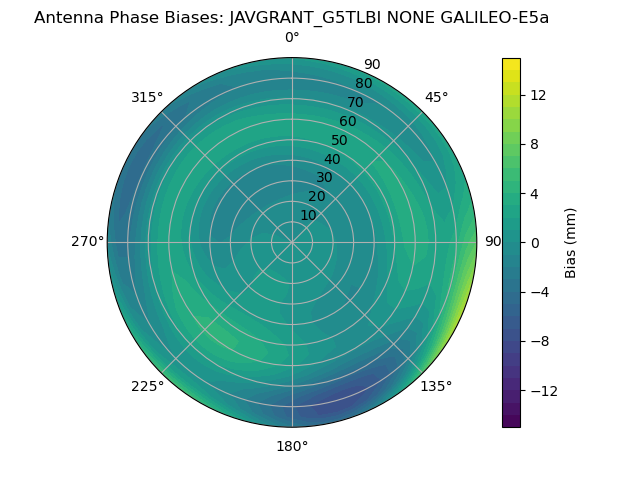

GALILEO-E5a | |

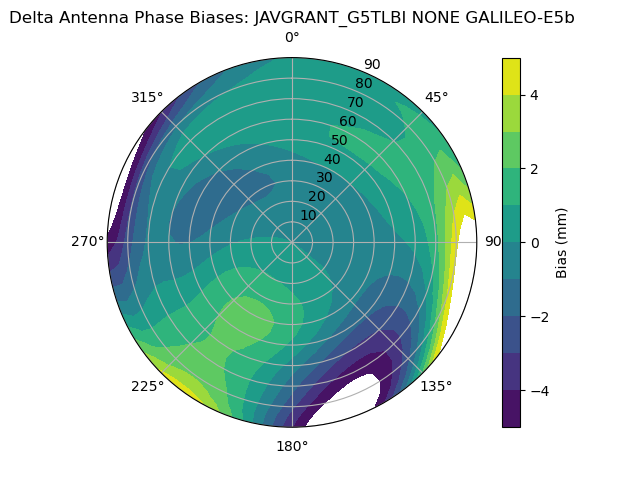

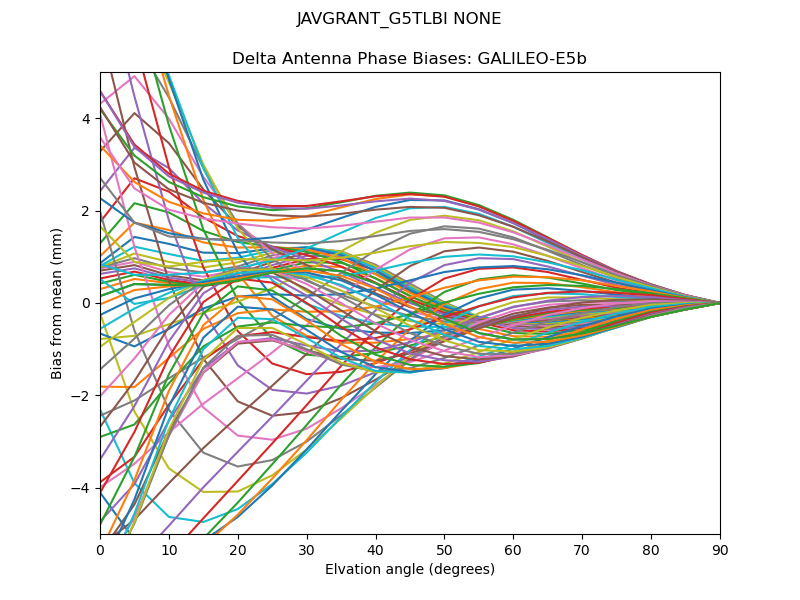

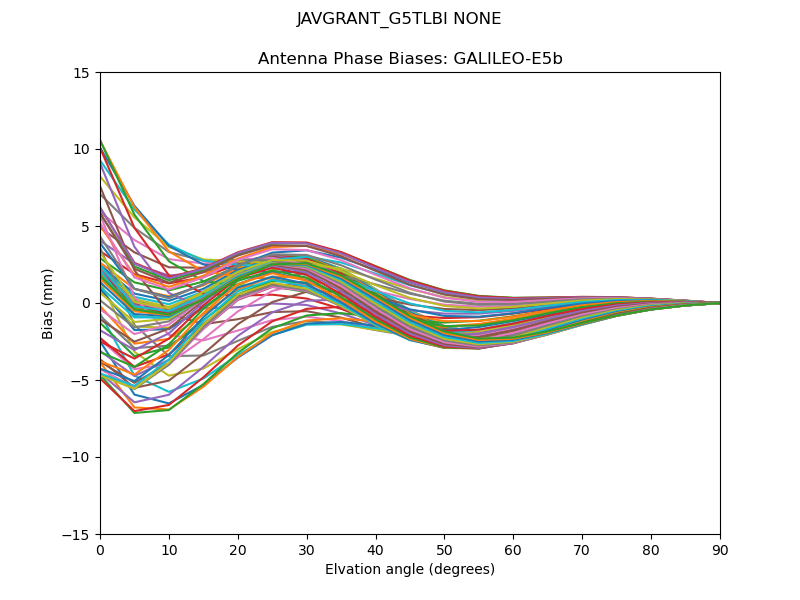

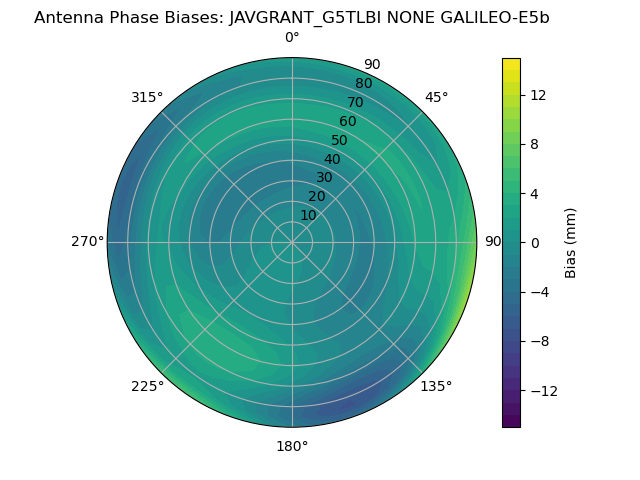

GALILEO-E5b | |

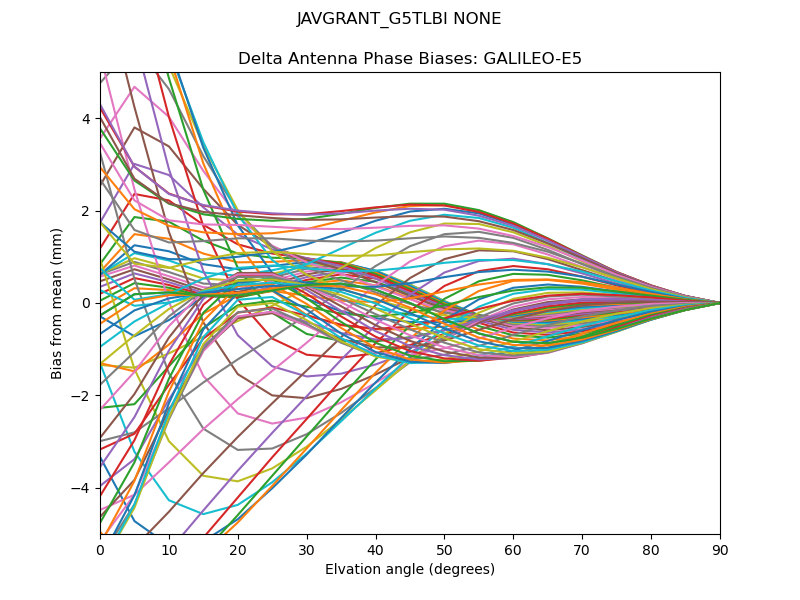

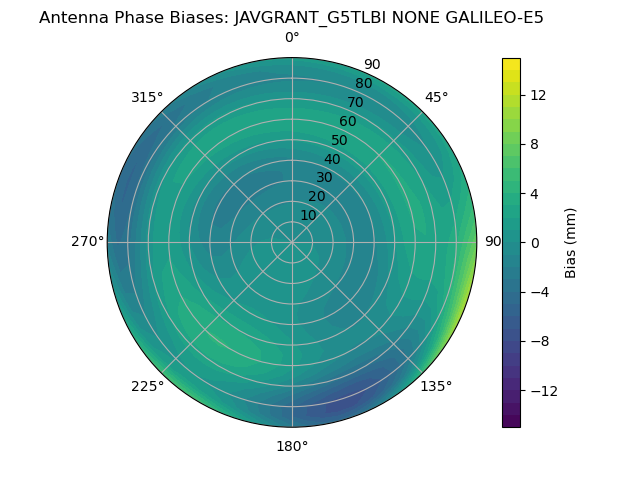

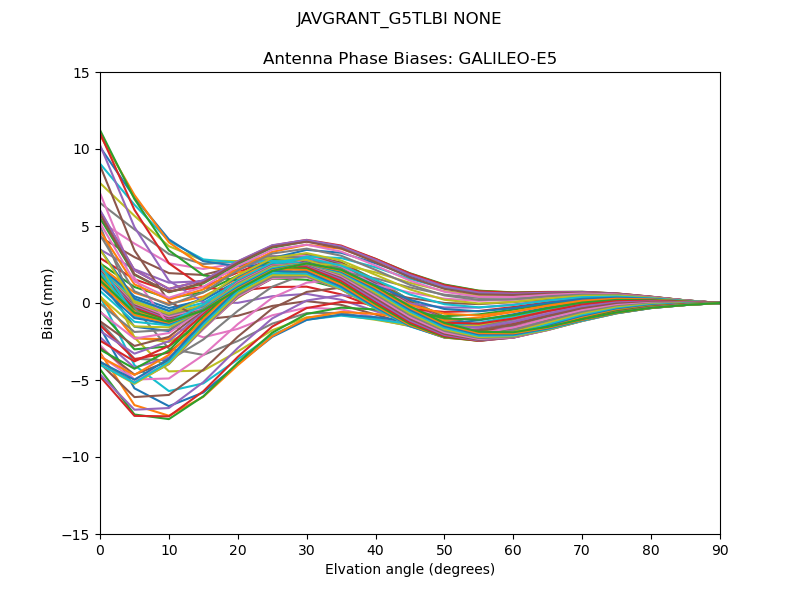

GALILEO-E5 | |

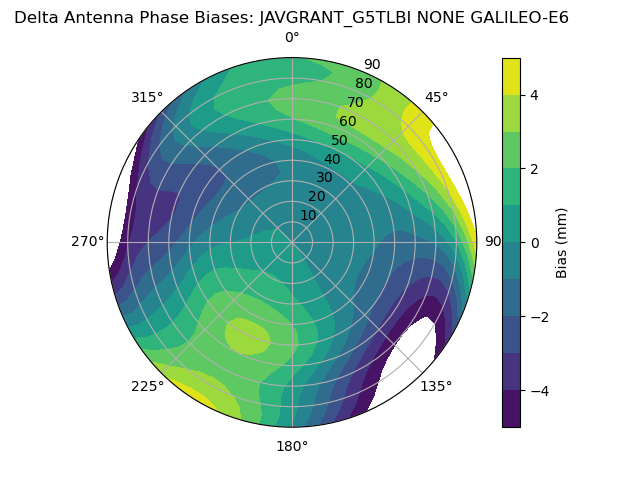

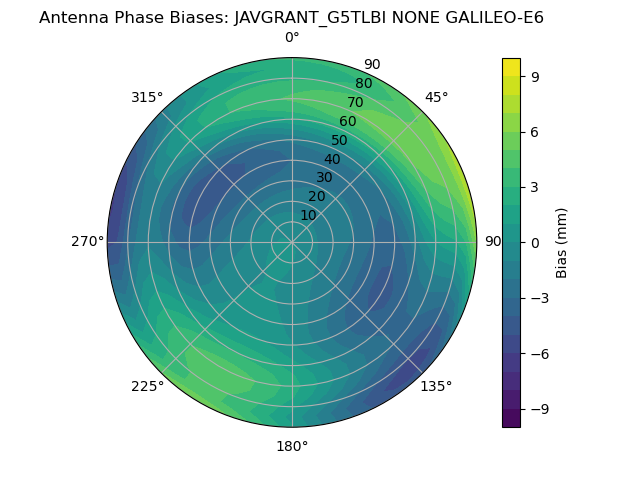

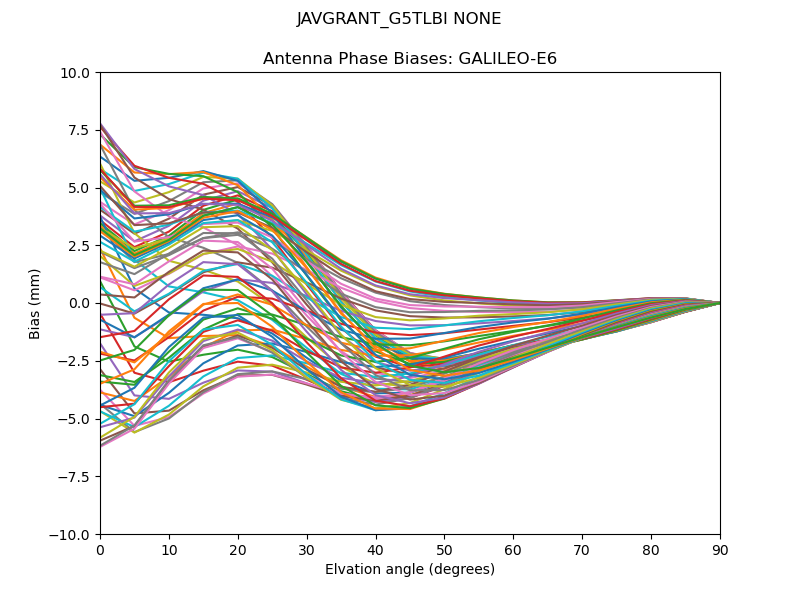

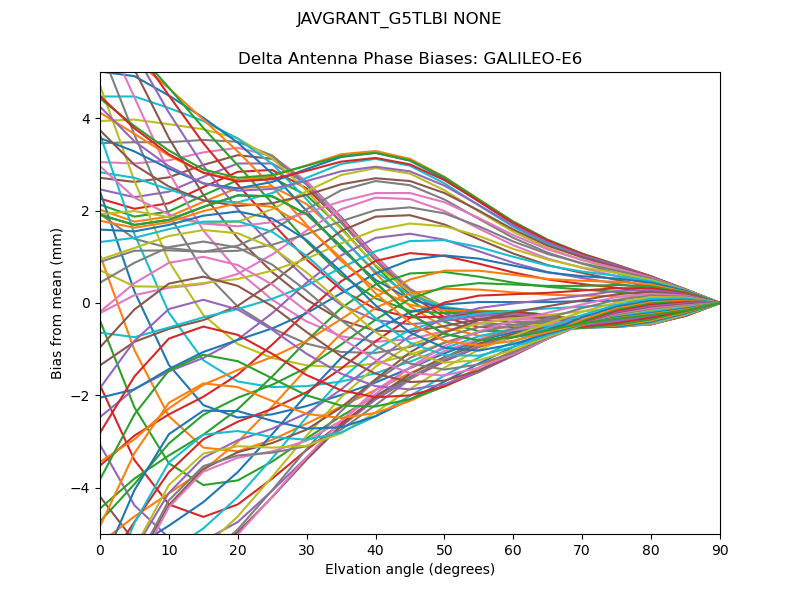

GALILEO-E6 | |
Bias | Delta |
---|---|

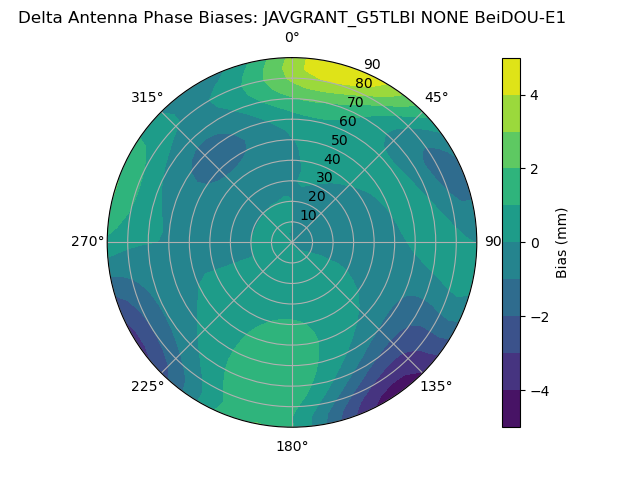

BeiDOU-E1 | |

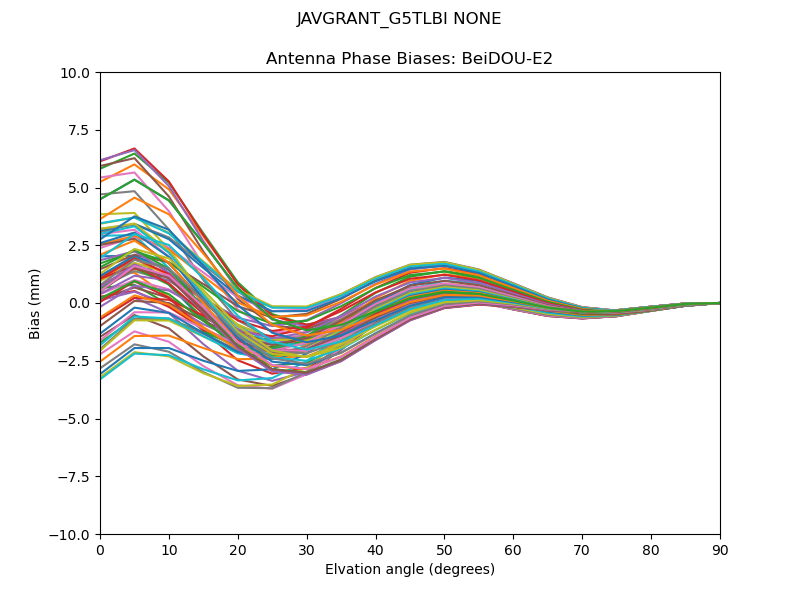

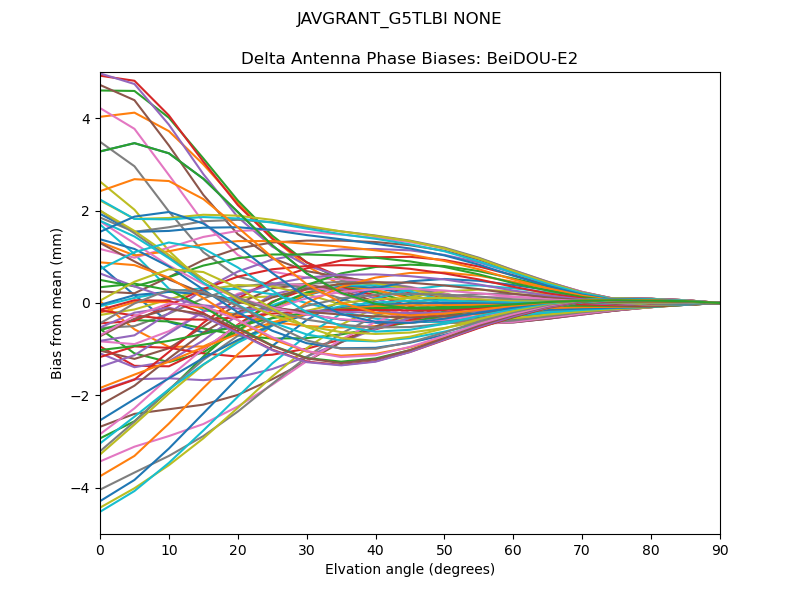

BeiDOU-E2 | |

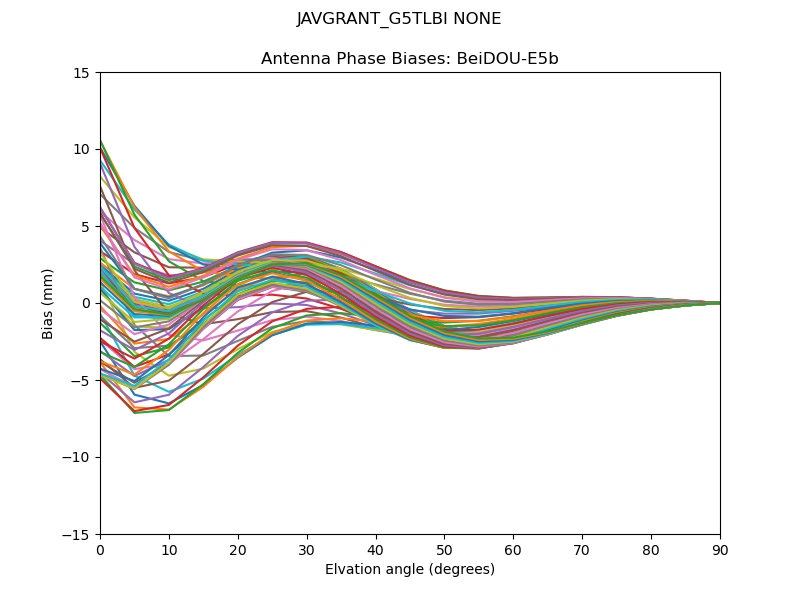

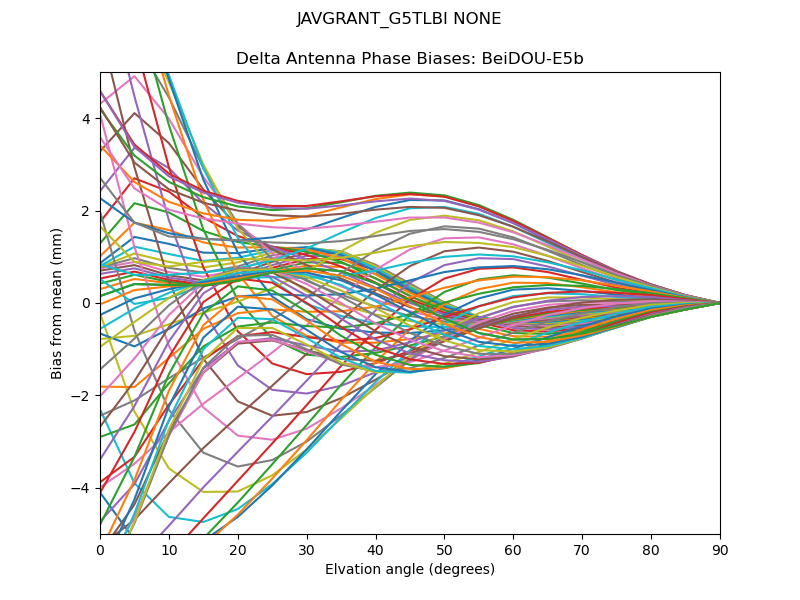

BeiDOU-E5b | |

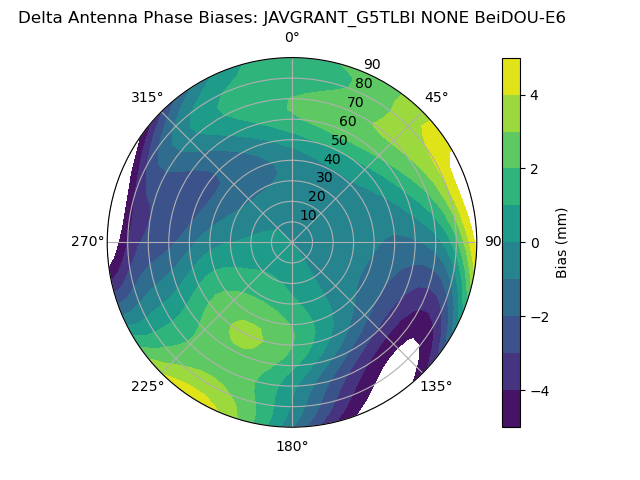

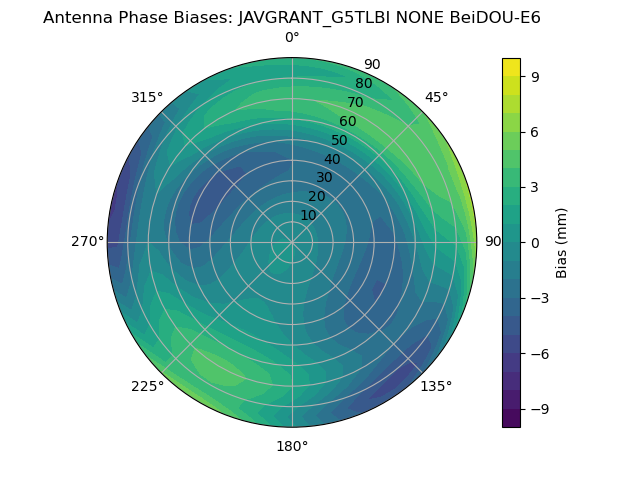

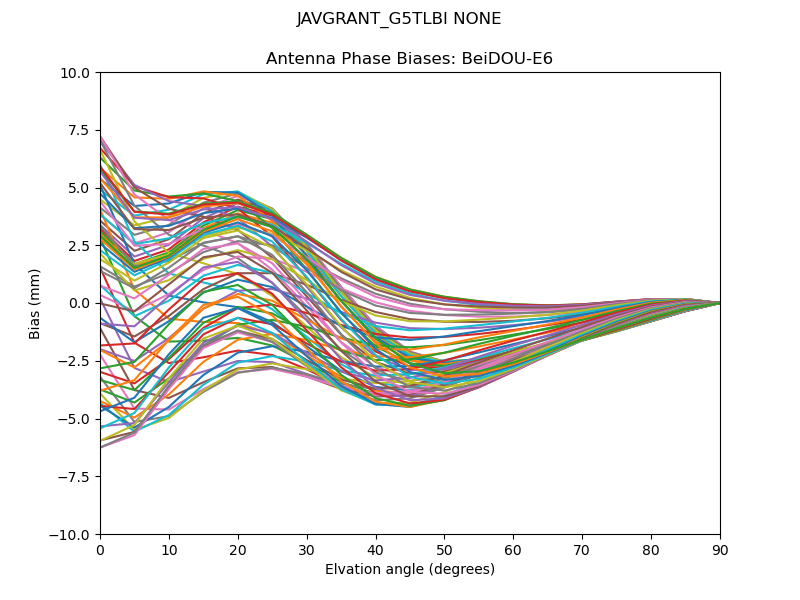

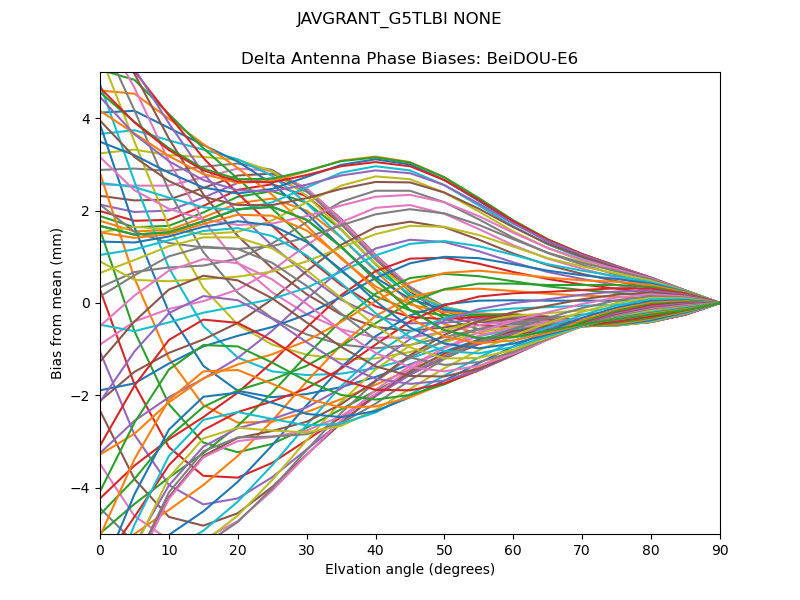

BeiDOU-E6 | |
Bias | Delta |
---|---|

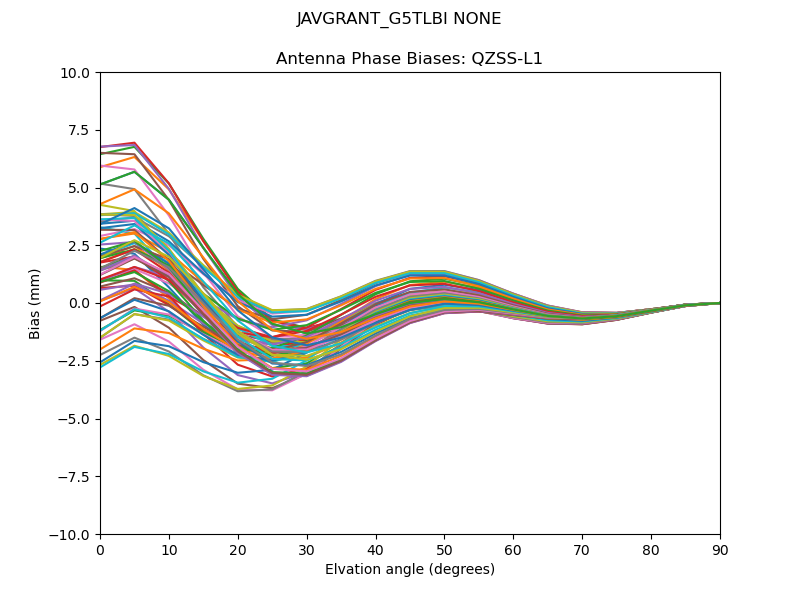

QZSS-L1 | |

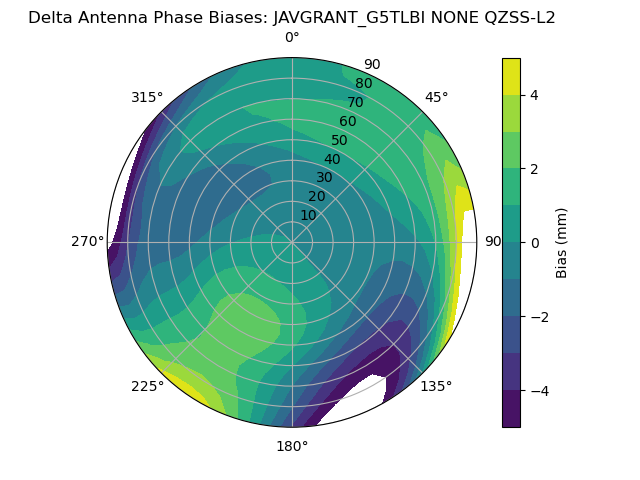

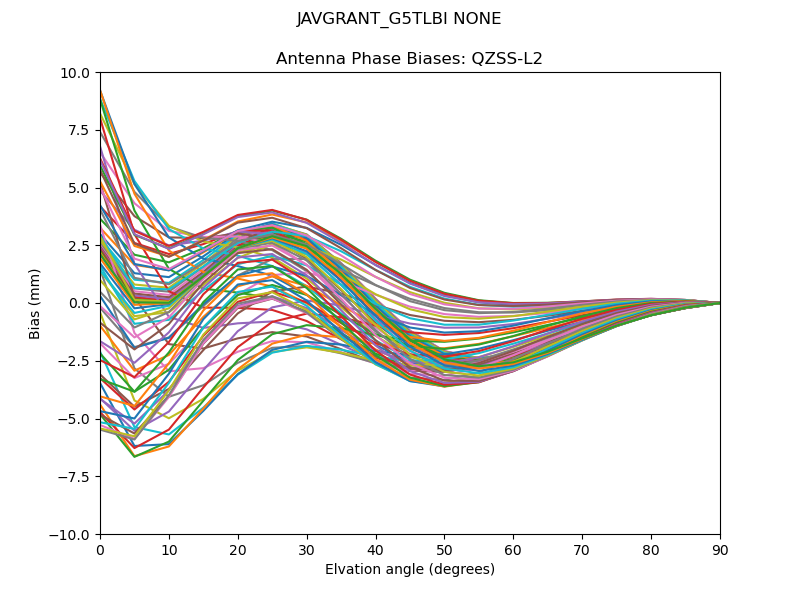

QZSS-L2 | |

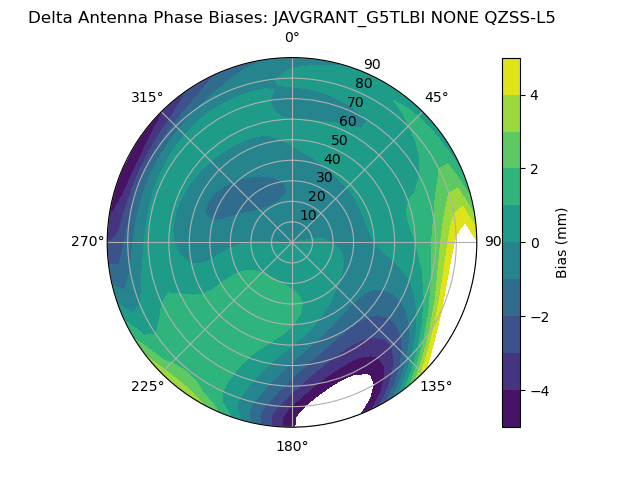

QZSS-L5 | |
Bias | Delta |
---|---|
SBAS-L1 | |

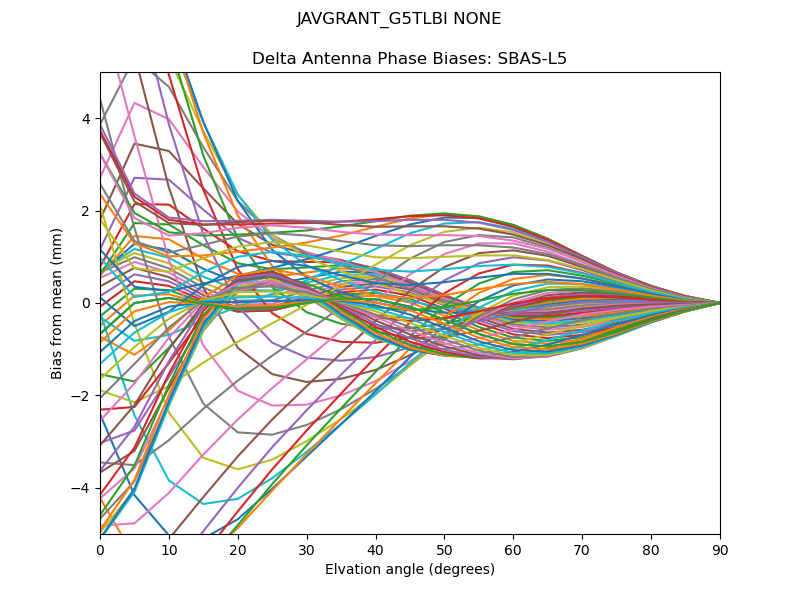

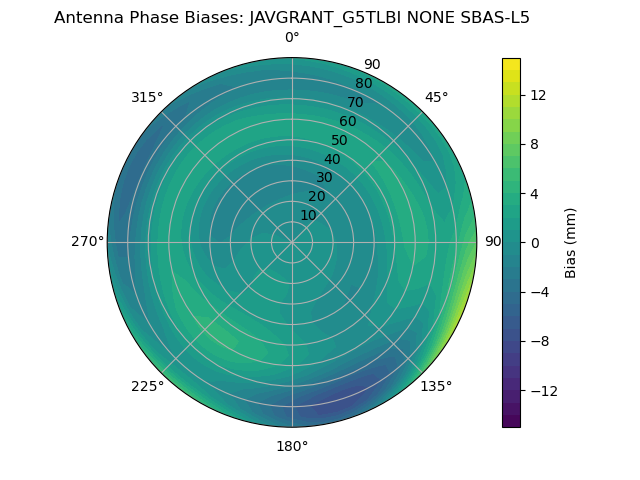

SBAS-L5 | |
