Antenna information for JAVRINGANT_DMT SCIS

Antenna Offsets
SV System Bands

GPS

L1: N: 1.14 E: 1.01 U: 126.84
L2: N: 0.03 E: 0.07 U: 137.70
L5: N: -0.17 E: -0.04 U: 142.09

GLONASS

L1: N: 1.29 E: 1.15 U: 126.74
L2: N: 0.02 E: 0.15 U: 136.59

GALILEO

E1: N: 1.14 E: 1.01 U: 126.84
E5a: N: -0.17 E: -0.04 U: 142.09
E5b: N: -0.01 E: 0.01 U: 139.26
E5: N: -0.08 E: -0.02 U: 140.64
E6: N: -0.07 E: 0.34 U: 135.15

BeiDou

E1: N: 1.14 E: 1.01 U: 126.84
E2: N: 1.06 E: 0.93 U: 126.81
E5b: N: -0.01 E: 0.01 U: 139.26
E6: N: -0.03 E: 0.27 U: 135.58

QZSS

L1: N: 1.14 E: 1.01 U: 126.84
L2: N: 0.03 E: 0.07 U: 137.70
L5: N: -0.17 E: -0.04 U: 142.09
LEX: N: -0.07 E: 0.34 U: 135.15

IRNSS

L5: N: -0.17 E: -0.04 U: 142.09

SBAS

L1: N: 1.14 E: 1.01 U: 126.84
L5: N: -0.17 E: -0.04 U: 142.09

L1

GPS: N: 1.14 E: 1.01 U: 126.84
GLONASS: N: 1.29 E: 1.15 U: 126.74
QZSS: N: 1.14 E: 1.01 U: 126.84
SBAS: N: 1.14 E: 1.01 U: 126.84

L2

GPS: N: 0.03 E: 0.07 U: 137.70
GLONASS: N: 0.02 E: 0.15 U: 136.59
QZSS: N: 0.03 E: 0.07 U: 137.70

L5

GPS: N: -0.17 E: -0.04 U: 142.09
QZSS: N: -0.17 E: -0.04 U: 142.09
SBAS: N: -0.17 E: -0.04 U: 142.09
IRNSS: N: -0.17 E: -0.04 U: 142.09

E1

GALILEO: N: 1.14 E: 1.01 U: 126.84
BeiDou: N: 1.14 E: 1.01 U: 126.84

E2

BeiDou: N: 1.06 E: 0.93 U: 126.81

E5

GALILEO: N: -0.08 E: -0.02 U: 140.64

E5a

GALILEO: N: -0.17 E: -0.04 U: 142.09

E5b

GALILEO: N: -0.01 E: 0.01 U: 139.26
BeiDou: N: -0.01 E: 0.01 U: 139.26

E6

GALILEO: N: -0.07 E: 0.34 U: 135.15
BeiDou: N: -0.03 E: 0.27 U: 135.58

LEX

QZSS: N: -0.07 E: 0.34 U: 135.15


Means

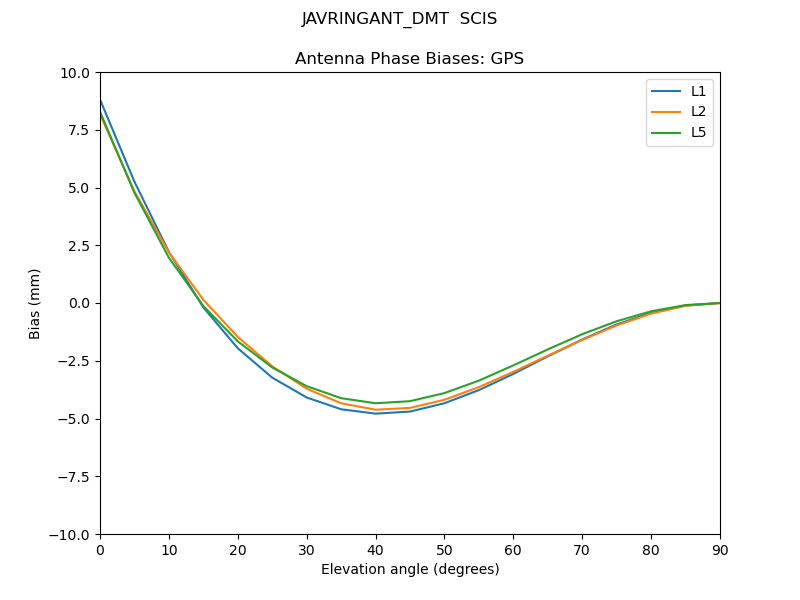

GPS


GLONASS

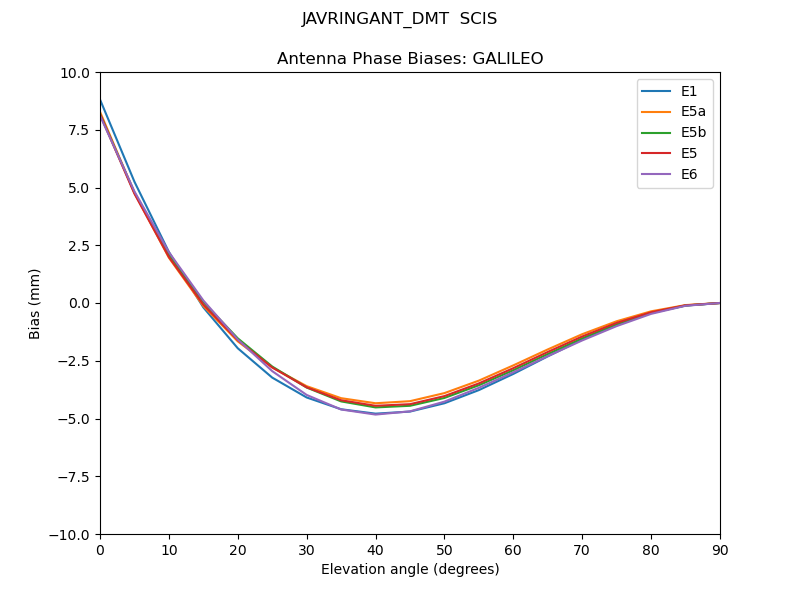

GALILEO

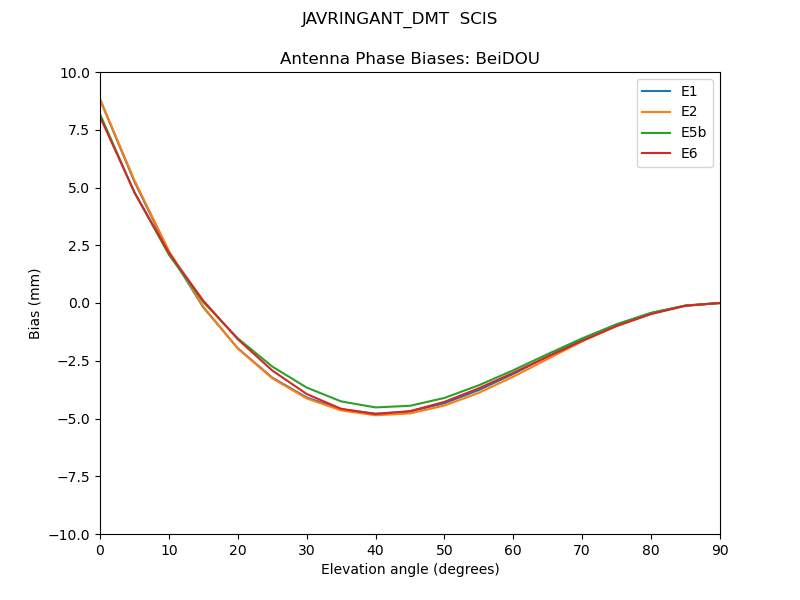

BeiDOU


QZSS

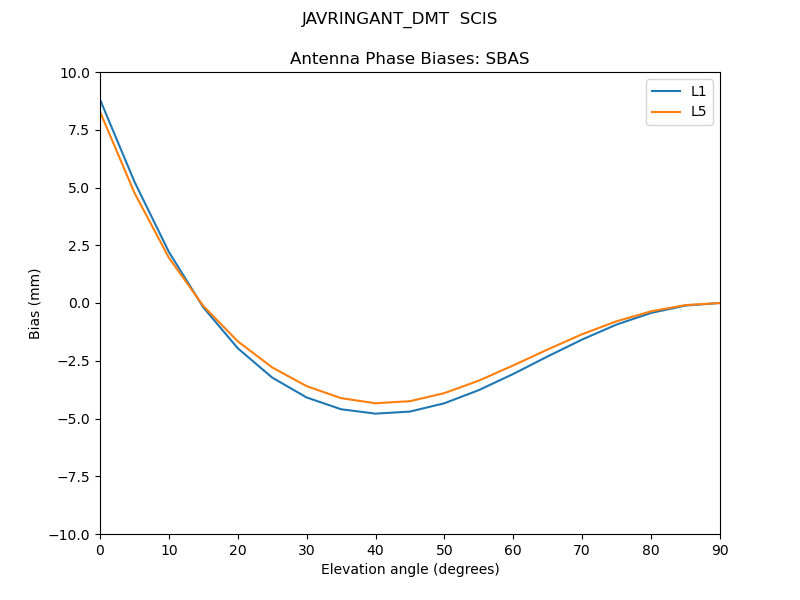

SBAS

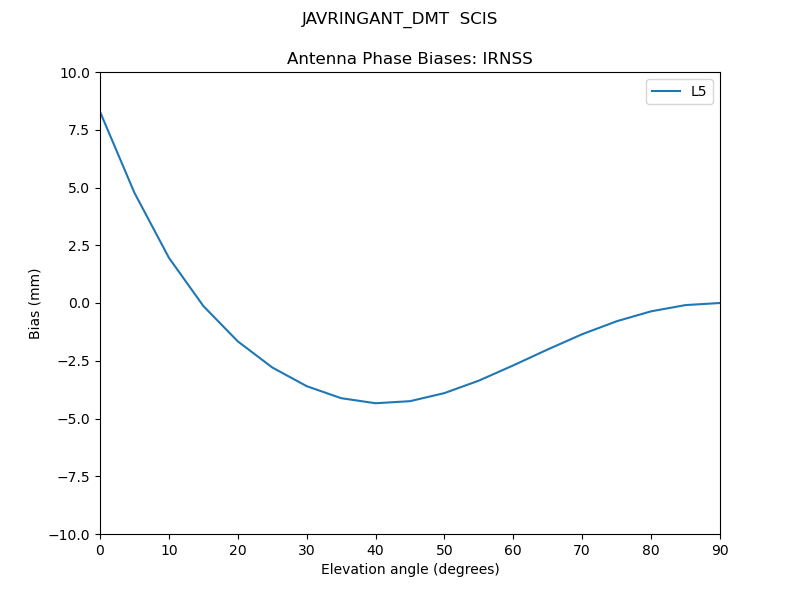

IRNSS


Azimuths

GPS


Bias Delta

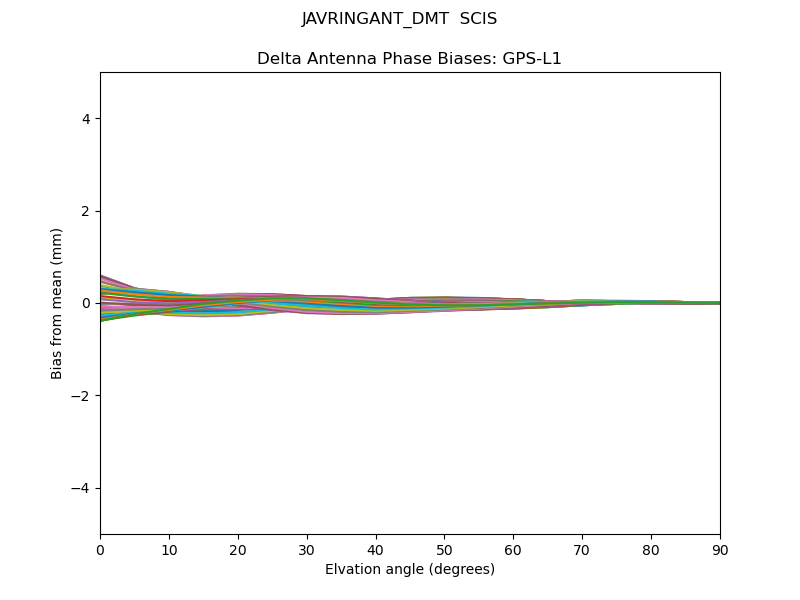

GPS-L1

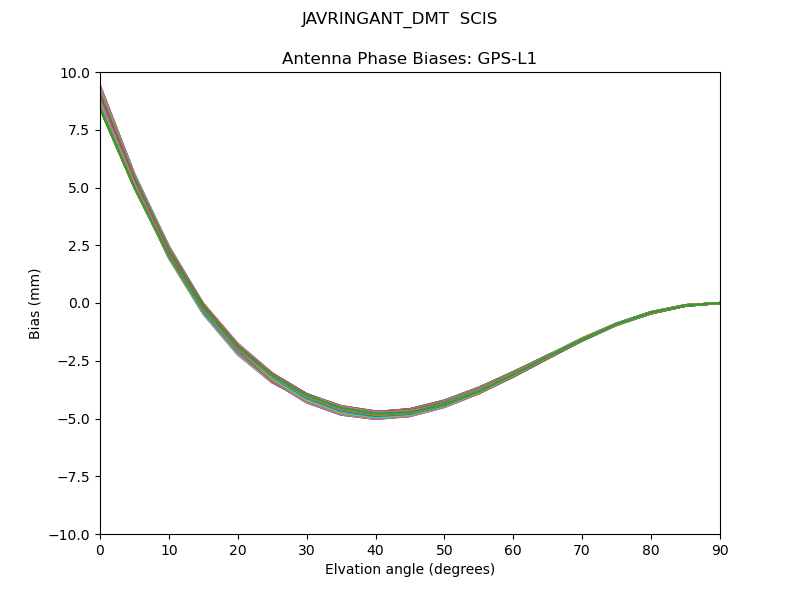

GPS-L1GPS-L1

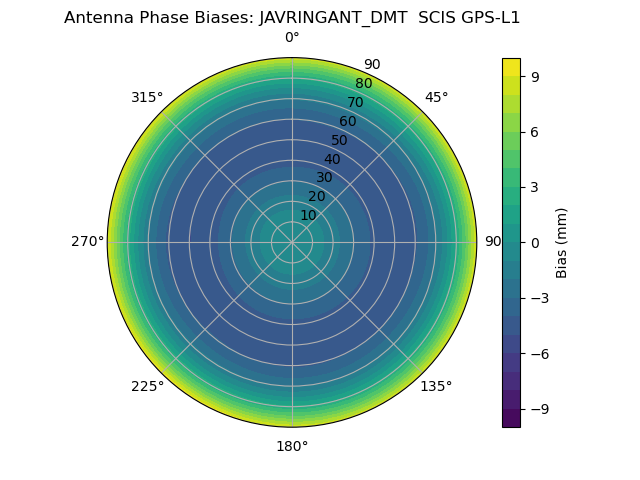

Radial GPS-L1Radial GPS-L1

GPS-L2

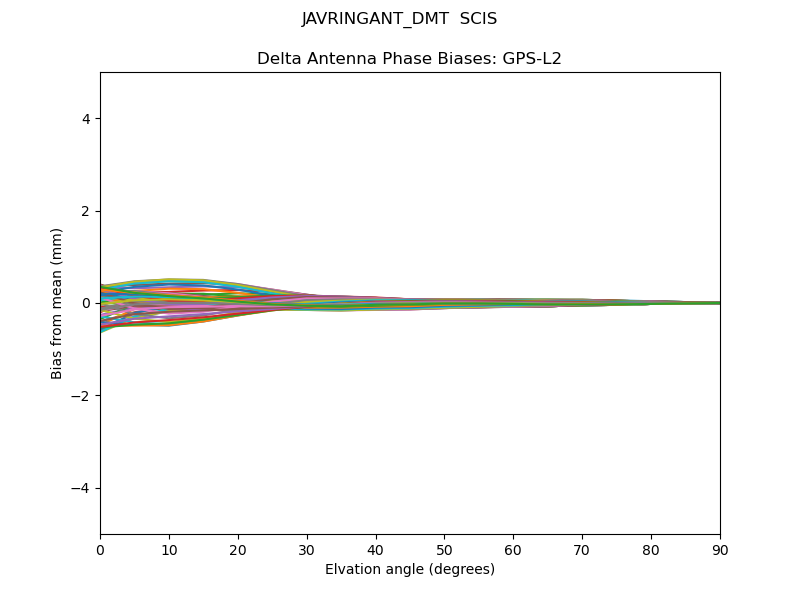

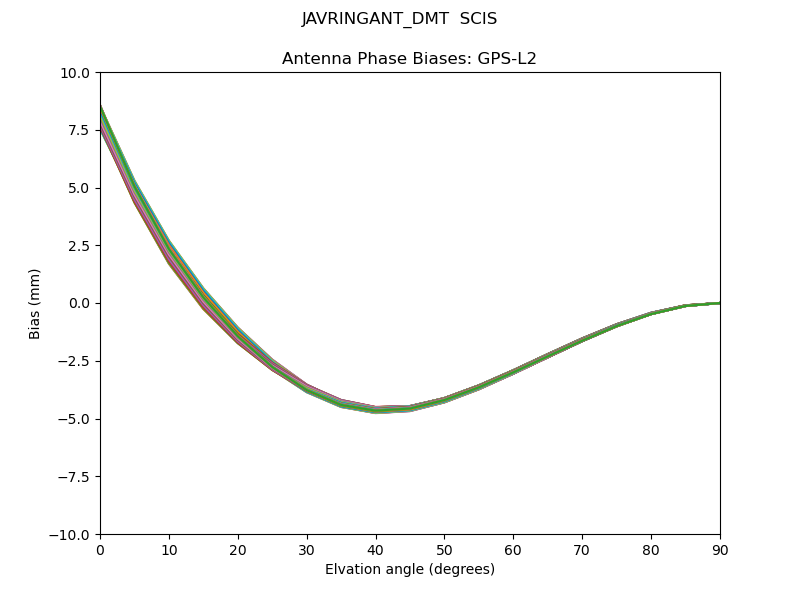

GPS-L2GPS-L2

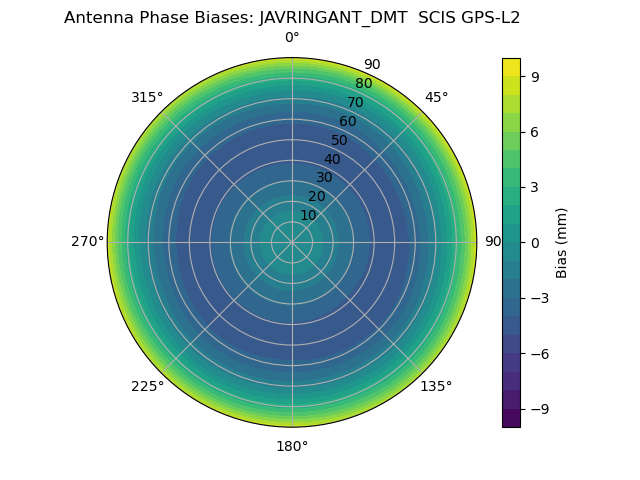

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

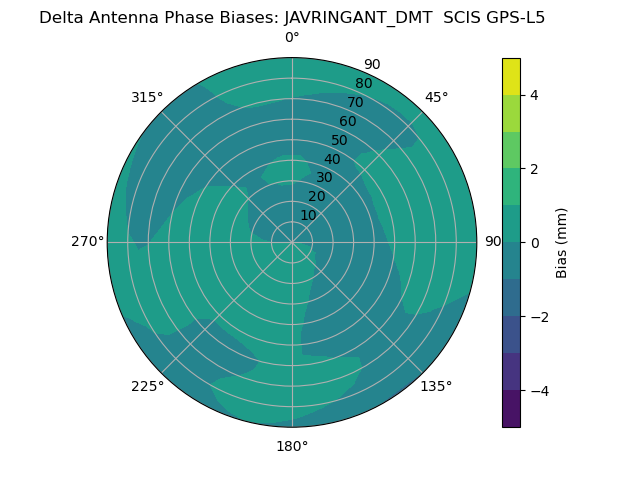

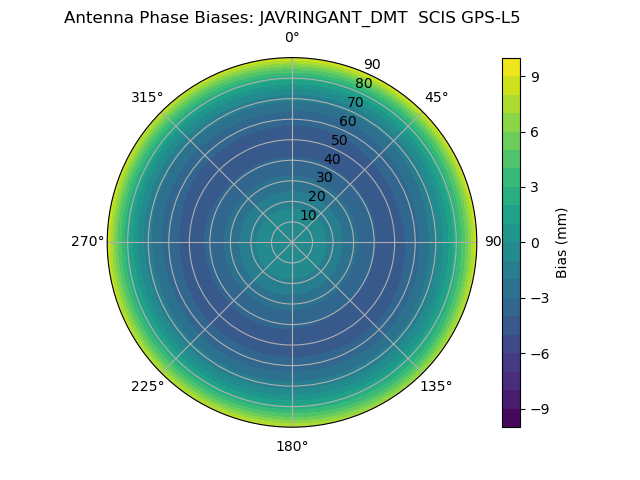

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

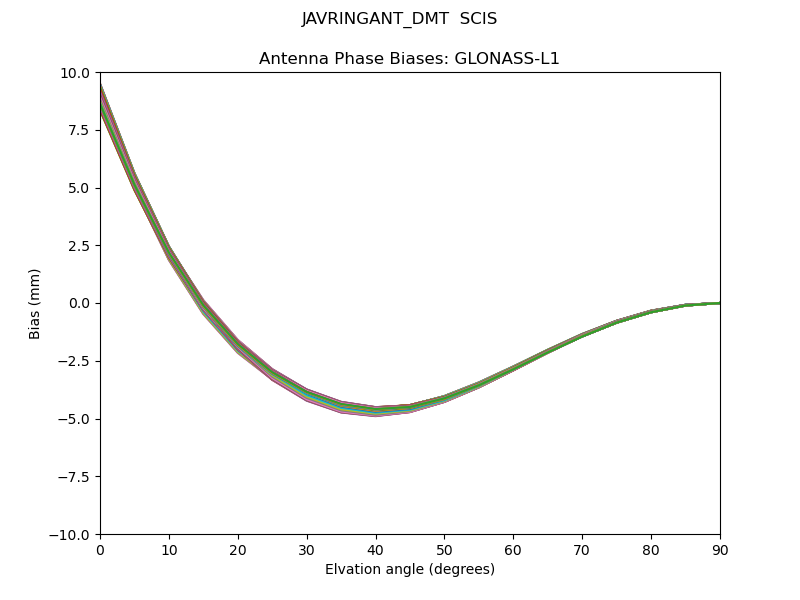

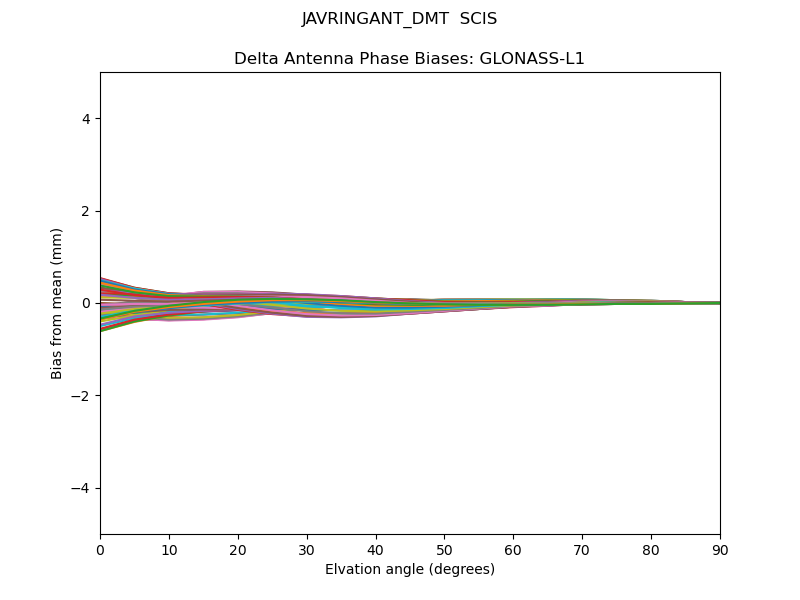

GLONASS-L1

GLONASS-L1GLONASS-L1

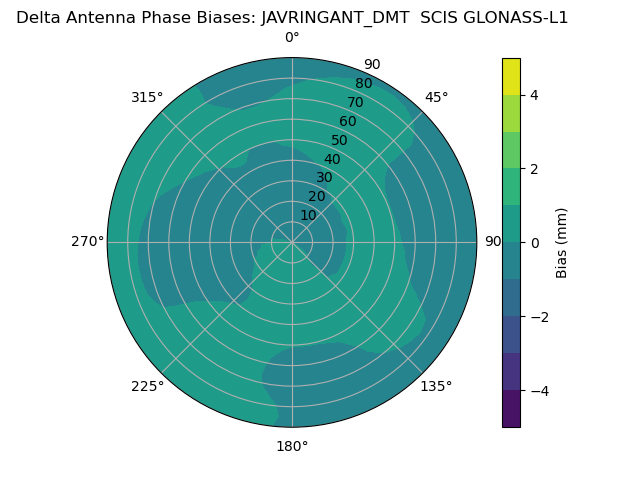

Radial GLONASS-L1Radial GLONASS-L1

GLONASS-L2

GLONASS-L2GLONASS-L2

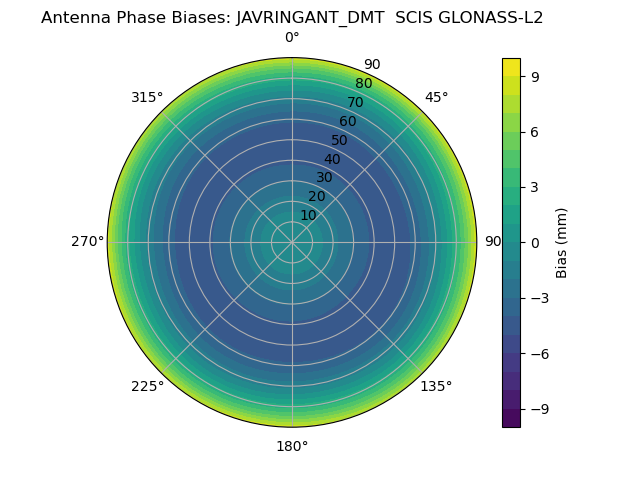

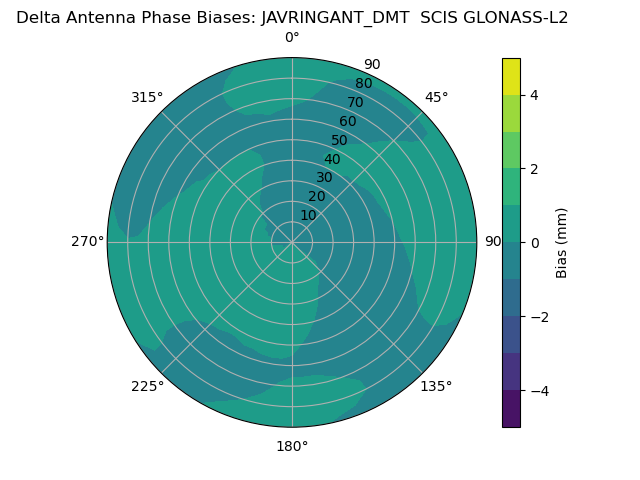

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

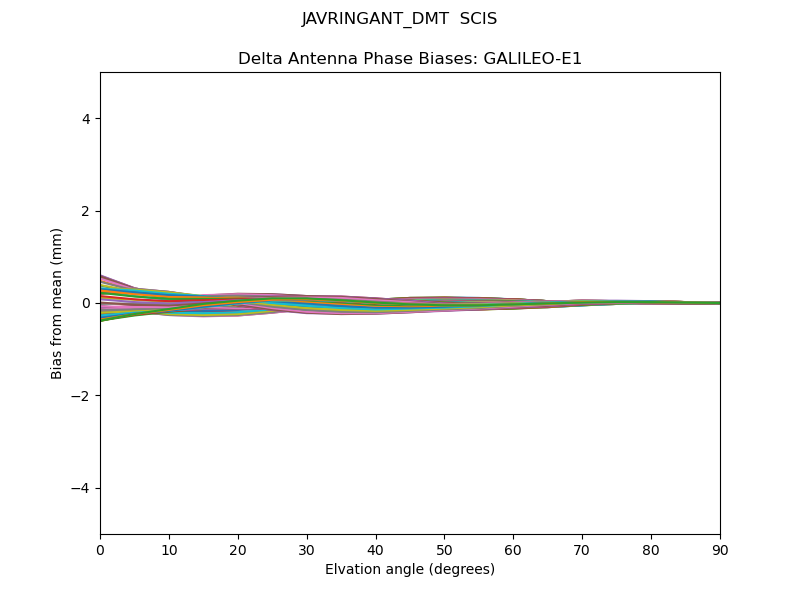

GALILEO-E1GALILEO-E1

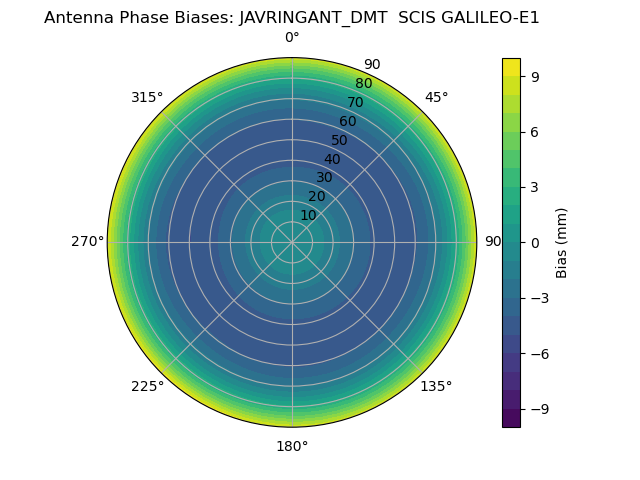

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

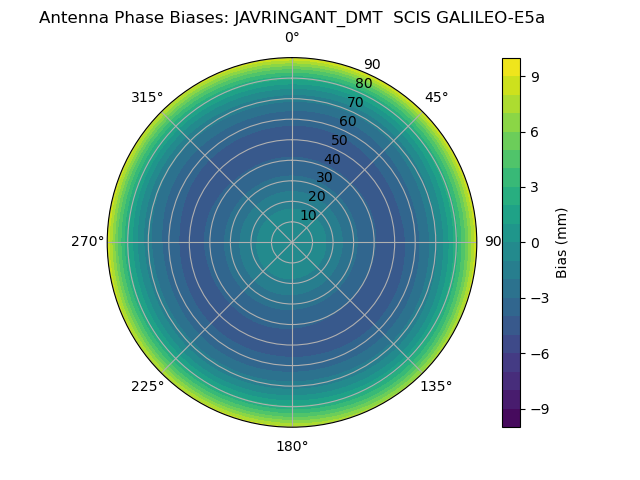

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

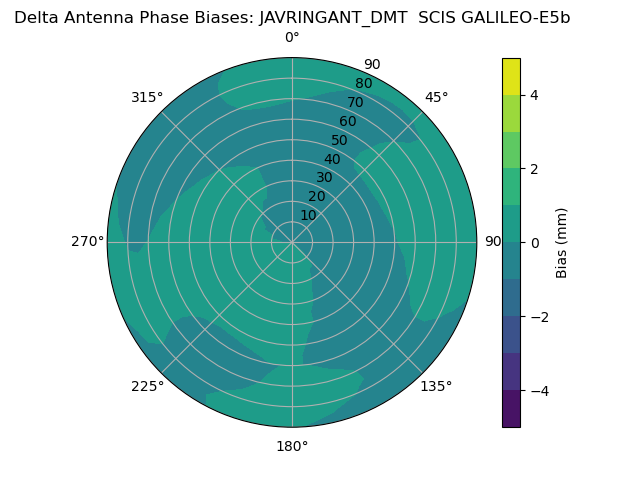

Radial GALILEO-E5bRadial GALILEO-E5b

GALILEO-E5

GALILEO-E5GALILEO-E5
Radial GALILEO-E5Radial GALILEO-E5

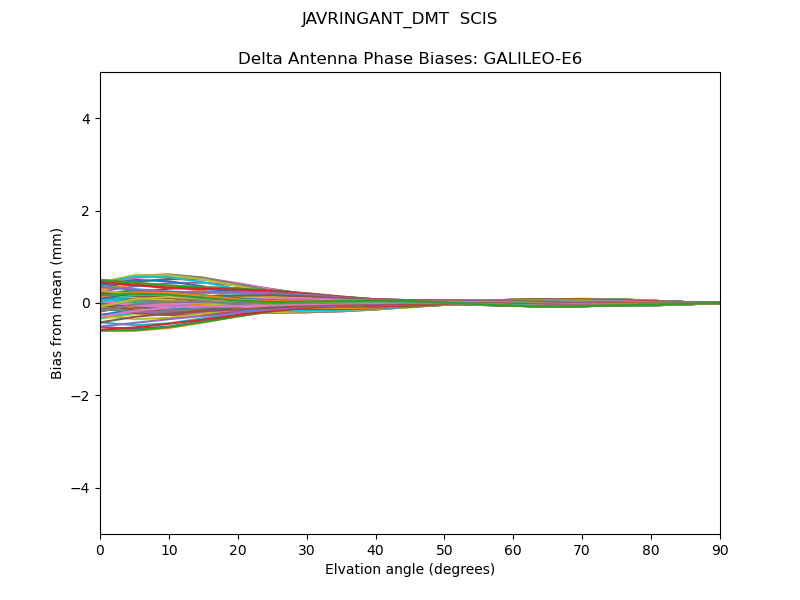

GALILEO-E6

GALILEO-E6GALILEO-E6
Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

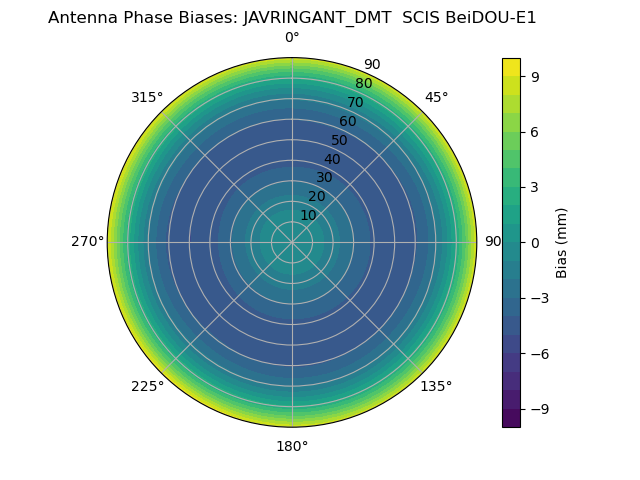

Radial BeiDOU-E1Radial BeiDOU-E1

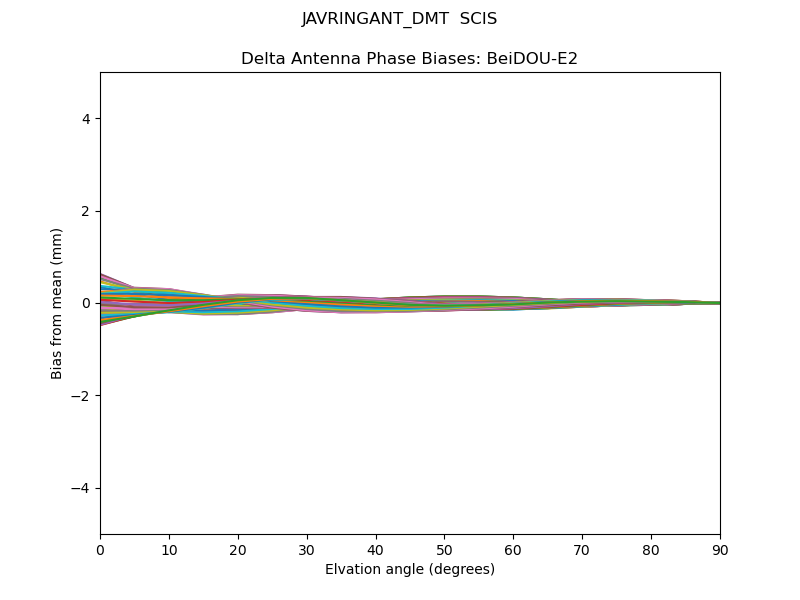

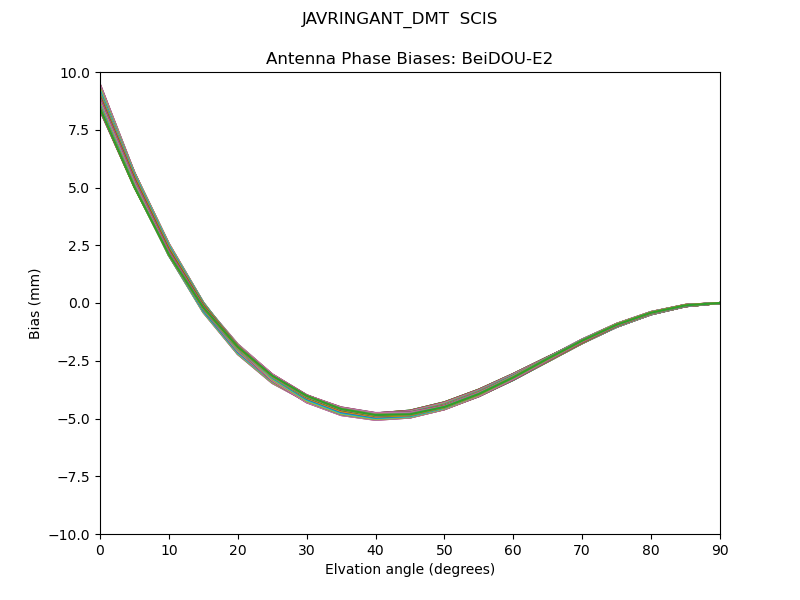

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

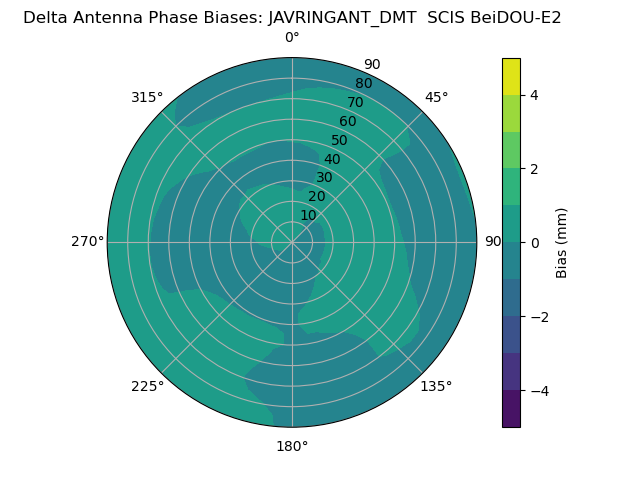

Radial BeiDOU-E2Radial BeiDOU-E2

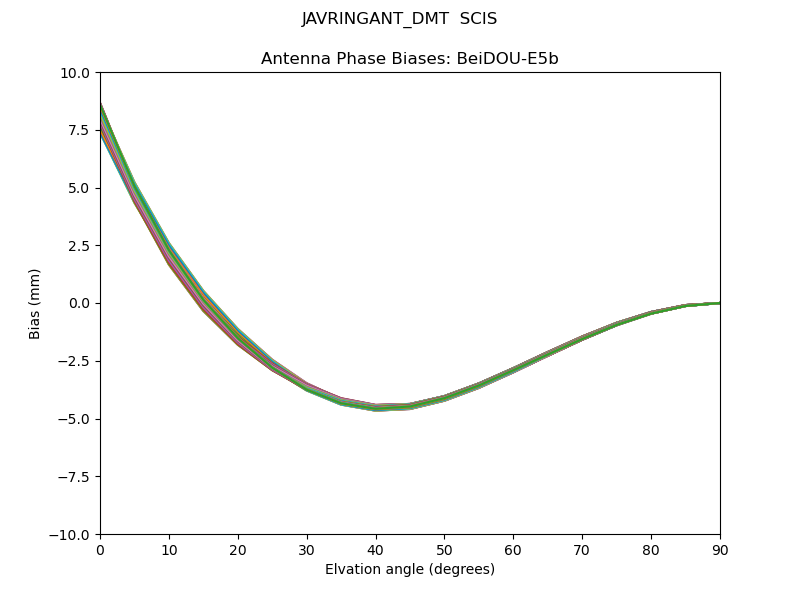

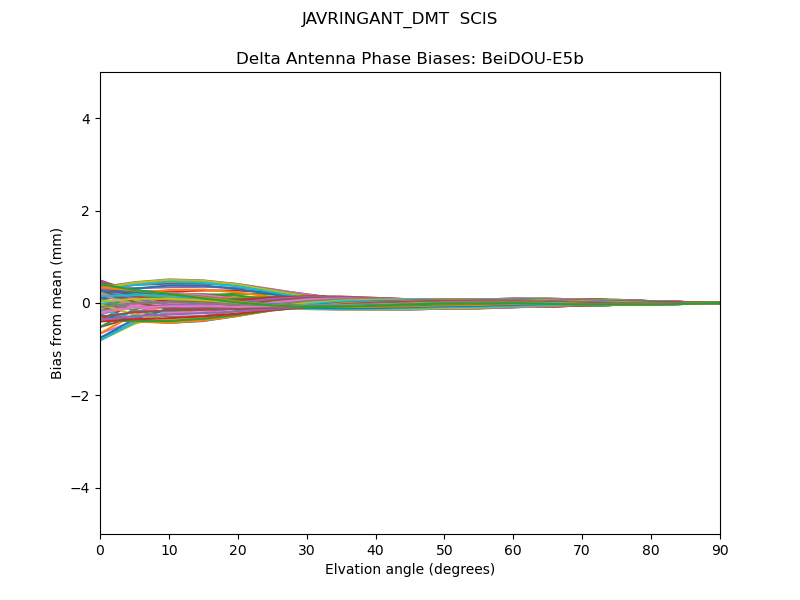

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

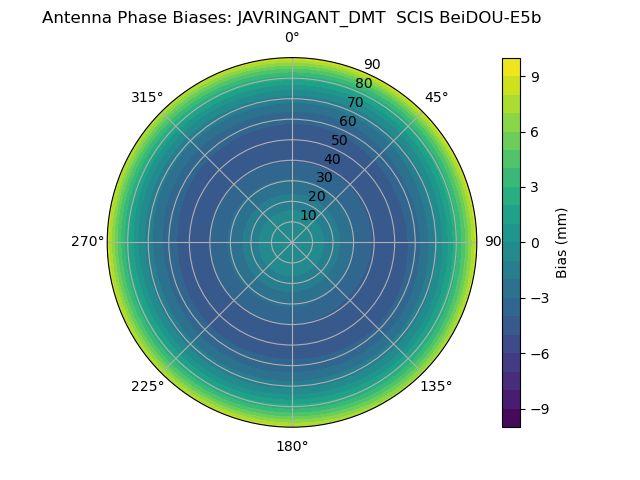

Radial BeiDOU-E5bRadial BeiDOU-E5b

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

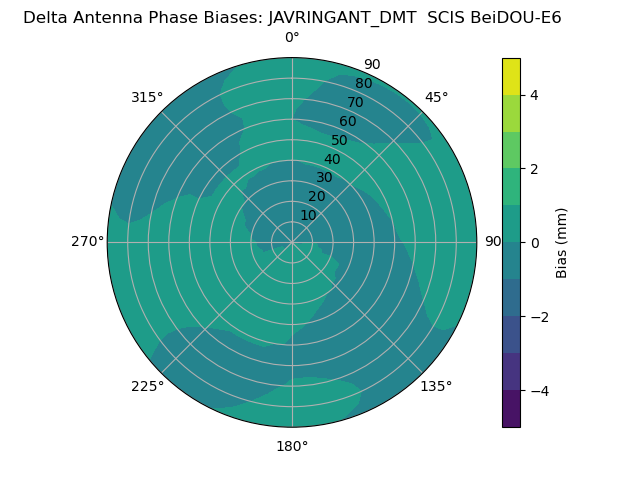

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

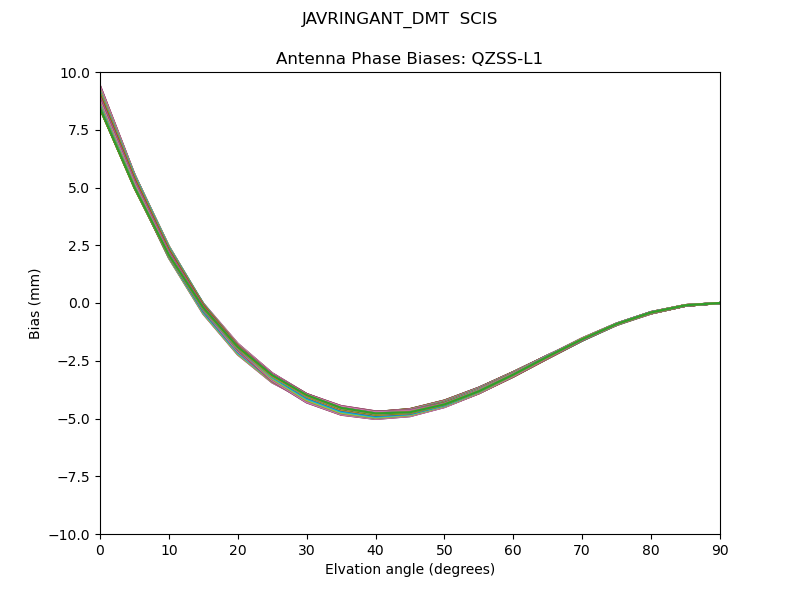

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

QZSS-L2

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

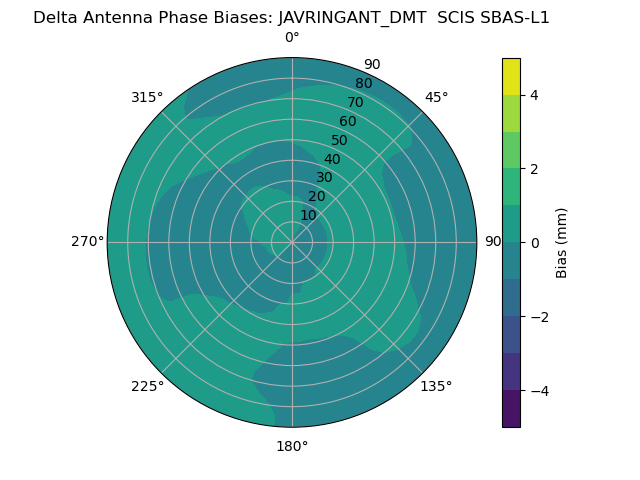

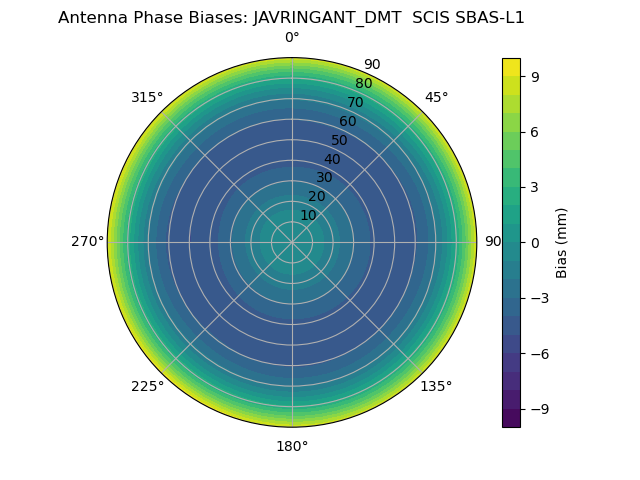

Radial SBAS-L1Radial SBAS-L1

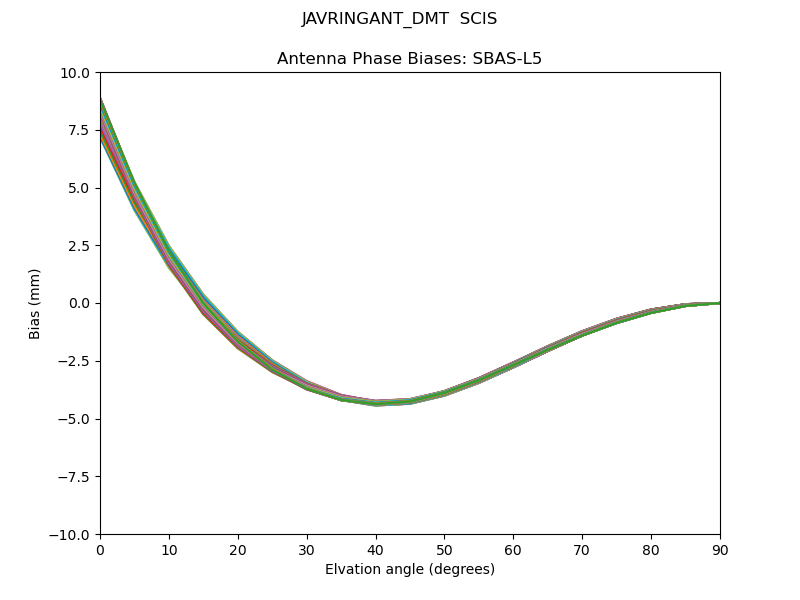

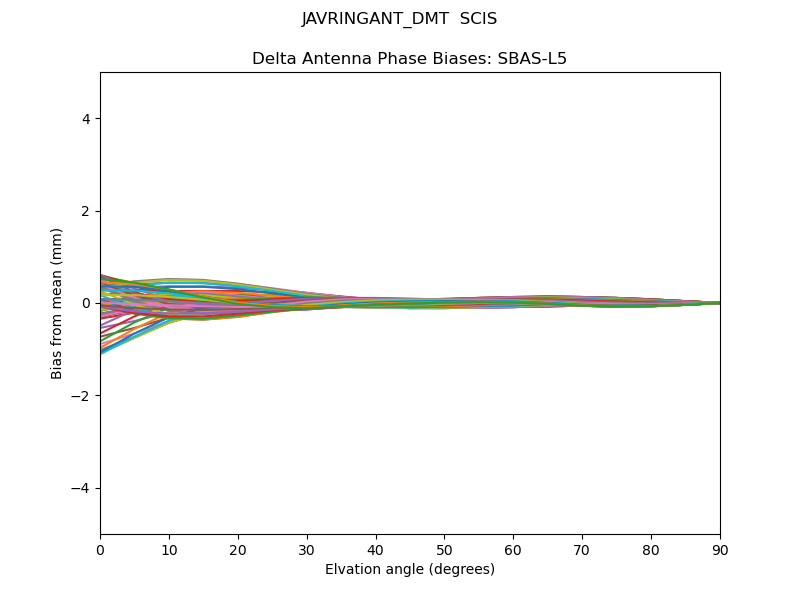

SBAS-L5

SBAS-L5SBAS-L5

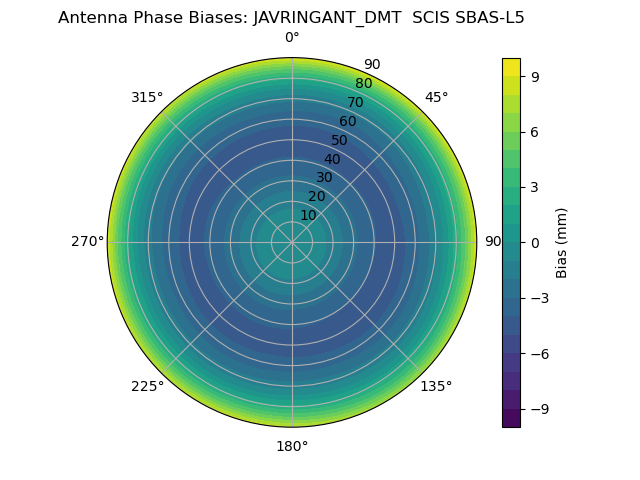

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

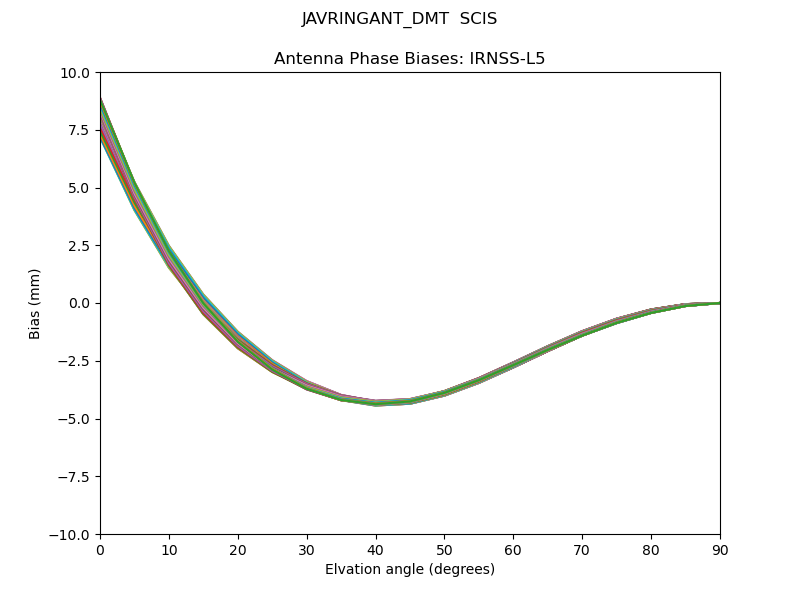

IRNSS-L5

IRNSS-L5IRNSS-L5

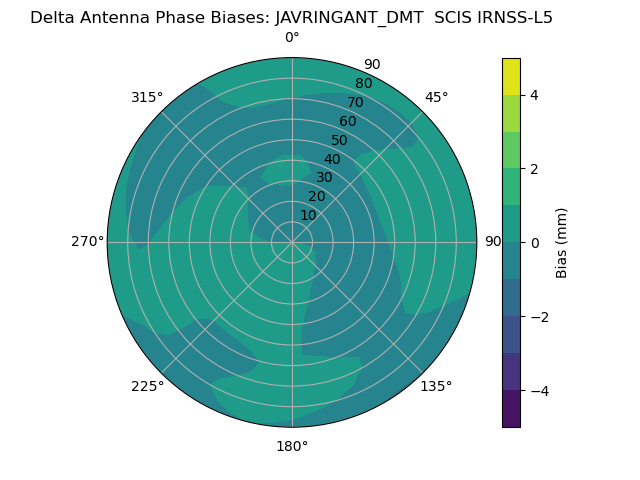

Radial IRNSS-L5Radial IRNSS-L5
