Antenna information for JAVRINGANT_DM NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.12 E: 1.25 U: 90.09
L2: N: -0.17 E: -0.13 U: 117.83
L5: N: -0.09 E: -0.28 U: 126.97

GLONASS

L1: N: -0.02 E: 1.35 U: 88.66
L2: N: -0.15 E: -0.09 U: 115.55

GALILEO

E1: N: 0.12 E: 1.25 U: 90.09
E5a: N: -0.09 E: -0.28 U: 126.97
E5b: N: -0.17 E: -0.19 U: 121.03
E5: N: -0.14 E: -0.23 U: 123.85
E6: N: -0.04 E: -0.04 U: 112.62

BeiDou

E1: N: 0.12 E: 1.25 U: 90.09
E2: N: 0.20 E: 1.19 U: 90.76
E5b: N: -0.17 E: -0.19 U: 121.03
E6: N: -0.08 E: -0.05 U: 113.44

QZSS

L1: N: 0.12 E: 1.25 U: 90.09
L2: N: -0.17 E: -0.13 U: 117.83
L5: N: -0.09 E: -0.28 U: 126.97
LEX: N: -0.04 E: -0.04 U: 112.62

IRNSS

L5: N: -0.09 E: -0.28 U: 126.97

SBAS

L1: N: 0.12 E: 1.25 U: 90.09
L5: N: -0.09 E: -0.28 U: 126.97

L1

GPS: N: 0.12 E: 1.25 U: 90.09
GLONASS: N: -0.02 E: 1.35 U: 88.66
QZSS: N: 0.12 E: 1.25 U: 90.09
SBAS: N: 0.12 E: 1.25 U: 90.09

L2

GPS: N: -0.17 E: -0.13 U: 117.83
GLONASS: N: -0.15 E: -0.09 U: 115.55
QZSS: N: -0.17 E: -0.13 U: 117.83

L5

GPS: N: -0.09 E: -0.28 U: 126.97
QZSS: N: -0.09 E: -0.28 U: 126.97
SBAS: N: -0.09 E: -0.28 U: 126.97
IRNSS: N: -0.09 E: -0.28 U: 126.97

E1

GALILEO: N: 0.12 E: 1.25 U: 90.09
BeiDou: N: 0.12 E: 1.25 U: 90.09

E2

BeiDou: N: 0.20 E: 1.19 U: 90.76

E5

GALILEO: N: -0.14 E: -0.23 U: 123.85

E5a

GALILEO: N: -0.09 E: -0.28 U: 126.97

E5b

GALILEO: N: -0.17 E: -0.19 U: 121.03
BeiDou: N: -0.17 E: -0.19 U: 121.03

E6

GALILEO: N: -0.04 E: -0.04 U: 112.62
BeiDou: N: -0.08 E: -0.05 U: 113.44

LEX

QZSS: N: -0.04 E: -0.04 U: 112.62


Means

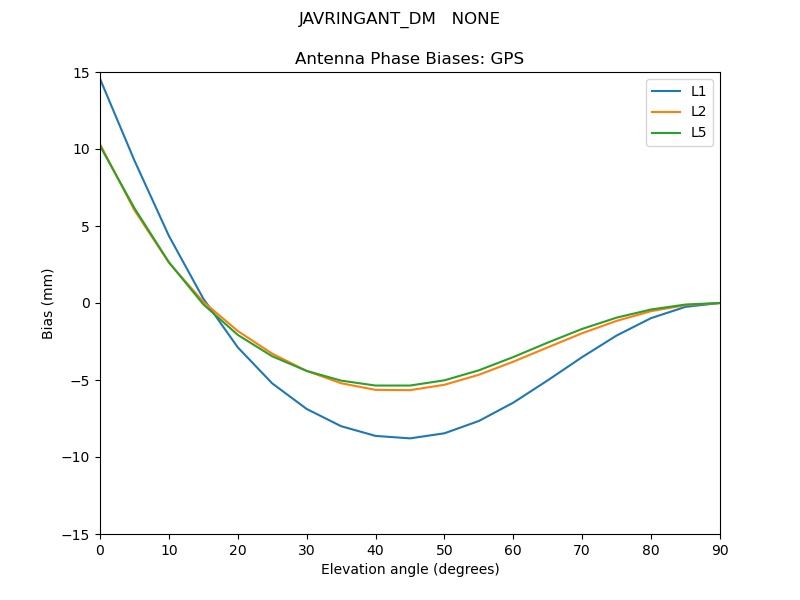

GPS

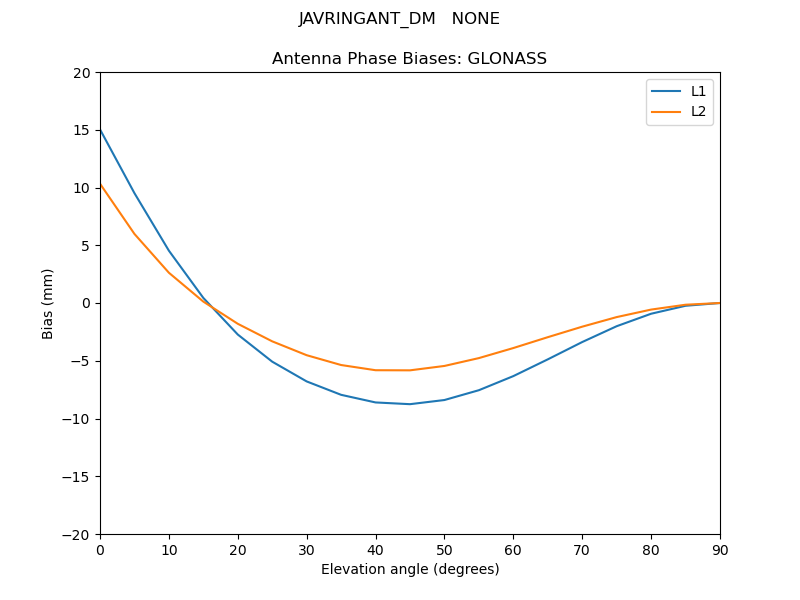

GLONASS

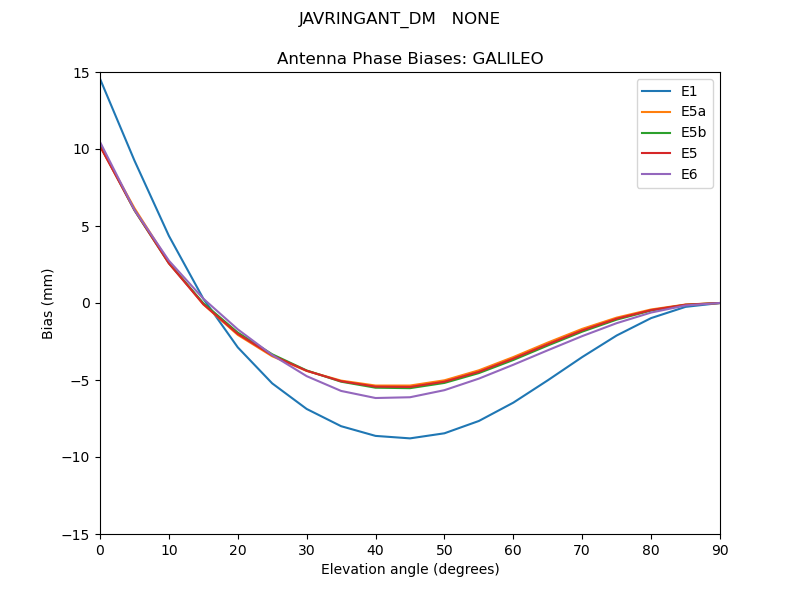

GALILEO

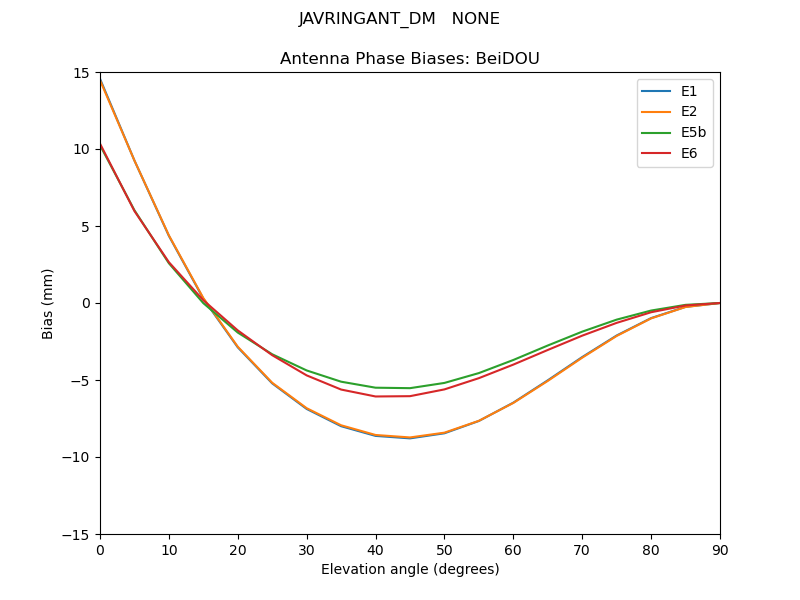

BeiDOU


QZSS

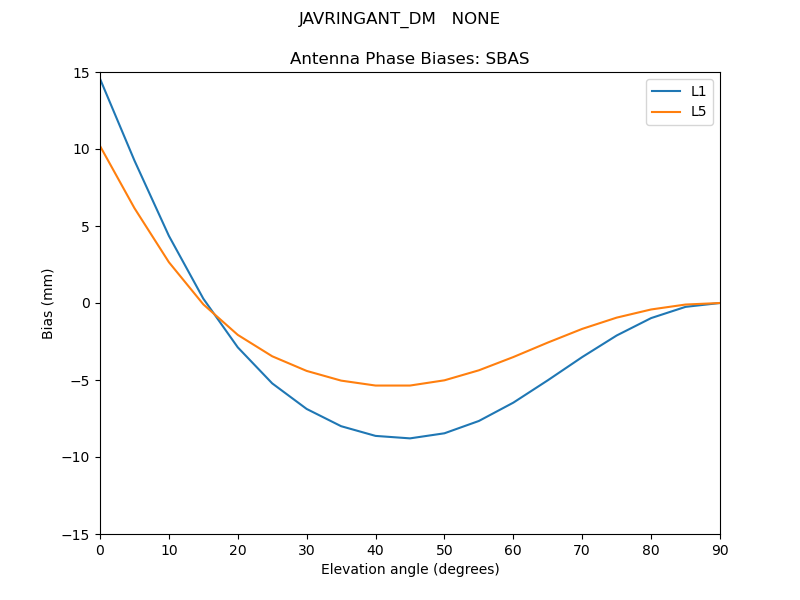

SBAS

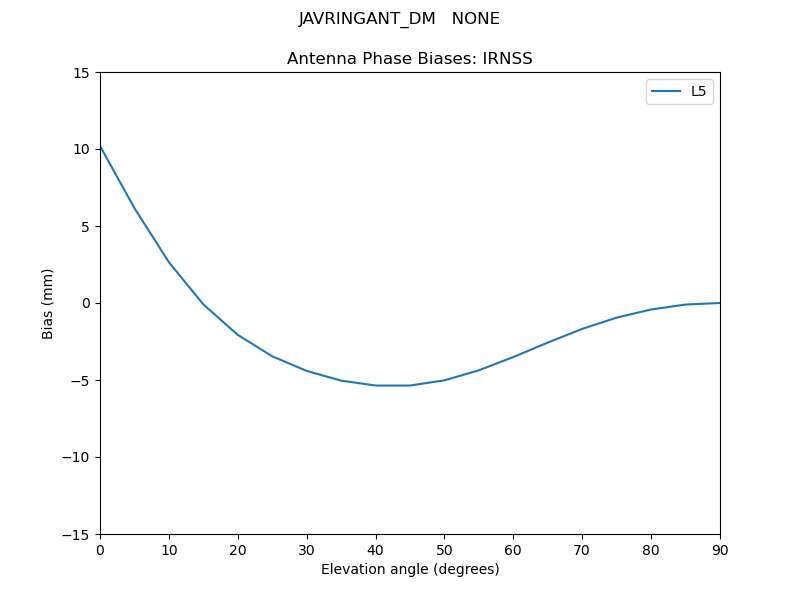

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

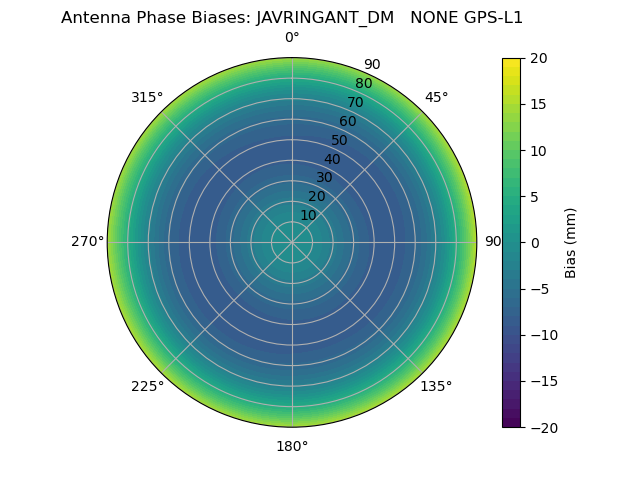

Radial GPS-L1Radial GPS-L1

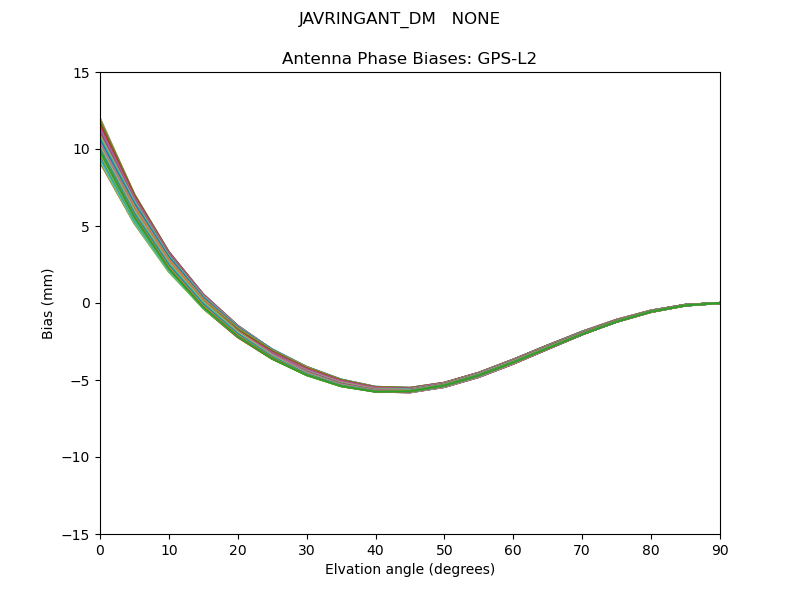

GPS-L2

GPS-L2GPS-L2

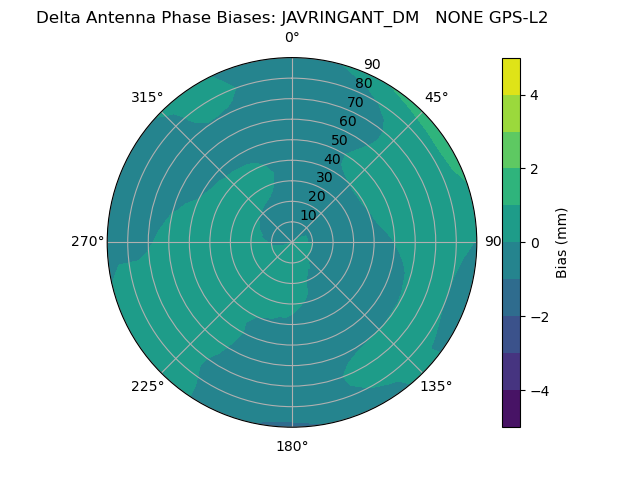

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

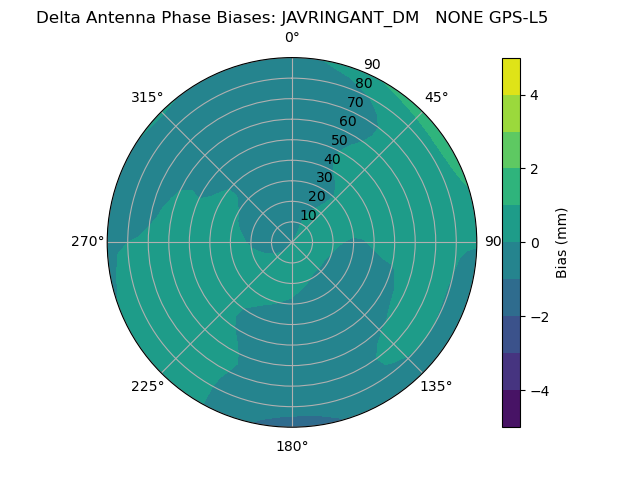

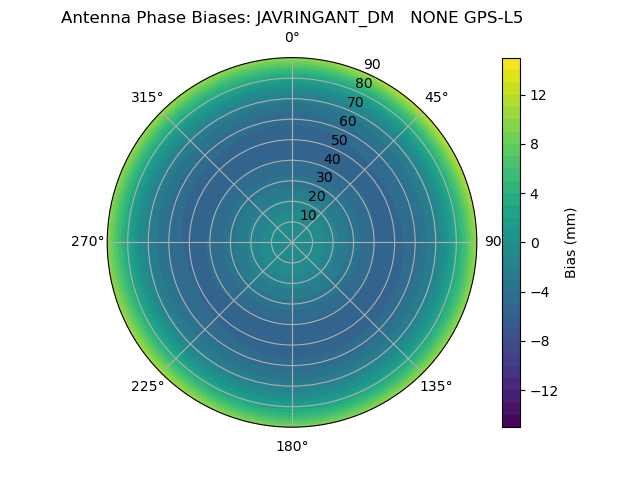

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

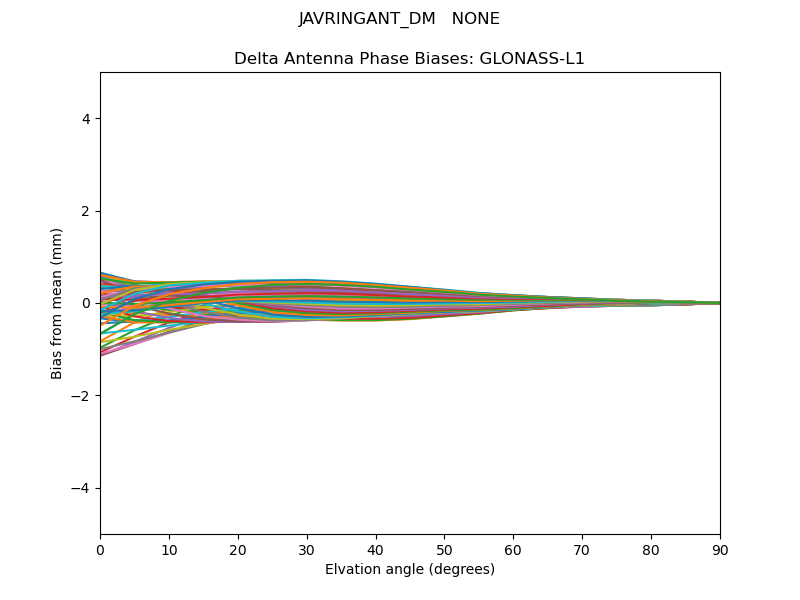

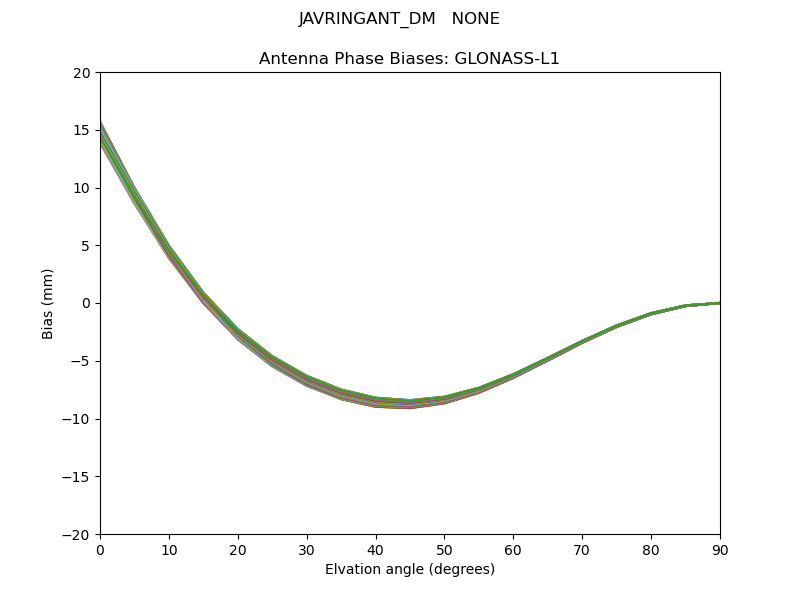

GLONASS-L1

GLONASS-L1GLONASS-L1

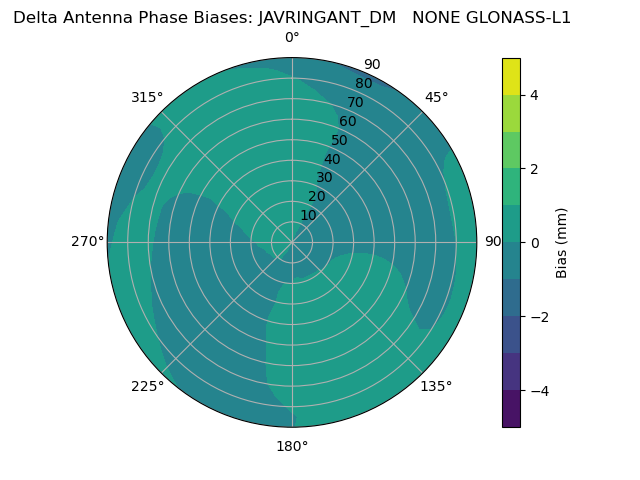

Radial GLONASS-L1Radial GLONASS-L1

GLONASS-L2

GLONASS-L2GLONASS-L2

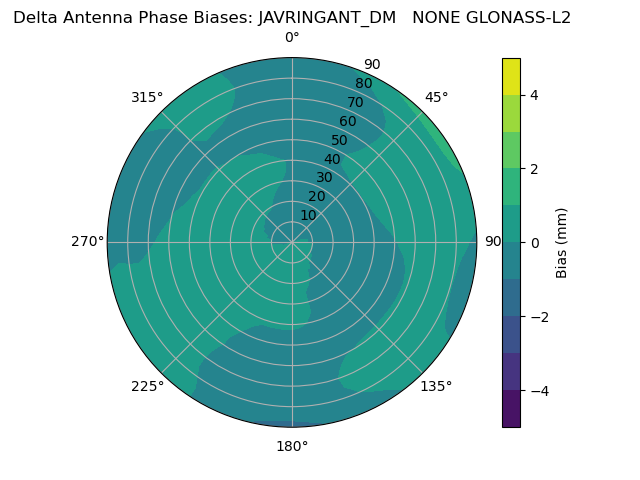

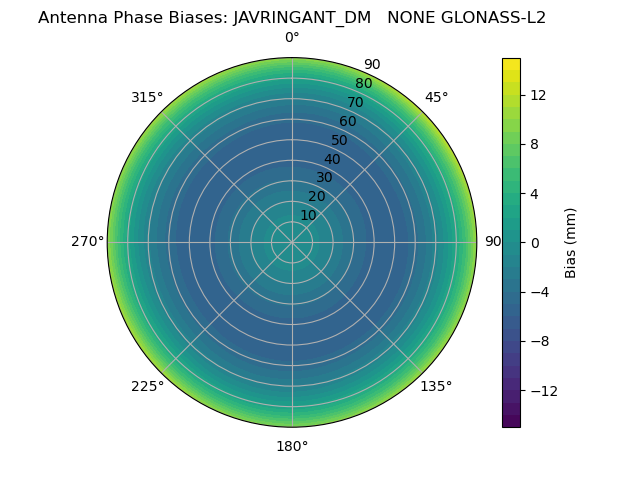

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

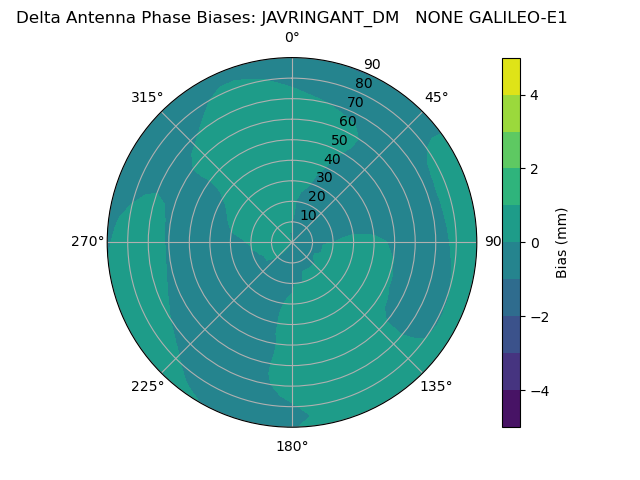

Radial GALILEO-E1Radial GALILEO-E1

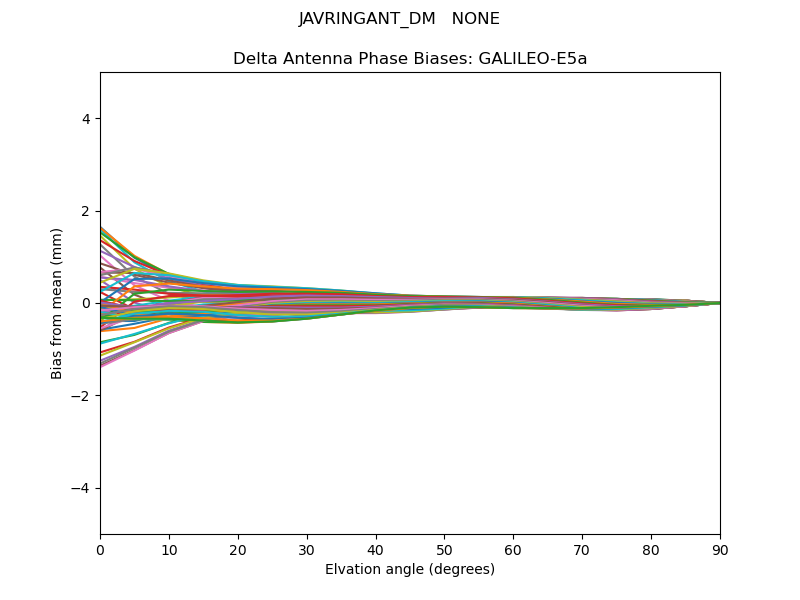

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

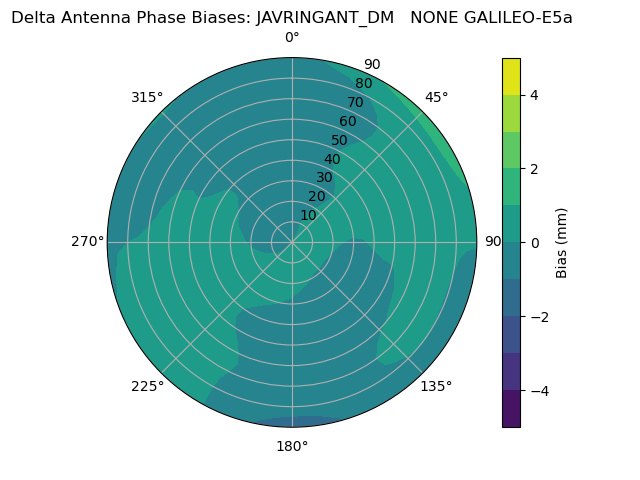

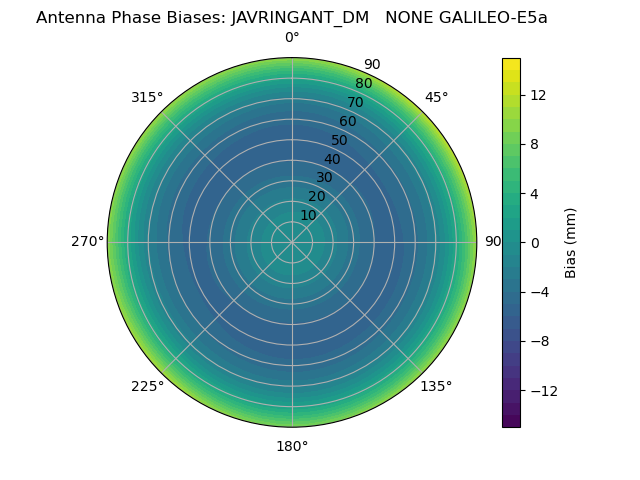

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

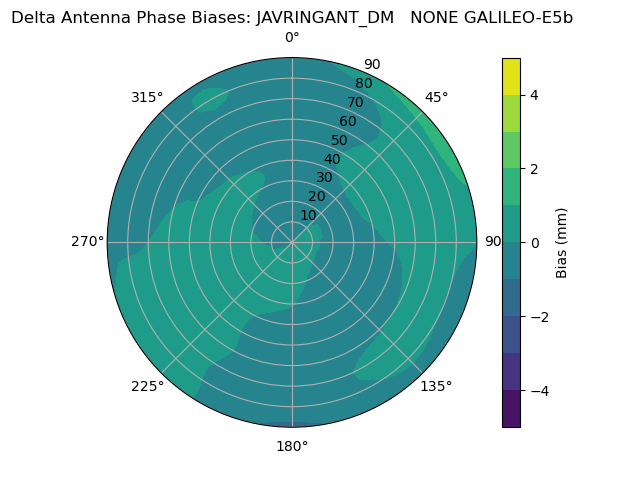

Radial GALILEO-E5bRadial GALILEO-E5b

GALILEO-E5

GALILEO-E5GALILEO-E5

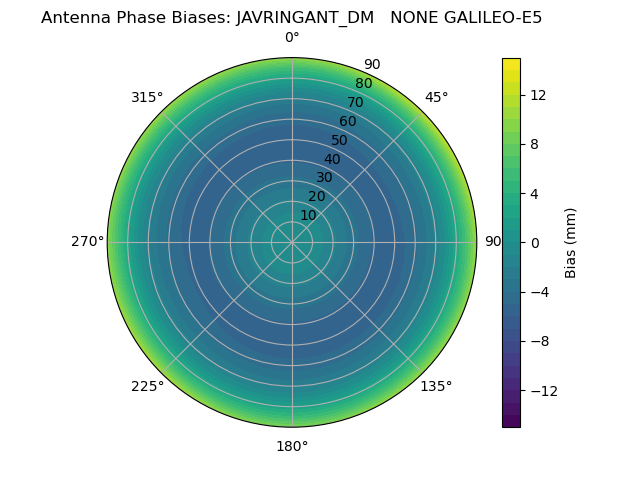

Radial GALILEO-E5Radial GALILEO-E5

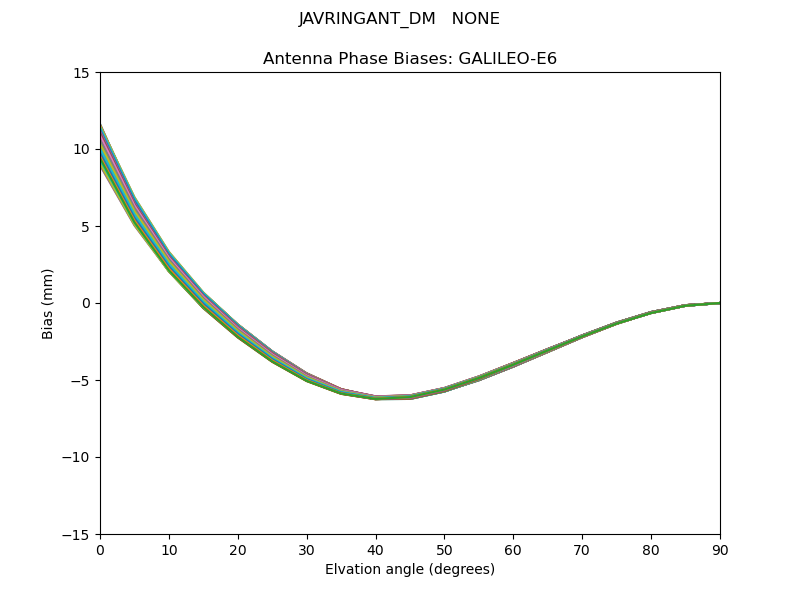

GALILEO-E6

GALILEO-E6GALILEO-E6

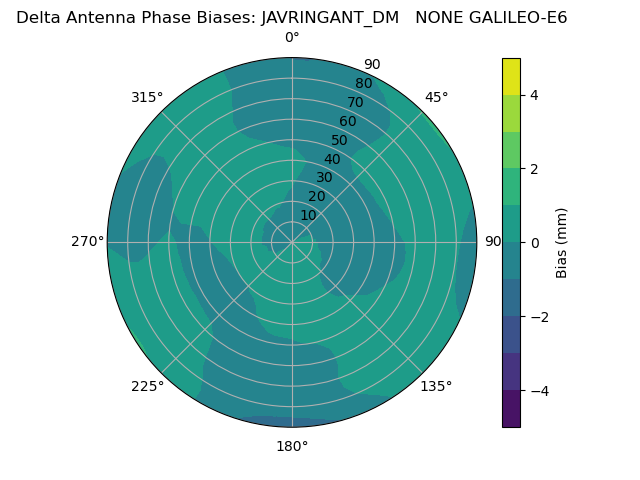

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

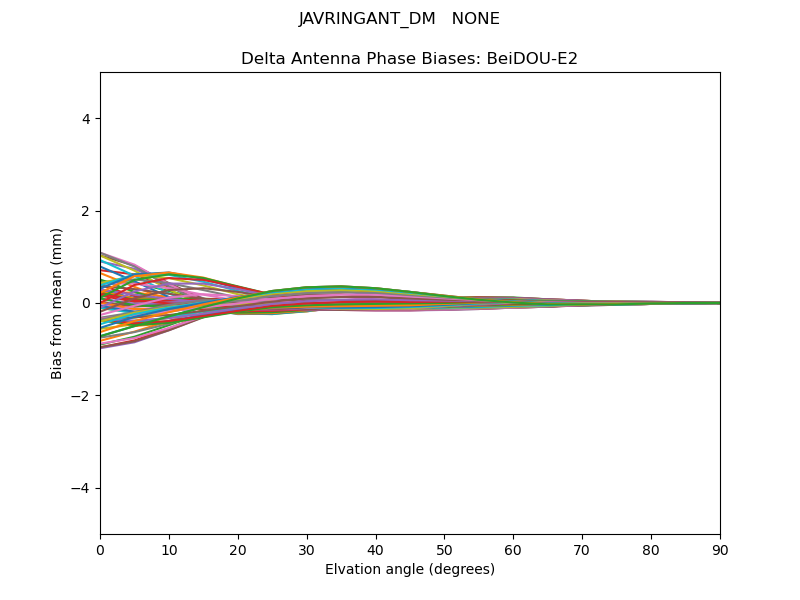

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

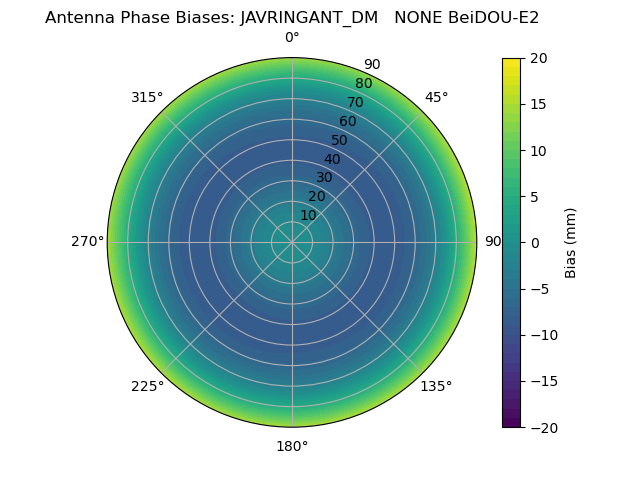

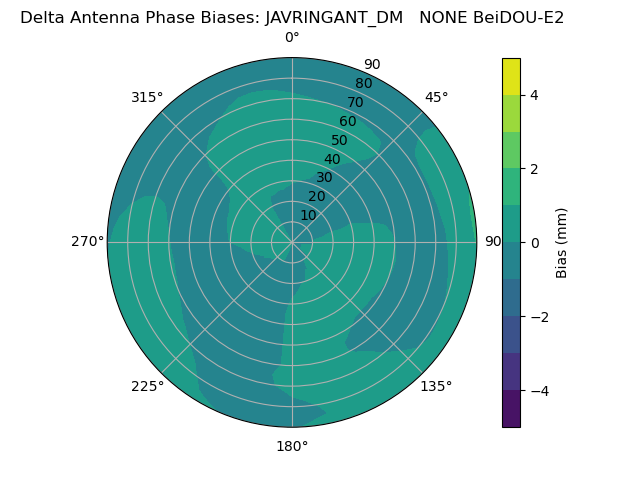

Radial BeiDOU-E2Radial BeiDOU-E2

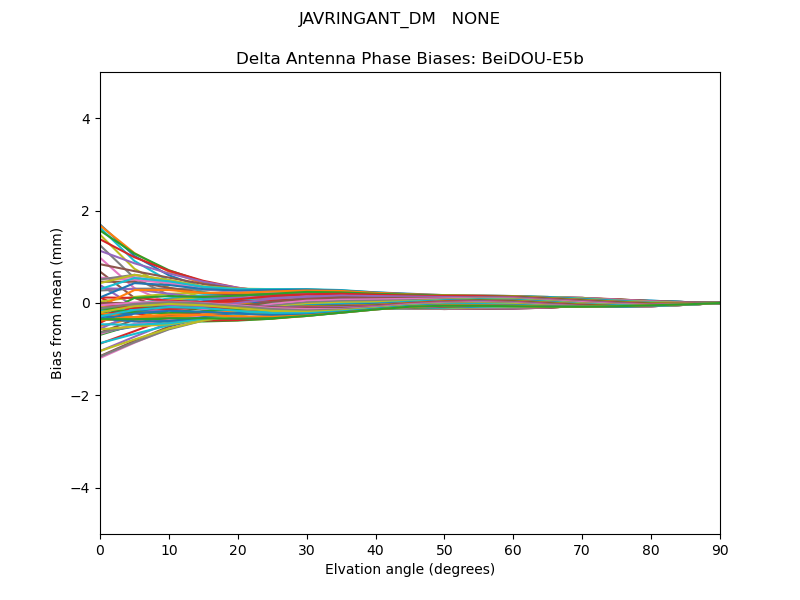

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

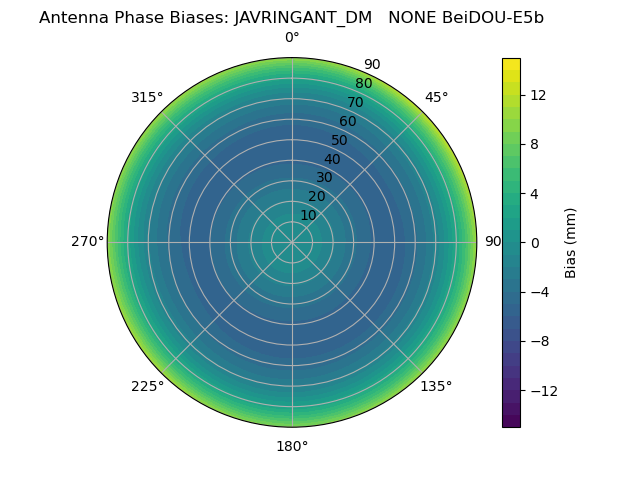

Radial BeiDOU-E5bRadial BeiDOU-E5b

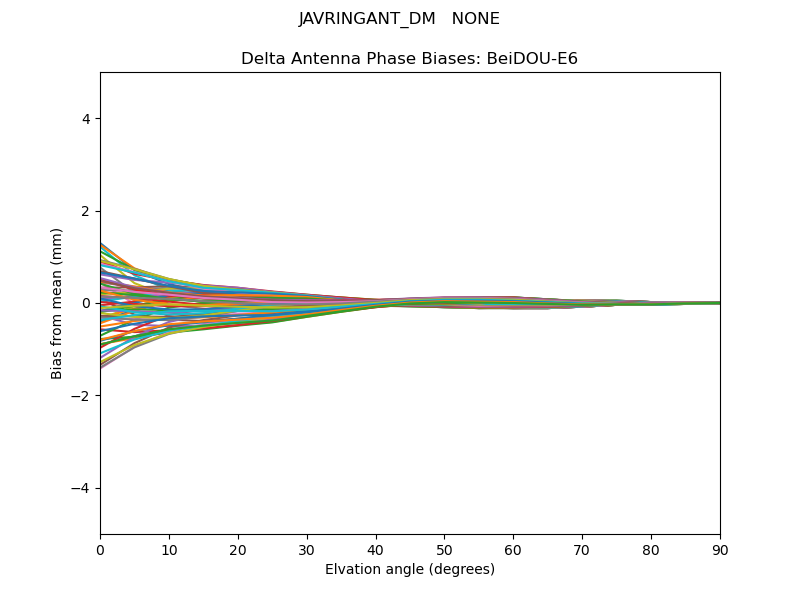

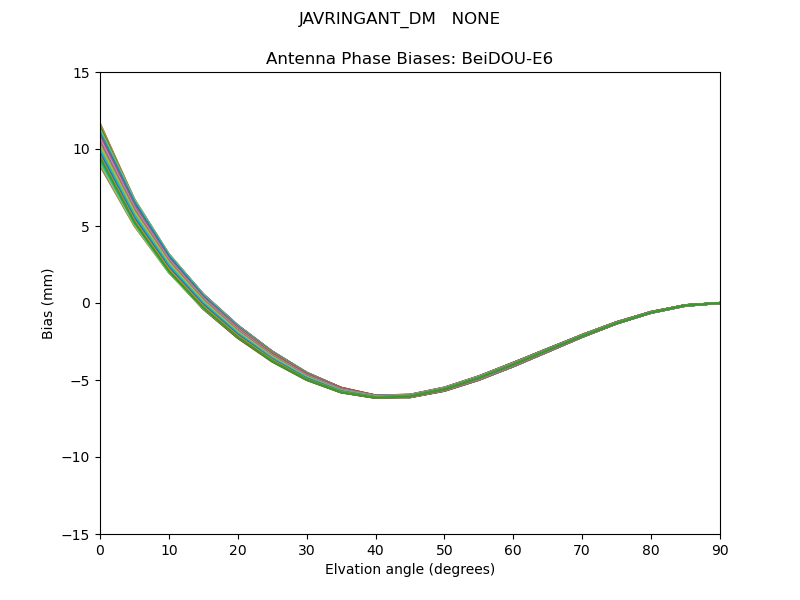

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

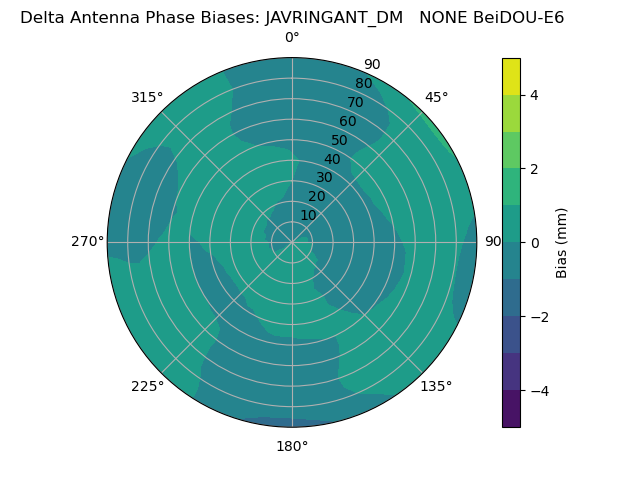

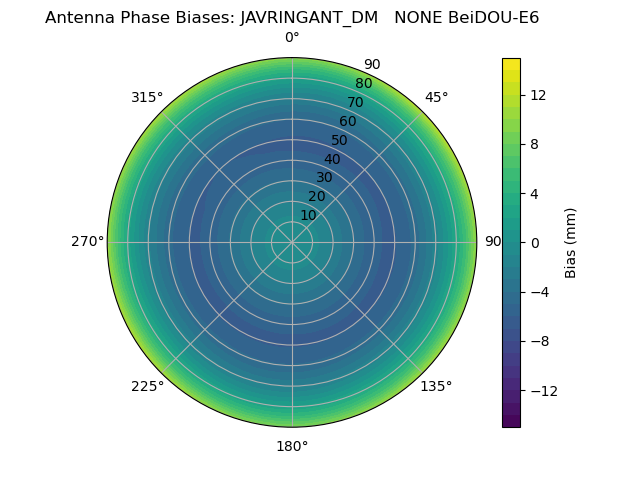

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

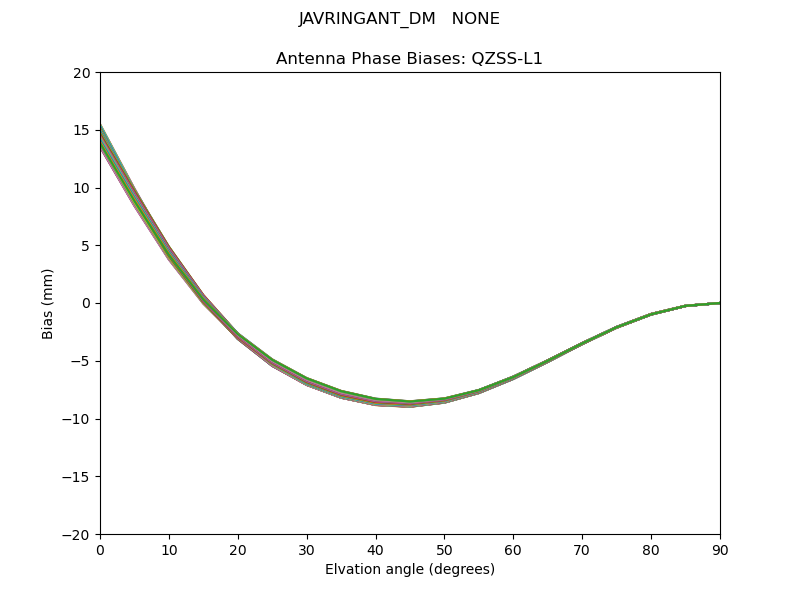

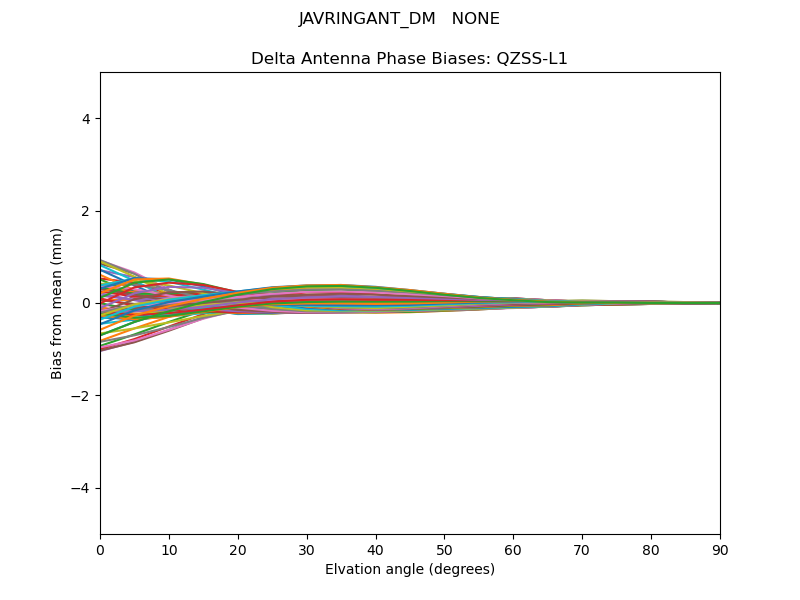

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

QZSS-L2

QZSS-L2QZSS-L2

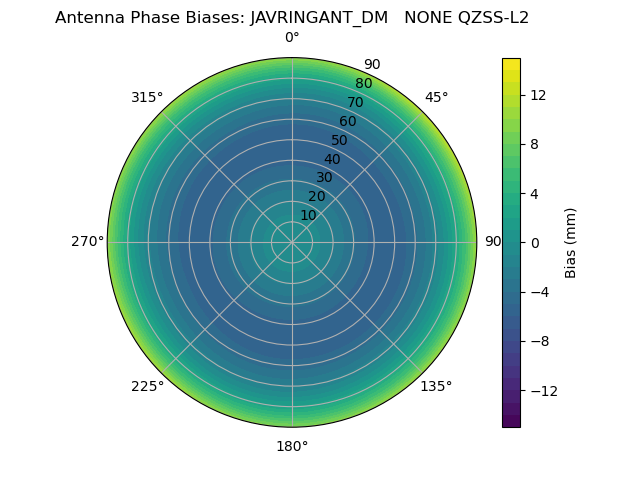

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

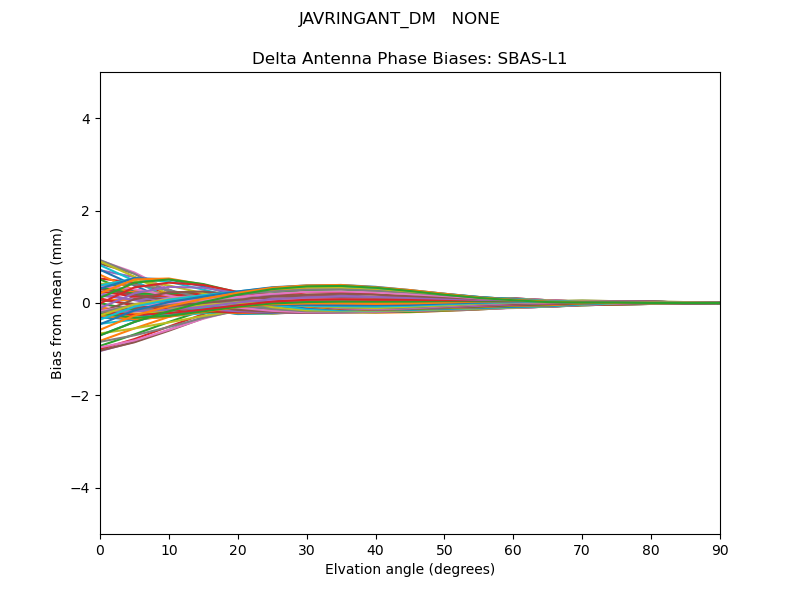

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

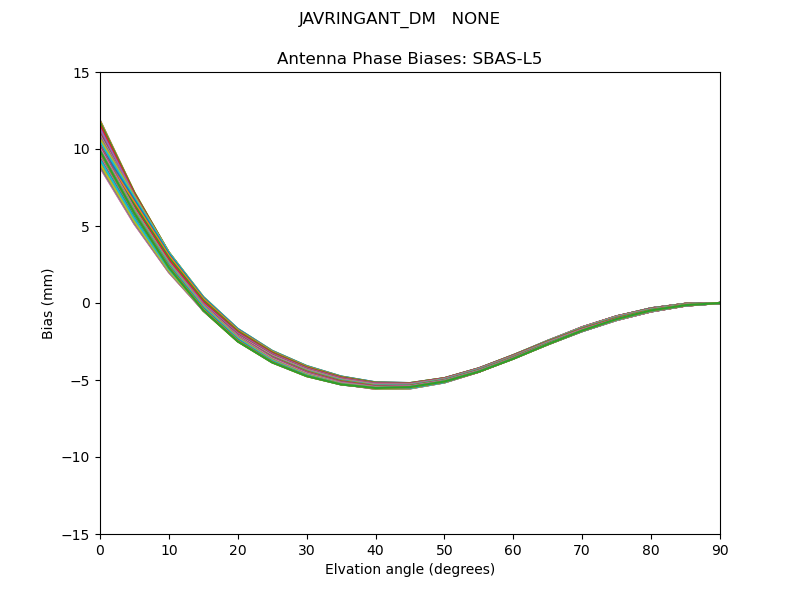

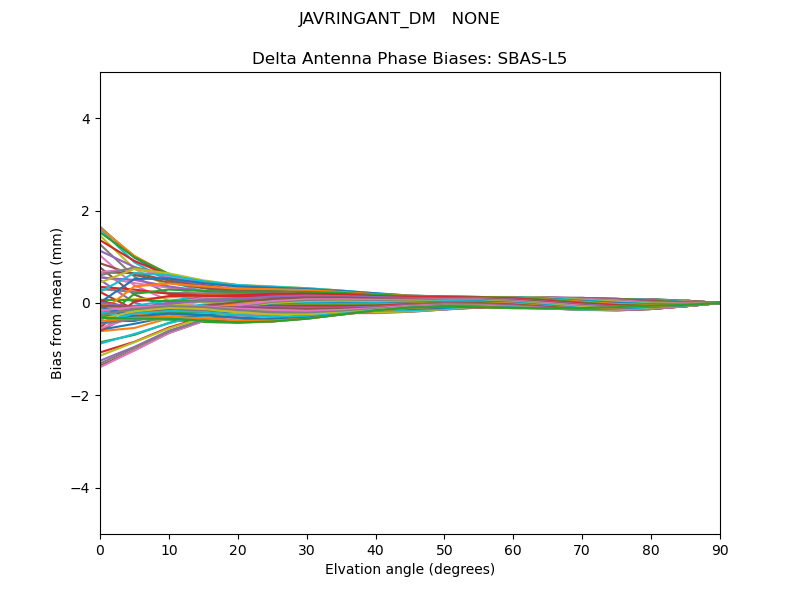

SBAS-L5

SBAS-L5SBAS-L5

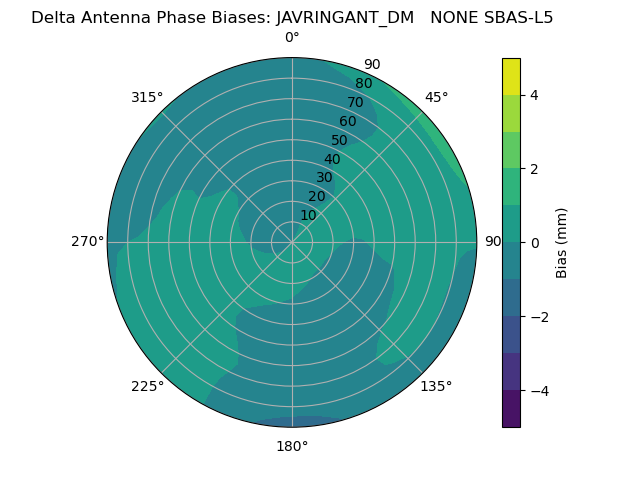

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5

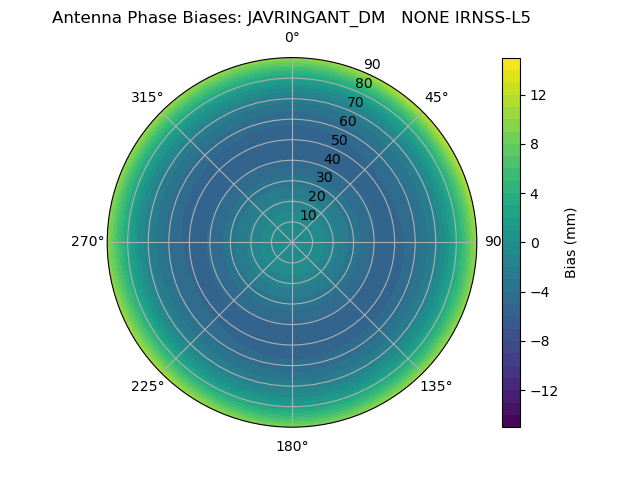

Radial IRNSS-L5Radial IRNSS-L5
