Antenna information for JAVRINGANT_DM SCIS

Antenna Offsets
SV System Bands

GPS

L1: N: 0.29 E: 1.50 U: 85.93
L2: N: 0.16 E: 0.15 U: 116.64
L5: N: 0.28 E: 0.02 U: 124.72

GLONASS

L1: N: 0.28 E: 0.90 U: 83.94
L2: N: 0.17 E: 0.07 U: 114.48

GALILEO

E1: N: 0.29 E: 1.50 U: 85.93
E5a: N: 0.28 E: 0.02 U: 124.72
E5b: N: 0.27 E: 0.14 U: 118.88
E6: N: 0.06 E: 0.30 U: 111.20

BeiDou

E1: N: 0.29 E: 1.50 U: 85.93
E2: N: 0.32 E: 1.55 U: 89.83
E5b: N: 0.27 E: 0.14 U: 118.88
E6: N: -0.01 E: 0.10 U: 111.61

QZSS

L1: N: 0.29 E: 1.50 U: 85.93
L2: N: 0.16 E: 0.15 U: 116.64
L5: N: 0.28 E: 0.02 U: 124.72
LEX: N: 0.06 E: 0.30 U: 111.20

IRNSS

L5: N: 0.28 E: 0.02 U: 124.72

SBAS

L1: N: 0.29 E: 1.50 U: 85.93
L5: N: 0.28 E: 0.02 U: 124.72

L1

GPS: N: 0.29 E: 1.50 U: 85.93
GLONASS: N: 0.28 E: 0.90 U: 83.94
QZSS: N: 0.29 E: 1.50 U: 85.93
SBAS: N: 0.29 E: 1.50 U: 85.93

L2

GPS: N: 0.16 E: 0.15 U: 116.64
GLONASS: N: 0.17 E: 0.07 U: 114.48
QZSS: N: 0.16 E: 0.15 U: 116.64

L5

GPS: N: 0.28 E: 0.02 U: 124.72
QZSS: N: 0.28 E: 0.02 U: 124.72
SBAS: N: 0.28 E: 0.02 U: 124.72
IRNSS: N: 0.28 E: 0.02 U: 124.72

E1

GALILEO: N: 0.29 E: 1.50 U: 85.93
BeiDou: N: 0.29 E: 1.50 U: 85.93

E2

BeiDou: N: 0.32 E: 1.55 U: 89.83

E5a

GALILEO: N: 0.28 E: 0.02 U: 124.72

E5b

GALILEO: N: 0.27 E: 0.14 U: 118.88
BeiDou: N: 0.27 E: 0.14 U: 118.88

E6

GALILEO: N: 0.06 E: 0.30 U: 111.20
BeiDou: N: -0.01 E: 0.10 U: 111.61

LEX

QZSS: N: 0.06 E: 0.30 U: 111.20


Means

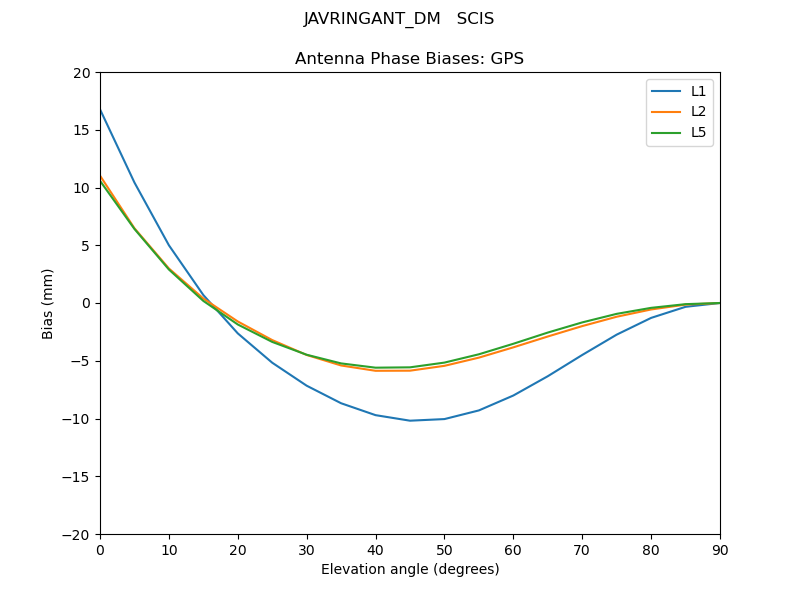

GPS

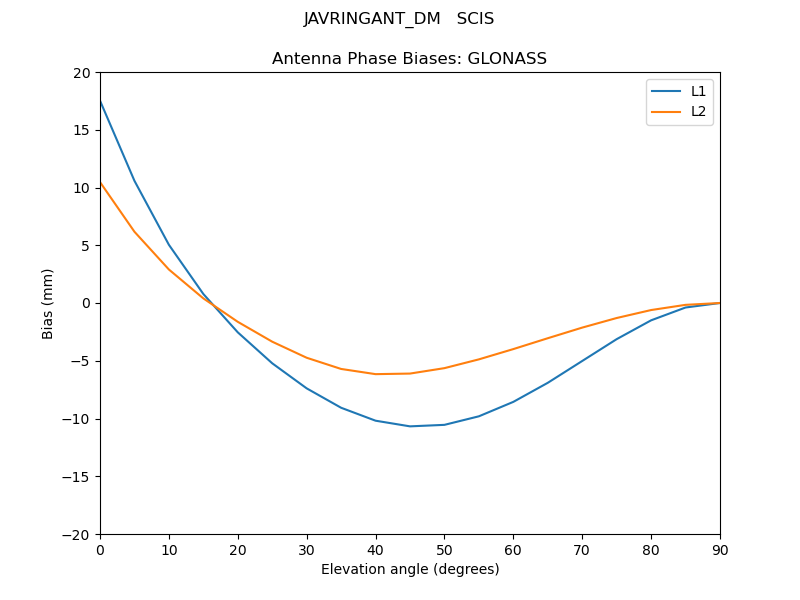

GLONASS

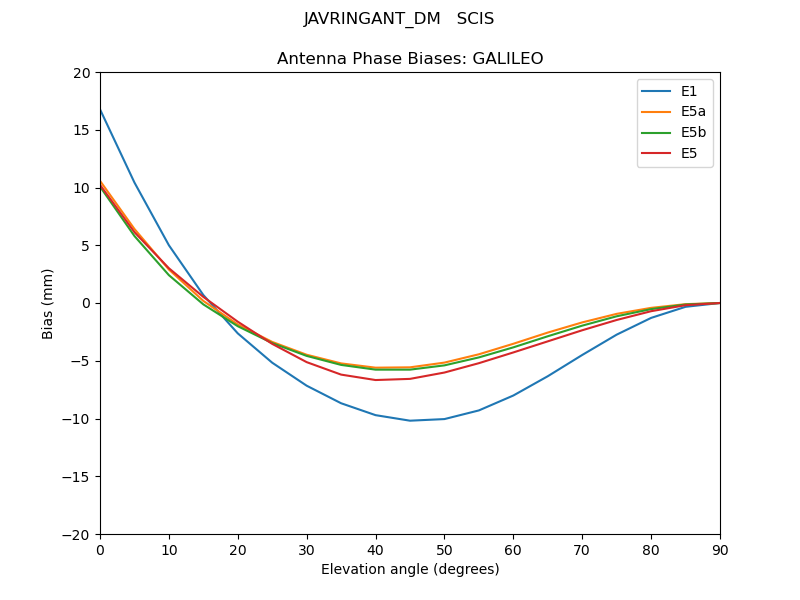

GALILEO

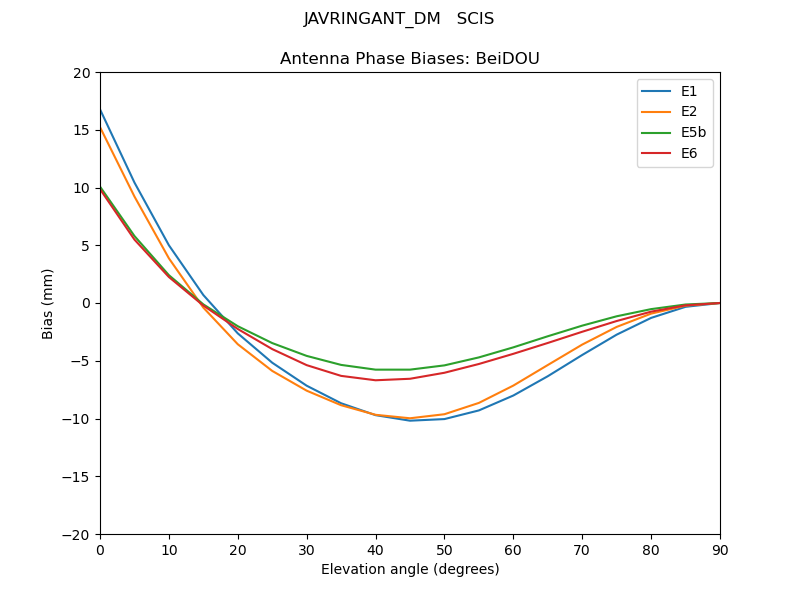

BeiDOU


QZSS

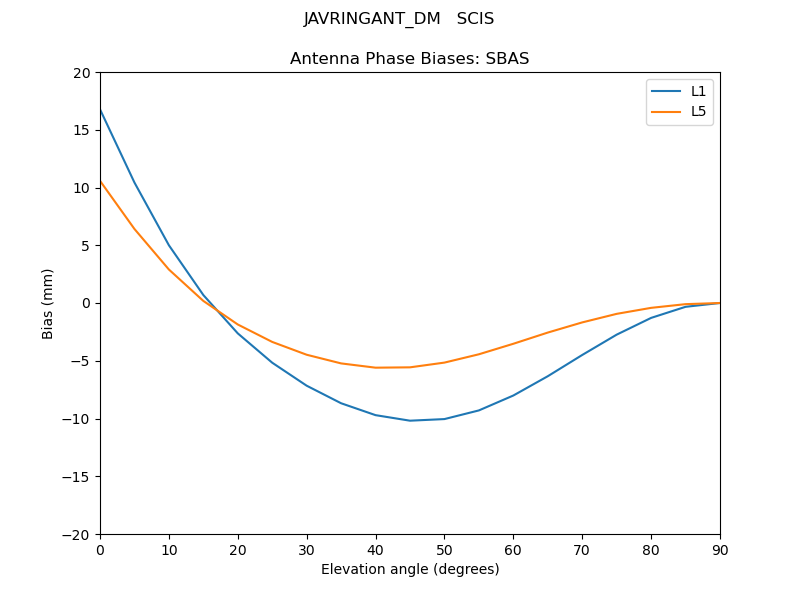

SBAS

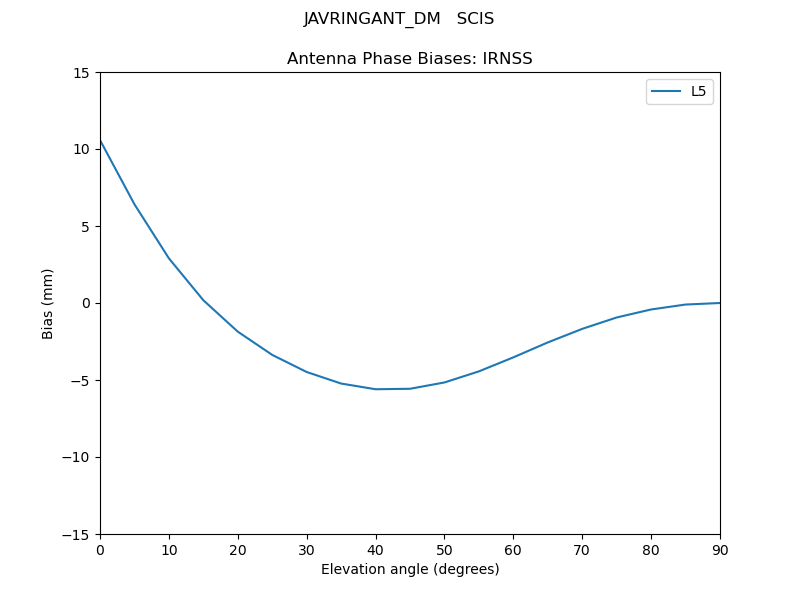

IRNSS


Azimuths

GPS


Bias Delta

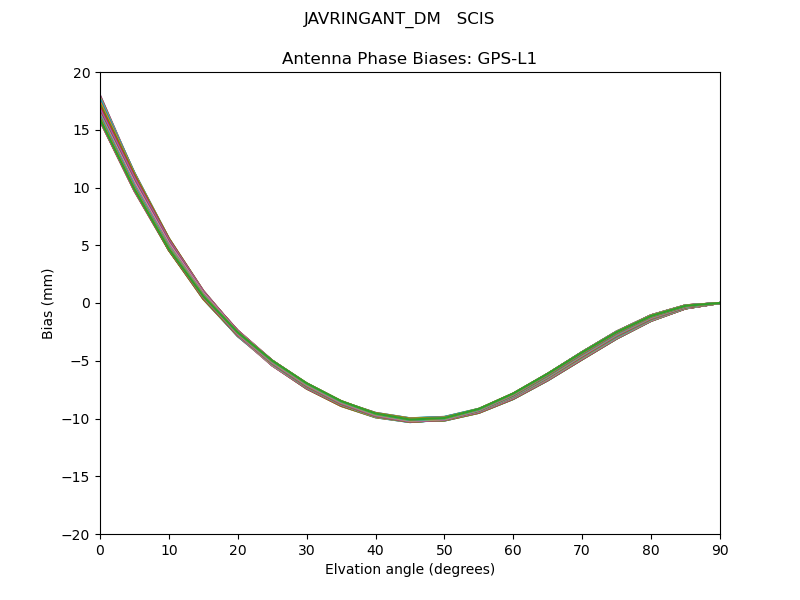

GPS-L1

GPS-L1GPS-L1

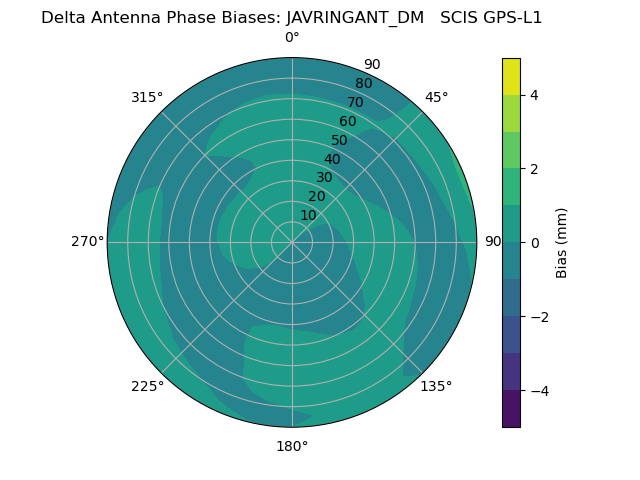

Radial GPS-L1Radial GPS-L1

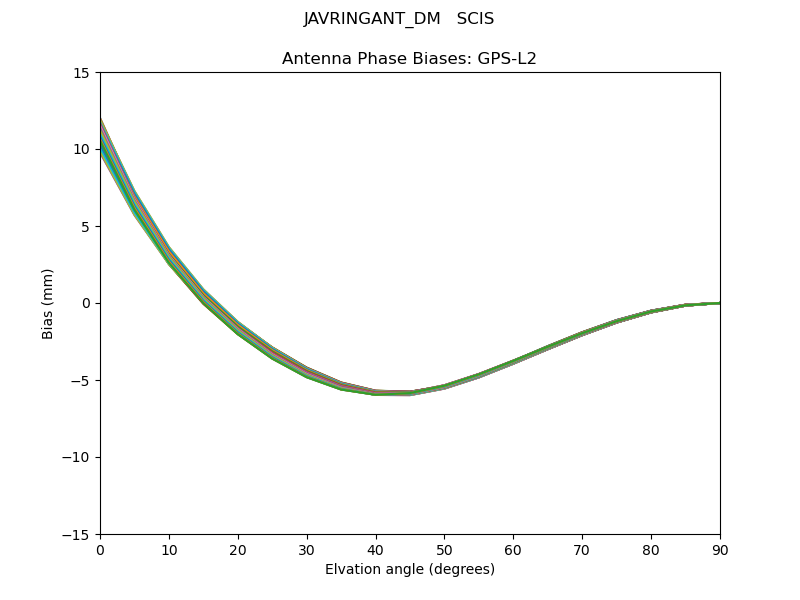

GPS-L2

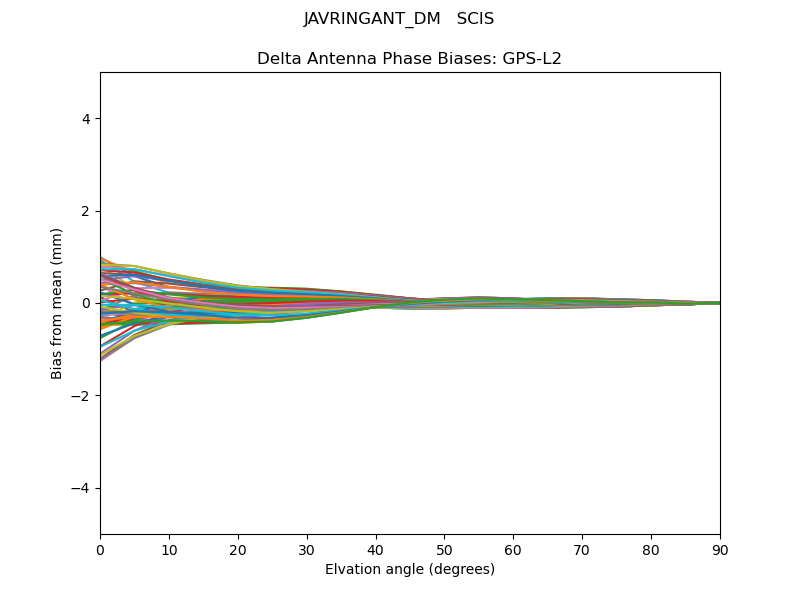

GPS-L2GPS-L2
Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

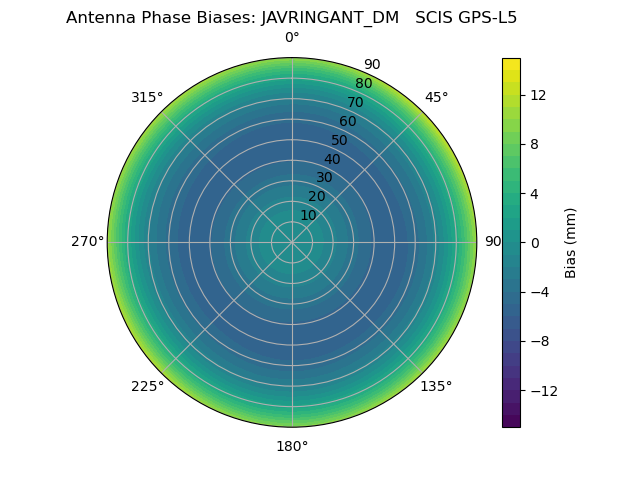

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

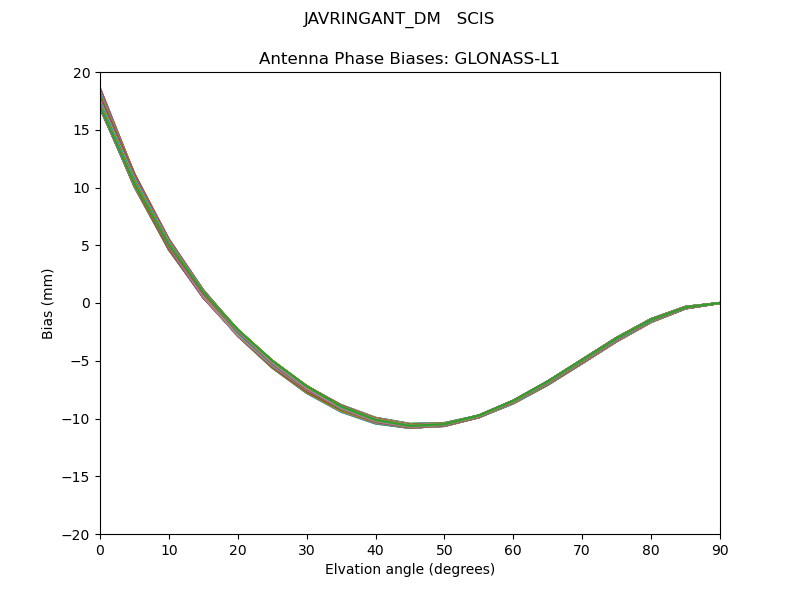

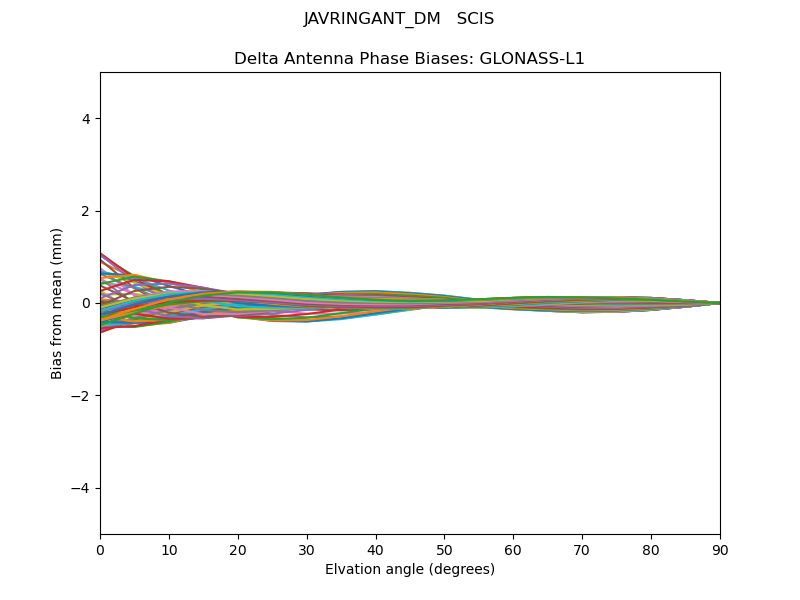

GLONASS-L1

GLONASS-L1GLONASS-L1

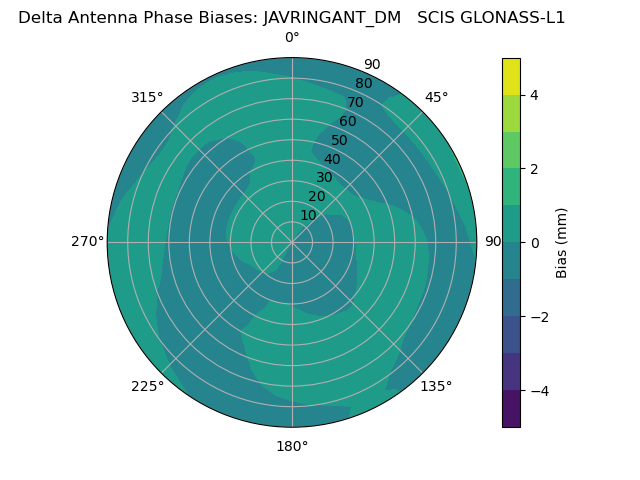

Radial GLONASS-L1Radial GLONASS-L1

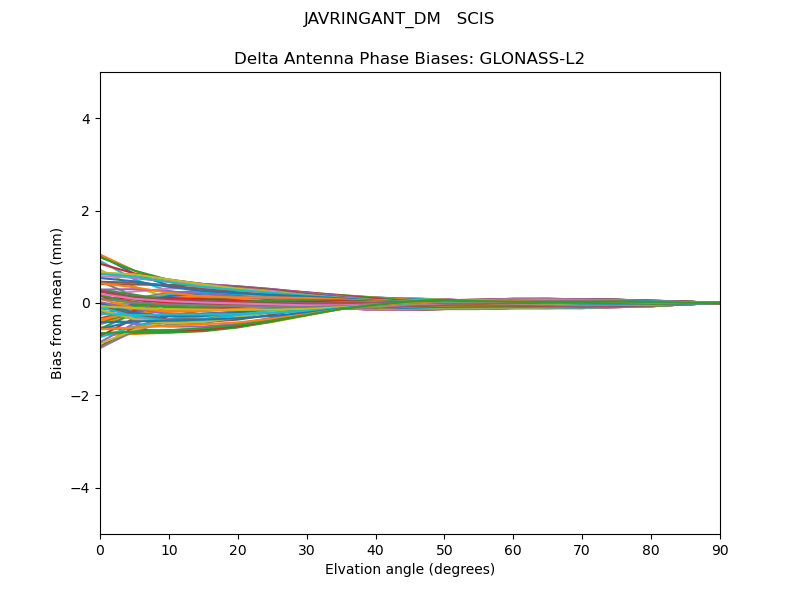

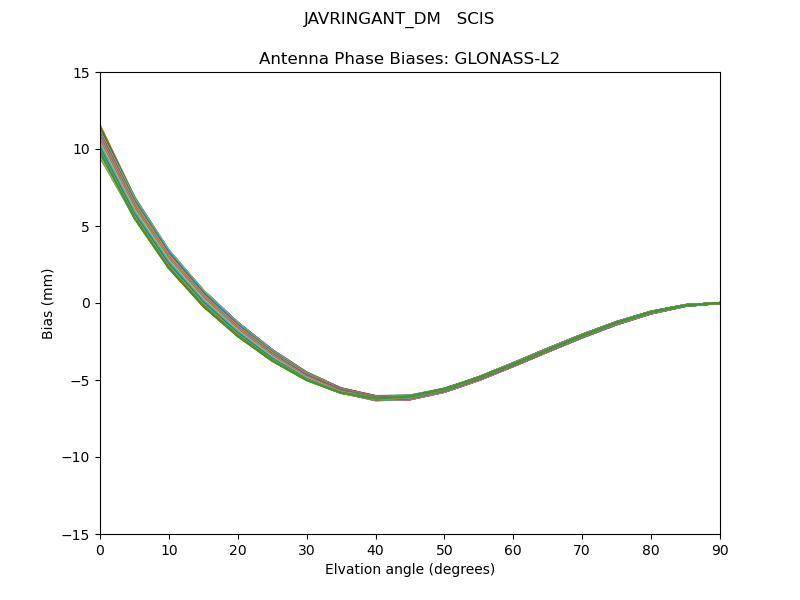

GLONASS-L2

GLONASS-L2GLONASS-L2

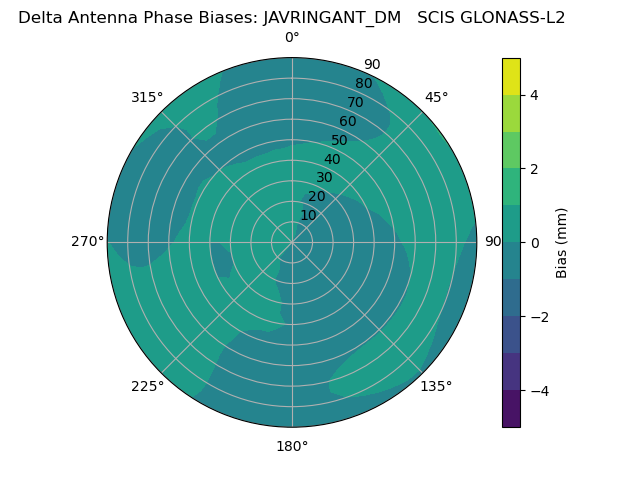

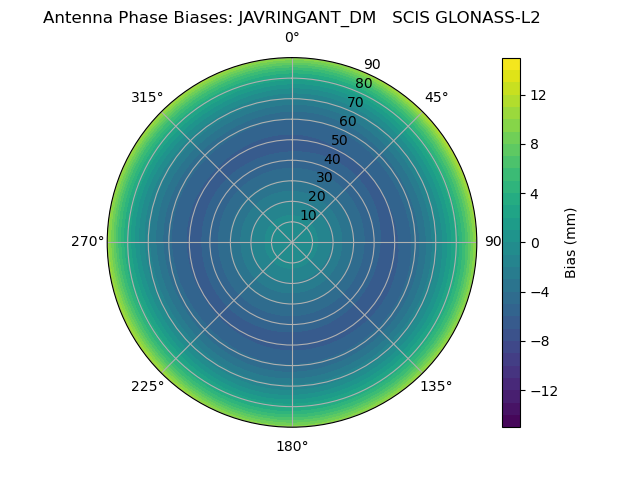

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

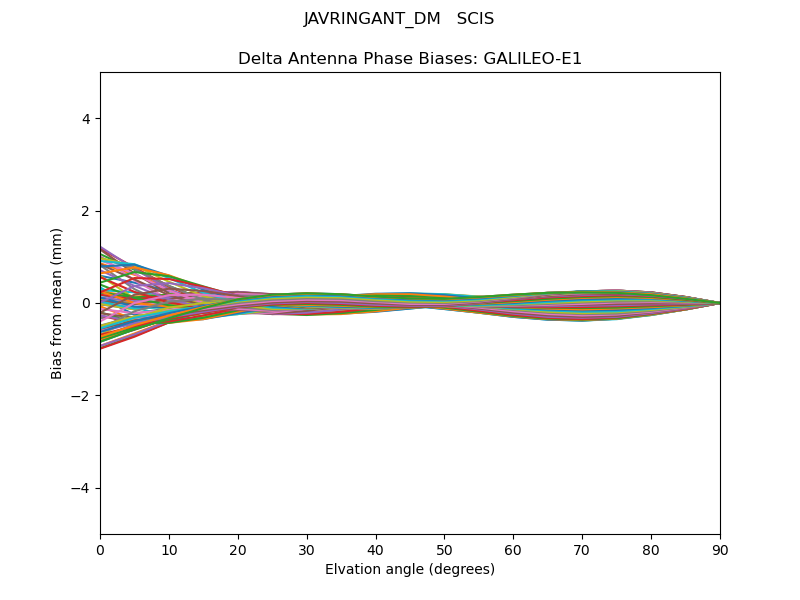

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

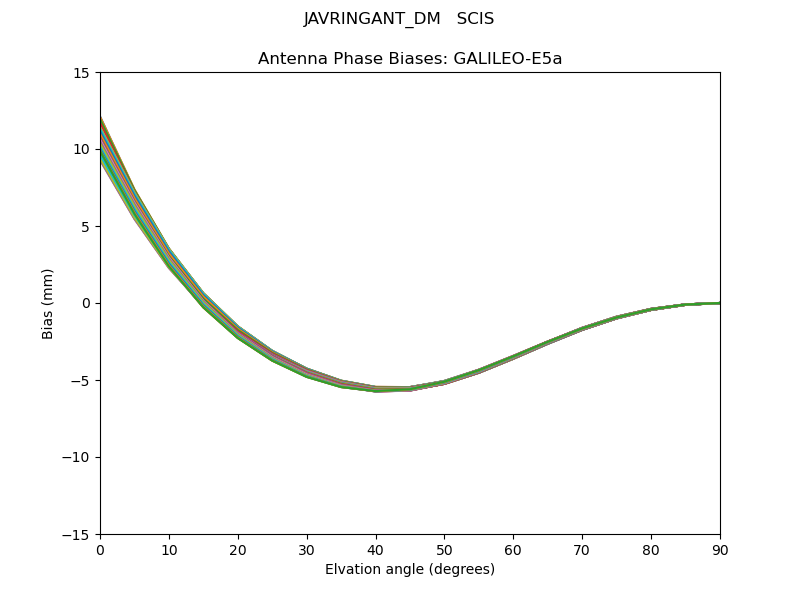

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

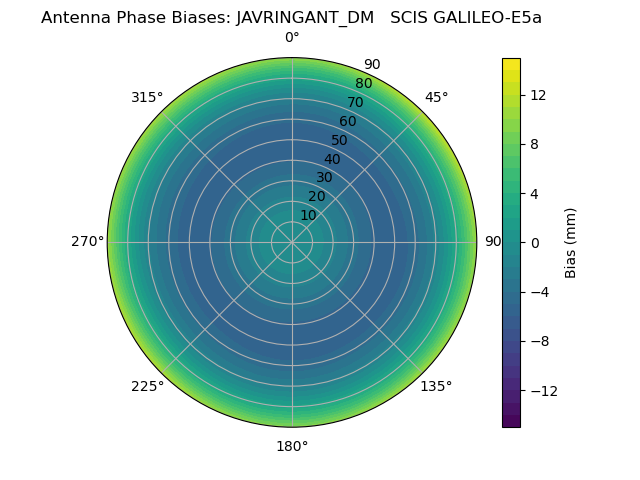

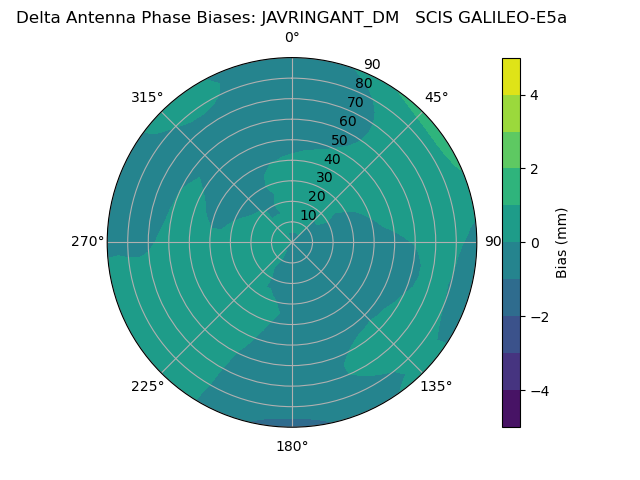

Radial GALILEO-E5aRadial GALILEO-E5a

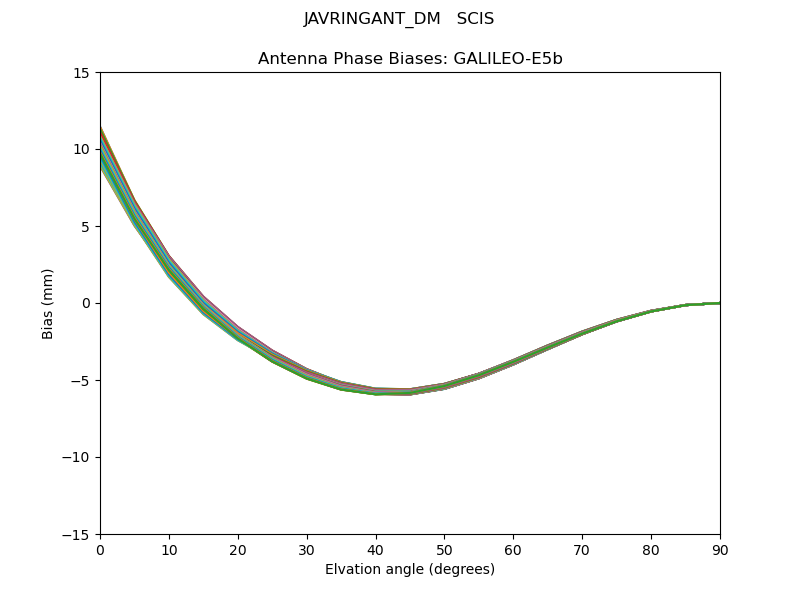

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

GALILEO-E5

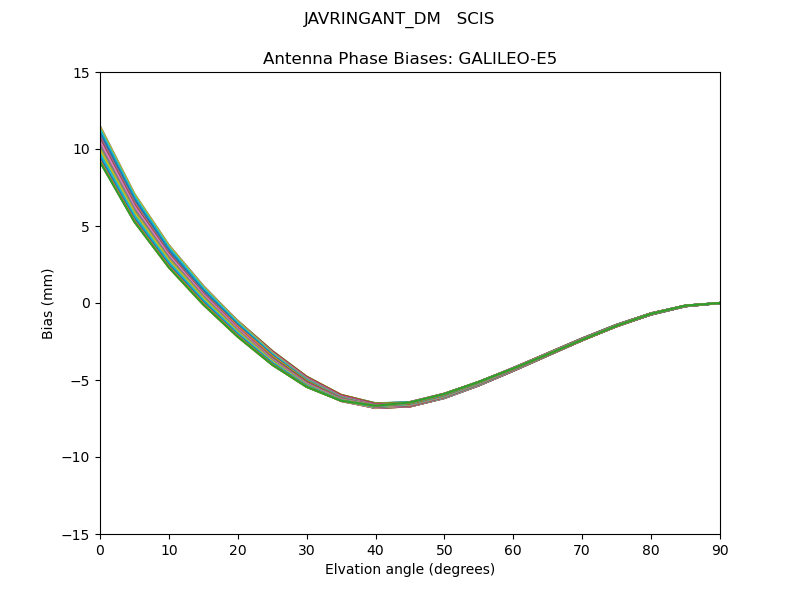

GALILEO-E5GALILEO-E5

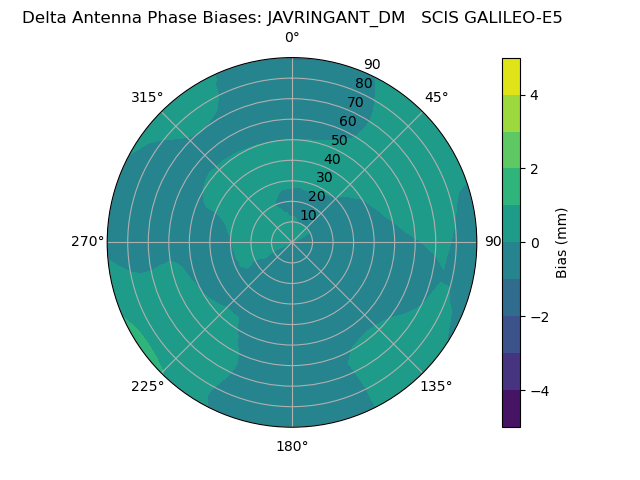

Radial GALILEO-E5Radial GALILEO-E5

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

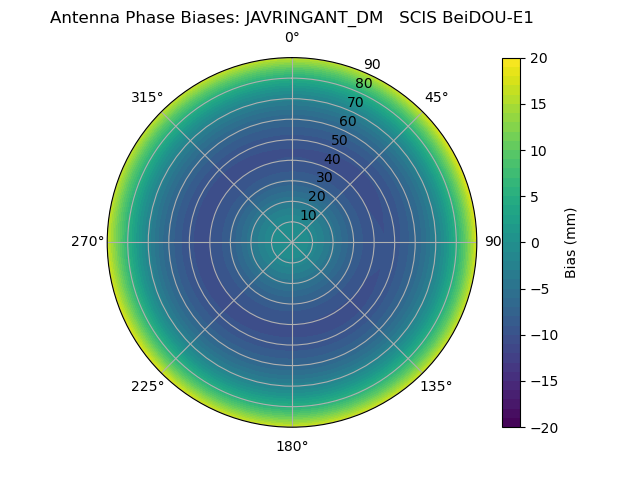

Radial BeiDOU-E1Radial BeiDOU-E1

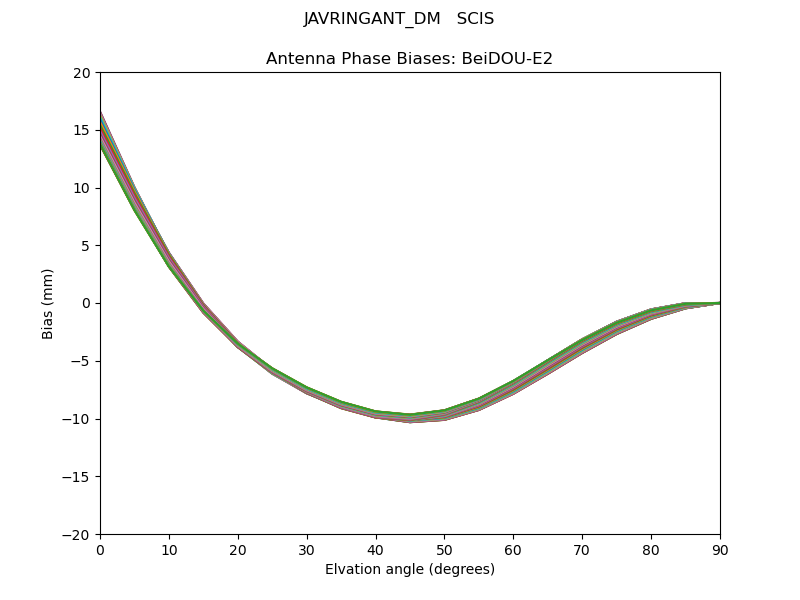

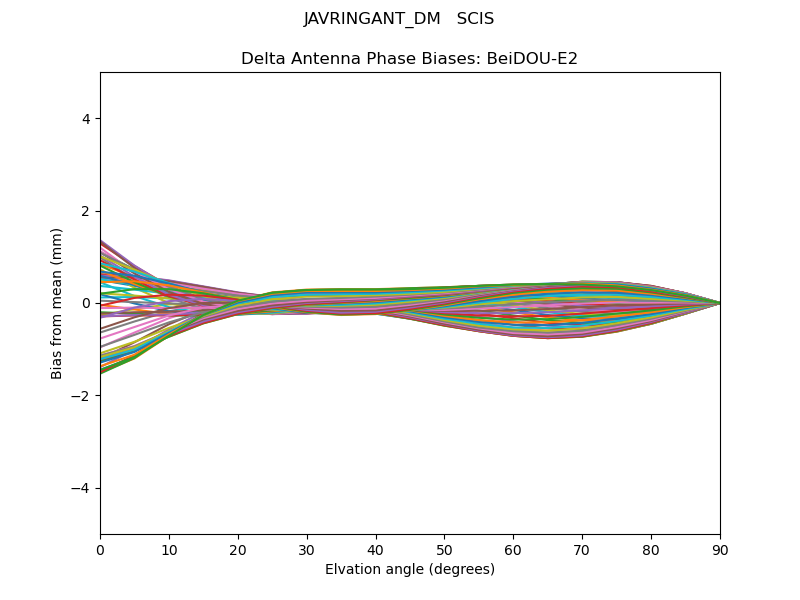

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

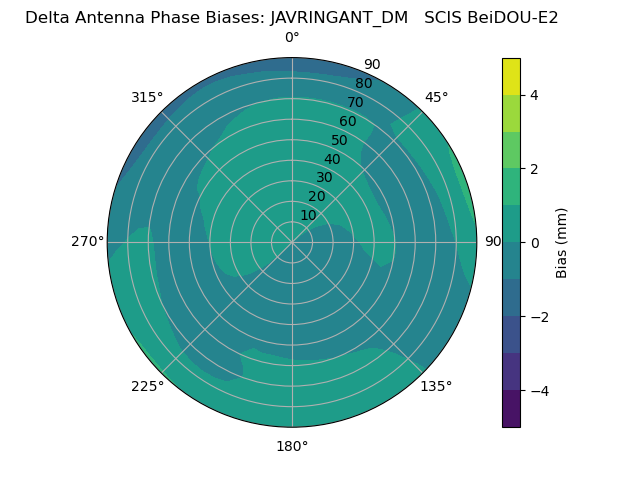

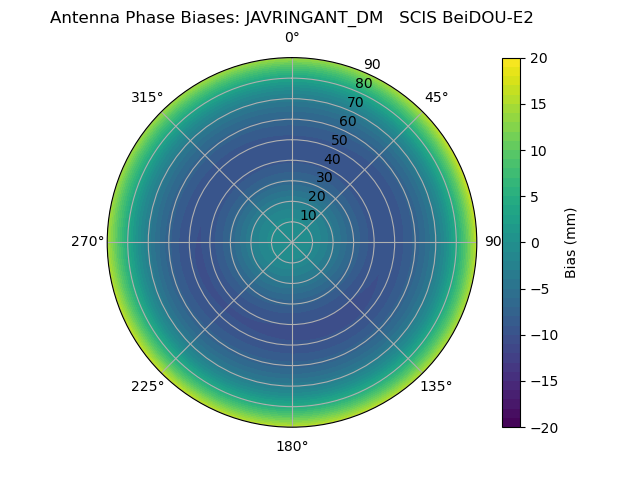

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

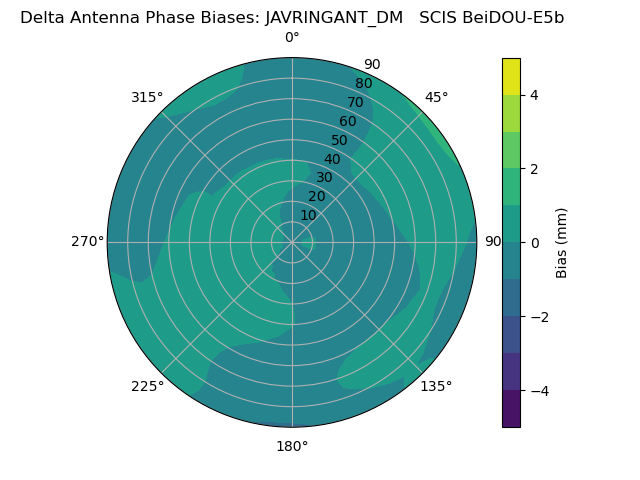

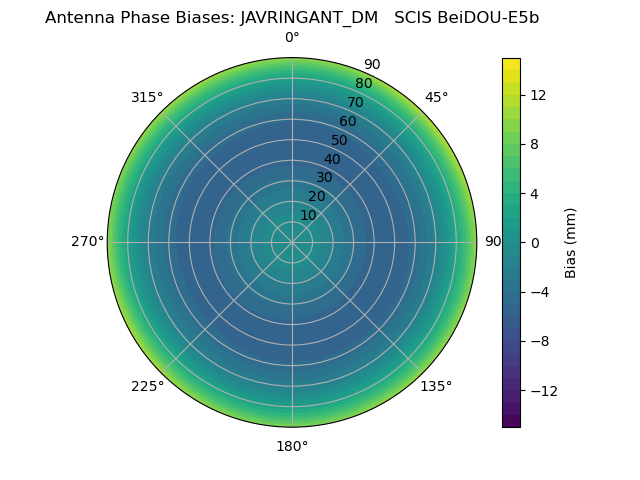

Radial BeiDOU-E5bRadial BeiDOU-E5b

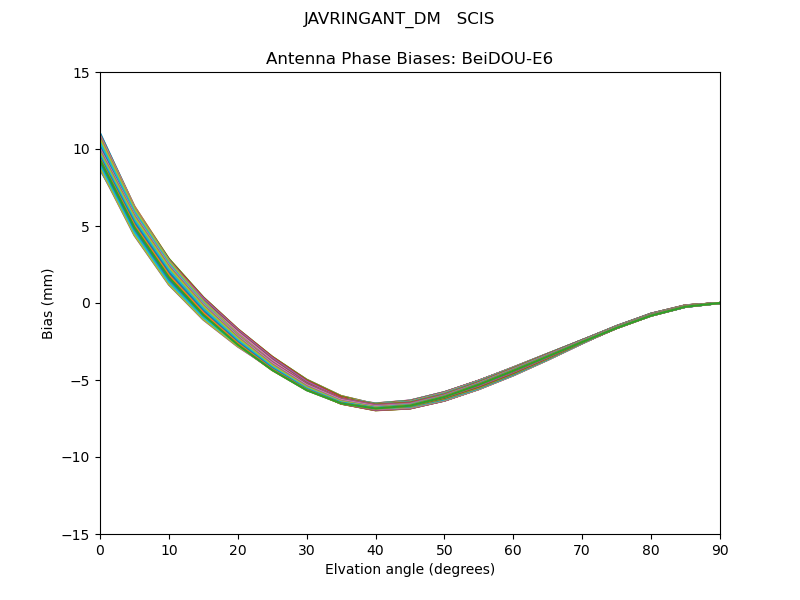

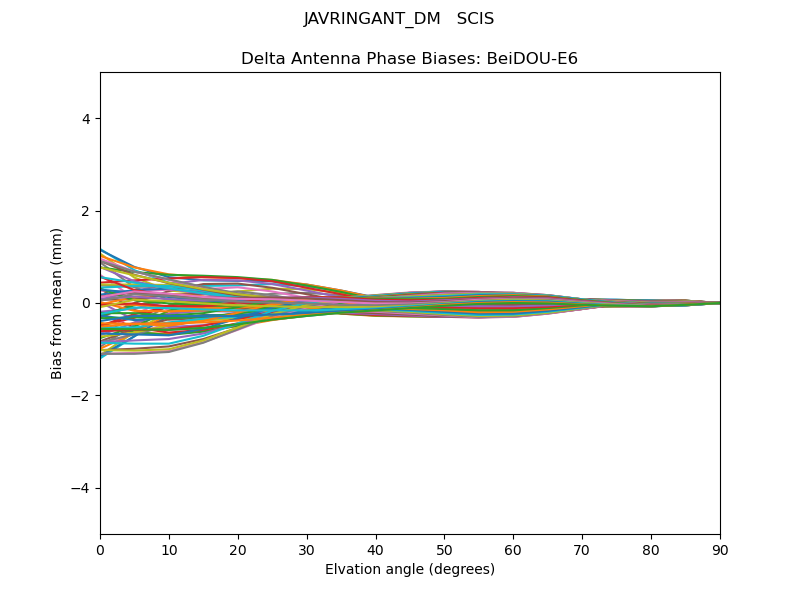

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

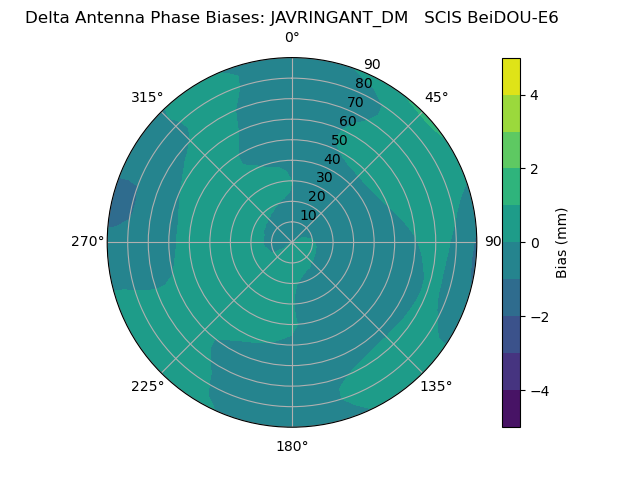

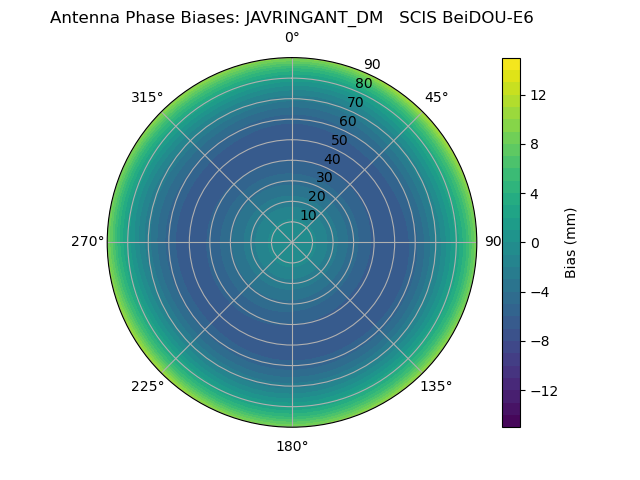

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

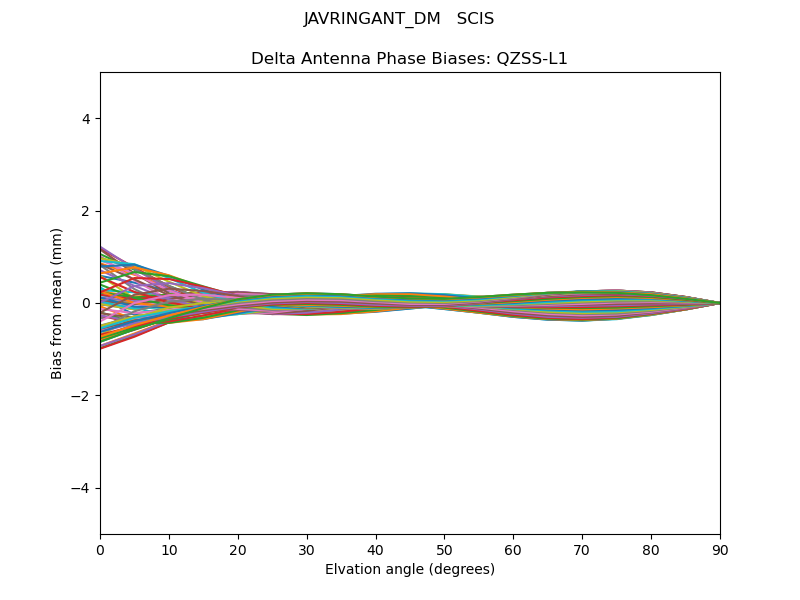

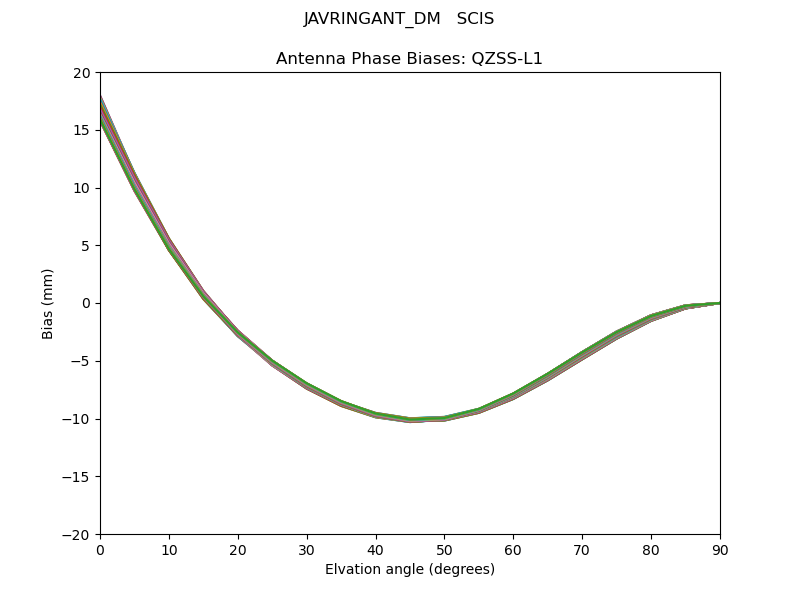

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

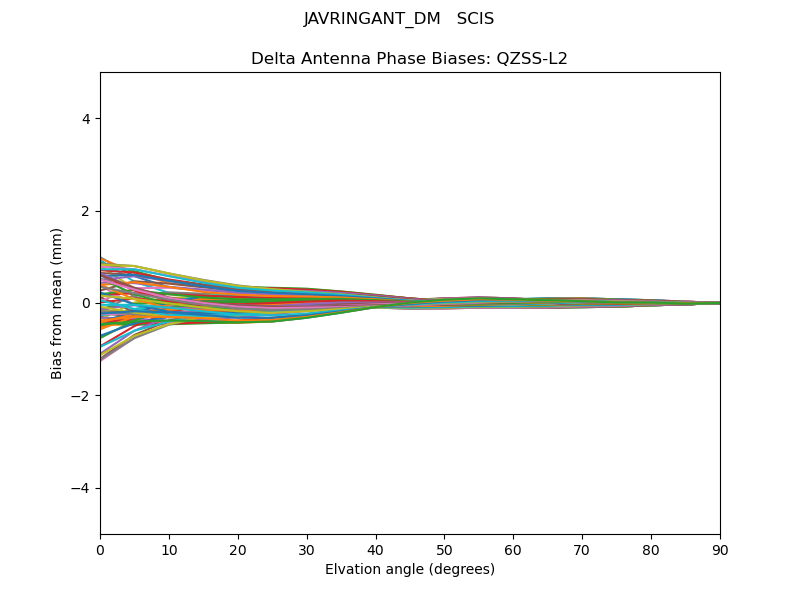

QZSS-L2

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

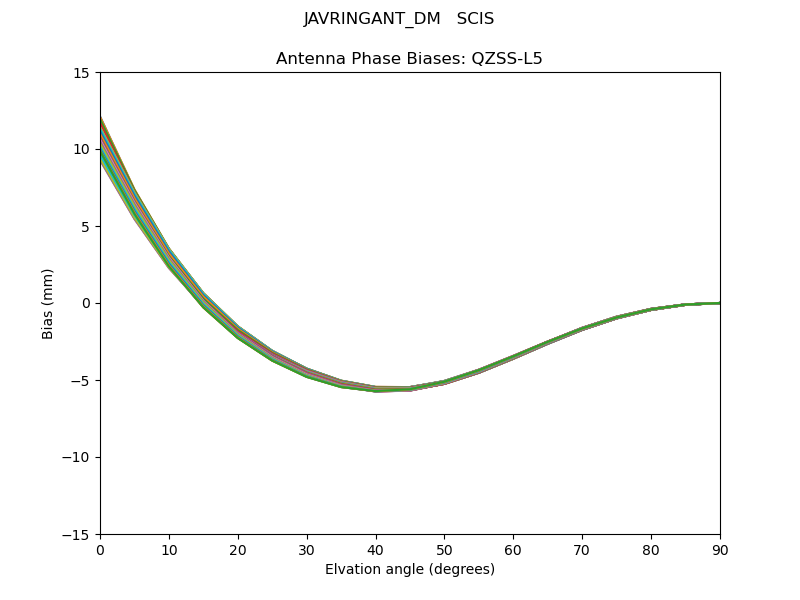

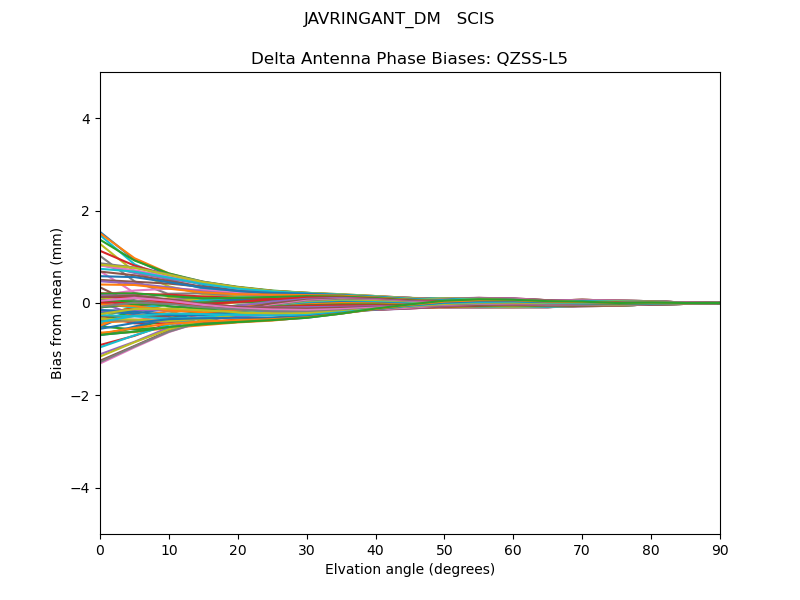

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

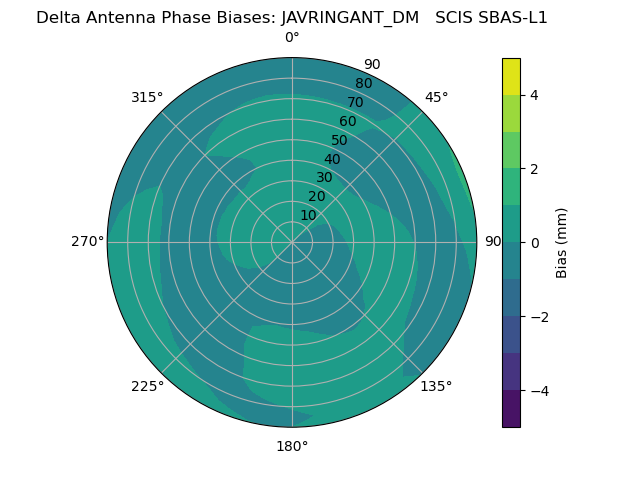

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

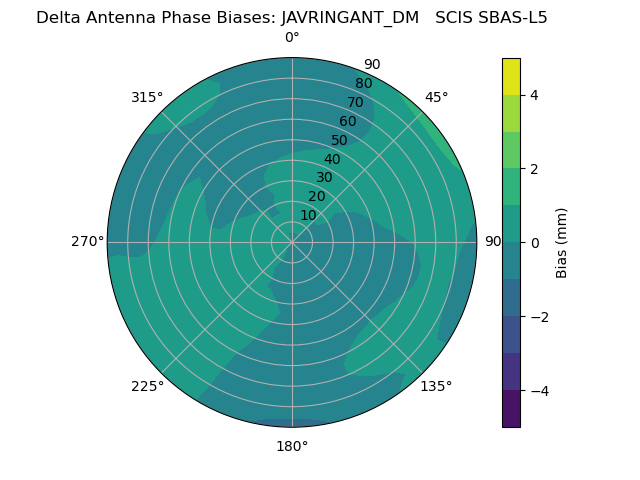

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5

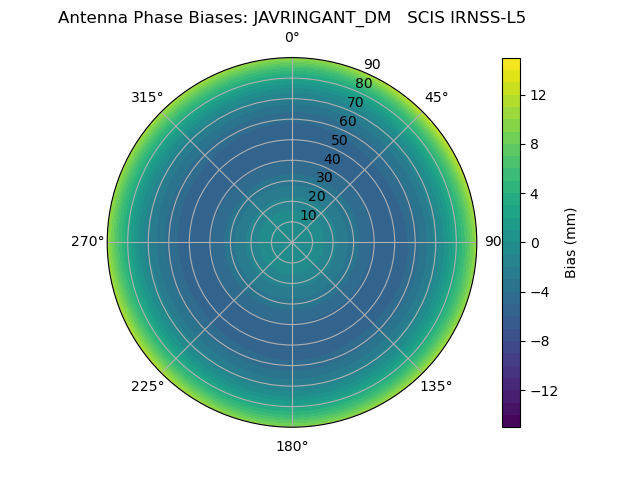

Radial IRNSS-L5Radial IRNSS-L5
