Antenna information for JAVRINGANT_G5T NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.78 E: 2.27 U: 48.07
L2: N: 5.42 E: -2.90 U: 55.34
L5: N: -1.14 E: -4.32 U: 61.57

GLONASS

L1: N: -0.61 E: 2.53 U: 44.37
L2: N: 9.14 E: -3.83 U: 53.05

GALILEO

E1: N: 0.78 E: 2.27 U: 48.07
E5a: N: -1.14 E: -4.32 U: 61.57

BeiDou

E1: N: 0.78 E: 2.27 U: 48.07

QZSS

L1: N: 0.78 E: 2.27 U: 48.07
L2: N: 5.42 E: -2.90 U: 55.34
L5: N: -1.14 E: -4.32 U: 61.57

IRNSS

L5: N: -1.14 E: -4.32 U: 61.57

SBAS

L1: N: 0.78 E: 2.27 U: 48.07
L5: N: -1.14 E: -4.32 U: 61.57

L1

GPS: N: 0.78 E: 2.27 U: 48.07
GLONASS: N: -0.61 E: 2.53 U: 44.37
QZSS: N: 0.78 E: 2.27 U: 48.07
SBAS: N: 0.78 E: 2.27 U: 48.07

L2

GPS: N: 5.42 E: -2.90 U: 55.34
GLONASS: N: 9.14 E: -3.83 U: 53.05
QZSS: N: 5.42 E: -2.90 U: 55.34

L5

GPS: N: -1.14 E: -4.32 U: 61.57
QZSS: N: -1.14 E: -4.32 U: 61.57
SBAS: N: -1.14 E: -4.32 U: 61.57
IRNSS: N: -1.14 E: -4.32 U: 61.57

E1

GALILEO: N: 0.78 E: 2.27 U: 48.07
BeiDou: N: 0.78 E: 2.27 U: 48.07

E5a

GALILEO: N: -1.14 E: -4.32 U: 61.57


Means

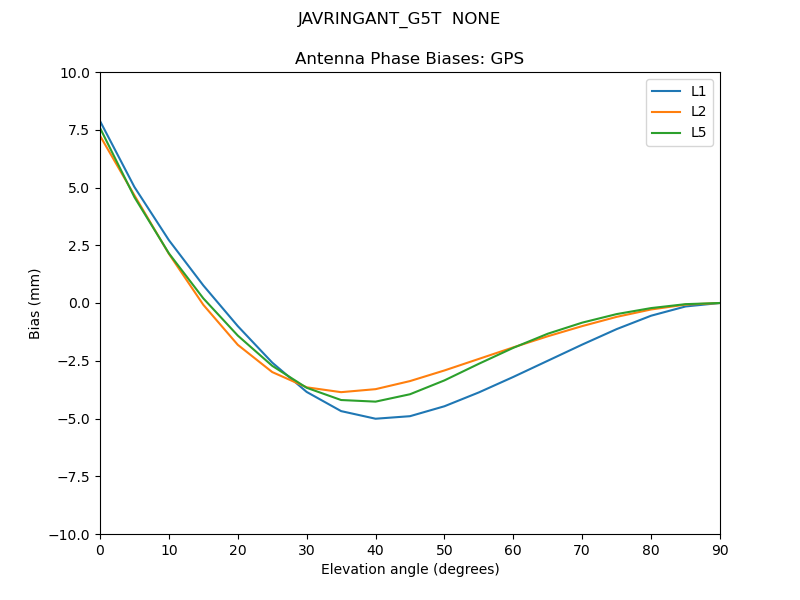

GPS

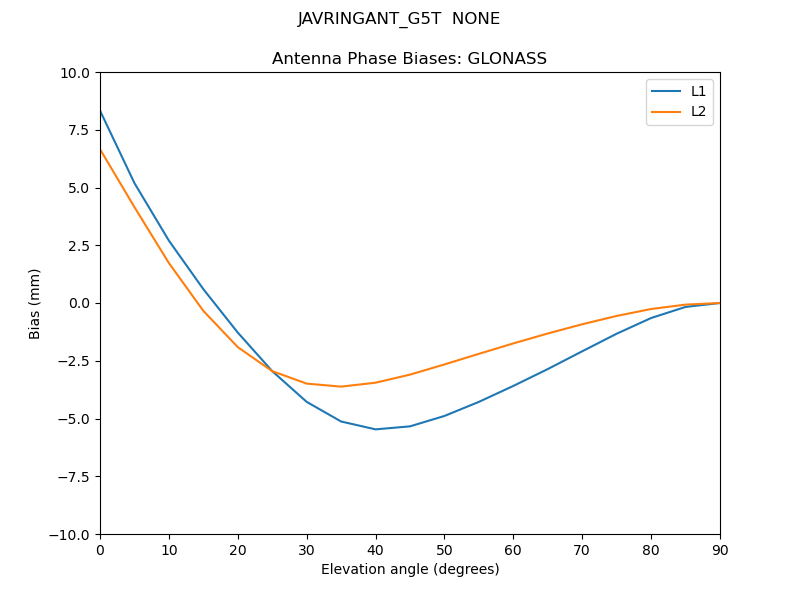

GLONASS

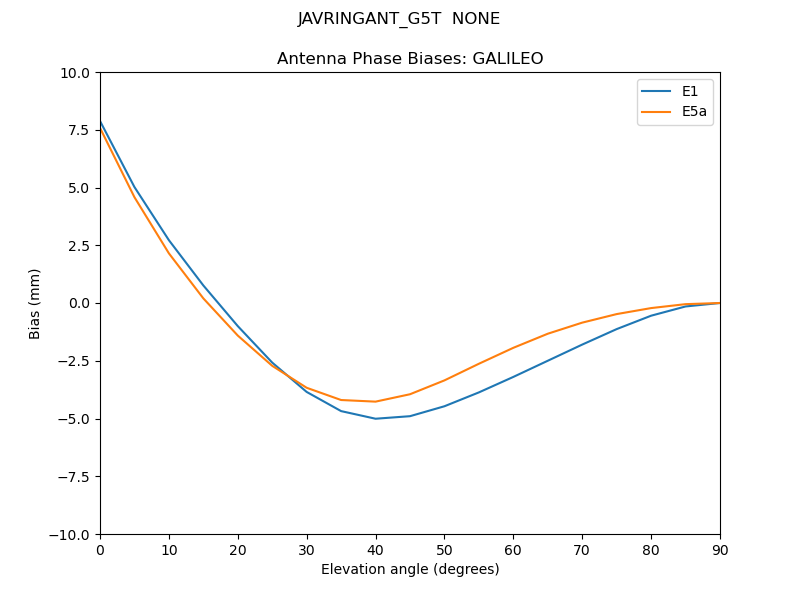

GALILEO

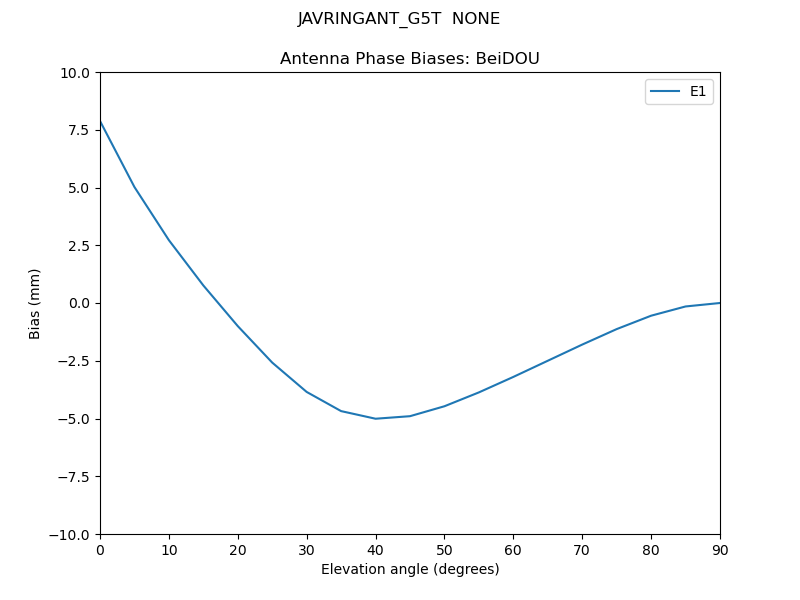

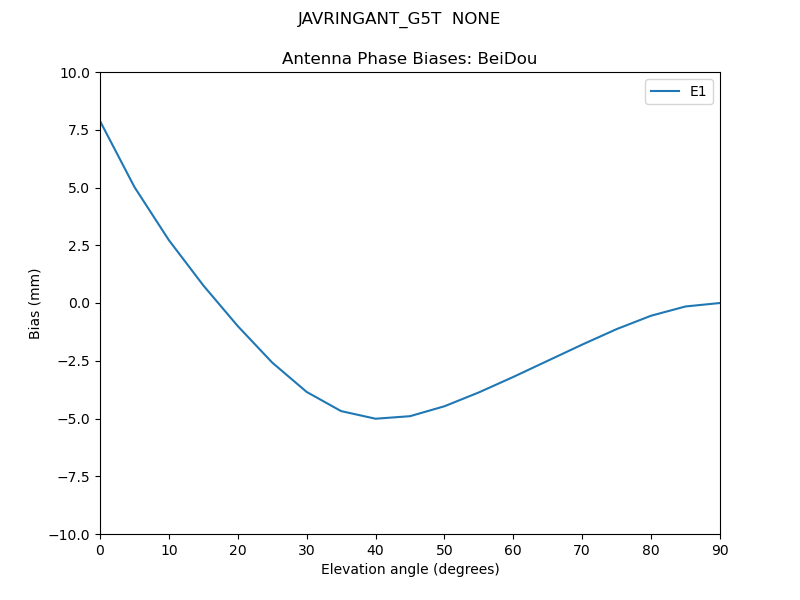

BeiDOU


QZSS


SBAS

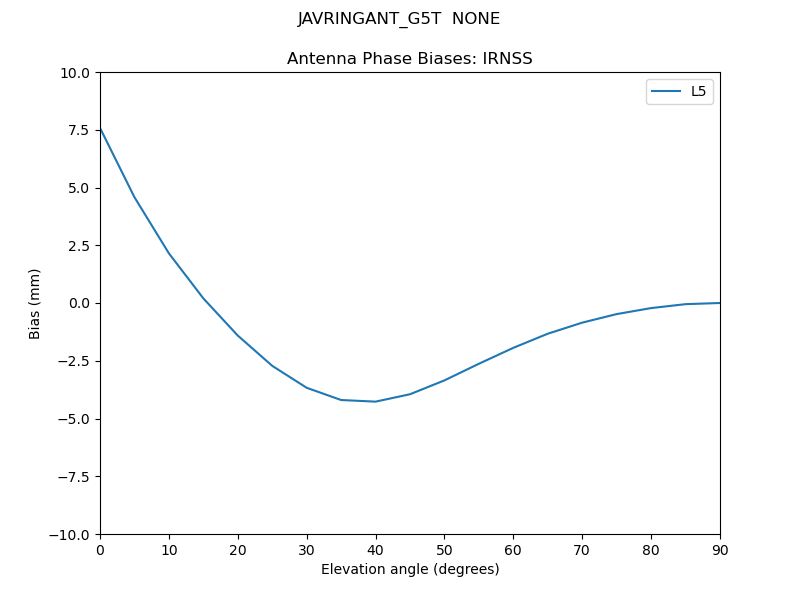

IRNSS


Azimuths

GPS


Bias Delta

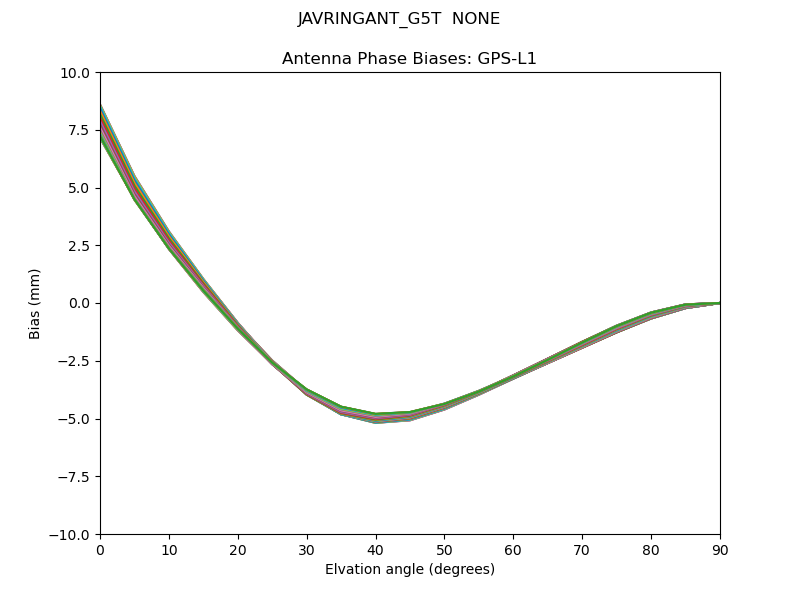

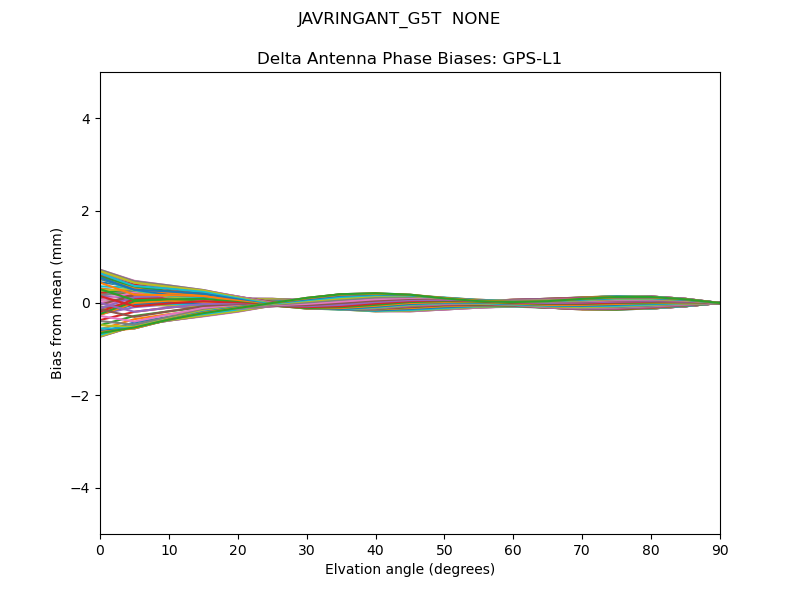

GPS-L1

GPS-L1GPS-L1

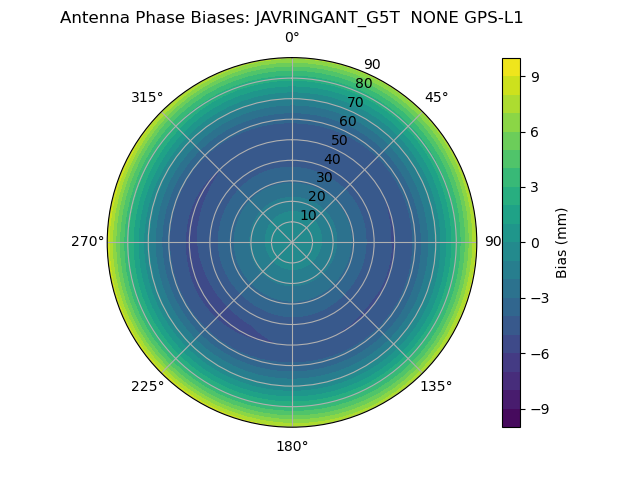

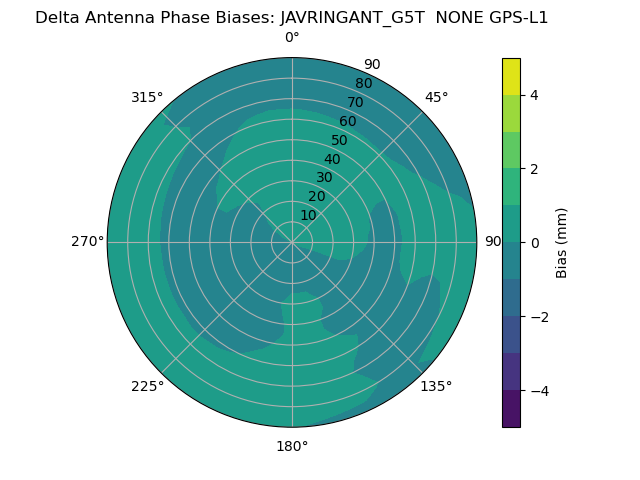

Radial GPS-L1Radial GPS-L1

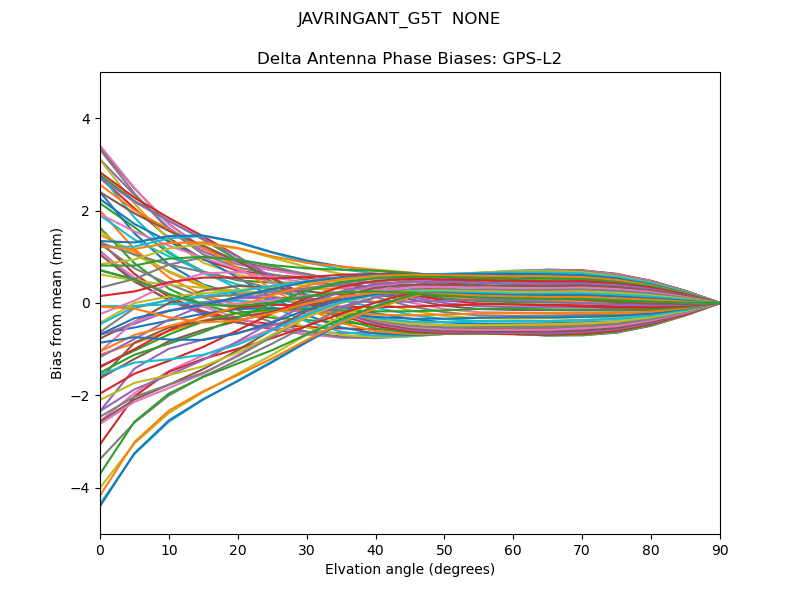

GPS-L2

GPS-L2GPS-L2

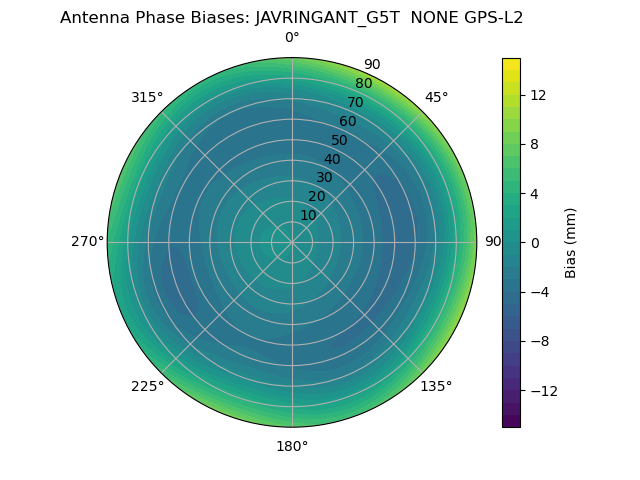

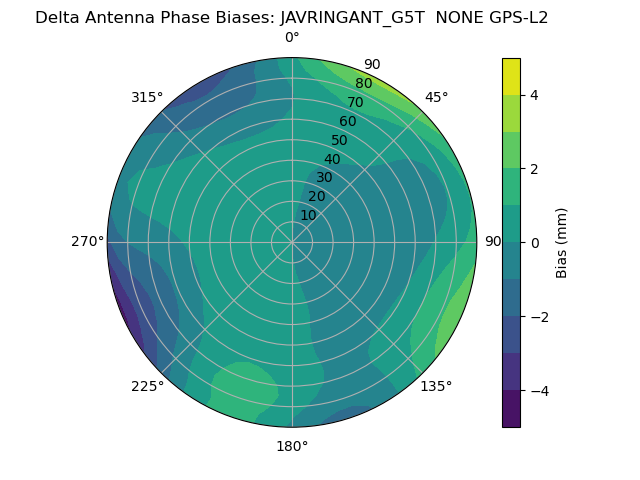

Radial GPS-L2Radial GPS-L2

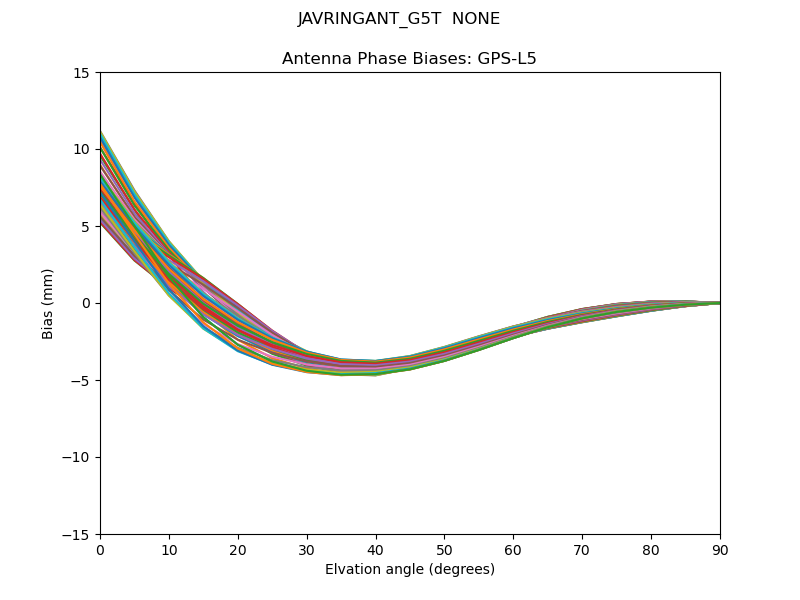

GPS-L5

GPS-L5GPS-L5

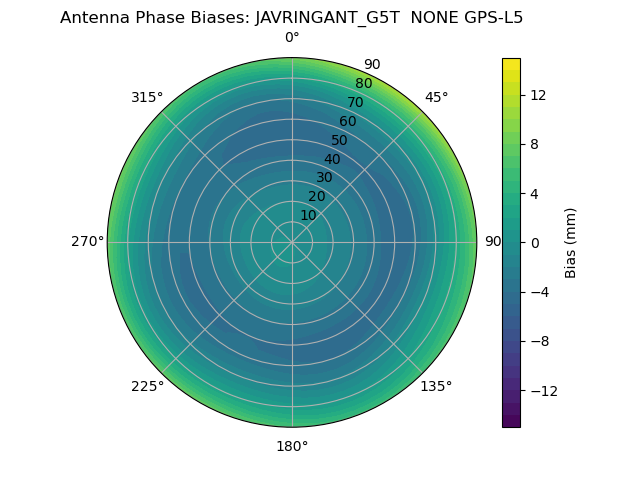

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

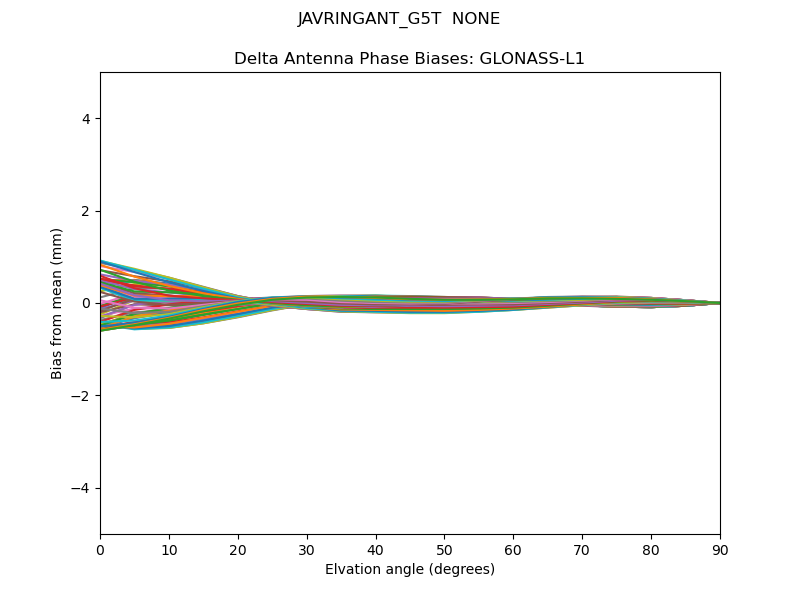

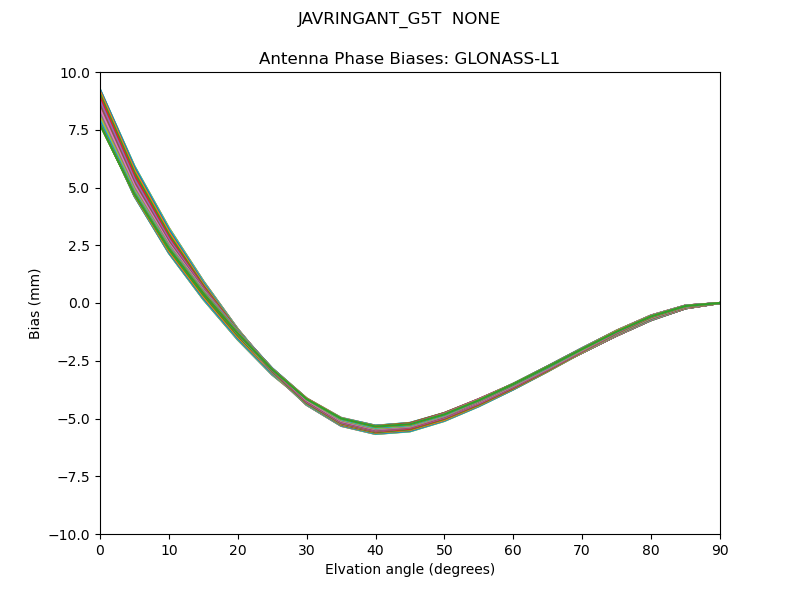

GLONASS-L1

GLONASS-L1GLONASS-L1

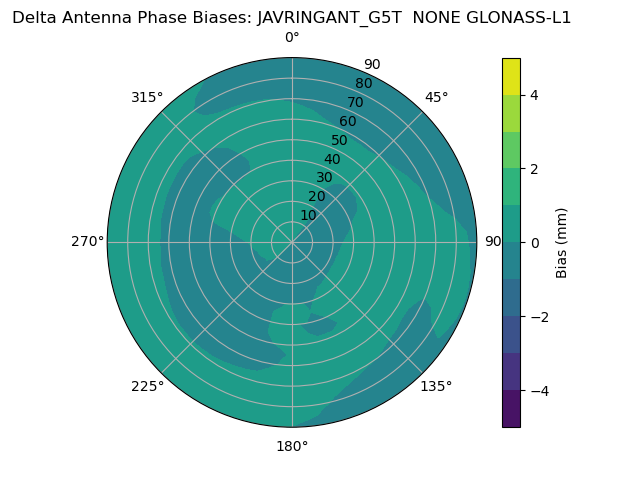

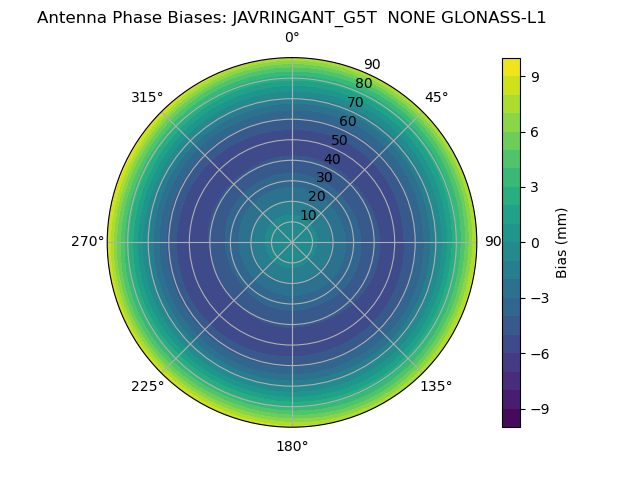

Radial GLONASS-L1Radial GLONASS-L1

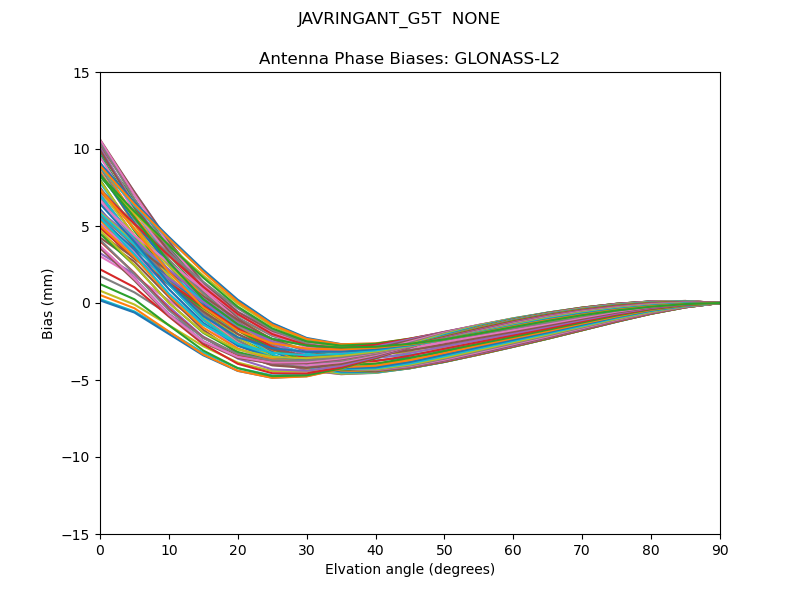

GLONASS-L2

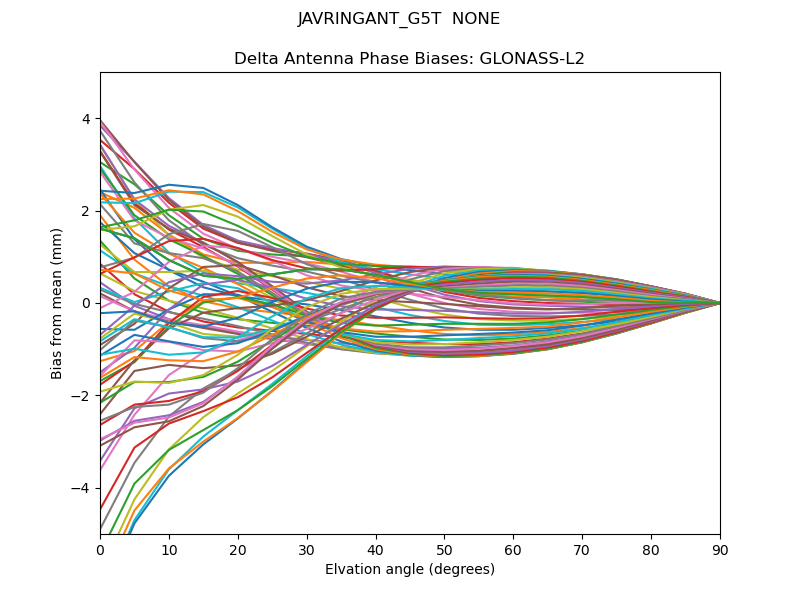

GLONASS-L2GLONASS-L2

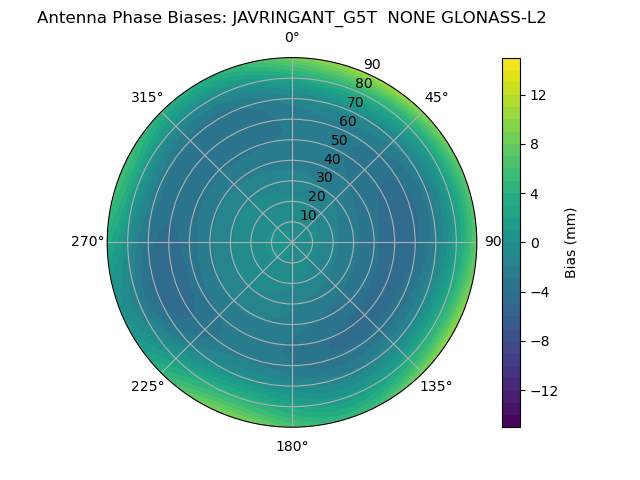

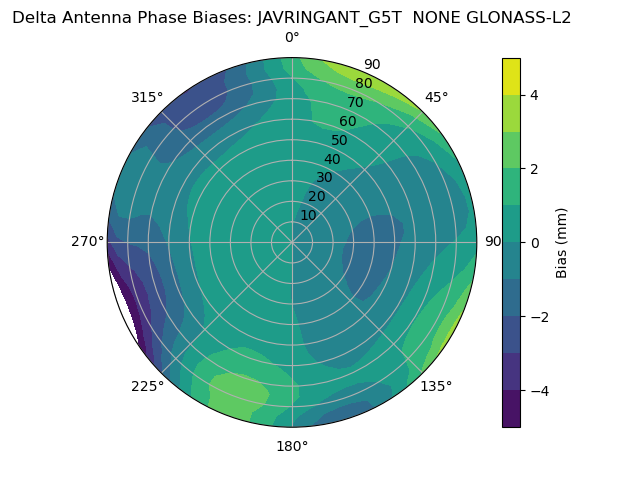

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

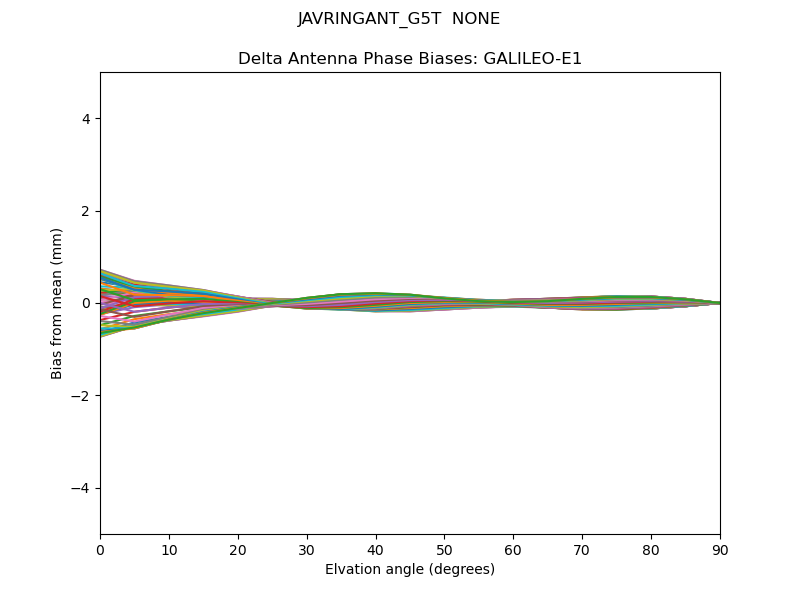

GALILEO-E1

GALILEO-E1GALILEO-E1

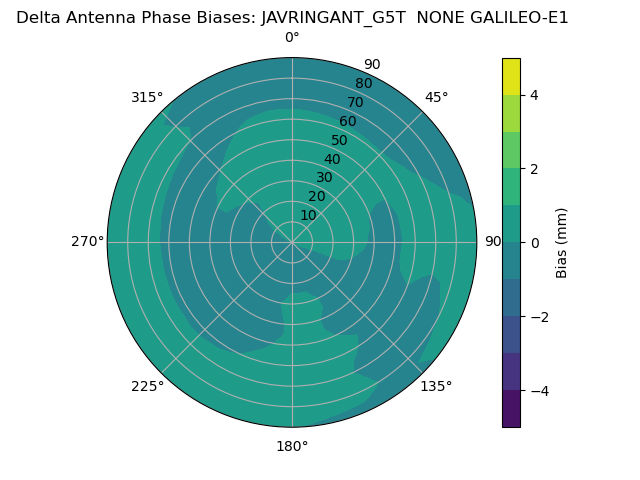

Radial GALILEO-E1Radial GALILEO-E1

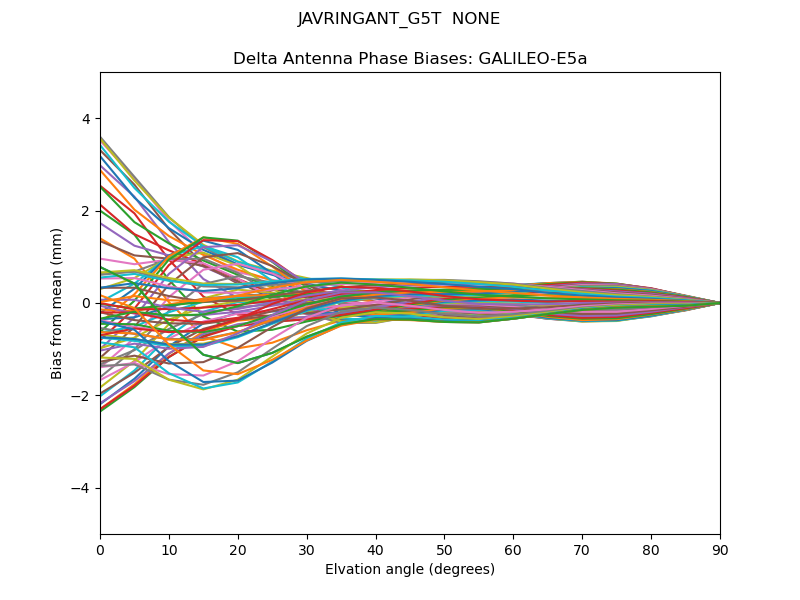

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

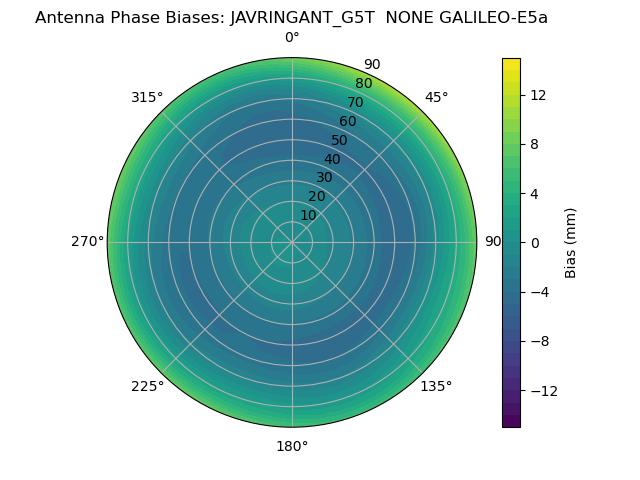

Radial GALILEO-E5aRadial GALILEO-E5a

BeiDOU


Bias Delta

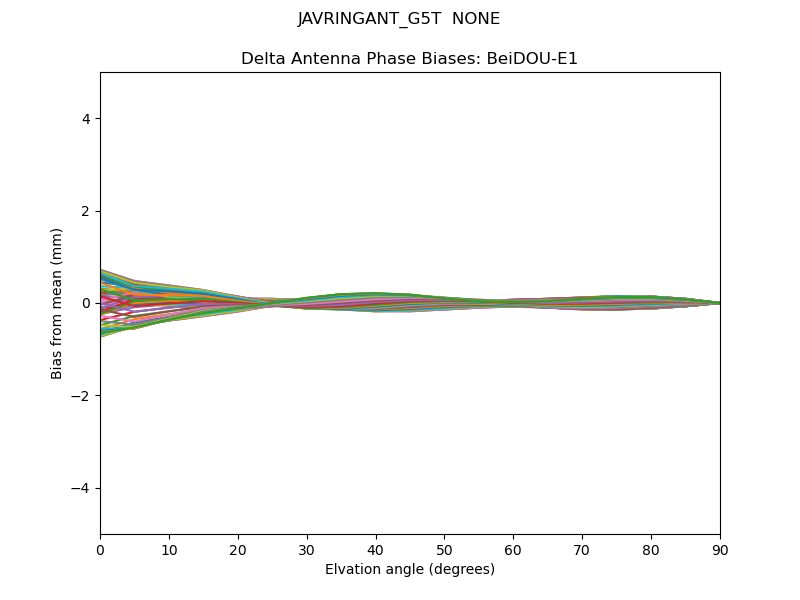

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

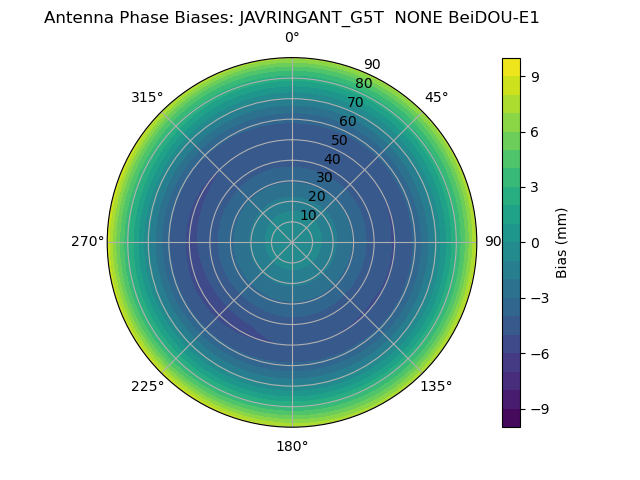

Radial BeiDOU-E1Radial BeiDOU-E1

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

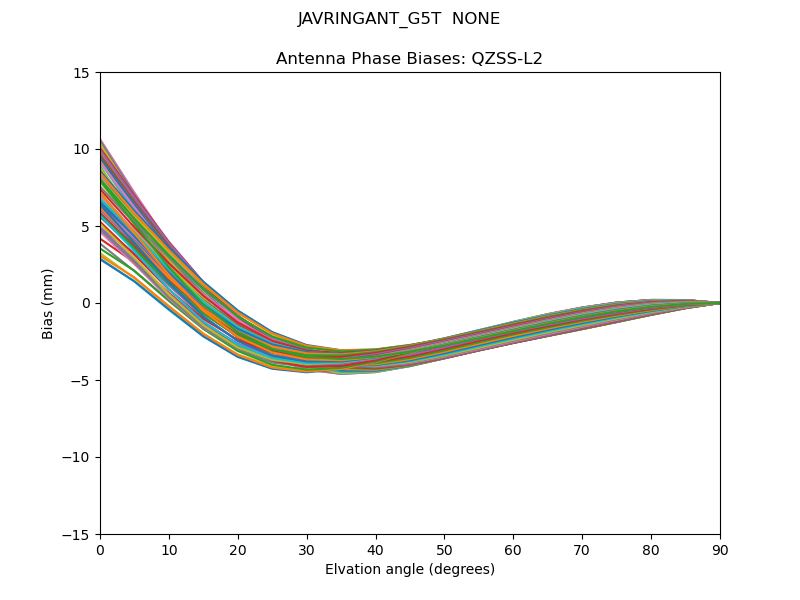

QZSS-L2

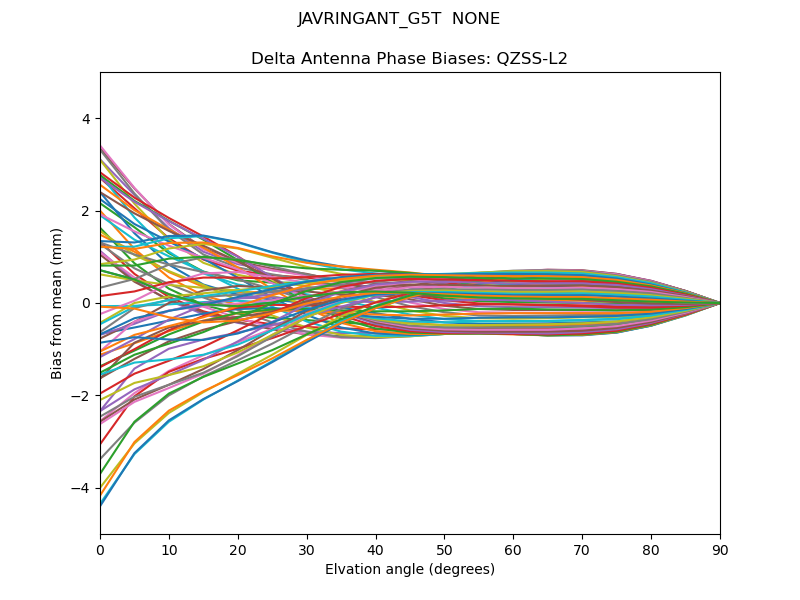

QZSS-L2QZSS-L2

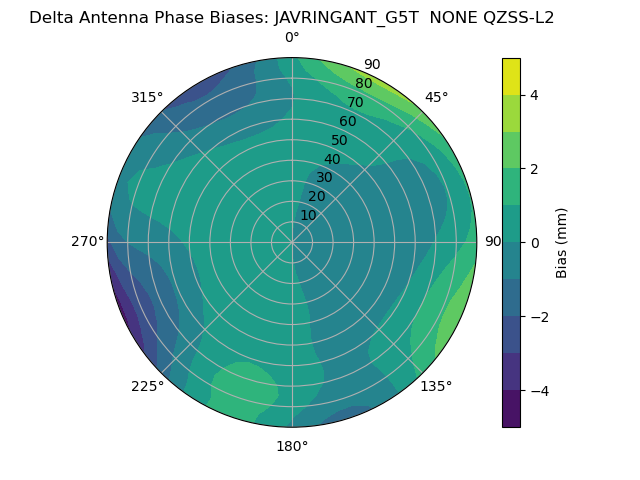

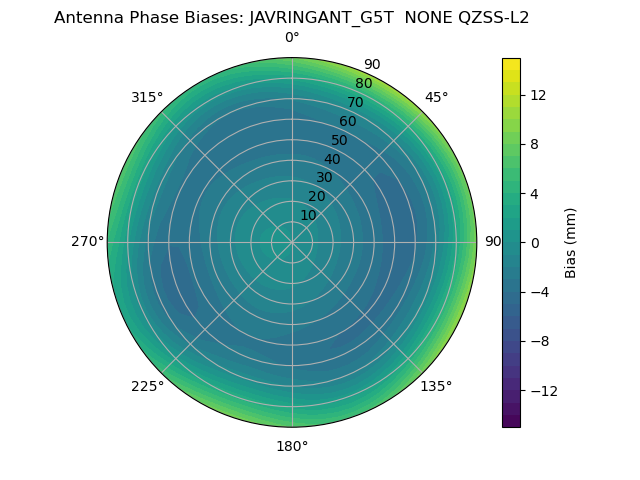

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

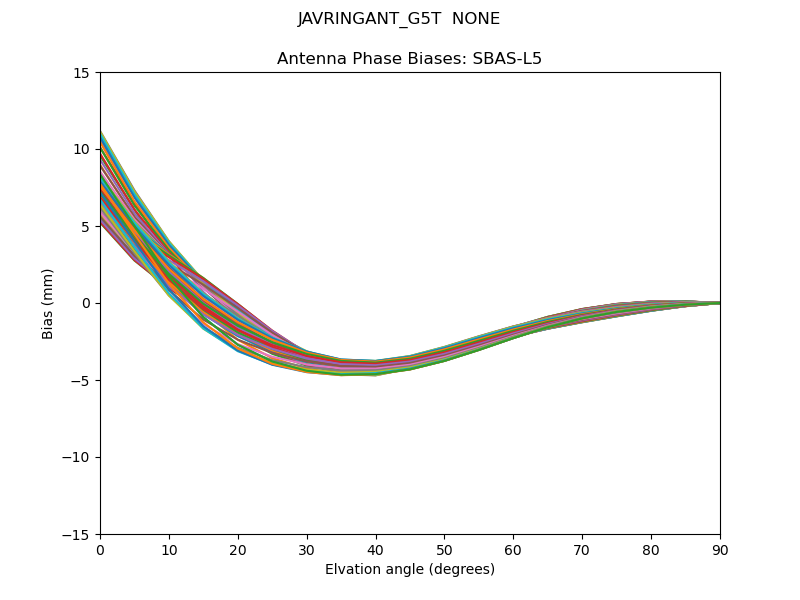

SBAS-L5

SBAS-L5SBAS-L5

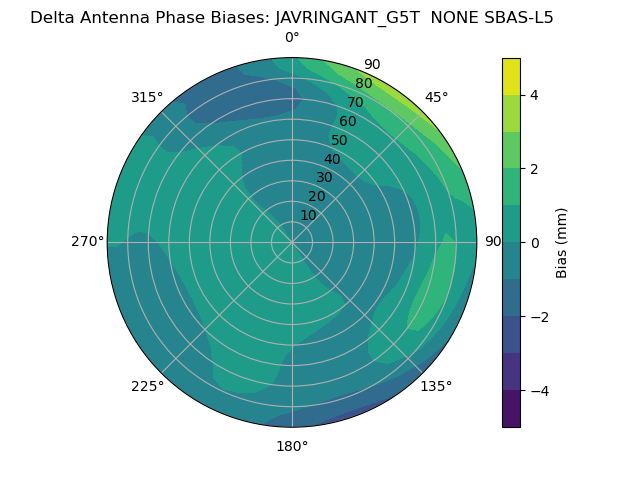

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5

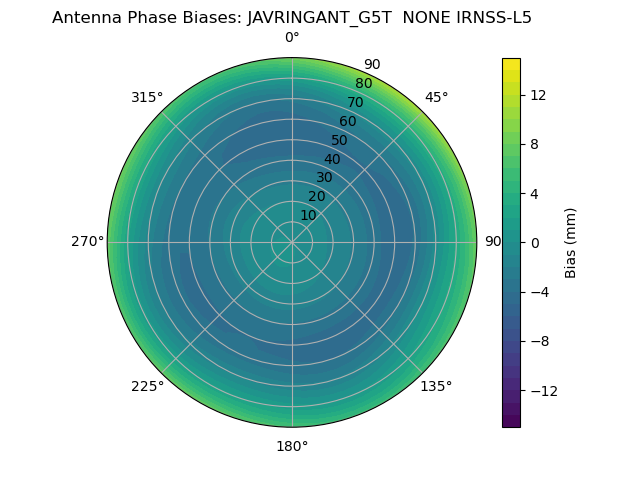

Radial IRNSS-L5Radial IRNSS-L5
