Antenna information for JAVTRIUMPH_1MPR NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 1.85 E: 0.66 U: 91.75
L2: N: 1.08 E: -1.77 U: 94.62
L5: N: -3.96 E: -1.12 U: 96.56

GLONASS

L1: N: 0.74 E: 1.43 U: 91.45
L2: N: 2.61 E: -2.00 U: 93.68

GALILEO

E1: N: 1.85 E: 0.66 U: 91.75
E5a: N: -3.96 E: -1.12 U: 96.56
E5b: N: -0.80 E: -1.52 U: 95.52
E5: N: -2.33 E: -1.33 U: 96.10
E6: N: 4.98 E: -2.40 U: 91.75

BeiDou

E1: N: 1.85 E: 0.66 U: 91.75
E2: N: 2.46 E: 0.22 U: 91.90
E5b: N: -0.80 E: -1.52 U: 95.52
E6: N: 4.29 E: -2.28 U: 92.40

QZSS

L1: N: 1.85 E: 0.66 U: 91.75
L2: N: 1.08 E: -1.77 U: 94.62
L5: N: -3.96 E: -1.12 U: 96.56
LEX: N: 4.98 E: -2.40 U: 91.75

SBAS

L1: N: 1.85 E: 0.66 U: 91.75
L5: N: -3.96 E: -1.12 U: 96.56

L1

GPS: N: 1.85 E: 0.66 U: 91.75
GLONASS: N: 0.74 E: 1.43 U: 91.45
QZSS: N: 1.85 E: 0.66 U: 91.75
SBAS: N: 1.85 E: 0.66 U: 91.75

L2

GPS: N: 1.08 E: -1.77 U: 94.62
GLONASS: N: 2.61 E: -2.00 U: 93.68
QZSS: N: 1.08 E: -1.77 U: 94.62

L5

GPS: N: -3.96 E: -1.12 U: 96.56
QZSS: N: -3.96 E: -1.12 U: 96.56
SBAS: N: -3.96 E: -1.12 U: 96.56

E1

GALILEO: N: 1.85 E: 0.66 U: 91.75
BeiDou: N: 1.85 E: 0.66 U: 91.75

E2

BeiDou: N: 2.46 E: 0.22 U: 91.90

E5

GALILEO: N: -2.33 E: -1.33 U: 96.10

E5a

GALILEO: N: -3.96 E: -1.12 U: 96.56

E5b

GALILEO: N: -0.80 E: -1.52 U: 95.52
BeiDou: N: -0.80 E: -1.52 U: 95.52

E6

GALILEO: N: 4.98 E: -2.40 U: 91.75
BeiDou: N: 4.29 E: -2.28 U: 92.40

LEX

QZSS: N: 4.98 E: -2.40 U: 91.75


Means

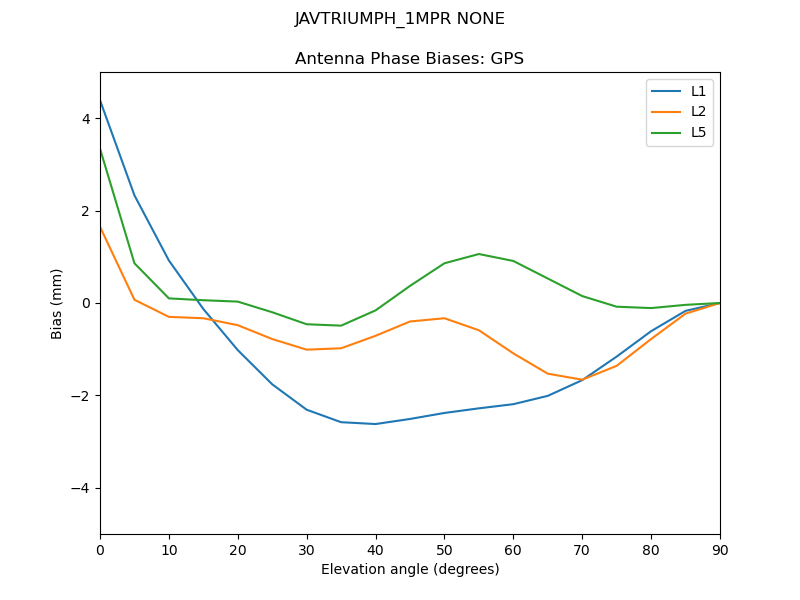

GPS

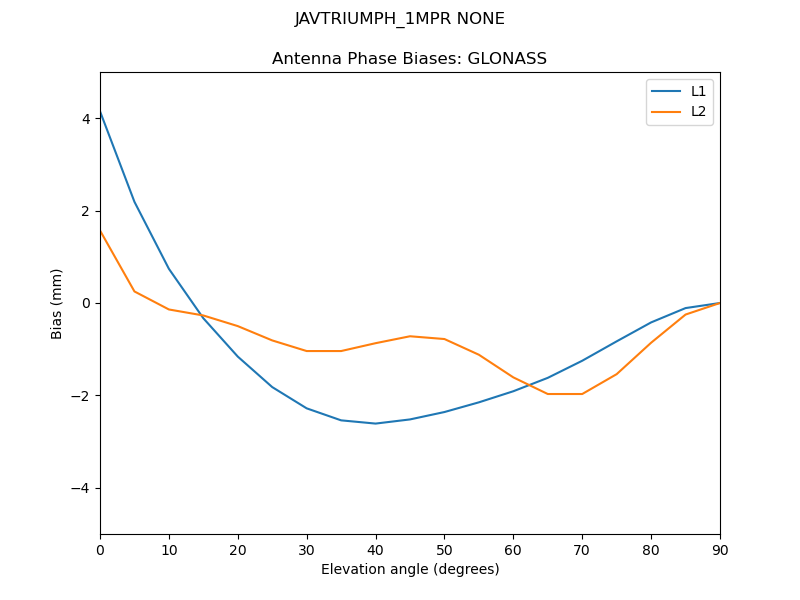

GLONASS

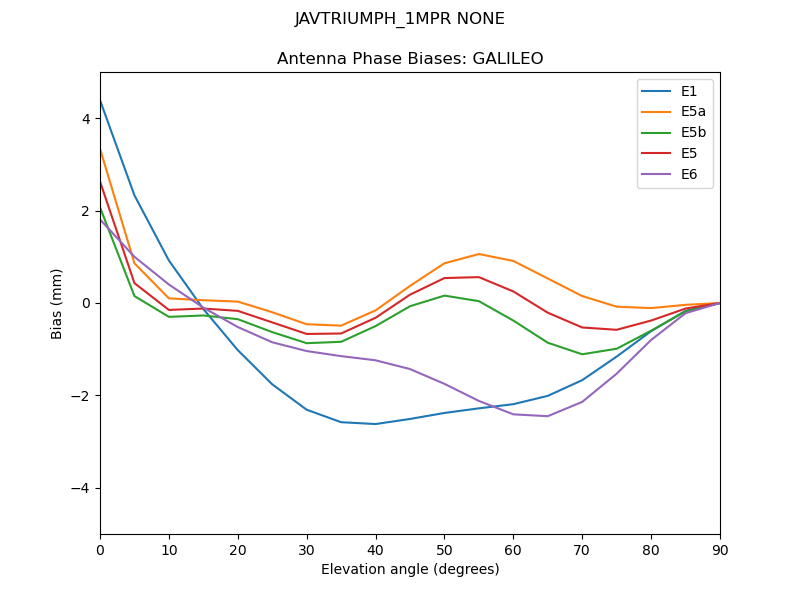

GALILEO

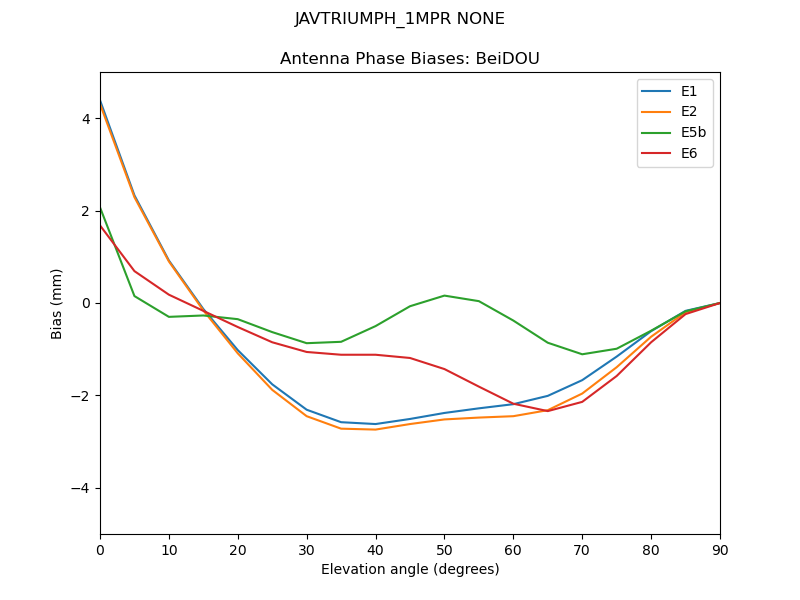

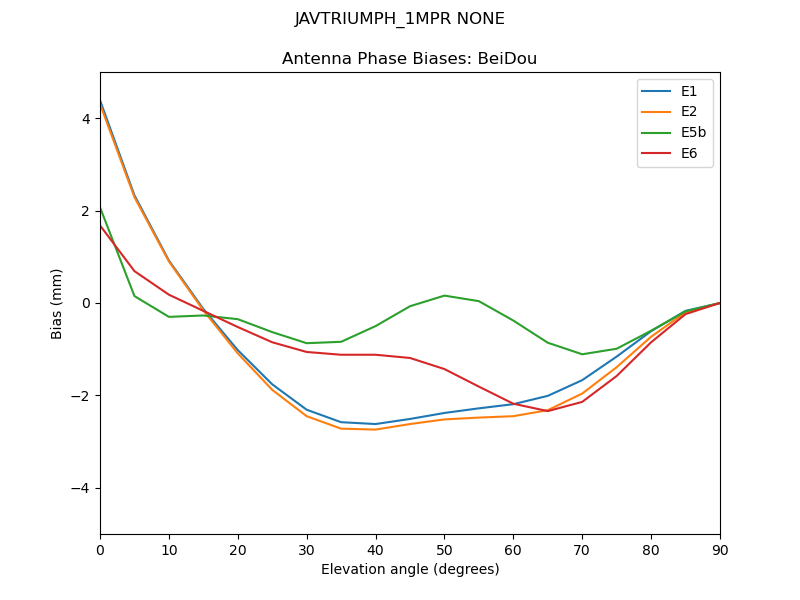

BeiDOU


QZSS

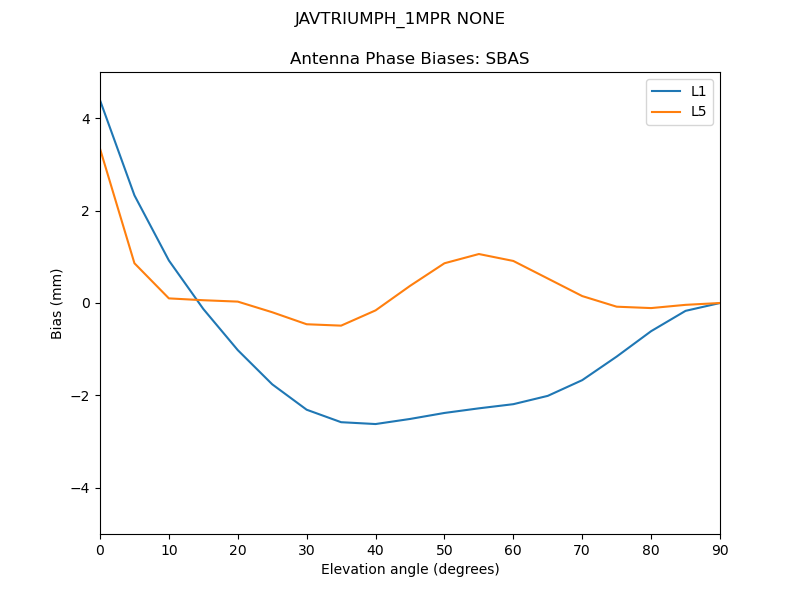

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

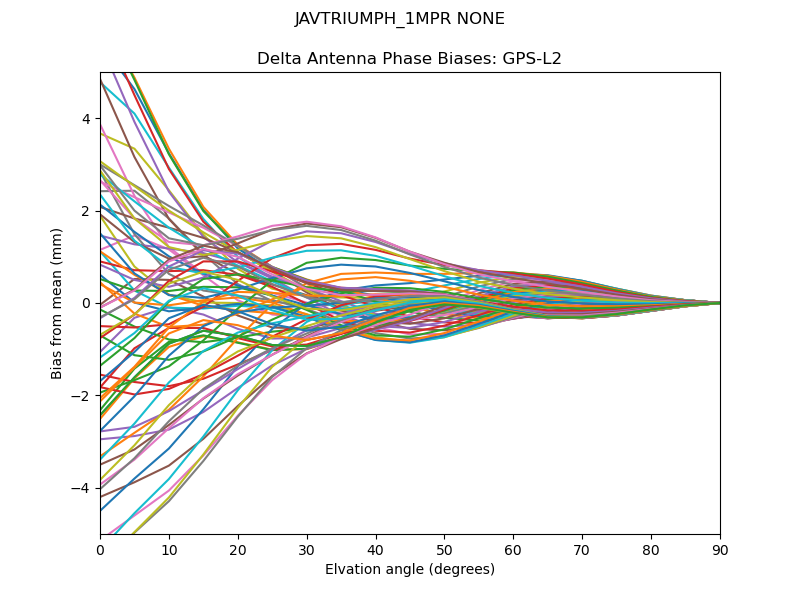

GPS-L2

GPS-L2GPS-L2

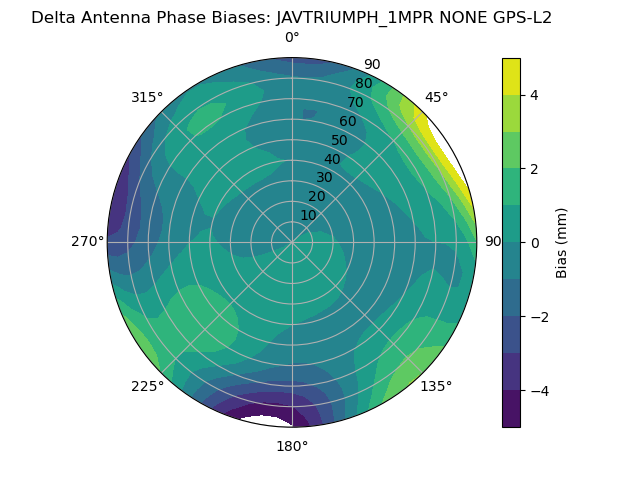

Radial GPS-L2Radial GPS-L2

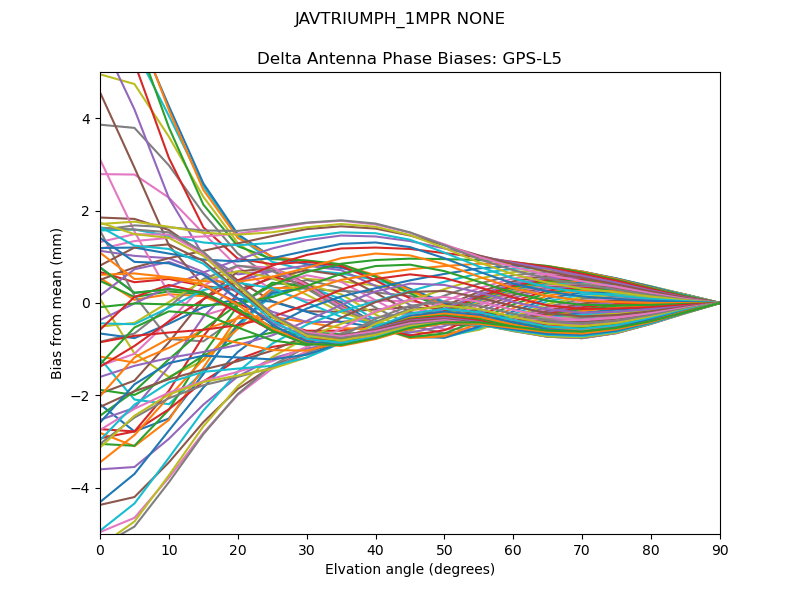

GPS-L5

GPS-L5GPS-L5

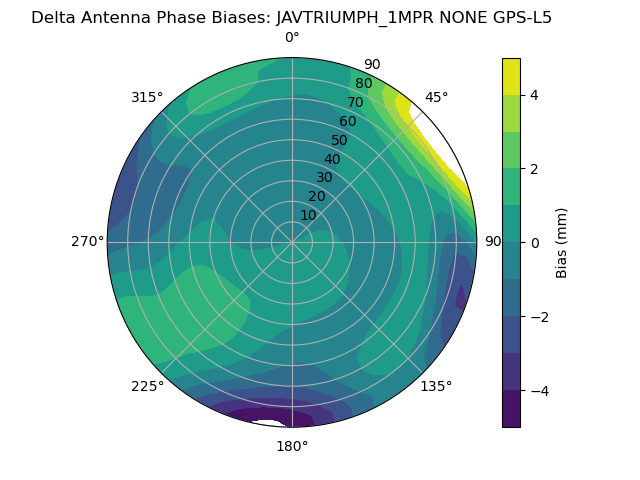

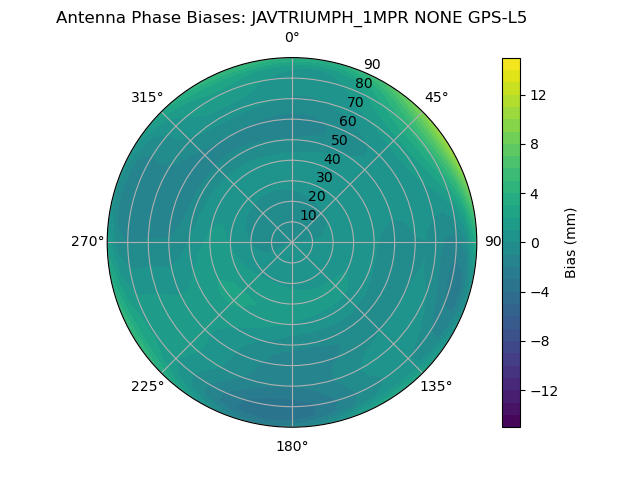

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

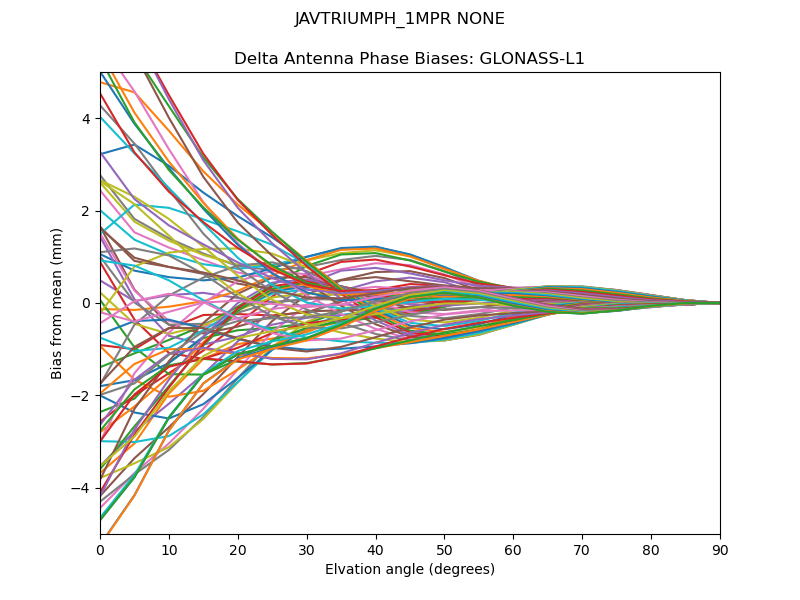

GLONASS-L1

GLONASS-L1GLONASS-L1

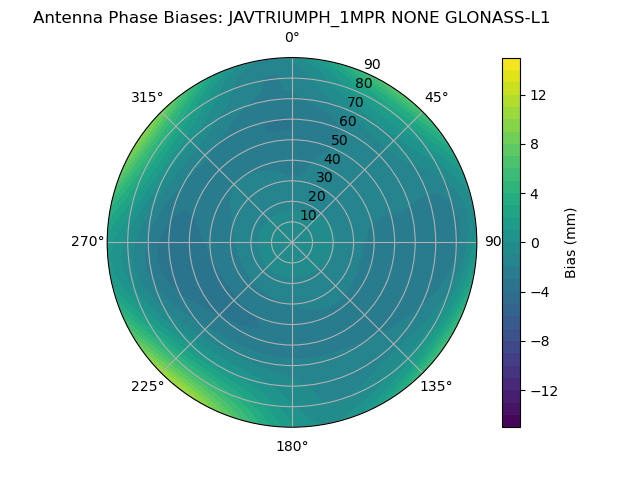

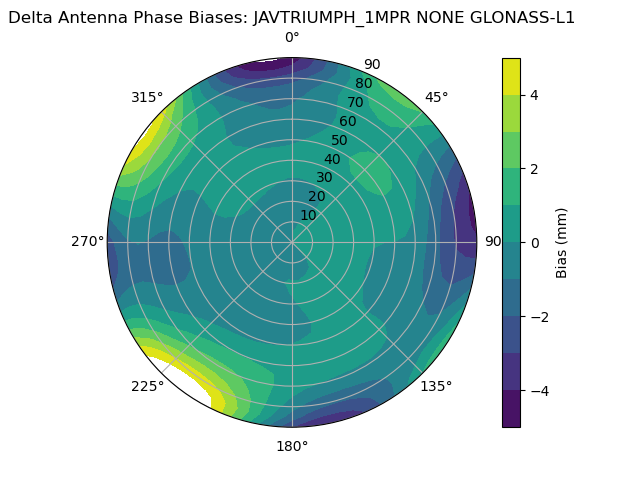

Radial GLONASS-L1Radial GLONASS-L1

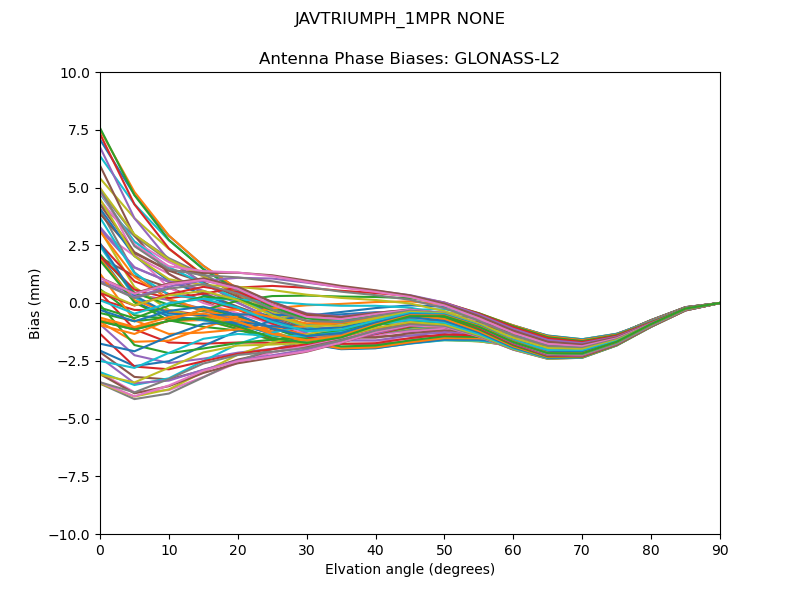

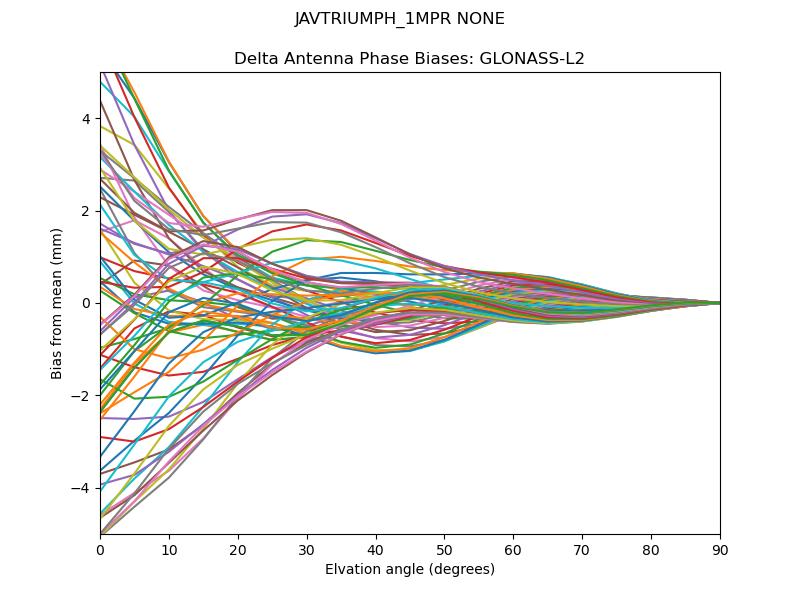

GLONASS-L2

GLONASS-L2GLONASS-L2

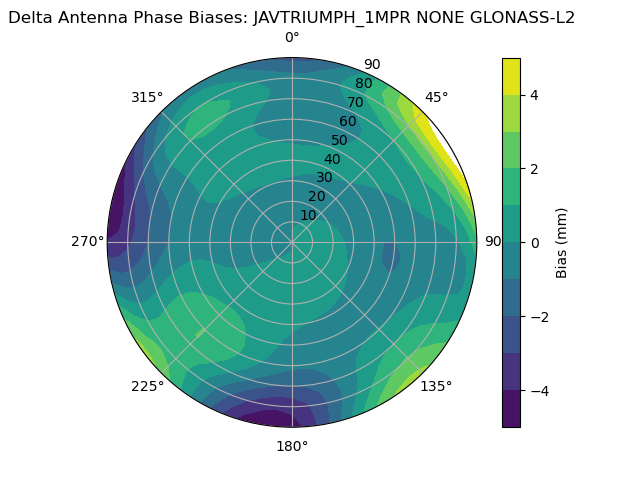

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

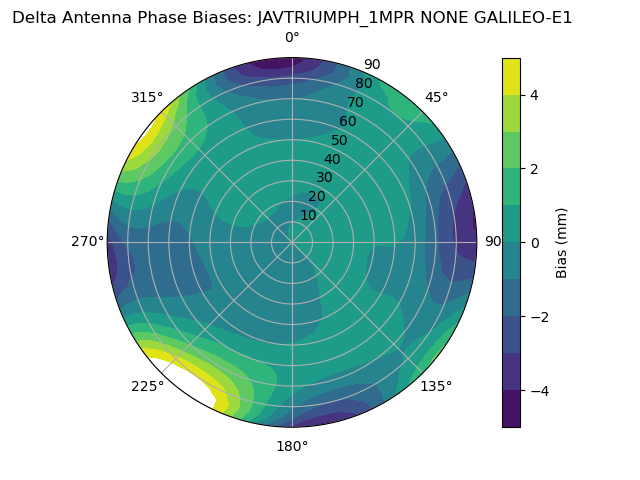

Radial GALILEO-E1Radial GALILEO-E1

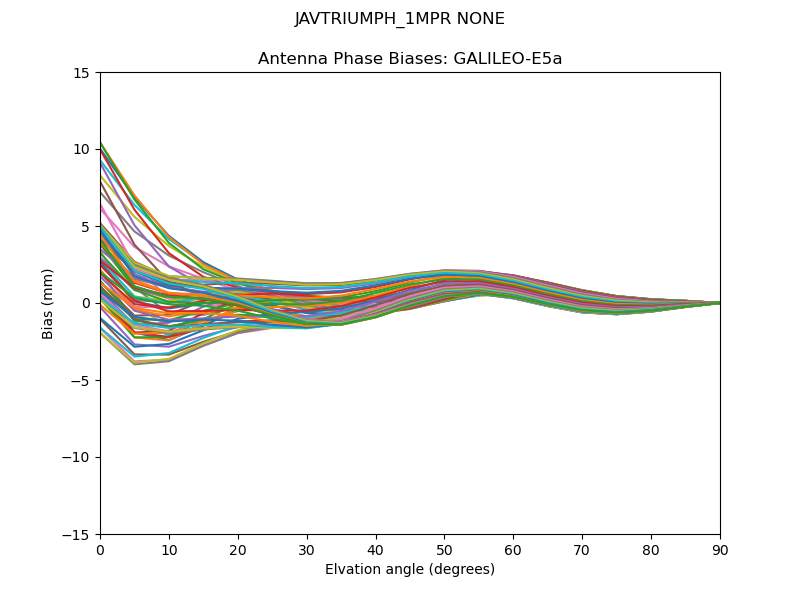

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

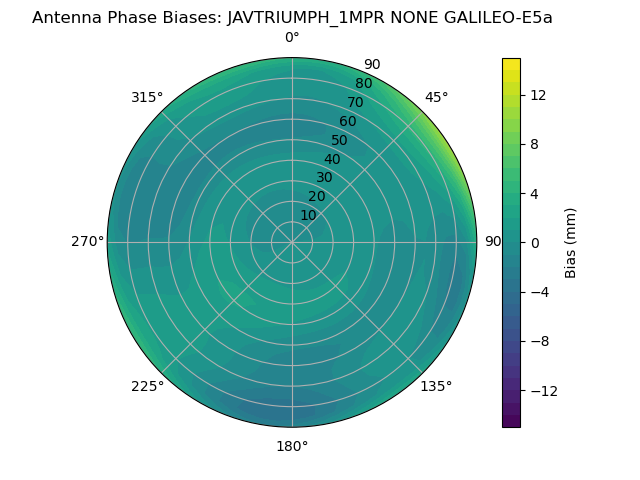

Radial GALILEO-E5aRadial GALILEO-E5a

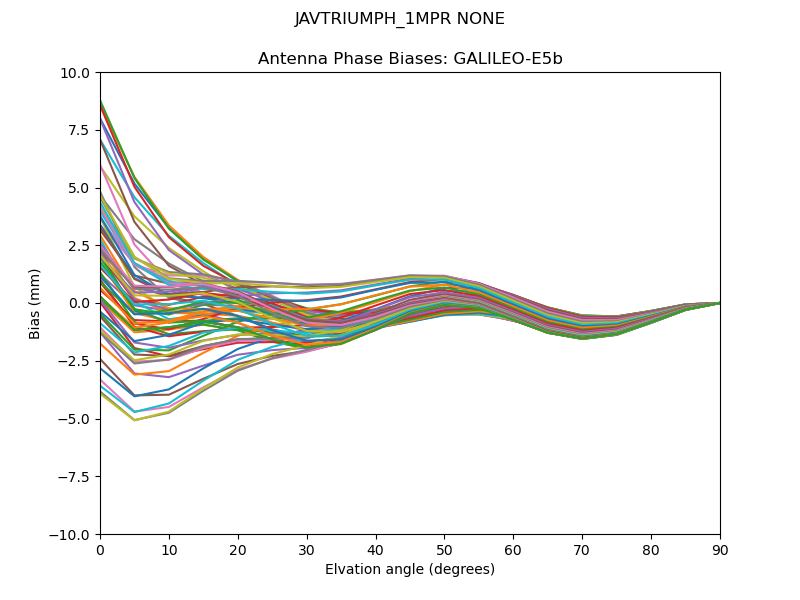

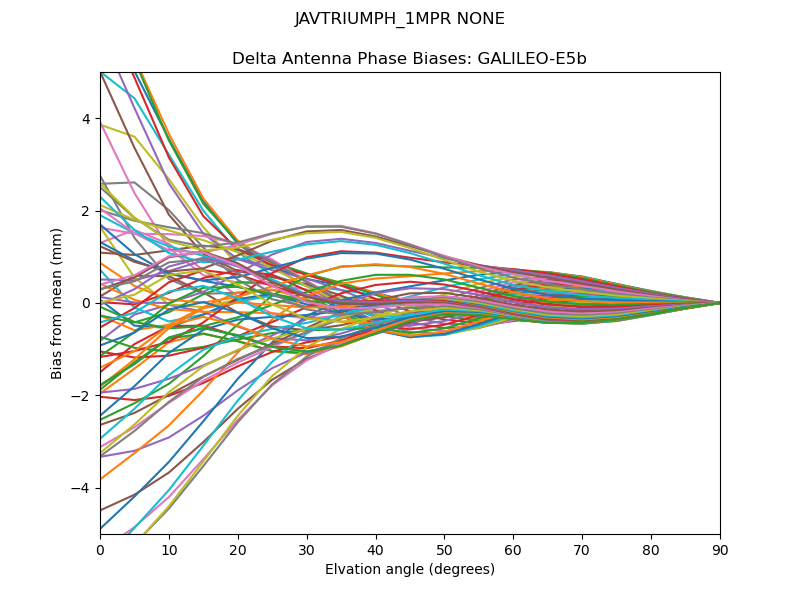

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

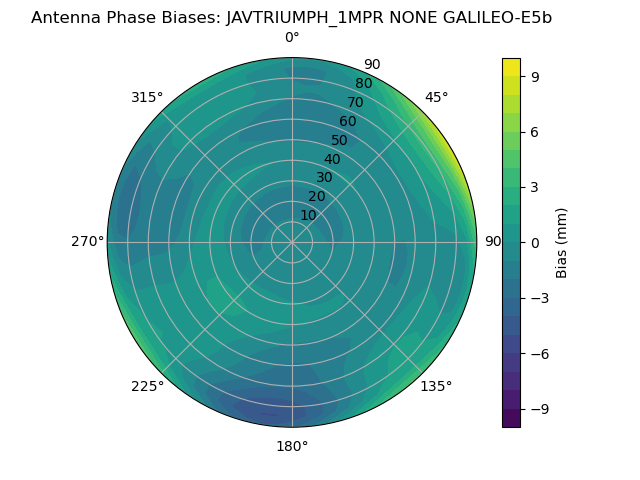

Radial GALILEO-E5bRadial GALILEO-E5b

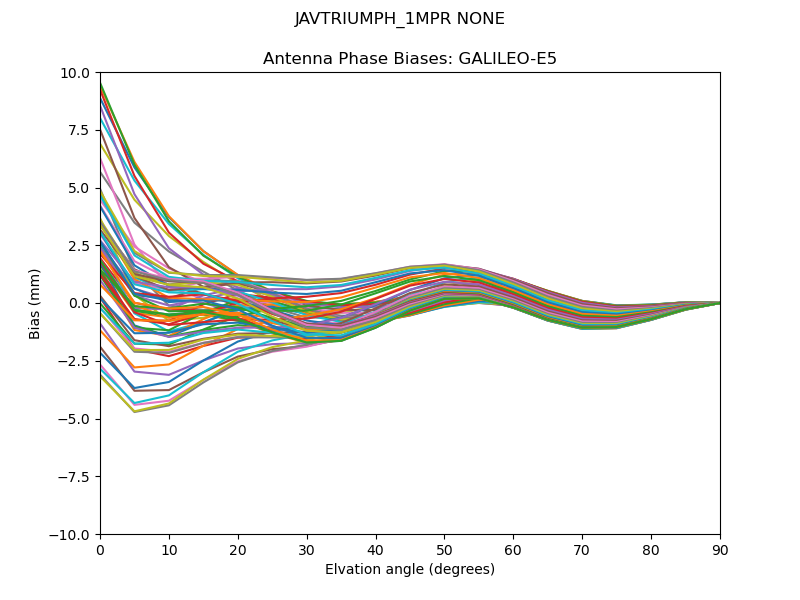

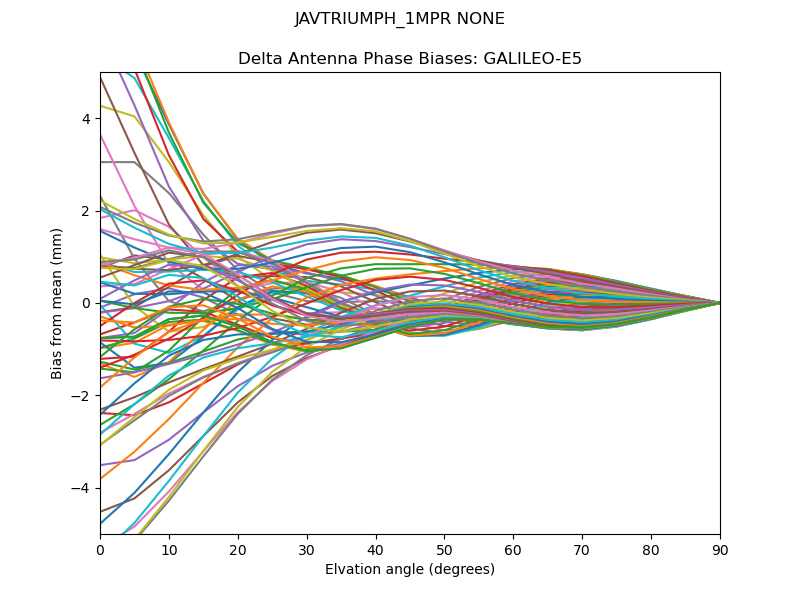

GALILEO-E5

GALILEO-E5GALILEO-E5

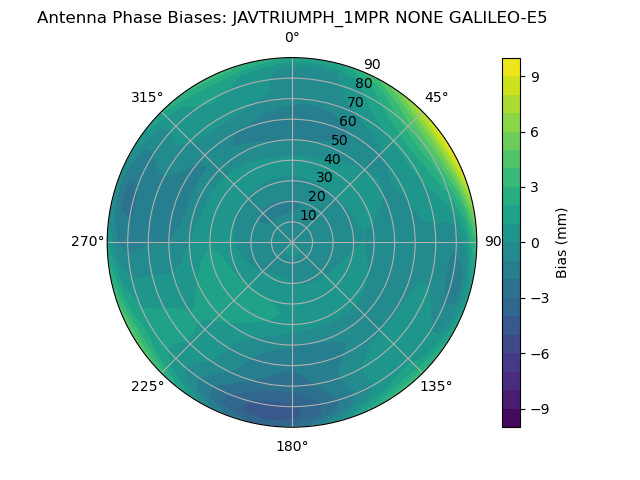

Radial GALILEO-E5Radial GALILEO-E5

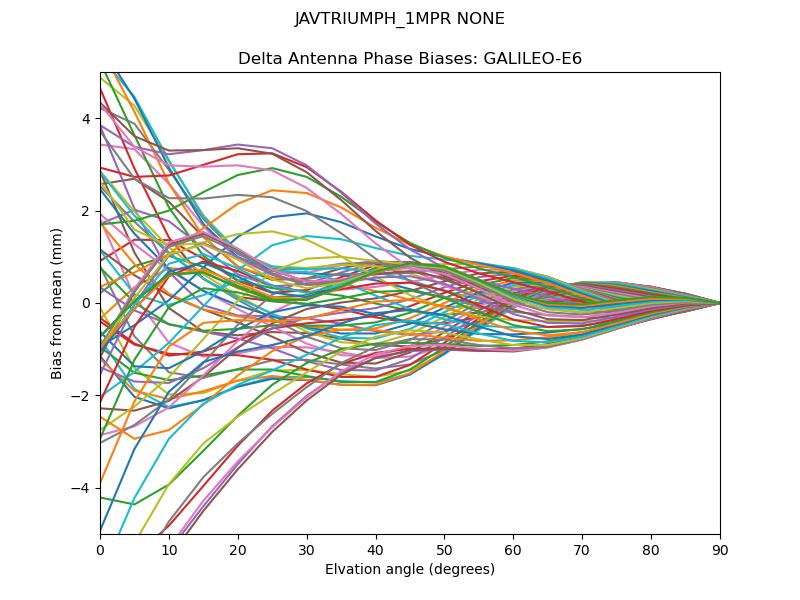

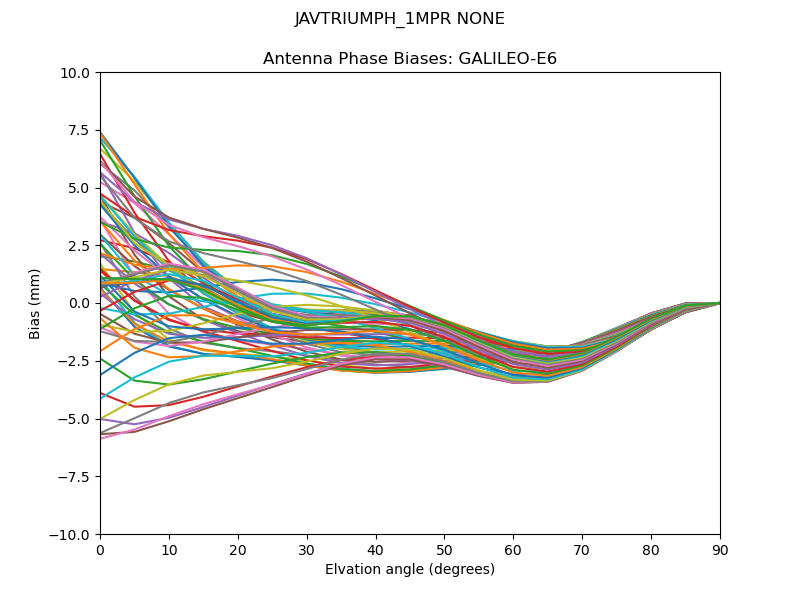

GALILEO-E6

GALILEO-E6GALILEO-E6

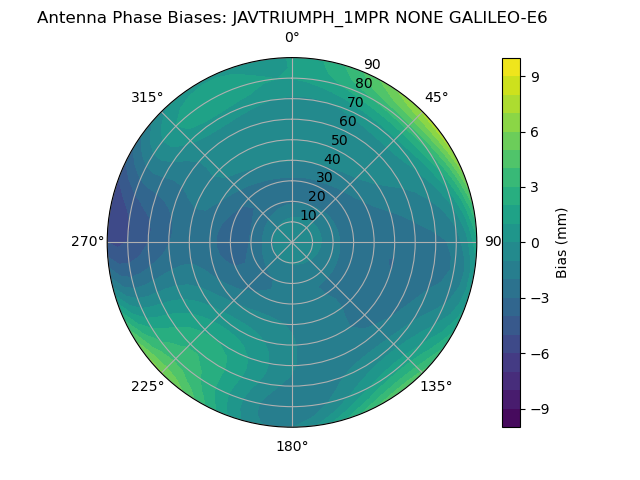

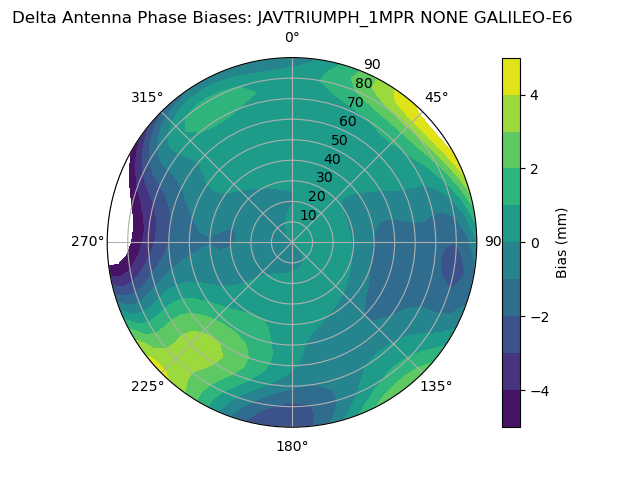

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

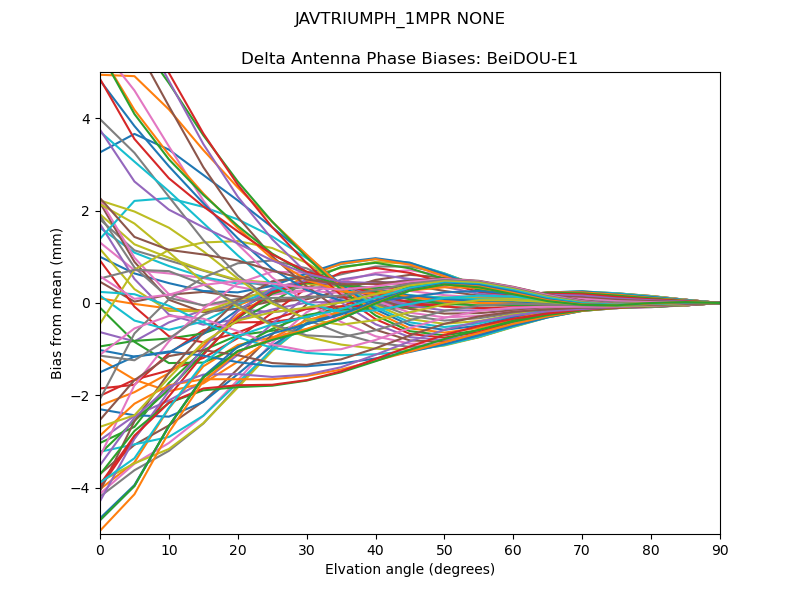

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

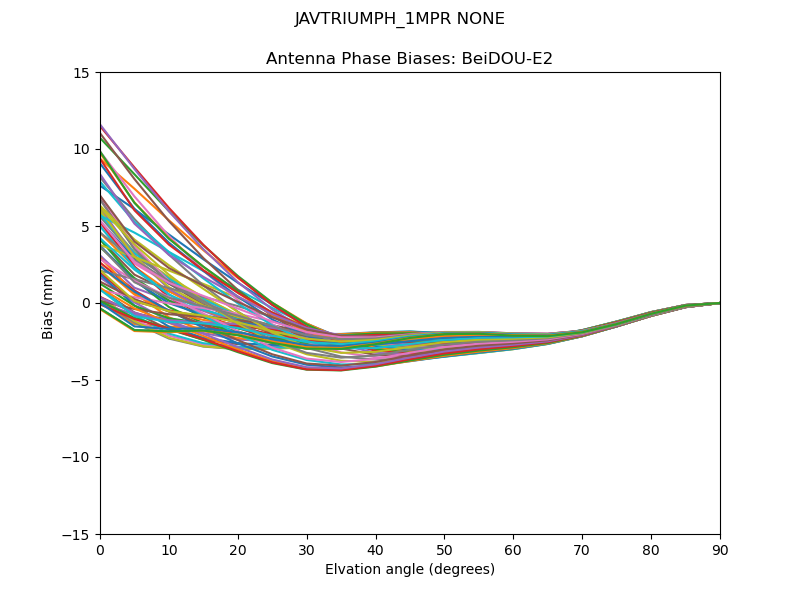

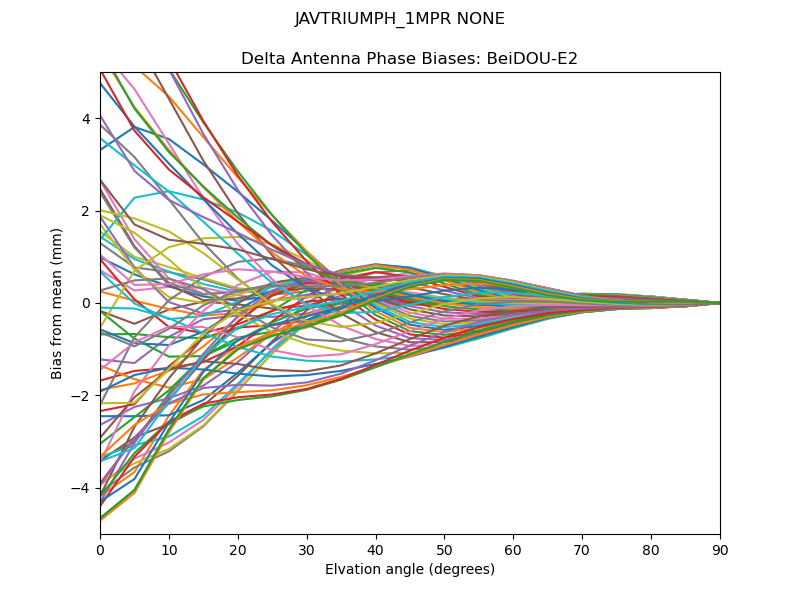

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

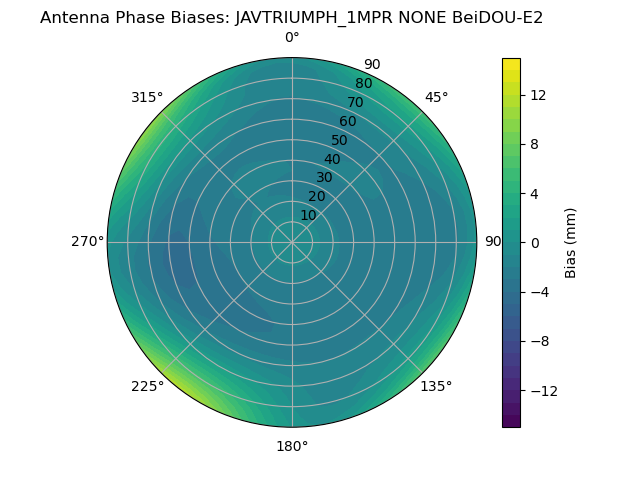

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b
Radial BeiDOU-E5bRadial BeiDOU-E5b

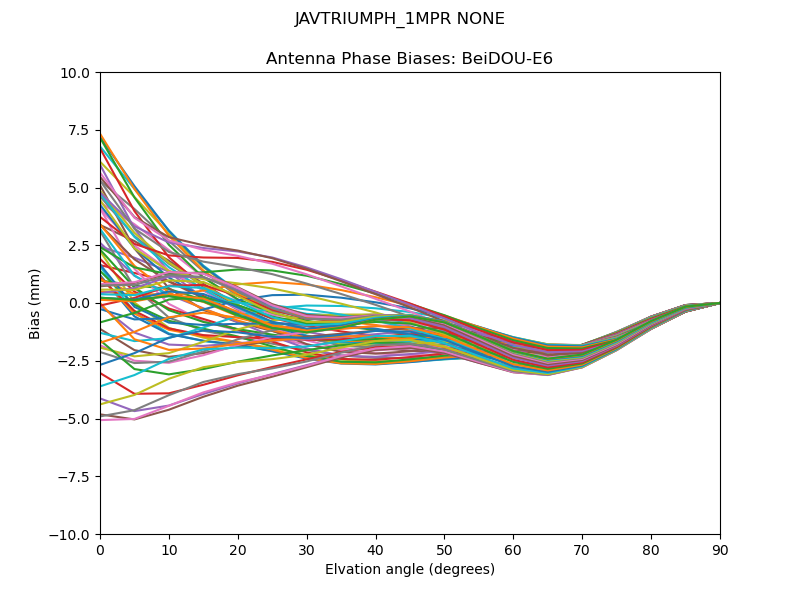

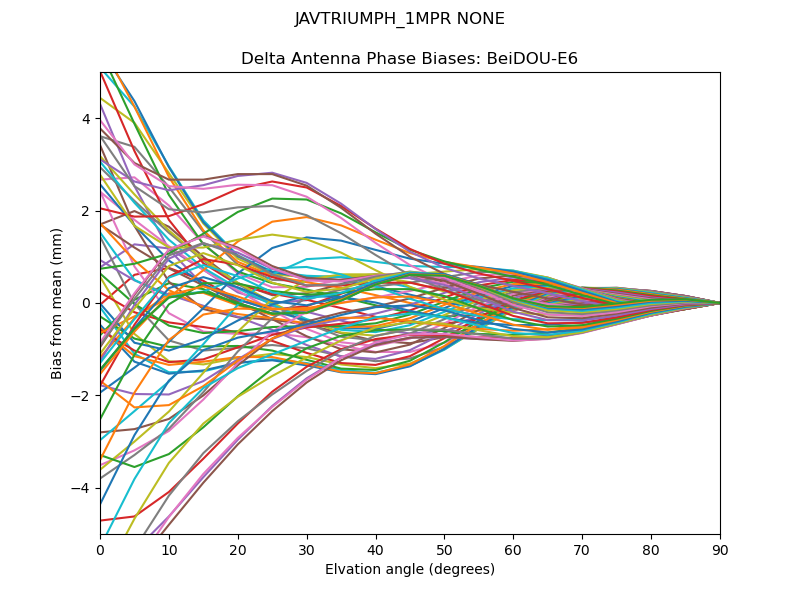

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

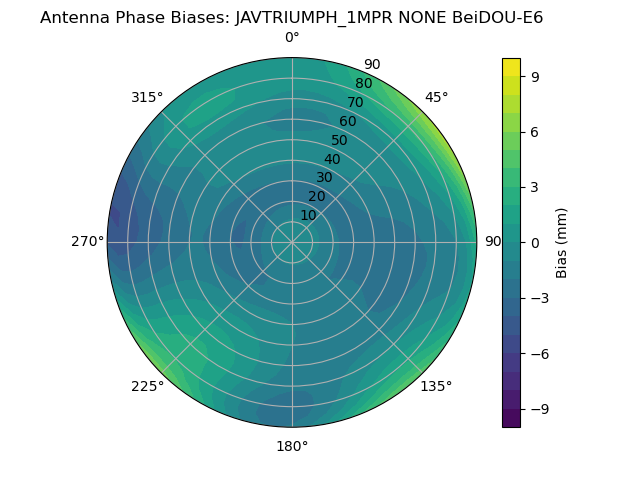

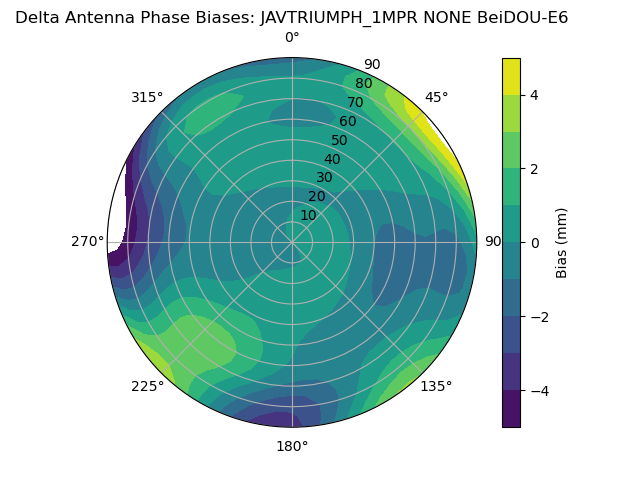

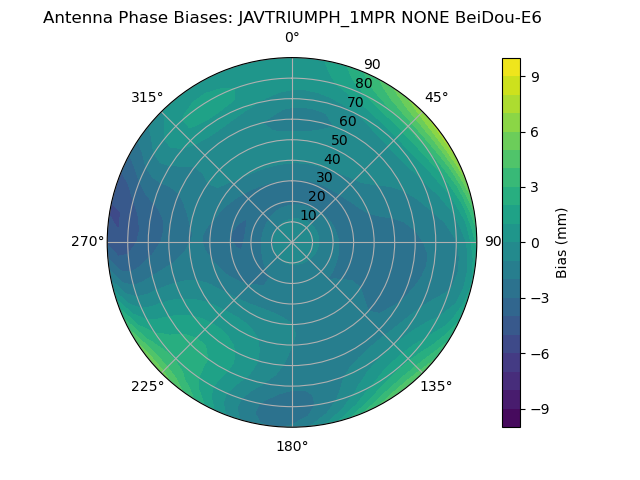

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

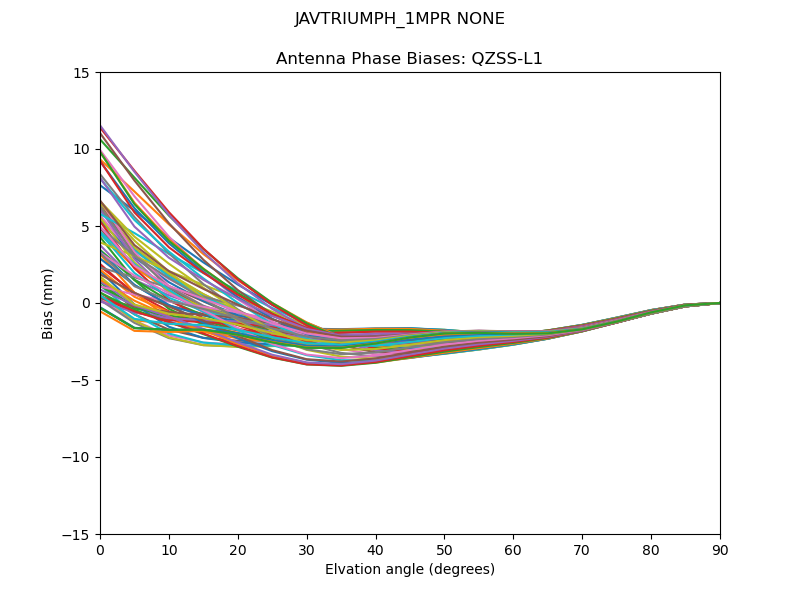

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

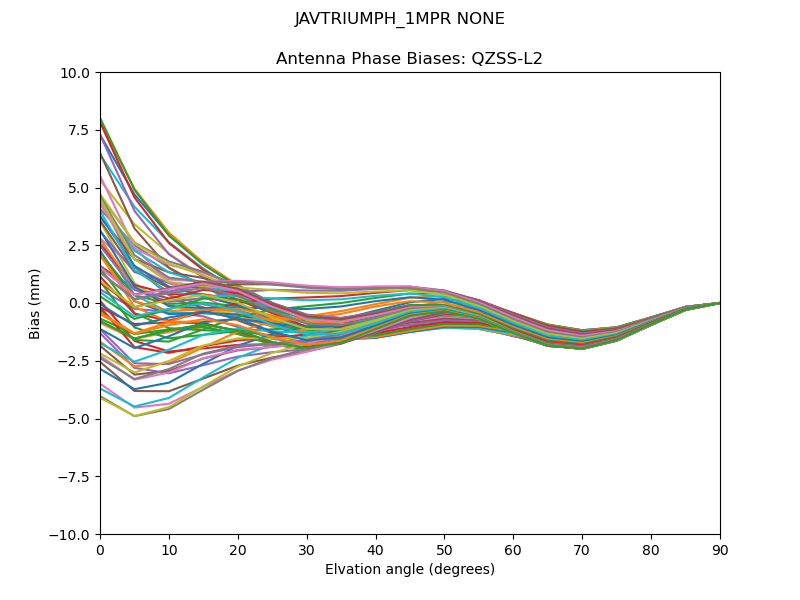

QZSS-L2

QZSS-L2QZSS-L2

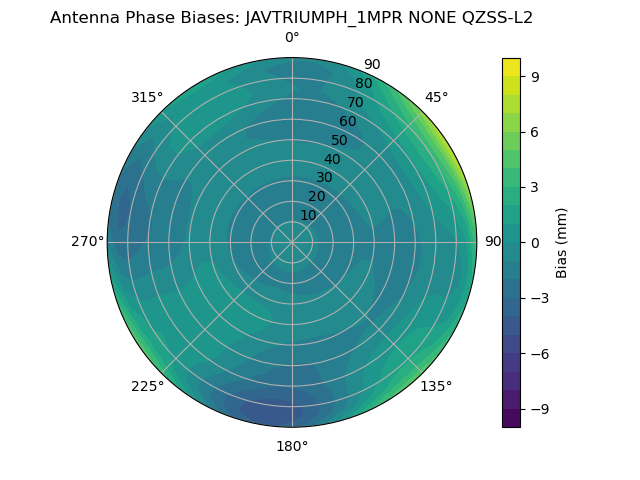

Radial QZSS-L2Radial QZSS-L2

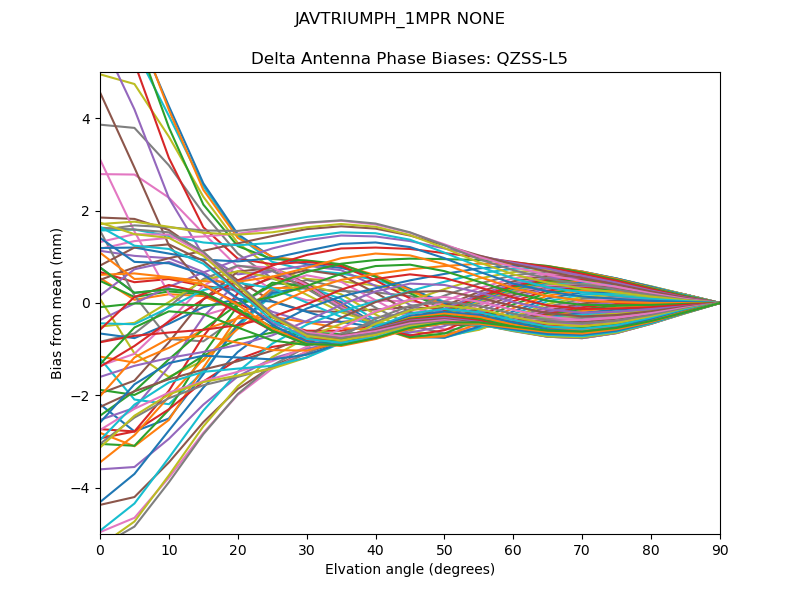

QZSS-L5

QZSS-L5QZSS-L5

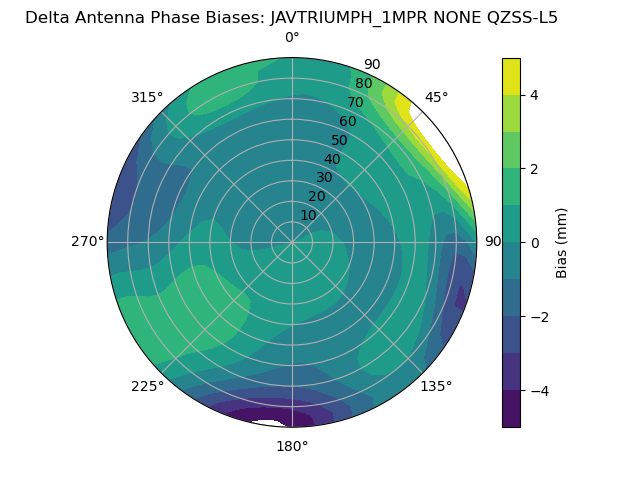

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

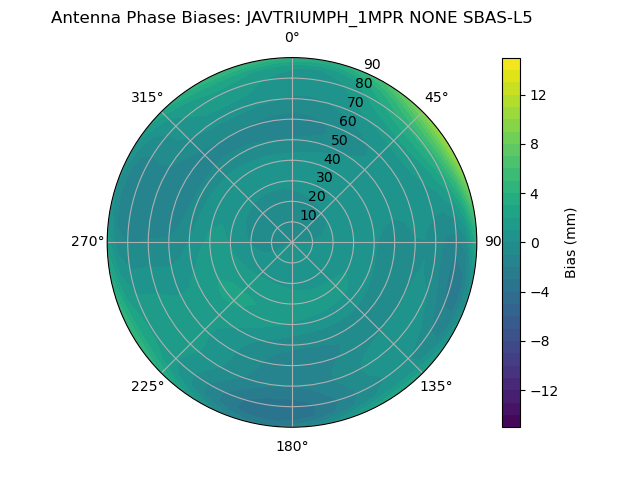

Radial SBAS-L5Radial SBAS-L5
