Antenna information for JAVTRIUMPH_3A1 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.68 E: 1.17 U: 74.07
L2: N: 1.93 E: 1.90 U: 74.39
L5: N: 0.82 E: -1.20 U: 69.24

GLONASS

L1: N: -0.81 E: 0.30 U: 73.49
L2: N: 1.91 E: 2.88 U: 75.75

GALILEO

E1: N: -0.68 E: 1.17 U: 74.07
E5a: N: 0.82 E: -1.20 U: 69.24
E5b: N: 1.70 E: 0.73 U: 72.57
E5: N: 1.34 E: -0.20 U: 71.00
E6: N: 1.39 E: 4.46 U: 77.64

BeiDou

E1: N: -0.68 E: 1.17 U: 74.07
E2: N: -0.63 E: 1.64 U: 74.50
E5b: N: 1.70 E: 0.73 U: 72.57
E6: N: 1.62 E: 4.00 U: 77.11

QZSS

L1: N: -0.68 E: 1.17 U: 74.07
L2: N: 1.93 E: 1.90 U: 74.39
L5: N: 0.82 E: -1.20 U: 69.24
LEX: N: 1.39 E: 4.46 U: 77.64

SBAS

L1: N: -0.68 E: 1.17 U: 74.07
L5: N: 0.82 E: -1.20 U: 69.24

L1

GPS: N: -0.68 E: 1.17 U: 74.07
GLONASS: N: -0.81 E: 0.30 U: 73.49
QZSS: N: -0.68 E: 1.17 U: 74.07
SBAS: N: -0.68 E: 1.17 U: 74.07

L2

GPS: N: 1.93 E: 1.90 U: 74.39
GLONASS: N: 1.91 E: 2.88 U: 75.75
QZSS: N: 1.93 E: 1.90 U: 74.39

L5

GPS: N: 0.82 E: -1.20 U: 69.24
QZSS: N: 0.82 E: -1.20 U: 69.24
SBAS: N: 0.82 E: -1.20 U: 69.24

E1

GALILEO: N: -0.68 E: 1.17 U: 74.07
BeiDou: N: -0.68 E: 1.17 U: 74.07

E2

BeiDou: N: -0.63 E: 1.64 U: 74.50

E5

GALILEO: N: 1.34 E: -0.20 U: 71.00

E5a

GALILEO: N: 0.82 E: -1.20 U: 69.24

E5b

GALILEO: N: 1.70 E: 0.73 U: 72.57
BeiDou: N: 1.70 E: 0.73 U: 72.57

E6

GALILEO: N: 1.39 E: 4.46 U: 77.64
BeiDou: N: 1.62 E: 4.00 U: 77.11

LEX

QZSS: N: 1.39 E: 4.46 U: 77.64


Means

GPS

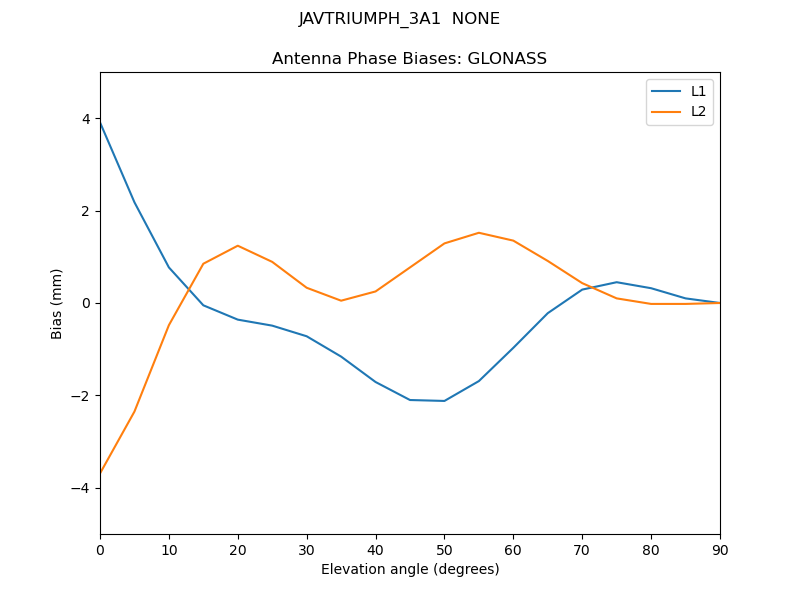

GLONASS

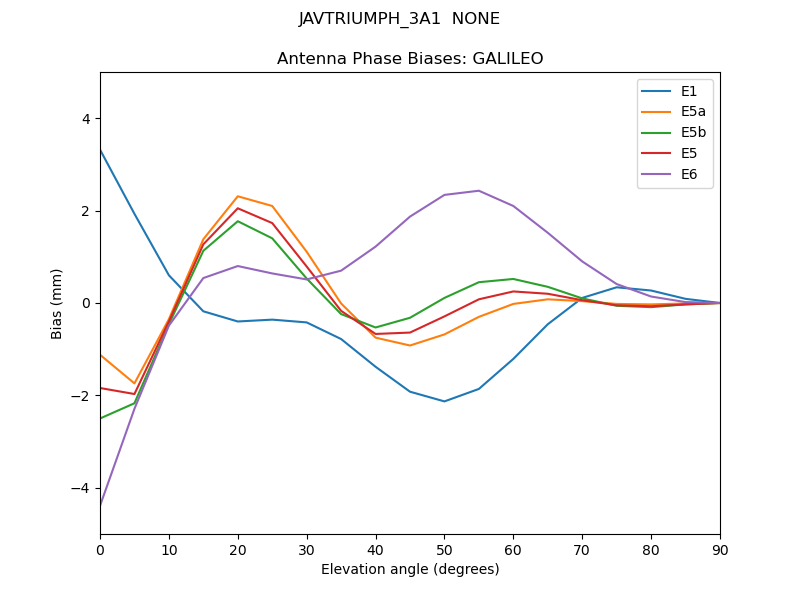

GALILEO

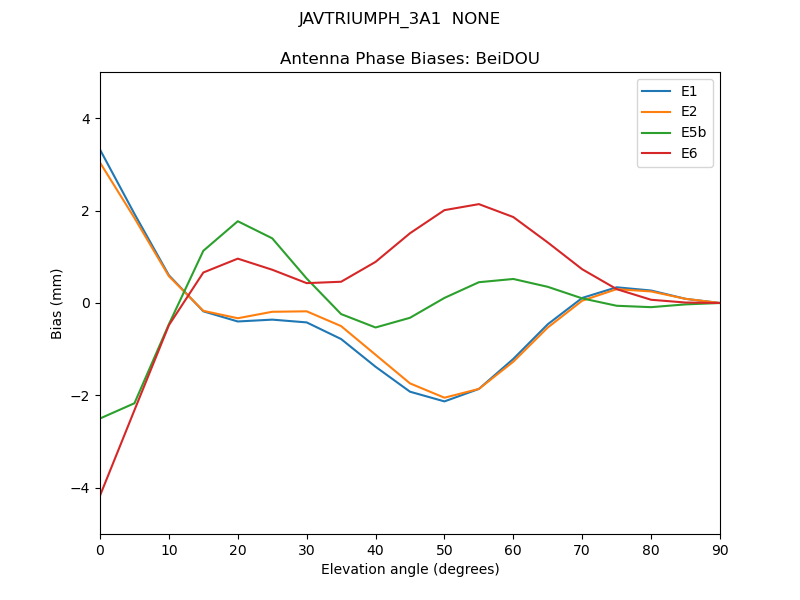

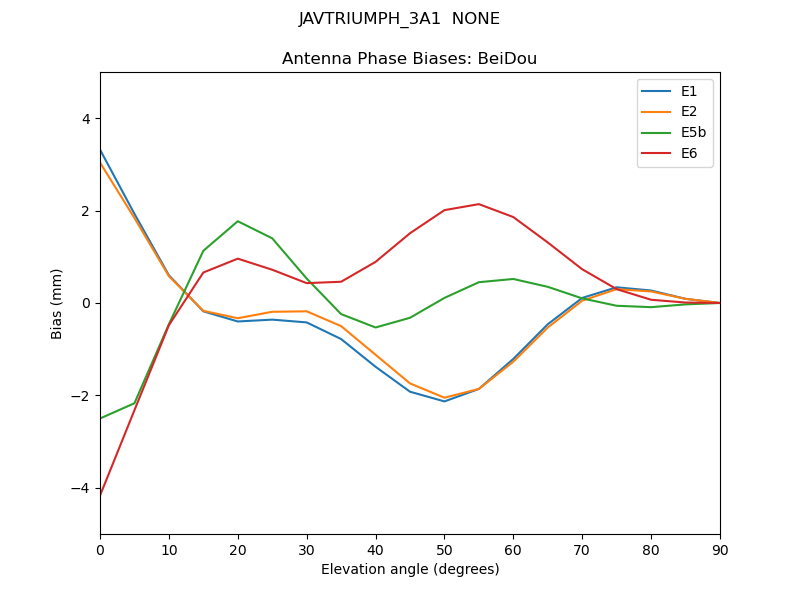

BeiDOU

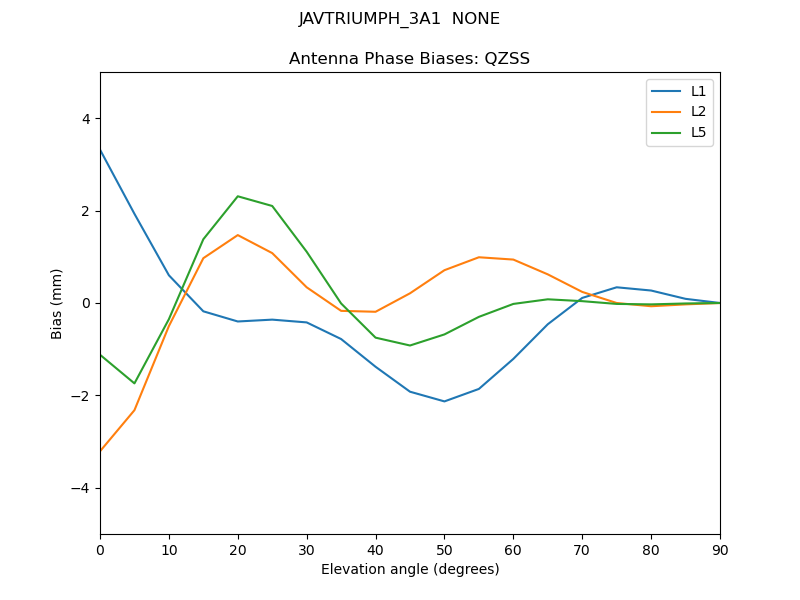

QZSS

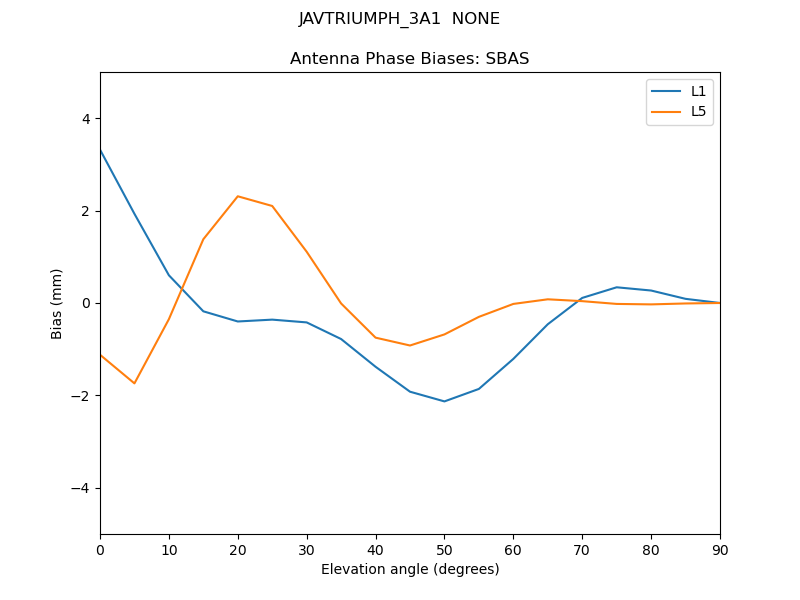

SBAS


Azimuths

GPS


Bias Delta

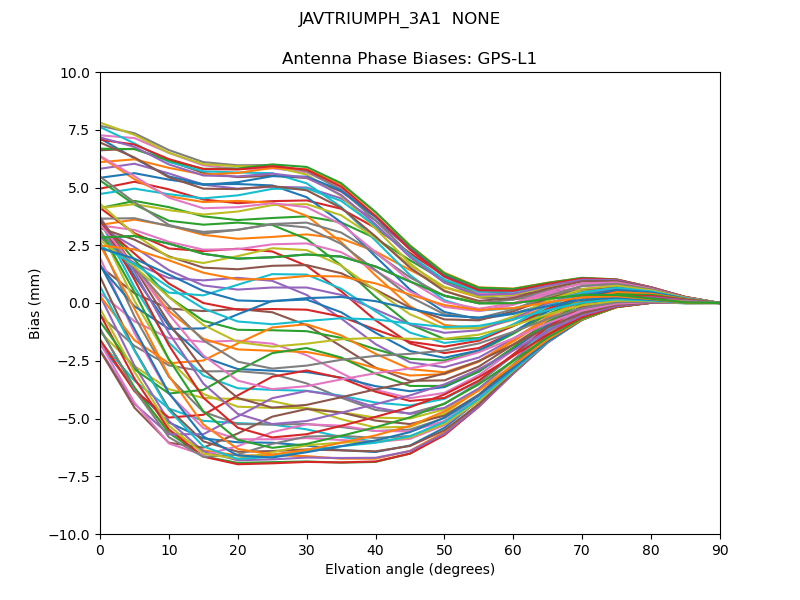

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

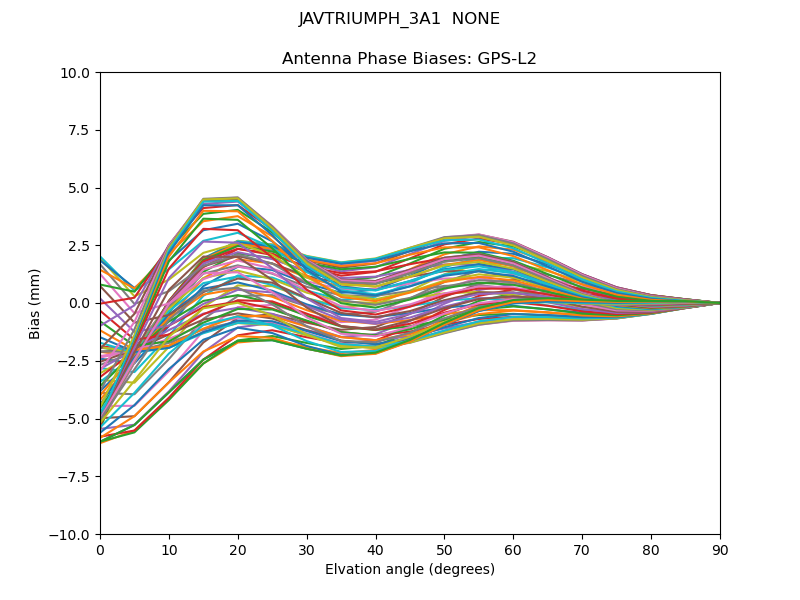

GPS-L2

GPS-L2GPS-L2

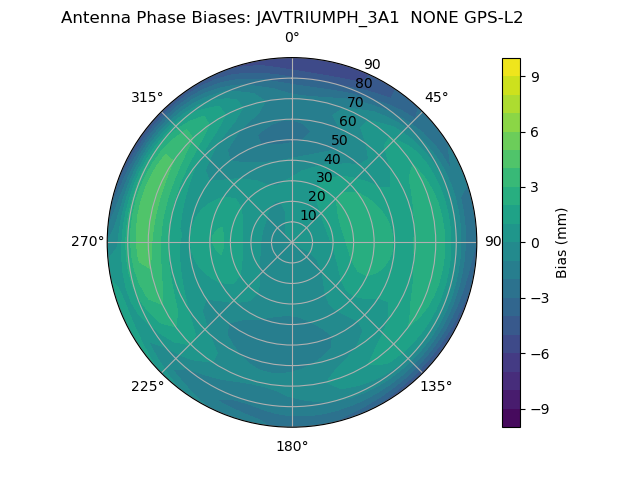

Radial GPS-L2Radial GPS-L2

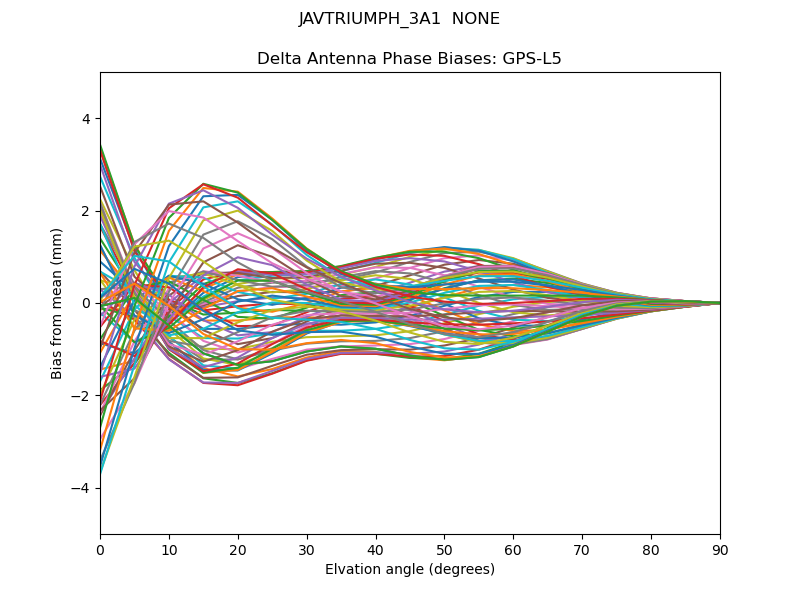

GPS-L5

GPS-L5GPS-L5

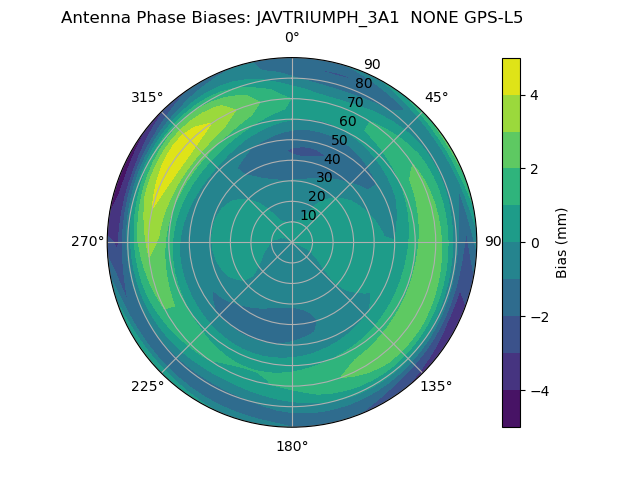

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

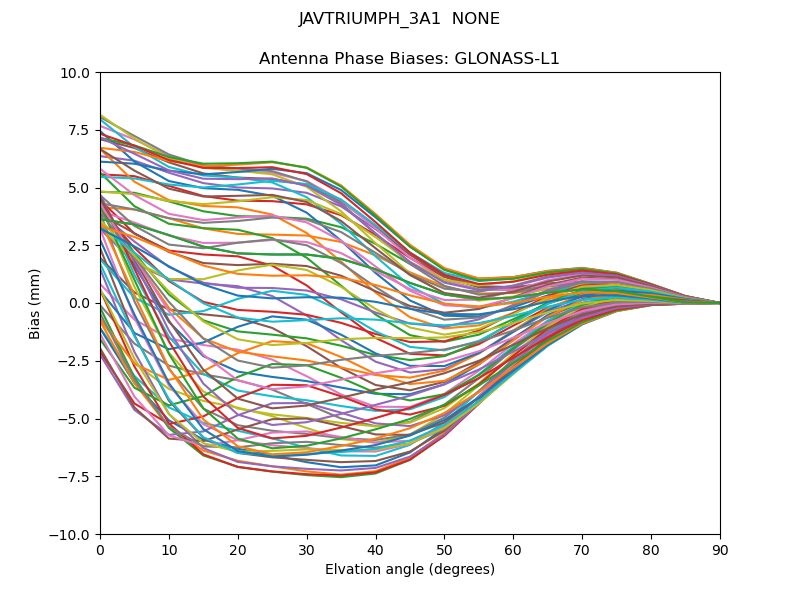

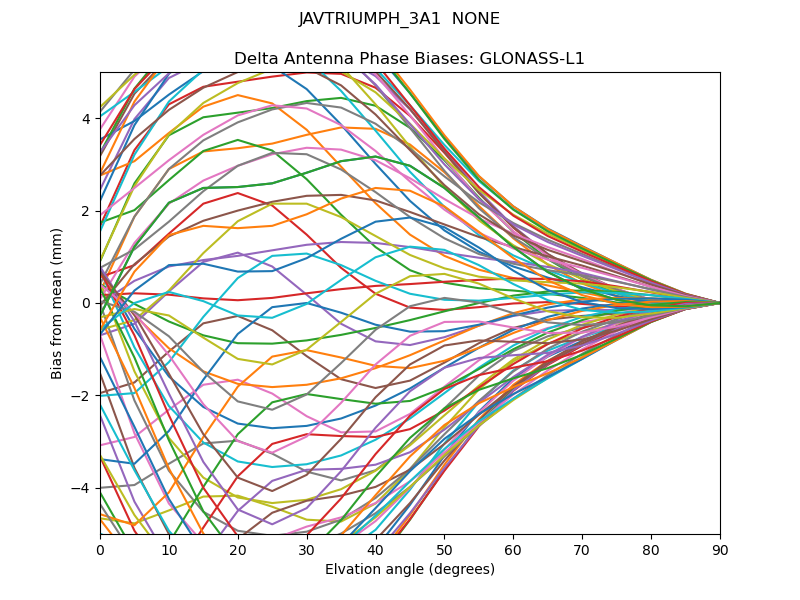

GLONASS-L1

GLONASS-L1GLONASS-L1

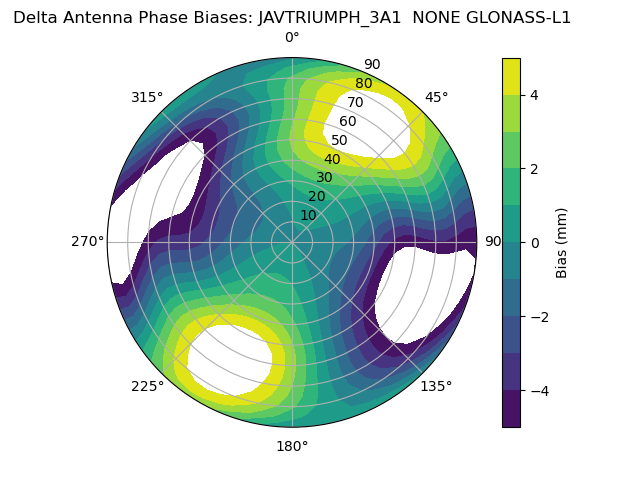

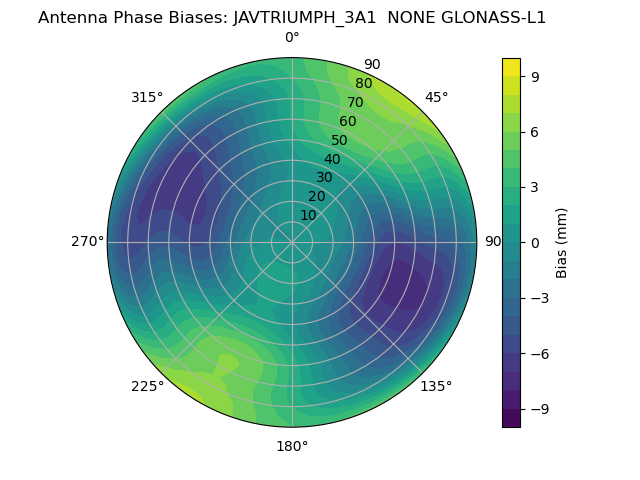

Radial GLONASS-L1Radial GLONASS-L1

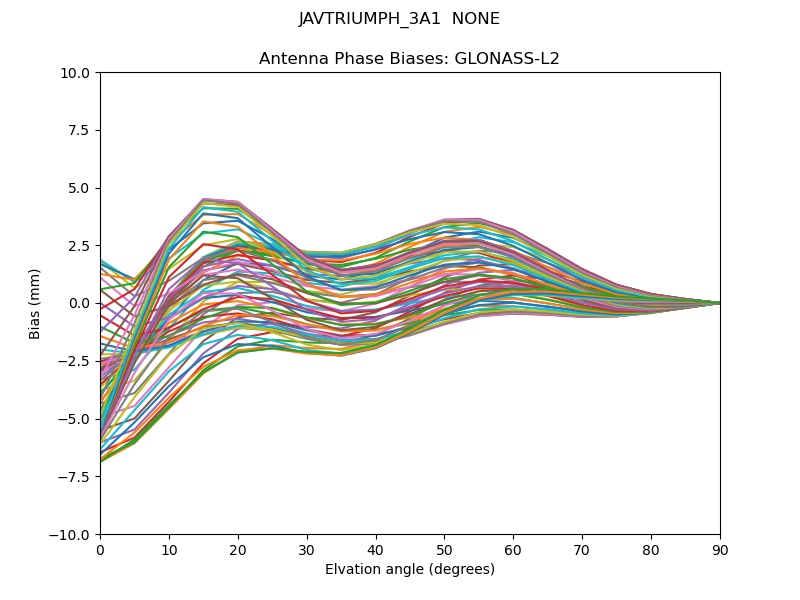

GLONASS-L2

GLONASS-L2GLONASS-L2

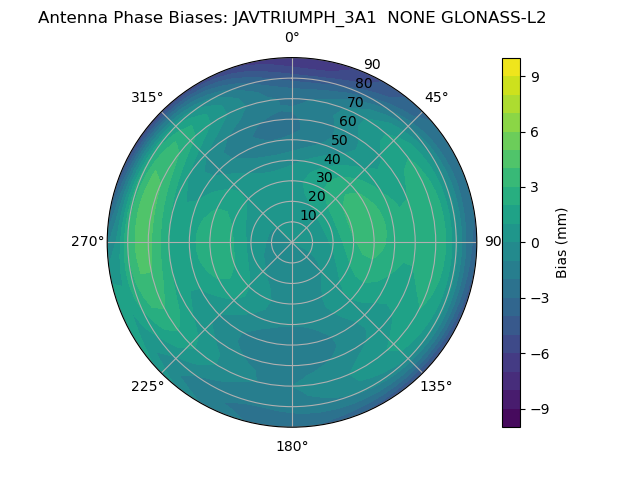

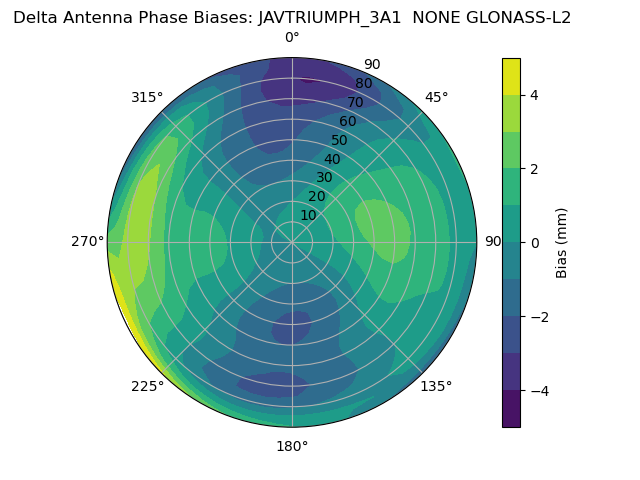

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

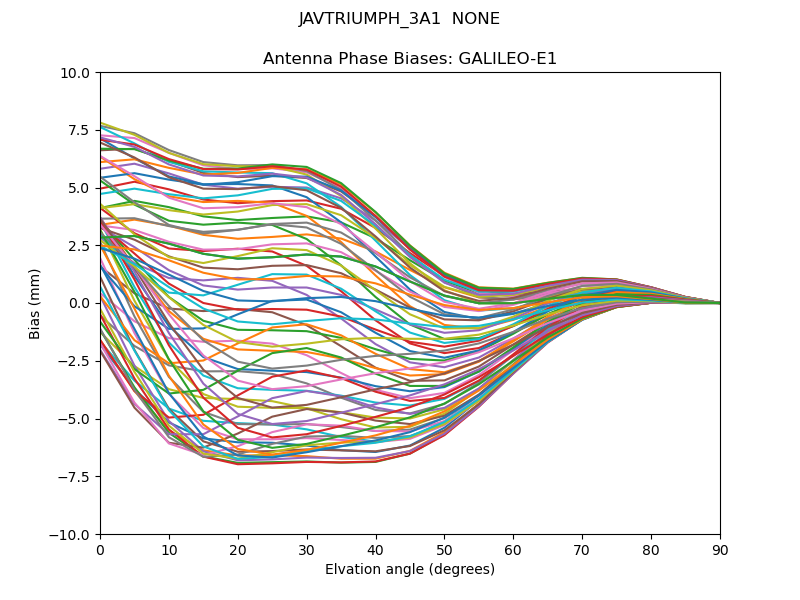

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

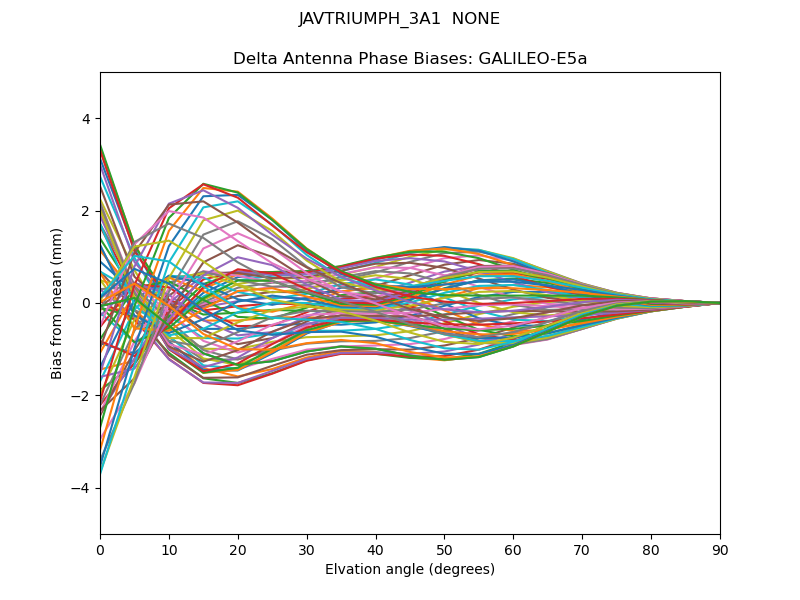

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

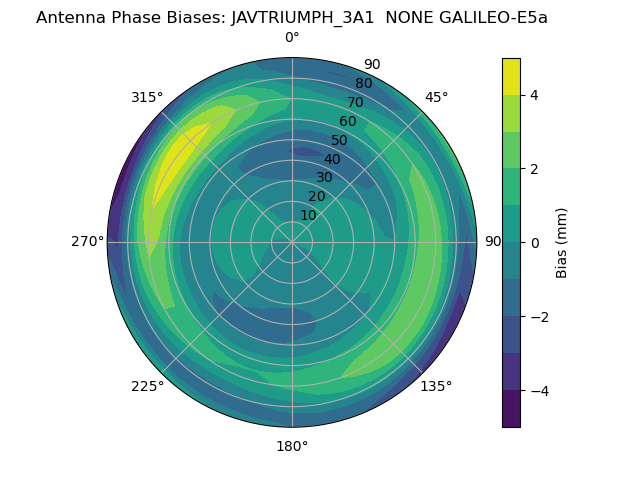

Radial GALILEO-E5aRadial GALILEO-E5a

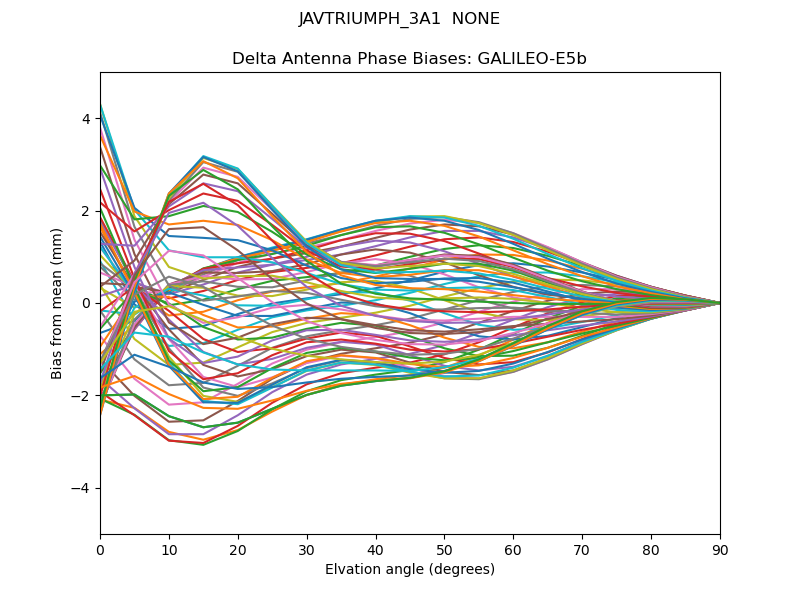

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

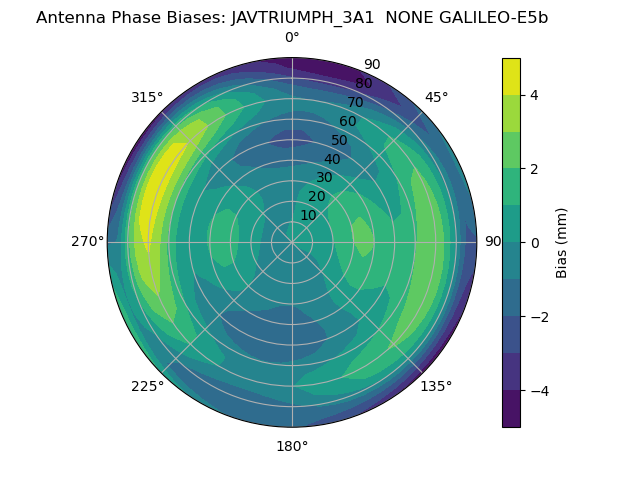

Radial GALILEO-E5bRadial GALILEO-E5b

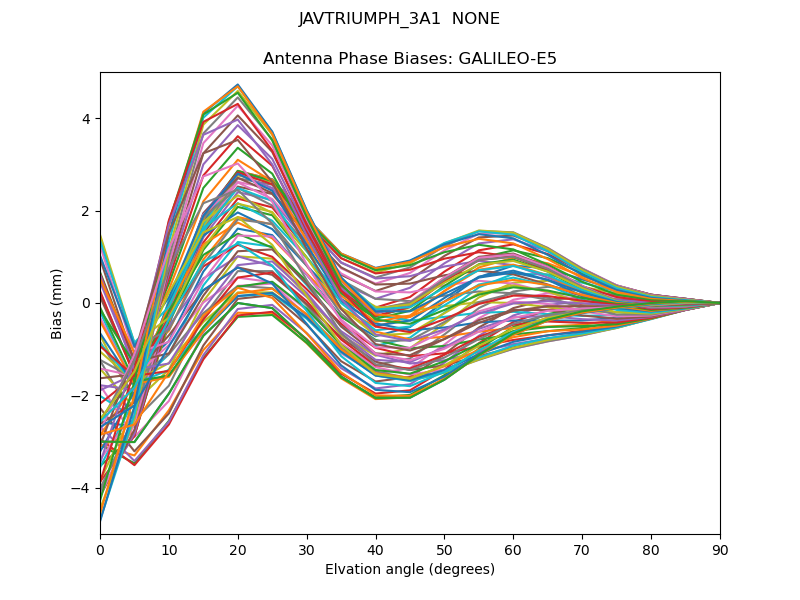

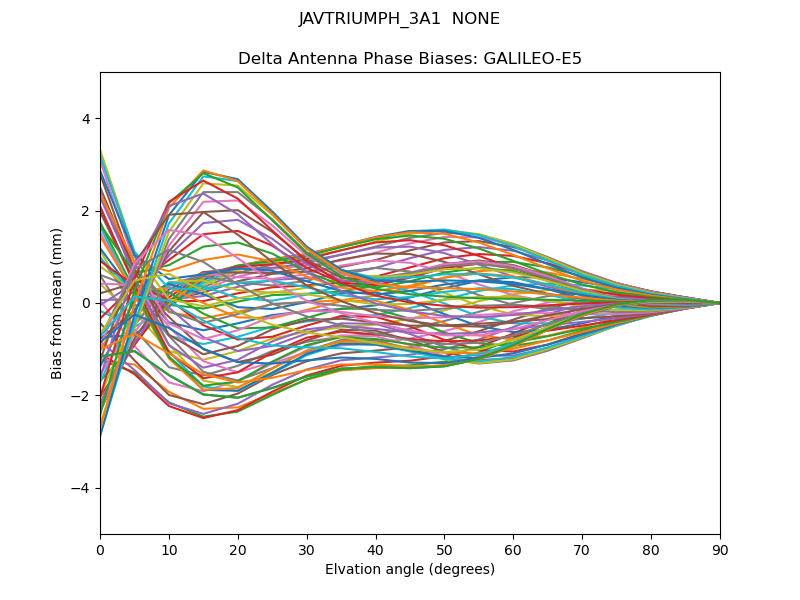

GALILEO-E5

GALILEO-E5GALILEO-E5

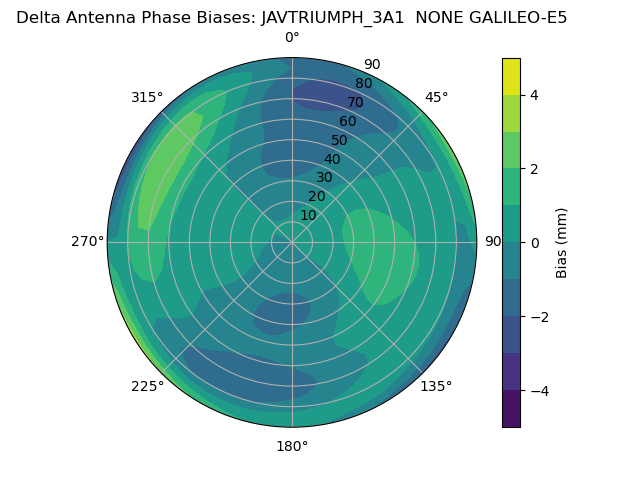

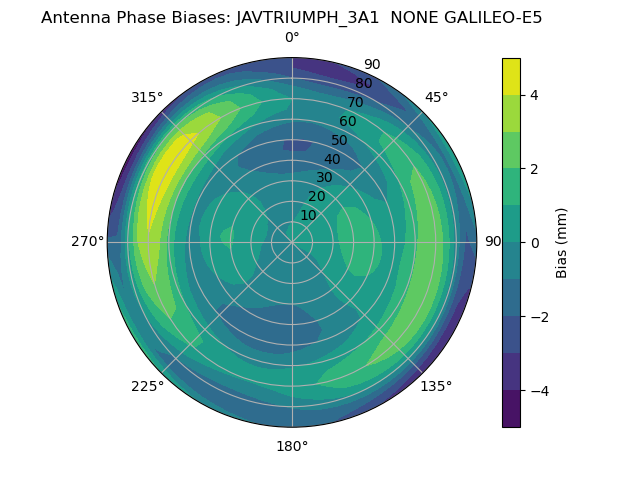

Radial GALILEO-E5Radial GALILEO-E5

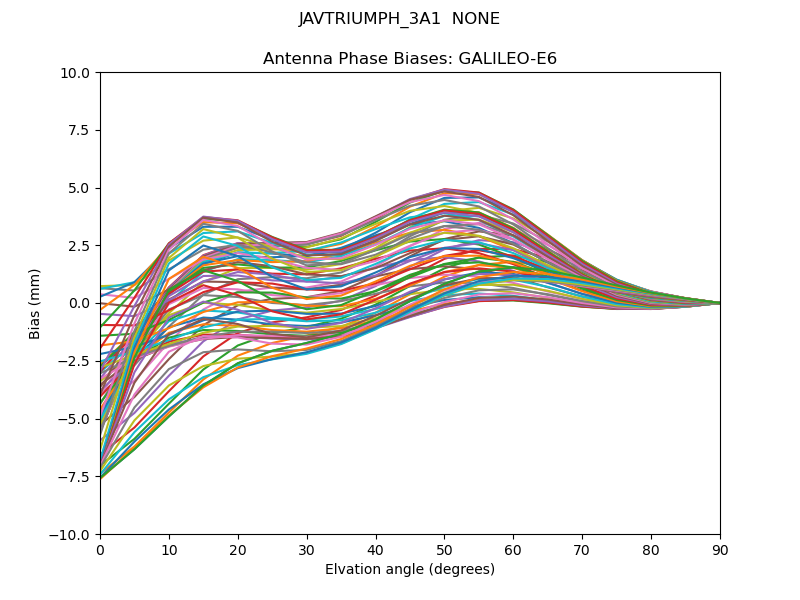

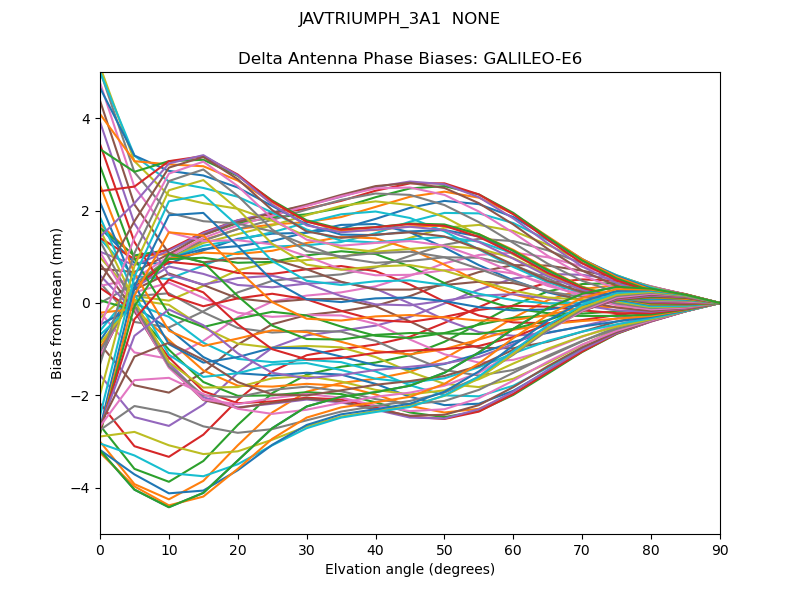

GALILEO-E6

GALILEO-E6GALILEO-E6

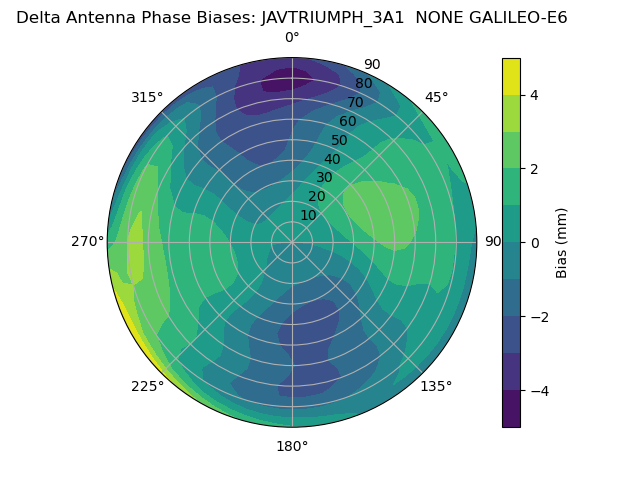

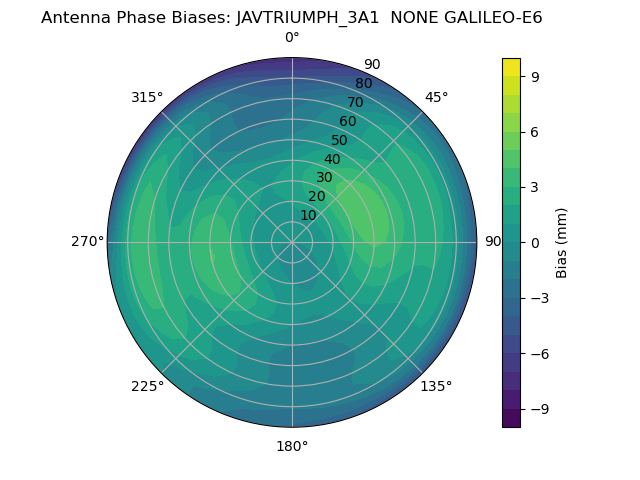

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

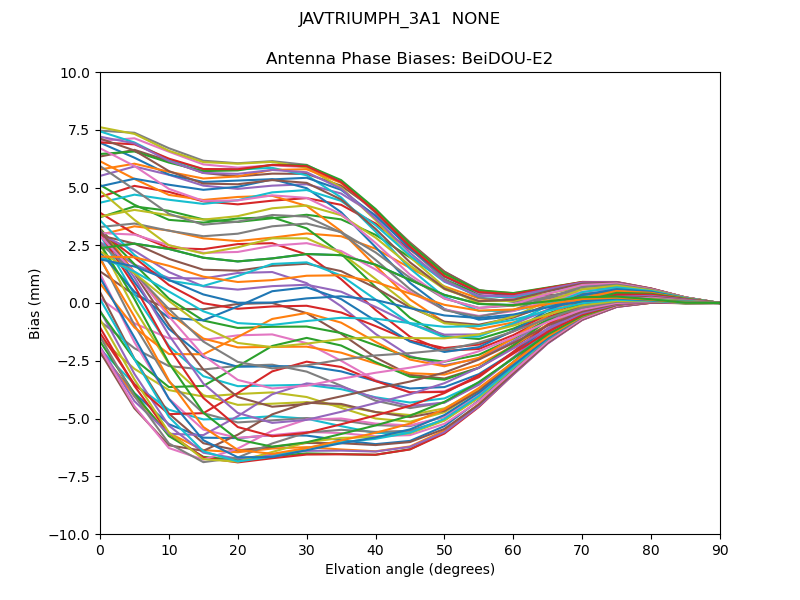

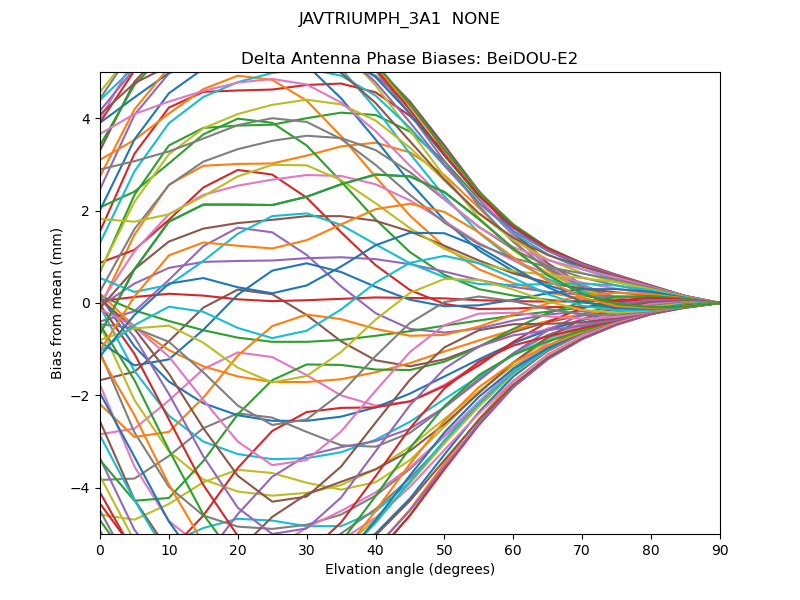

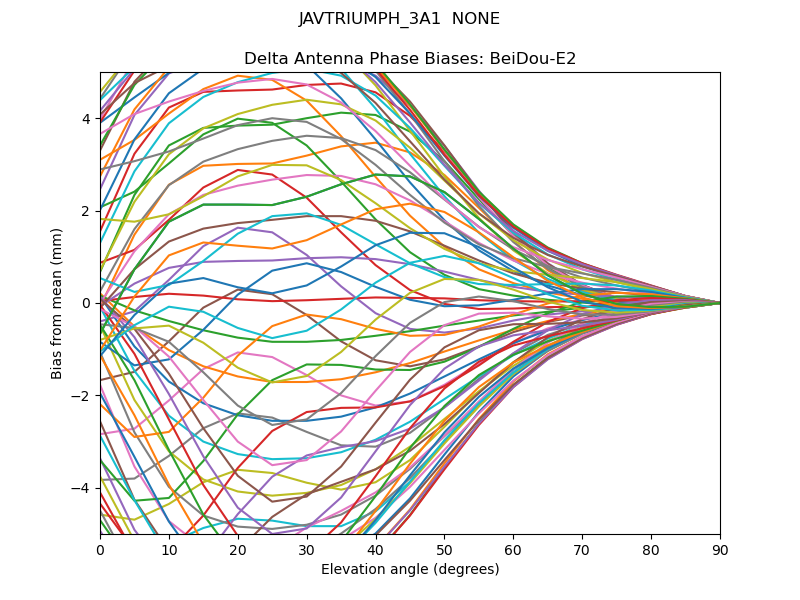

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

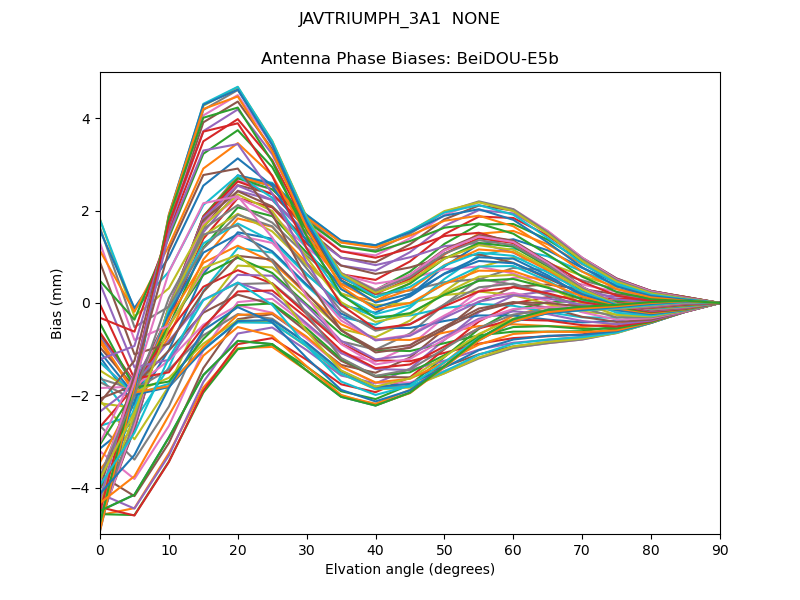

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

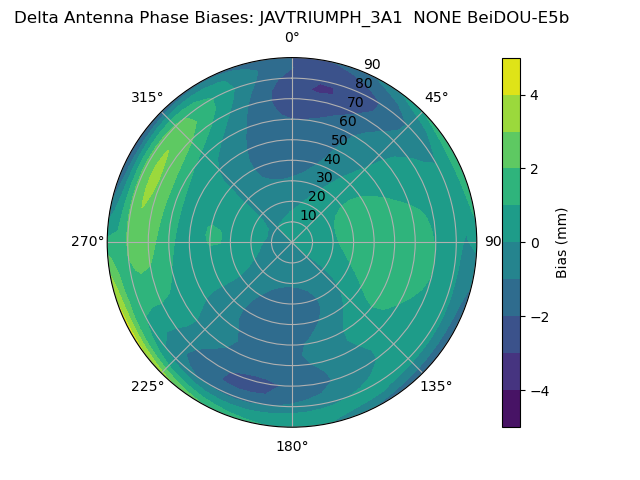

Radial BeiDOU-E5bRadial BeiDOU-E5b

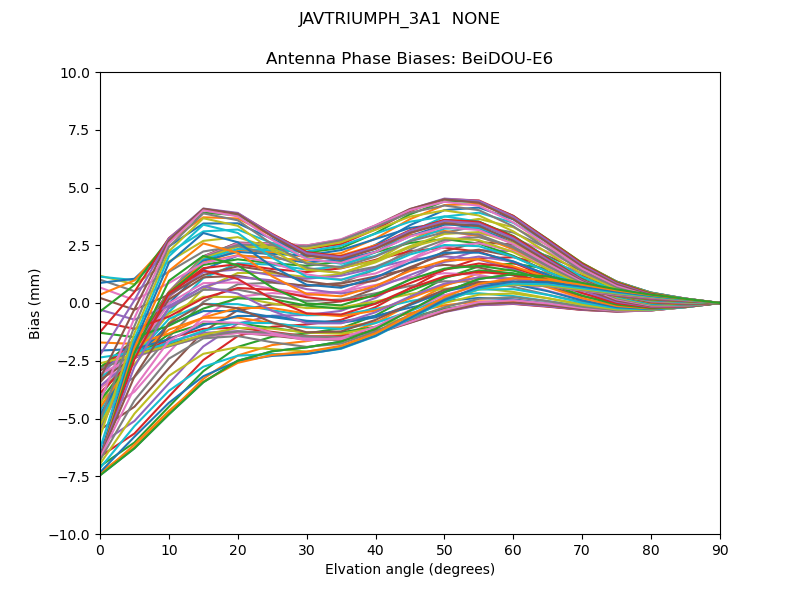

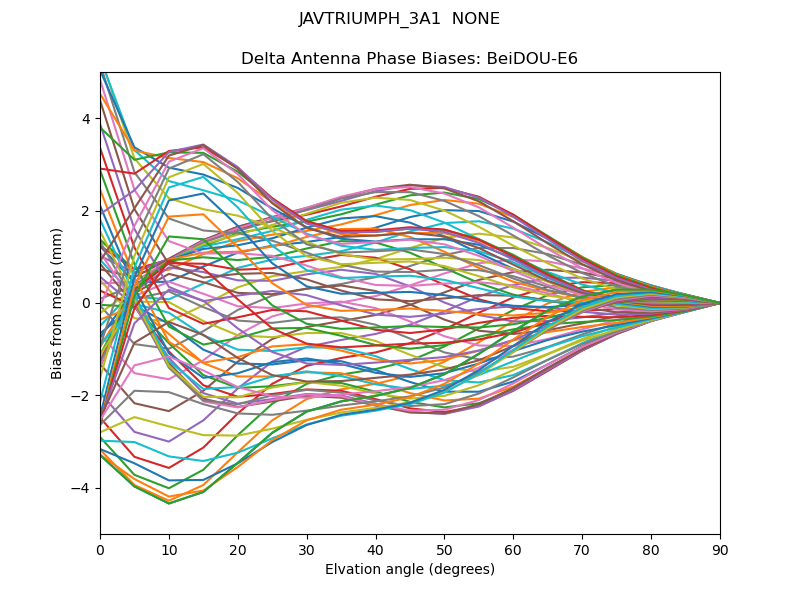

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

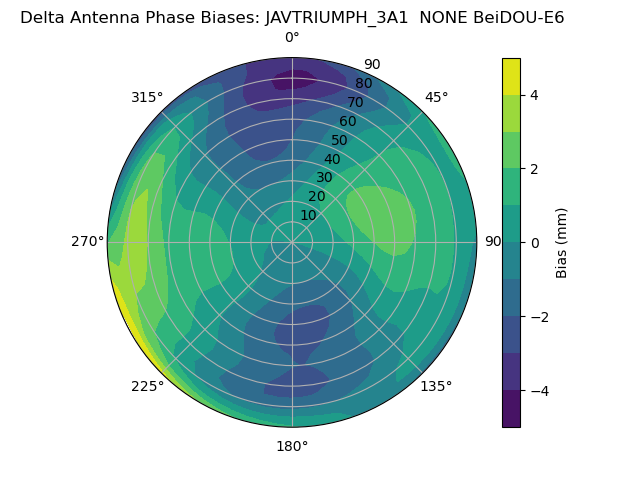

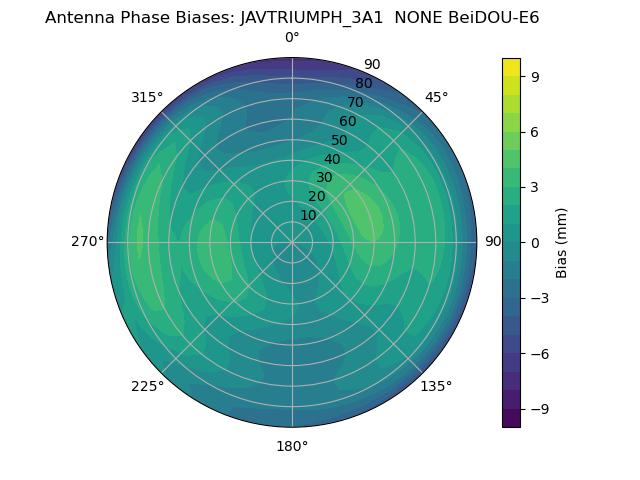

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

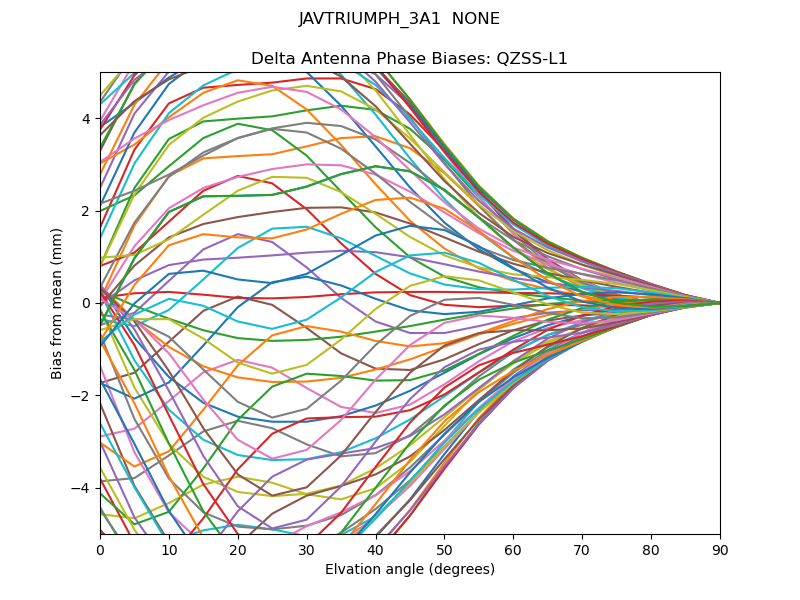

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

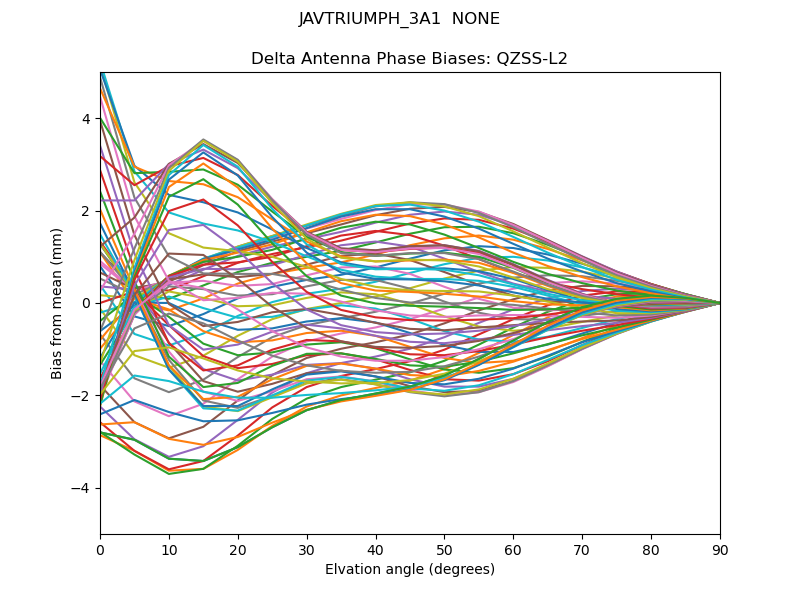

QZSS-L2

QZSS-L2QZSS-L2

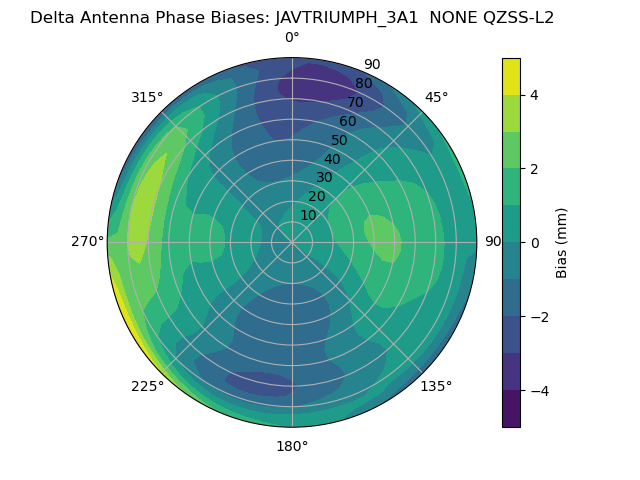

Radial QZSS-L2Radial QZSS-L2

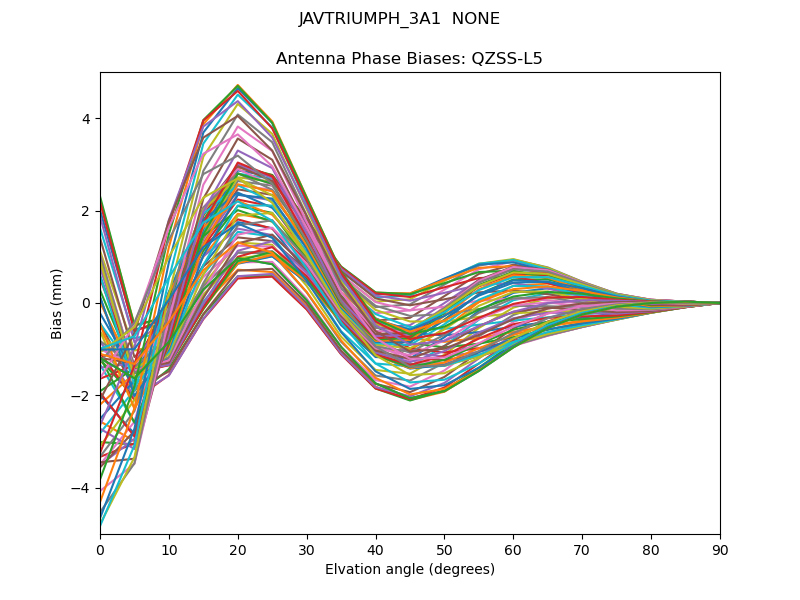

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

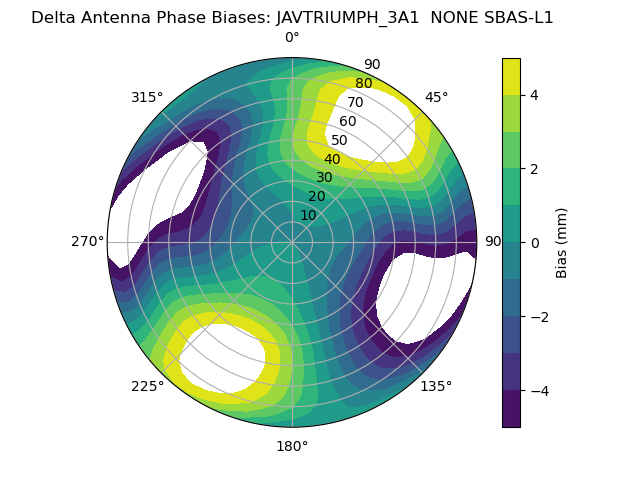

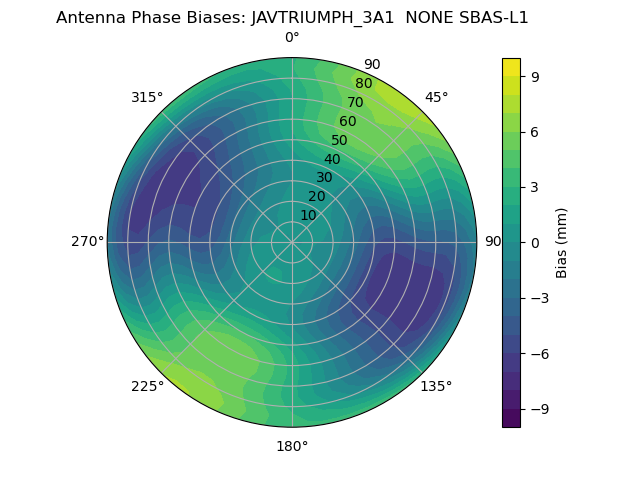

Radial SBAS-L1Radial SBAS-L1

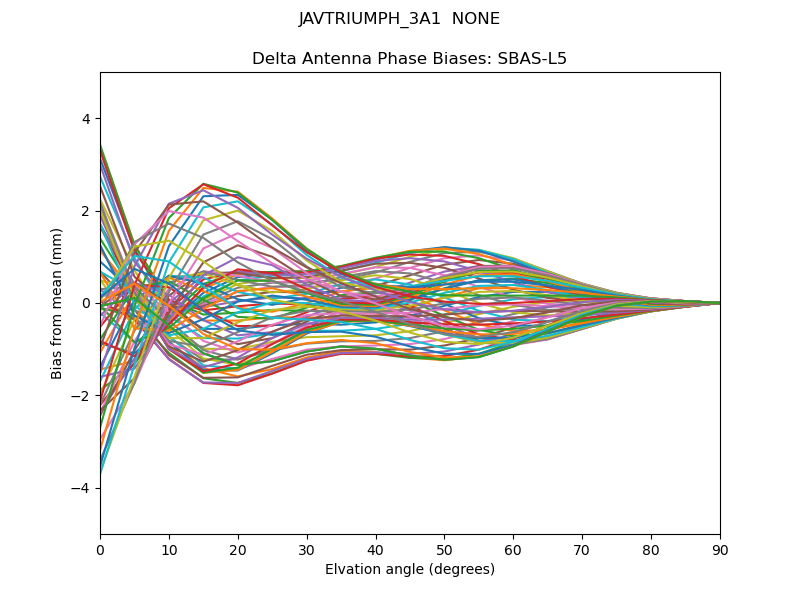

SBAS-L5

SBAS-L5SBAS-L5

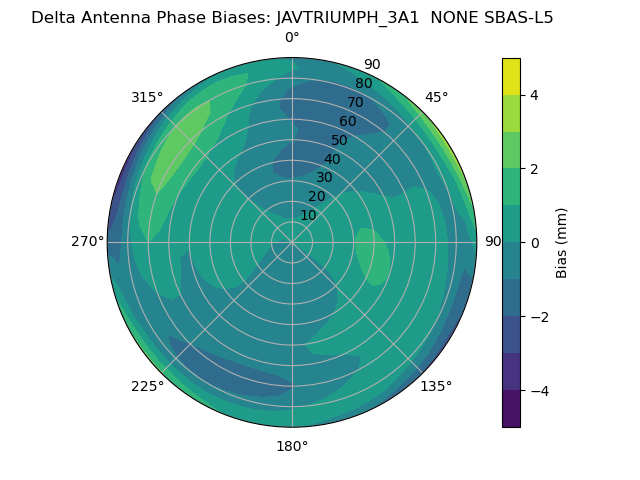

Radial SBAS-L5Radial SBAS-L5
