Antenna information for JAVTRIUMPH_3A NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.58 E: 1.91 U: 74.58
L2: N: 1.71 E: 1.24 U: 72.19
L5: N: -0.09 E: -0.85 U: 70.25

GLONASS

L1: N: -0.71 E: 1.18 U: 75.08
L2: N: 1.03 E: 1.78 U: 73.10

GALILEO

E1: N: -0.58 E: 1.91 U: 74.58
E5a: N: -0.09 E: -0.85 U: 70.25
E5b: N: 1.66 E: 0.52 U: 71.29
E5: N: 1.05 E: -0.13 U: 70.72
E6: N: -1.81 E: 2.47 U: 74.99

BeiDou

E1: N: -0.58 E: 1.91 U: 74.58
E2: N: -0.49 E: 2.33 U: 74.31
E5b: N: 1.66 E: 0.52 U: 71.29
E6: N: -0.71 E: 2.30 U: 74.35

QZSS

L1: N: -0.58 E: 1.91 U: 74.58
L2: N: 1.71 E: 1.24 U: 72.19
L5: N: -0.09 E: -0.85 U: 70.25
LEX: N: -1.81 E: 2.47 U: 74.99

IRNSS

L5: N: -0.09 E: -0.85 U: 70.25

SBAS

L1: N: -0.58 E: 1.91 U: 74.58
L5: N: -0.09 E: -0.85 U: 70.25

L1

GPS: N: -0.58 E: 1.91 U: 74.58
GLONASS: N: -0.71 E: 1.18 U: 75.08
QZSS: N: -0.58 E: 1.91 U: 74.58
SBAS: N: -0.58 E: 1.91 U: 74.58

L2

GPS: N: 1.71 E: 1.24 U: 72.19
GLONASS: N: 1.03 E: 1.78 U: 73.10
QZSS: N: 1.71 E: 1.24 U: 72.19

L5

GPS: N: -0.09 E: -0.85 U: 70.25
QZSS: N: -0.09 E: -0.85 U: 70.25
SBAS: N: -0.09 E: -0.85 U: 70.25
IRNSS: N: -0.09 E: -0.85 U: 70.25

E1

GALILEO: N: -0.58 E: 1.91 U: 74.58
BeiDou: N: -0.58 E: 1.91 U: 74.58

E2

BeiDou: N: -0.49 E: 2.33 U: 74.31

E5

GALILEO: N: 1.05 E: -0.13 U: 70.72

E5a

GALILEO: N: -0.09 E: -0.85 U: 70.25

E5b

GALILEO: N: 1.66 E: 0.52 U: 71.29
BeiDou: N: 1.66 E: 0.52 U: 71.29

E6

GALILEO: N: -1.81 E: 2.47 U: 74.99
BeiDou: N: -0.71 E: 2.30 U: 74.35

LEX

QZSS: N: -1.81 E: 2.47 U: 74.99


Means

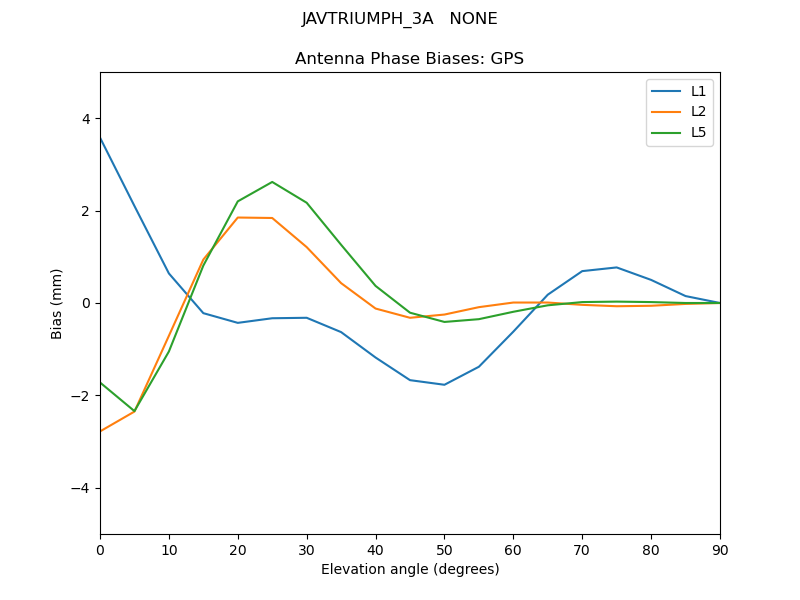

GPS

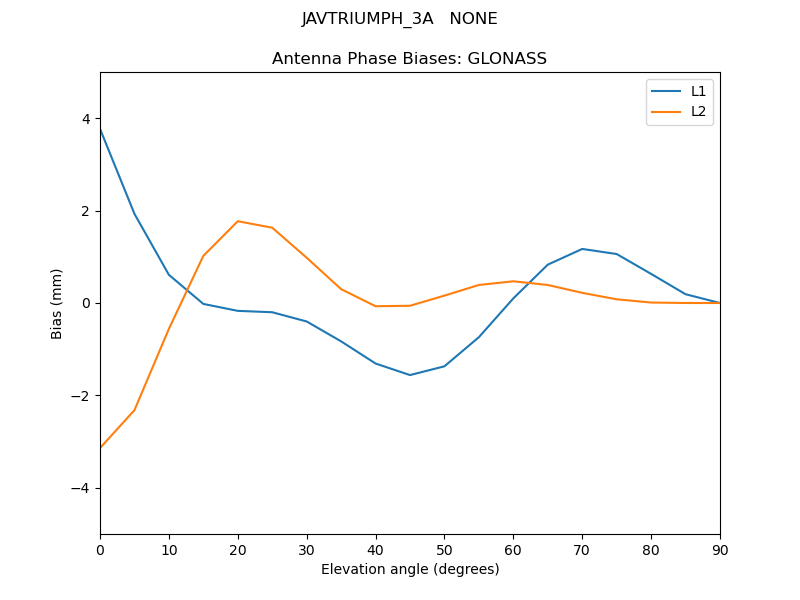

GLONASS

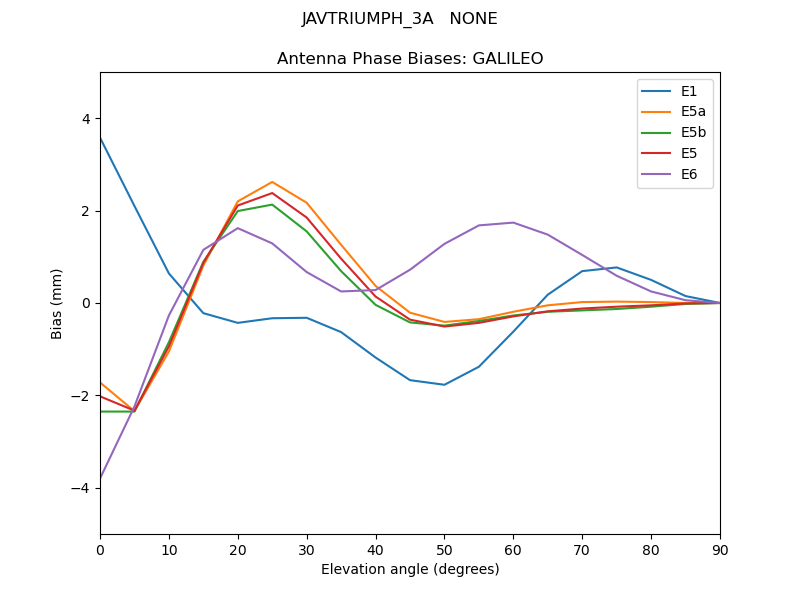

GALILEO

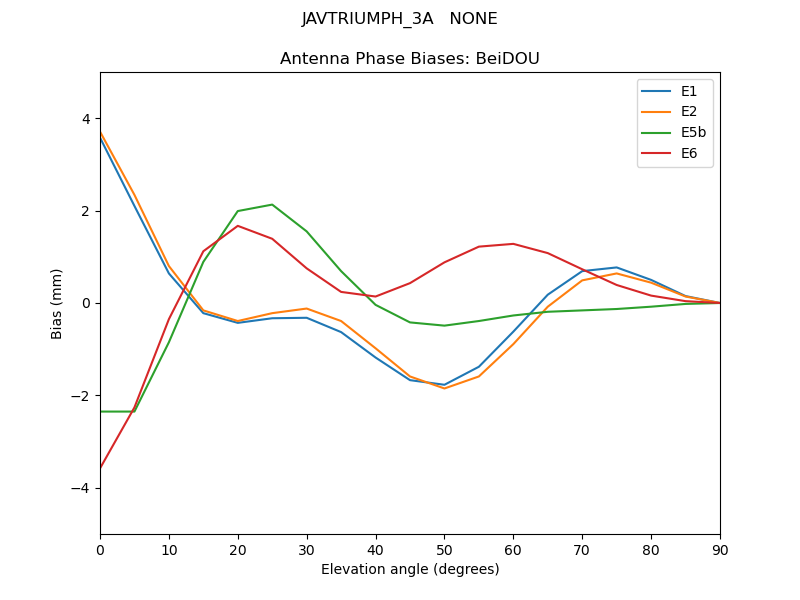

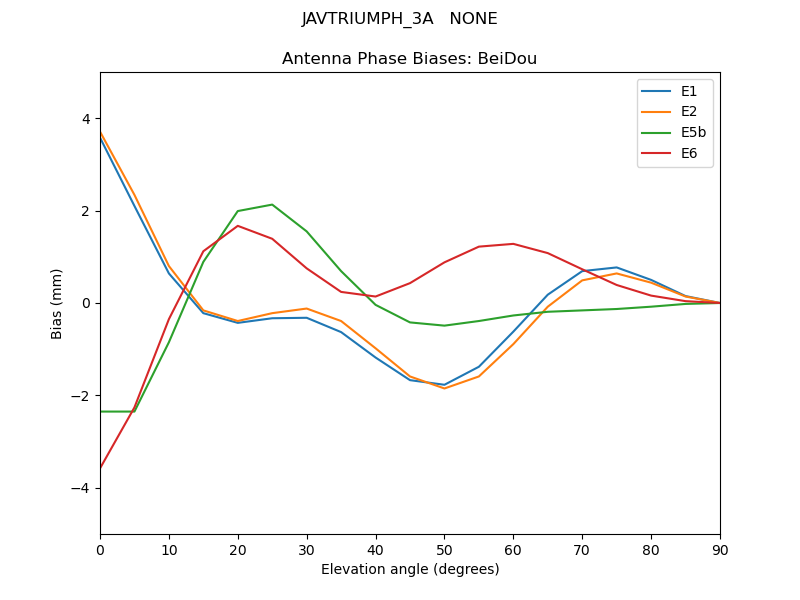

BeiDOU

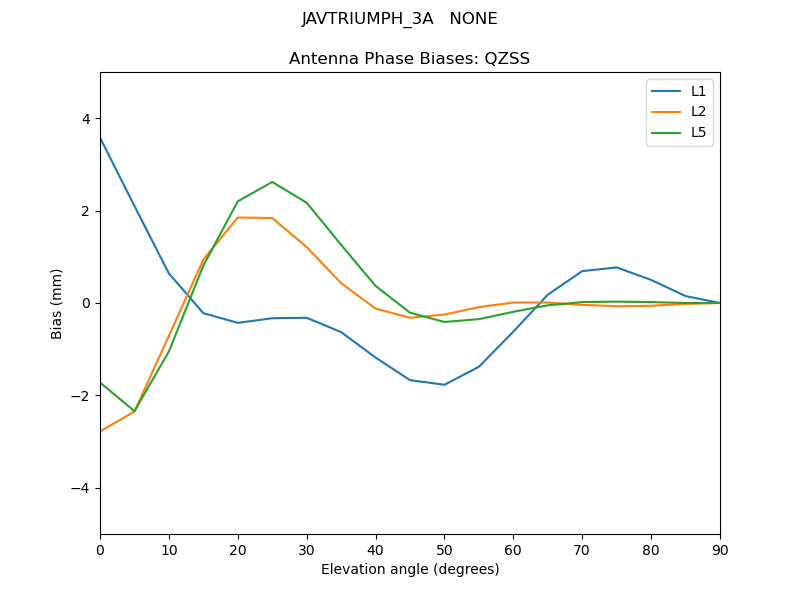

QZSS

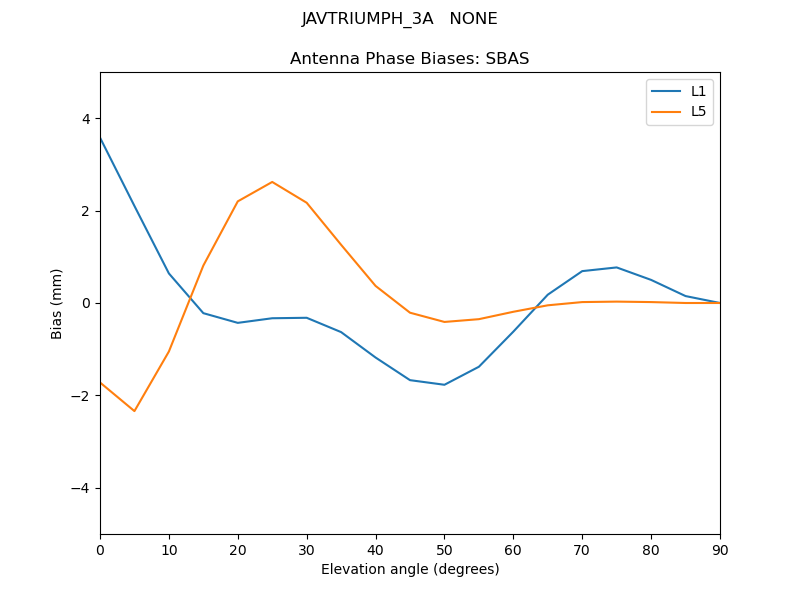

SBAS

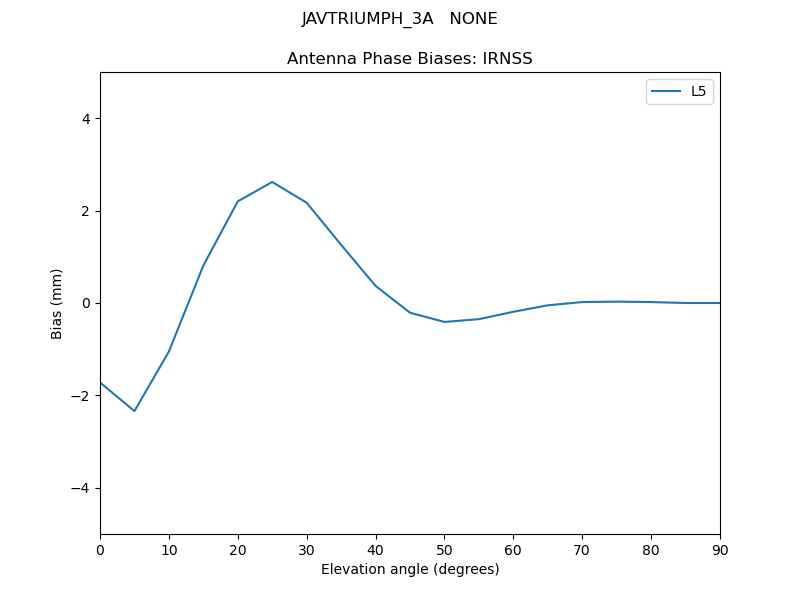

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

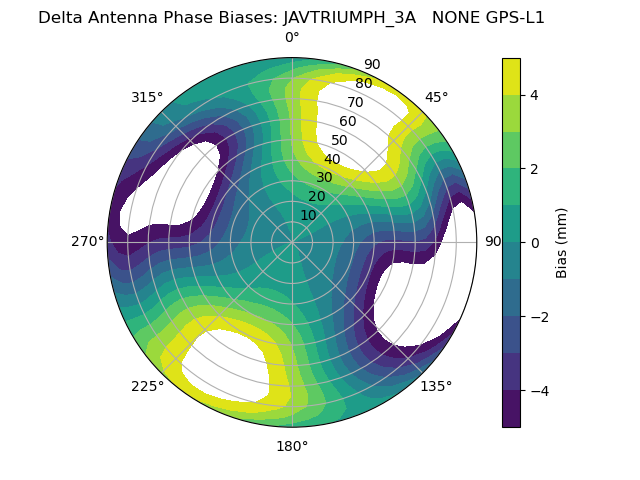

Radial GPS-L1Radial GPS-L1

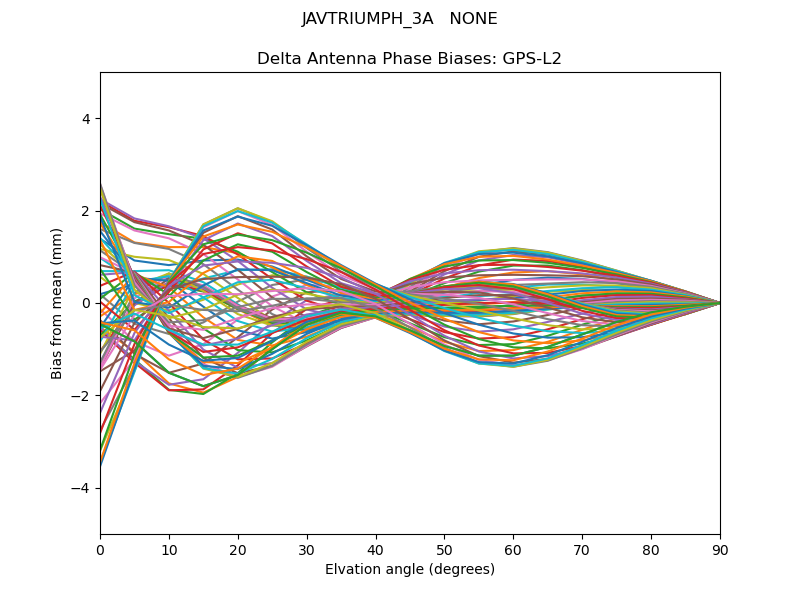

GPS-L2

GPS-L2GPS-L2

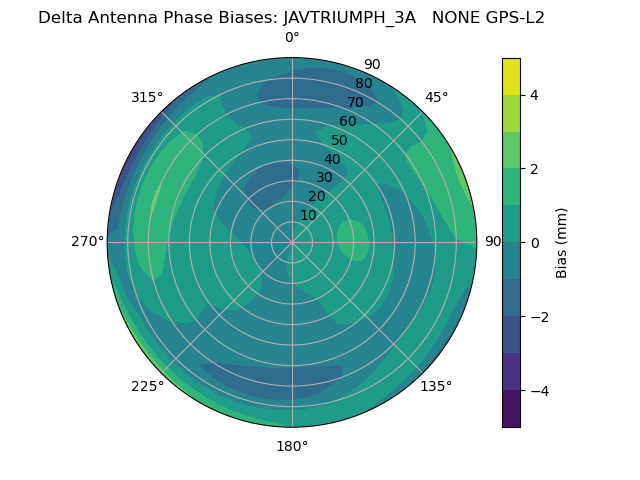

Radial GPS-L2Radial GPS-L2

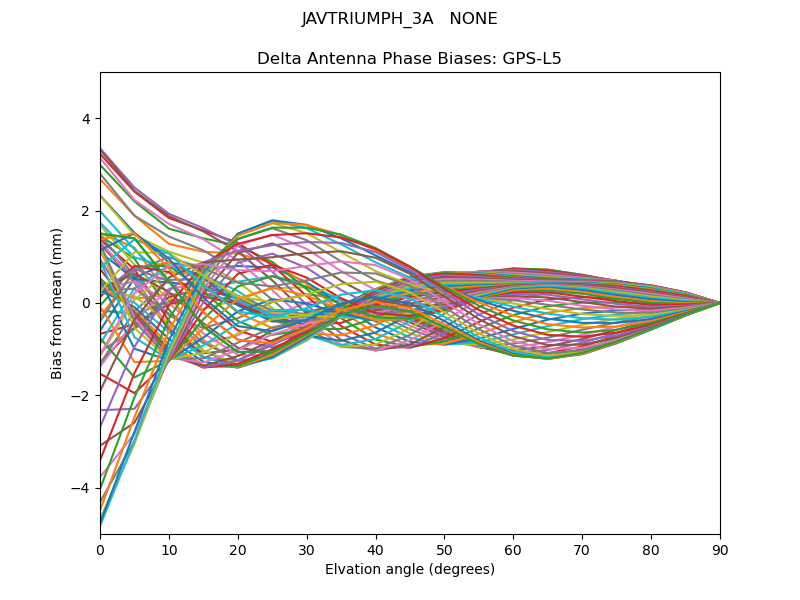

GPS-L5

GPS-L5GPS-L5
Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

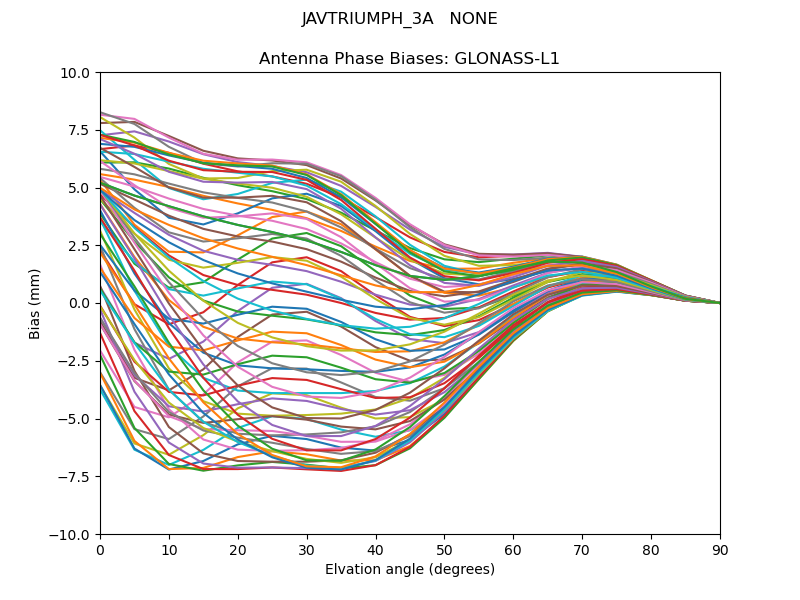

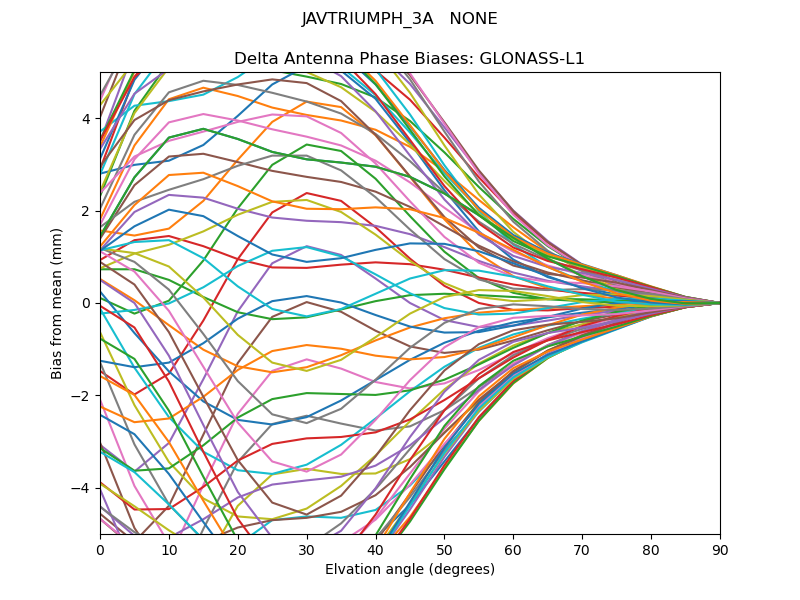

GLONASS-L1

GLONASS-L1GLONASS-L1

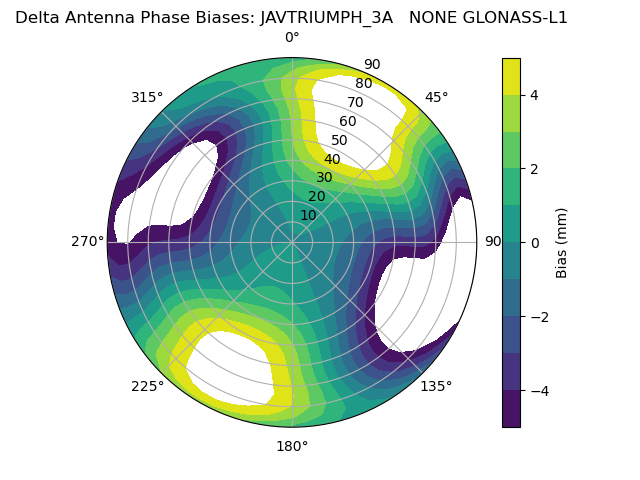

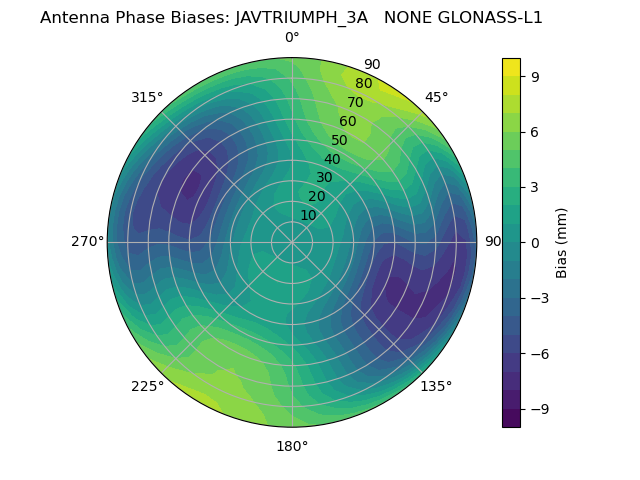

Radial GLONASS-L1Radial GLONASS-L1

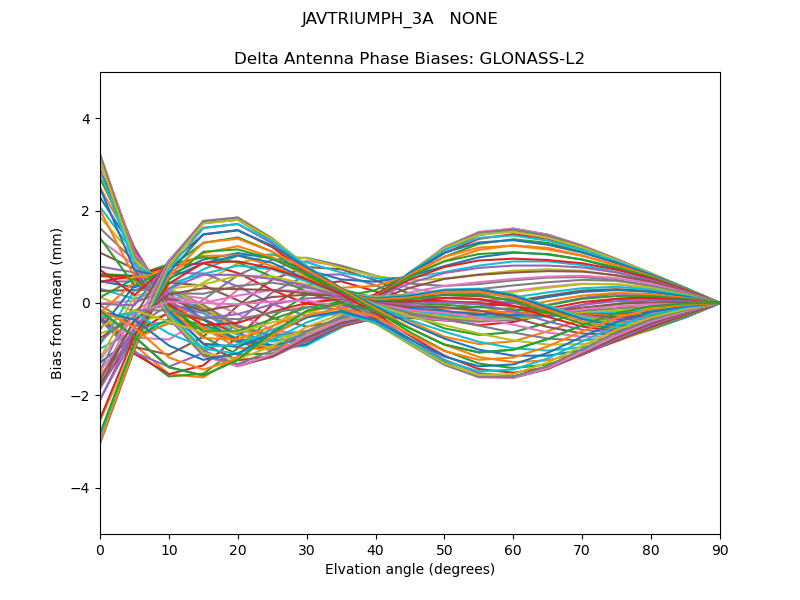

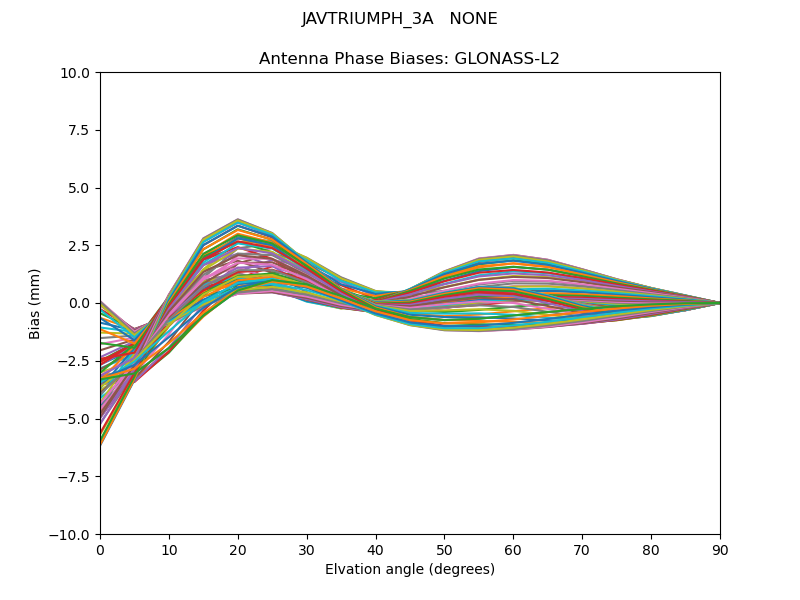

GLONASS-L2

GLONASS-L2GLONASS-L2

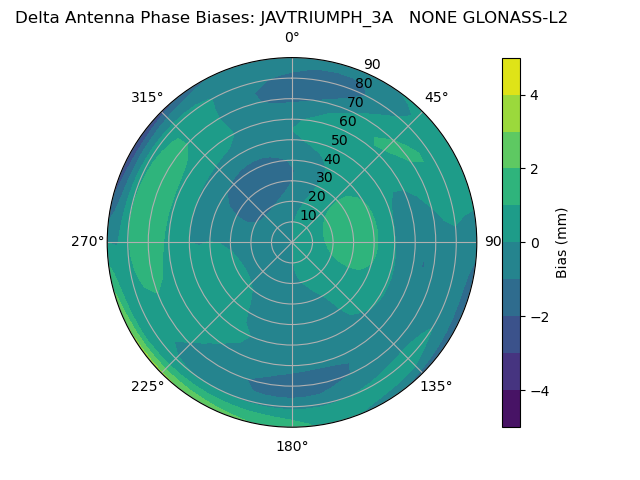

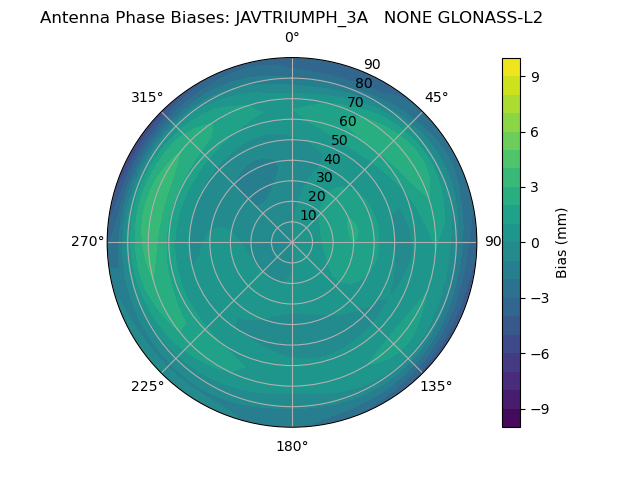

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

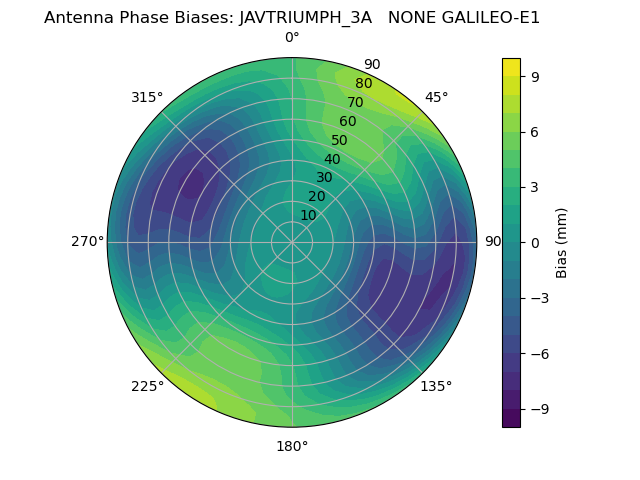

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

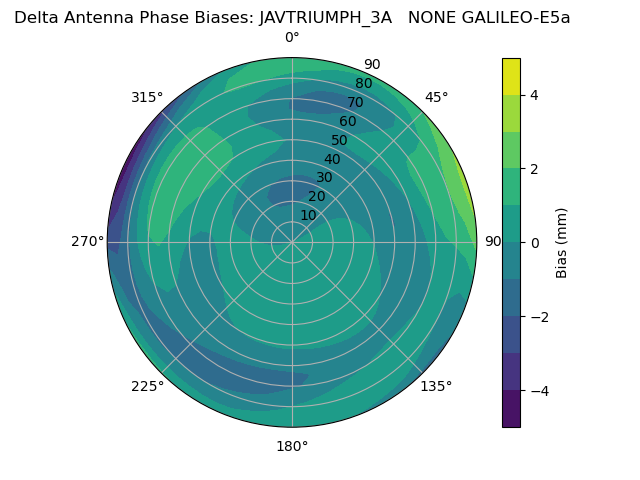

Radial GALILEO-E5aRadial GALILEO-E5a

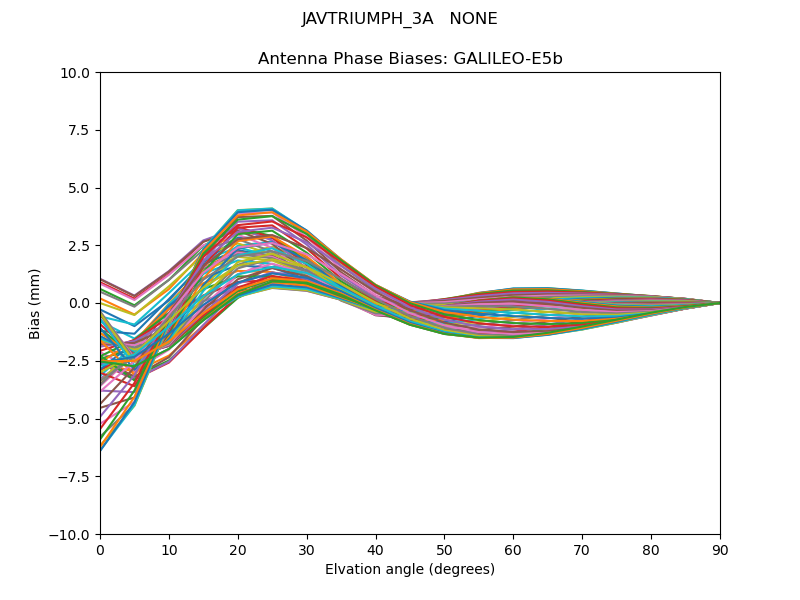

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

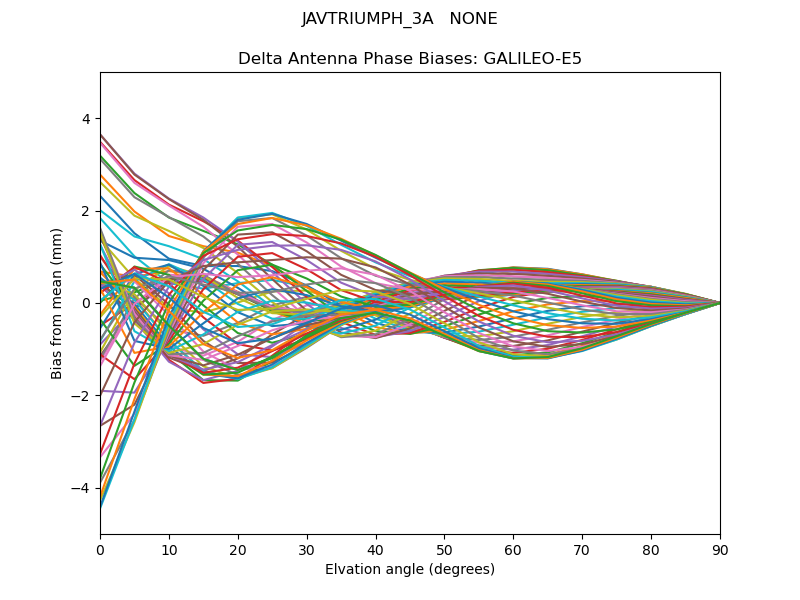

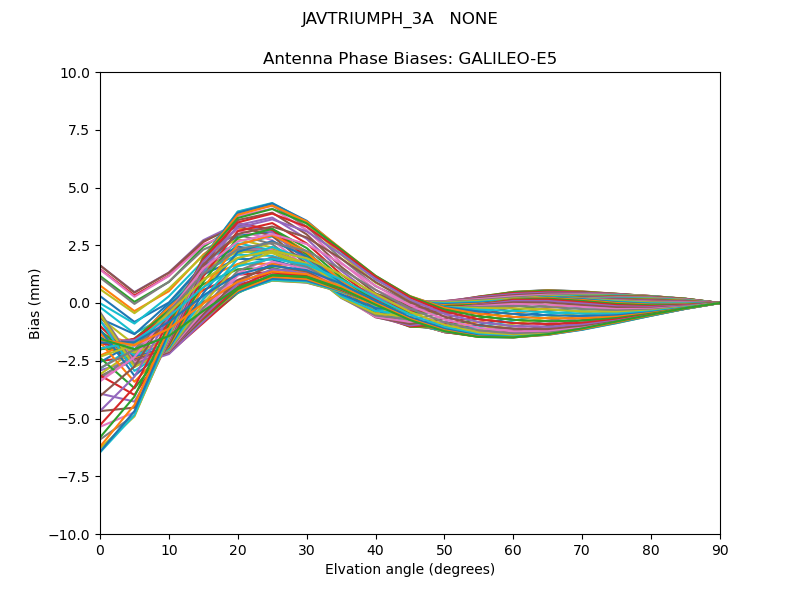

GALILEO-E5

GALILEO-E5GALILEO-E5

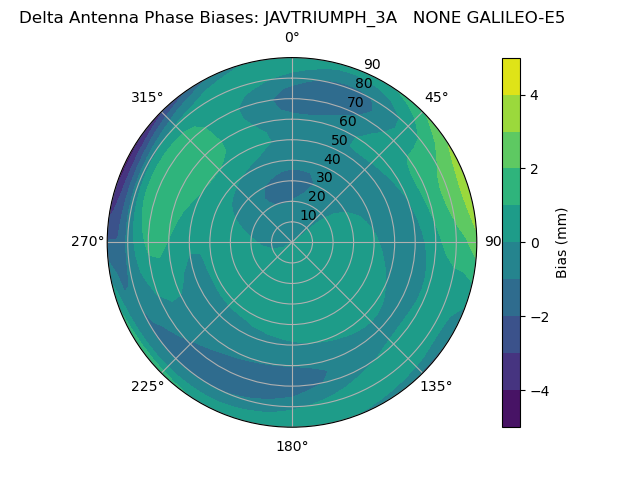

Radial GALILEO-E5Radial GALILEO-E5

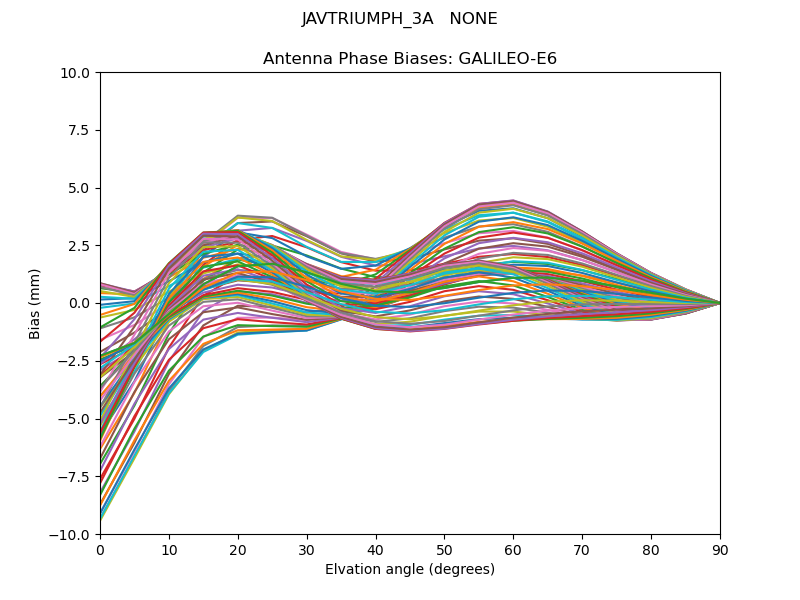

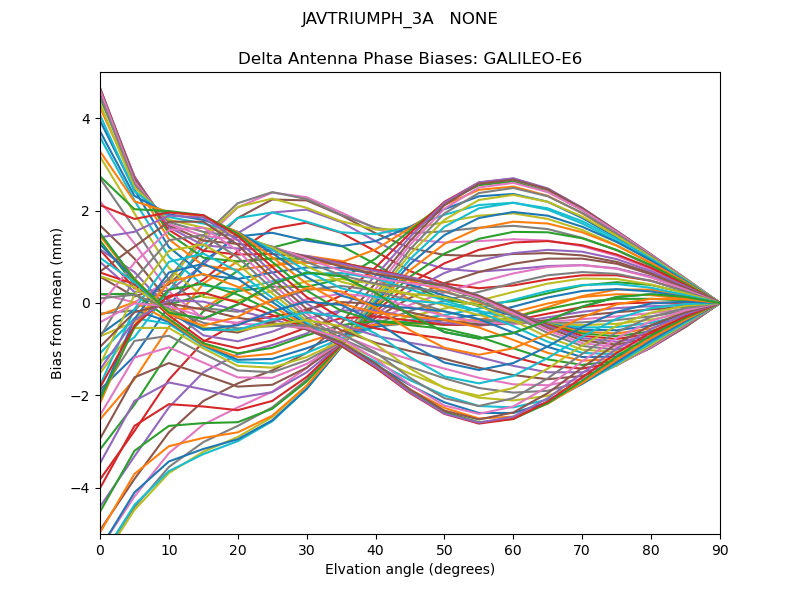

GALILEO-E6

GALILEO-E6GALILEO-E6

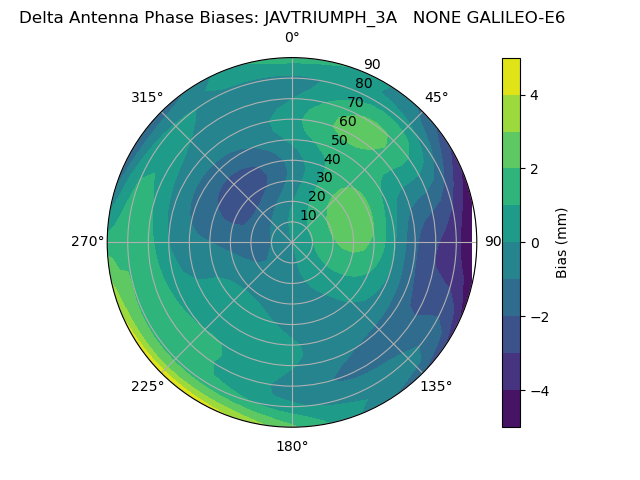

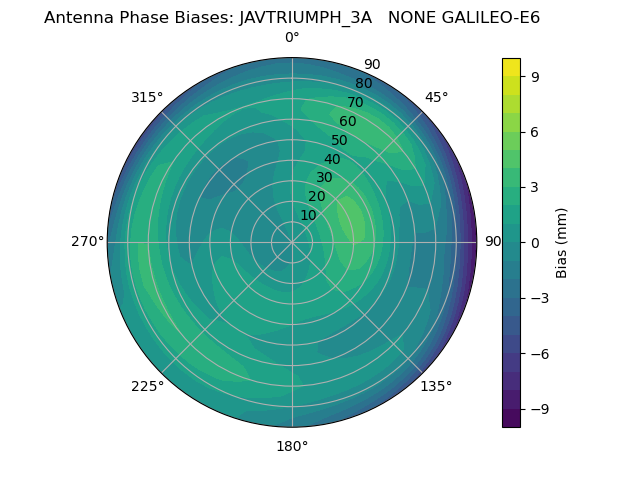

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

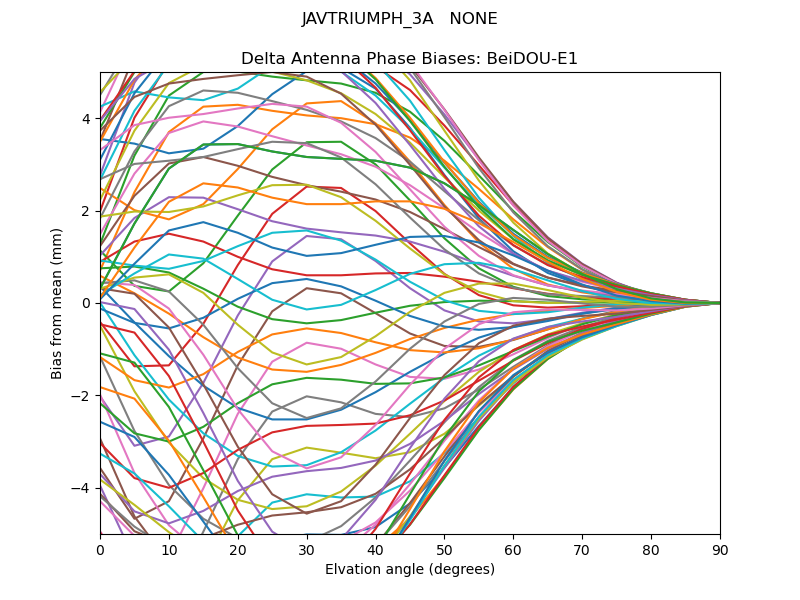

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

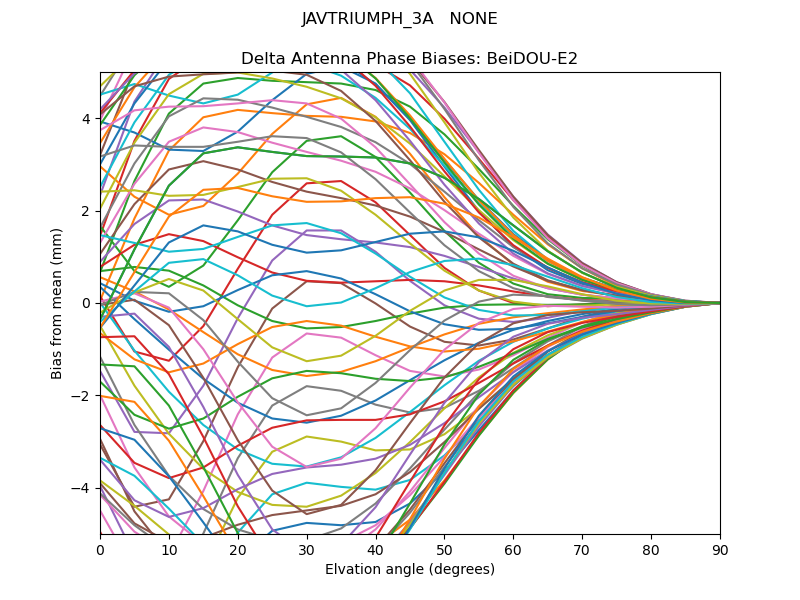

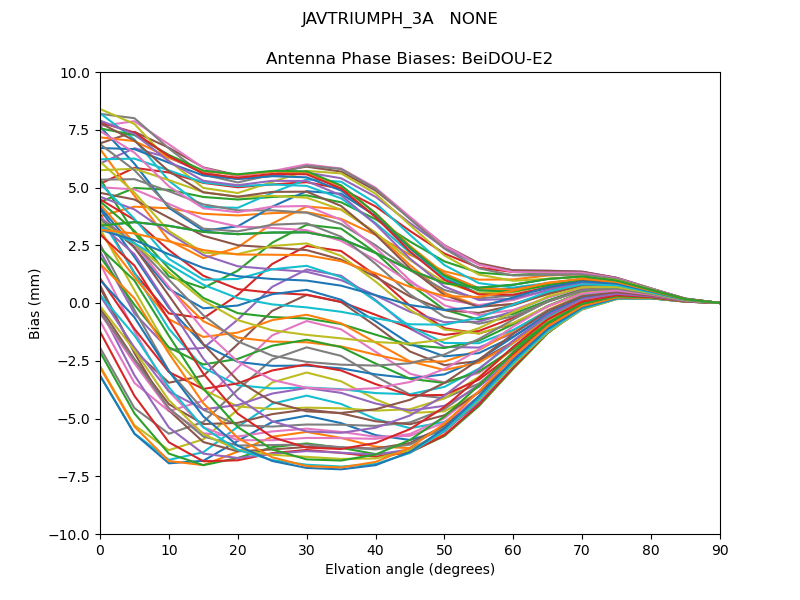

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

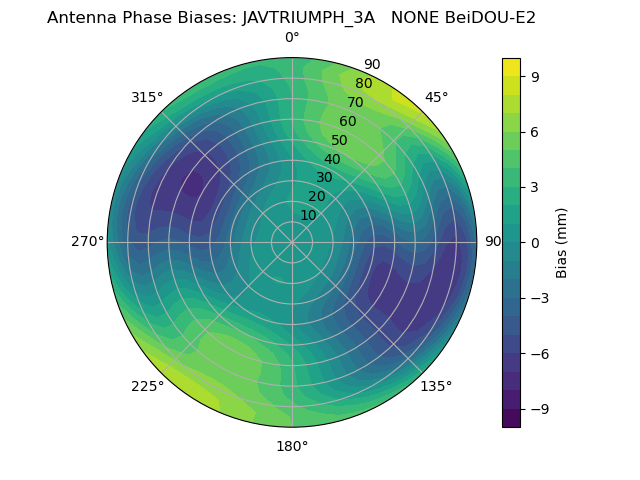

Radial BeiDOU-E2Radial BeiDOU-E2

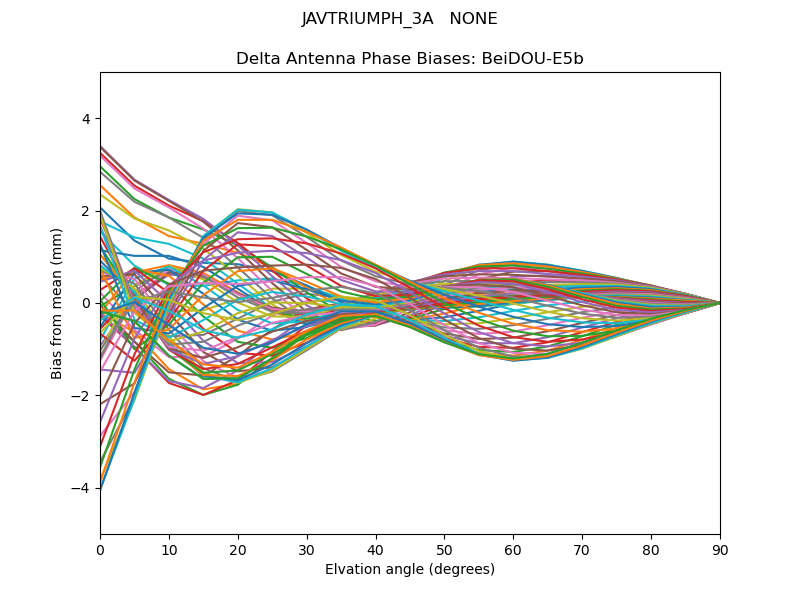

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

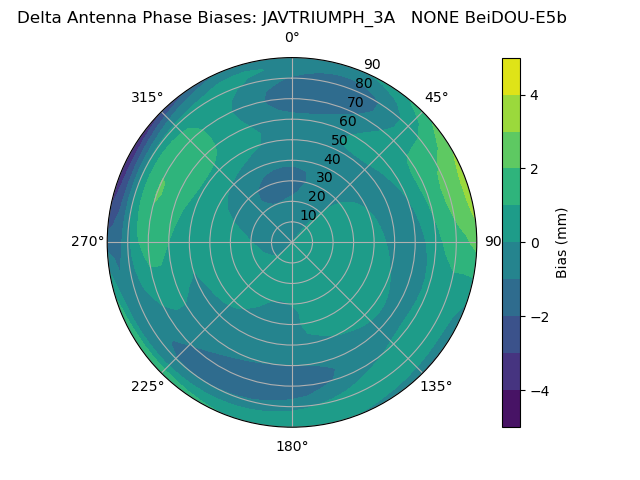

Radial BeiDOU-E5bRadial BeiDOU-E5b

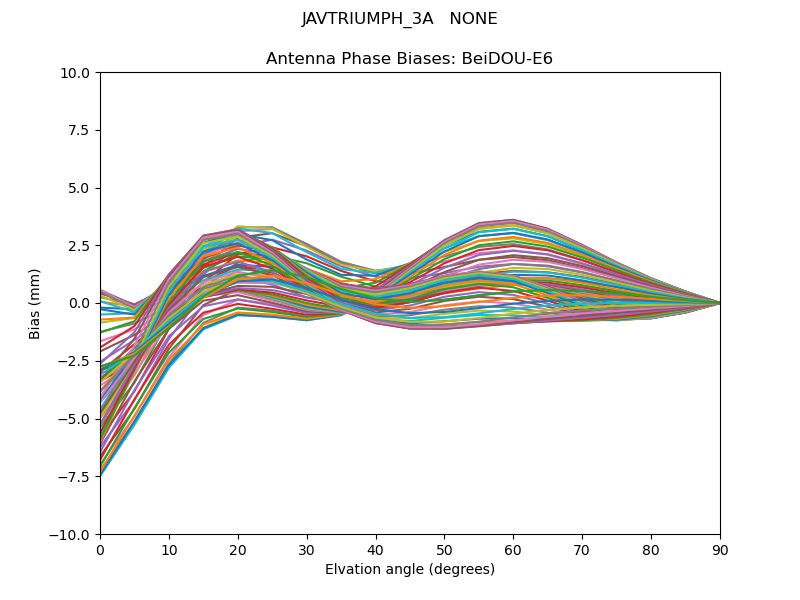

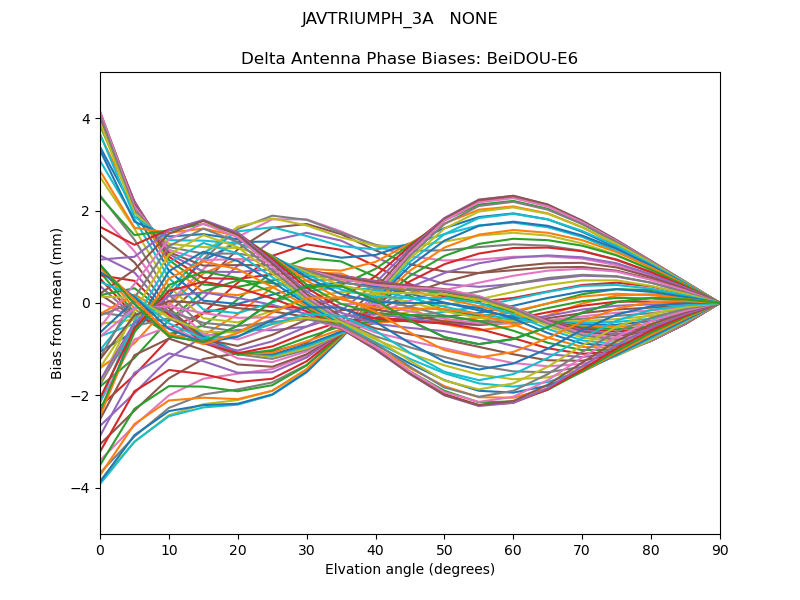

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

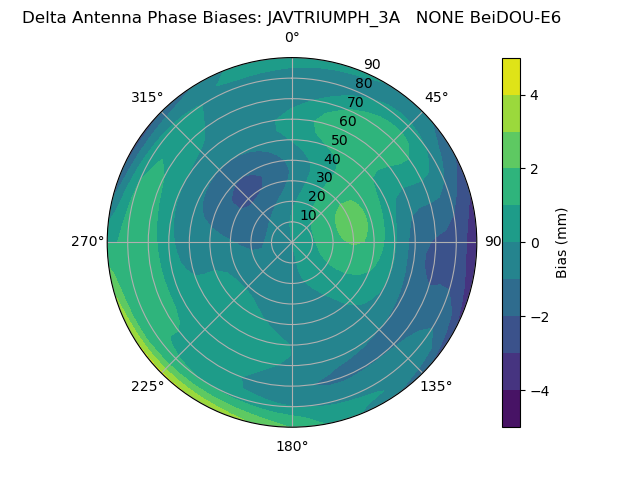

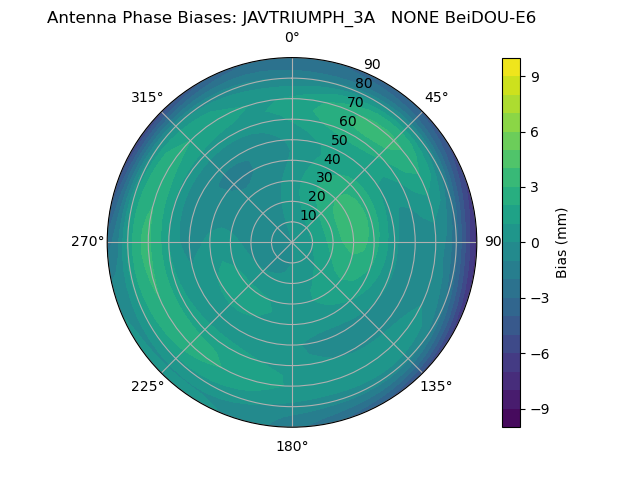

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

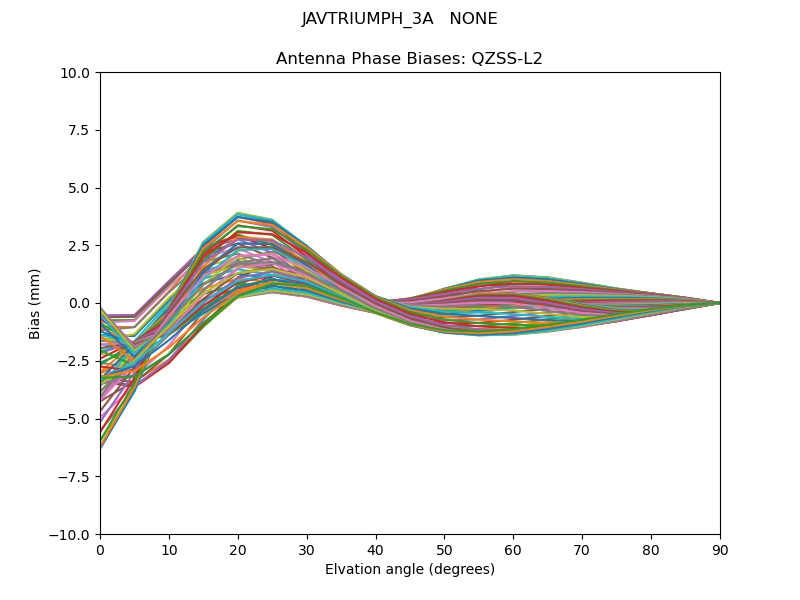

QZSS-L2

QZSS-L2QZSS-L2

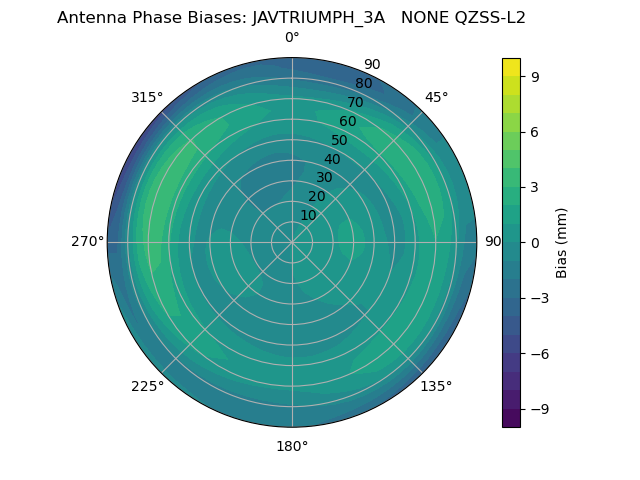

Radial QZSS-L2Radial QZSS-L2

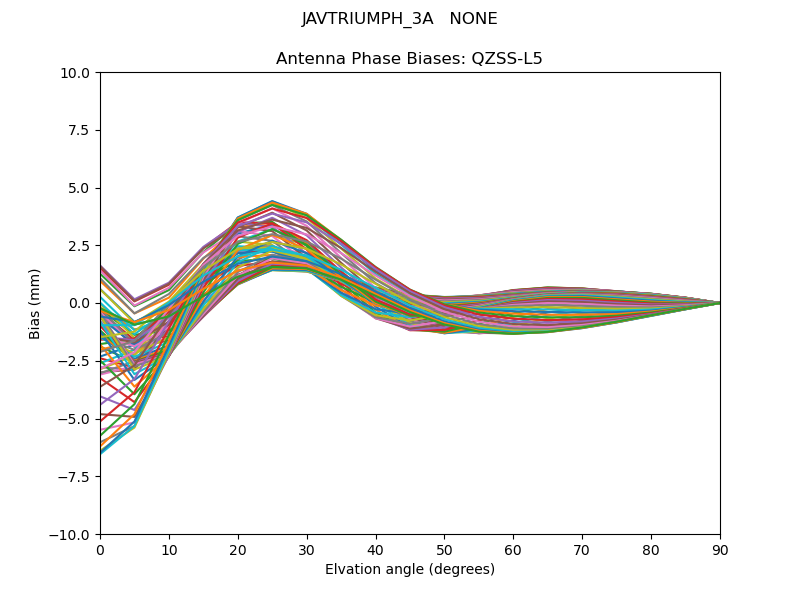

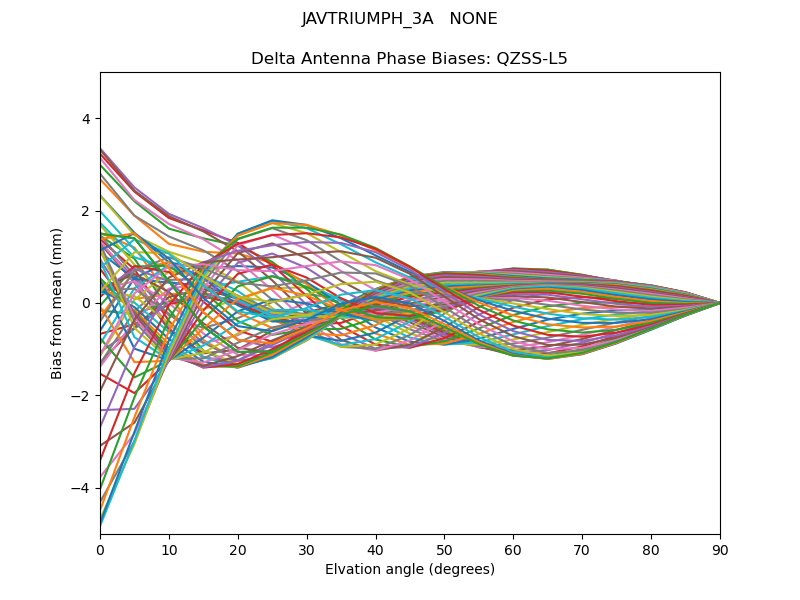

QZSS-L5

QZSS-L5QZSS-L5

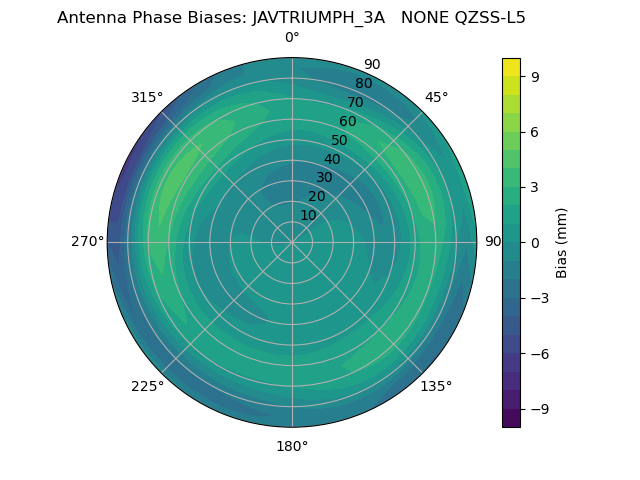

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

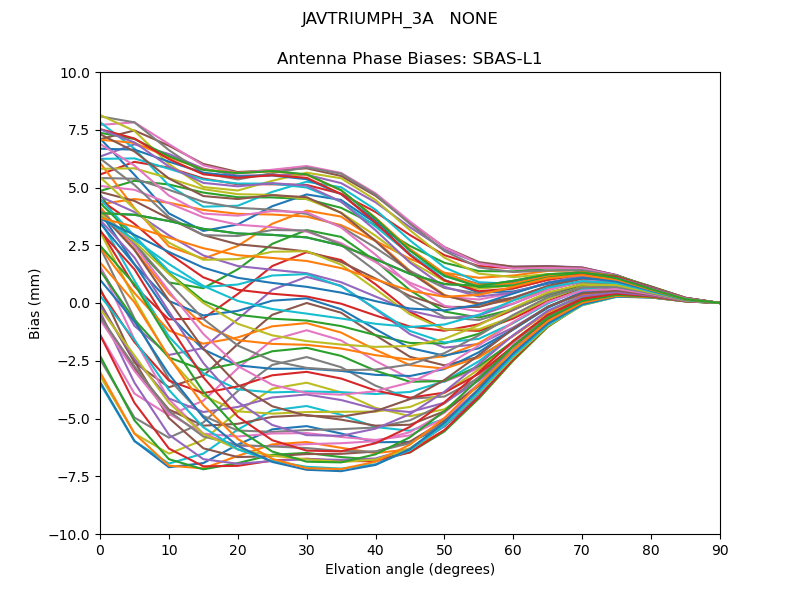

SBAS-L1

SBAS-L1SBAS-L1

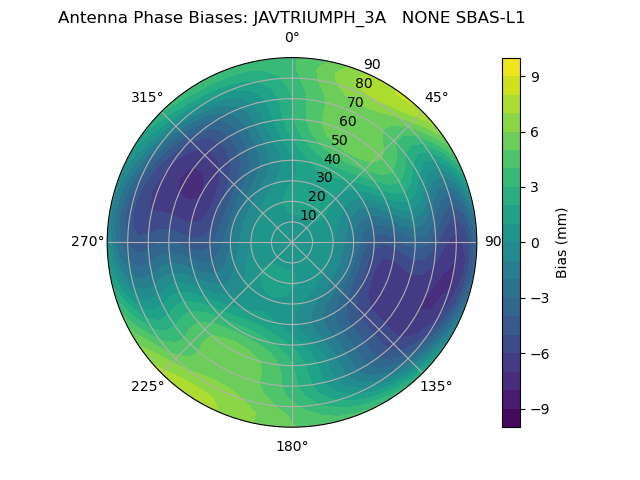

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

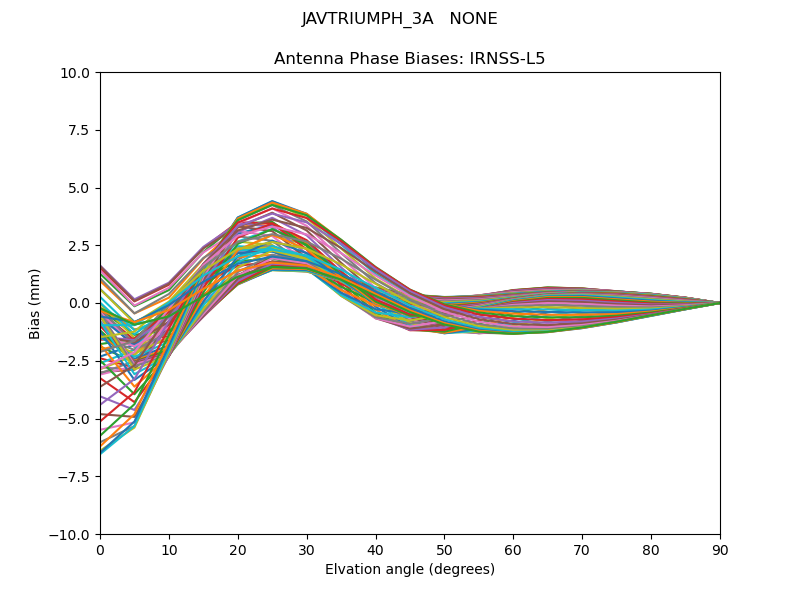

IRNSS-L5

IRNSS-L5IRNSS-L5

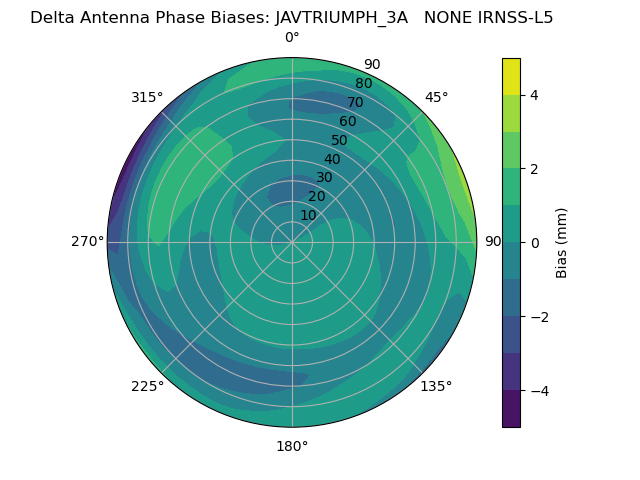

Radial IRNSS-L5Radial IRNSS-L5
