Antenna information for JAVTRIUMPH_3NRA NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.10 E: 0.15 U: 58.02
L2: N: -4.57 E: -1.17 U: 38.60
L5: N: -1.99 E: 0.59 U: 42.83

GLONASS

L1: N: 0.70 E: 0.46 U: 58.32
L2: N: -5.27 E: -1.63 U: 38.13

GALILEO

E1: N: -0.10 E: 0.15 U: 58.02
E5a: N: -1.99 E: 0.59 U: 42.83
E5b: N: -3.64 E: -0.52 U: 39.72
E5: N: -2.86 E: 0.00 U: 41.07
E6: N: -6.14 E: -2.30 U: 38.50

BeiDou

E1: N: -0.10 E: 0.15 U: 58.02
E2: N: -0.55 E: -0.03 U: 57.89
E5b: N: -3.64 E: -0.52 U: 39.72
E6: N: -5.87 E: -2.08 U: 38.19

QZSS

L1: N: -0.10 E: 0.15 U: 58.02
L2: N: -4.57 E: -1.17 U: 38.60
L5: N: -1.99 E: 0.59 U: 42.83
LEX: N: -6.14 E: -2.30 U: 38.50

SBAS

L1: N: -0.10 E: 0.15 U: 58.02
L5: N: -1.99 E: 0.59 U: 42.83

L1

GPS: N: -0.10 E: 0.15 U: 58.02
GLONASS: N: 0.70 E: 0.46 U: 58.32
QZSS: N: -0.10 E: 0.15 U: 58.02
SBAS: N: -0.10 E: 0.15 U: 58.02

L2

GPS: N: -4.57 E: -1.17 U: 38.60
GLONASS: N: -5.27 E: -1.63 U: 38.13
QZSS: N: -4.57 E: -1.17 U: 38.60

L5

GPS: N: -1.99 E: 0.59 U: 42.83
QZSS: N: -1.99 E: 0.59 U: 42.83
SBAS: N: -1.99 E: 0.59 U: 42.83

E1

GALILEO: N: -0.10 E: 0.15 U: 58.02
BeiDou: N: -0.10 E: 0.15 U: 58.02

E2

BeiDou: N: -0.55 E: -0.03 U: 57.89

E5

GALILEO: N: -2.86 E: 0.00 U: 41.07

E5a

GALILEO: N: -1.99 E: 0.59 U: 42.83

E5b

GALILEO: N: -3.64 E: -0.52 U: 39.72
BeiDou: N: -3.64 E: -0.52 U: 39.72

E6

GALILEO: N: -6.14 E: -2.30 U: 38.50
BeiDou: N: -5.87 E: -2.08 U: 38.19

LEX

QZSS: N: -6.14 E: -2.30 U: 38.50


Means

GPS


GLONASS

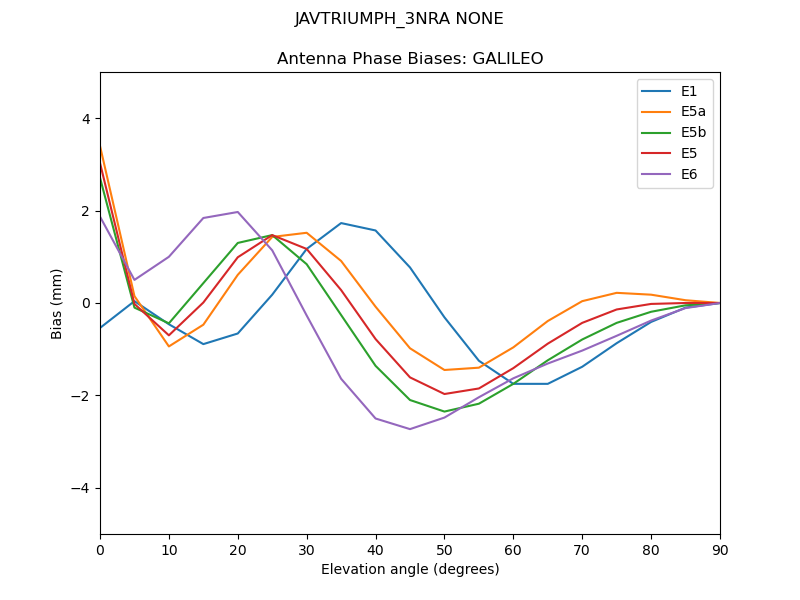

GALILEO

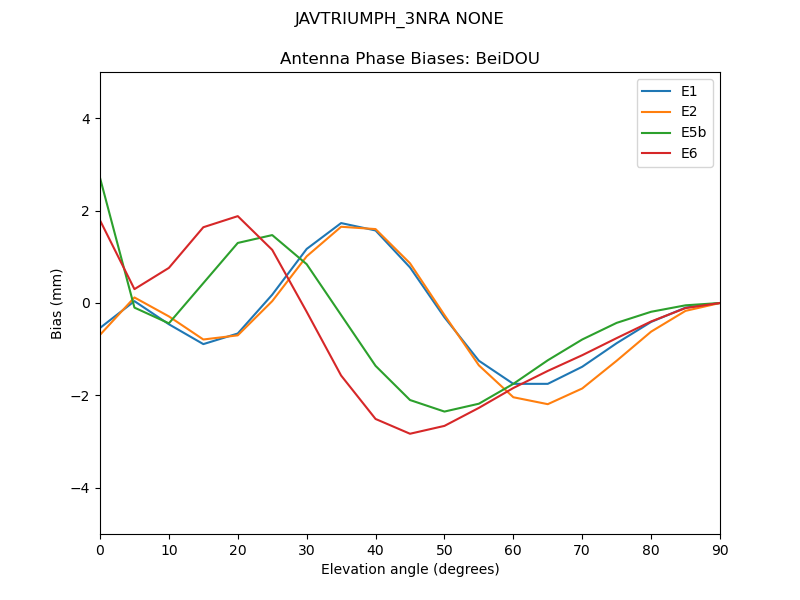

BeiDOU

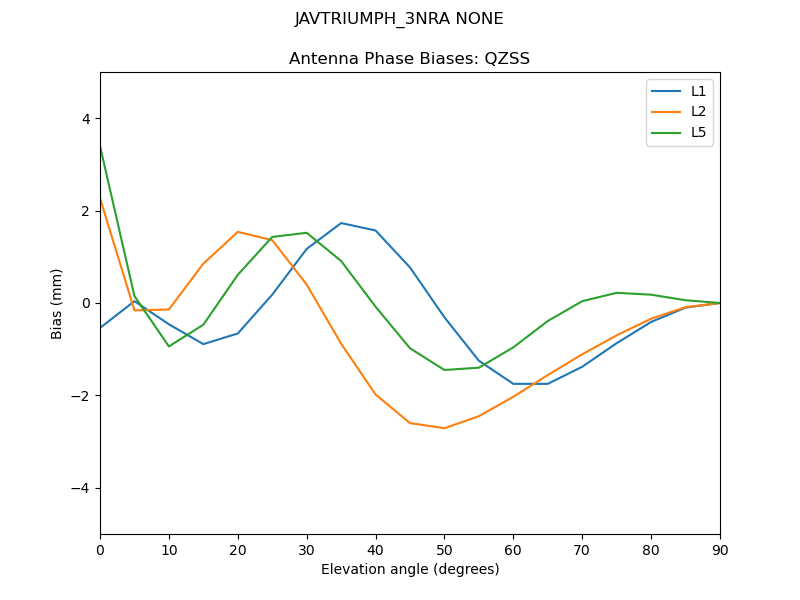

QZSS

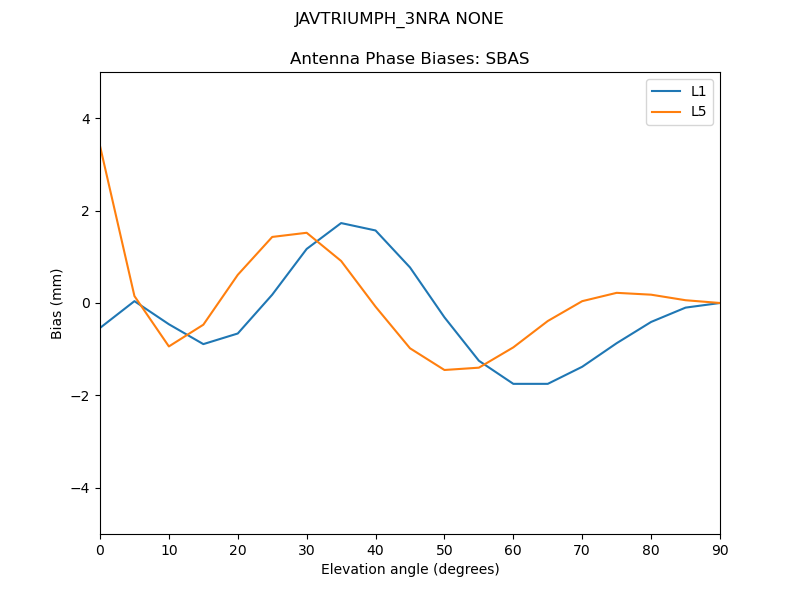

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

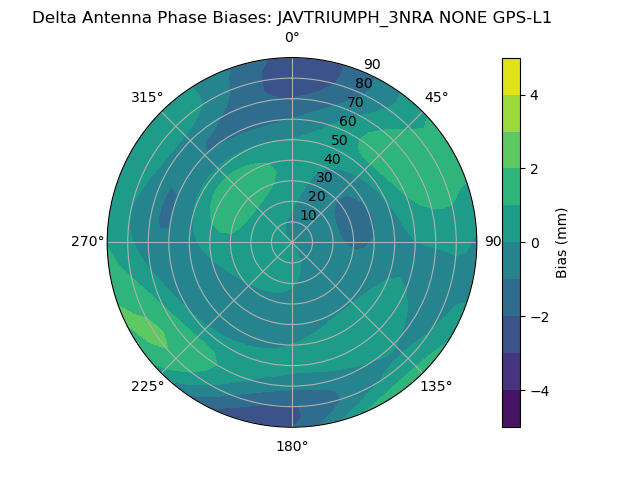

Radial GPS-L1Radial GPS-L1

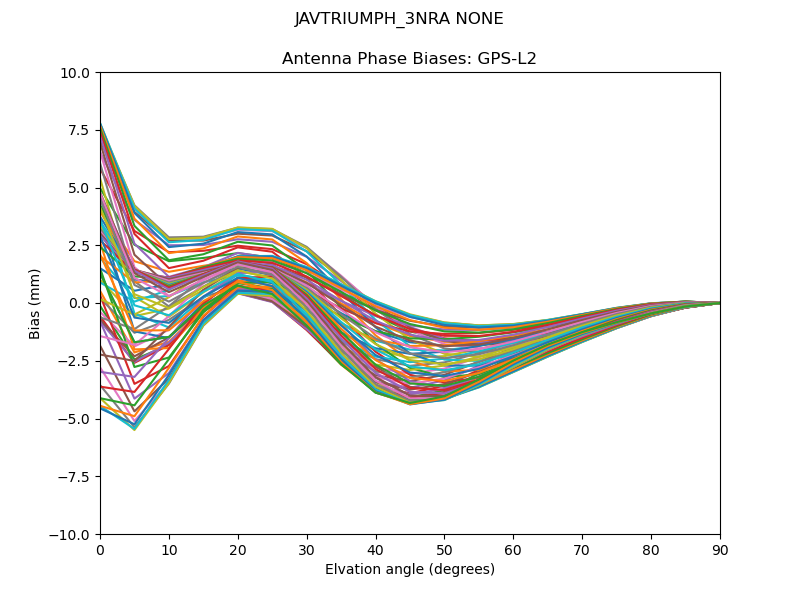

GPS-L2

GPS-L2GPS-L2

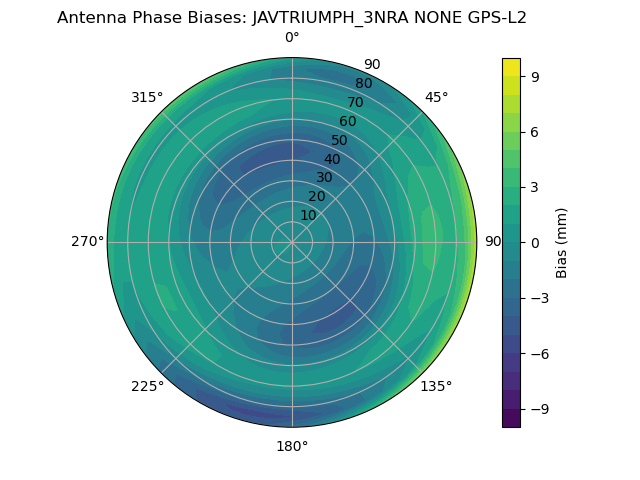

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

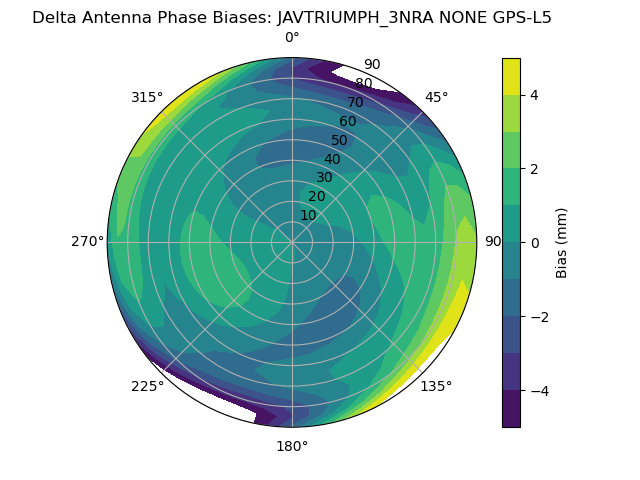

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

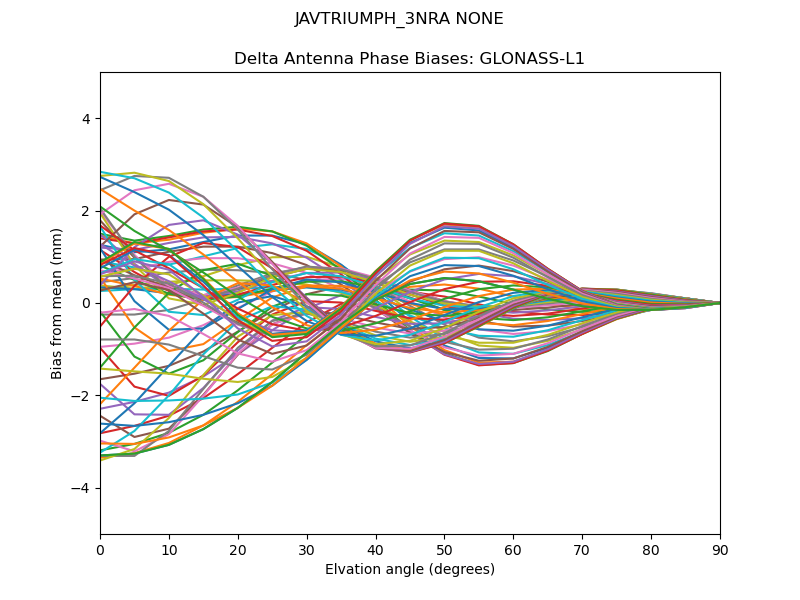

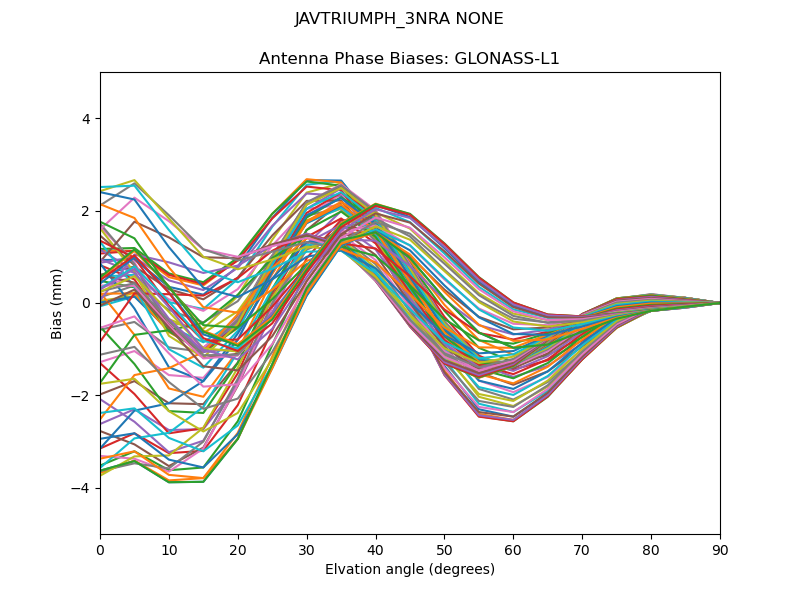

GLONASS-L1

GLONASS-L1GLONASS-L1

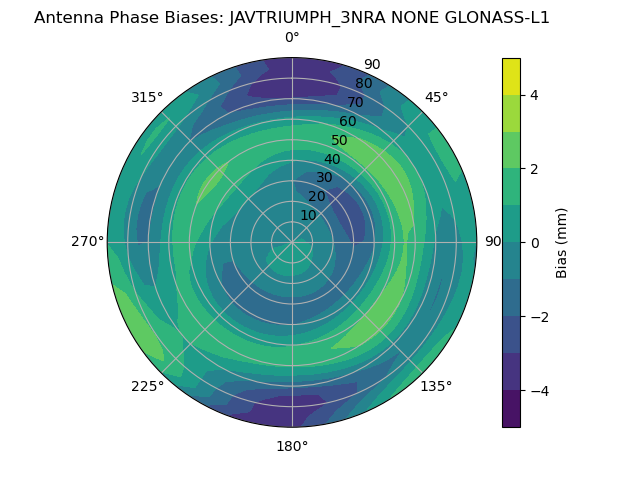

Radial GLONASS-L1Radial GLONASS-L1

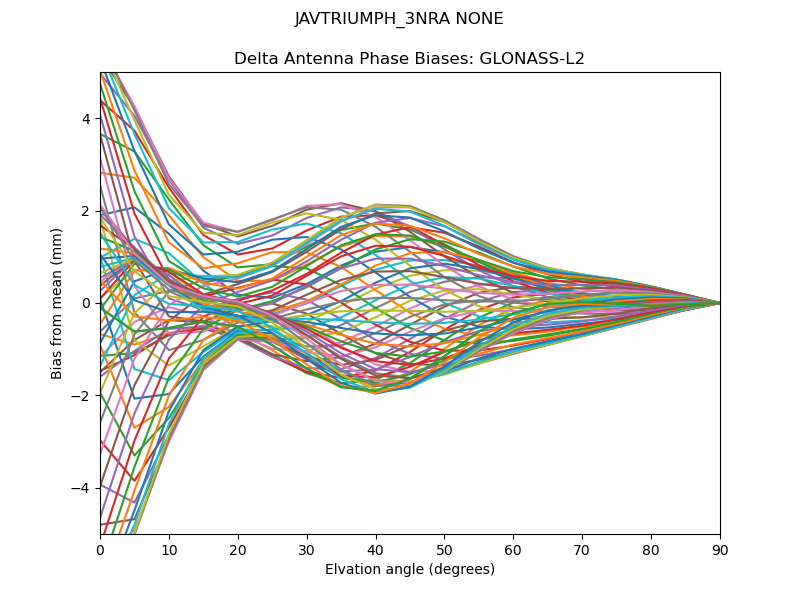

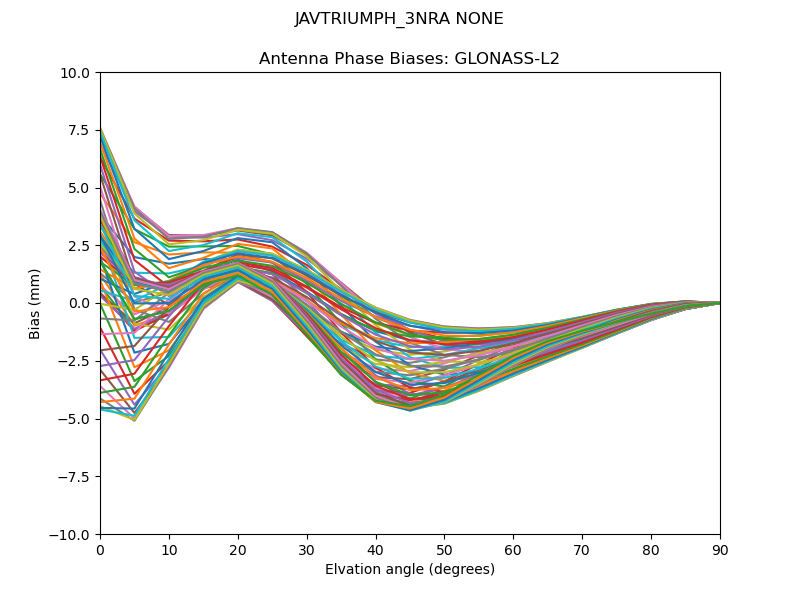

GLONASS-L2

GLONASS-L2GLONASS-L2

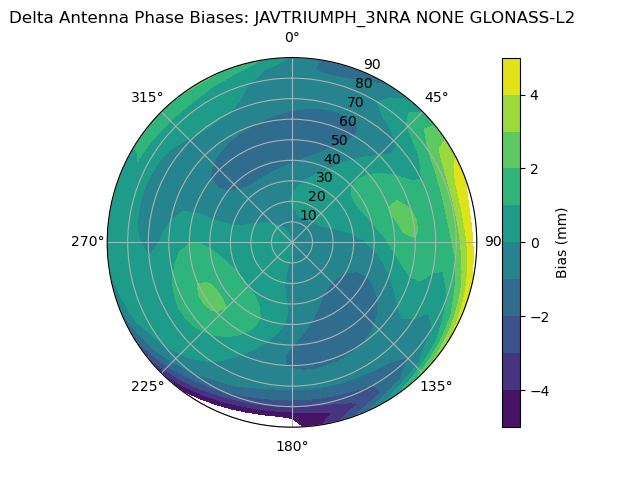

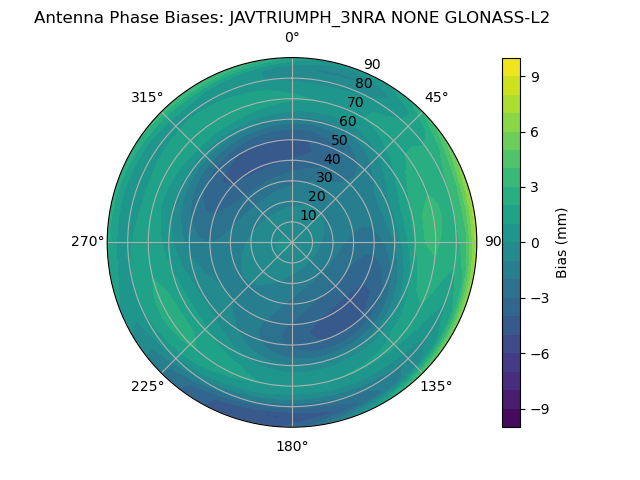

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

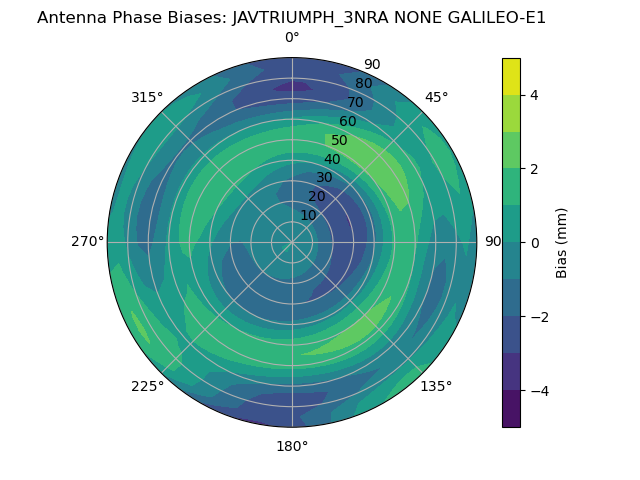

Radial GALILEO-E1Radial GALILEO-E1

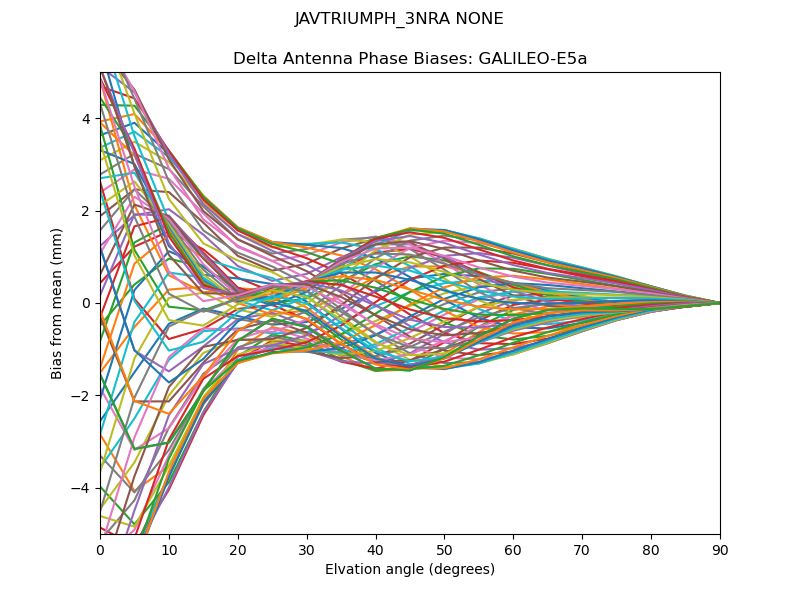

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

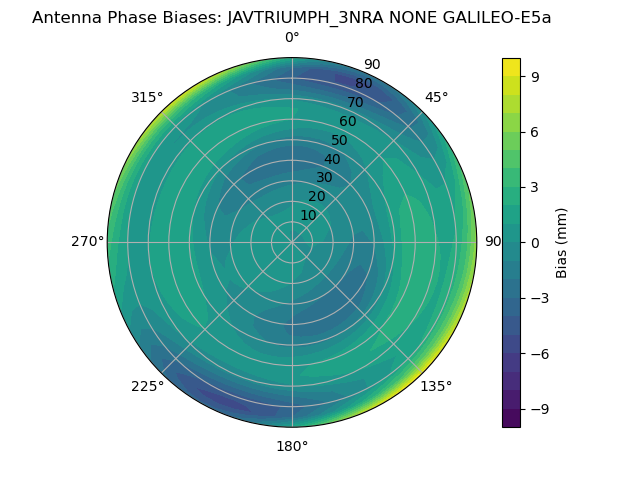

Radial GALILEO-E5aRadial GALILEO-E5a

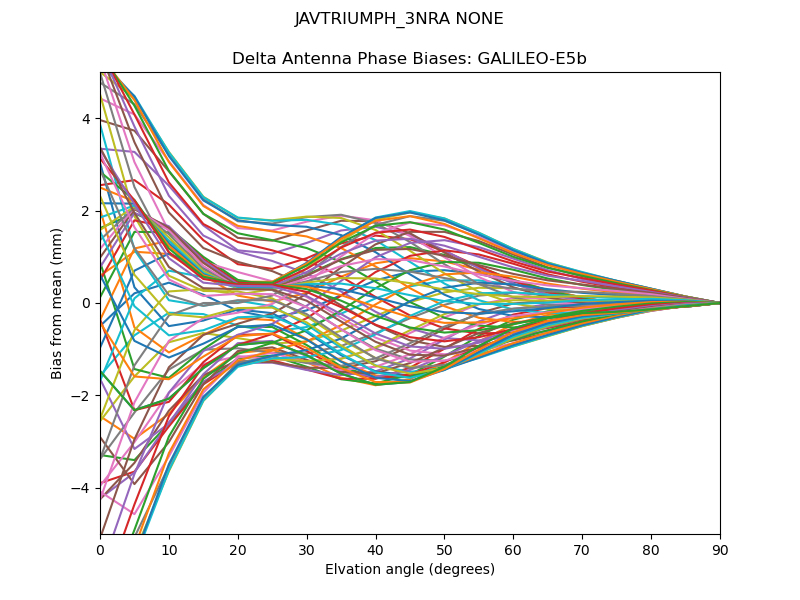

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

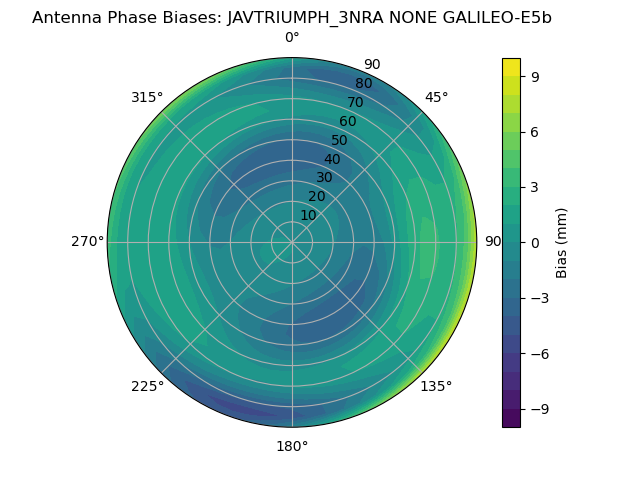

Radial GALILEO-E5bRadial GALILEO-E5b

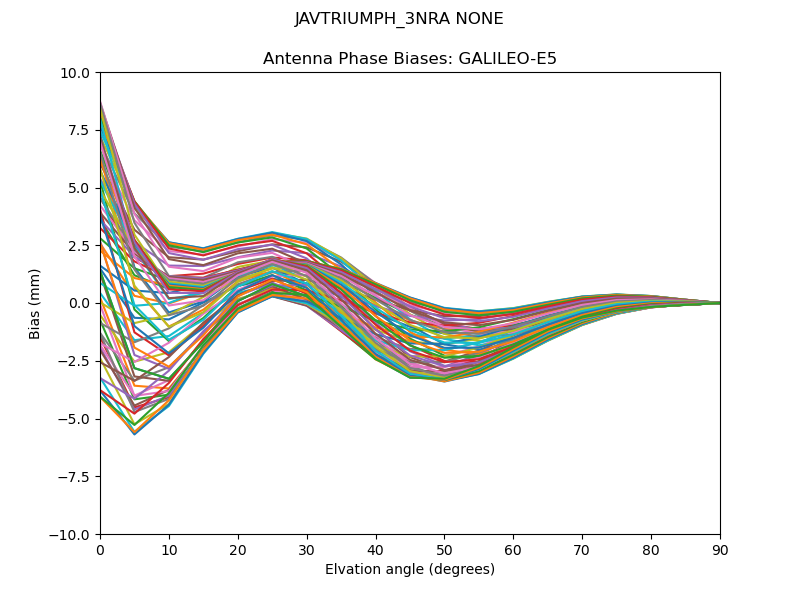

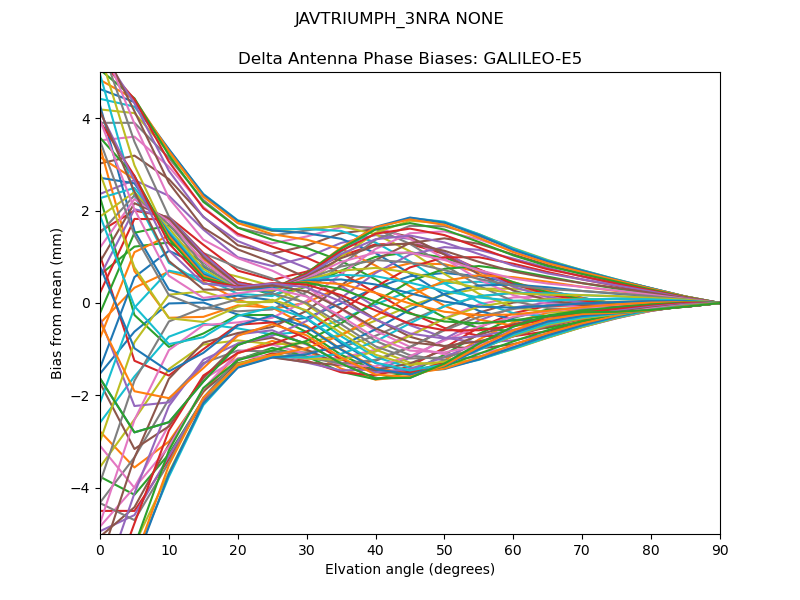

GALILEO-E5

GALILEO-E5GALILEO-E5

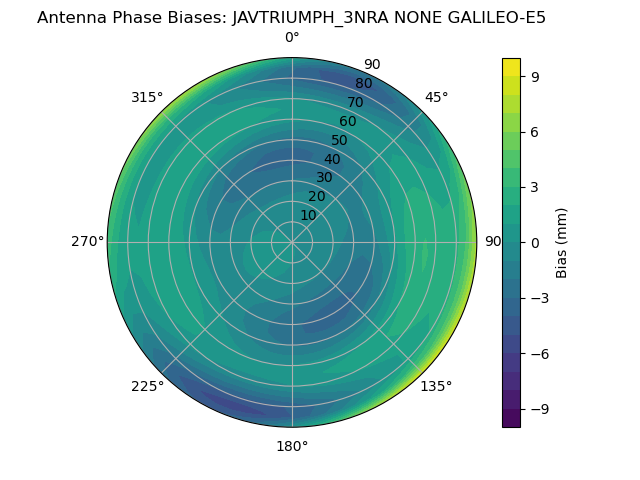

Radial GALILEO-E5Radial GALILEO-E5

GALILEO-E6

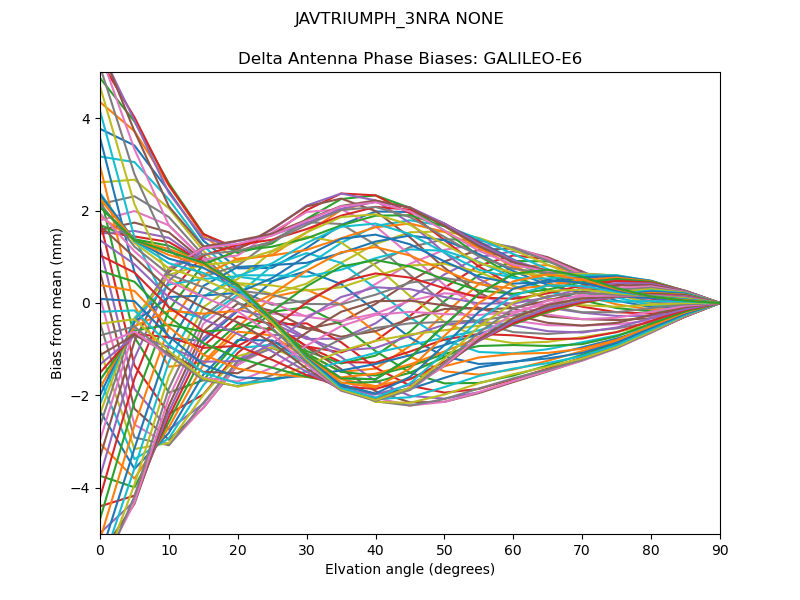

GALILEO-E6GALILEO-E6

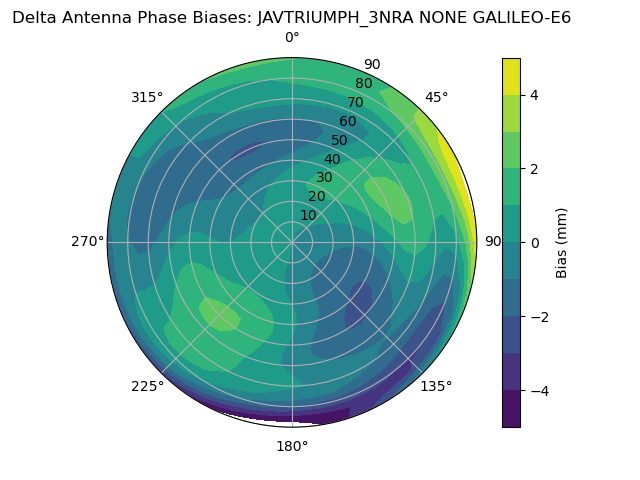

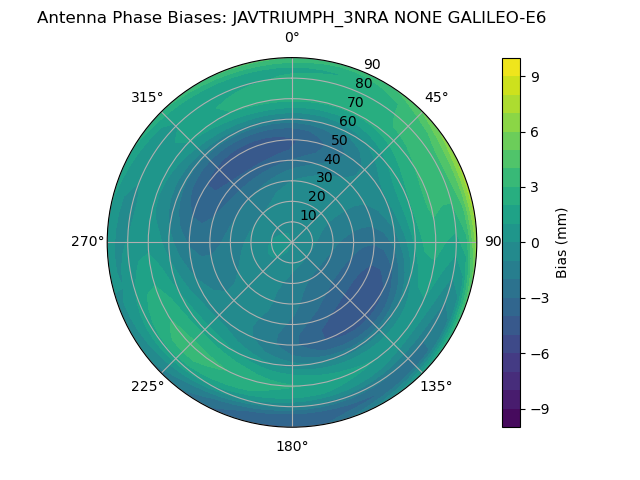

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

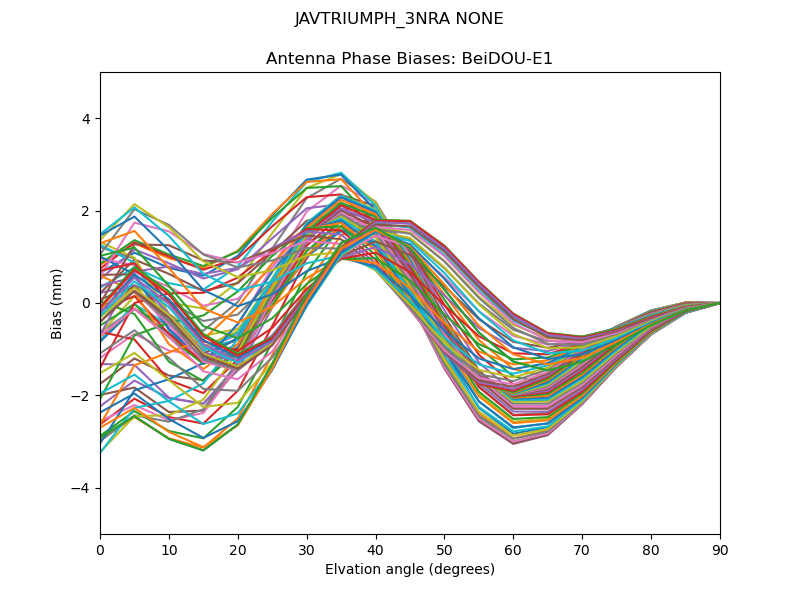

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

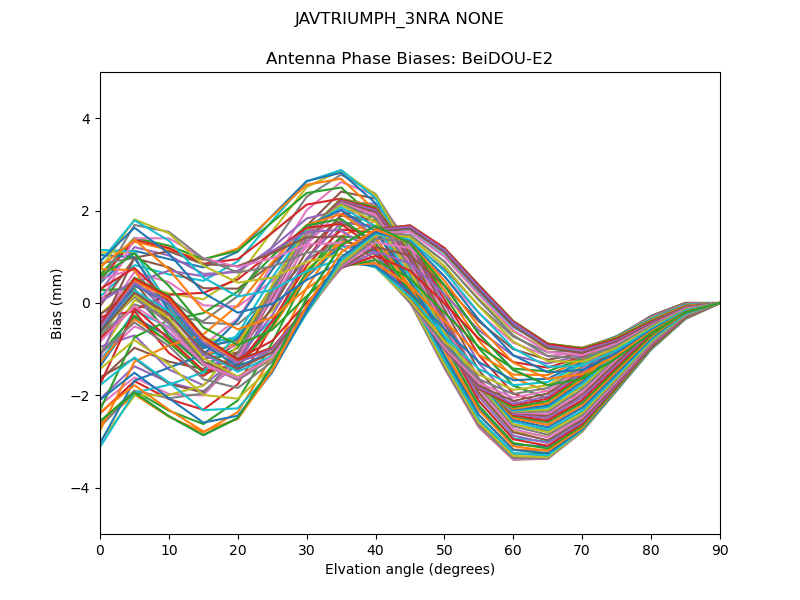

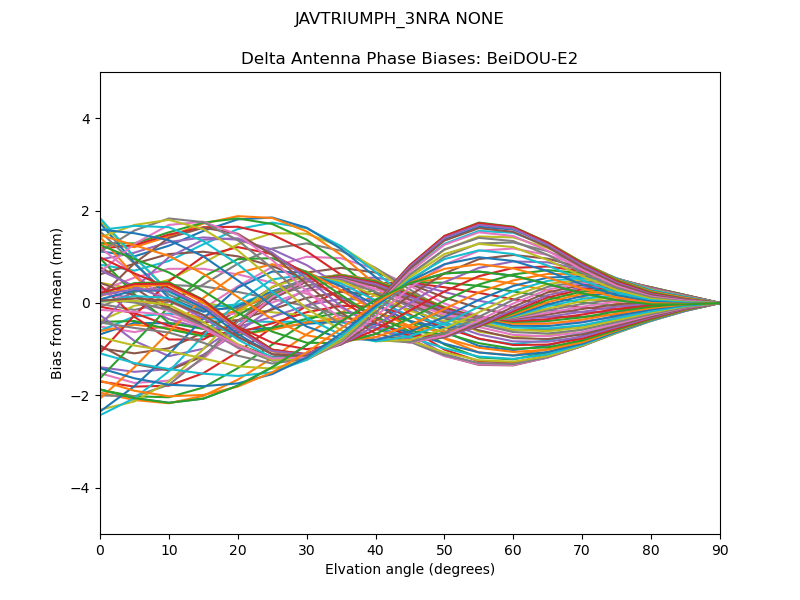

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

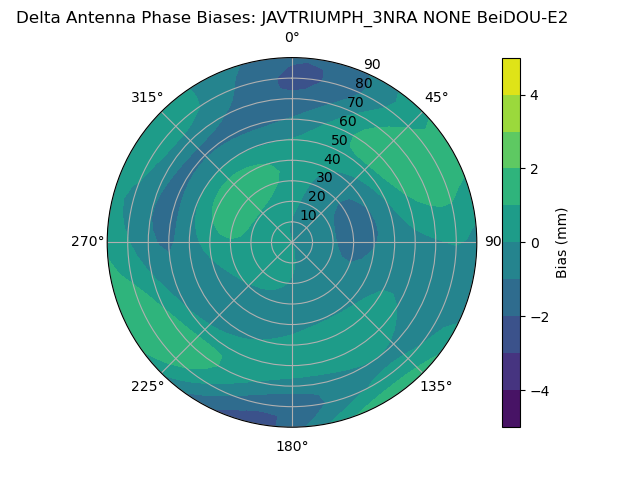

Radial BeiDOU-E2Radial BeiDOU-E2

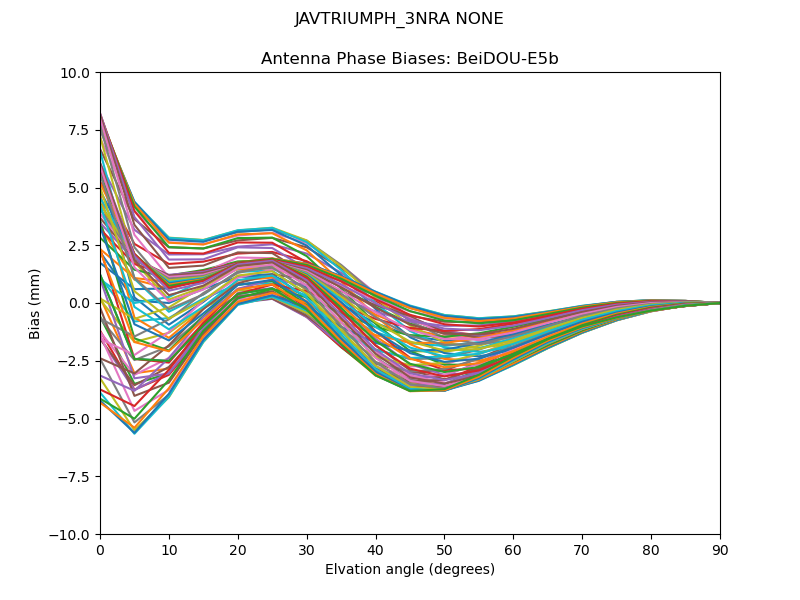

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

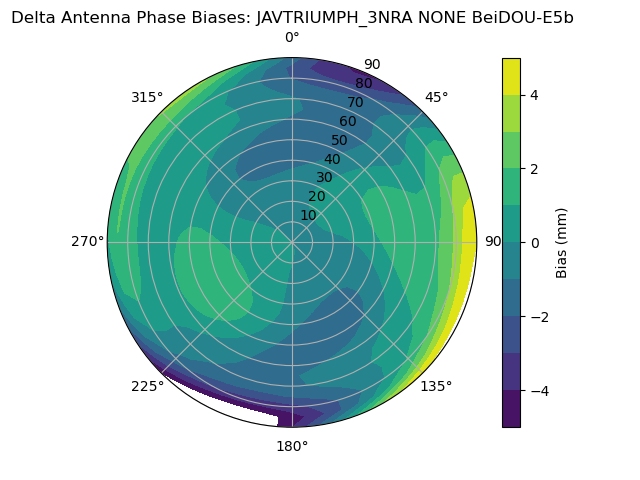

Radial BeiDOU-E5bRadial BeiDOU-E5b

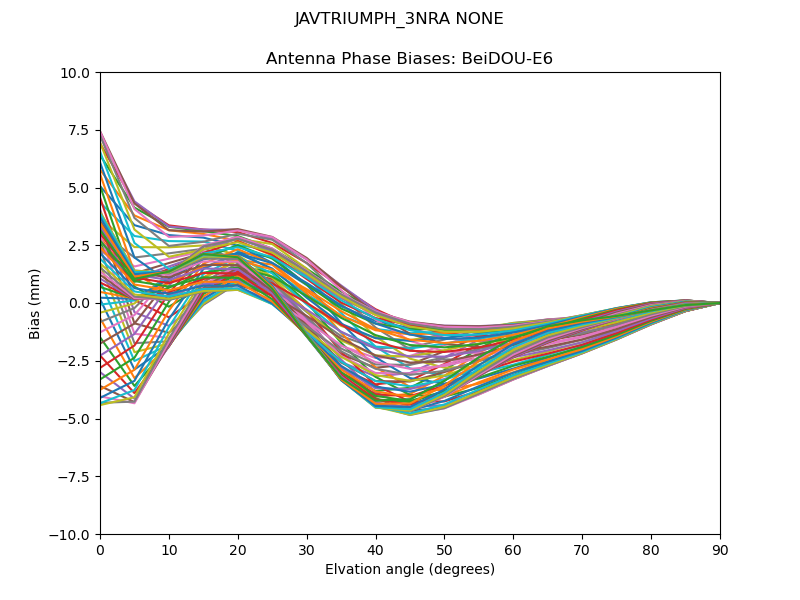

BeiDOU-E6

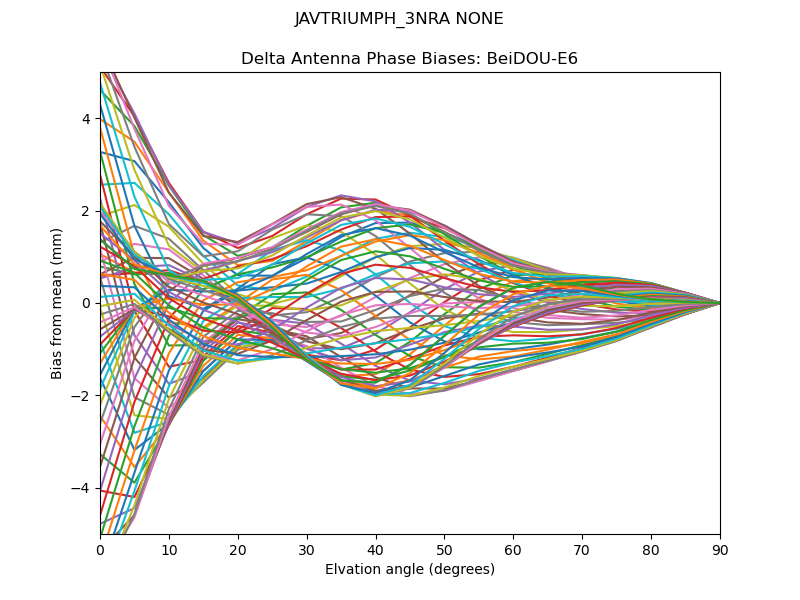

BeiDOU-E6BeiDOU-E6

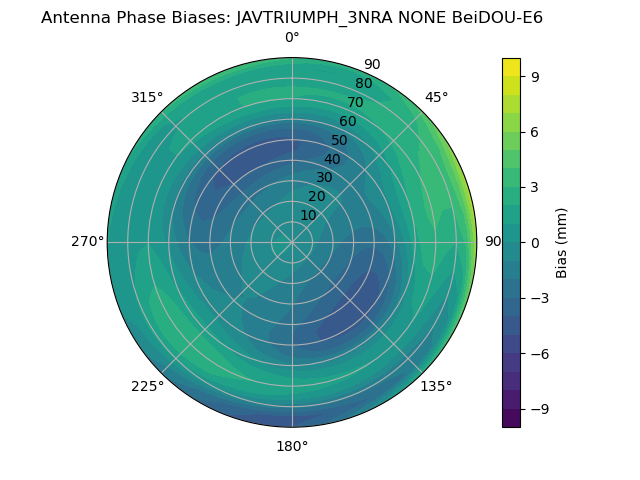

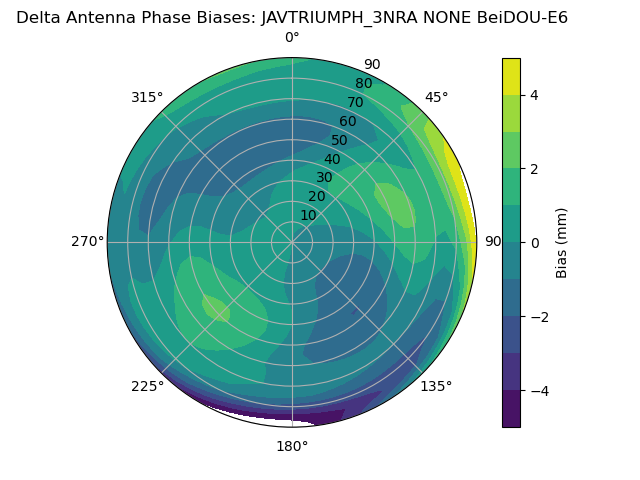

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

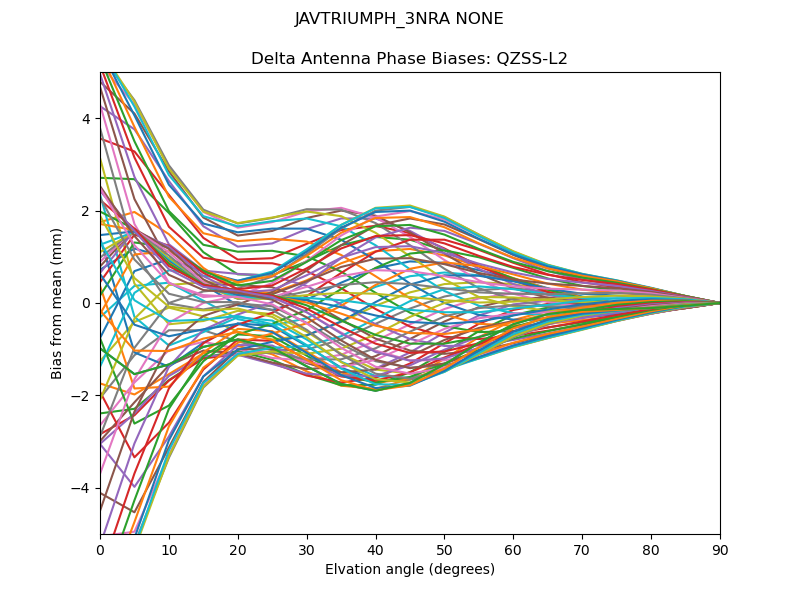

QZSS-L2

QZSS-L2QZSS-L2

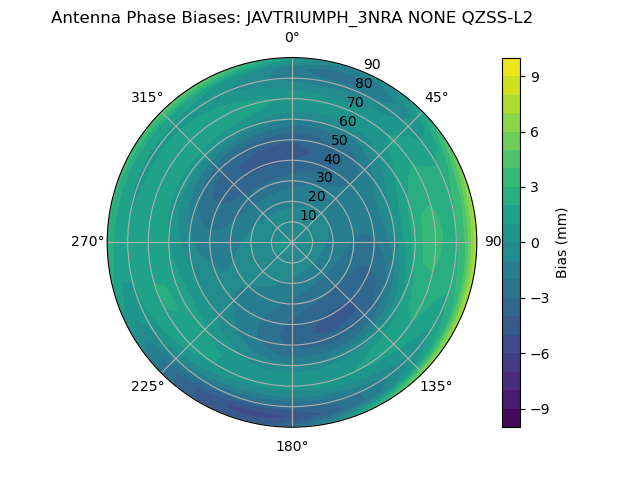

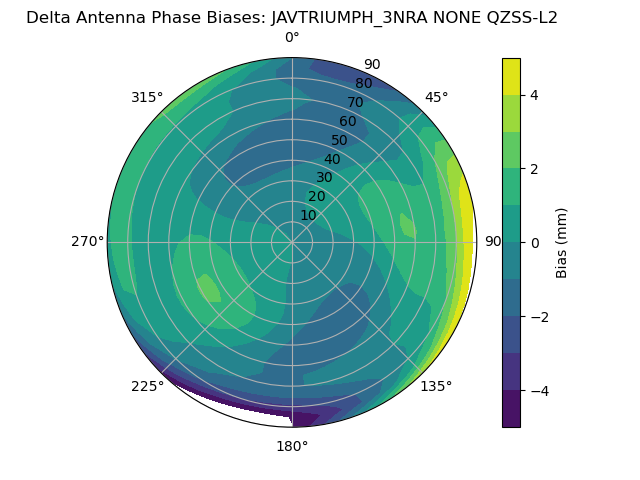

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

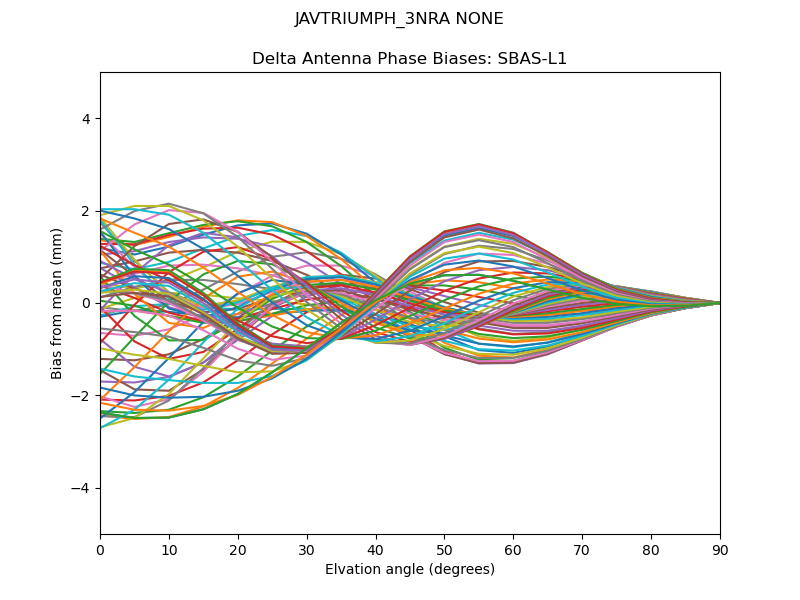

SBAS-L1

SBAS-L1SBAS-L1

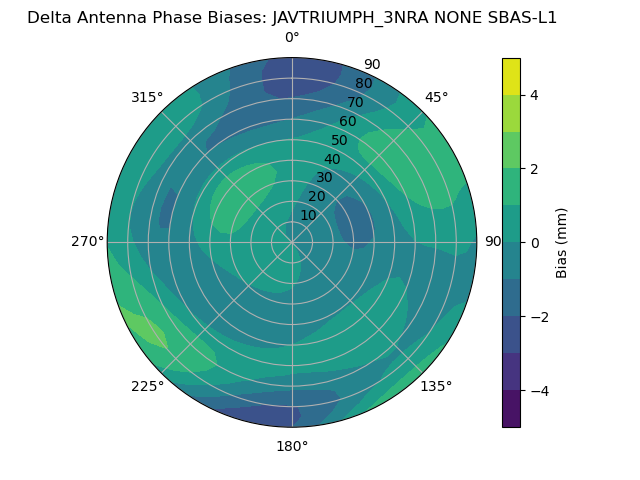

Radial SBAS-L1Radial SBAS-L1

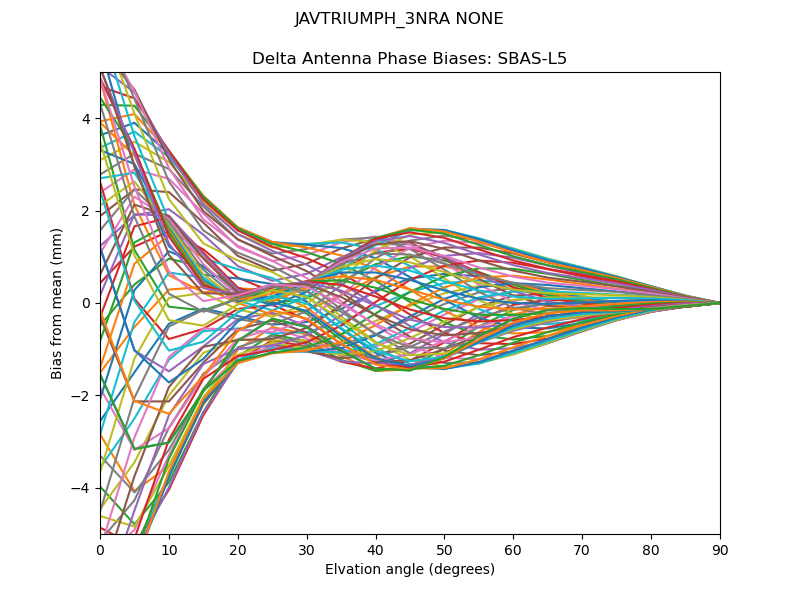

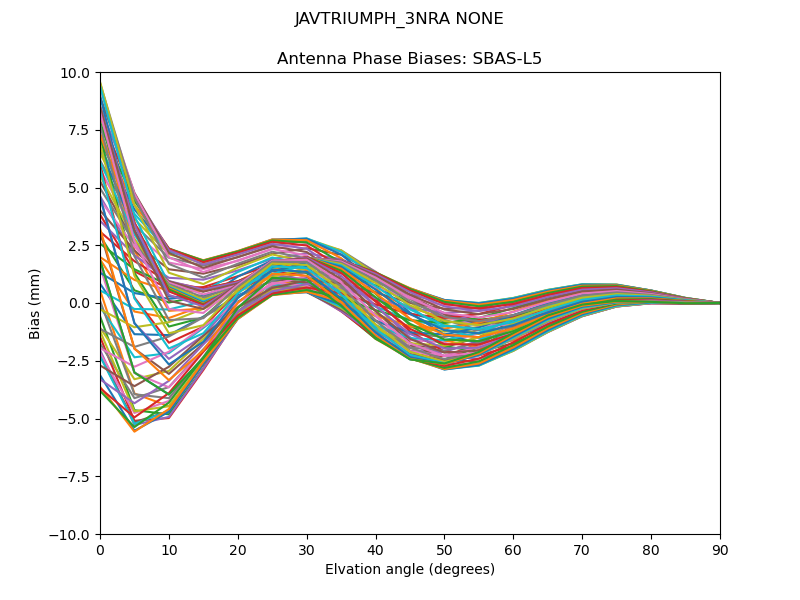

SBAS-L5

SBAS-L5SBAS-L5

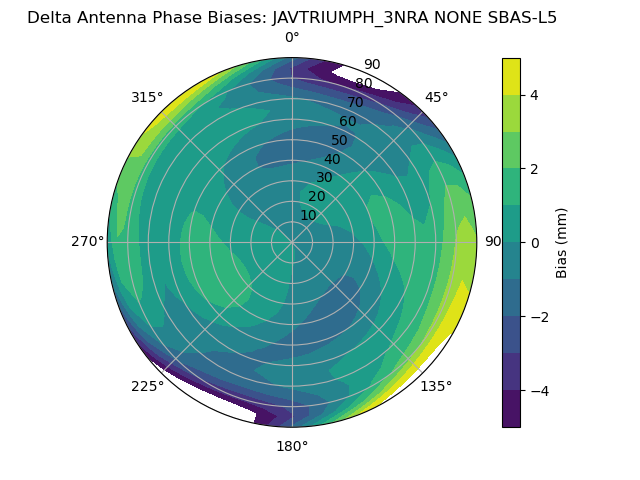

Radial SBAS-L5Radial SBAS-L5
