Antenna information for JAVTRIUMPH_LSPA NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.35 E: 0.54 U: 117.03
L2: N: 0.67 E: -1.46 U: 133.27
L5: N: -0.24 E: -3.90 U: 134.11

GLONASS

L1: N: -0.51 E: -0.31 U: 117.01
L2: N: 0.25 E: -0.69 U: 132.60

GALILEO

E1: N: -0.35 E: 0.54 U: 117.03
E5a: N: -0.24 E: -3.90 U: 134.11
E5b: N: 0.69 E: -2.38 U: 133.79
E5: N: 0.38 E: -3.11 U: 134.00
E6: N: -1.38 E: 0.55 U: 130.95

BeiDou

E1: N: -0.35 E: 0.54 U: 117.03
E2: N: -0.29 E: 0.99 U: 117.10
E5b: N: 0.69 E: -2.38 U: 133.79
E6: N: -0.74 E: 0.18 U: 131.52

QZSS

L1: N: -0.35 E: 0.54 U: 117.03
L2: N: 0.67 E: -1.46 U: 133.27
L5: N: -0.24 E: -3.90 U: 134.11
LEX: N: -1.38 E: 0.55 U: 130.95

SBAS

L1: N: -0.35 E: 0.54 U: 117.03
L5: N: -0.24 E: -3.90 U: 134.11

L1

GPS: N: -0.35 E: 0.54 U: 117.03
GLONASS: N: -0.51 E: -0.31 U: 117.01
QZSS: N: -0.35 E: 0.54 U: 117.03
SBAS: N: -0.35 E: 0.54 U: 117.03

L2

GPS: N: 0.67 E: -1.46 U: 133.27
GLONASS: N: 0.25 E: -0.69 U: 132.60
QZSS: N: 0.67 E: -1.46 U: 133.27

L5

GPS: N: -0.24 E: -3.90 U: 134.11
QZSS: N: -0.24 E: -3.90 U: 134.11
SBAS: N: -0.24 E: -3.90 U: 134.11

E1

GALILEO: N: -0.35 E: 0.54 U: 117.03
BeiDou: N: -0.35 E: 0.54 U: 117.03

E2

BeiDou: N: -0.29 E: 0.99 U: 117.10

E5

GALILEO: N: 0.38 E: -3.11 U: 134.00

E5a

GALILEO: N: -0.24 E: -3.90 U: 134.11

E5b

GALILEO: N: 0.69 E: -2.38 U: 133.79
BeiDou: N: 0.69 E: -2.38 U: 133.79

E6

GALILEO: N: -1.38 E: 0.55 U: 130.95
BeiDou: N: -0.74 E: 0.18 U: 131.52

LEX

QZSS: N: -1.38 E: 0.55 U: 130.95


Means

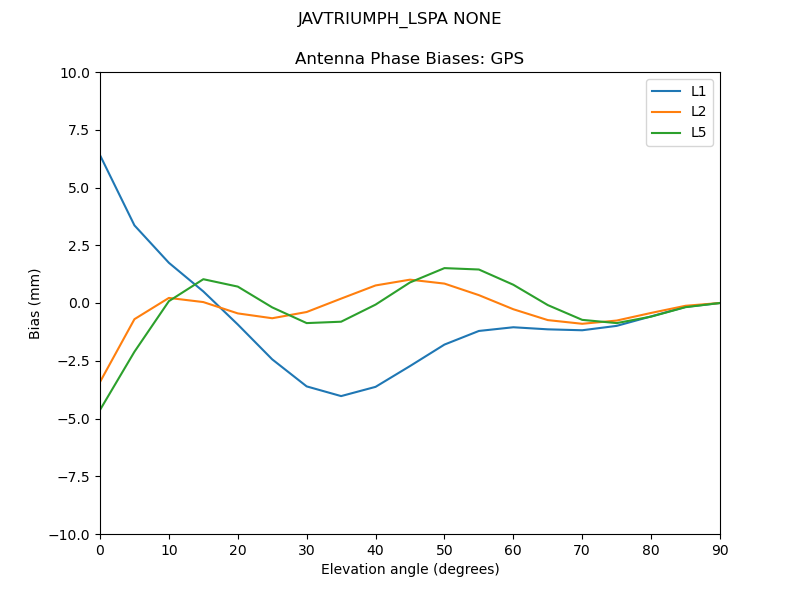

GPS

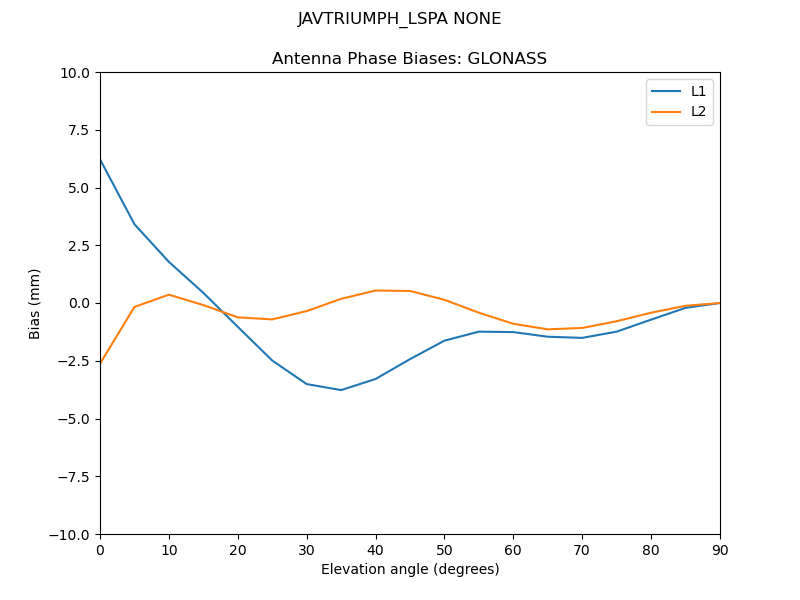

GLONASS

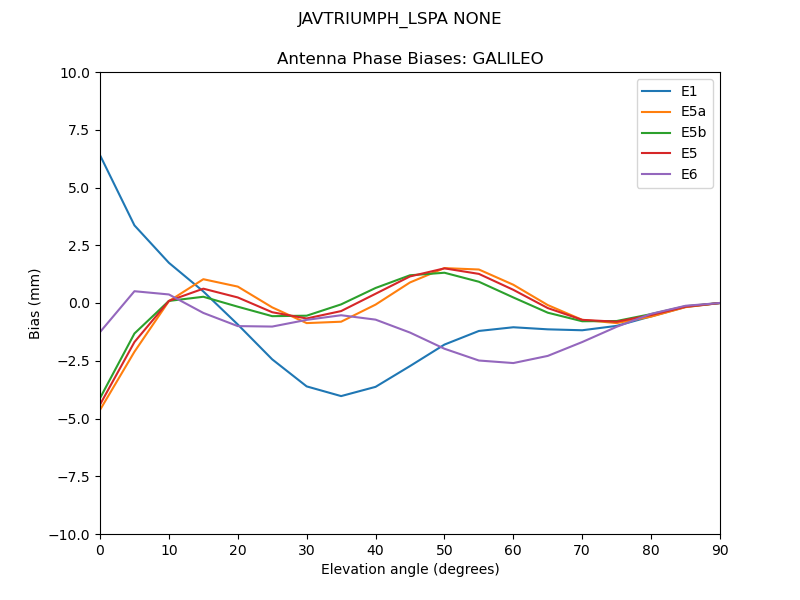

GALILEO

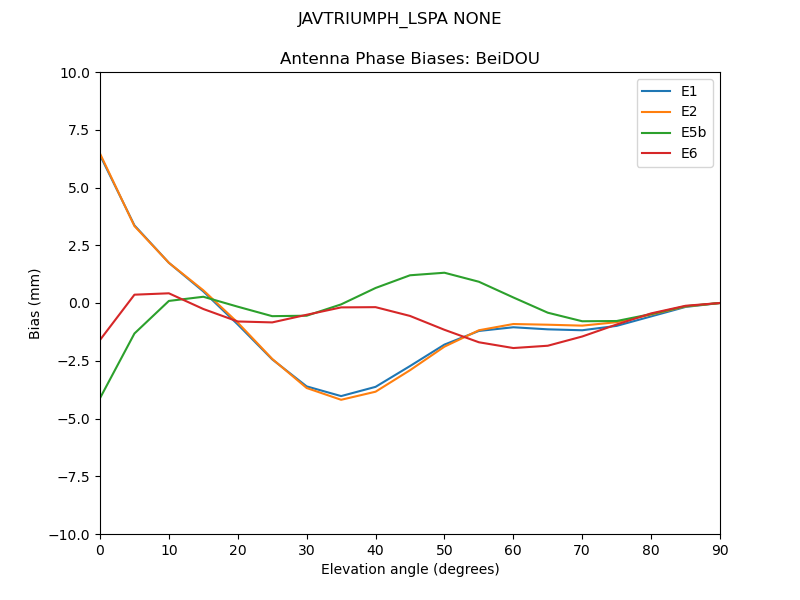

BeiDOU


QZSS

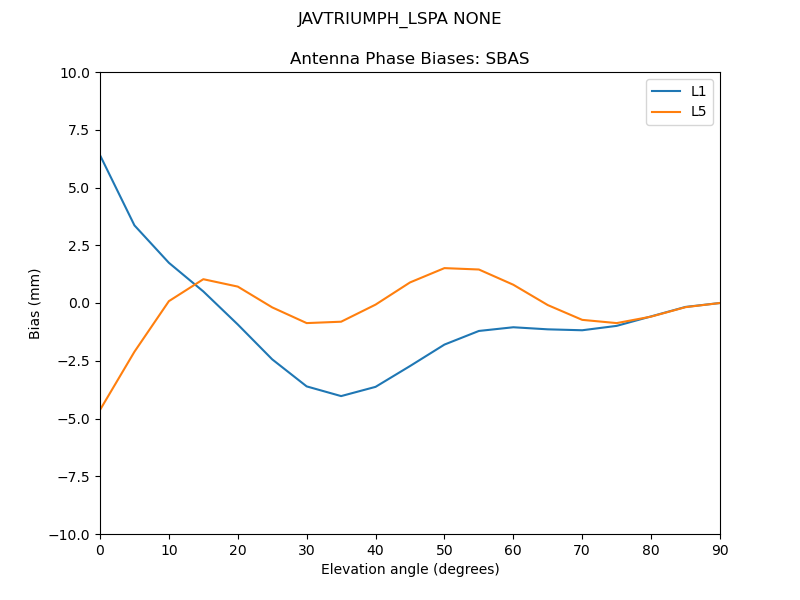

SBAS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

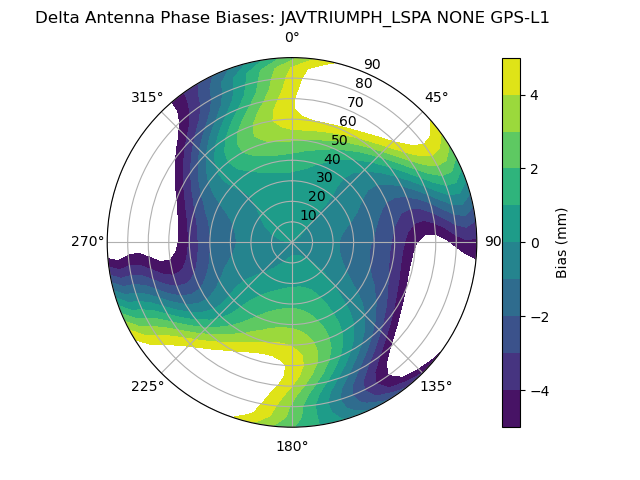

Radial GPS-L1Radial GPS-L1

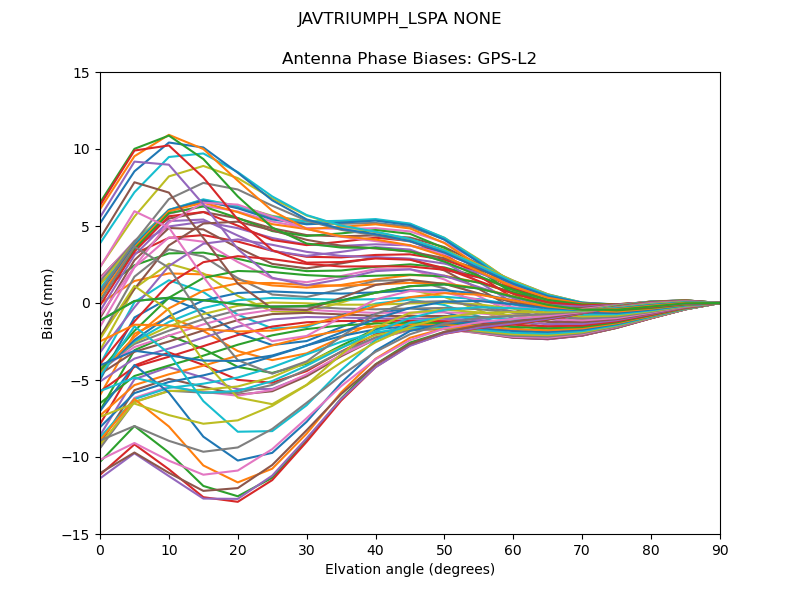

GPS-L2

GPS-L2GPS-L2

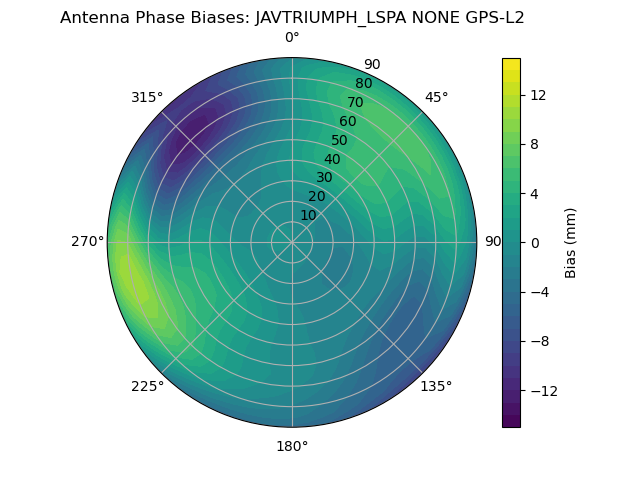

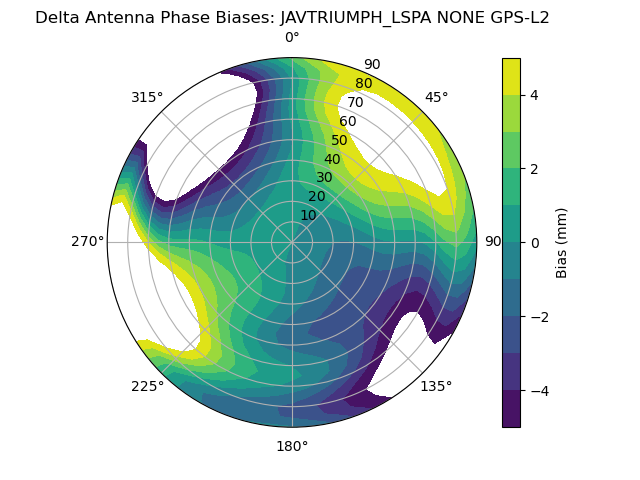

Radial GPS-L2Radial GPS-L2

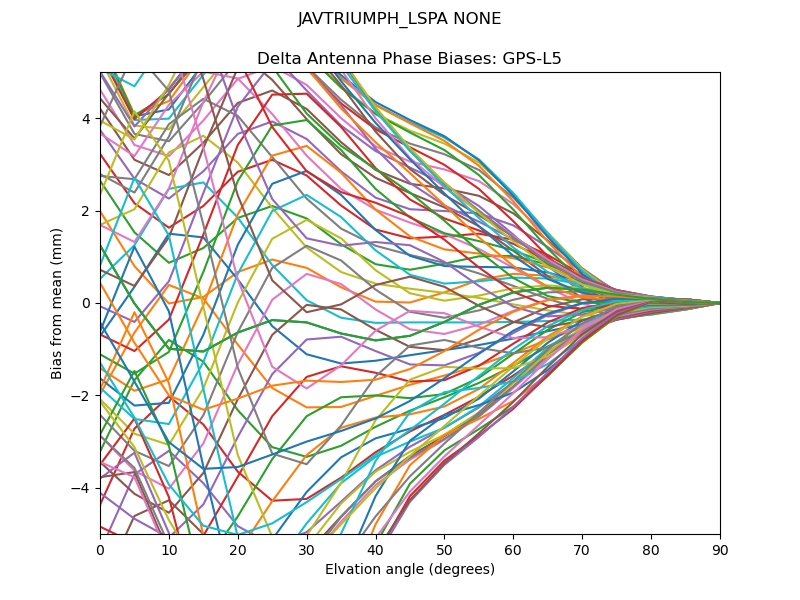

GPS-L5

GPS-L5GPS-L5
Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

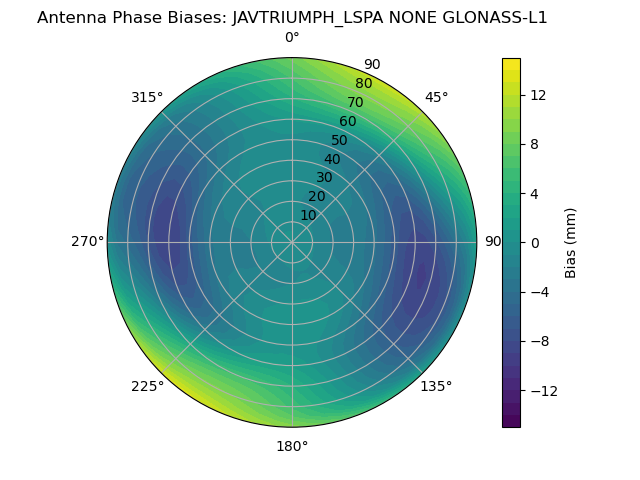

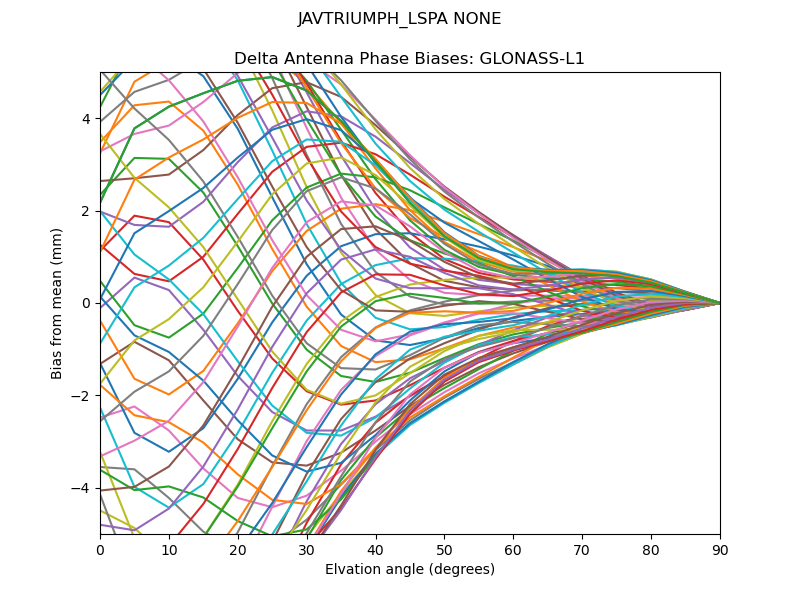

GLONASS-L1

GLONASS-L1GLONASS-L1

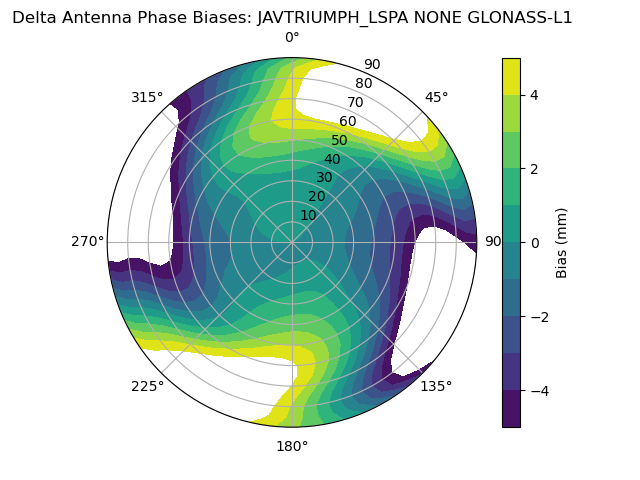

Radial GLONASS-L1Radial GLONASS-L1

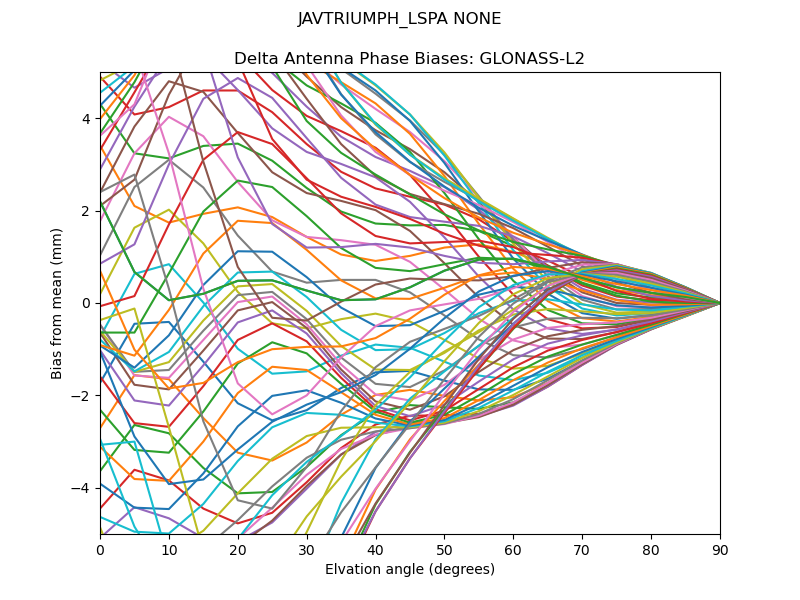

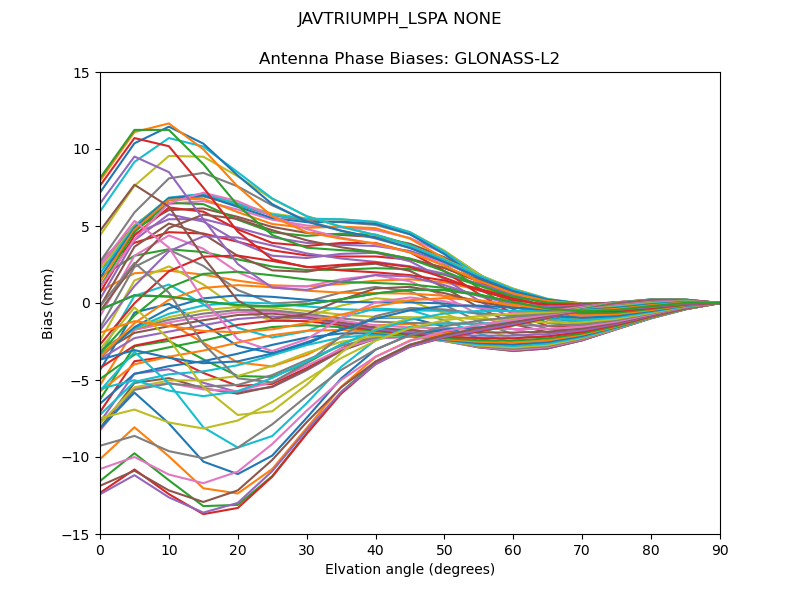

GLONASS-L2

GLONASS-L2GLONASS-L2

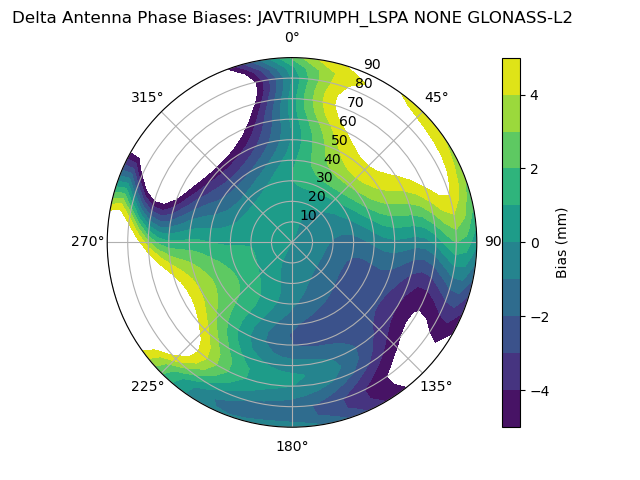

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

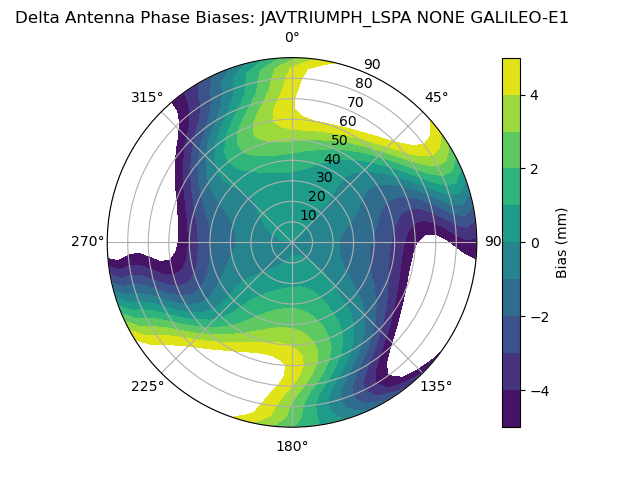

Radial GALILEO-E1Radial GALILEO-E1

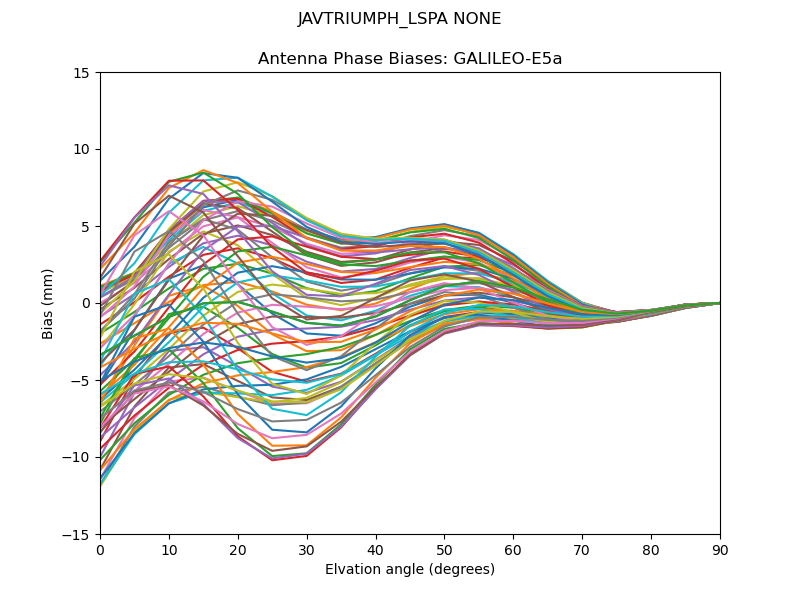

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

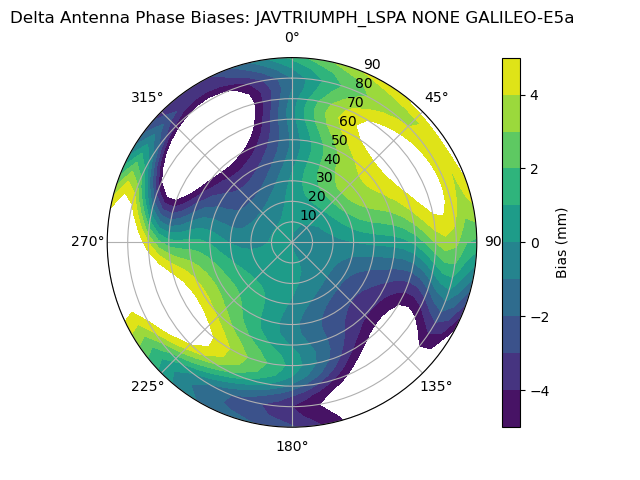

Radial GALILEO-E5aRadial GALILEO-E5a

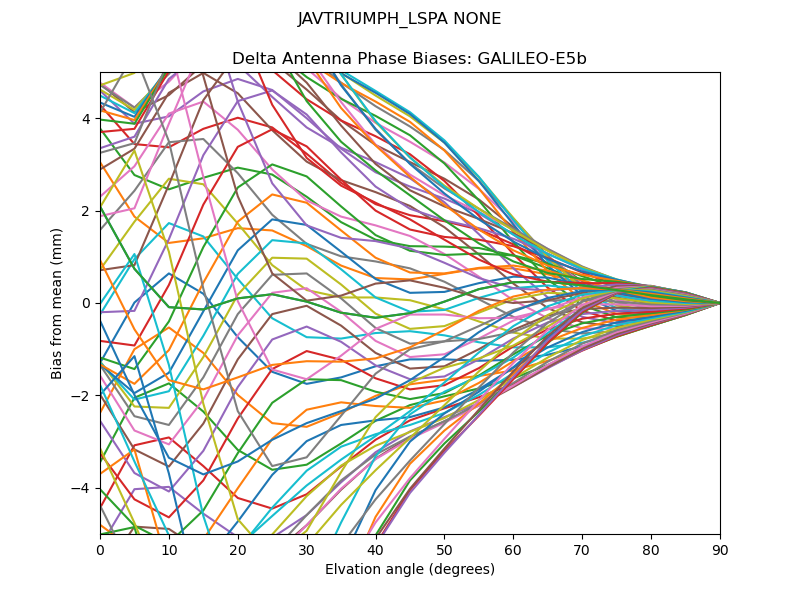

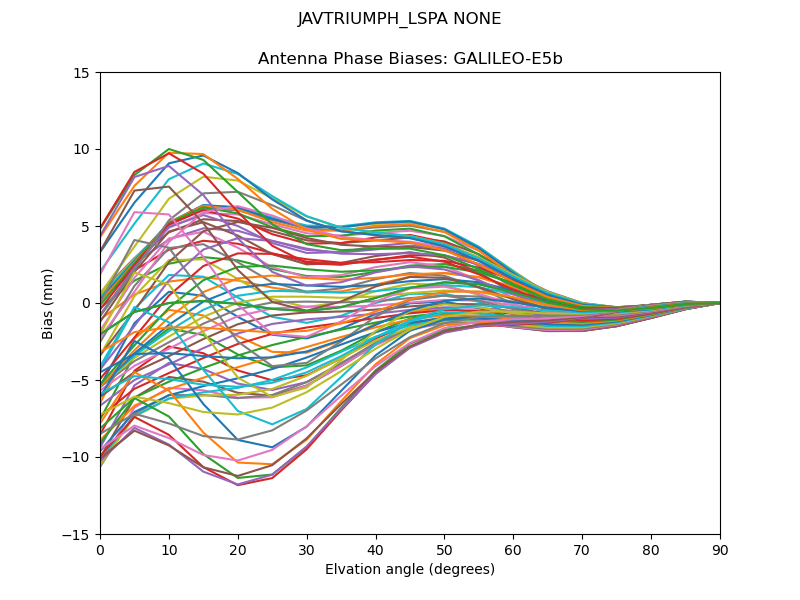

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

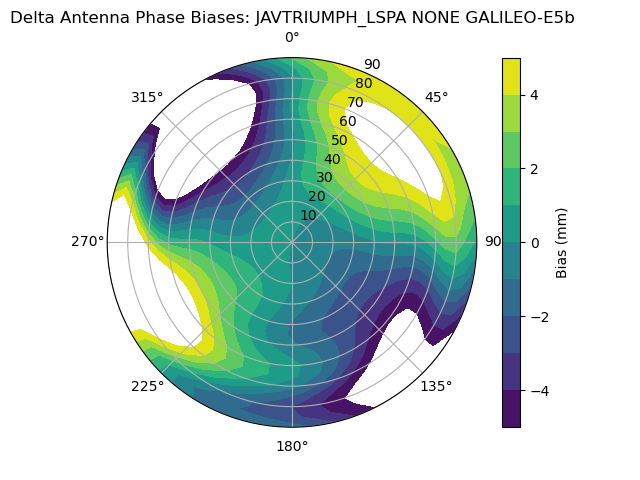

Radial GALILEO-E5bRadial GALILEO-E5b

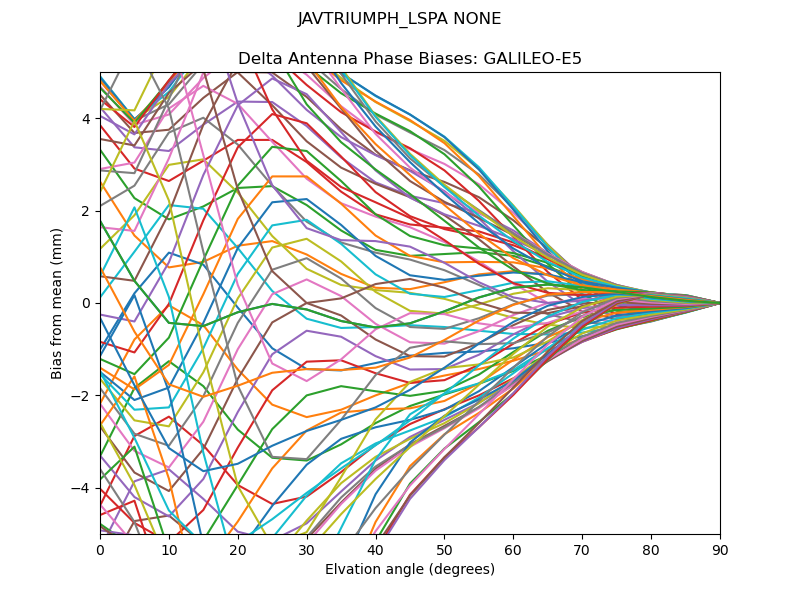

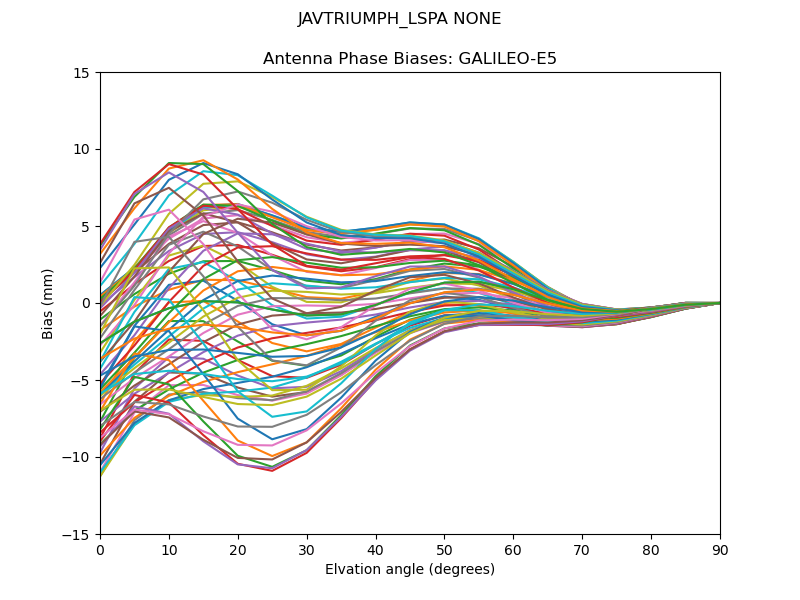

GALILEO-E5

GALILEO-E5GALILEO-E5

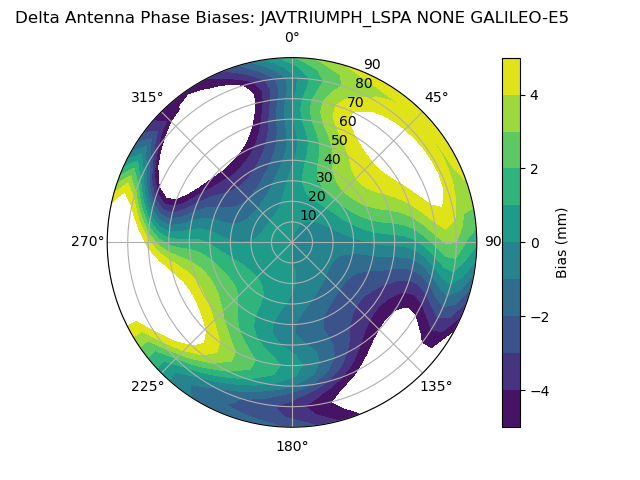

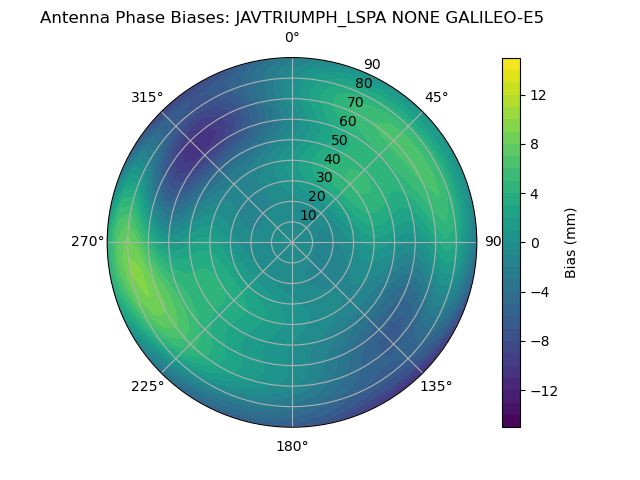

Radial GALILEO-E5Radial GALILEO-E5

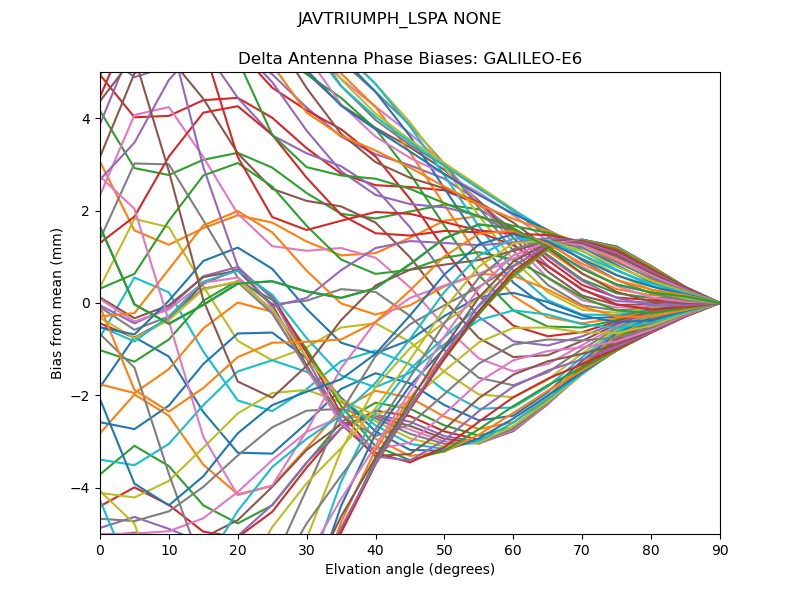

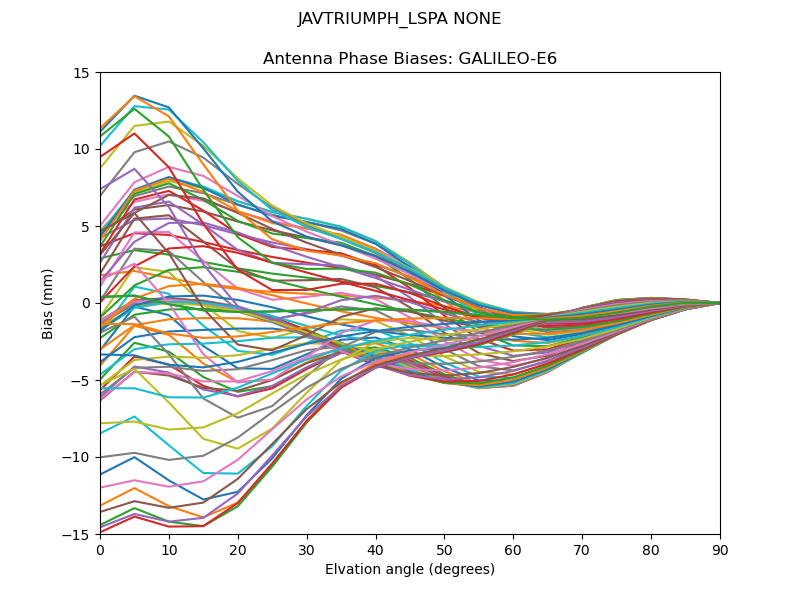

GALILEO-E6

GALILEO-E6GALILEO-E6
Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

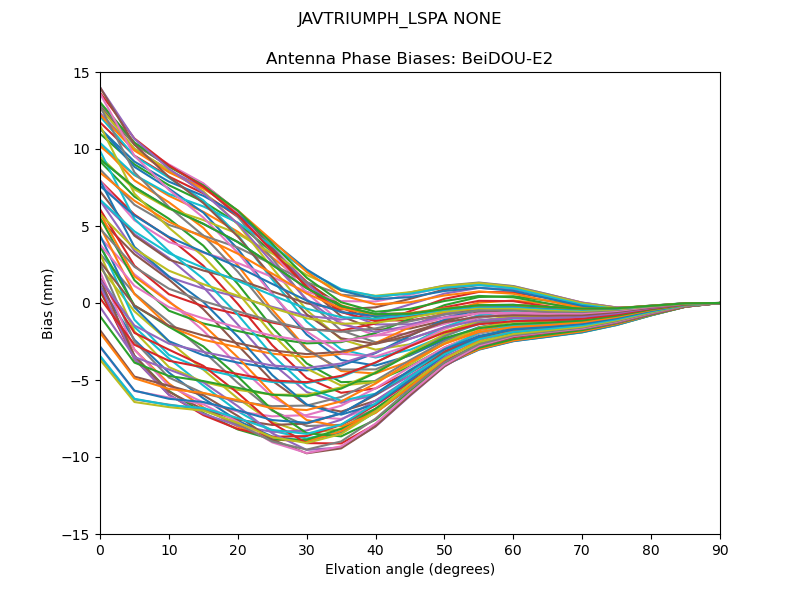

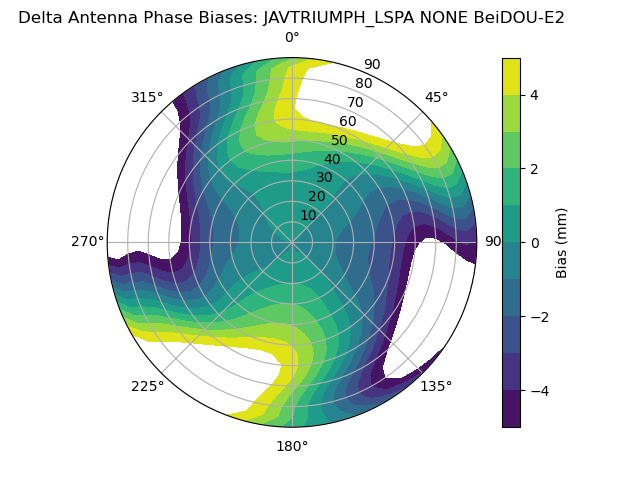

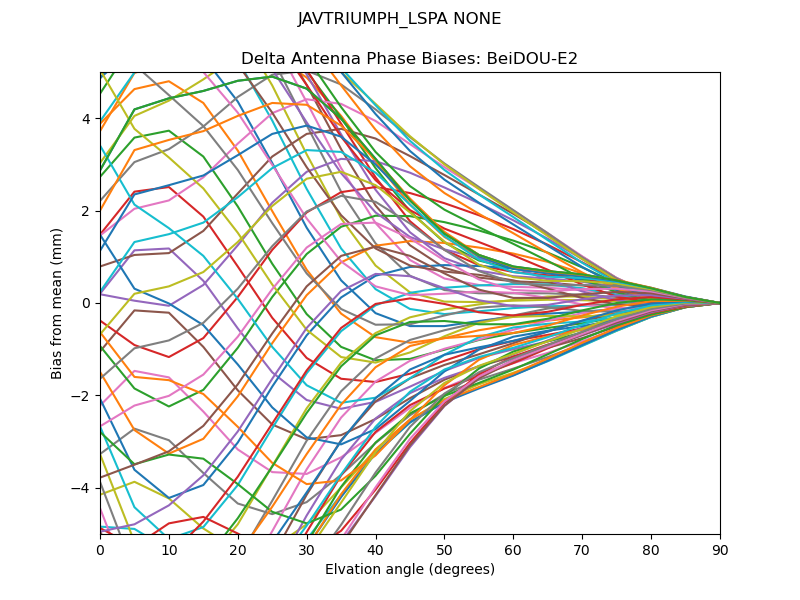

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b
Radial BeiDOU-E5bRadial BeiDOU-E5b

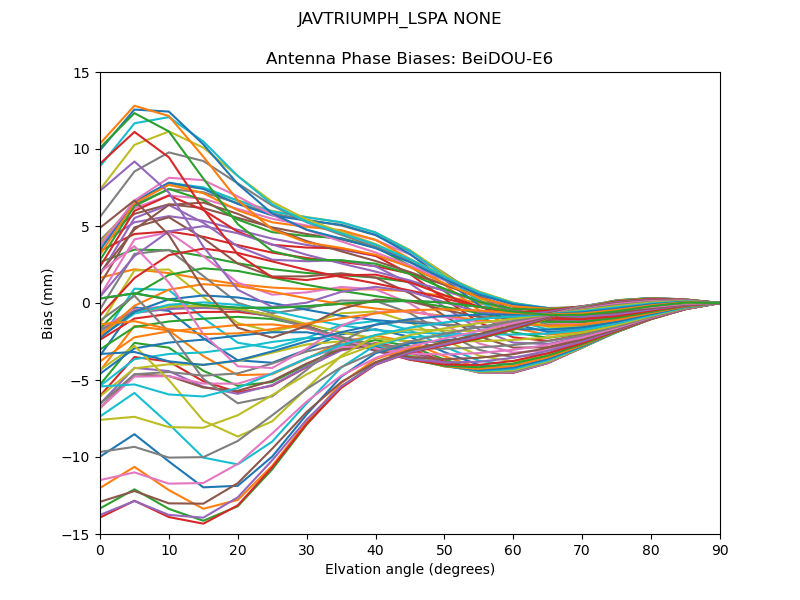

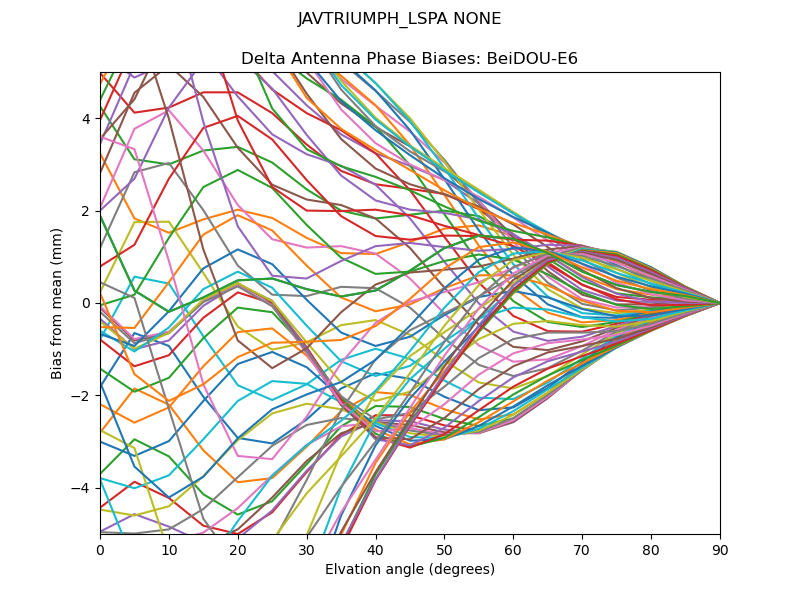

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

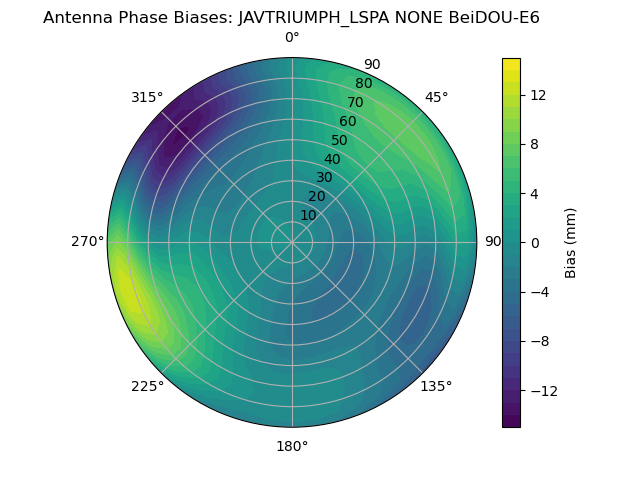

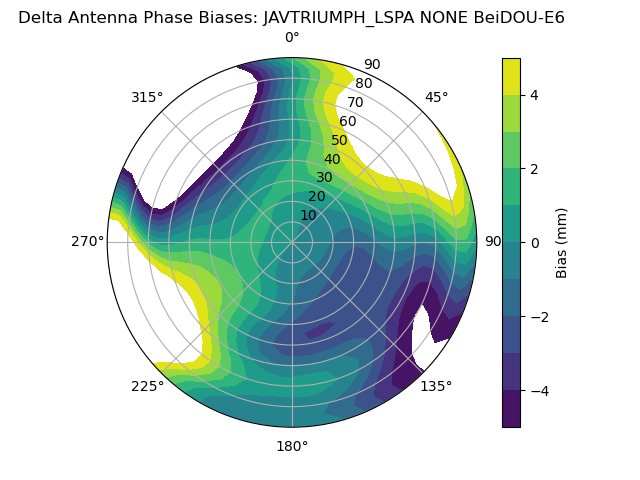

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

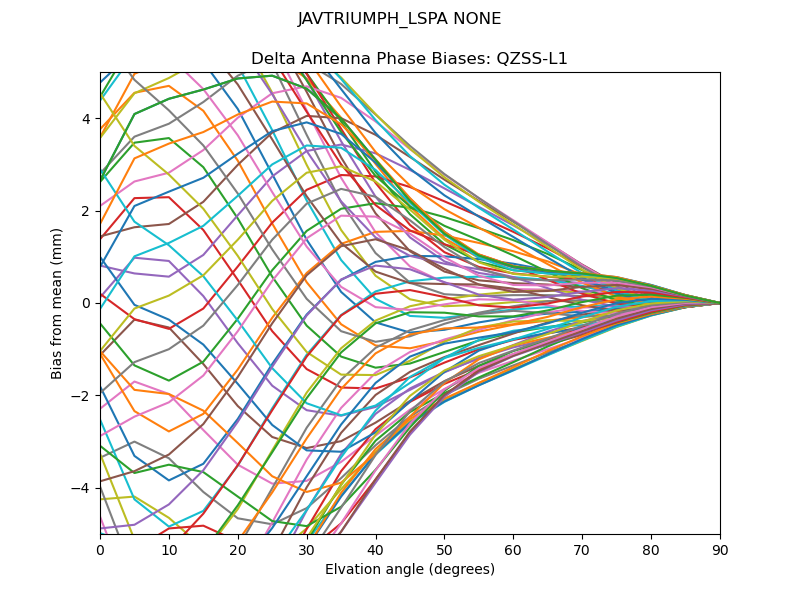

QZSS-L1

QZSS-L1QZSS-L1

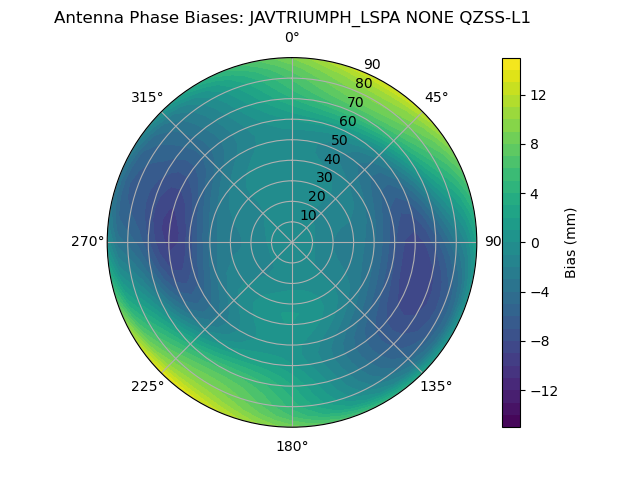

Radial QZSS-L1Radial QZSS-L1

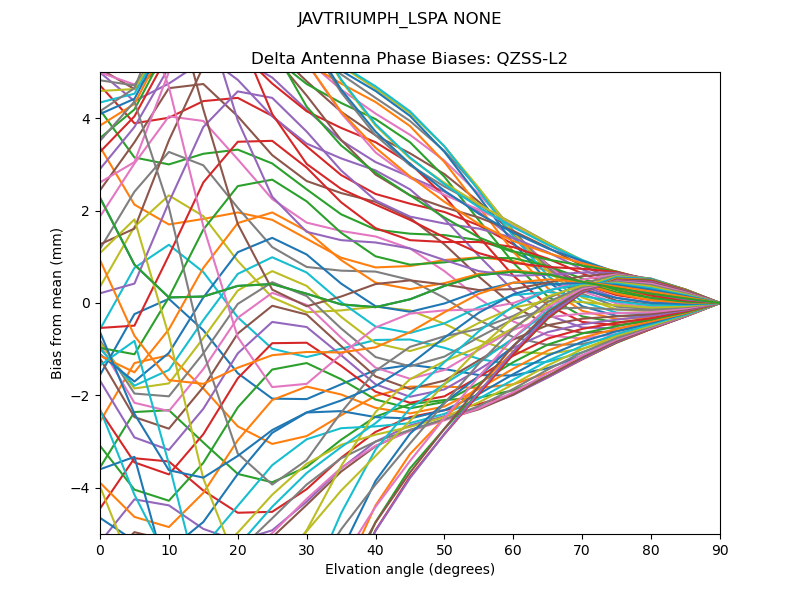

QZSS-L2

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

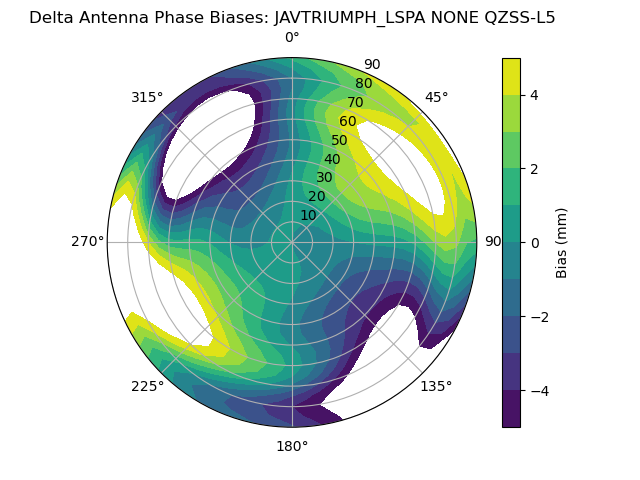

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

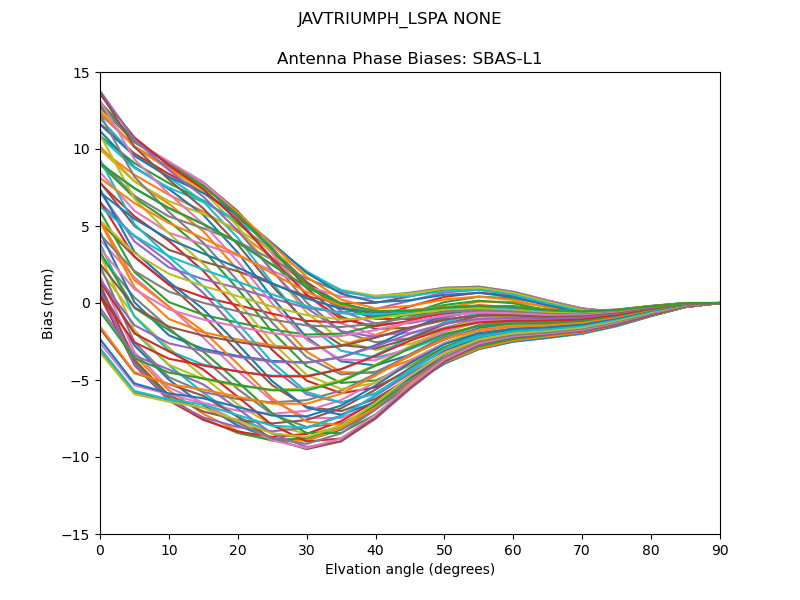

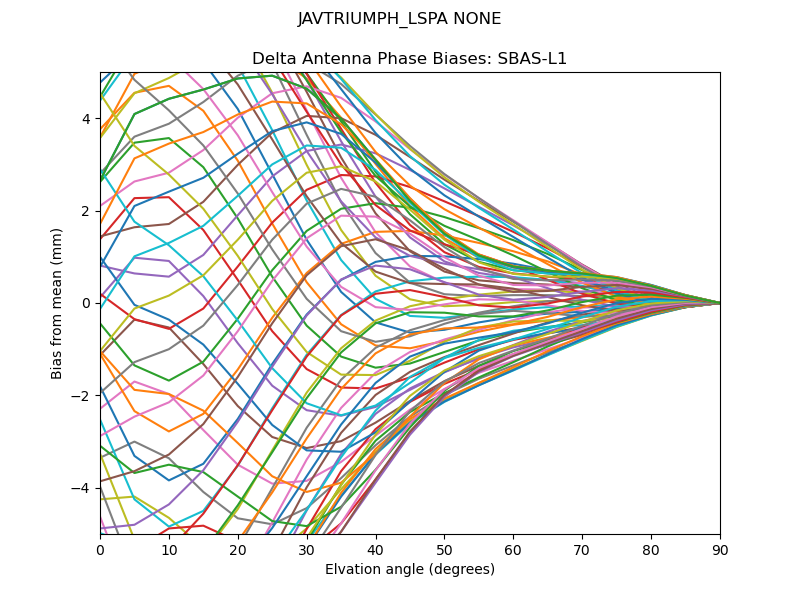

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

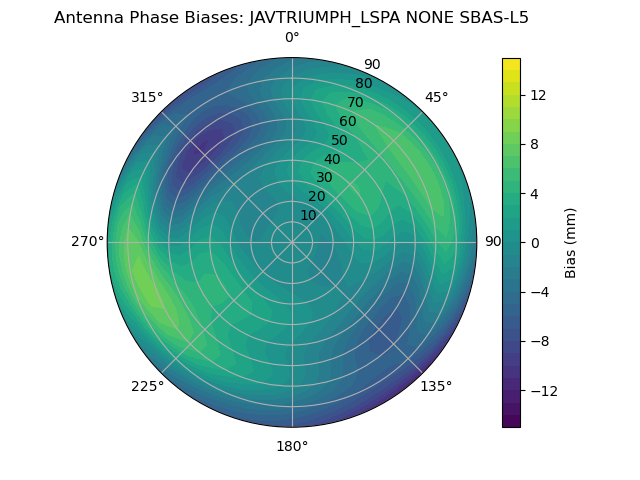

Radial SBAS-L5Radial SBAS-L5
