Antenna information for JAV_GRANT-G3T NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.06 E: 1.87 U: 51.05
L2: N: -2.74 E: -1.42 U: 49.00
L5: N: -5.01 E: -3.41 U: 53.62

GLONASS

L1: N: -0.79 E: 1.74 U: 48.81
L2: N: -1.30 E: -1.09 U: 43.38

GALILEO

E1: N: 0.06 E: 1.87 U: 51.05
E5a: N: -5.01 E: -3.41 U: 53.62
E5b: N: -3.51 E: -2.29 U: 50.17
E5: N: -4.33 E: -2.67 U: 52.01
E6: N: -1.28 E: 6.06 U: 22.72

BeiDou

E1: N: 0.06 E: 1.87 U: 51.05
E2: N: 0.57 E: 1.84 U: 52.55
E5b: N: -3.51 E: -2.29 U: 50.17
E6: N: -1.25 E: 3.50 U: 34.43

QZSS

L1: N: 0.06 E: 1.87 U: 51.05
L2: N: -2.74 E: -1.42 U: 49.00
L5: N: -5.01 E: -3.41 U: 53.62
LEX: N: -1.28 E: 6.06 U: 22.72

IRNSS

L5: N: -5.01 E: -3.41 U: 53.62

SBAS

L1: N: 0.06 E: 1.87 U: 51.05
L5: N: -5.01 E: -3.41 U: 53.62

L1

GPS: N: 0.06 E: 1.87 U: 51.05
GLONASS: N: -0.79 E: 1.74 U: 48.81
QZSS: N: 0.06 E: 1.87 U: 51.05
SBAS: N: 0.06 E: 1.87 U: 51.05

L2

GPS: N: -2.74 E: -1.42 U: 49.00
GLONASS: N: -1.30 E: -1.09 U: 43.38
QZSS: N: -2.74 E: -1.42 U: 49.00

L5

GPS: N: -5.01 E: -3.41 U: 53.62
QZSS: N: -5.01 E: -3.41 U: 53.62
SBAS: N: -5.01 E: -3.41 U: 53.62
IRNSS: N: -5.01 E: -3.41 U: 53.62

E1

GALILEO: N: 0.06 E: 1.87 U: 51.05
BeiDou: N: 0.06 E: 1.87 U: 51.05

E2

BeiDou: N: 0.57 E: 1.84 U: 52.55

E5

GALILEO: N: -4.33 E: -2.67 U: 52.01

E5a

GALILEO: N: -5.01 E: -3.41 U: 53.62

E5b

GALILEO: N: -3.51 E: -2.29 U: 50.17
BeiDou: N: -3.51 E: -2.29 U: 50.17

E6

GALILEO: N: -1.28 E: 6.06 U: 22.72
BeiDou: N: -1.25 E: 3.50 U: 34.43

LEX

QZSS: N: -1.28 E: 6.06 U: 22.72


Means

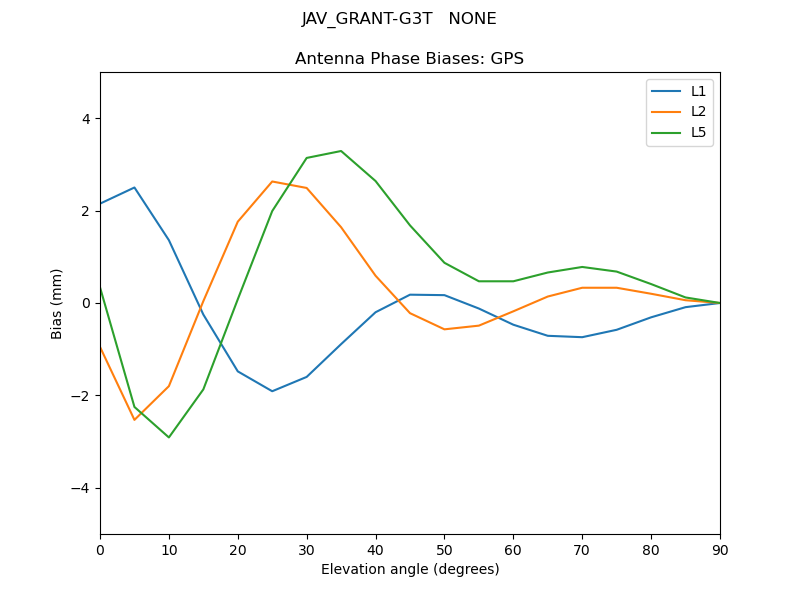

GPS

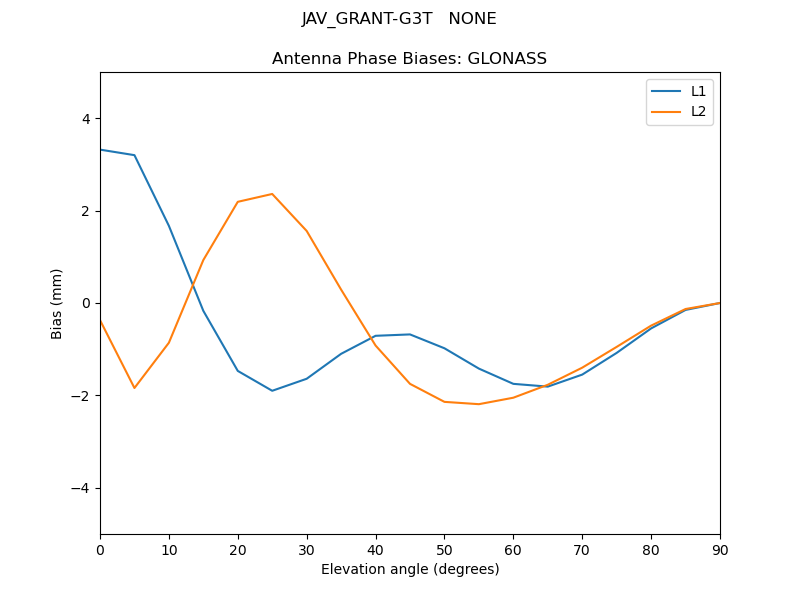

GLONASS

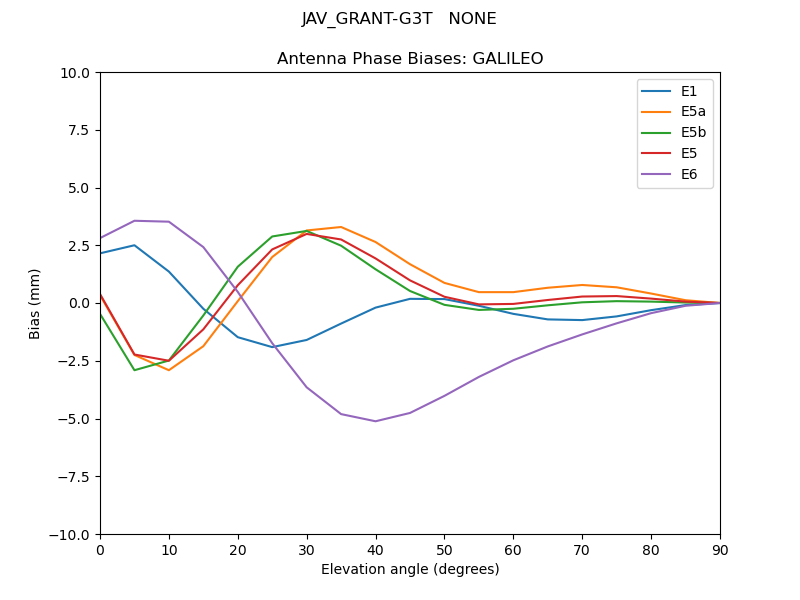

GALILEO

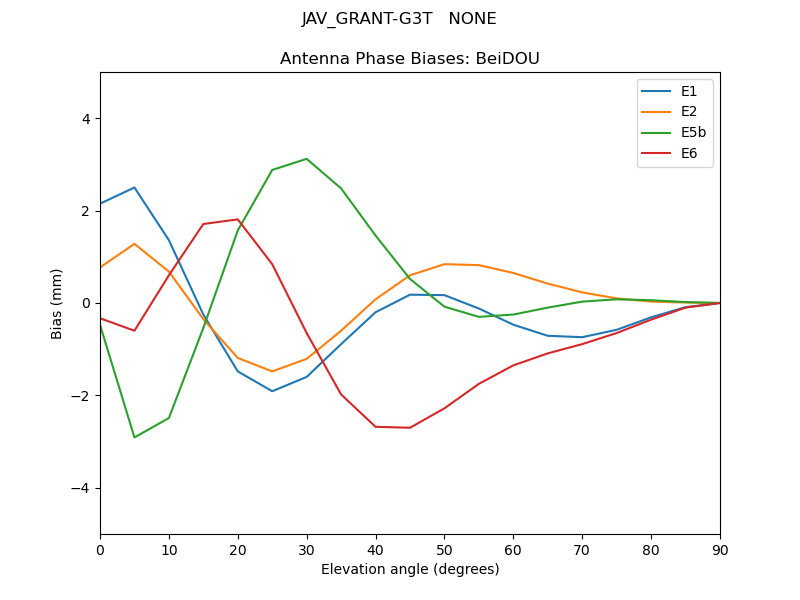

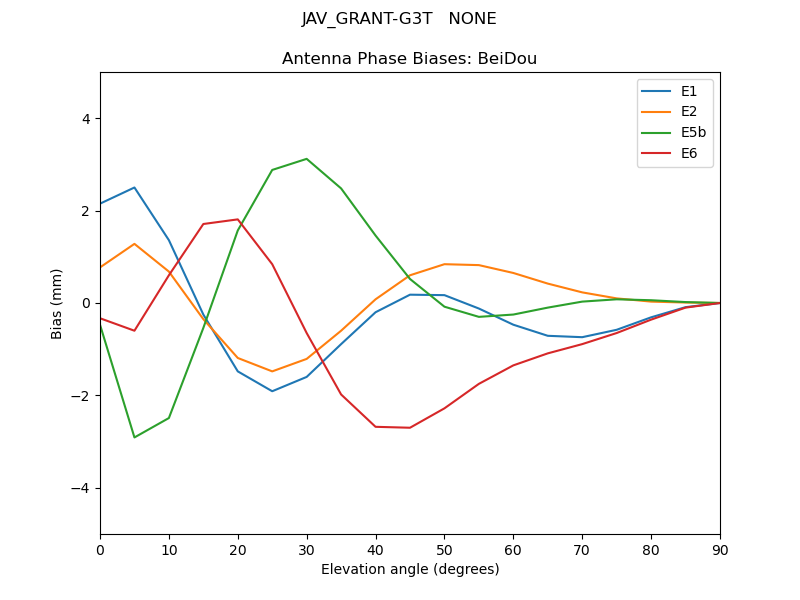

BeiDOU


QZSS

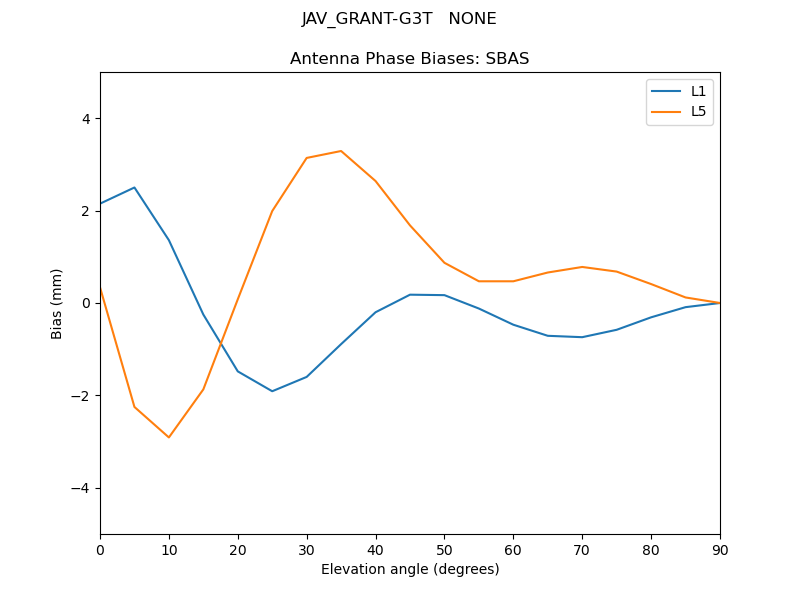

SBAS

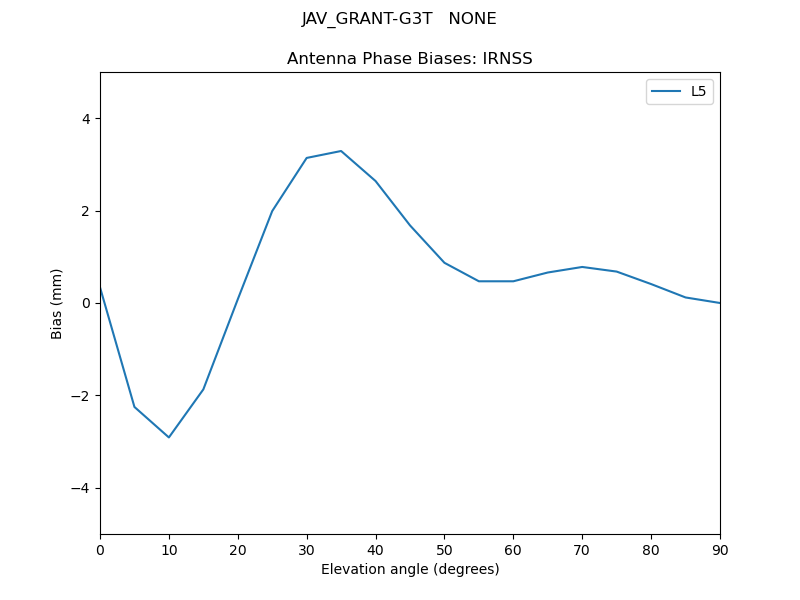

IRNSS


Azimuths

GPS


Bias Delta

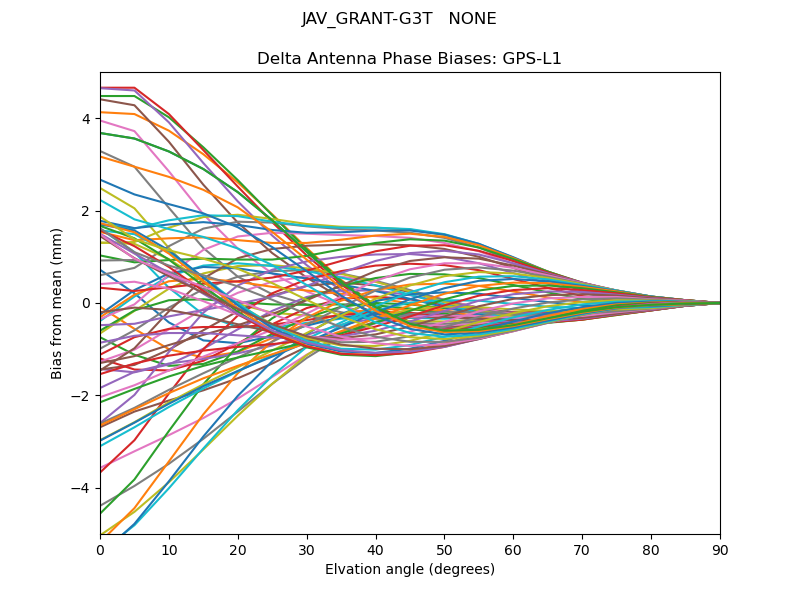

GPS-L1

GPS-L1GPS-L1

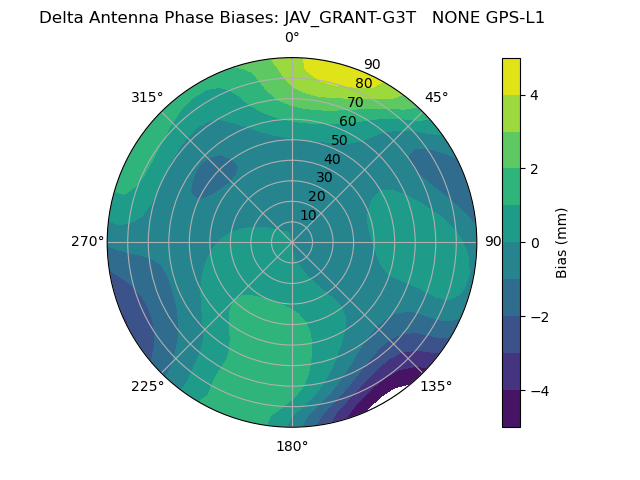

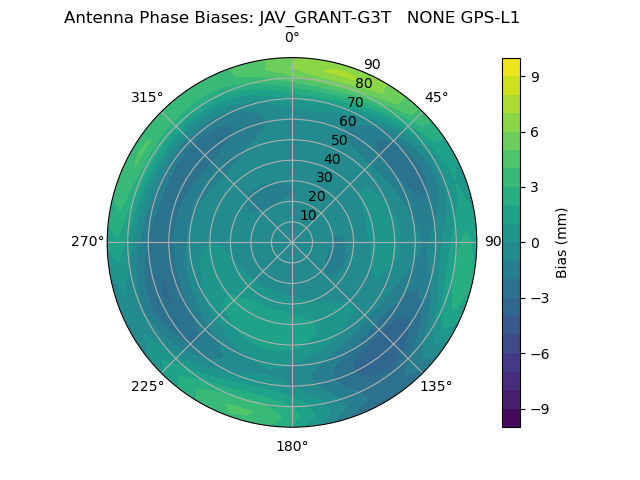

Radial GPS-L1Radial GPS-L1

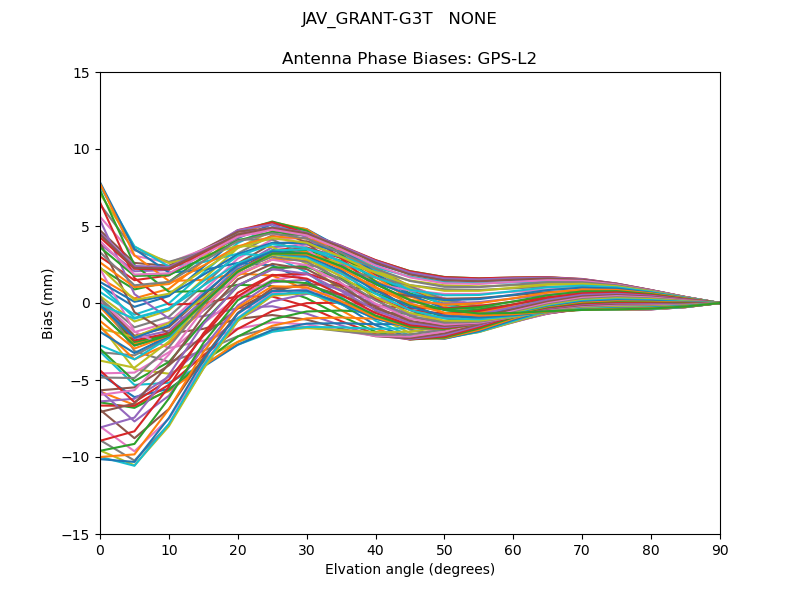

GPS-L2

GPS-L2GPS-L2

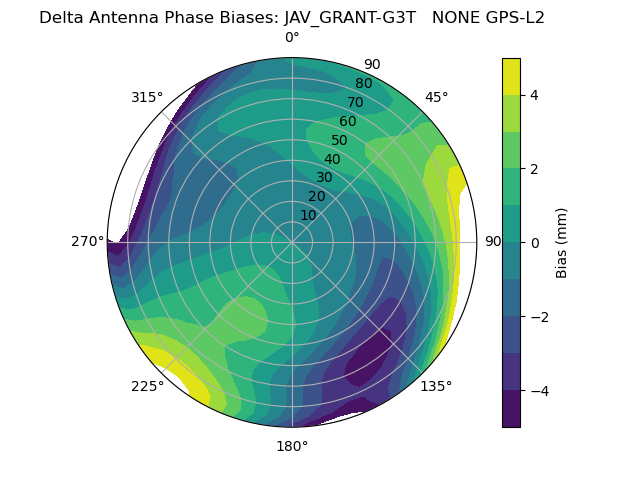

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5
Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

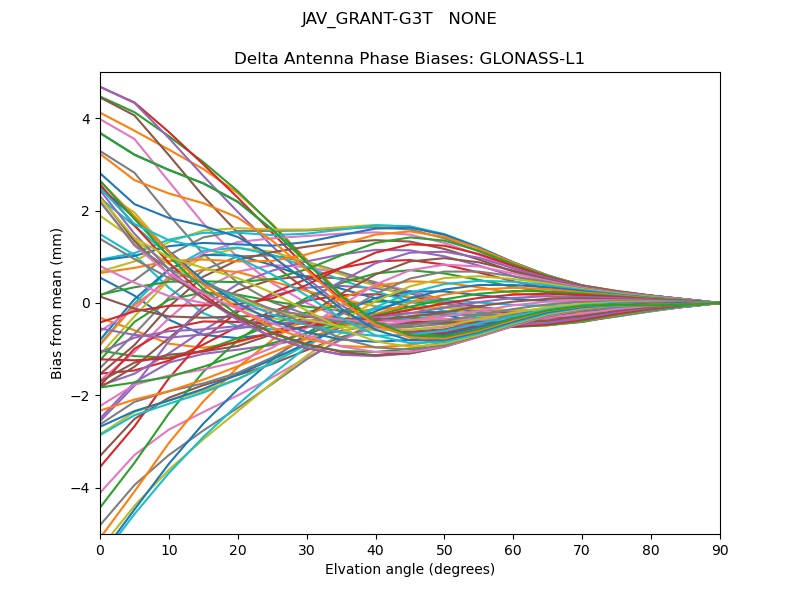

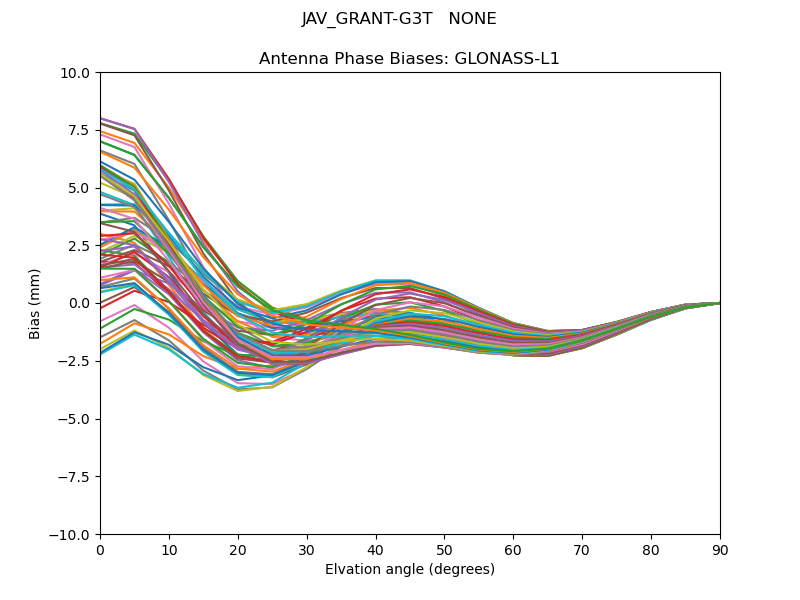

GLONASS-L1

GLONASS-L1GLONASS-L1

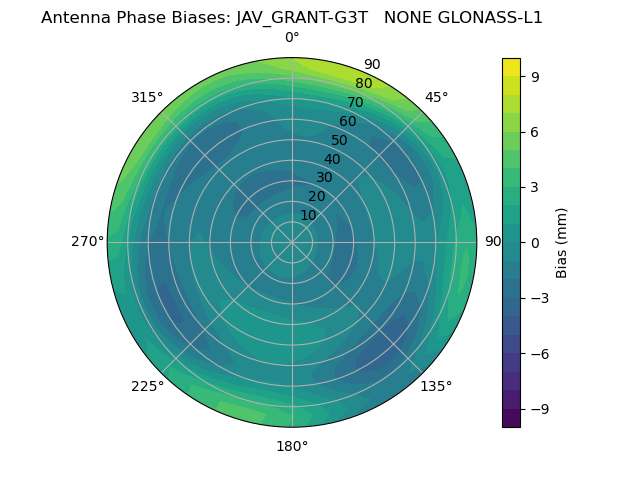

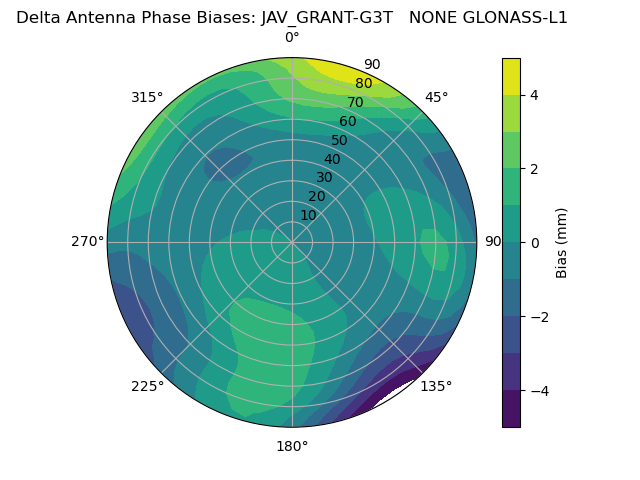

Radial GLONASS-L1Radial GLONASS-L1

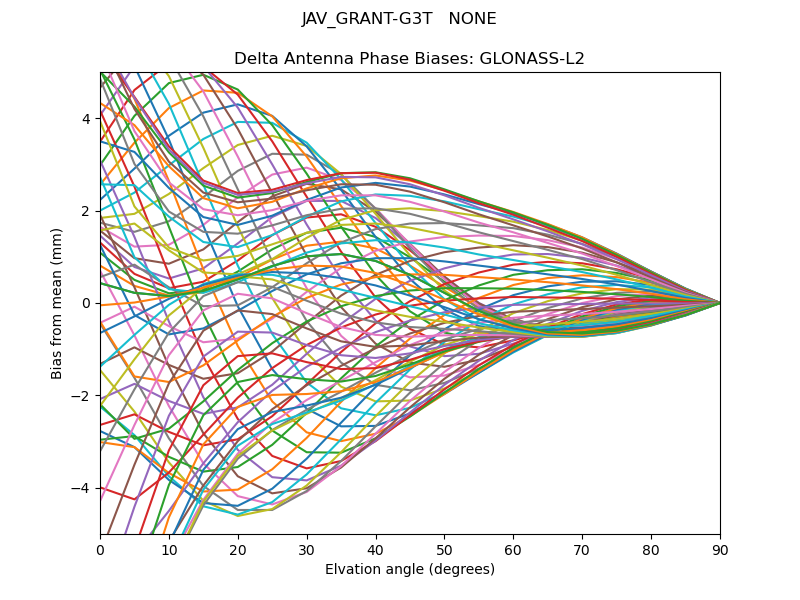

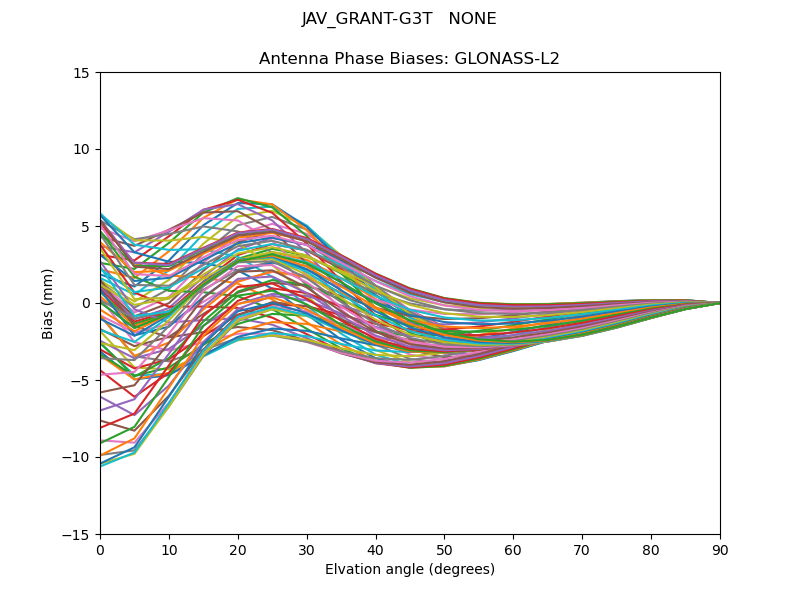

GLONASS-L2

GLONASS-L2GLONASS-L2

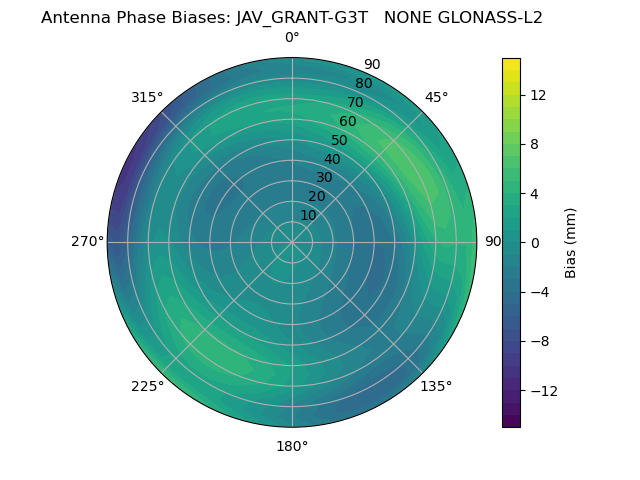

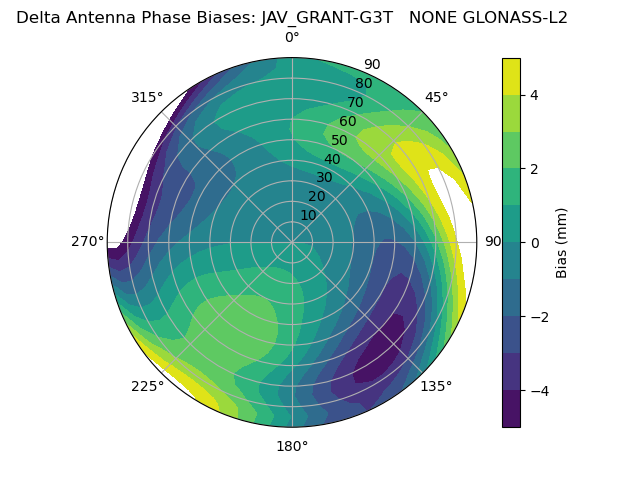

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

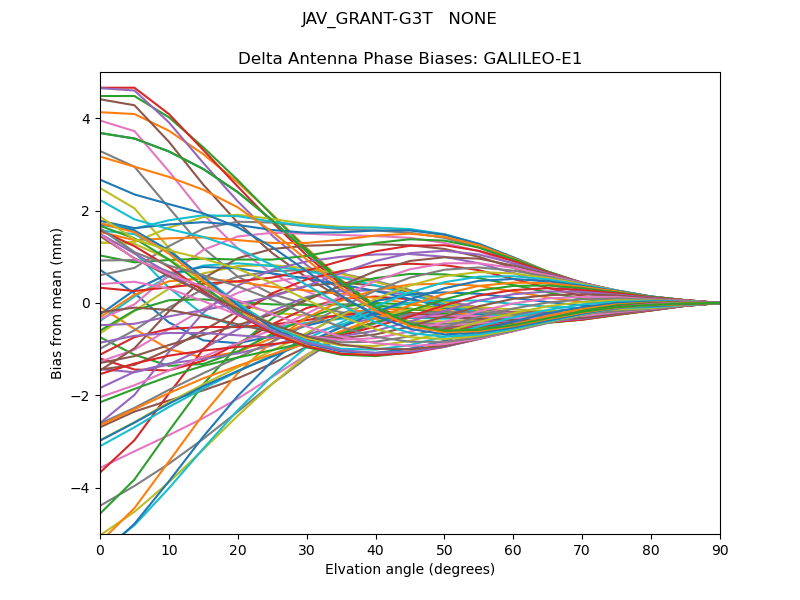

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

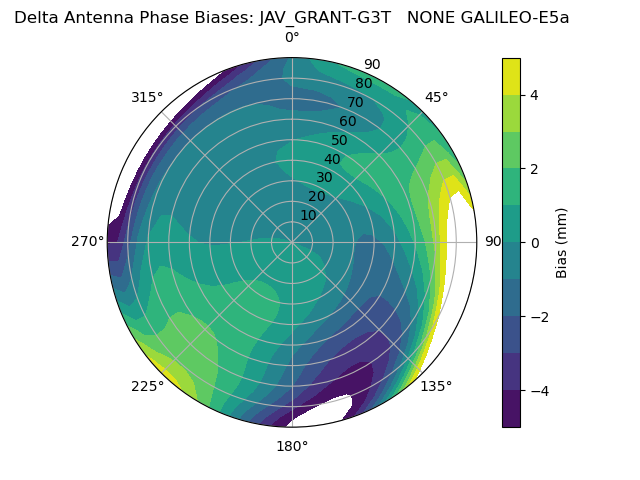

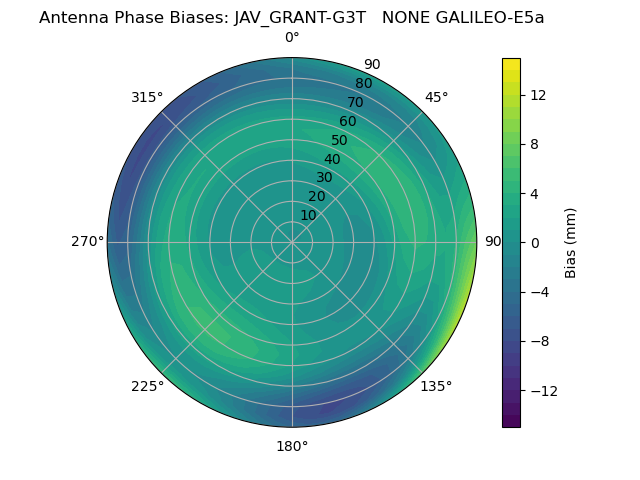

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

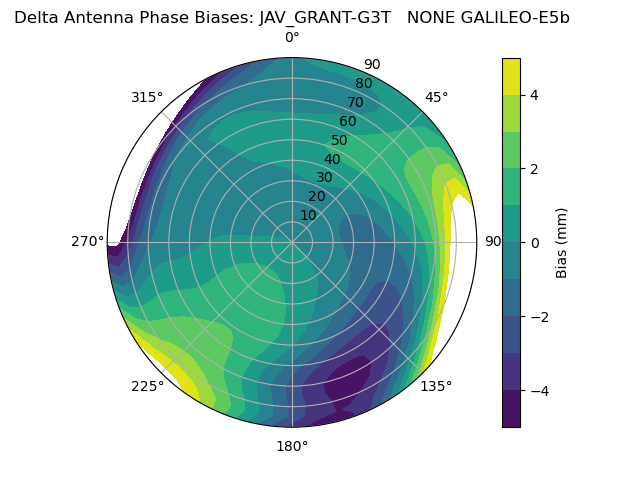

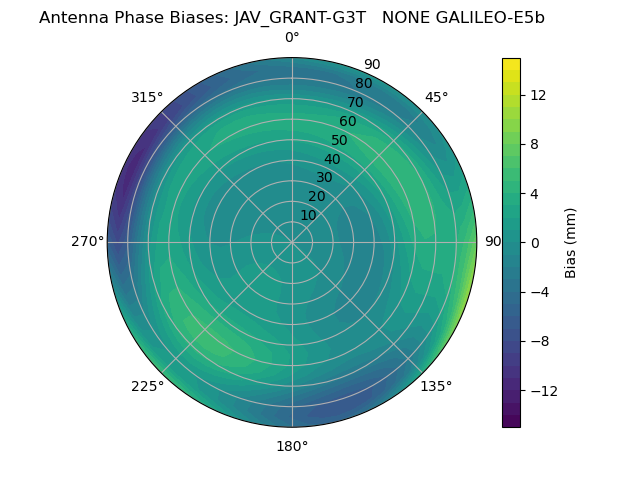

Radial GALILEO-E5bRadial GALILEO-E5b

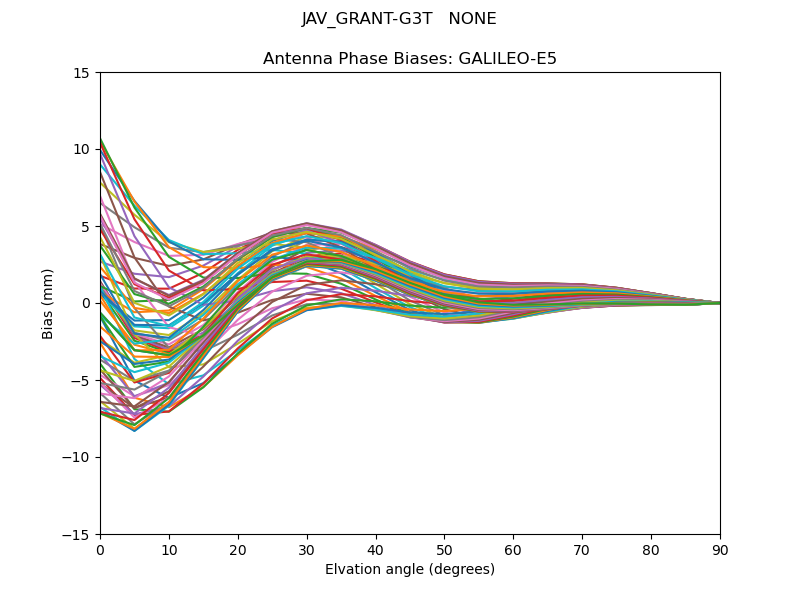

GALILEO-E5

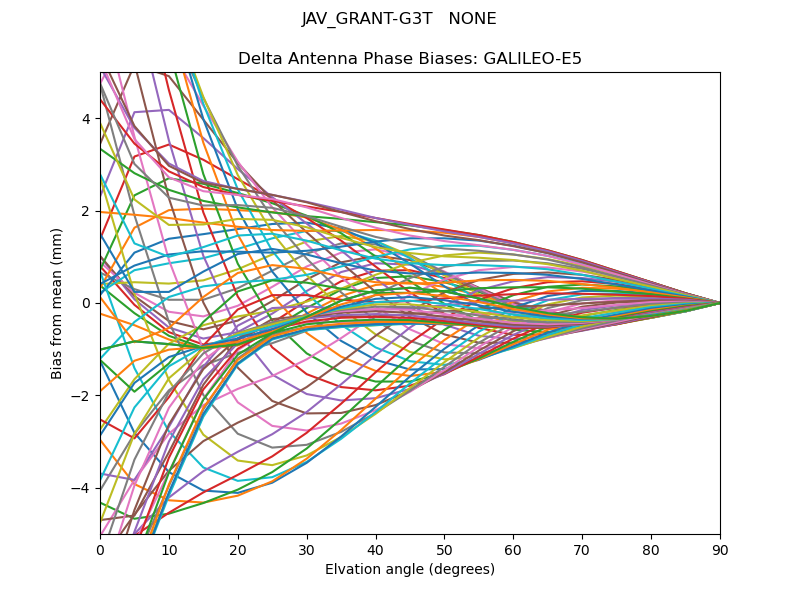

GALILEO-E5GALILEO-E5

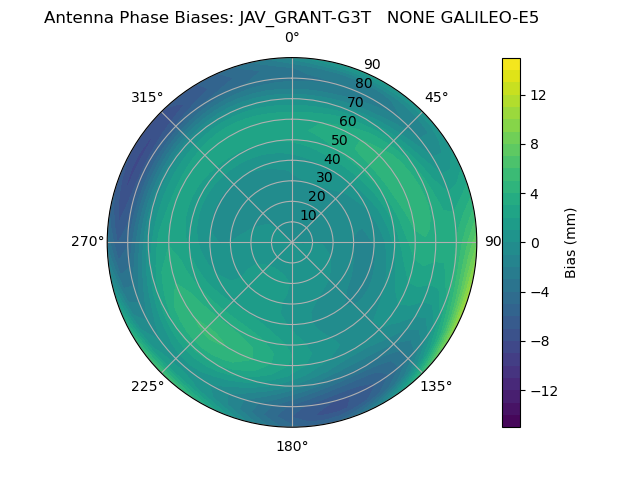

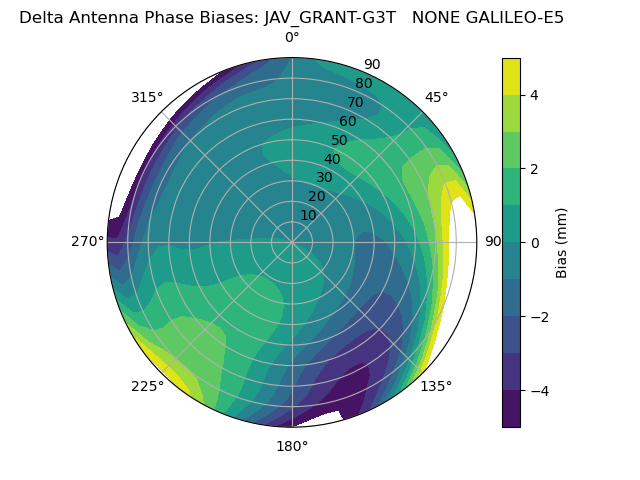

Radial GALILEO-E5Radial GALILEO-E5

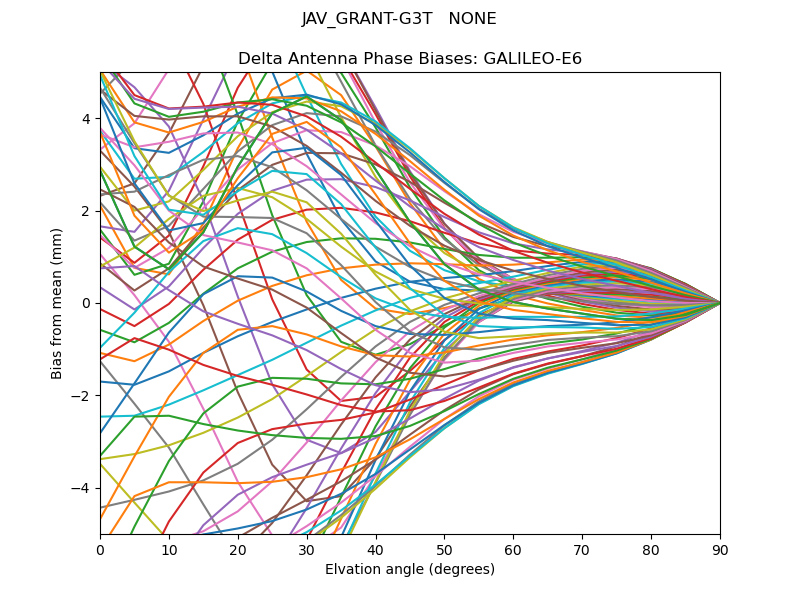

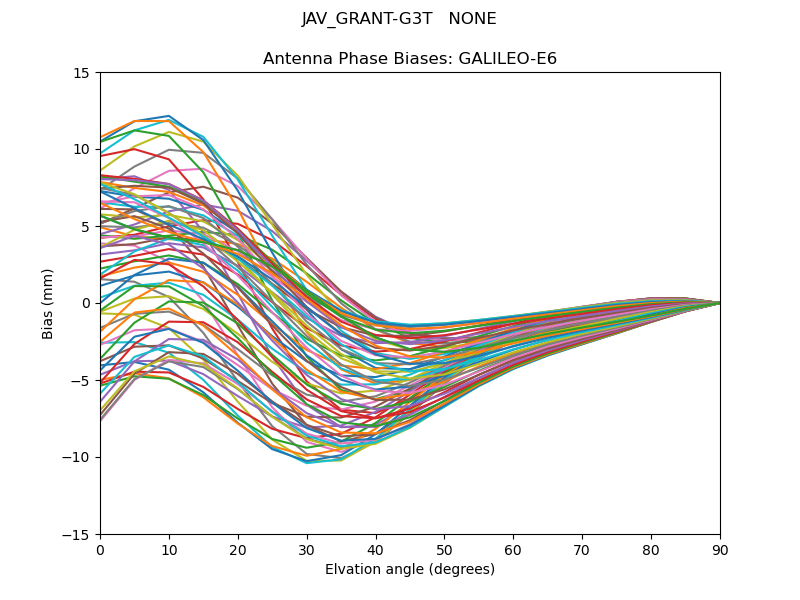

GALILEO-E6

GALILEO-E6GALILEO-E6

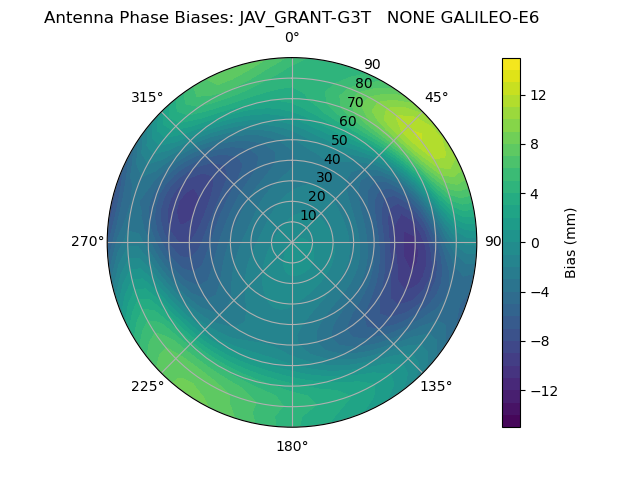

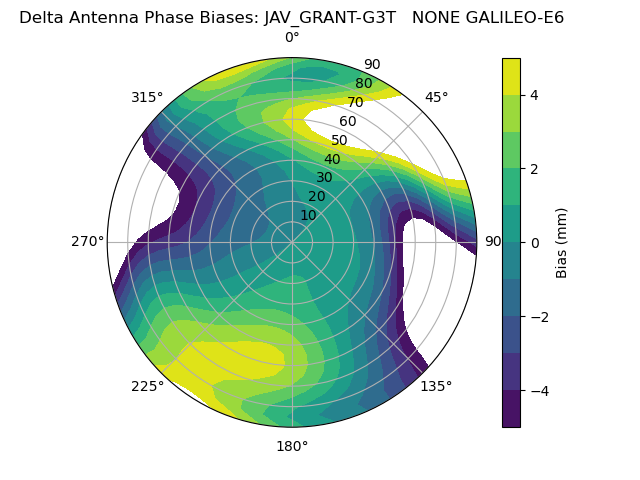

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

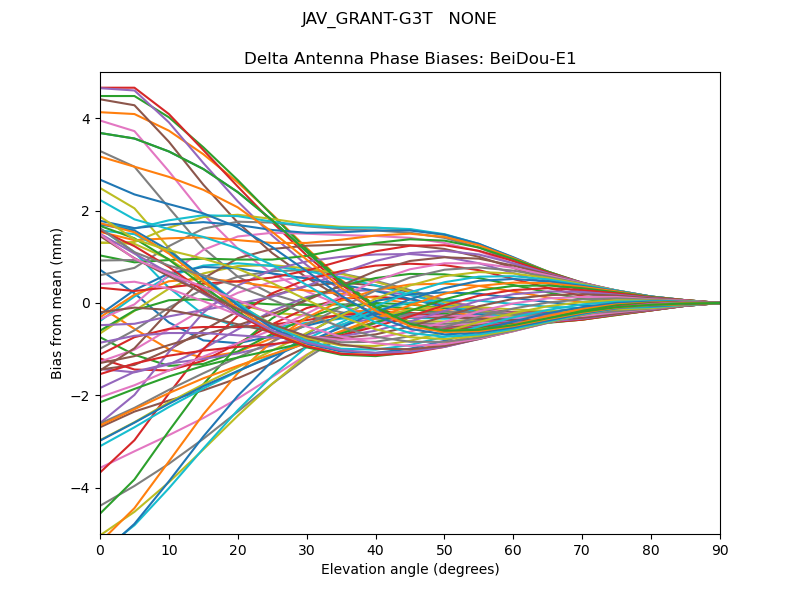

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

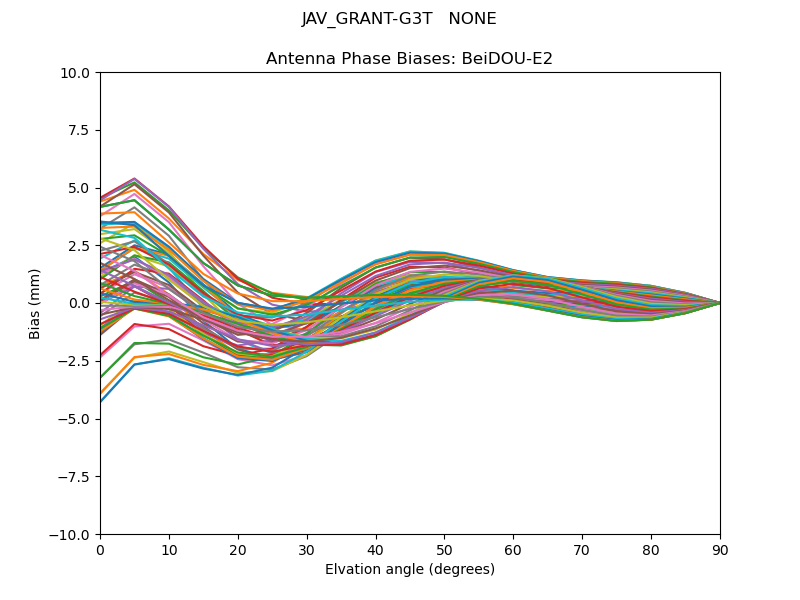

BeiDOU-E2

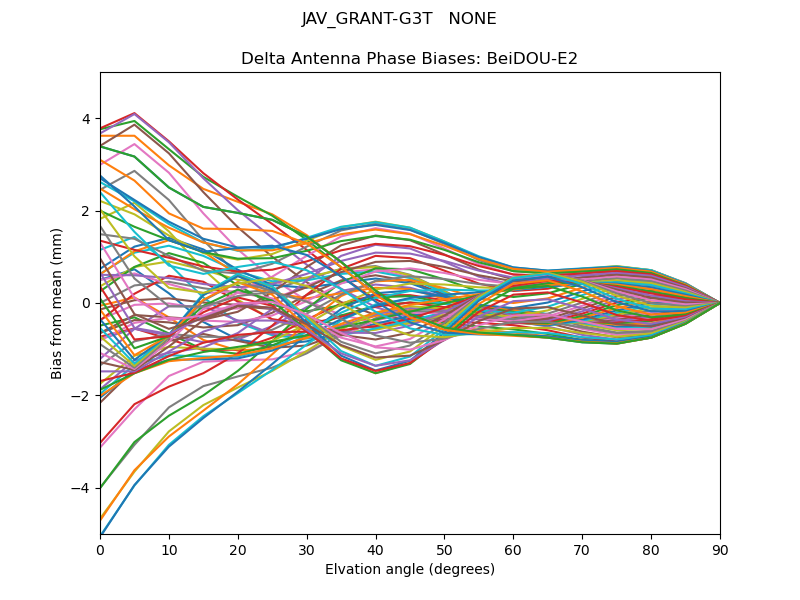

BeiDOU-E2BeiDOU-E2

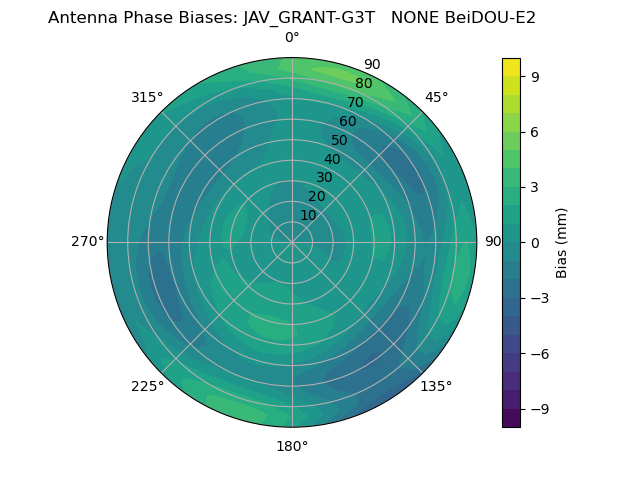

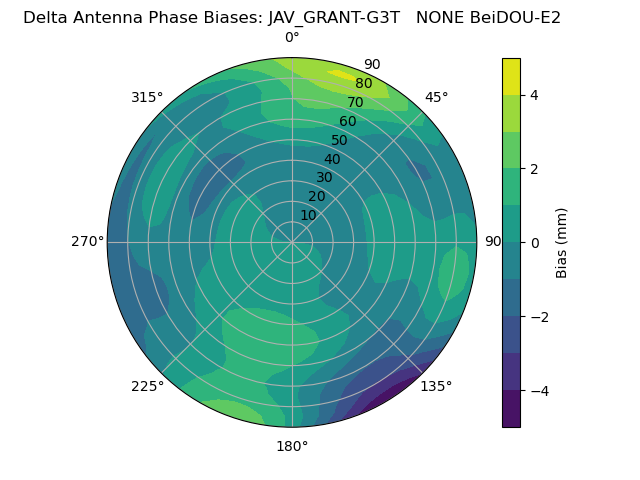

Radial BeiDOU-E2Radial BeiDOU-E2

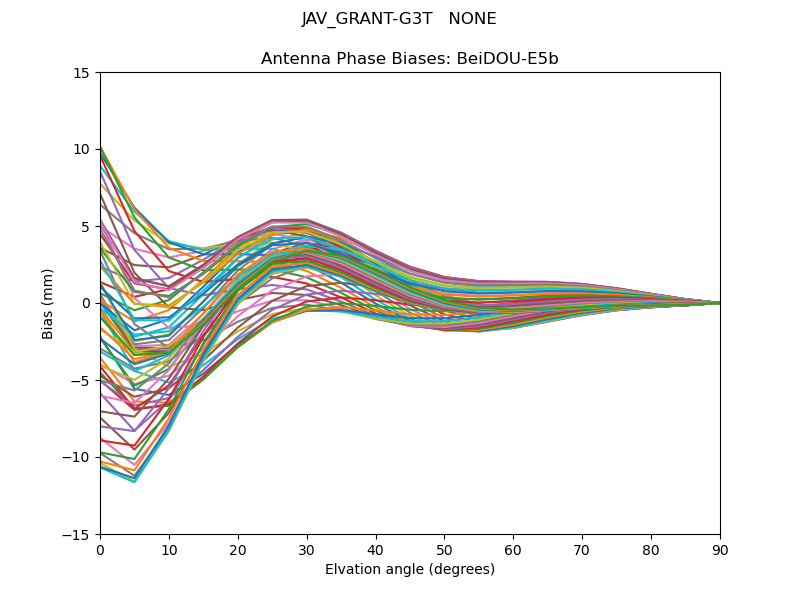

BeiDOU-E5b

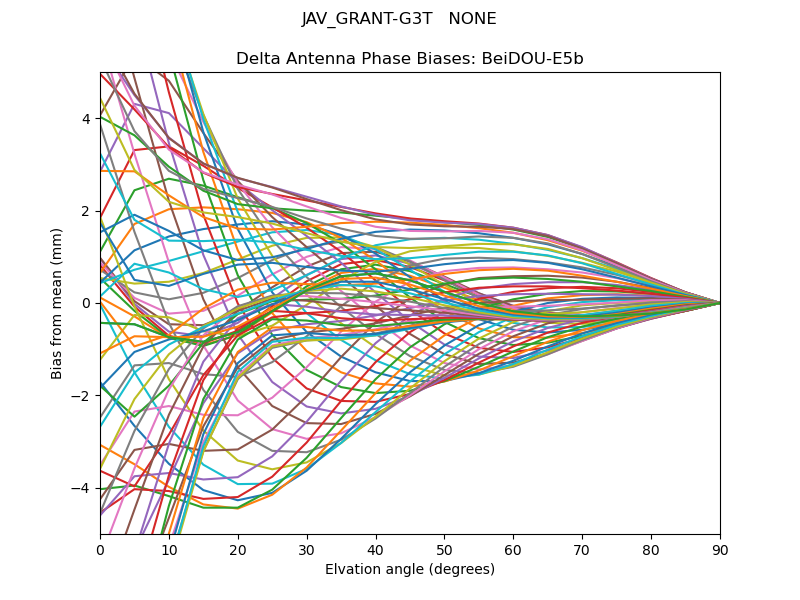

BeiDOU-E5bBeiDOU-E5b

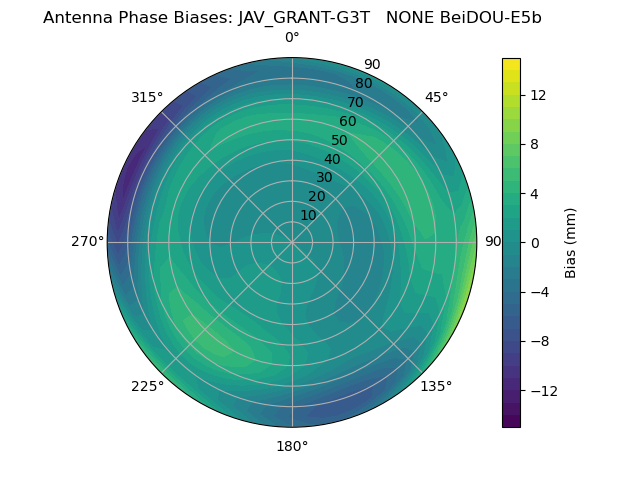

Radial BeiDOU-E5bRadial BeiDOU-E5b

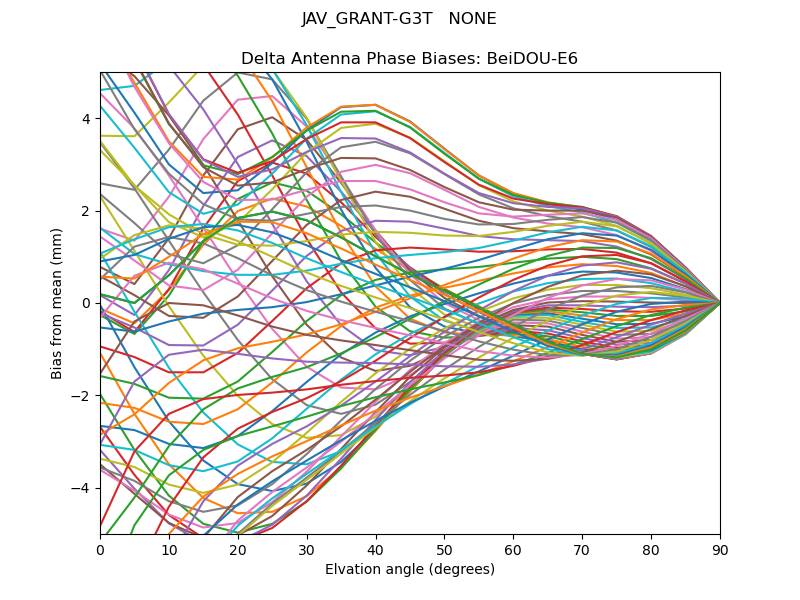

BeiDOU-E6

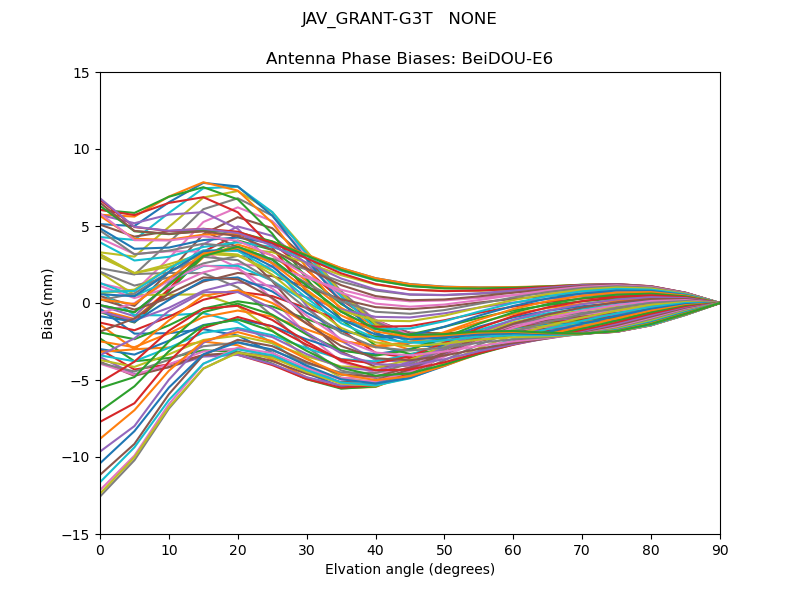

BeiDOU-E6BeiDOU-E6

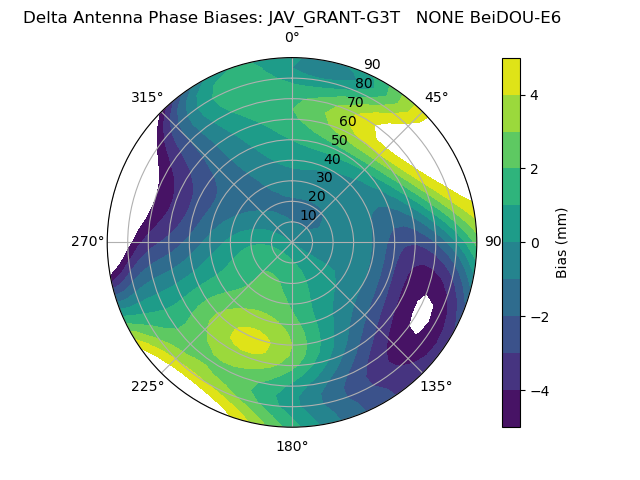

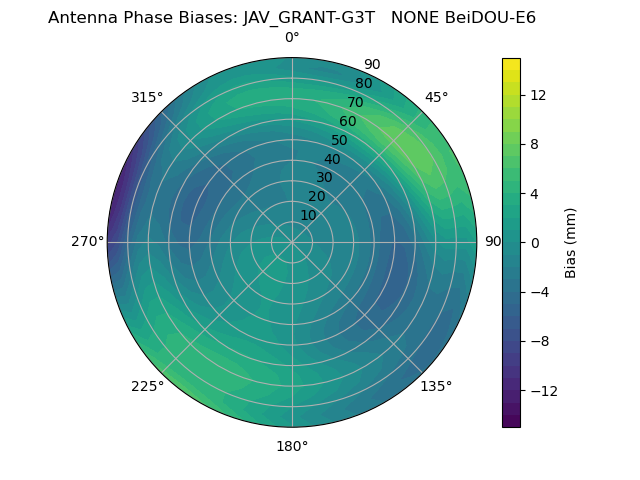

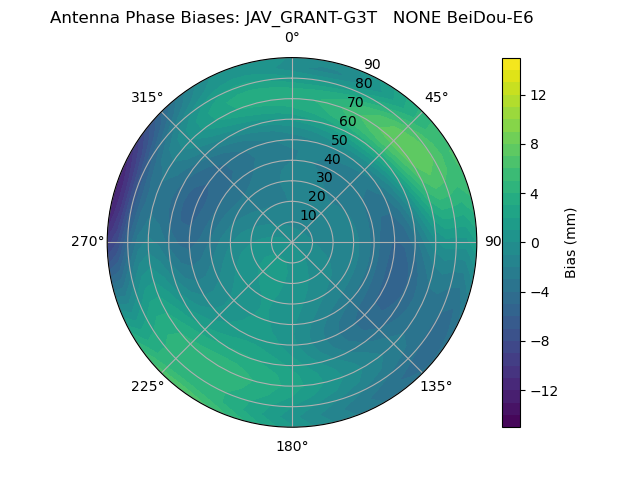

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

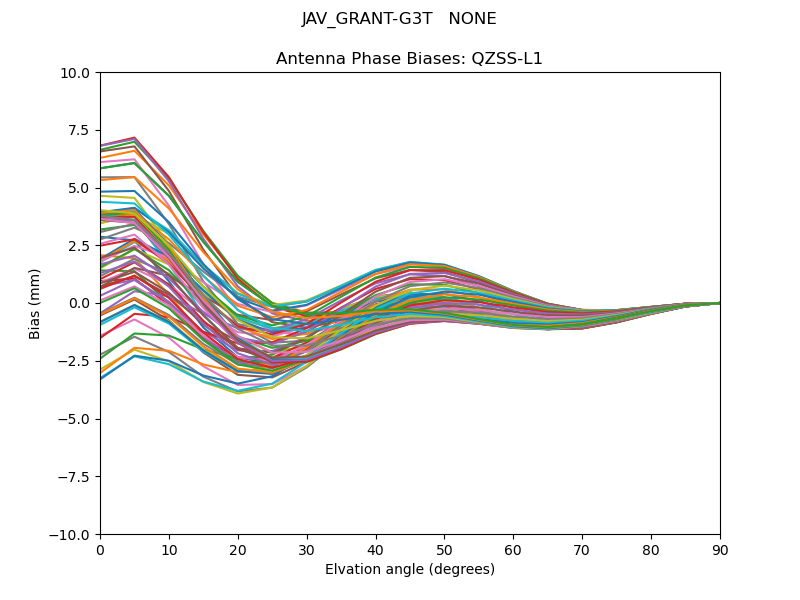

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

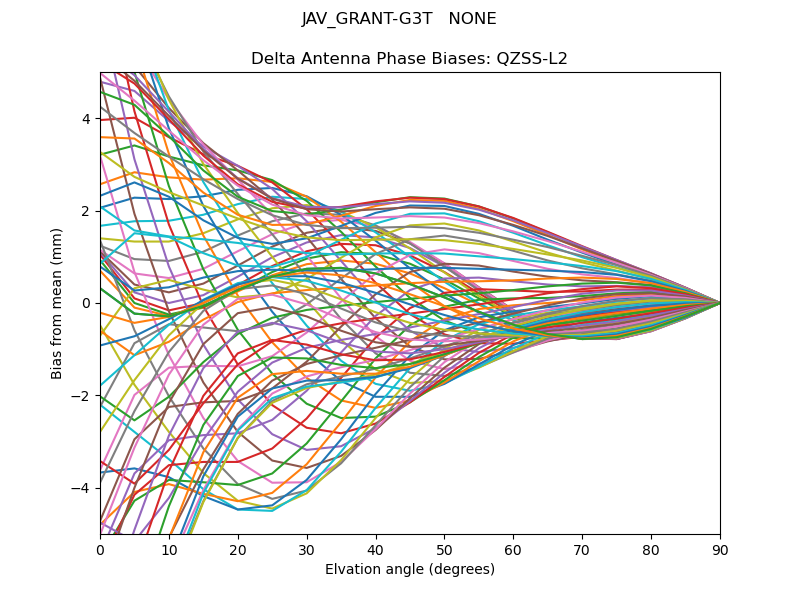

QZSS-L2

QZSS-L2QZSS-L2

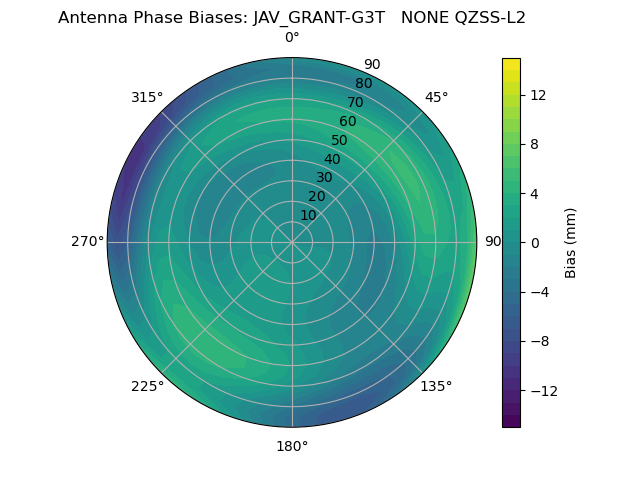

Radial QZSS-L2Radial QZSS-L2

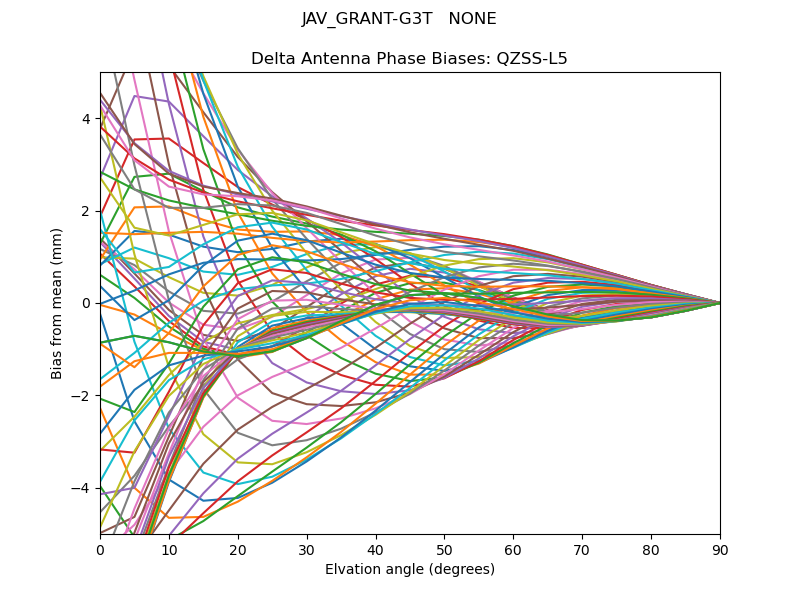

QZSS-L5

QZSS-L5QZSS-L5

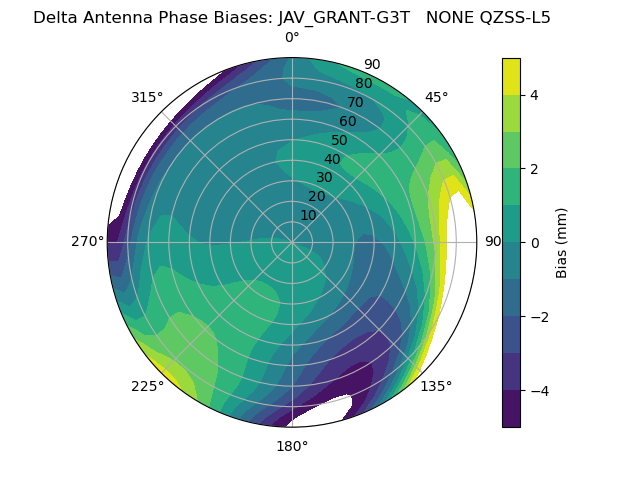

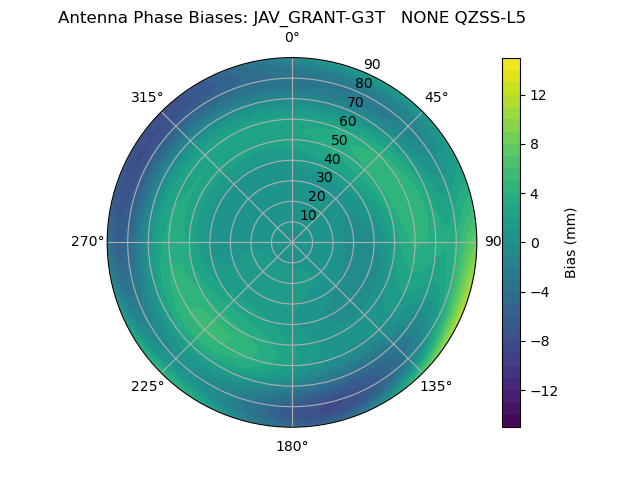

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

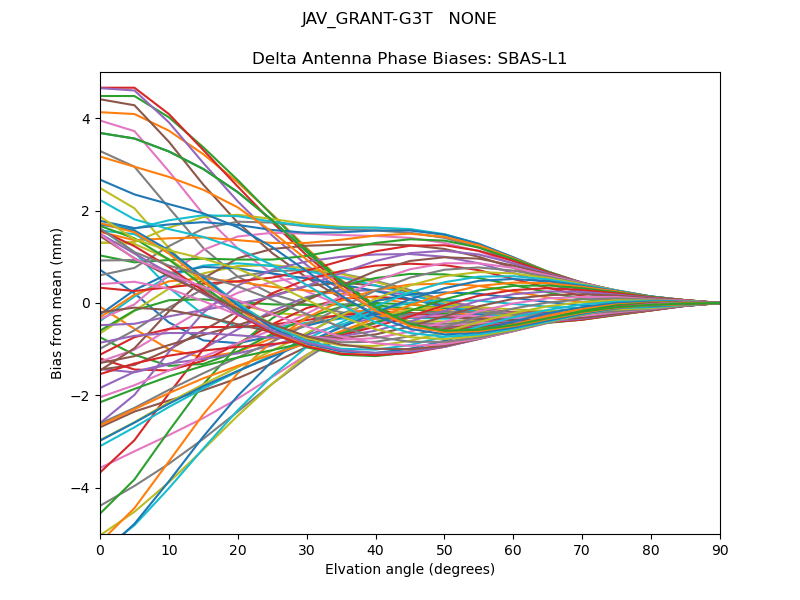

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

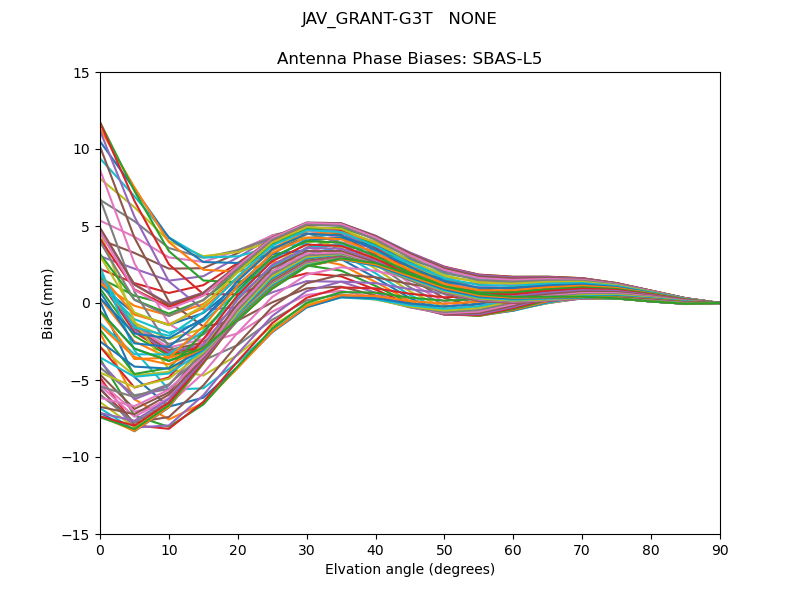

SBAS-L5

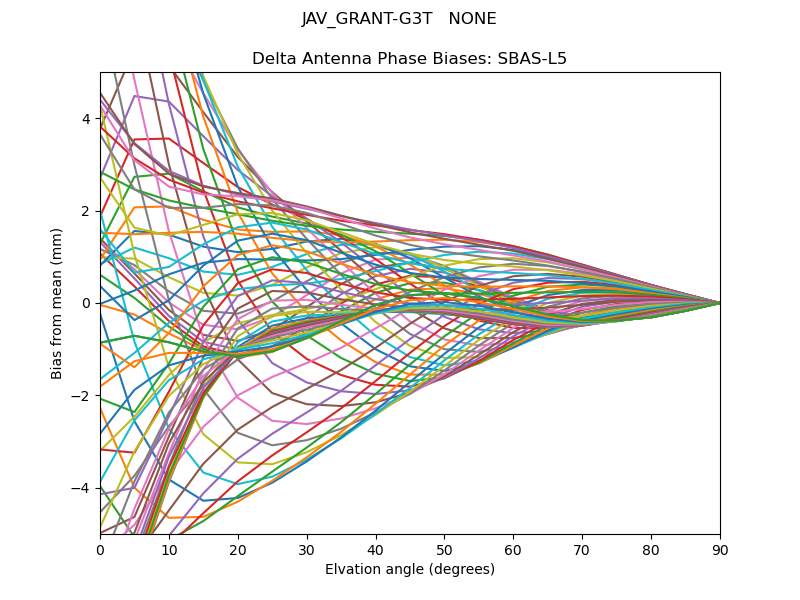

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5

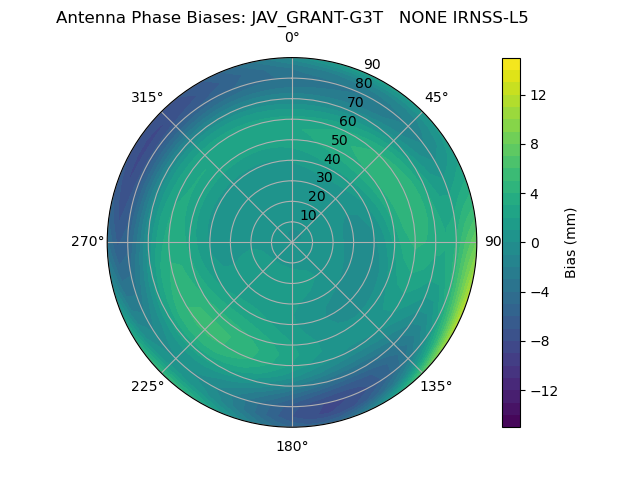

Radial IRNSS-L5Radial IRNSS-L5
