Antenna information for KRL_FTYPE NONE

Antenna Offsets

SV System

Bands

GPS L1: N: -3.29 E: 1.10 U: 181.41 L2: N: -4.63 E: -1.74 U: 181.23 L5: N: -4.34 E: -1.49 U: 180.75 GLONASS L1: N: -3.29 E: 1.10 U: 181.41 L2: N: -4.63 E: -1.74 U: 181.23 GALILEO E1: N: -3.29 E: 1.10 U: 181.41 E5a: N: -4.34 E: -1.49 U: 180.75 BeiDou E1: N: -3.29 E: 1.10 U: 181.41 QZSS L1: N: -3.29 E: 1.10 U: 181.41 L2: N: -4.63 E: -1.74 U: 181.23 L5: N: -4.34 E: -1.49 U: 180.75 SBAS L1: N: -3.29 E: 1.10 U: 181.41 L5: N: -4.34 E: -1.49 U: 180.75

L1 GPS: N: -3.29 E: 1.10 U: 181.41 GLONASS: N: -3.29 E: 1.10 U: 181.41 QZSS: N: -3.29 E: 1.10 U: 181.41 SBAS: N: -3.29 E: 1.10 U: 181.41 L2 GPS: N: -4.63 E: -1.74 U: 181.23 GLONASS: N: -4.63 E: -1.74 U: 181.23 QZSS: N: -4.63 E: -1.74 U: 181.23 L5 GPS: N: -4.34 E: -1.49 U: 180.75 QZSS: N: -4.34 E: -1.49 U: 180.75 SBAS: N: -4.34 E: -1.49 U: 180.75 E1 GALILEO: N: -3.29 E: 1.10 U: 181.41 BeiDou: N: -3.29 E: 1.10 U: 181.41 E5a GALILEO: N: -4.34 E: -1.49 U: 180.75

---

Means

GPS

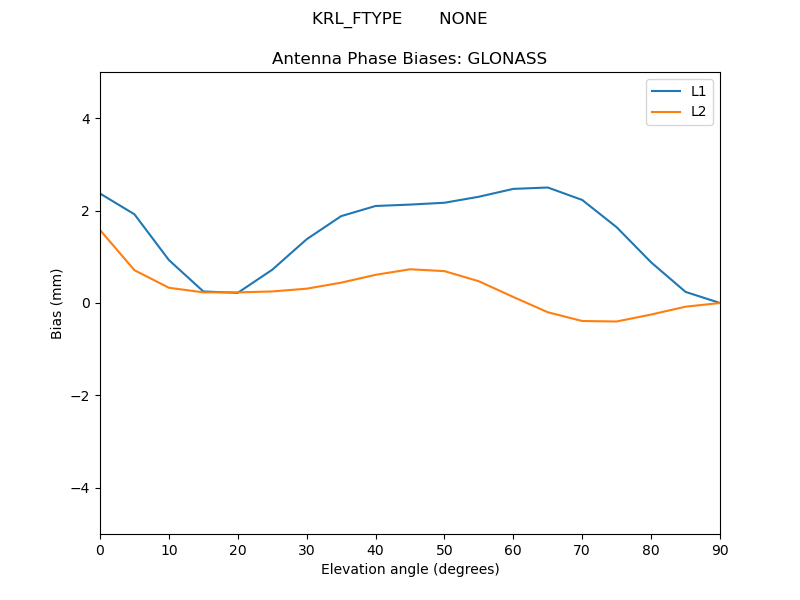

GLONASS

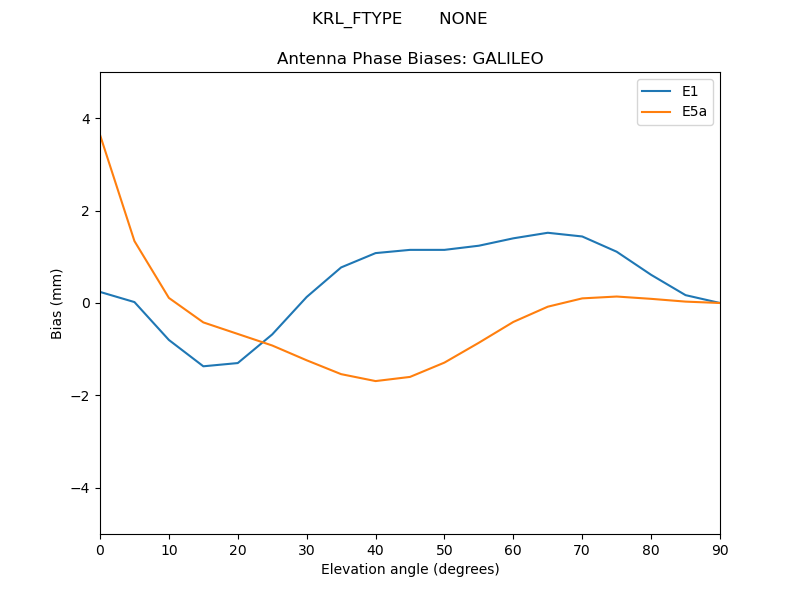

GALILEO

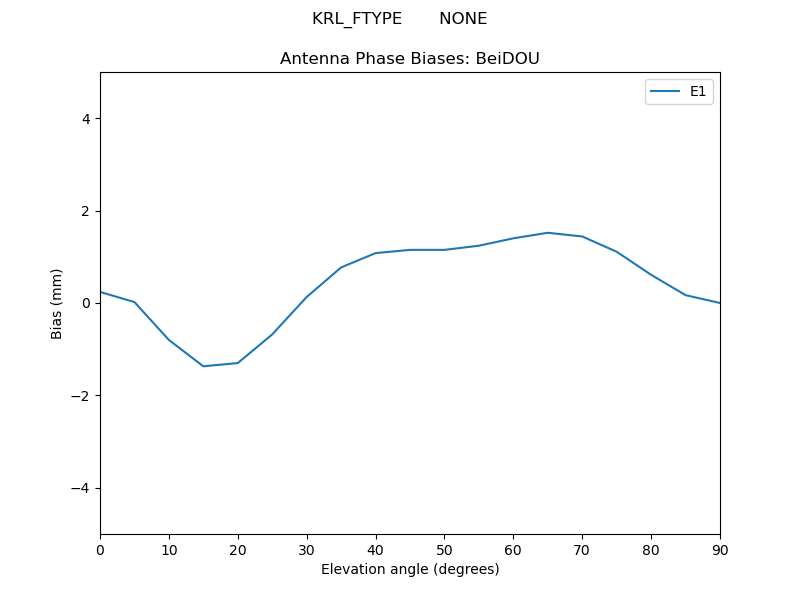

BeiDOU

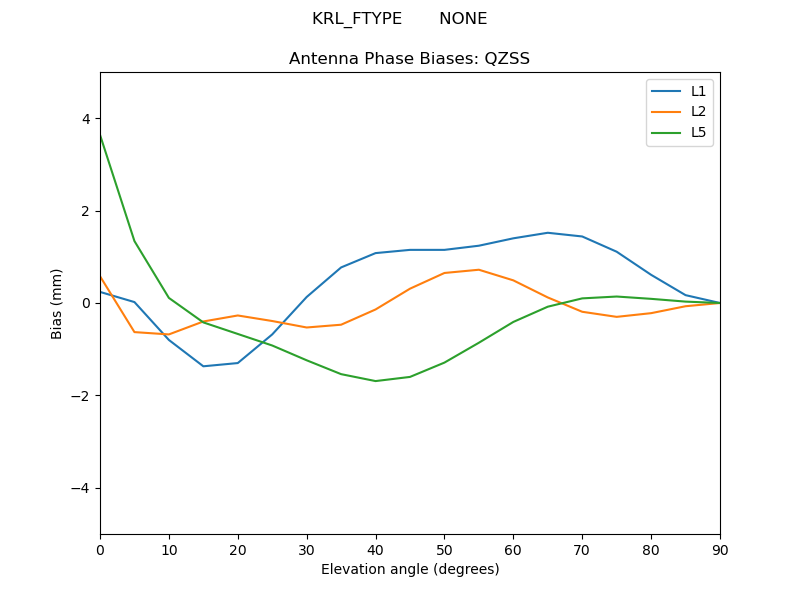

QZSS

SBAS

Azimuths

GPS

Bias	Delta

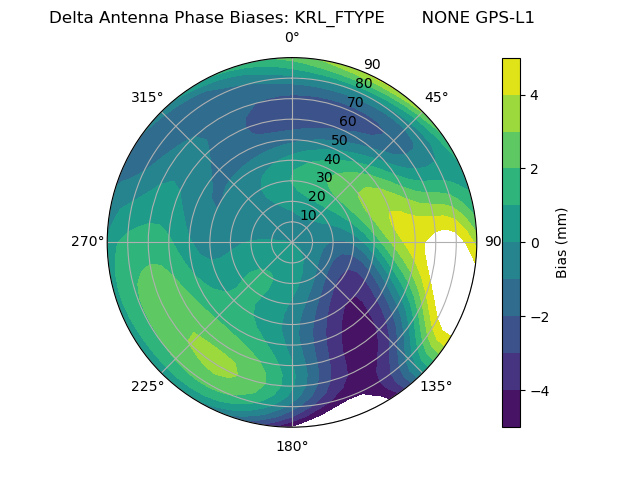

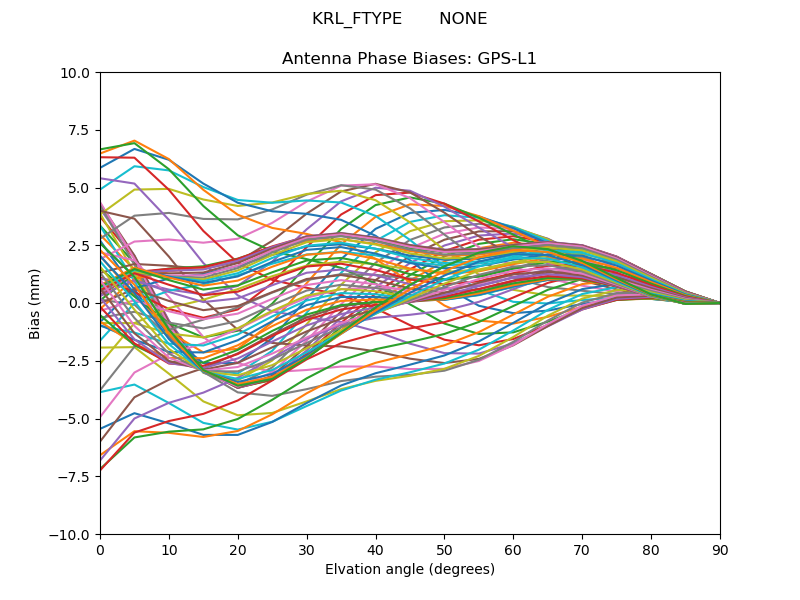

GPS-L1

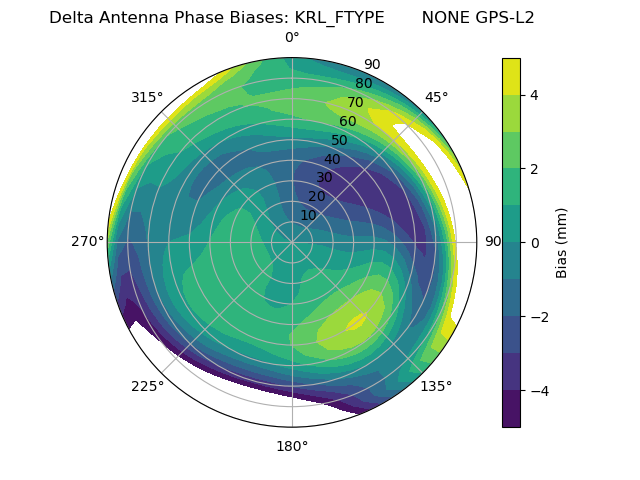

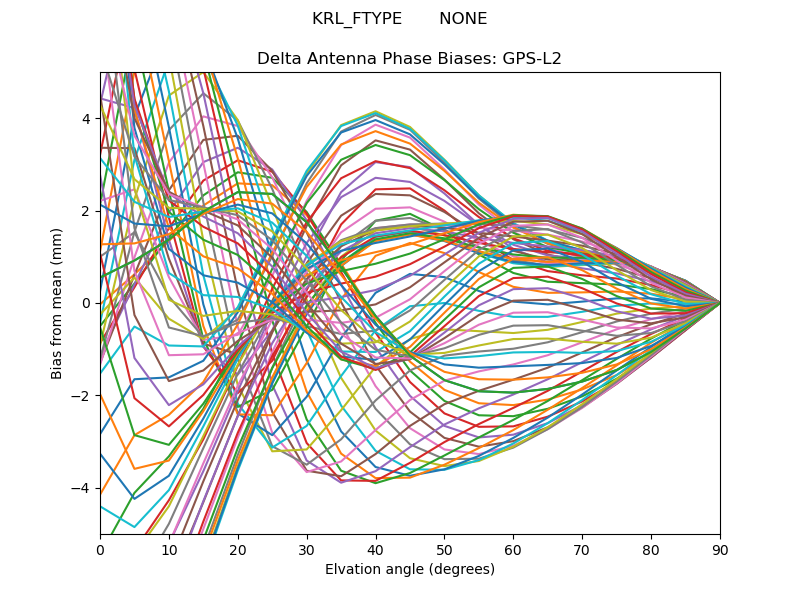

GPS-L2

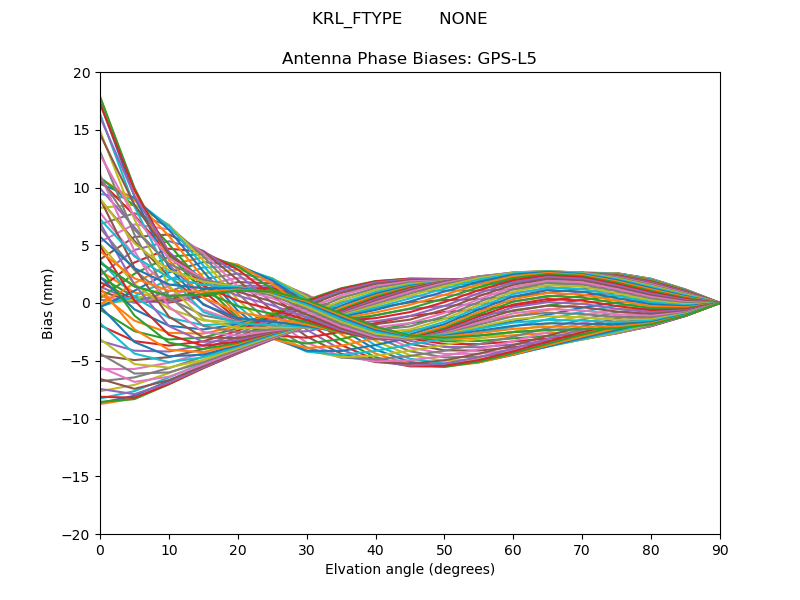

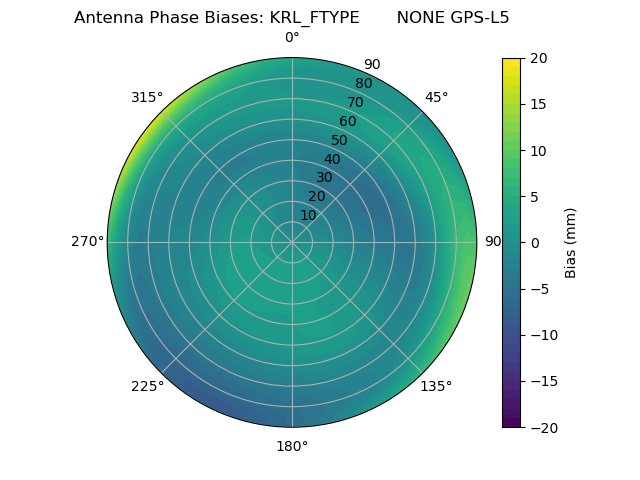

GPS-L5

GLONASS

Bias	Delta

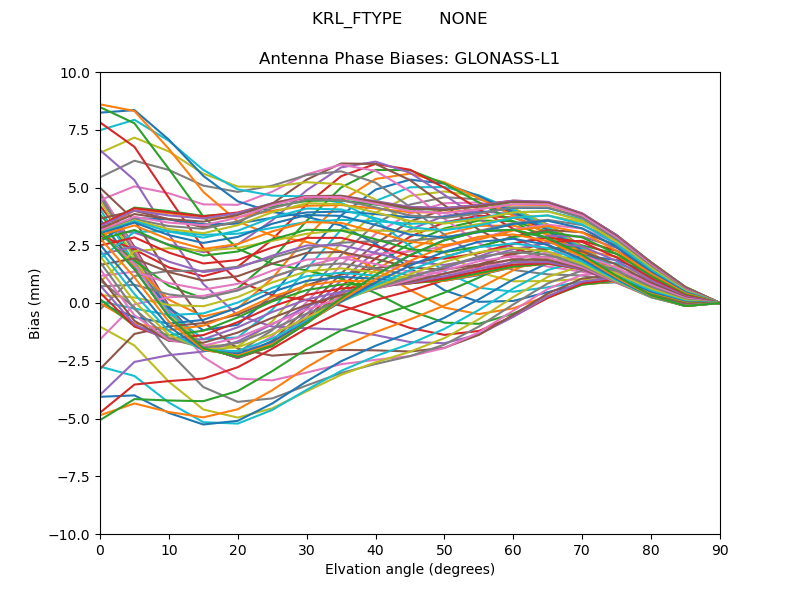

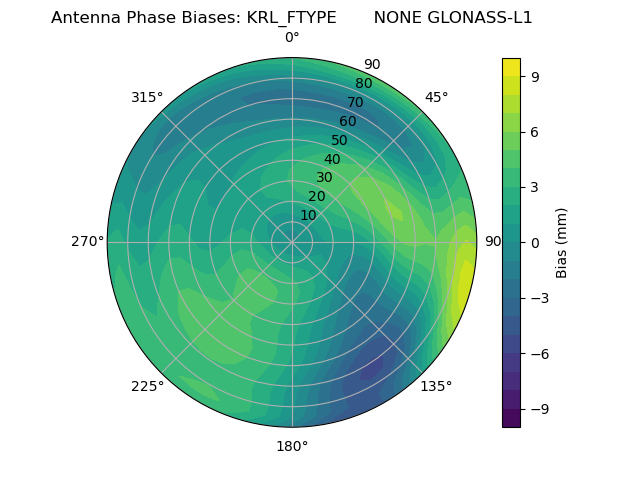

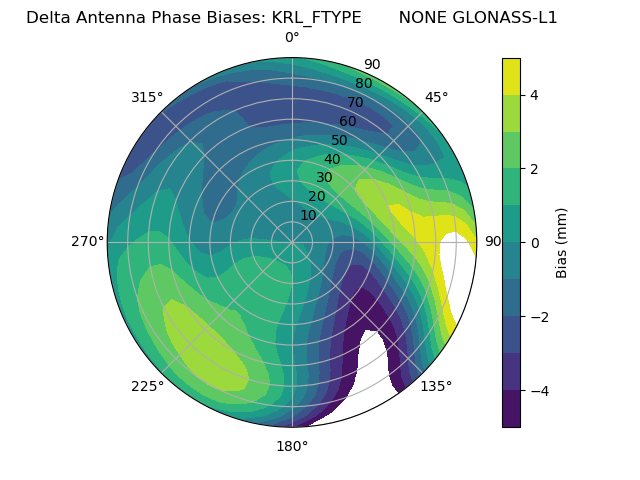

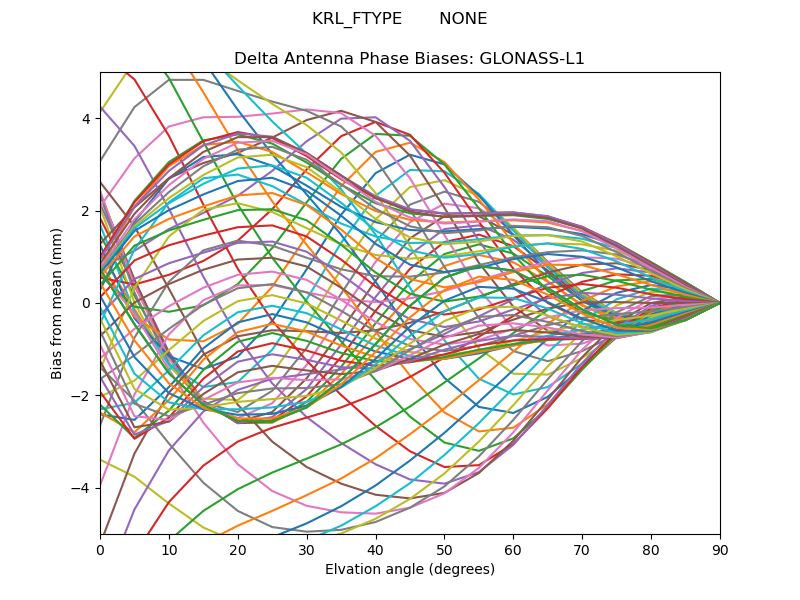

GLONASS-L1

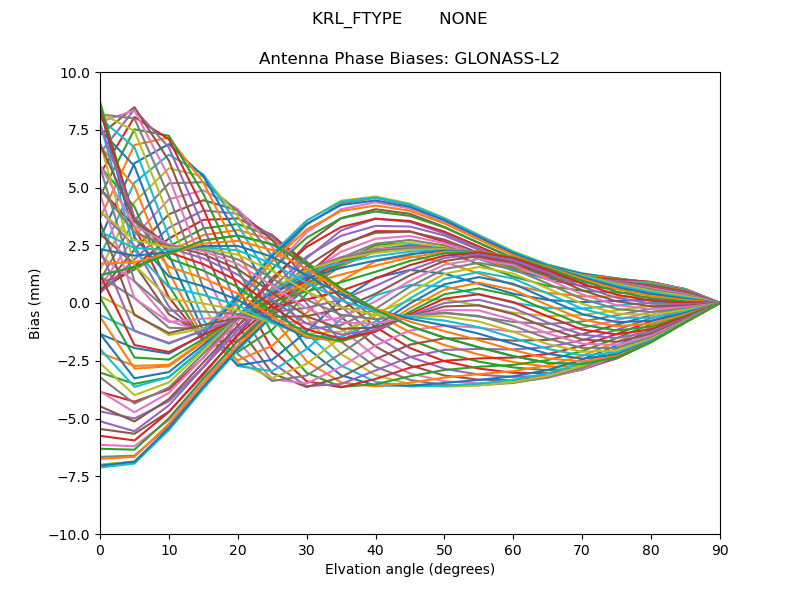

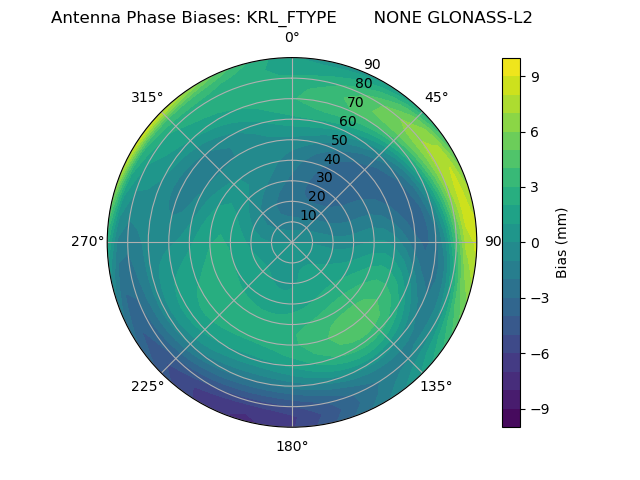

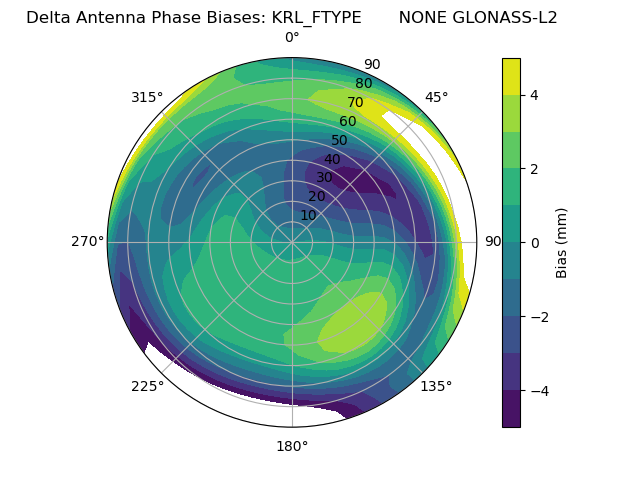

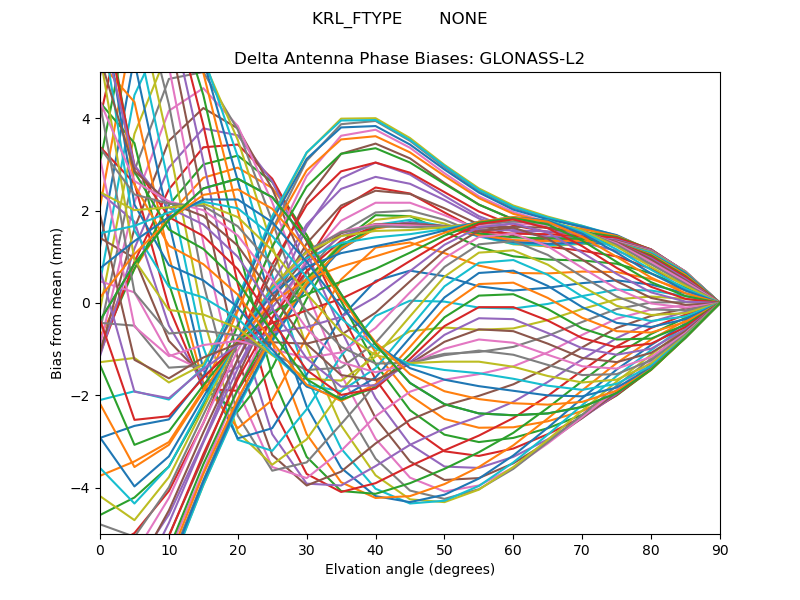

GLONASS-L2

GALILEO

Bias	Delta

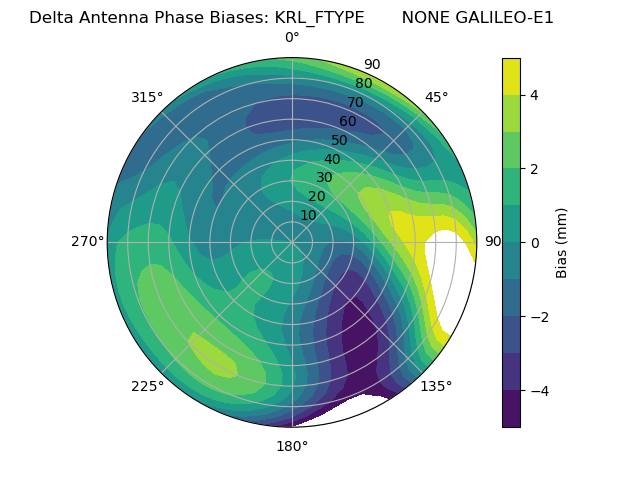

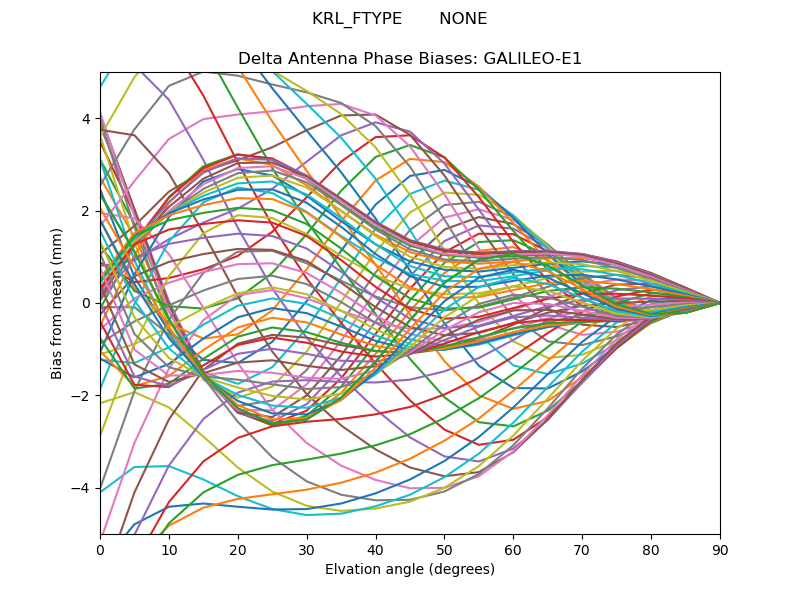

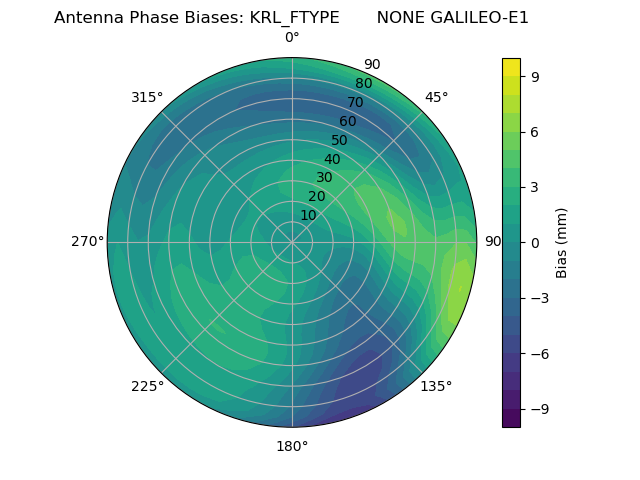

GALILEO-E1

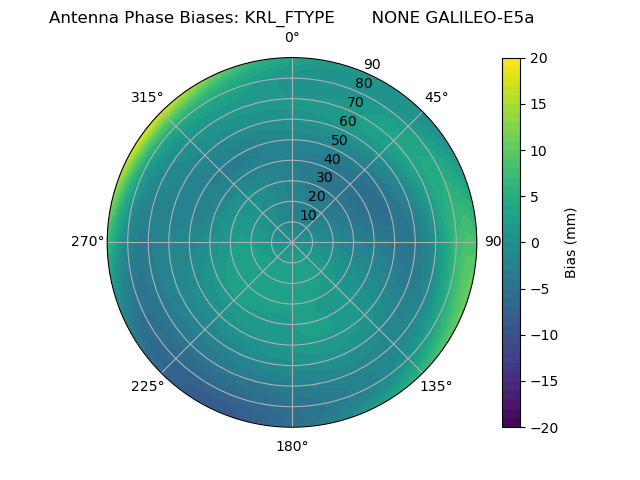

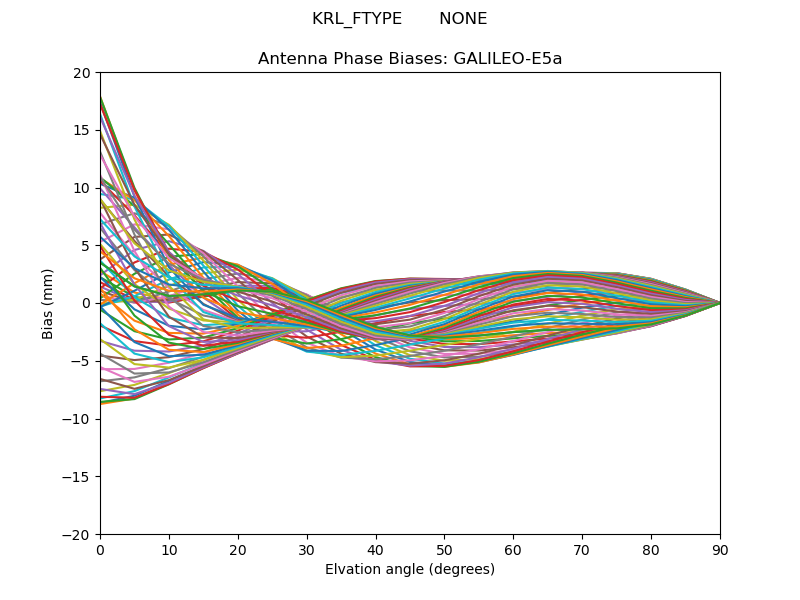

GALILEO-E5a

BeiDOU

Bias	Delta

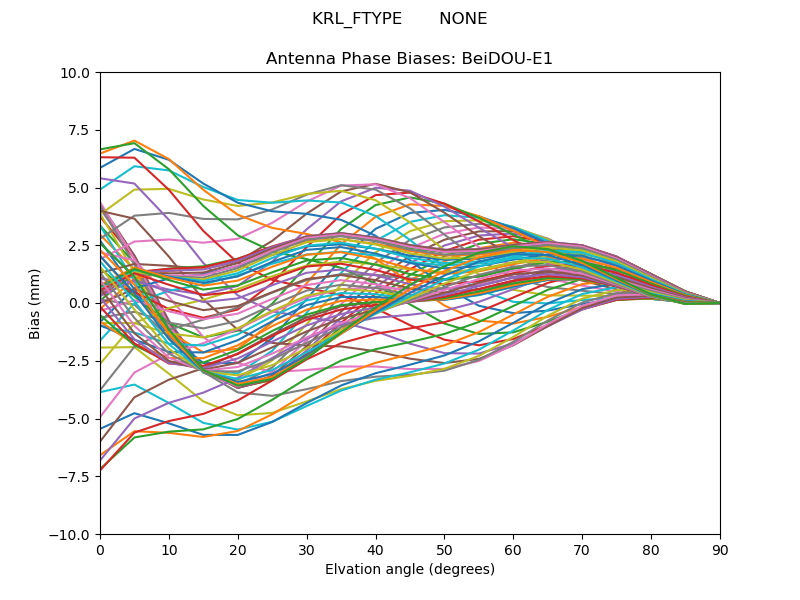

BeiDOU-E1

QZSS

Bias	Delta
QZSS-L1

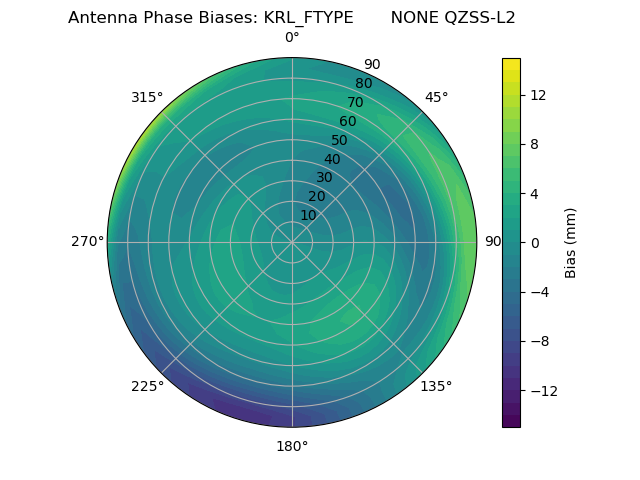

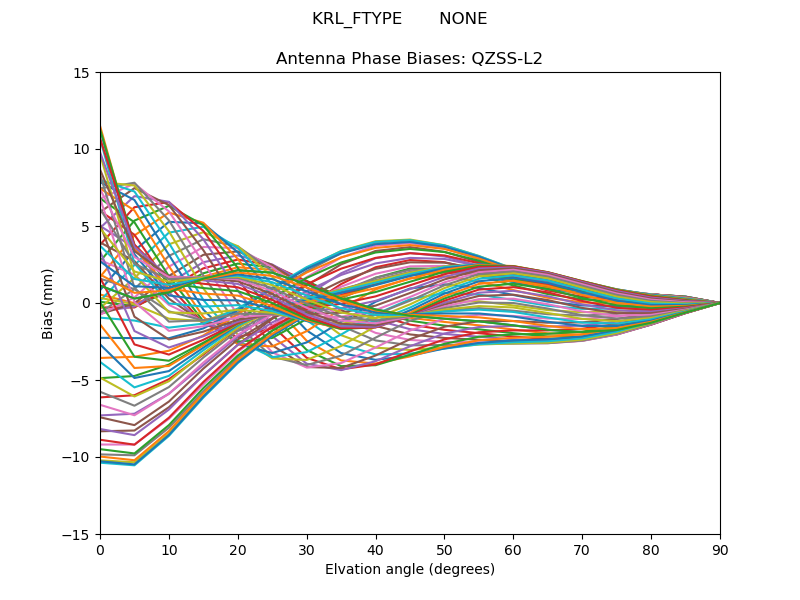

QZSS-L2

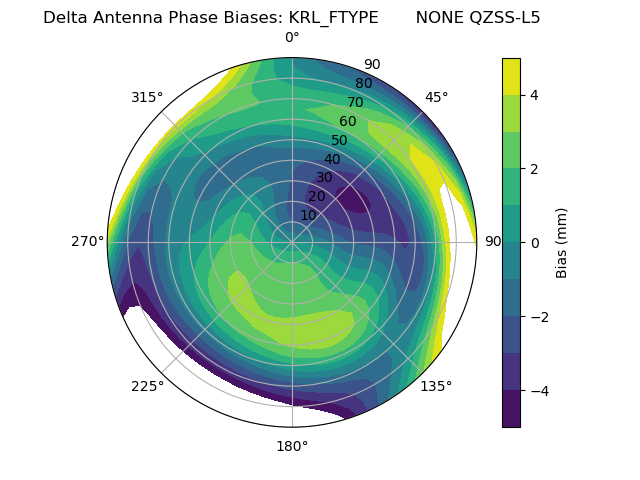

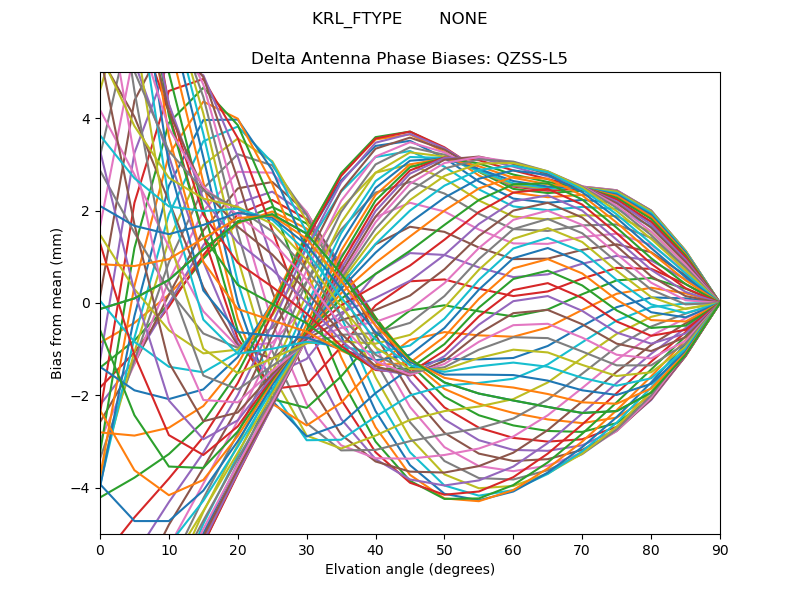

QZSS-L5

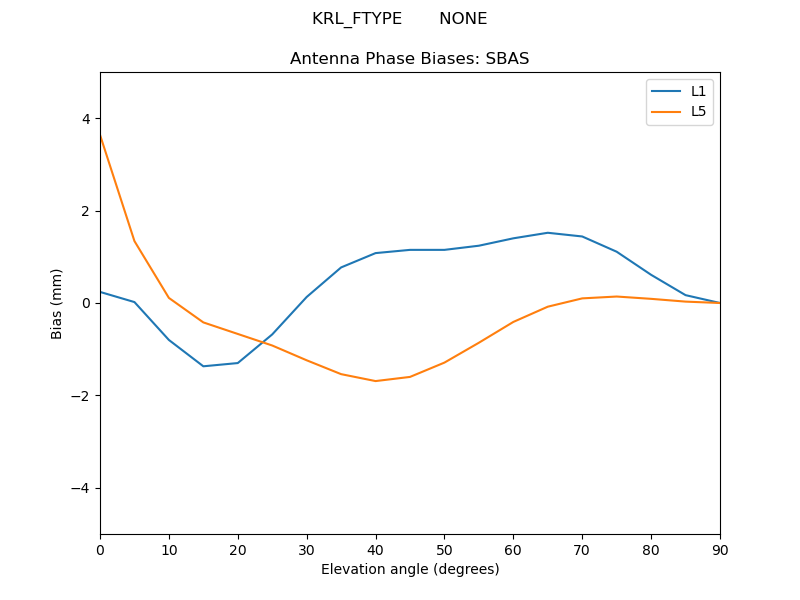

SBAS

Bias	Delta
SBAS-L1

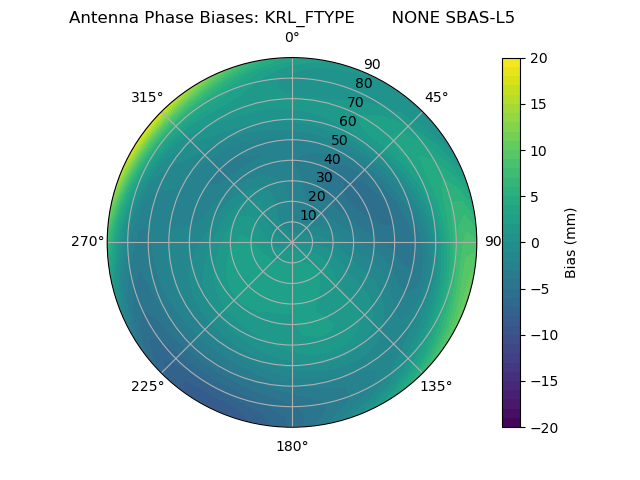

SBAS-L5
