Antenna information for LEIAR10 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.35 E: -0.02 U: 87.53
L2: N: -0.13 E: -0.35 U: 82.94
L5: N: -0.47 E: -0.58 U: 85.23

GLONASS

L1: N: 0.28 E: -0.06 U: 87.46
L2: N: -0.13 E: -0.41 U: 81.14

GALILEO

E1: N: 0.35 E: -0.02 U: 87.53
E5a: N: -0.47 E: -0.58 U: 85.23

BeiDou

E1: N: 0.35 E: -0.02 U: 87.53

QZSS

L1: N: 0.35 E: -0.02 U: 87.53
L2: N: -0.13 E: -0.35 U: 82.94
L5: N: -0.47 E: -0.58 U: 85.23

IRNSS

L5: N: -0.47 E: -0.58 U: 85.23

SBAS

L1: N: 0.35 E: -0.02 U: 87.53
L5: N: -0.47 E: -0.58 U: 85.23

L1

GPS: N: 0.35 E: -0.02 U: 87.53
GLONASS: N: 0.28 E: -0.06 U: 87.46
QZSS: N: 0.35 E: -0.02 U: 87.53
SBAS: N: 0.35 E: -0.02 U: 87.53

L2

GPS: N: -0.13 E: -0.35 U: 82.94
GLONASS: N: -0.13 E: -0.41 U: 81.14
QZSS: N: -0.13 E: -0.35 U: 82.94

L5

GPS: N: -0.47 E: -0.58 U: 85.23
QZSS: N: -0.47 E: -0.58 U: 85.23
SBAS: N: -0.47 E: -0.58 U: 85.23
IRNSS: N: -0.47 E: -0.58 U: 85.23

E1

GALILEO: N: 0.35 E: -0.02 U: 87.53
BeiDou: N: 0.35 E: -0.02 U: 87.53

E5a

GALILEO: N: -0.47 E: -0.58 U: 85.23


Means

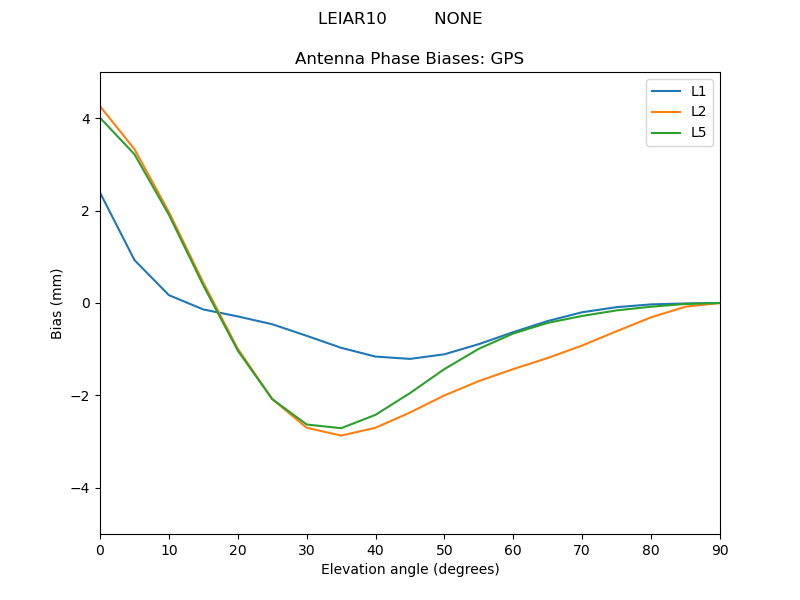

GPS


GLONASS

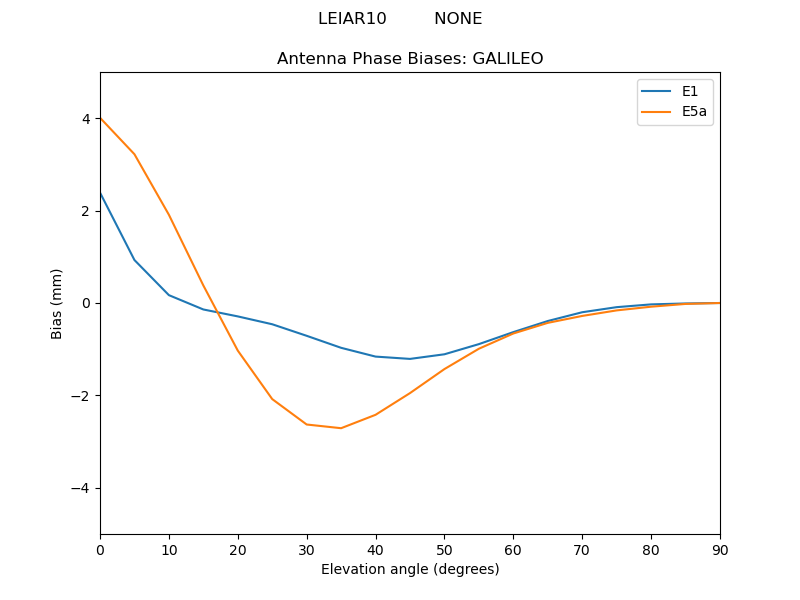

GALILEO

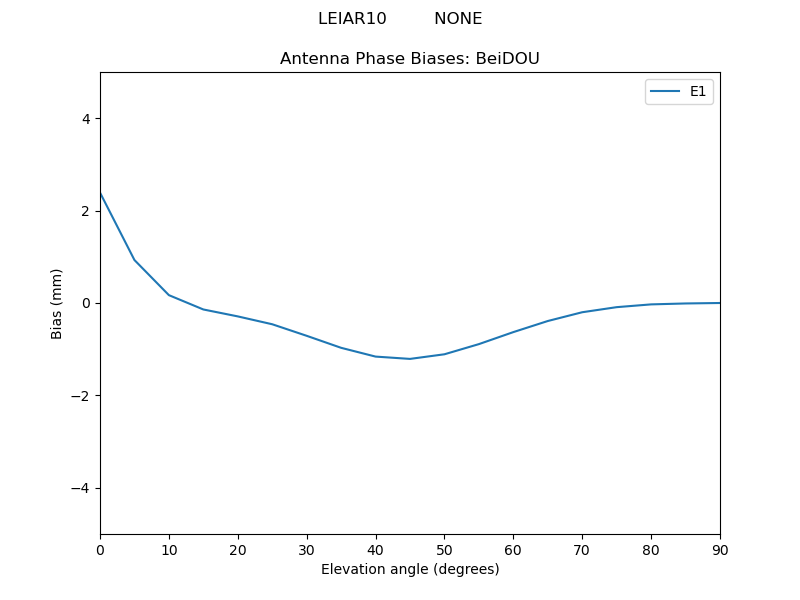

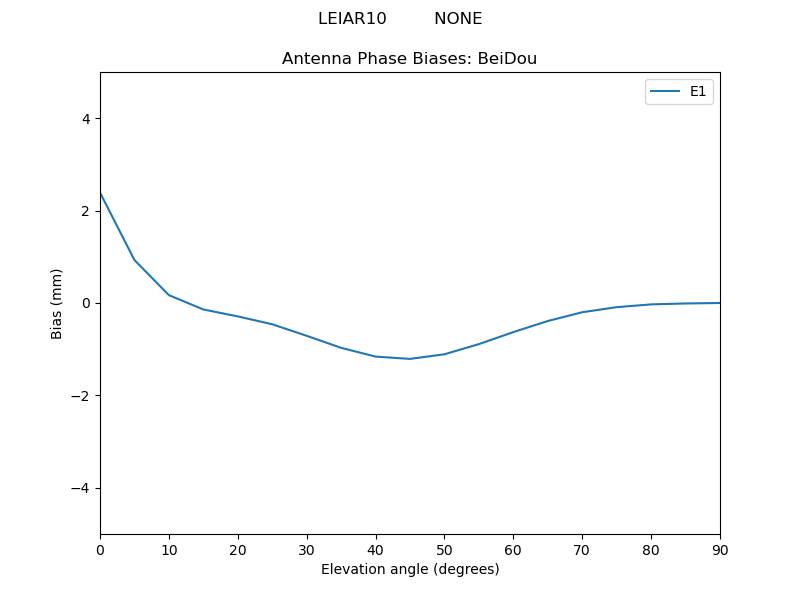

BeiDOU


QZSS

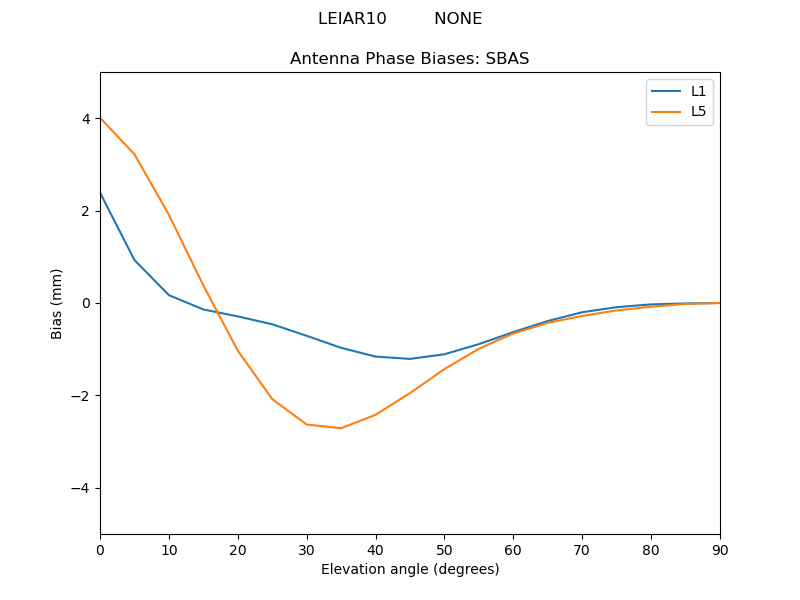

SBAS

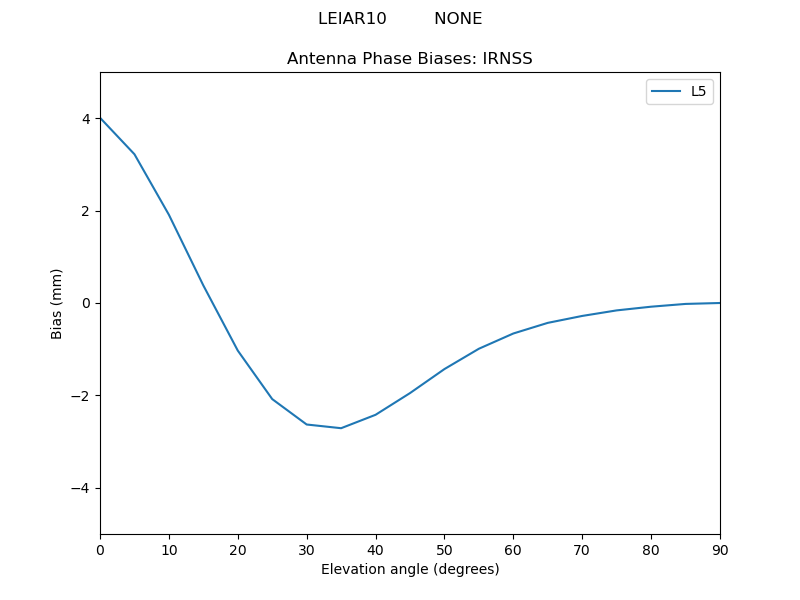

IRNSS


Azimuths

GPS


Bias Delta

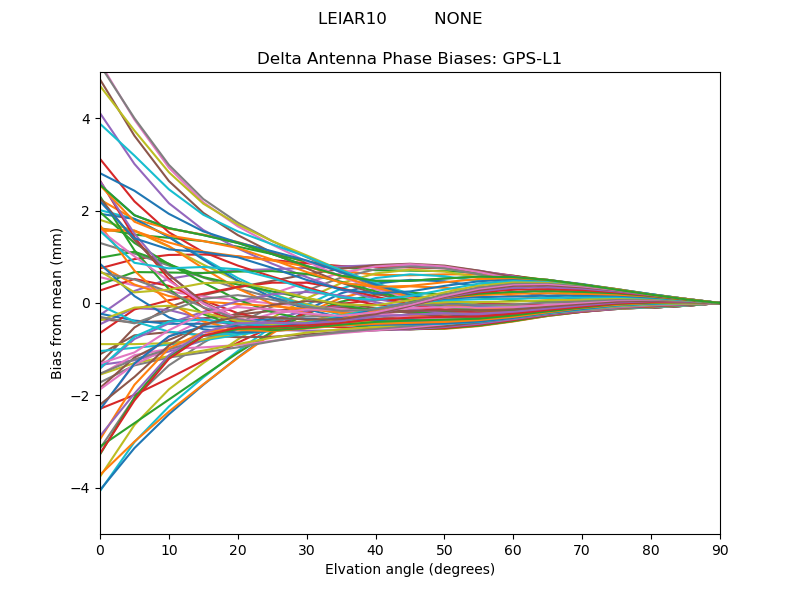

GPS-L1

GPS-L1GPS-L1

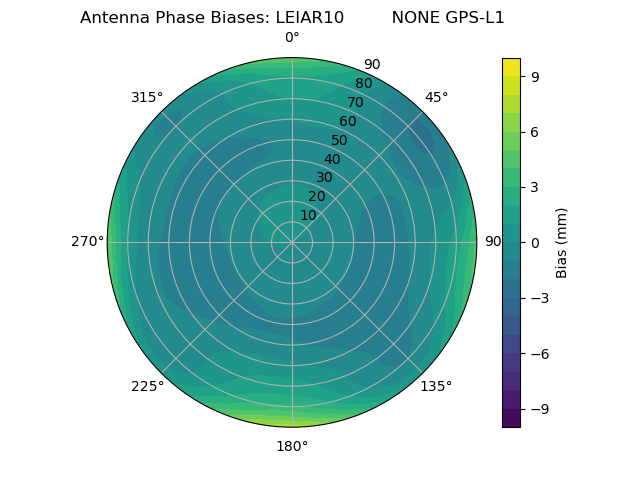

Radial GPS-L1Radial GPS-L1

GPS-L2

GPS-L2GPS-L2

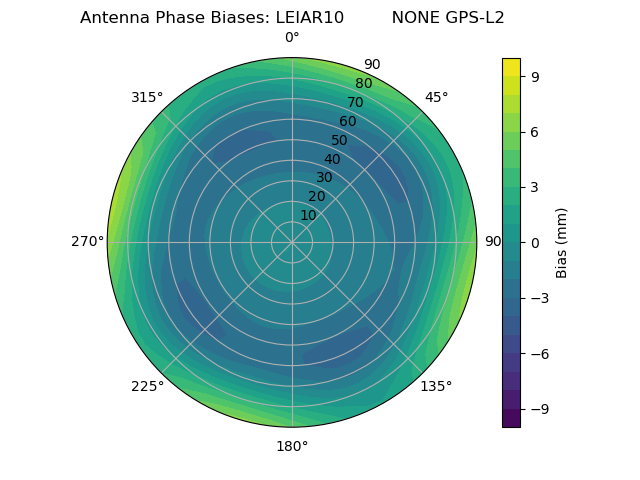

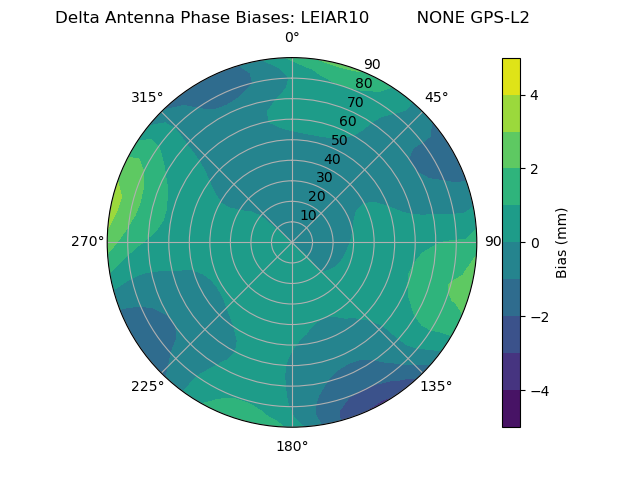

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5
Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

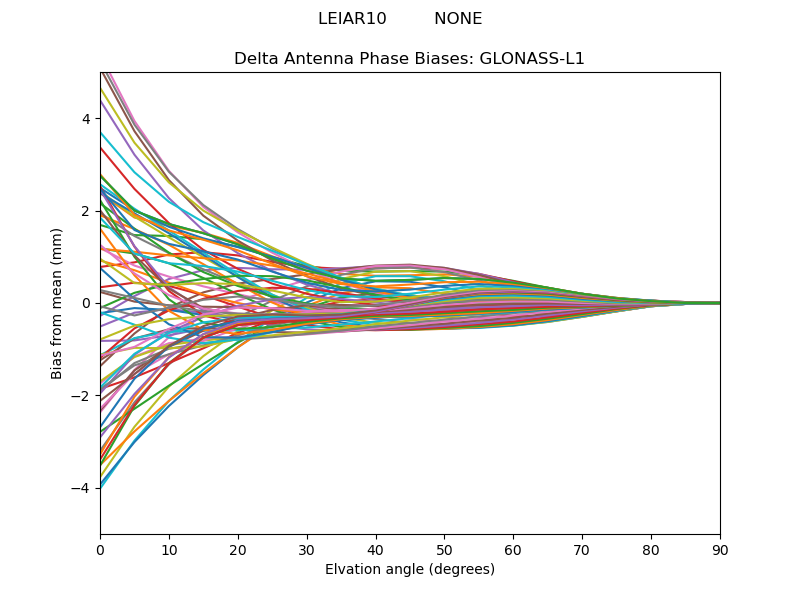

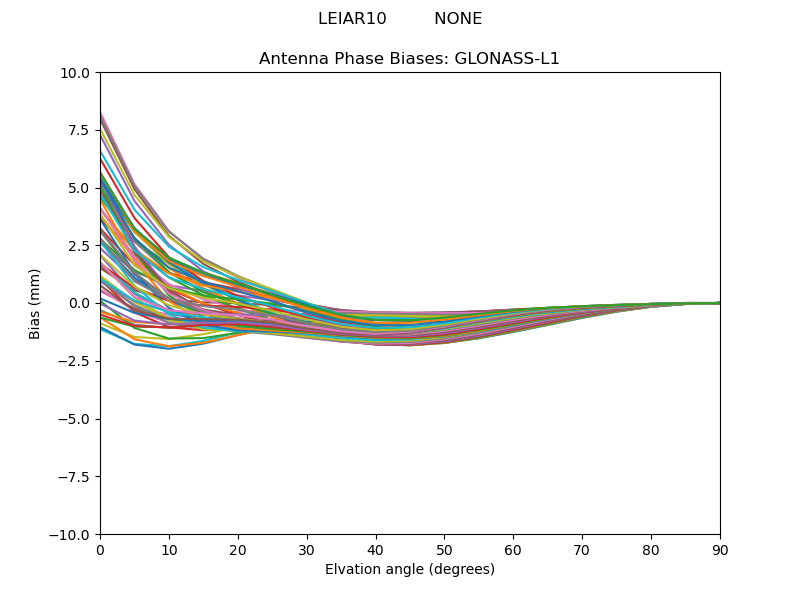

GLONASS-L1

GLONASS-L1GLONASS-L1

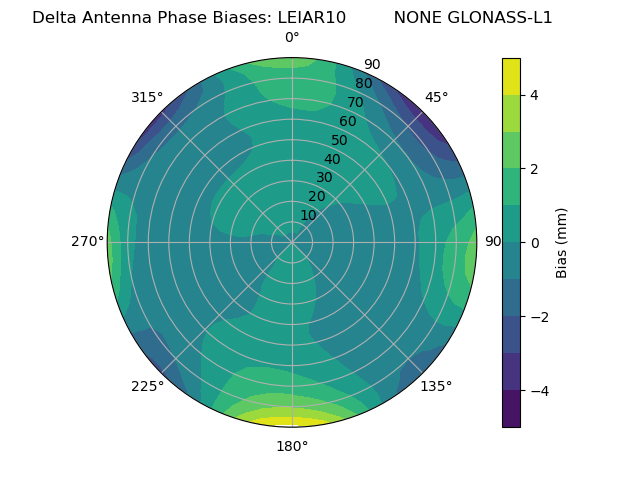

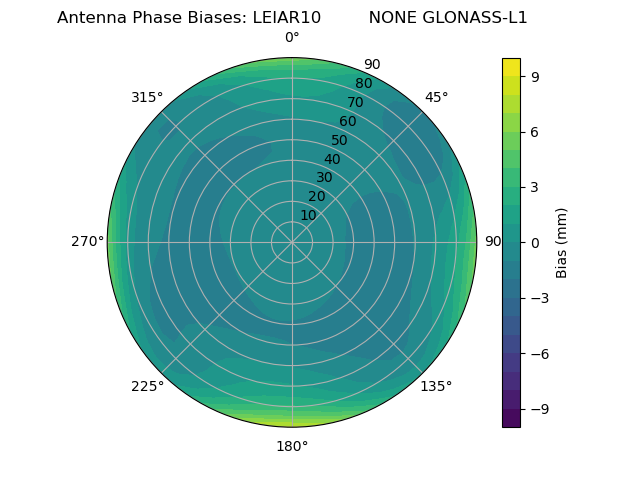

Radial GLONASS-L1Radial GLONASS-L1

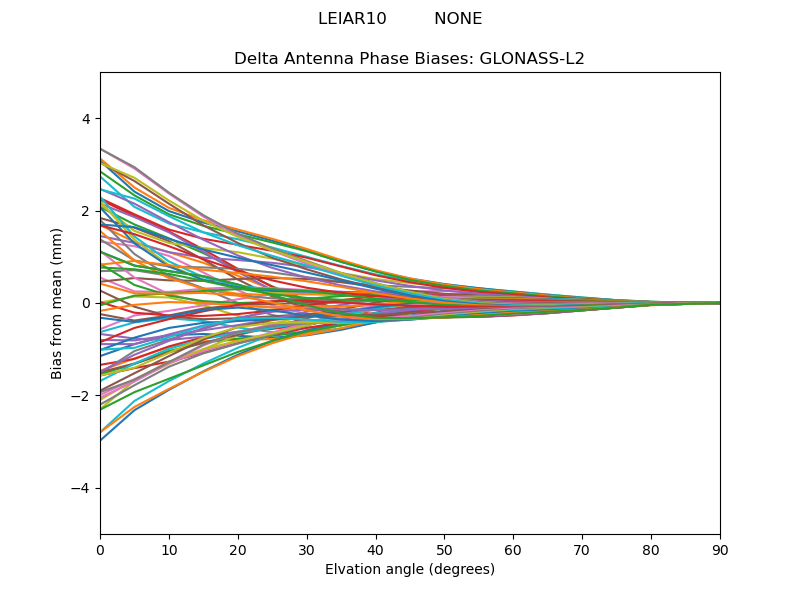

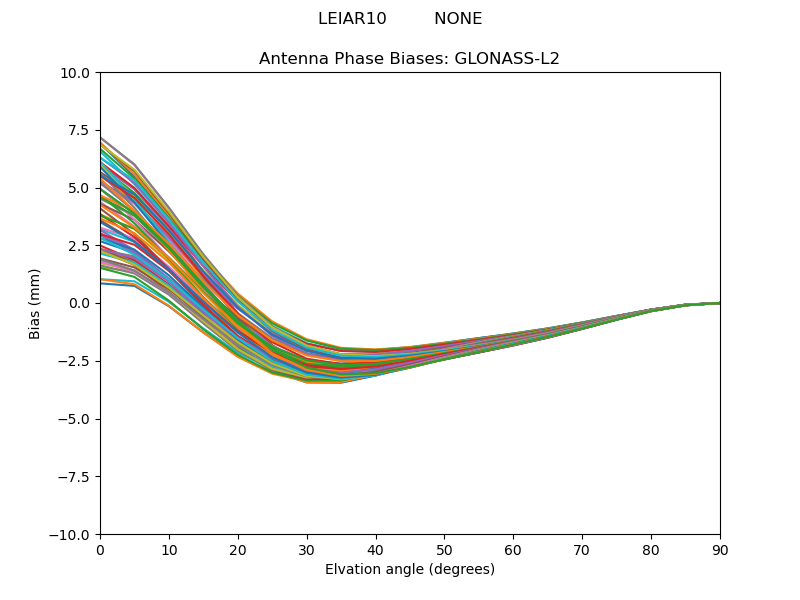

GLONASS-L2

GLONASS-L2GLONASS-L2

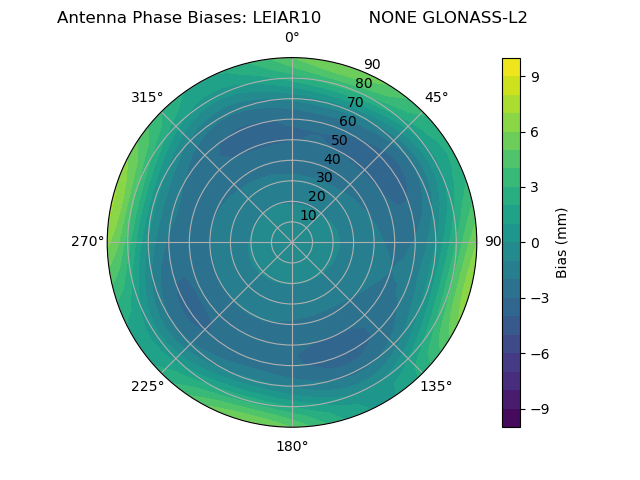

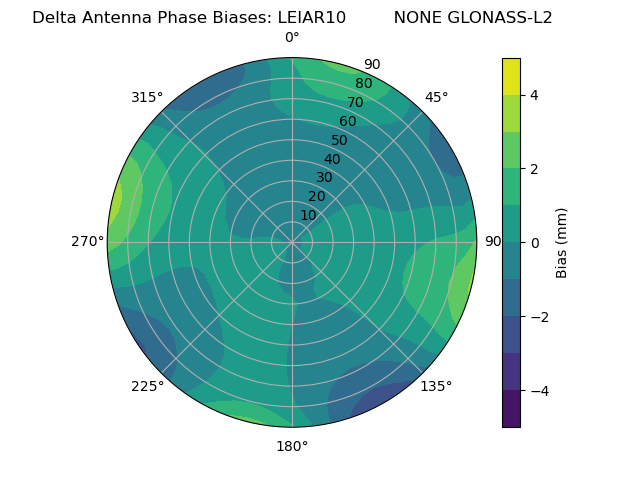

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

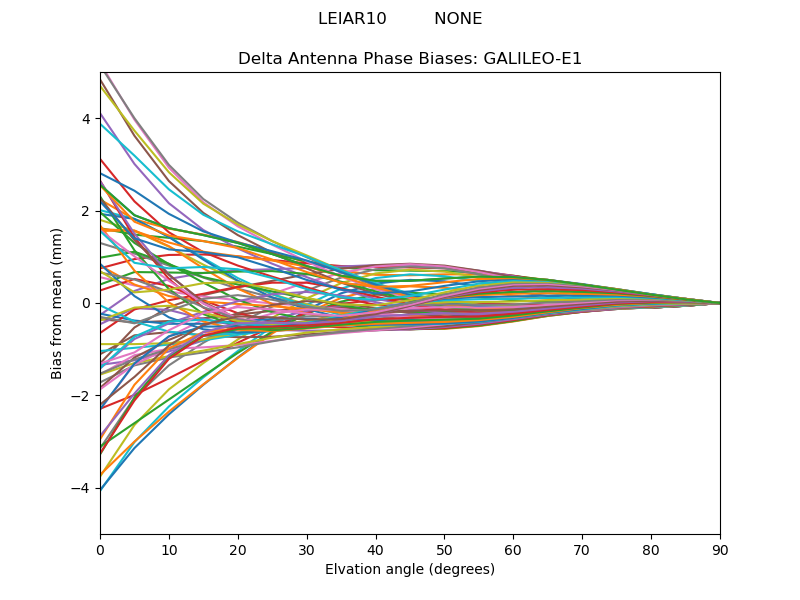

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

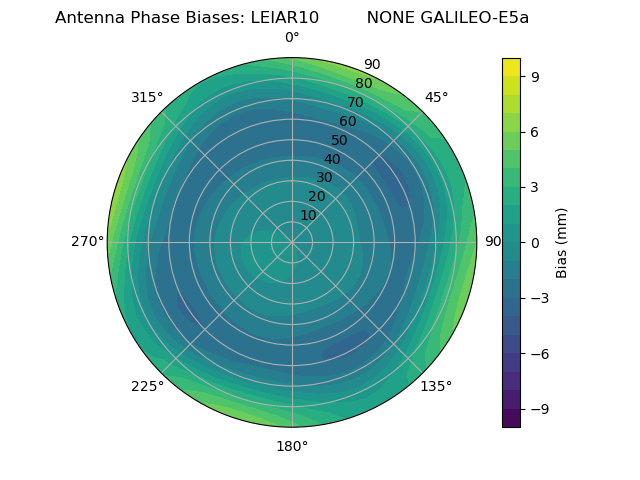

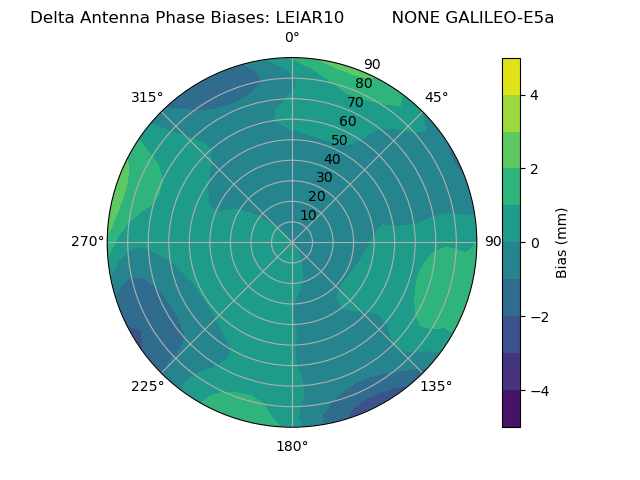

Radial GALILEO-E5aRadial GALILEO-E5a

BeiDOU


Bias Delta

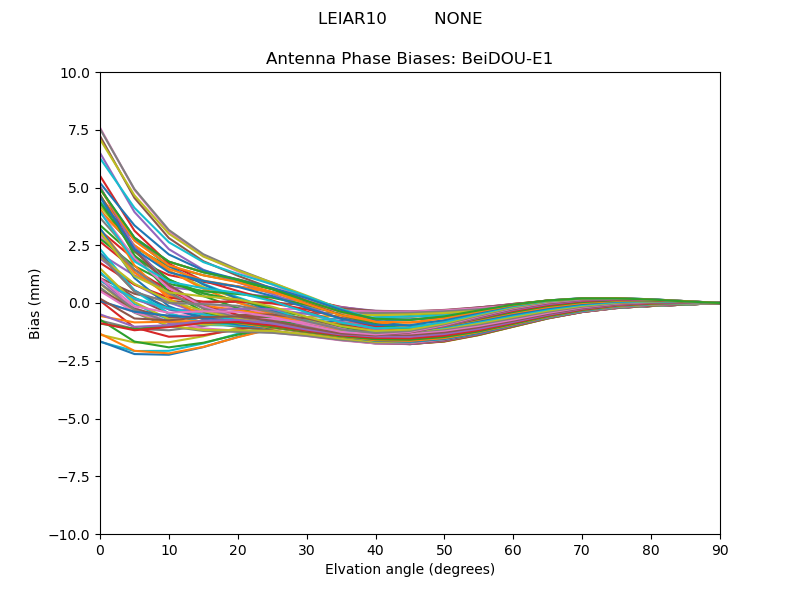

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

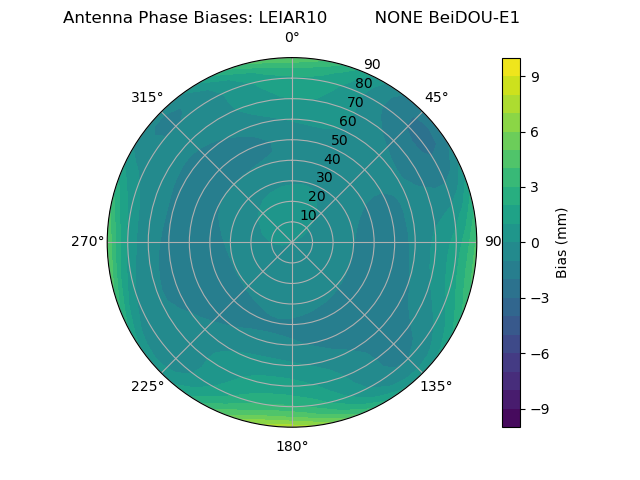

Radial BeiDOU-E1Radial BeiDOU-E1

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

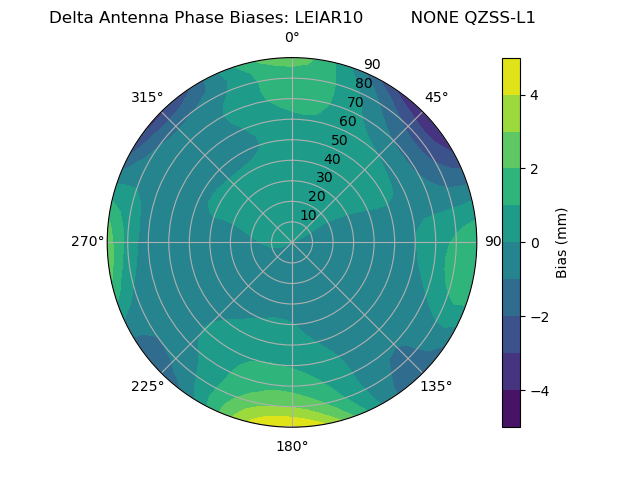

Radial QZSS-L1Radial QZSS-L1

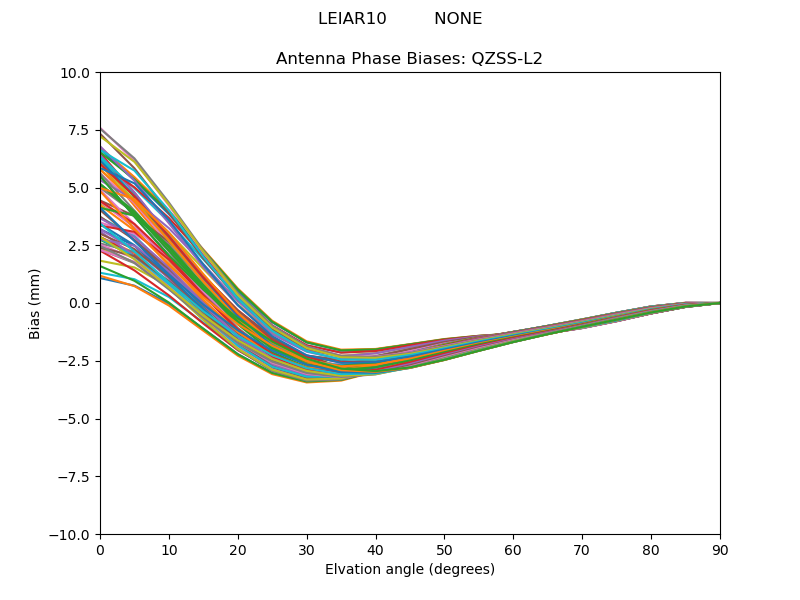

QZSS-L2

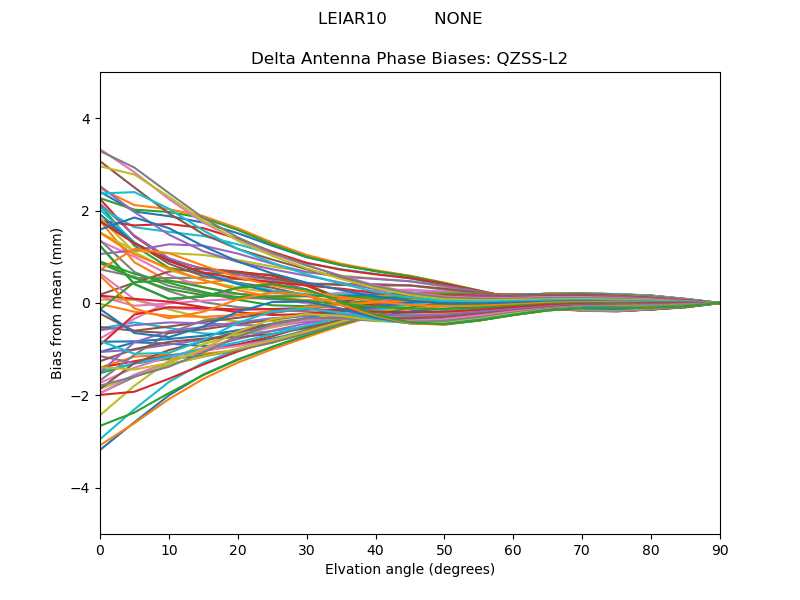

QZSS-L2QZSS-L2

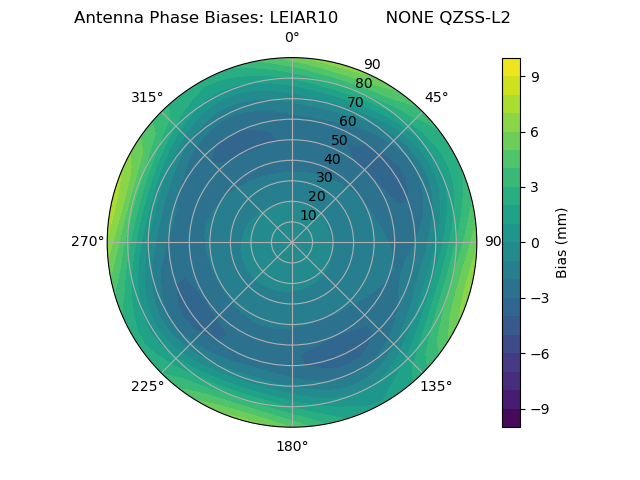

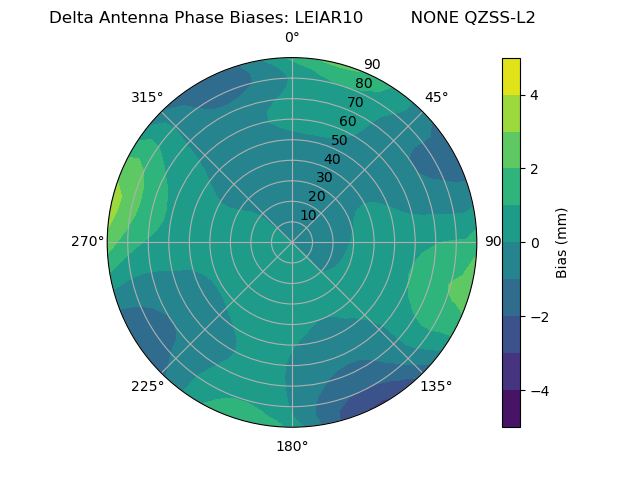

Radial QZSS-L2Radial QZSS-L2

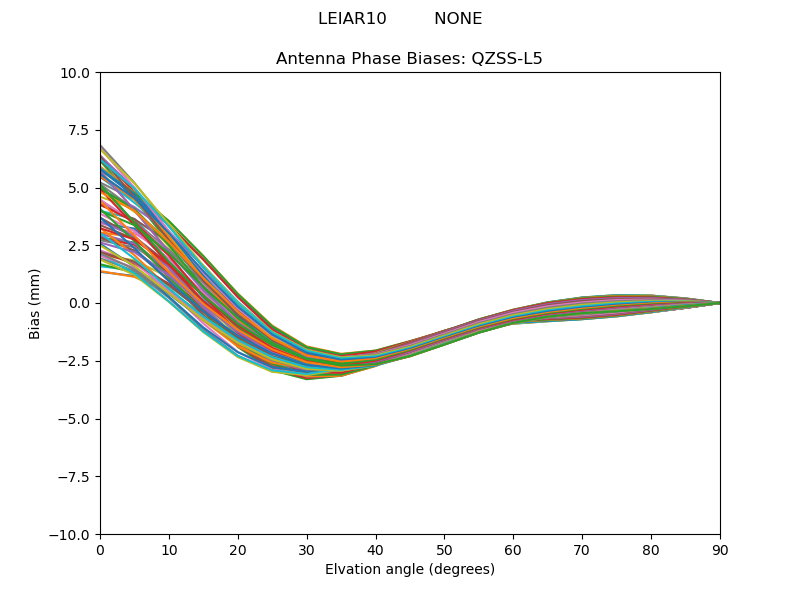

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

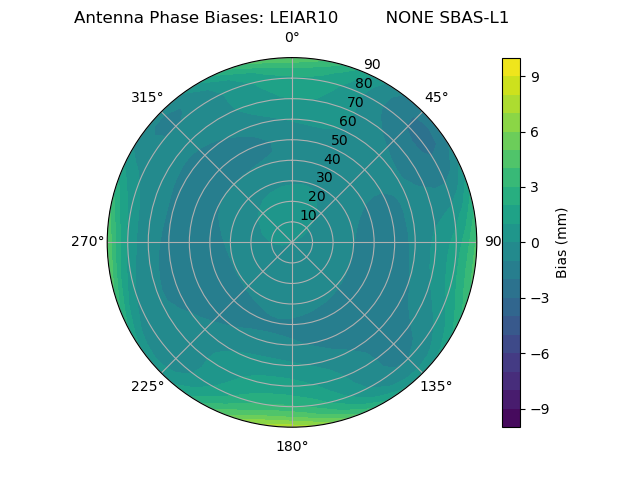

Radial SBAS-L1Radial SBAS-L1

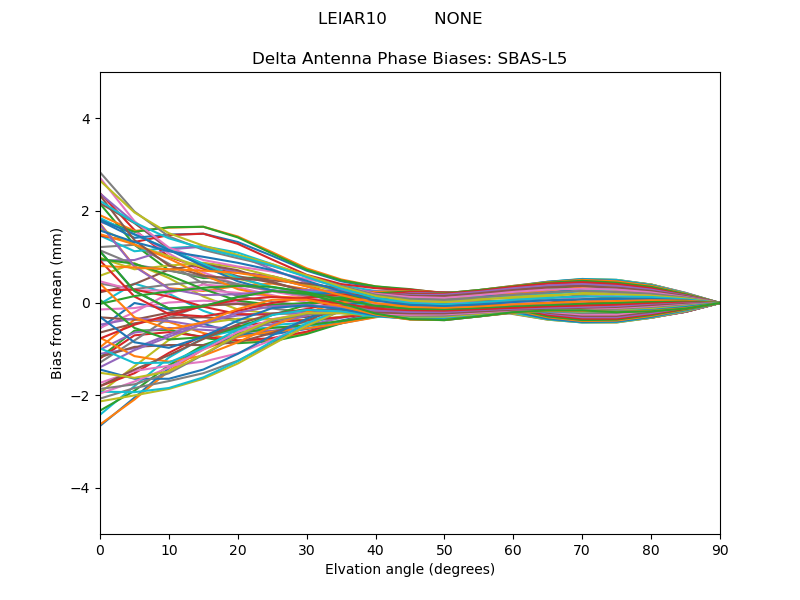

SBAS-L5

SBAS-L5SBAS-L5

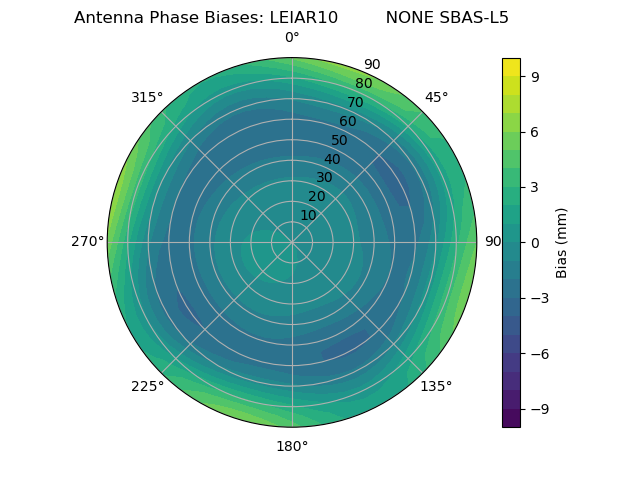

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

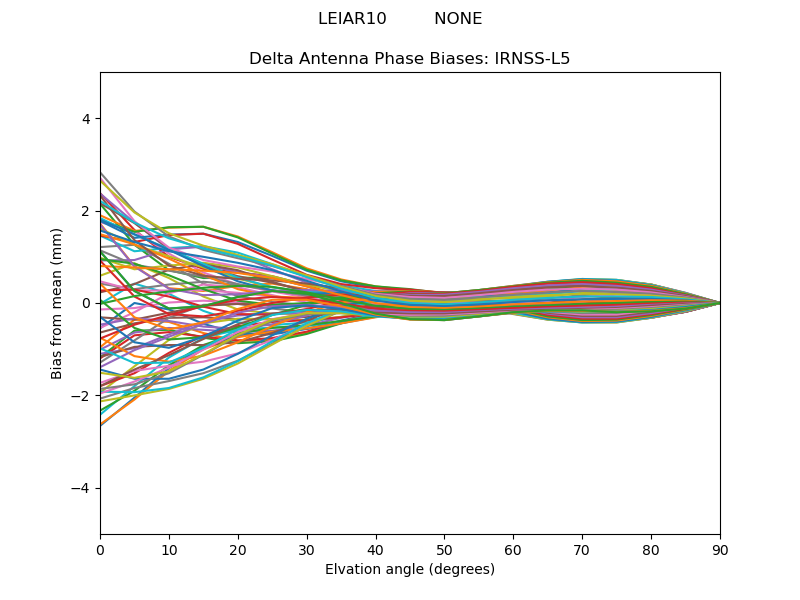

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
