Antenna information for LEIAR20 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.49 E: 0.12 U: 122.25
L2: N: 0.15 E: -0.59 U: 131.79
L5: N: -0.25 E: -0.25 U: 142.16

GLONASS

L1: N: 0.09 E: -0.04 U: 119.97
L2: N: 0.09 E: -0.63 U: 127.84

GALILEO

E1: N: 0.49 E: 0.12 U: 122.25
E5a: N: -0.25 E: -0.25 U: 142.16
E5b: N: 0.01 E: 0.07 U: 135.04
E5: N: 0.02 E: 0.17 U: 138.12
E6: N: -0.10 E: 0.20 U: 122.28

BeiDou

E1: N: 0.49 E: 0.12 U: 122.25
E2: N: 1.40 E: 0.39 U: 125.56
E5b: N: 0.01 E: 0.07 U: 135.04
E6: N: 0.32 E: -0.26 U: 125.24

QZSS

L1: N: 0.49 E: 0.12 U: 122.25
L2: N: 0.15 E: -0.59 U: 131.79
L5: N: -0.25 E: -0.25 U: 142.16
LEX: N: -0.10 E: 0.20 U: 122.28

IRNSS

L5: N: -0.25 E: -0.25 U: 142.16

SBAS

L1: N: 0.49 E: 0.12 U: 122.25
L5: N: -0.25 E: -0.25 U: 142.16

L1

GPS: N: 0.49 E: 0.12 U: 122.25
GLONASS: N: 0.09 E: -0.04 U: 119.97
QZSS: N: 0.49 E: 0.12 U: 122.25
SBAS: N: 0.49 E: 0.12 U: 122.25

L2

GPS: N: 0.15 E: -0.59 U: 131.79
GLONASS: N: 0.09 E: -0.63 U: 127.84
QZSS: N: 0.15 E: -0.59 U: 131.79

L5

GPS: N: -0.25 E: -0.25 U: 142.16
QZSS: N: -0.25 E: -0.25 U: 142.16
SBAS: N: -0.25 E: -0.25 U: 142.16
IRNSS: N: -0.25 E: -0.25 U: 142.16

E1

GALILEO: N: 0.49 E: 0.12 U: 122.25
BeiDou: N: 0.49 E: 0.12 U: 122.25

E2

BeiDou: N: 1.40 E: 0.39 U: 125.56

E5

GALILEO: N: 0.02 E: 0.17 U: 138.12

E5a

GALILEO: N: -0.25 E: -0.25 U: 142.16

E5b

GALILEO: N: 0.01 E: 0.07 U: 135.04
BeiDou: N: 0.01 E: 0.07 U: 135.04

E6

GALILEO: N: -0.10 E: 0.20 U: 122.28
BeiDou: N: 0.32 E: -0.26 U: 125.24

LEX

QZSS: N: -0.10 E: 0.20 U: 122.28


Means

GPS

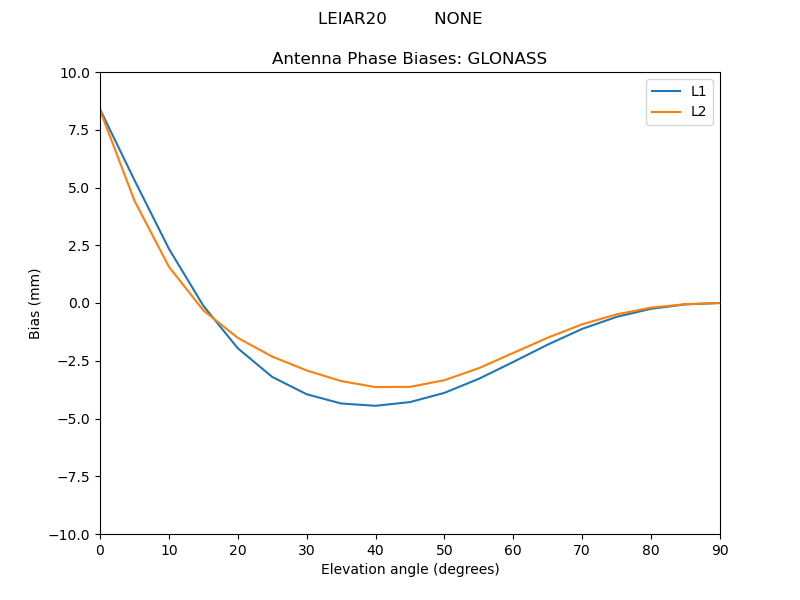

GLONASS

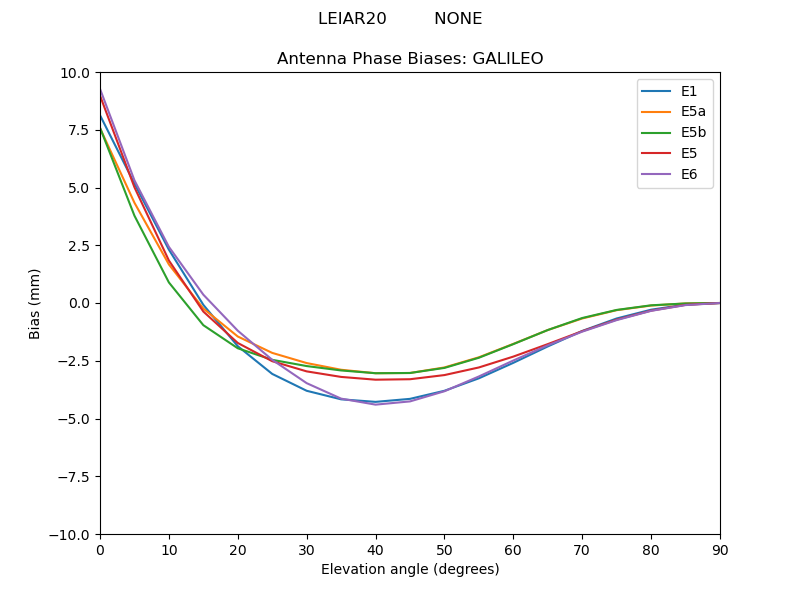

GALILEO

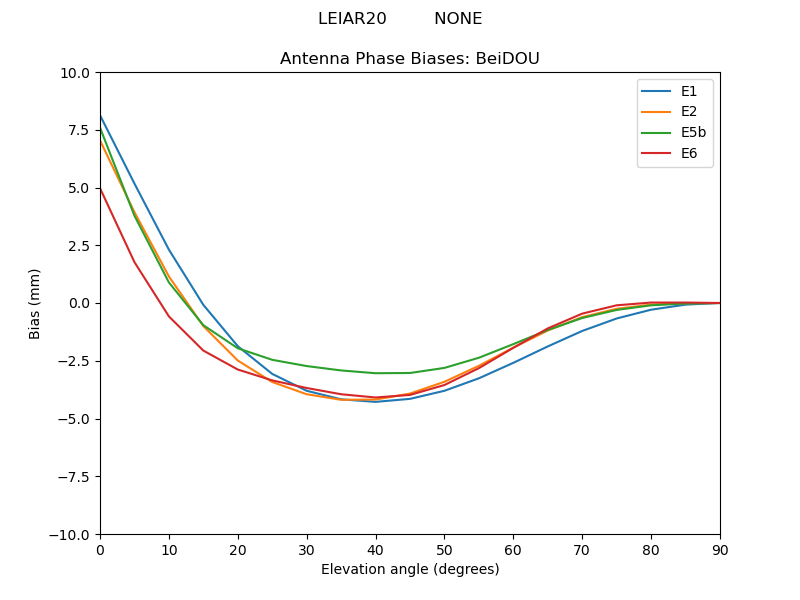

BeiDOU

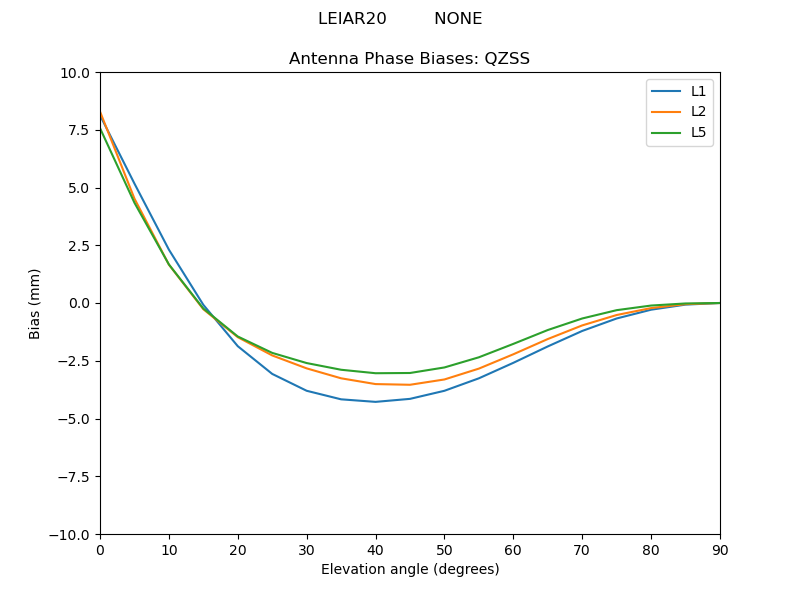

QZSS

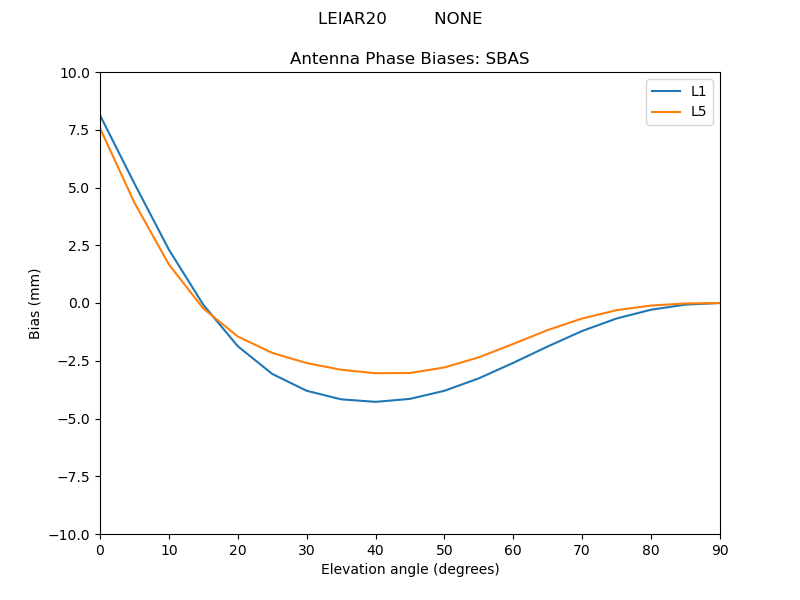

SBAS

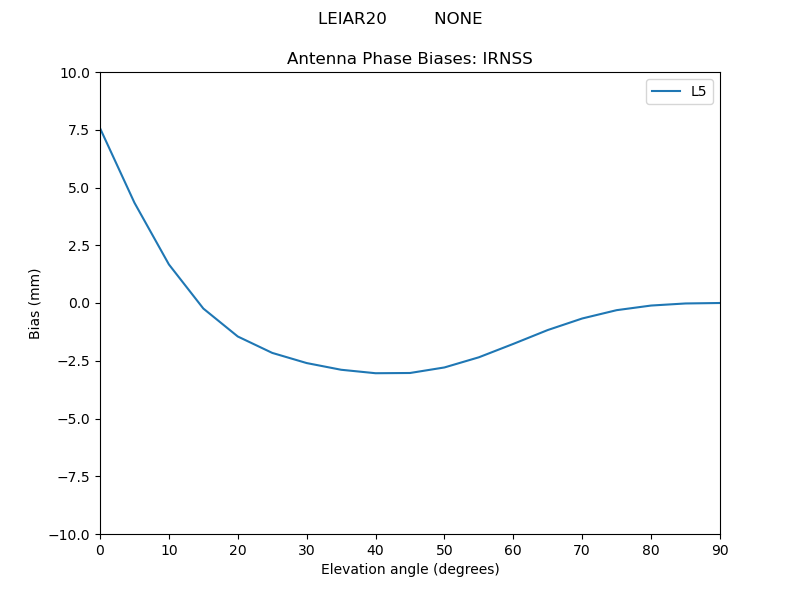

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

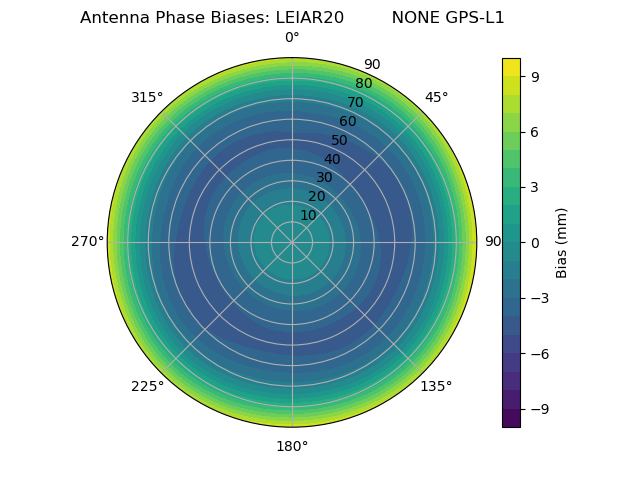

Radial GPS-L1Radial GPS-L1

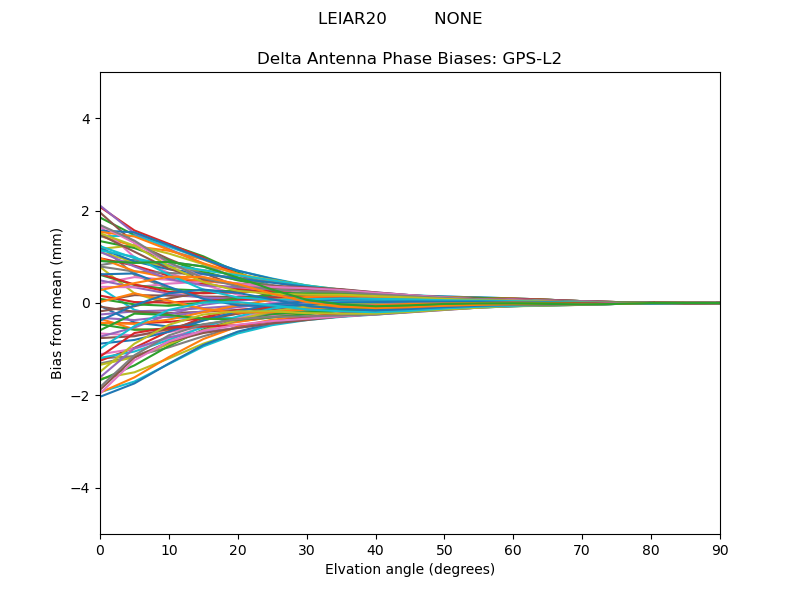

GPS-L2

GPS-L2GPS-L2

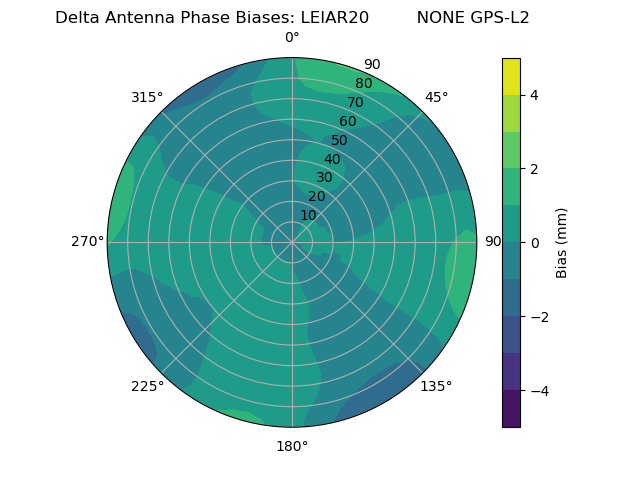

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

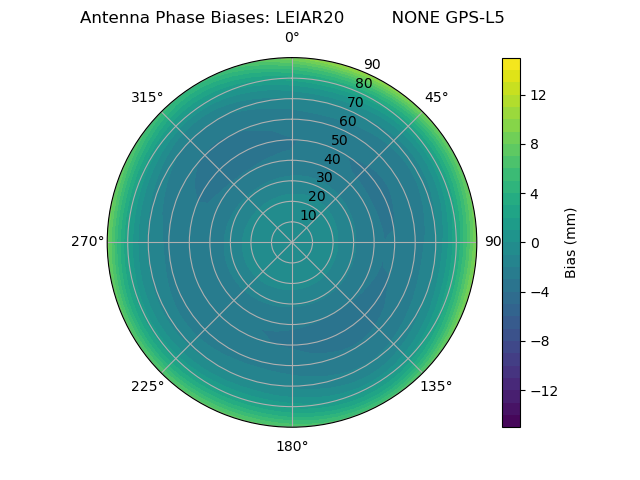

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

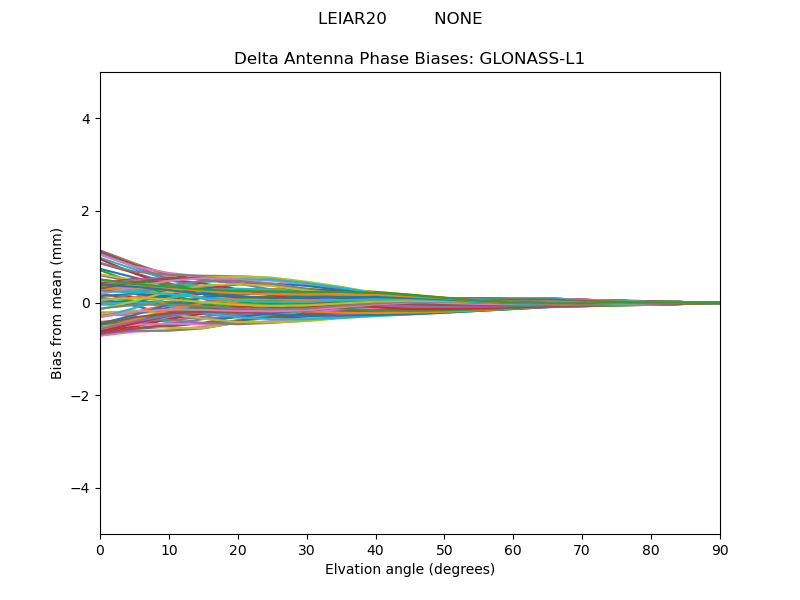

GLONASS-L1

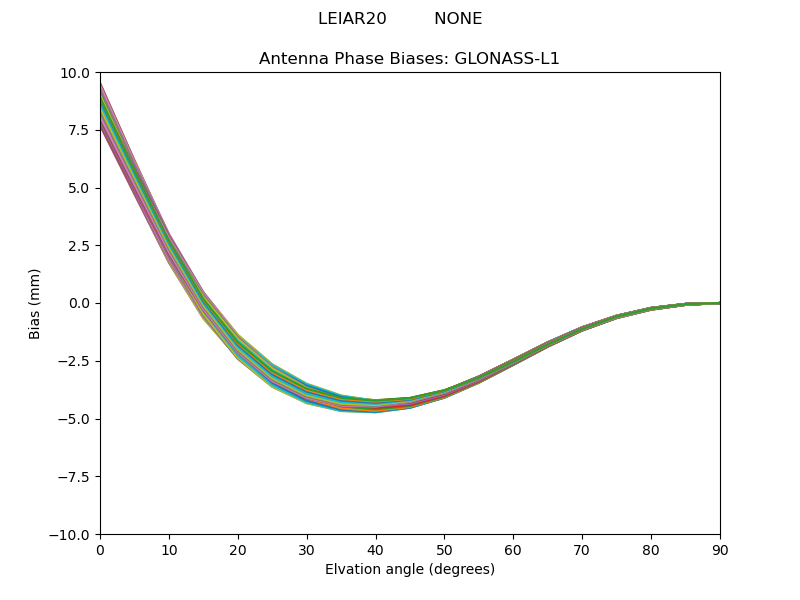

GLONASS-L1GLONASS-L1

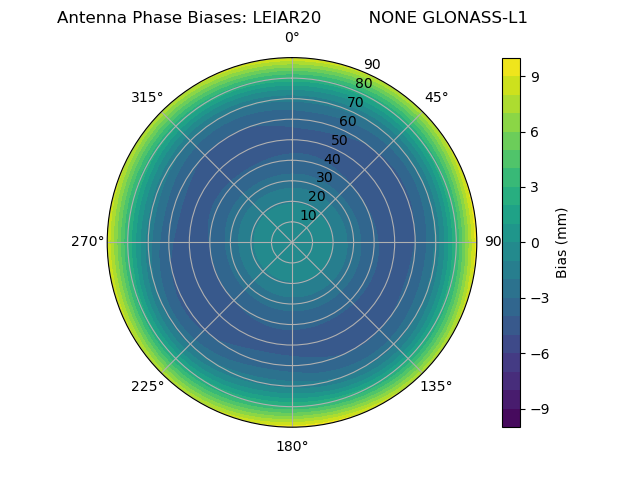

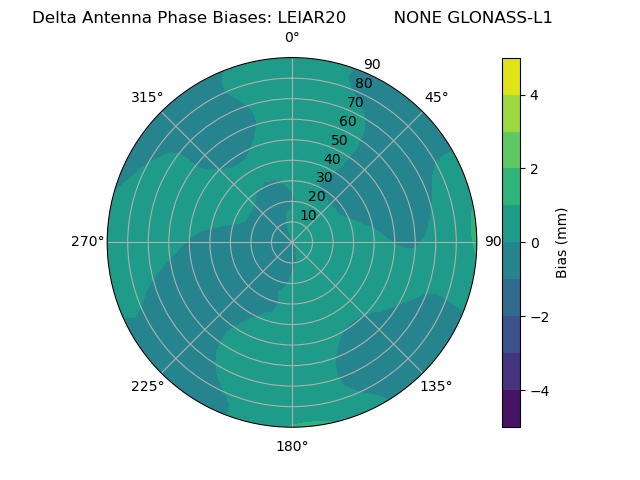

Radial GLONASS-L1Radial GLONASS-L1

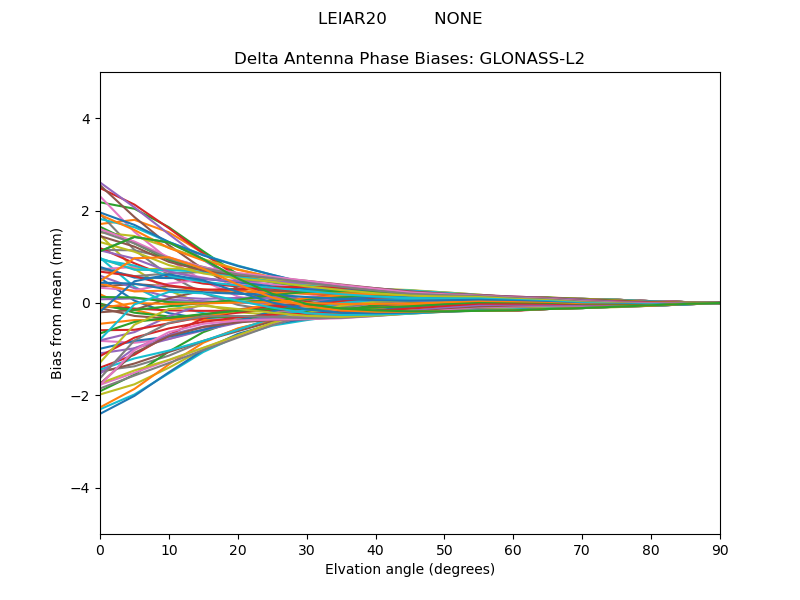

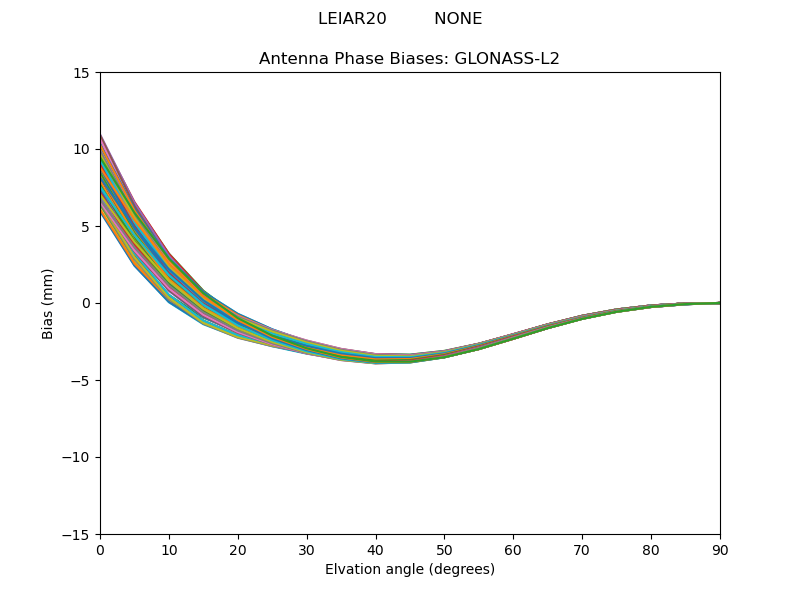

GLONASS-L2

GLONASS-L2GLONASS-L2

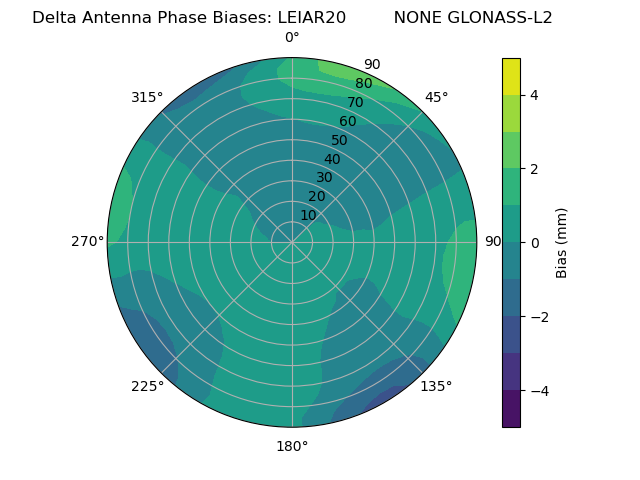

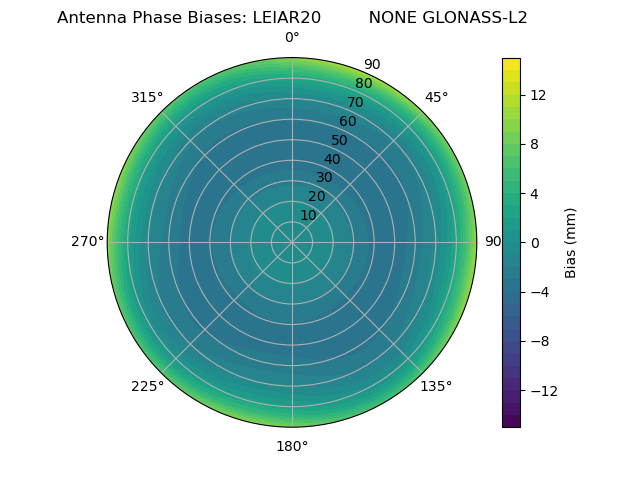

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

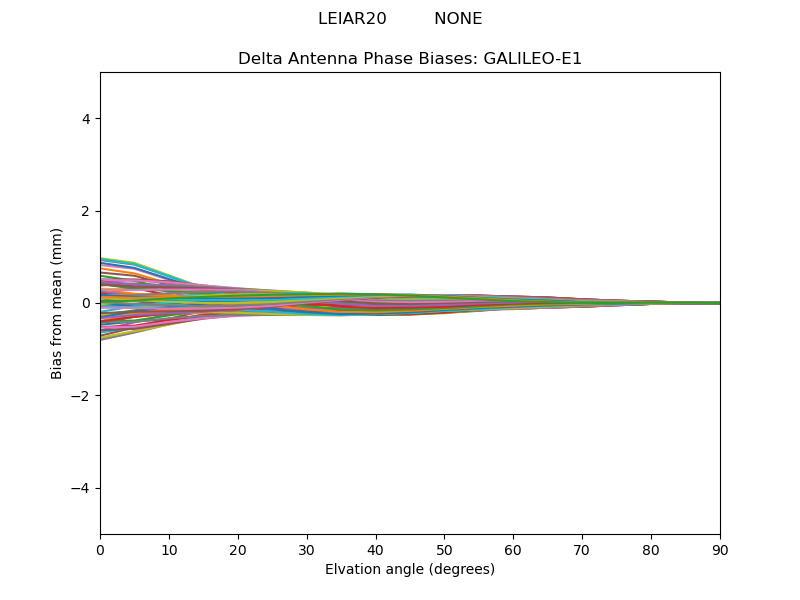

GALILEO-E1

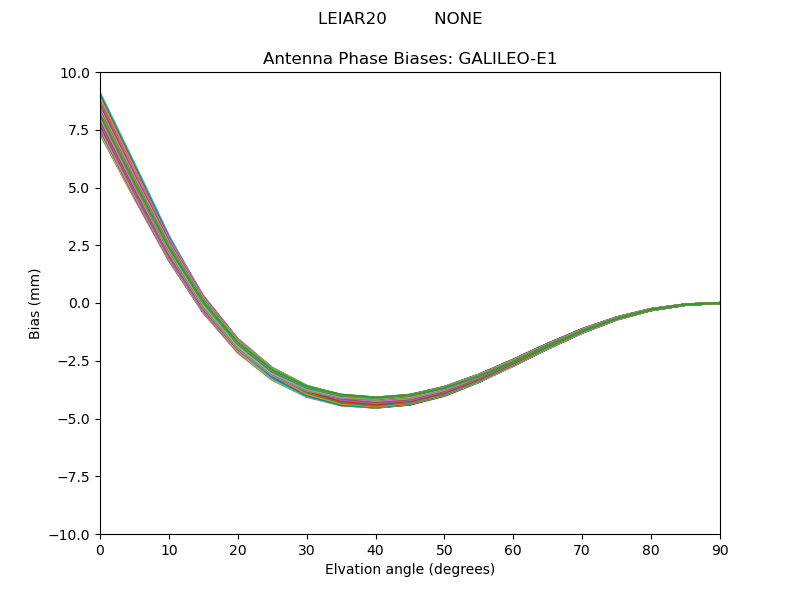

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

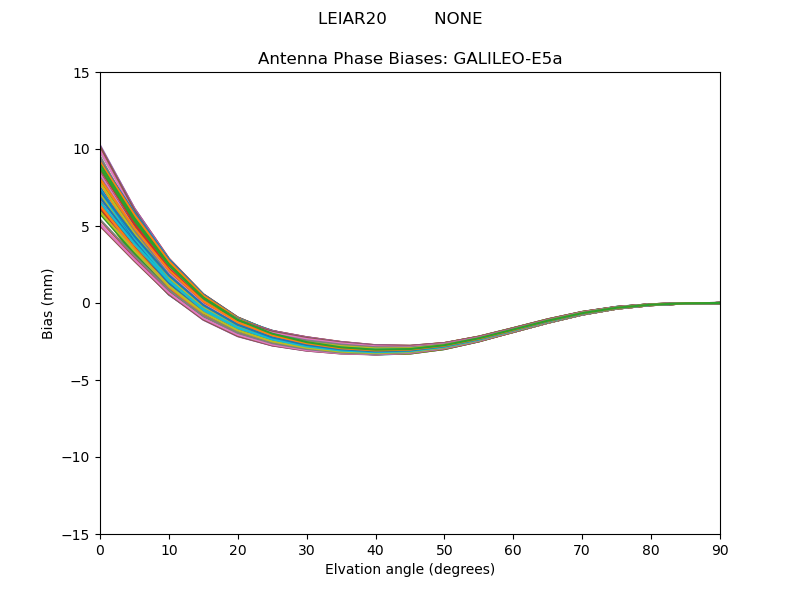

GALILEO-E5aGALILEO-E5a
Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

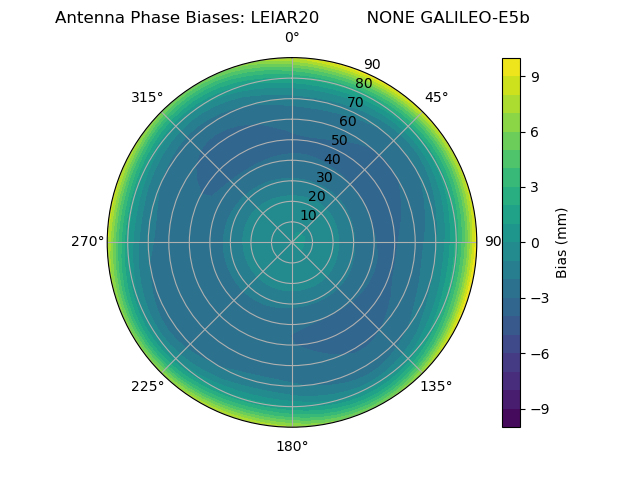

Radial GALILEO-E5bRadial GALILEO-E5b

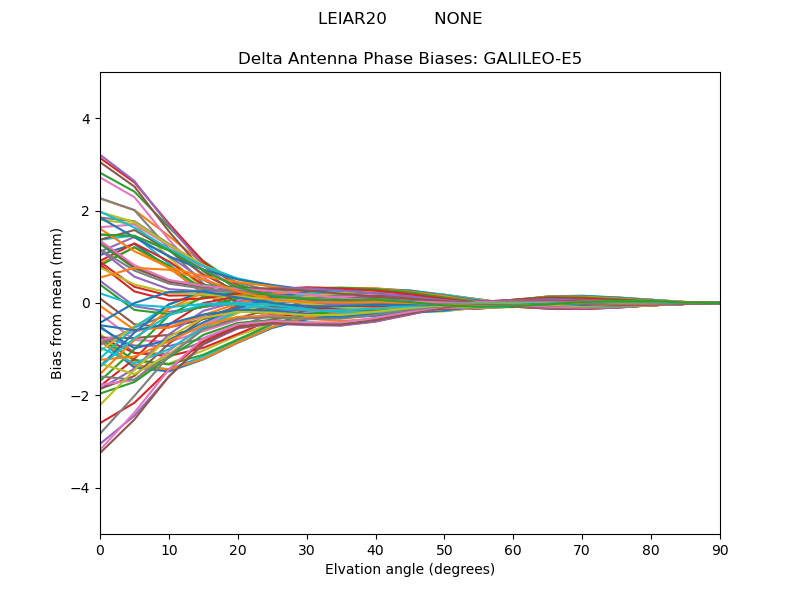

GALILEO-E5

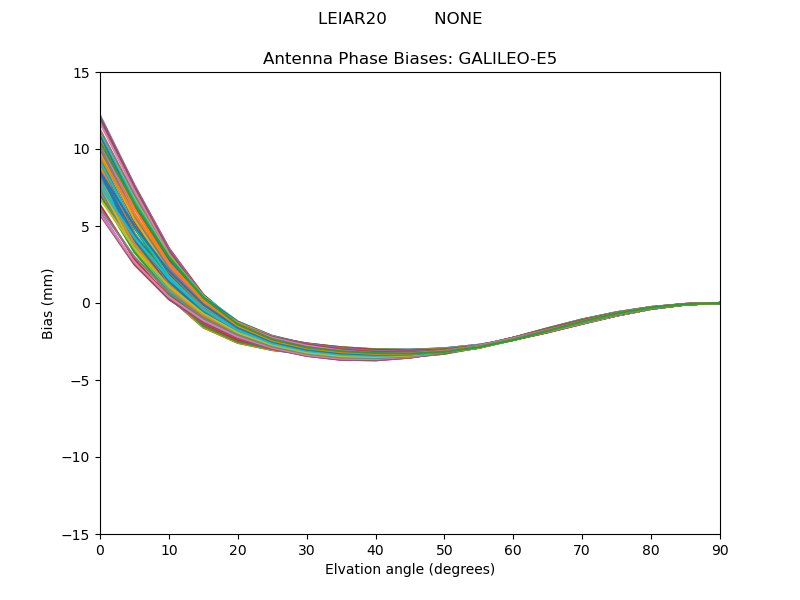

GALILEO-E5GALILEO-E5

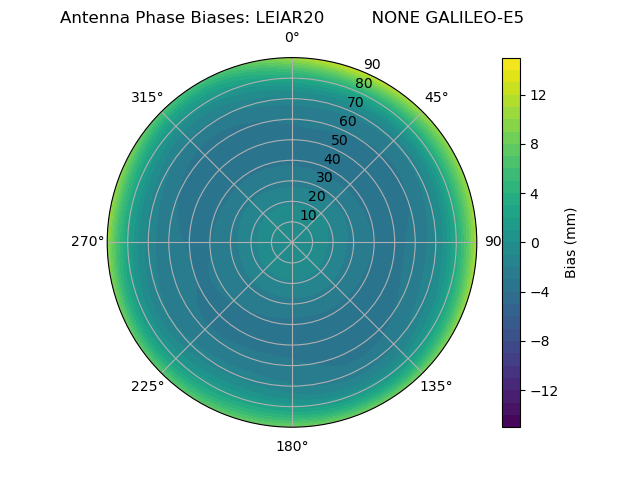

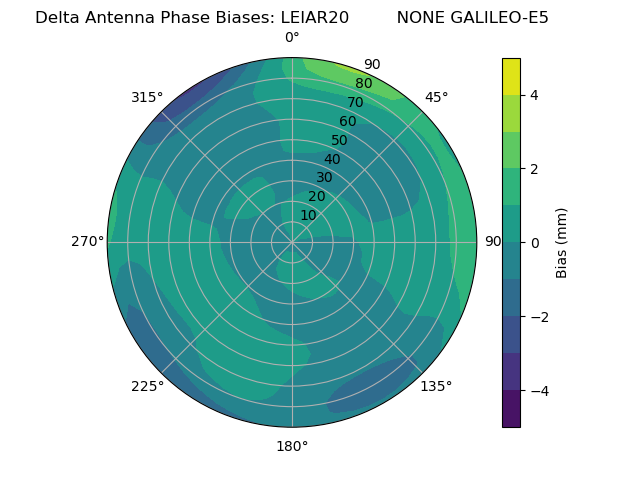

Radial GALILEO-E5Radial GALILEO-E5

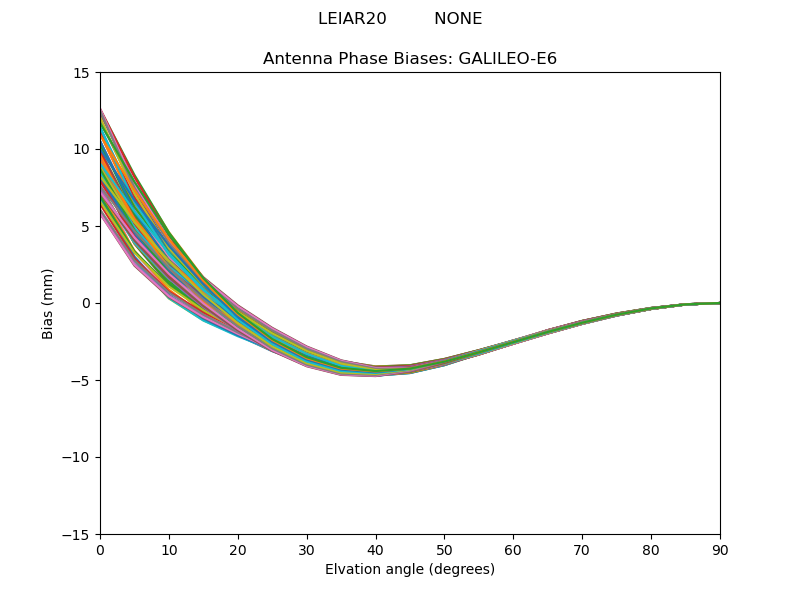

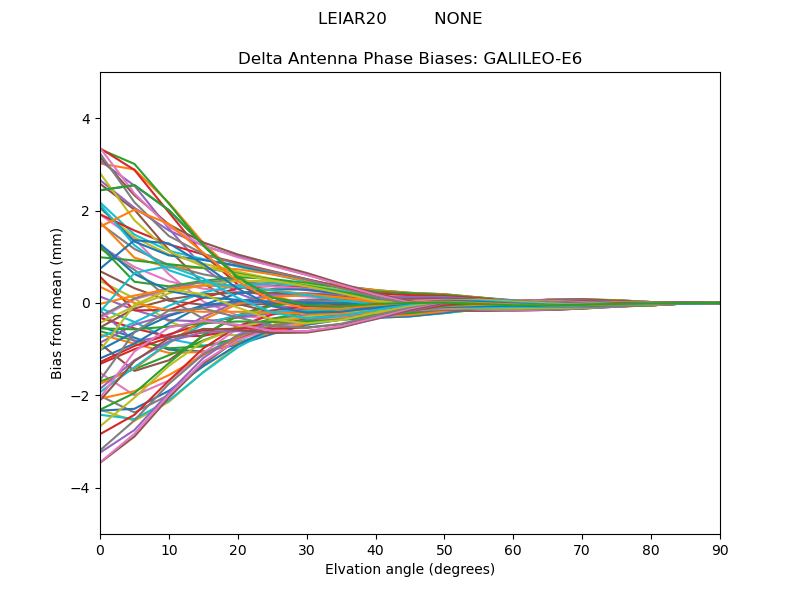

GALILEO-E6

GALILEO-E6GALILEO-E6

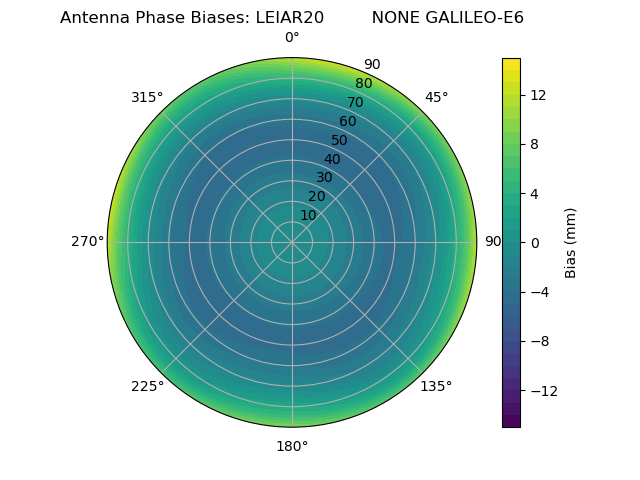

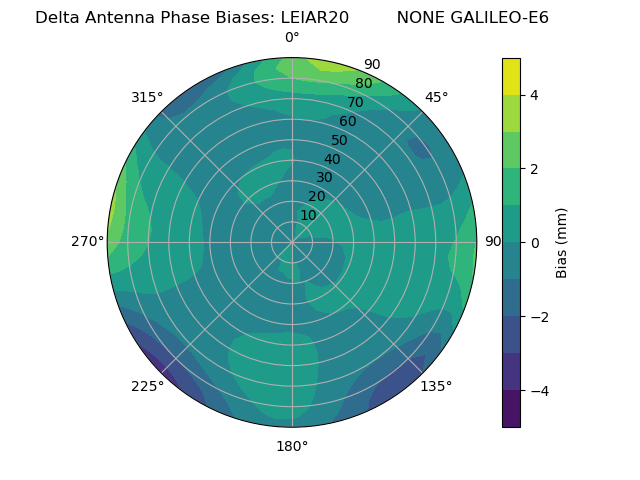

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

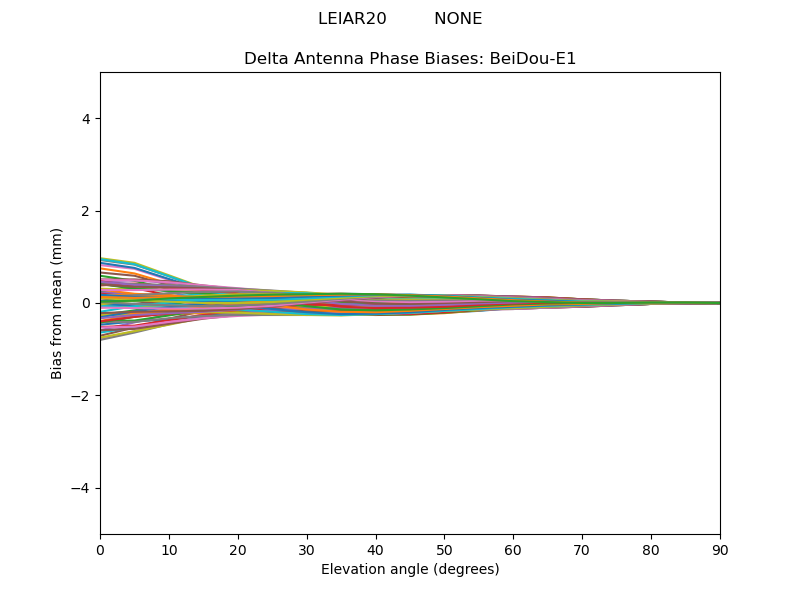

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

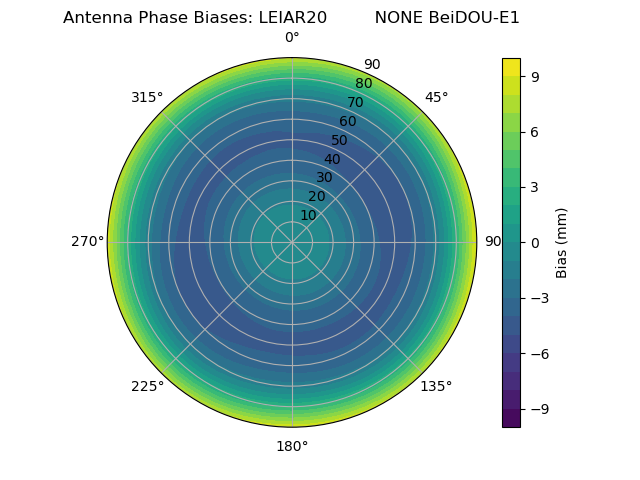

Radial BeiDOU-E1Radial BeiDOU-E1

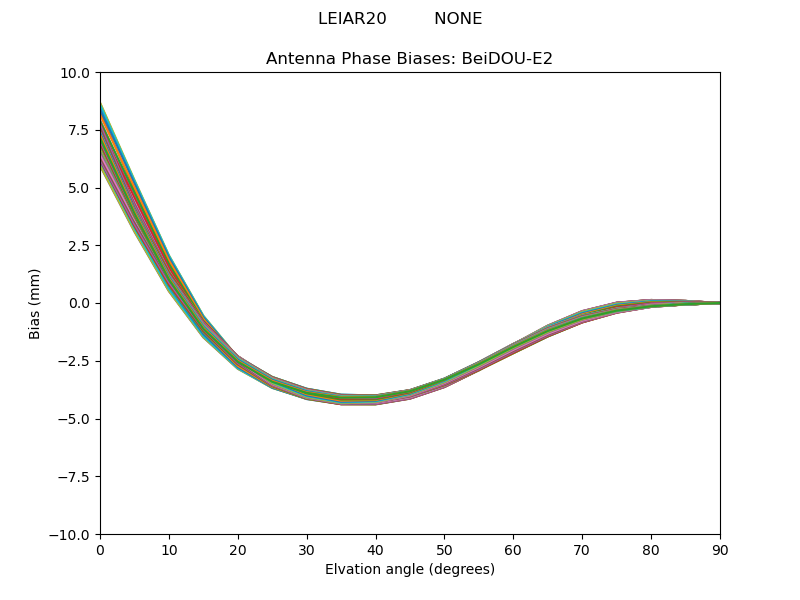

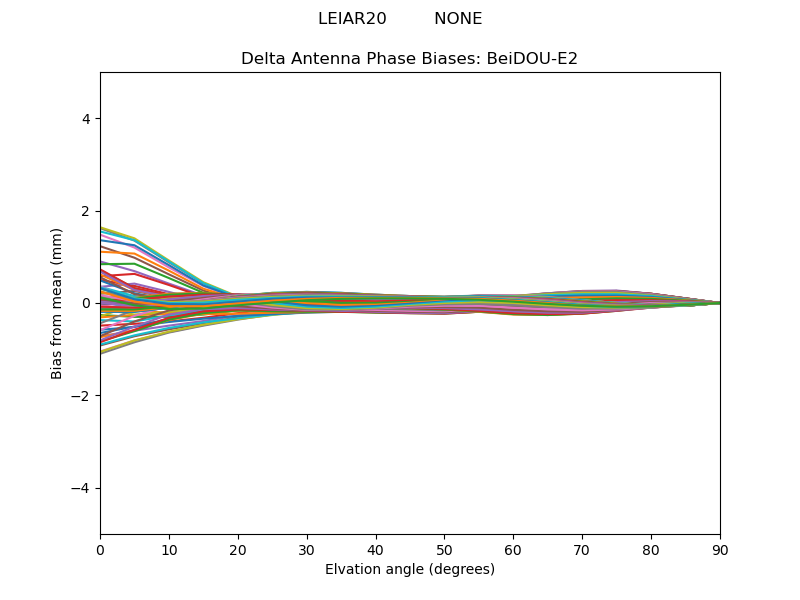

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

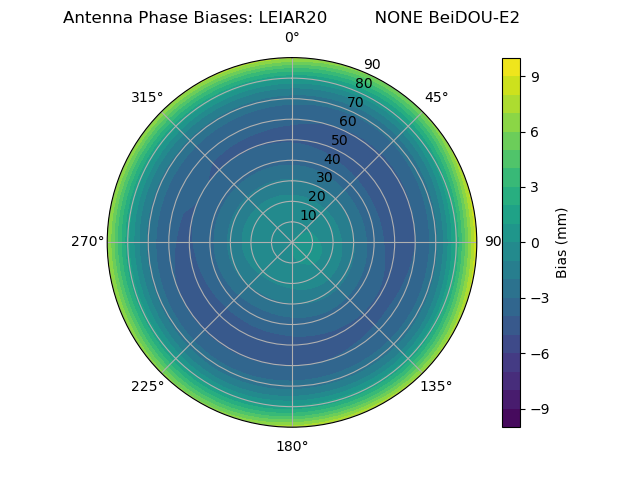

Radial BeiDOU-E2Radial BeiDOU-E2

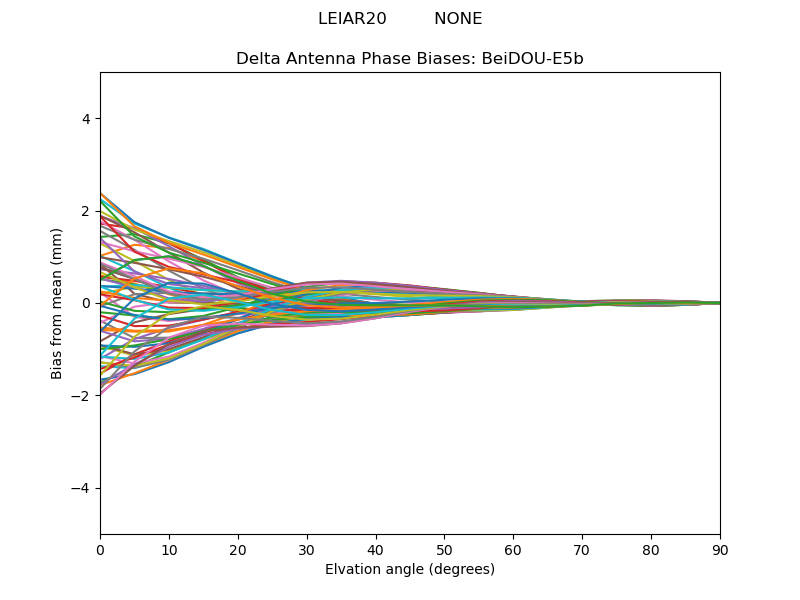

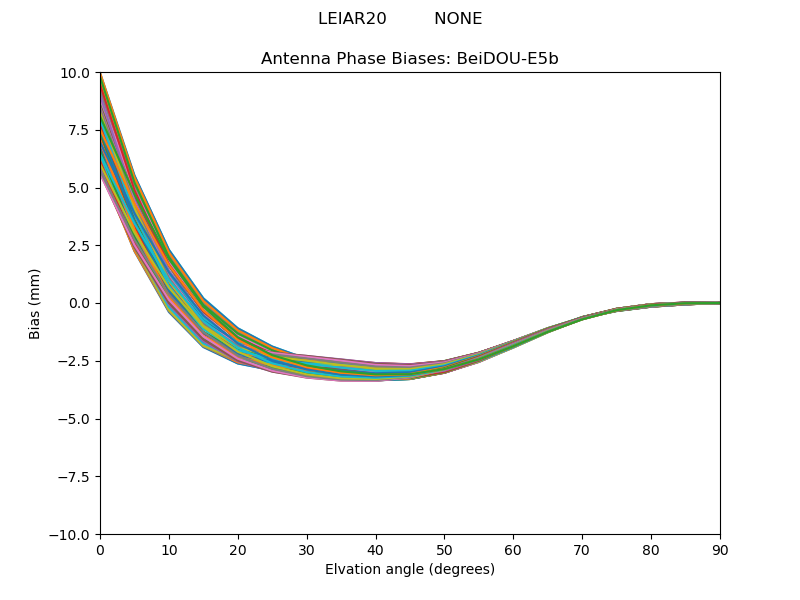

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

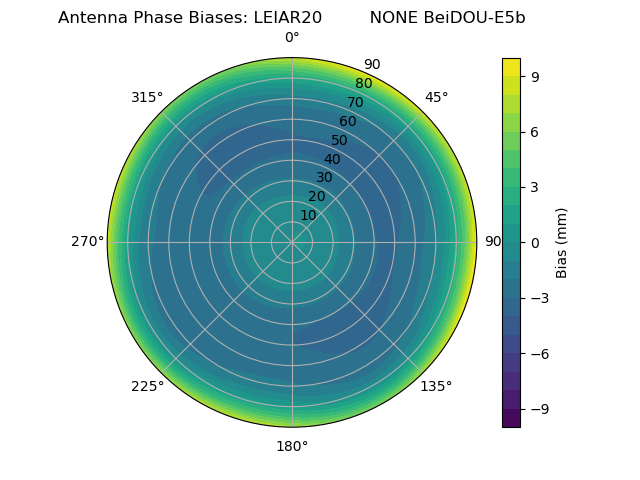

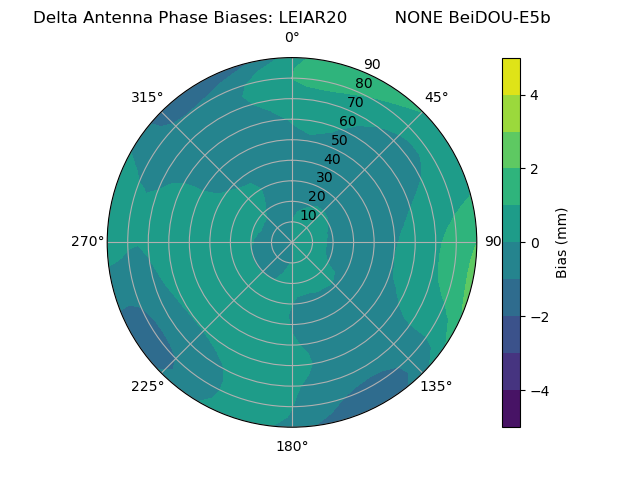

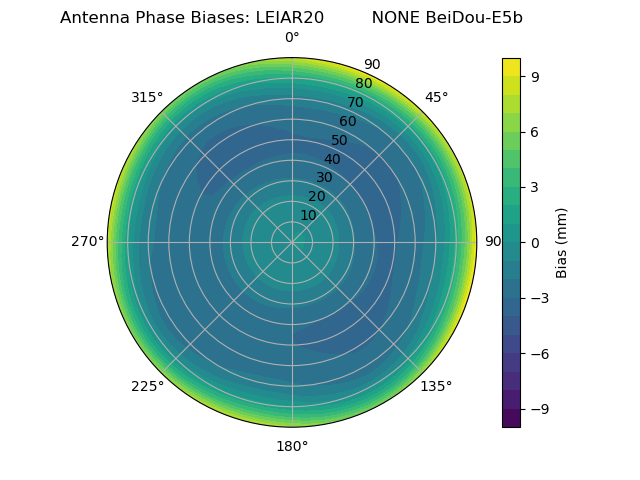

Radial BeiDOU-E5bRadial BeiDOU-E5b

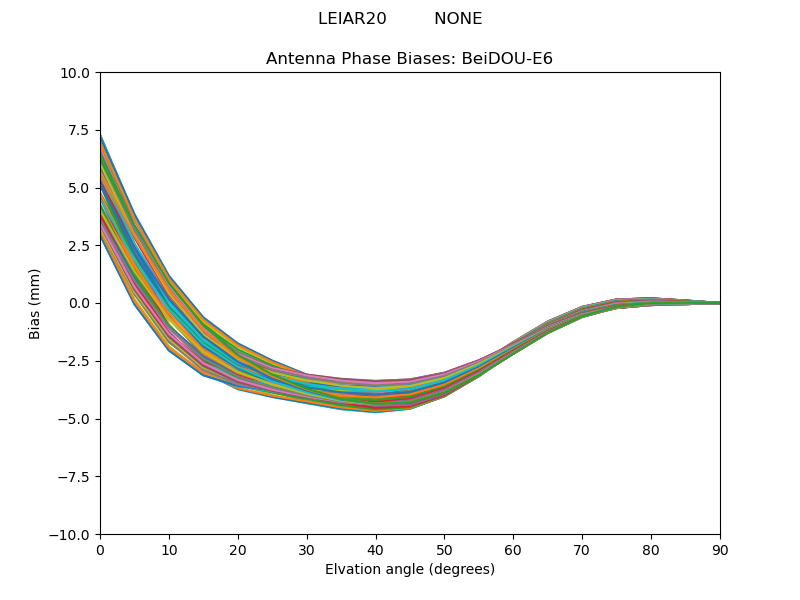

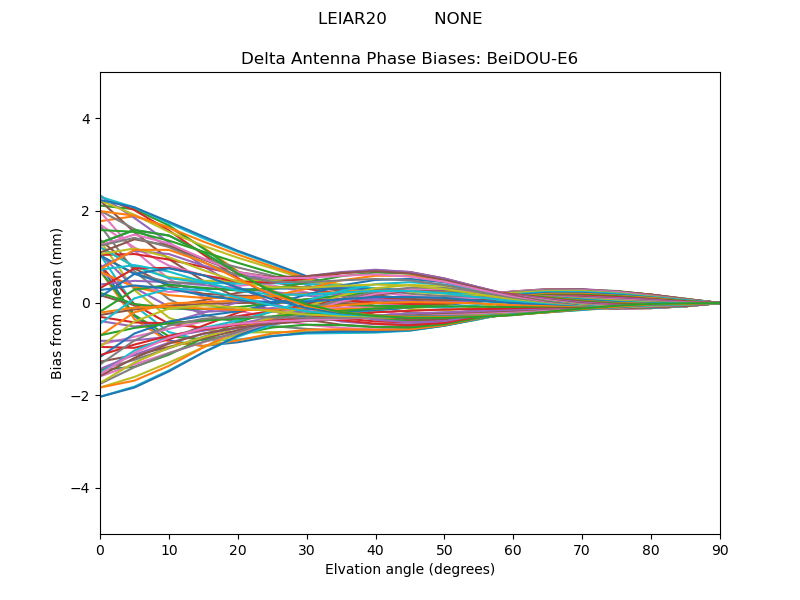

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

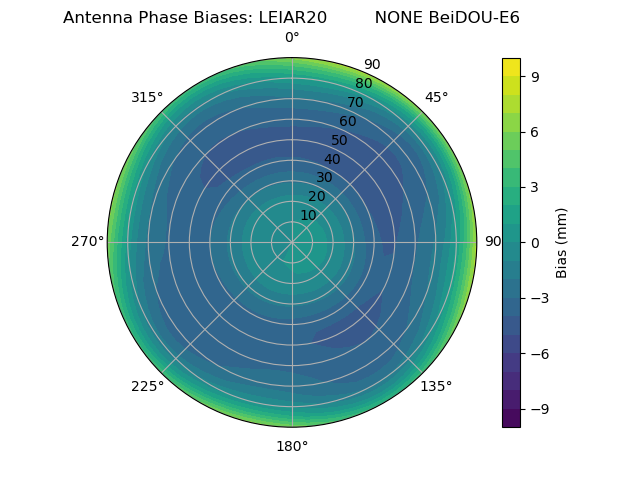

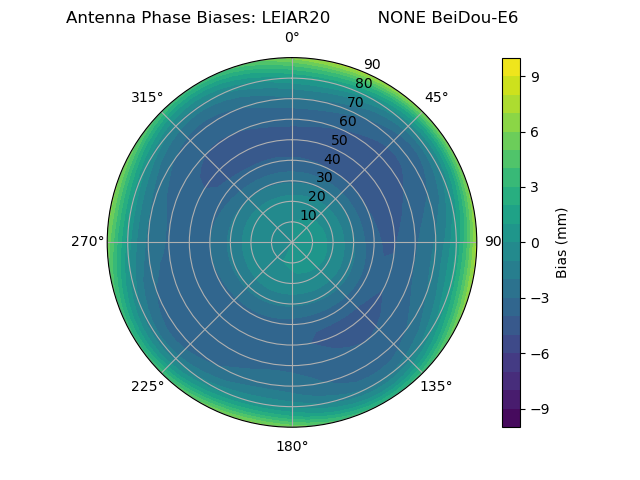

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

QZSS-L2

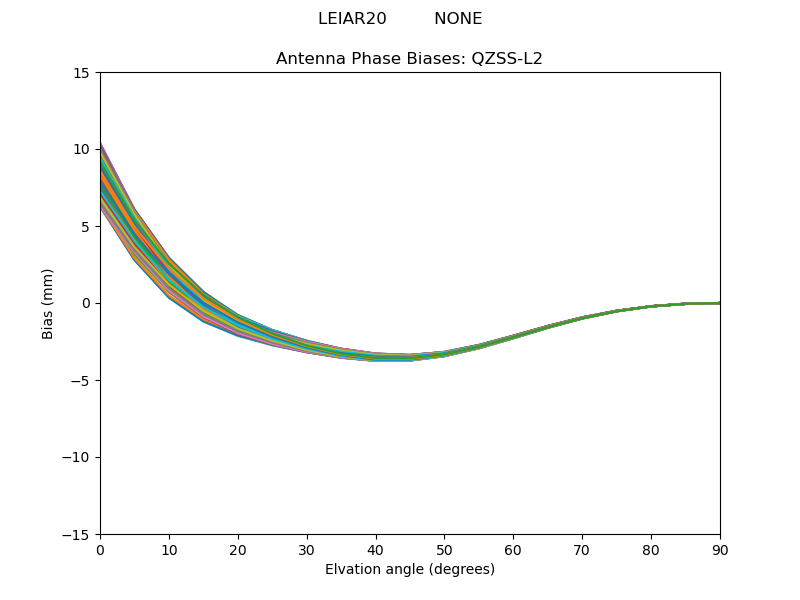

QZSS-L2QZSS-L2

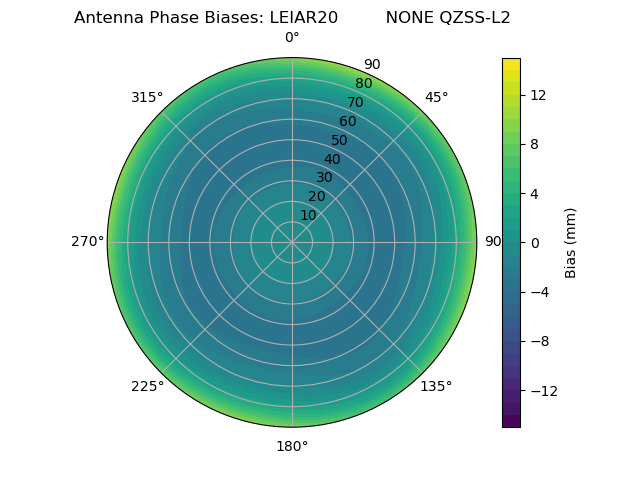

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

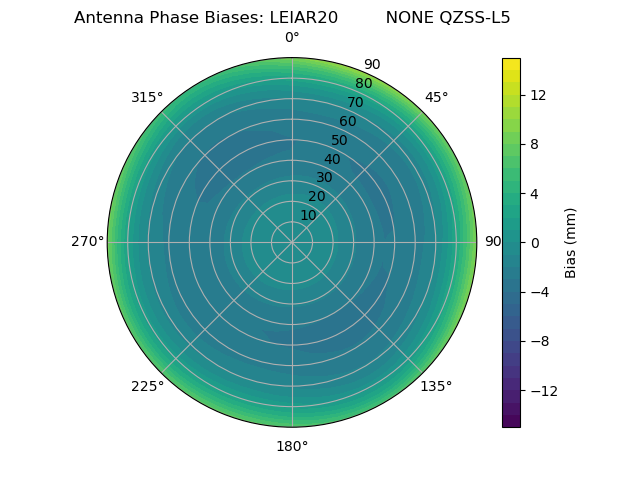

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

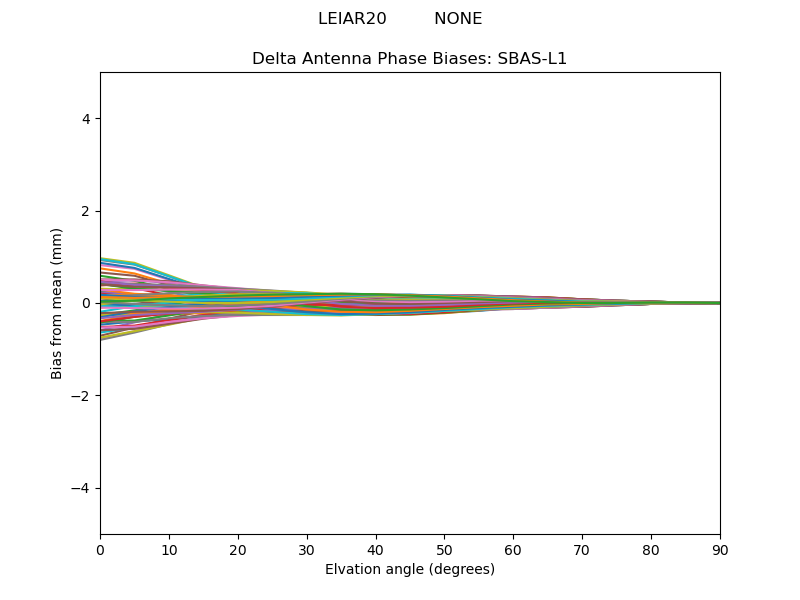

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

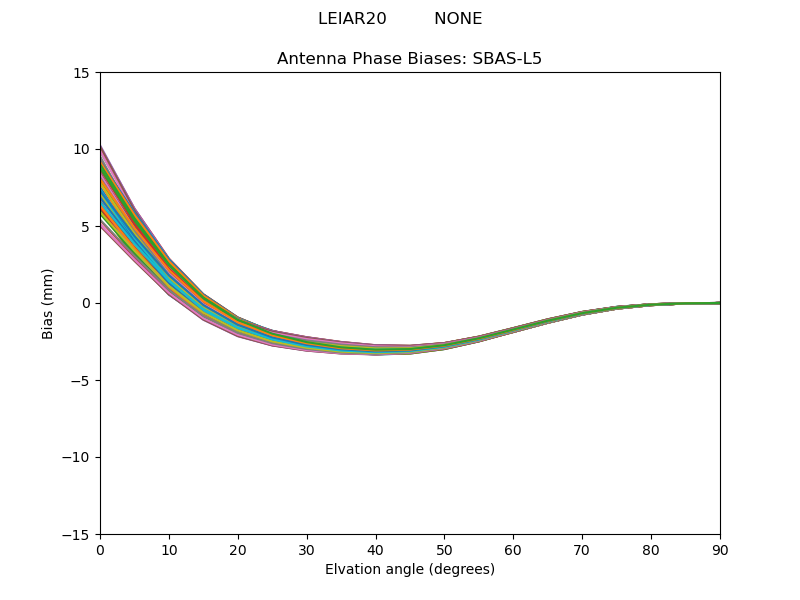

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

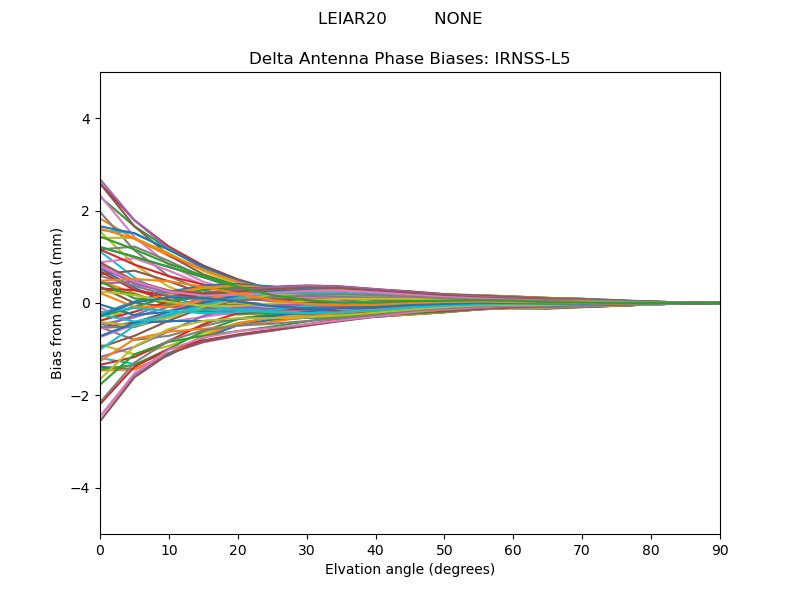

IRNSS-L5

IRNSS-L5IRNSS-L5

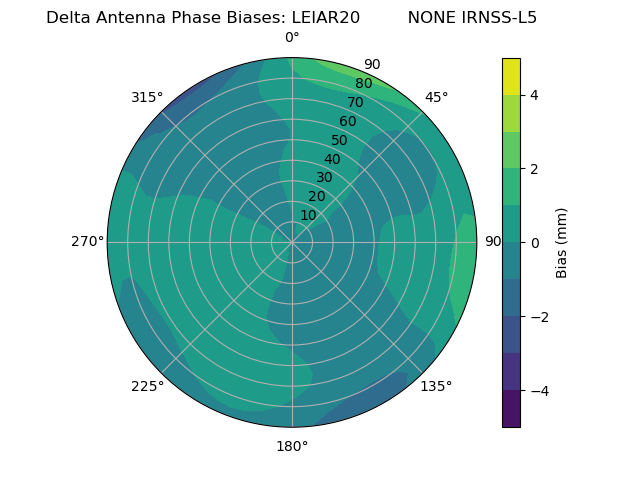

Radial IRNSS-L5Radial IRNSS-L5
