Antenna information for LEIAR25.R3 LEIT

Antenna Offsets
SV System Bands

GPS

L1: N: -0.05 E: 0.95 U: 160.96
L2: N: -0.43 E: 0.05 U: 157.79
L5: N: -0.64 E: -0.08 U: 162.56

GLONASS

L1: N: 0.03 E: 0.93 U: 159.80
L2: N: -0.55 E: -0.16 U: 155.43

GALILEO

E1: N: -0.05 E: 0.95 U: 160.96
E5a: N: -0.64 E: -0.08 U: 162.56
E5b: N: -0.52 E: -0.09 U: 159.05
E5: N: -0.65 E: -0.09 U: 160.97
E6: N: -0.48 E: -0.02 U: 154.14

BeiDou

E1: N: -0.05 E: 0.95 U: 160.96
E2: N: -0.31 E: 0.89 U: 160.07
E5b: N: -0.52 E: -0.09 U: 159.05
E6: N: -0.41 E: 0.12 U: 153.52

QZSS

L1: N: -0.05 E: 0.95 U: 160.96
L2: N: -0.43 E: 0.05 U: 157.79
L5: N: -0.64 E: -0.08 U: 162.56
LEX: N: -0.48 E: -0.02 U: 154.14

IRNSS

L5: N: -0.64 E: -0.08 U: 162.56

SBAS

L1: N: -0.05 E: 0.95 U: 160.96
L5: N: -0.64 E: -0.08 U: 162.56

L1

GPS: N: -0.05 E: 0.95 U: 160.96
GLONASS: N: 0.03 E: 0.93 U: 159.80
QZSS: N: -0.05 E: 0.95 U: 160.96
SBAS: N: -0.05 E: 0.95 U: 160.96

L2

GPS: N: -0.43 E: 0.05 U: 157.79
GLONASS: N: -0.55 E: -0.16 U: 155.43
QZSS: N: -0.43 E: 0.05 U: 157.79

L5

GPS: N: -0.64 E: -0.08 U: 162.56
QZSS: N: -0.64 E: -0.08 U: 162.56
SBAS: N: -0.64 E: -0.08 U: 162.56
IRNSS: N: -0.64 E: -0.08 U: 162.56

E1

GALILEO: N: -0.05 E: 0.95 U: 160.96
BeiDou: N: -0.05 E: 0.95 U: 160.96

E2

BeiDou: N: -0.31 E: 0.89 U: 160.07

E5

GALILEO: N: -0.65 E: -0.09 U: 160.97

E5a

GALILEO: N: -0.64 E: -0.08 U: 162.56

E5b

GALILEO: N: -0.52 E: -0.09 U: 159.05
BeiDou: N: -0.52 E: -0.09 U: 159.05

E6

GALILEO: N: -0.48 E: -0.02 U: 154.14
BeiDou: N: -0.41 E: 0.12 U: 153.52

LEX

QZSS: N: -0.48 E: -0.02 U: 154.14


Means

GPS

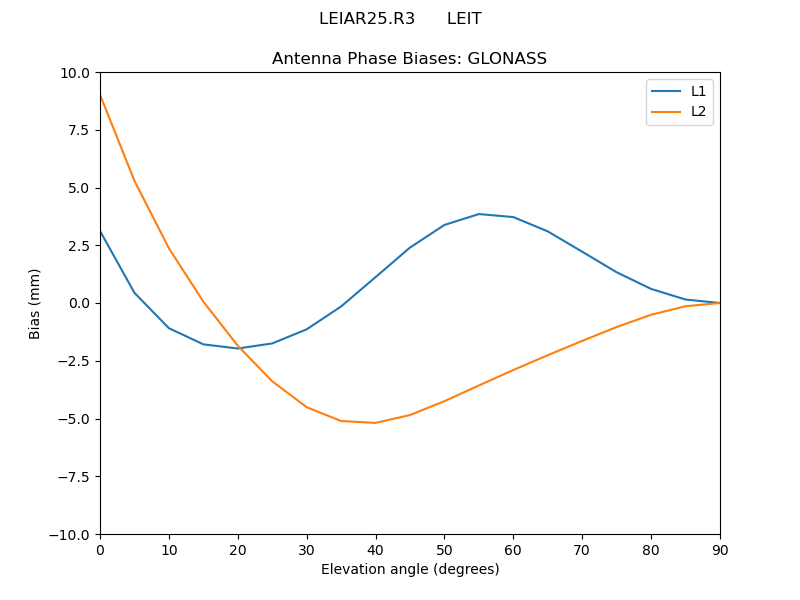

GLONASS

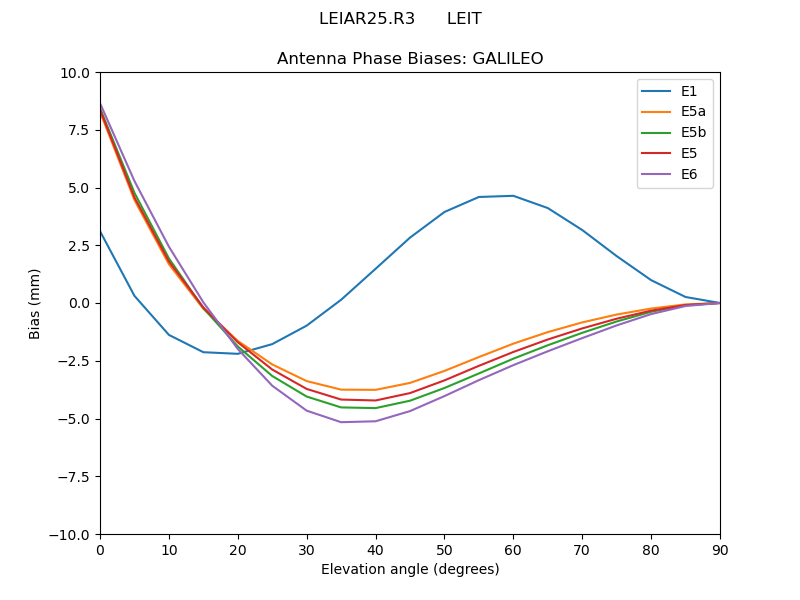

GALILEO

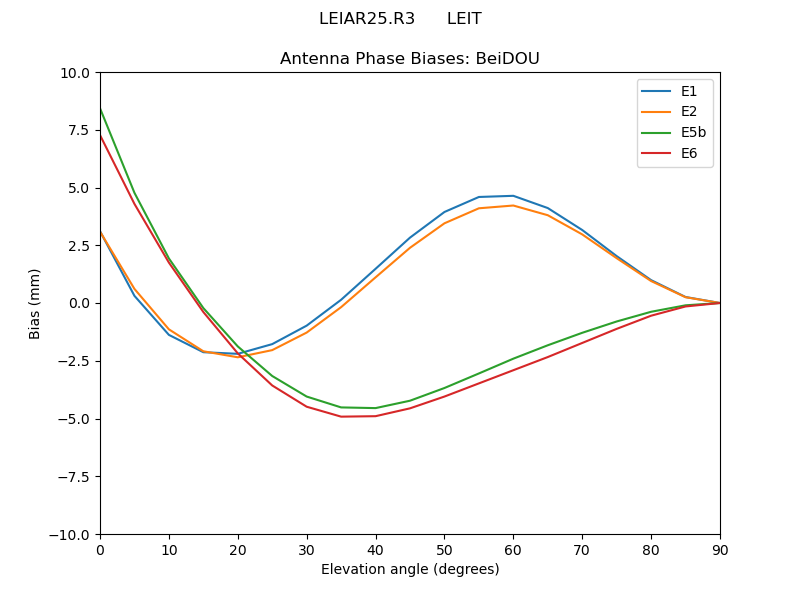

BeiDOU

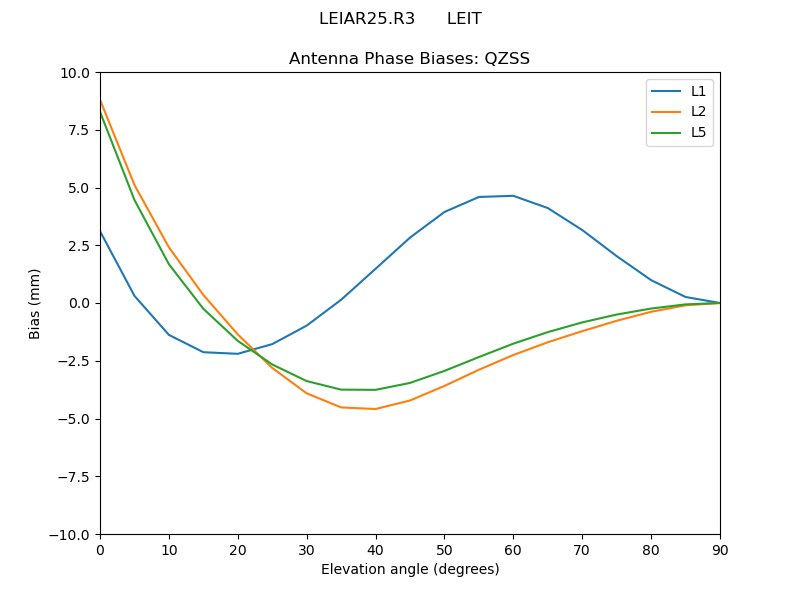

QZSS

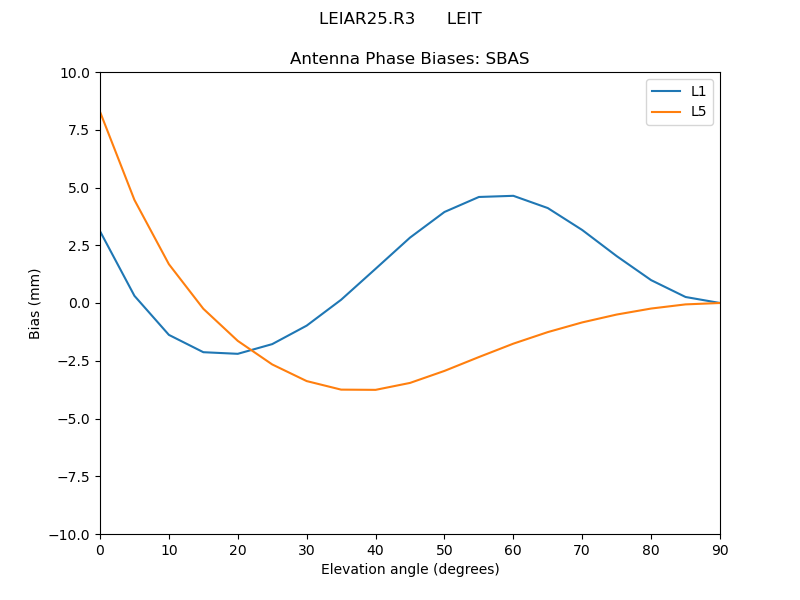

SBAS

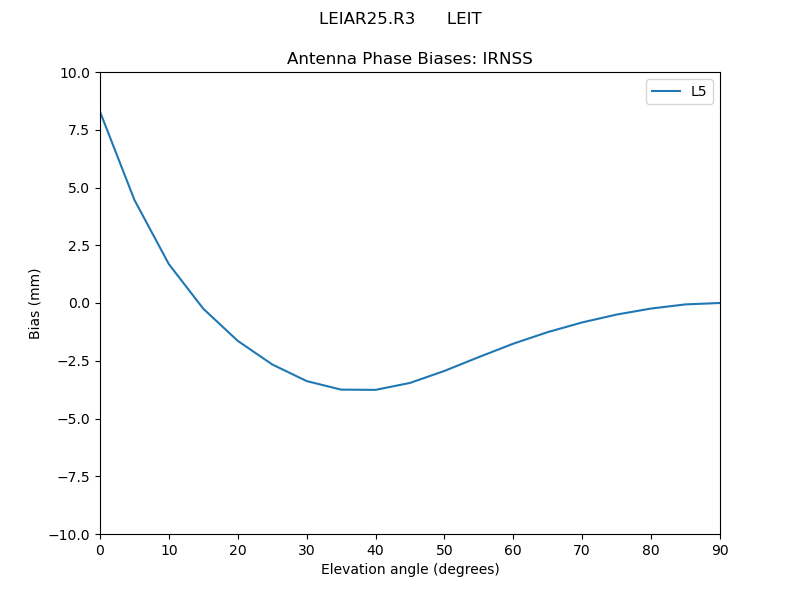

IRNSS


Azimuths

GPS


Bias Delta

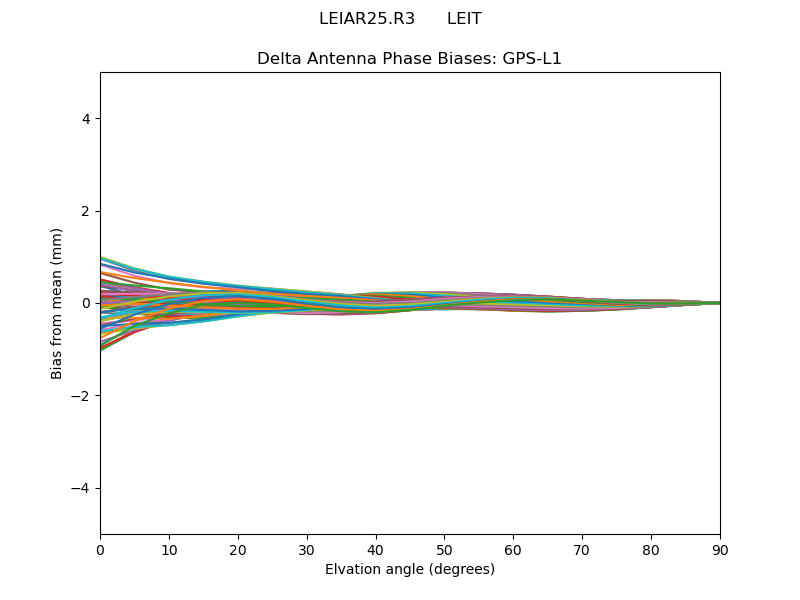

GPS-L1

GPS-L1GPS-L1

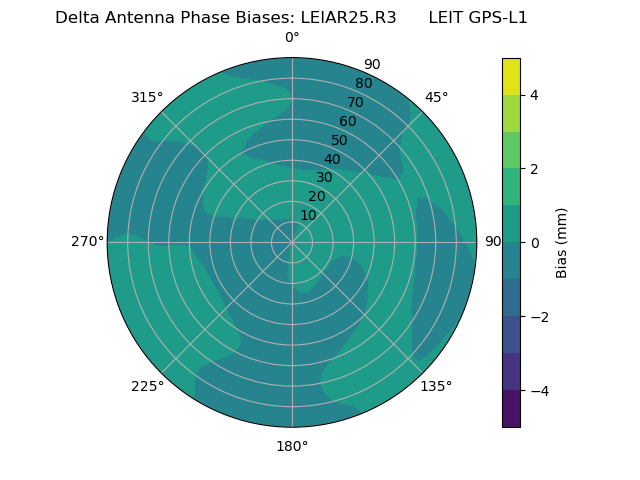

Radial GPS-L1Radial GPS-L1

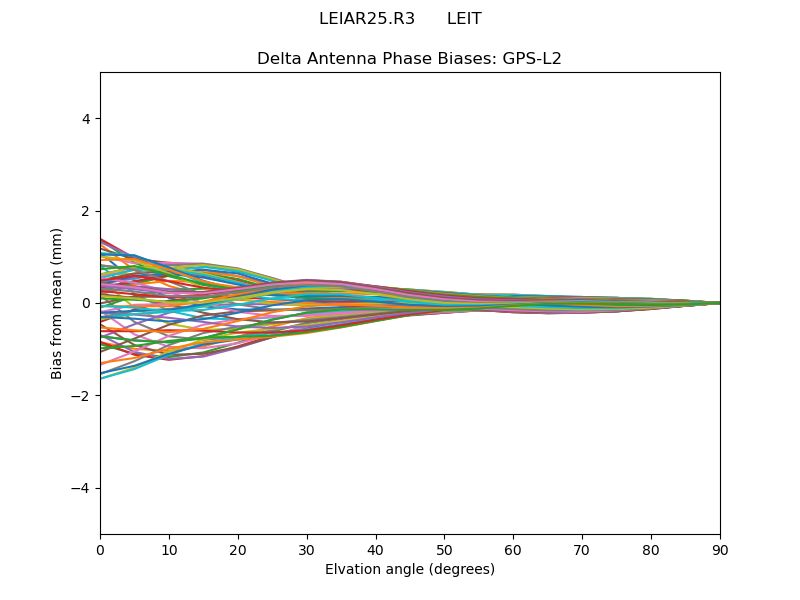

GPS-L2

GPS-L2GPS-L2
Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

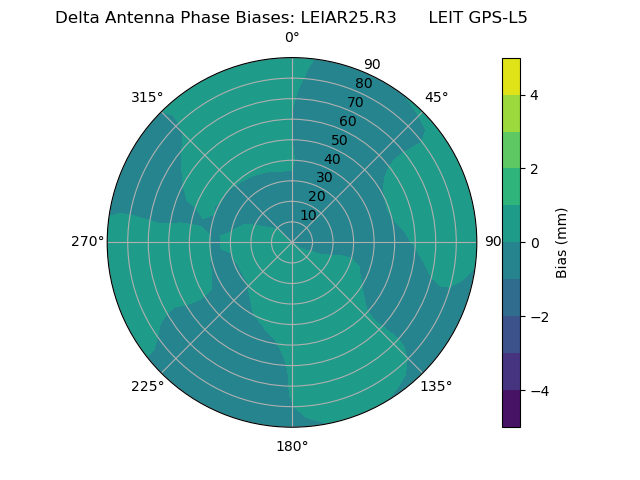

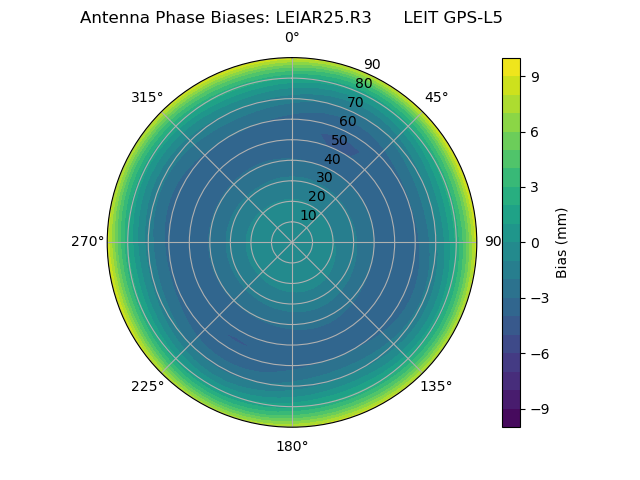

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

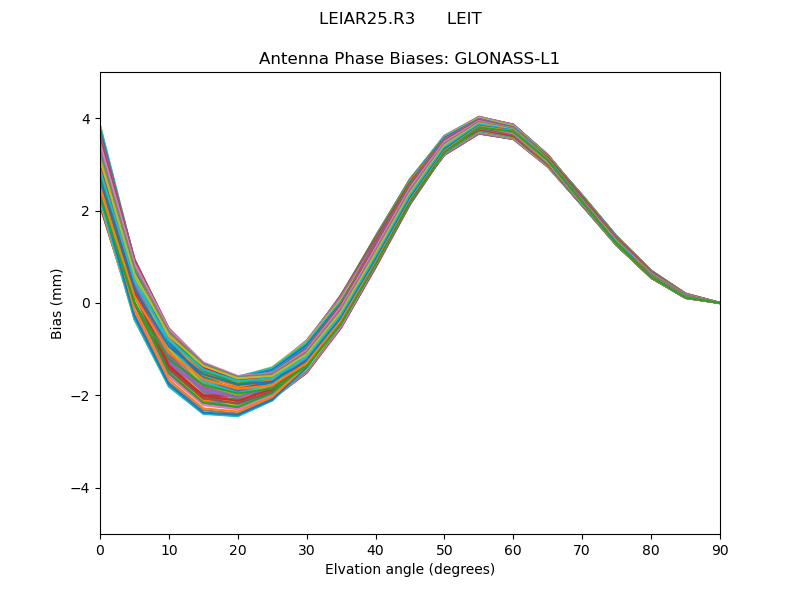

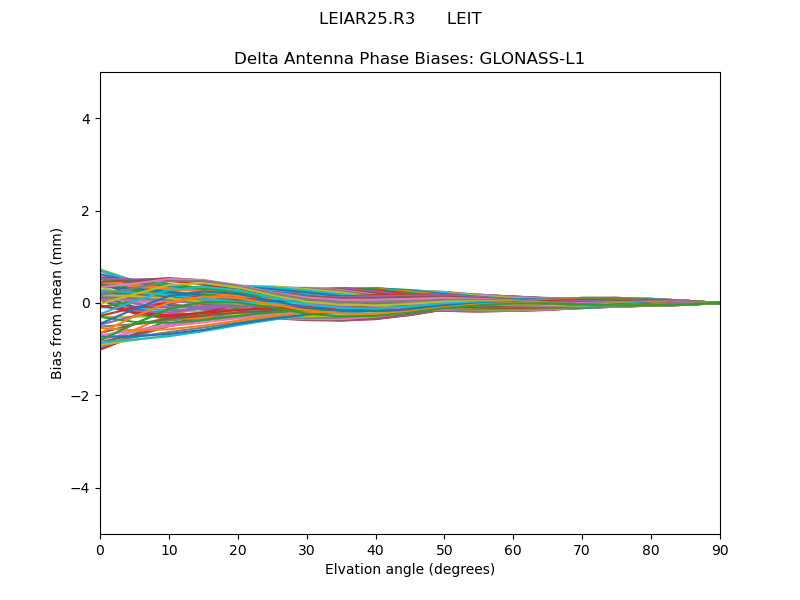

GLONASS-L1

GLONASS-L1GLONASS-L1

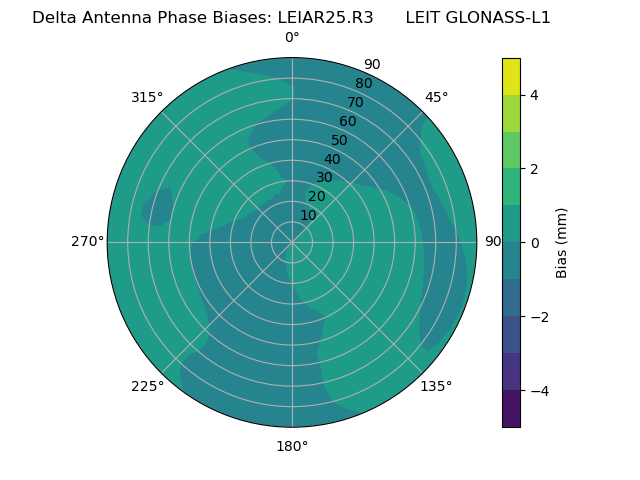

Radial GLONASS-L1Radial GLONASS-L1

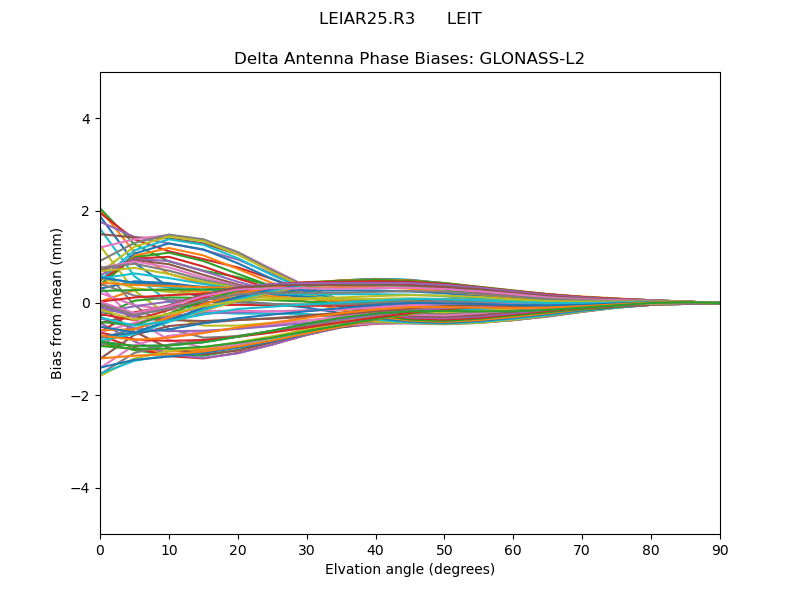

GLONASS-L2

GLONASS-L2GLONASS-L2

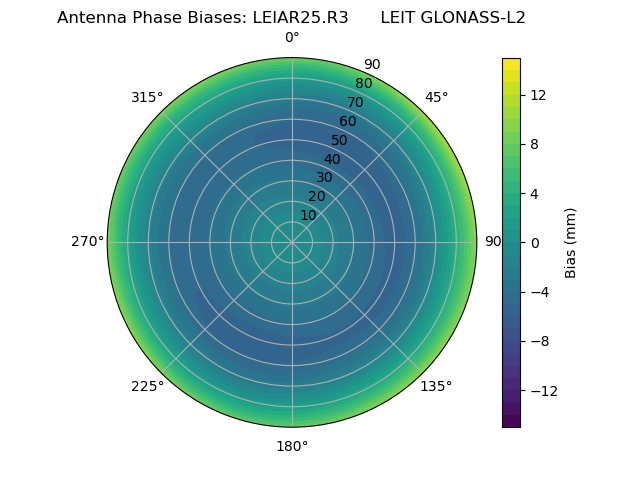

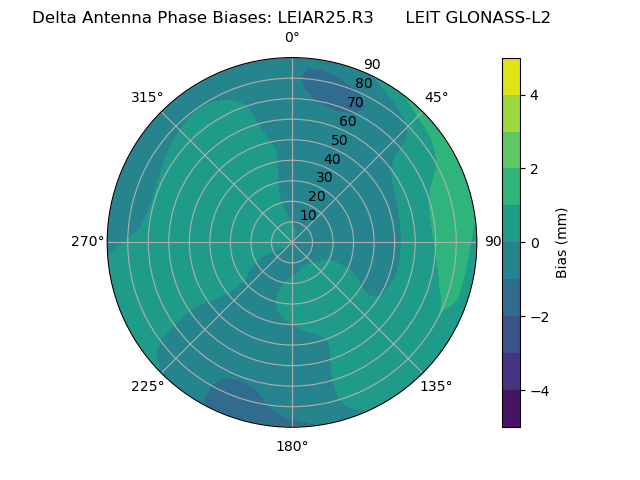

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a
Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

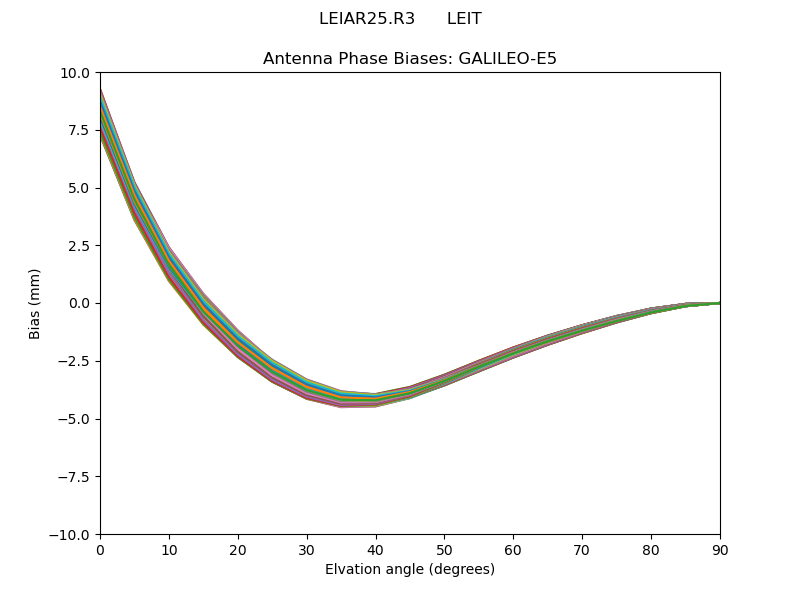

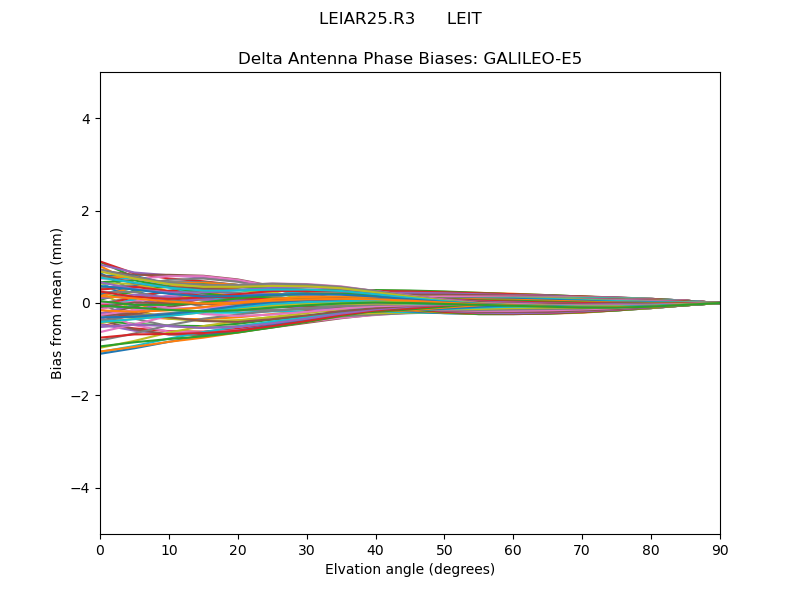

GALILEO-E5

GALILEO-E5GALILEO-E5
Radial GALILEO-E5Radial GALILEO-E5

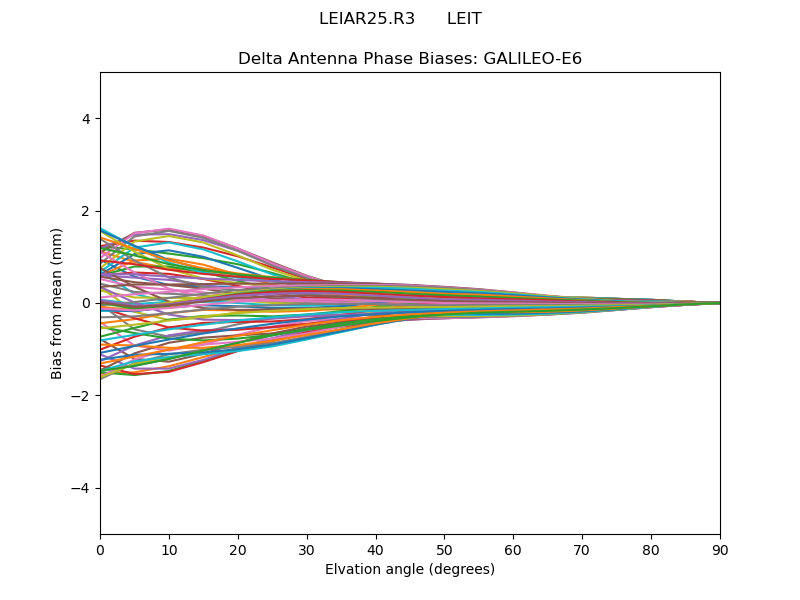

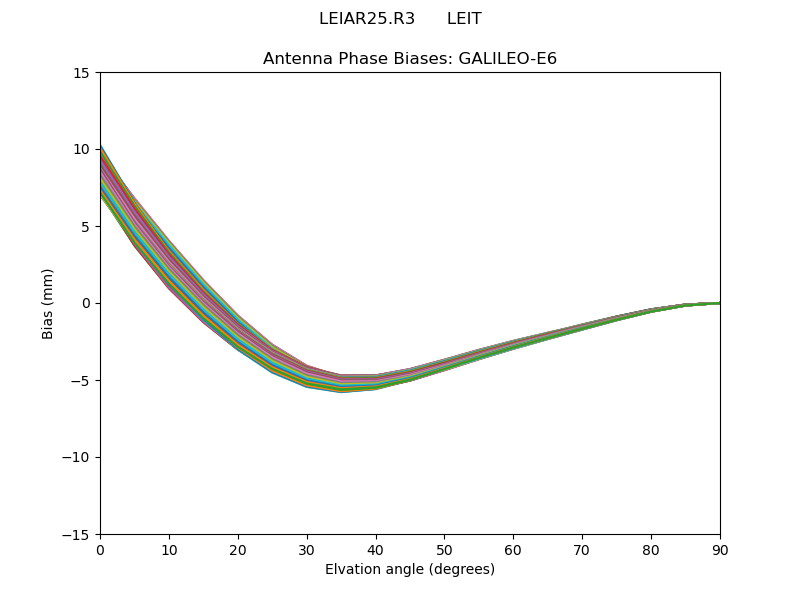

GALILEO-E6

GALILEO-E6GALILEO-E6

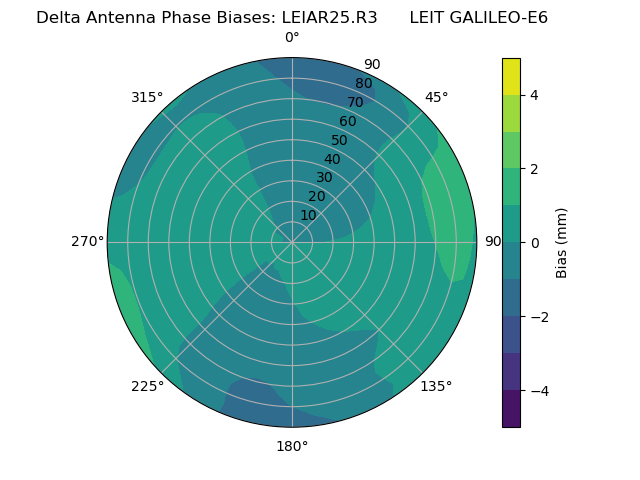

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

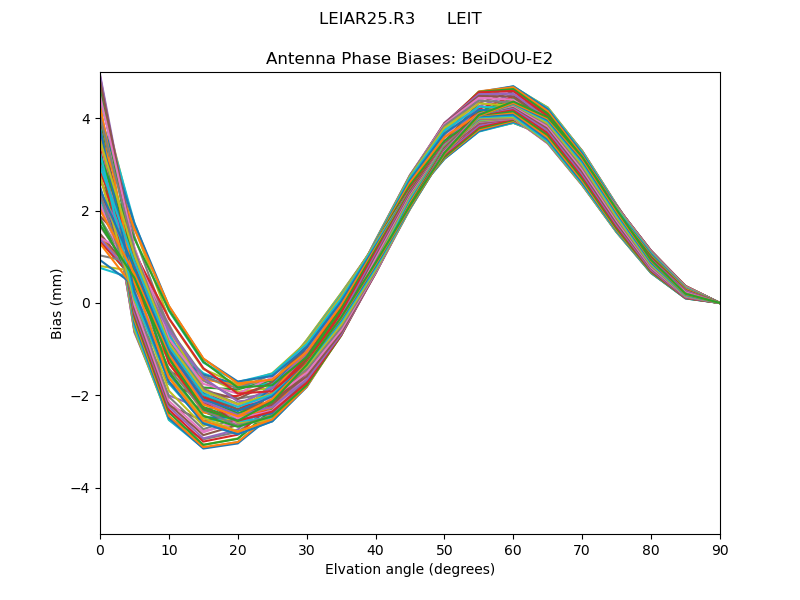

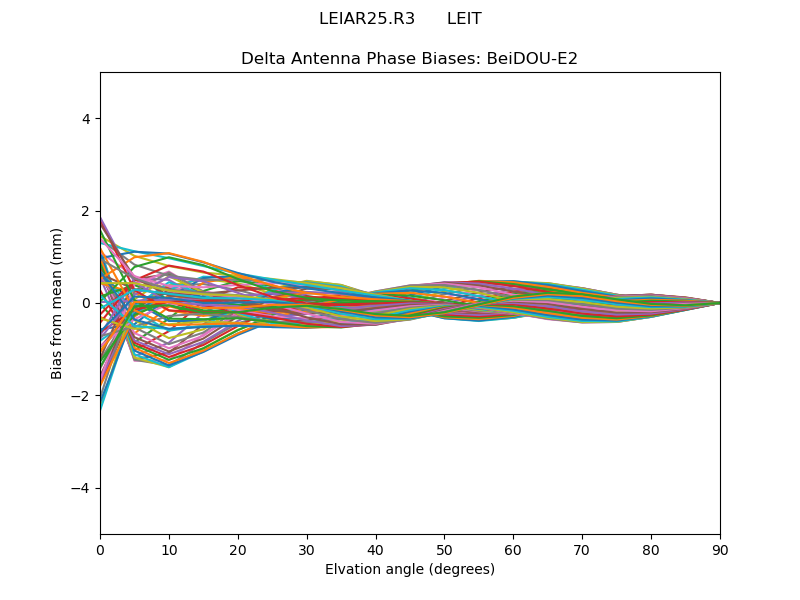

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

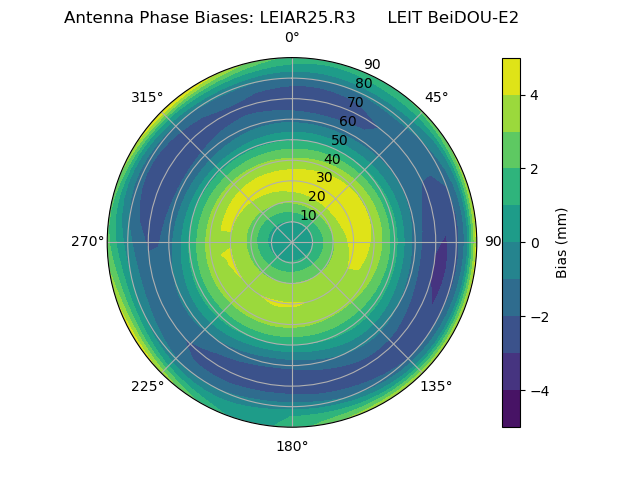

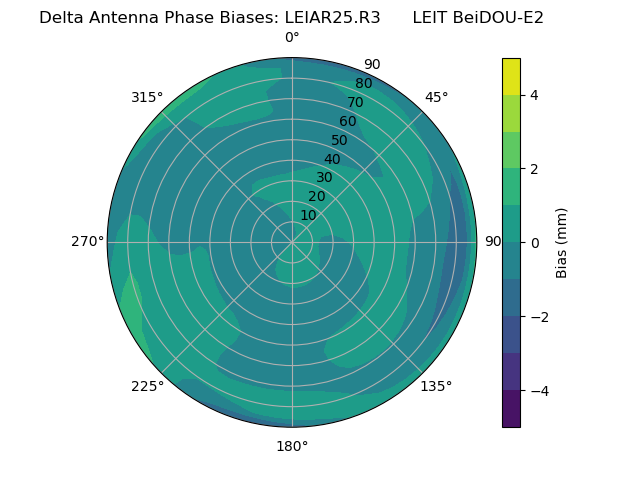

Radial BeiDOU-E2Radial BeiDOU-E2

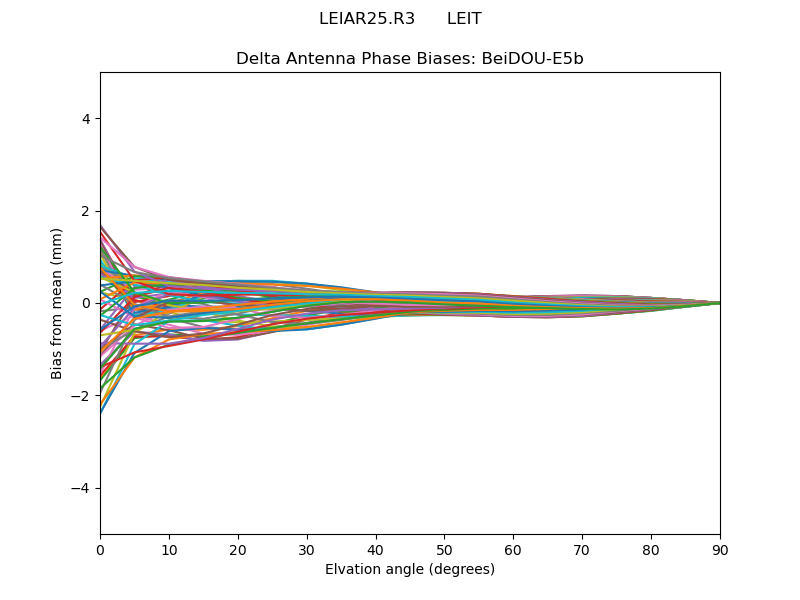

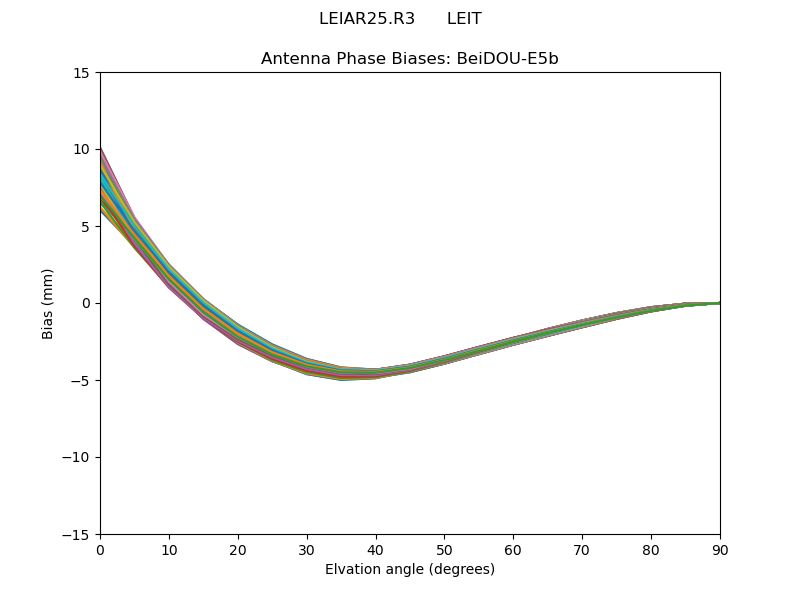

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

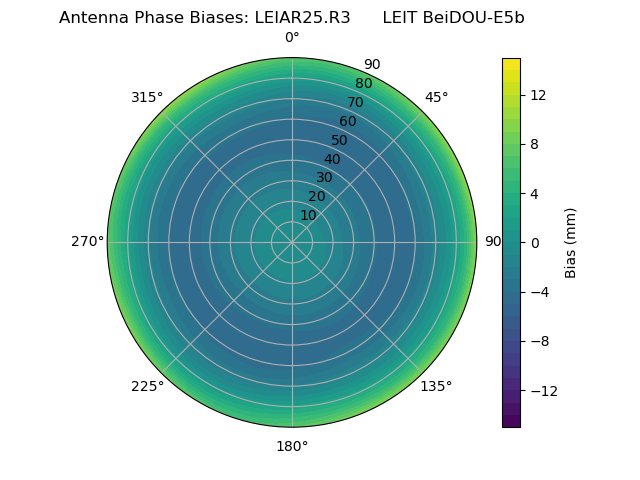

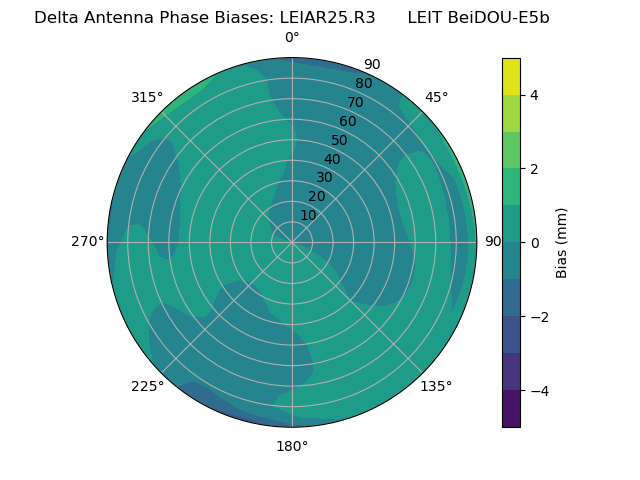

Radial BeiDOU-E5bRadial BeiDOU-E5b

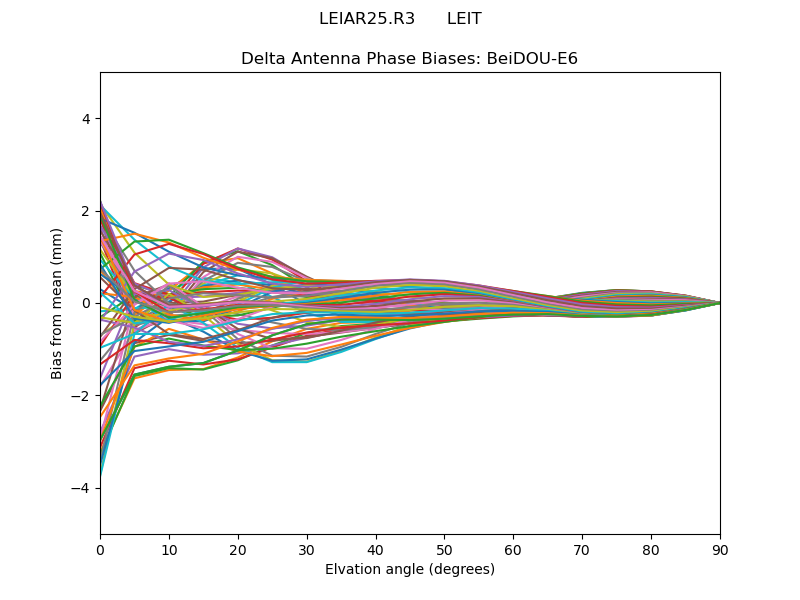

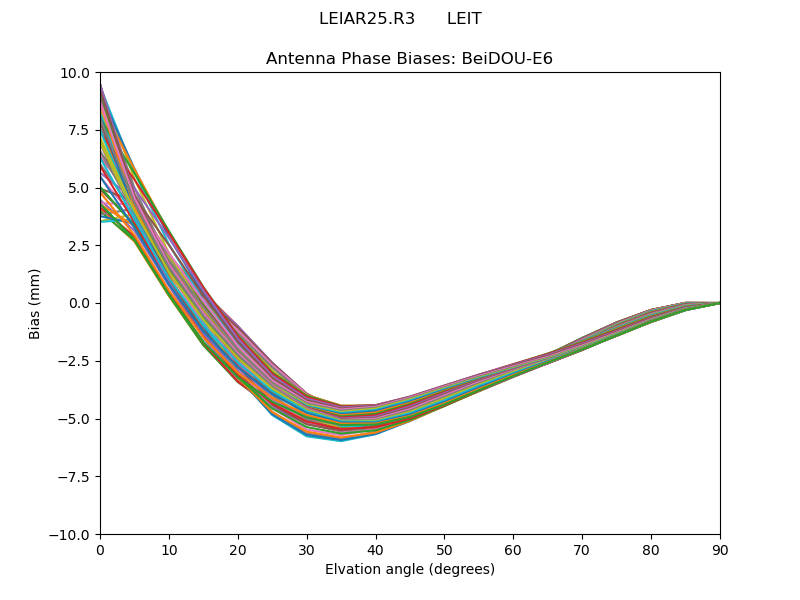

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

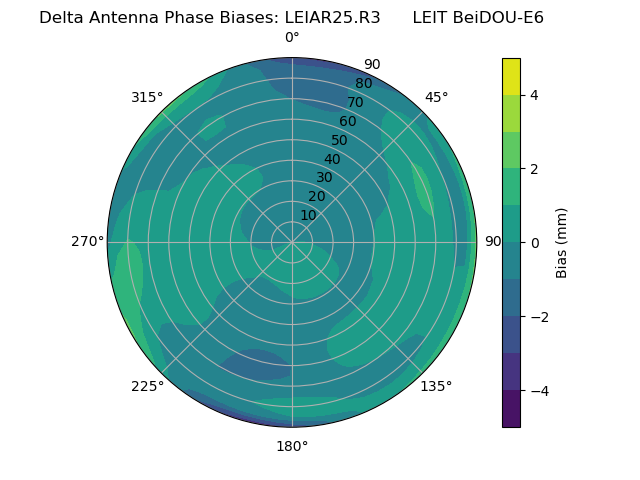

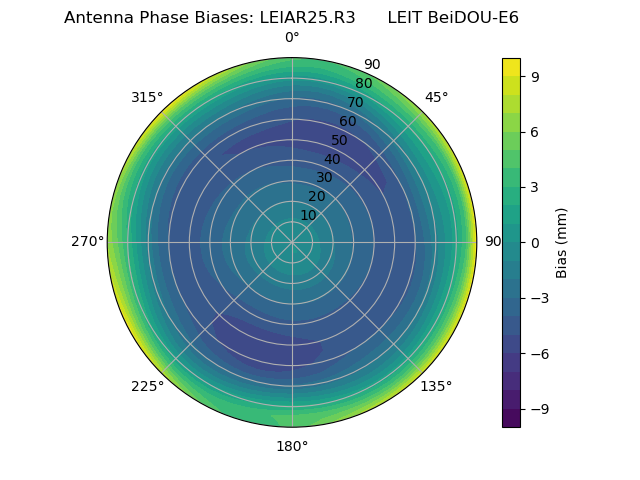

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

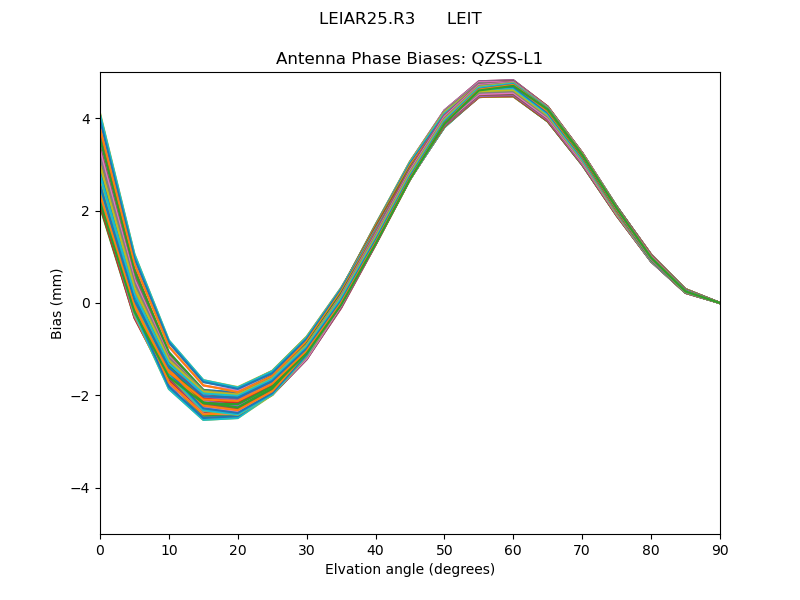

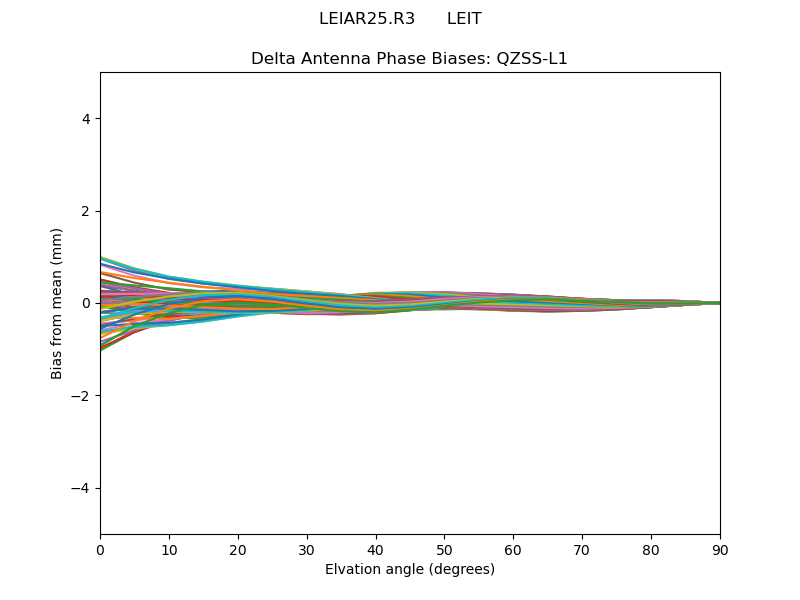

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

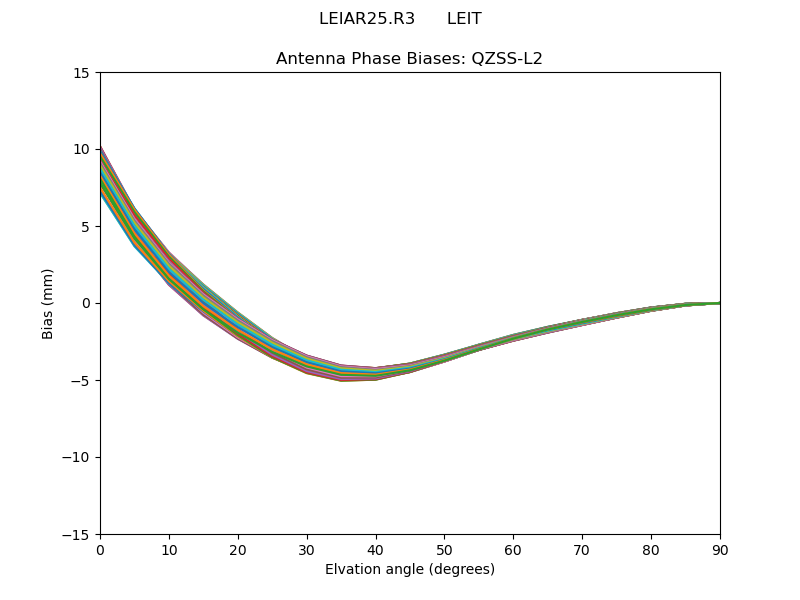

QZSS-L2

QZSS-L2QZSS-L2

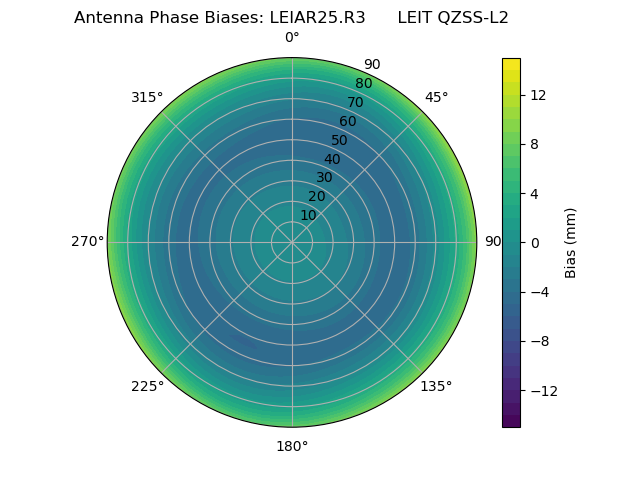

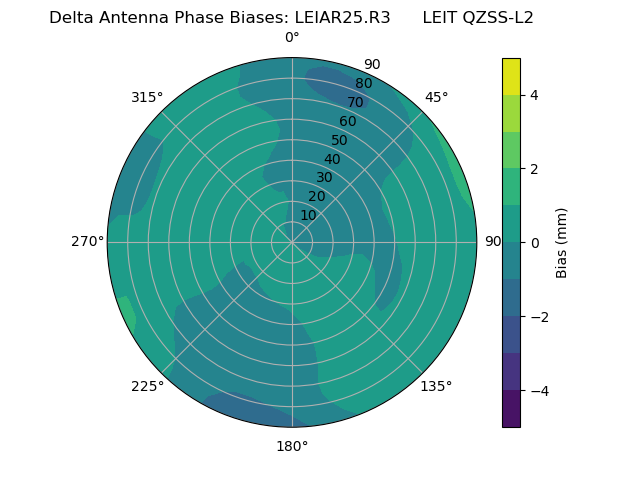

Radial QZSS-L2Radial QZSS-L2

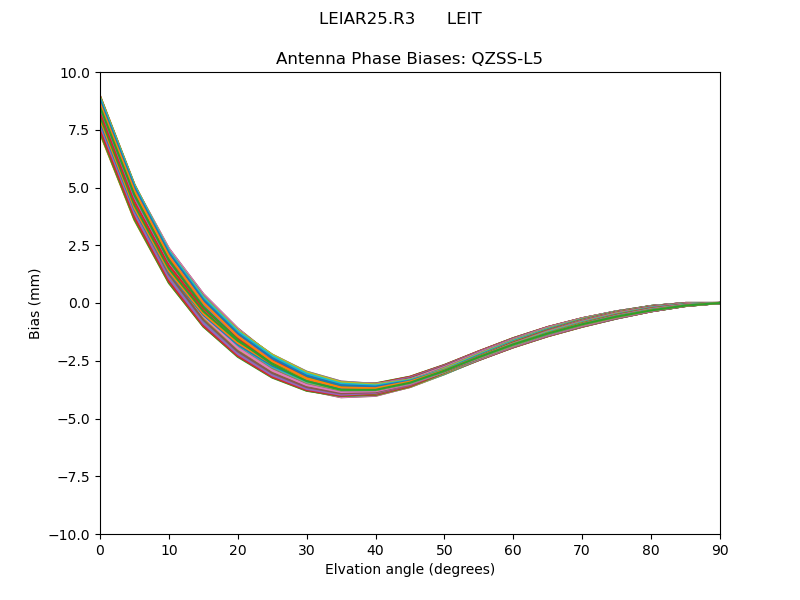

QZSS-L5

QZSS-L5QZSS-L5

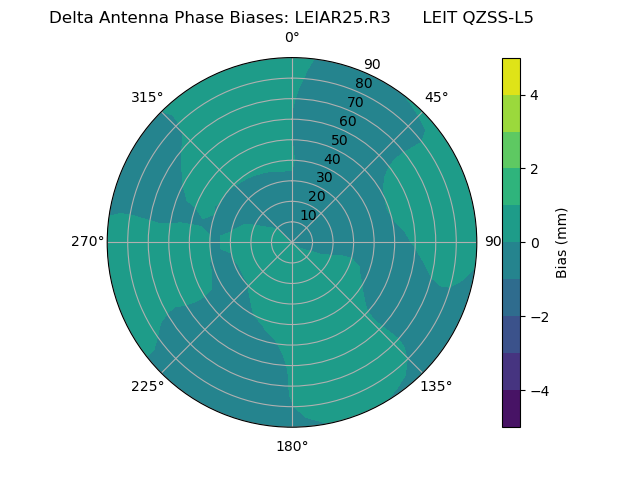

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

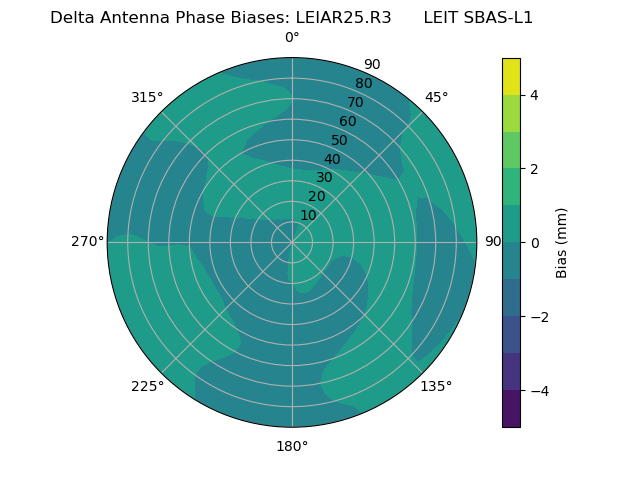

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

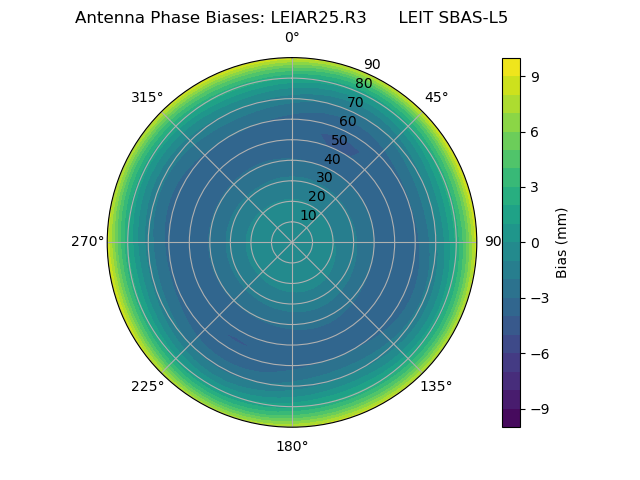

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

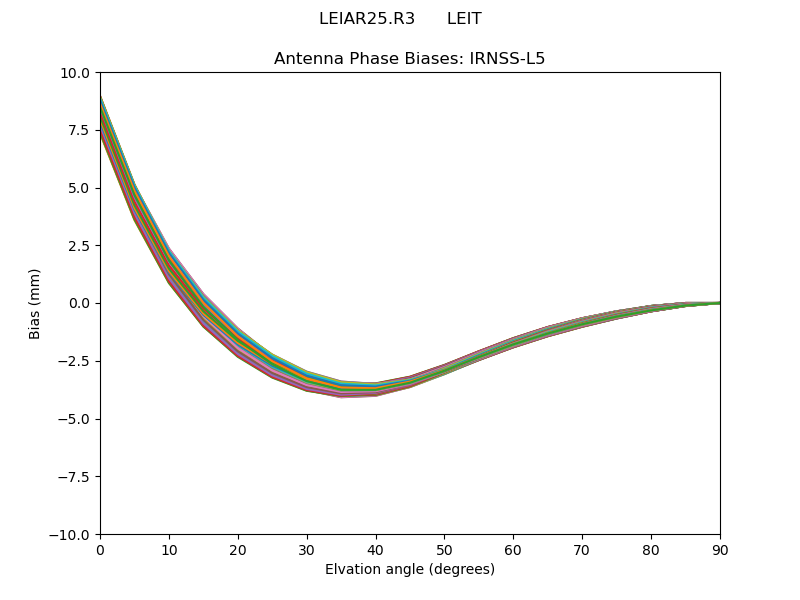

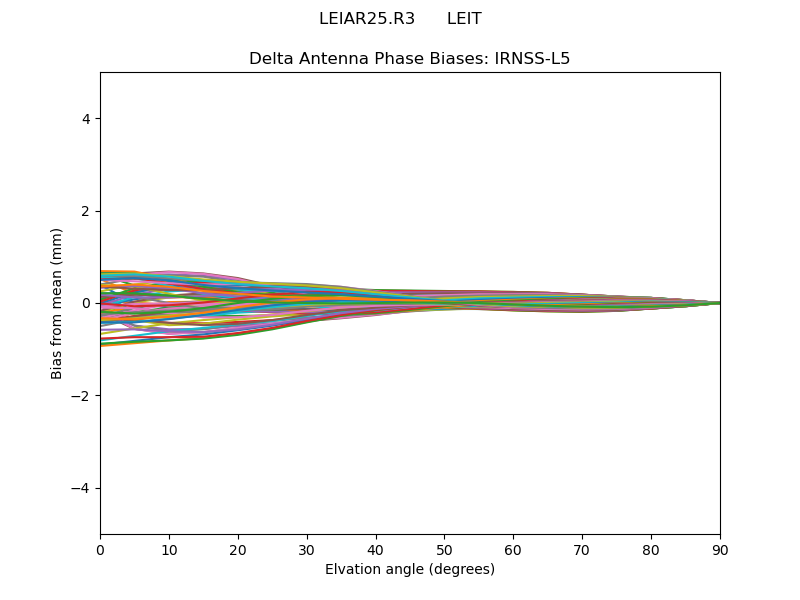

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
