Antenna information for LEIAR25.R3 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.80 E: 0.58 U: 160.59
L2: N: -0.07 E: 0.12 U: 158.68
L5: N: -0.07 E: -0.03 U: 163.48

GLONASS

L1: N: 0.93 E: 0.48 U: 161.10
L2: N: -0.01 E: -0.02 U: 157.61

GALILEO

E1: N: 0.80 E: 0.58 U: 160.59
E5a: N: -0.07 E: -0.03 U: 163.48
E5b: N: -0.14 E: 0.04 U: 160.55
E6: N: -0.06 E: 0.02 U: 155.19

BeiDou

E1: N: 0.80 E: 0.58 U: 160.59
E2: N: 0.57 E: 0.59 U: 159.66
E5b: N: -0.14 E: 0.04 U: 160.55
E6: N: -0.40 E: 0.03 U: 154.08

QZSS

L1: N: 0.80 E: 0.58 U: 160.59
L2: N: -0.07 E: 0.12 U: 158.68
L5: N: -0.07 E: -0.03 U: 163.48
LEX: N: -0.06 E: 0.02 U: 155.19

IRNSS

L5: N: -0.07 E: -0.03 U: 163.48

SBAS

L1: N: 0.80 E: 0.58 U: 160.59
L5: N: -0.07 E: -0.03 U: 163.48

L1

GPS: N: 0.80 E: 0.58 U: 160.59
GLONASS: N: 0.93 E: 0.48 U: 161.10
QZSS: N: 0.80 E: 0.58 U: 160.59
SBAS: N: 0.80 E: 0.58 U: 160.59

L2

GPS: N: -0.07 E: 0.12 U: 158.68
GLONASS: N: -0.01 E: -0.02 U: 157.61
QZSS: N: -0.07 E: 0.12 U: 158.68

L5

GPS: N: -0.07 E: -0.03 U: 163.48
QZSS: N: -0.07 E: -0.03 U: 163.48
SBAS: N: -0.07 E: -0.03 U: 163.48
IRNSS: N: -0.07 E: -0.03 U: 163.48

E1

GALILEO: N: 0.80 E: 0.58 U: 160.59
BeiDou: N: 0.80 E: 0.58 U: 160.59

E2

BeiDou: N: 0.57 E: 0.59 U: 159.66

E5a

GALILEO: N: -0.07 E: -0.03 U: 163.48

E5b

GALILEO: N: -0.14 E: 0.04 U: 160.55
BeiDou: N: -0.14 E: 0.04 U: 160.55

E6

GALILEO: N: -0.06 E: 0.02 U: 155.19
BeiDou: N: -0.40 E: 0.03 U: 154.08

LEX

QZSS: N: -0.06 E: 0.02 U: 155.19


Means

GPS

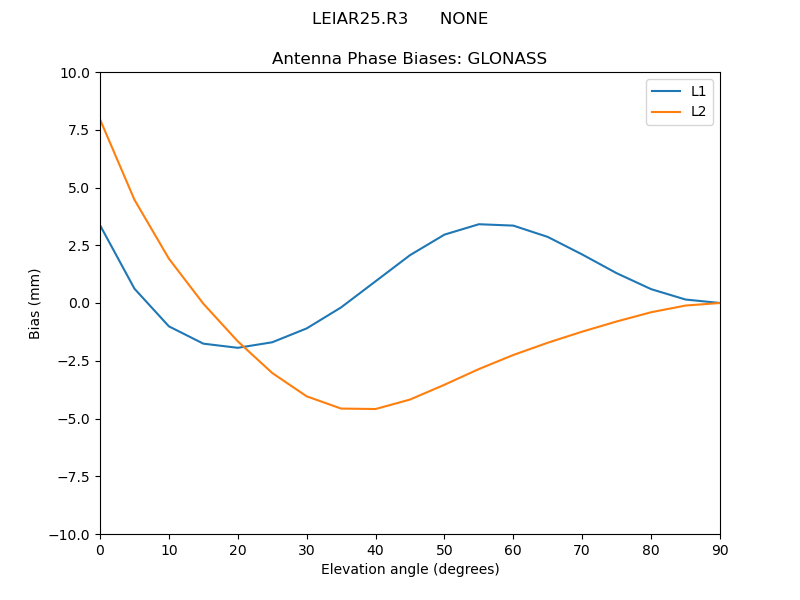

GLONASS


GALILEO

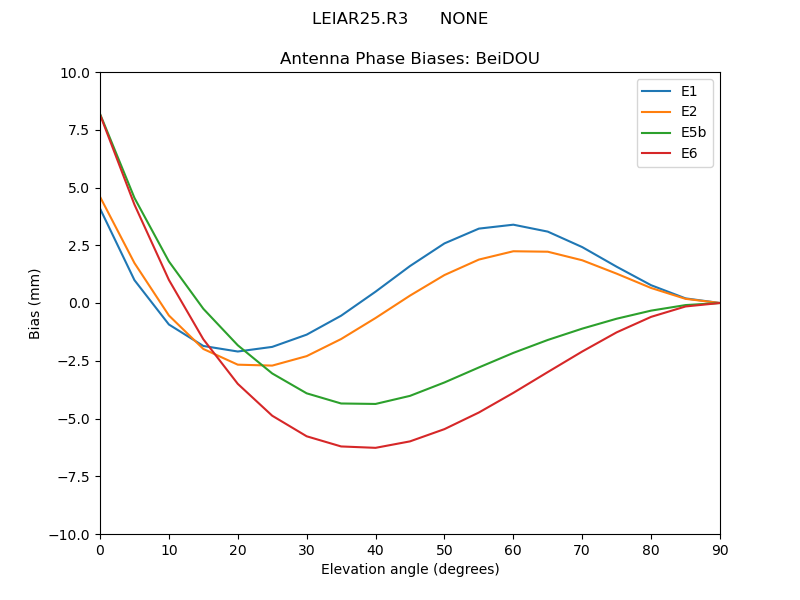

BeiDOU


QZSS


SBAS

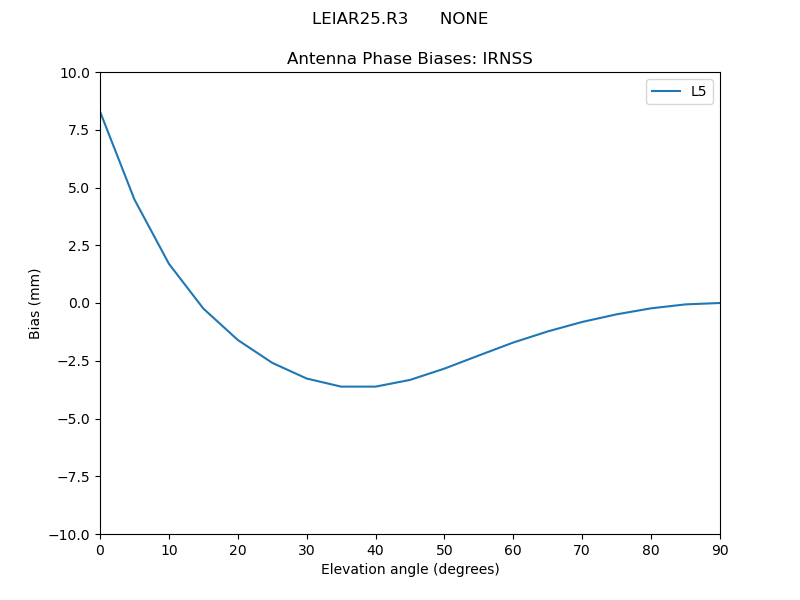

IRNSS


Azimuths

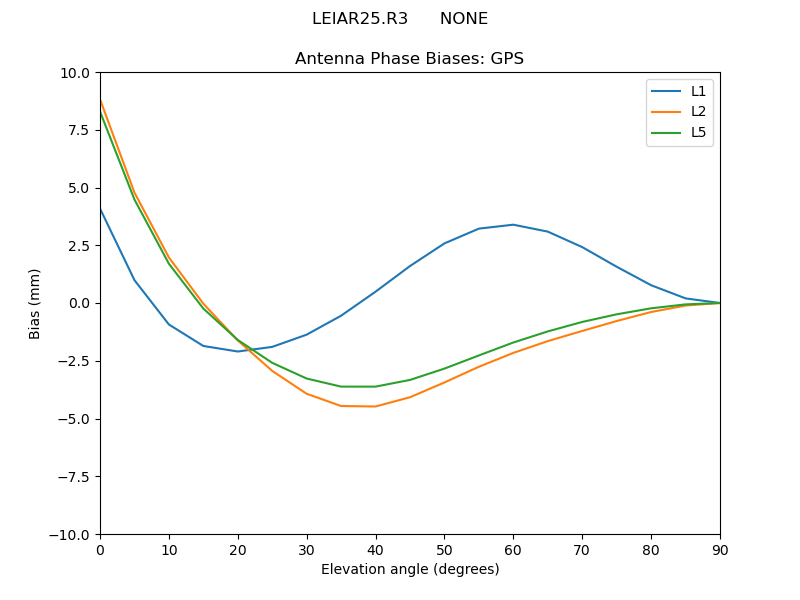

GPS


Bias Delta

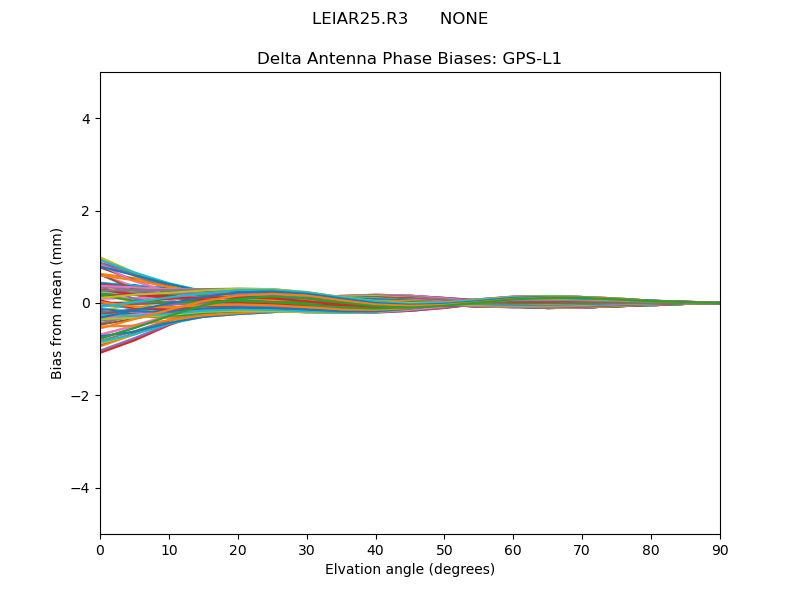

GPS-L1

GPS-L1GPS-L1

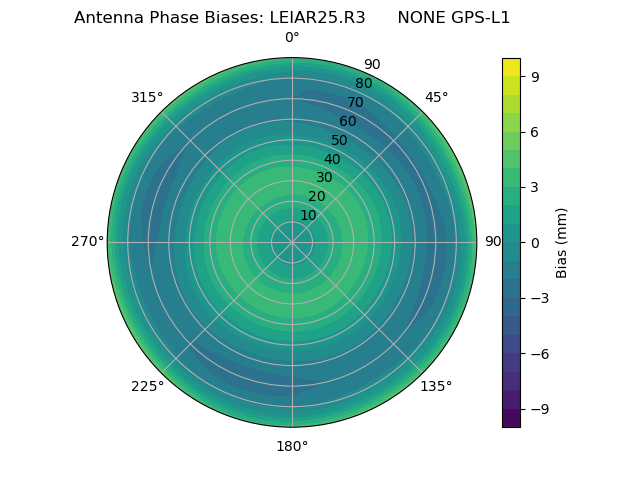

Radial GPS-L1Radial GPS-L1

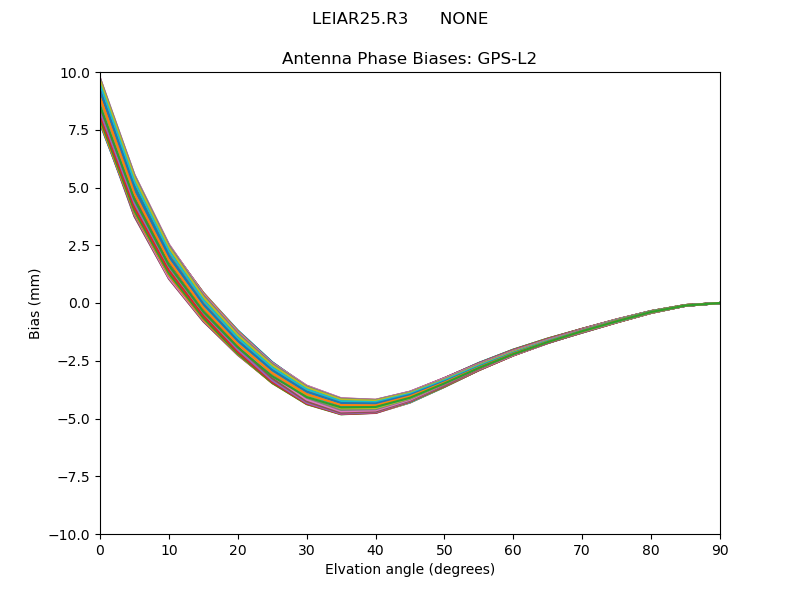

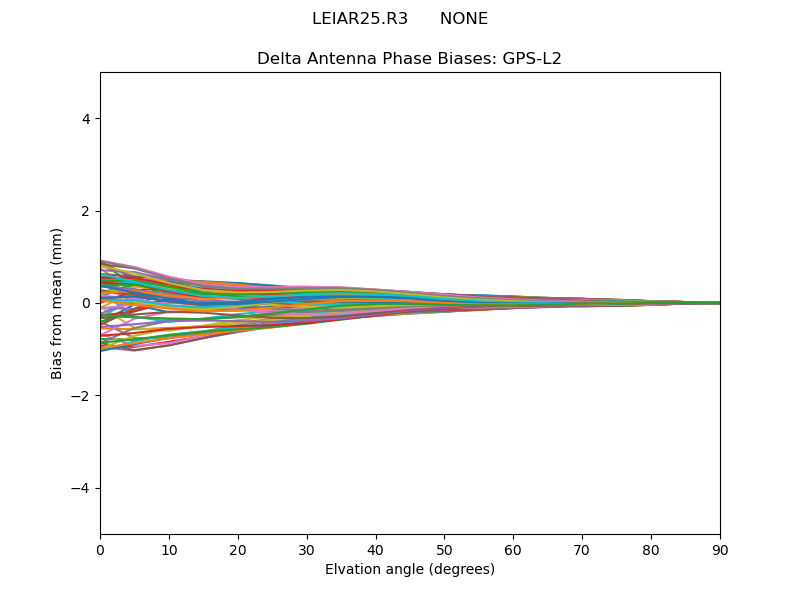

GPS-L2

GPS-L2GPS-L2

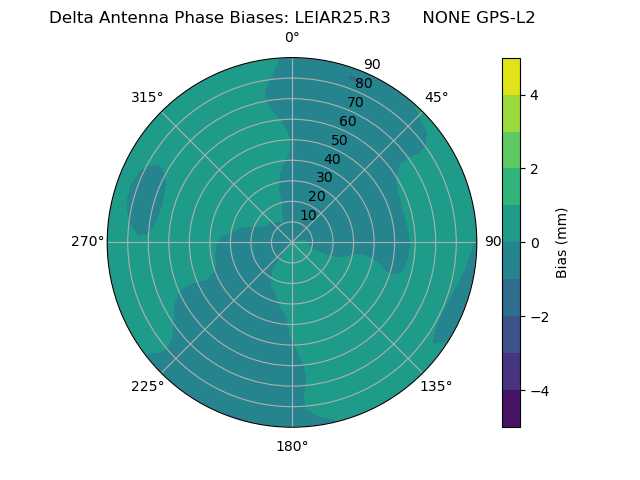

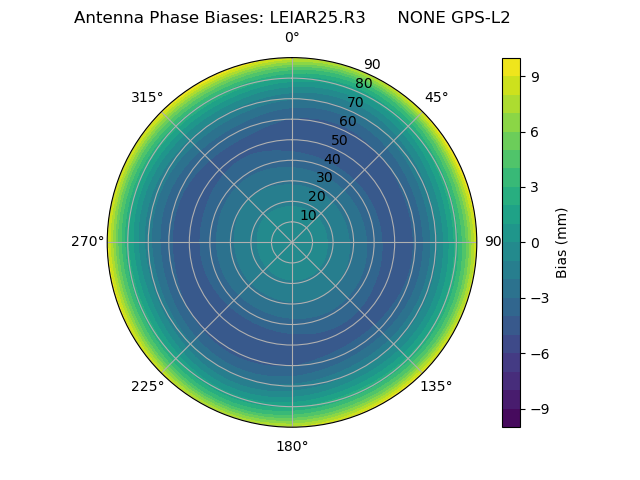

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

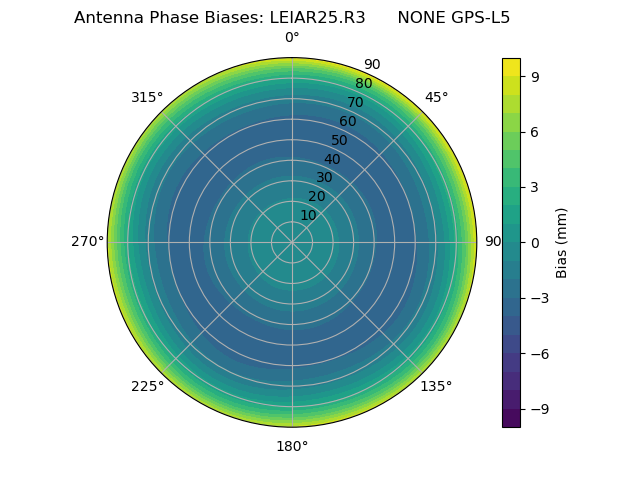

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

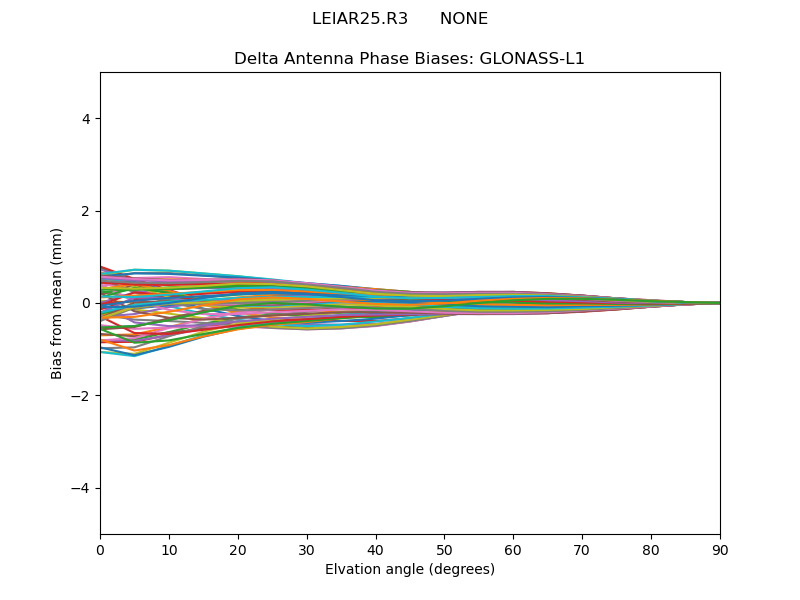

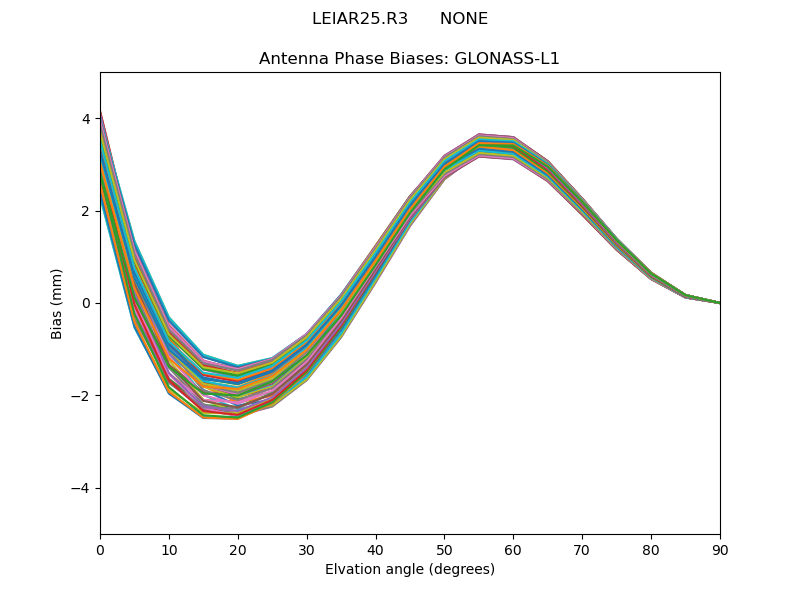

GLONASS-L1

GLONASS-L1GLONASS-L1

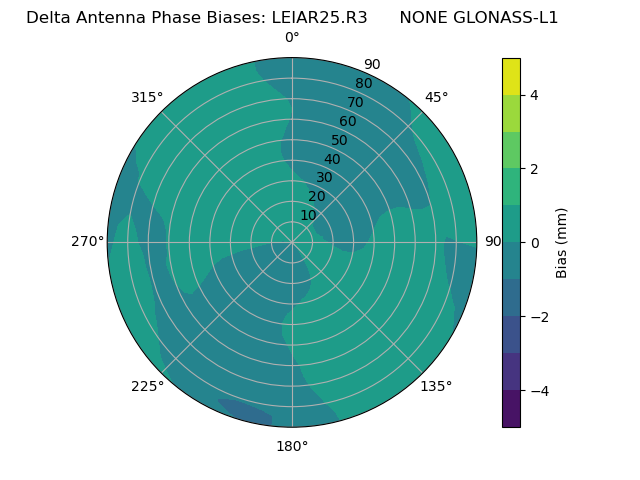

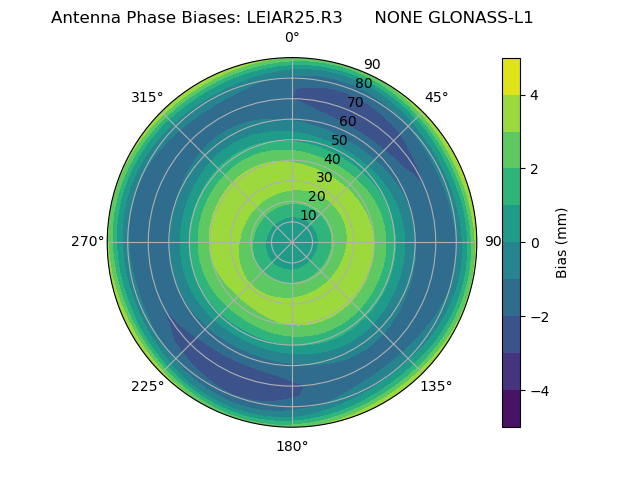

Radial GLONASS-L1Radial GLONASS-L1

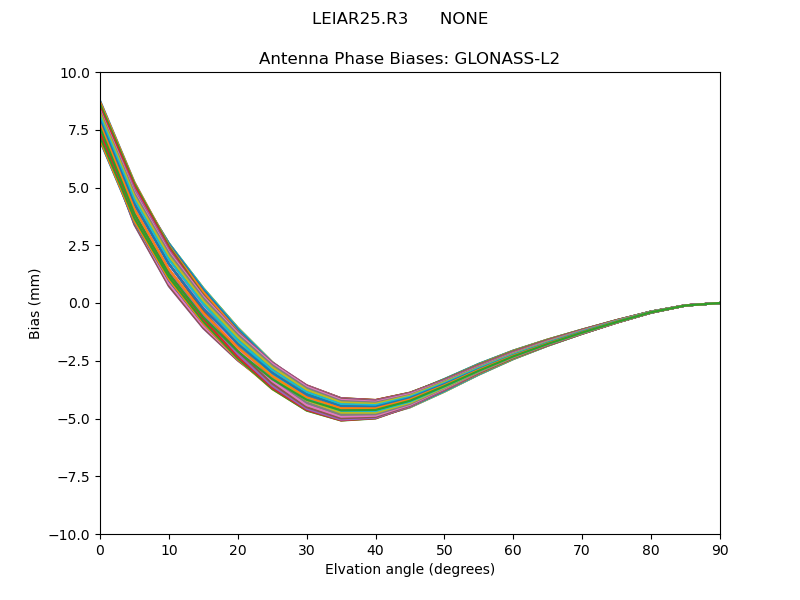

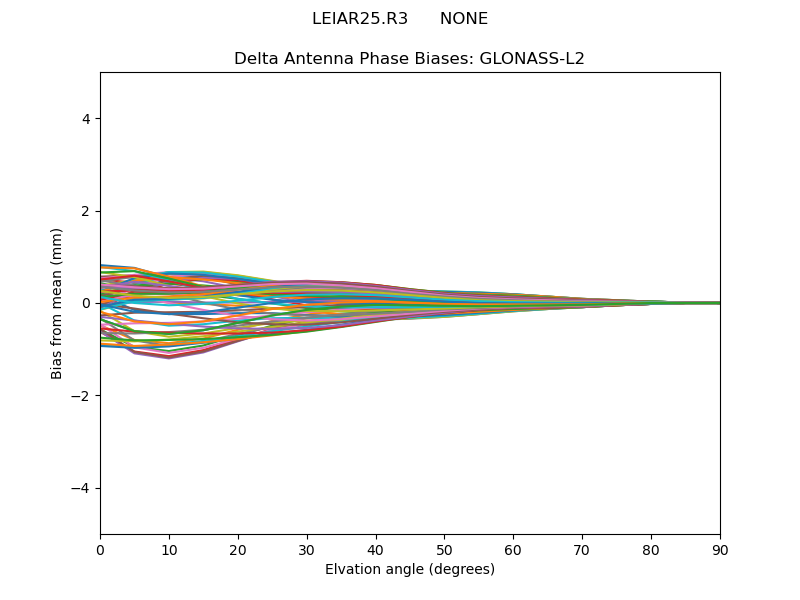

GLONASS-L2

GLONASS-L2GLONASS-L2

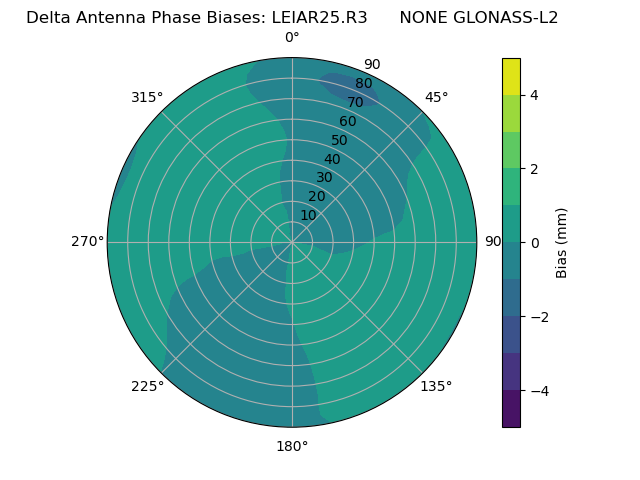

Radial GLONASS-L2Radial GLONASS-L2

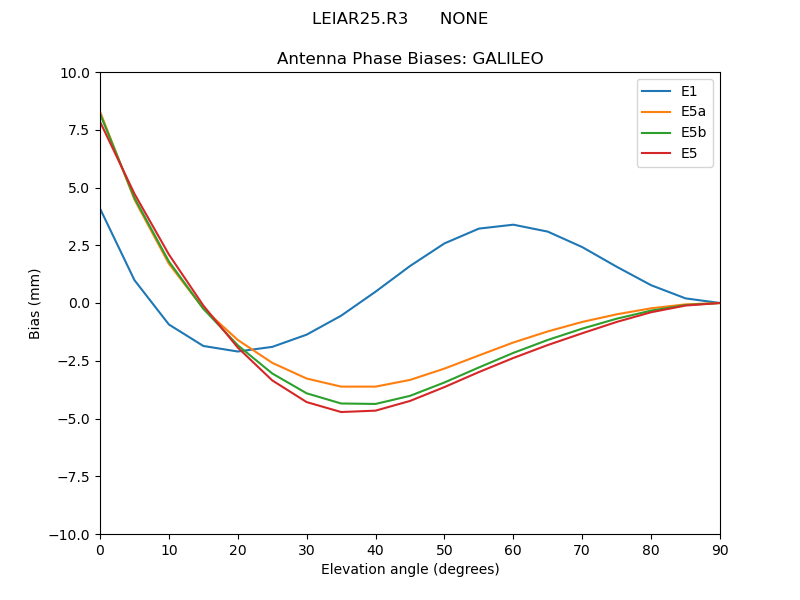

GALILEO


Bias Delta

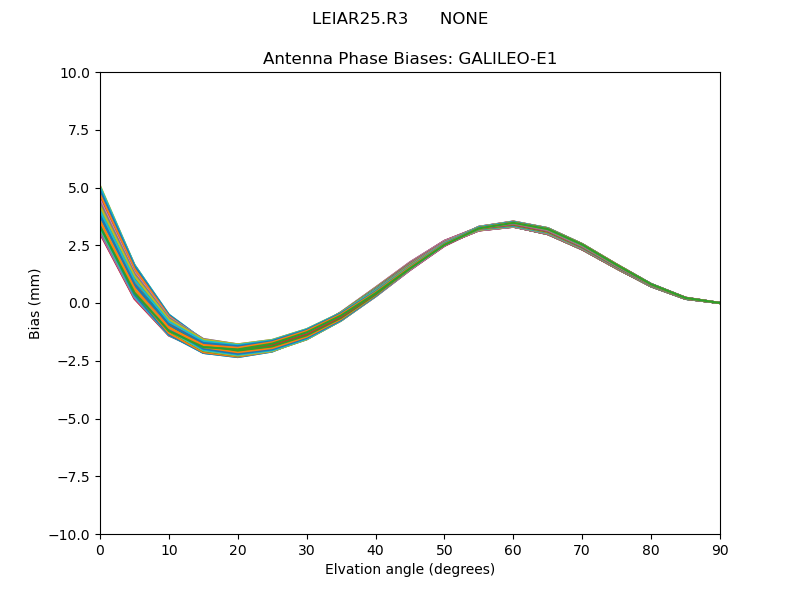

GALILEO-E1

GALILEO-E1GALILEO-E1

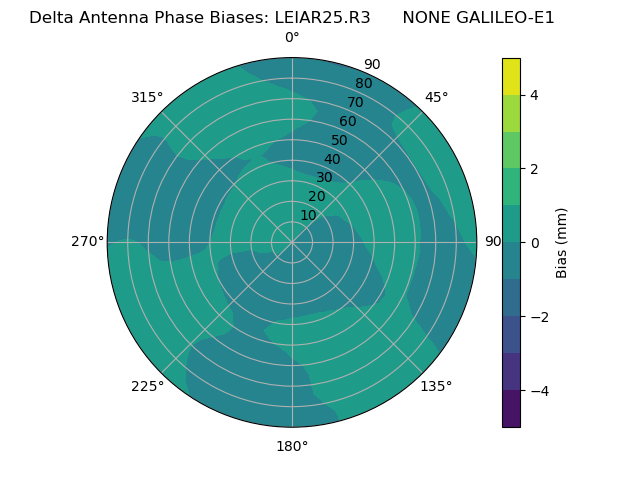

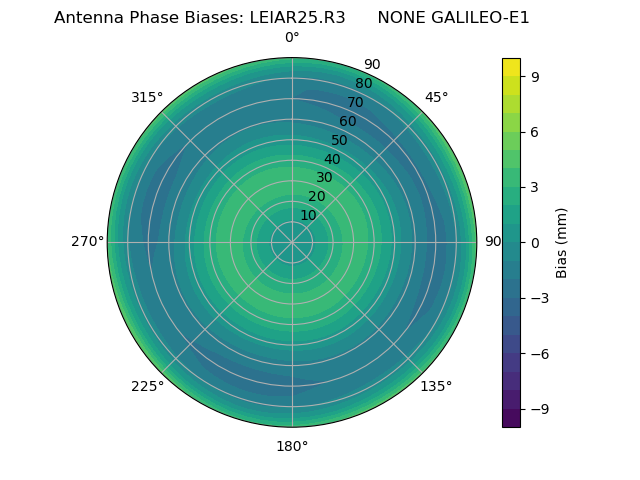

Radial GALILEO-E1Radial GALILEO-E1

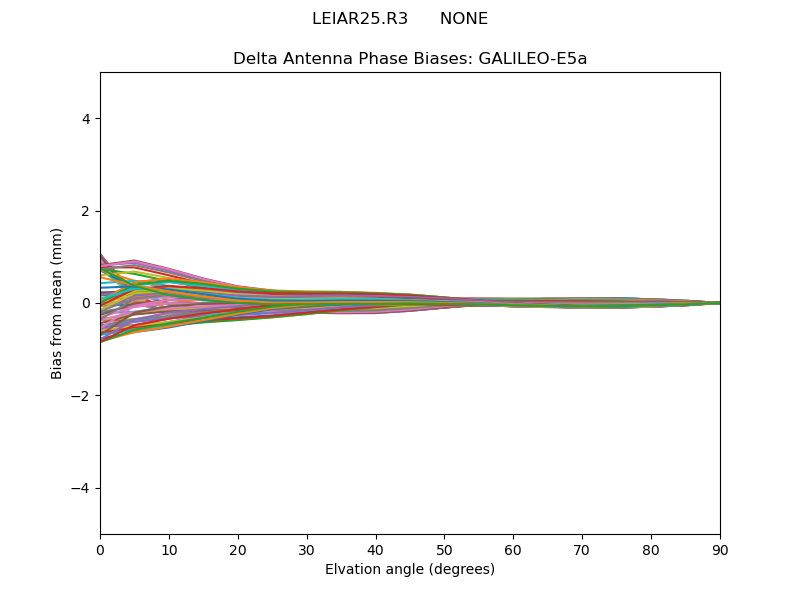

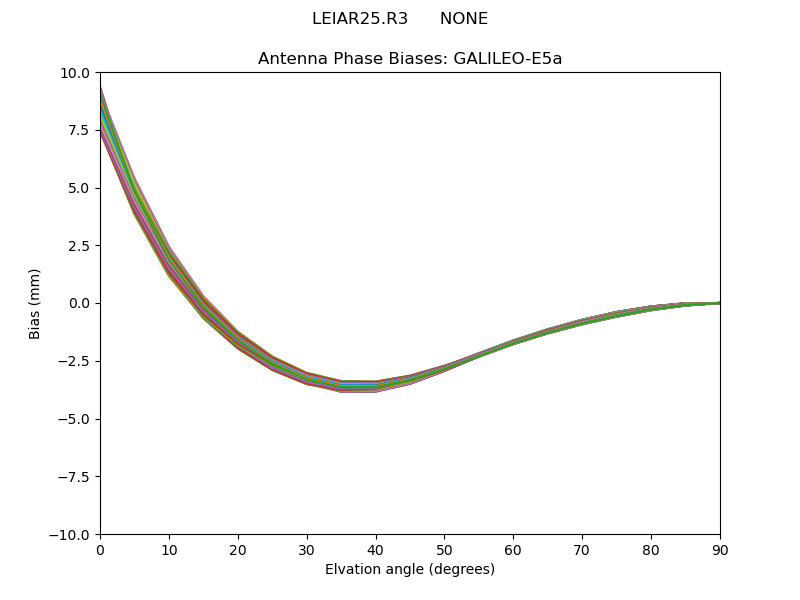

GALILEO-E5a

GALILEO-E5aGALILEO-E5a
Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

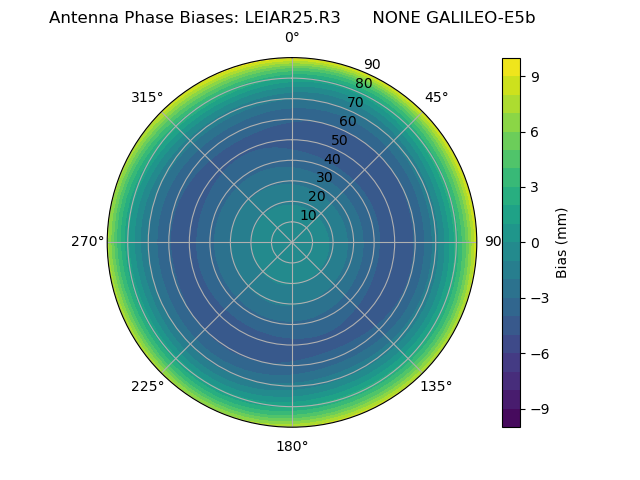

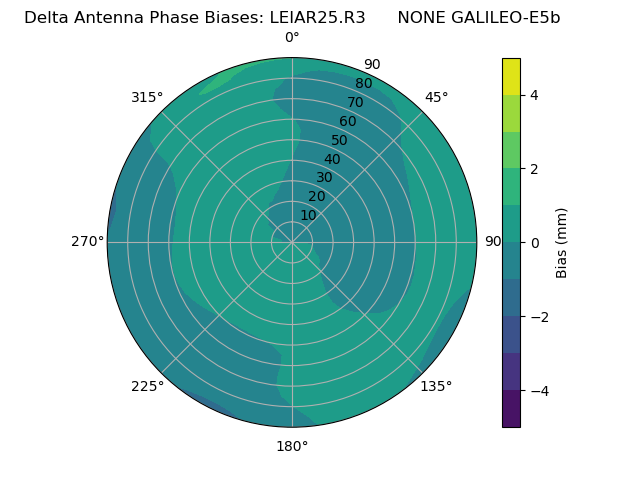

Radial GALILEO-E5bRadial GALILEO-E5b

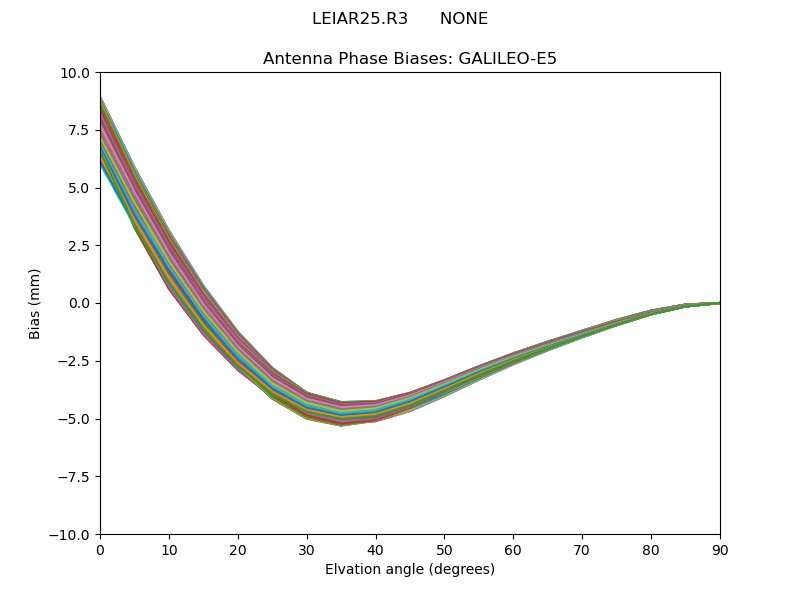

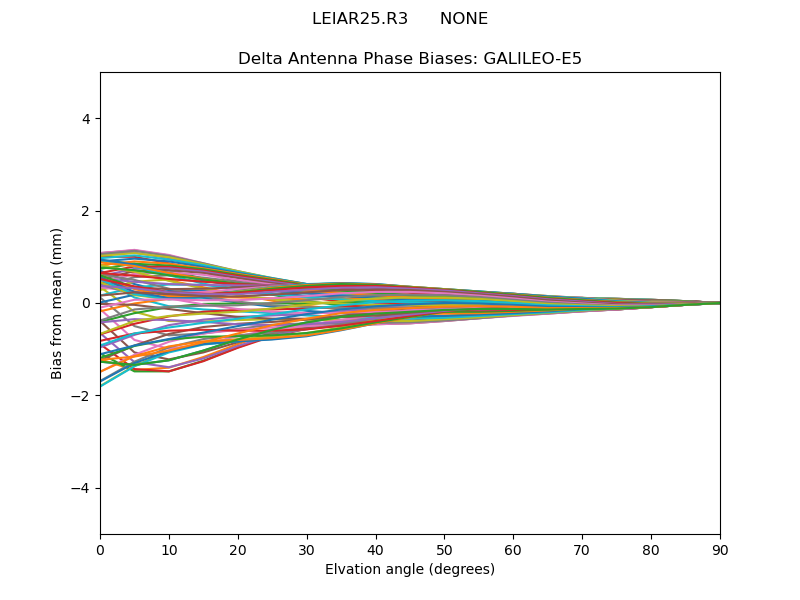

GALILEO-E5

GALILEO-E5GALILEO-E5

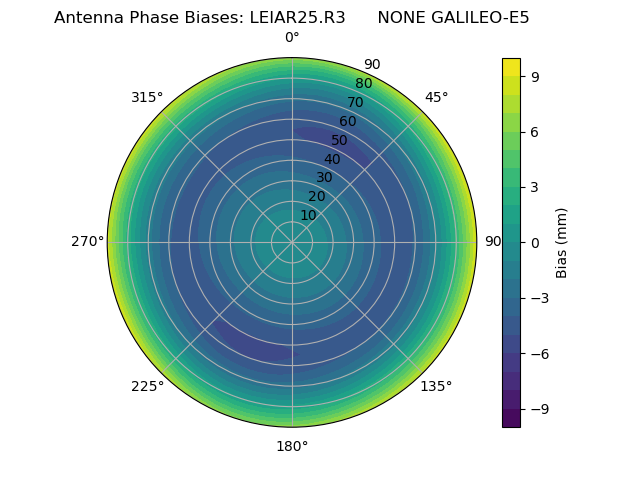

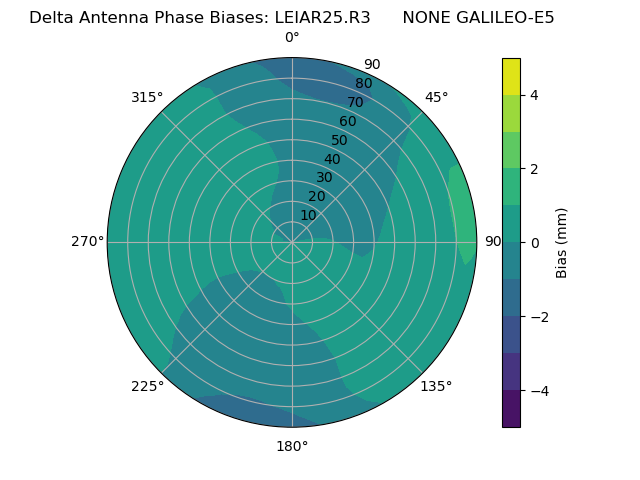

Radial GALILEO-E5Radial GALILEO-E5

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

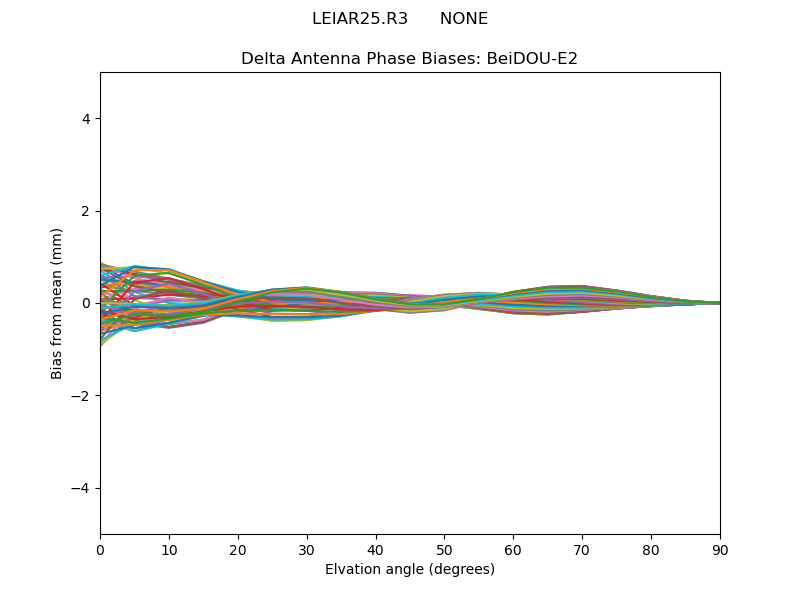

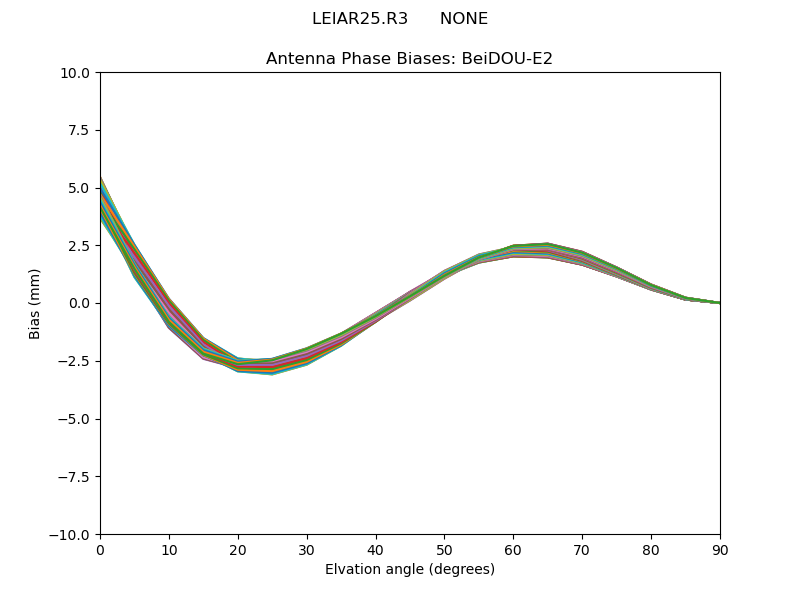

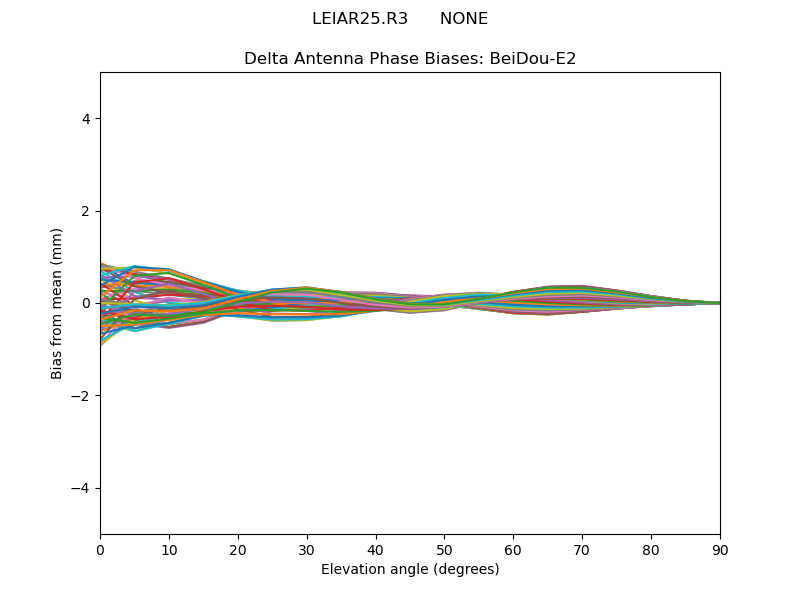

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

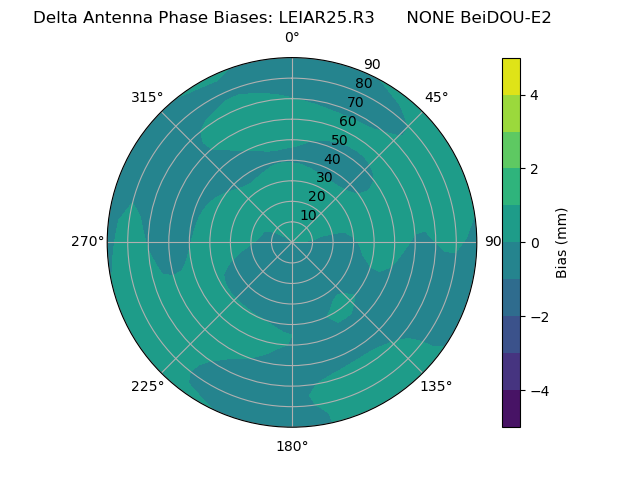

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

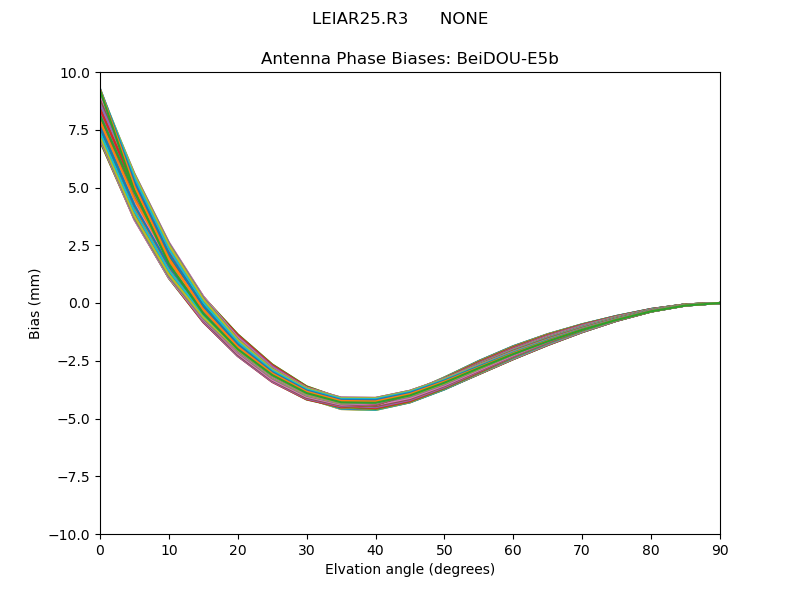

BeiDOU-E5bBeiDOU-E5b
Radial BeiDOU-E5bRadial BeiDOU-E5b

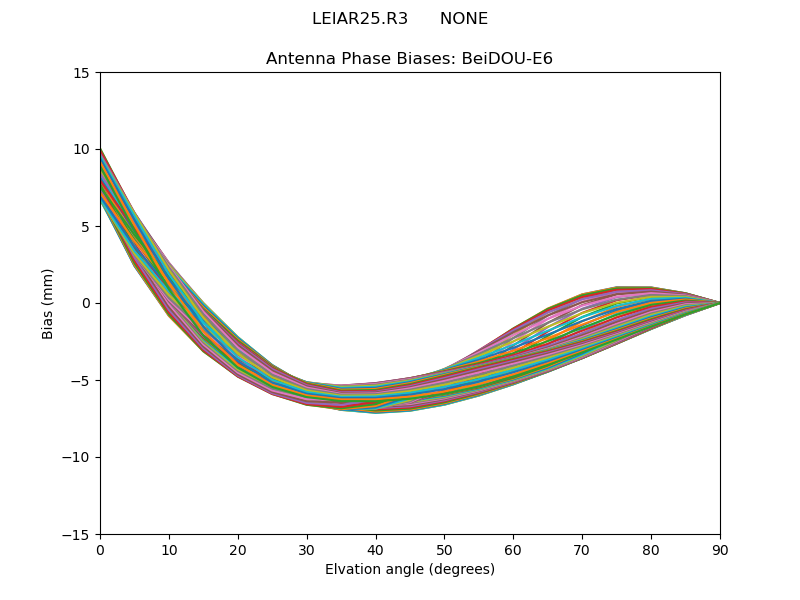

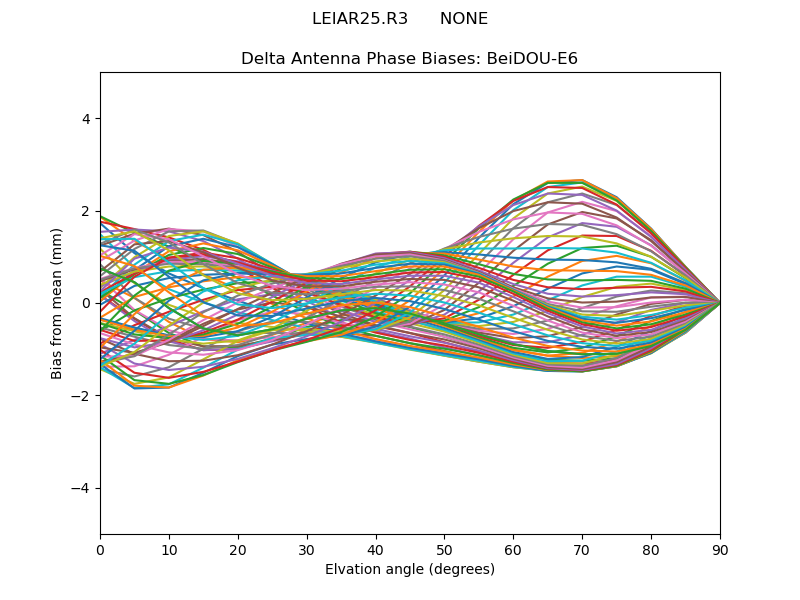

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

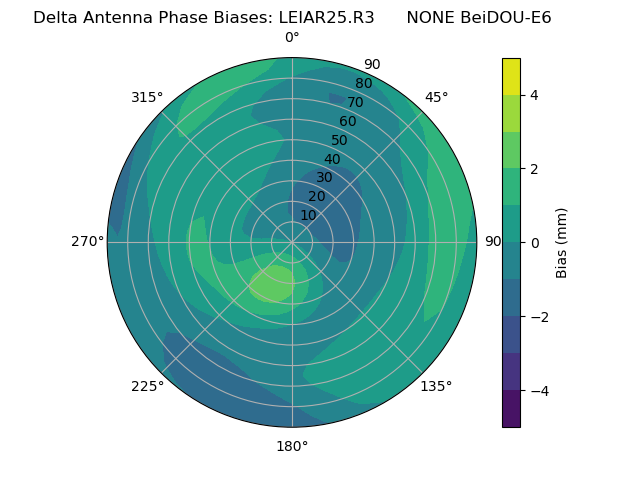

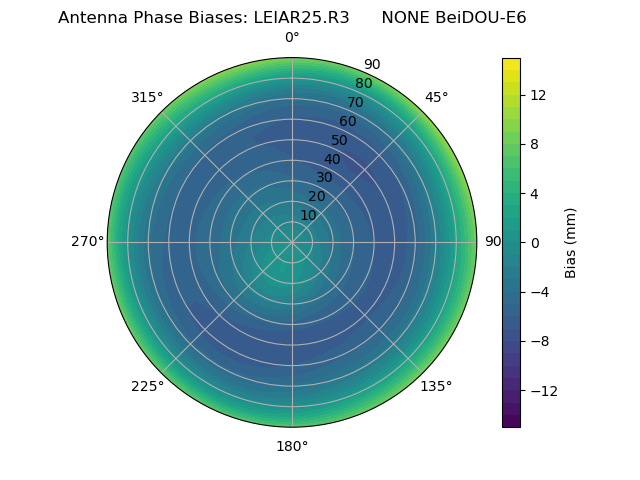

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

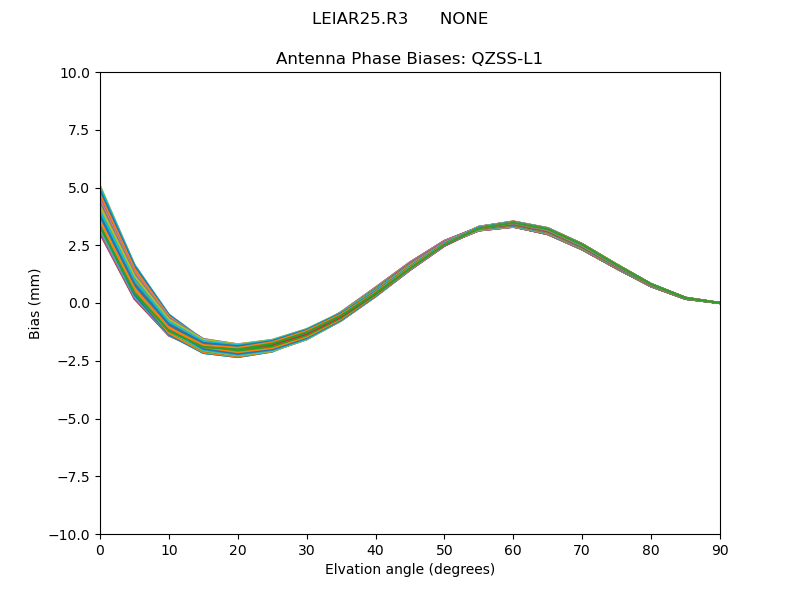

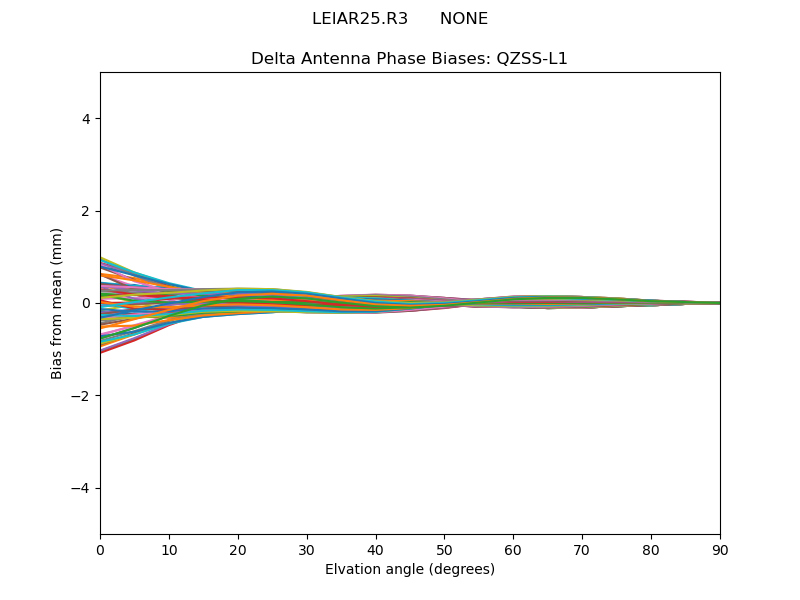

QZSS-L1

QZSS-L1QZSS-L1

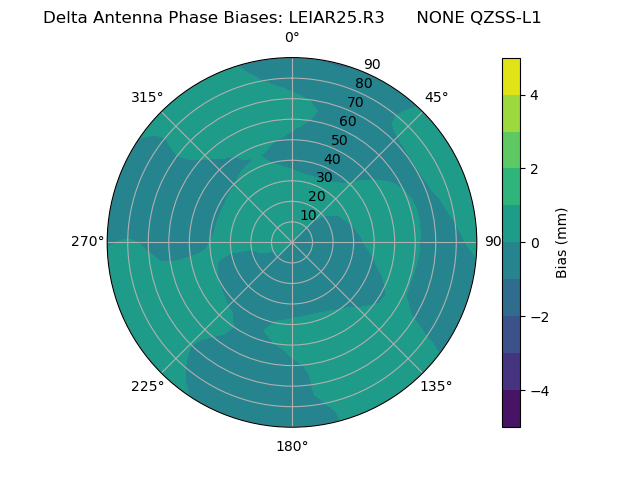

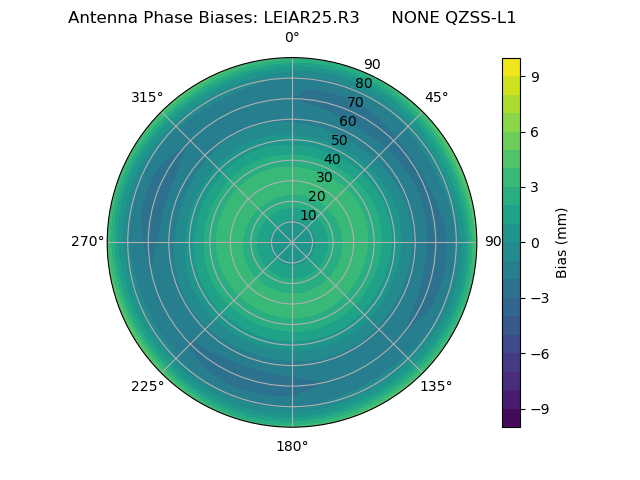

Radial QZSS-L1Radial QZSS-L1

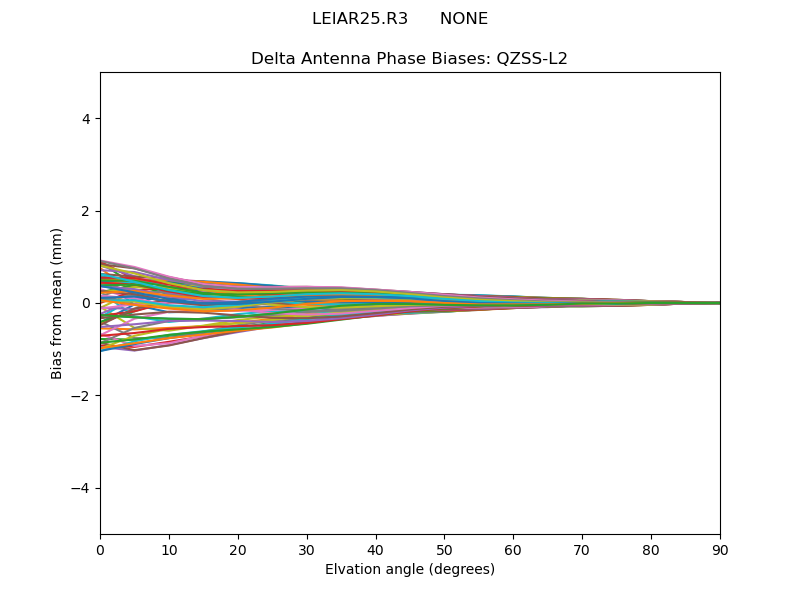

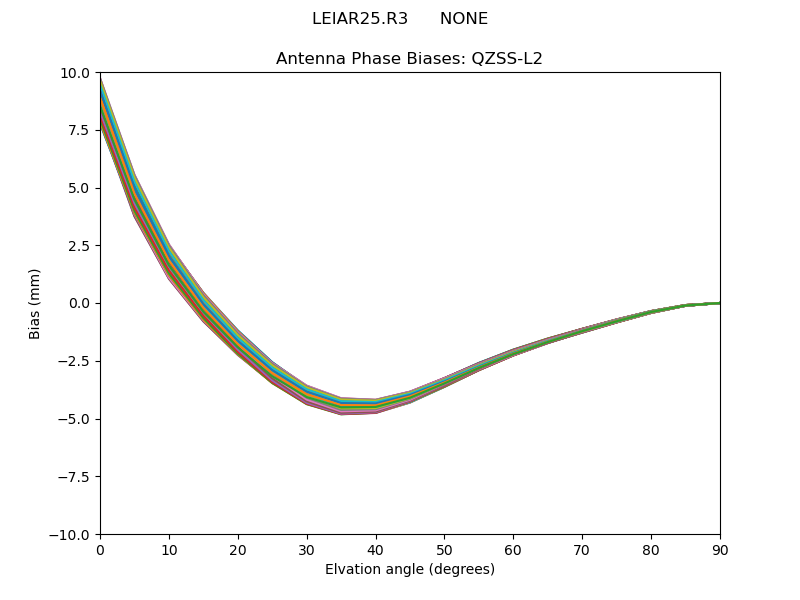

QZSS-L2

QZSS-L2QZSS-L2

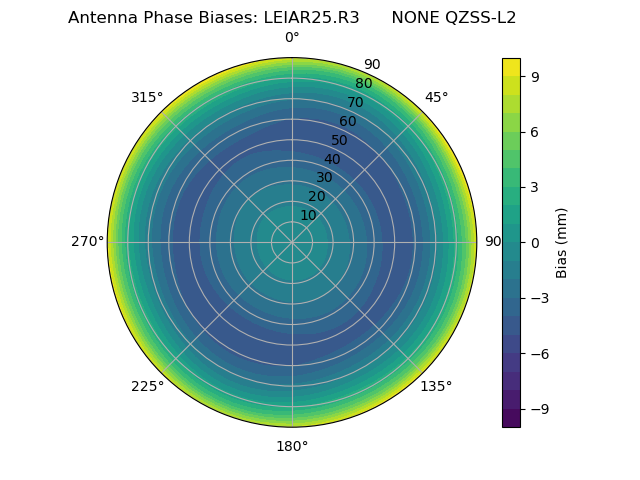

Radial QZSS-L2Radial QZSS-L2

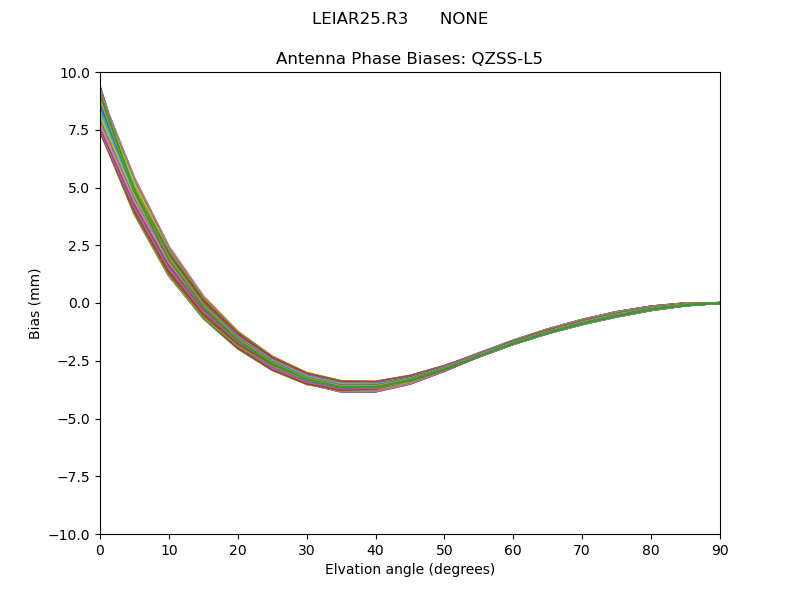

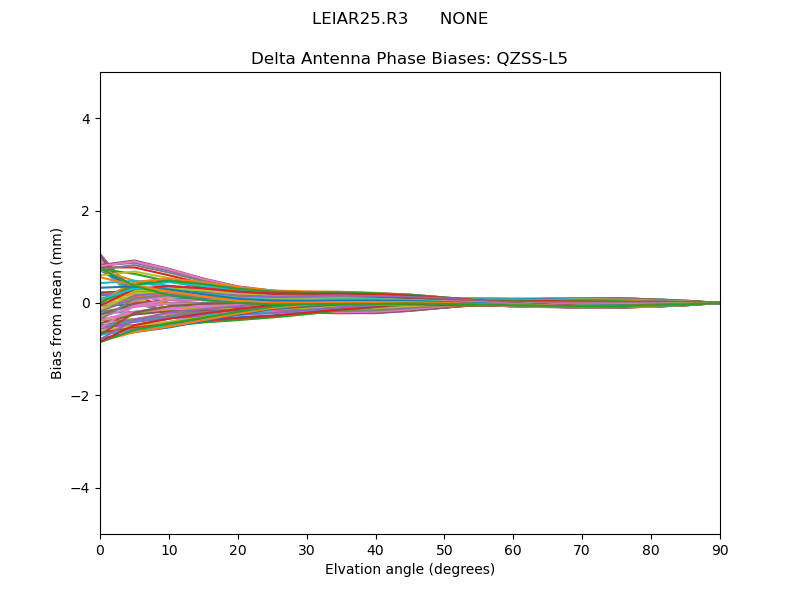

QZSS-L5

QZSS-L5QZSS-L5

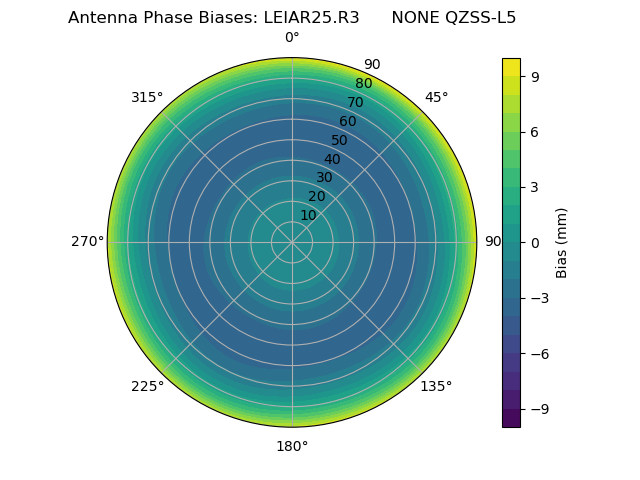

Radial QZSS-L5Radial QZSS-L5

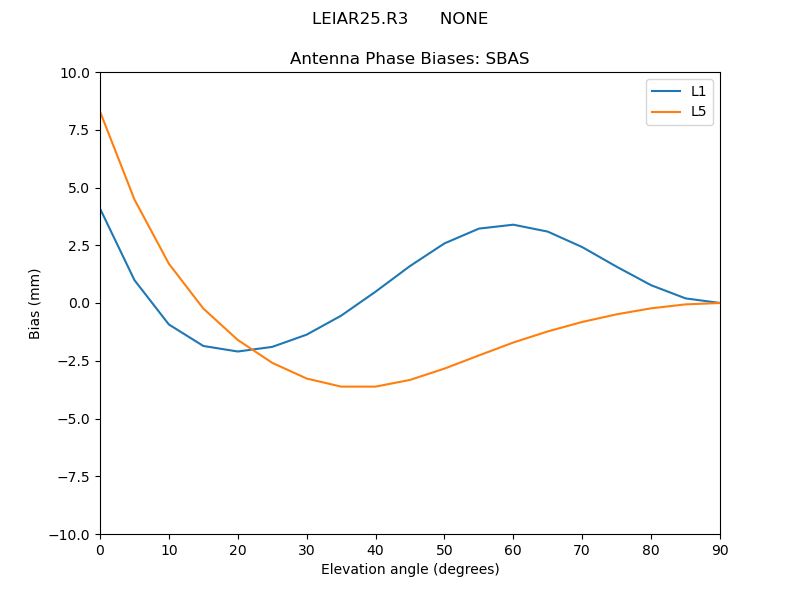

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

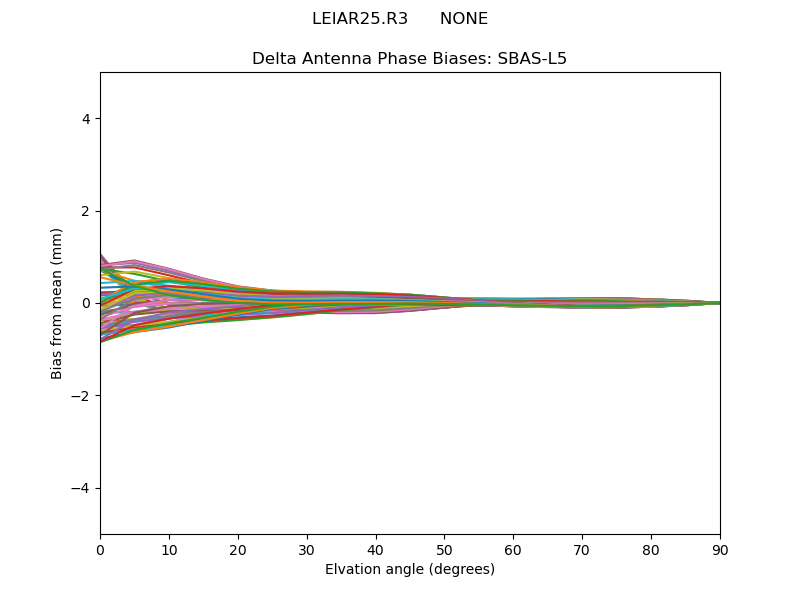

SBAS-L5SBAS-L5

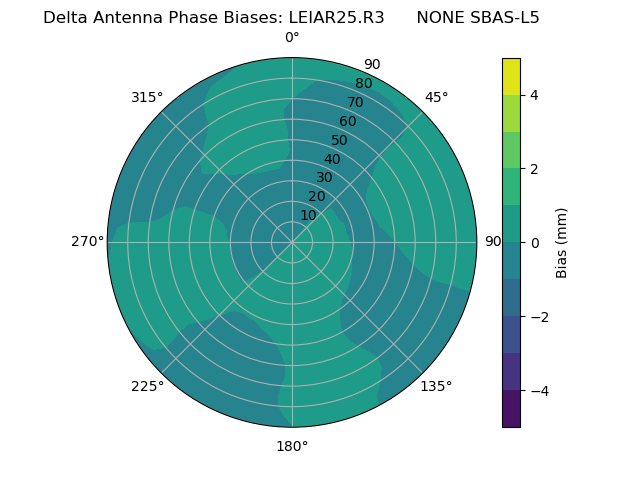

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

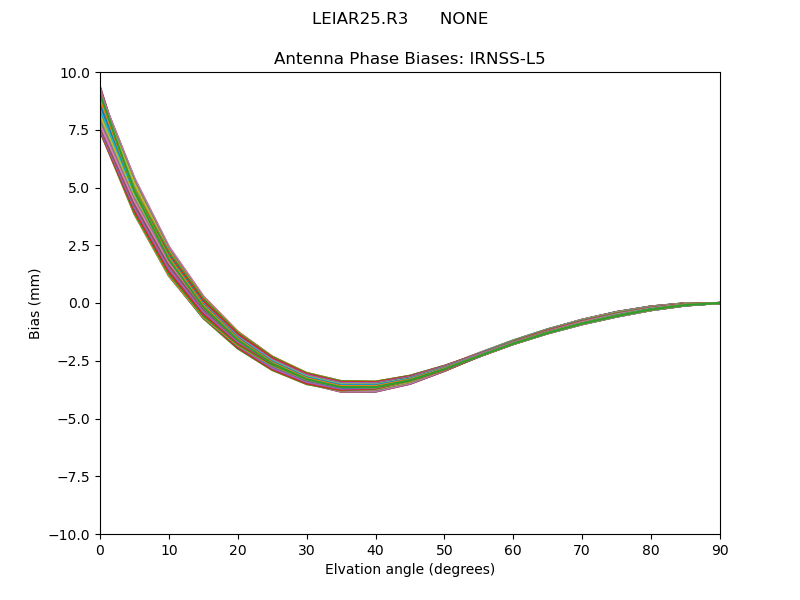

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
