Antenna information for LEIAT504GG NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.72 E: 1.20 U: 88.91
L2: N: -0.14 E: -0.11 U: 117.45
L5: N: 0.08 E: -0.17 U: 118.93

GLONASS

L1: N: 0.84 E: 1.34 U: 87.39
L2: N: -0.05 E: -0.16 U: 114.16

GALILEO

E1: N: 0.72 E: 1.20 U: 88.91
E5a: N: 0.08 E: -0.17 U: 118.93
E5b: N: -0.14 E: -0.08 U: 120.47
E5: N: -0.03 E: -0.04 U: 119.31
E6: N: 0.26 E: 0.21 U: 112.13

BeiDou

E1: N: 0.72 E: 1.20 U: 88.91
E2: N: 0.68 E: 1.21 U: 93.17
E5b: N: -0.14 E: -0.08 U: 120.47
E6: N: 0.18 E: -0.09 U: 113.49

QZSS

L1: N: 0.72 E: 1.20 U: 88.91
L2: N: -0.14 E: -0.11 U: 117.45
L5: N: 0.08 E: -0.17 U: 118.93
LEX: N: 0.26 E: 0.21 U: 112.13

IRNSS

L5: N: 0.08 E: -0.17 U: 118.93

SBAS

L1: N: 0.72 E: 1.20 U: 88.91
L5: N: 0.08 E: -0.17 U: 118.93

L1

GPS: N: 0.72 E: 1.20 U: 88.91
GLONASS: N: 0.84 E: 1.34 U: 87.39
QZSS: N: 0.72 E: 1.20 U: 88.91
SBAS: N: 0.72 E: 1.20 U: 88.91

L2

GPS: N: -0.14 E: -0.11 U: 117.45
GLONASS: N: -0.05 E: -0.16 U: 114.16
QZSS: N: -0.14 E: -0.11 U: 117.45

L5

GPS: N: 0.08 E: -0.17 U: 118.93
QZSS: N: 0.08 E: -0.17 U: 118.93
SBAS: N: 0.08 E: -0.17 U: 118.93
IRNSS: N: 0.08 E: -0.17 U: 118.93

E1

GALILEO: N: 0.72 E: 1.20 U: 88.91
BeiDou: N: 0.72 E: 1.20 U: 88.91

E2

BeiDou: N: 0.68 E: 1.21 U: 93.17

E5

GALILEO: N: -0.03 E: -0.04 U: 119.31

E5a

GALILEO: N: 0.08 E: -0.17 U: 118.93

E5b

GALILEO: N: -0.14 E: -0.08 U: 120.47
BeiDou: N: -0.14 E: -0.08 U: 120.47

E6

GALILEO: N: 0.26 E: 0.21 U: 112.13
BeiDou: N: 0.18 E: -0.09 U: 113.49

LEX

QZSS: N: 0.26 E: 0.21 U: 112.13


Means

GPS

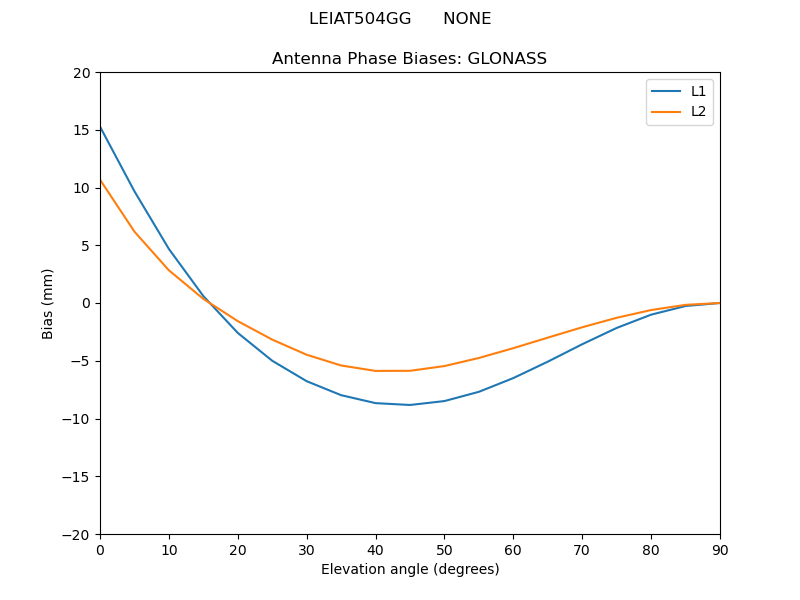

GLONASS

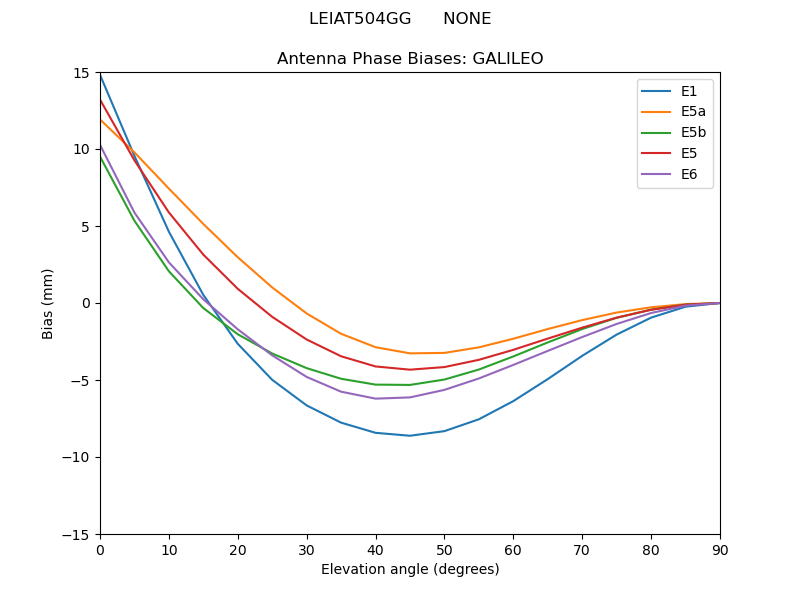

GALILEO

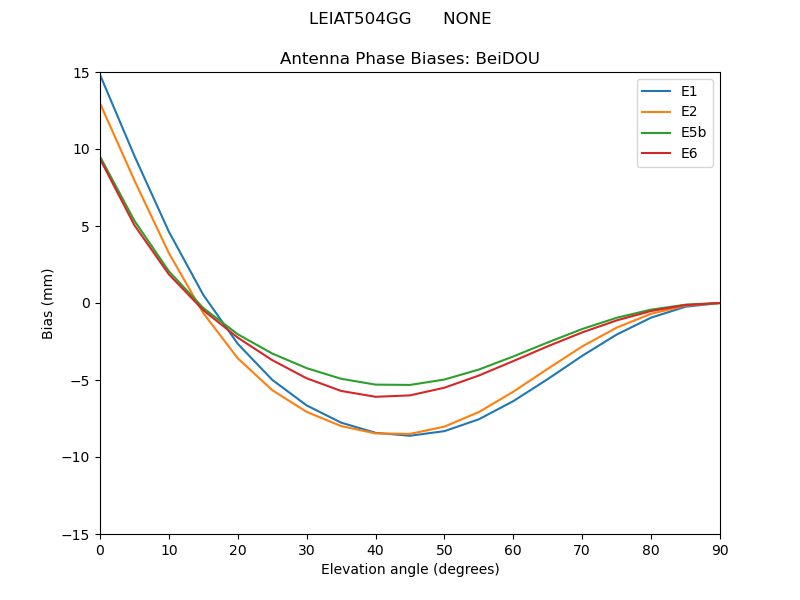

BeiDOU

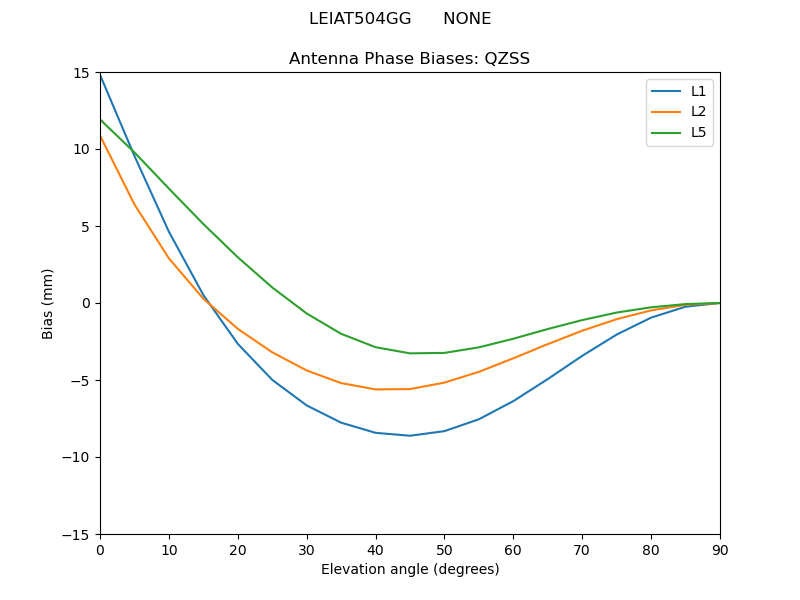

QZSS

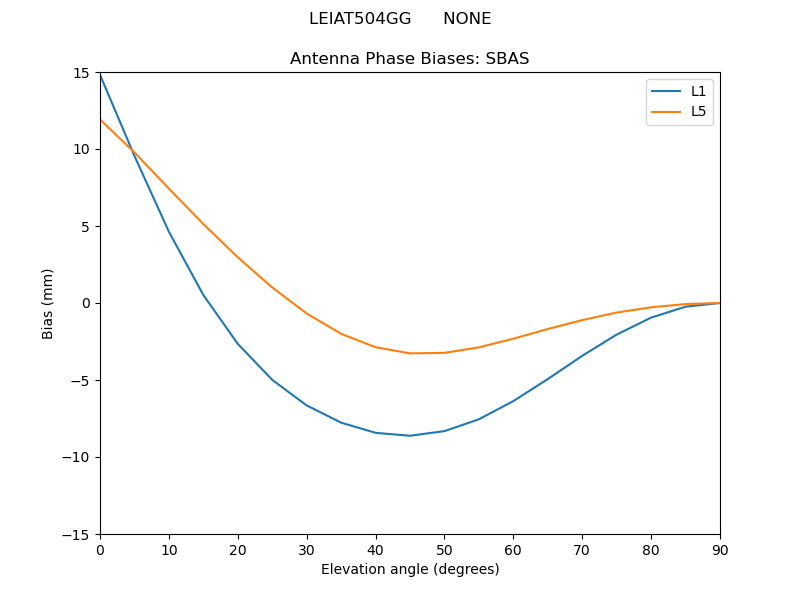

SBAS

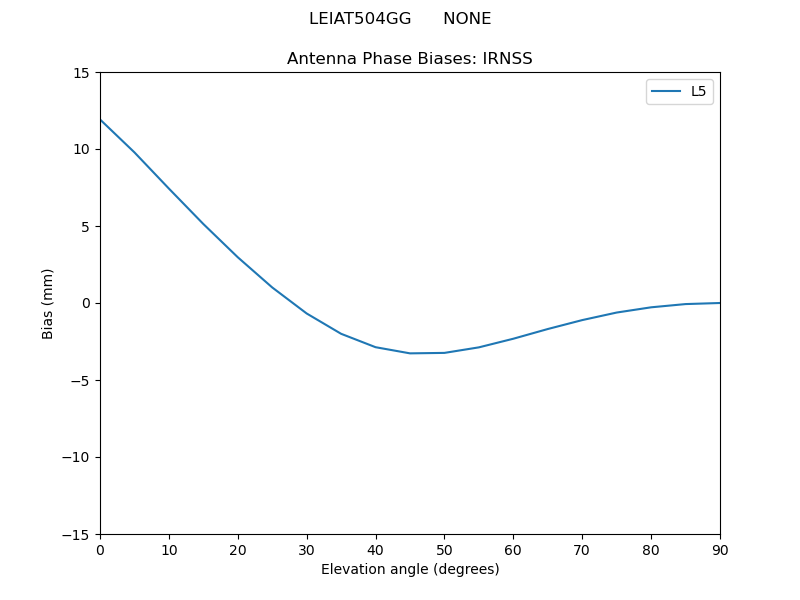

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

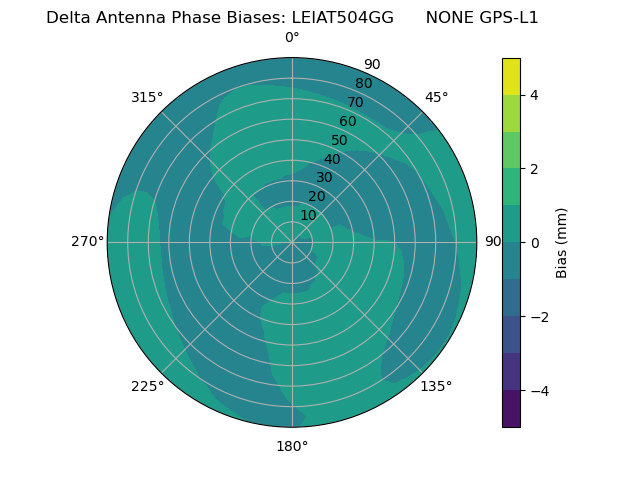

Radial GPS-L1Radial GPS-L1

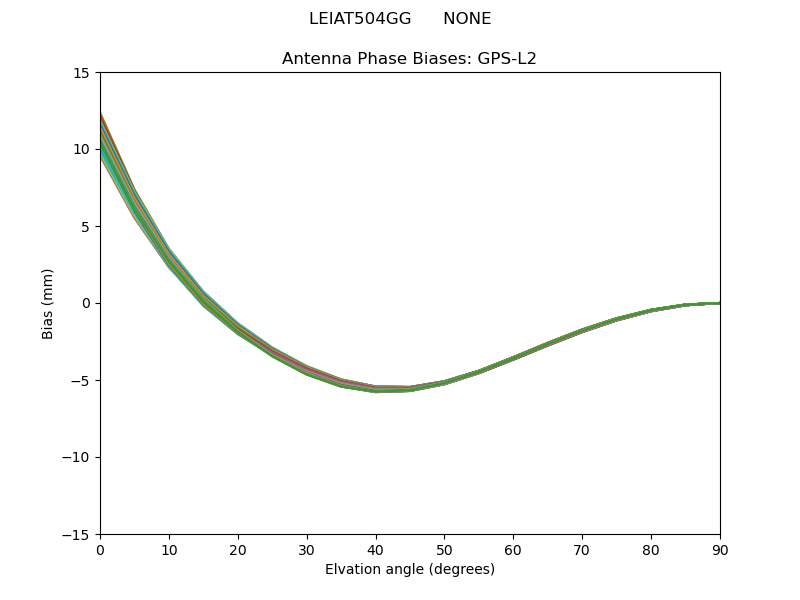

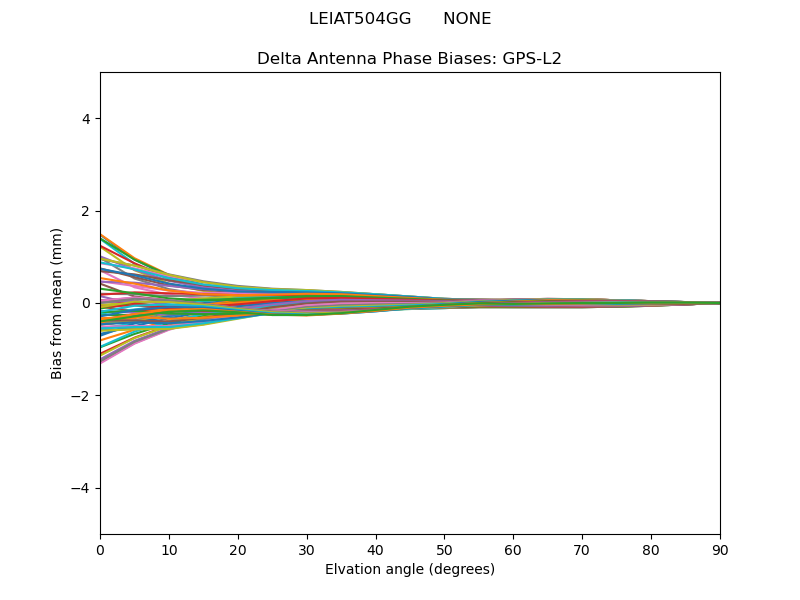

GPS-L2

GPS-L2GPS-L2

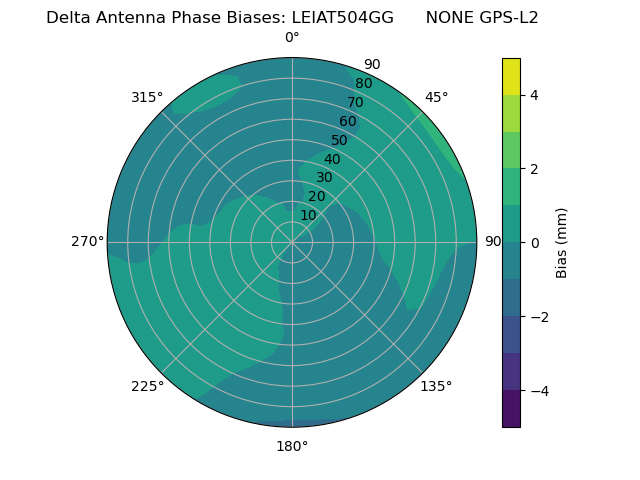

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

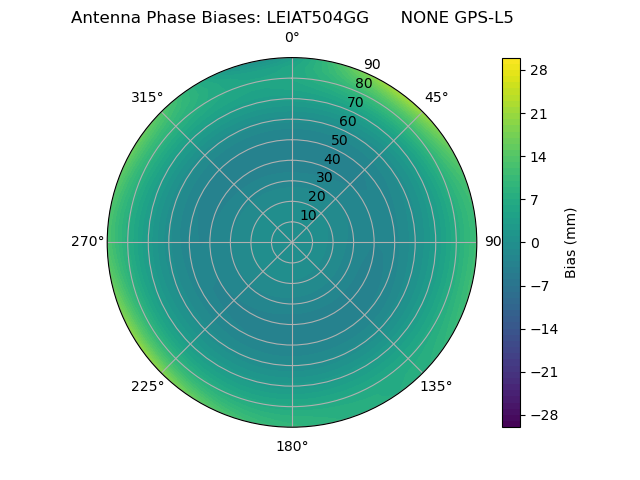

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

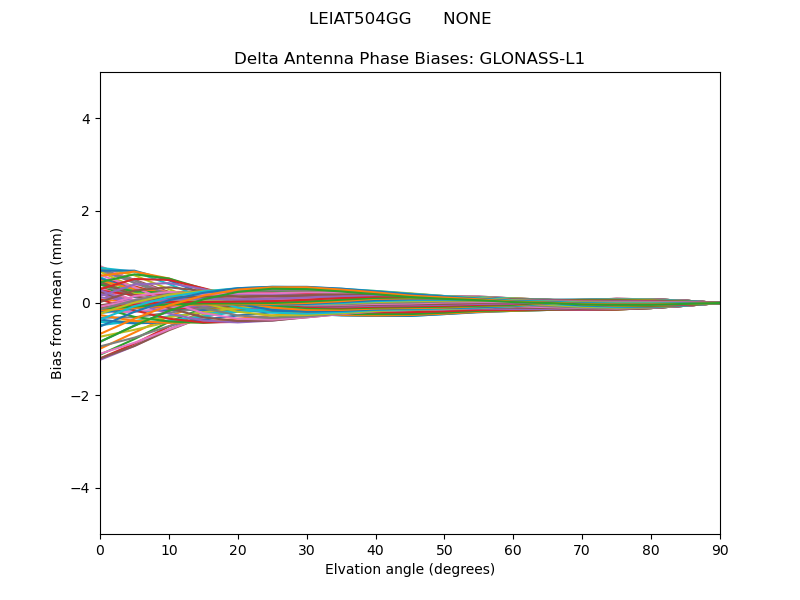

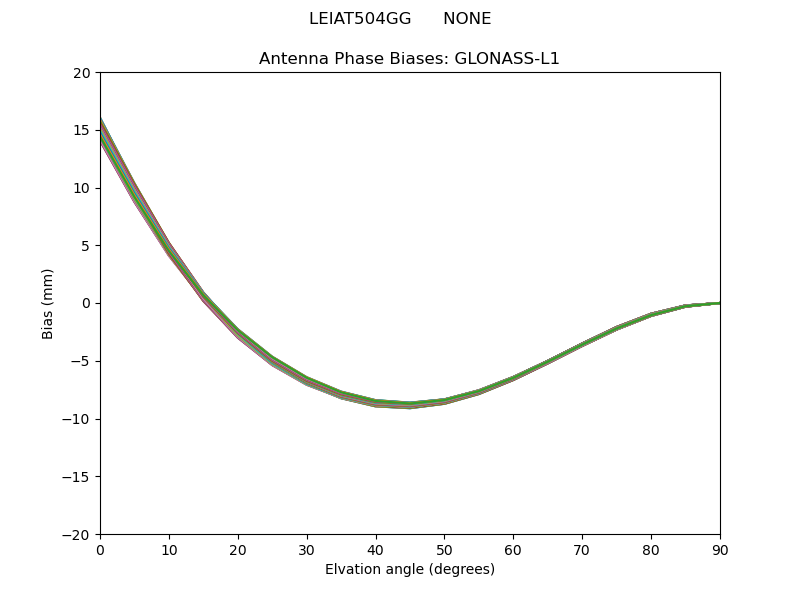

GLONASS-L1

GLONASS-L1GLONASS-L1

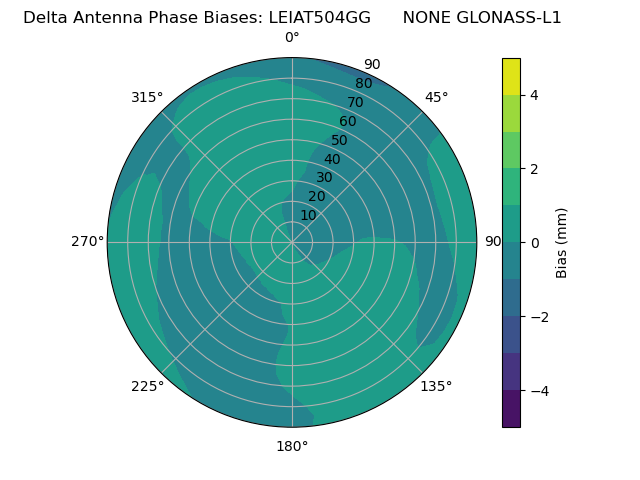

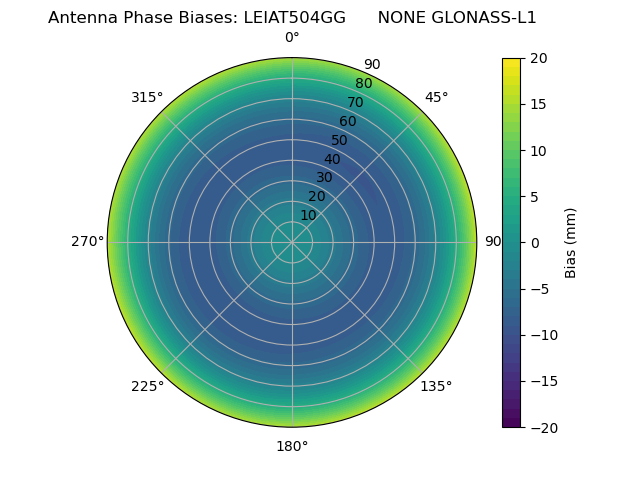

Radial GLONASS-L1Radial GLONASS-L1

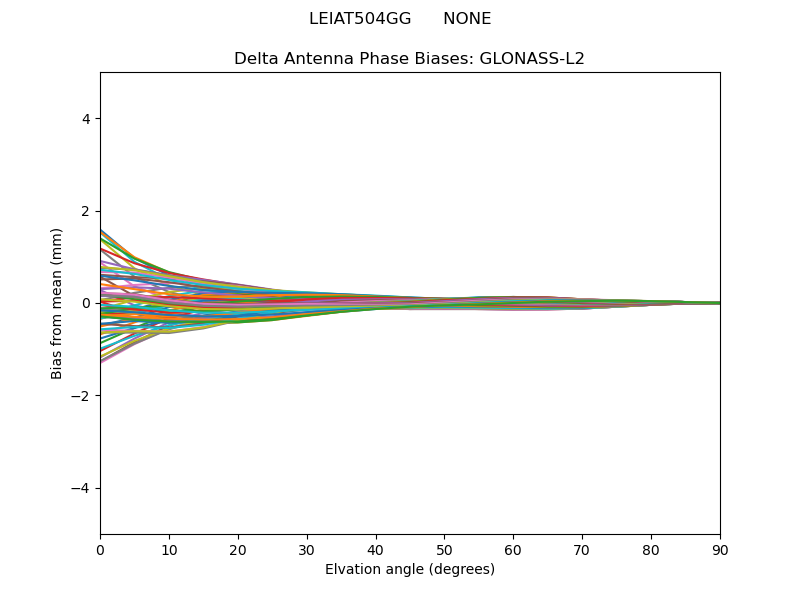

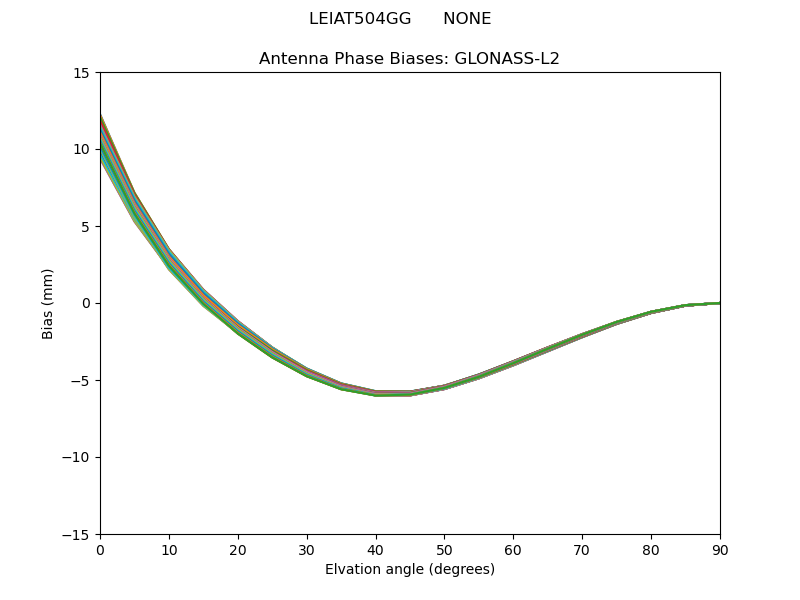

GLONASS-L2

GLONASS-L2GLONASS-L2

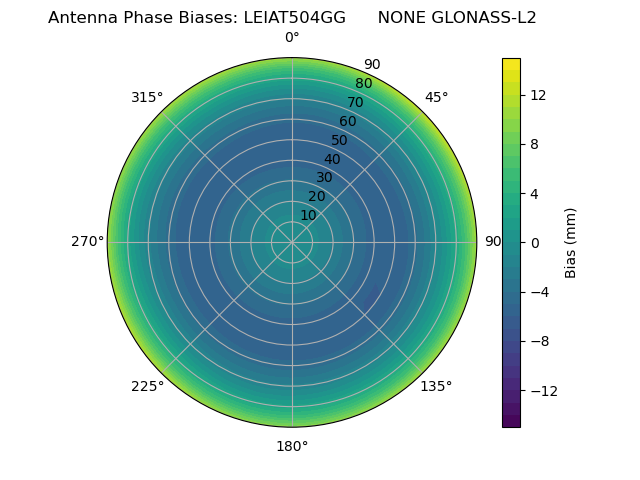

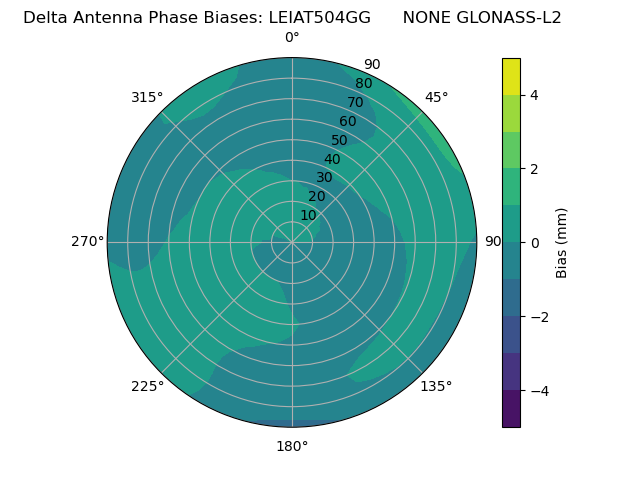

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

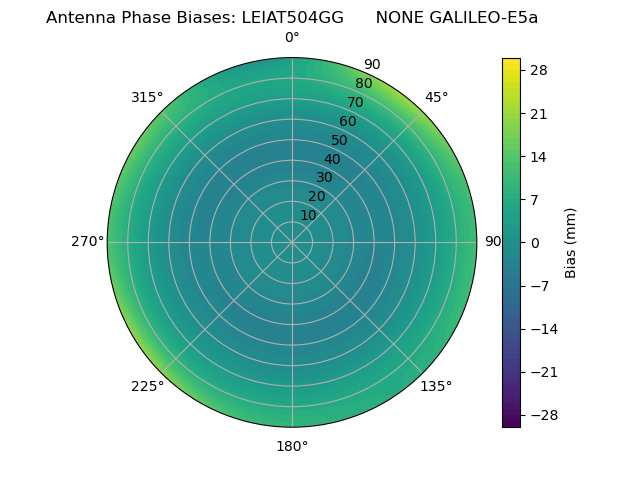

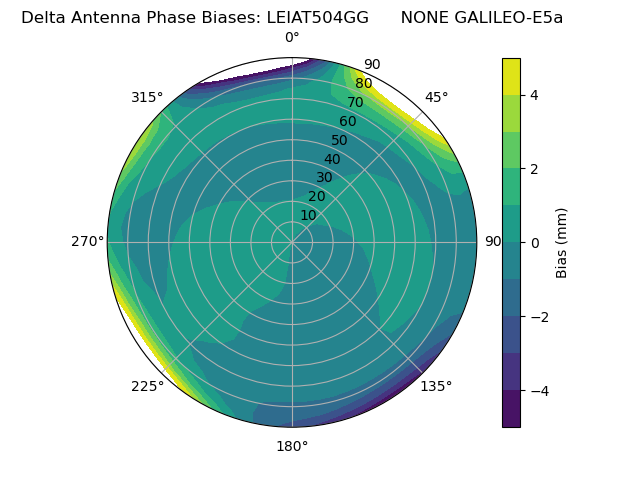

Radial GALILEO-E5aRadial GALILEO-E5a

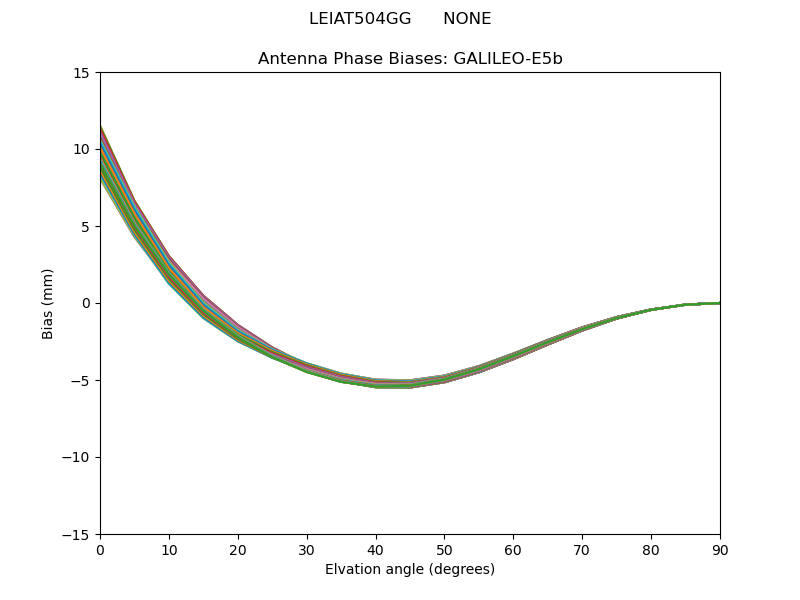

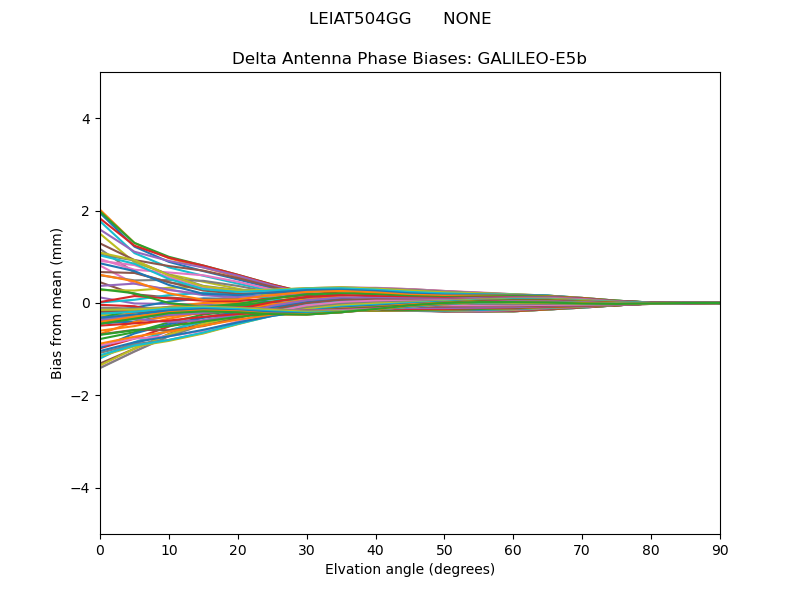

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

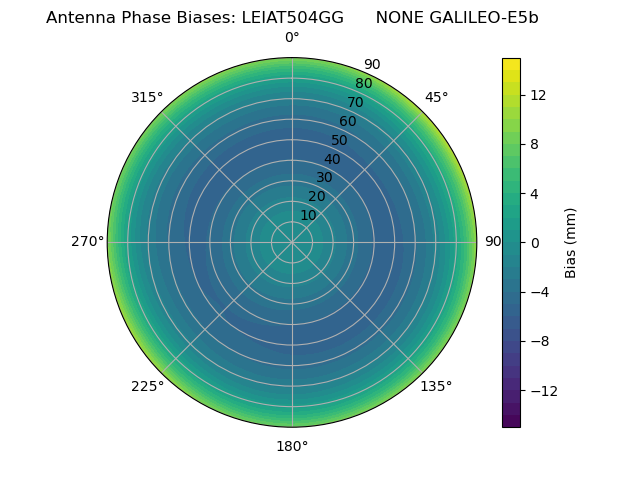

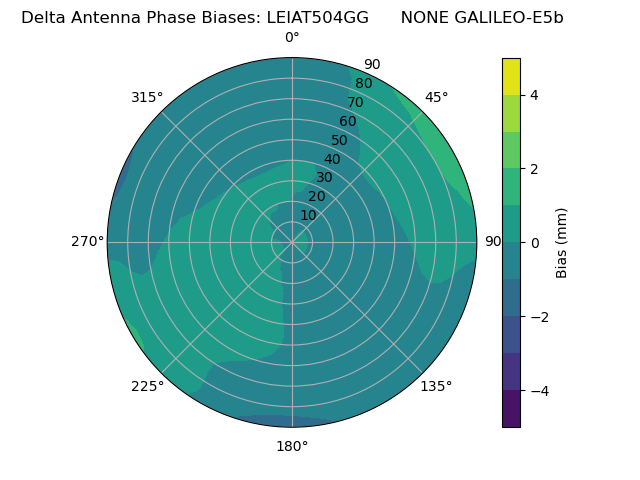

Radial GALILEO-E5bRadial GALILEO-E5b

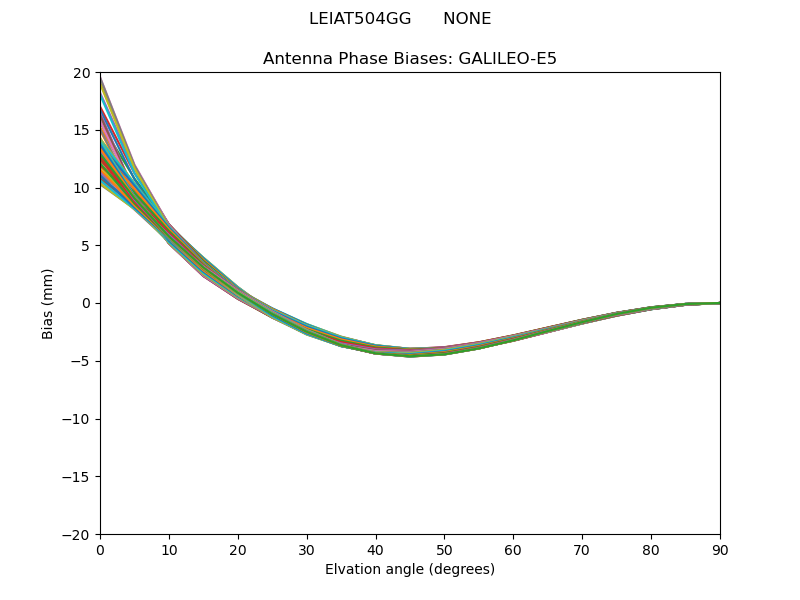

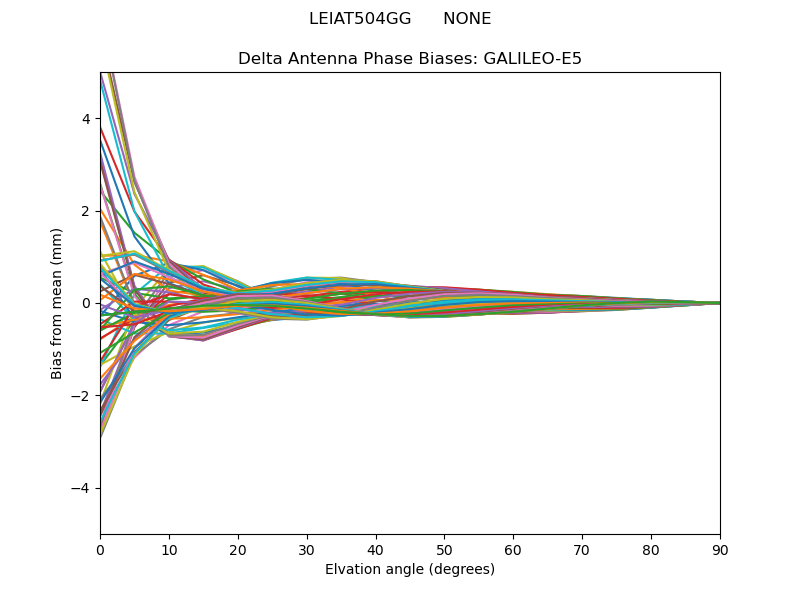

GALILEO-E5

GALILEO-E5GALILEO-E5

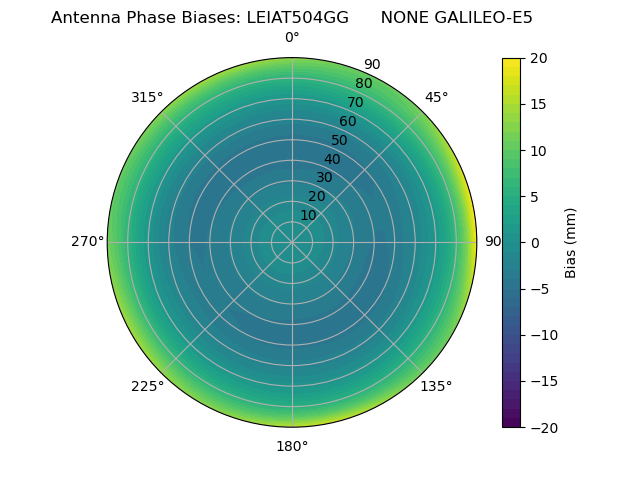

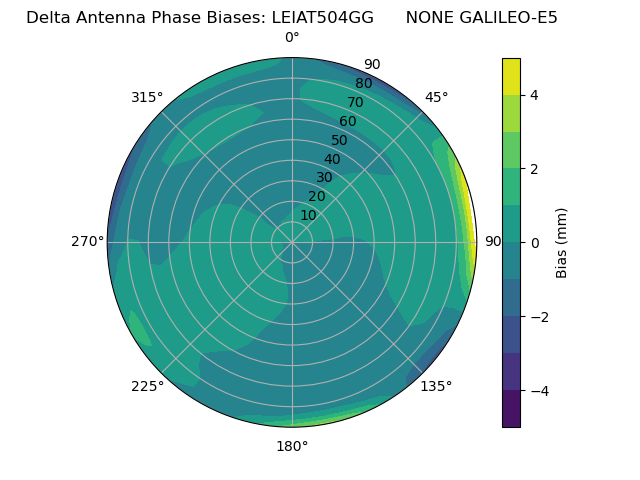

Radial GALILEO-E5Radial GALILEO-E5

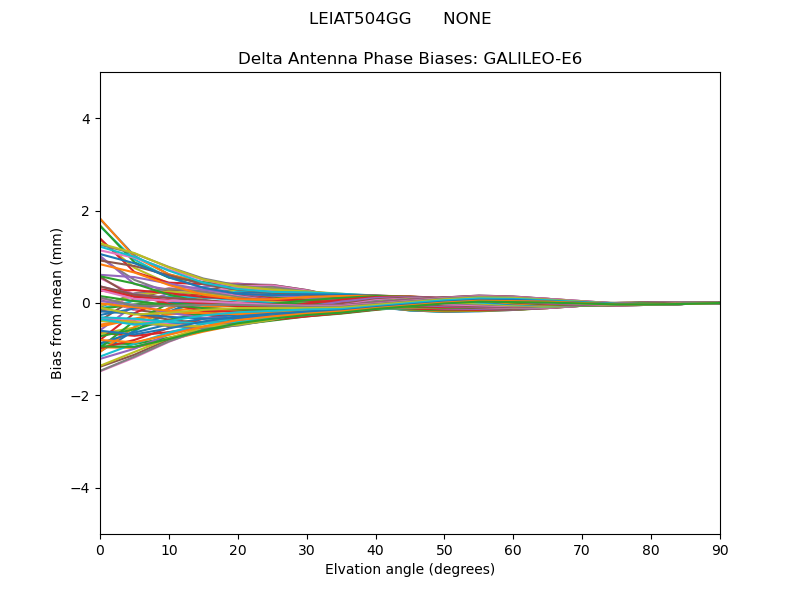

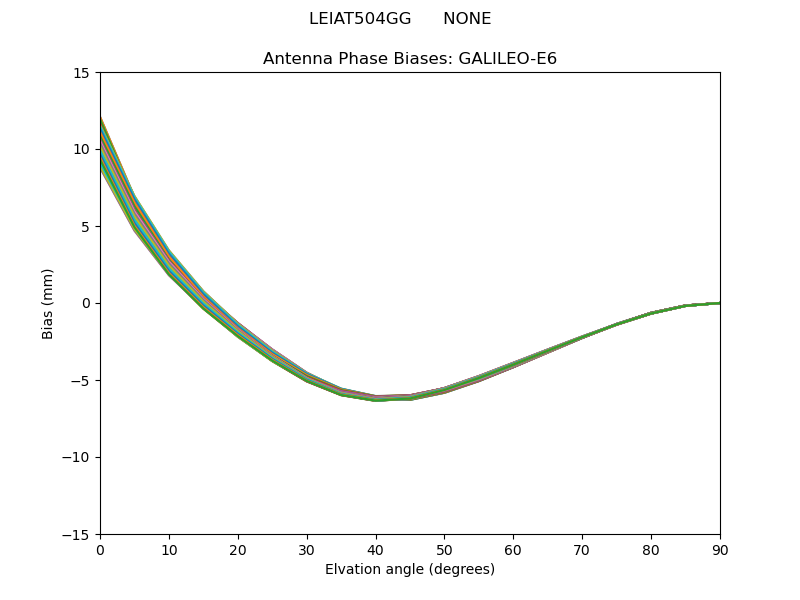

GALILEO-E6

GALILEO-E6GALILEO-E6

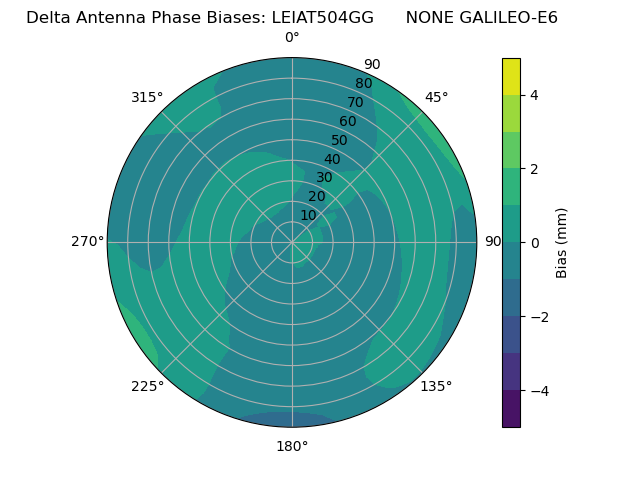

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

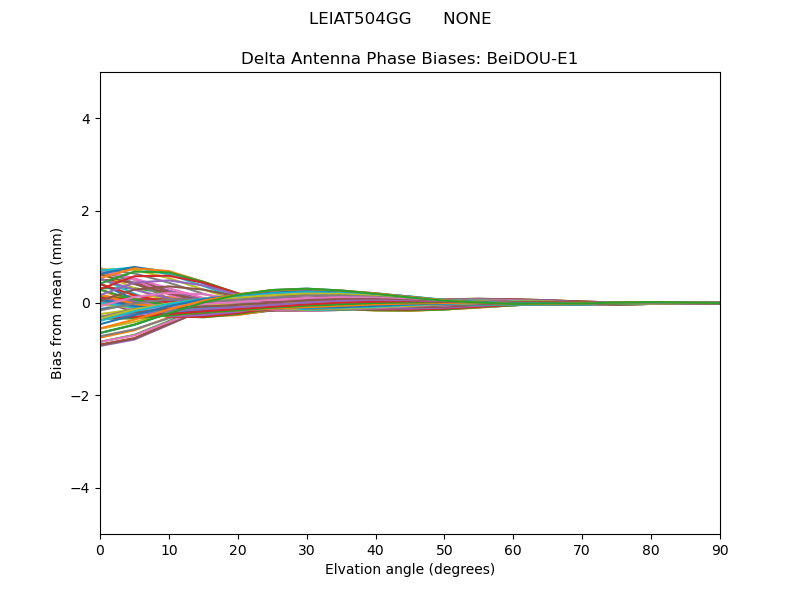

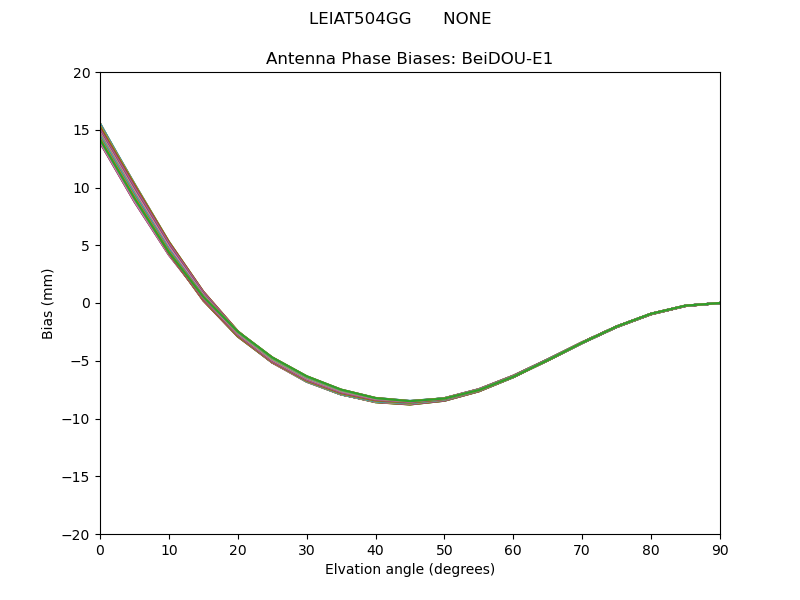

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

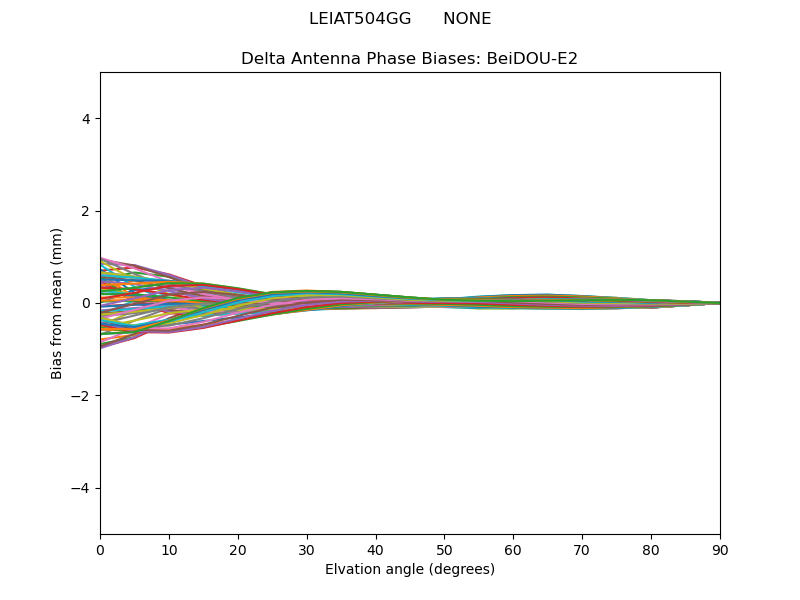

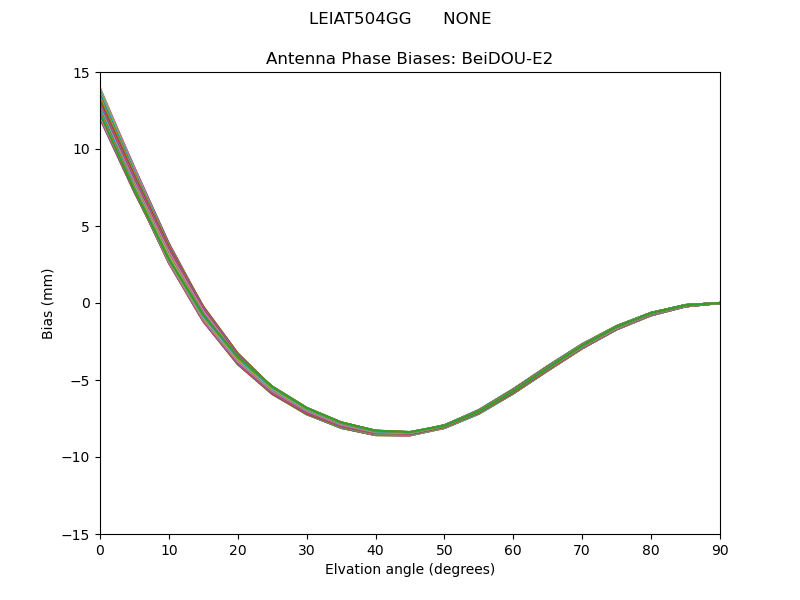

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

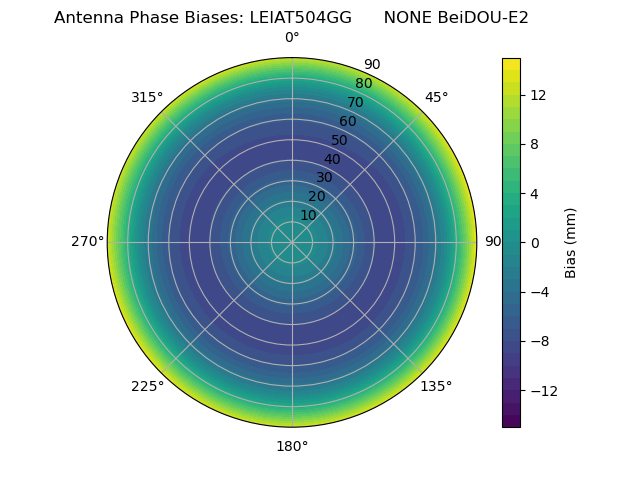

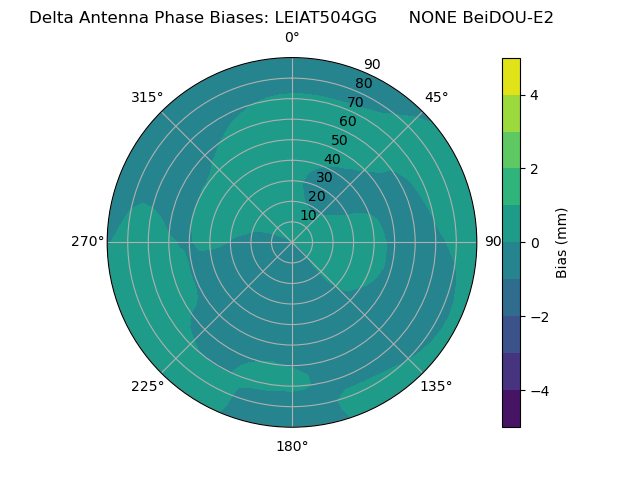

Radial BeiDOU-E2Radial BeiDOU-E2

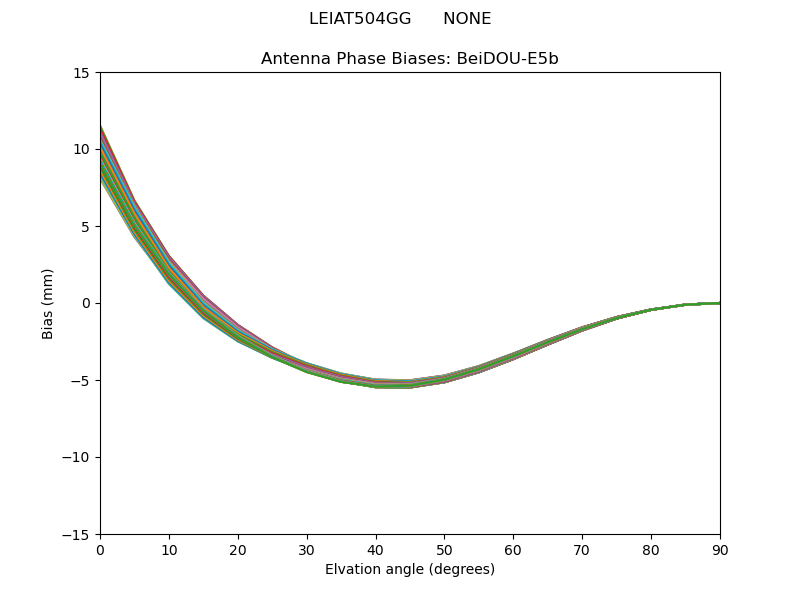

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

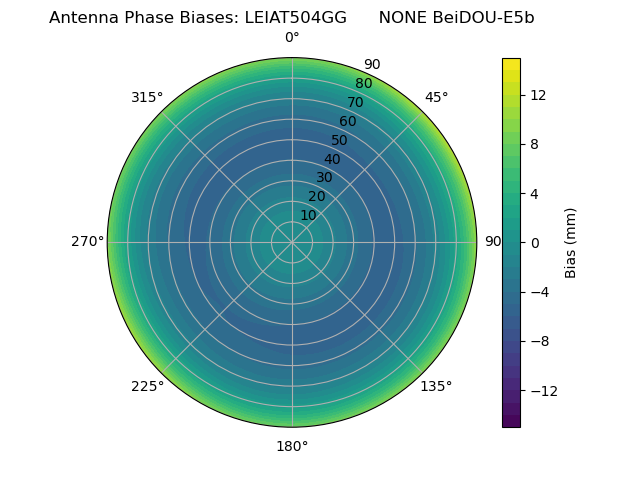

Radial BeiDOU-E5bRadial BeiDOU-E5b

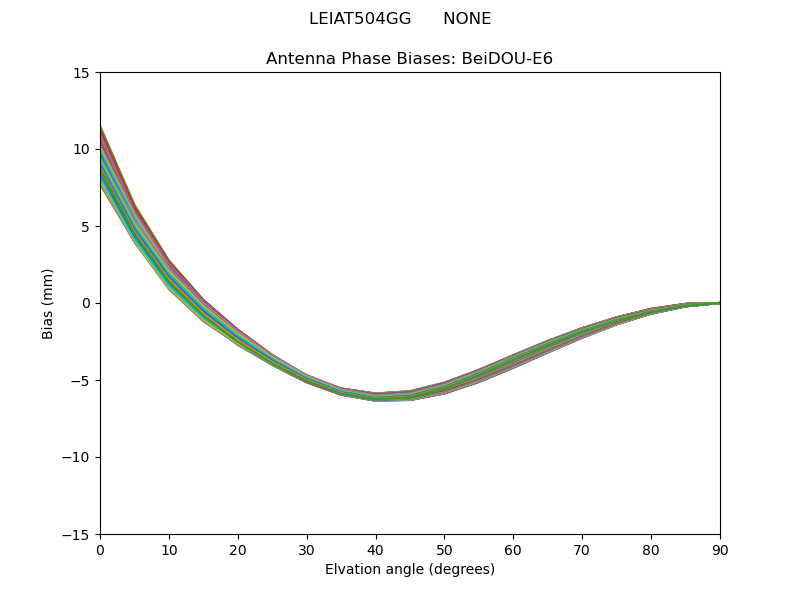

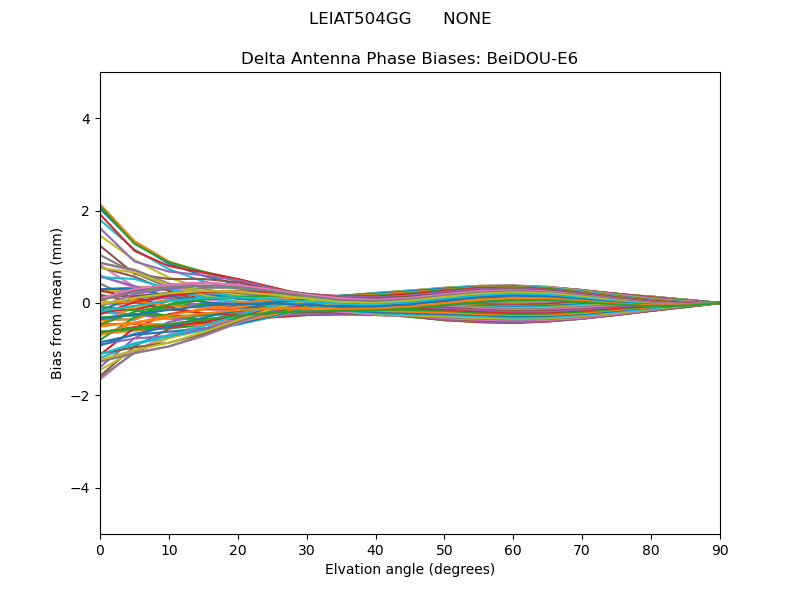

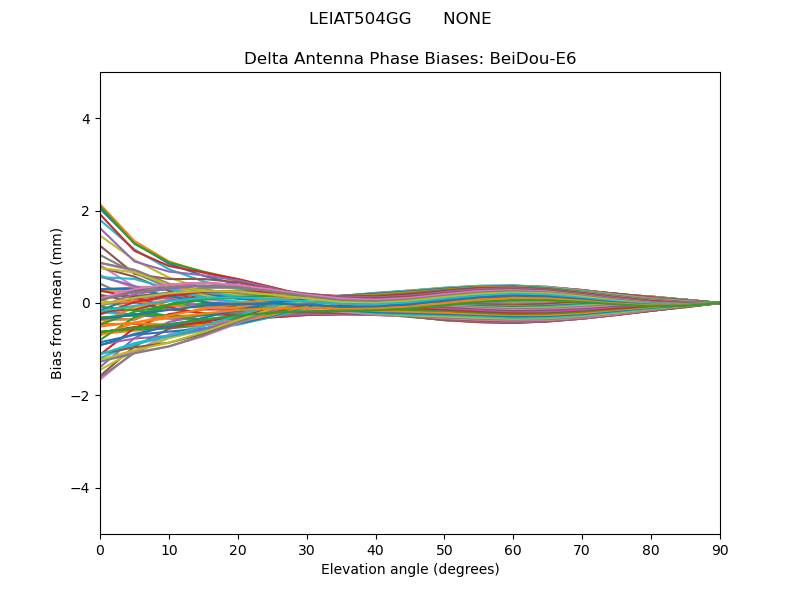

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

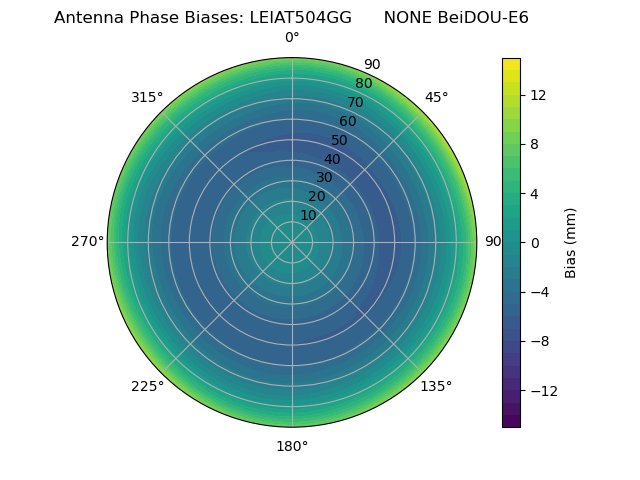

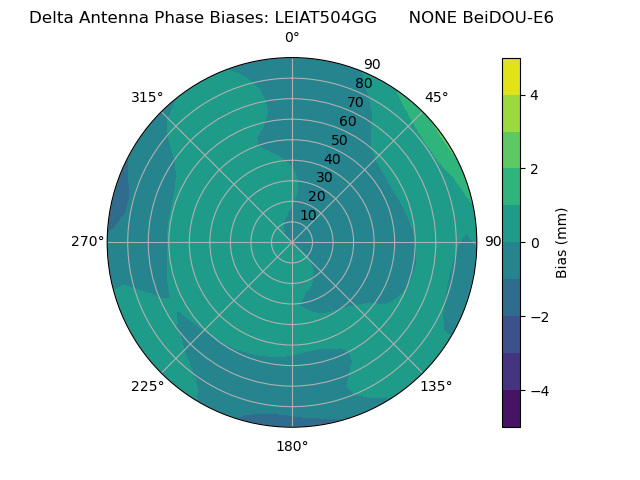

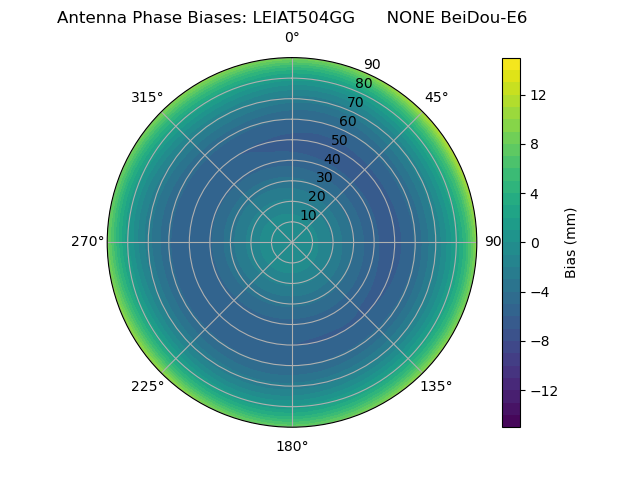

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

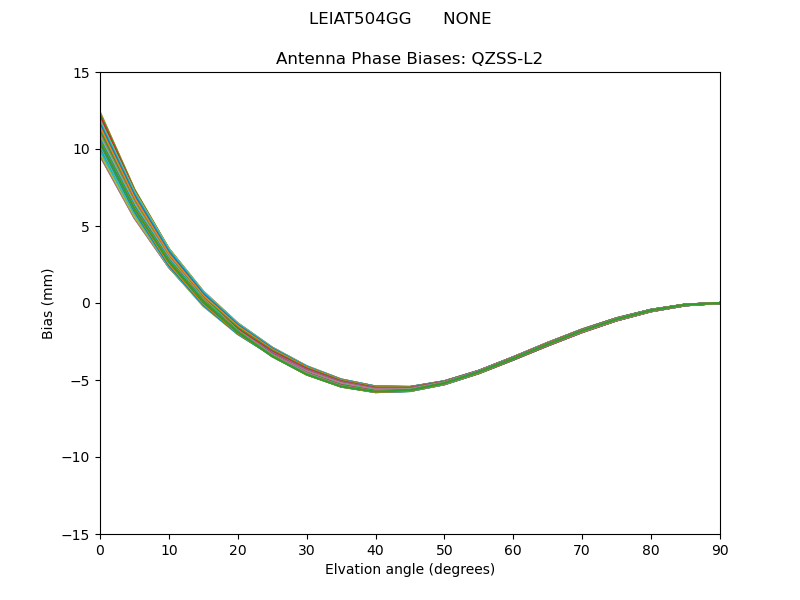

QZSS-L2

QZSS-L2QZSS-L2

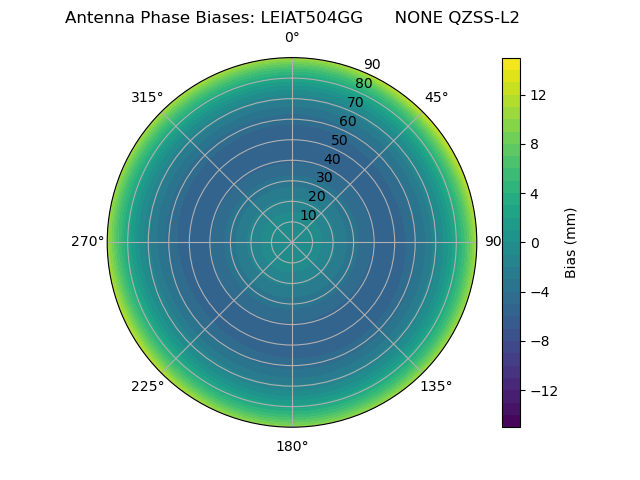

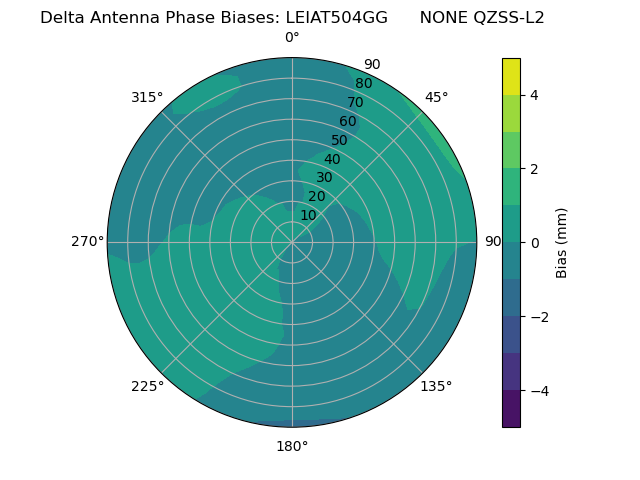

Radial QZSS-L2Radial QZSS-L2

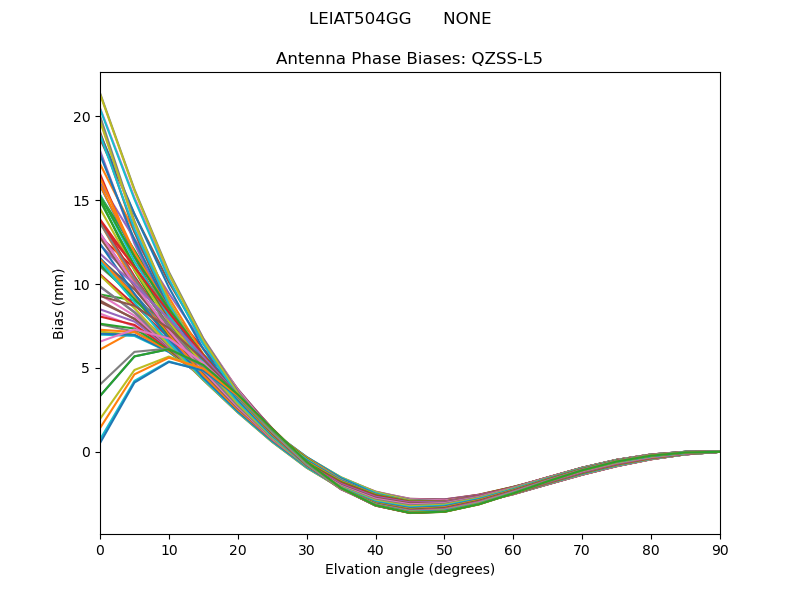

QZSS-L5

QZSS-L5QZSS-L5

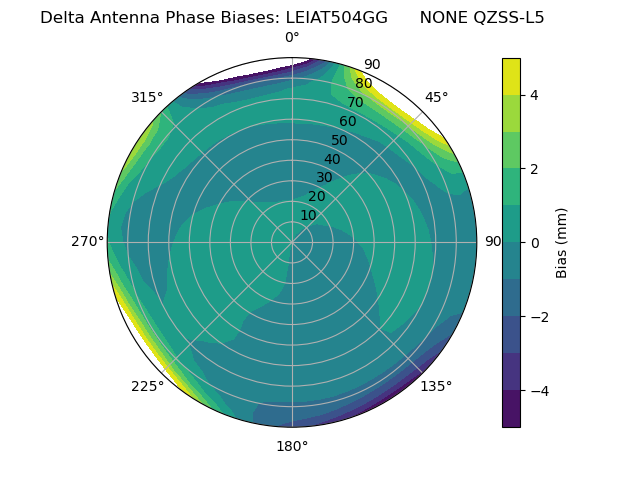

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

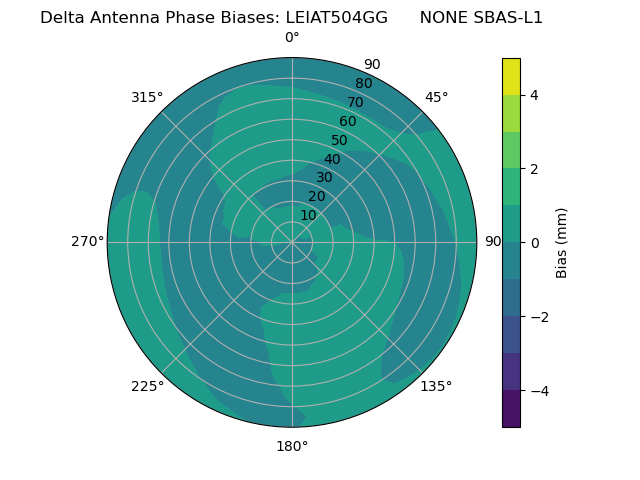

Radial SBAS-L1Radial SBAS-L1

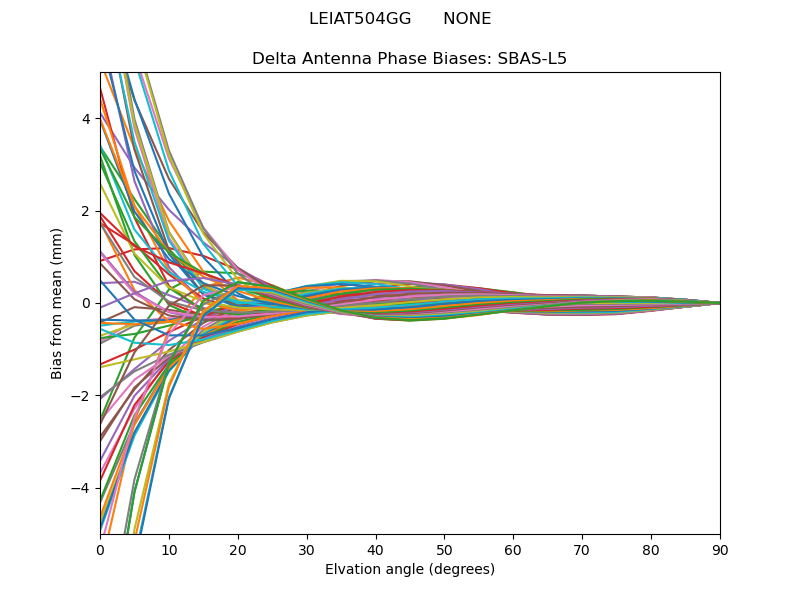

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
