Antenna information for LEIAT504 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 1.10 E: 1.54 U: 89.30
L2: N: 0.50 E: -0.02 U: 117.63
L5: N: 0.69 E: -0.54 U: 128.72

GLONASS

L1: N: 1.30 E: 1.61 U: 87.63
L2: N: 0.63 E: -0.01 U: 113.89

GALILEO

E1: N: 1.10 E: 1.54 U: 89.30
E5a: N: 0.69 E: -0.54 U: 128.72

BeiDou

E1: N: 1.10 E: 1.54 U: 89.30

QZSS

L1: N: 1.10 E: 1.54 U: 89.30
L2: N: 0.50 E: -0.02 U: 117.63
L5: N: 0.69 E: -0.54 U: 128.72

IRNSS

L5: N: 0.69 E: -0.54 U: 128.72

SBAS

L1: N: 1.10 E: 1.54 U: 89.30
L5: N: 0.69 E: -0.54 U: 128.72

L1

GPS: N: 1.10 E: 1.54 U: 89.30
GLONASS: N: 1.30 E: 1.61 U: 87.63
QZSS: N: 1.10 E: 1.54 U: 89.30
SBAS: N: 1.10 E: 1.54 U: 89.30

L2

GPS: N: 0.50 E: -0.02 U: 117.63
GLONASS: N: 0.63 E: -0.01 U: 113.89
QZSS: N: 0.50 E: -0.02 U: 117.63

L5

GPS: N: 0.69 E: -0.54 U: 128.72
QZSS: N: 0.69 E: -0.54 U: 128.72
SBAS: N: 0.69 E: -0.54 U: 128.72
IRNSS: N: 0.69 E: -0.54 U: 128.72

E1

GALILEO: N: 1.10 E: 1.54 U: 89.30
BeiDou: N: 1.10 E: 1.54 U: 89.30

E5a

GALILEO: N: 0.69 E: -0.54 U: 128.72


Means

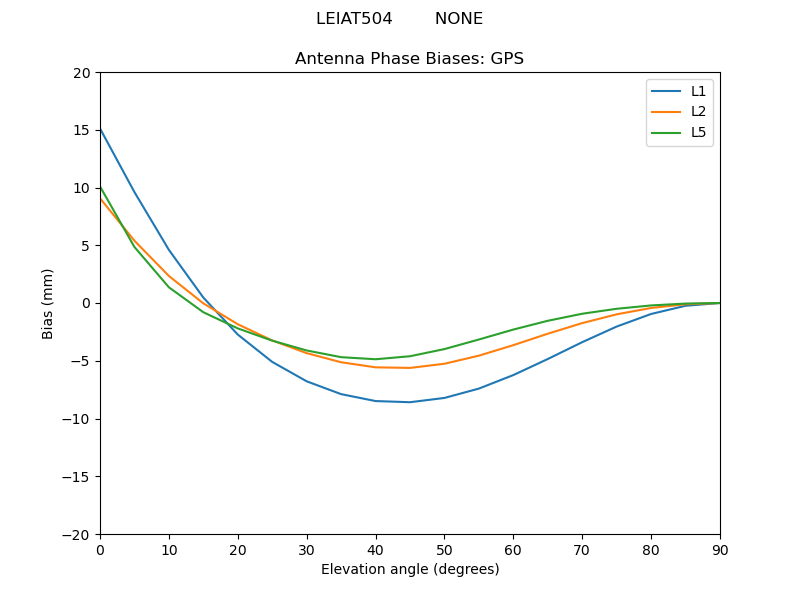

GPS

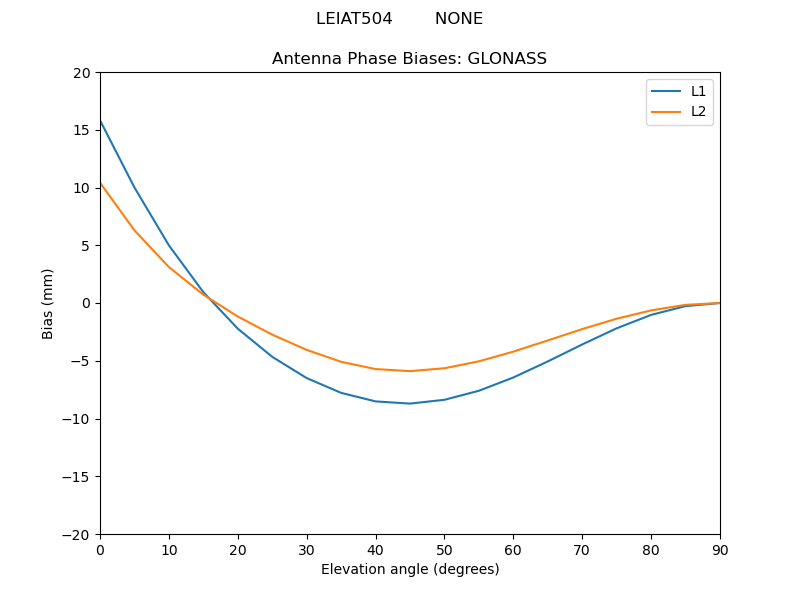

GLONASS

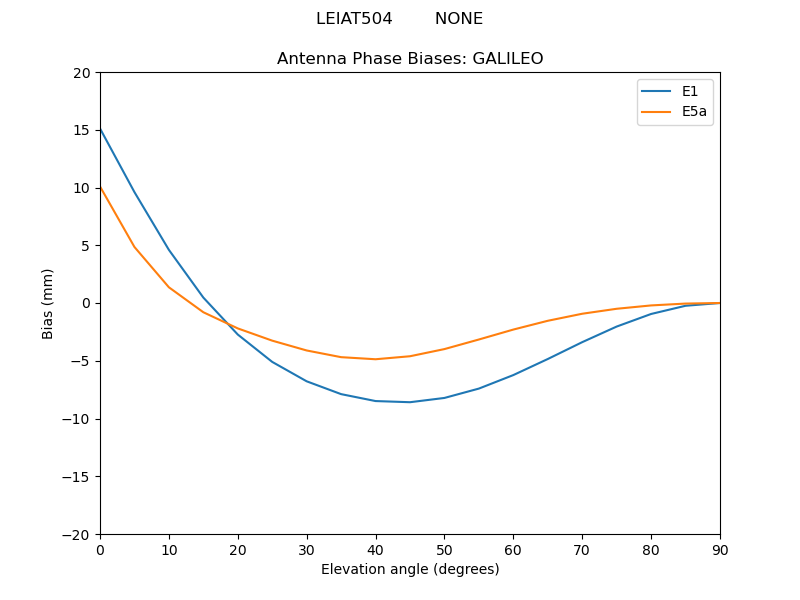

GALILEO

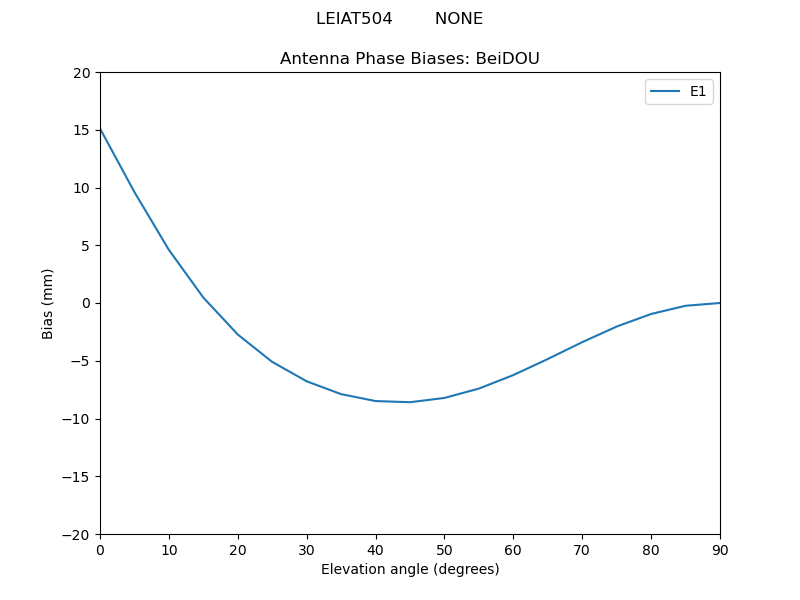

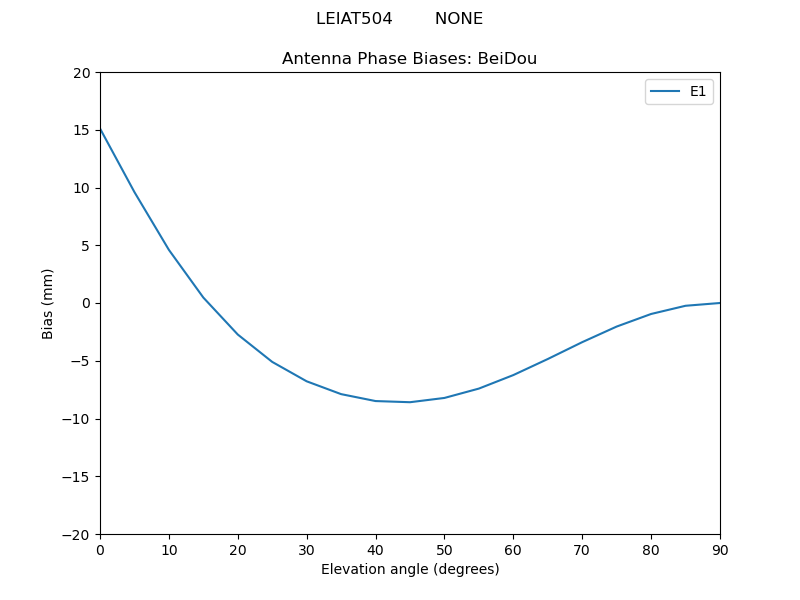

BeiDOU


QZSS

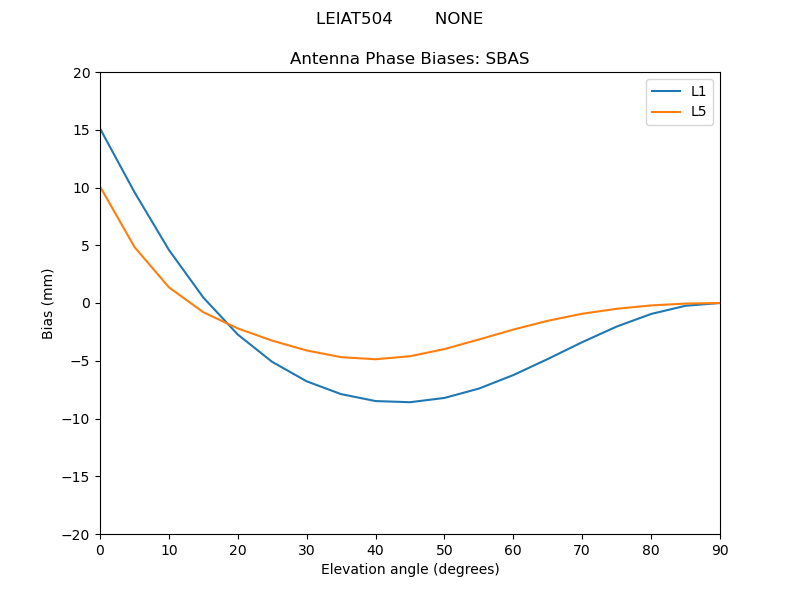

SBAS

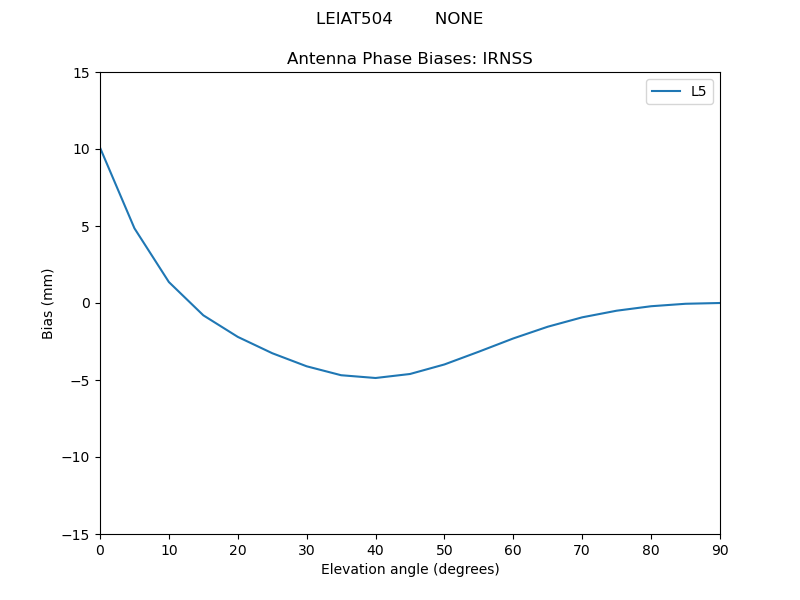

IRNSS


Azimuths

GPS


Bias Delta

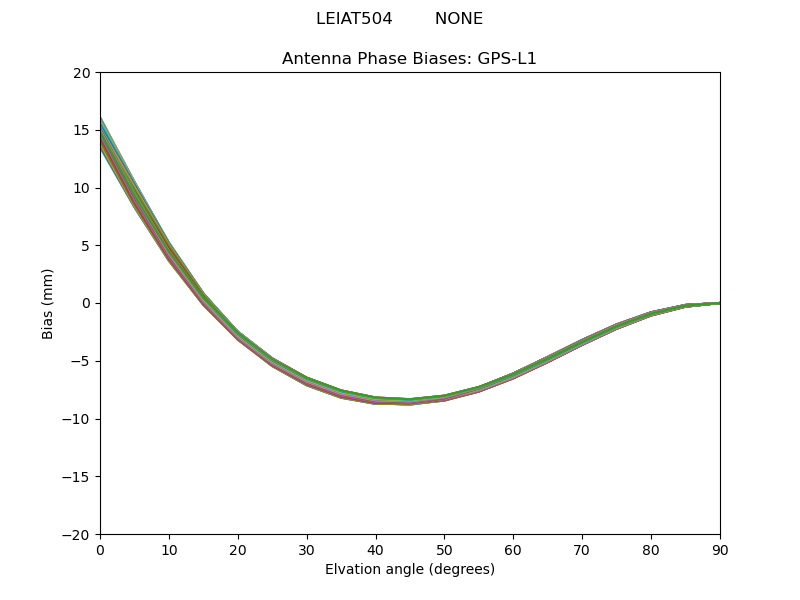

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

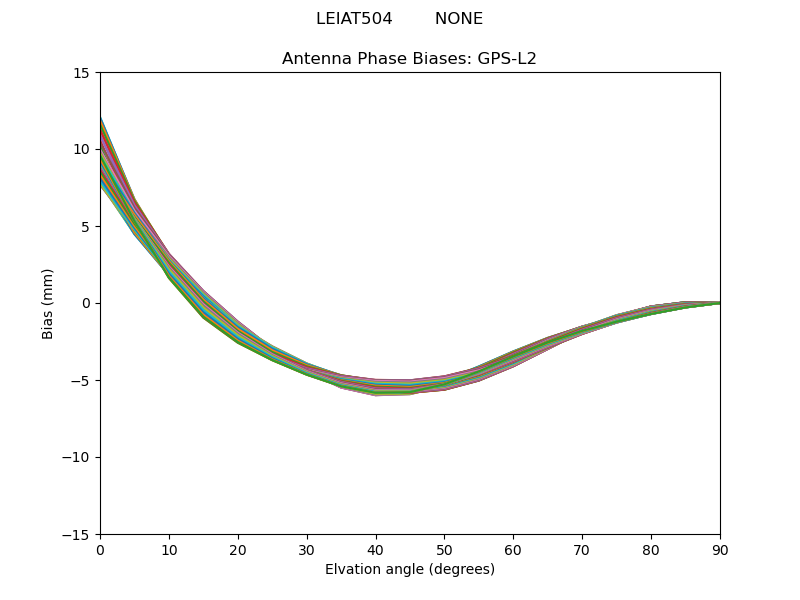

GPS-L2

GPS-L2GPS-L2

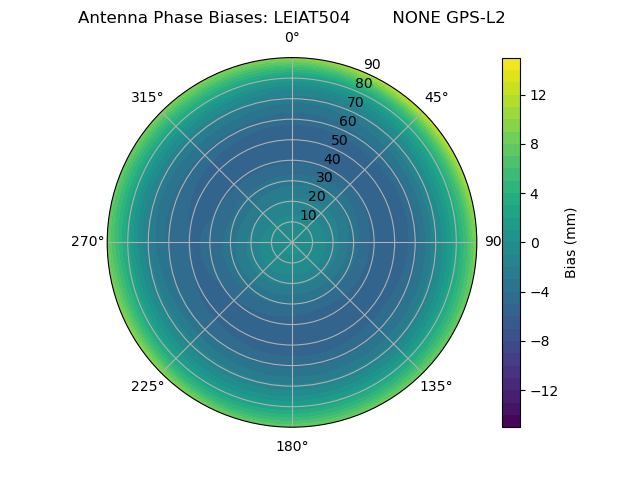

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5
Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

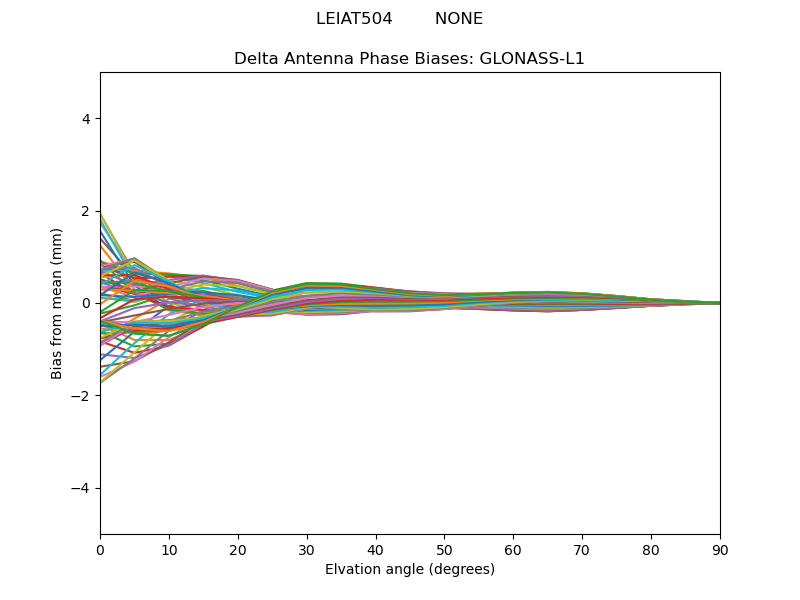

GLONASS-L1

GLONASS-L1GLONASS-L1

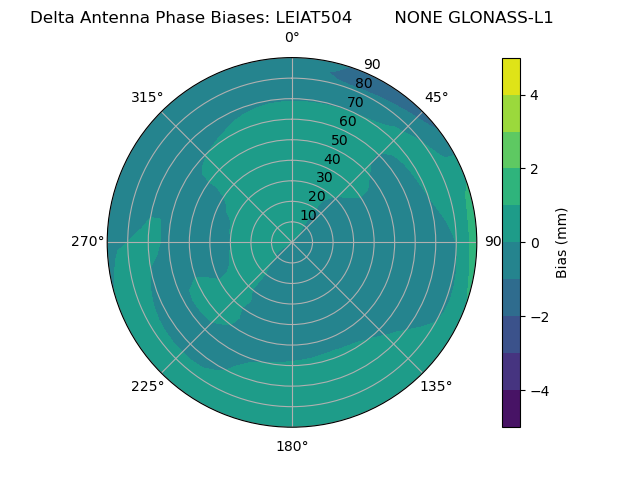

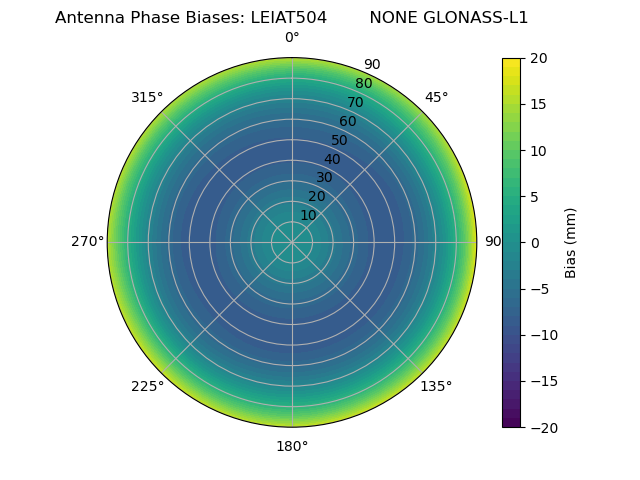

Radial GLONASS-L1Radial GLONASS-L1

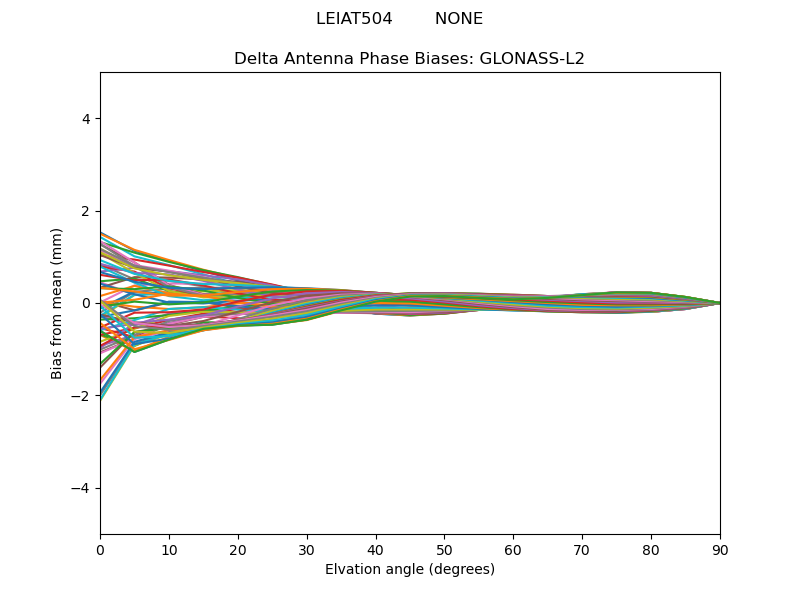

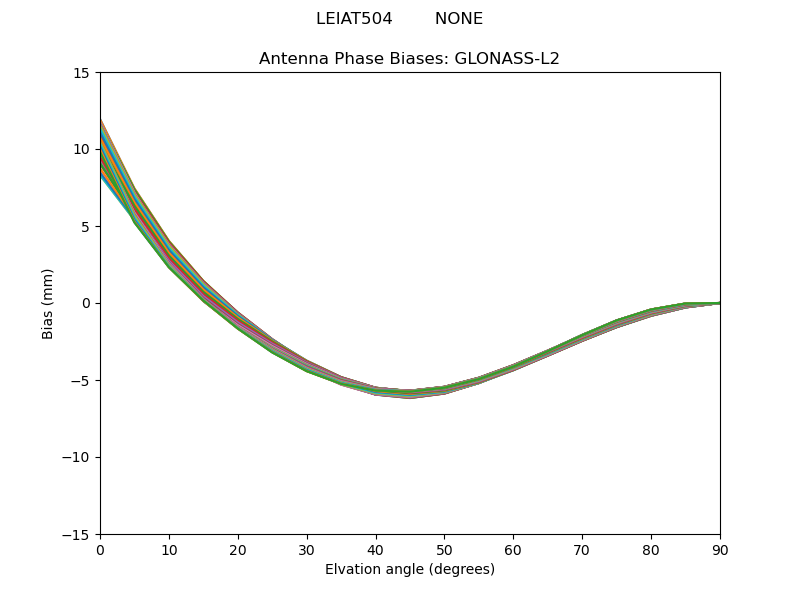

GLONASS-L2

GLONASS-L2GLONASS-L2

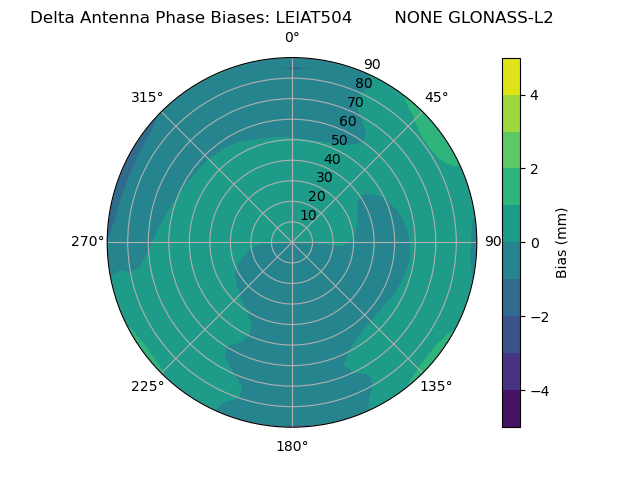

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

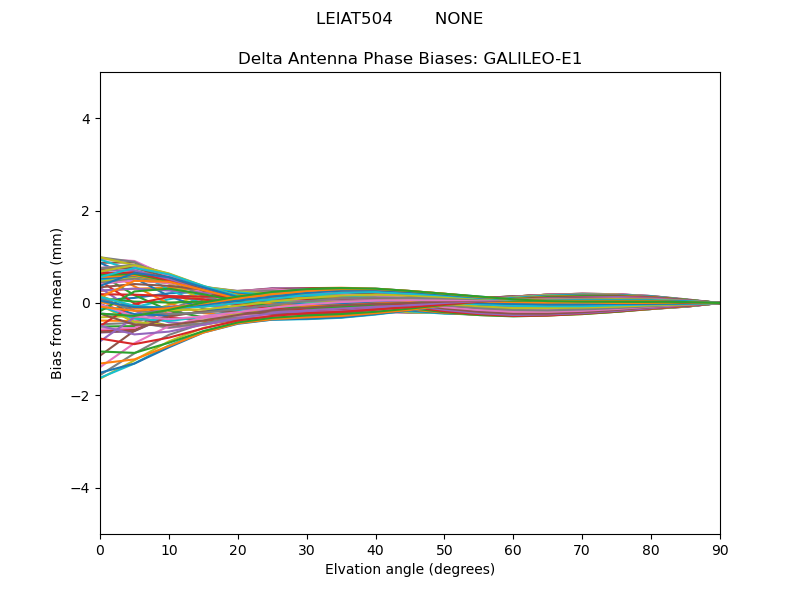

GALILEO-E1

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

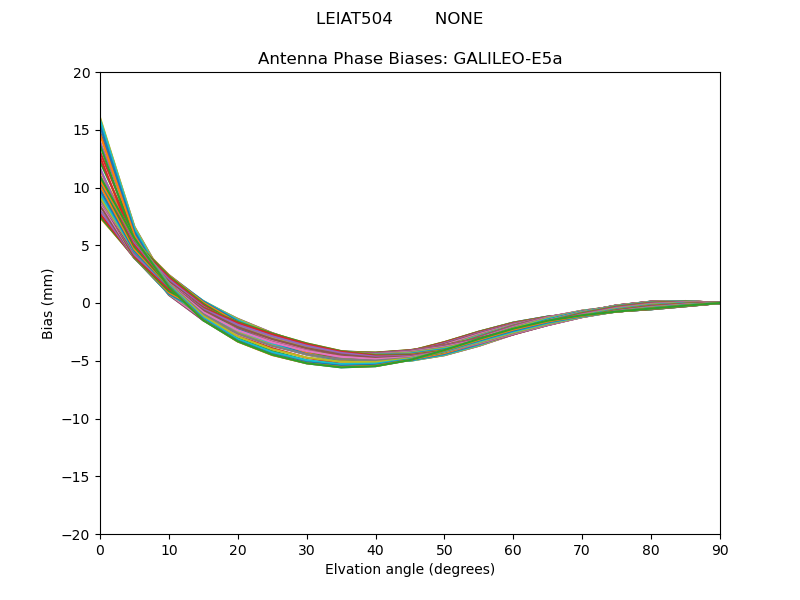

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

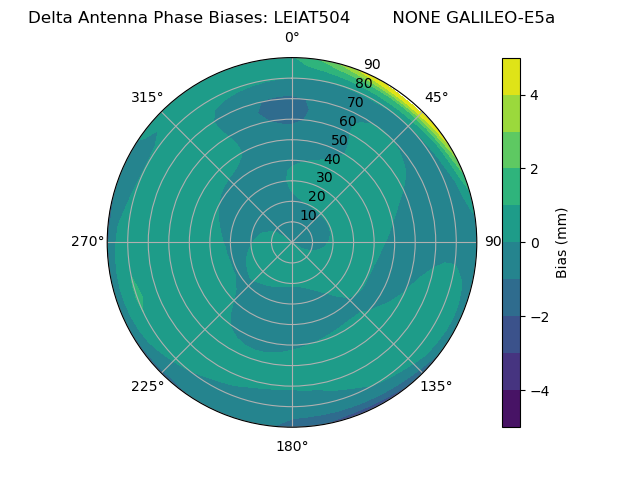

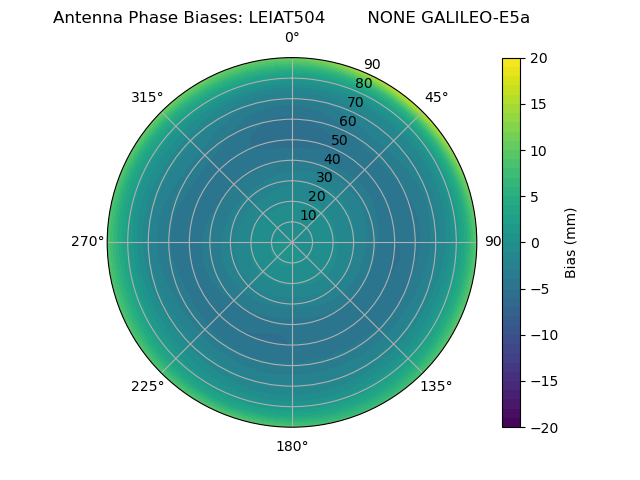

Radial GALILEO-E5aRadial GALILEO-E5a

BeiDOU


Bias Delta

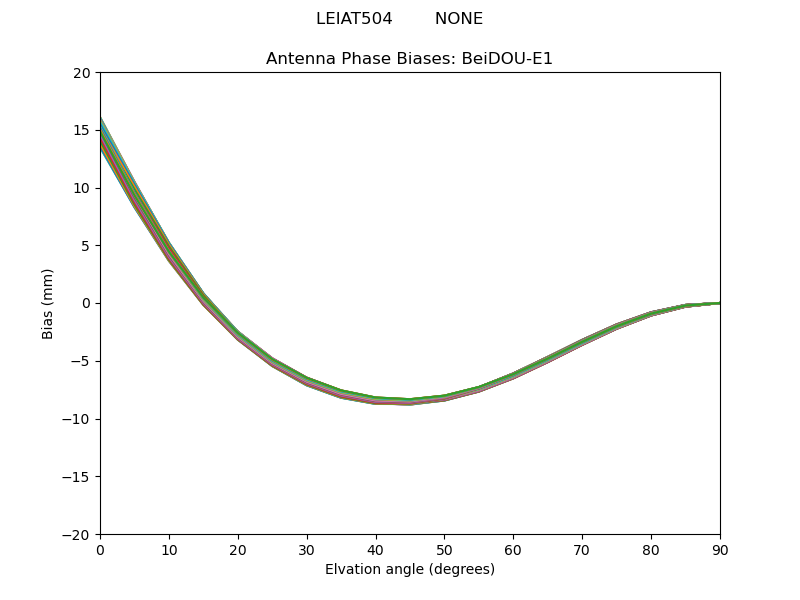

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

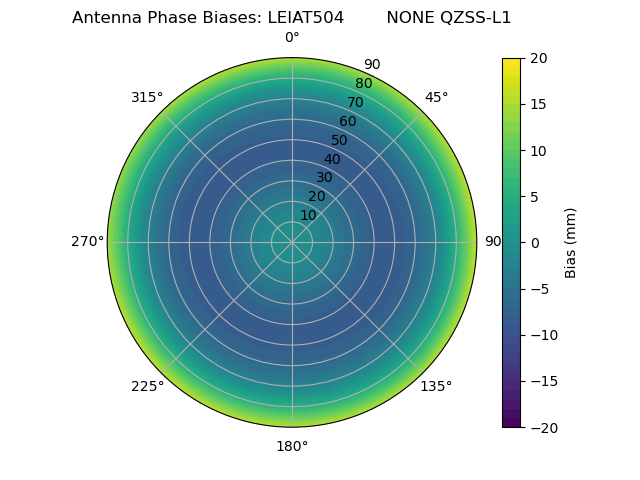

Radial QZSS-L1Radial QZSS-L1

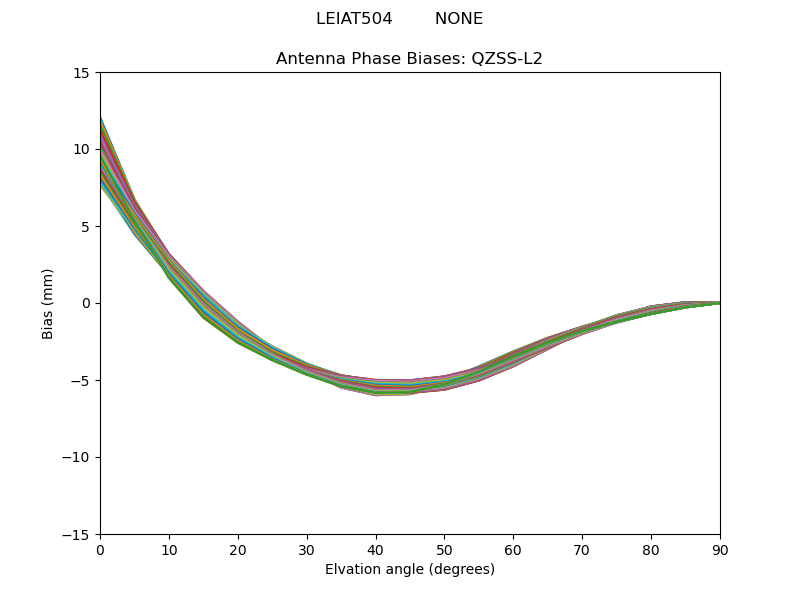

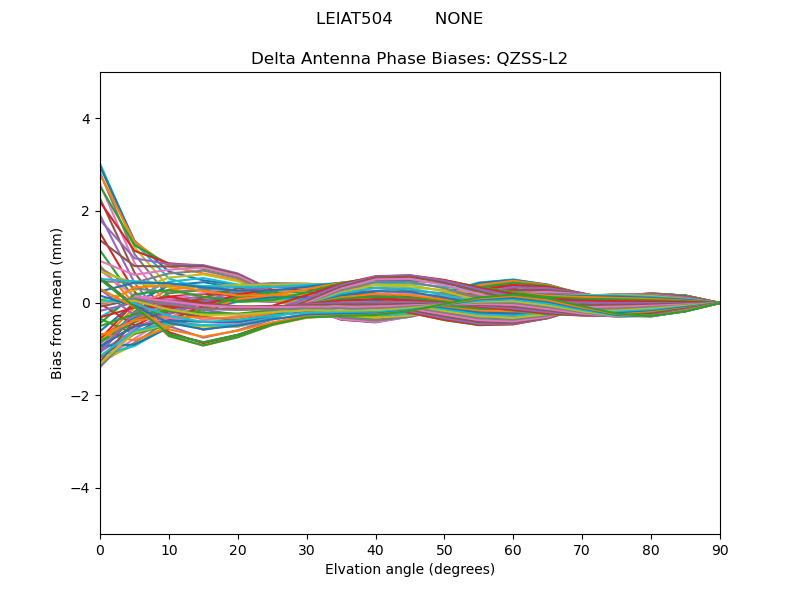

QZSS-L2

QZSS-L2QZSS-L2

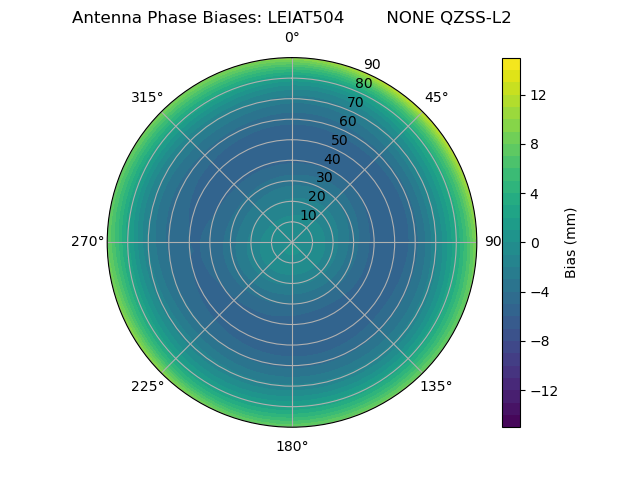

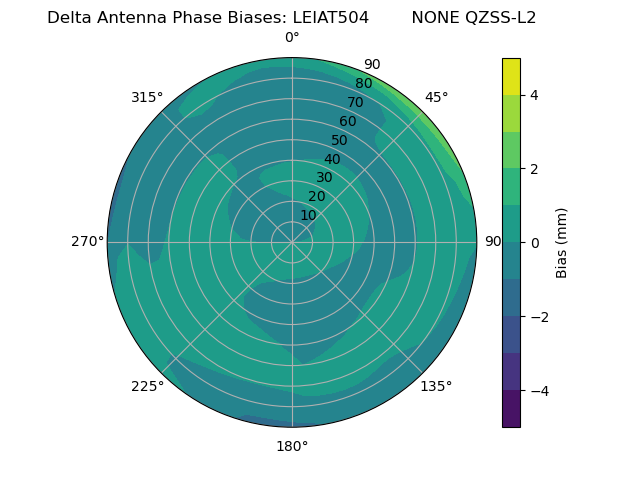

Radial QZSS-L2Radial QZSS-L2

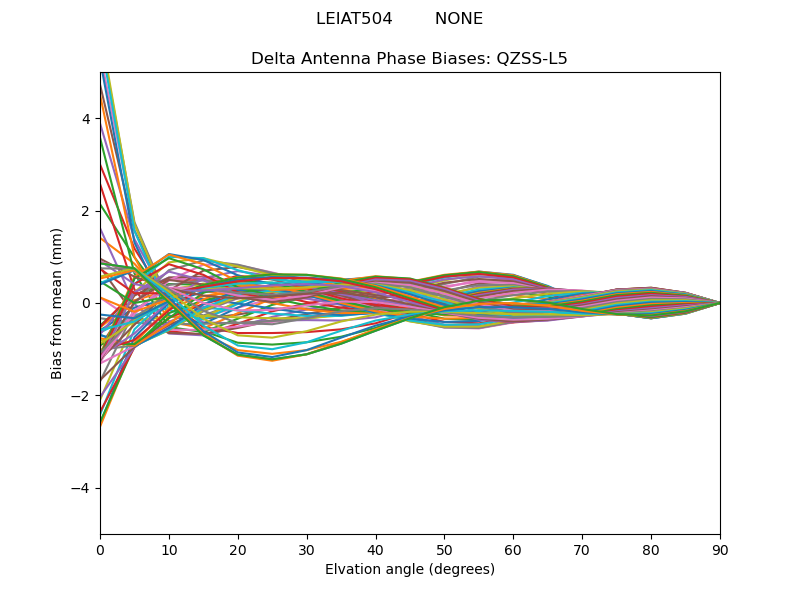

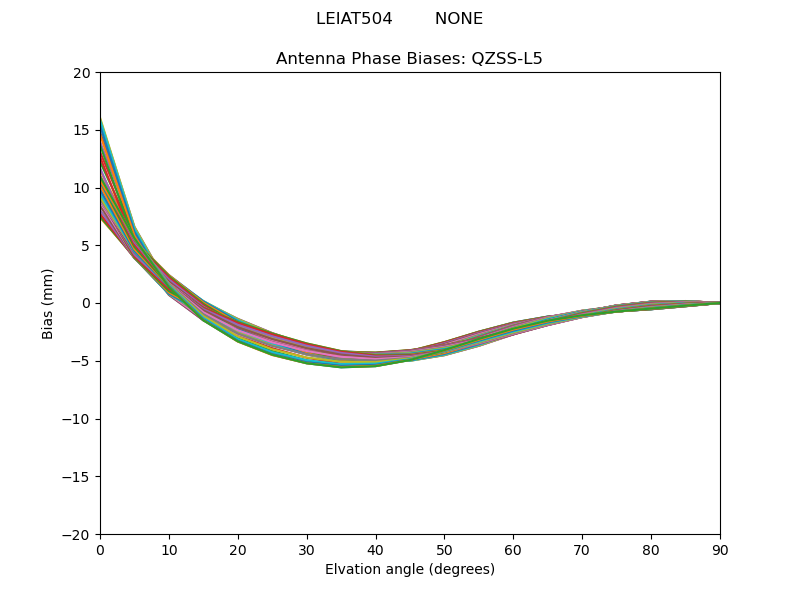

QZSS-L5

QZSS-L5QZSS-L5

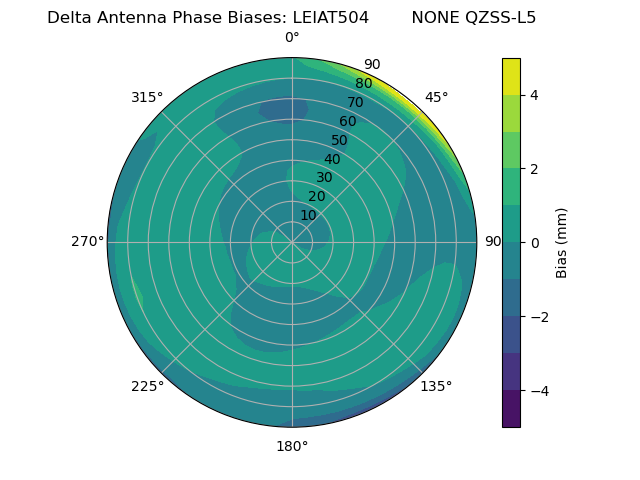

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1

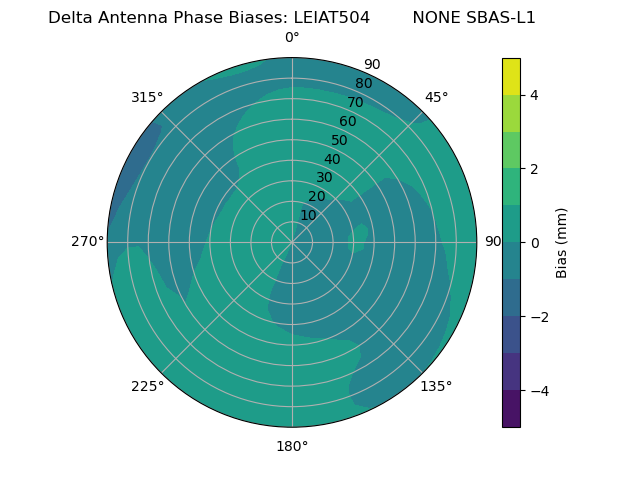

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

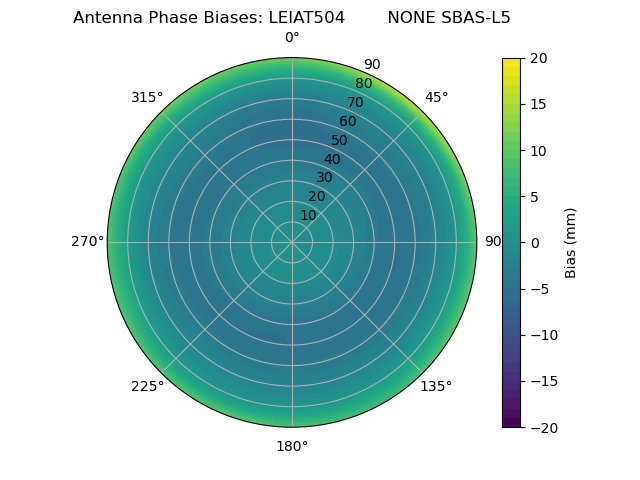

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
