Antenna information for LEIGS05 NONE
SV System | Bands |
---|---|
GPSL1: N: 0.50 E: 0.42 U: 65.33L2: N: -1.14 E: -0.52 U: 59.22 GLONASSL1: N: 0.02 E: 1.11 U: 65.90L2: N: -0.10 E: -1.44 U: 57.78 GALILEOE1: N: 0.50 E: 0.42 U: 65.33E5b: N: -2.52 E: 0.44 U: 60.68 BeiDouE1: N: 0.50 E: 0.42 U: 65.33E2: N: 0.76 E: 0.04 U: 65.05 E5b: N: -2.52 E: 0.44 U: 60.68 QZSSL1: N: 0.50 E: 0.42 U: 65.33L2: N: -1.14 E: -0.52 U: 59.22 SBASL1: N: 0.50 E: 0.42 U: 65.33 | L1GPS: N: 0.50 E: 0.42 U: 65.33GLONASS: N: 0.02 E: 1.11 U: 65.90 QZSS: N: 0.50 E: 0.42 U: 65.33 SBAS: N: 0.50 E: 0.42 U: 65.33 L2GPS: N: -1.14 E: -0.52 U: 59.22GLONASS: N: -0.10 E: -1.44 U: 57.78 QZSS: N: -1.14 E: -0.52 U: 59.22 E1GALILEO: N: 0.50 E: 0.42 U: 65.33BeiDou: N: 0.50 E: 0.42 U: 65.33 E2BeiDou: N: 0.76 E: 0.04 U: 65.05E5bGALILEO: N: -2.52 E: 0.44 U: 60.68BeiDou: N: -2.52 E: 0.44 U: 60.68 |
Means

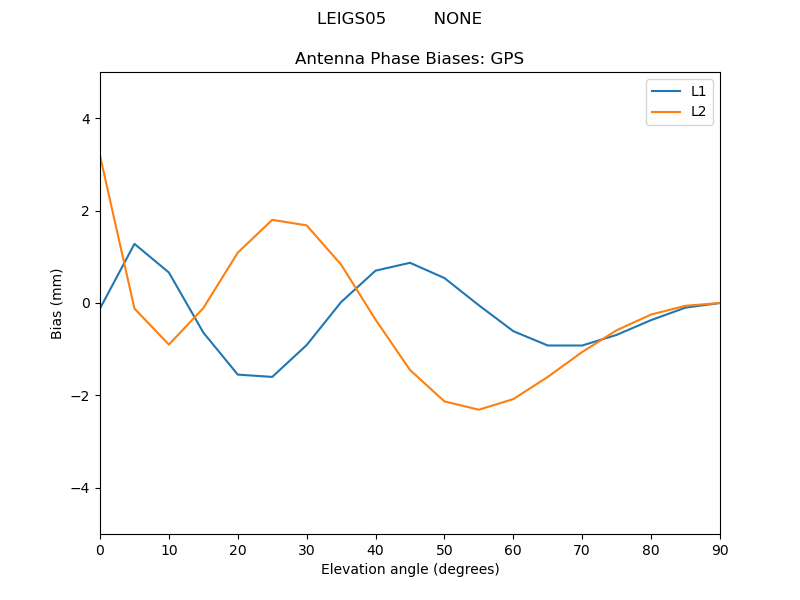

GPS

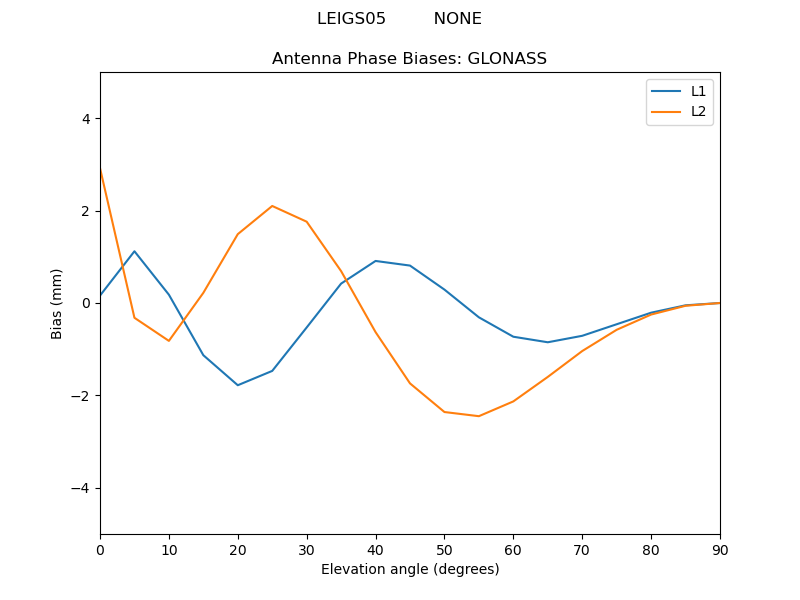

GLONASS

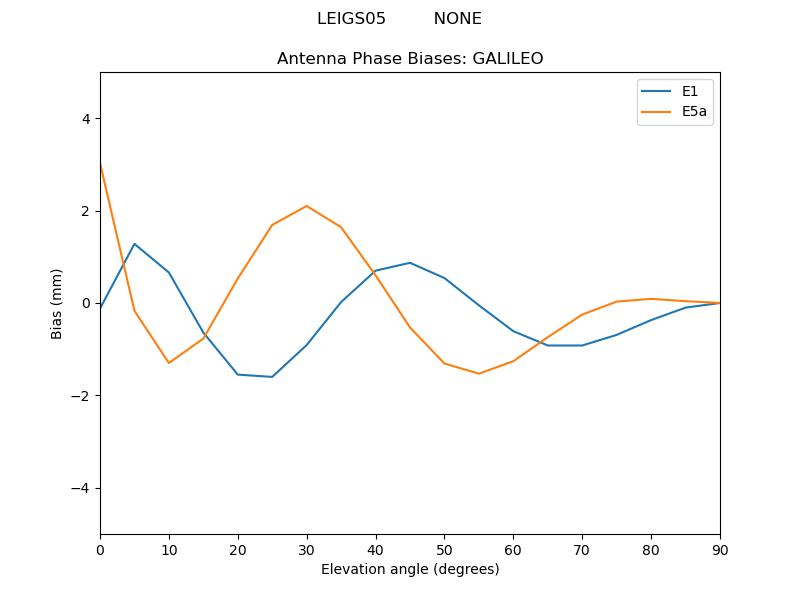

GALILEO

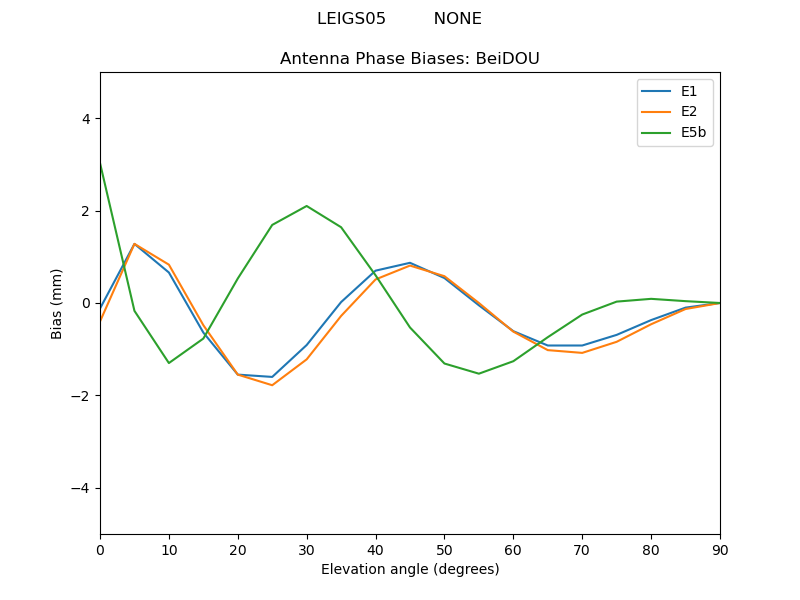

BeiDOU
QZSS

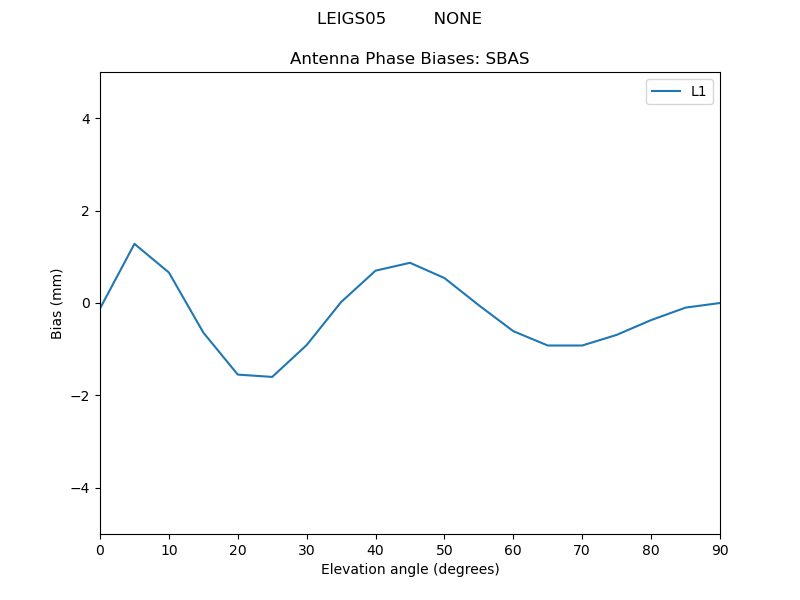

SBAS
Azimuths
Bias | Delta |
---|---|

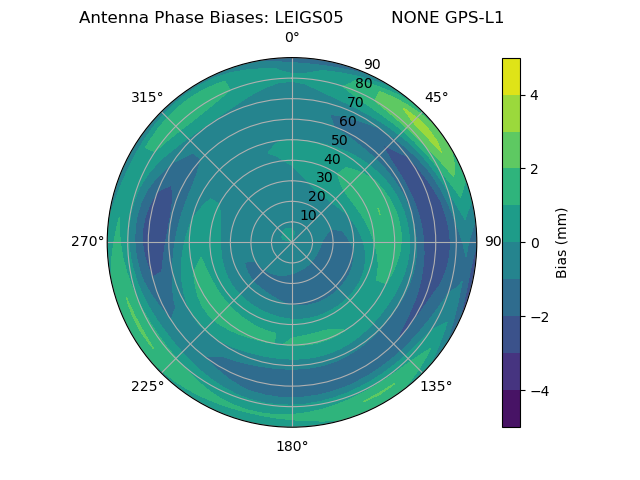

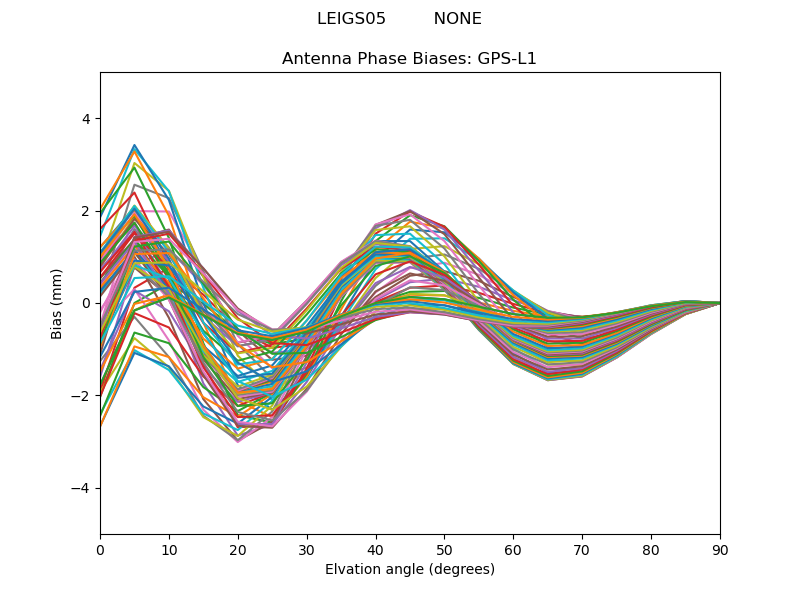

GPS-L1 | |

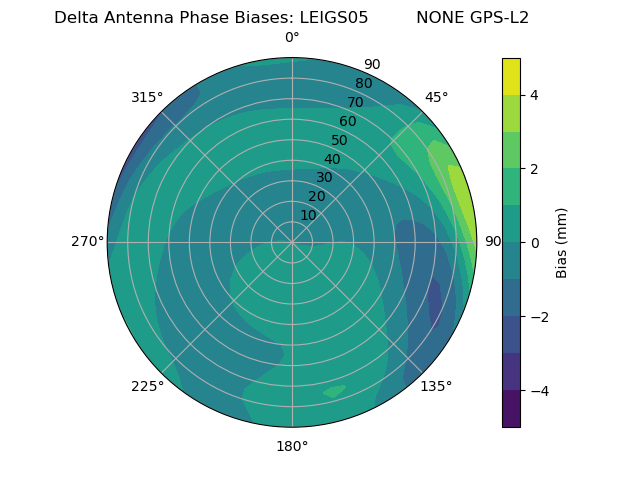

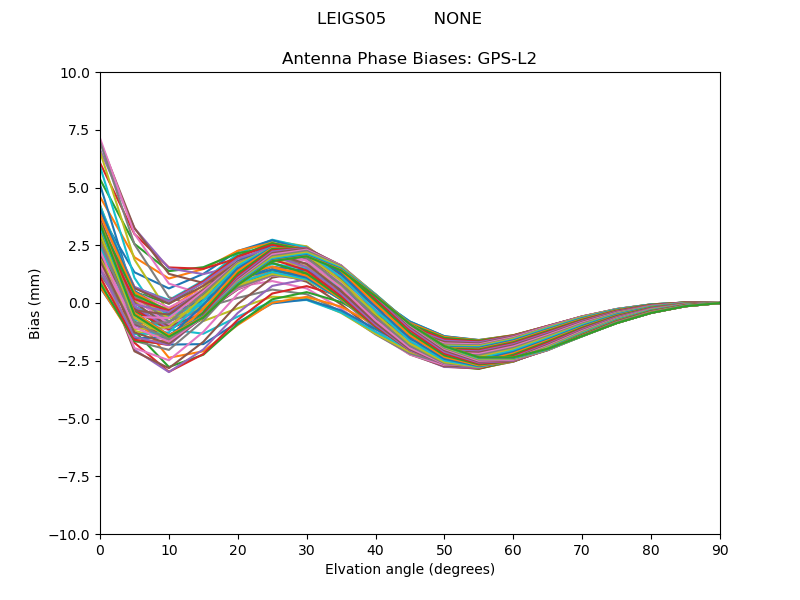

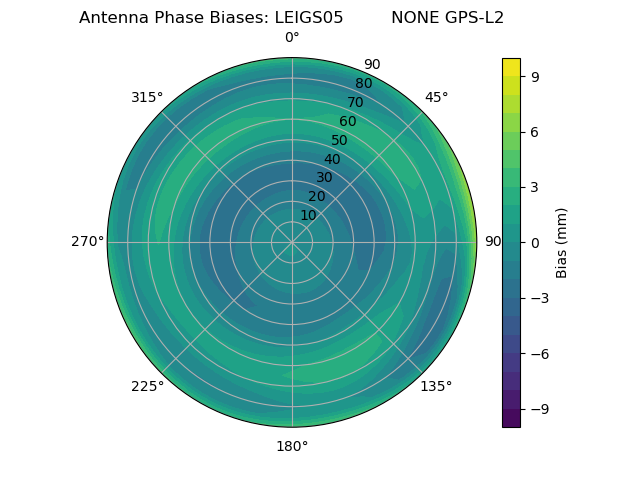

GPS-L2 | |
Bias | Delta |
---|---|

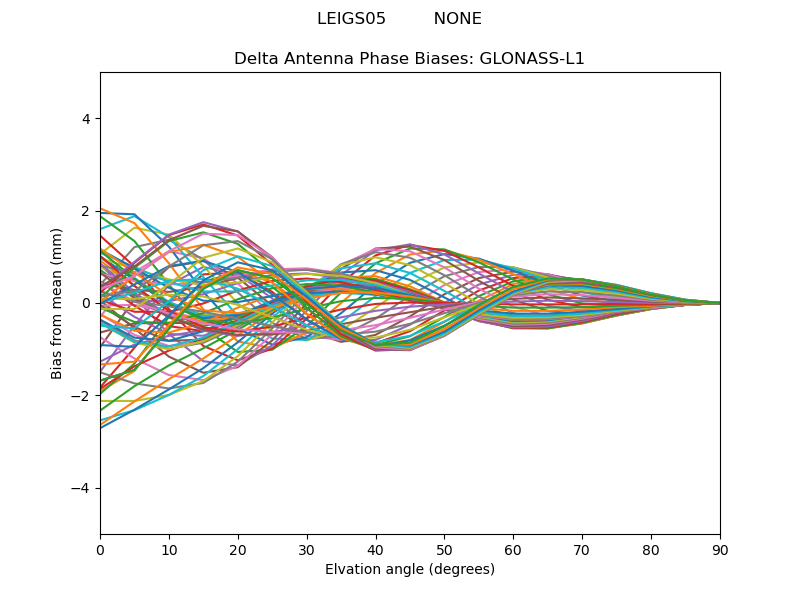

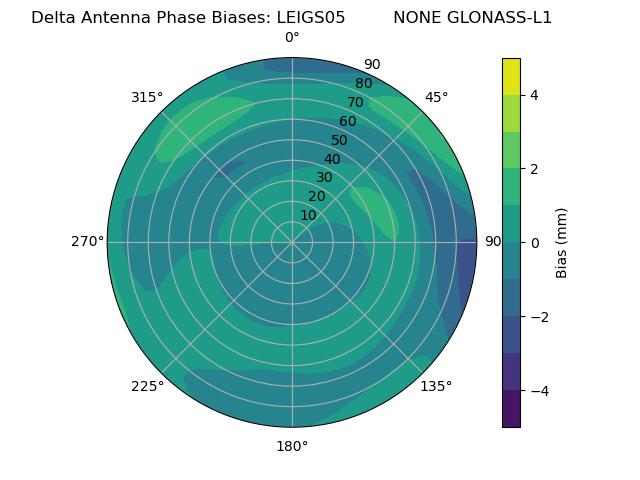

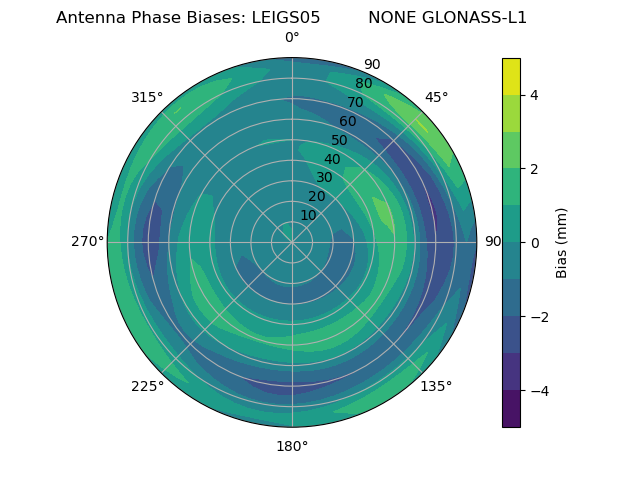

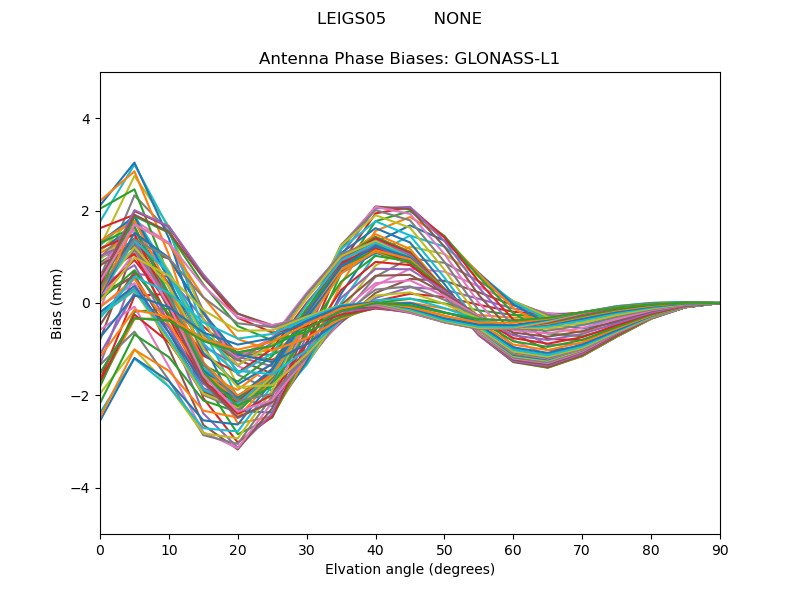

GLONASS-L1 | |

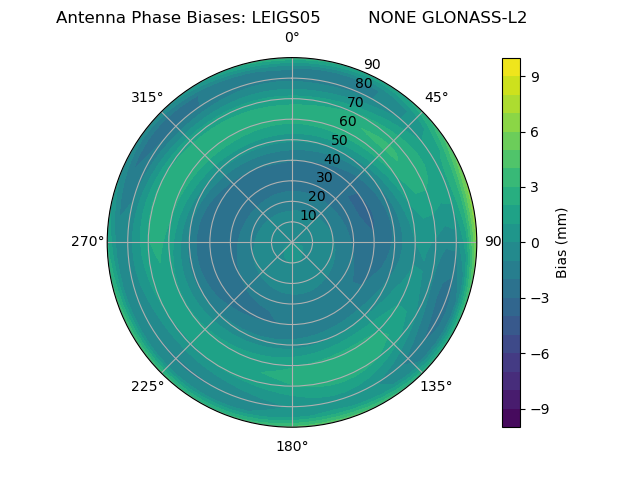

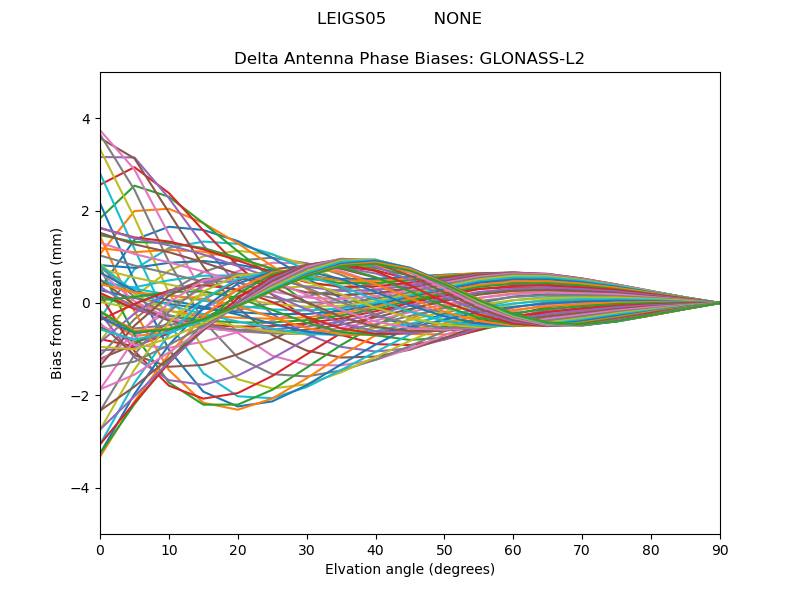

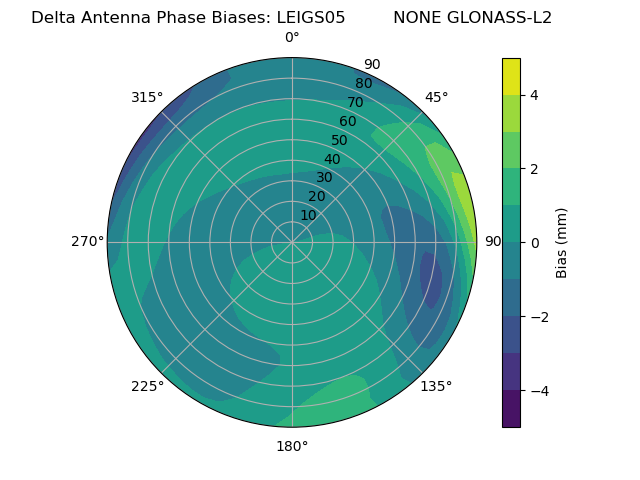

GLONASS-L2 | |
Bias | Delta |
---|---|

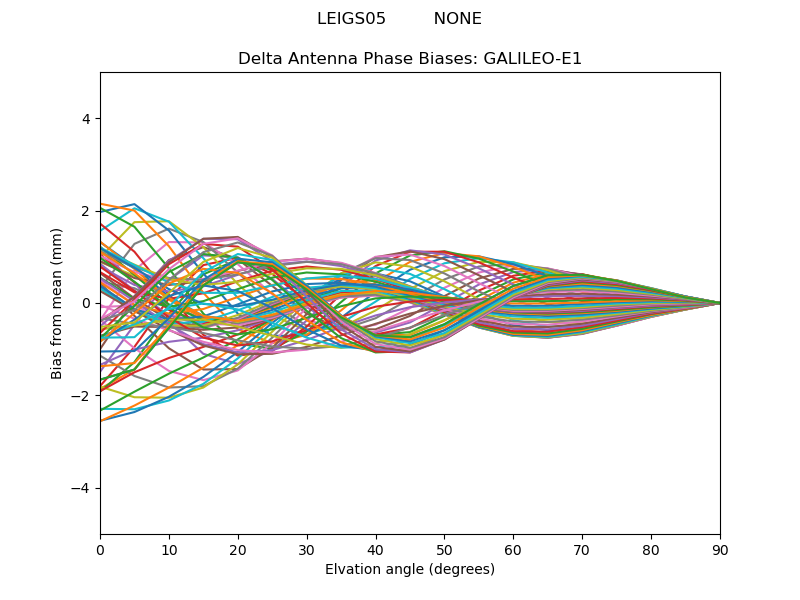

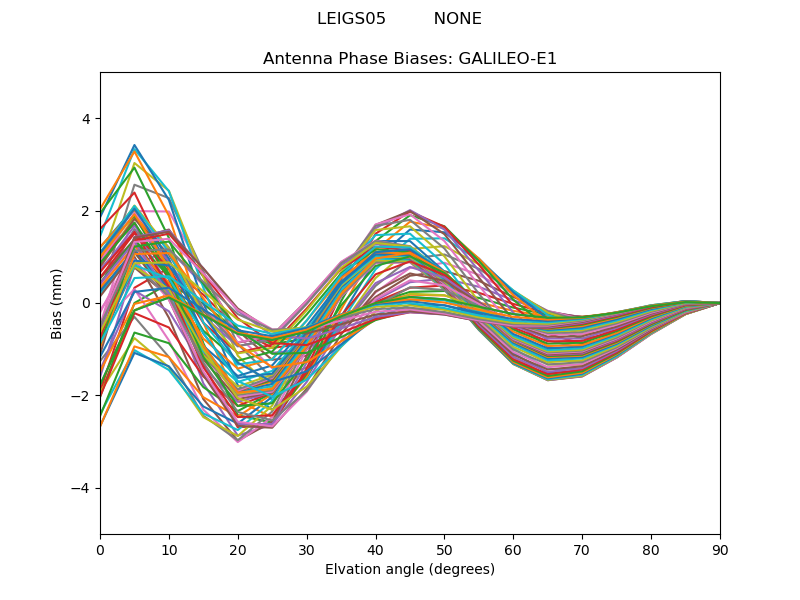

GALILEO-E1 | |

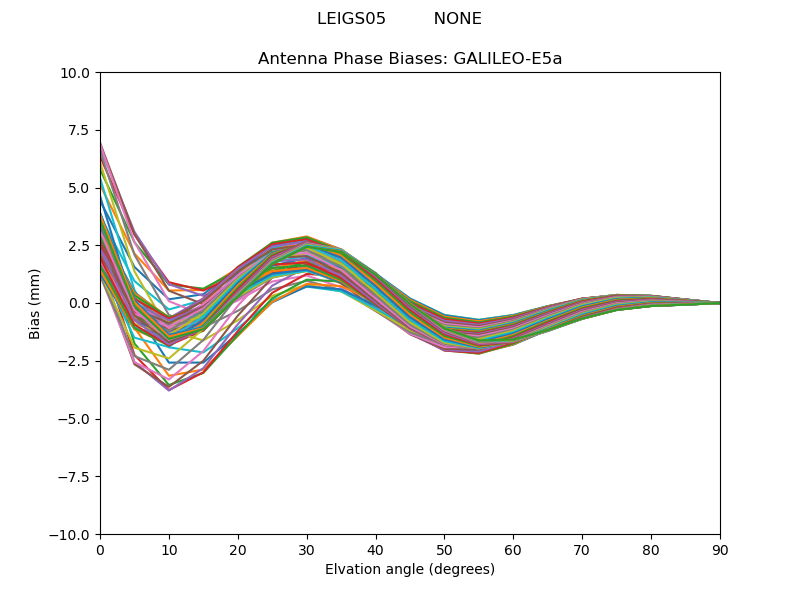

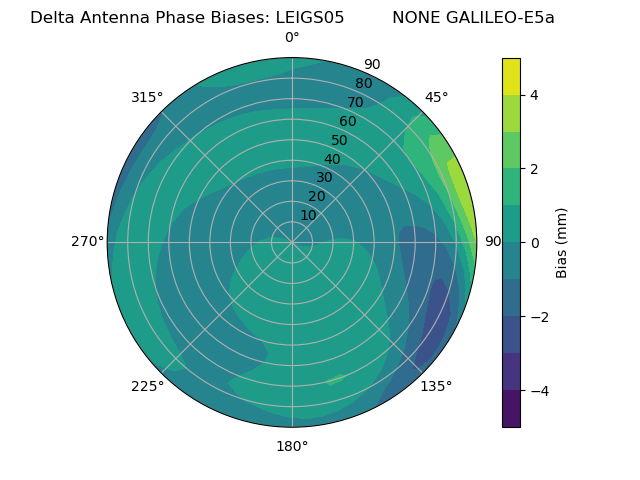

GALILEO-E5a | |
Bias | Delta |
---|---|
BeiDOU-E1 | |

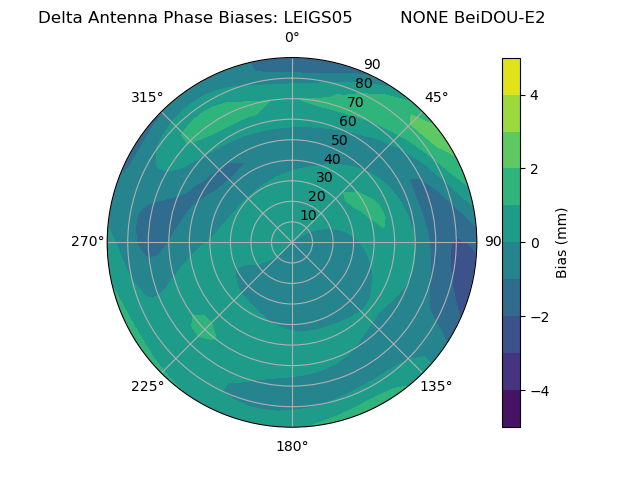

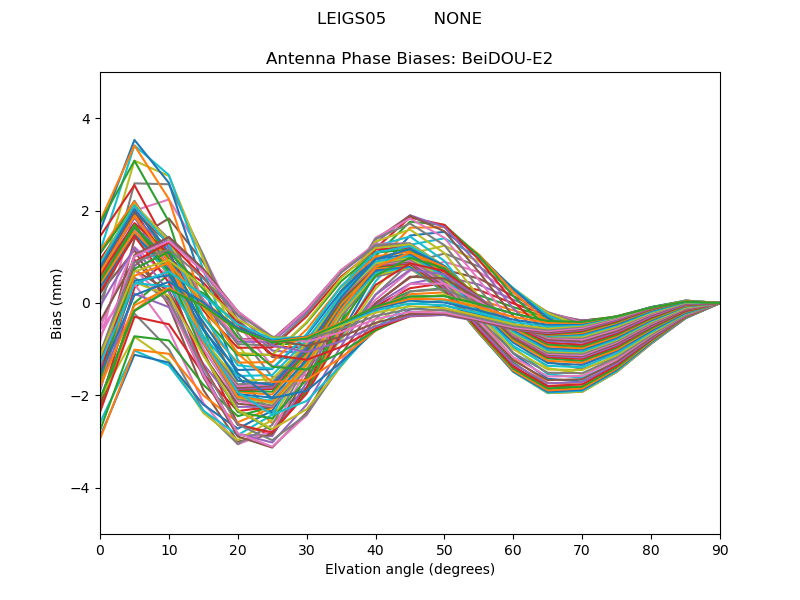

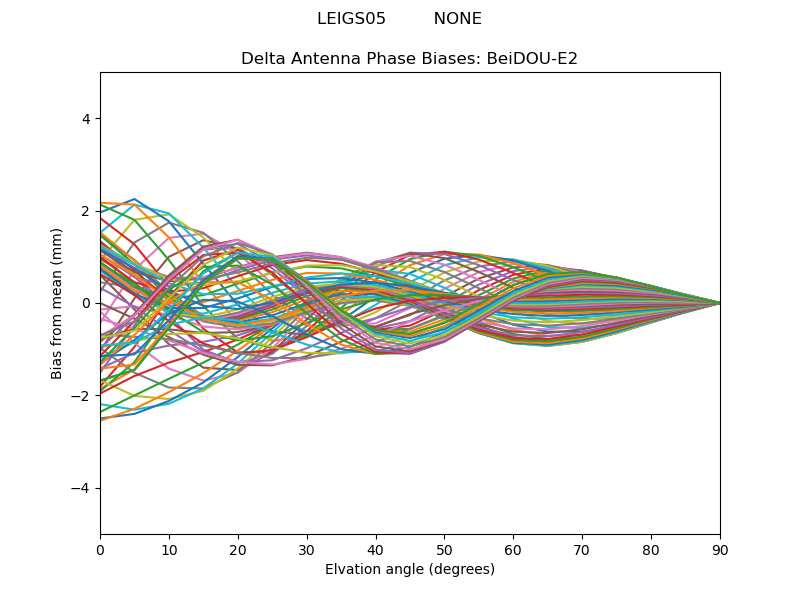

BeiDOU-E2 | |

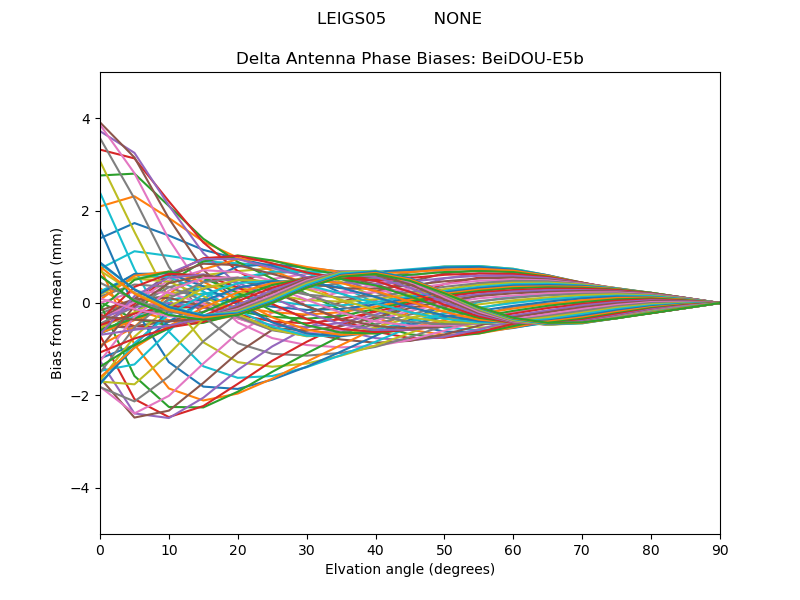

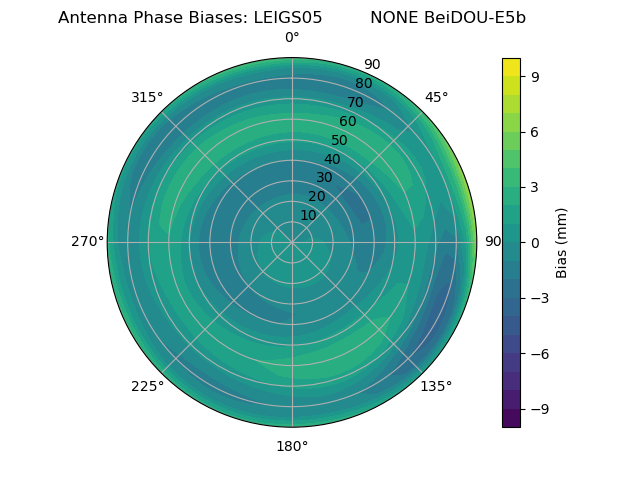

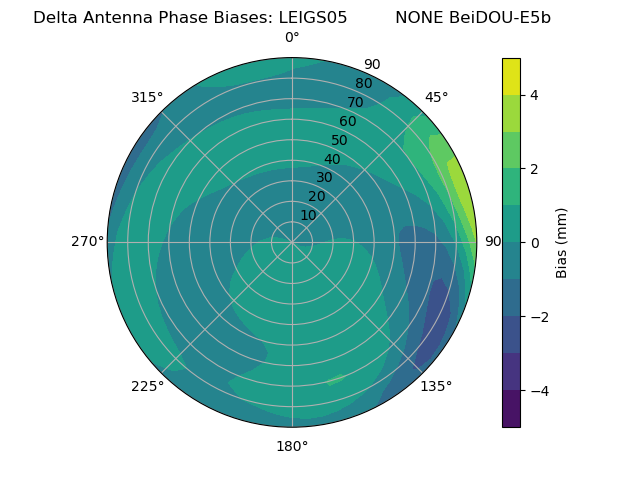

BeiDOU-E5b | |
Bias | Delta |
---|---|
QZSS-L1 | |

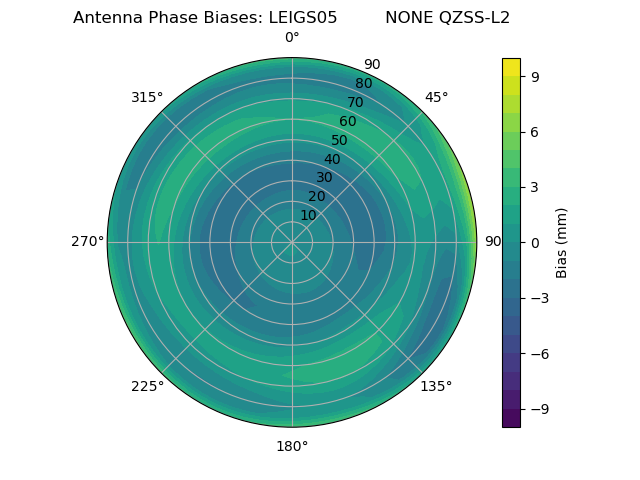

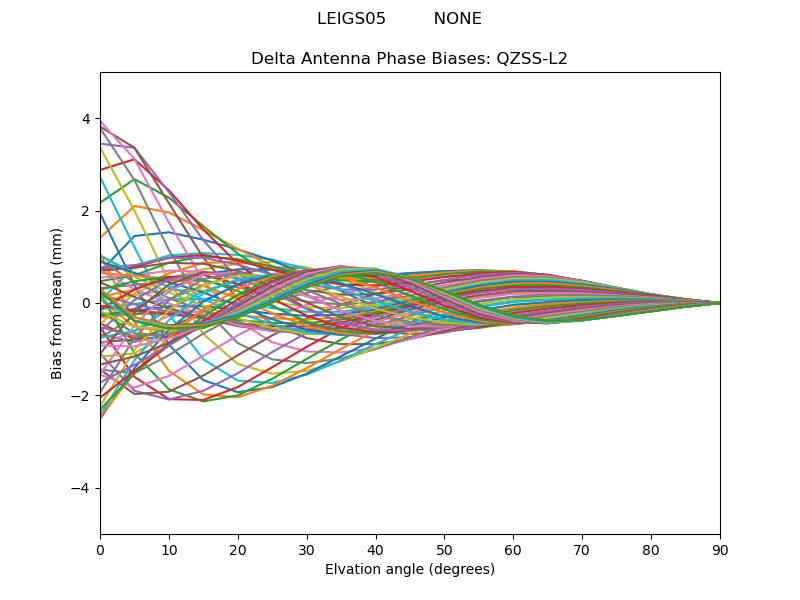

QZSS-L2 | |
Bias | Delta |
---|---|

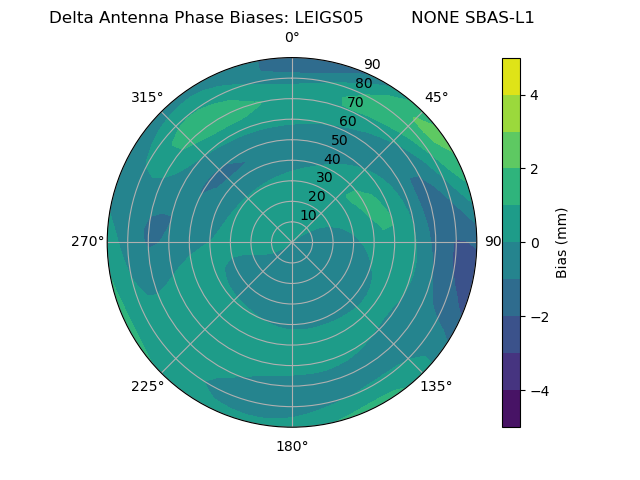

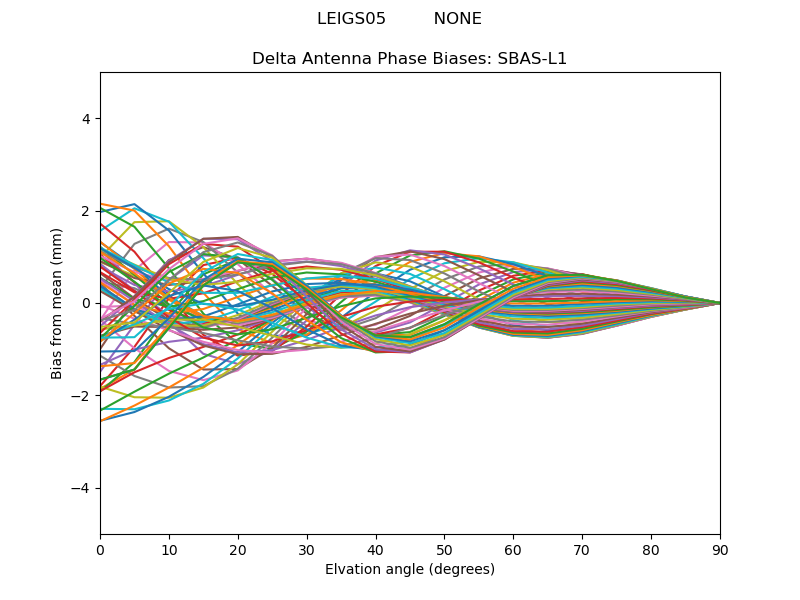

SBAS-L1 | |
