Antenna information for LEIICG160 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -1.30 E: 1.58 U: 106.36
L2: N: 1.36 E: 0.49 U: 119.19
L5: N: 3.97 E: -1.60 U: 115.79

GLONASS

L1: N: -1.18 E: 1.23 U: 106.64
L2: N: 0.32 E: 0.62 U: 118.38

GALILEO

E1: N: -1.30 E: 1.58 U: 106.36
E5a: N: 3.97 E: -1.60 U: 115.79
E5b: N: 2.46 E: -0.03 U: 118.87
E5: N: 3.23 E: -0.70 U: 117.73
E6: N: -1.66 E: 0.06 U: 114.59

BeiDou

E1: N: -1.30 E: 1.58 U: 106.36
E2: N: -1.39 E: 1.77 U: 106.13
E5b: N: 2.46 E: -0.03 U: 118.87
E6: N: -1.02 E: 0.33 U: 116.12

QZSS

L1: N: -1.30 E: 1.58 U: 106.36
L2: N: 1.36 E: 0.49 U: 119.19
L5: N: 3.97 E: -1.60 U: 115.79
LEX: N: -1.66 E: 0.06 U: 114.59

SBAS

L1: N: -1.30 E: 1.58 U: 106.36
L5: N: 3.97 E: -1.60 U: 115.79

L1

GPS: N: -1.30 E: 1.58 U: 106.36
GLONASS: N: -1.18 E: 1.23 U: 106.64
QZSS: N: -1.30 E: 1.58 U: 106.36
SBAS: N: -1.30 E: 1.58 U: 106.36

L2

GPS: N: 1.36 E: 0.49 U: 119.19
GLONASS: N: 0.32 E: 0.62 U: 118.38
QZSS: N: 1.36 E: 0.49 U: 119.19

L5

GPS: N: 3.97 E: -1.60 U: 115.79
QZSS: N: 3.97 E: -1.60 U: 115.79
SBAS: N: 3.97 E: -1.60 U: 115.79

E1

GALILEO: N: -1.30 E: 1.58 U: 106.36
BeiDou: N: -1.30 E: 1.58 U: 106.36

E2

BeiDou: N: -1.39 E: 1.77 U: 106.13

E5

GALILEO: N: 3.23 E: -0.70 U: 117.73

E5a

GALILEO: N: 3.97 E: -1.60 U: 115.79

E5b

GALILEO: N: 2.46 E: -0.03 U: 118.87
BeiDou: N: 2.46 E: -0.03 U: 118.87

E6

GALILEO: N: -1.66 E: 0.06 U: 114.59
BeiDou: N: -1.02 E: 0.33 U: 116.12

LEX

QZSS: N: -1.66 E: 0.06 U: 114.59

Means

GPS


GLONASS

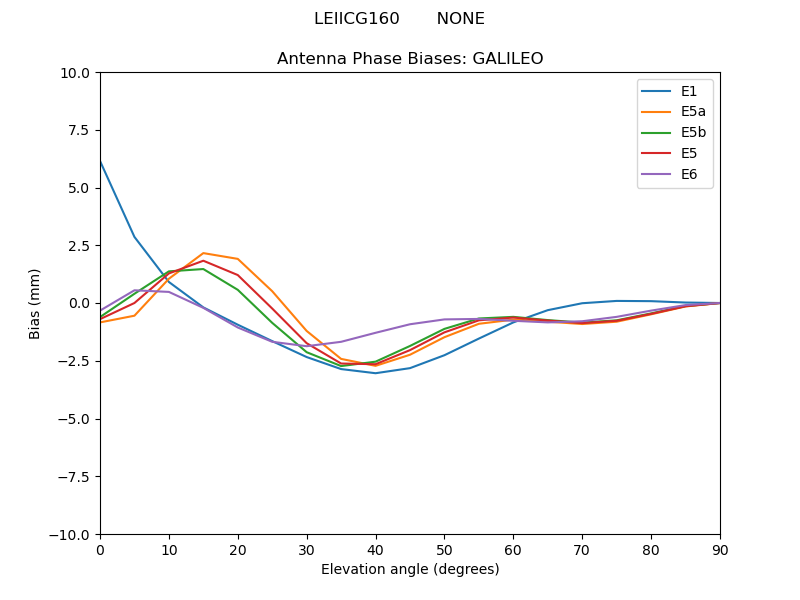

GALILEO


BeiDOU

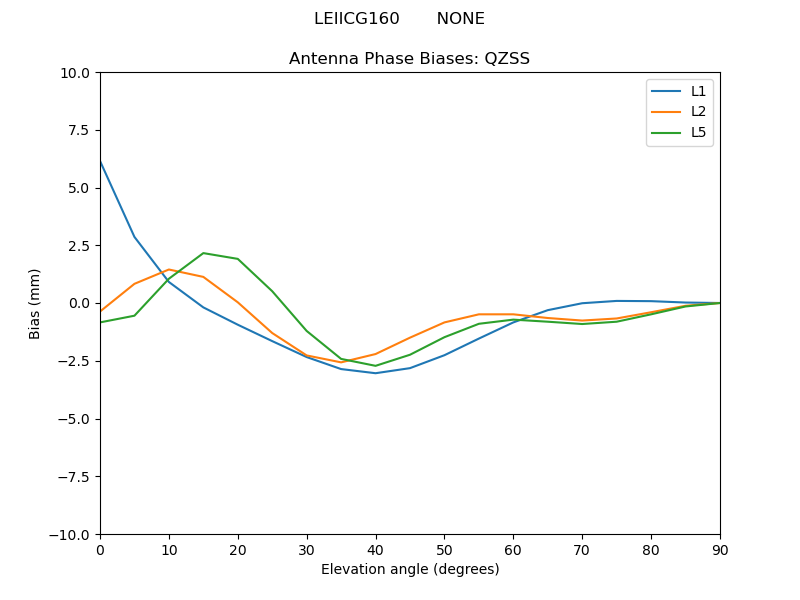

QZSS

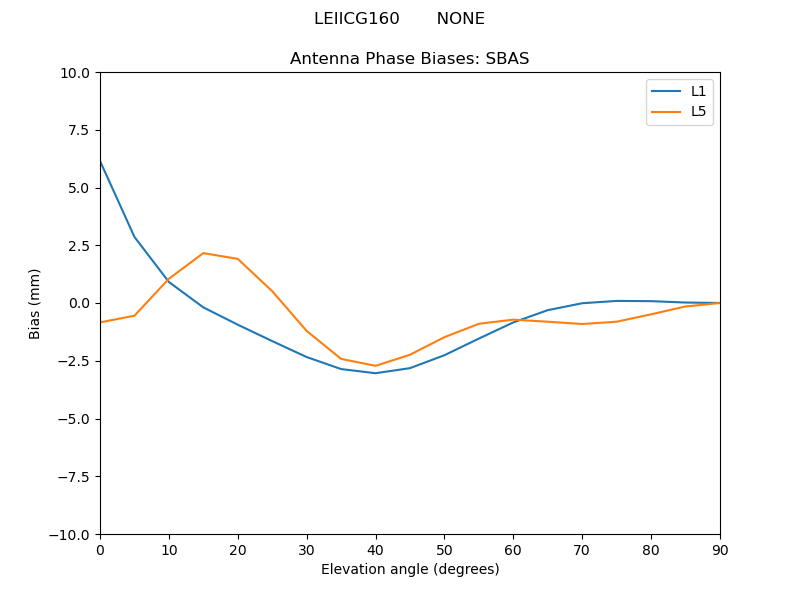

SBAS


Azimuths

GPS
Bias Delta

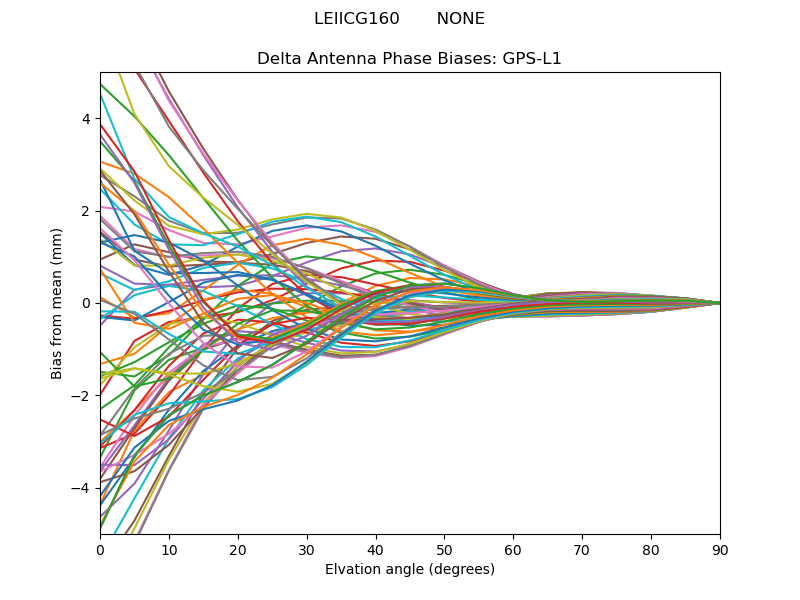

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

GPS-L2

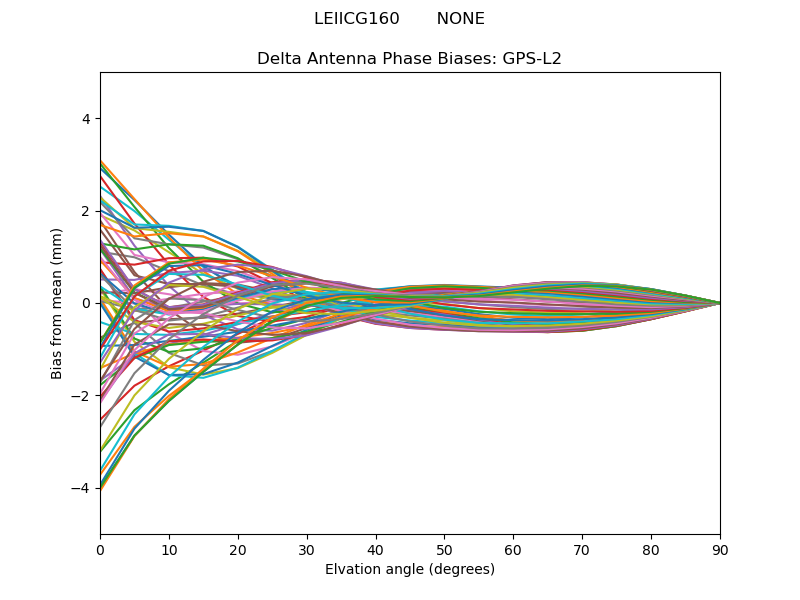

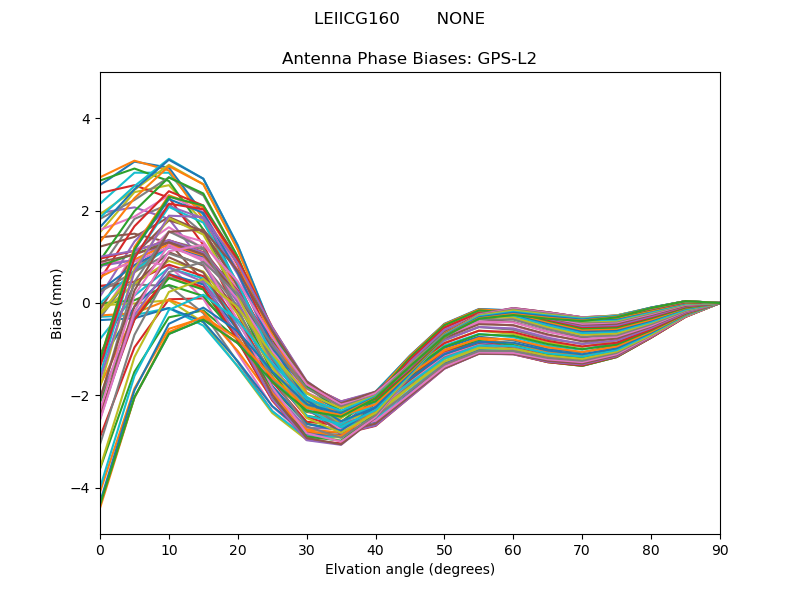

GPS-L2GPS-L2

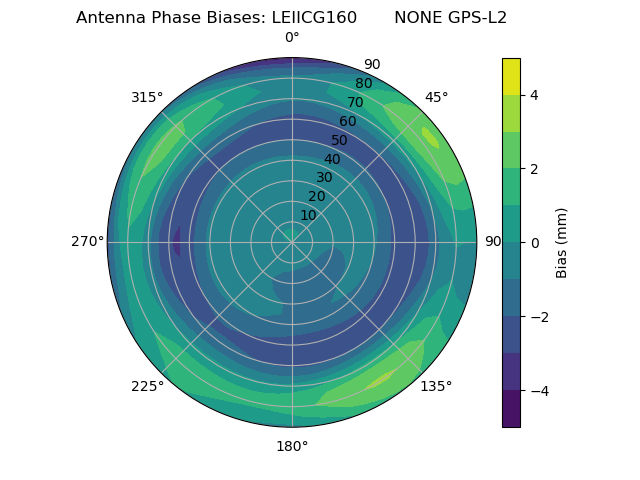

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5
Radial GPS-L5Radial GPS-L5

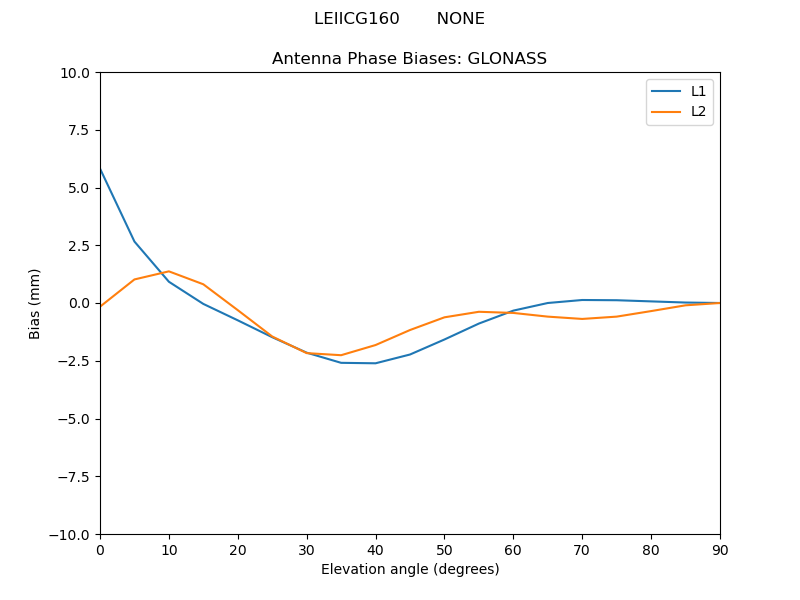

GLONASS
Bias Delta

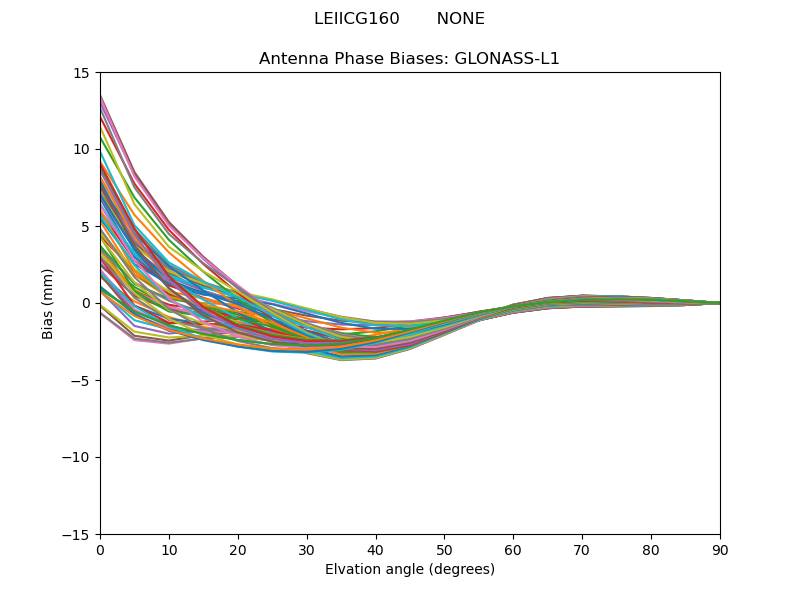

GLONASS-L1

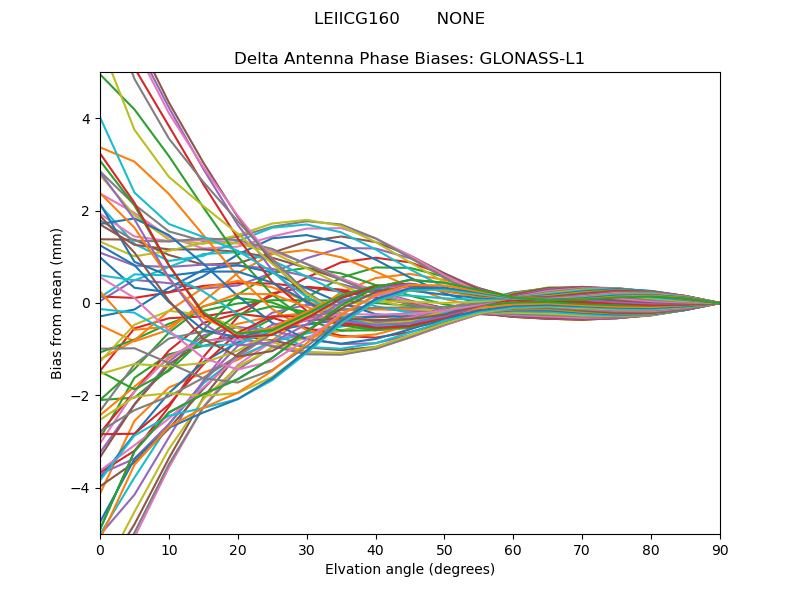

GLONASS-L1GLONASS-L1

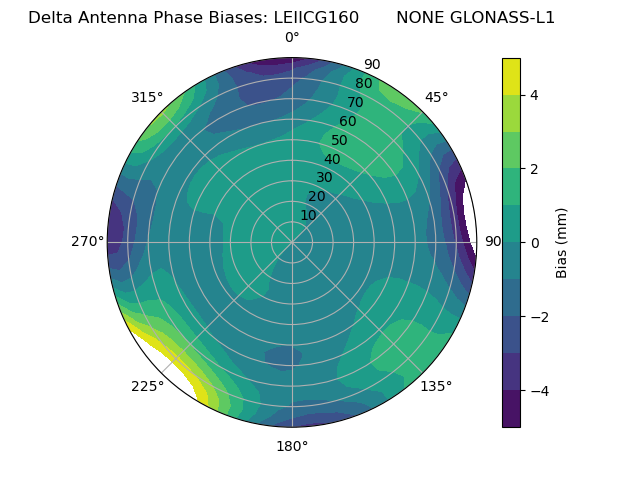

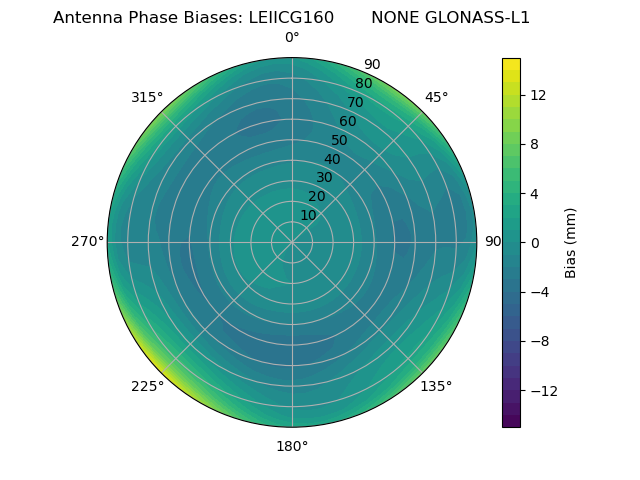

Radial GLONASS-L1Radial GLONASS-L1

GLONASS-L2

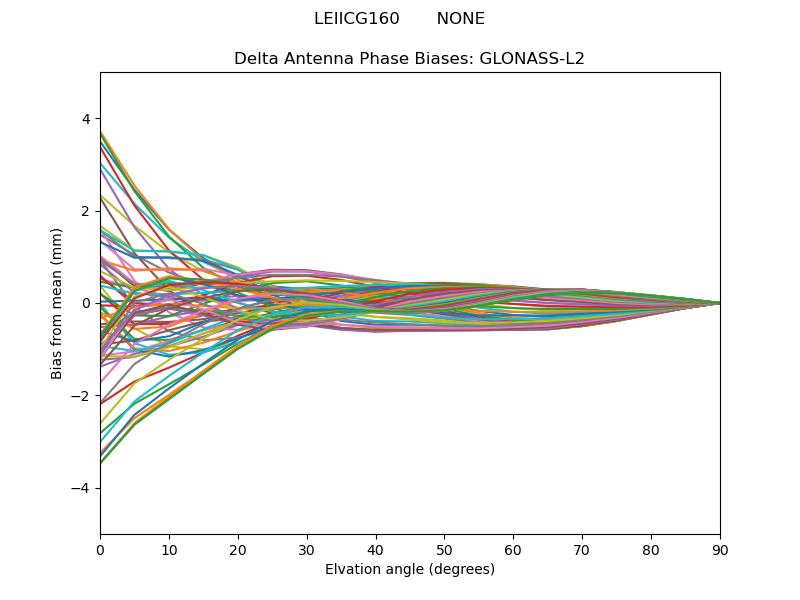

GLONASS-L2GLONASS-L2

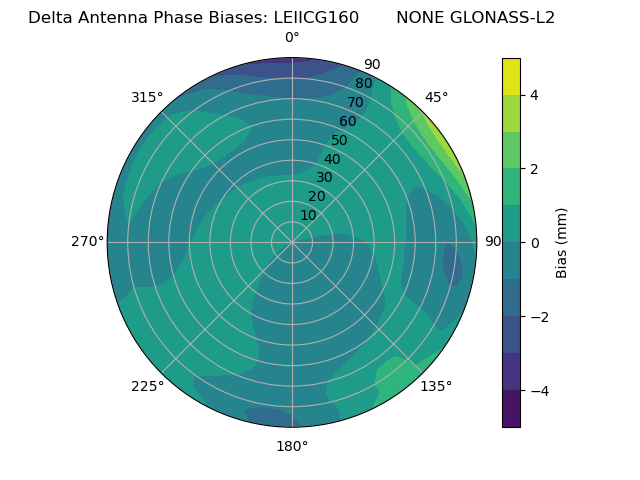

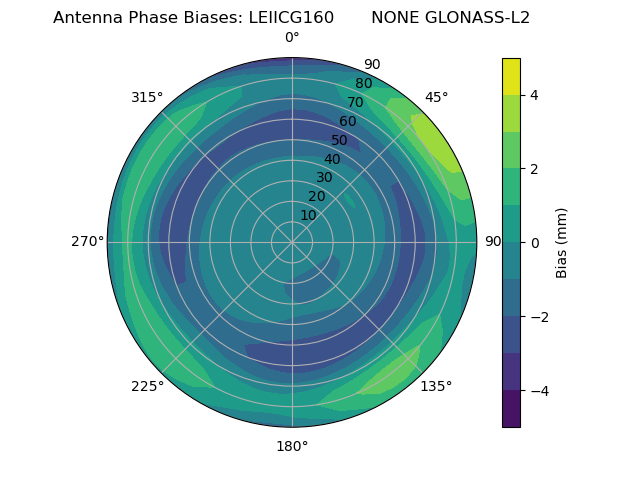

Radial GLONASS-L2Radial GLONASS-L2

GALILEO
Bias Delta

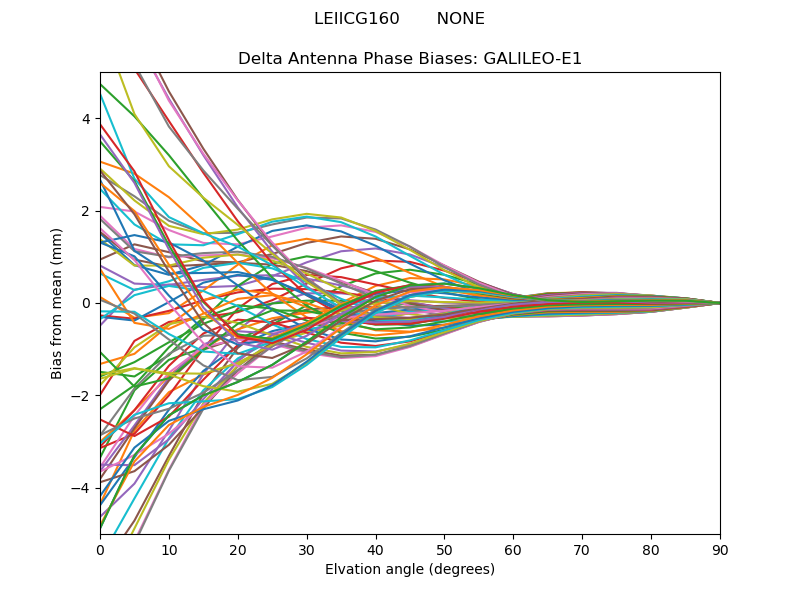

GALILEO-E1

GALILEO-E1GALILEO-E1

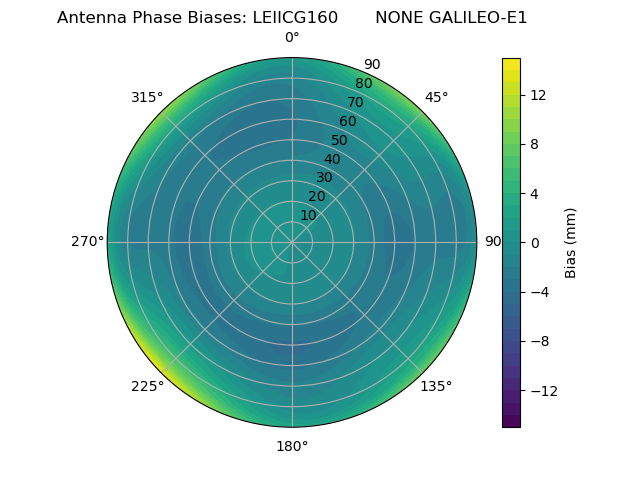

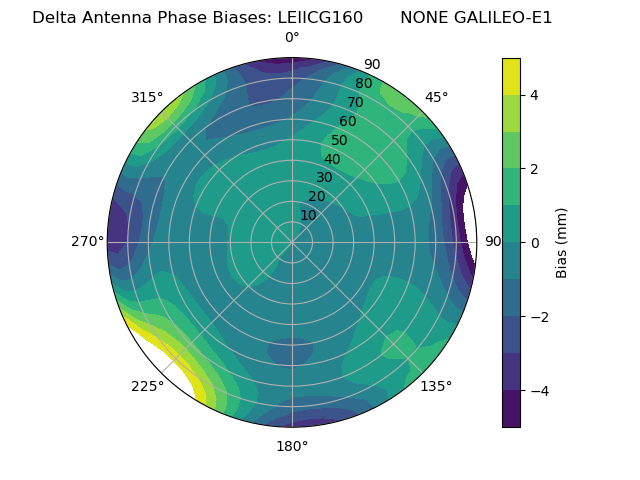

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

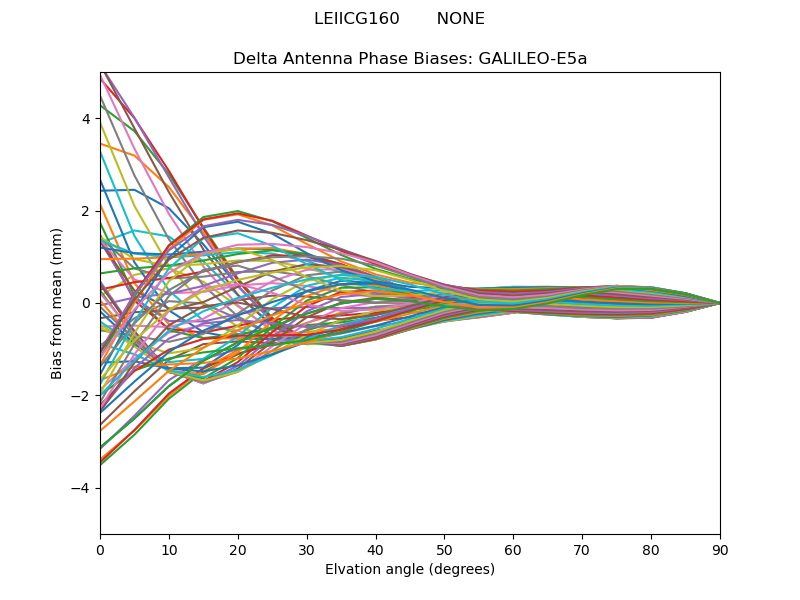

GALILEO-E5aGALILEO-E5a

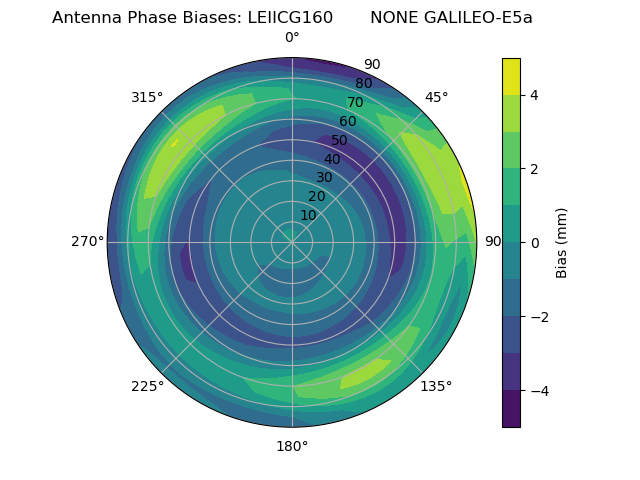

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

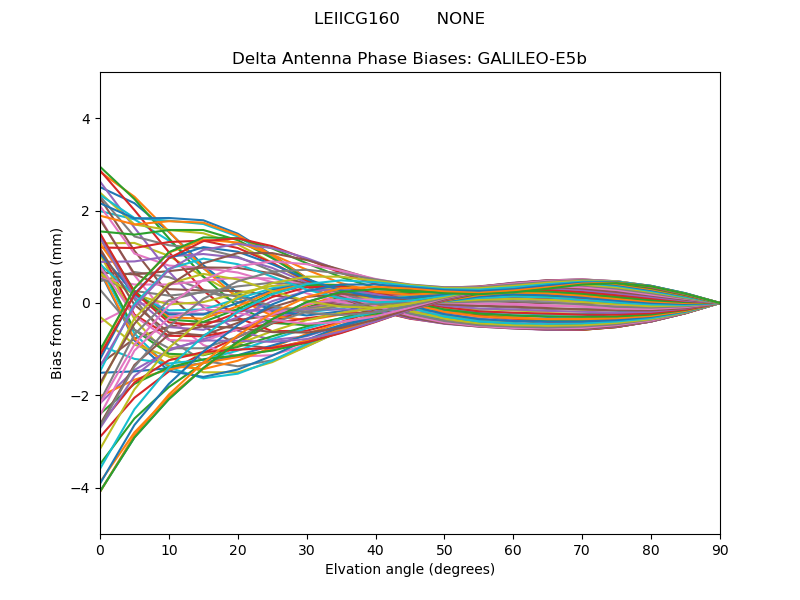

GALILEO-E5bGALILEO-E5b
Radial GALILEO-E5bRadial GALILEO-E5b

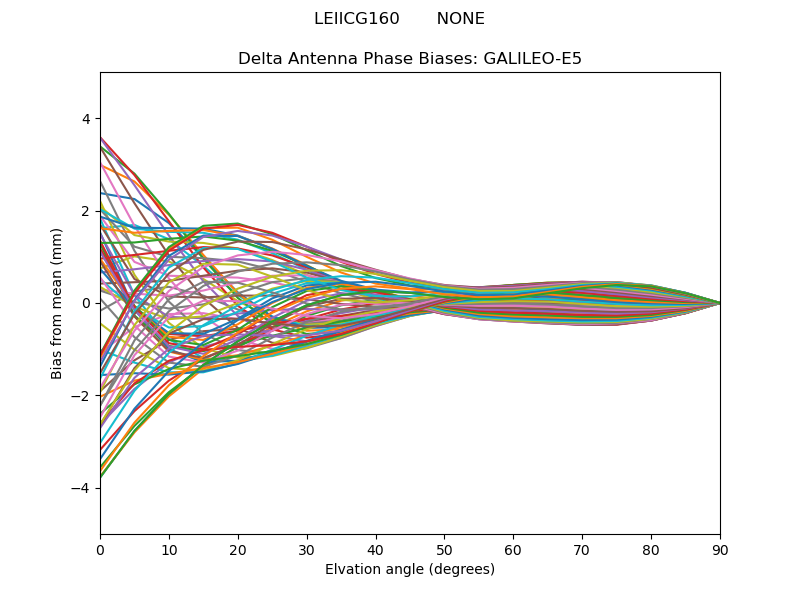

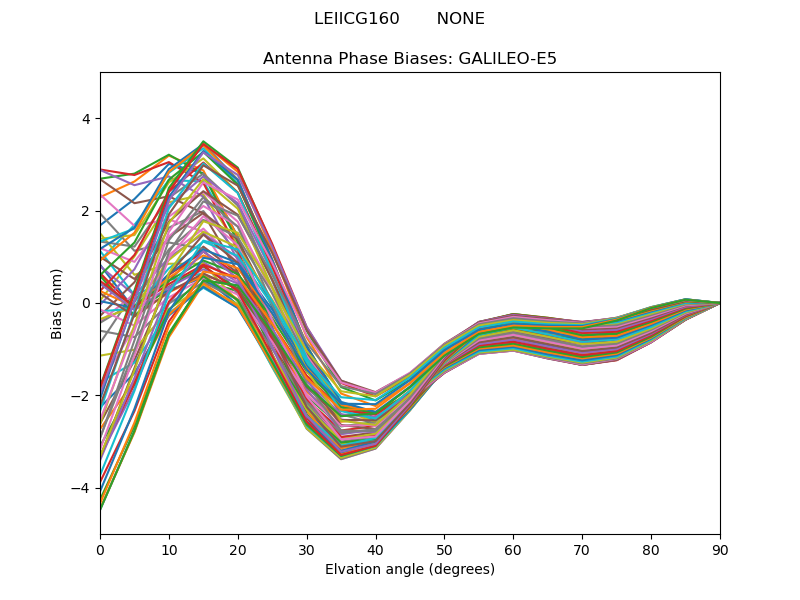

GALILEO-E5

GALILEO-E5GALILEO-E5

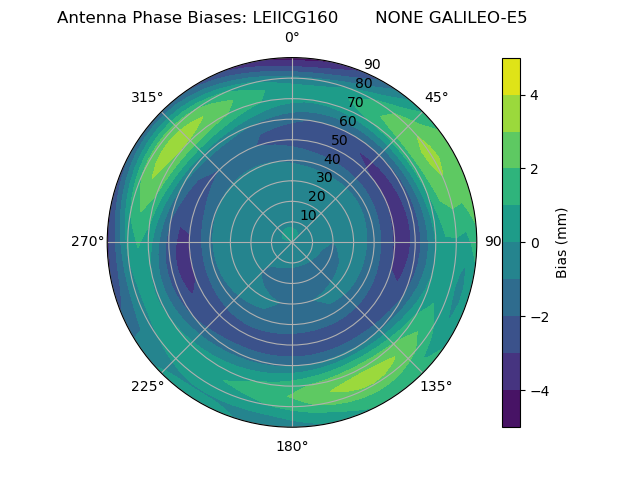

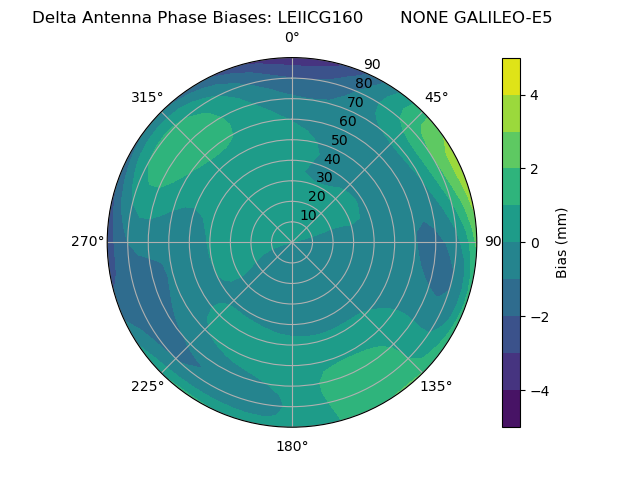

Radial GALILEO-E5Radial GALILEO-E5

GALILEO-E6

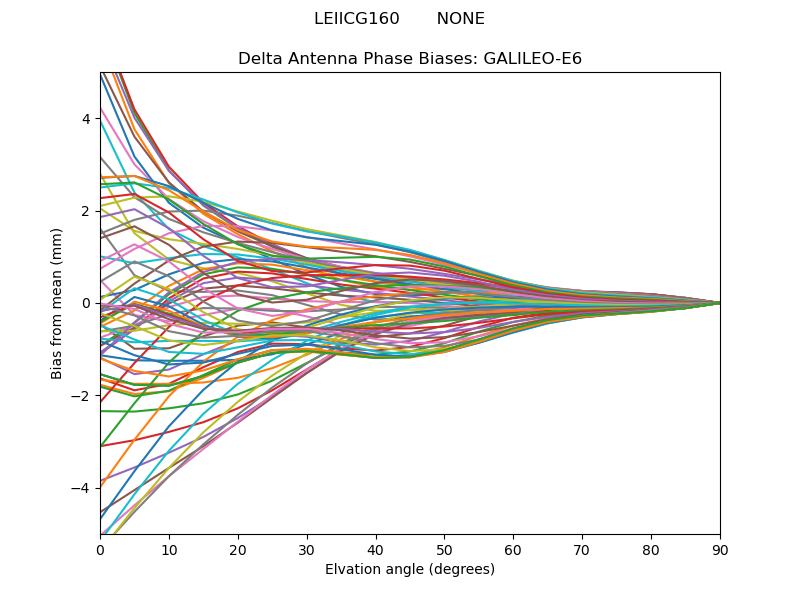

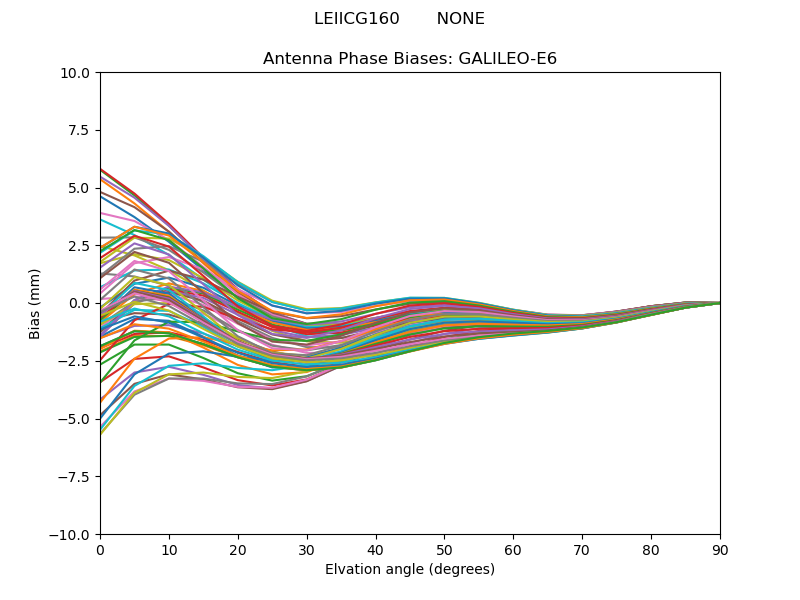

GALILEO-E6GALILEO-E6

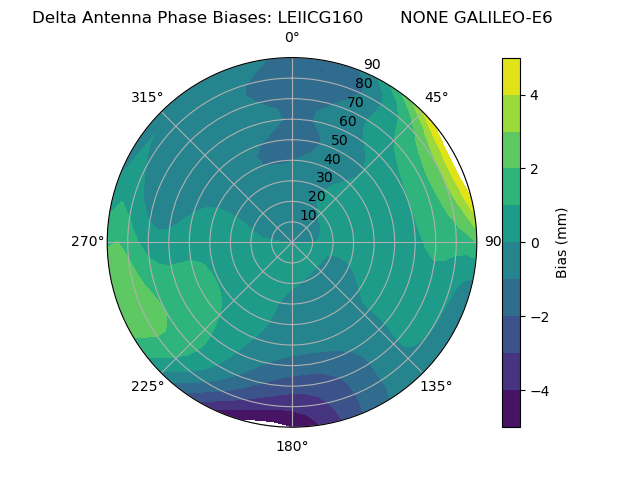

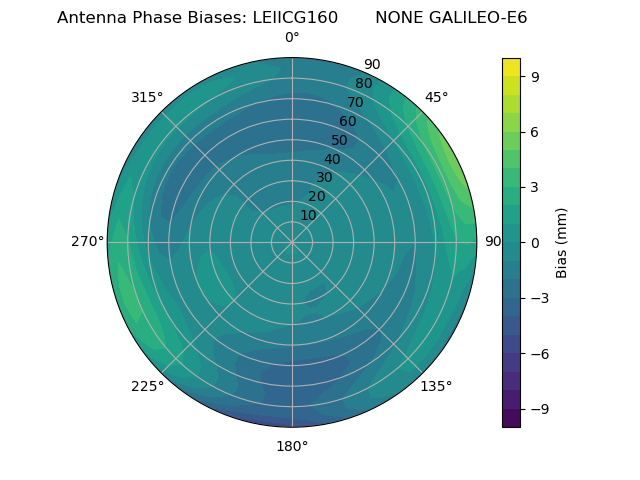

Radial GALILEO-E6Radial GALILEO-E6

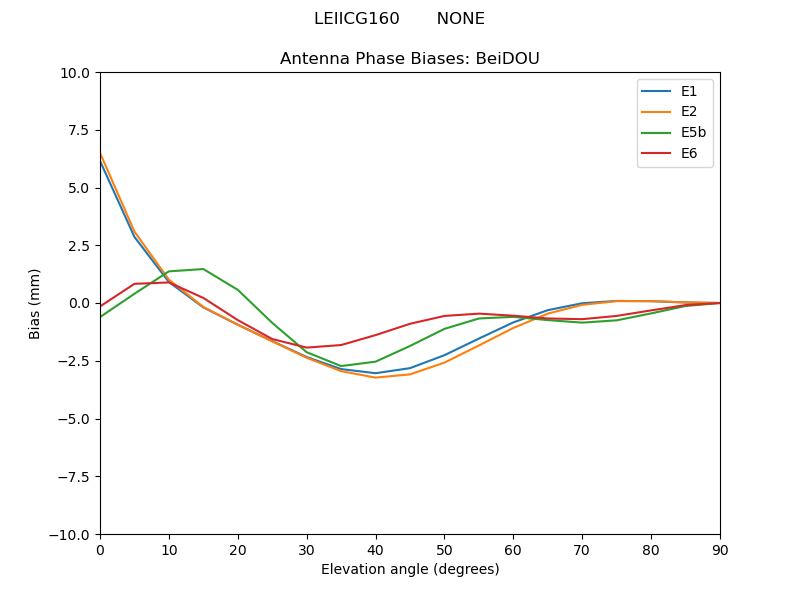

BeiDOU
Bias Delta

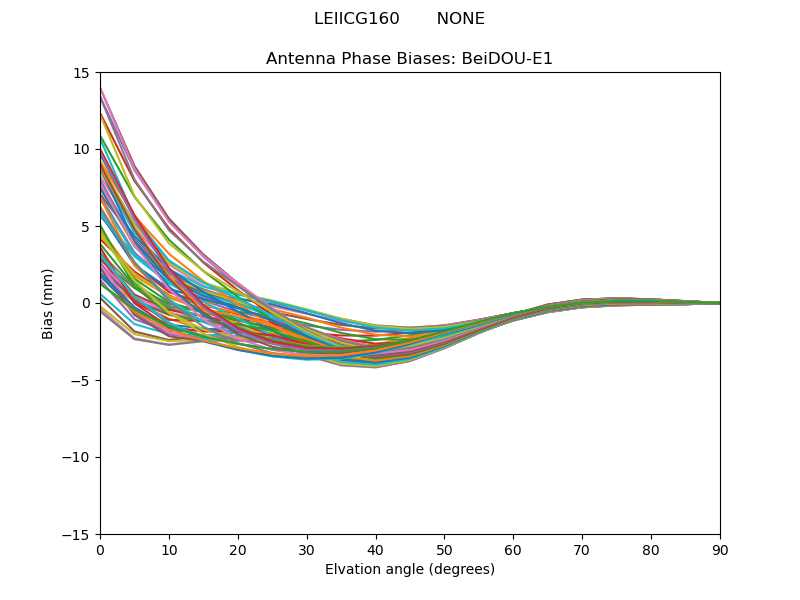

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

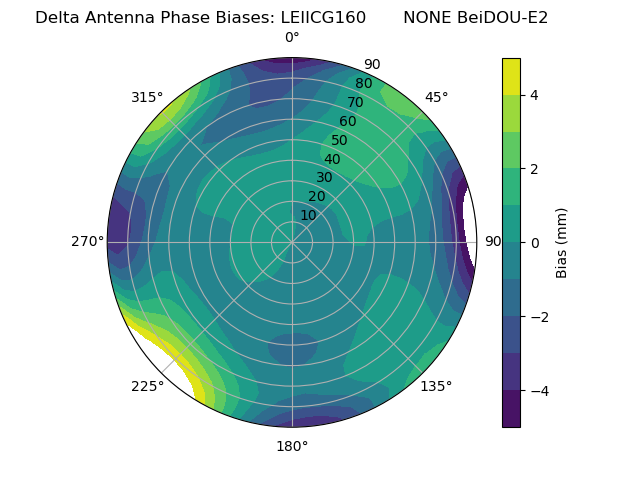

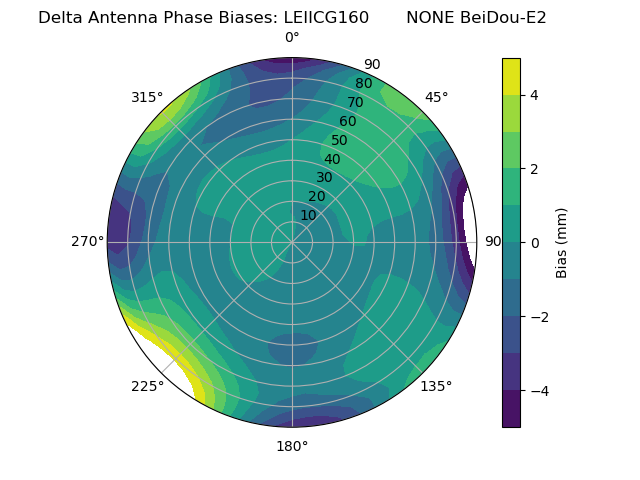

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

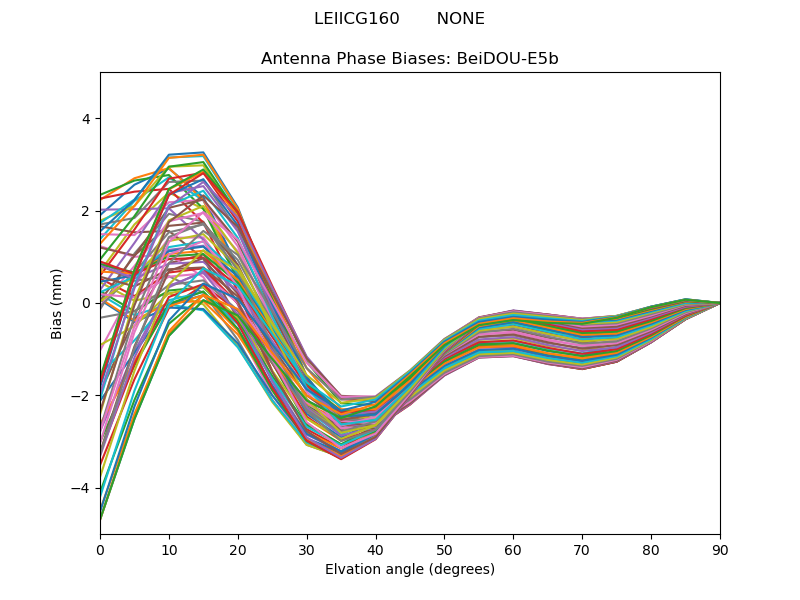

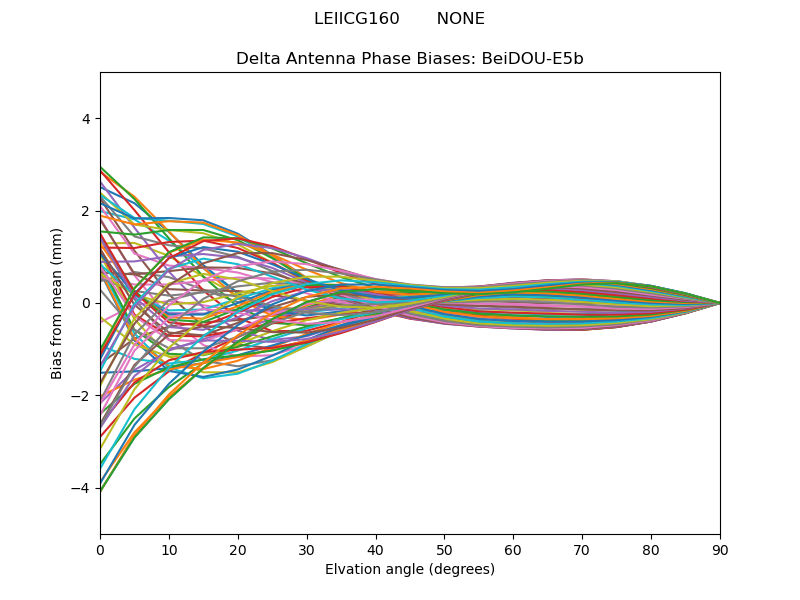

BeiDOU-E5bBeiDOU-E5b

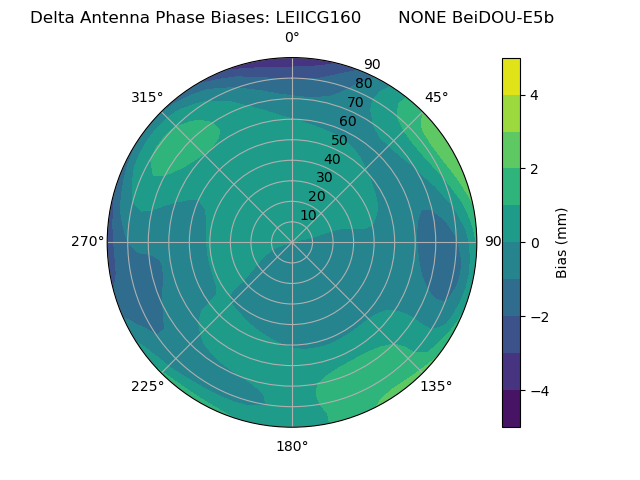

Radial BeiDOU-E5bRadial BeiDOU-E5b

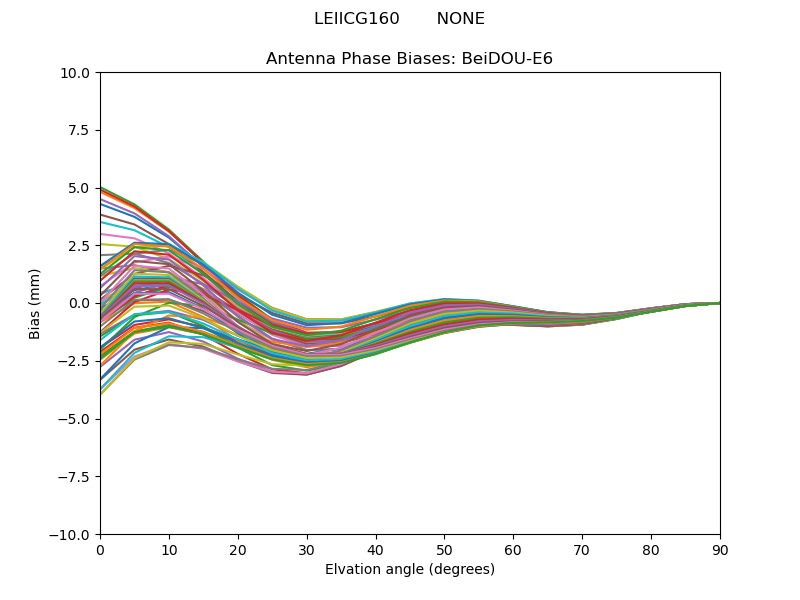

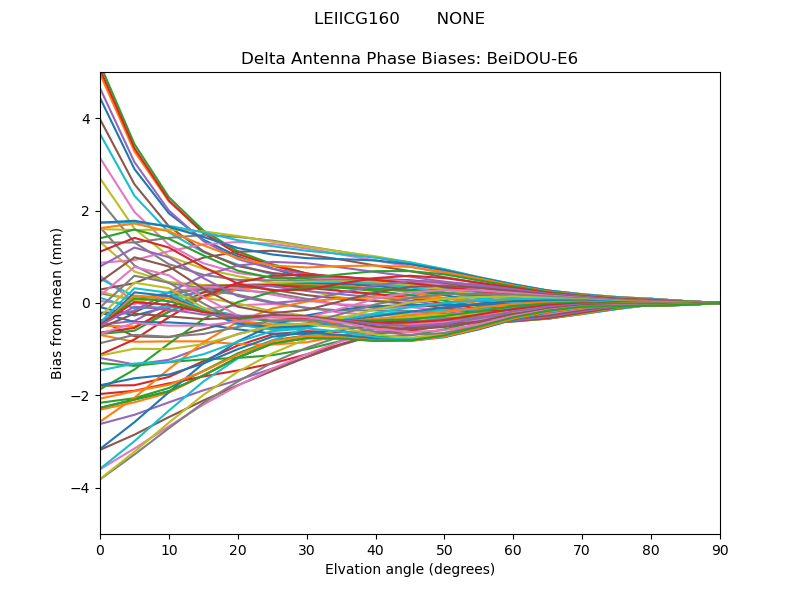

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

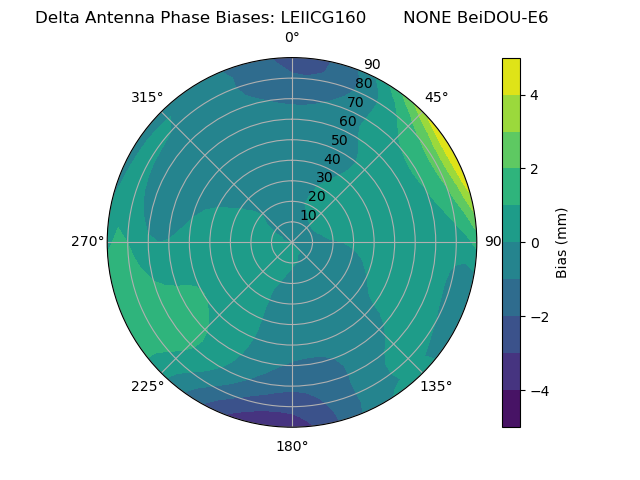

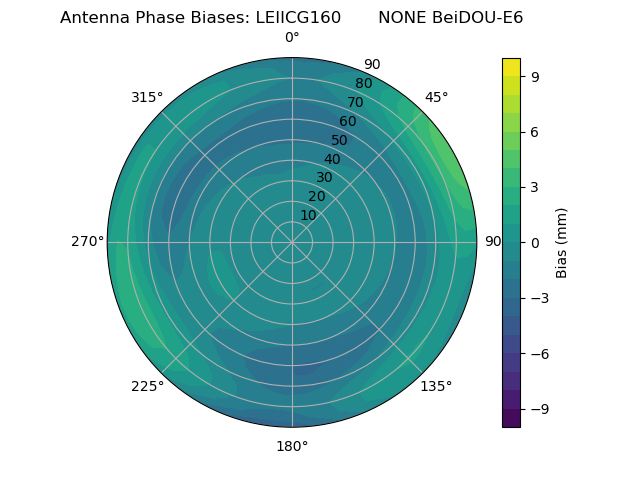

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS
Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

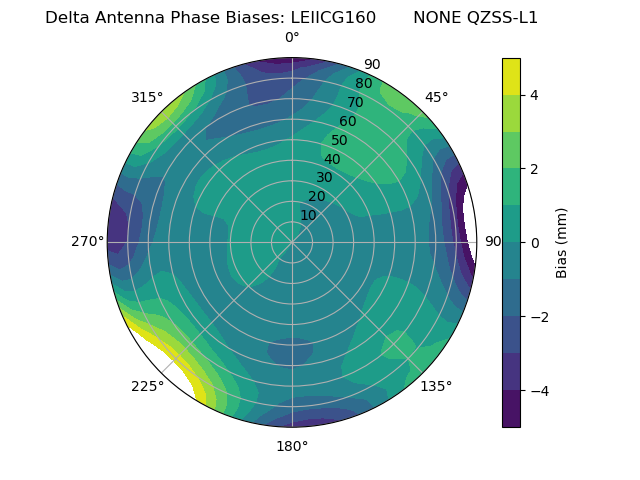

Radial QZSS-L1Radial QZSS-L1

QZSS-L2

QZSS-L2QZSS-L2

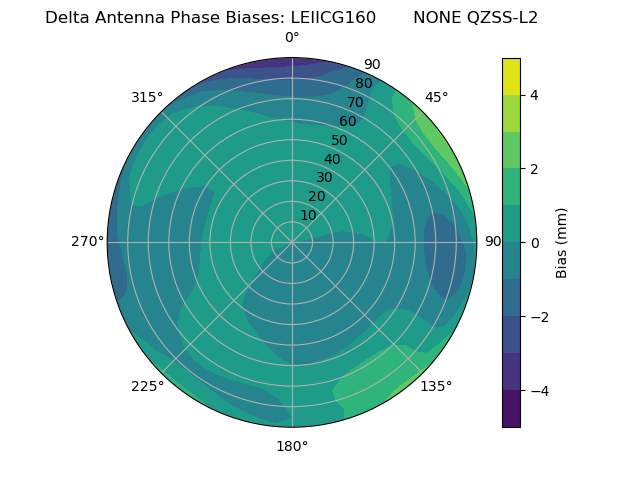

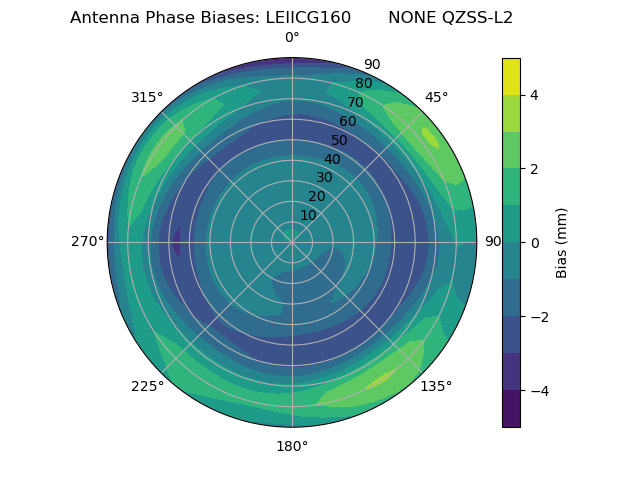

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

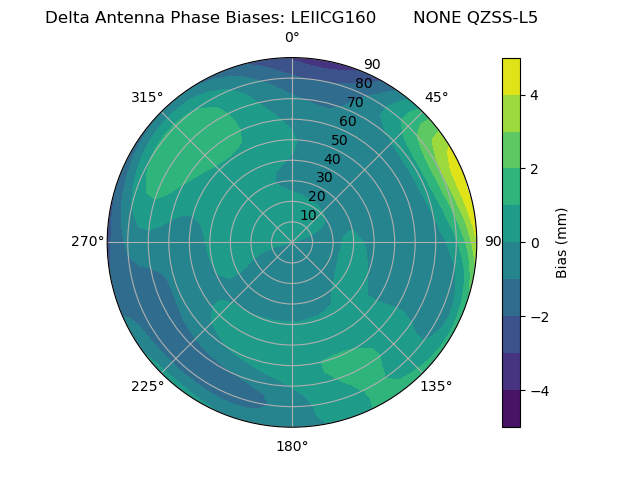

Radial QZSS-L5Radial QZSS-L5

SBAS
Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

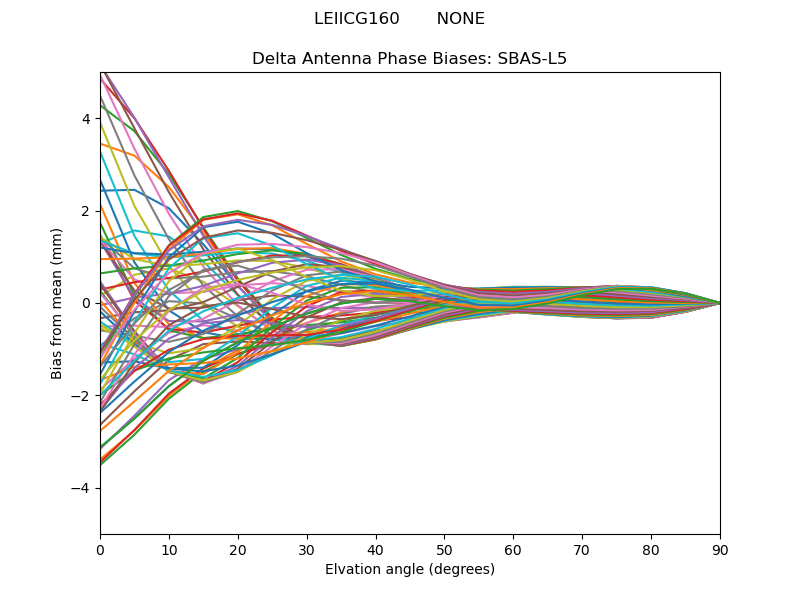

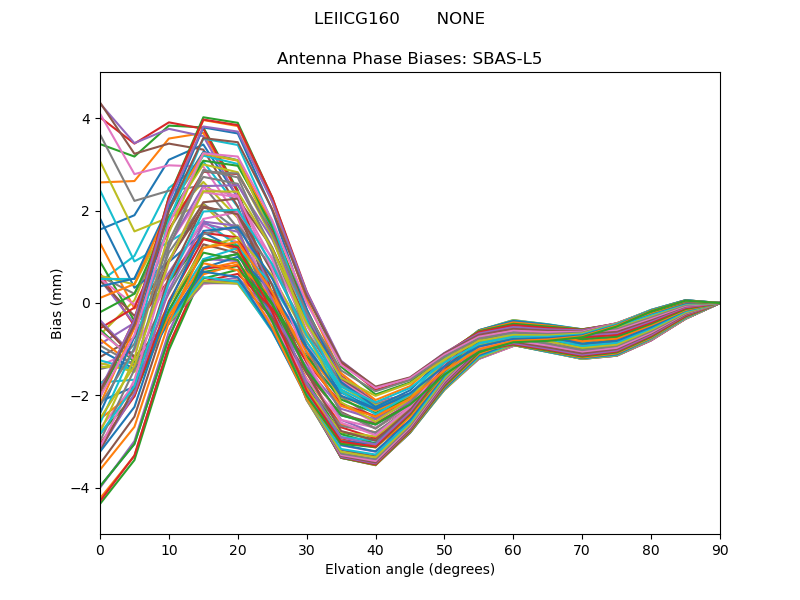

SBAS-L5

SBAS-L5SBAS-L5

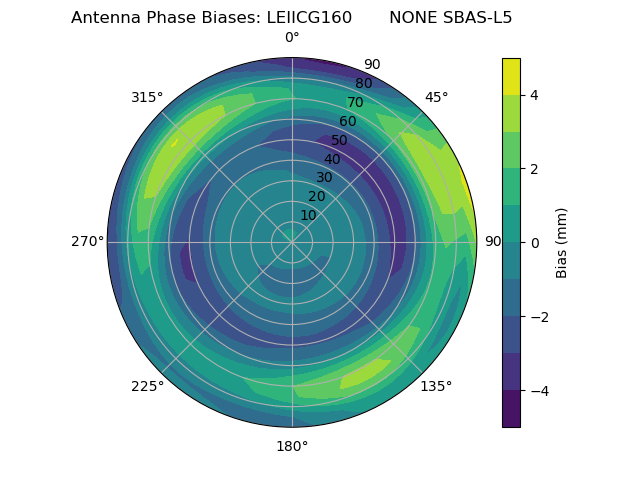

Radial SBAS-L5Radial SBAS-L5
