Antenna information for NAX3G+C NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.26 E: -0.24 U: 60.54
L2: N: 0.38 E: 0.48 U: 57.51
L5: N: 0.16 E: 0.33 U: 59.50

GLONASS

L1: N: -0.66 E: -0.98 U: 61.22
L2: N: 0.44 E: 0.51 U: 57.43

GALILEO

E1: N: -0.26 E: -0.24 U: 60.54
E5a: N: 0.16 E: 0.33 U: 59.50
E5b: N: 0.30 E: 0.43 U: 57.98
E5: N: 0.23 E: 0.38 U: 58.62
E6: N: 0.53 E: 0.53 U: 58.03

BeiDou

E1: N: -0.26 E: -0.24 U: 60.54
E2: N: -0.03 E: 0.17 U: 60.16
E5b: N: 0.30 E: 0.43 U: 57.98
E6: N: 0.51 E: 0.53 U: 57.75

QZSS

L1: N: -0.26 E: -0.24 U: 60.54
L2: N: 0.38 E: 0.48 U: 57.51
L5: N: 0.16 E: 0.33 U: 59.50
LEX: N: 0.53 E: 0.53 U: 58.03

IRNSS

L5: N: 0.16 E: 0.33 U: 59.50

SBAS

L1: N: -0.26 E: -0.24 U: 60.54
L5: N: 0.16 E: 0.33 U: 59.50

L1

GPS: N: -0.26 E: -0.24 U: 60.54
GLONASS: N: -0.66 E: -0.98 U: 61.22
QZSS: N: -0.26 E: -0.24 U: 60.54
SBAS: N: -0.26 E: -0.24 U: 60.54

L2

GPS: N: 0.38 E: 0.48 U: 57.51
GLONASS: N: 0.44 E: 0.51 U: 57.43
QZSS: N: 0.38 E: 0.48 U: 57.51

L5

GPS: N: 0.16 E: 0.33 U: 59.50
QZSS: N: 0.16 E: 0.33 U: 59.50
SBAS: N: 0.16 E: 0.33 U: 59.50
IRNSS: N: 0.16 E: 0.33 U: 59.50

E1

GALILEO: N: -0.26 E: -0.24 U: 60.54
BeiDou: N: -0.26 E: -0.24 U: 60.54

E2

BeiDou: N: -0.03 E: 0.17 U: 60.16

E5

GALILEO: N: 0.23 E: 0.38 U: 58.62

E5a

GALILEO: N: 0.16 E: 0.33 U: 59.50

E5b

GALILEO: N: 0.30 E: 0.43 U: 57.98
BeiDou: N: 0.30 E: 0.43 U: 57.98

E6

GALILEO: N: 0.53 E: 0.53 U: 58.03
BeiDou: N: 0.51 E: 0.53 U: 57.75

LEX

QZSS: N: 0.53 E: 0.53 U: 58.03


Means

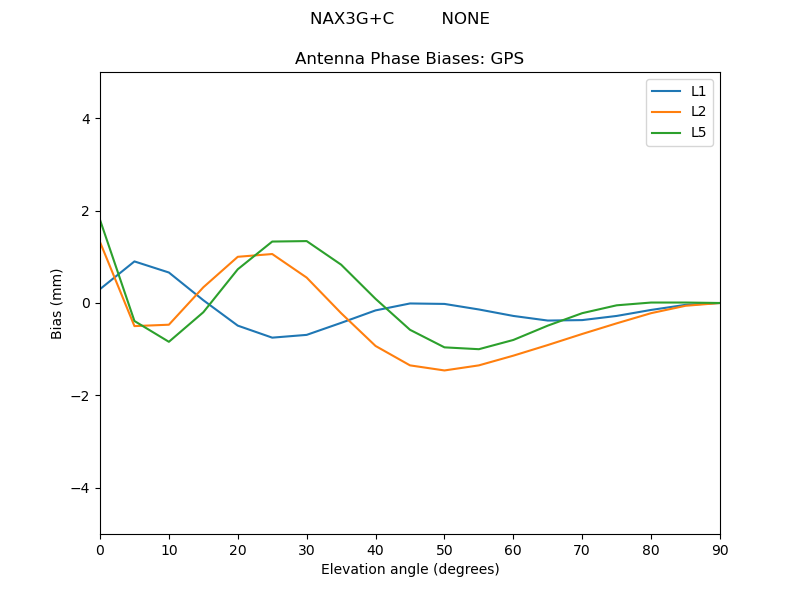

GPS

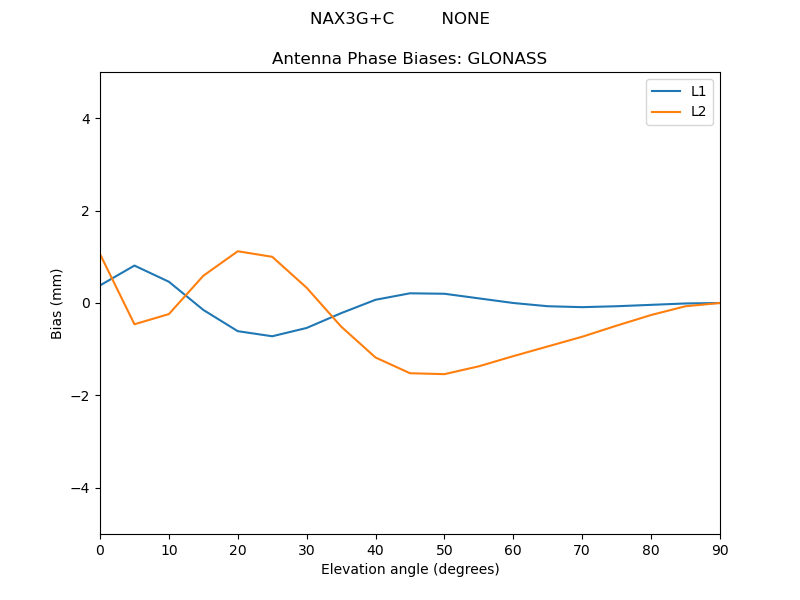

GLONASS

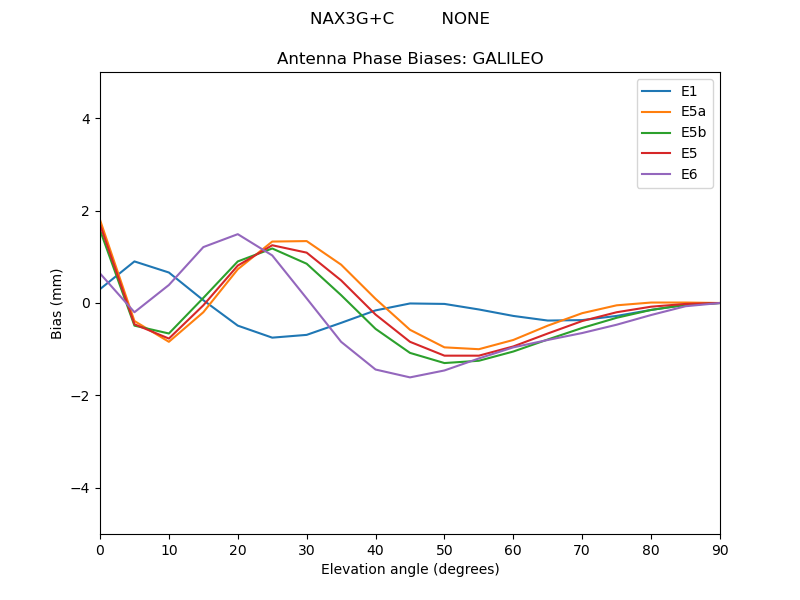

GALILEO

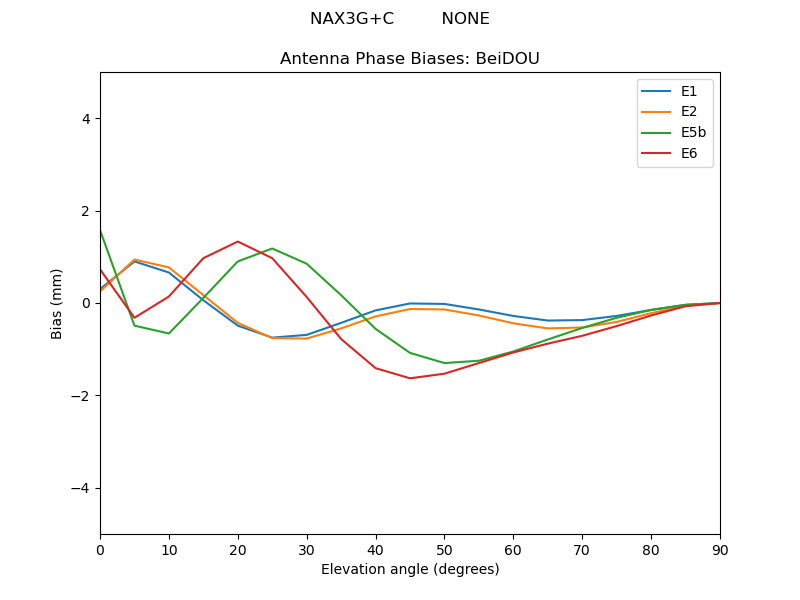

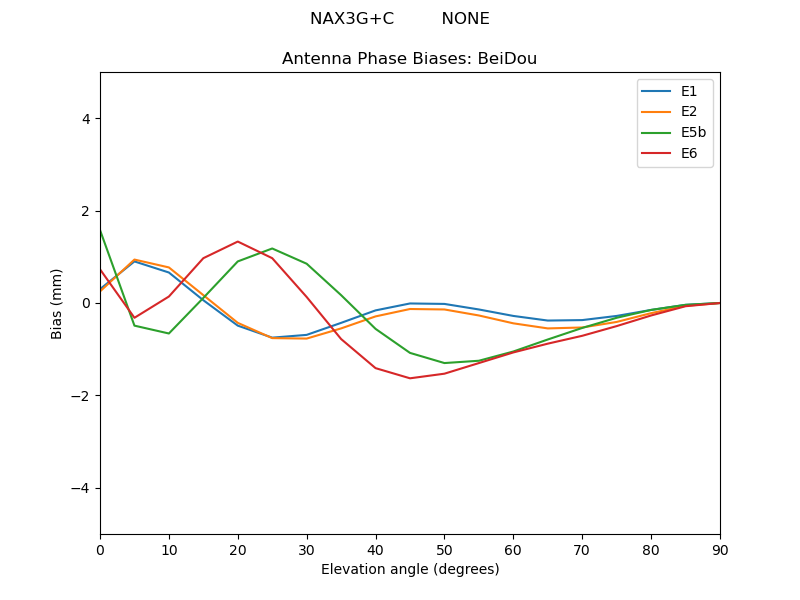

BeiDOU

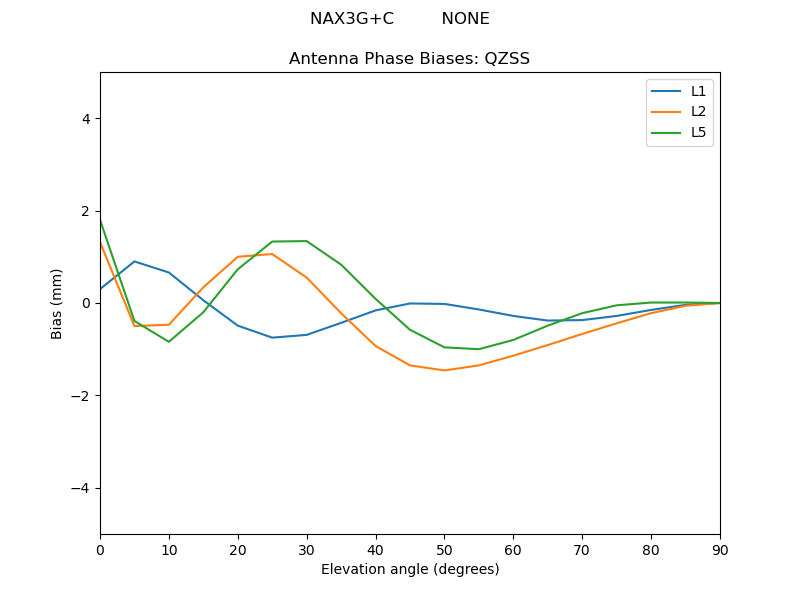

QZSS

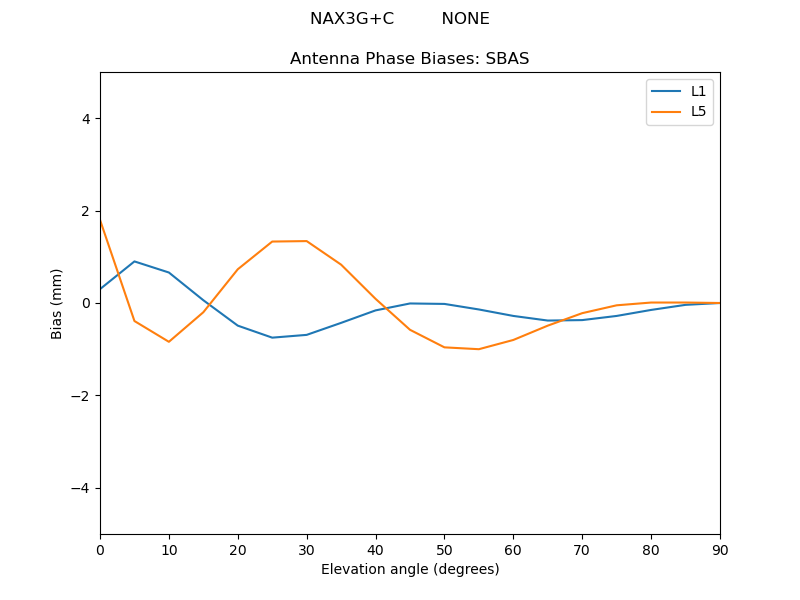

SBAS

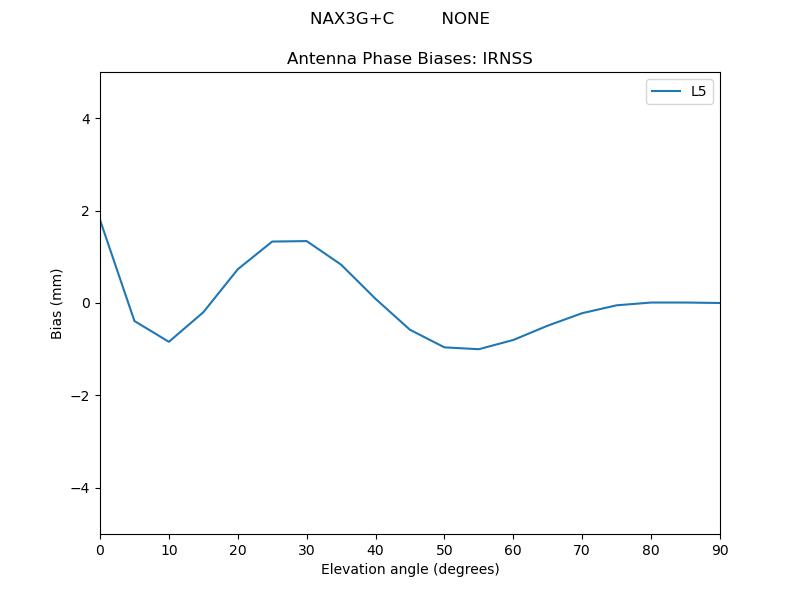

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

GPS-L2

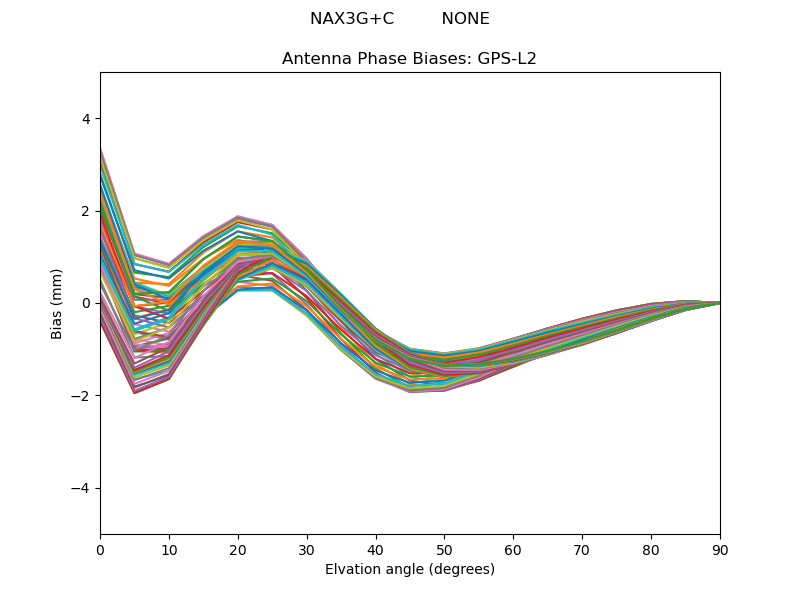

GPS-L2GPS-L2

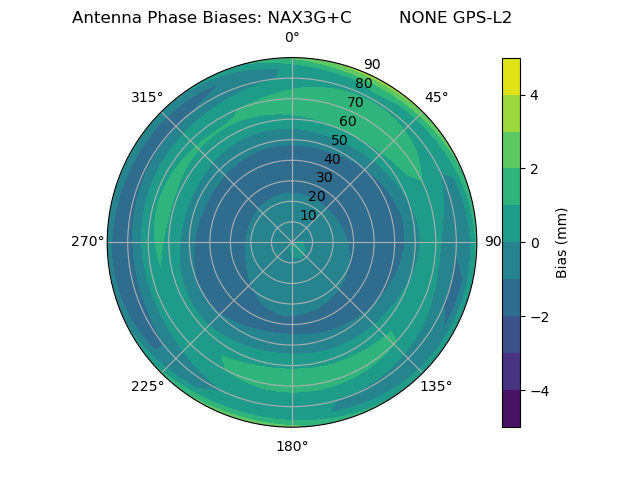

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

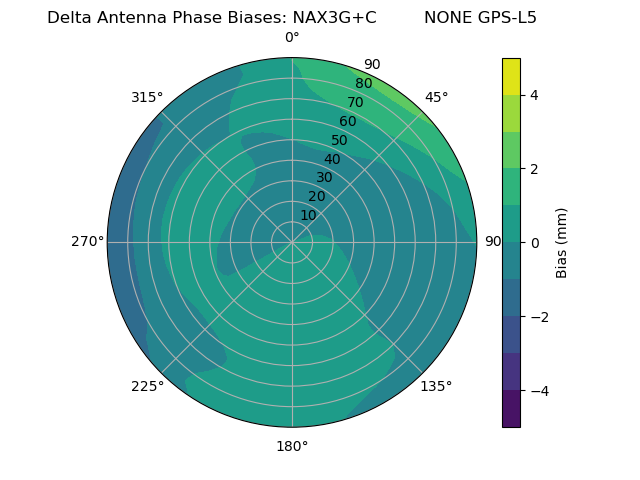

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

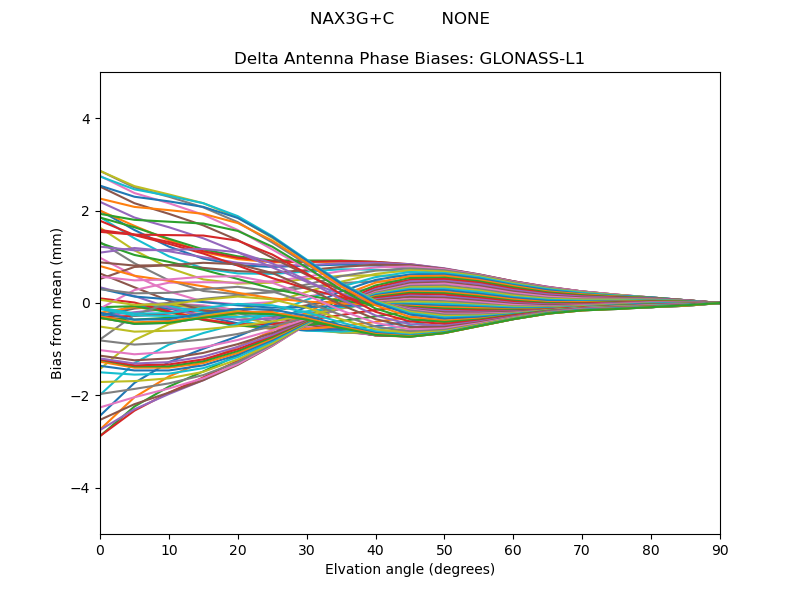

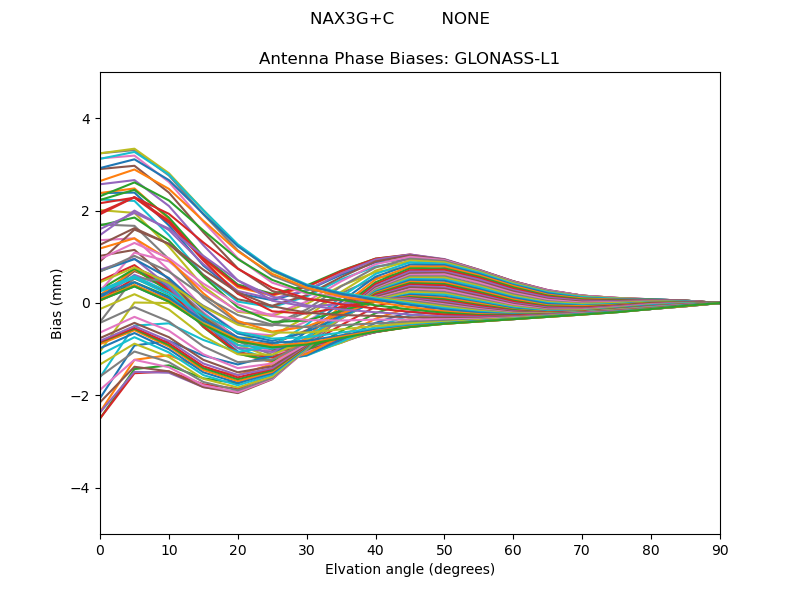

GLONASS-L1

GLONASS-L1GLONASS-L1

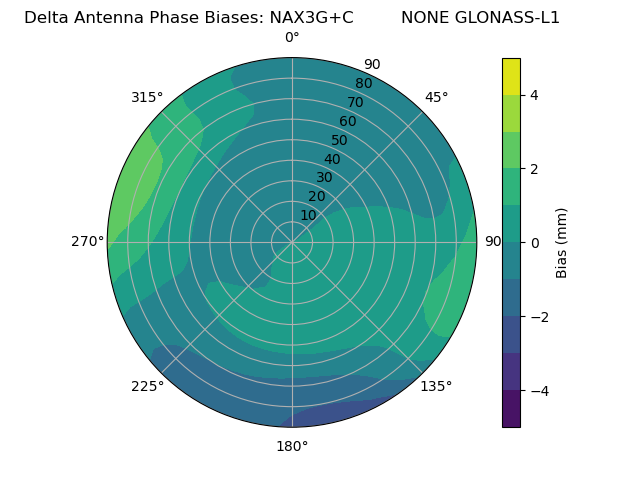

Radial GLONASS-L1Radial GLONASS-L1

GLONASS-L2

GLONASS-L2GLONASS-L2
Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

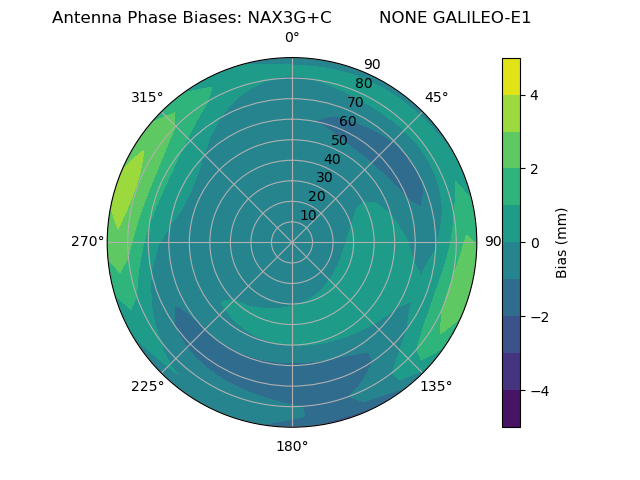

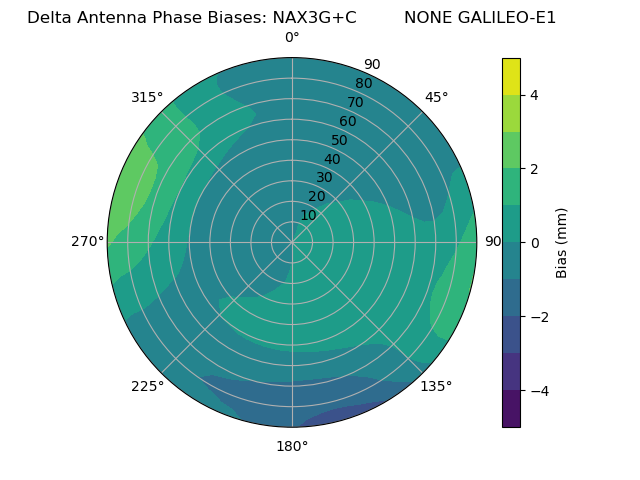

Radial GALILEO-E1Radial GALILEO-E1

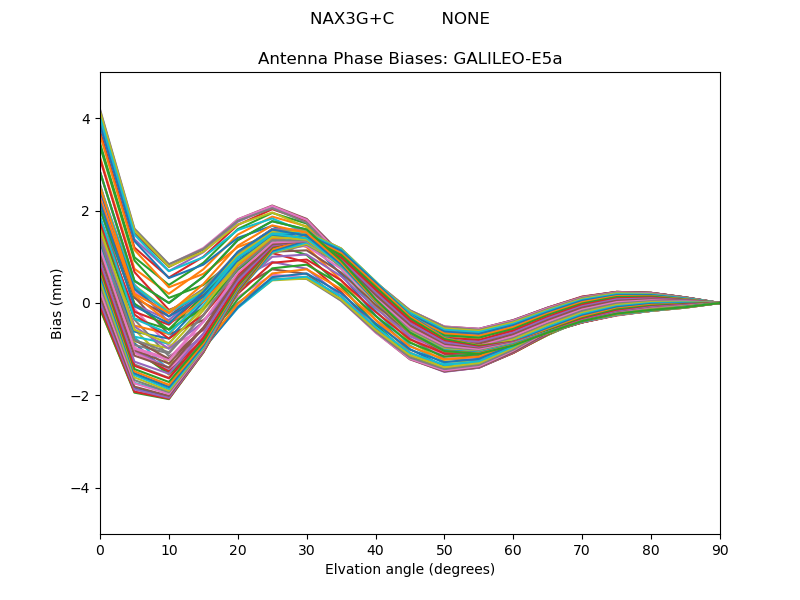

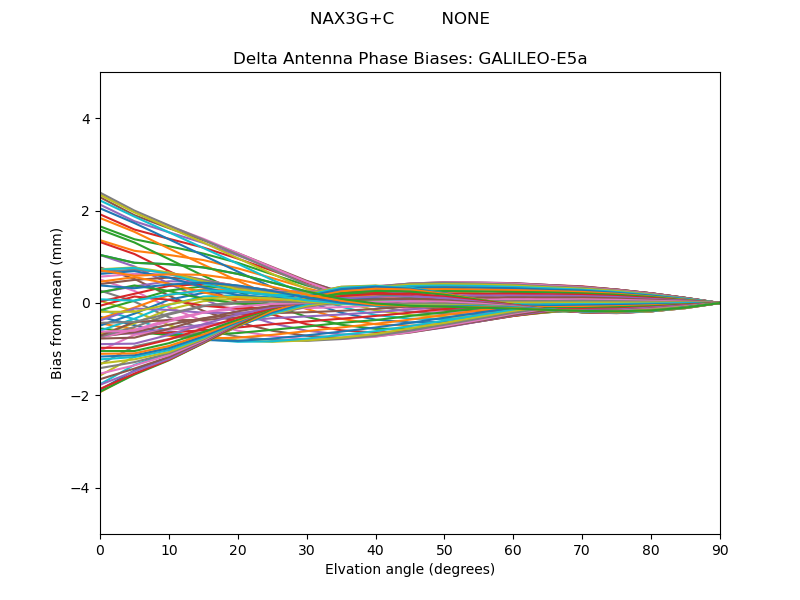

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

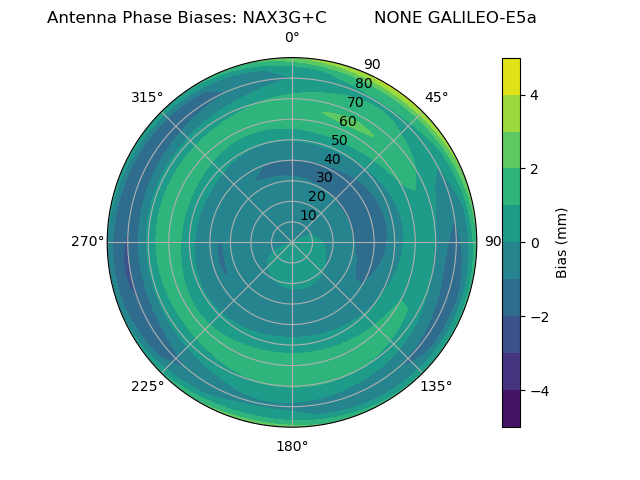

Radial GALILEO-E5aRadial GALILEO-E5a

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

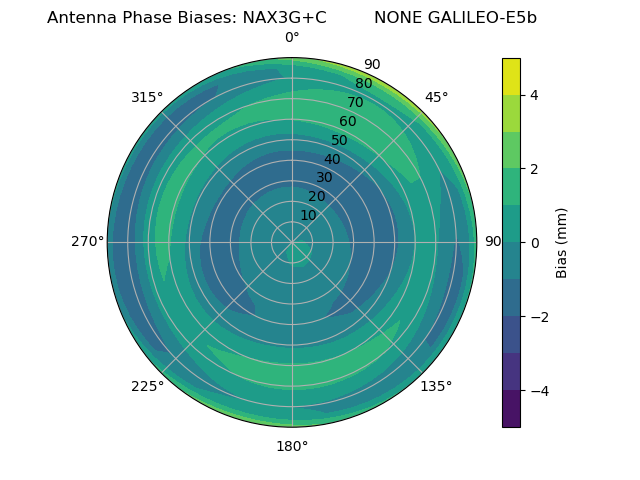

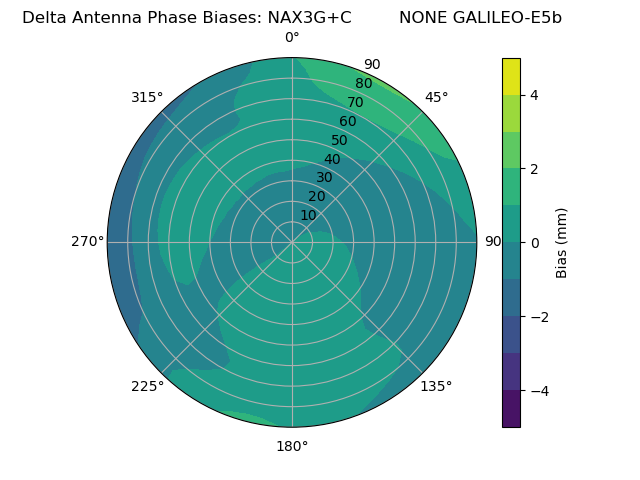

Radial GALILEO-E5bRadial GALILEO-E5b

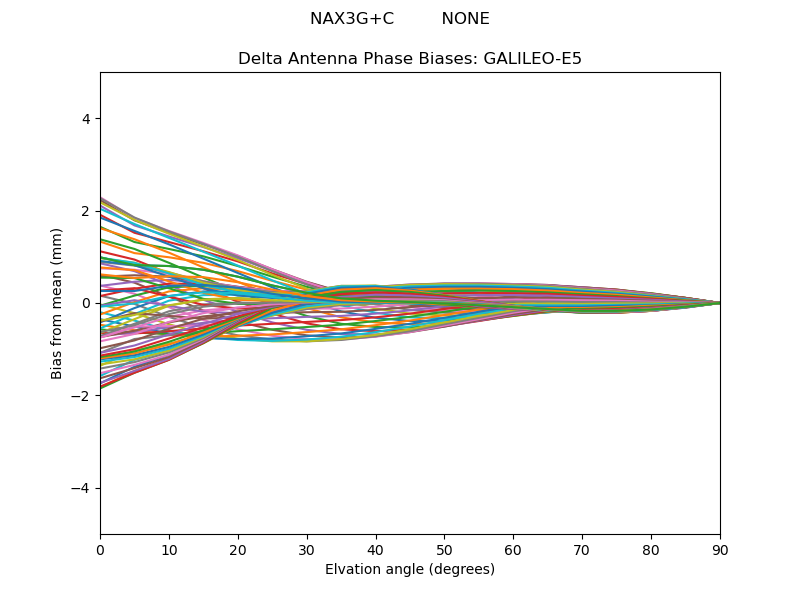

GALILEO-E5

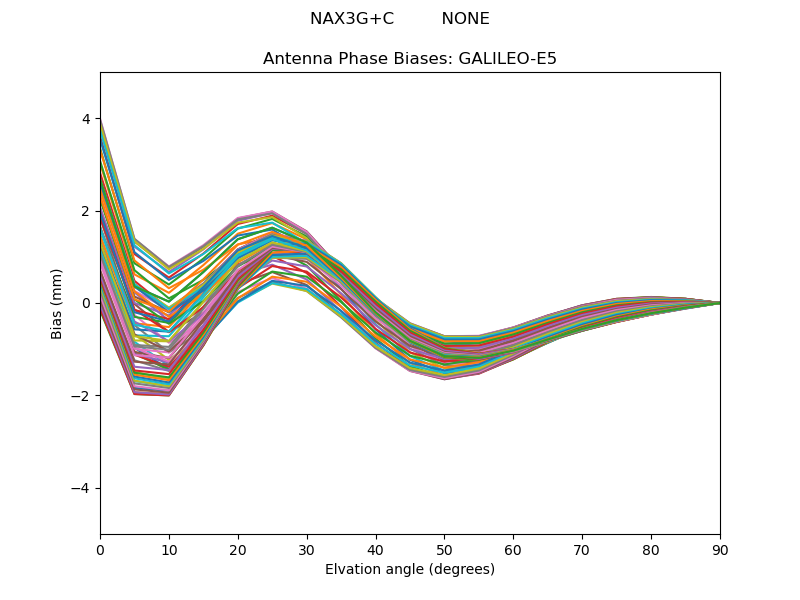

GALILEO-E5GALILEO-E5
Radial GALILEO-E5Radial GALILEO-E5

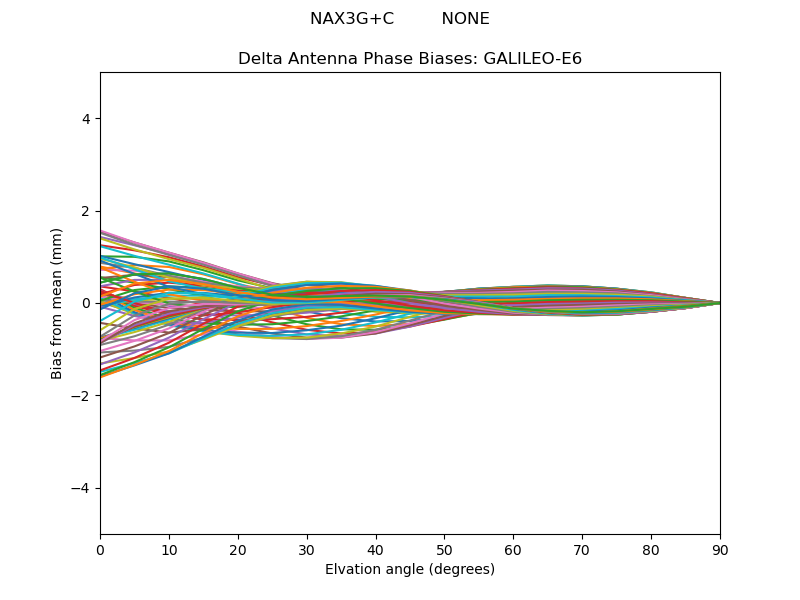

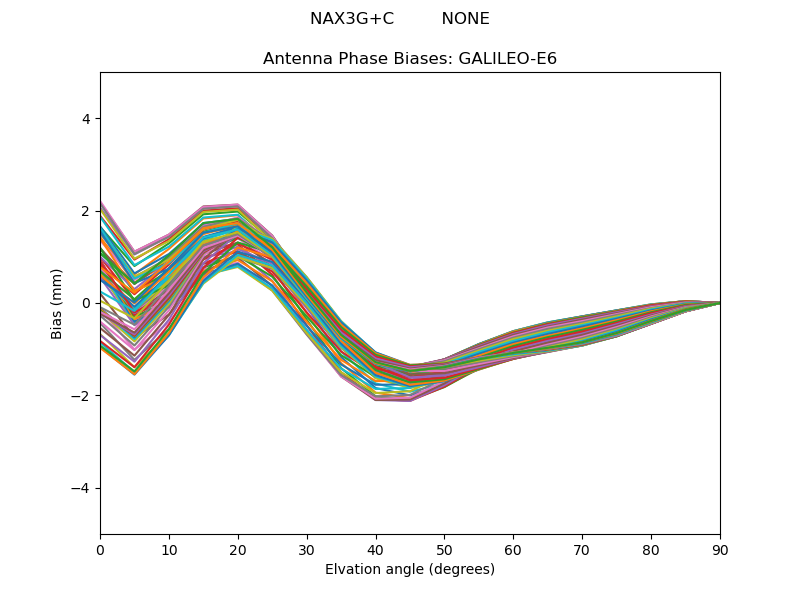

GALILEO-E6

GALILEO-E6GALILEO-E6
Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

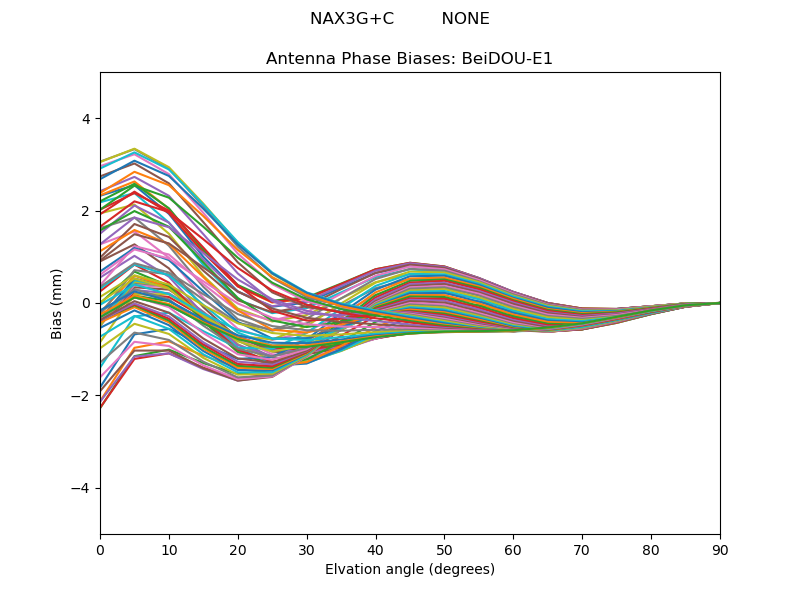

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

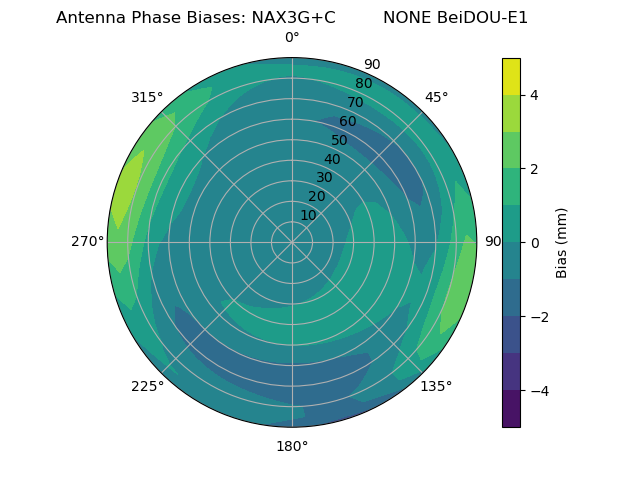

Radial BeiDOU-E1Radial BeiDOU-E1

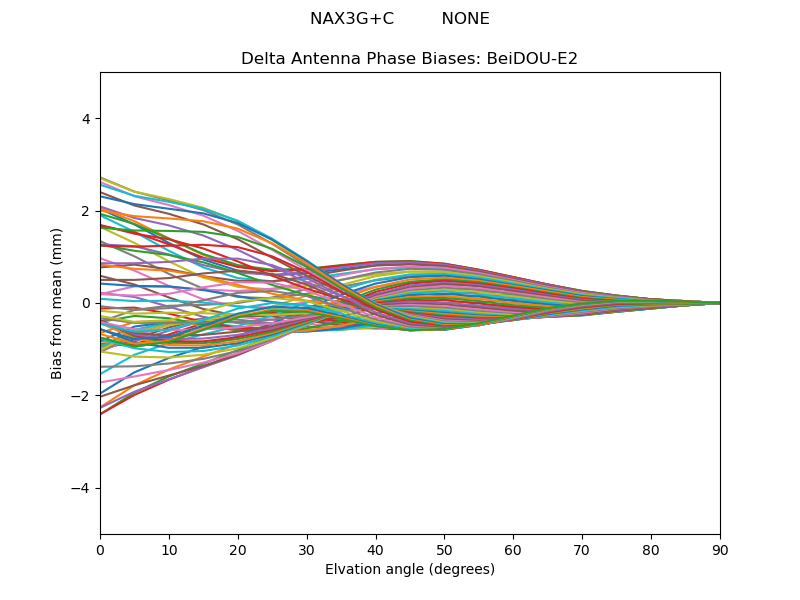

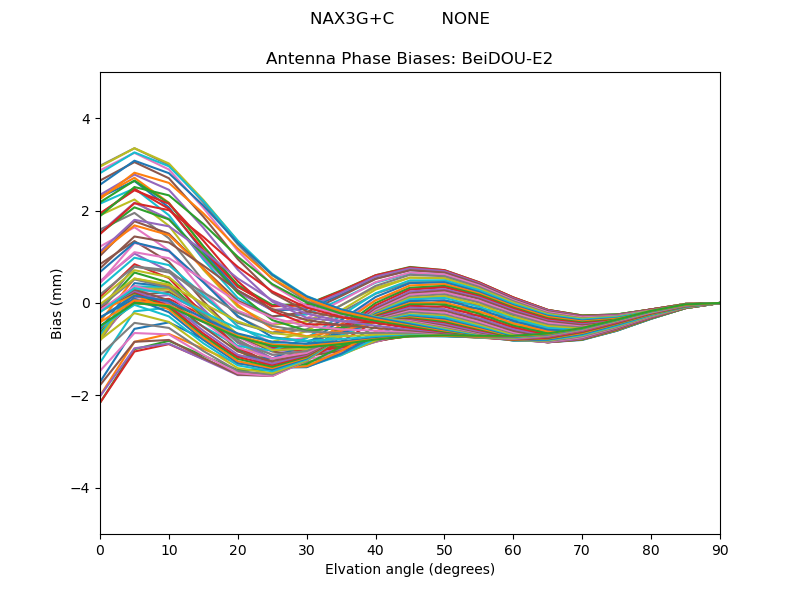

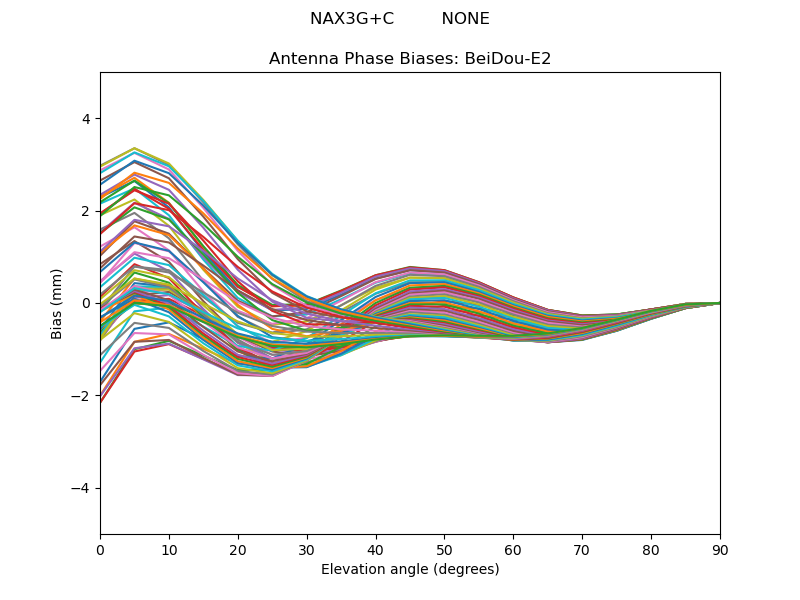

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

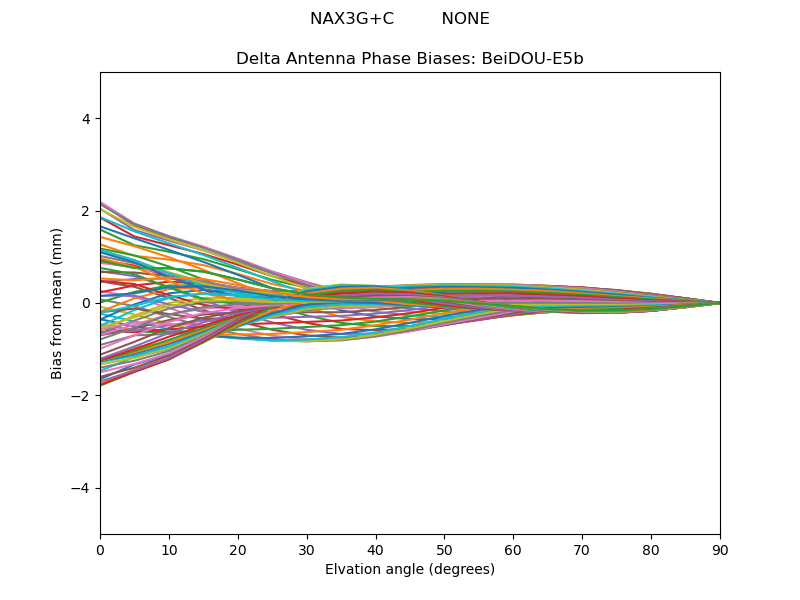

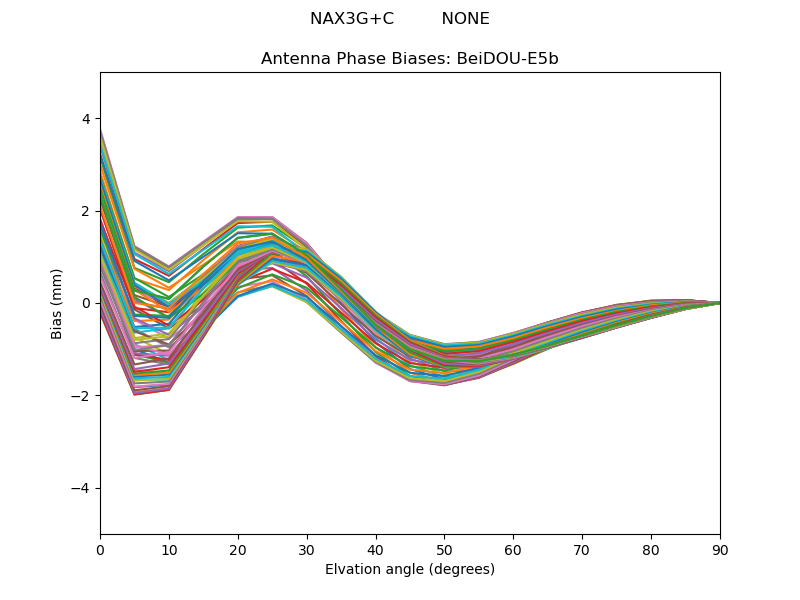

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b
Radial BeiDOU-E5bRadial BeiDOU-E5b

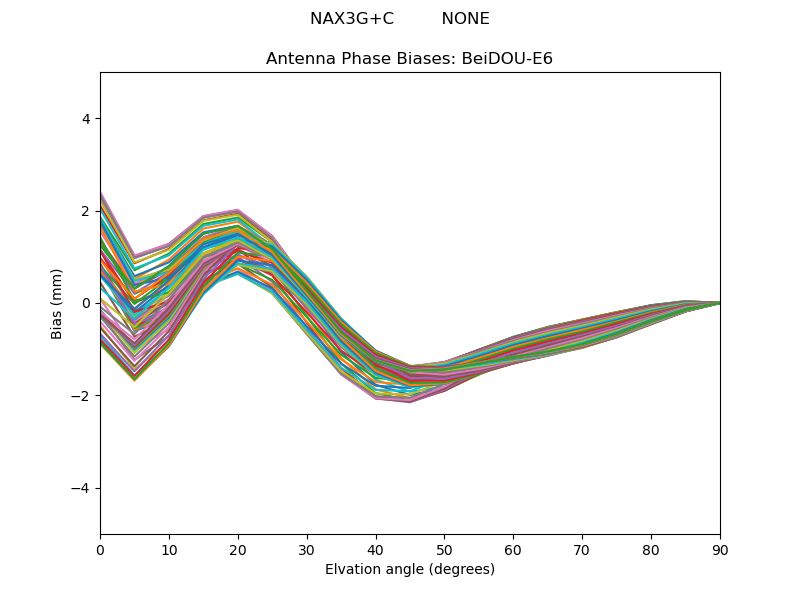

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

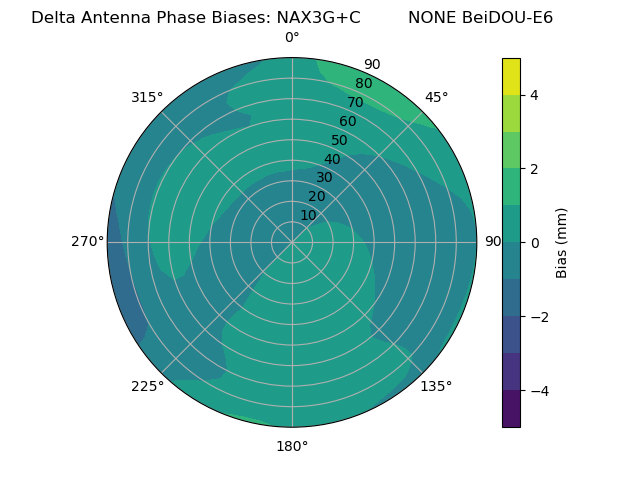

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

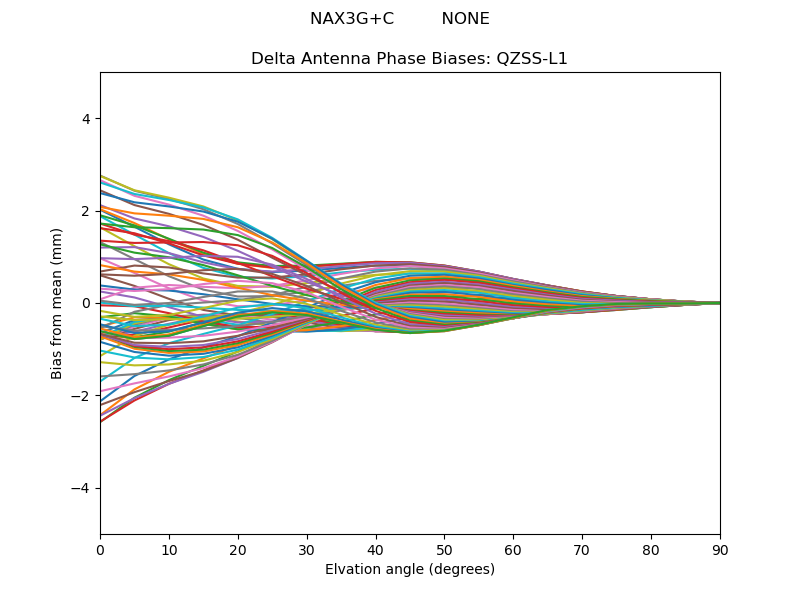

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

QZSS-L2

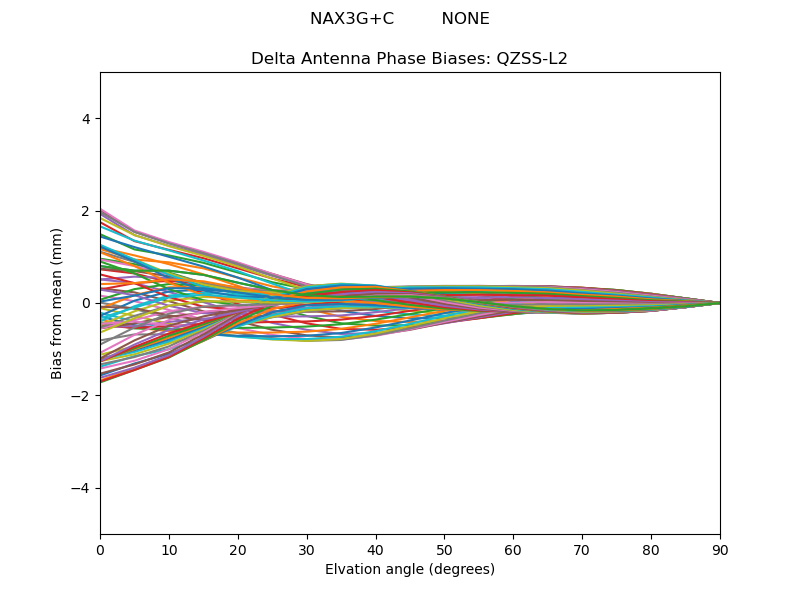

QZSS-L2QZSS-L2

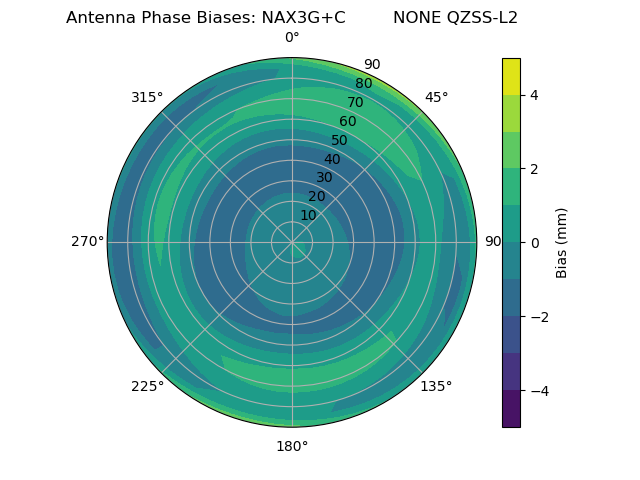

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

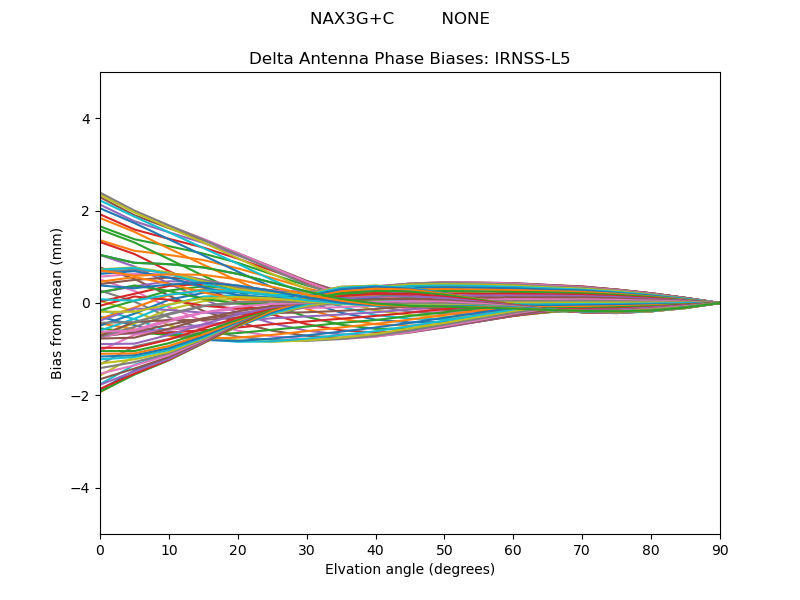

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
