Antenna information for NOV703GGG.R2 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 1.30 E: 0.88 U: 61.71
L2: N: 0.11 E: 2.01 U: 59.95
L5: N: -1.84 E: -0.25 U: 60.90

GLONASS

L1: N: 1.70 E: 1.20 U: 61.83
L2: N: -0.05 E: 2.98 U: 60.00

GALILEO

E1: N: 1.30 E: 0.88 U: 61.71
E5a: N: -1.84 E: -0.25 U: 60.90
E5b: N: -0.24 E: 1.03 U: 60.14
E5: N: -0.87 E: 0.36 U: 60.45
E6: N: -1.36 E: 4.91 U: 60.54

BeiDou

E1: N: 1.30 E: 0.88 U: 61.71
E2: N: 1.08 E: 0.71 U: 61.63
E5b: N: -0.24 E: 1.03 U: 60.14
E6: N: -0.81 E: 4.28 U: 60.32

QZSS

L1: N: 1.30 E: 0.88 U: 61.71
L2: N: 0.11 E: 2.01 U: 59.95
L5: N: -1.84 E: -0.25 U: 60.90
LEX: N: -1.36 E: 4.91 U: 60.54

IRNSS

L5: N: -1.84 E: -0.25 U: 60.90

SBAS

L1: N: 1.30 E: 0.88 U: 61.71
L5: N: -1.84 E: -0.25 U: 60.90

L1

GPS: N: 1.30 E: 0.88 U: 61.71
GLONASS: N: 1.70 E: 1.20 U: 61.83
QZSS: N: 1.30 E: 0.88 U: 61.71
SBAS: N: 1.30 E: 0.88 U: 61.71

L2

GPS: N: 0.11 E: 2.01 U: 59.95
GLONASS: N: -0.05 E: 2.98 U: 60.00
QZSS: N: 0.11 E: 2.01 U: 59.95

L5

GPS: N: -1.84 E: -0.25 U: 60.90
QZSS: N: -1.84 E: -0.25 U: 60.90
SBAS: N: -1.84 E: -0.25 U: 60.90
IRNSS: N: -1.84 E: -0.25 U: 60.90

E1

GALILEO: N: 1.30 E: 0.88 U: 61.71
BeiDou: N: 1.30 E: 0.88 U: 61.71

E2

BeiDou: N: 1.08 E: 0.71 U: 61.63

E5

GALILEO: N: -0.87 E: 0.36 U: 60.45

E5a

GALILEO: N: -1.84 E: -0.25 U: 60.90

E5b

GALILEO: N: -0.24 E: 1.03 U: 60.14
BeiDou: N: -0.24 E: 1.03 U: 60.14

E6

GALILEO: N: -1.36 E: 4.91 U: 60.54
BeiDou: N: -0.81 E: 4.28 U: 60.32

LEX

QZSS: N: -1.36 E: 4.91 U: 60.54


Means

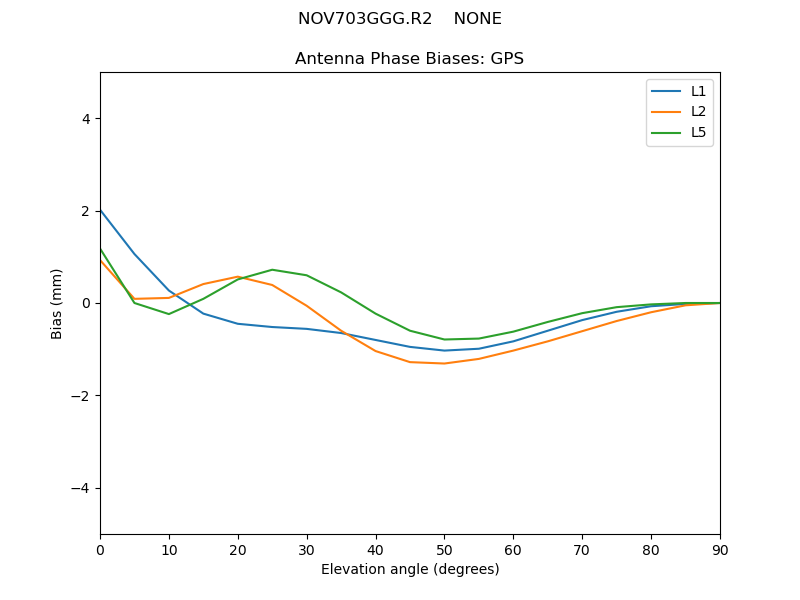

GPS

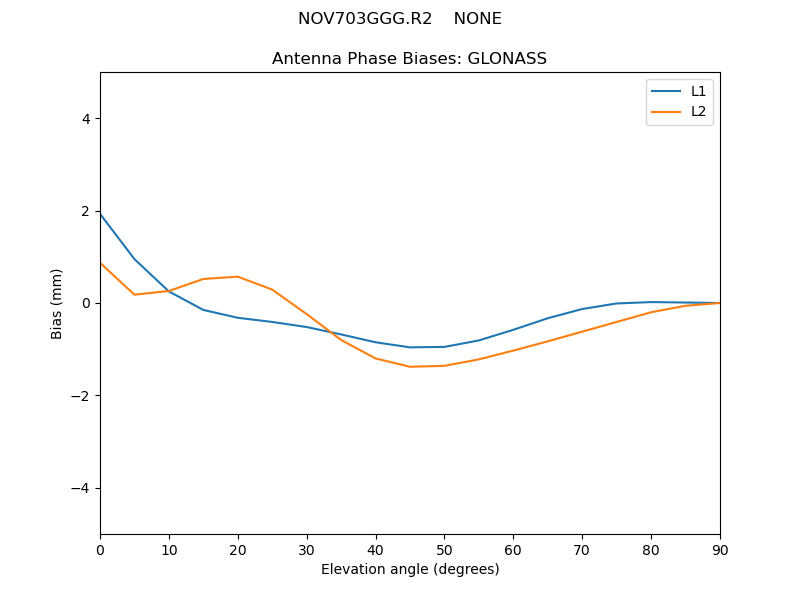

GLONASS

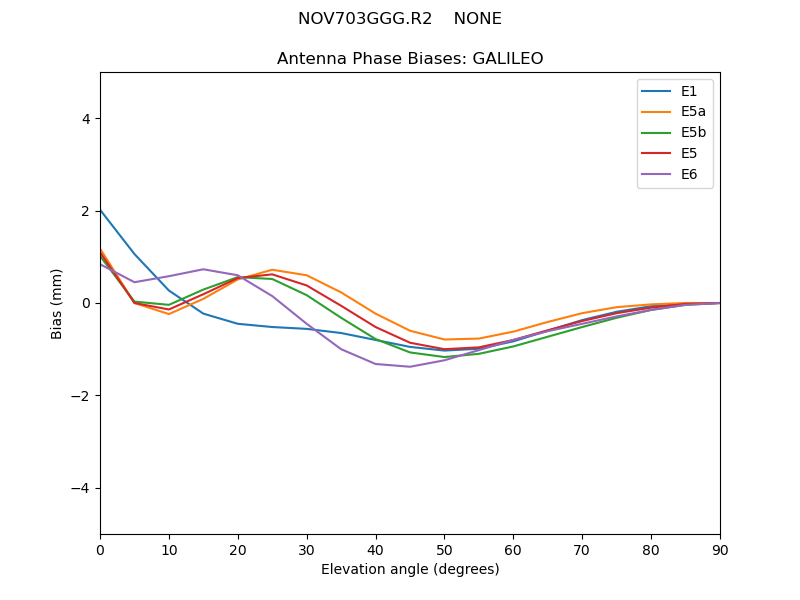

GALILEO

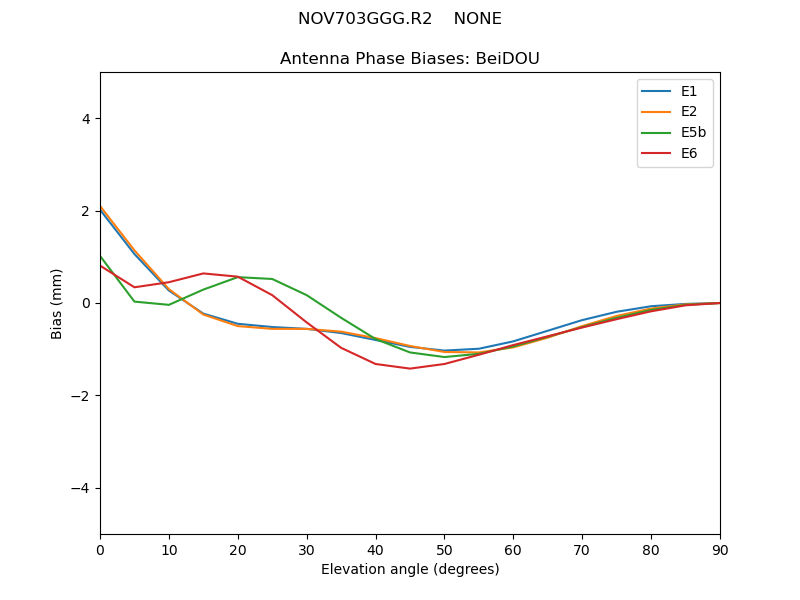

BeiDOU


QZSS

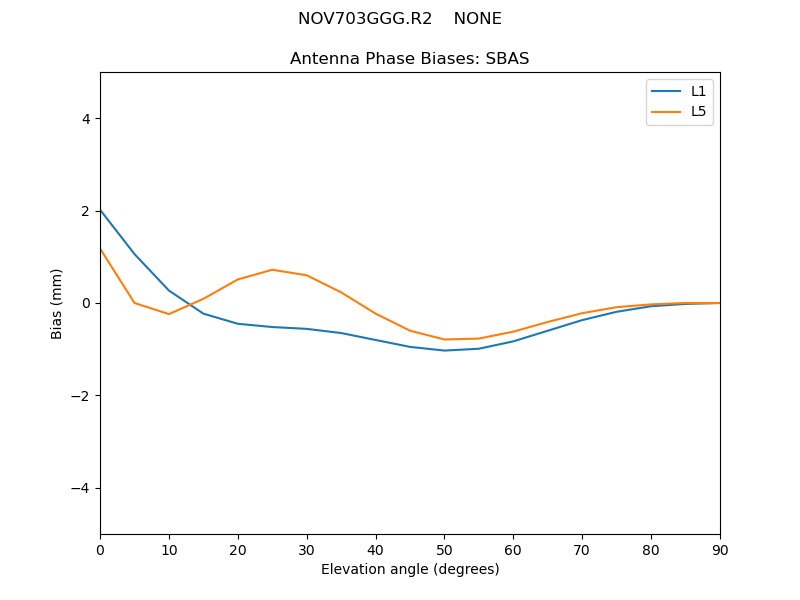

SBAS

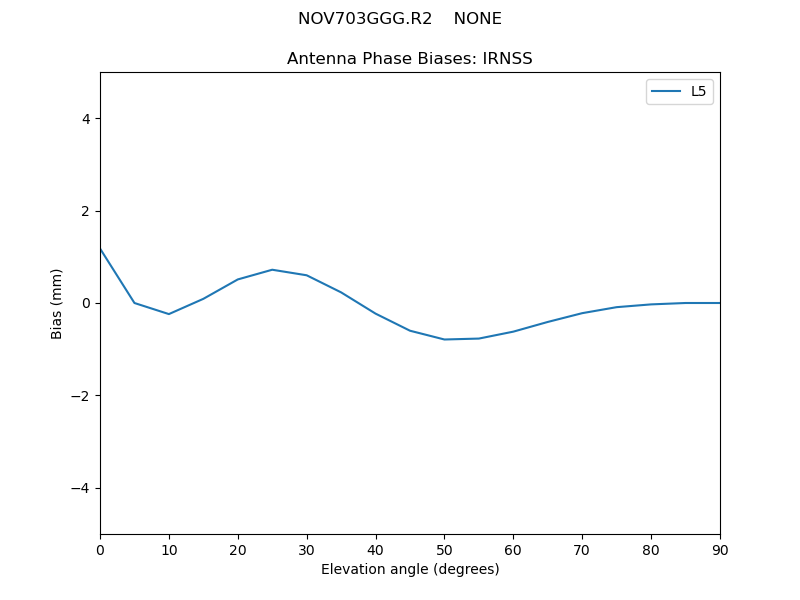

IRNSS


Azimuths

GPS


Bias Delta

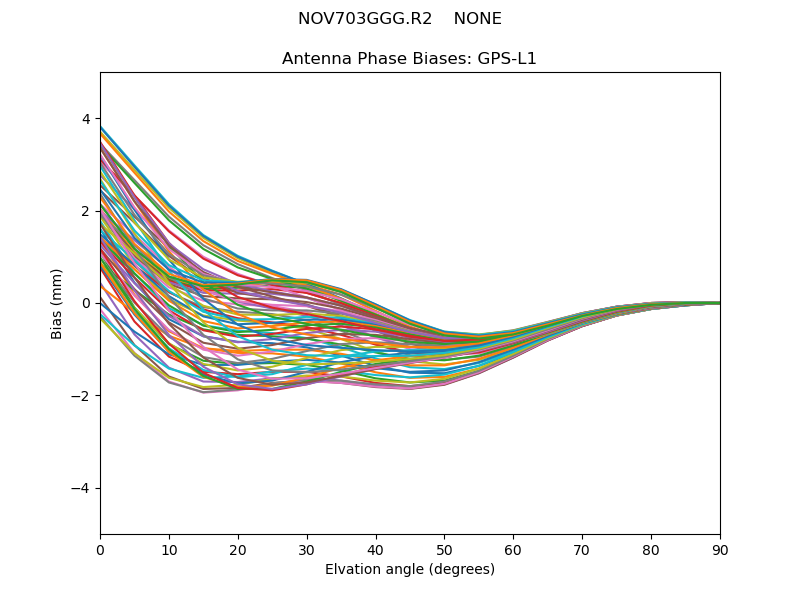

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

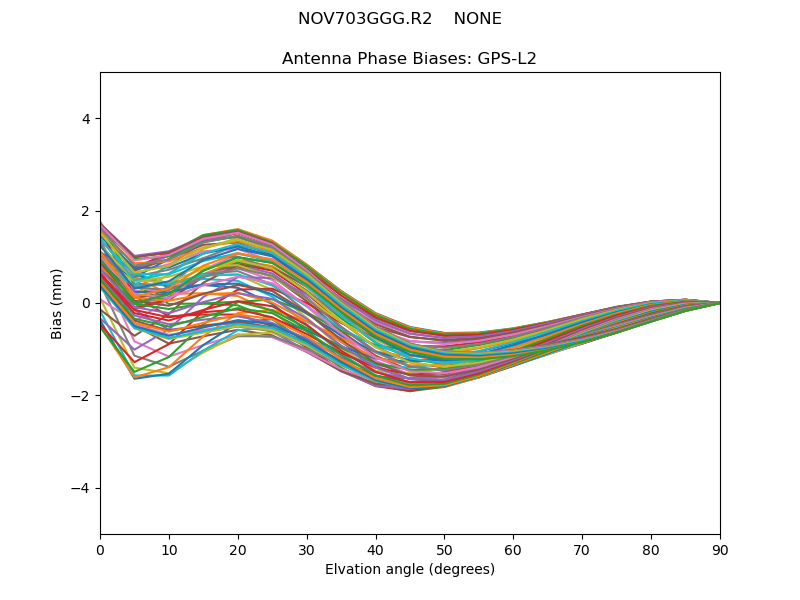

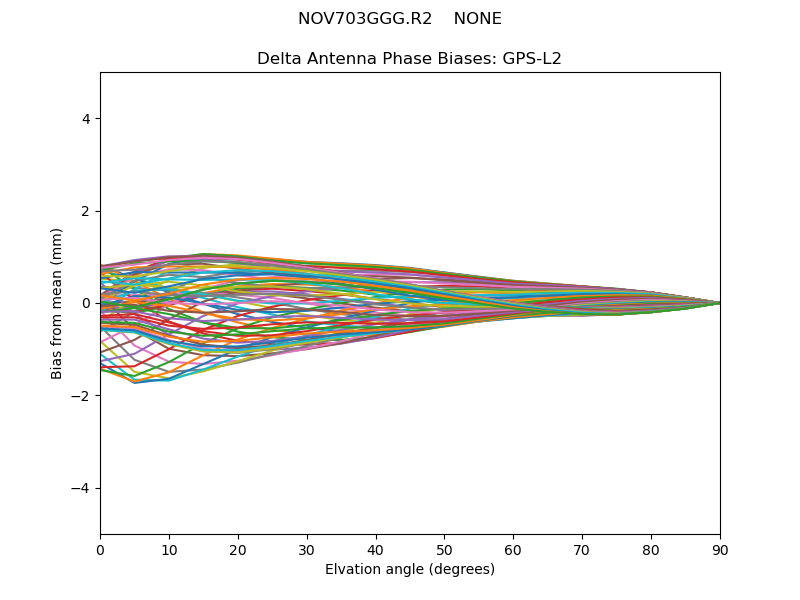

GPS-L2

GPS-L2GPS-L2

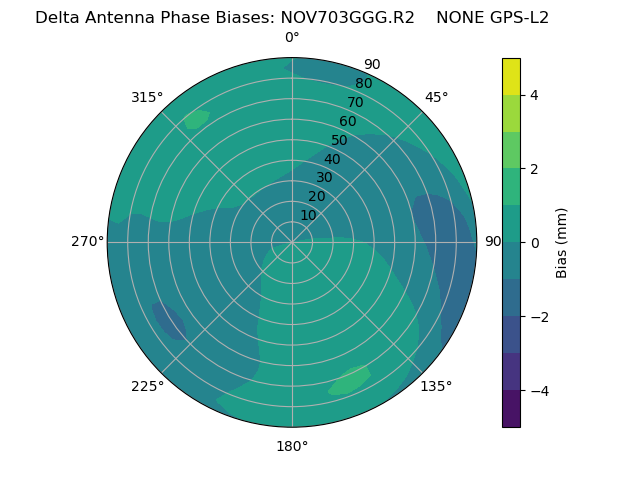

Radial GPS-L2Radial GPS-L2

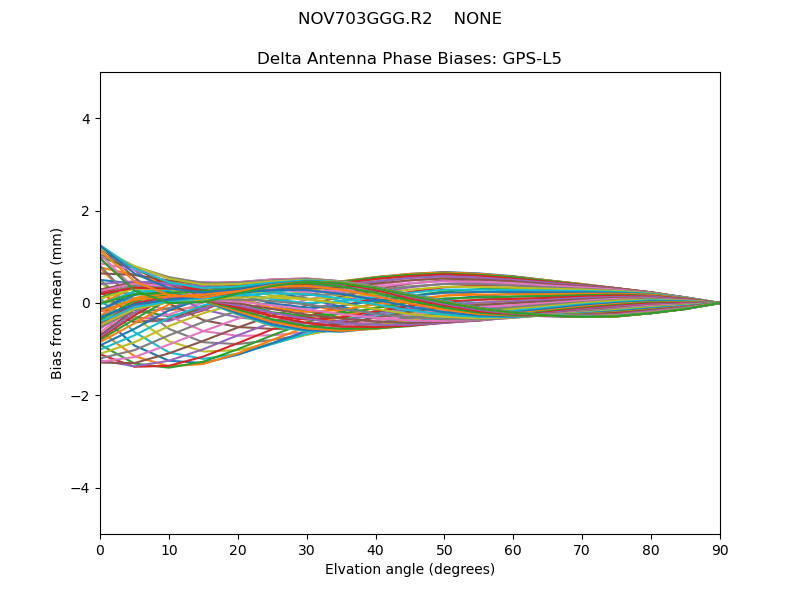

GPS-L5

GPS-L5GPS-L5

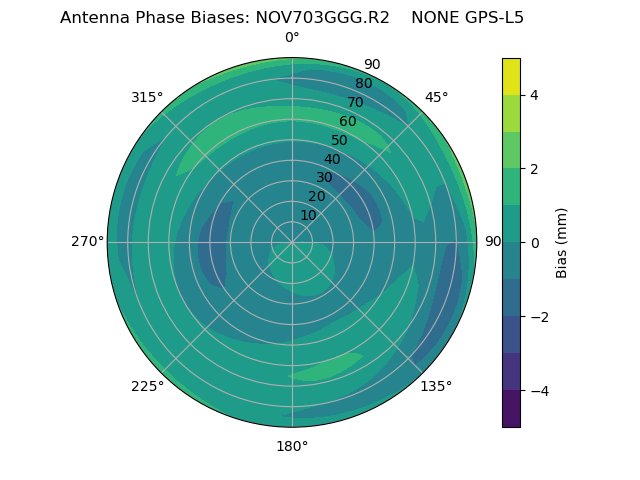

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

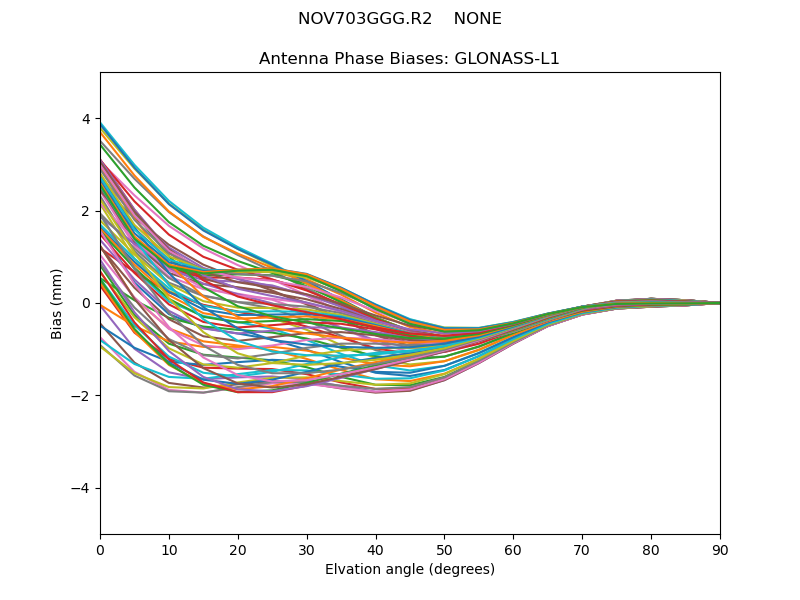

GLONASS-L1

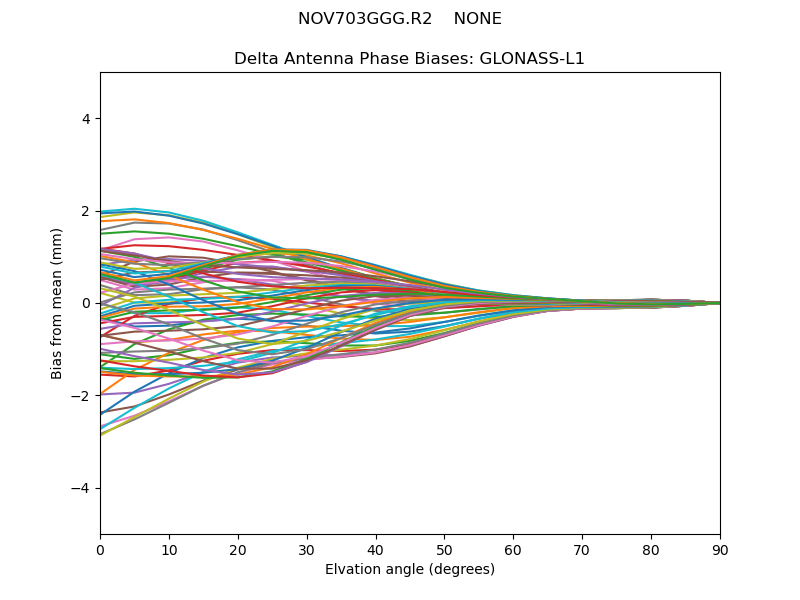

GLONASS-L1GLONASS-L1

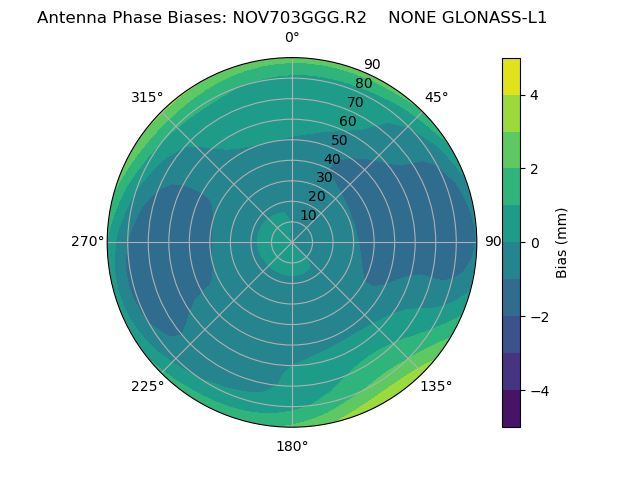

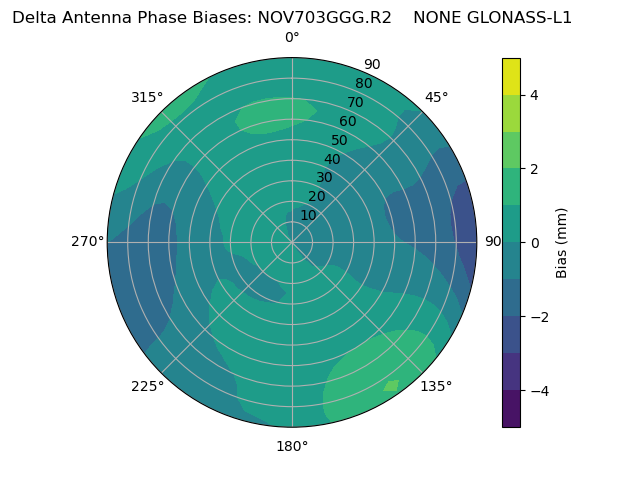

Radial GLONASS-L1Radial GLONASS-L1

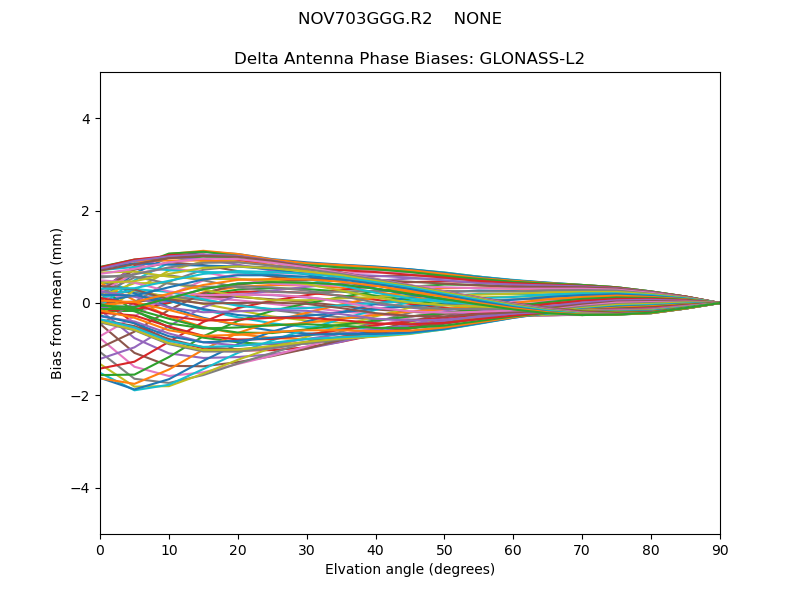

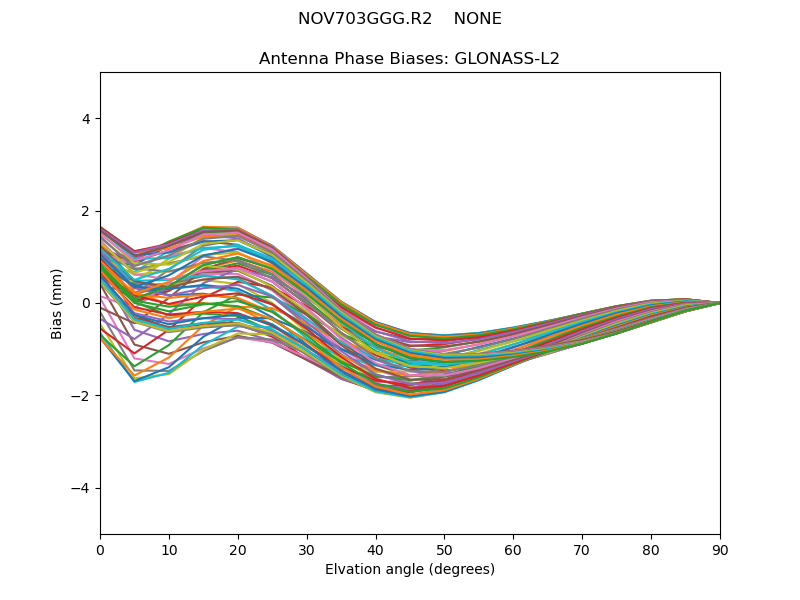

GLONASS-L2

GLONASS-L2GLONASS-L2

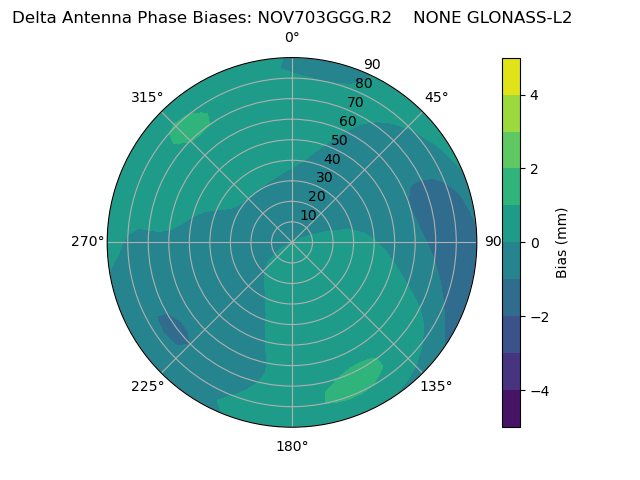

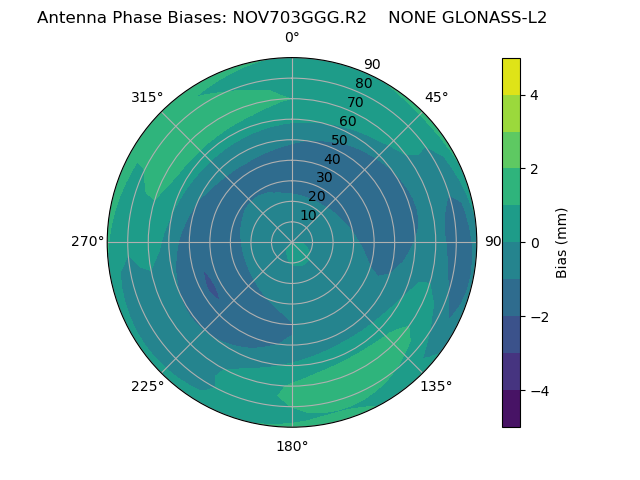

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

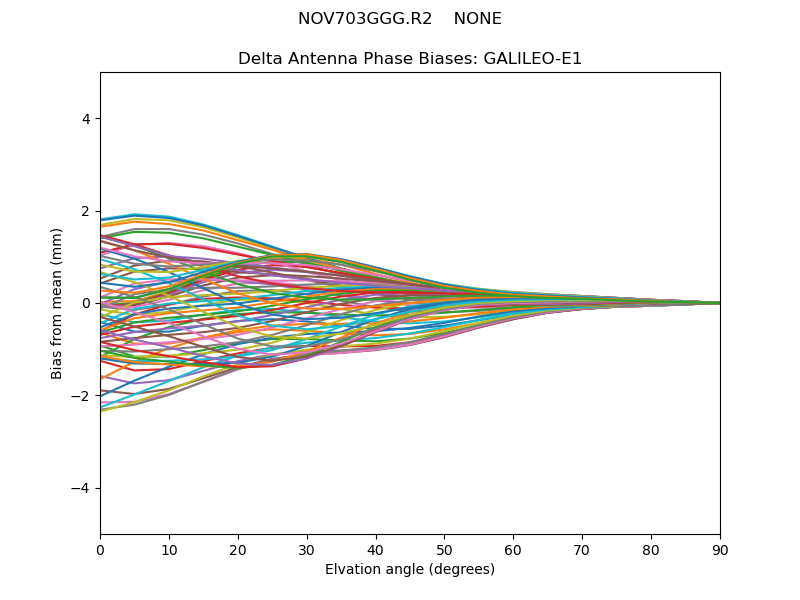

GALILEO-E1GALILEO-E1
Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

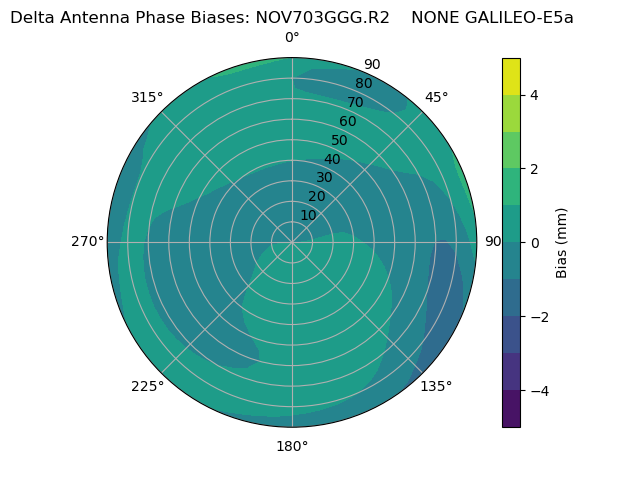

Radial GALILEO-E5aRadial GALILEO-E5a

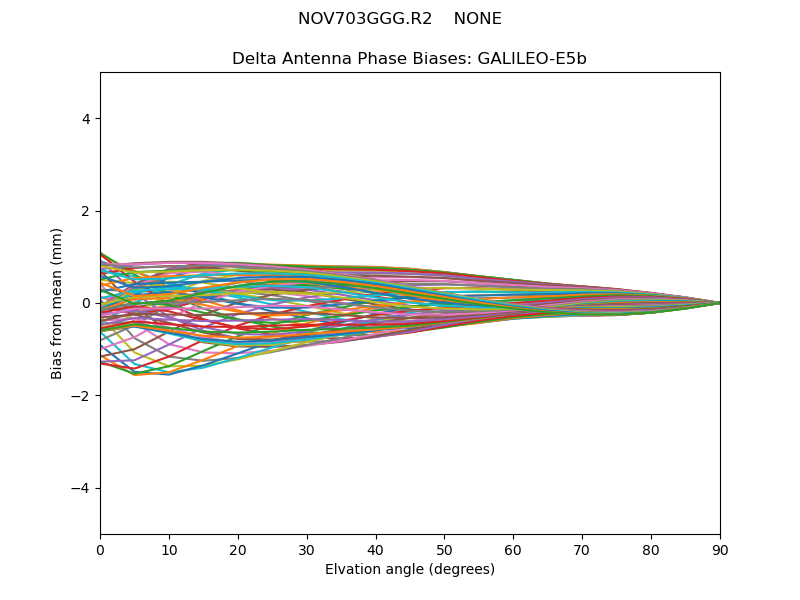

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

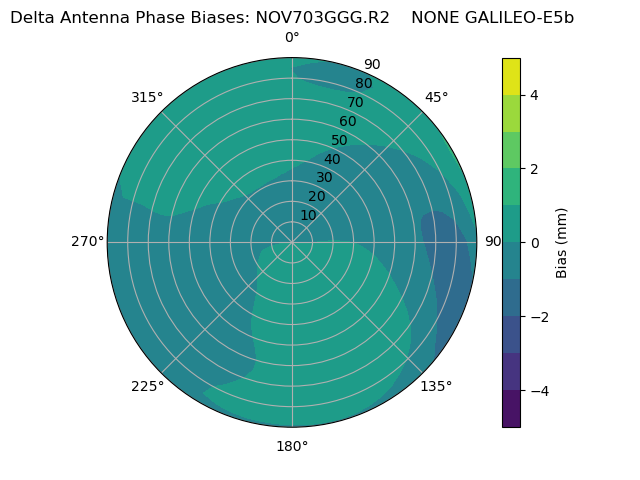

Radial GALILEO-E5bRadial GALILEO-E5b

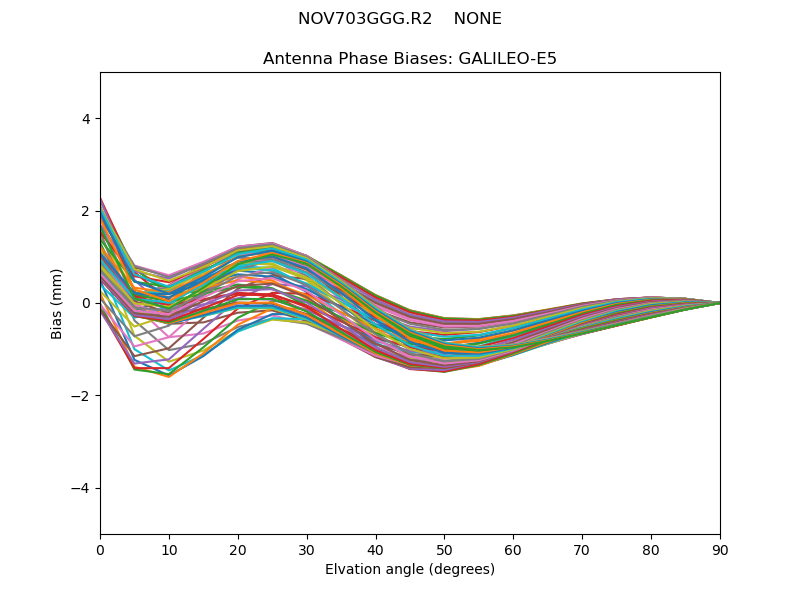

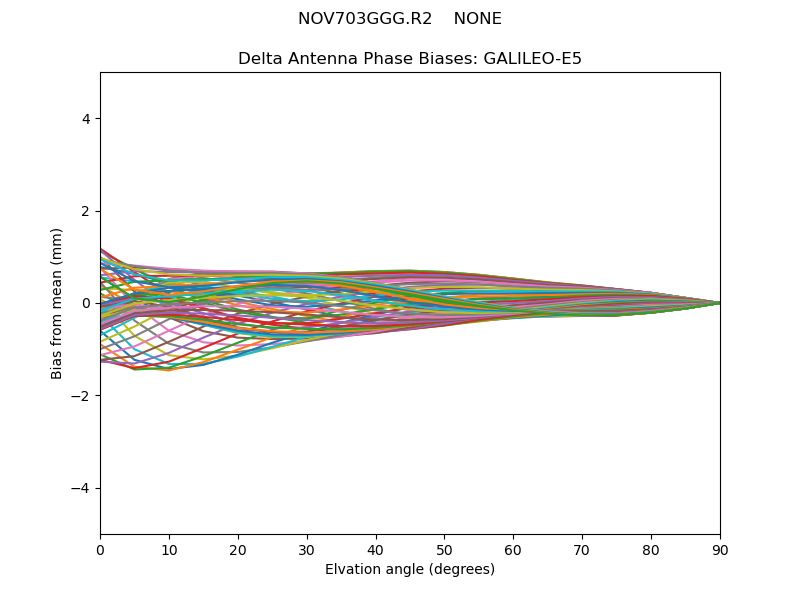

GALILEO-E5

GALILEO-E5GALILEO-E5

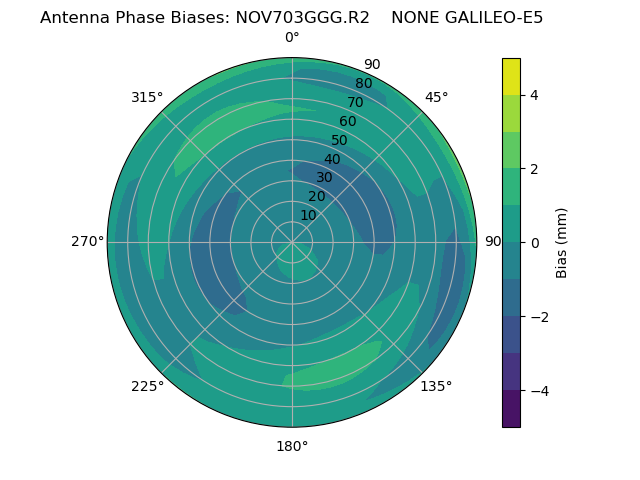

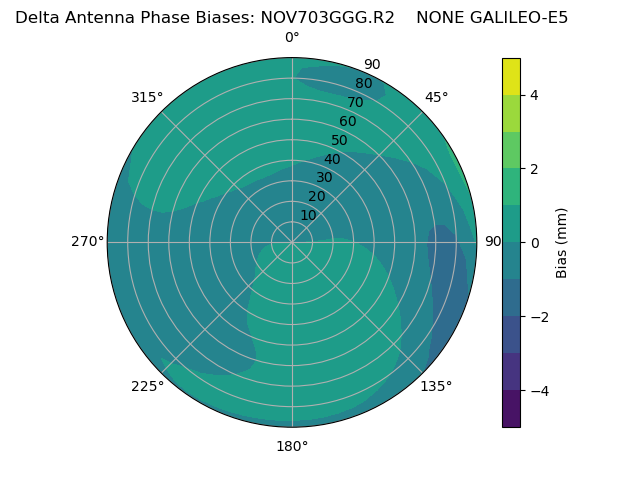

Radial GALILEO-E5Radial GALILEO-E5

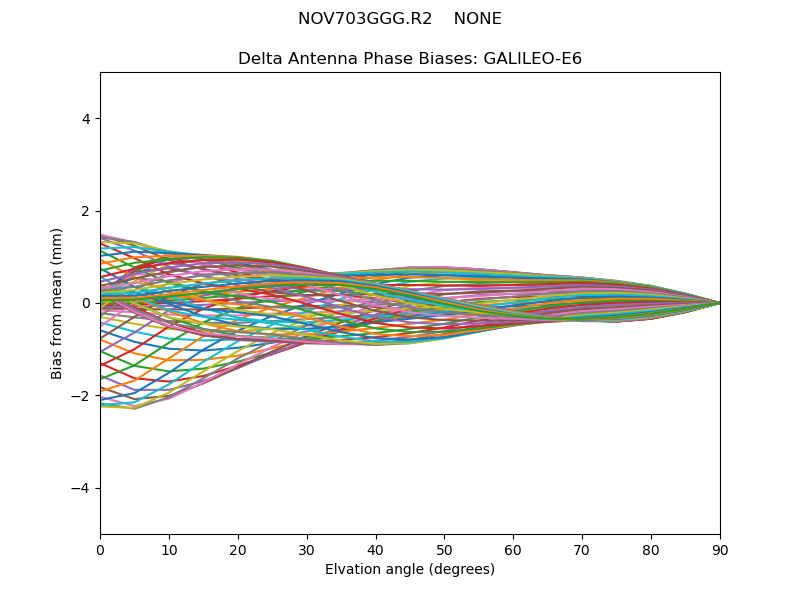

GALILEO-E6

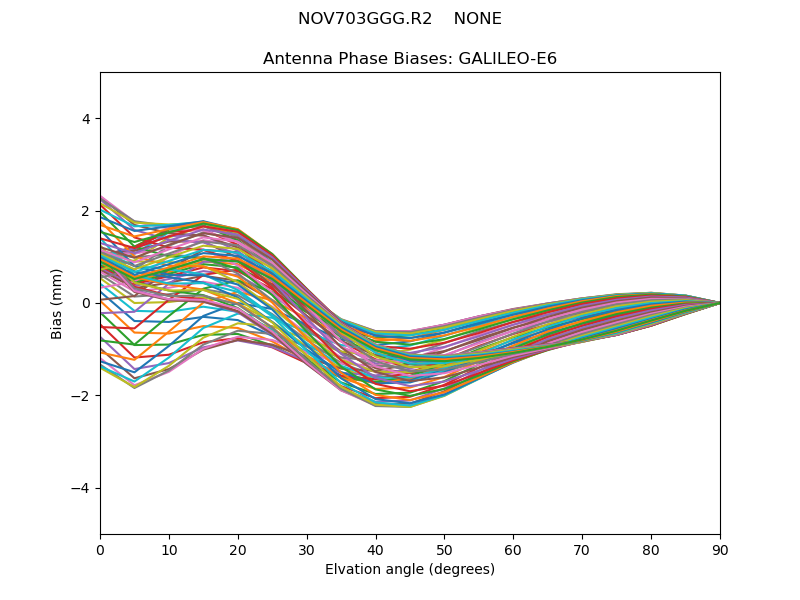

GALILEO-E6GALILEO-E6

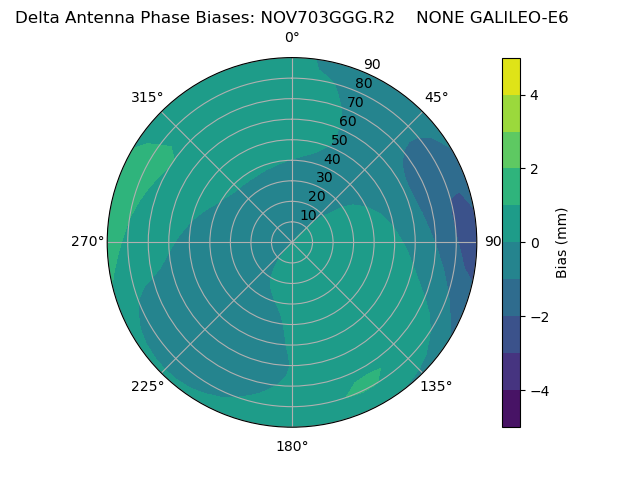

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

BeiDOU-E2

BeiDOU-E2BeiDOU-E2
Radial BeiDOU-E2Radial BeiDOU-E2

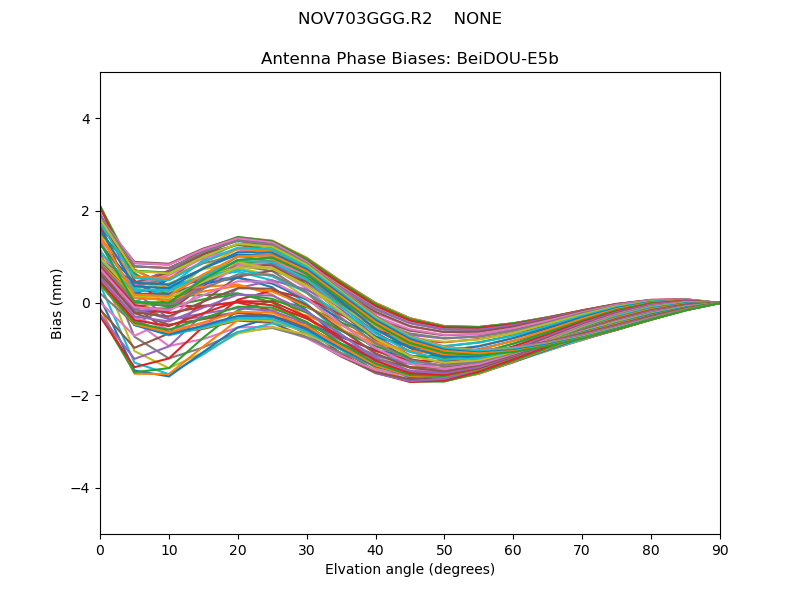

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

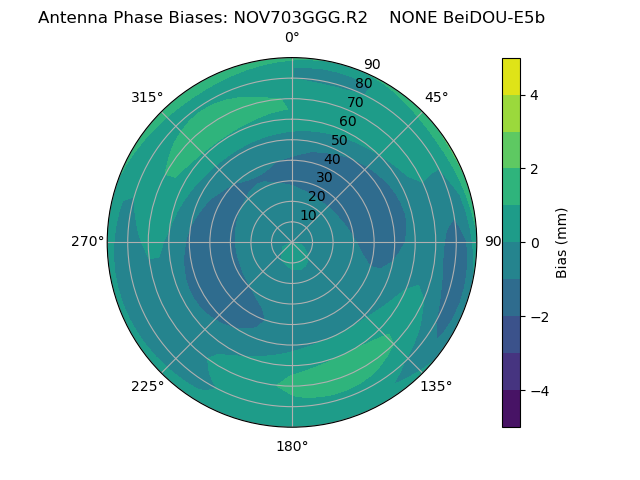

Radial BeiDOU-E5bRadial BeiDOU-E5b

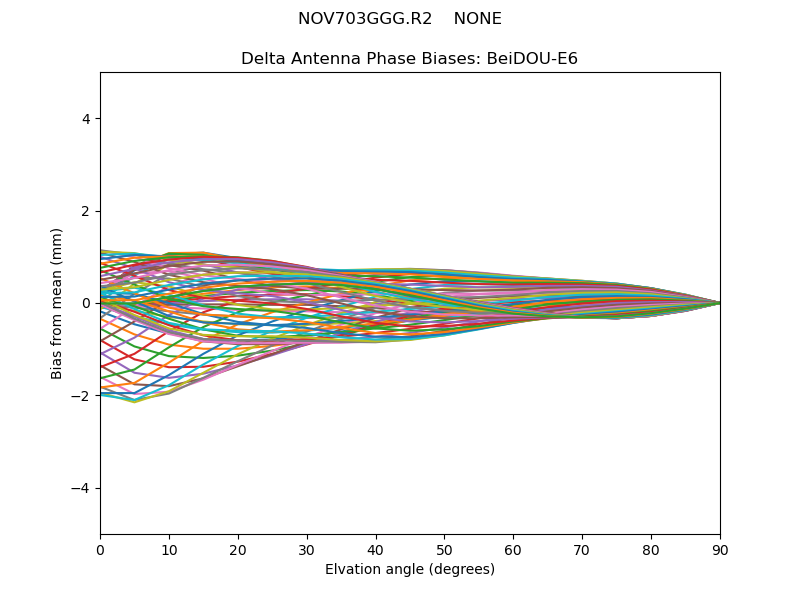

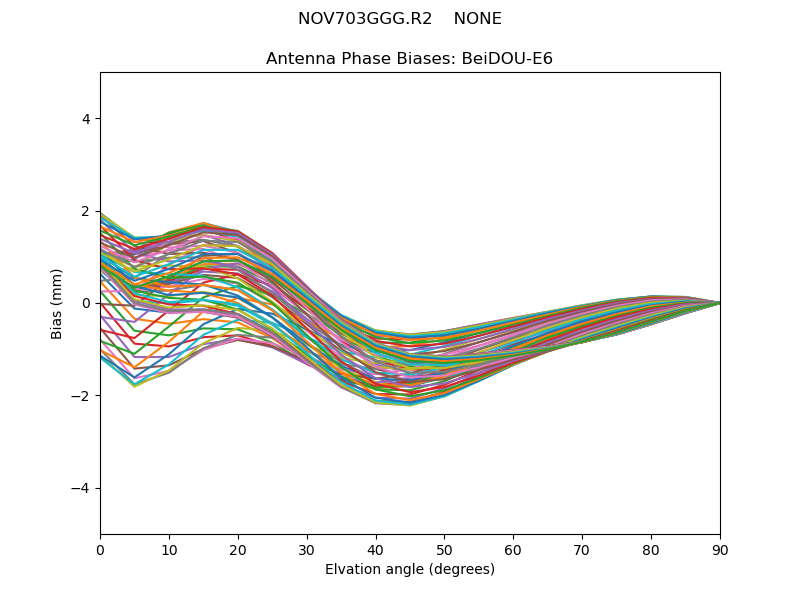

BeiDOU-E6

BeiDOU-E6BeiDOU-E6
Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

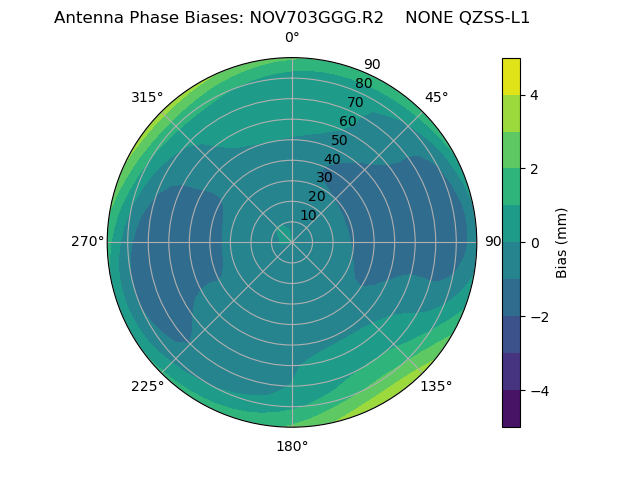

Radial QZSS-L1Radial QZSS-L1

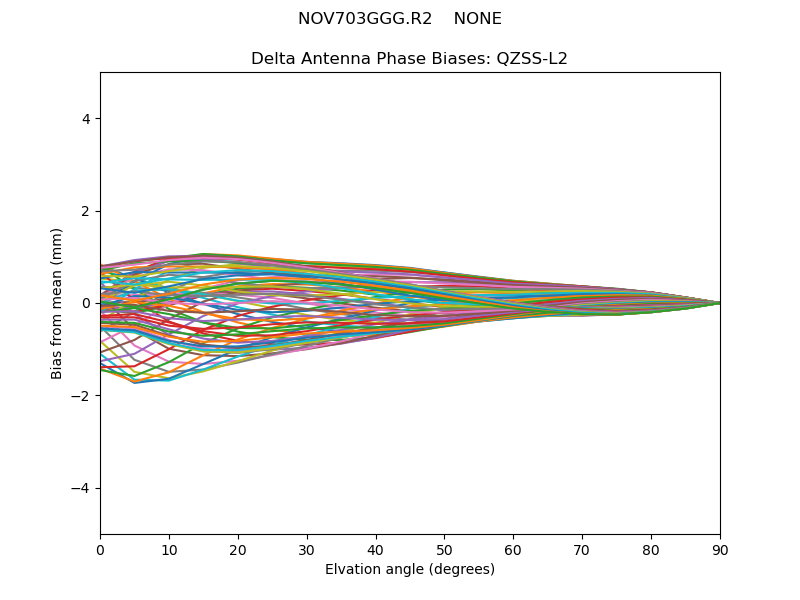

QZSS-L2

QZSS-L2QZSS-L2

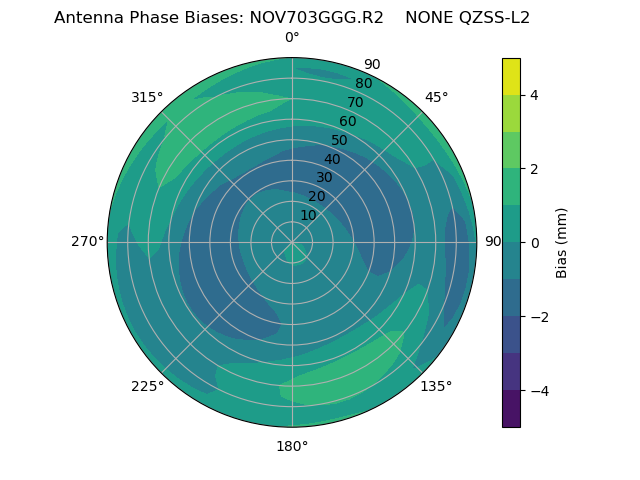

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

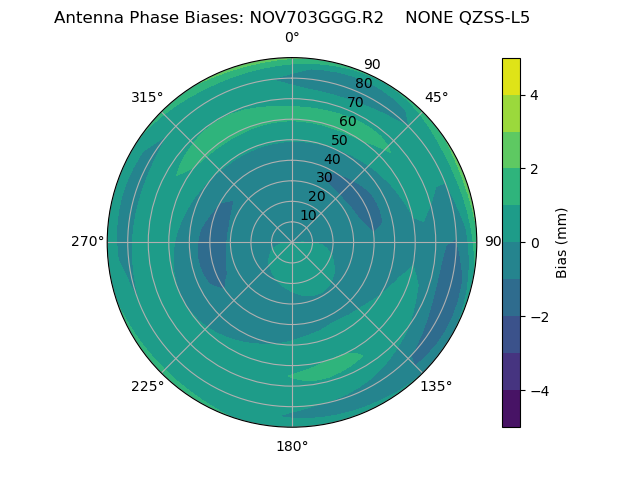

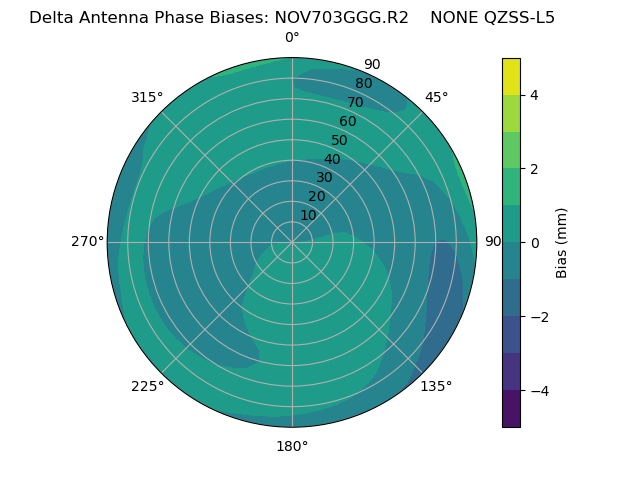

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

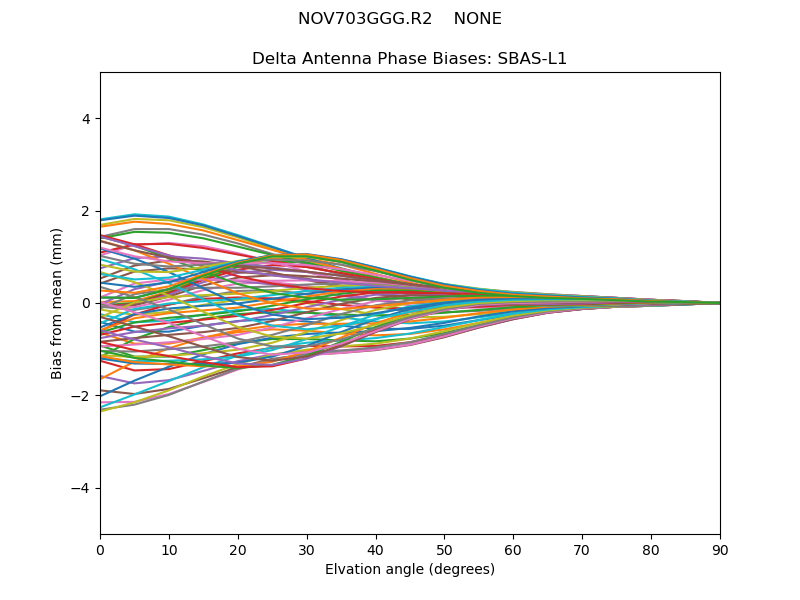

SBAS-L1

SBAS-L1SBAS-L1

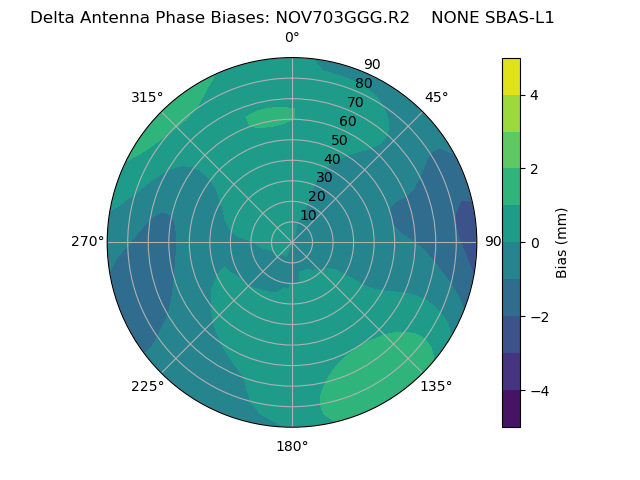

Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

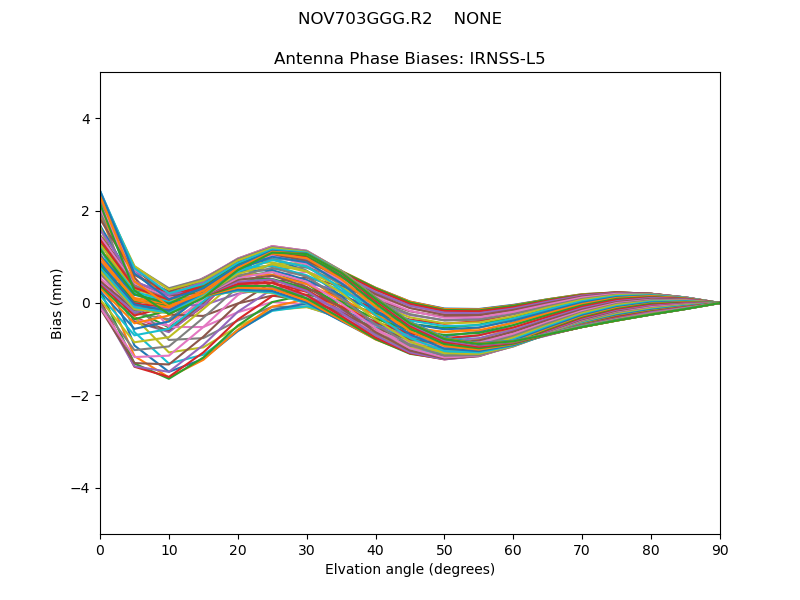

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
