Antenna information for SEPCHOKE_B3E6 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.10 E: -0.16 U: 124.81
L2: N: -0.22 E: 0.04 U: 138.00
L5: N: -0.23 E: -0.24 U: 137.30

GLONASS

L1: N: 1.04 E: 0.27 U: 124.89
L2: N: -0.24 E: 0.05 U: 138.56

GALILEO

E1: N: 0.10 E: -0.16 U: 124.81
E5a: N: -0.23 E: -0.24 U: 137.30

BeiDou

E1: N: 0.10 E: -0.16 U: 124.81

QZSS

L1: N: 0.10 E: -0.16 U: 124.81
L2: N: -0.22 E: 0.04 U: 138.00
L5: N: -0.23 E: -0.24 U: 137.30

IRNSS

L5: N: -0.23 E: -0.24 U: 137.30

SBAS

L1: N: 0.10 E: -0.16 U: 124.81
L5: N: -0.23 E: -0.24 U: 137.30

L1

GPS: N: 0.10 E: -0.16 U: 124.81
GLONASS: N: 1.04 E: 0.27 U: 124.89
QZSS: N: 0.10 E: -0.16 U: 124.81
SBAS: N: 0.10 E: -0.16 U: 124.81

L2

GPS: N: -0.22 E: 0.04 U: 138.00
GLONASS: N: -0.24 E: 0.05 U: 138.56
QZSS: N: -0.22 E: 0.04 U: 138.00

L5

GPS: N: -0.23 E: -0.24 U: 137.30
QZSS: N: -0.23 E: -0.24 U: 137.30
SBAS: N: -0.23 E: -0.24 U: 137.30
IRNSS: N: -0.23 E: -0.24 U: 137.30

E1

GALILEO: N: 0.10 E: -0.16 U: 124.81
BeiDou: N: 0.10 E: -0.16 U: 124.81

E5a

GALILEO: N: -0.23 E: -0.24 U: 137.30


Means

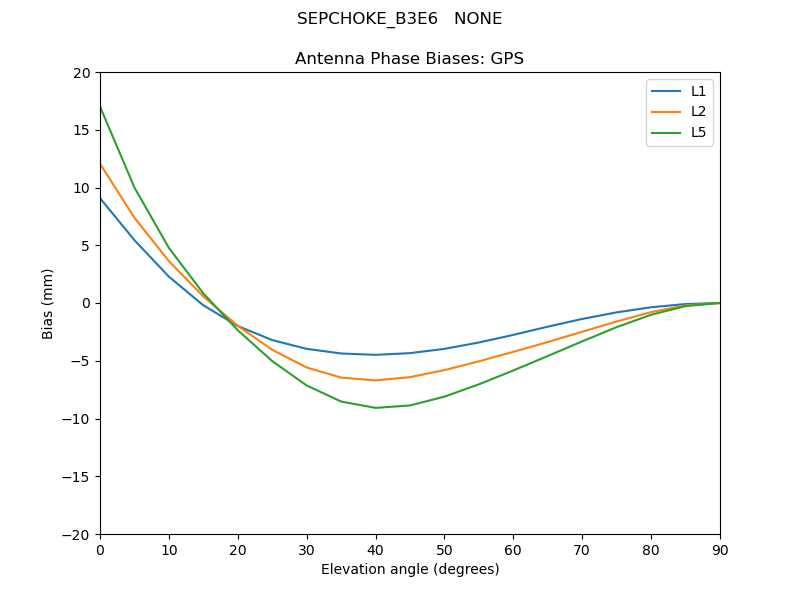

GPS

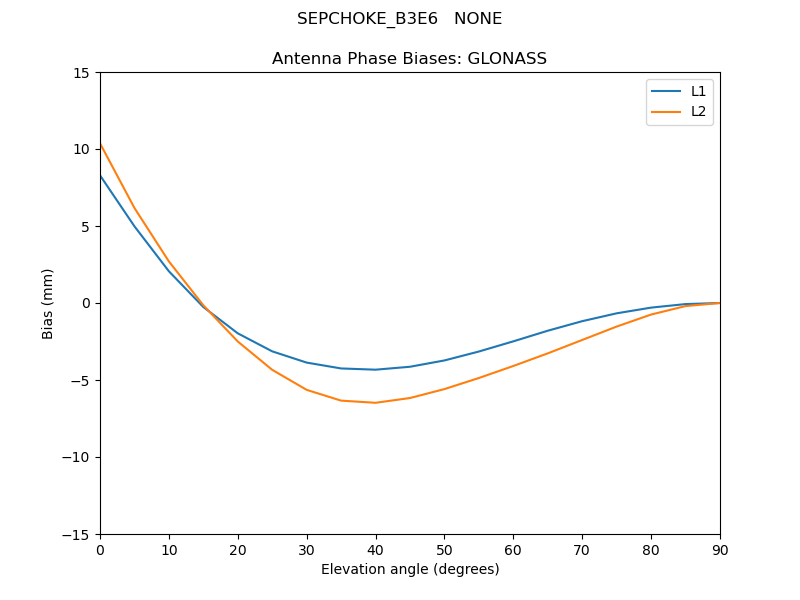

GLONASS

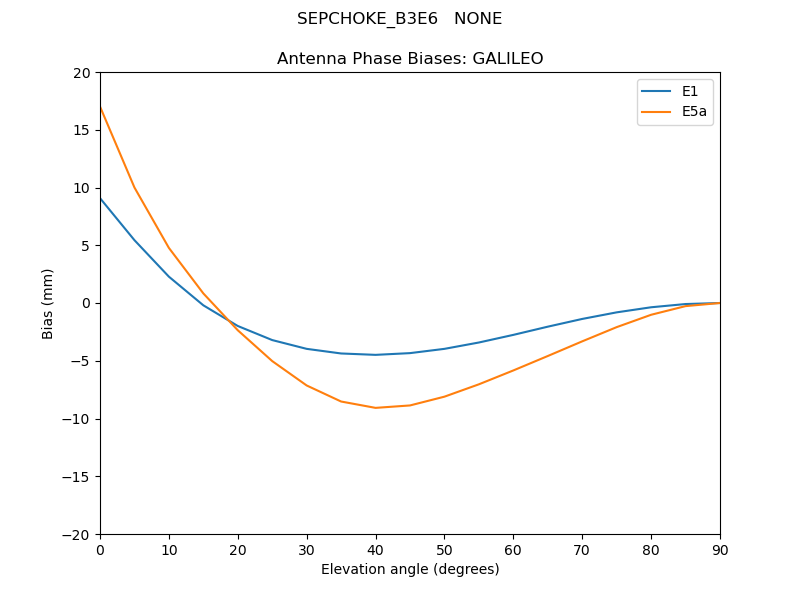

GALILEO

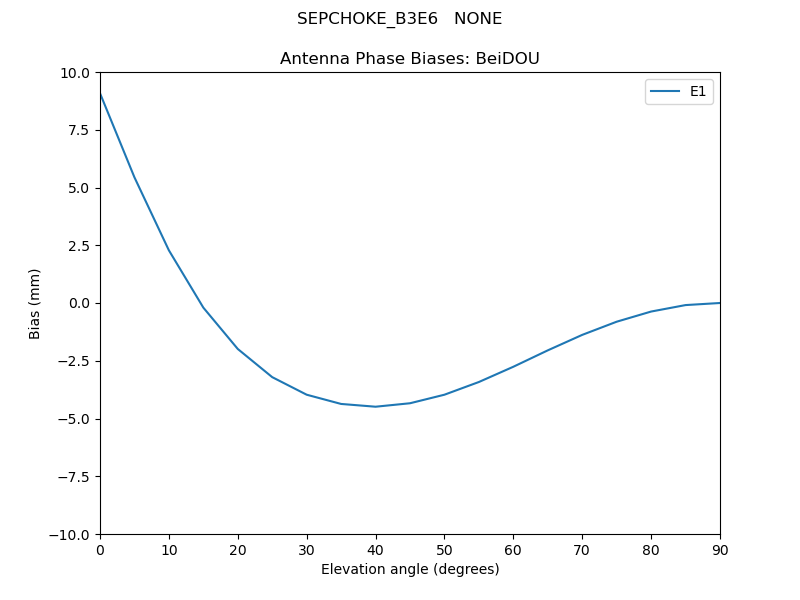

BeiDOU


QZSS

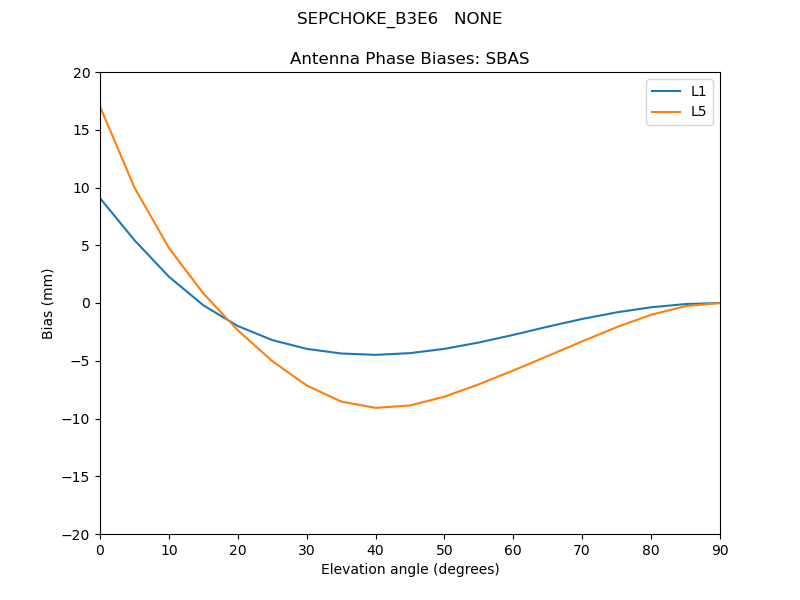

SBAS

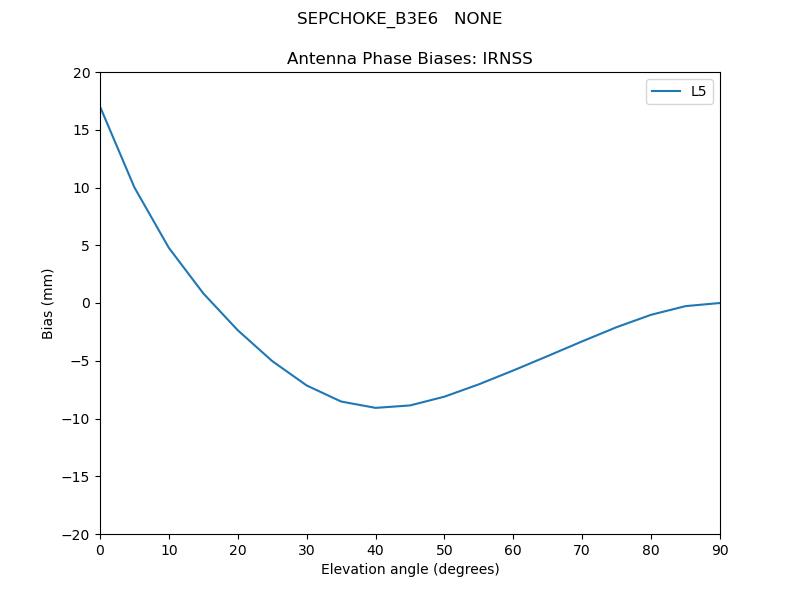

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

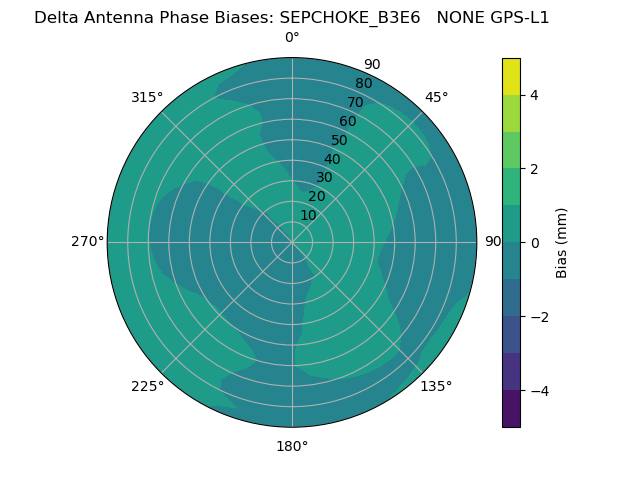

Radial GPS-L1Radial GPS-L1

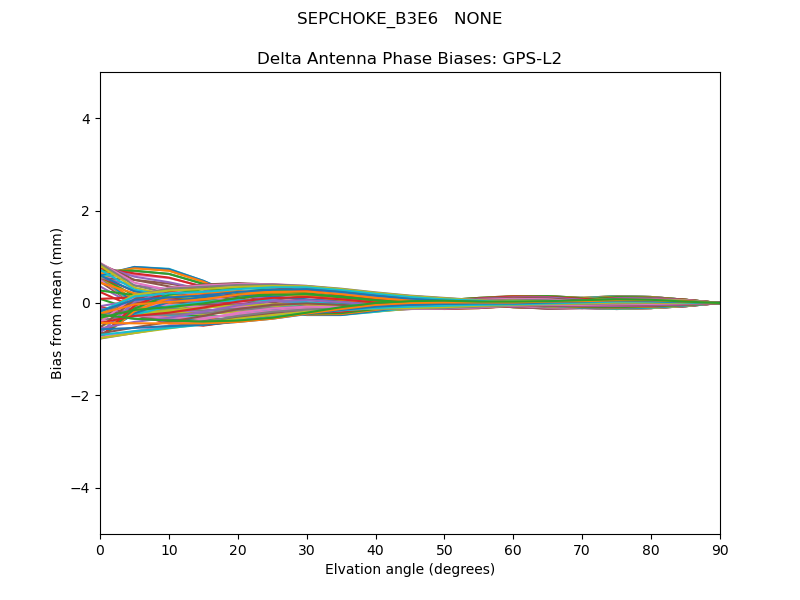

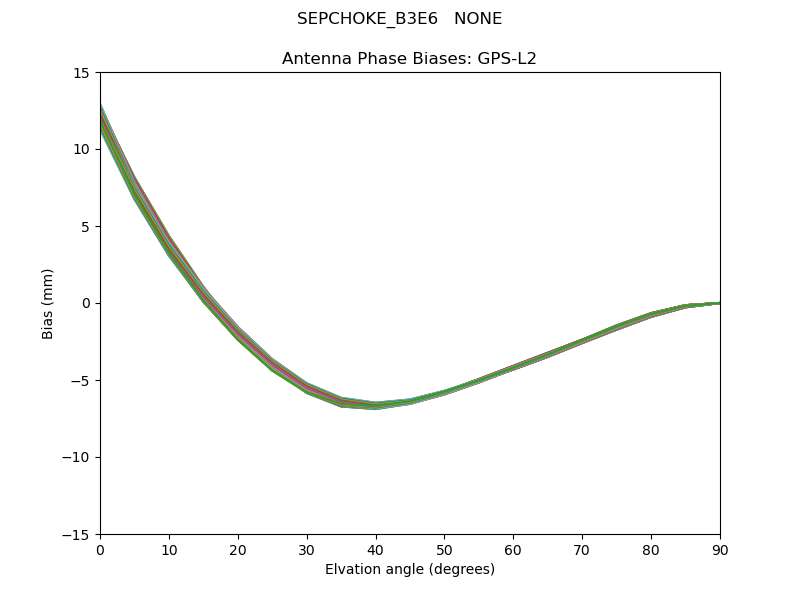

GPS-L2

GPS-L2GPS-L2

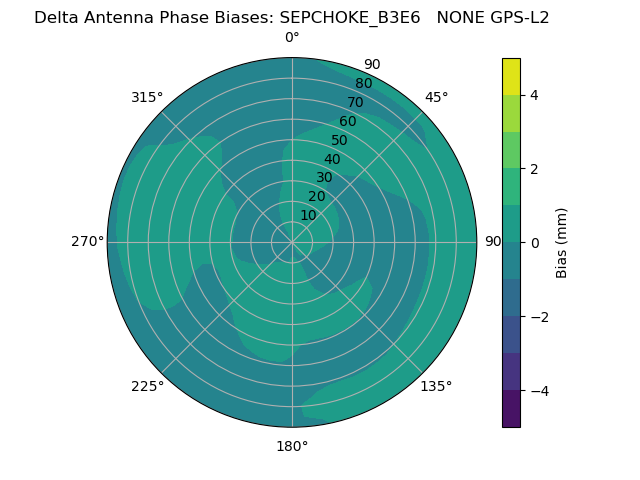

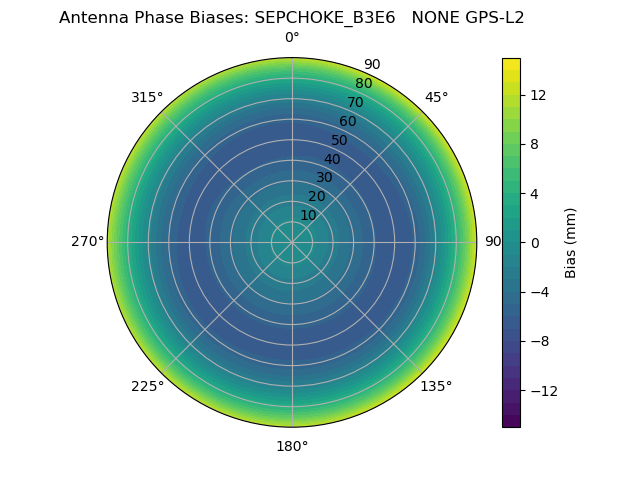

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

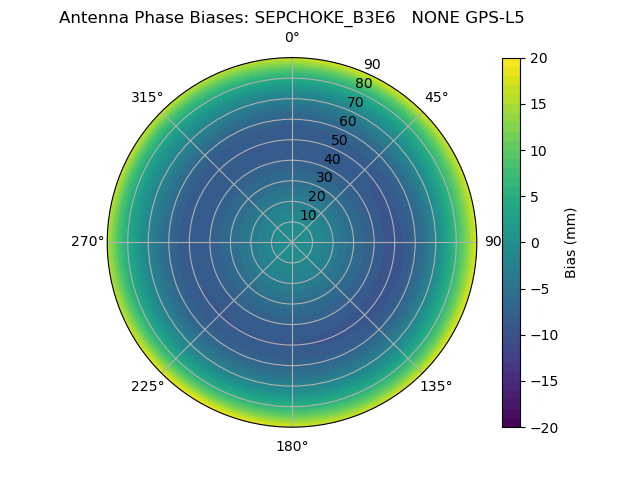

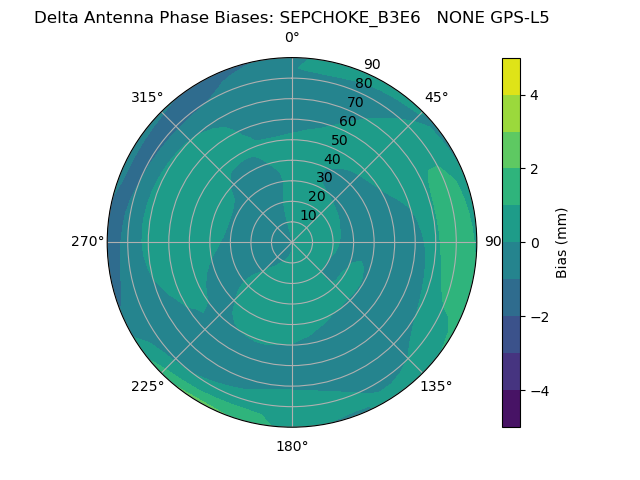

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

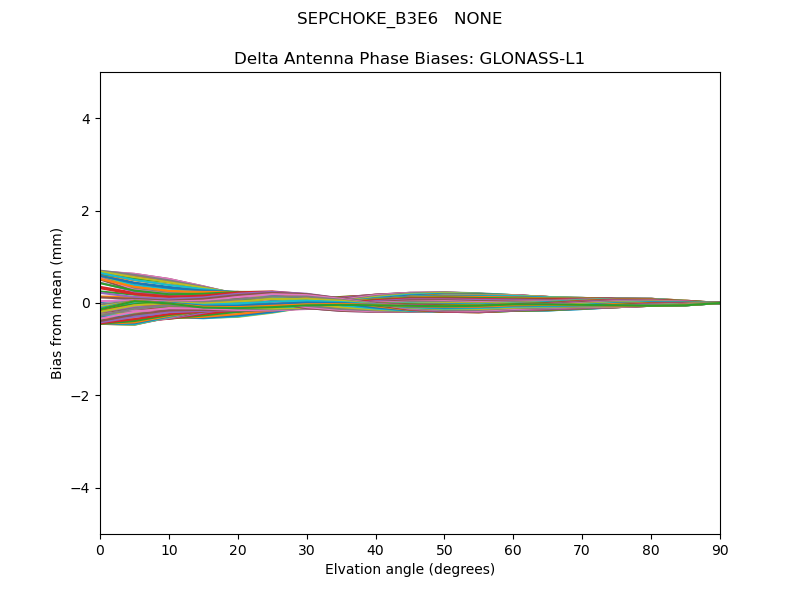

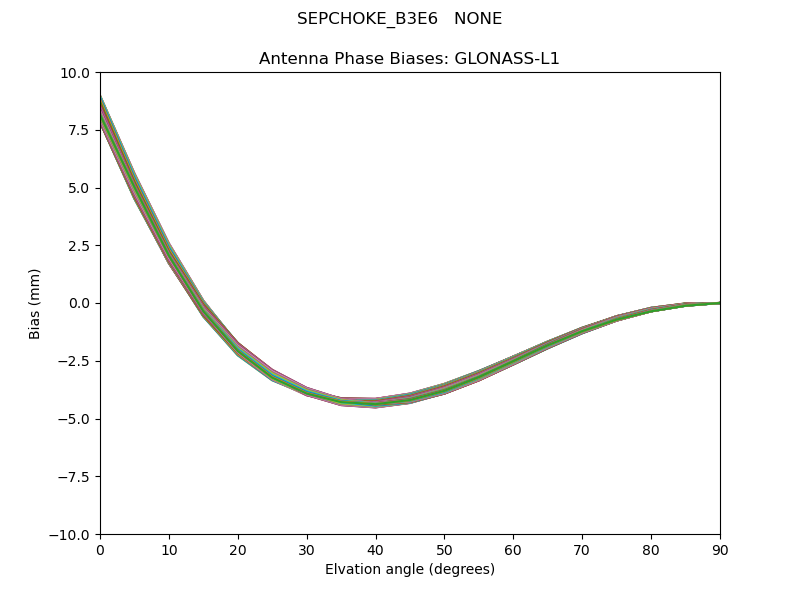

GLONASS-L1

GLONASS-L1GLONASS-L1
Radial GLONASS-L1Radial GLONASS-L1

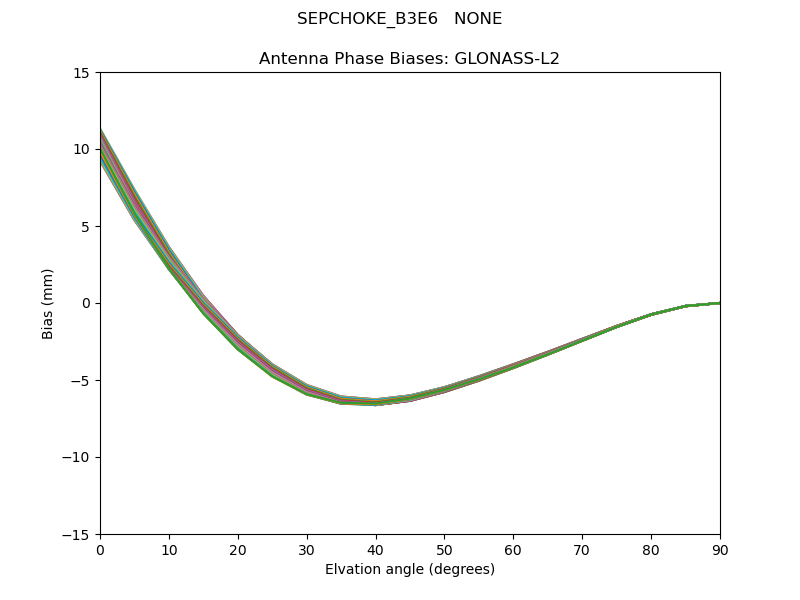

GLONASS-L2

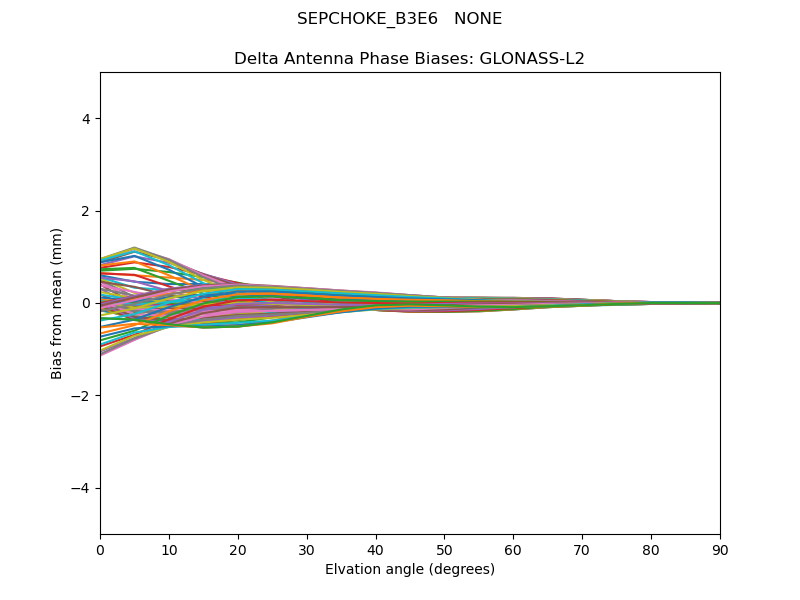

GLONASS-L2GLONASS-L2

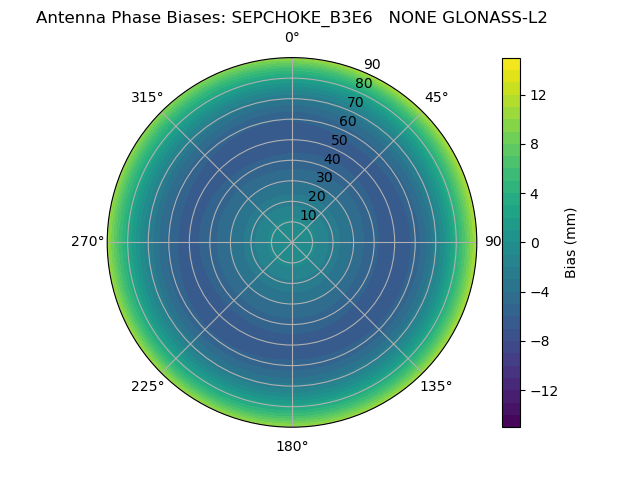

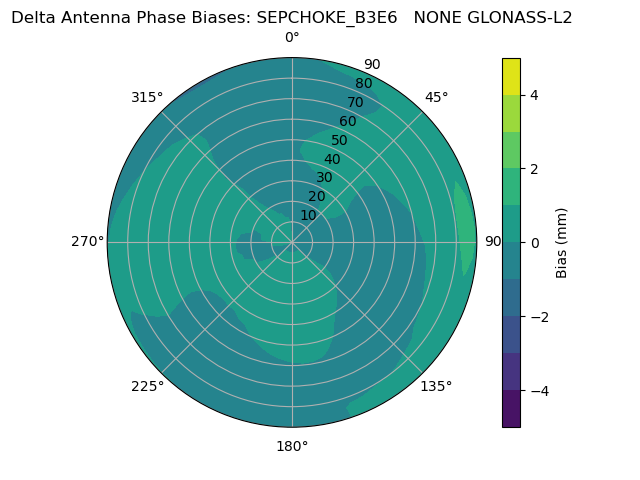

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

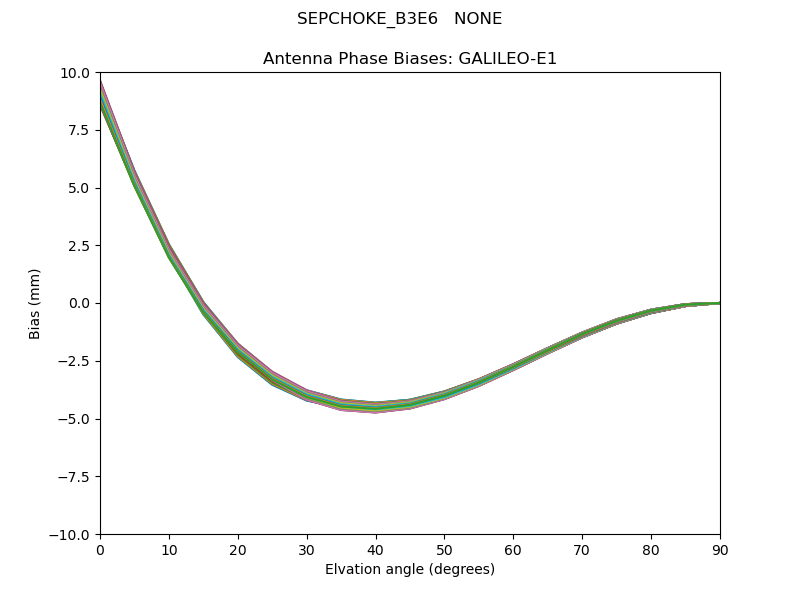

GALILEO-E1

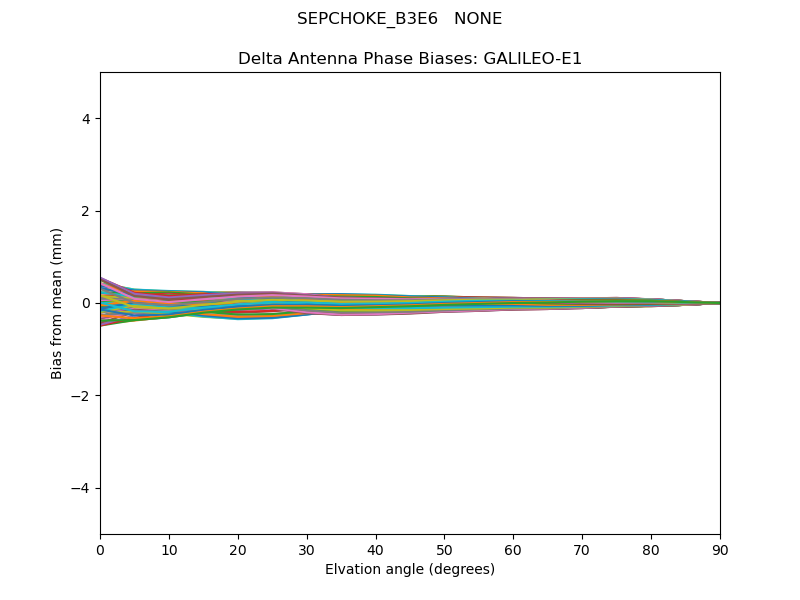

GALILEO-E1GALILEO-E1

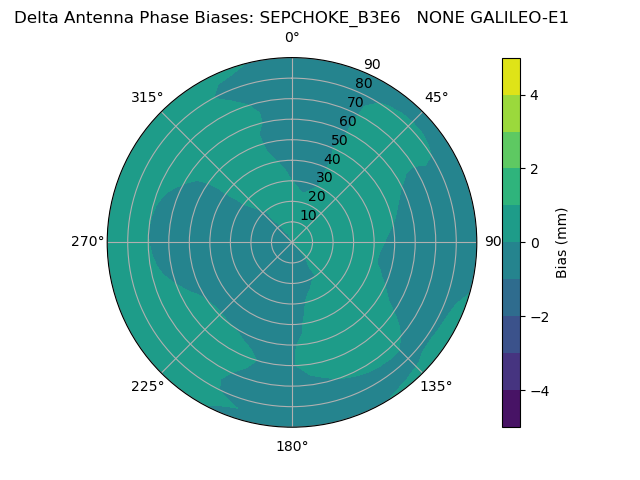

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

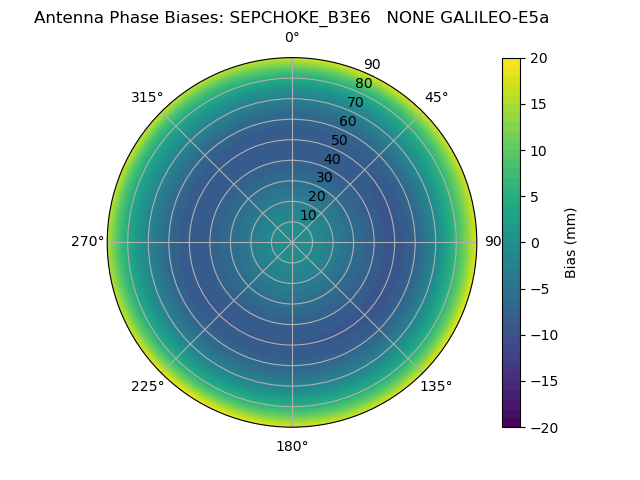

Radial GALILEO-E5aRadial GALILEO-E5a

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

QZSS


Bias Delta

QZSS-L1

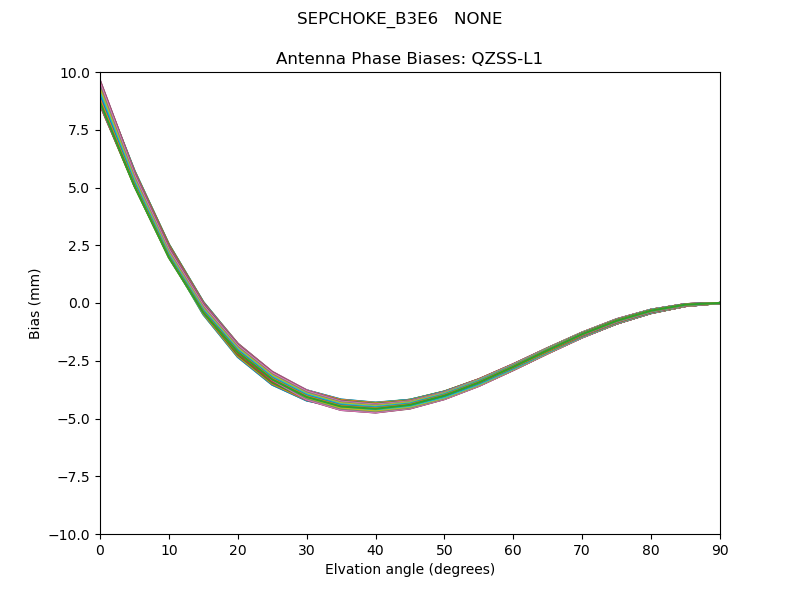

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

QZSS-L2

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

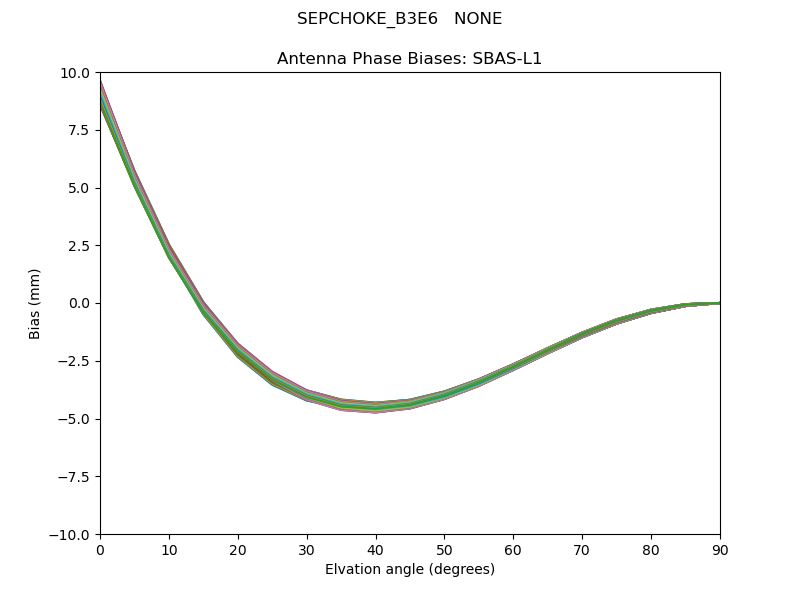

SBAS-L1

SBAS-L1SBAS-L1

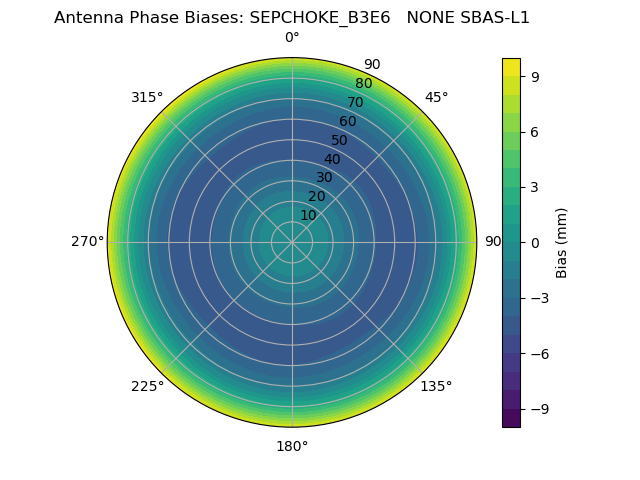

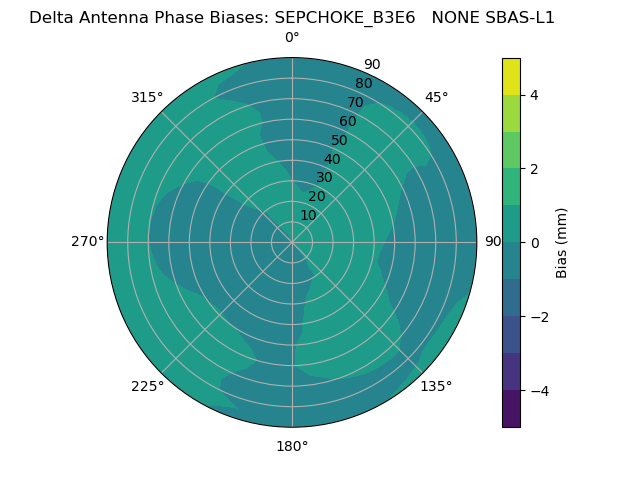

Radial SBAS-L1Radial SBAS-L1

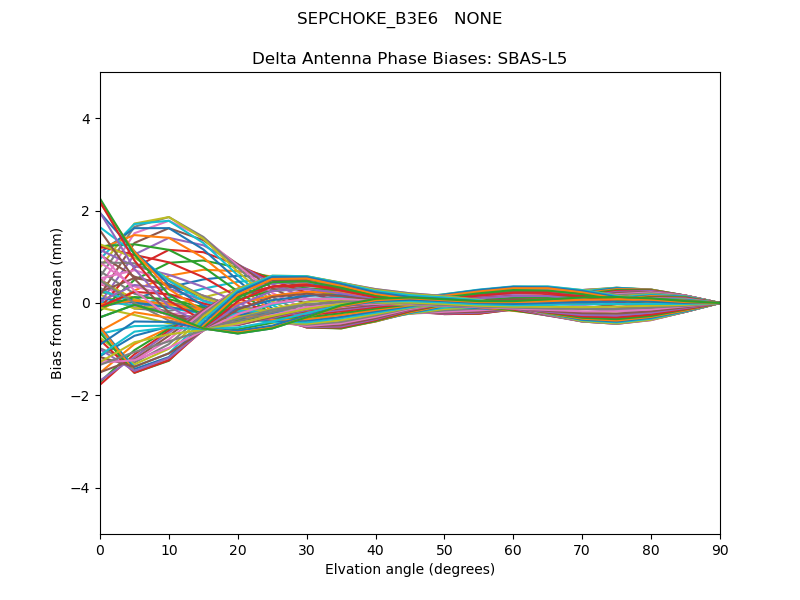

SBAS-L5

SBAS-L5SBAS-L5

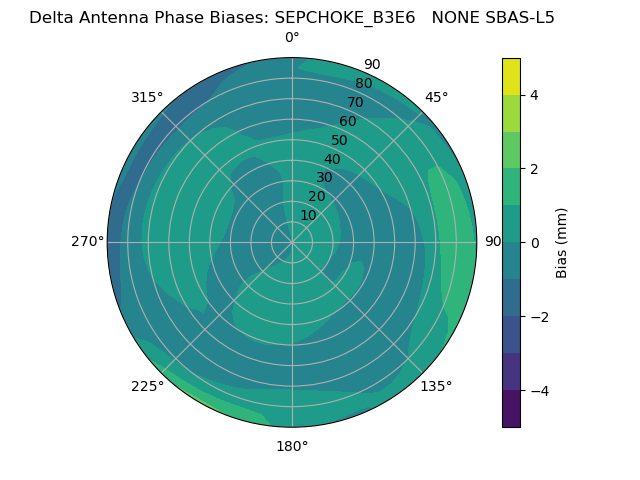

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

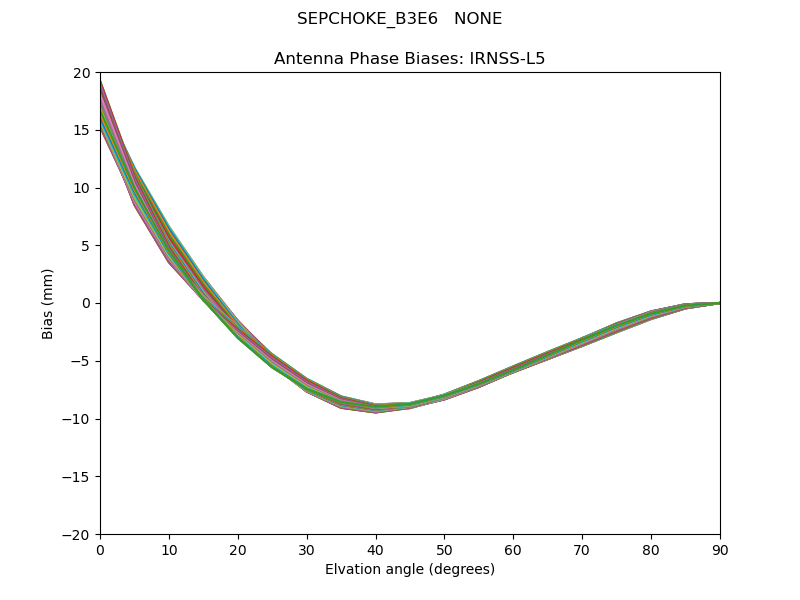

IRNSS-L5

IRNSS-L5IRNSS-L5

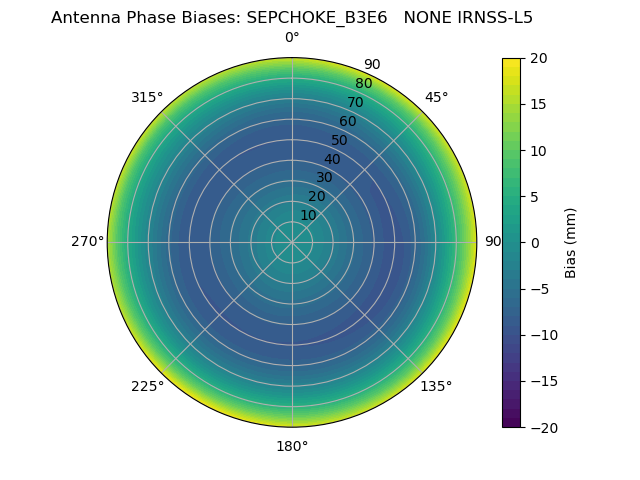

Radial IRNSS-L5Radial IRNSS-L5
