Antenna information for SEPCHOKE_B3E6 SPKE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.94 E: -0.59 U: 127.35
L2: N: 0.22 E: -0.35 U: 141.43
L5: N: 0.11 E: -0.35 U: 141.36

GLONASS

L1: N: -0.06 E: 0.69 U: 126.32
L2: N: 0.18 E: -0.41 U: 141.11

GALILEO

E1: N: 0.94 E: -0.59 U: 127.35
E5a: N: 0.11 E: -0.35 U: 141.36
E5b: N: 0.09 E: -0.36 U: 141.31
E5: N: -0.63 E: 0.33 U: 141.45
E6: N: 0.20 E: -0.18 U: 139.94

BeiDou

E1: N: 0.94 E: -0.59 U: 127.35
E2: N: 0.15 E: -0.43 U: 128.98
E5b: N: 0.09 E: -0.36 U: 141.31
E6: N: 0.19 E: -0.51 U: 139.98

QZSS

L1: N: 0.94 E: -0.59 U: 127.35
L2: N: 0.22 E: -0.35 U: 141.43
L5: N: 0.11 E: -0.35 U: 141.36
LEX: N: 0.20 E: -0.18 U: 139.94

IRNSS

L5: N: 0.11 E: -0.35 U: 141.36

SBAS

L1: N: 0.94 E: -0.59 U: 127.35
L5: N: 0.11 E: -0.35 U: 141.36

L1

GPS: N: 0.94 E: -0.59 U: 127.35
GLONASS: N: -0.06 E: 0.69 U: 126.32
QZSS: N: 0.94 E: -0.59 U: 127.35
SBAS: N: 0.94 E: -0.59 U: 127.35

L2

GPS: N: 0.22 E: -0.35 U: 141.43
GLONASS: N: 0.18 E: -0.41 U: 141.11
QZSS: N: 0.22 E: -0.35 U: 141.43

L5

GPS: N: 0.11 E: -0.35 U: 141.36
QZSS: N: 0.11 E: -0.35 U: 141.36
SBAS: N: 0.11 E: -0.35 U: 141.36
IRNSS: N: 0.11 E: -0.35 U: 141.36

E1

GALILEO: N: 0.94 E: -0.59 U: 127.35
BeiDou: N: 0.94 E: -0.59 U: 127.35

E2

BeiDou: N: 0.15 E: -0.43 U: 128.98

E5

GALILEO: N: -0.63 E: 0.33 U: 141.45

E5a

GALILEO: N: 0.11 E: -0.35 U: 141.36

E5b

GALILEO: N: 0.09 E: -0.36 U: 141.31
BeiDou: N: 0.09 E: -0.36 U: 141.31

E6

GALILEO: N: 0.20 E: -0.18 U: 139.94
BeiDou: N: 0.19 E: -0.51 U: 139.98

LEX

QZSS: N: 0.20 E: -0.18 U: 139.94


Means

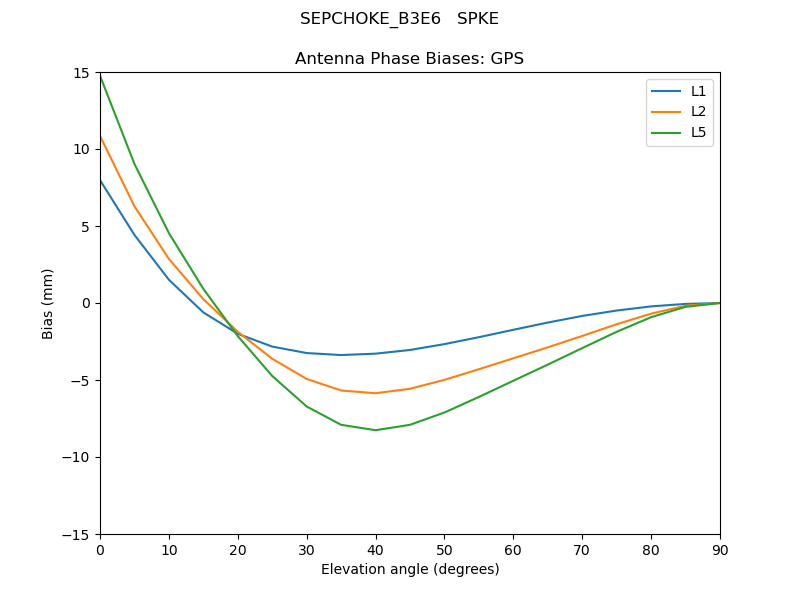

GPS

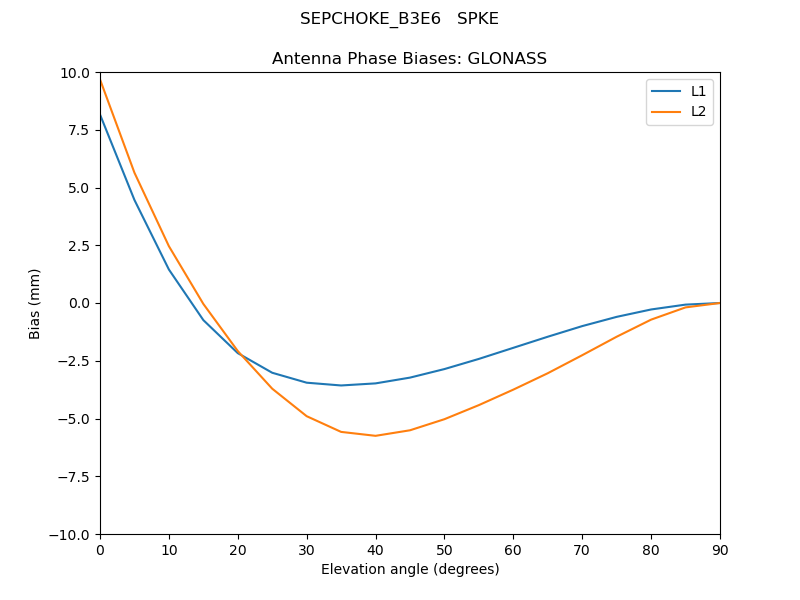

GLONASS

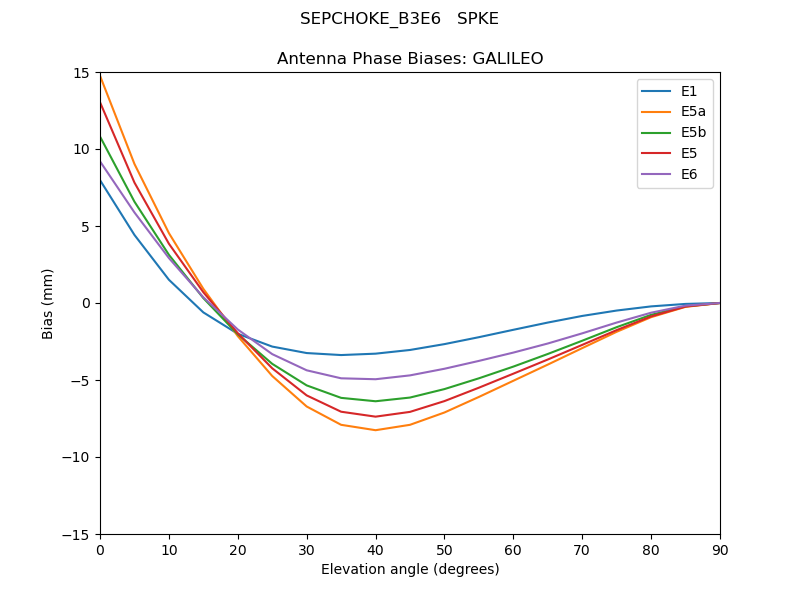

GALILEO

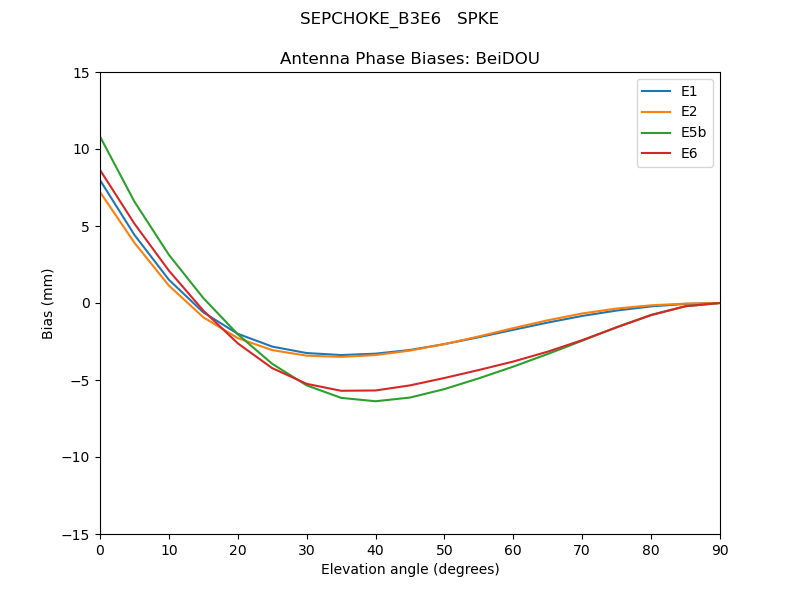

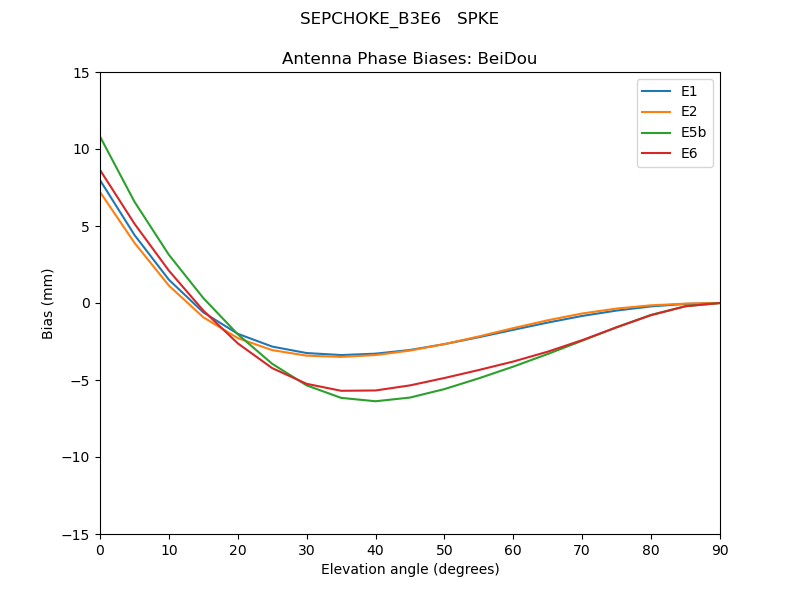

BeiDOU


QZSS

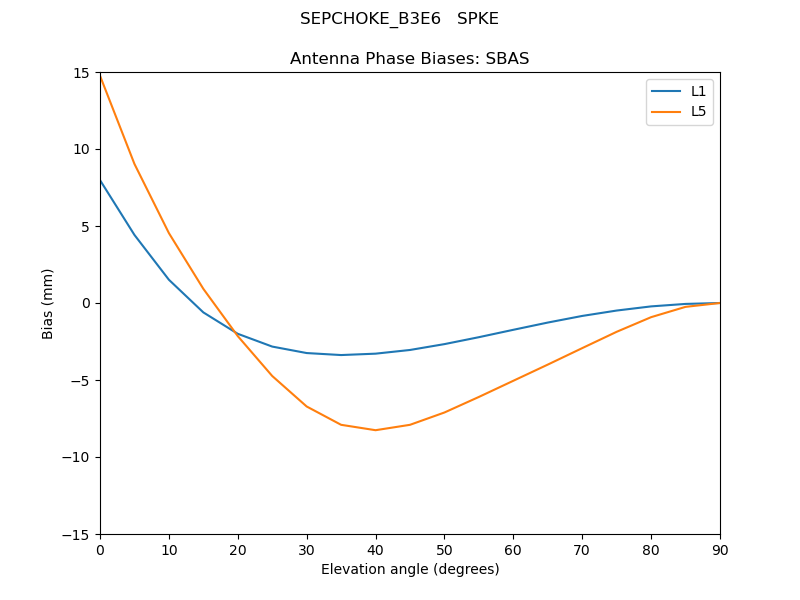

SBAS


IRNSS


Azimuths

GPS


Bias Delta

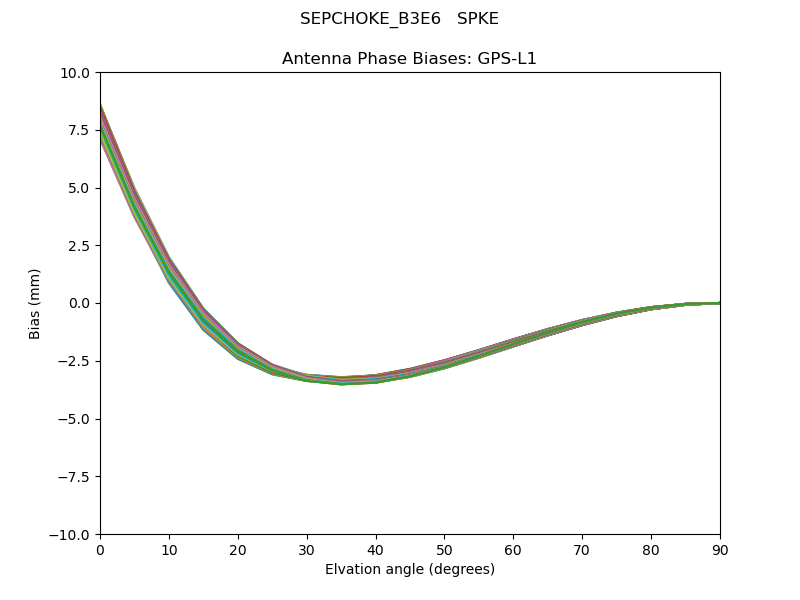

GPS-L1

GPS-L1GPS-L1

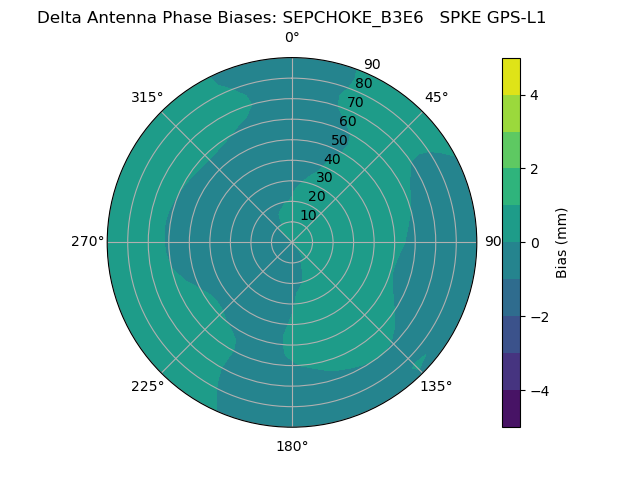

Radial GPS-L1Radial GPS-L1

GPS-L2

GPS-L2GPS-L2

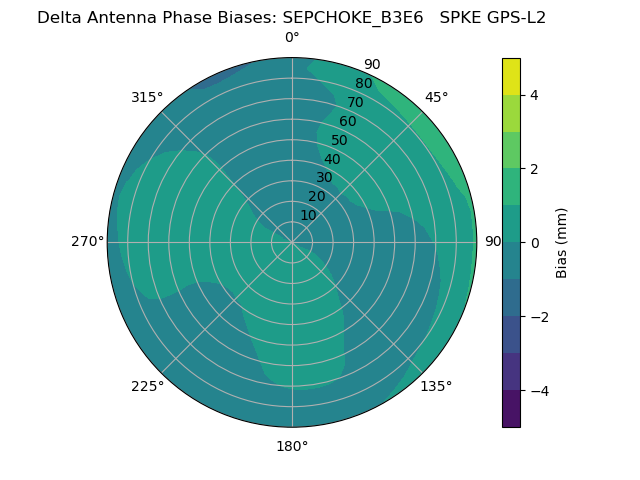

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

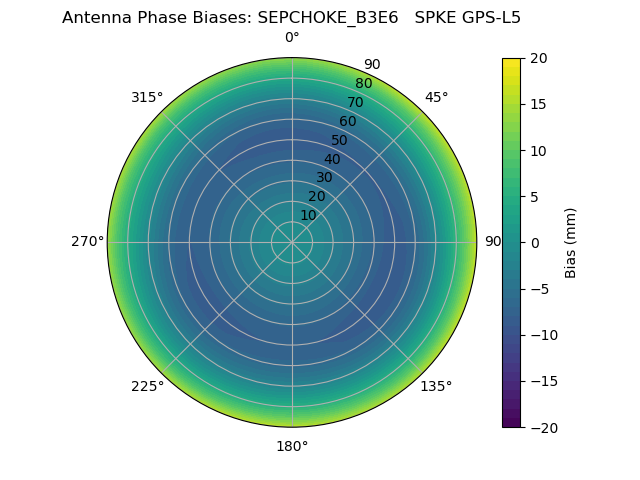

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

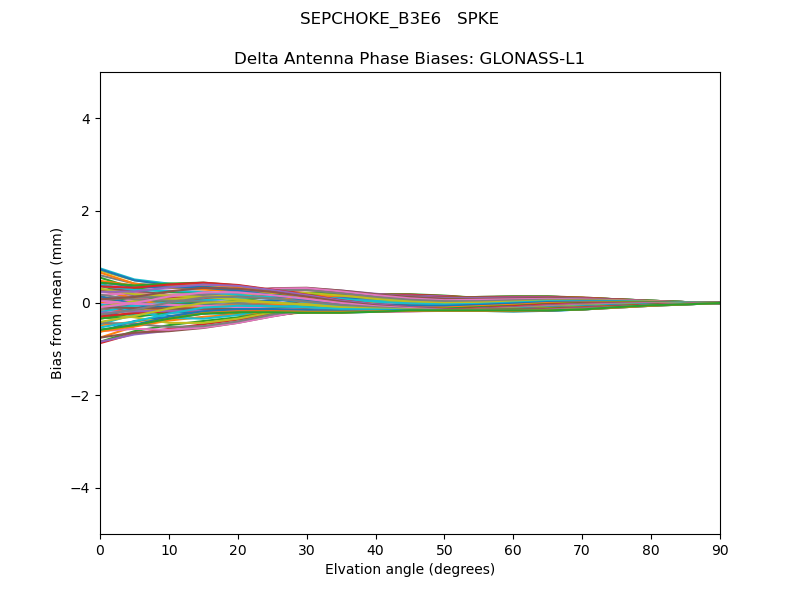

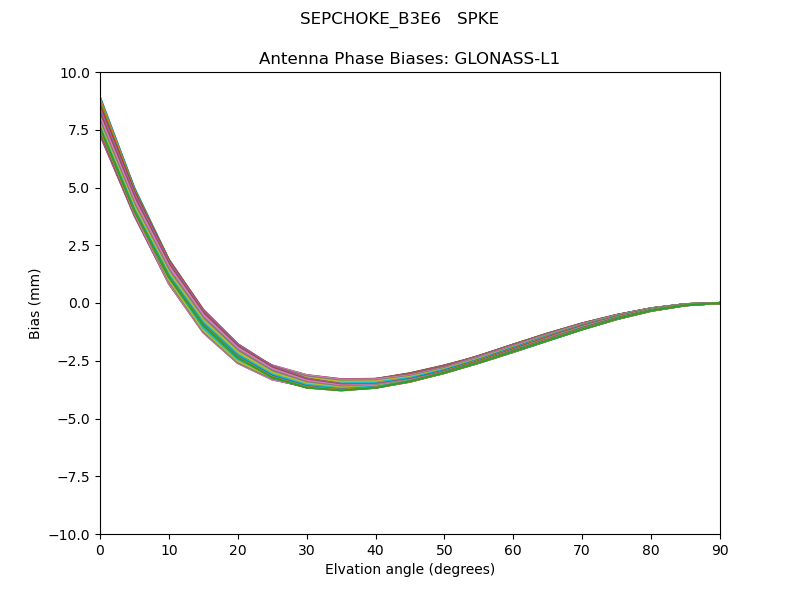

GLONASS-L1

GLONASS-L1GLONASS-L1

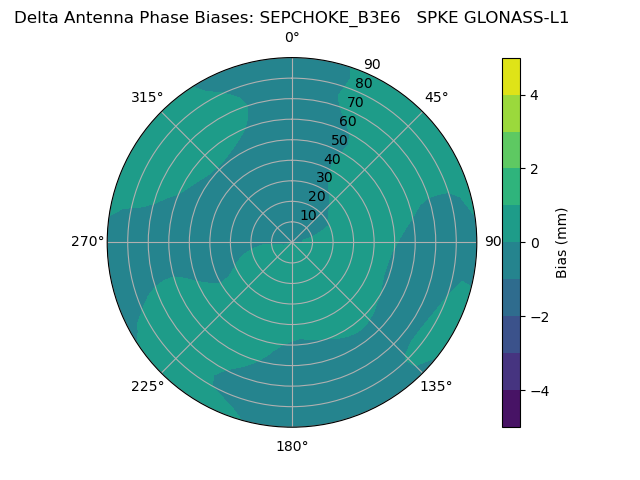

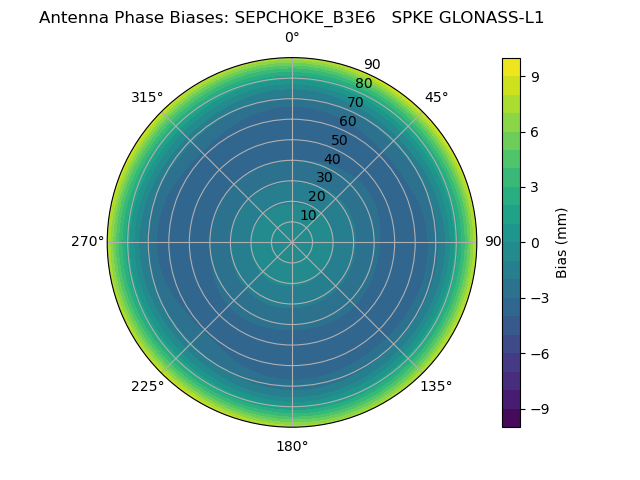

Radial GLONASS-L1Radial GLONASS-L1

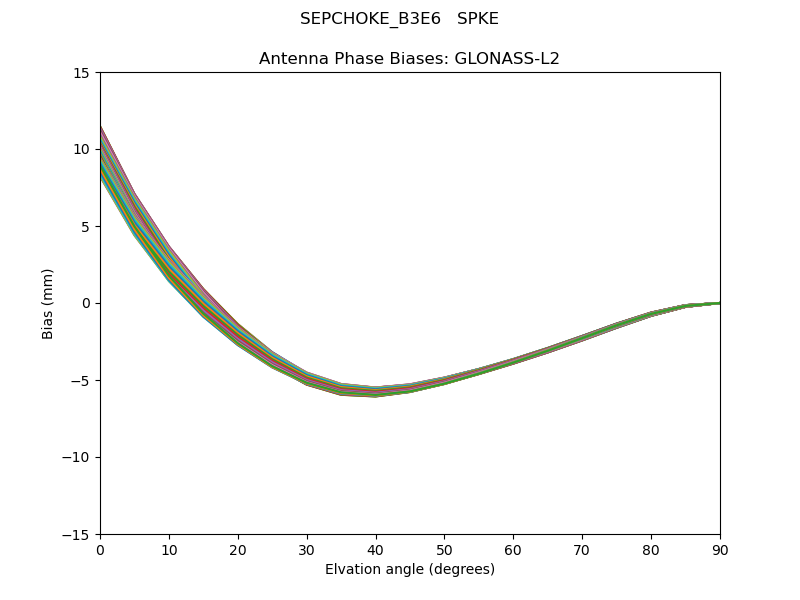

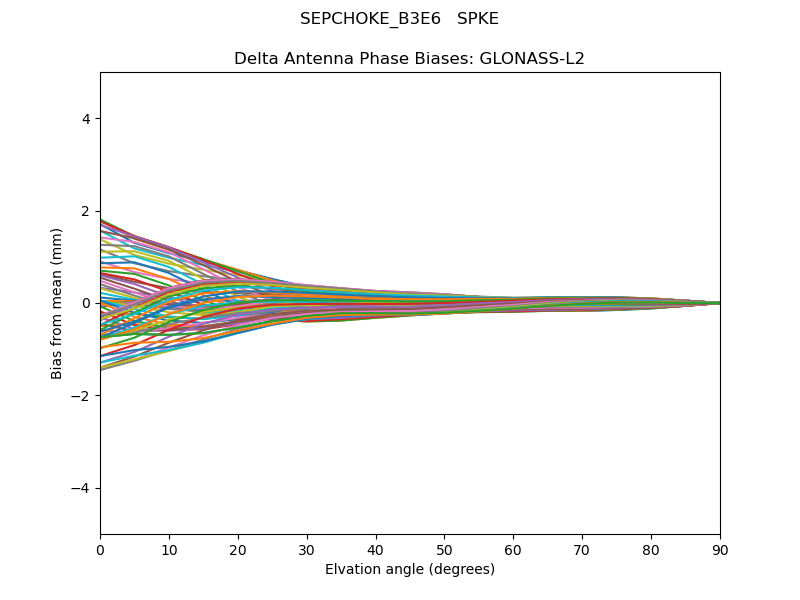

GLONASS-L2

GLONASS-L2GLONASS-L2

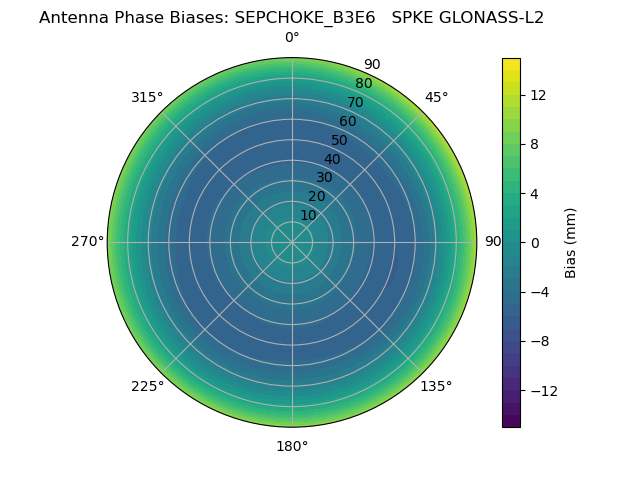

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

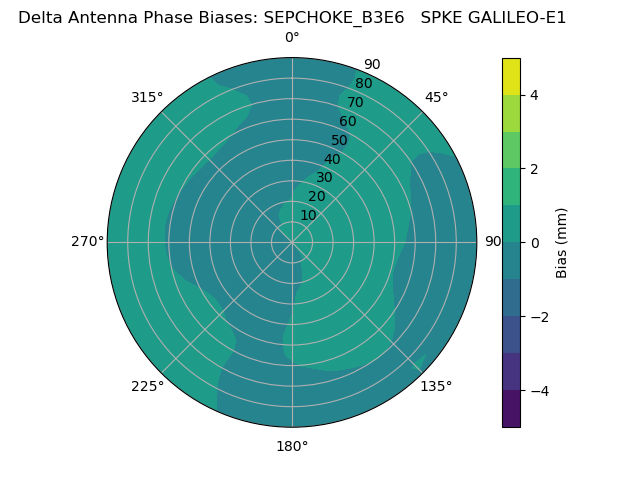

Radial GALILEO-E1Radial GALILEO-E1

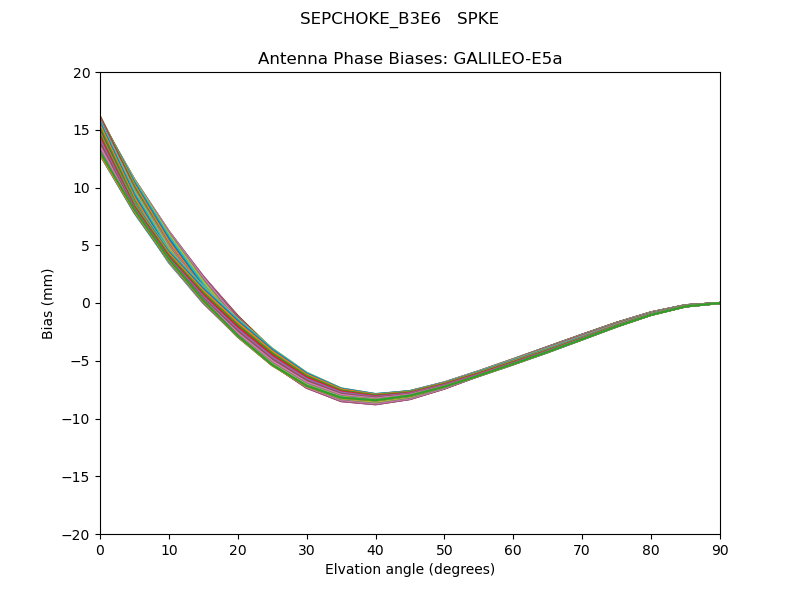

GALILEO-E5a

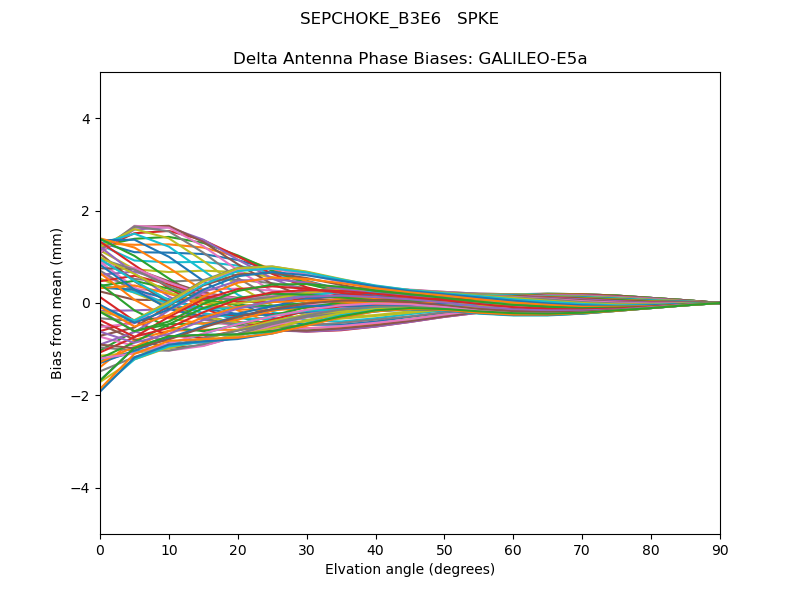

GALILEO-E5aGALILEO-E5a

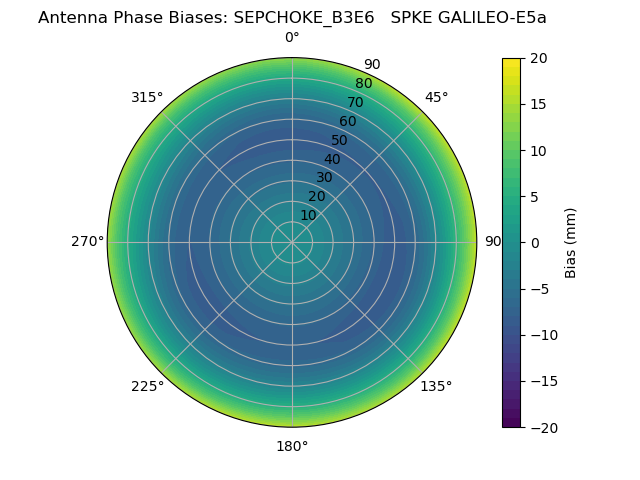

Radial GALILEO-E5aRadial GALILEO-E5a

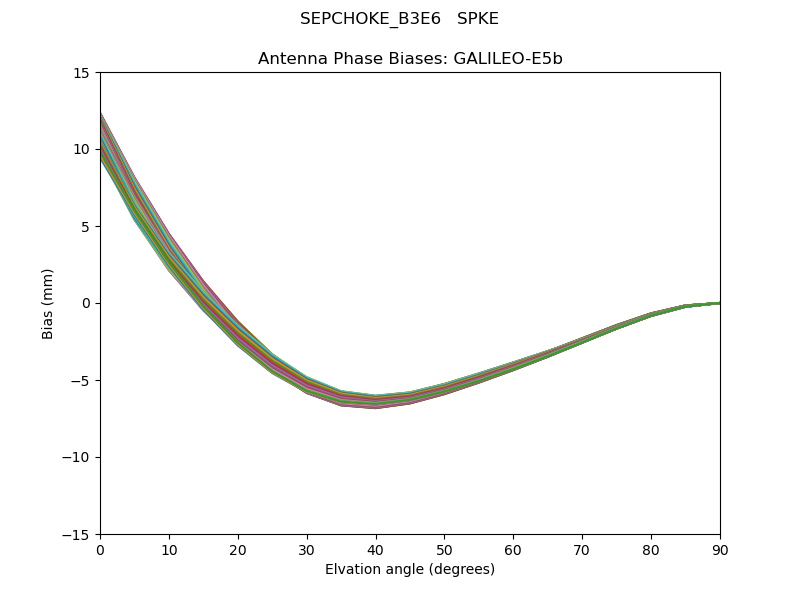

GALILEO-E5b

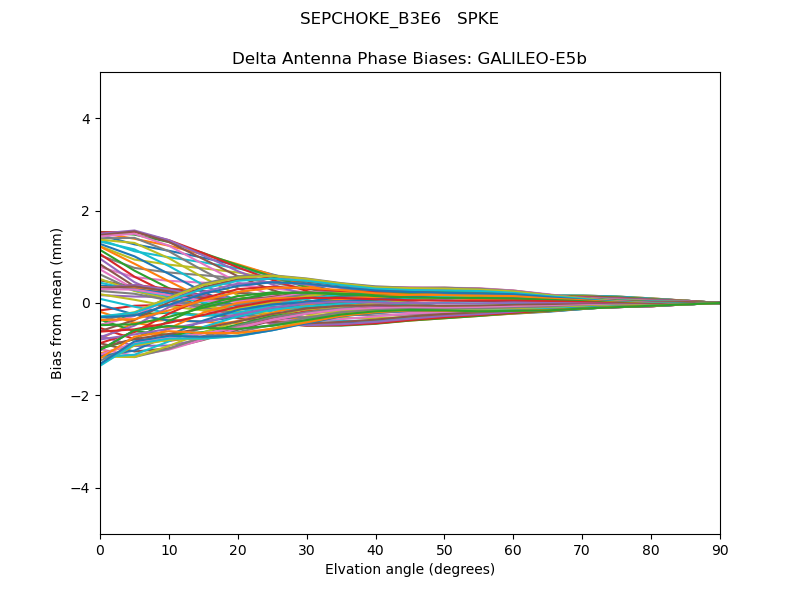

GALILEO-E5bGALILEO-E5b

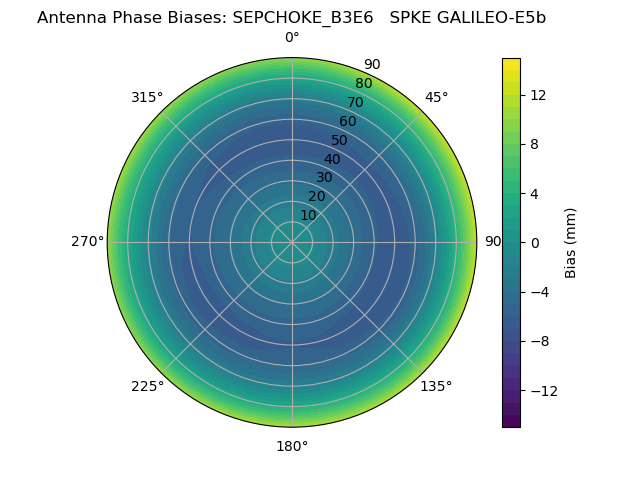

Radial GALILEO-E5bRadial GALILEO-E5b

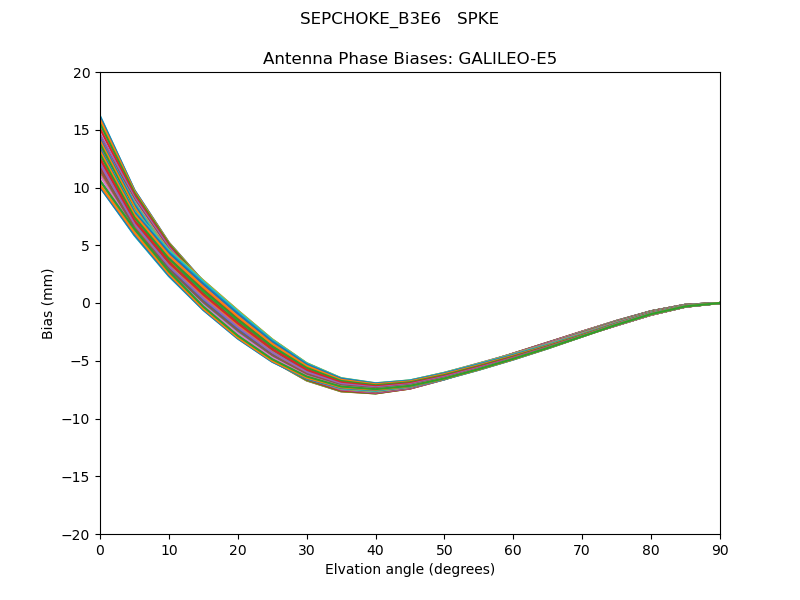

GALILEO-E5

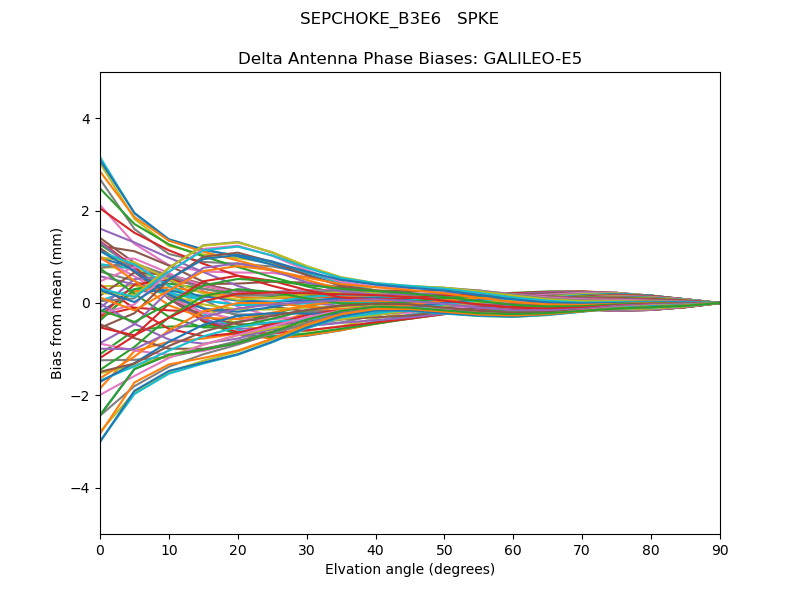

GALILEO-E5GALILEO-E5

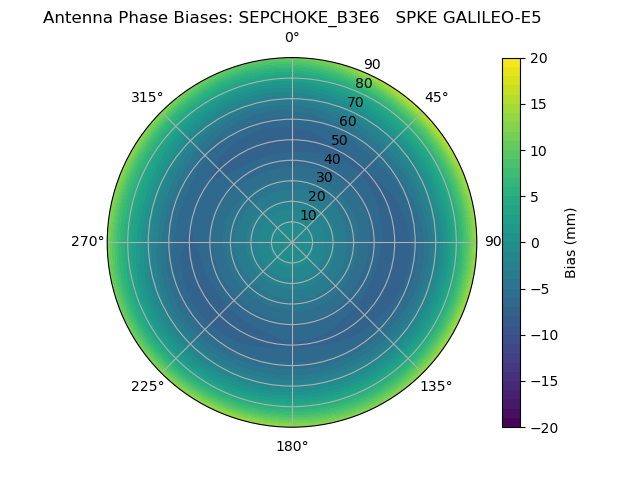

Radial GALILEO-E5Radial GALILEO-E5

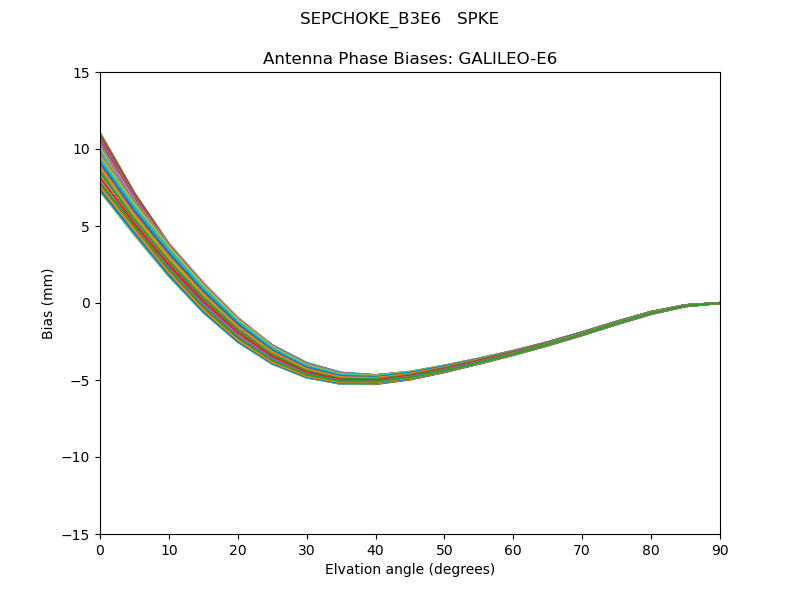

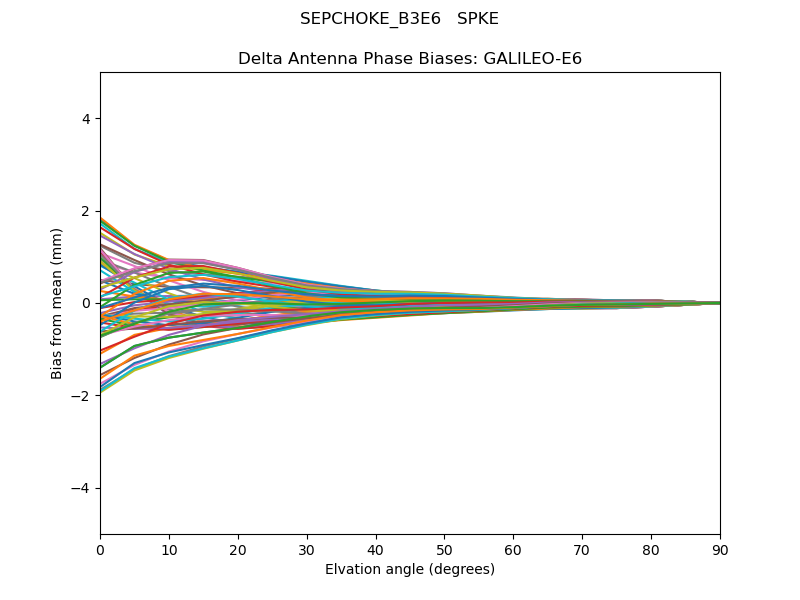

GALILEO-E6

GALILEO-E6GALILEO-E6

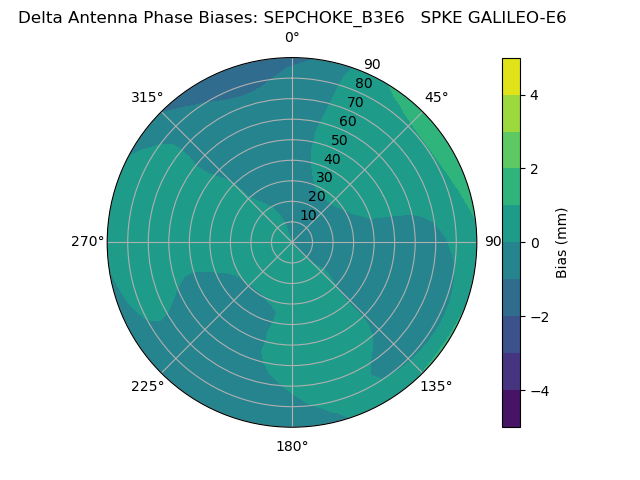

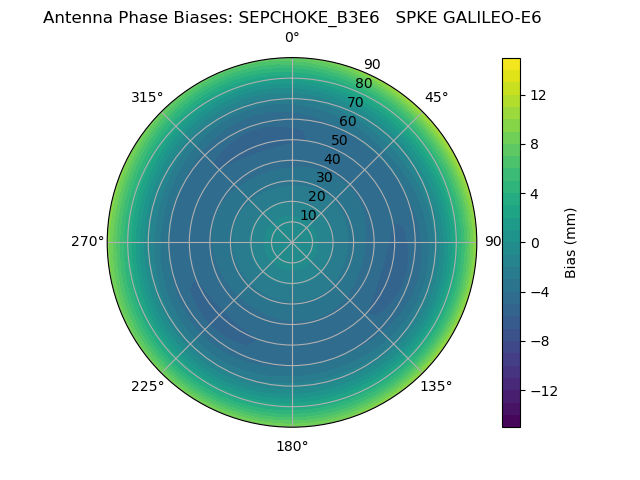

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

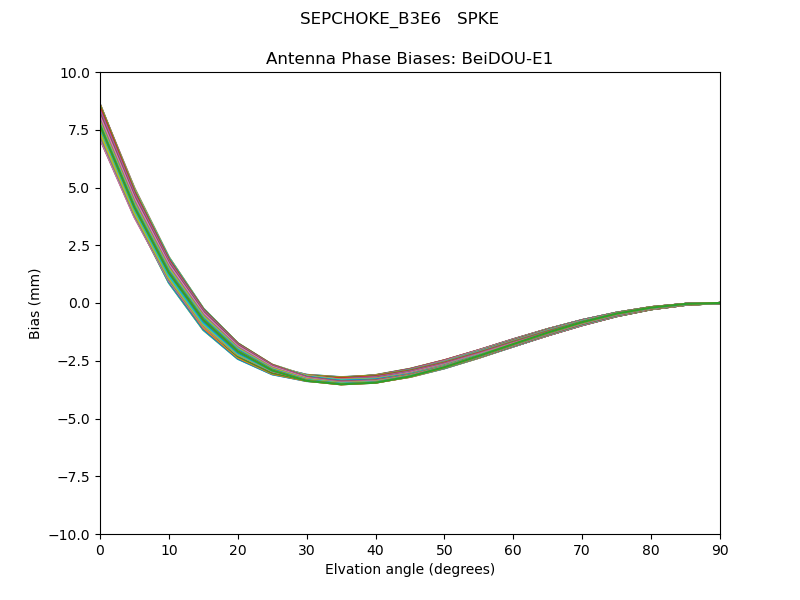

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

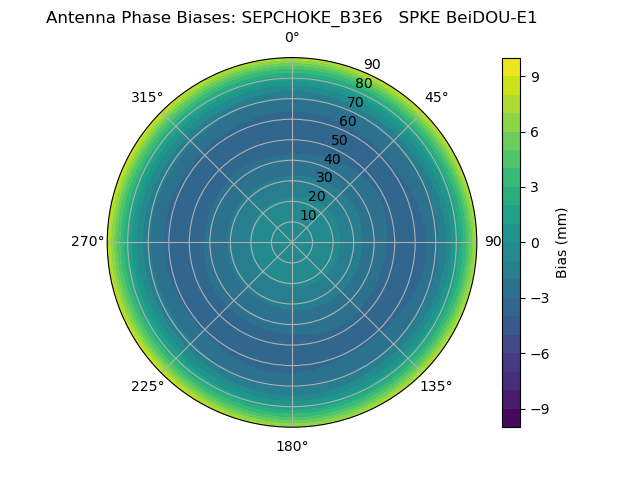

Radial BeiDOU-E1Radial BeiDOU-E1

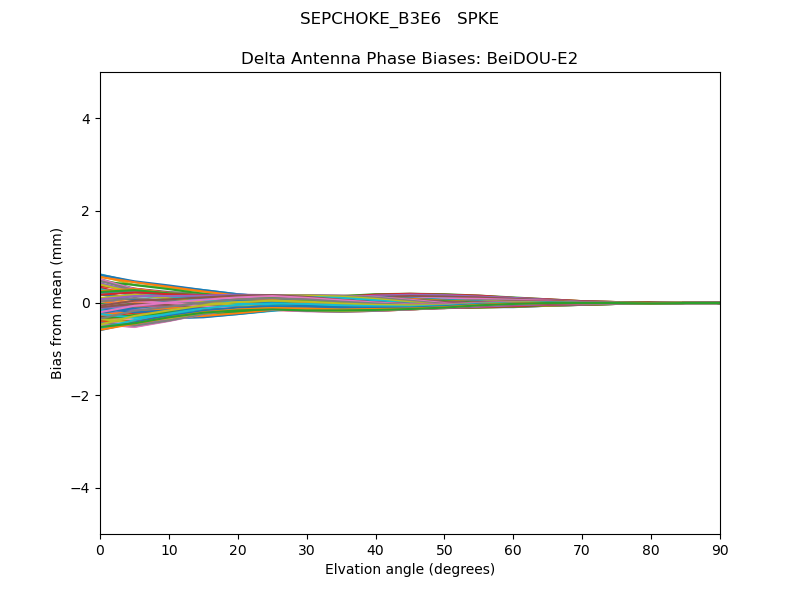

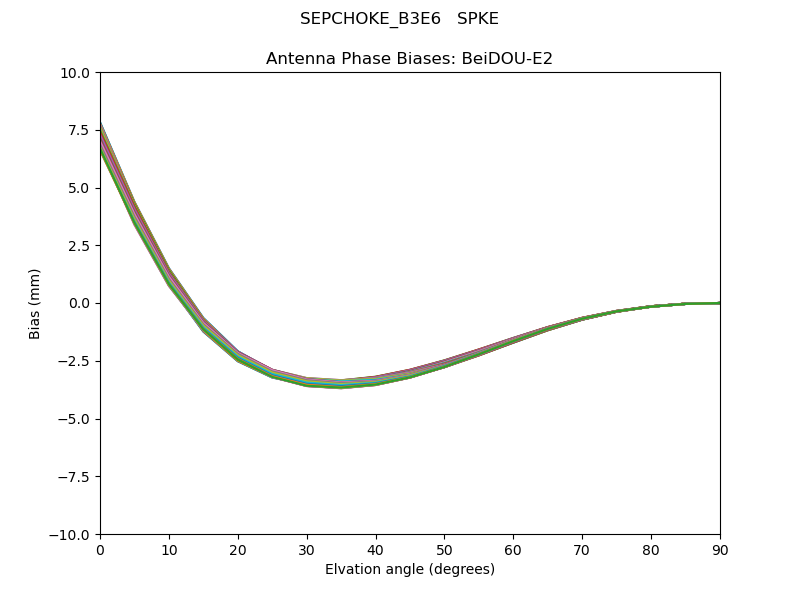

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

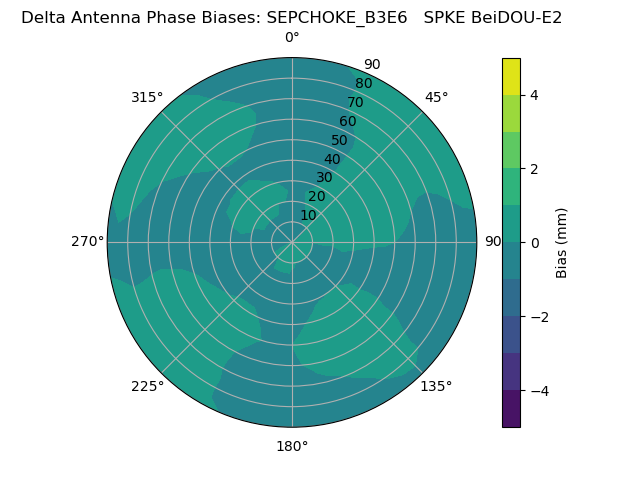

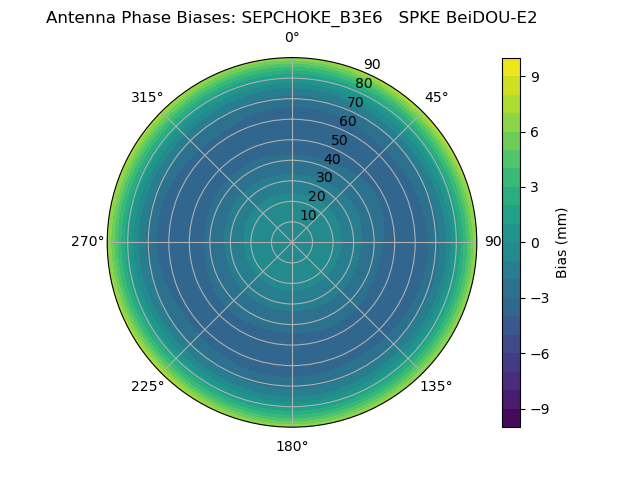

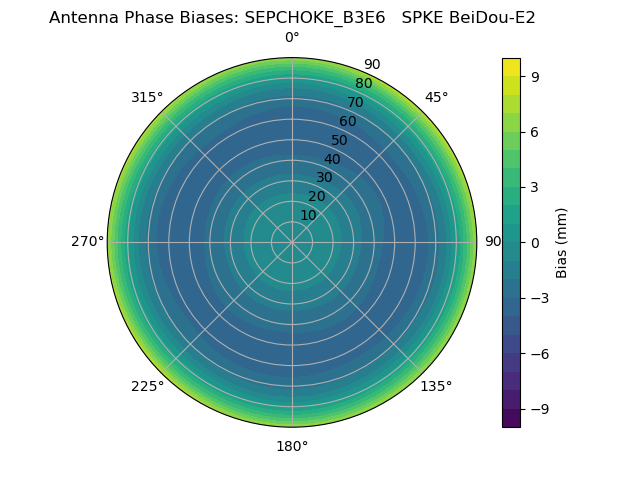

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

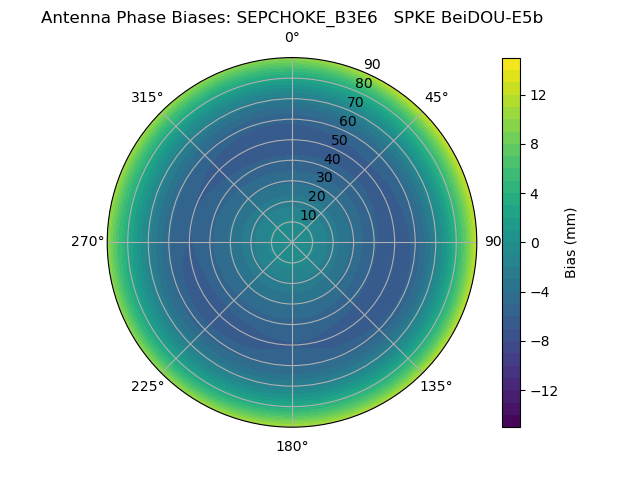

Radial BeiDOU-E5bRadial BeiDOU-E5b

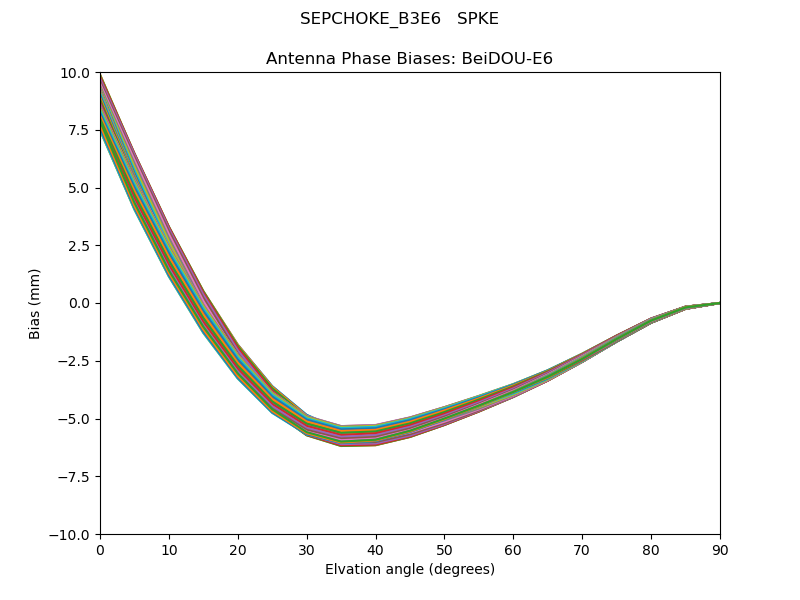

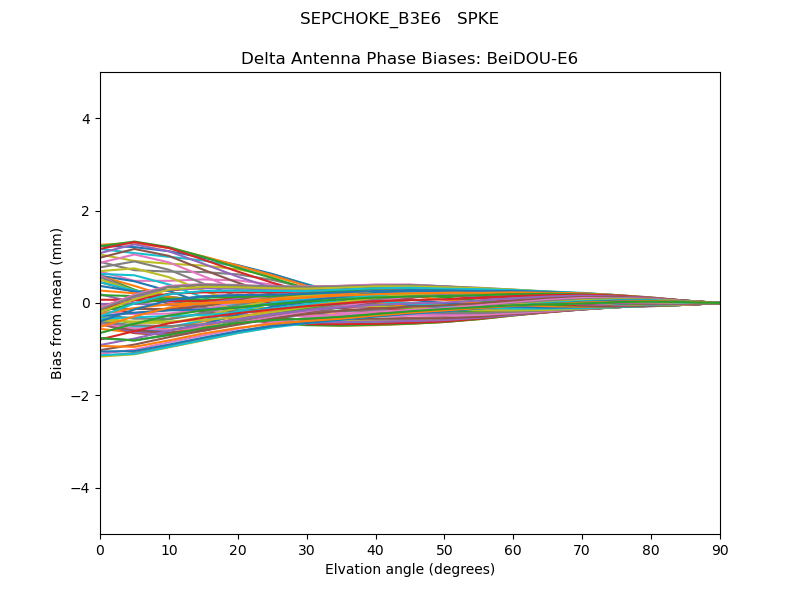

BeiDOU-E6

BeiDOU-E6BeiDOU-E6
Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

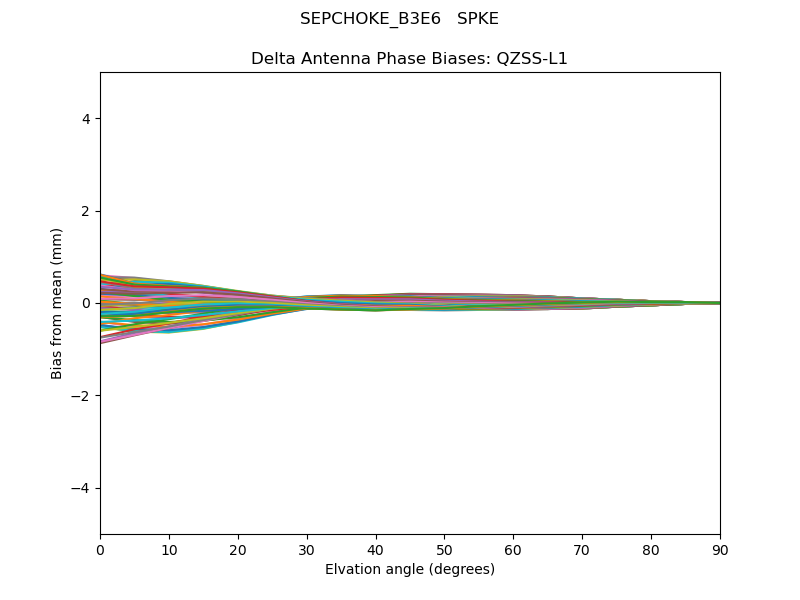

QZSS-L1

QZSS-L1QZSS-L1

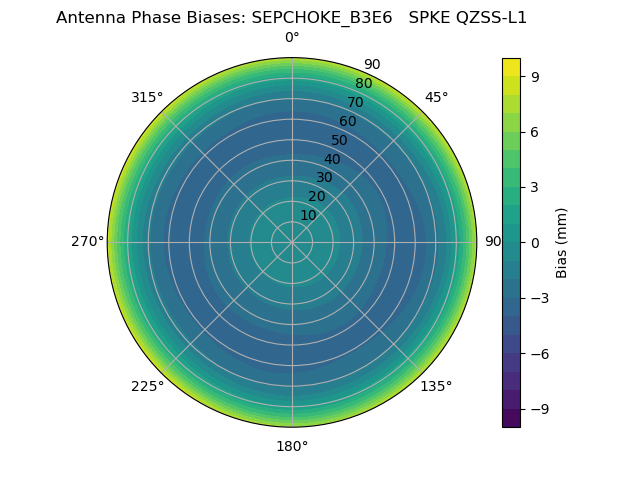

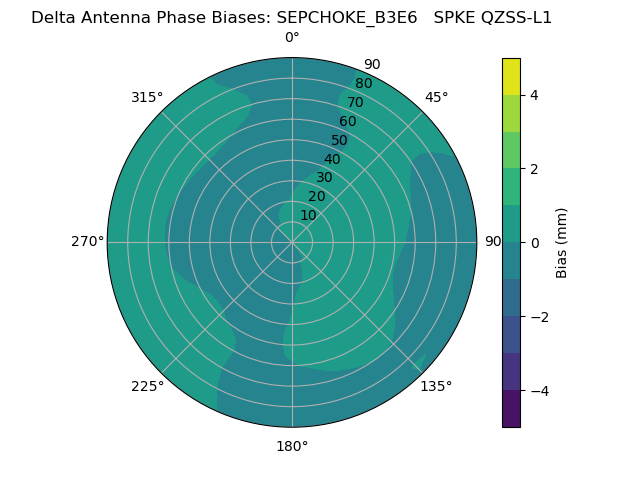

Radial QZSS-L1Radial QZSS-L1

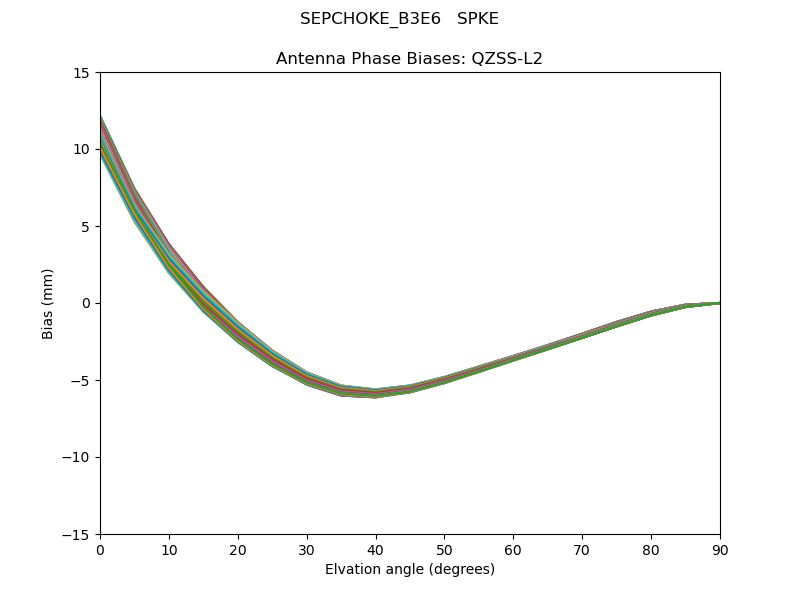

QZSS-L2

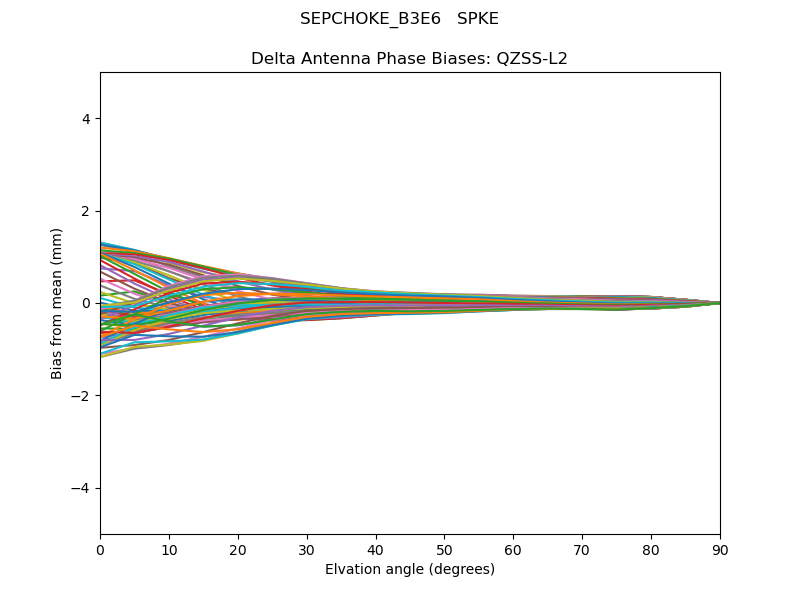

QZSS-L2QZSS-L2

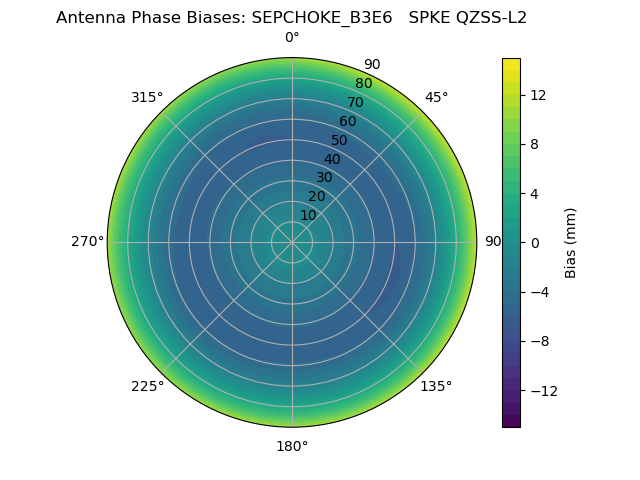

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

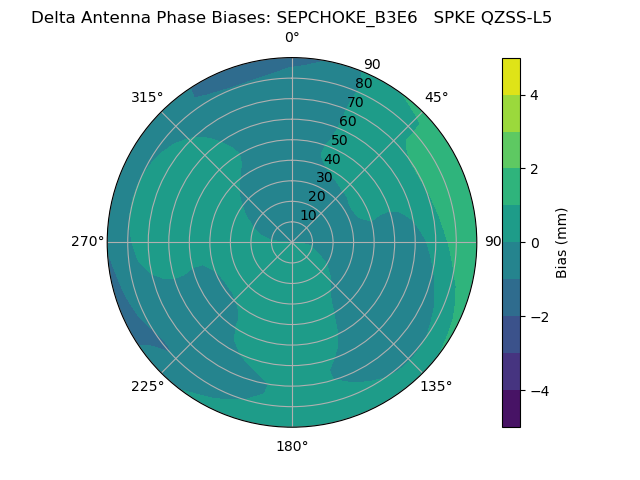

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

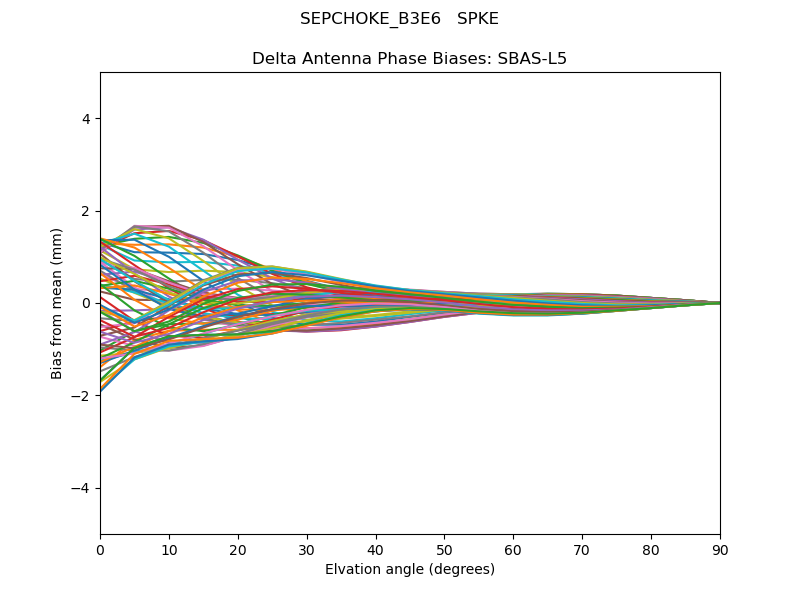

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

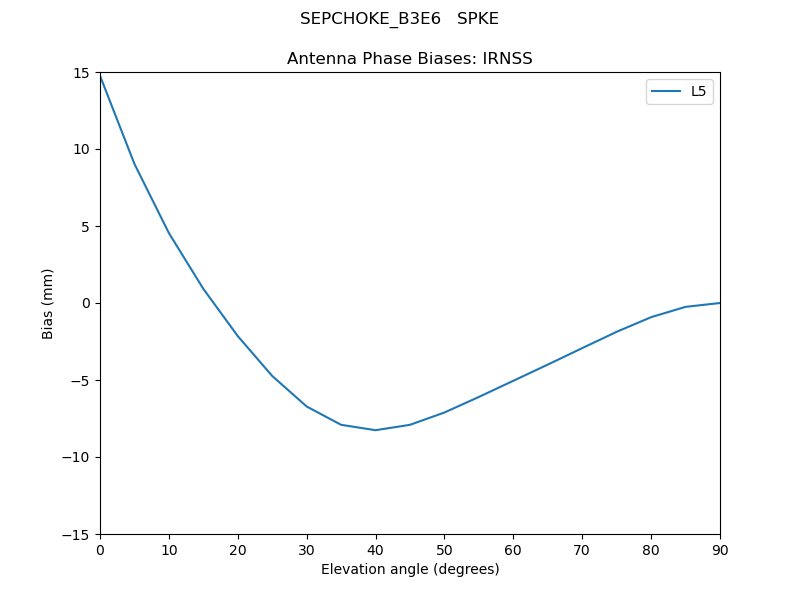

IRNSS


Bias Delta

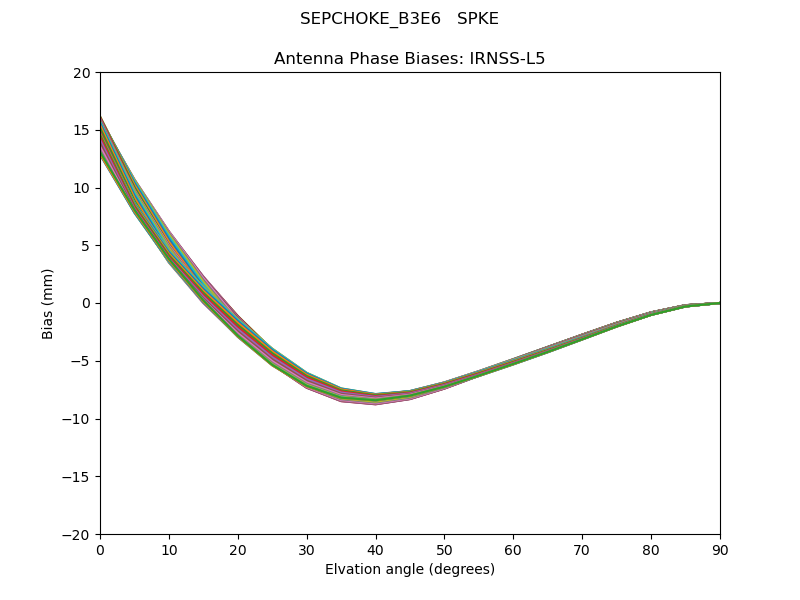

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
