Antenna information for SEPPOLANT_X_MF NONE
SV System | Bands |
---|---|
GPSL1: N: -0.10 E: 1.26 U: 53.26L2: N: 0.24 E: 0.27 U: 59.08 L5: N: 1.08 E: 0.30 U: 62.09 GLONASSL1: N: -0.67 E: 1.34 U: 53.02L2: N: 0.09 E: 0.25 U: 58.18 GALILEOE1: N: -0.10 E: 1.26 U: 53.26E5a: N: 1.08 E: 0.30 U: 62.09 E5b: N: 0.50 E: 0.28 U: 60.20 E5: N: 0.76 E: 0.29 U: 61.12 E6: N: 0.02 E: 0.21 U: 56.73 BeiDouE1: N: -0.10 E: 1.26 U: 53.26E2: N: 0.22 E: 1.21 U: 53.37 E5b: N: 0.50 E: 0.28 U: 60.20 E6: N: 0.02 E: 0.22 U: 57.17 QZSSL1: N: -0.10 E: 1.26 U: 53.26L2: N: 0.24 E: 0.27 U: 59.08 L5: N: 1.08 E: 0.30 U: 62.09 LEX: N: 0.02 E: 0.21 U: 56.73 IRNSSL5: N: 1.08 E: 0.30 U: 62.09SBASL1: N: -0.10 E: 1.26 U: 53.26L5: N: 1.08 E: 0.30 U: 62.09 | L1GPS: N: -0.10 E: 1.26 U: 53.26GLONASS: N: -0.67 E: 1.34 U: 53.02 QZSS: N: -0.10 E: 1.26 U: 53.26 SBAS: N: -0.10 E: 1.26 U: 53.26 L2GPS: N: 0.24 E: 0.27 U: 59.08GLONASS: N: 0.09 E: 0.25 U: 58.18 QZSS: N: 0.24 E: 0.27 U: 59.08 L5GPS: N: 1.08 E: 0.30 U: 62.09QZSS: N: 1.08 E: 0.30 U: 62.09 SBAS: N: 1.08 E: 0.30 U: 62.09 IRNSS: N: 1.08 E: 0.30 U: 62.09 E1GALILEO: N: -0.10 E: 1.26 U: 53.26BeiDou: N: -0.10 E: 1.26 U: 53.26 E2BeiDou: N: 0.22 E: 1.21 U: 53.37E5GALILEO: N: 0.76 E: 0.29 U: 61.12E5aGALILEO: N: 1.08 E: 0.30 U: 62.09E5bGALILEO: N: 0.50 E: 0.28 U: 60.20BeiDou: N: 0.50 E: 0.28 U: 60.20 E6GALILEO: N: 0.02 E: 0.21 U: 56.73BeiDou: N: 0.02 E: 0.22 U: 57.17 LEXQZSS: N: 0.02 E: 0.21 U: 56.73 |
Means
GPS

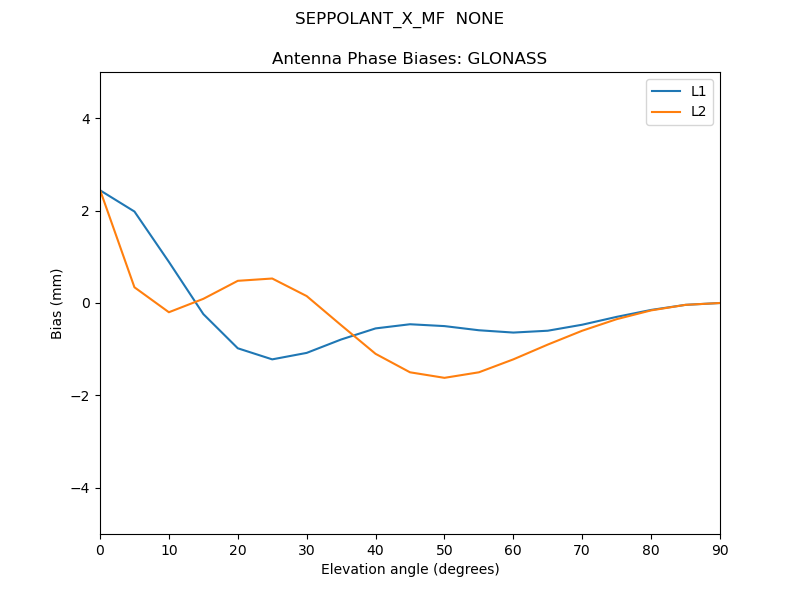

GLONASS

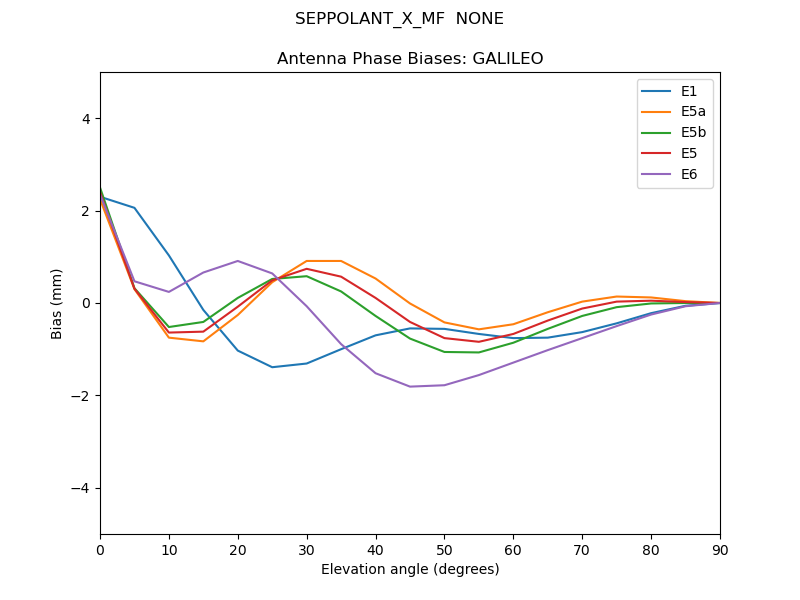

GALILEO

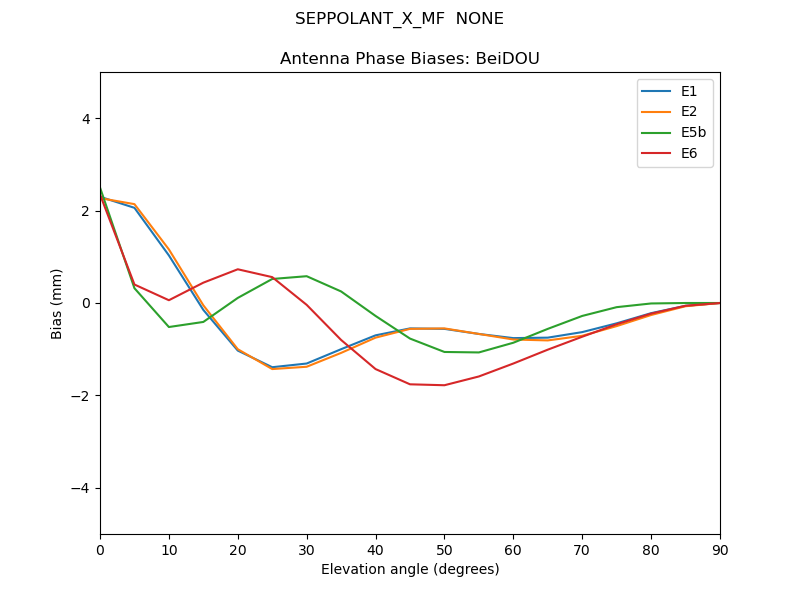

BeiDOU

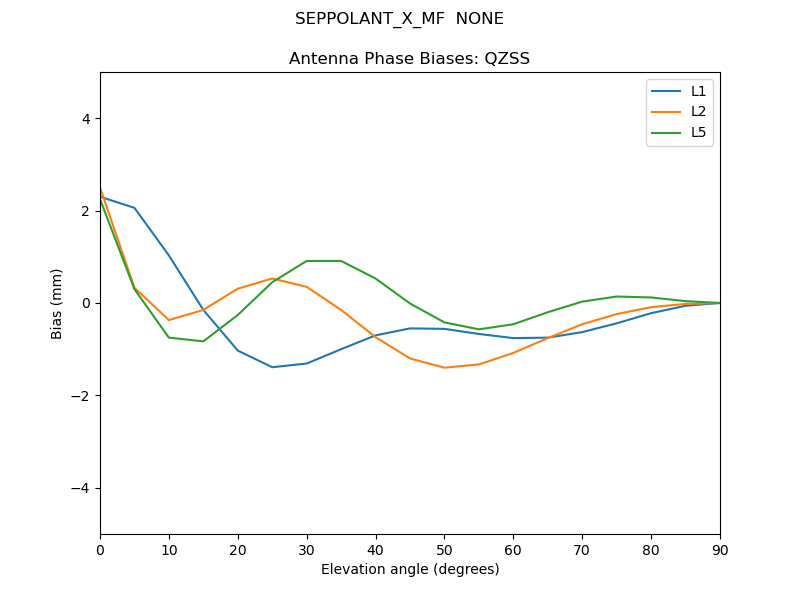

QZSS

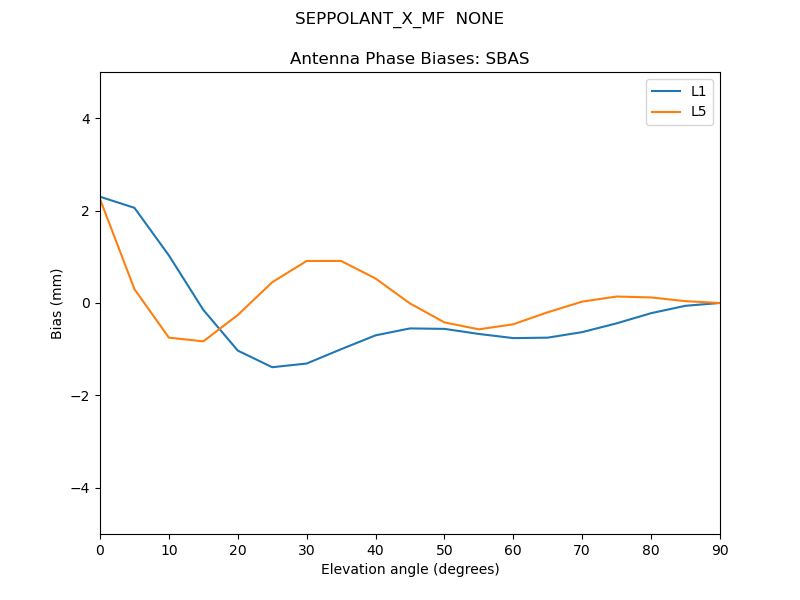

SBAS
IRNSS
Azimuths
Bias | Delta |
---|---|
GPS-L1 | |

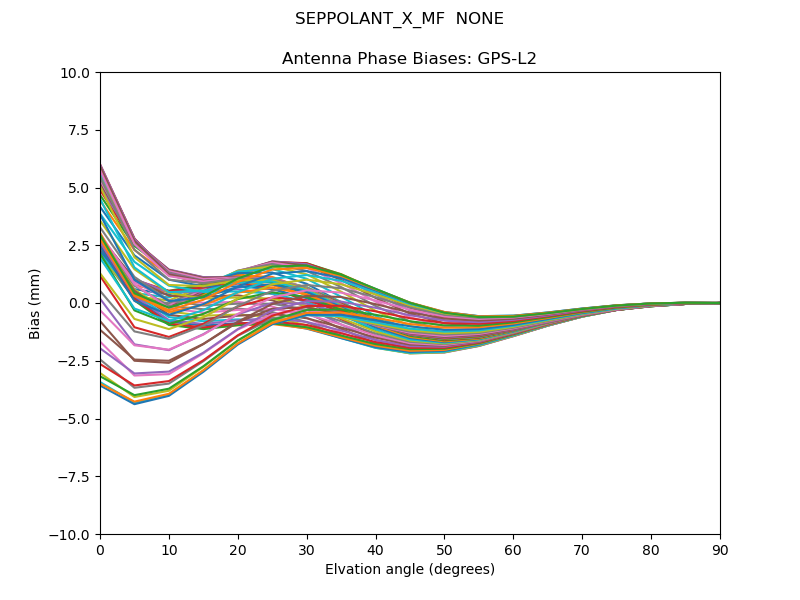

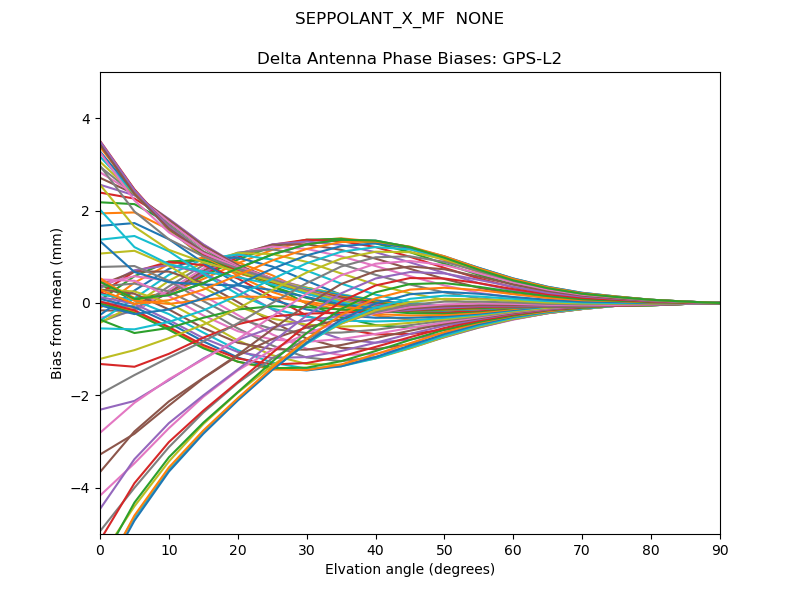

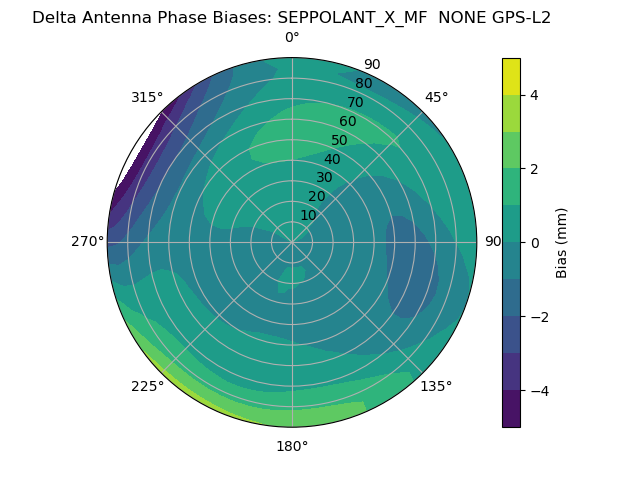

GPS-L2 | |
GPS-L5 | |
Bias | Delta |
---|---|

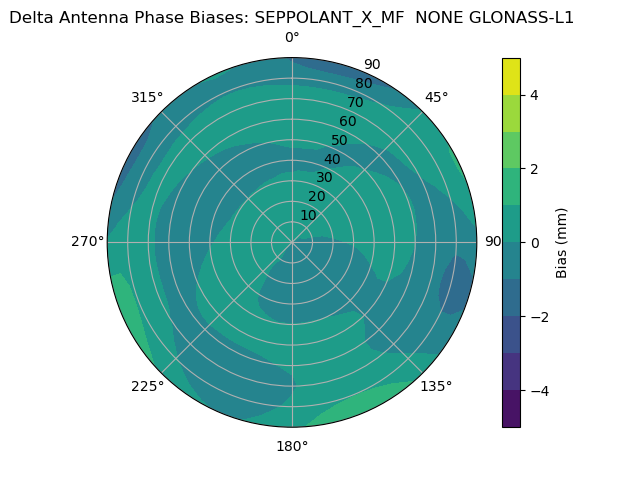

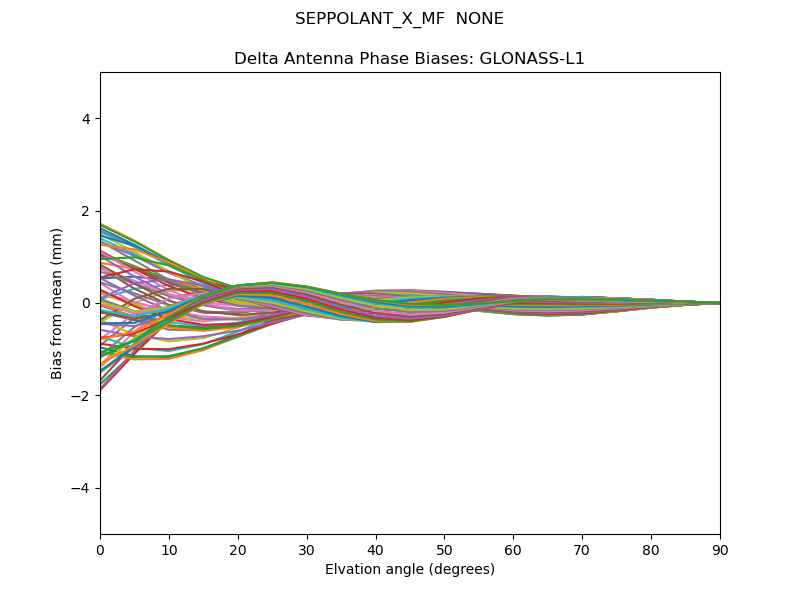

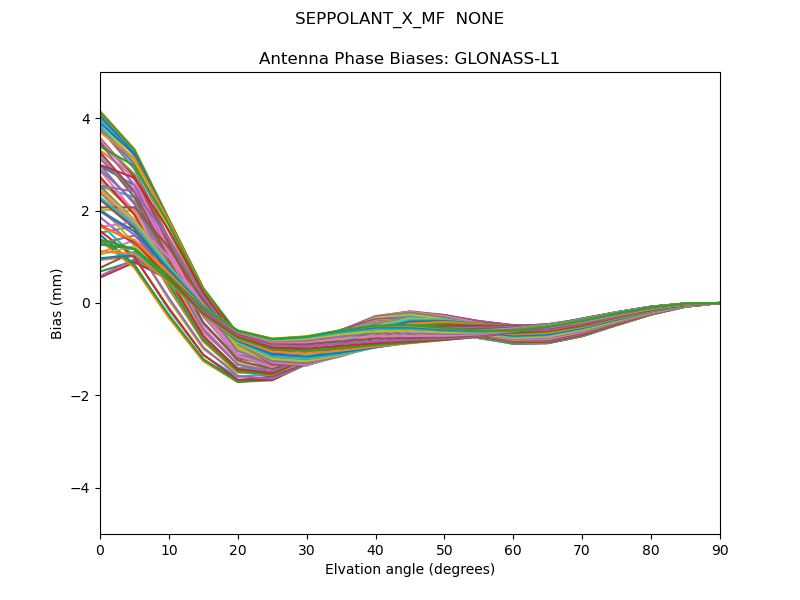

GLONASS-L1 | |

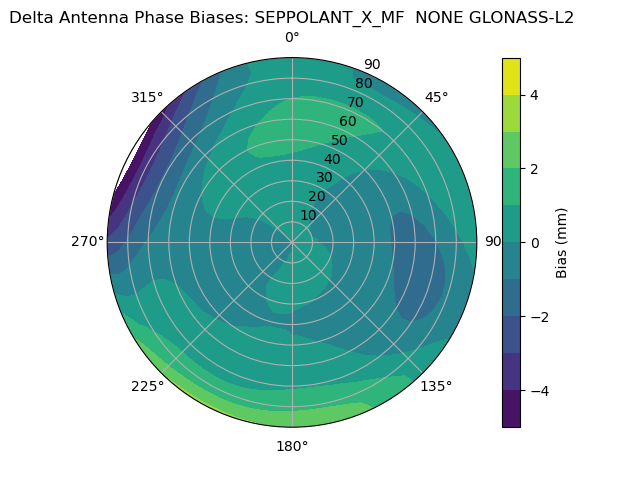

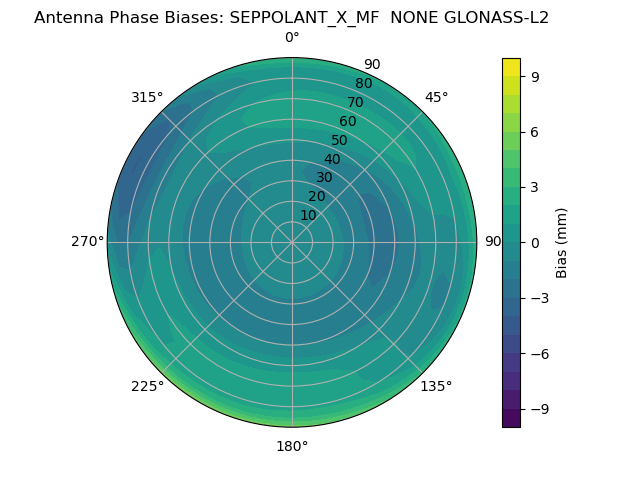

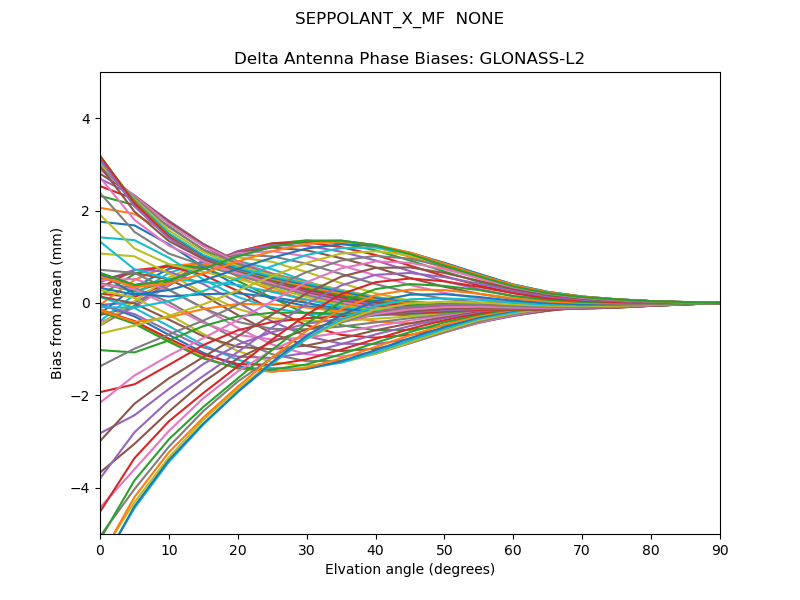

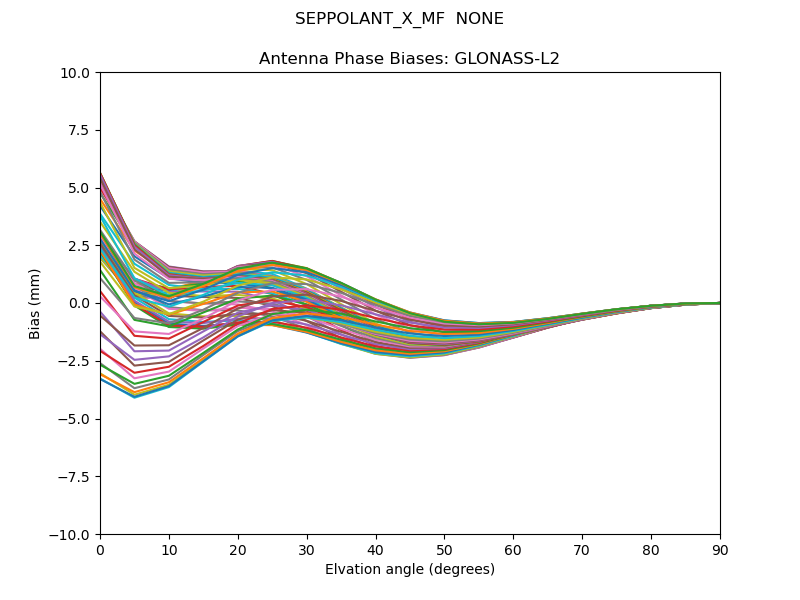

GLONASS-L2 | |
Bias | Delta |
---|---|

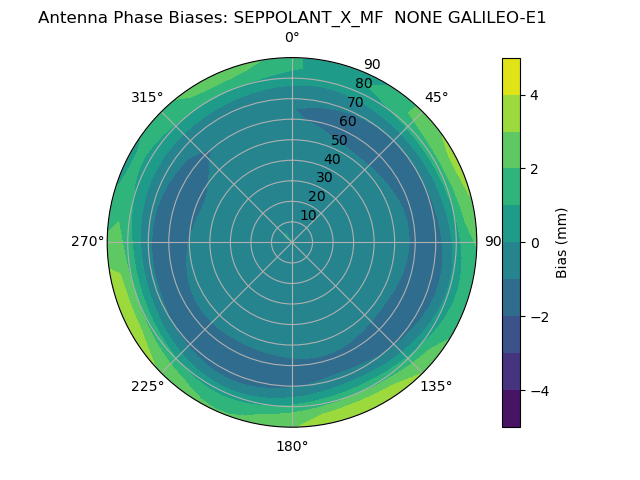

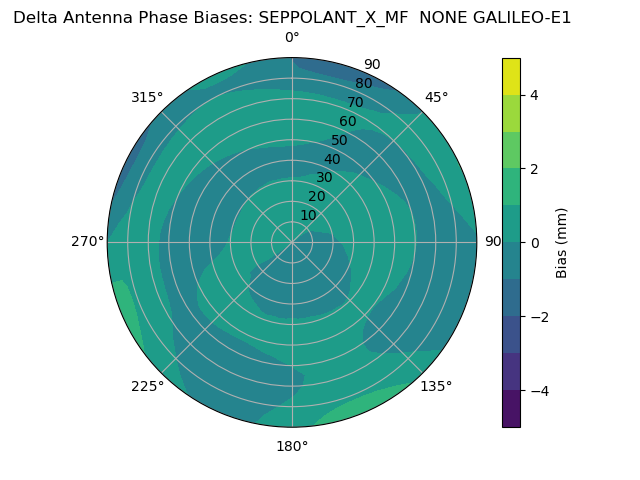

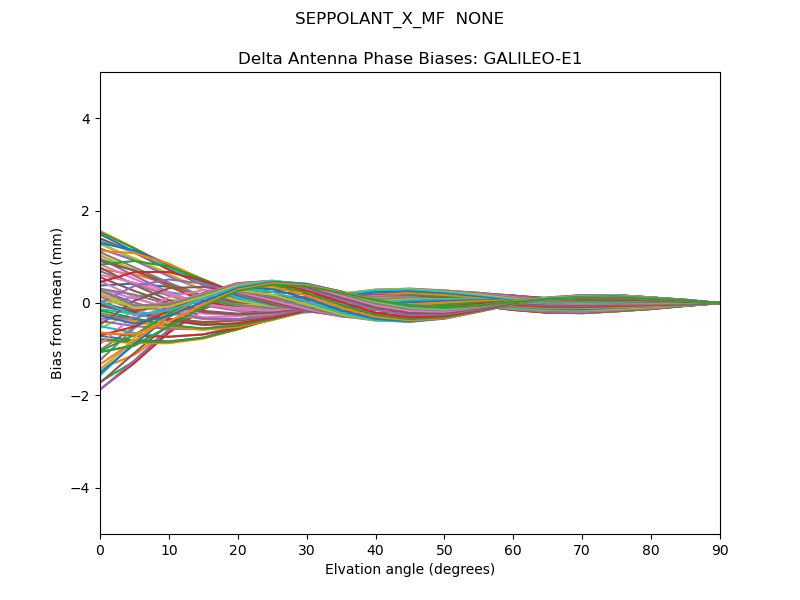

GALILEO-E1 | |

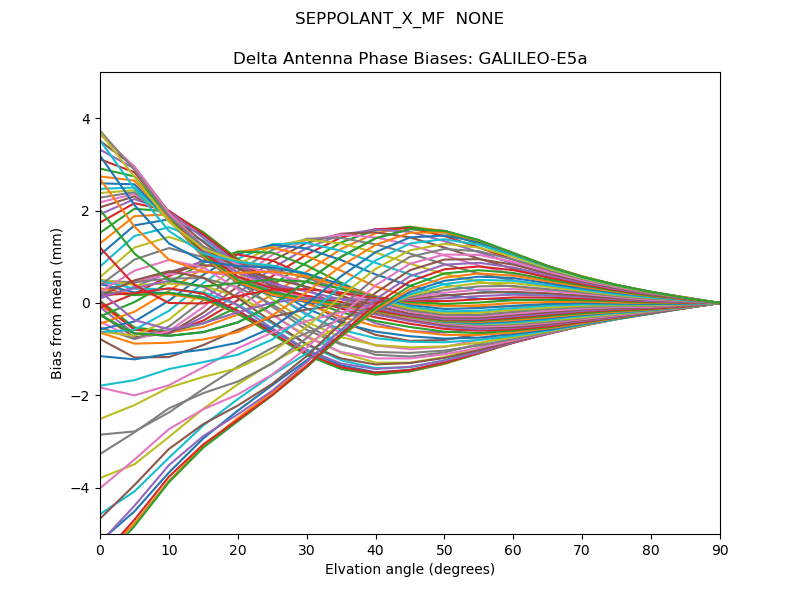

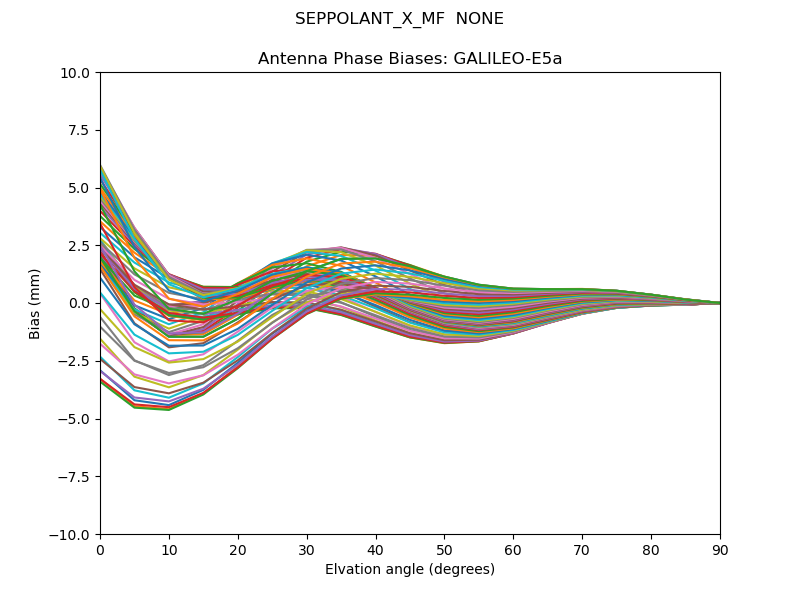

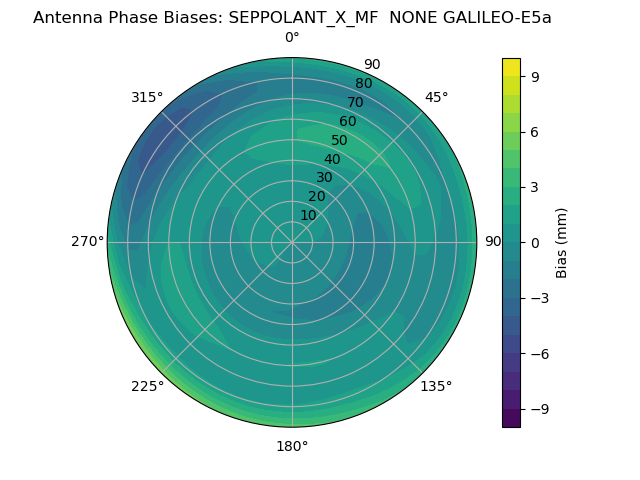

GALILEO-E5a | |

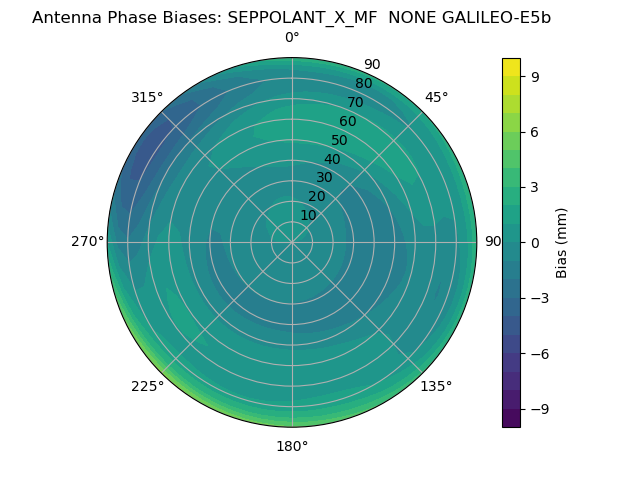

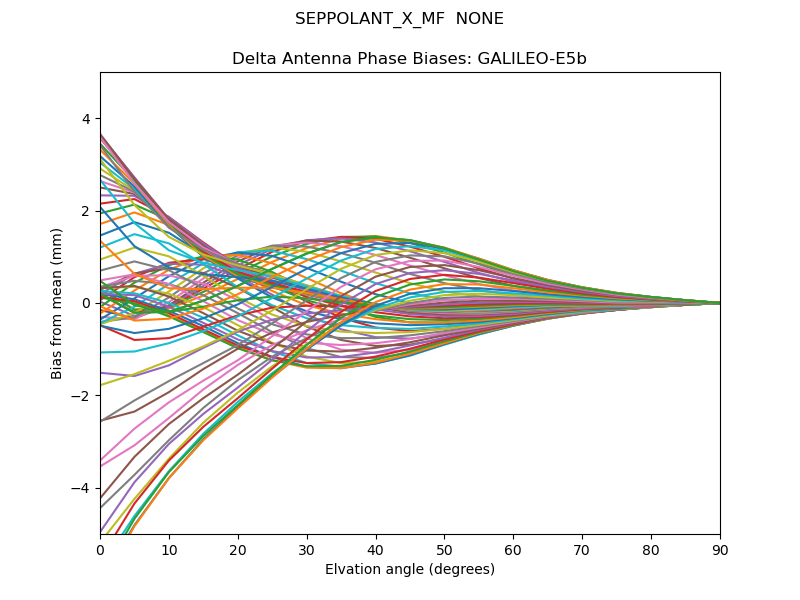

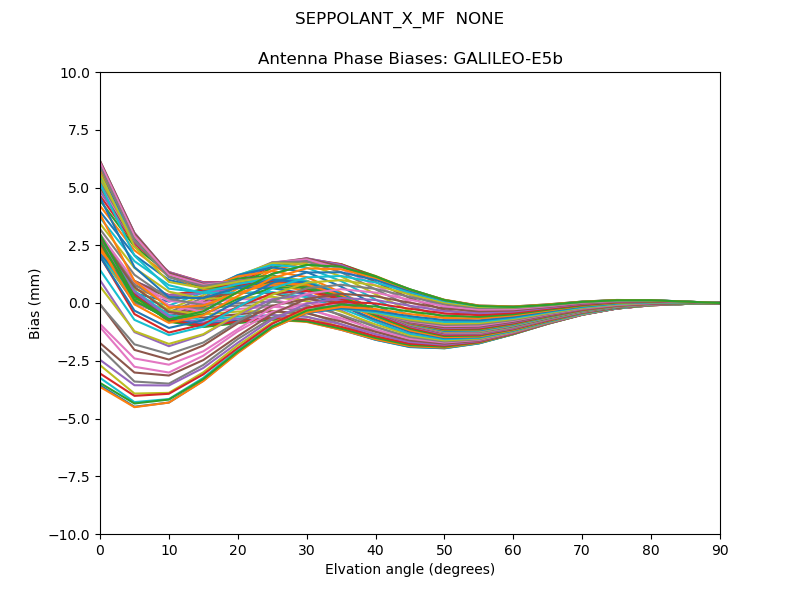

GALILEO-E5b | |

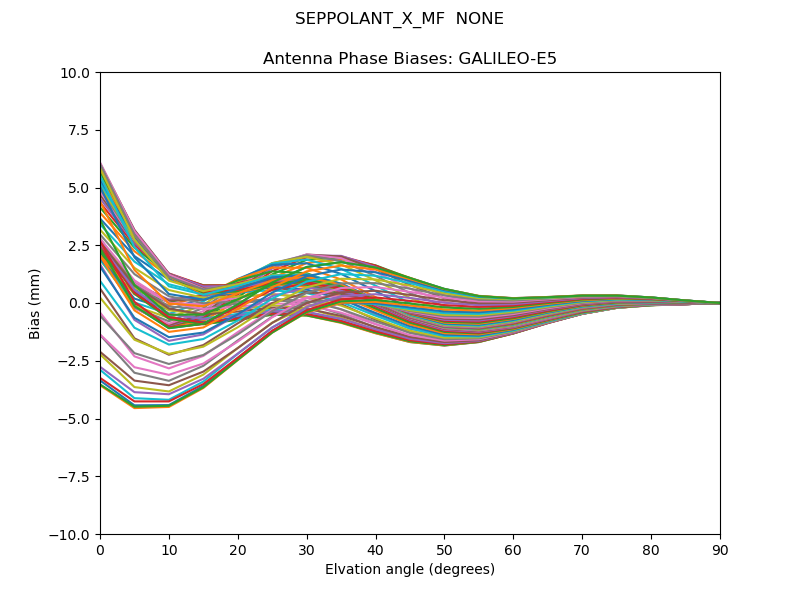

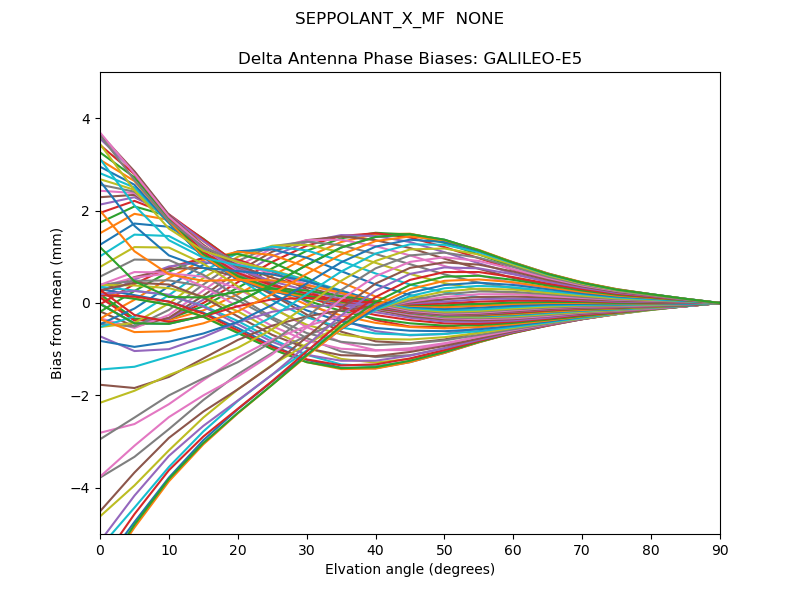

GALILEO-E5 | |

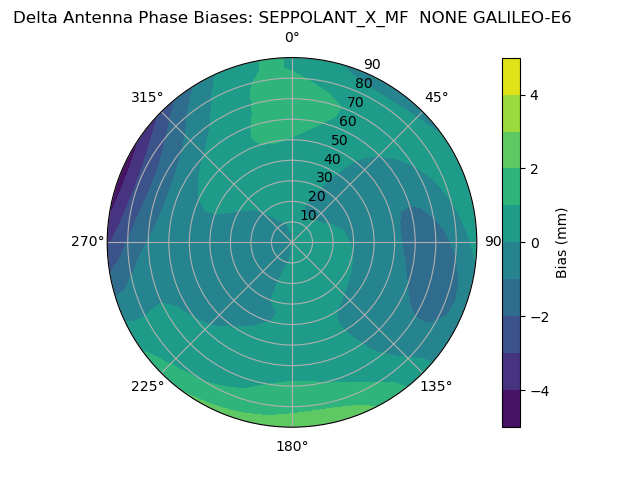

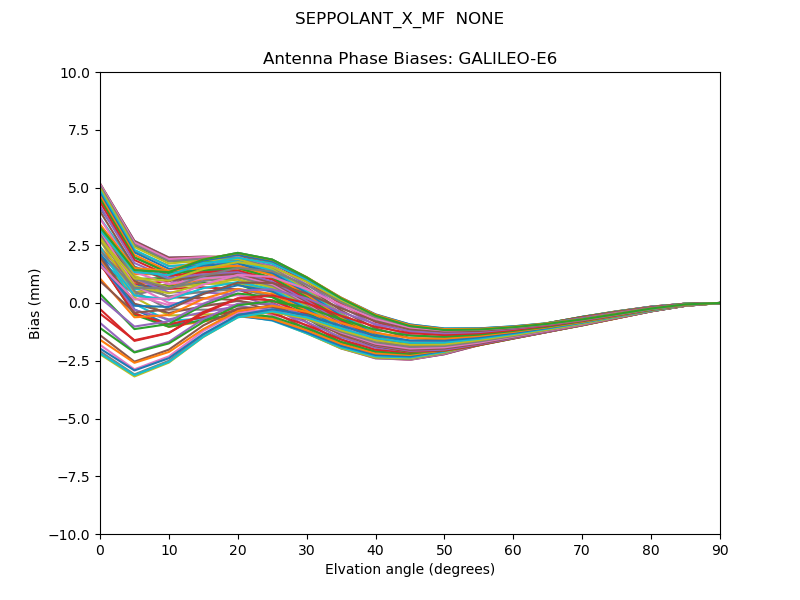

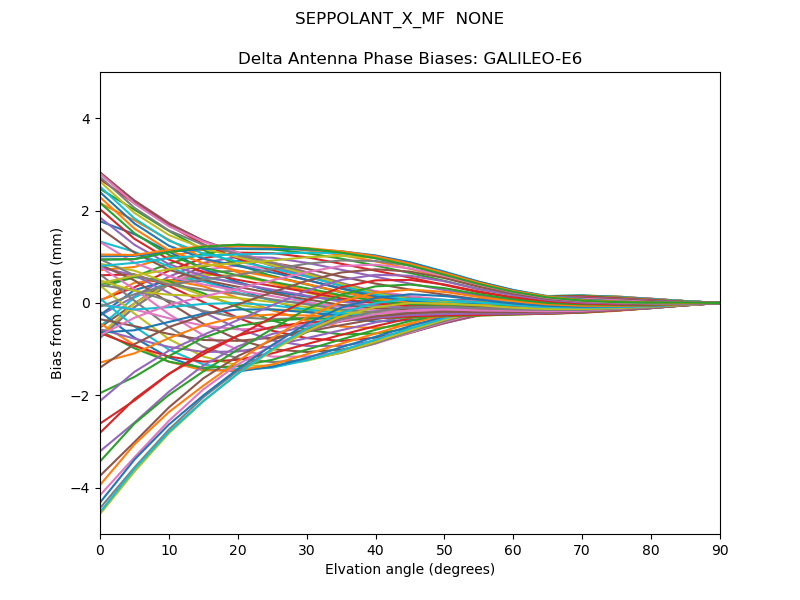

GALILEO-E6 | |
Bias | Delta |
---|---|

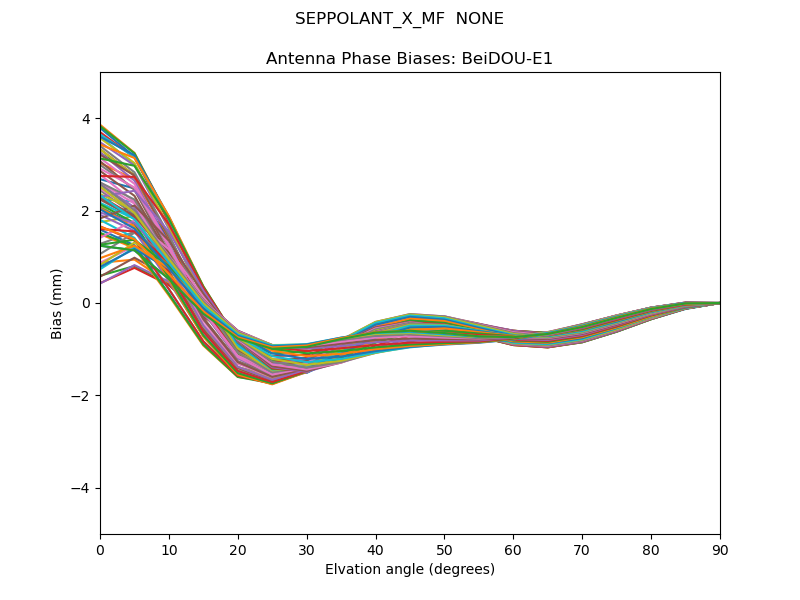

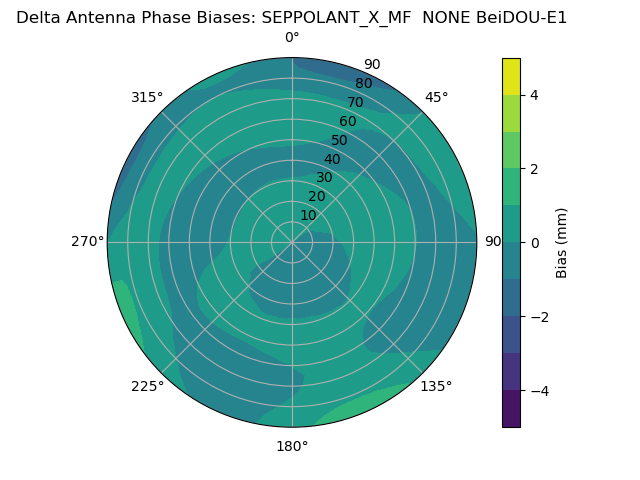

BeiDOU-E1 | |

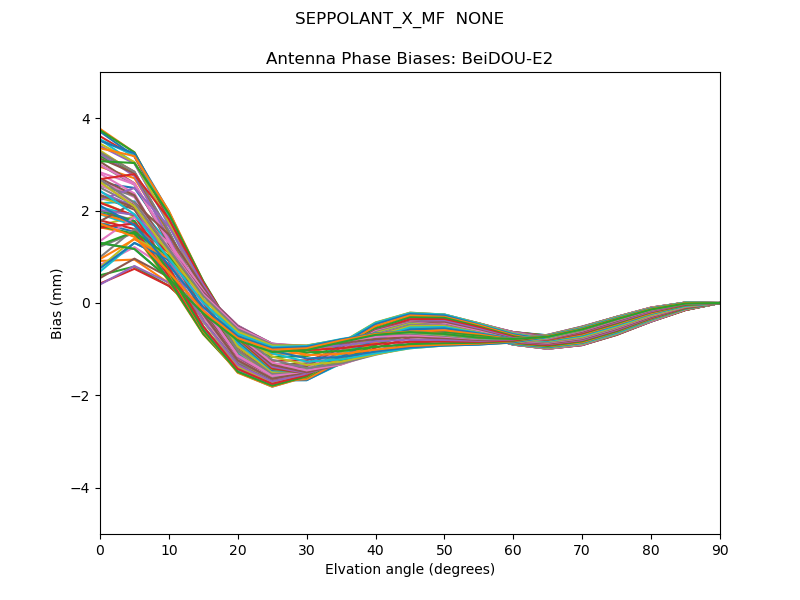

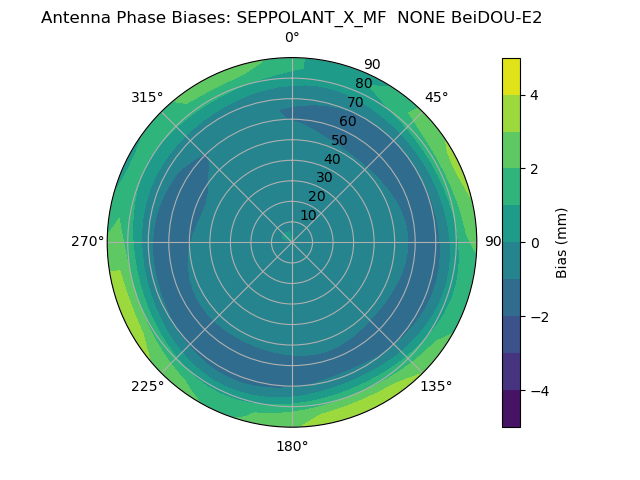

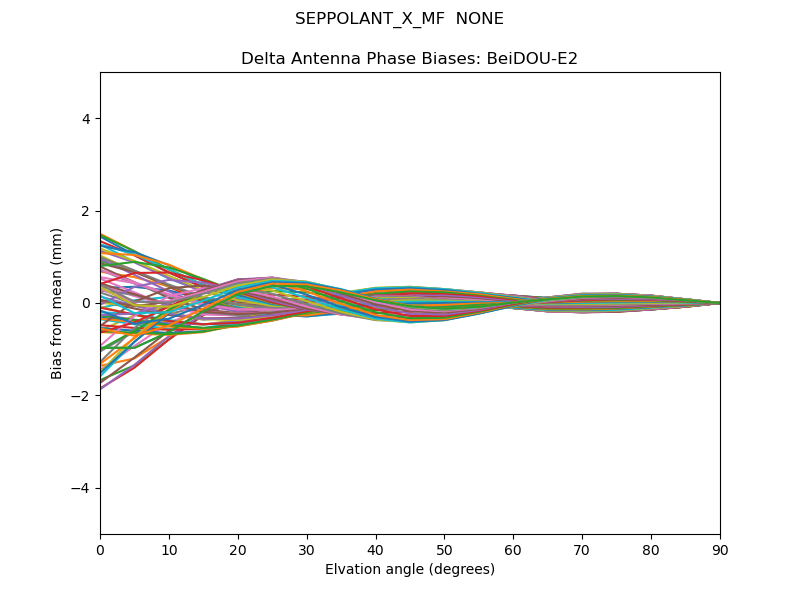

BeiDOU-E2 | |

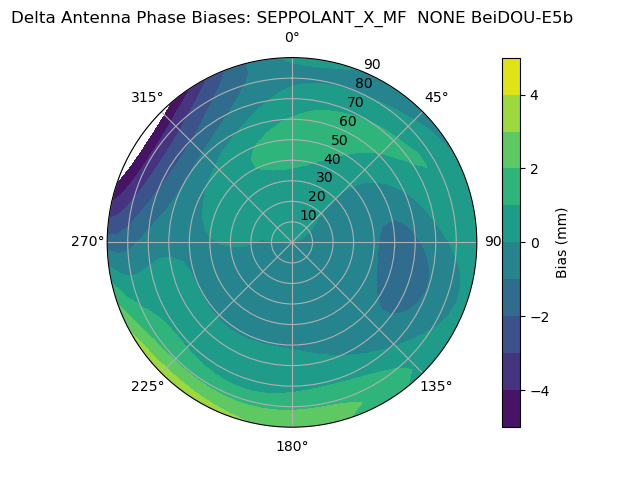

BeiDOU-E5b | |

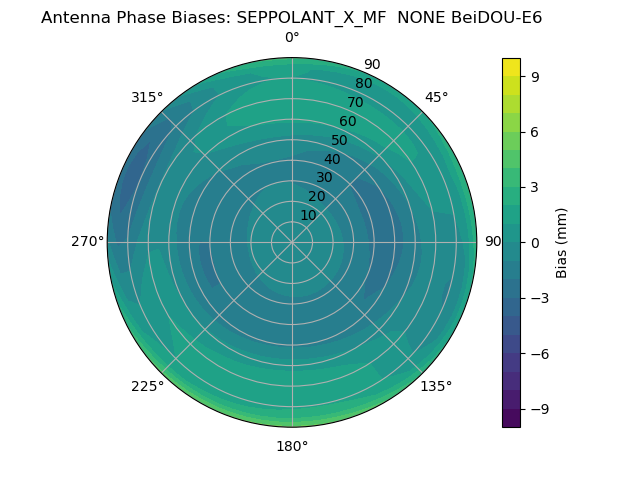

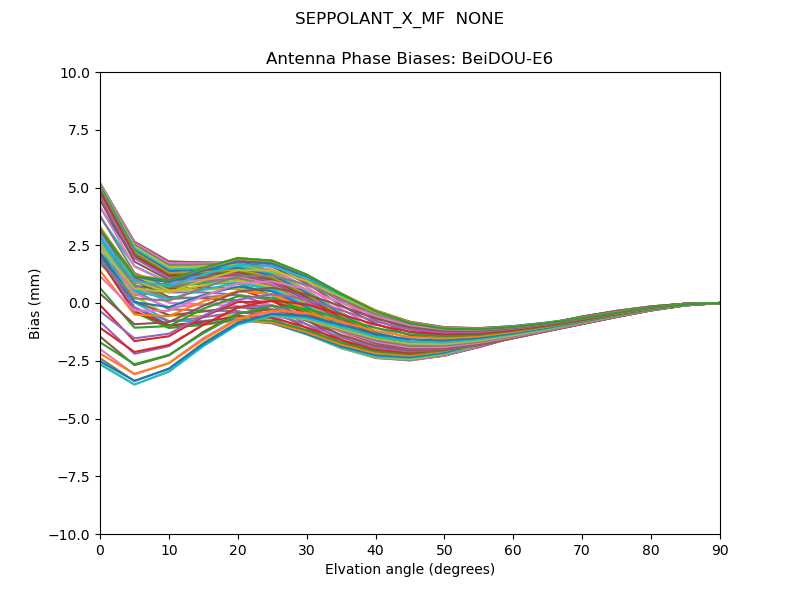

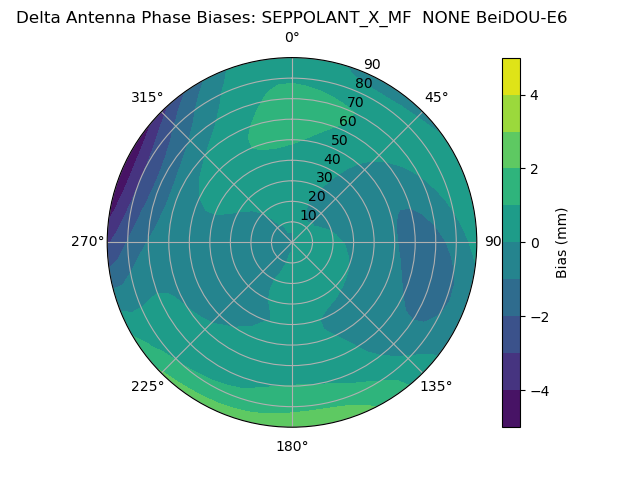

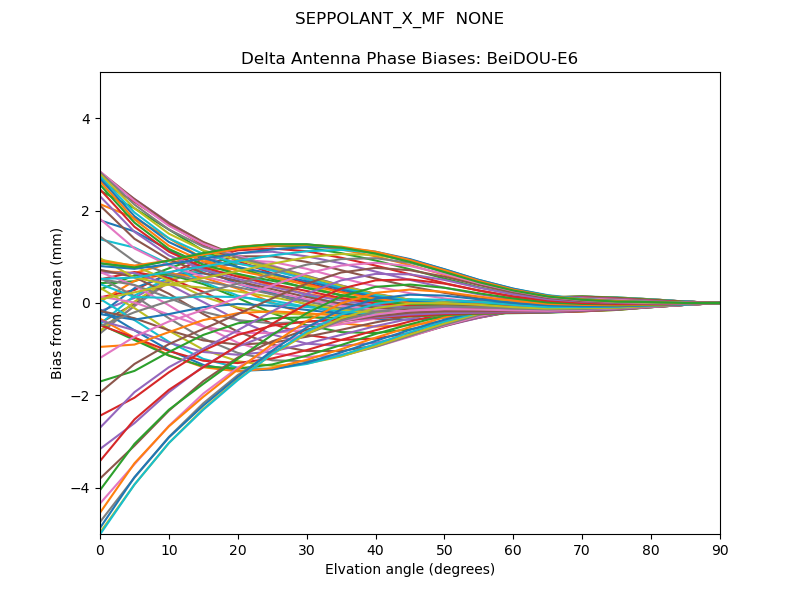

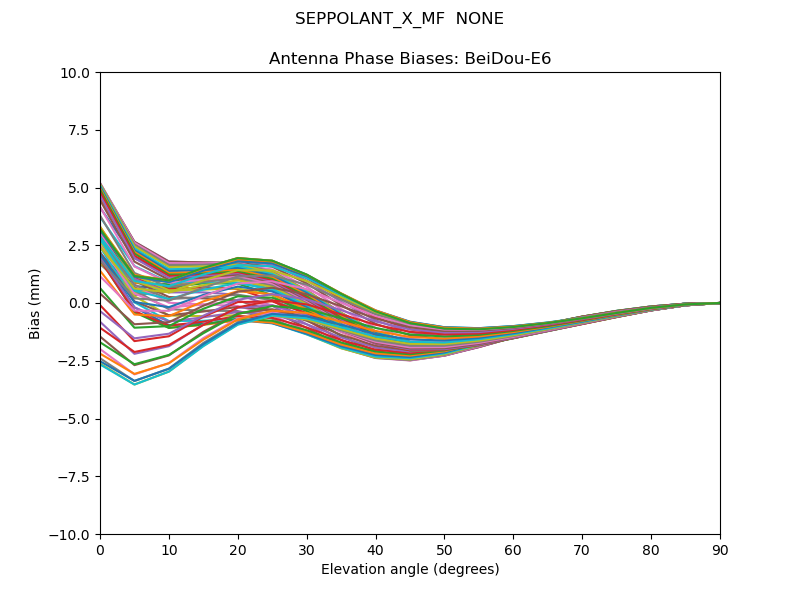

BeiDOU-E6 | |
Bias | Delta |
---|---|
QZSS-L1 | |

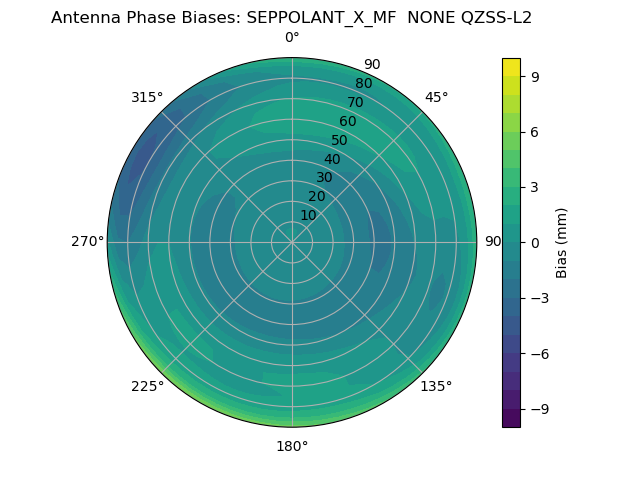

QZSS-L2 | |
QZSS-L5 | |
Bias | Delta |
---|---|

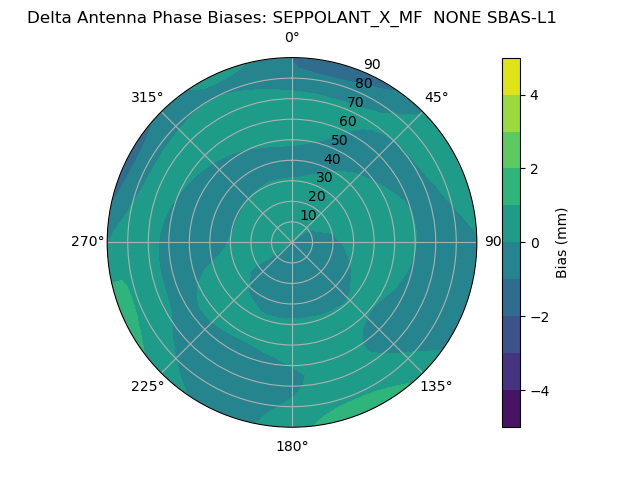

SBAS-L1 | |

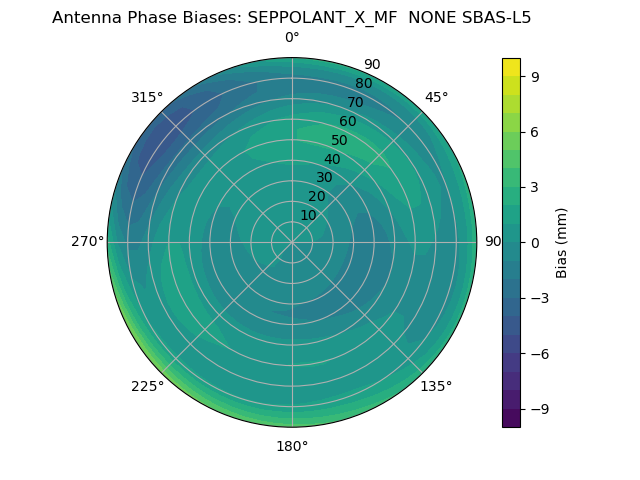

SBAS-L5 | |
Bias | Delta |
---|---|

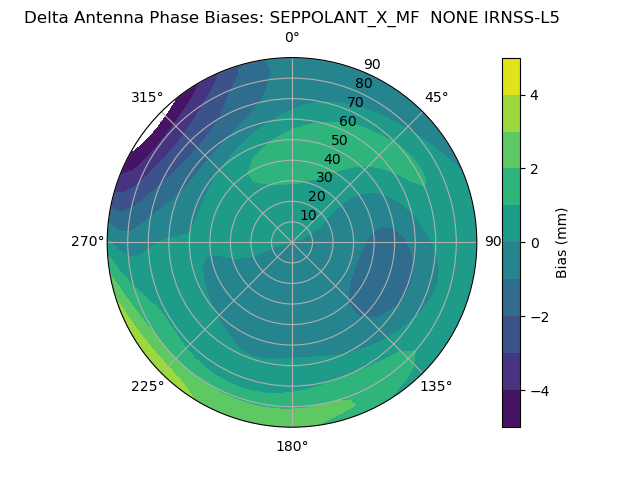

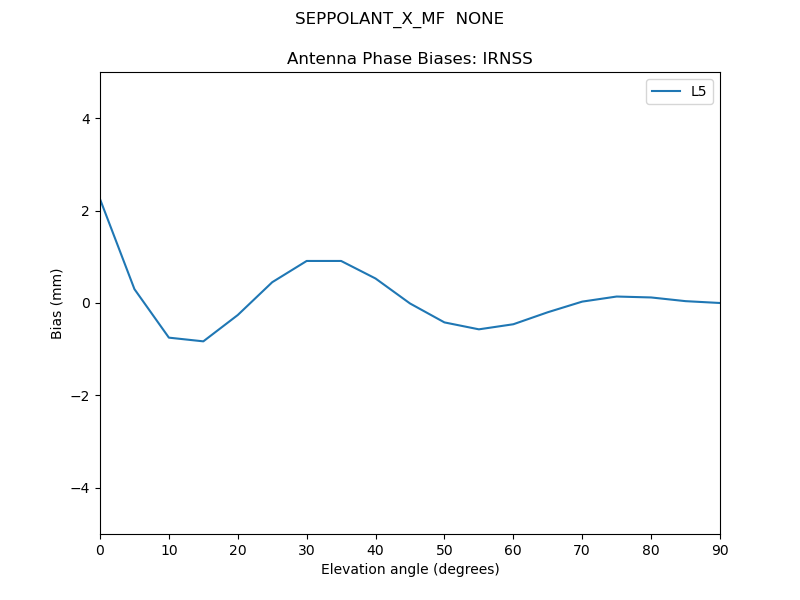

IRNSS-L5 | |
