Antenna information for SKFSTREAM4D NONE

Antenna Offsets

SV System	Bands
GPS L1: N: 0.37 E: 2.61 U: 55.26 L5: N: 2.29 E: 0.25 U: 54.26 GALILEO E1: N: 0.37 E: 2.61 U: 55.26 E5a: N: 2.29 E: 0.25 U: 54.26 BeiDou E1: N: 0.37 E: 2.61 U: 55.26 E2: N: 0.50 E: 3.00 U: 54.56 QZSS L1: N: 0.37 E: 2.61 U: 55.26 L5: N: 2.29 E: 0.25 U: 54.26 SBAS L1: N: 0.37 E: 2.61 U: 55.26 L5: N: 2.29 E: 0.25 U: 54.26	L1 GPS: N: 0.37 E: 2.61 U: 55.26 QZSS: N: 0.37 E: 2.61 U: 55.26 SBAS: N: 0.37 E: 2.61 U: 55.26 L5 GPS: N: 2.29 E: 0.25 U: 54.26 QZSS: N: 2.29 E: 0.25 U: 54.26 SBAS: N: 2.29 E: 0.25 U: 54.26 E1 GALILEO: N: 0.37 E: 2.61 U: 55.26 BeiDou: N: 0.37 E: 2.61 U: 55.26 E2 BeiDou: N: 0.50 E: 3.00 U: 54.56 E5a GALILEO: N: 2.29 E: 0.25 U: 54.26

---

Means

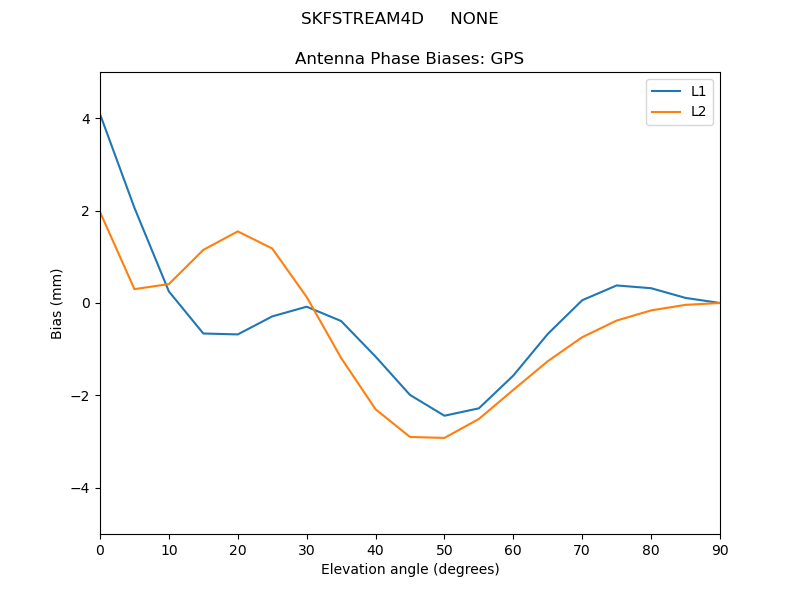

GPS

GALILEO

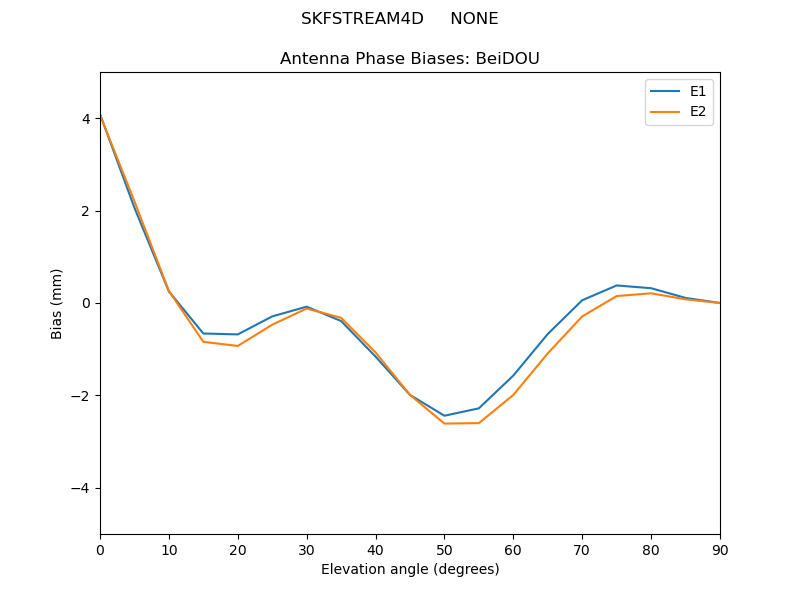

BeiDou

QZSS

SBAS

Azimuths

GPS

Bias	Delta
GPS-L1
GPS-L5

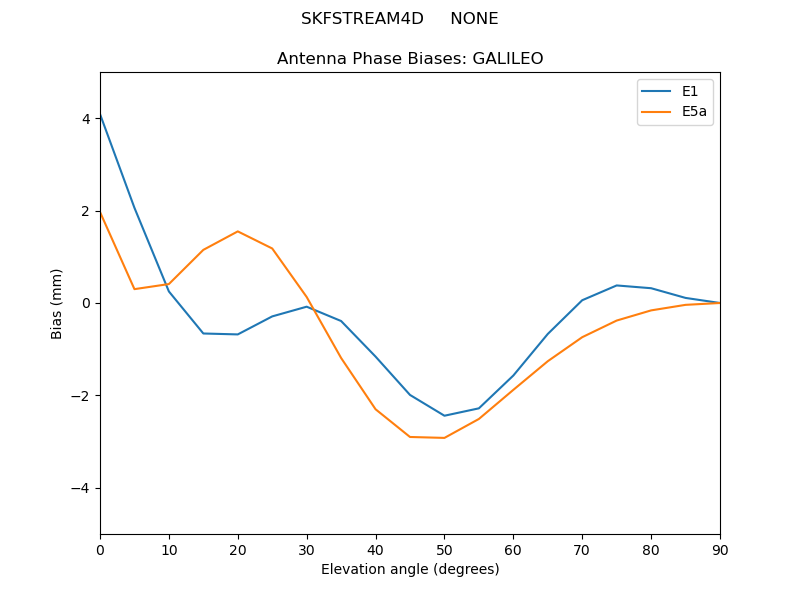

GALILEO

Bias	Delta

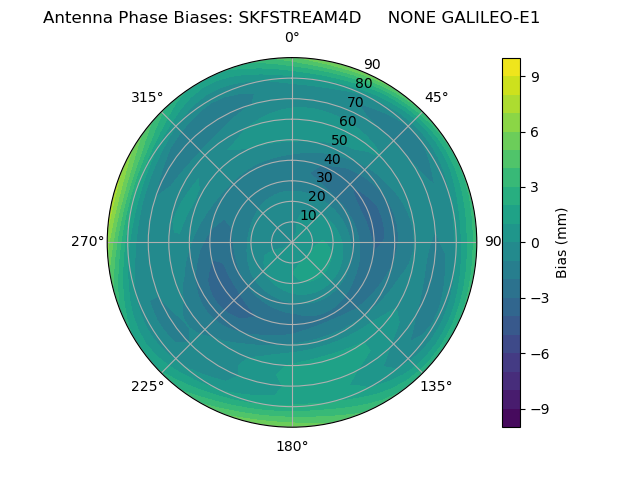

GALILEO-E1

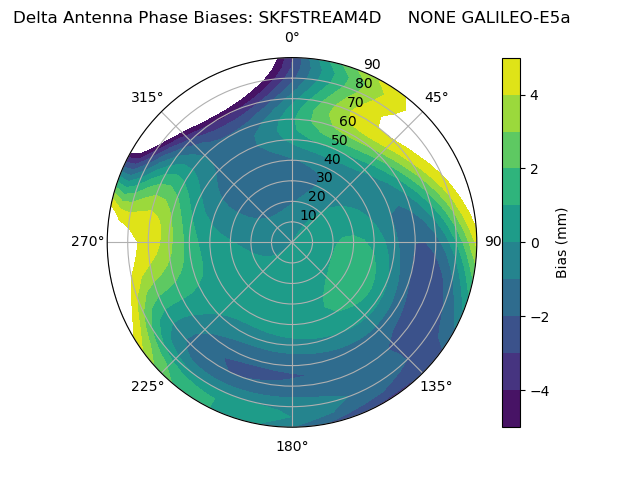

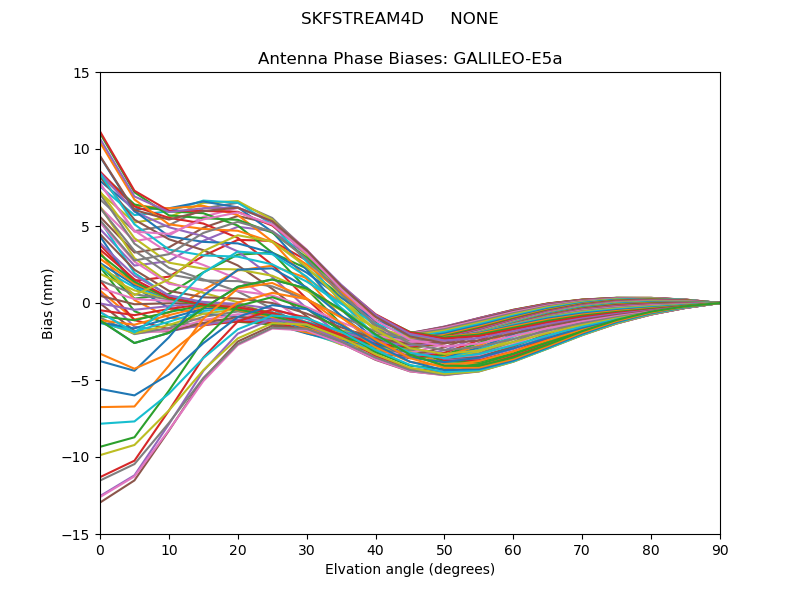

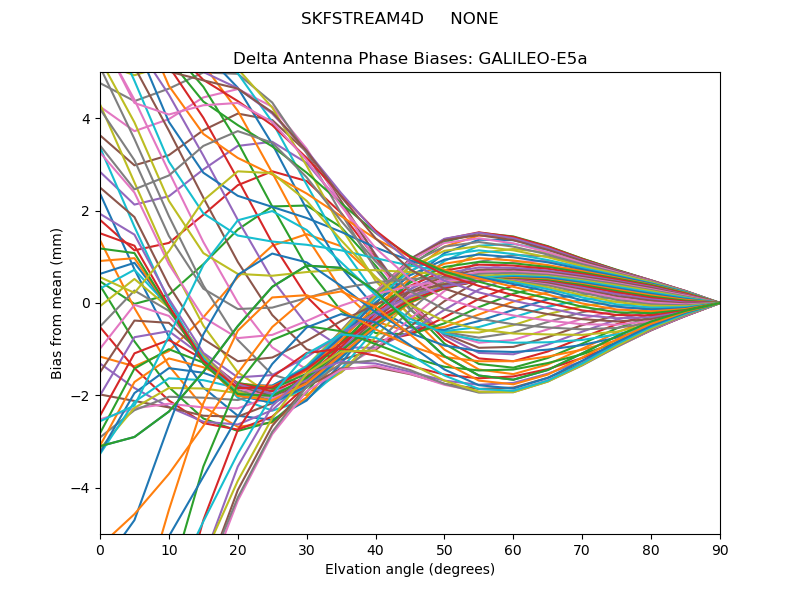

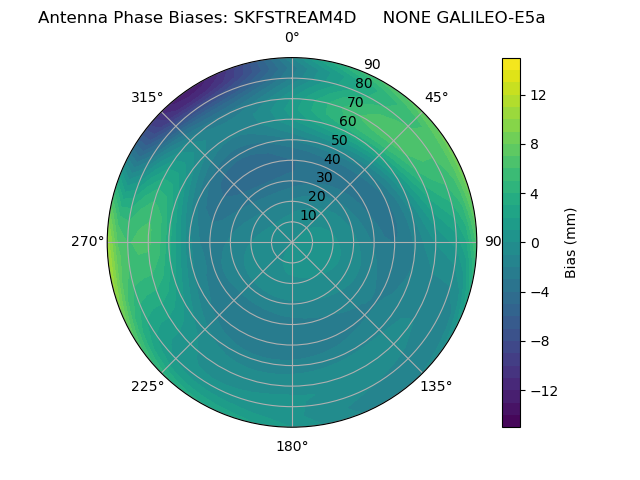

GALILEO-E5a

BeiDou

Bias	Delta

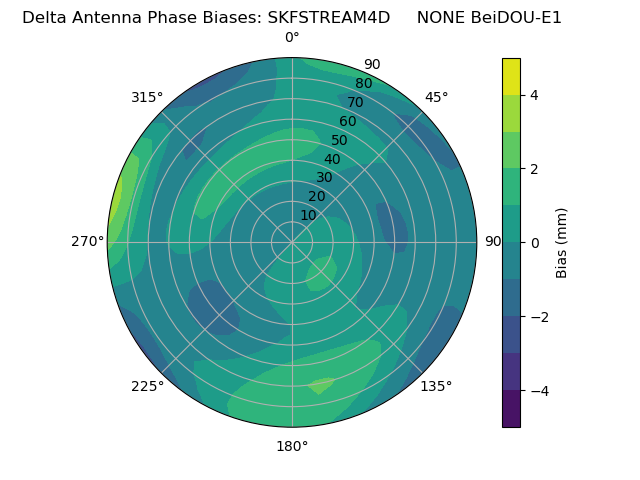

BeiDou-E1

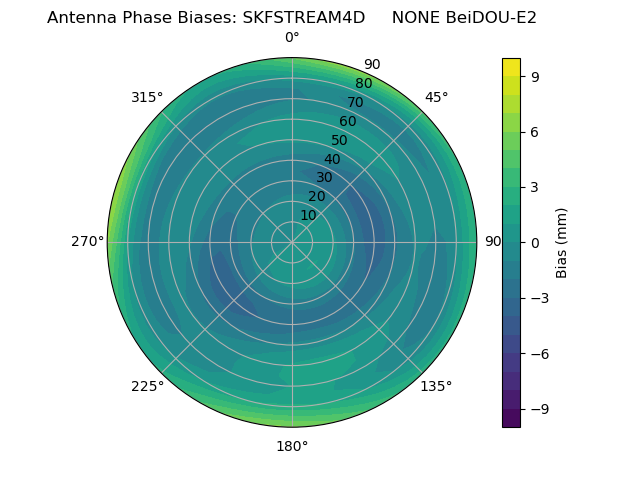

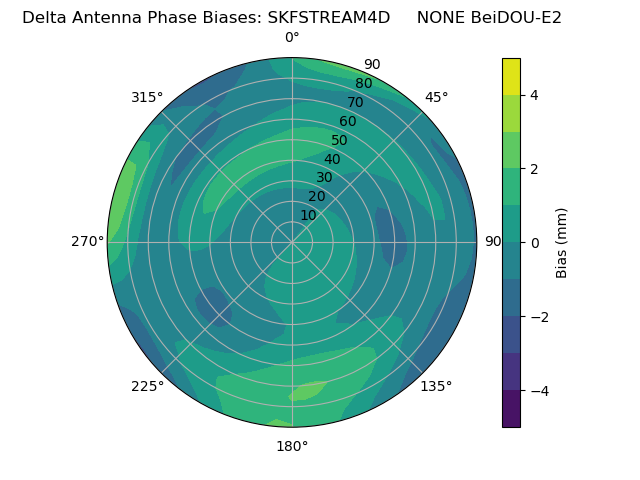

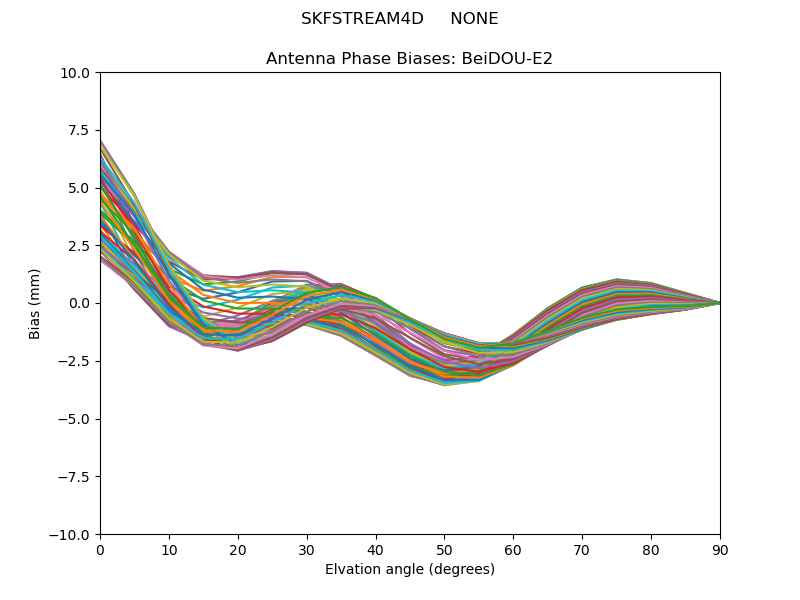

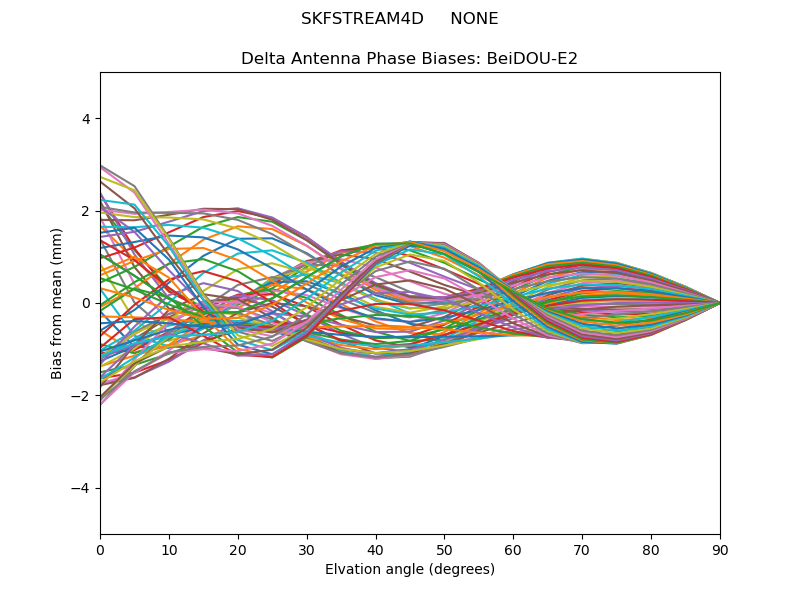

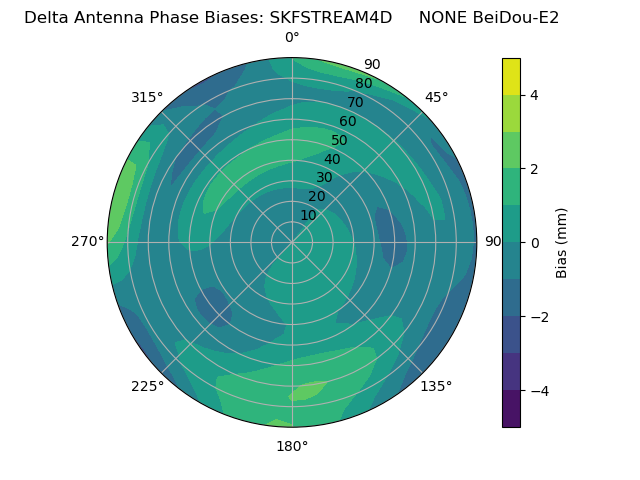

BeiDou-E2

QZSS

Bias	Delta

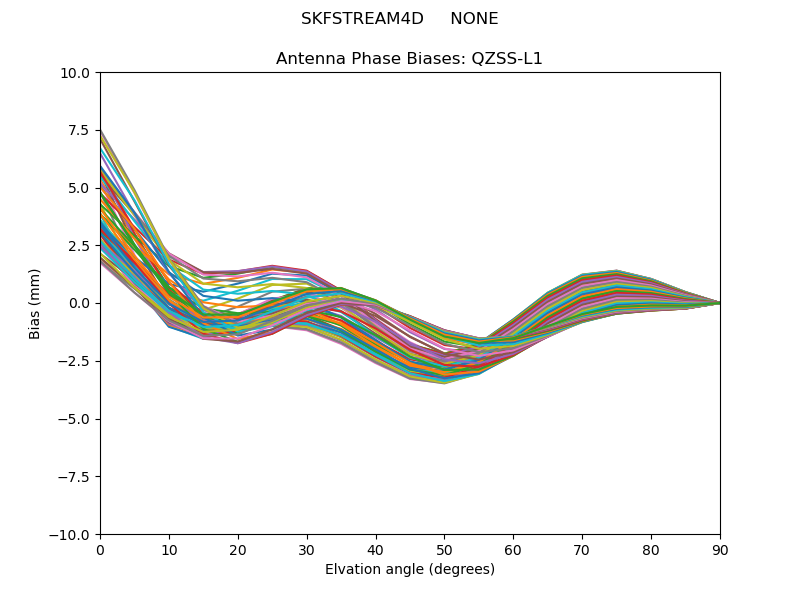

QZSS-L1
QZSS-L5

SBAS

Bias	Delta

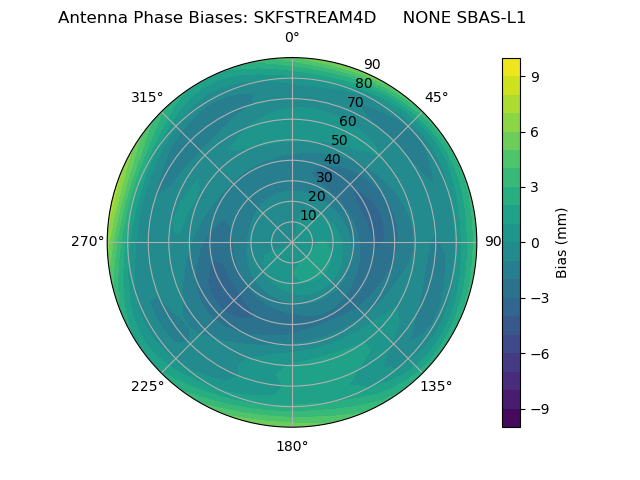

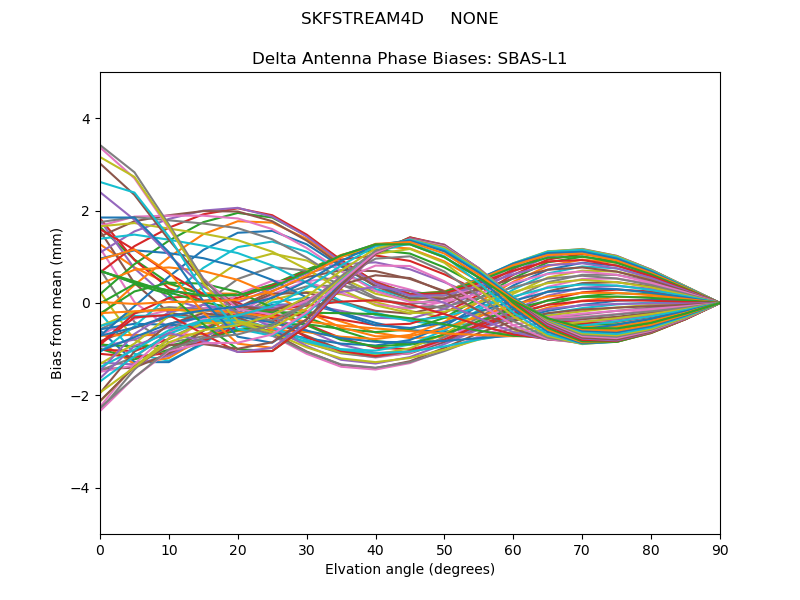

SBAS-L1
SBAS-L5
