Antenna information for SPPSP100 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.70 E: -0.22 U: 124.92
L2: N: 0.98 E: -0.42 U: 114.61
L5: N: 0.95 E: -0.39 U: 111.09

GLONASS

L1: N: 0.71 E: -0.05 U: 124.65
L2: N: 0.87 E: -0.42 U: 115.96

GALILEO

E1: N: 0.70 E: -0.22 U: 124.92
E5a: N: 0.95 E: -0.39 U: 111.09
E5b: N: 1.03 E: -0.42 U: 113.14
E5: N: 1.01 E: -0.41 U: 112.09
E6: N: 0.50 E: -0.41 U: 118.53

BeiDou

E1: N: 0.70 E: -0.22 U: 124.92
E2: N: 0.70 E: -0.33 U: 125.03
E5b: N: 1.03 E: -0.42 U: 113.14
E6: N: 0.63 E: -0.41 U: 117.69

QZSS

L1: N: 0.70 E: -0.22 U: 124.92
L2: N: 0.98 E: -0.42 U: 114.61
L5: N: 0.95 E: -0.39 U: 111.09
LEX: N: 0.50 E: -0.41 U: 118.53

SBAS

L1: N: 0.70 E: -0.22 U: 124.92
L5: N: 0.95 E: -0.39 U: 111.09

L1

GPS: N: 0.70 E: -0.22 U: 124.92
GLONASS: N: 0.71 E: -0.05 U: 124.65
QZSS: N: 0.70 E: -0.22 U: 124.92
SBAS: N: 0.70 E: -0.22 U: 124.92

L2

GPS: N: 0.98 E: -0.42 U: 114.61
GLONASS: N: 0.87 E: -0.42 U: 115.96
QZSS: N: 0.98 E: -0.42 U: 114.61

L5

GPS: N: 0.95 E: -0.39 U: 111.09
QZSS: N: 0.95 E: -0.39 U: 111.09
SBAS: N: 0.95 E: -0.39 U: 111.09

E1

GALILEO: N: 0.70 E: -0.22 U: 124.92
BeiDou: N: 0.70 E: -0.22 U: 124.92

E2

BeiDou: N: 0.70 E: -0.33 U: 125.03

E5

GALILEO: N: 1.01 E: -0.41 U: 112.09

E5a

GALILEO: N: 0.95 E: -0.39 U: 111.09

E5b

GALILEO: N: 1.03 E: -0.42 U: 113.14
BeiDou: N: 1.03 E: -0.42 U: 113.14

E6

GALILEO: N: 0.50 E: -0.41 U: 118.53
BeiDou: N: 0.63 E: -0.41 U: 117.69

LEX

QZSS: N: 0.50 E: -0.41 U: 118.53


Means

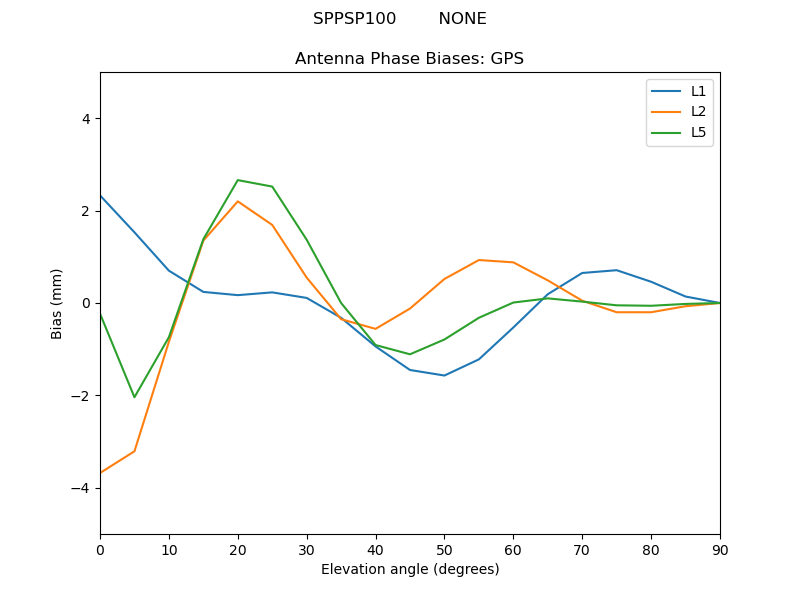

GPS

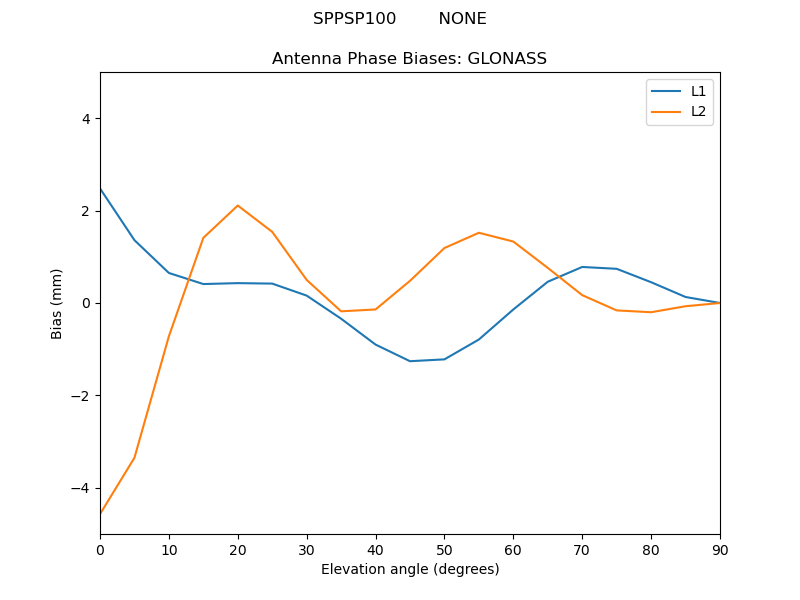

GLONASS

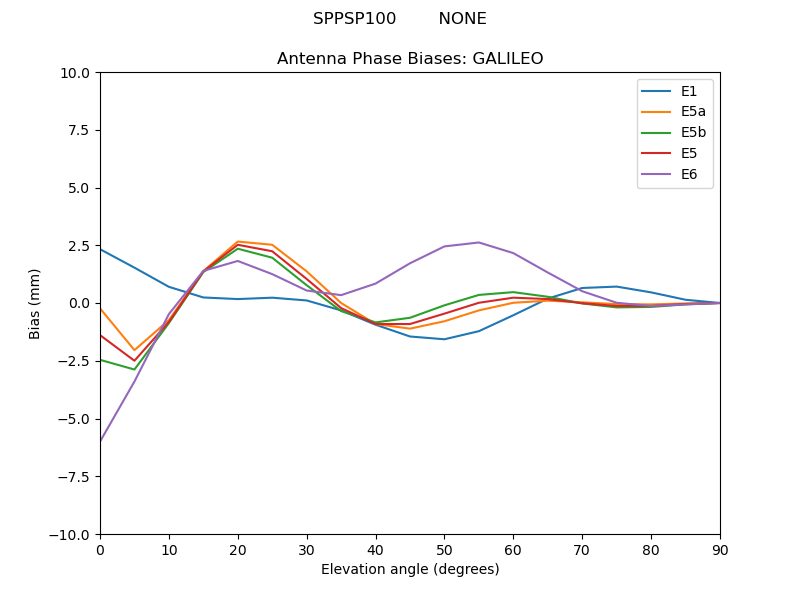

GALILEO

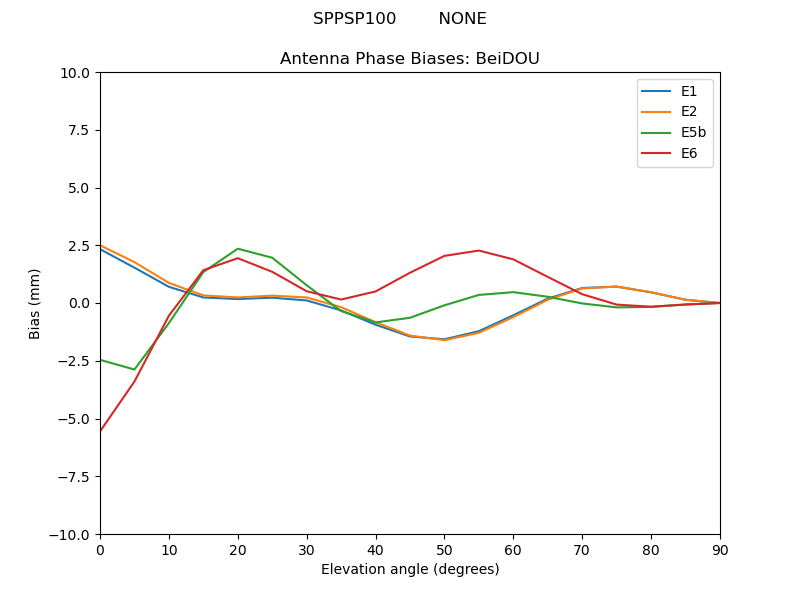

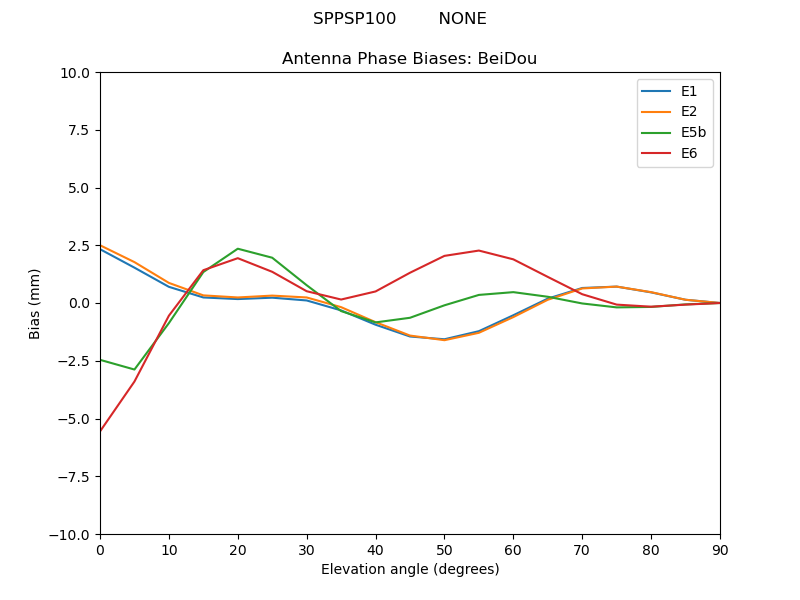

BeiDOU


QZSS

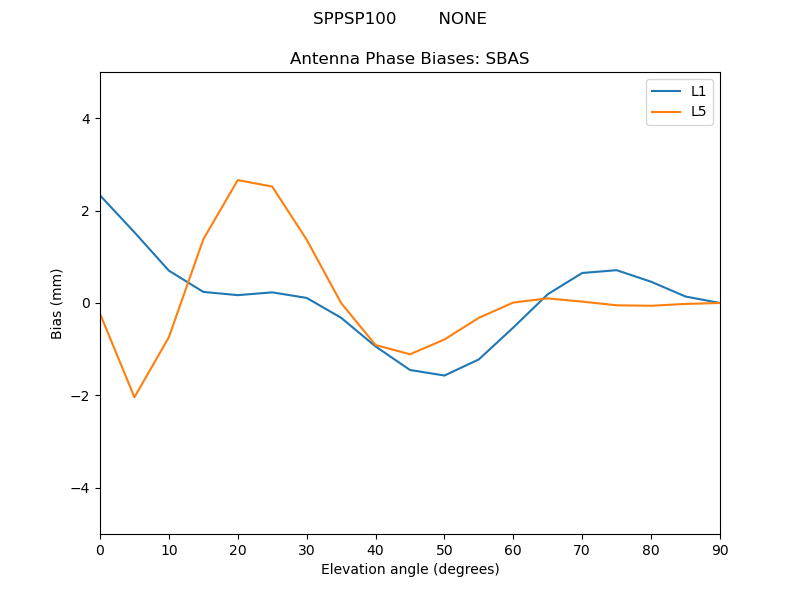

SBAS


Azimuths

GPS


Bias Delta

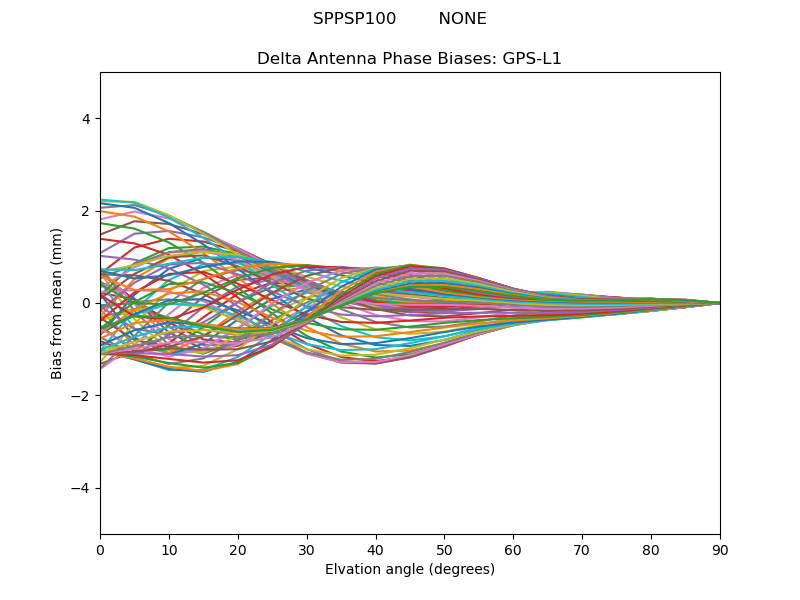

GPS-L1

GPS-L1GPS-L1

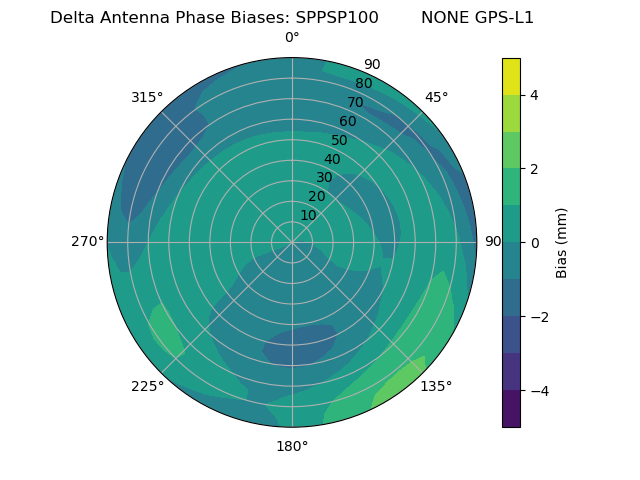

Radial GPS-L1Radial GPS-L1

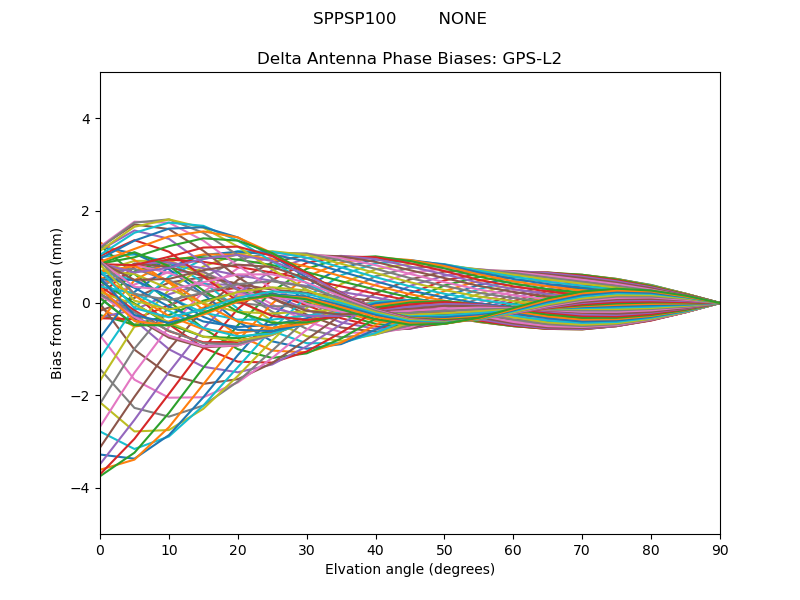

GPS-L2

GPS-L2GPS-L2

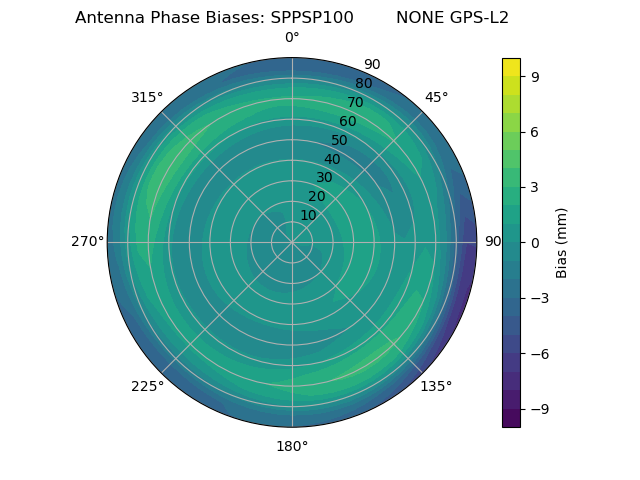

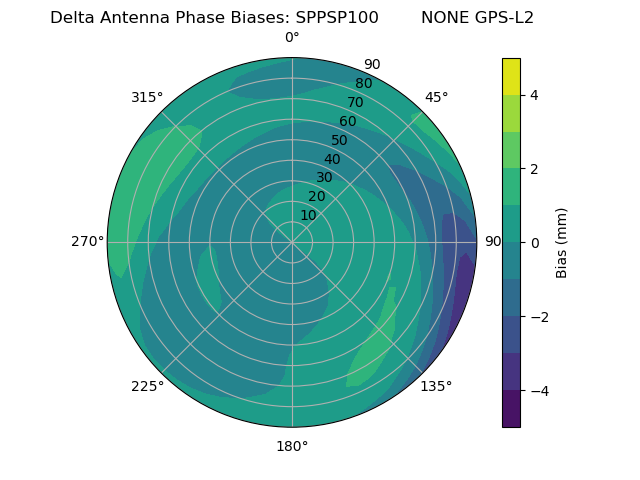

Radial GPS-L2Radial GPS-L2

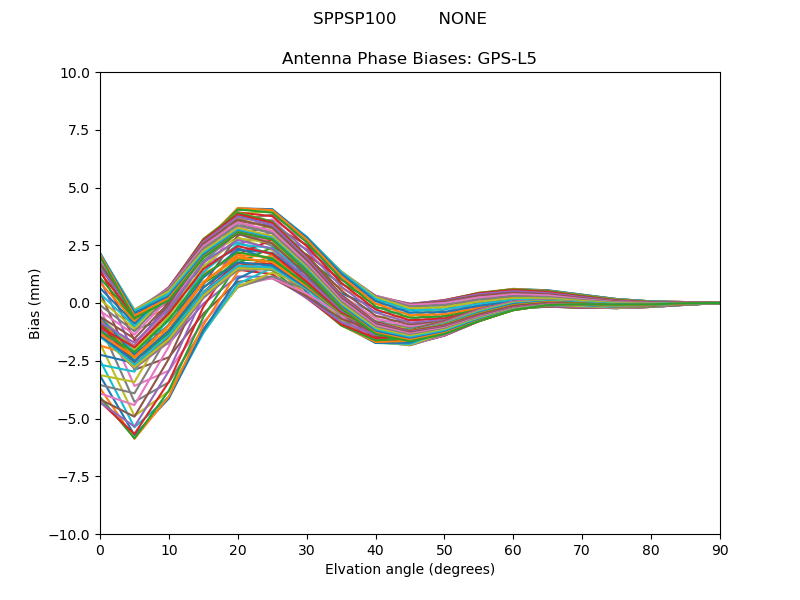

GPS-L5

GPS-L5GPS-L5

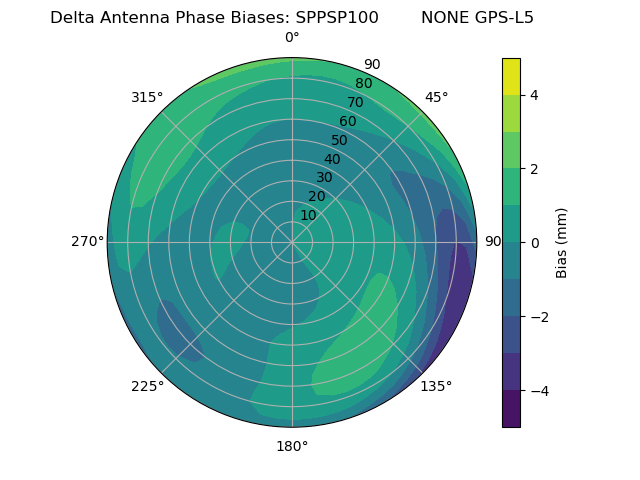

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

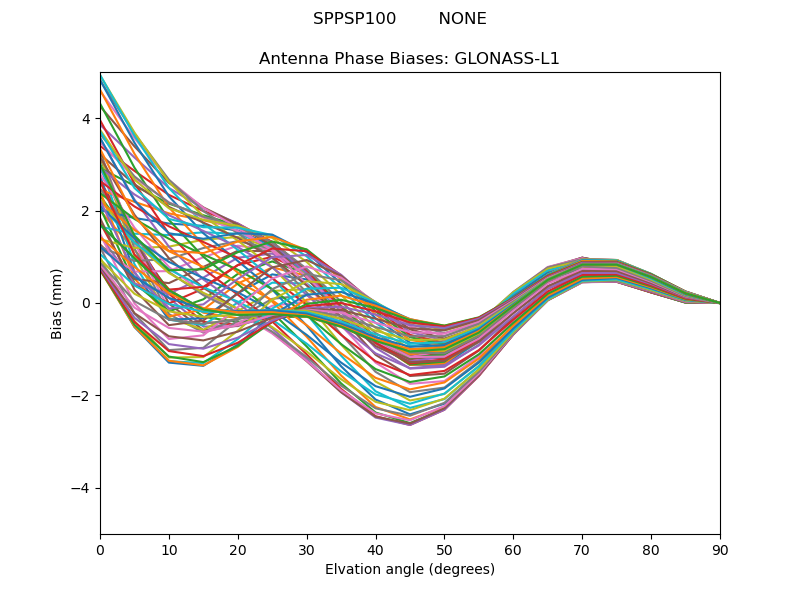

GLONASS-L1

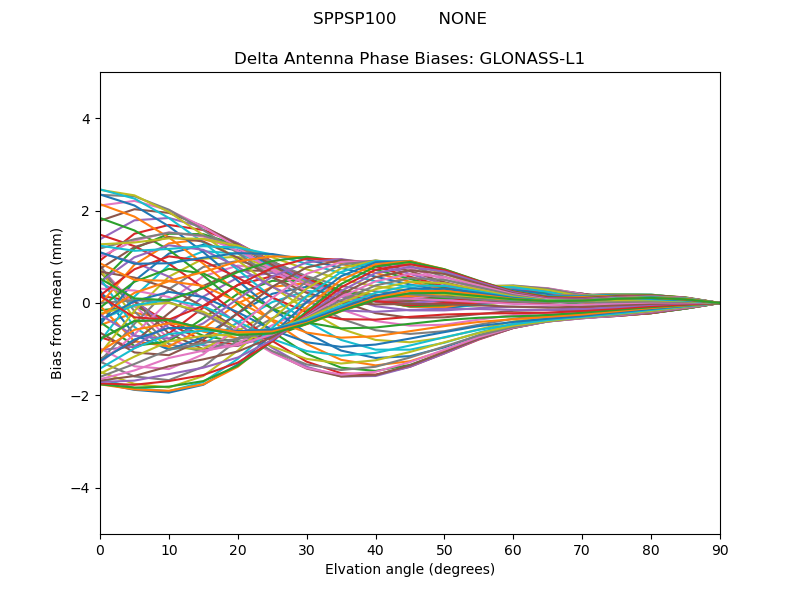

GLONASS-L1GLONASS-L1

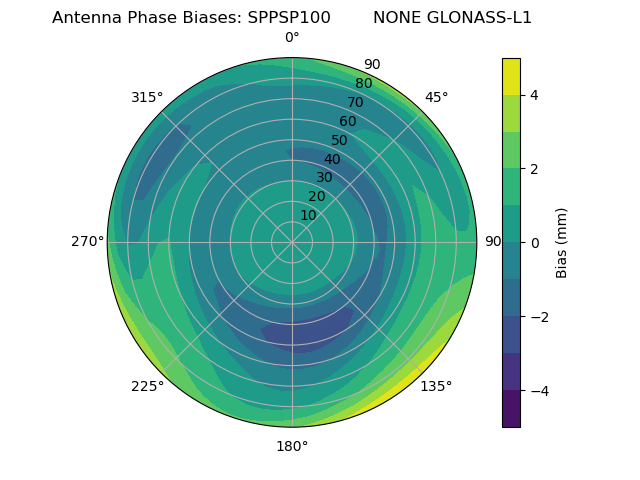

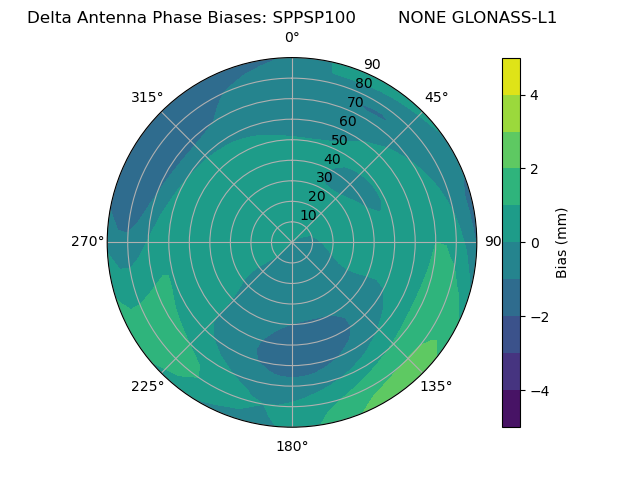

Radial GLONASS-L1Radial GLONASS-L1

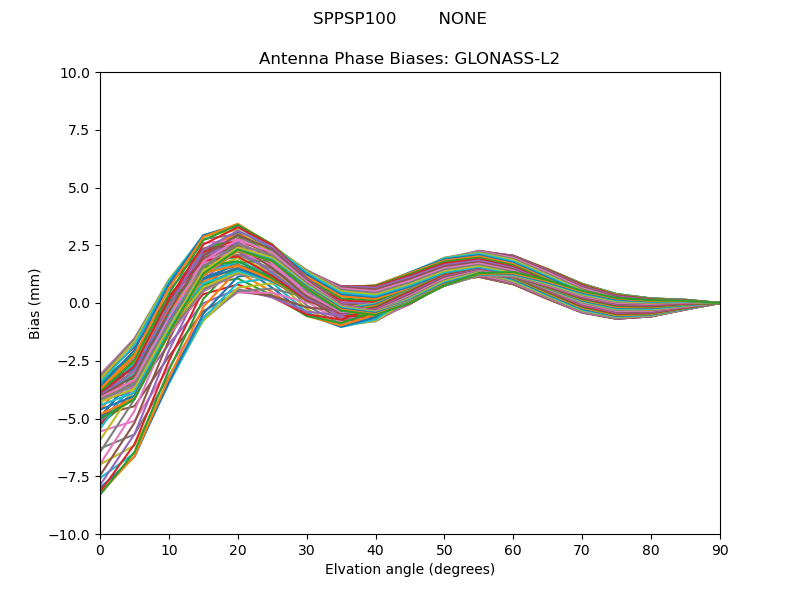

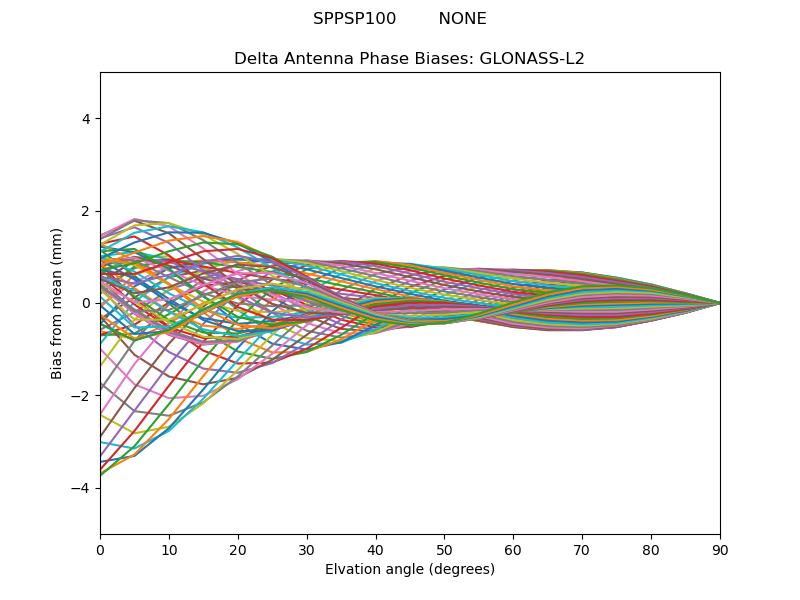

GLONASS-L2

GLONASS-L2GLONASS-L2

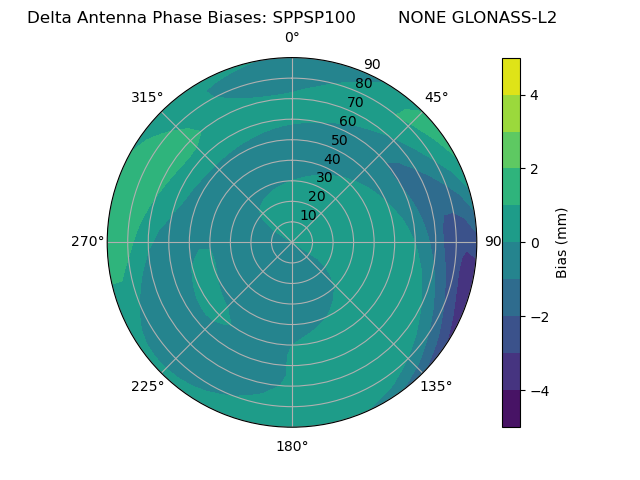

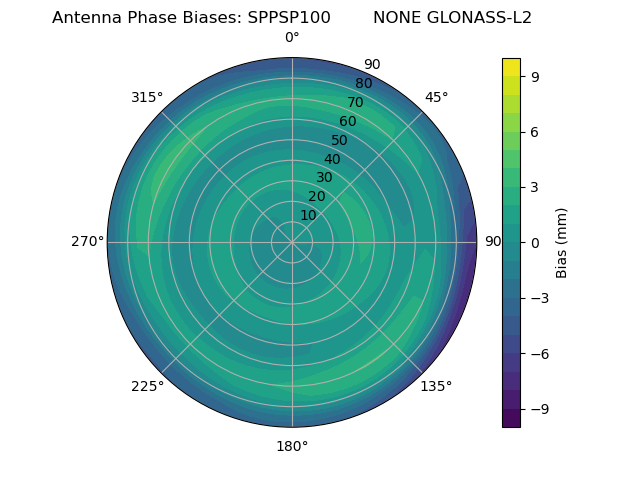

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

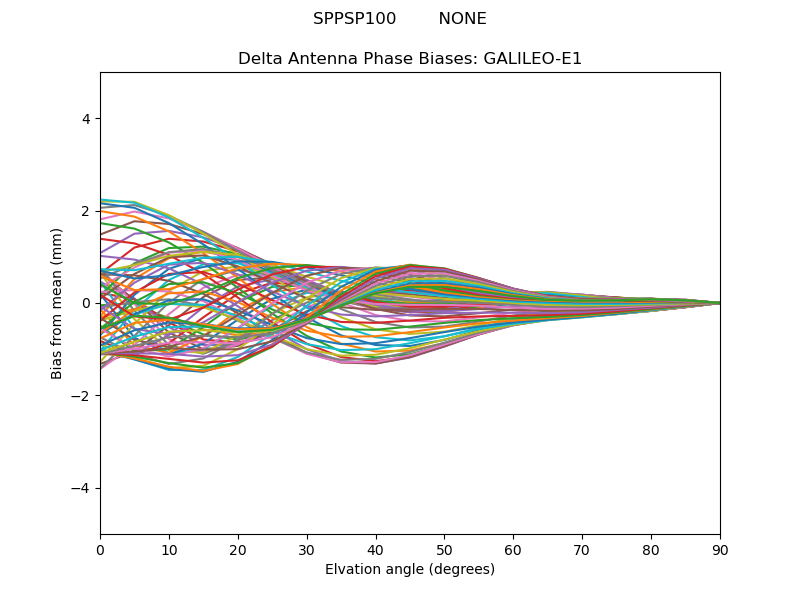

GALILEO-E1

GALILEO-E1GALILEO-E1

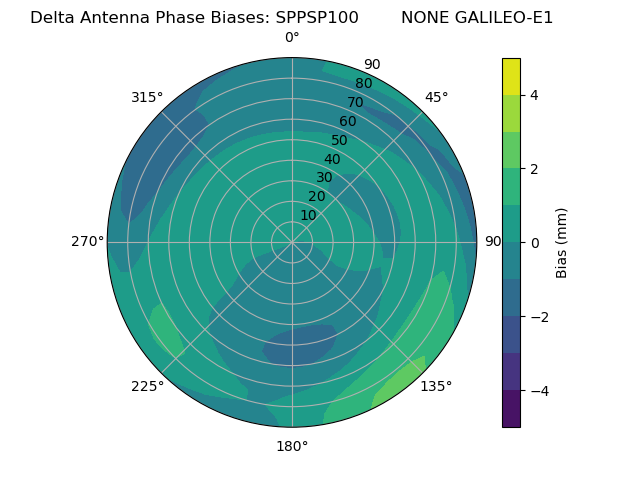

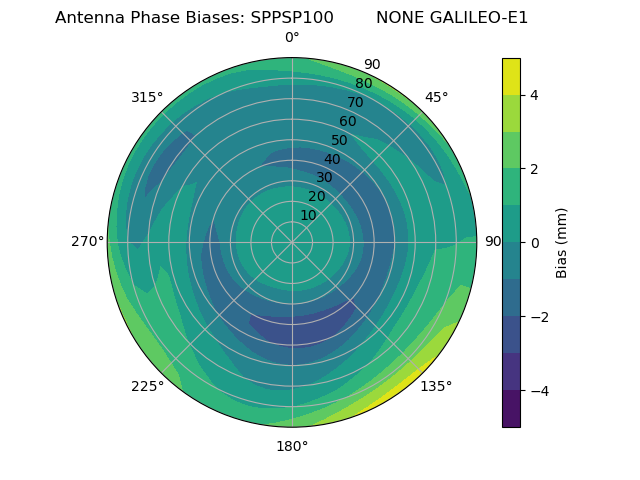

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

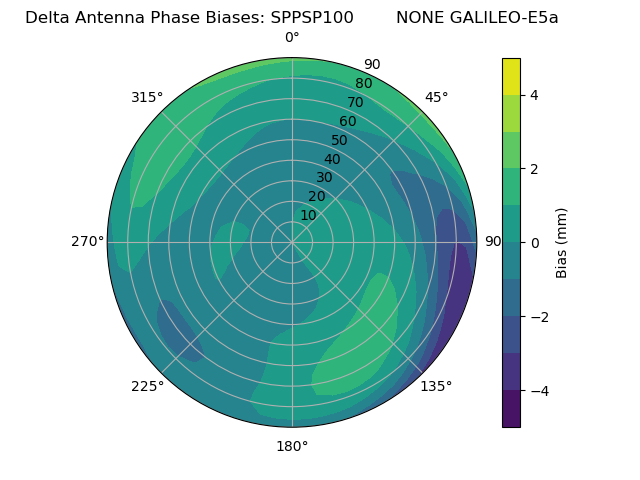

Radial GALILEO-E5aRadial GALILEO-E5a

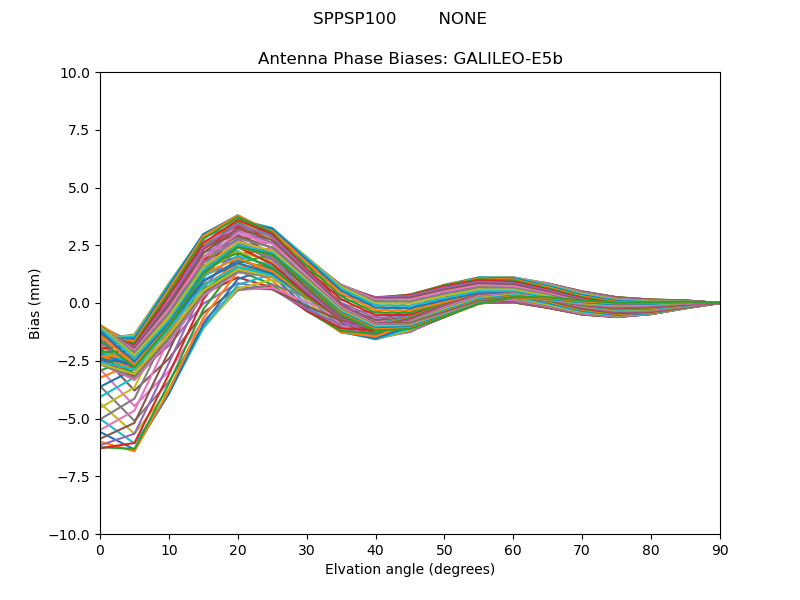

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

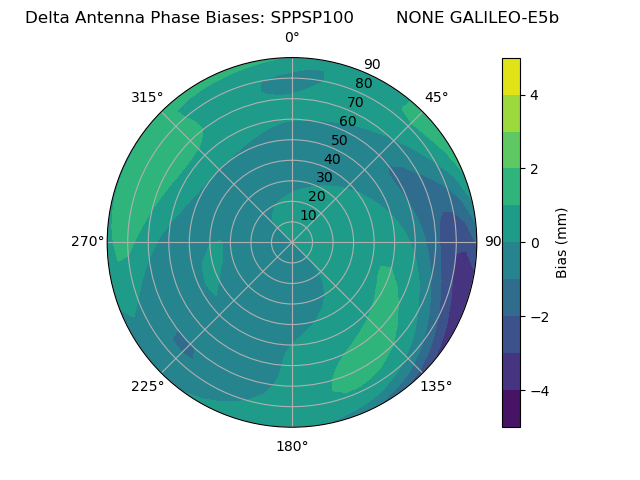

Radial GALILEO-E5bRadial GALILEO-E5b

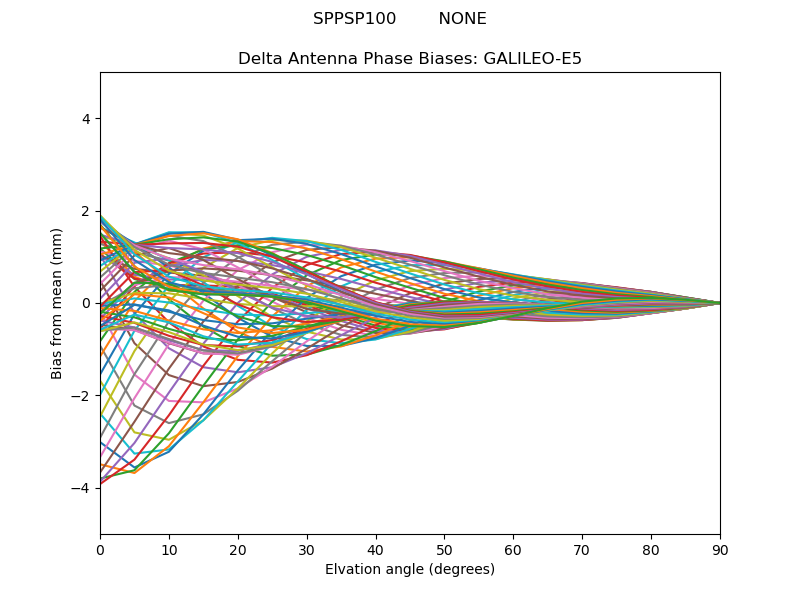

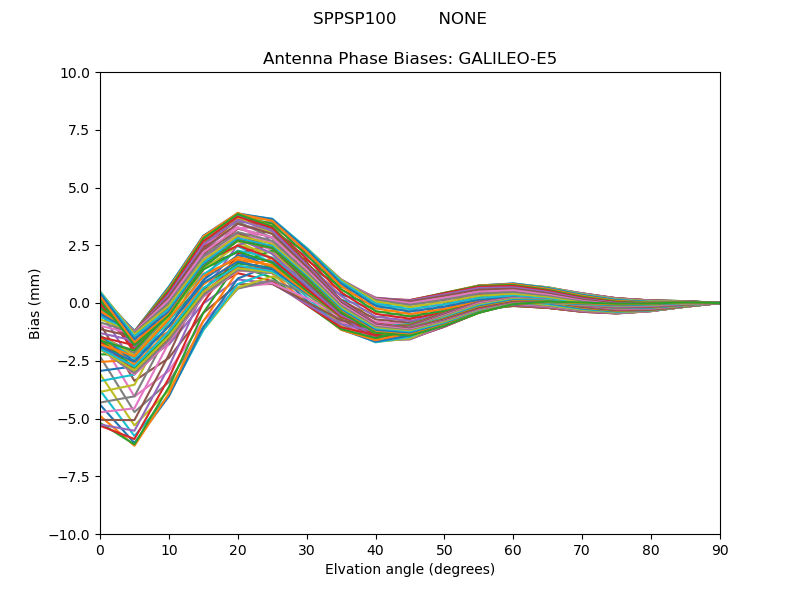

GALILEO-E5

GALILEO-E5GALILEO-E5

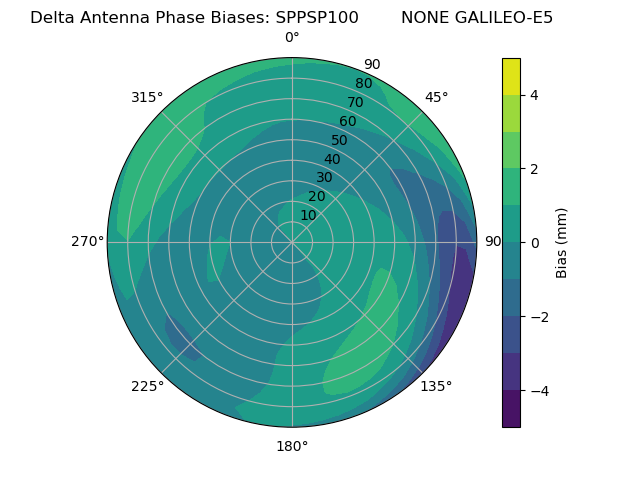

Radial GALILEO-E5Radial GALILEO-E5

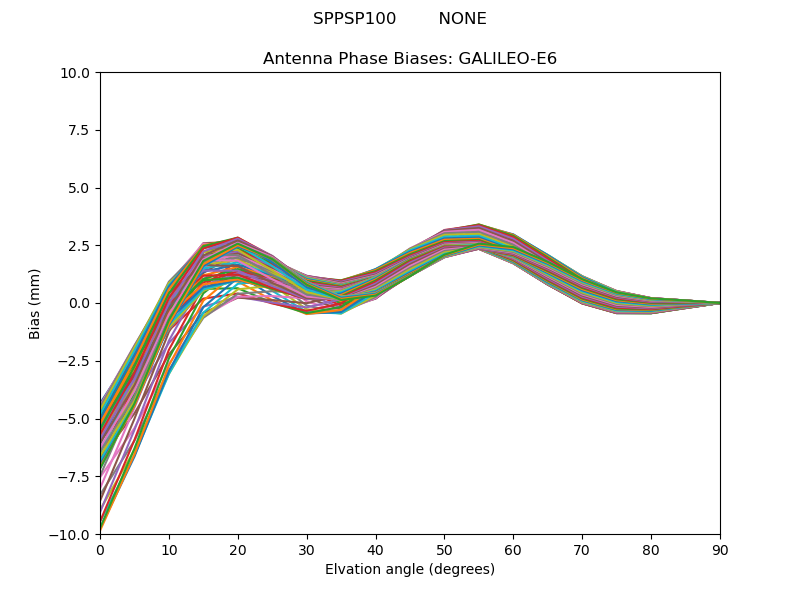

GALILEO-E6

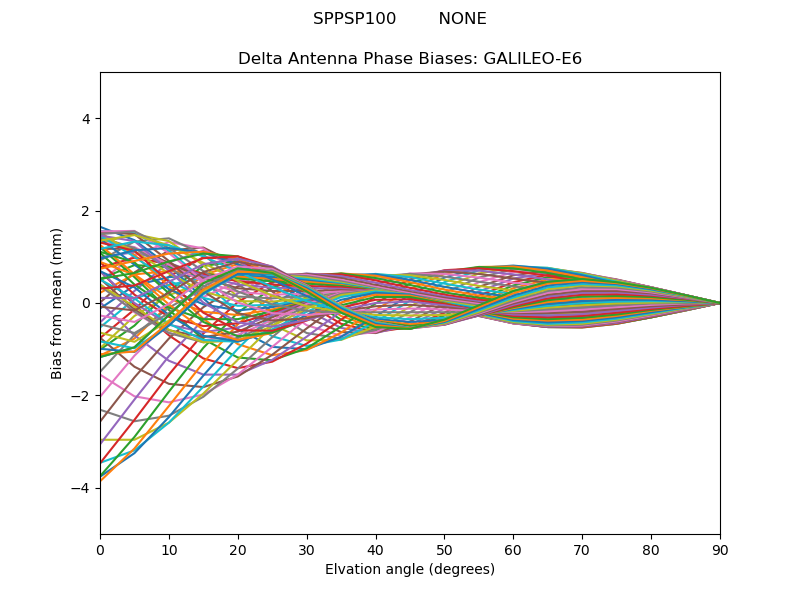

GALILEO-E6GALILEO-E6

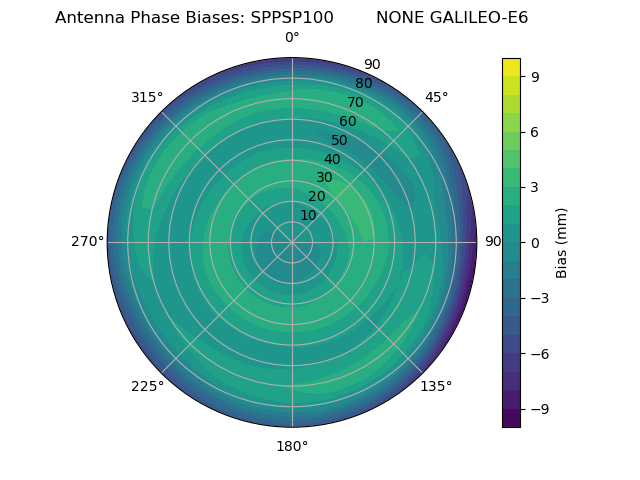

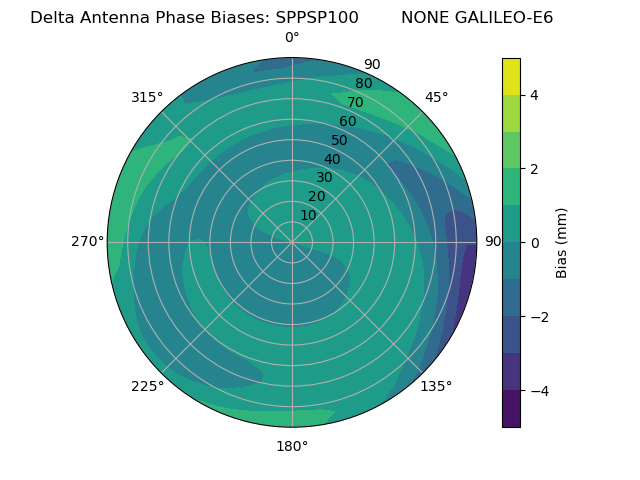

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

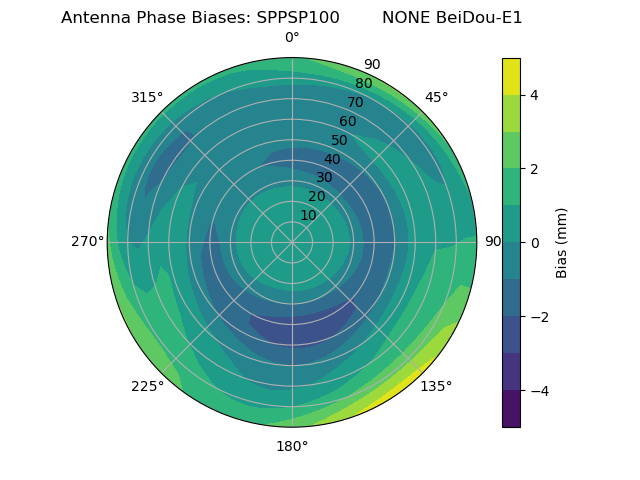

Radial BeiDOU-E1Radial BeiDOU-E1

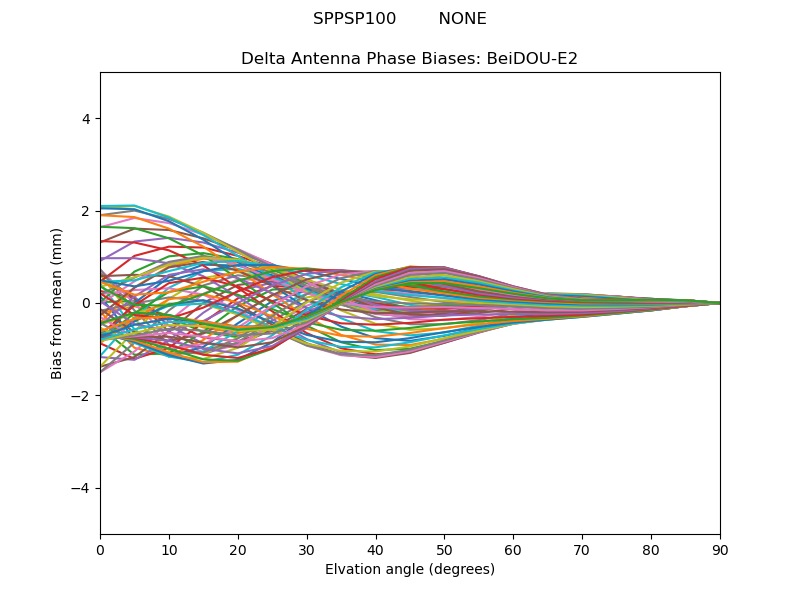

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

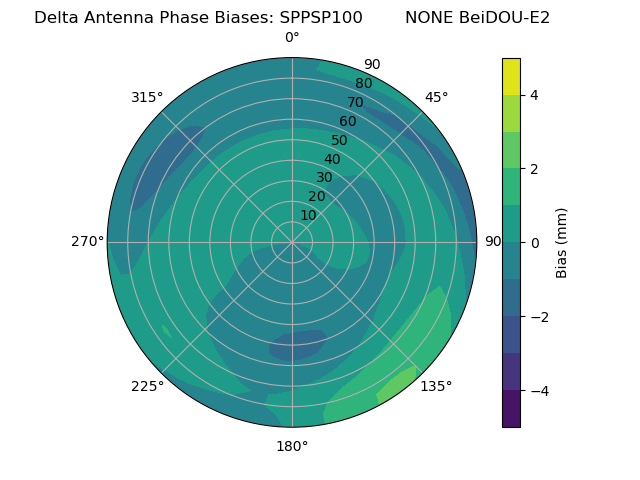

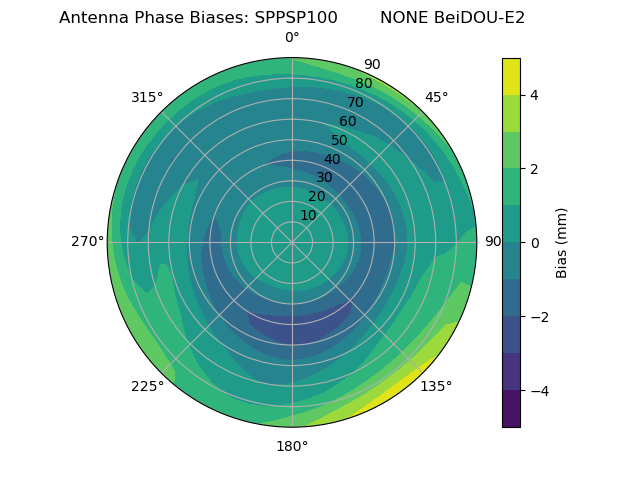

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

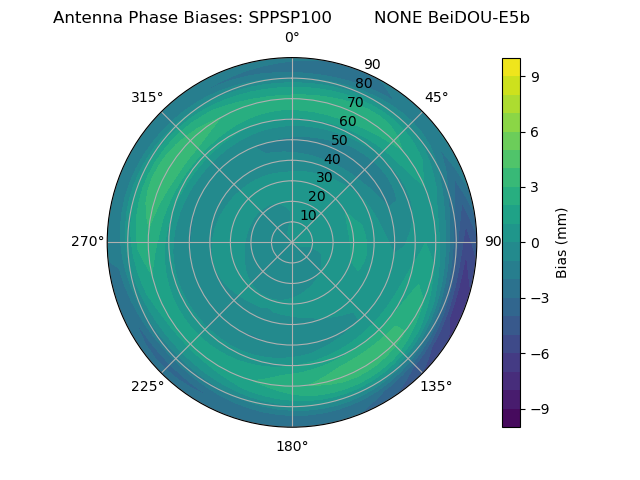

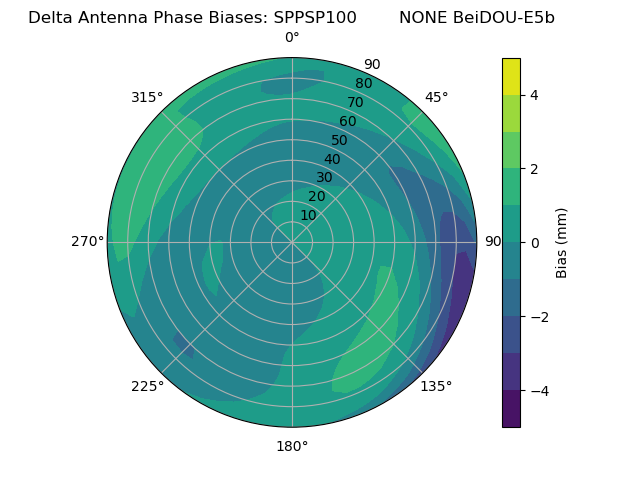

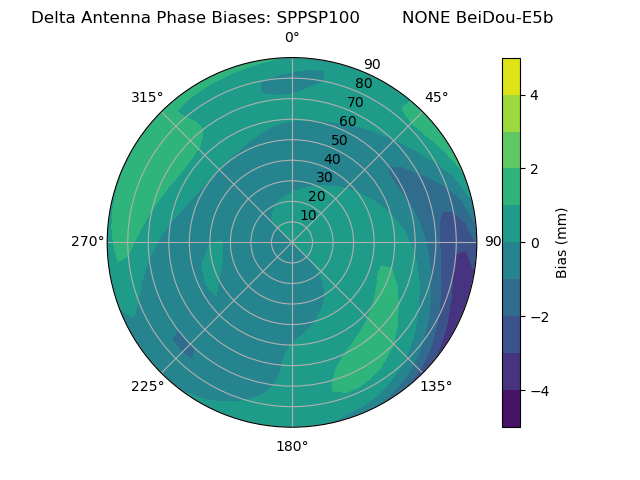

Radial BeiDOU-E5bRadial BeiDOU-E5b

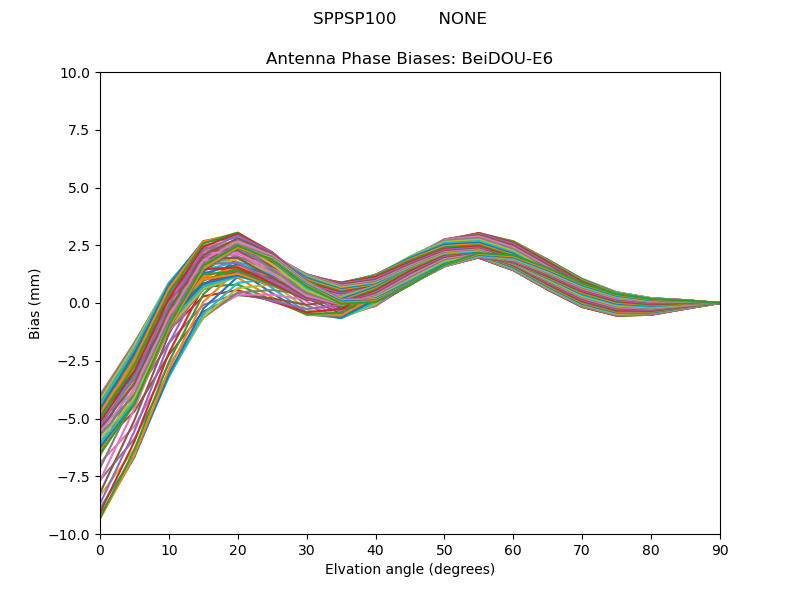

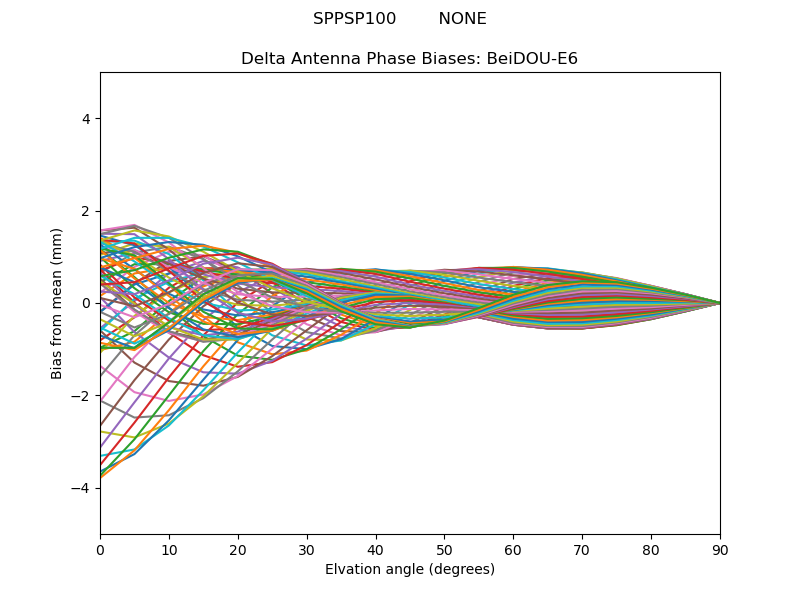

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

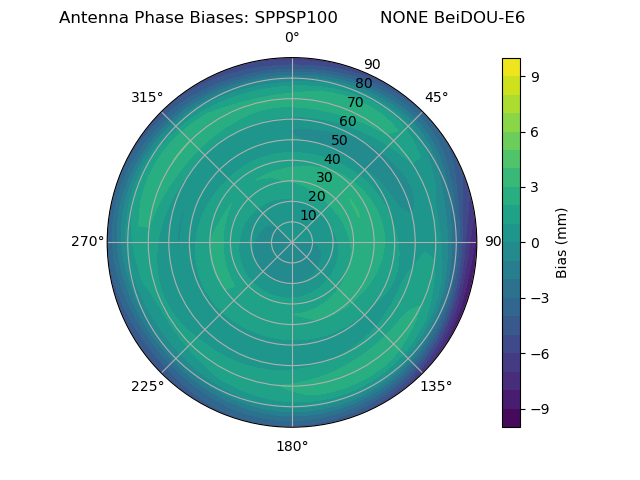

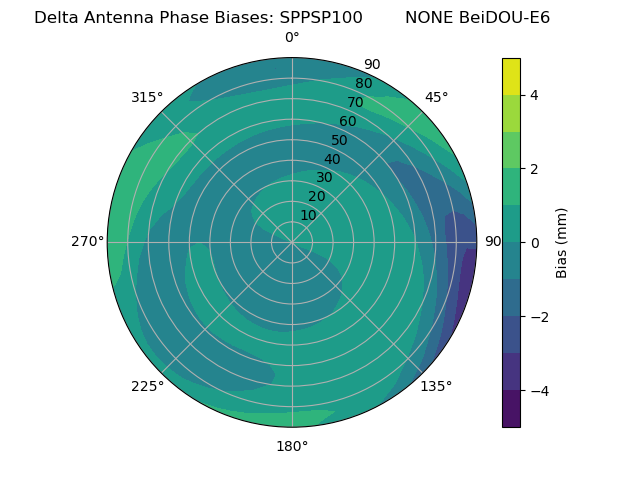

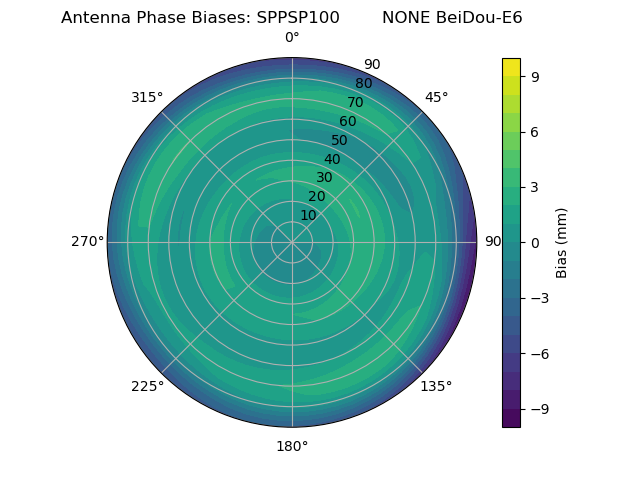

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

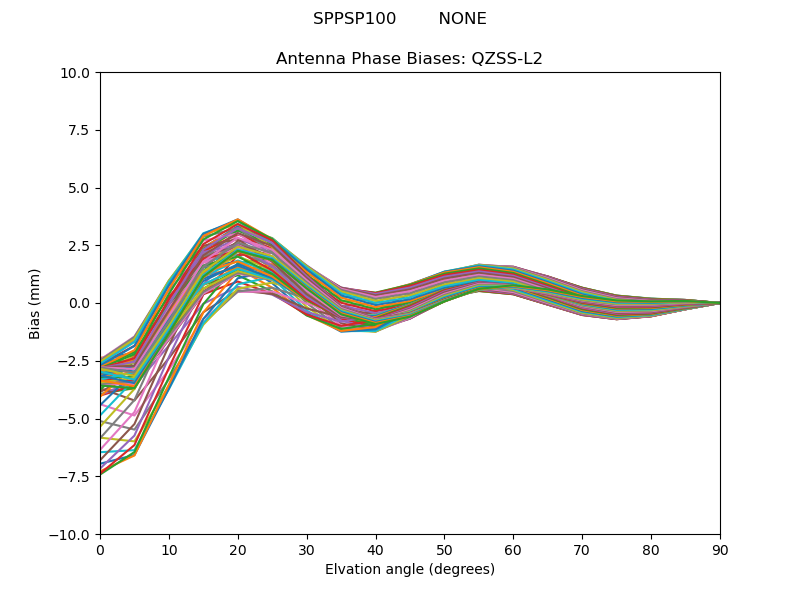

QZSS-L2

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

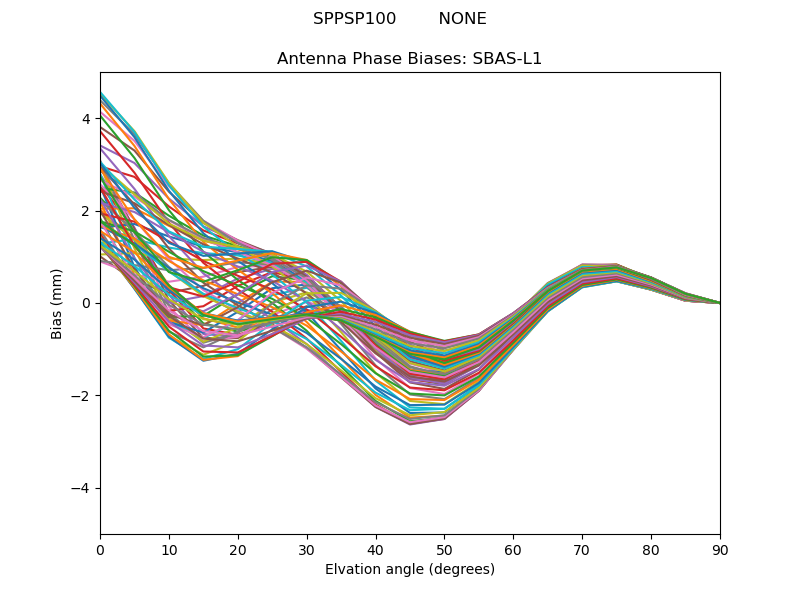

SBAS-L1

SBAS-L1SBAS-L1

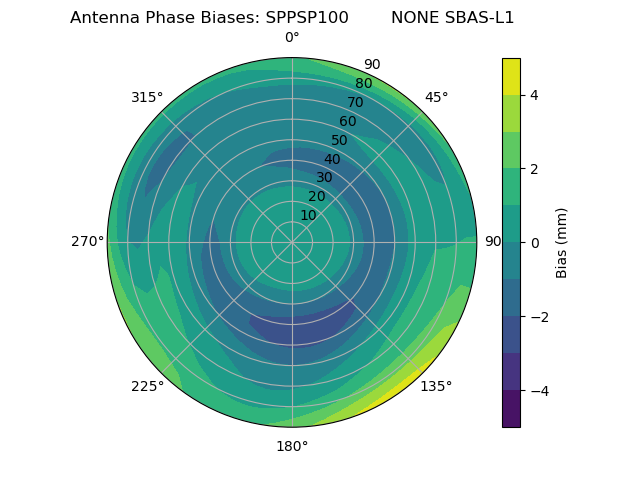

Radial SBAS-L1Radial SBAS-L1

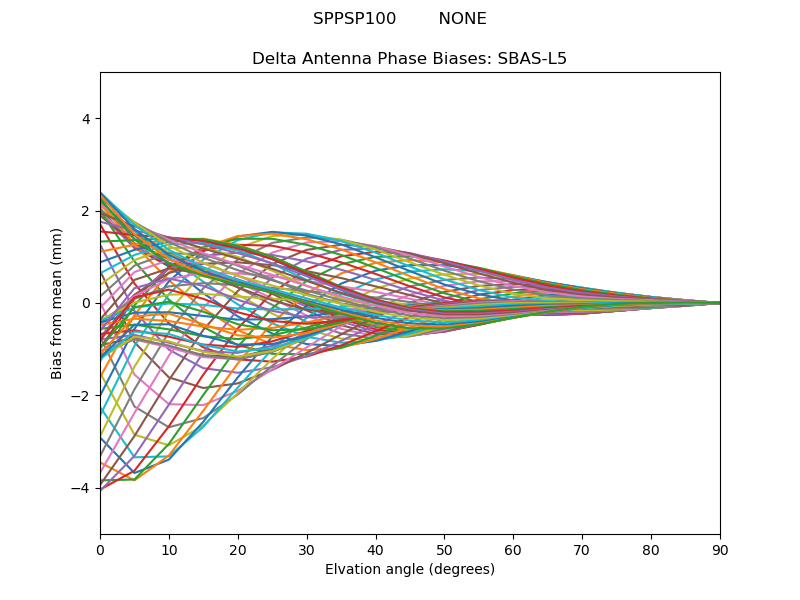

SBAS-L5

SBAS-L5SBAS-L5

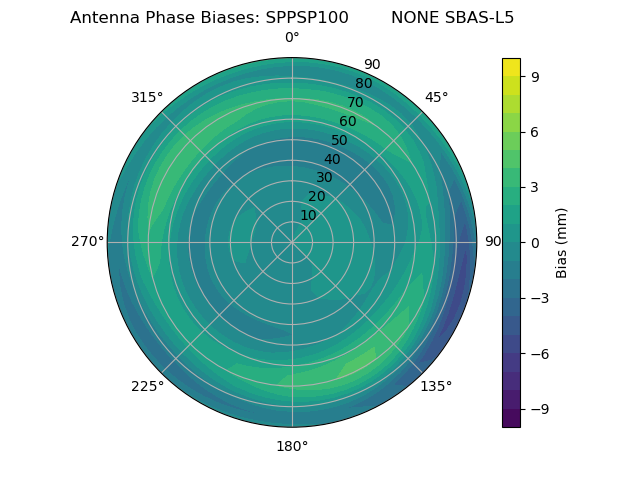

Radial SBAS-L5Radial SBAS-L5
