Antenna information for SPPSP85 NONE

Antenna Offsets
SV System Bands

GPS

L1: N: -0.98 E: -1.14 U: 61.76
L2: N: 1.96 E: -0.13 U: 64.29
L5: N: 2.29 E: 0.25 U: 64.29

GLONASS

L1: N: -3.63 E: -4.08 U: 61.48
L2: N: 1.96 E: -0.28 U: 64.57

GALILEO

E1: N: -0.98 E: -1.14 U: 61.76
E5a: N: 2.29 E: 0.25 U: 64.29
E5b: N: 2.04 E: 0.01 U: 64.12
E5: N: 2.16 E: 0.11 U: 64.13
E6: N: 1.99 E: -0.37 U: 65.55

BeiDou

E1: N: -0.98 E: -1.14 U: 61.76
E2: N: 0.38 E: 0.51 U: 61.92
E5b: N: 2.04 E: 0.01 U: 64.12
E6: N: 1.97 E: -0.35 U: 65.19

QZSS

L1: N: -0.98 E: -1.14 U: 61.76
L2: N: 1.96 E: -0.13 U: 64.29
L5: N: 2.29 E: 0.25 U: 64.29

IRNSS

L5: N: 2.29 E: 0.25 U: 64.29

SBAS

L1: N: -0.98 E: -1.14 U: 61.76
L5: N: 2.29 E: 0.25 U: 64.29

L1

GPS: N: -0.98 E: -1.14 U: 61.76
GLONASS: N: -3.63 E: -4.08 U: 61.48
QZSS: N: -0.98 E: -1.14 U: 61.76
SBAS: N: -0.98 E: -1.14 U: 61.76

L2

GPS: N: 1.96 E: -0.13 U: 64.29
GLONASS: N: 1.96 E: -0.28 U: 64.57
QZSS: N: 1.96 E: -0.13 U: 64.29

L5

GPS: N: 2.29 E: 0.25 U: 64.29
QZSS: N: 2.29 E: 0.25 U: 64.29
SBAS: N: 2.29 E: 0.25 U: 64.29
IRNSS: N: 2.29 E: 0.25 U: 64.29

E1

GALILEO: N: -0.98 E: -1.14 U: 61.76
BeiDou: N: -0.98 E: -1.14 U: 61.76

E2

BeiDou: N: 0.38 E: 0.51 U: 61.92

E5

GALILEO: N: 2.16 E: 0.11 U: 64.13

E5a

GALILEO: N: 2.29 E: 0.25 U: 64.29

E5b

GALILEO: N: 2.04 E: 0.01 U: 64.12
BeiDou: N: 2.04 E: 0.01 U: 64.12

E6

GALILEO: N: 1.99 E: -0.37 U: 65.55
BeiDou: N: 1.97 E: -0.35 U: 65.19


Means

GPS


GLONASS

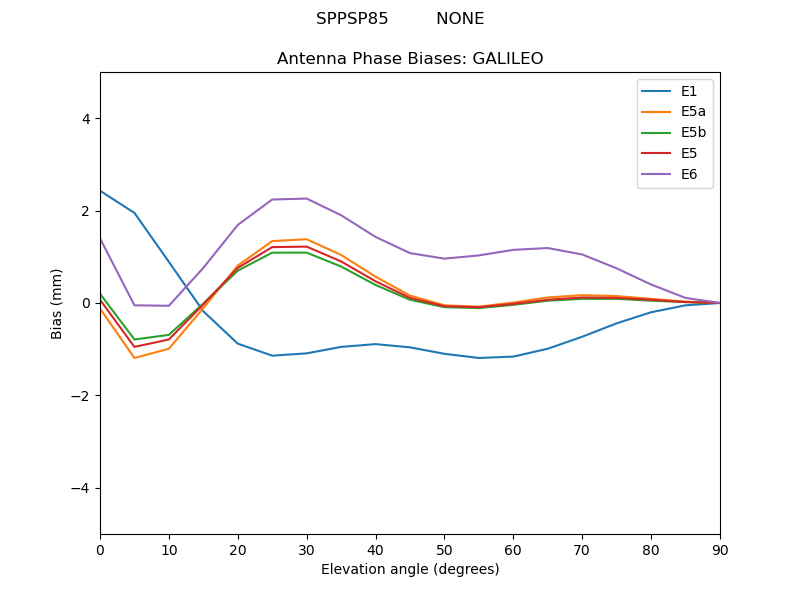

GALILEO

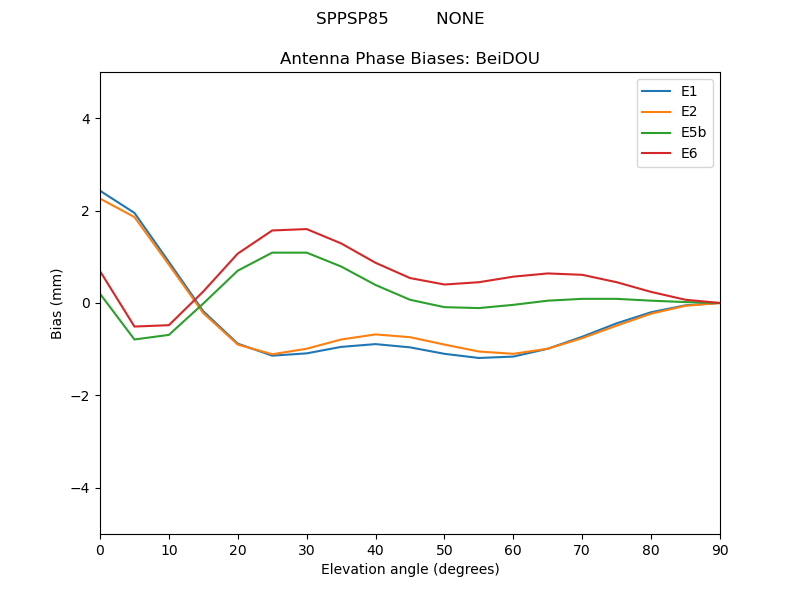

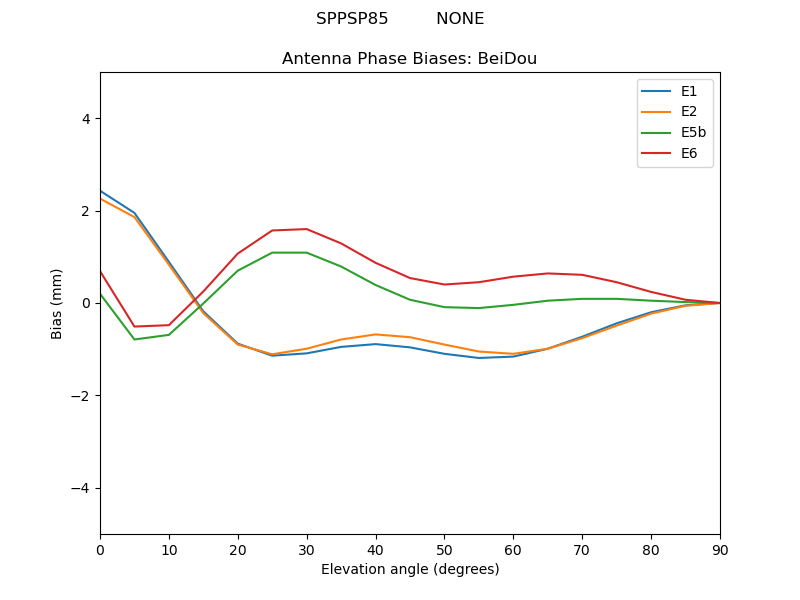

BeiDOU

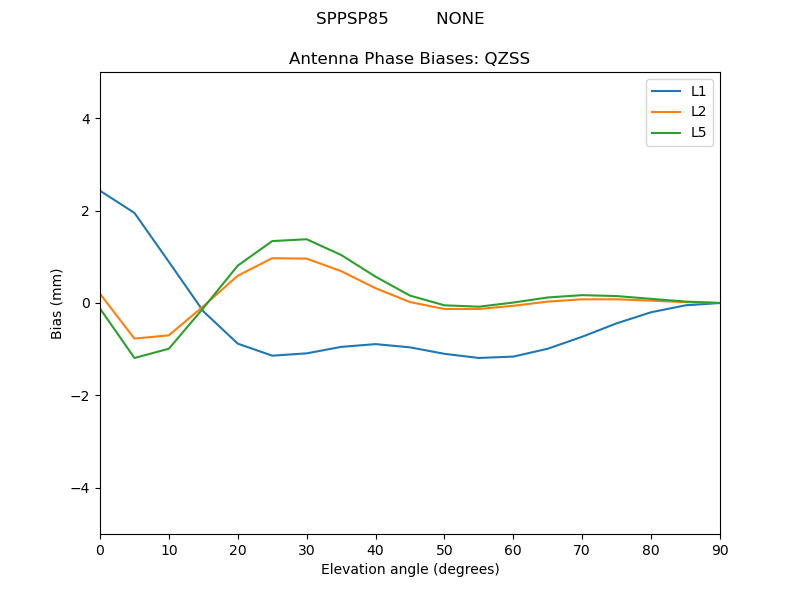

QZSS

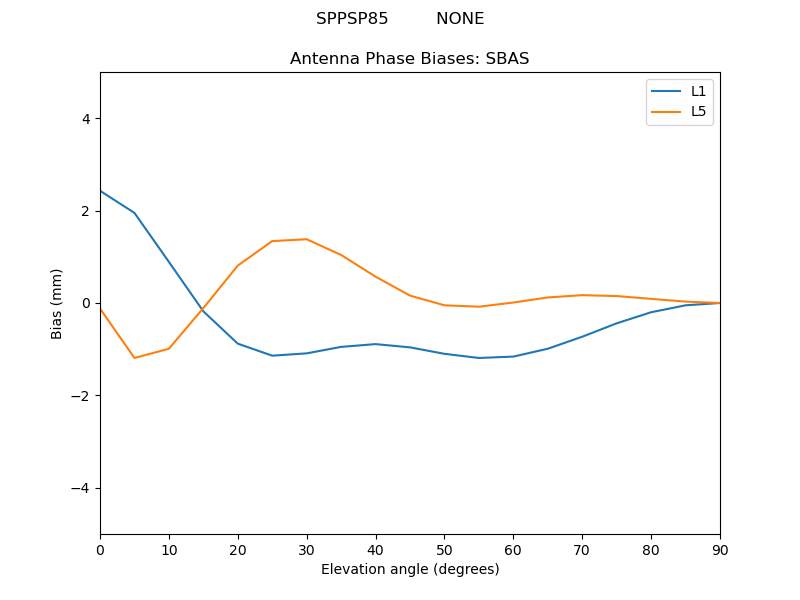

SBAS

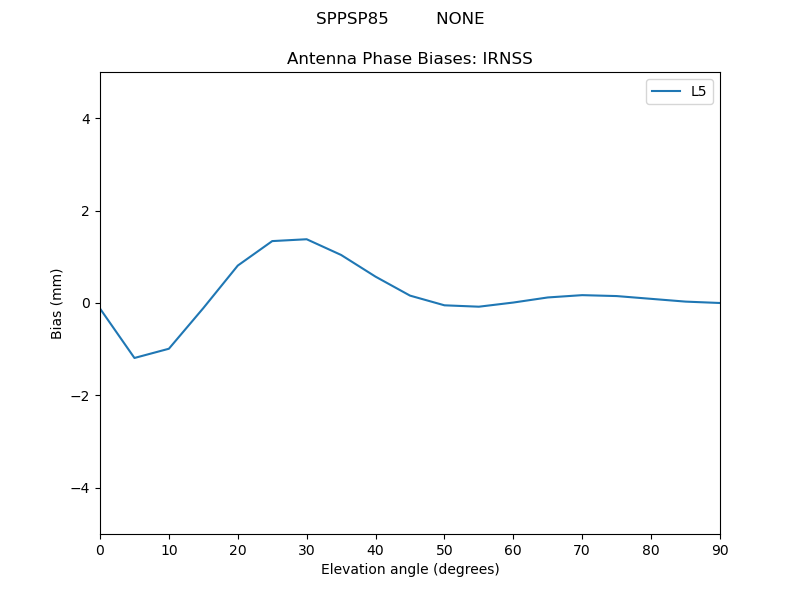

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1

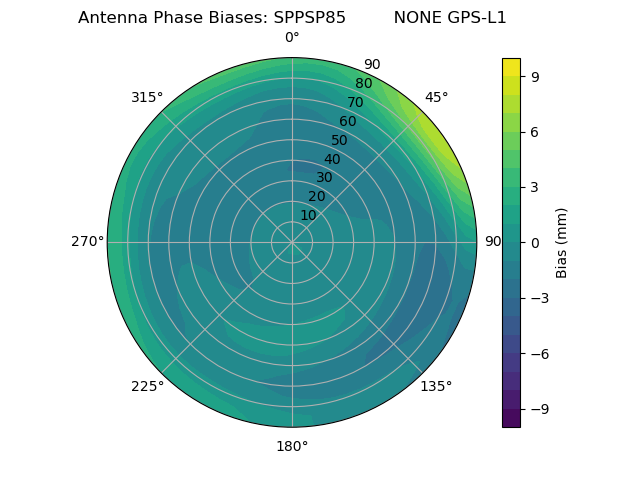

Radial GPS-L1Radial GPS-L1

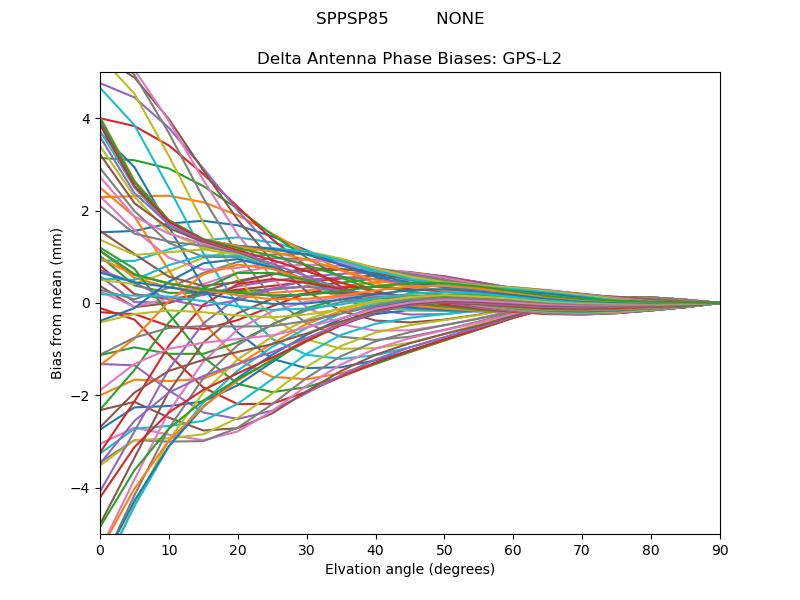

GPS-L2

GPS-L2GPS-L2

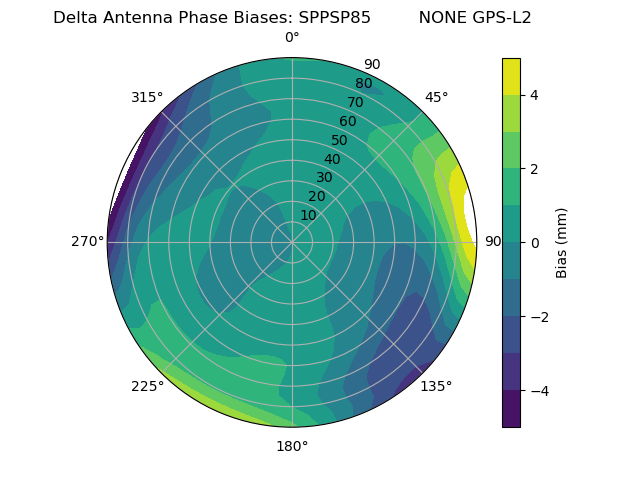

Radial GPS-L2Radial GPS-L2

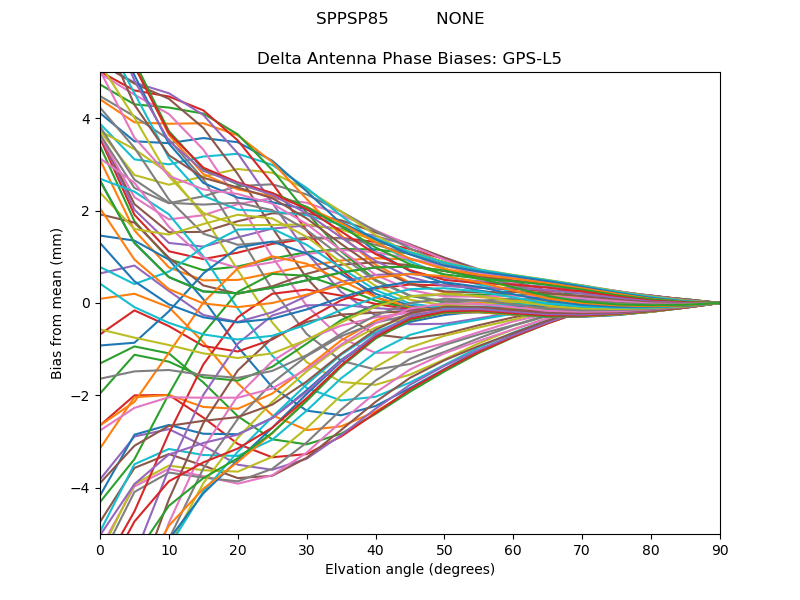

GPS-L5

GPS-L5GPS-L5

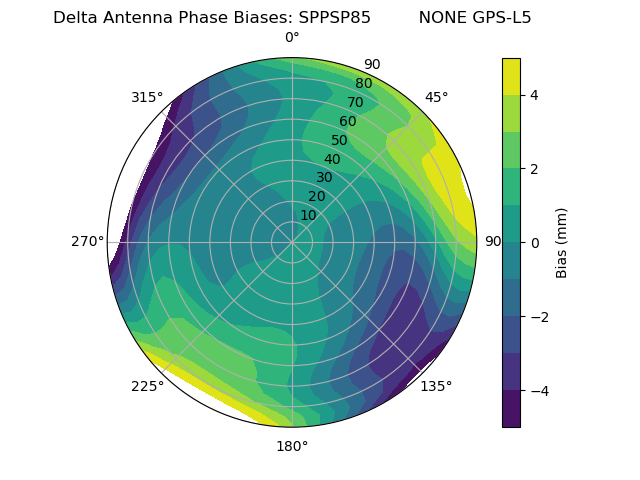

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

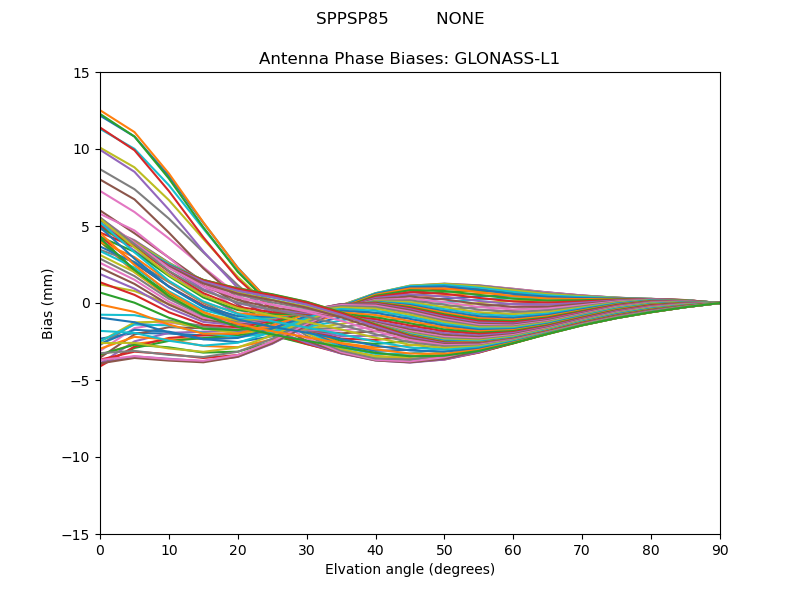

GLONASS-L1

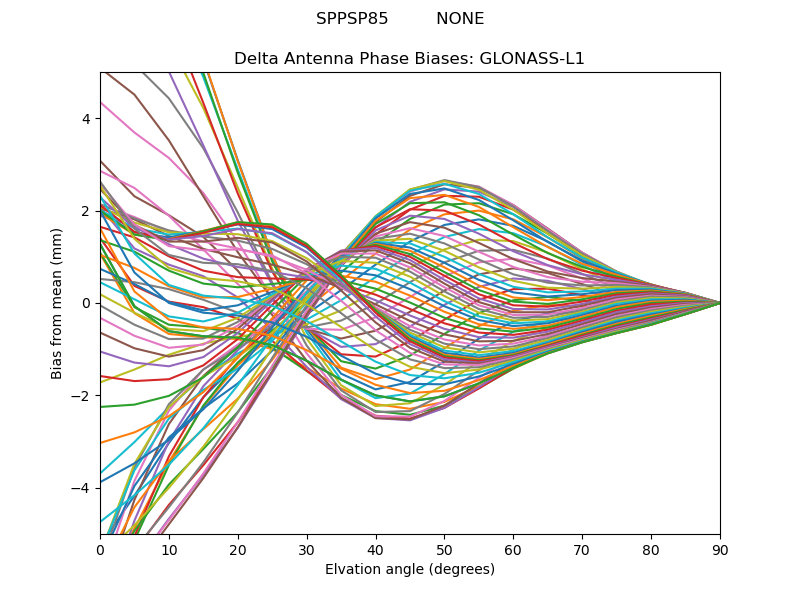

GLONASS-L1GLONASS-L1

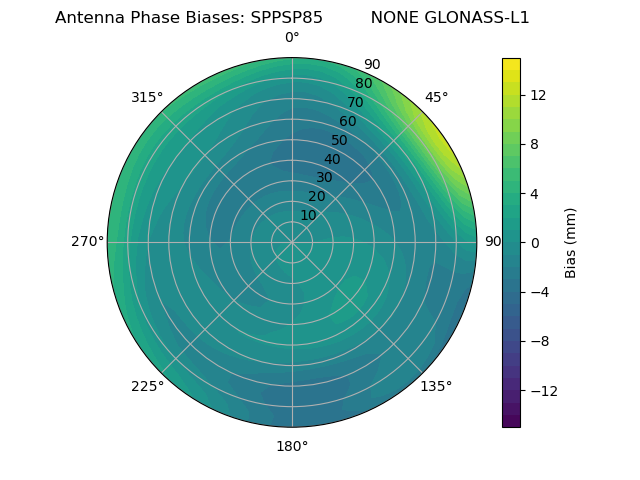

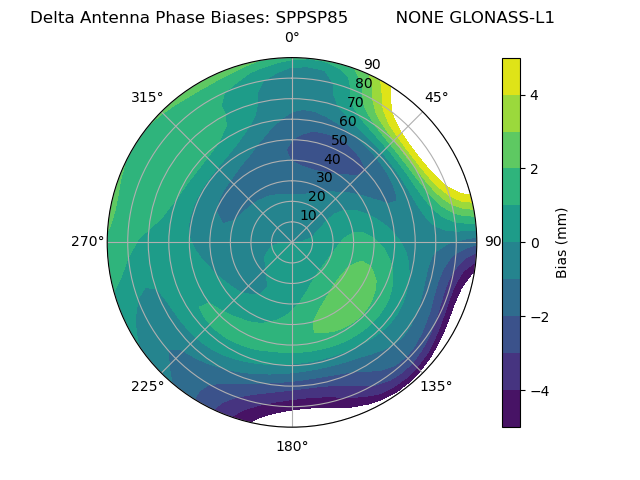

Radial GLONASS-L1Radial GLONASS-L1

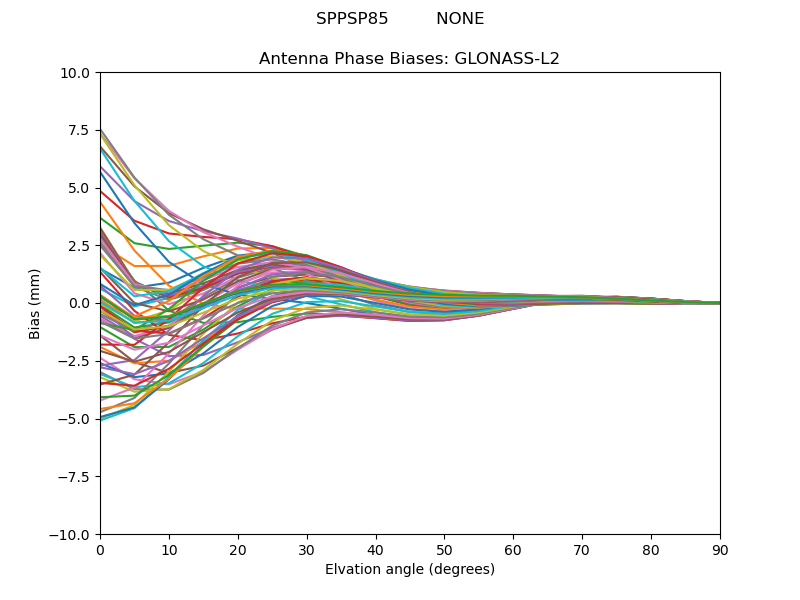

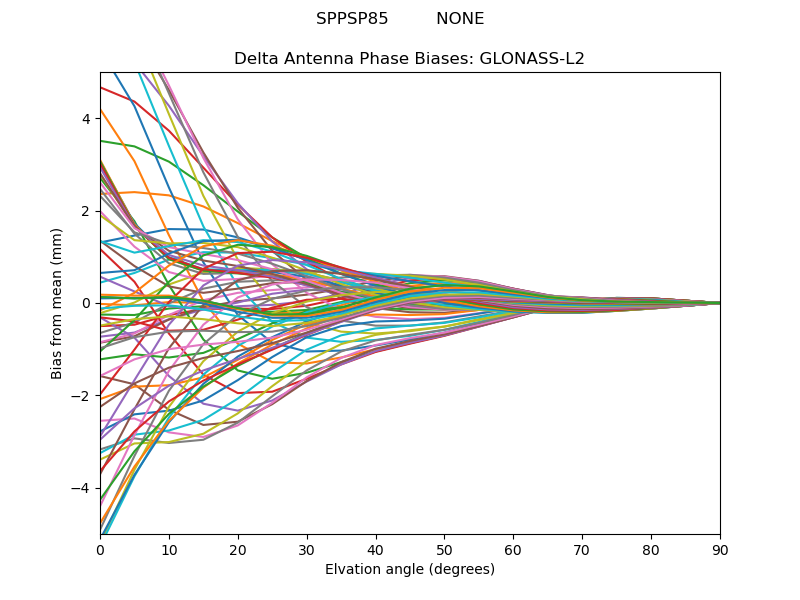

GLONASS-L2

GLONASS-L2GLONASS-L2

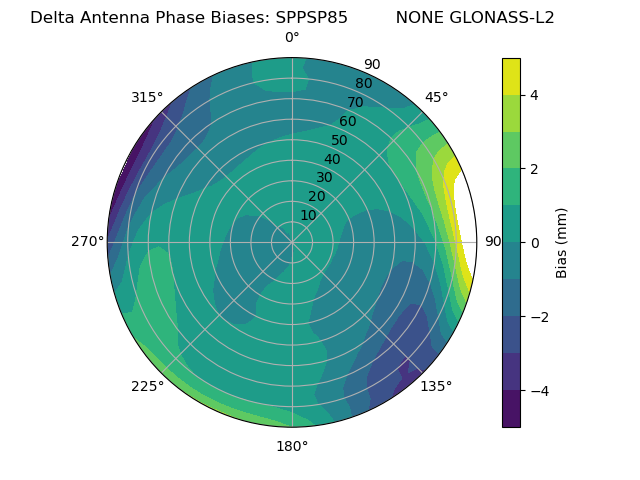

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

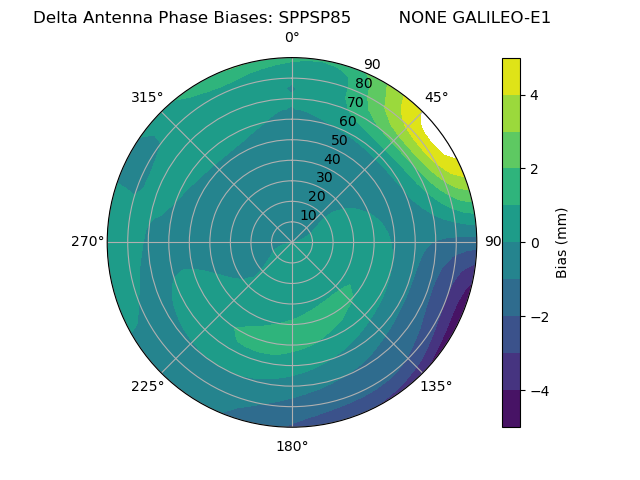

Radial GALILEO-E1Radial GALILEO-E1

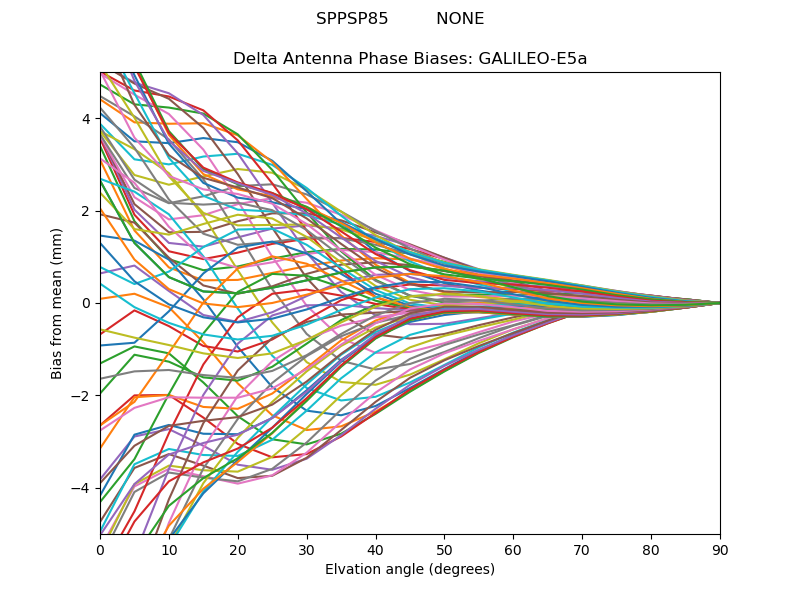

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

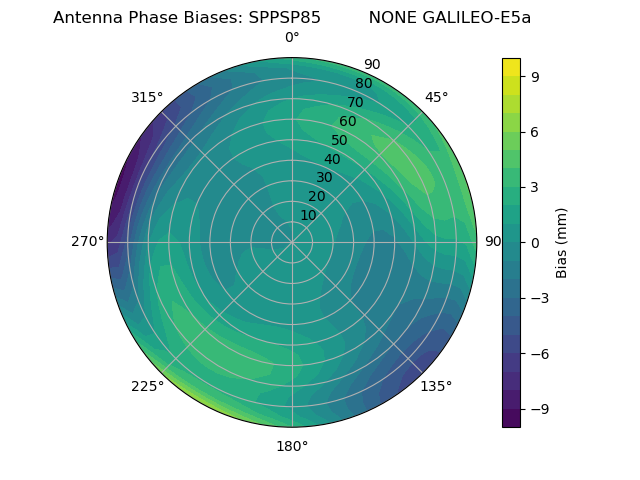

Radial GALILEO-E5aRadial GALILEO-E5a

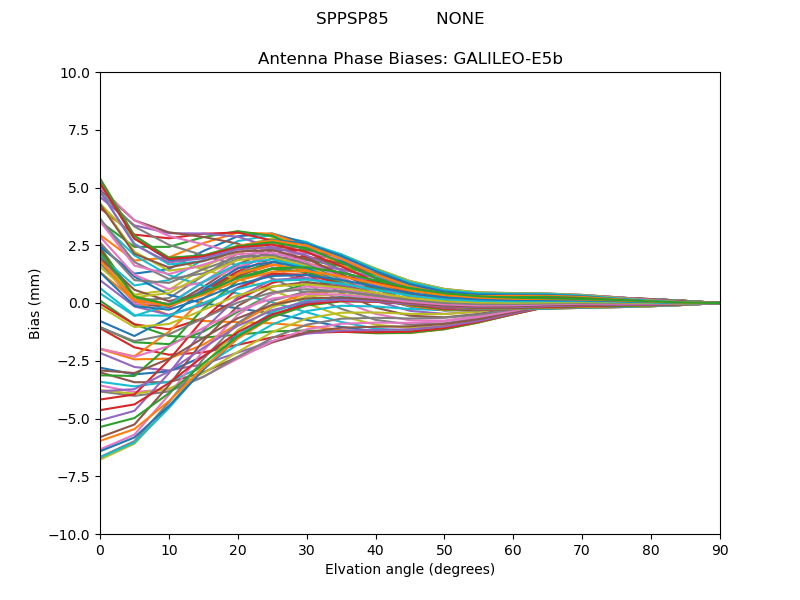

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

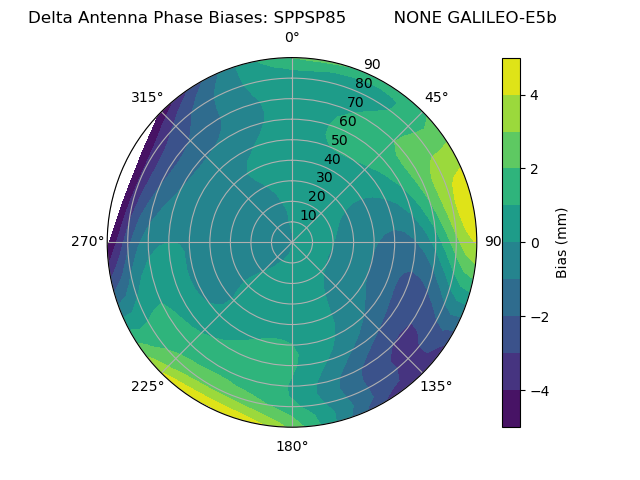

Radial GALILEO-E5bRadial GALILEO-E5b

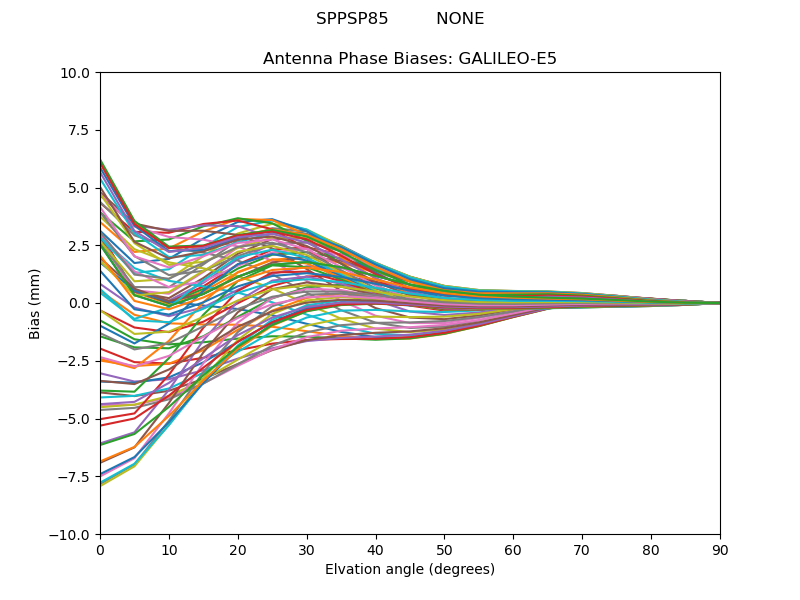

GALILEO-E5

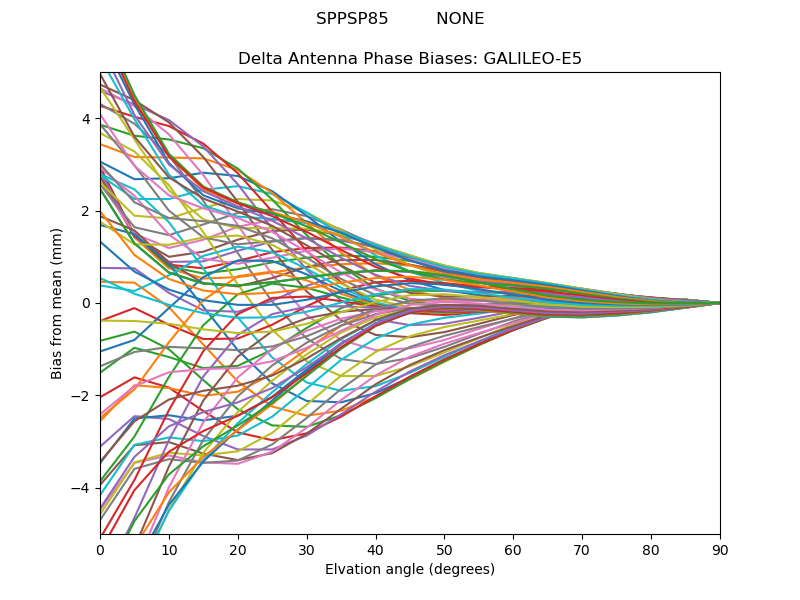

GALILEO-E5GALILEO-E5

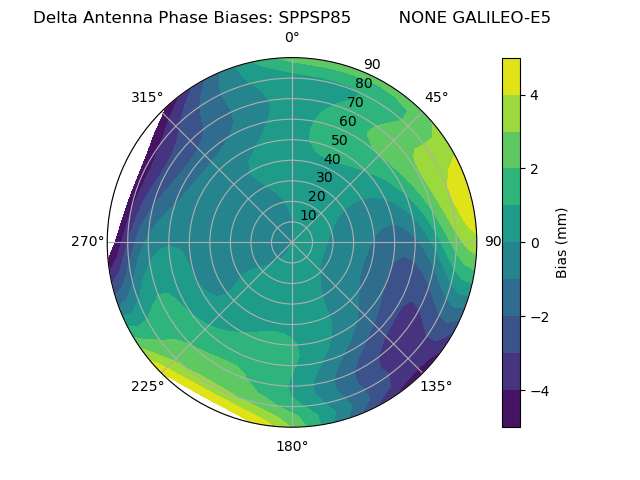

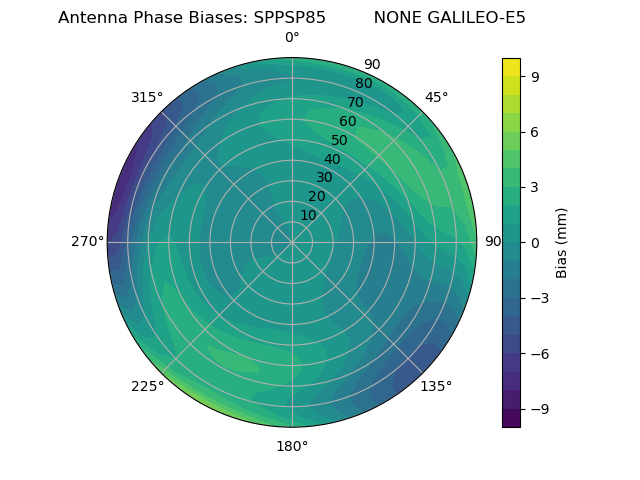

Radial GALILEO-E5Radial GALILEO-E5

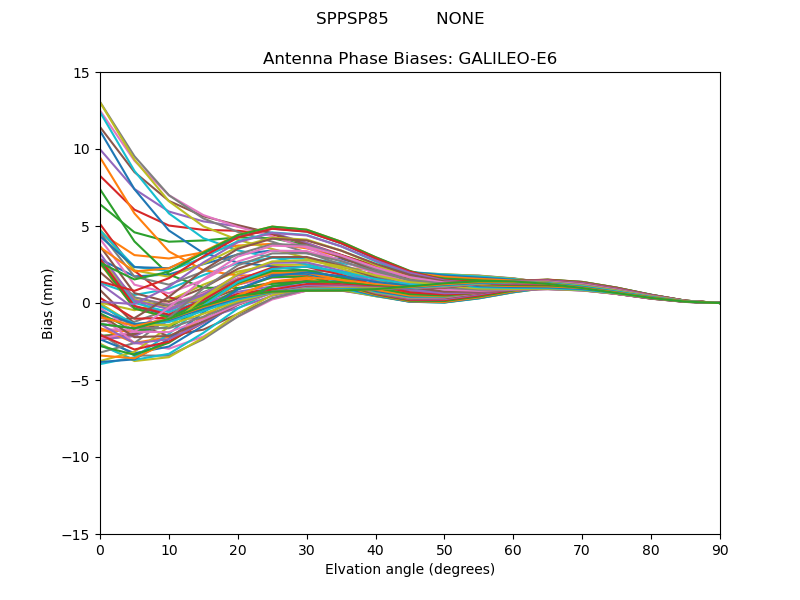

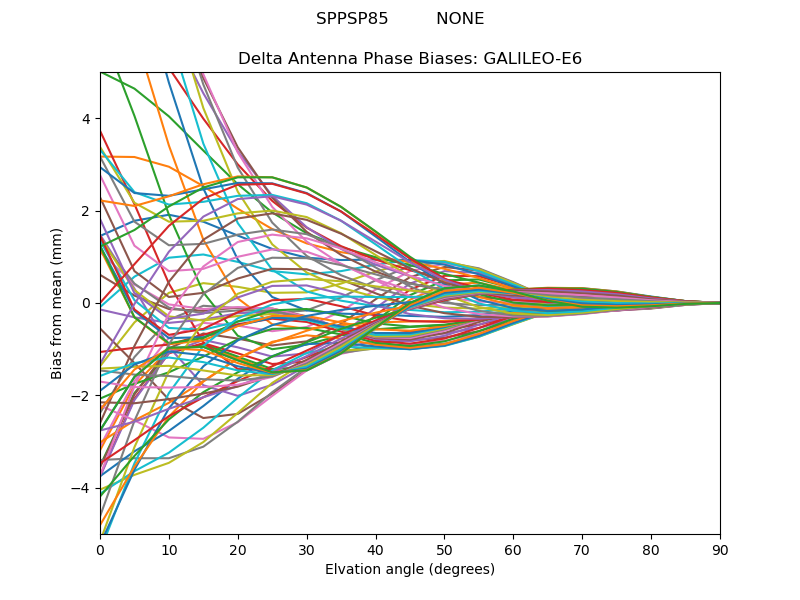

GALILEO-E6

GALILEO-E6GALILEO-E6

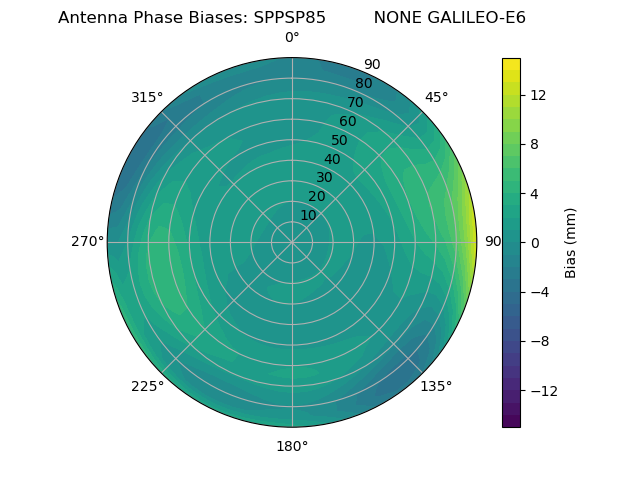

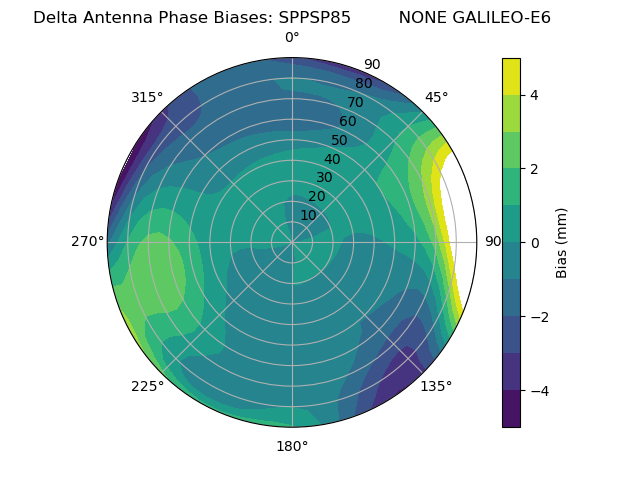

Radial GALILEO-E6Radial GALILEO-E6

BeiDOU


Bias Delta

BeiDOU-E1

BeiDOU-E1BeiDOU-E1

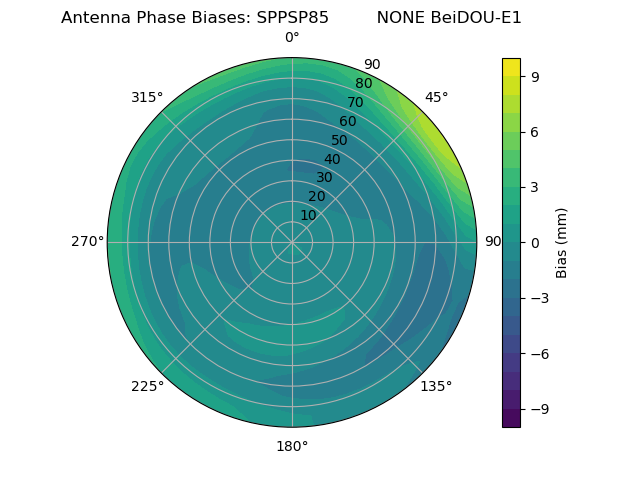

Radial BeiDOU-E1Radial BeiDOU-E1

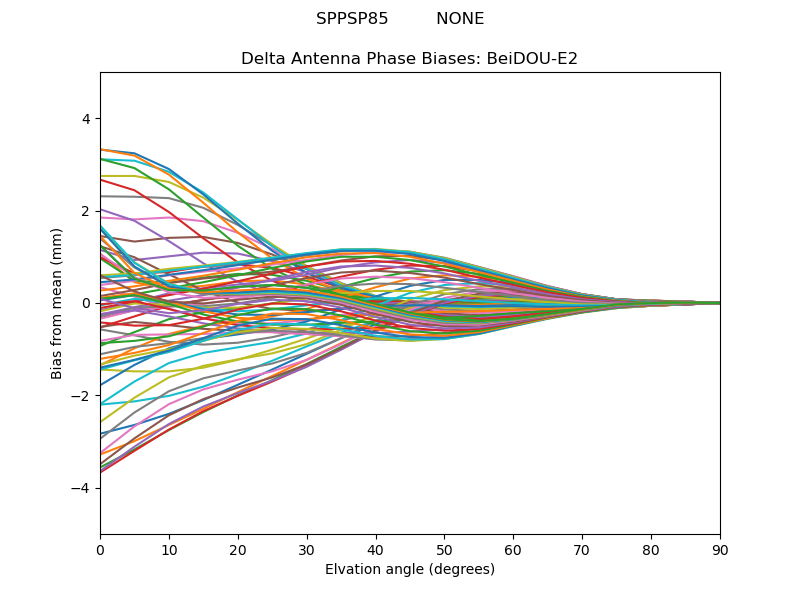

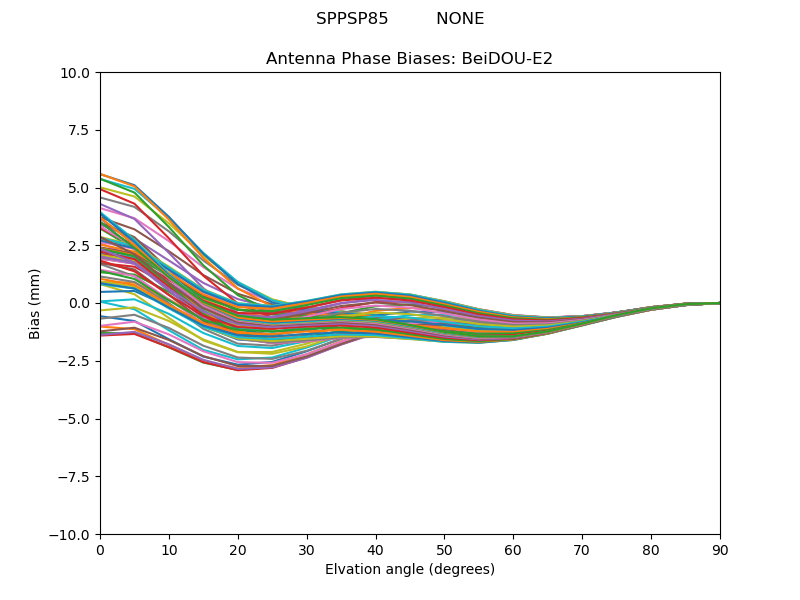

BeiDOU-E2

BeiDOU-E2BeiDOU-E2

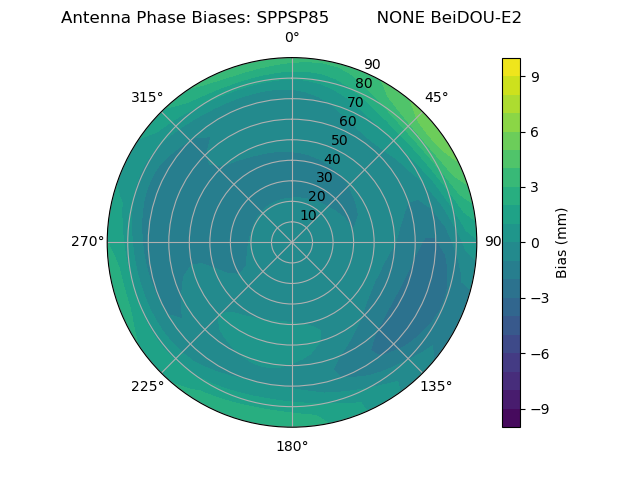

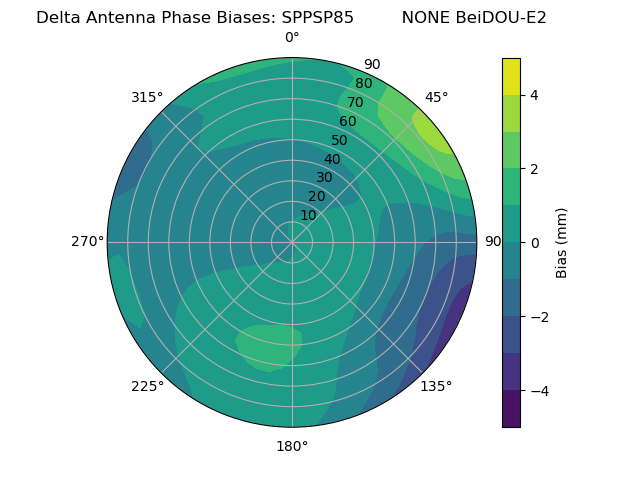

Radial BeiDOU-E2Radial BeiDOU-E2

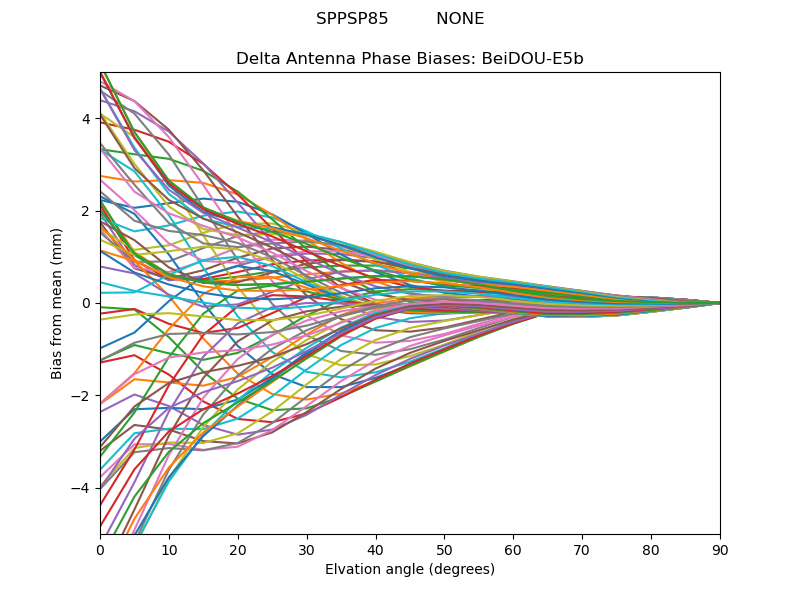

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

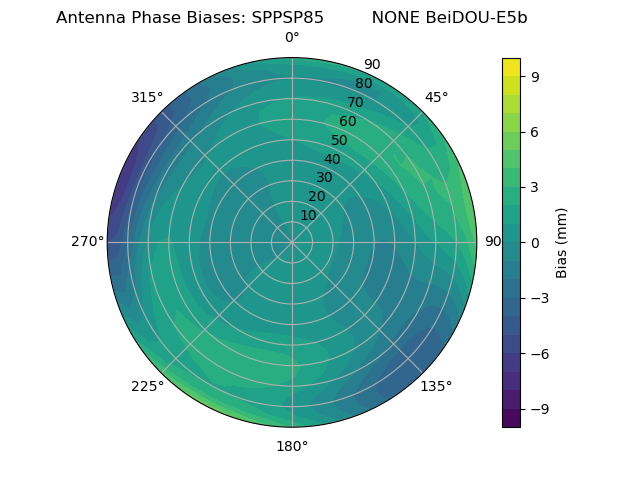

Radial BeiDOU-E5bRadial BeiDOU-E5b

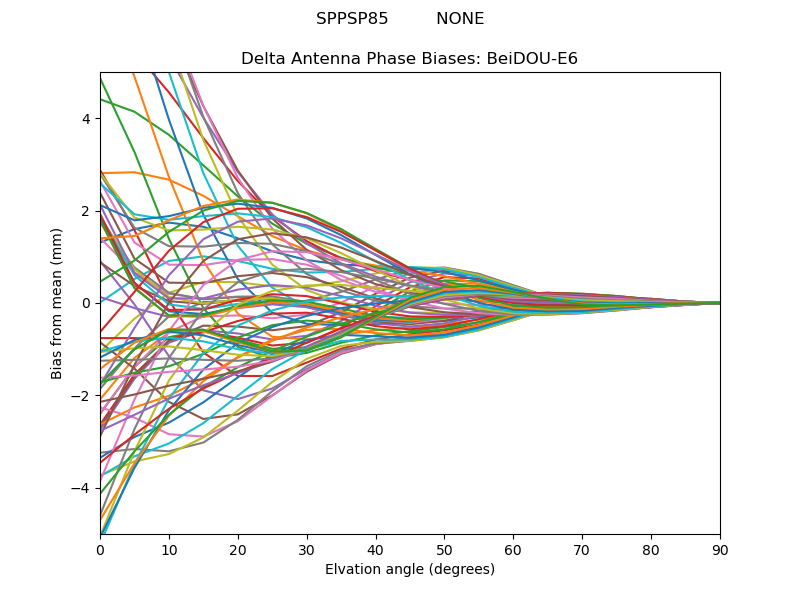

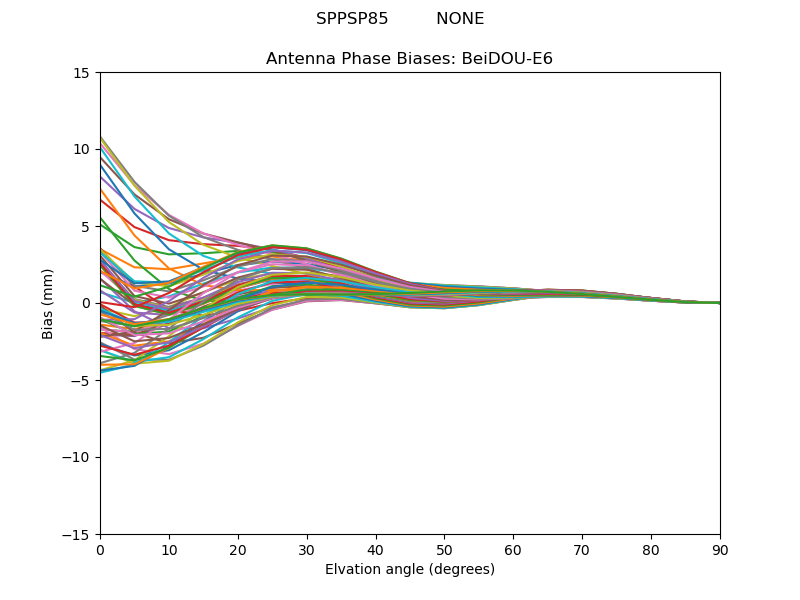

BeiDOU-E6

BeiDOU-E6BeiDOU-E6

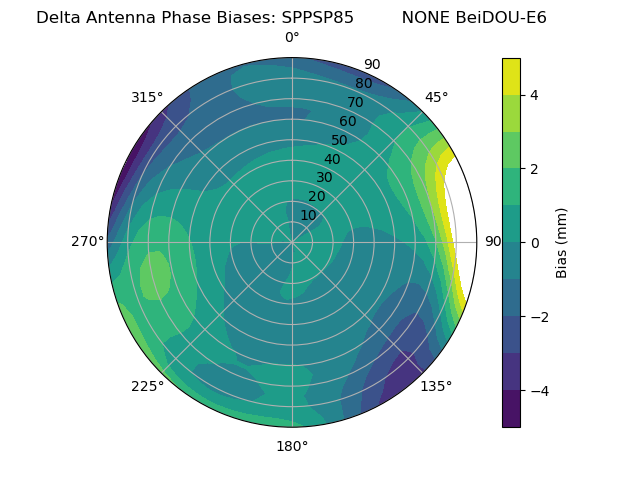

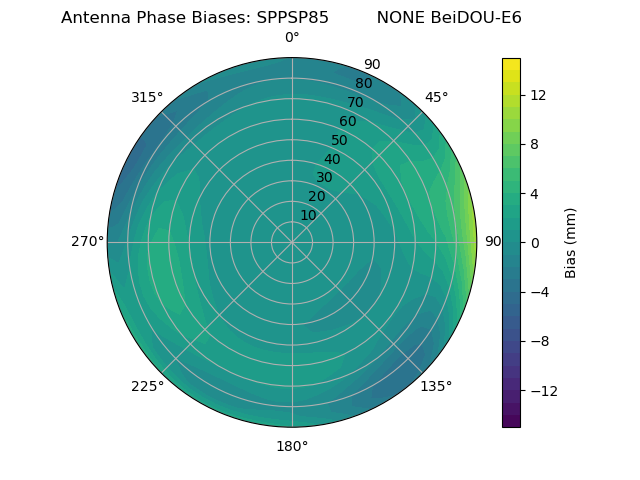

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS


Bias Delta

QZSS-L1

QZSS-L1QZSS-L1
Radial QZSS-L1Radial QZSS-L1

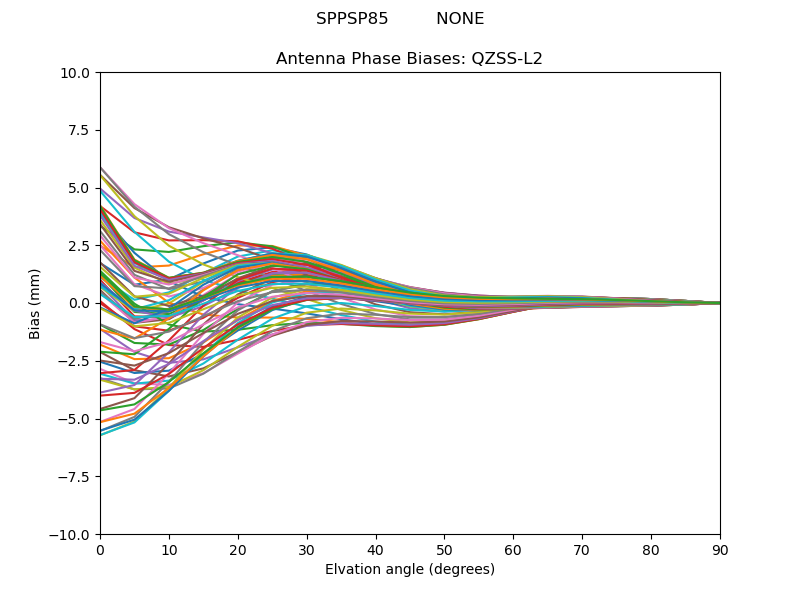

QZSS-L2

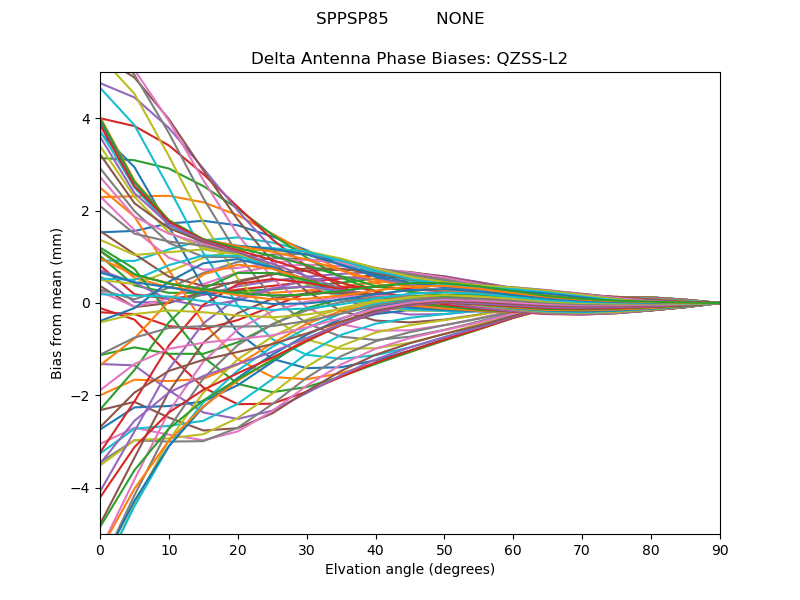

QZSS-L2QZSS-L2
Radial QZSS-L2Radial QZSS-L2

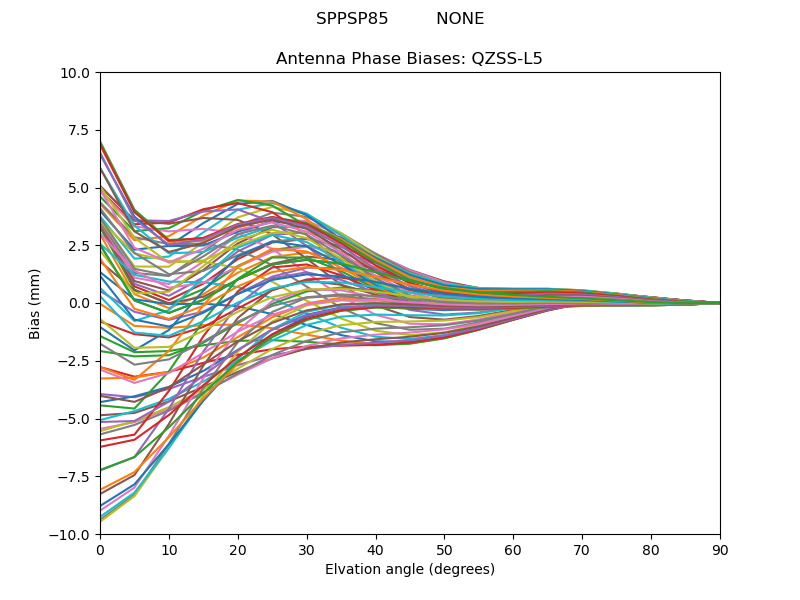

QZSS-L5

QZSS-L5QZSS-L5

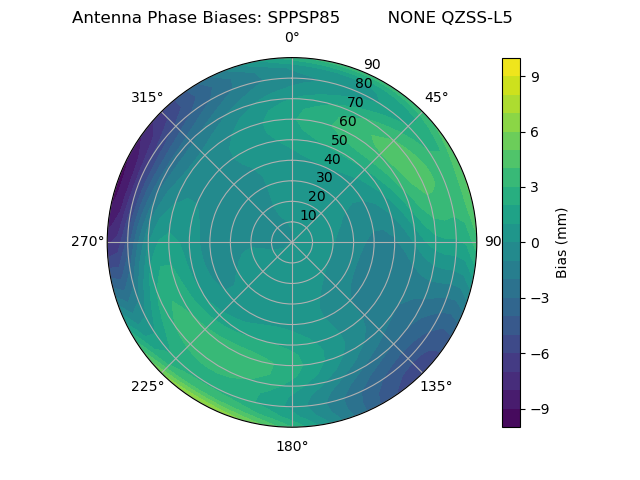

Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

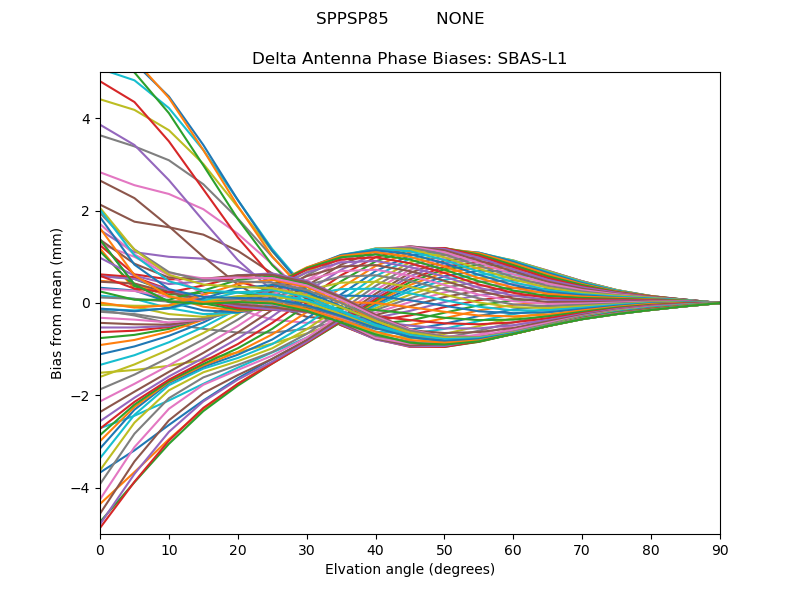

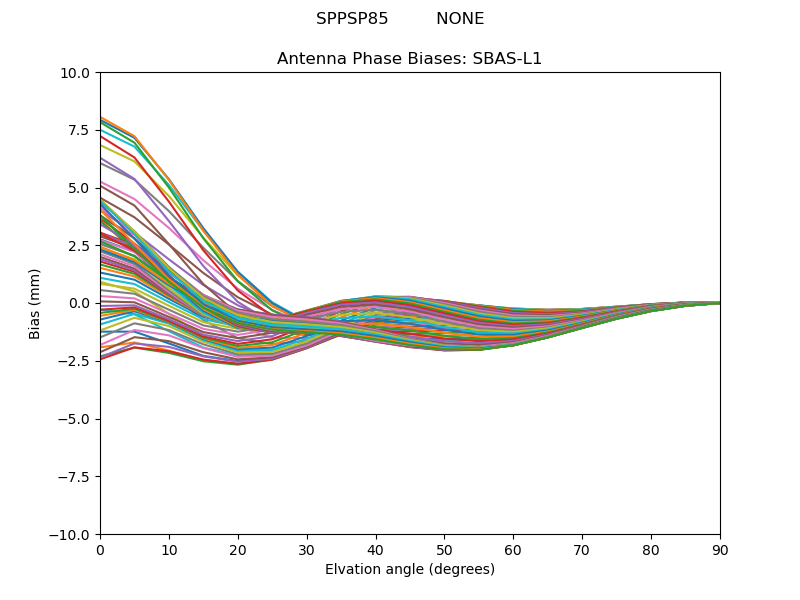

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5
Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
