Antenna information for STCSDI NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 2.26 E: -1.41 U: 75.08
L2: N: 0.40 E: -0.03 U: 66.29
L5: N: -0.88 E: 0.29 U: 70.73

GLONASS

L1: N: 3.52 E: -0.37 U: 75.35
L2: N: 0.90 E: -0.07 U: 64.86

GALILEO

E1: N: 2.26 E: -1.41 U: 75.08
E5a: N: -0.88 E: 0.29 U: 70.73
E5b: N: -0.13 E: 0.05 U: 67.97
E6: N: 1.84 E: -0.04 U: 62.39

BeiDou

E1: N: 2.26 E: -1.41 U: 75.08
E2: N: 1.59 E: -2.21 U: 74.93
E5b: N: -0.13 E: 0.05 U: 67.97
E6: N: 1.54 E: -0.06 U: 63.15

QZSS

L1: N: 2.26 E: -1.41 U: 75.08
L2: N: 0.40 E: -0.03 U: 66.29
L5: N: -0.88 E: 0.29 U: 70.73
LEX: N: 1.84 E: -0.04 U: 62.39

SBAS

L1: N: 2.26 E: -1.41 U: 75.08
L5: N: -0.88 E: 0.29 U: 70.73

L1

GPS: N: 2.26 E: -1.41 U: 75.08
GLONASS: N: 3.52 E: -0.37 U: 75.35
QZSS: N: 2.26 E: -1.41 U: 75.08
SBAS: N: 2.26 E: -1.41 U: 75.08

L2

GPS: N: 0.40 E: -0.03 U: 66.29
GLONASS: N: 0.90 E: -0.07 U: 64.86
QZSS: N: 0.40 E: -0.03 U: 66.29

L5

GPS: N: -0.88 E: 0.29 U: 70.73
QZSS: N: -0.88 E: 0.29 U: 70.73
SBAS: N: -0.88 E: 0.29 U: 70.73

E1

GALILEO: N: 2.26 E: -1.41 U: 75.08
BeiDou: N: 2.26 E: -1.41 U: 75.08

E2

BeiDou: N: 1.59 E: -2.21 U: 74.93

E5a

GALILEO: N: -0.88 E: 0.29 U: 70.73

E5b

GALILEO: N: -0.13 E: 0.05 U: 67.97
BeiDou: N: -0.13 E: 0.05 U: 67.97

E6

GALILEO: N: 1.84 E: -0.04 U: 62.39
BeiDou: N: 1.54 E: -0.06 U: 63.15

LEX

QZSS: N: 1.84 E: -0.04 U: 62.39

Means

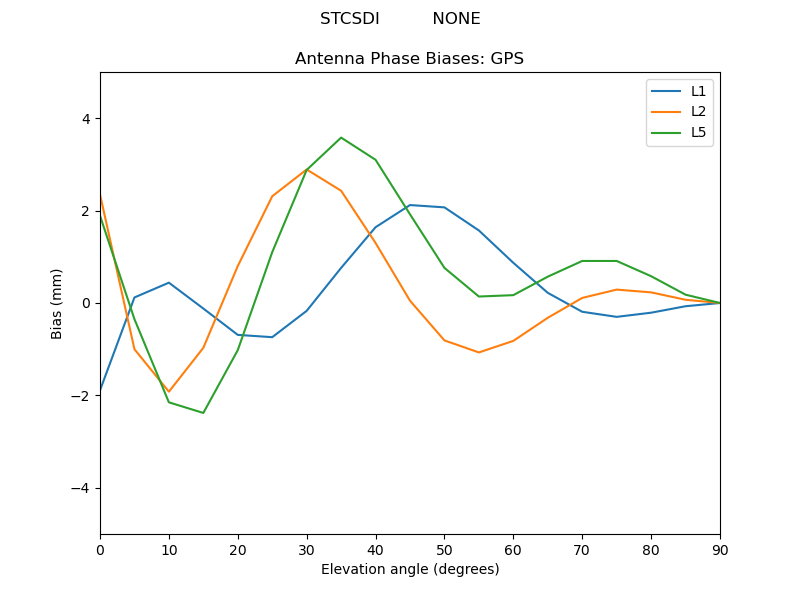

GPS

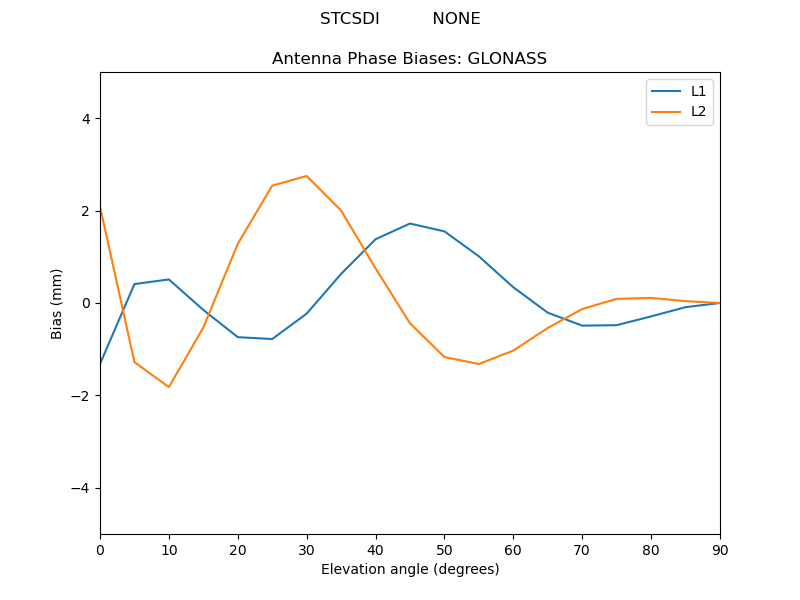

GLONASS

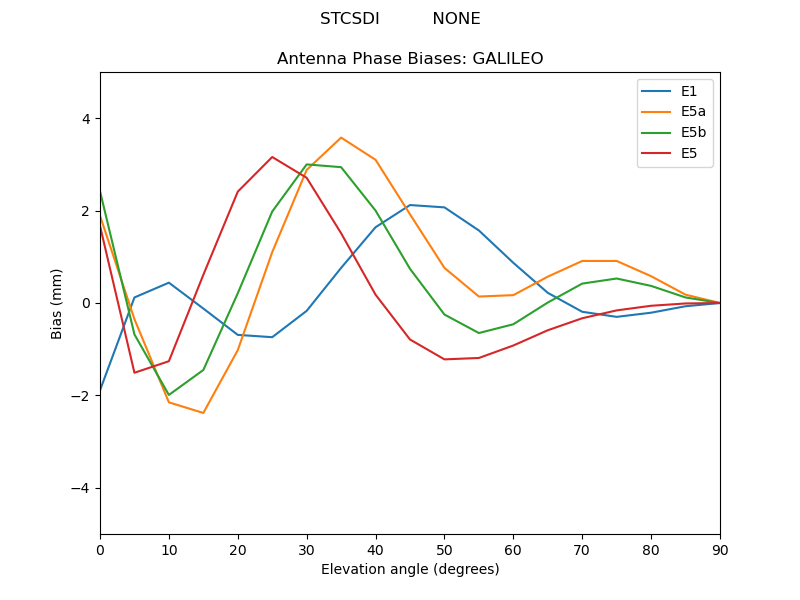

GALILEO

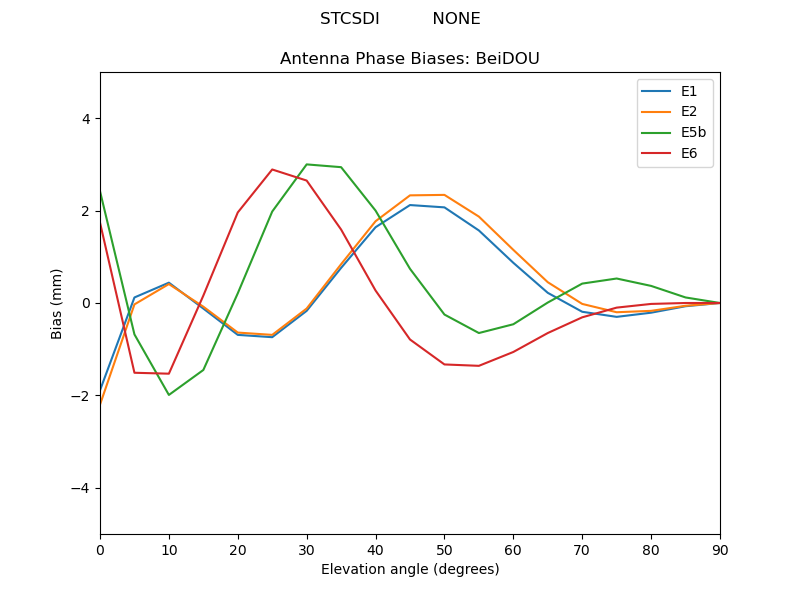

BeiDOU


QZSS

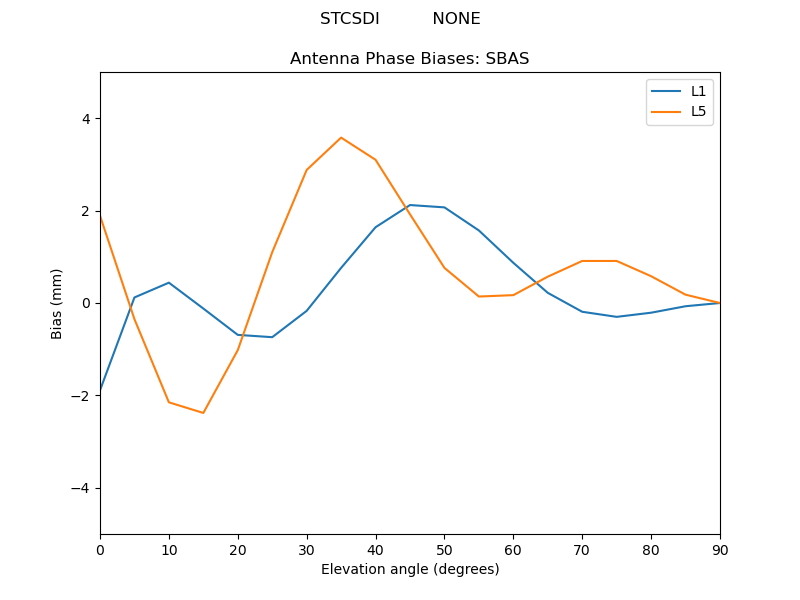

SBAS


Azimuths

GPS
Bias Delta

GPS-L1

GPS-L1GPS-L1

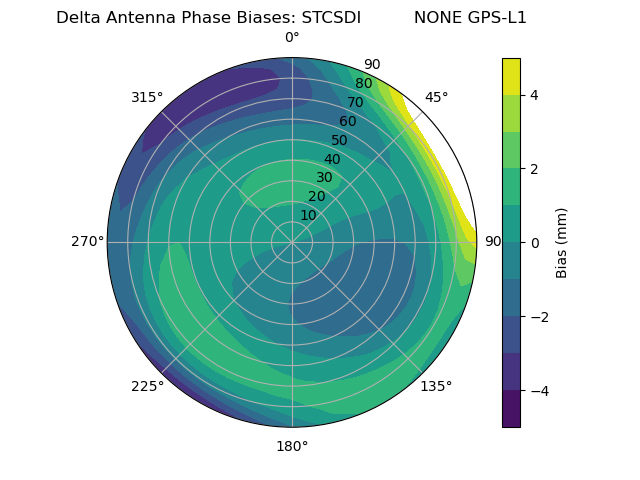

Radial GPS-L1Radial GPS-L1

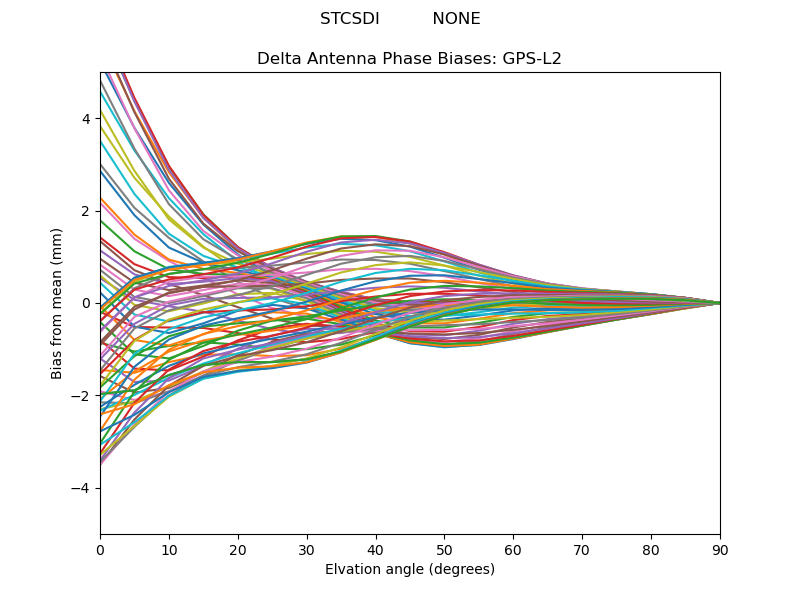

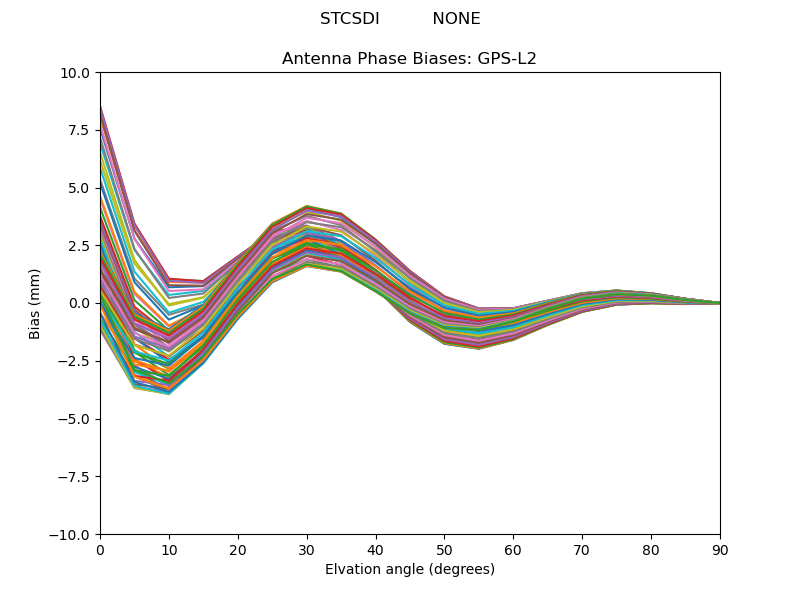

GPS-L2

GPS-L2GPS-L2

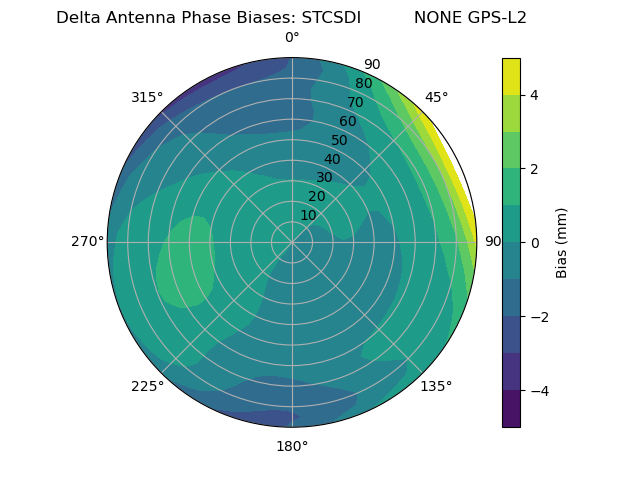

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

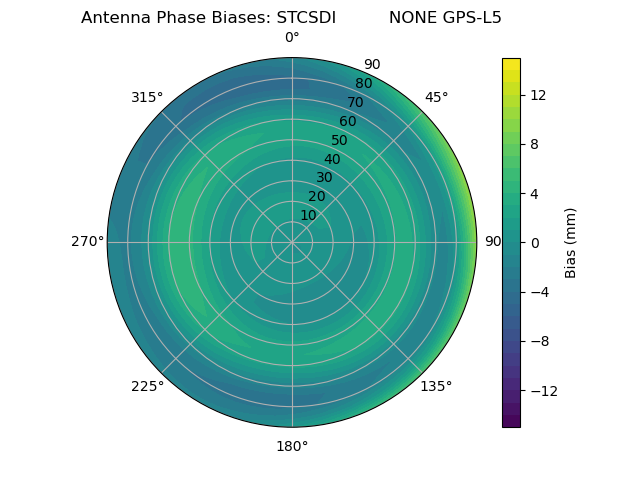

Radial GPS-L5Radial GPS-L5

GLONASS
Bias Delta

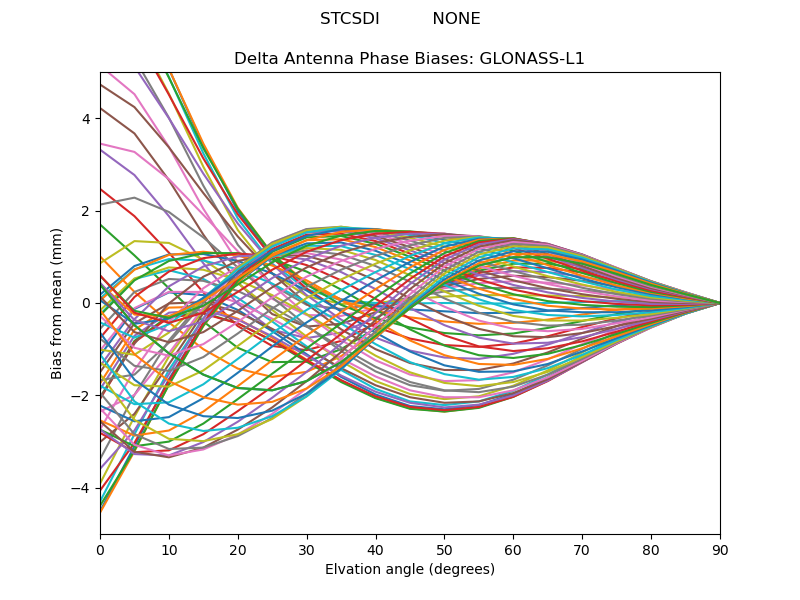

GLONASS-L1

GLONASS-L1GLONASS-L1

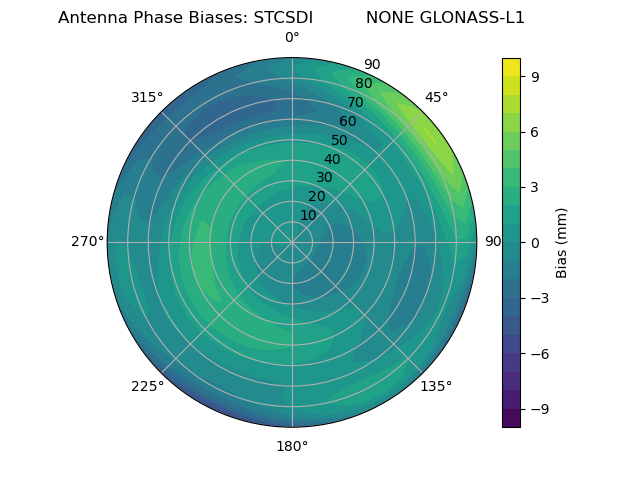

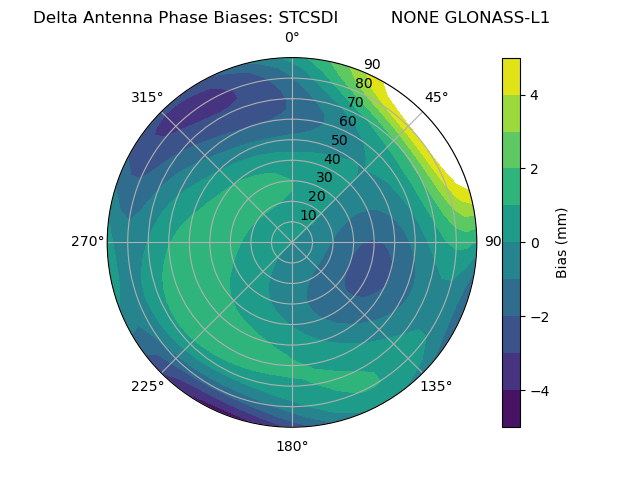

Radial GLONASS-L1Radial GLONASS-L1

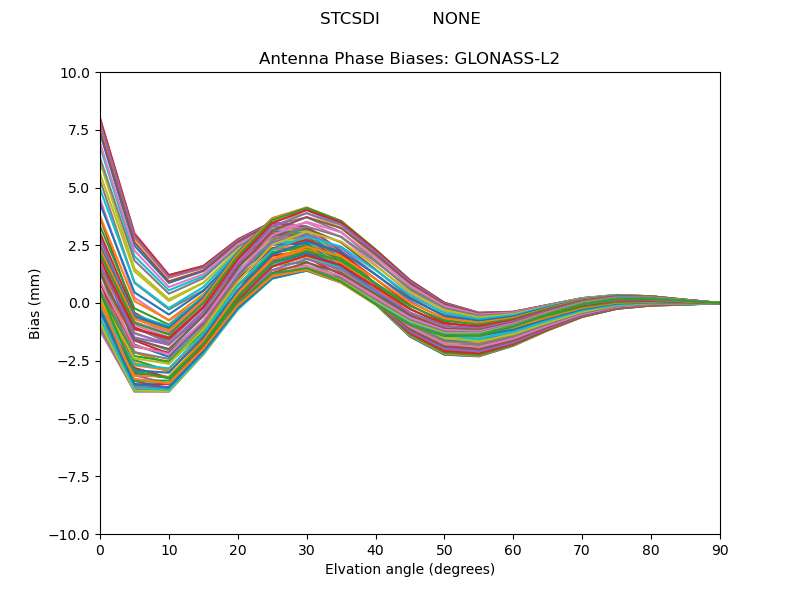

GLONASS-L2

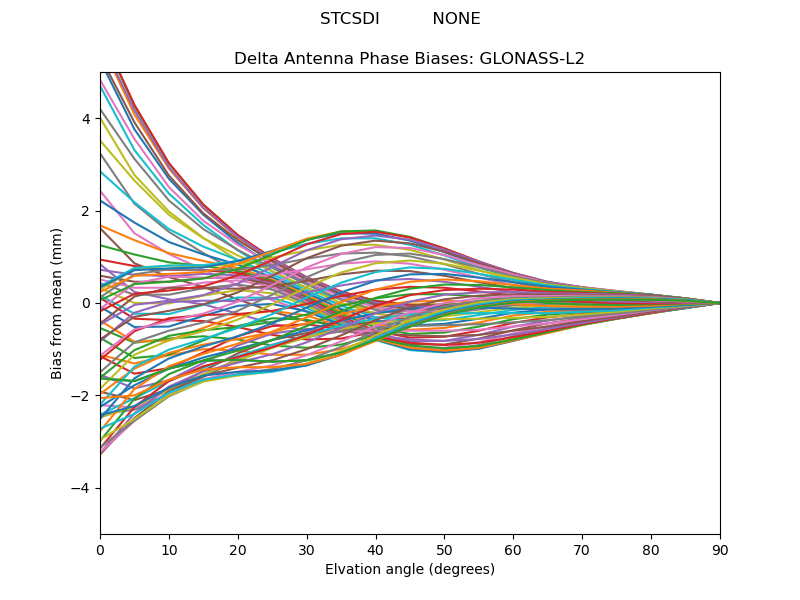

GLONASS-L2GLONASS-L2
Radial GLONASS-L2Radial GLONASS-L2

GALILEO
Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

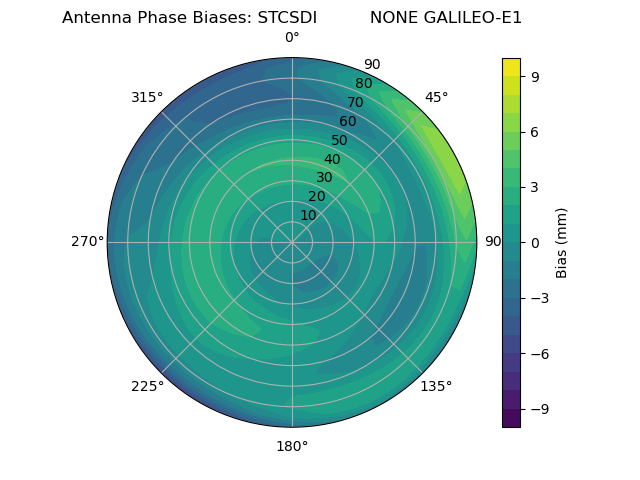

Radial GALILEO-E1Radial GALILEO-E1

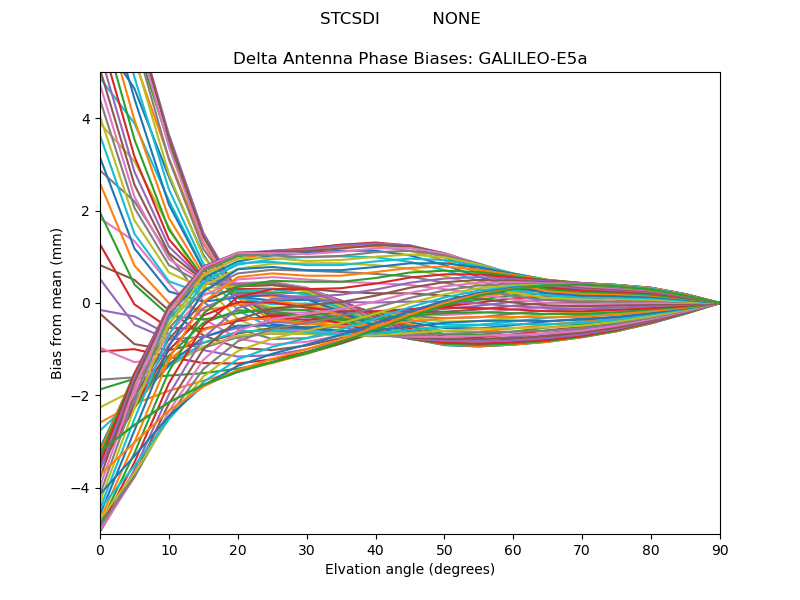

GALILEO-E5a

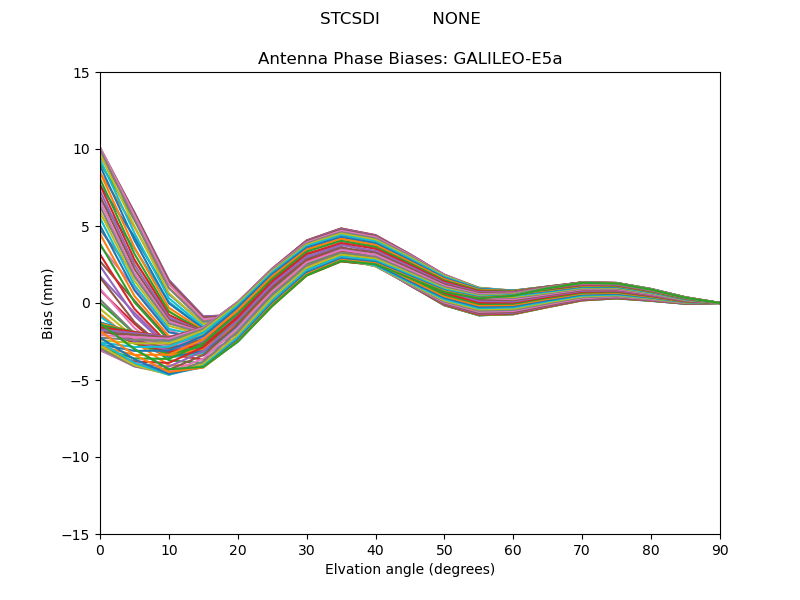

GALILEO-E5aGALILEO-E5a
Radial GALILEO-E5aRadial GALILEO-E5a

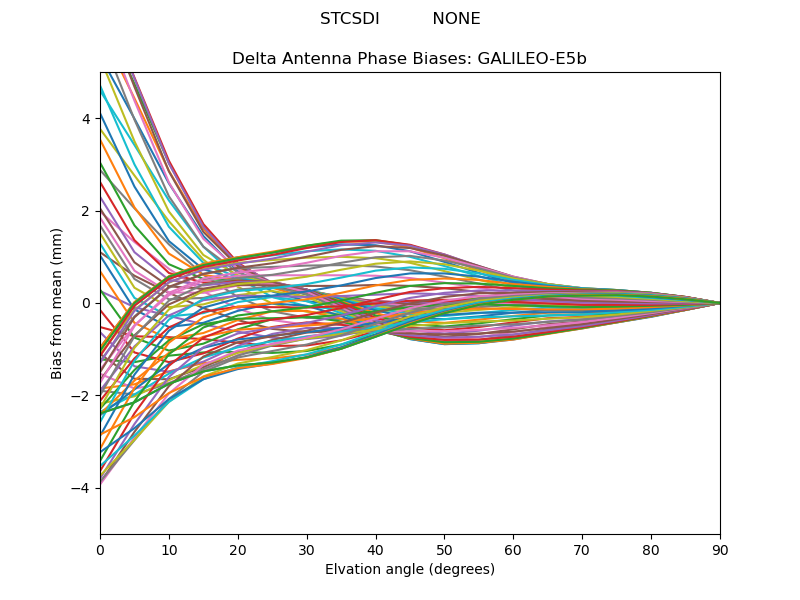

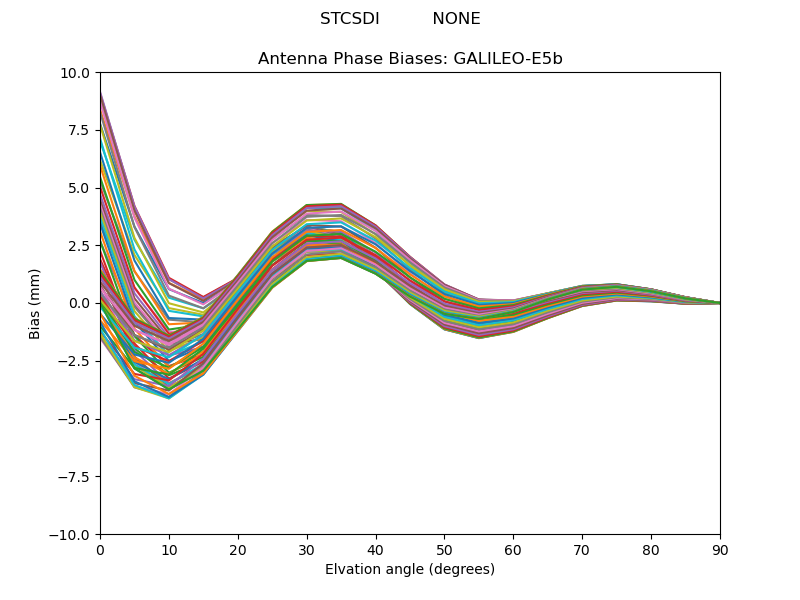

GALILEO-E5b

GALILEO-E5bGALILEO-E5b

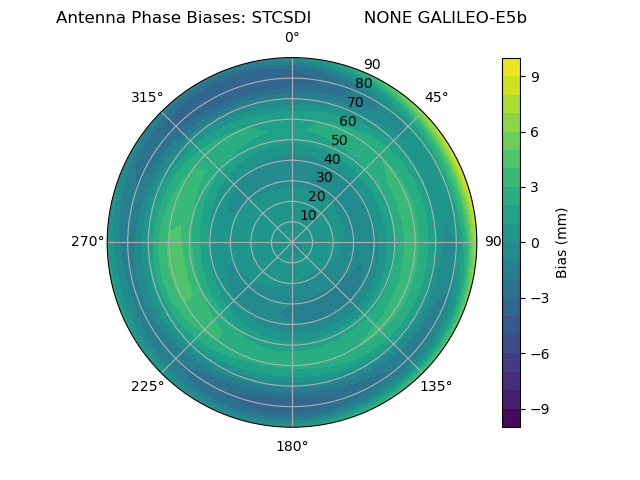

Radial GALILEO-E5bRadial GALILEO-E5b

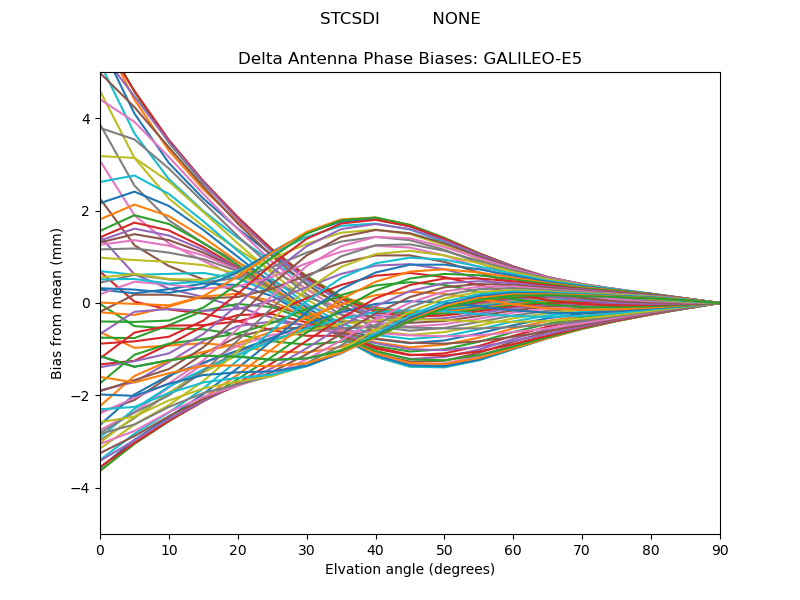

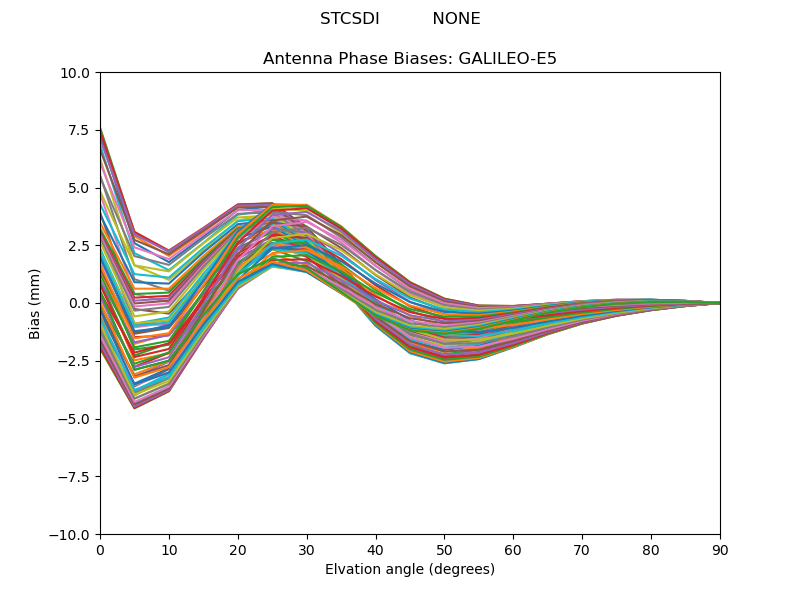

GALILEO-E5

GALILEO-E5GALILEO-E5

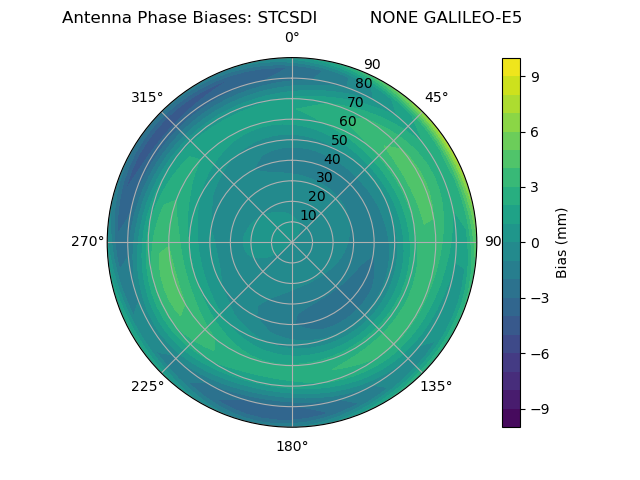

Radial GALILEO-E5Radial GALILEO-E5

BeiDOU
Bias Delta

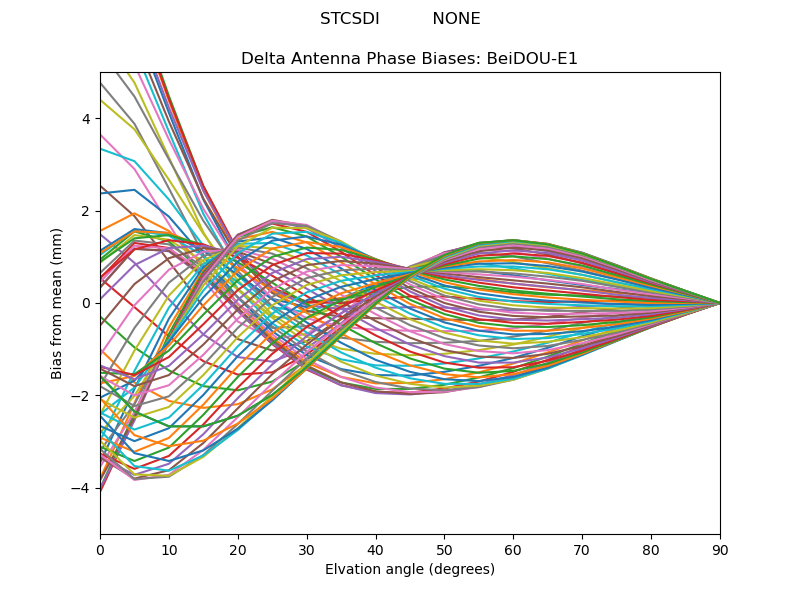

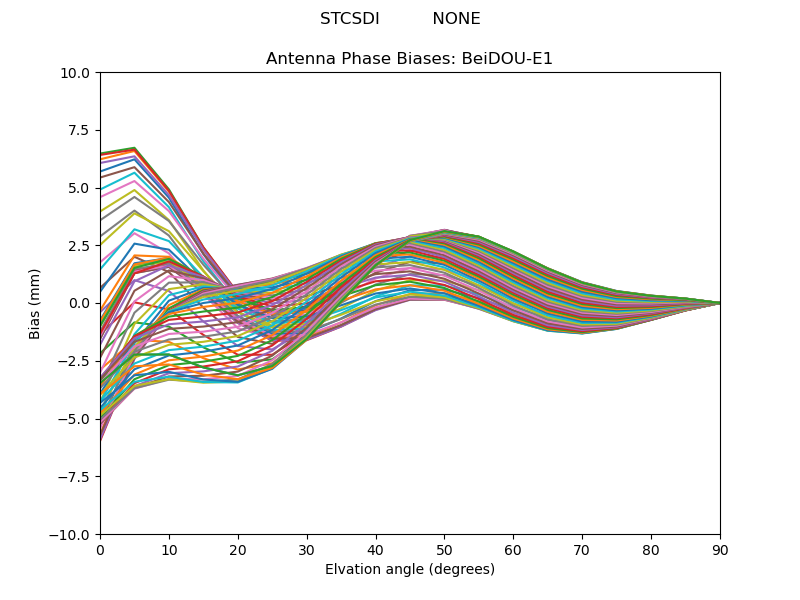

BeiDOU-E1

BeiDOU-E1BeiDOU-E1
Radial BeiDOU-E1Radial BeiDOU-E1

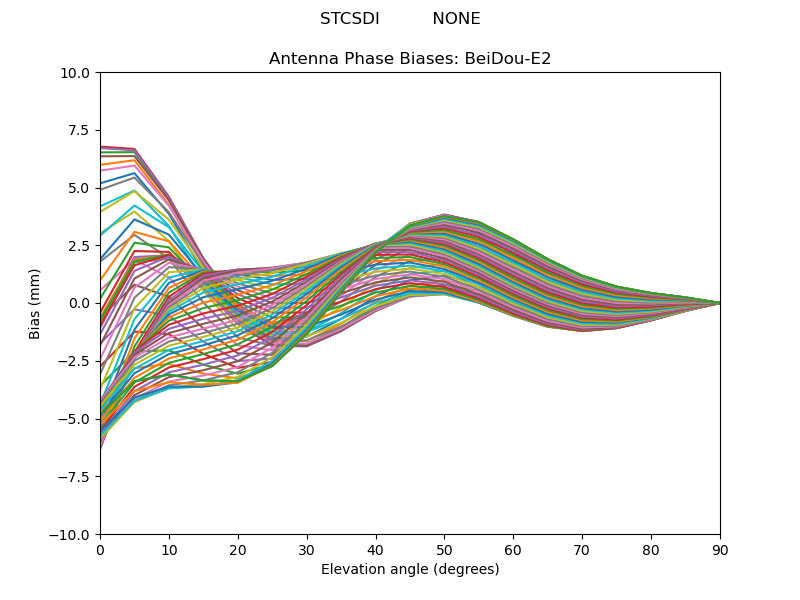

BeiDOU-E2

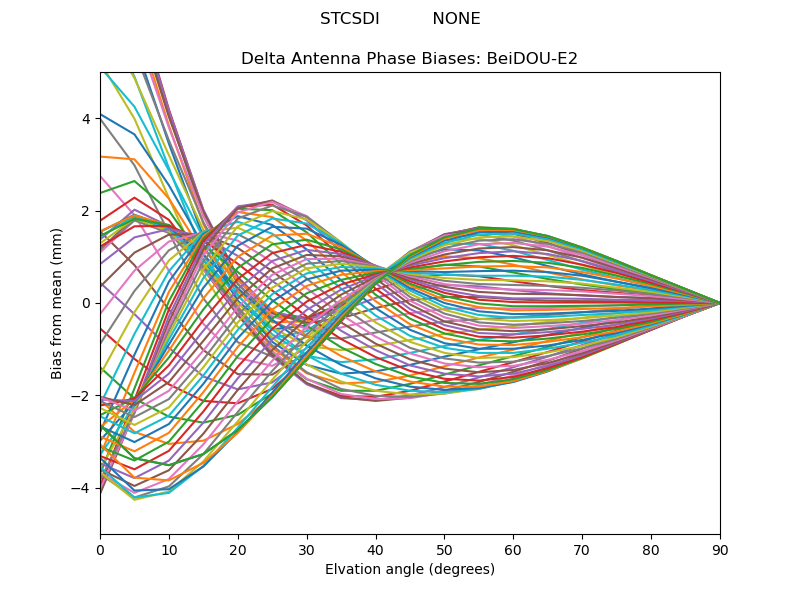

BeiDOU-E2BeiDOU-E2

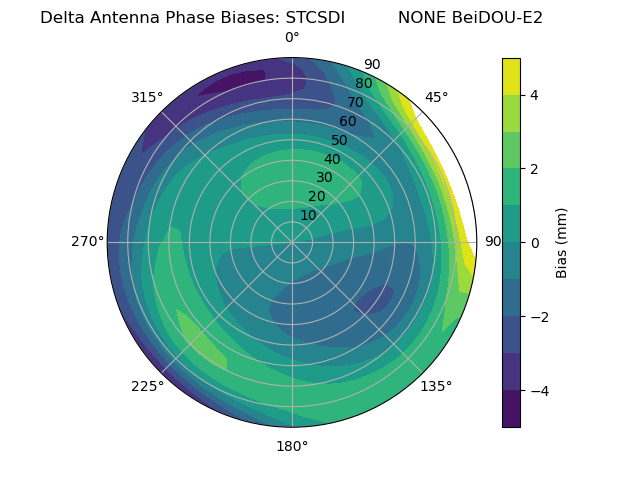

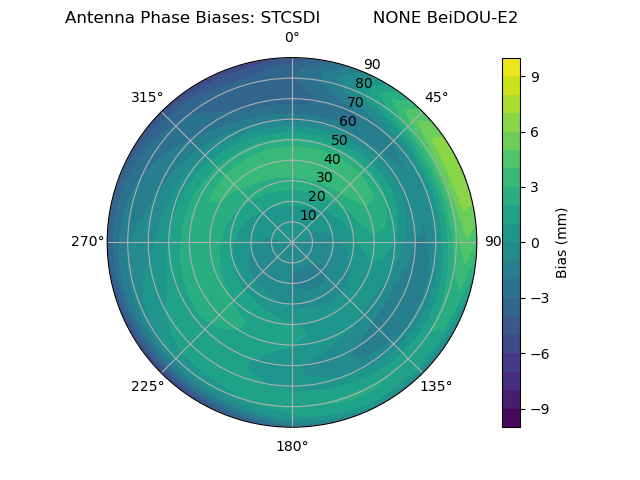

Radial BeiDOU-E2Radial BeiDOU-E2

BeiDOU-E5b

BeiDOU-E5bBeiDOU-E5b

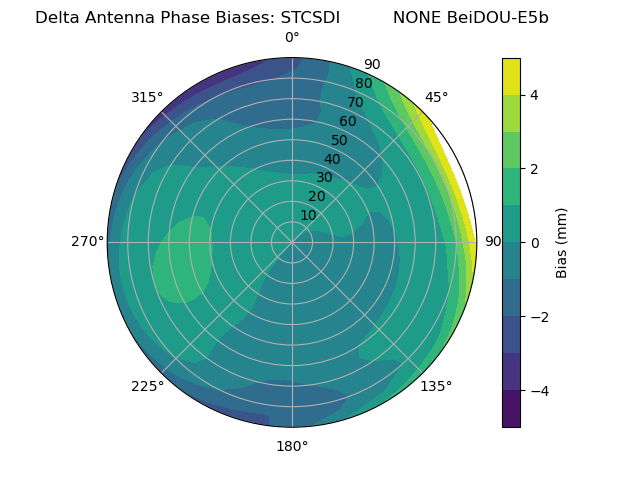

Radial BeiDOU-E5bRadial BeiDOU-E5b

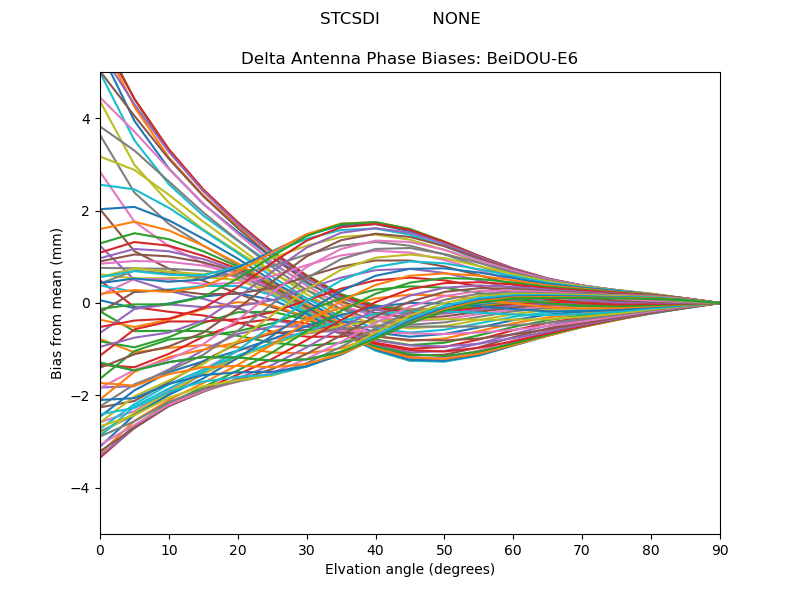

BeiDOU-E6

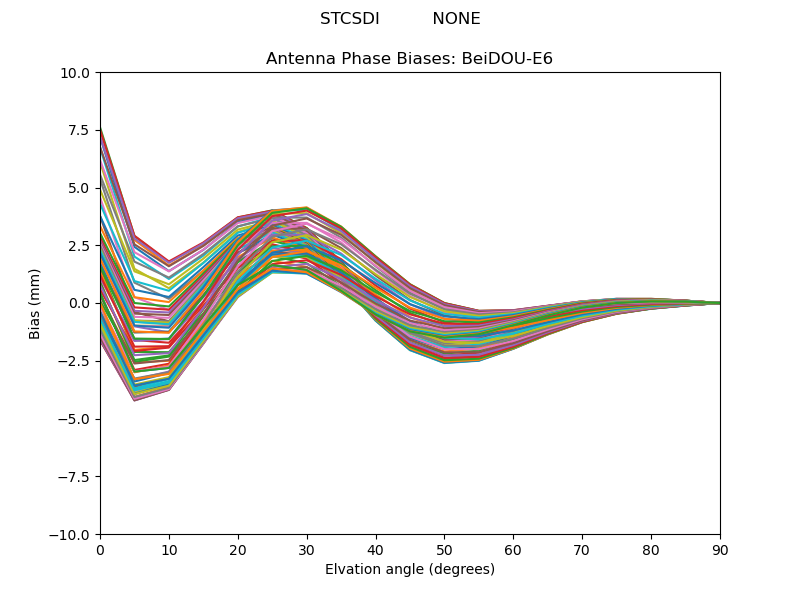

BeiDOU-E6BeiDOU-E6

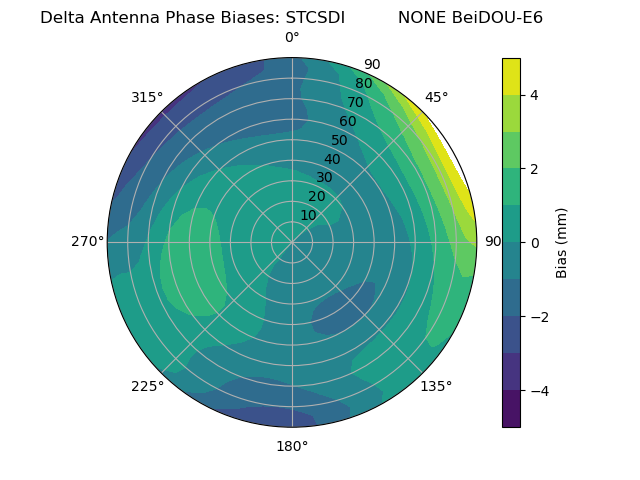

Radial BeiDOU-E6Radial BeiDOU-E6

QZSS
Bias Delta

QZSS-L1

QZSS-L1QZSS-L1

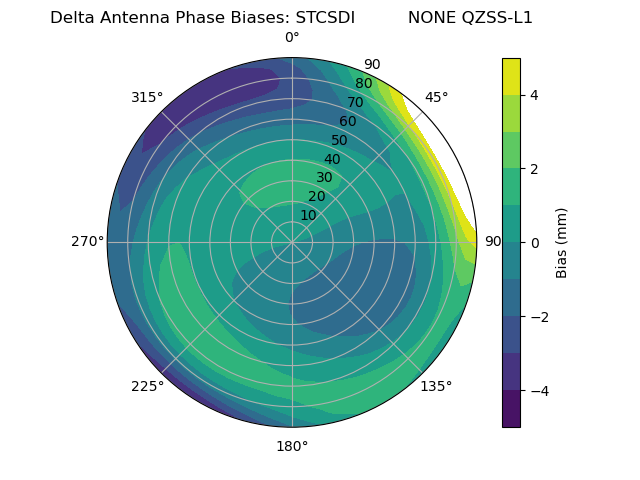

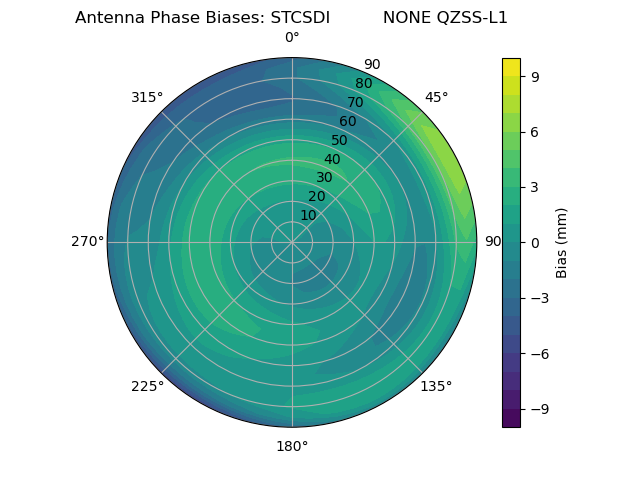

Radial QZSS-L1Radial QZSS-L1

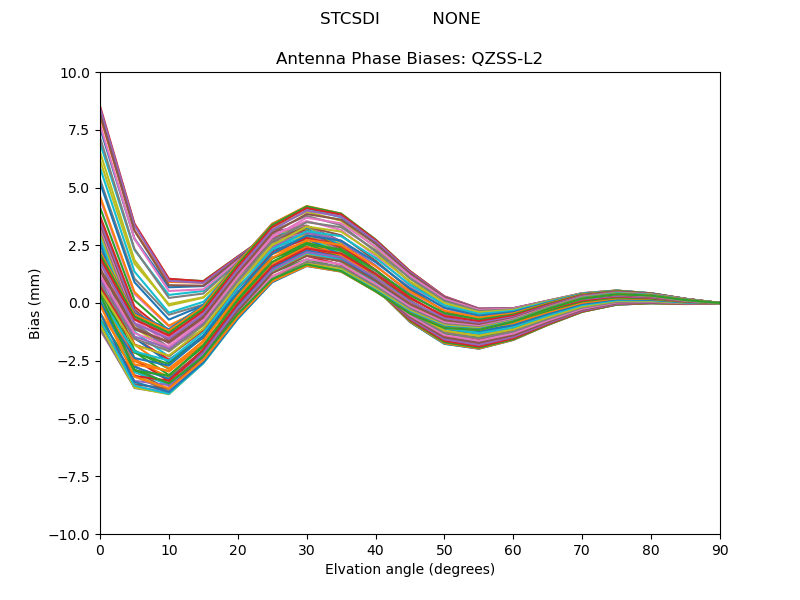

QZSS-L2

QZSS-L2QZSS-L2

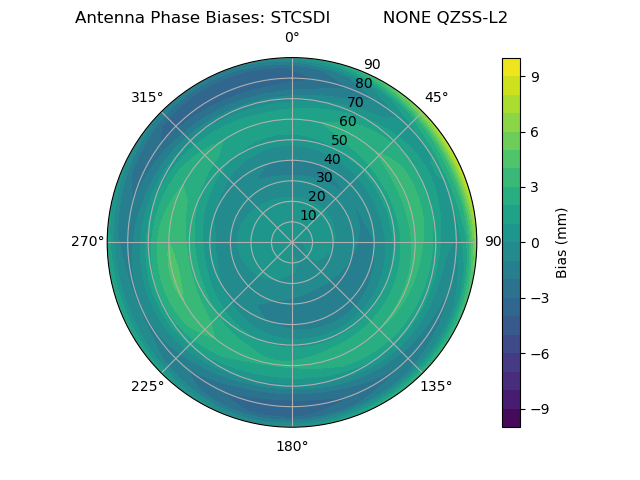

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

QZSS-L5QZSS-L5

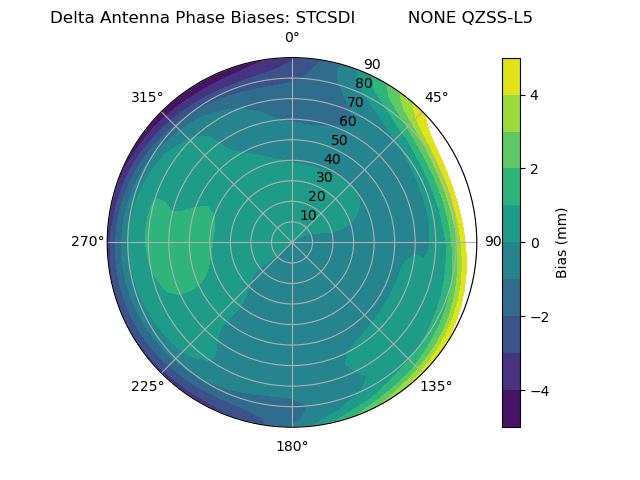

Radial QZSS-L5Radial QZSS-L5

SBAS
Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

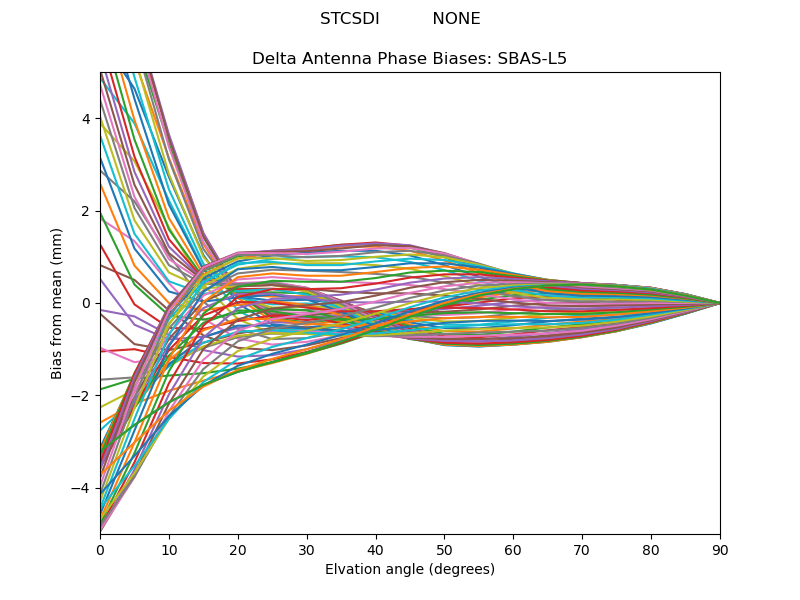

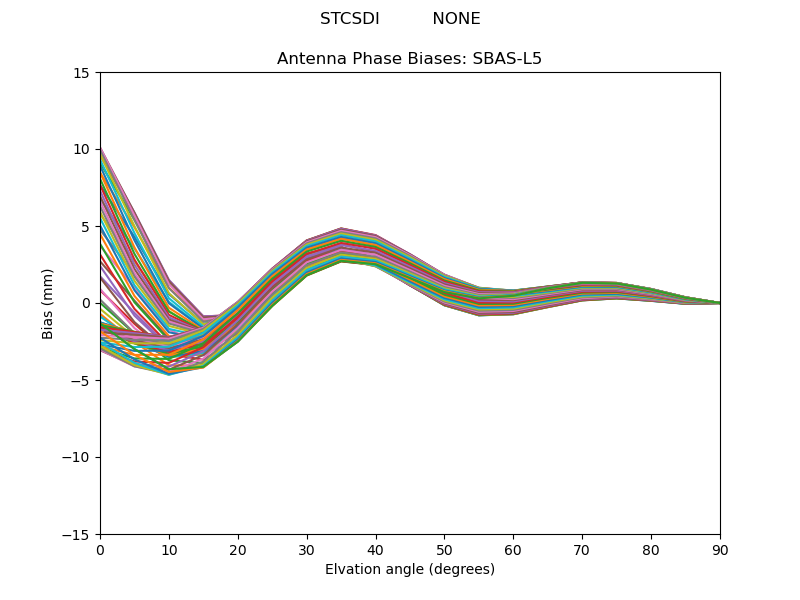

SBAS-L5

SBAS-L5SBAS-L5

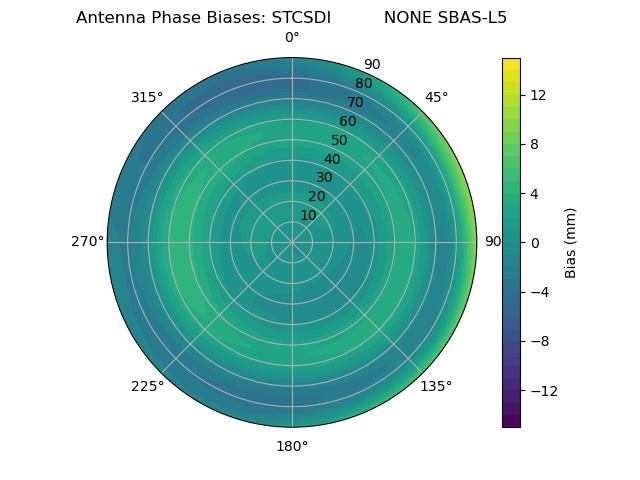

Radial SBAS-L5Radial SBAS-L5
