Antenna information for STHINSIGHTV2 NONE

Antenna Offsets

SV System	Bands
GPS L1: N: -1.11 E: -0.28 U: 74.51 L2: N: -0.35 E: -0.39 U: 69.64 GLONASS L1: N: -1.69 E: 0.96 U: 74.34 L2: N: -0.03 E: -0.39 U: 68.48 GALILEO E1: N: -1.11 E: -0.28 U: 74.51 BeiDou E1: N: -1.11 E: -0.28 U: 74.51 QZSS L1: N: -1.11 E: -0.28 U: 74.51 L2: N: -0.35 E: -0.39 U: 69.64 SBAS L1: N: -1.11 E: -0.28 U: 74.51	L1 GPS: N: -1.11 E: -0.28 U: 74.51 GLONASS: N: -1.69 E: 0.96 U: 74.34 QZSS: N: -1.11 E: -0.28 U: 74.51 SBAS: N: -1.11 E: -0.28 U: 74.51 L2 GPS: N: -0.35 E: -0.39 U: 69.64 GLONASS: N: -0.03 E: -0.39 U: 68.48 QZSS: N: -0.35 E: -0.39 U: 69.64 E1 GALILEO: N: -1.11 E: -0.28 U: 74.51 BeiDou: N: -1.11 E: -0.28 U: 74.51

---

Means

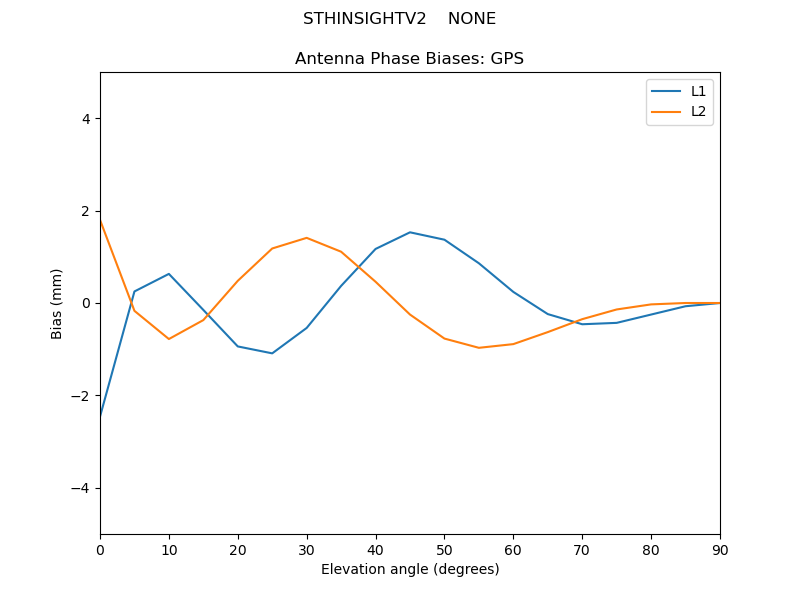

GPS

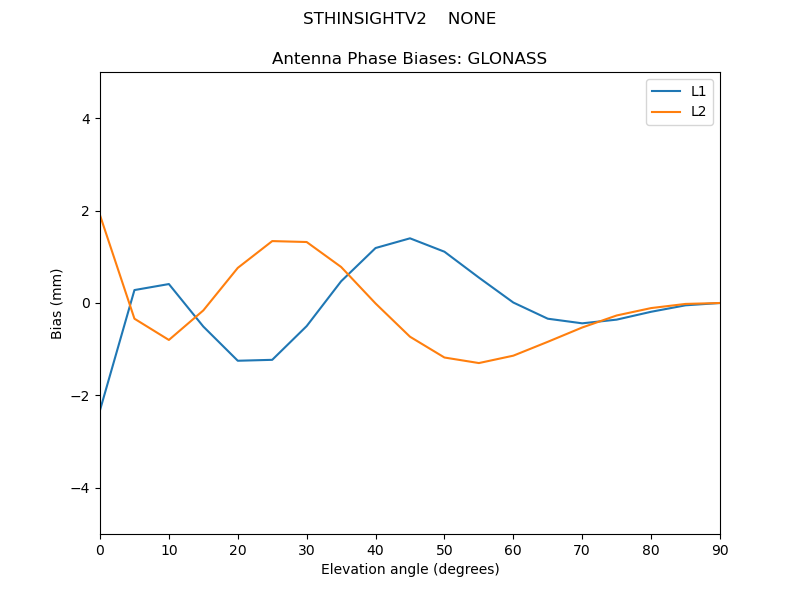

GLONASS

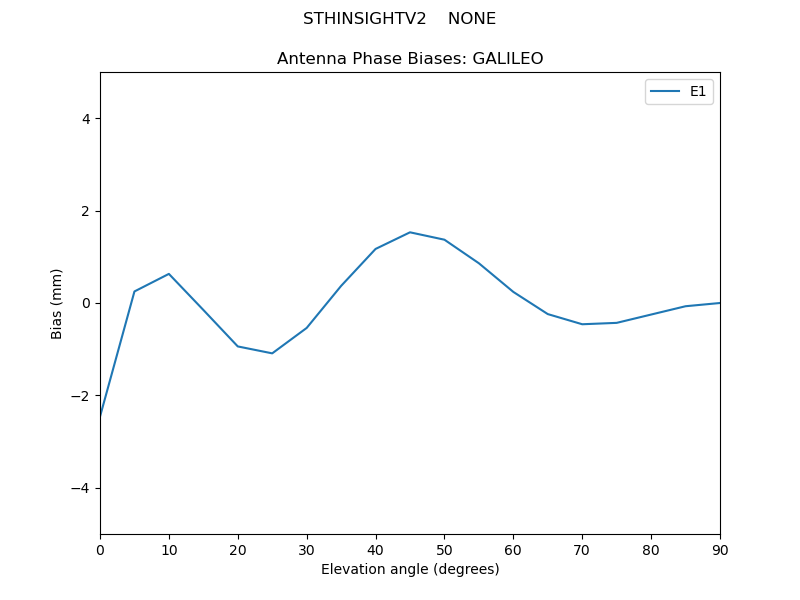

GALILEO

BeiDOU

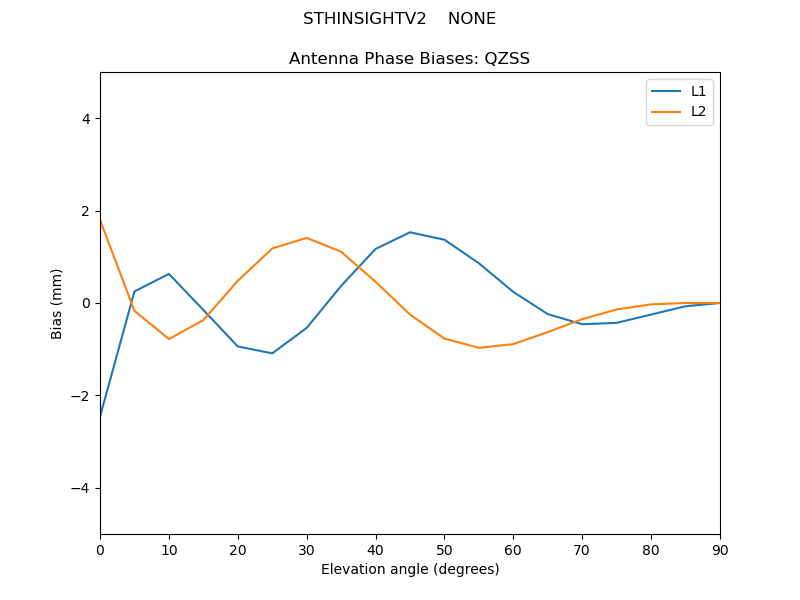

QZSS

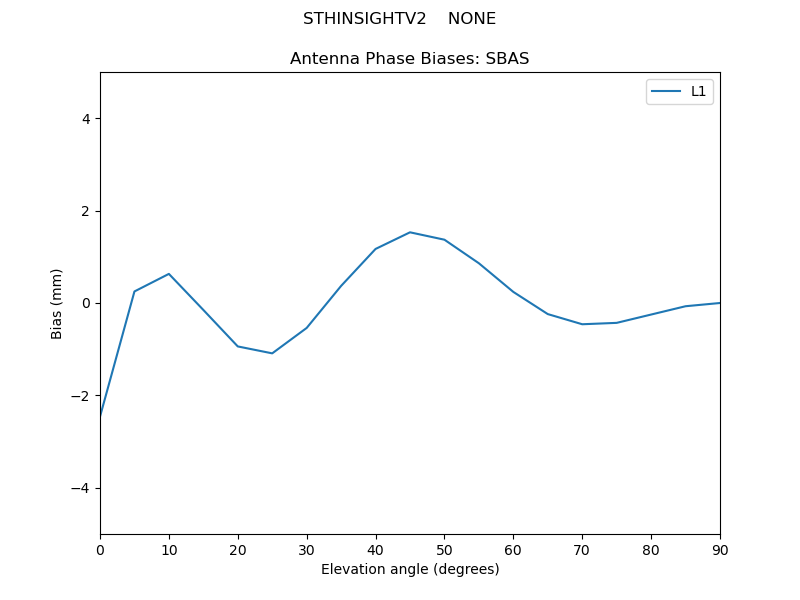

SBAS

Azimuths

GPS

Bias	Delta

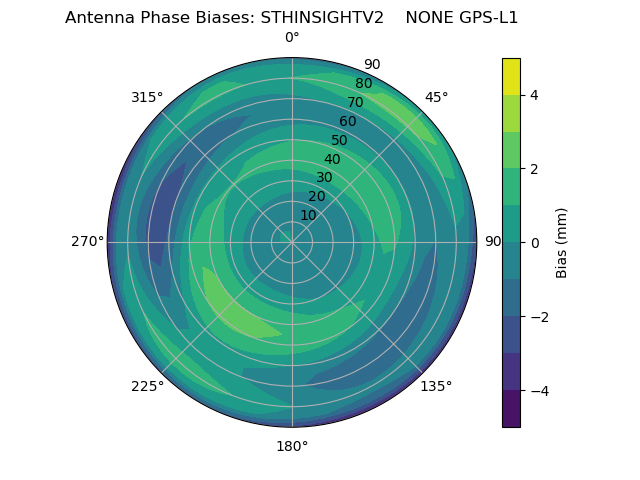

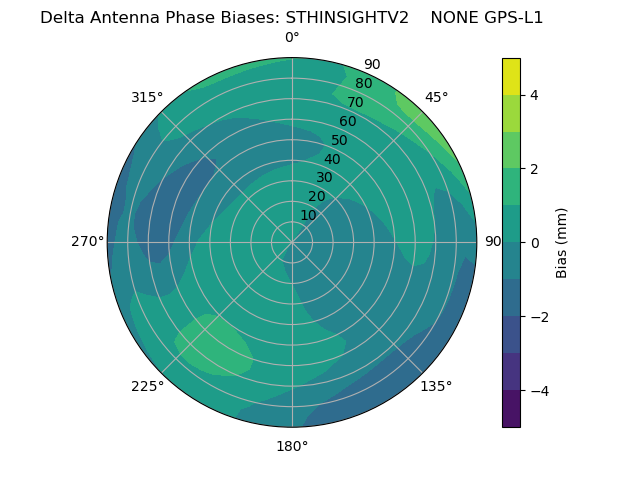

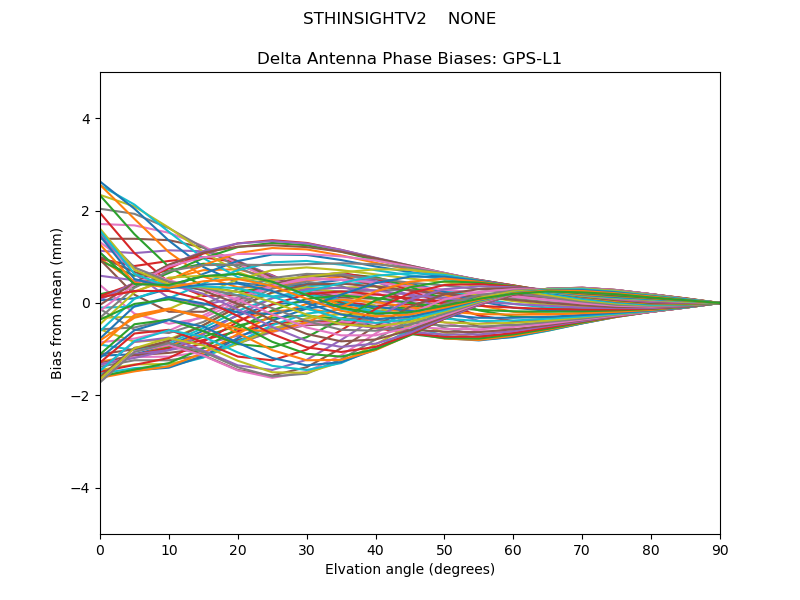

GPS-L1

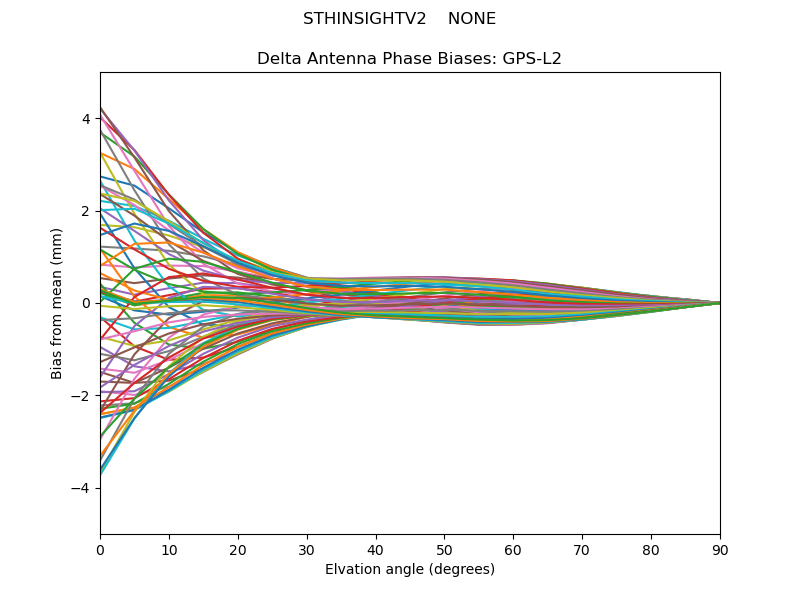

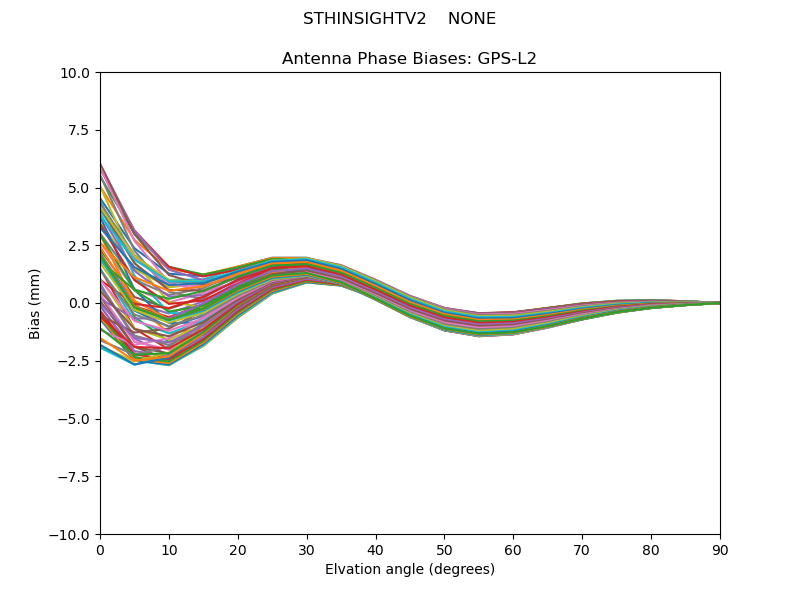

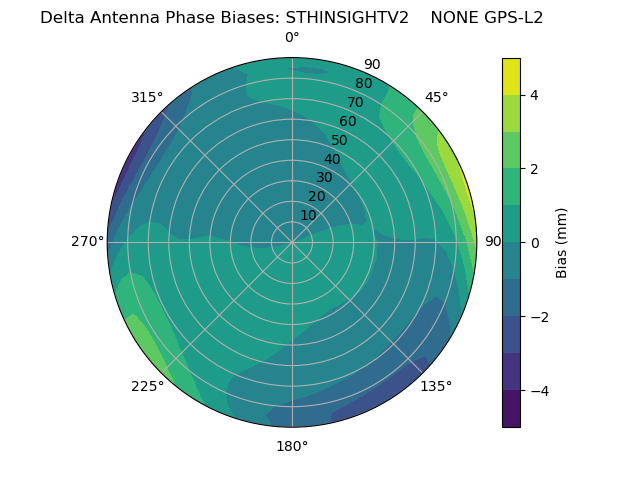

GPS-L2

GLONASS

Bias	Delta

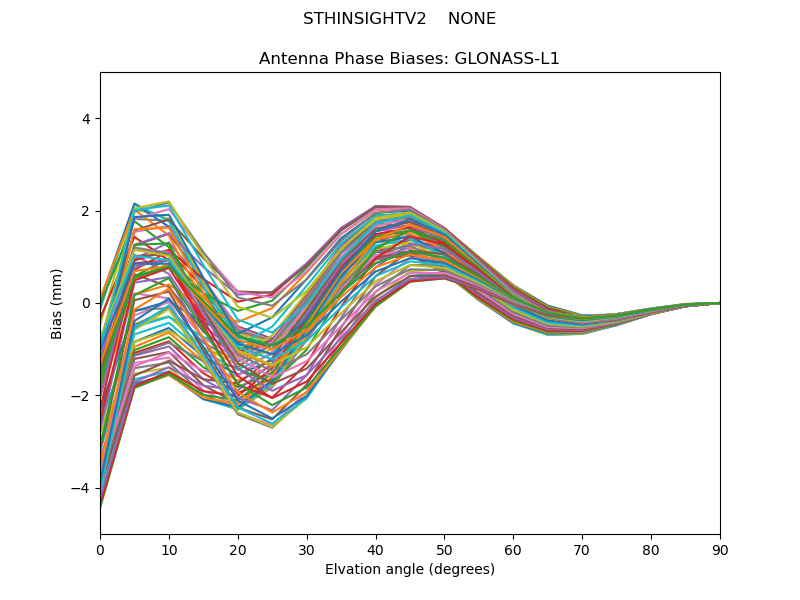

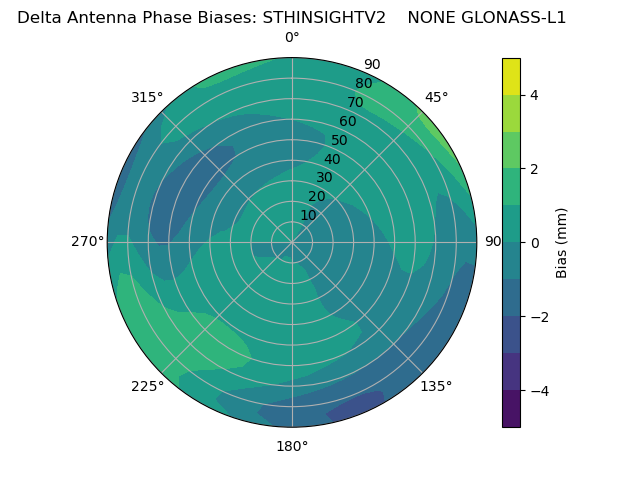

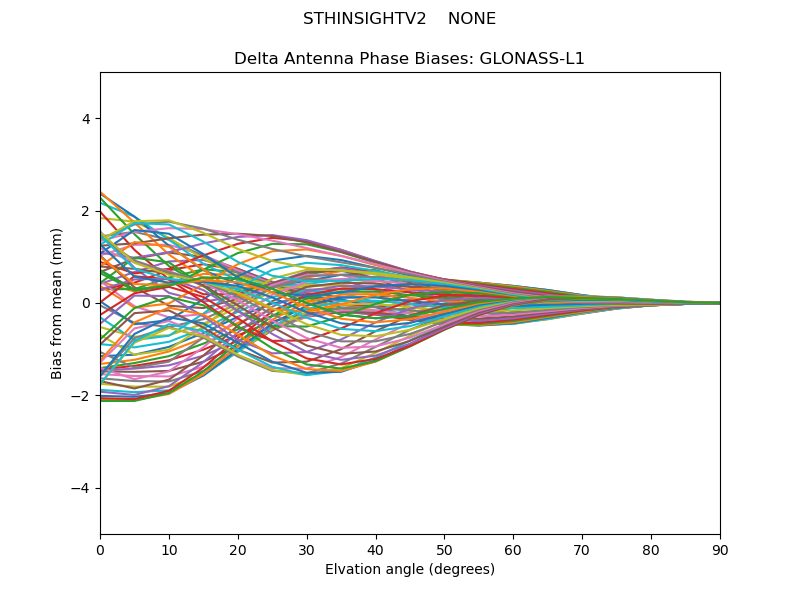

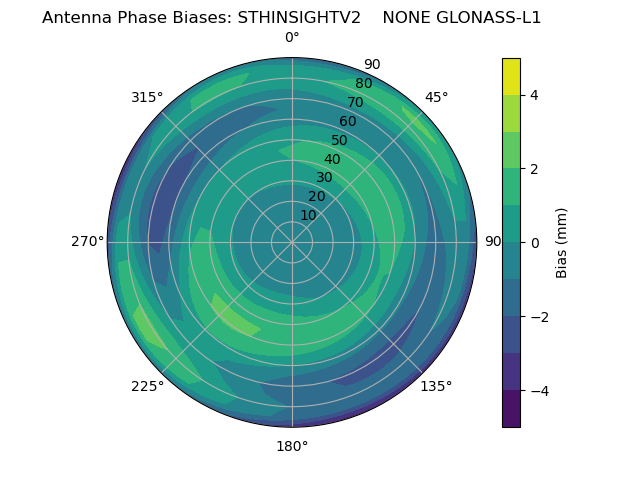

GLONASS-L1

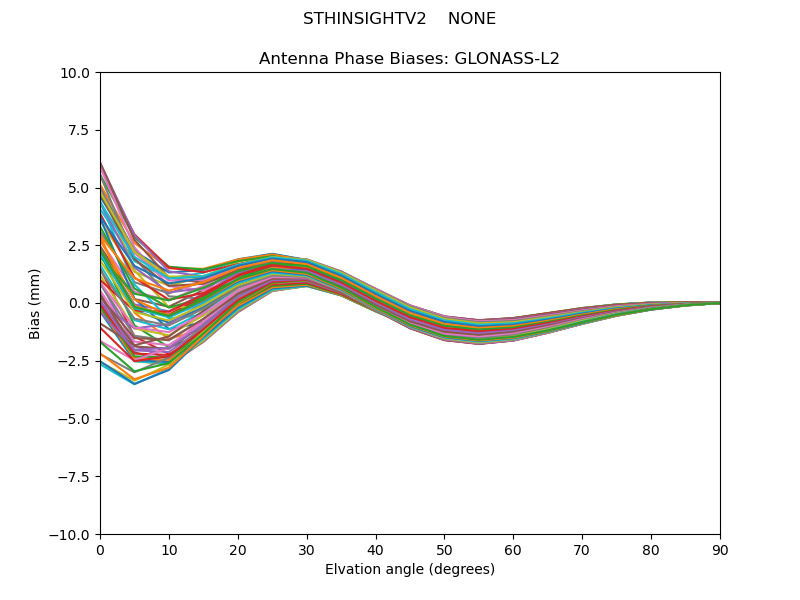

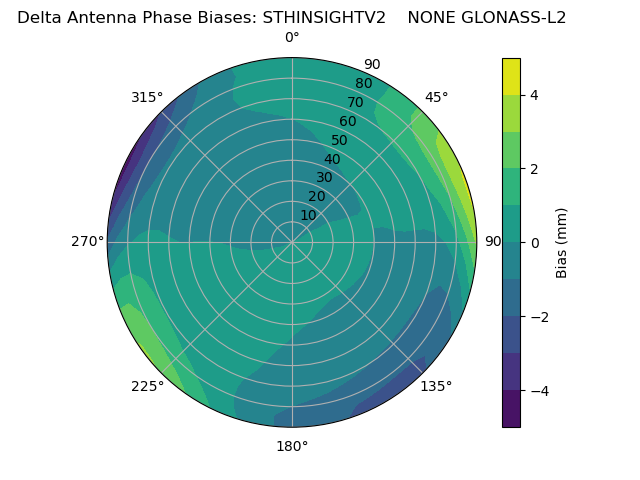

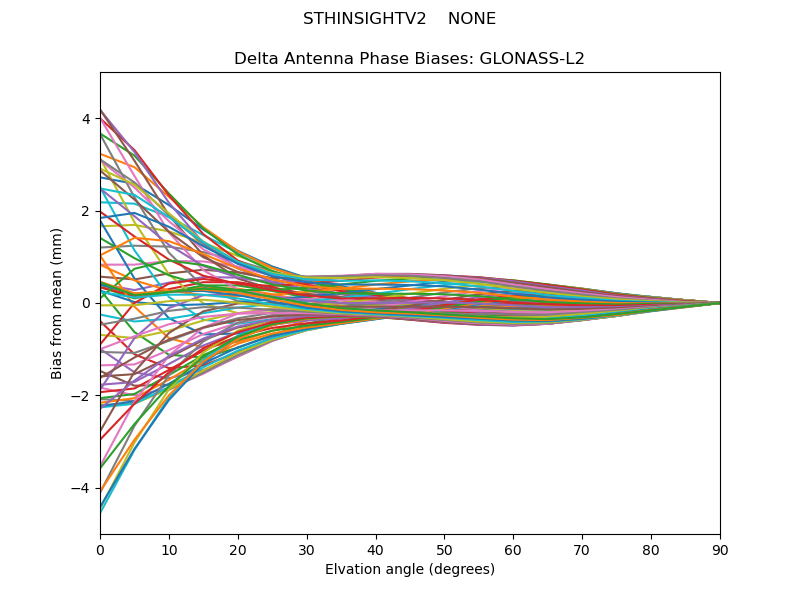

GLONASS-L2

GALILEO

Bias	Delta

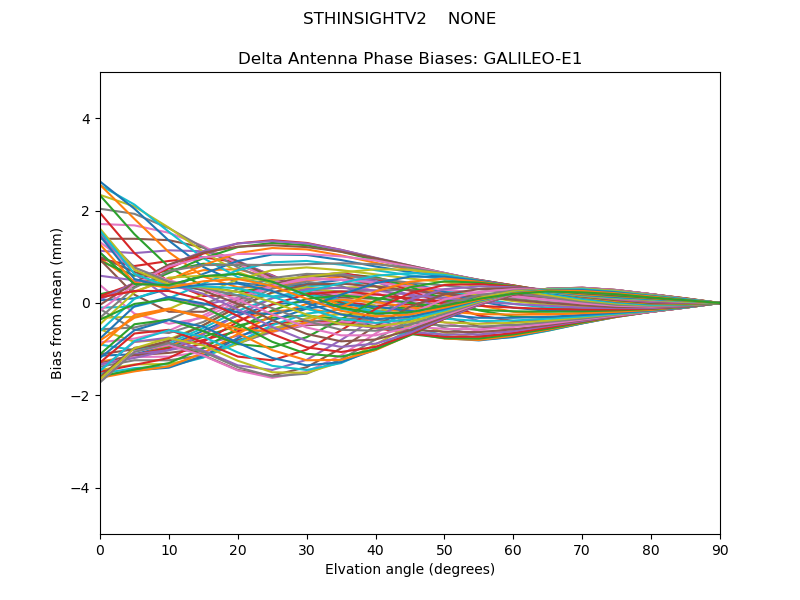

GALILEO-E1

BeiDOU

Bias	Delta

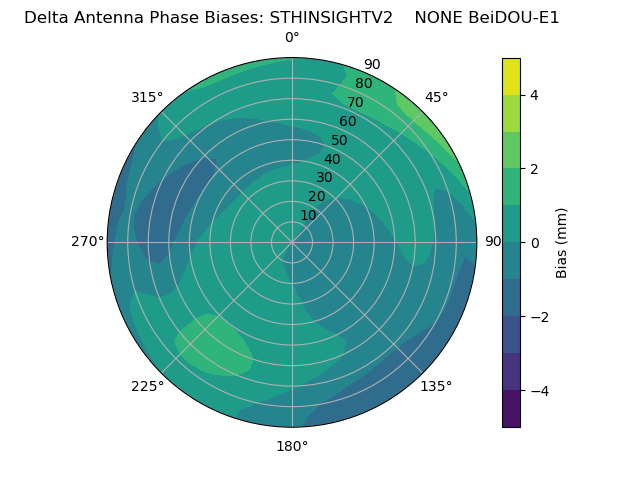

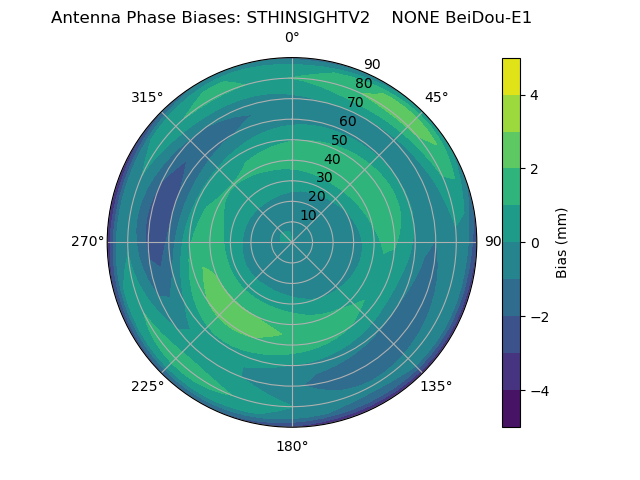

BeiDOU-E1

QZSS

Bias	Delta

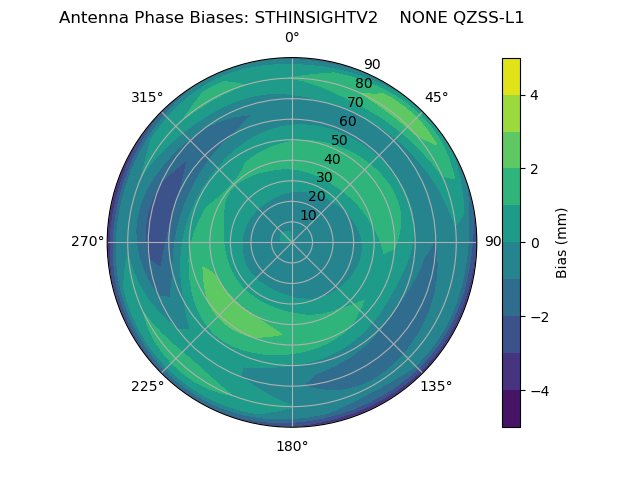

QZSS-L1

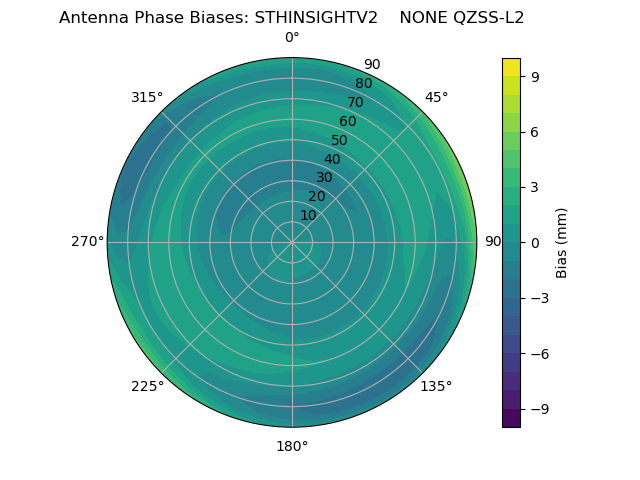

QZSS-L2

SBAS

Bias	Delta

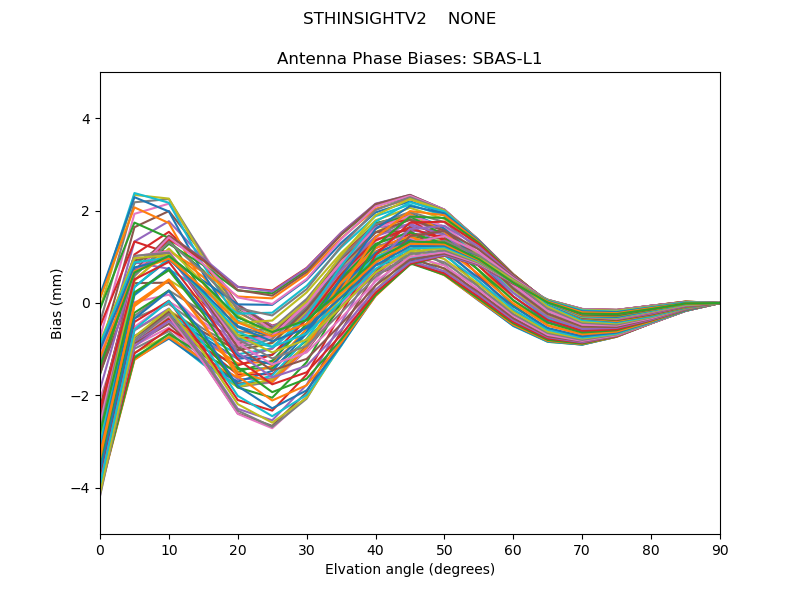

SBAS-L1
