Antenna information for TPSCR.G5C NONE

Antenna Offsets
SV System Bands

GPS

L1: N: 0.39 E: 0.48 U: 93.25
L2: N: 0.17 E: 0.15 U: 117.69
L5: N: 0.09 E: -0.08 U: 122.04

GLONASS

L1: N: -0.04 E: 0.83 U: 93.28
L2: N: 0.25 E: 0.05 U: 115.51

GALILEO

E1: N: 0.39 E: 0.48 U: 93.25
E5a: N: 0.09 E: -0.08 U: 122.04

BeiDou

E1: N: 0.39 E: 0.48 U: 93.25

QZSS

L1: N: 0.39 E: 0.48 U: 93.25
L2: N: 0.17 E: 0.15 U: 117.69
L5: N: 0.09 E: -0.08 U: 122.04

IRNSS

L5: N: 0.09 E: -0.08 U: 122.04

SBAS

L1: N: 0.39 E: 0.48 U: 93.25
L5: N: 0.09 E: -0.08 U: 122.04

L1

GPS: N: 0.39 E: 0.48 U: 93.25
GLONASS: N: -0.04 E: 0.83 U: 93.28
QZSS: N: 0.39 E: 0.48 U: 93.25
SBAS: N: 0.39 E: 0.48 U: 93.25

L2

GPS: N: 0.17 E: 0.15 U: 117.69
GLONASS: N: 0.25 E: 0.05 U: 115.51
QZSS: N: 0.17 E: 0.15 U: 117.69

L5

GPS: N: 0.09 E: -0.08 U: 122.04
QZSS: N: 0.09 E: -0.08 U: 122.04
SBAS: N: 0.09 E: -0.08 U: 122.04
IRNSS: N: 0.09 E: -0.08 U: 122.04

E1

GALILEO: N: 0.39 E: 0.48 U: 93.25
BeiDou: N: 0.39 E: 0.48 U: 93.25

E5a

GALILEO: N: 0.09 E: -0.08 U: 122.04


Means

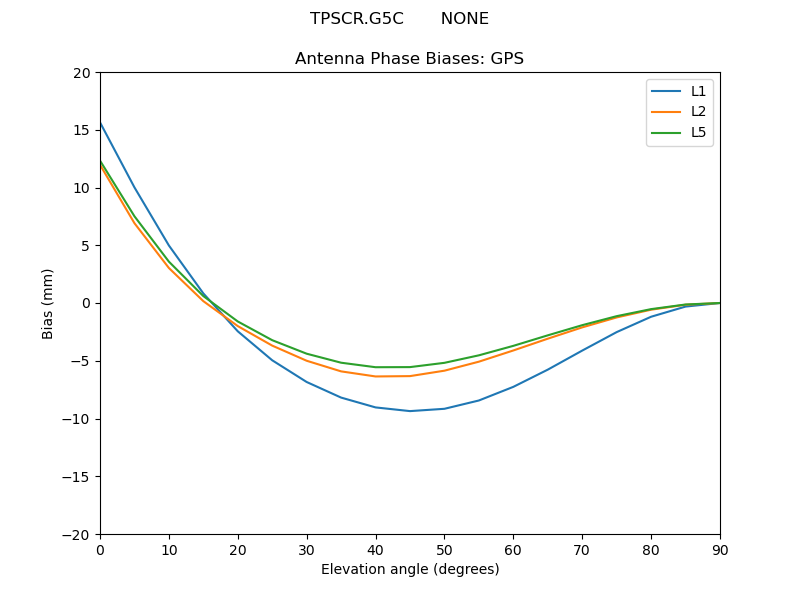

GPS

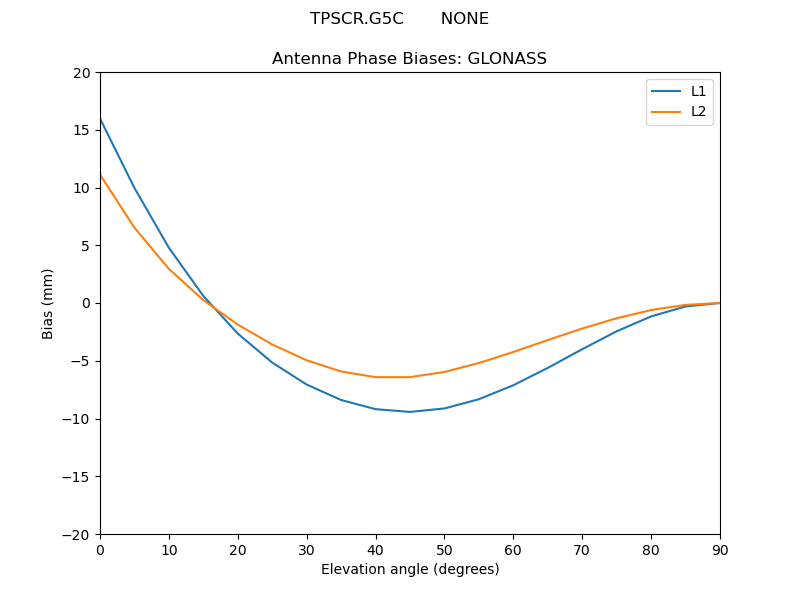

GLONASS

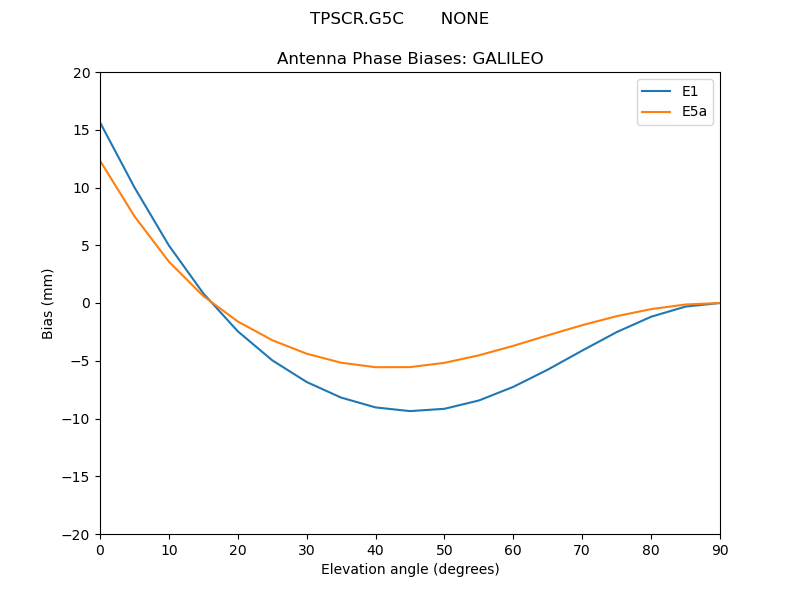

GALILEO

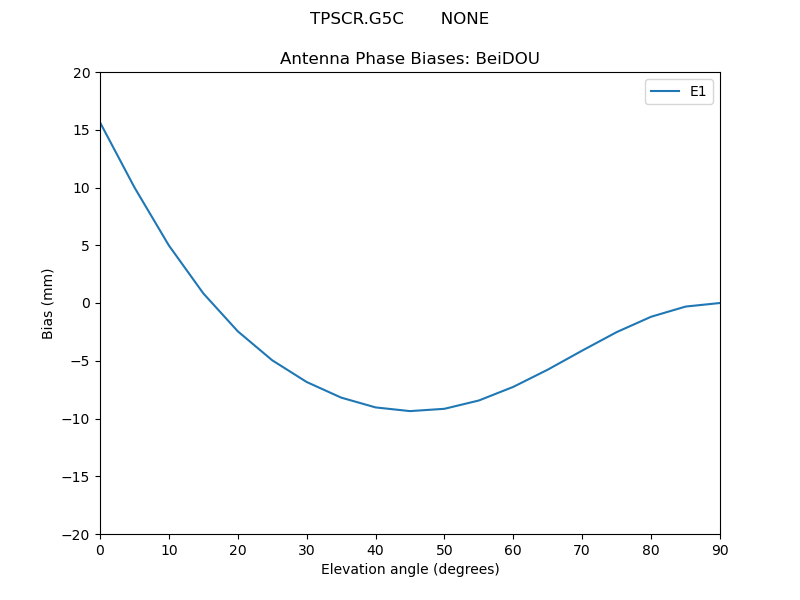

BeiDOU

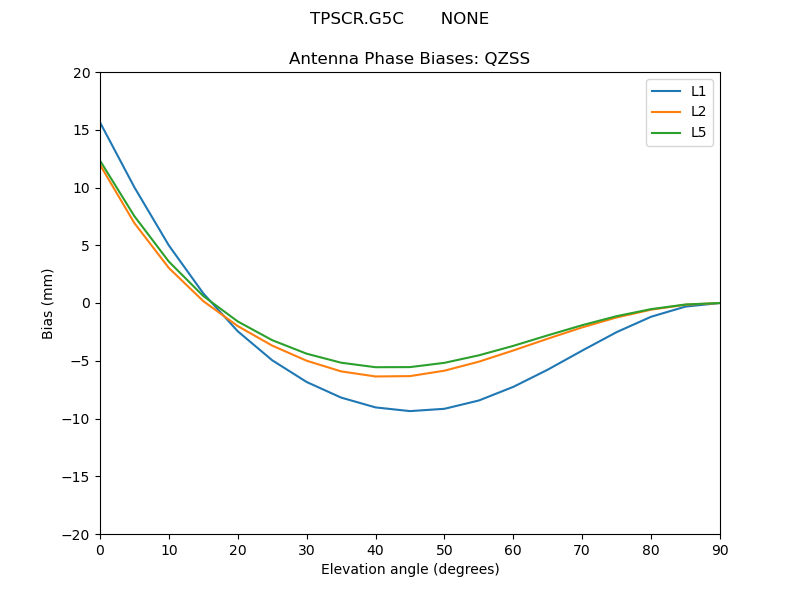

QZSS

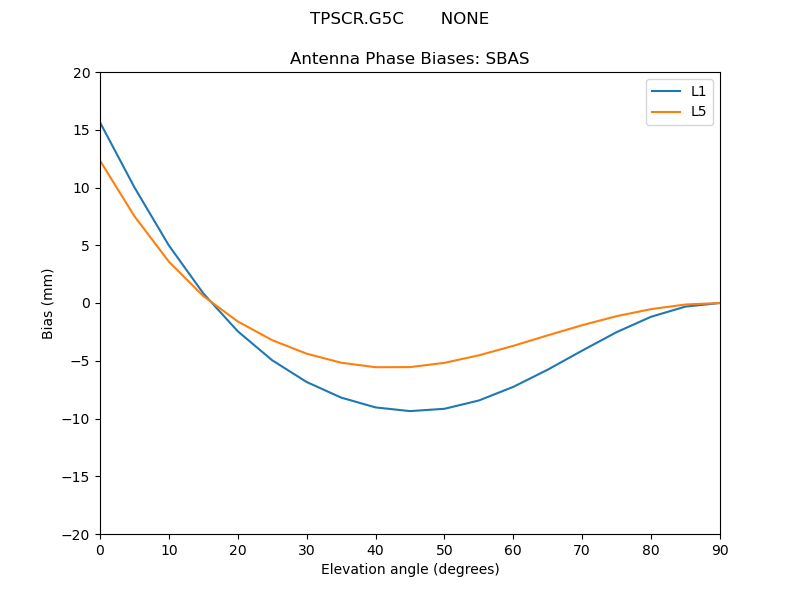

SBAS

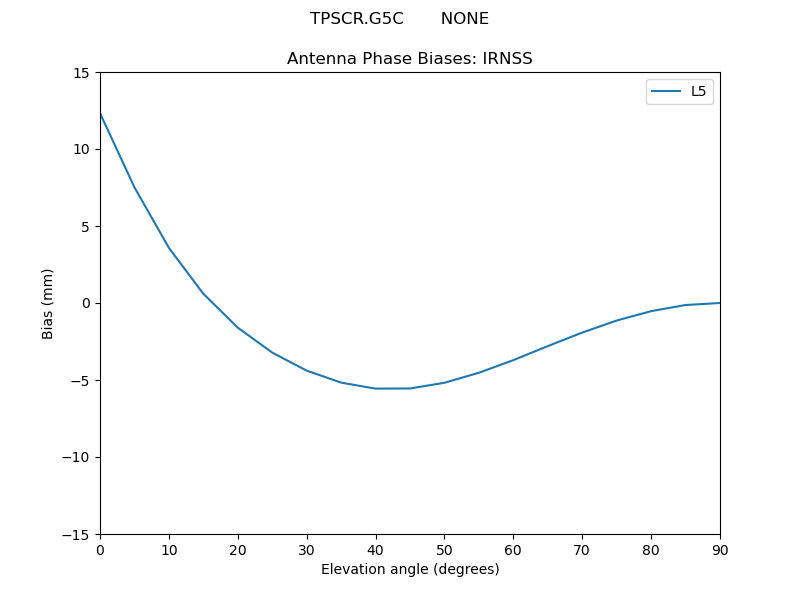

IRNSS


Azimuths

GPS


Bias Delta

GPS-L1

GPS-L1GPS-L1
Radial GPS-L1Radial GPS-L1

GPS-L2

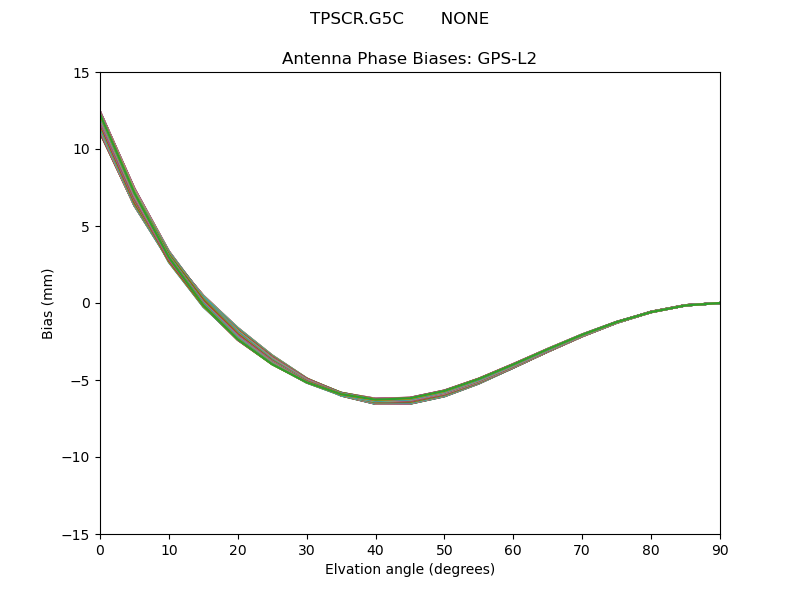

GPS-L2GPS-L2

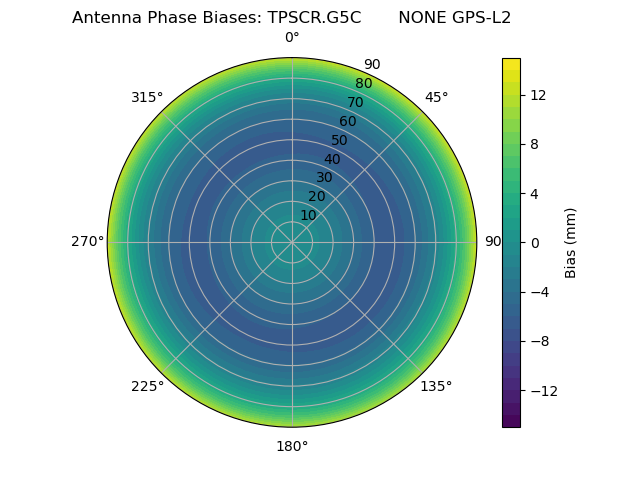

Radial GPS-L2Radial GPS-L2

GPS-L5

GPS-L5GPS-L5

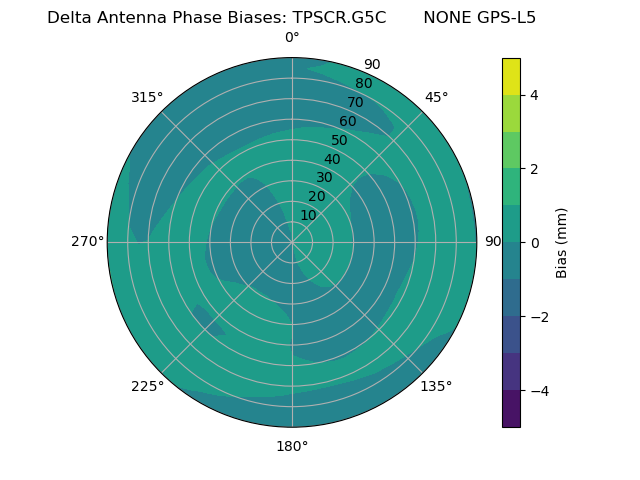

Radial GPS-L5Radial GPS-L5

GLONASS


Bias Delta

GLONASS-L1

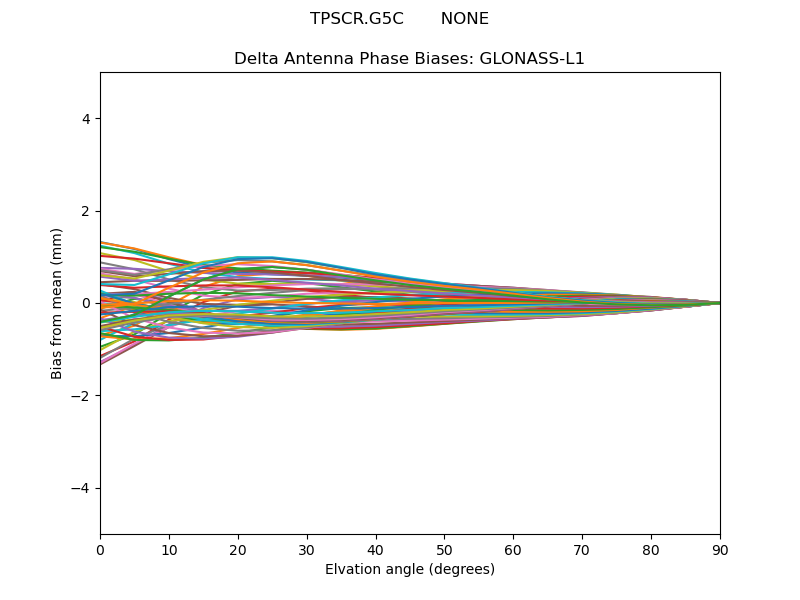

GLONASS-L1GLONASS-L1

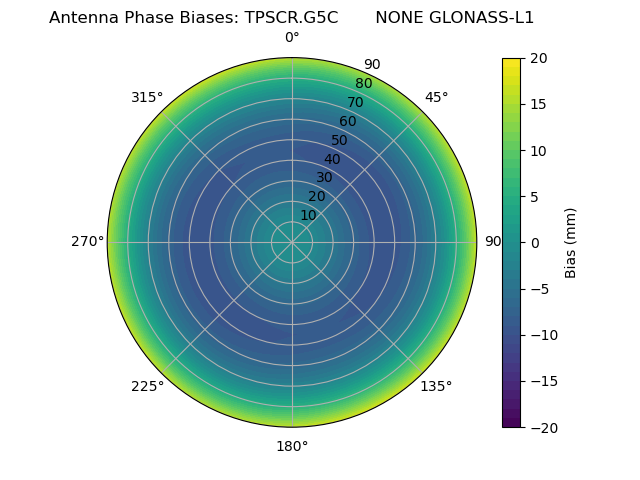

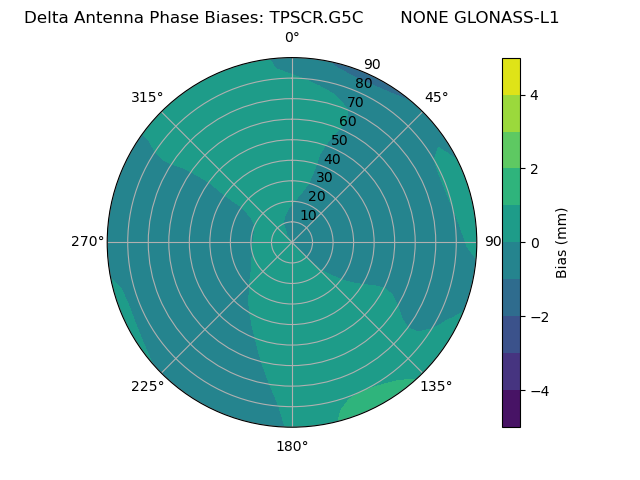

Radial GLONASS-L1Radial GLONASS-L1

GLONASS-L2

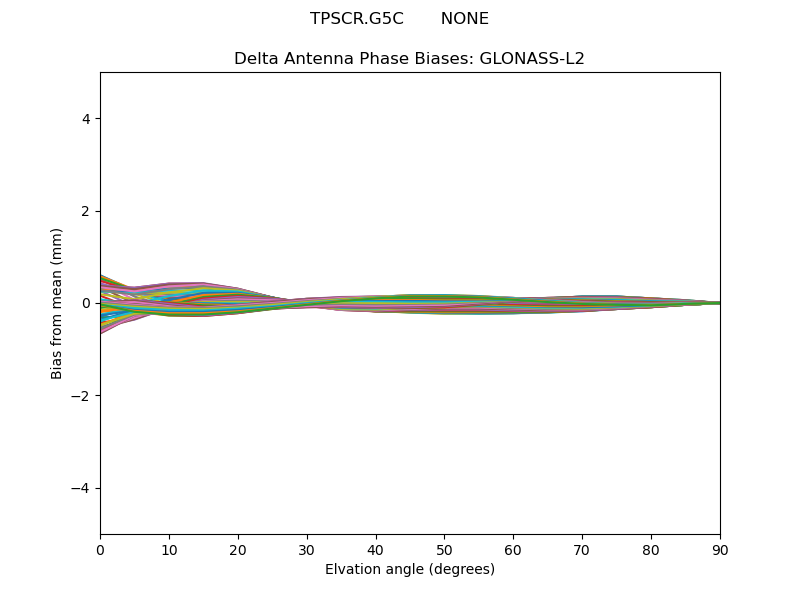

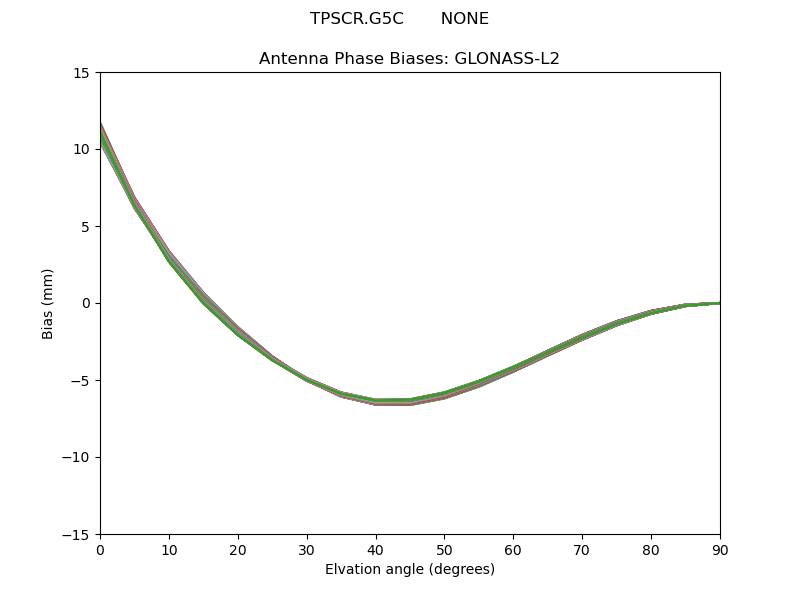

GLONASS-L2GLONASS-L2

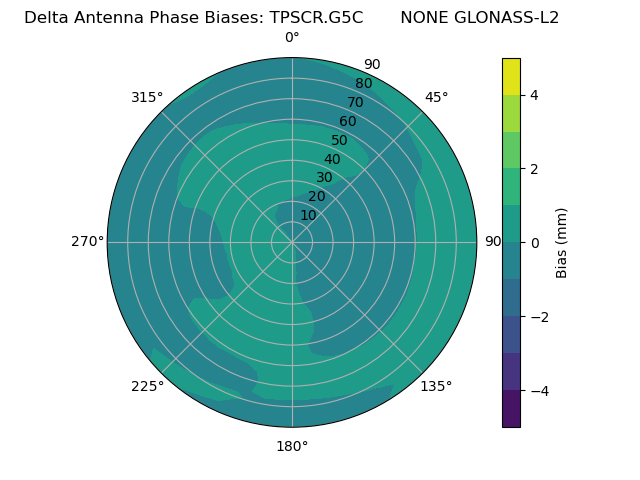

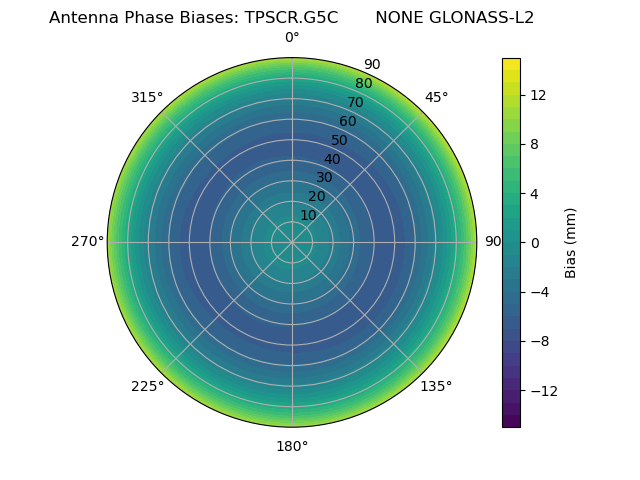

Radial GLONASS-L2Radial GLONASS-L2

GALILEO


Bias Delta

GALILEO-E1

GALILEO-E1GALILEO-E1

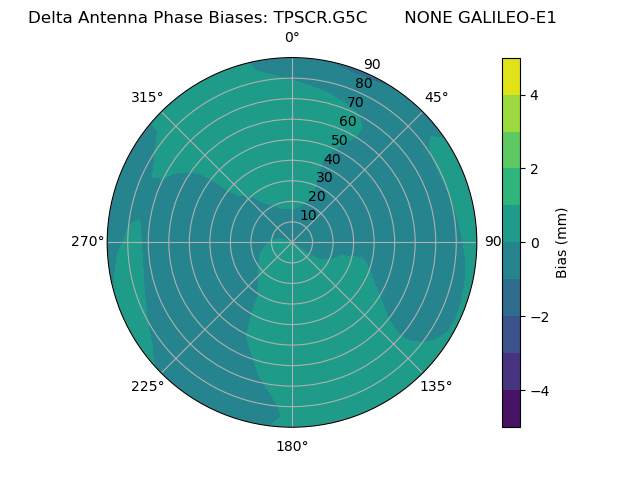

Radial GALILEO-E1Radial GALILEO-E1

GALILEO-E5a

GALILEO-E5aGALILEO-E5a

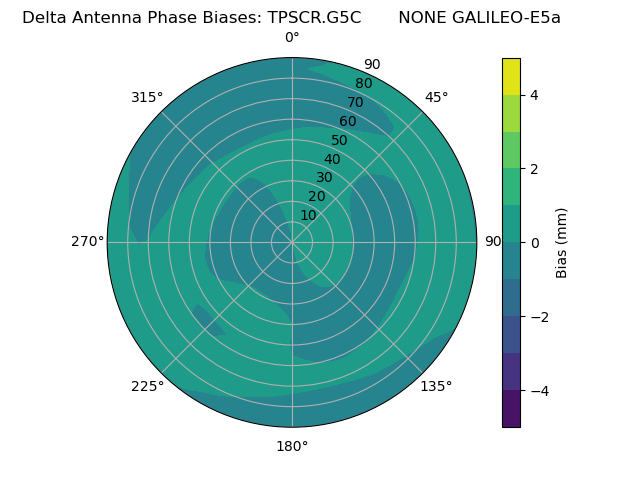

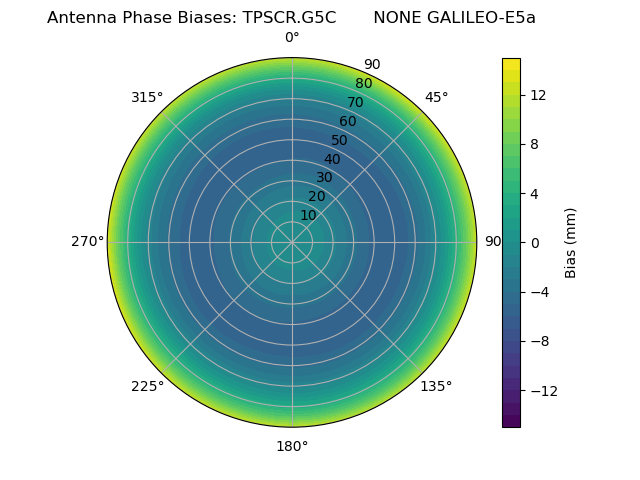

Radial GALILEO-E5aRadial GALILEO-E5a

BeiDOU


Bias Delta

BeiDOU-E1

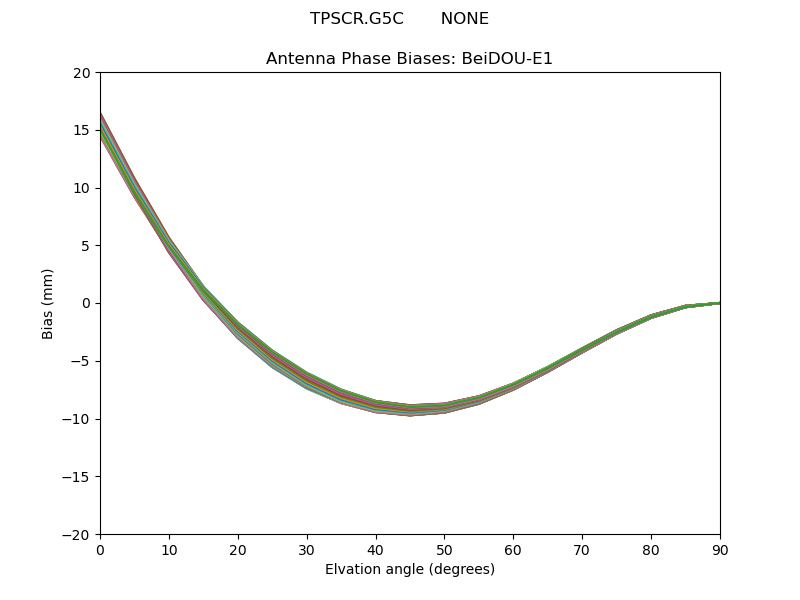

BeiDOU-E1BeiDOU-E1

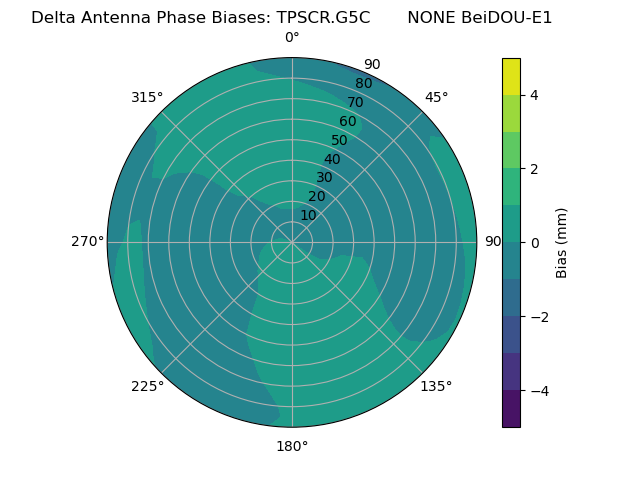

Radial BeiDOU-E1Radial BeiDOU-E1

QZSS


Bias Delta

QZSS-L1

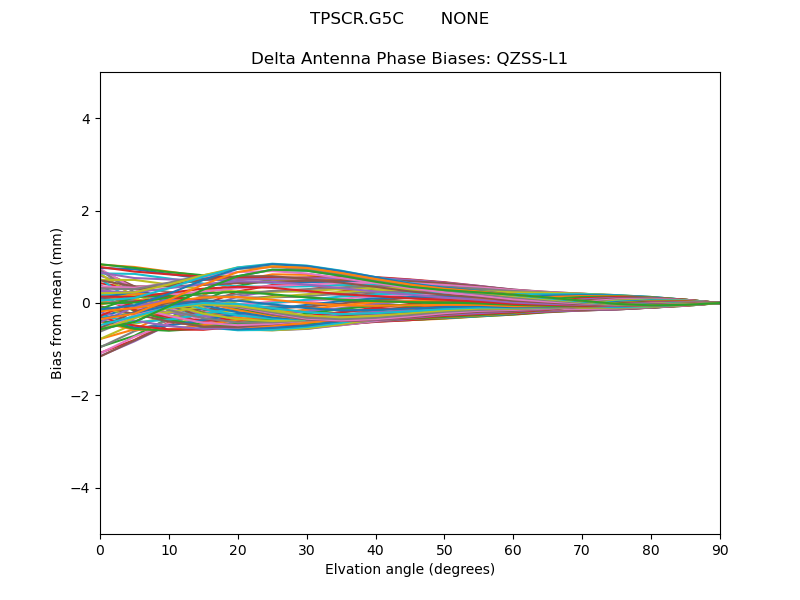

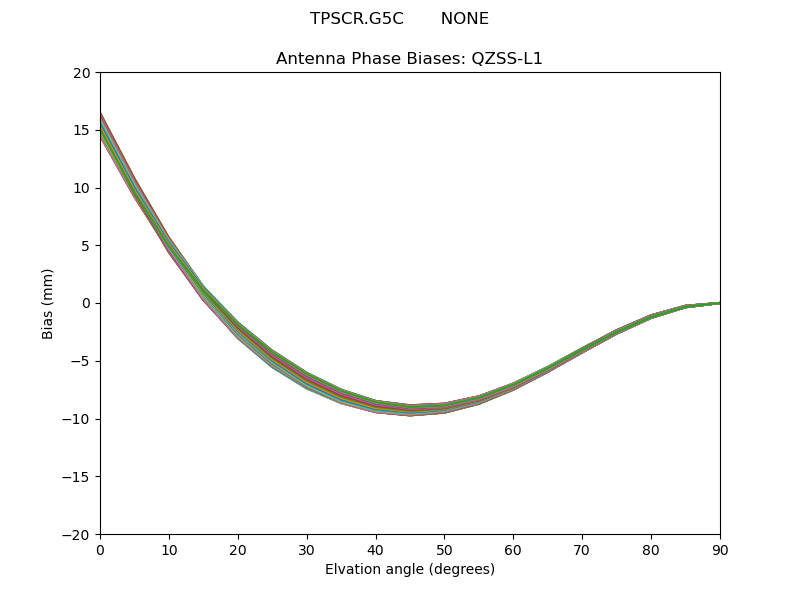

QZSS-L1QZSS-L1

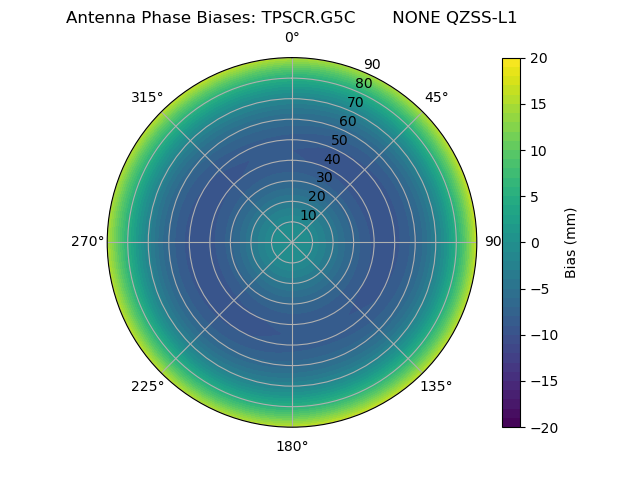

Radial QZSS-L1Radial QZSS-L1

QZSS-L2

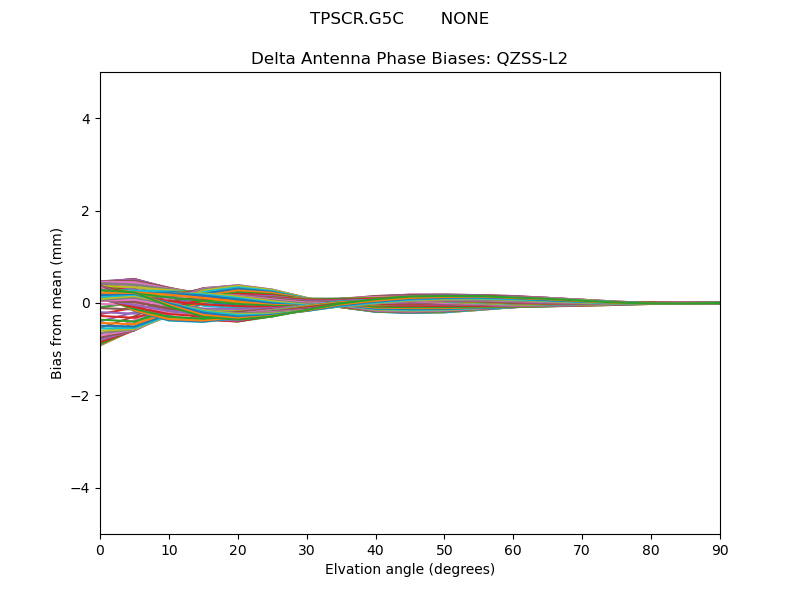

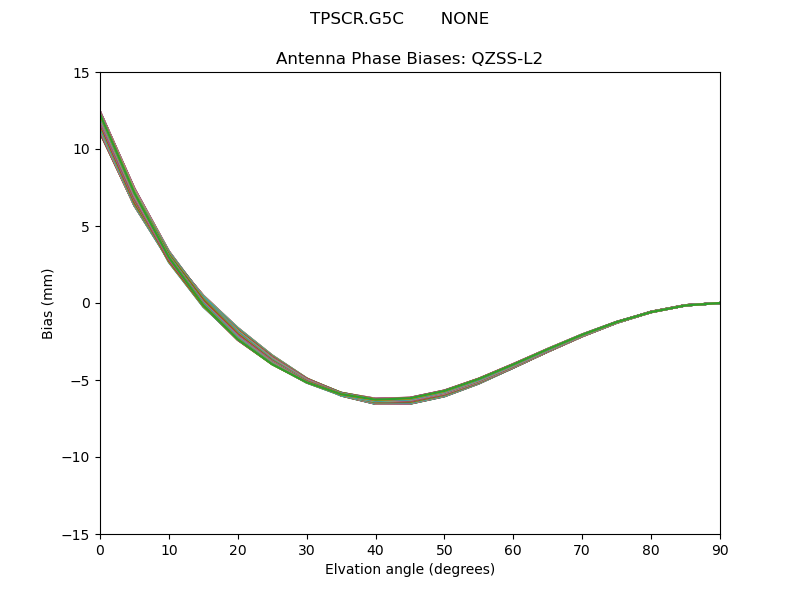

QZSS-L2QZSS-L2

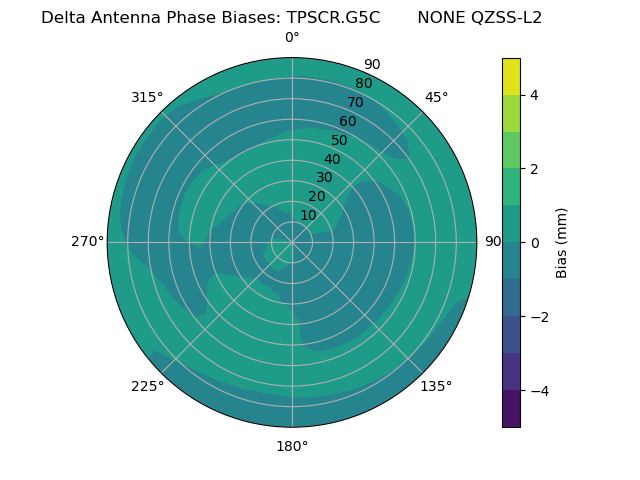

Radial QZSS-L2Radial QZSS-L2

QZSS-L5

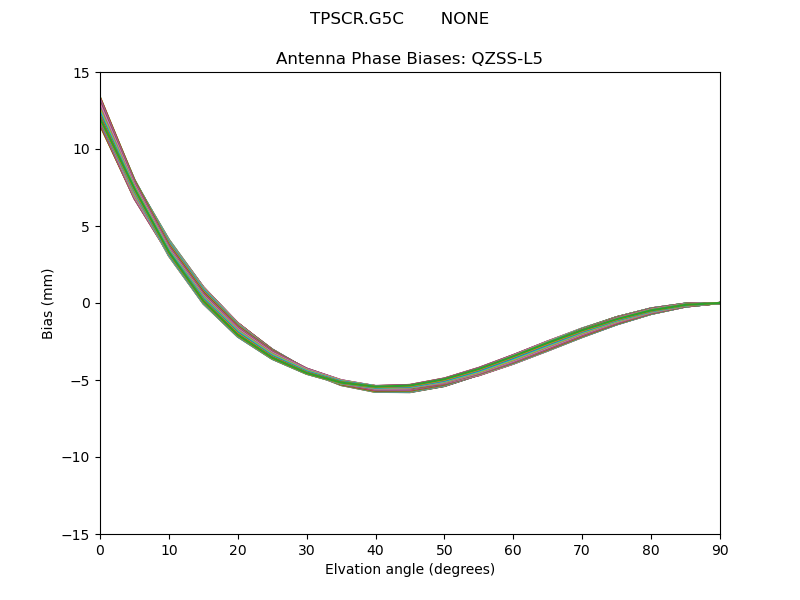

QZSS-L5QZSS-L5
Radial QZSS-L5Radial QZSS-L5

SBAS


Bias Delta

SBAS-L1

SBAS-L1SBAS-L1
Radial SBAS-L1Radial SBAS-L1

SBAS-L5

SBAS-L5SBAS-L5

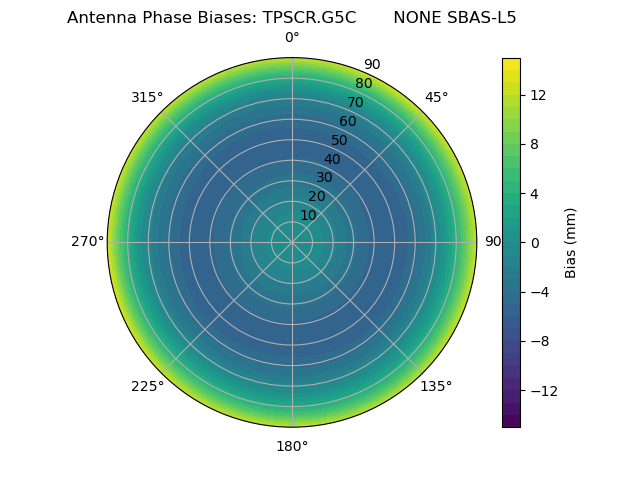

Radial SBAS-L5Radial SBAS-L5

IRNSS


Bias Delta

IRNSS-L5

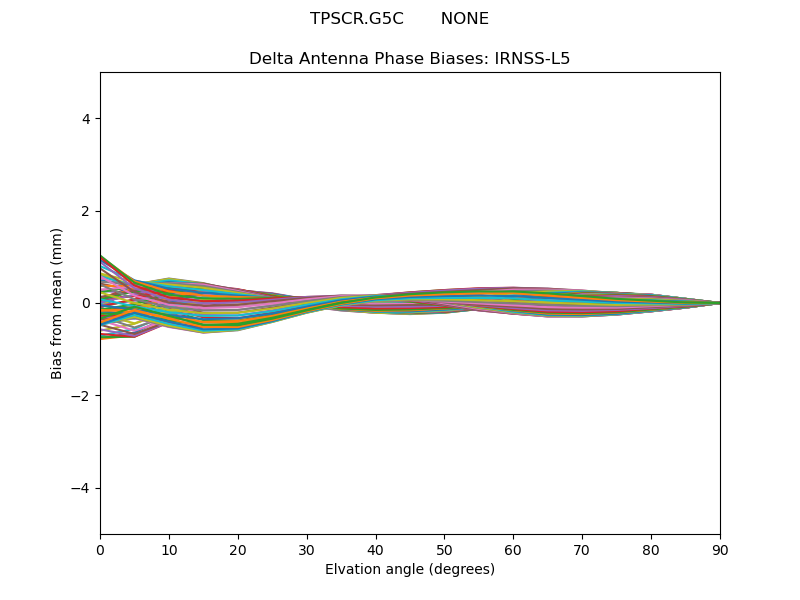

IRNSS-L5IRNSS-L5
Radial IRNSS-L5Radial IRNSS-L5
